Version 5 Tree Atlas


Abies balsamea

balsam fir

noelev

Abies balsamea Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Abies balsamea

USDA Plants Database entry for Abies balsamea
Silvics Manual entry for Abies balsamea


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Abies balsamea var. phanerolepis764732110NTSC, Obs (Potter)7789TBD

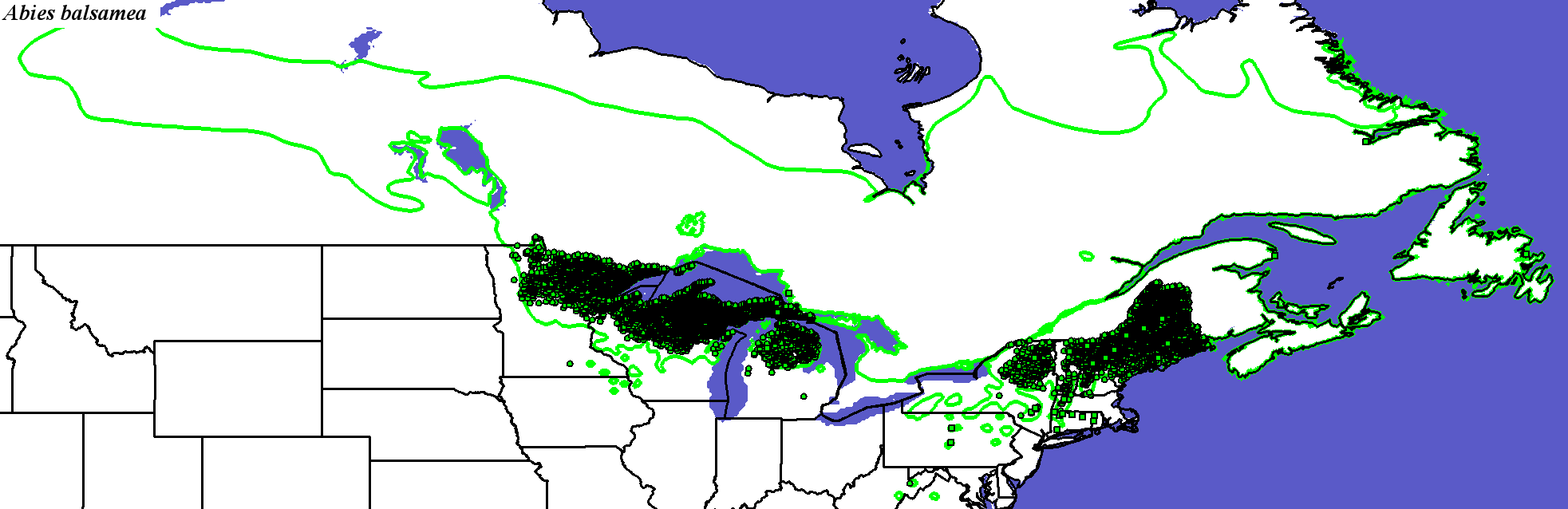

Occurrence Locations and Hargrove's Present Suitable Range Outline
Abies_balsamea_final Occurrences

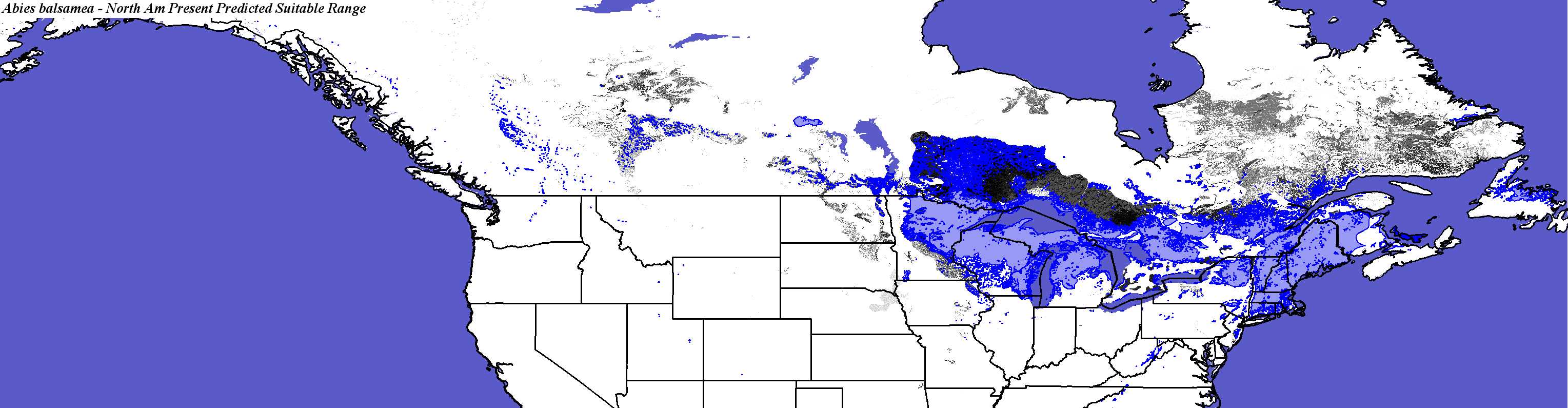

Hargroves Present Suitable Range Outline for Abies_balsamea_final
Abies balsamea - Occurrence Locations Abies balsamea - Hargrove's Present Suitable Range Outline
Present Conditions
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

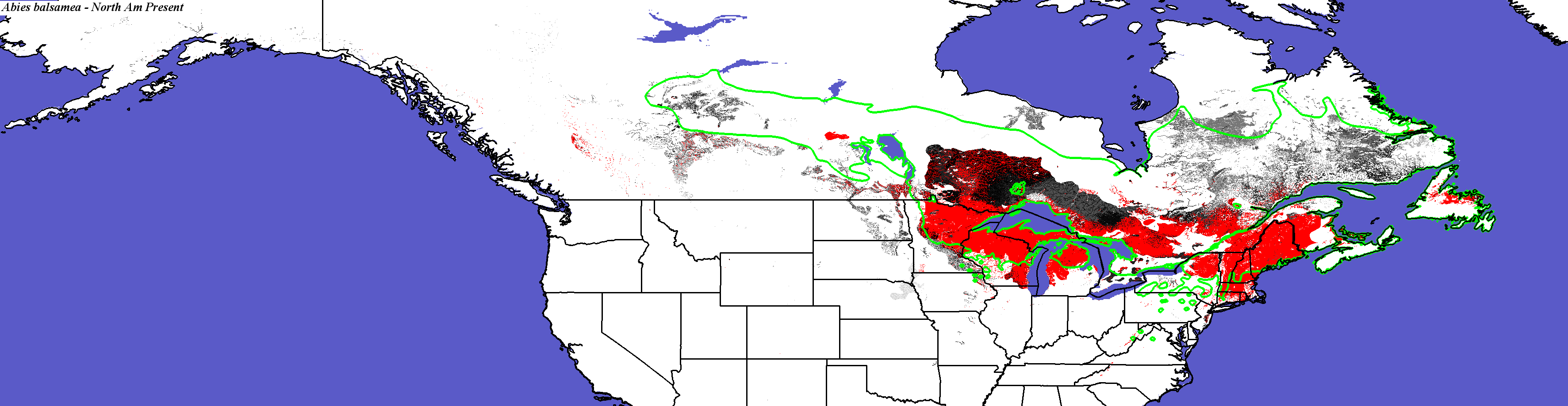

Abies balsamea - CONUS
Compare with Current Range from the Silvics Manual for Abies balsamea
Compare with Current Range from Biota of North America Program (BONAP) for Abies balsamea

Compare with Abies balsamea modeled for Current conditions by Iverson and Prasad
Abies balsamea not modeled by Crookston and Rehfeldt
Abies balsamea not modeled by Coops and Waring

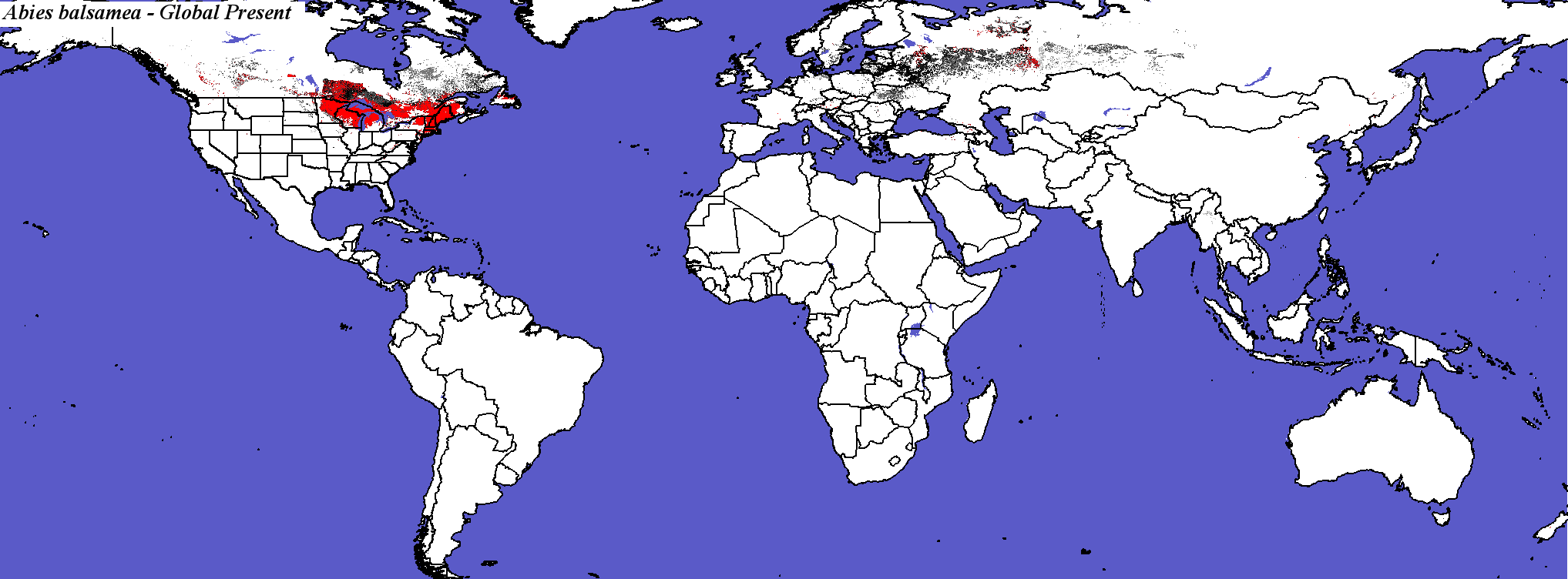

Abies balsamea - Global

PCM - Parallel Climate Model
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

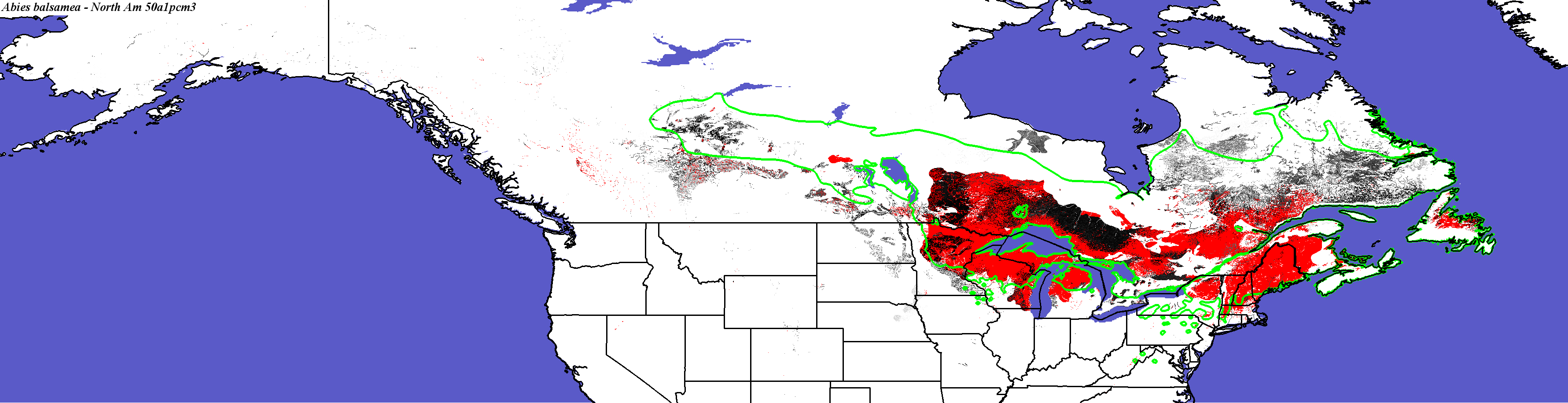

PCM, Scenario A1FI, 2050 - Abies balsamea - CONUS

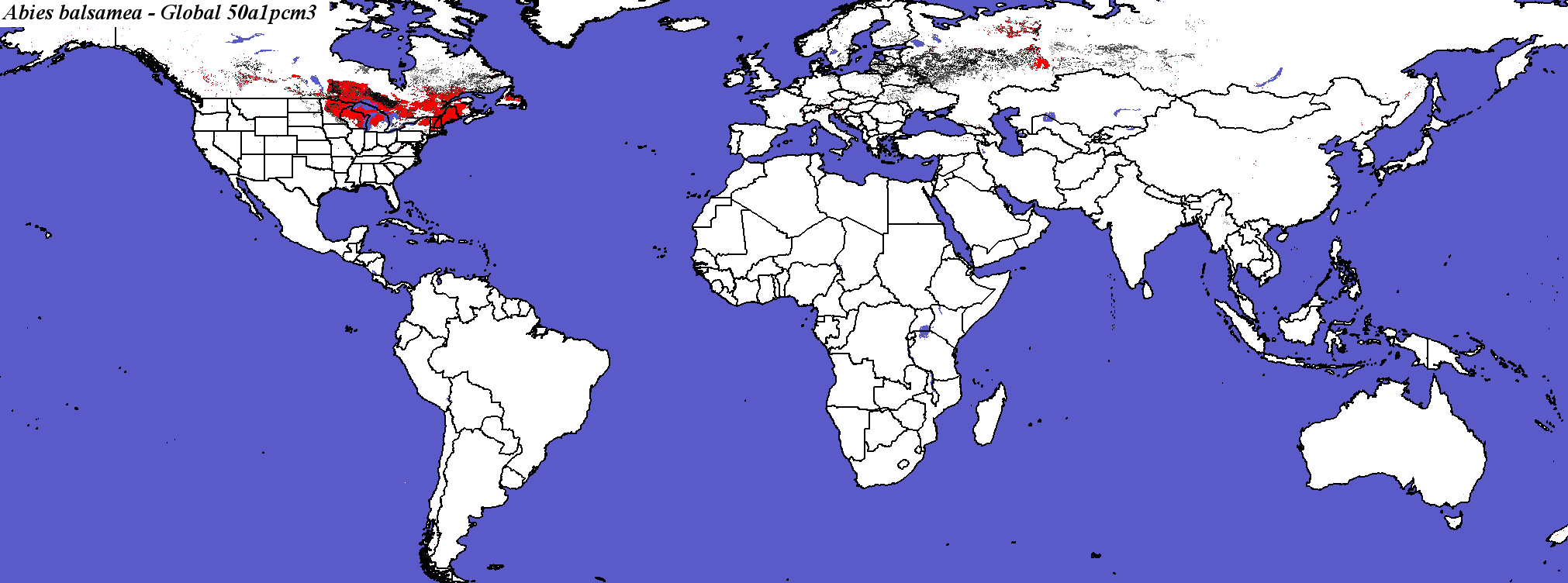

PCM, Scenario A1FI, 2050 - Abies balsamea - Global
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

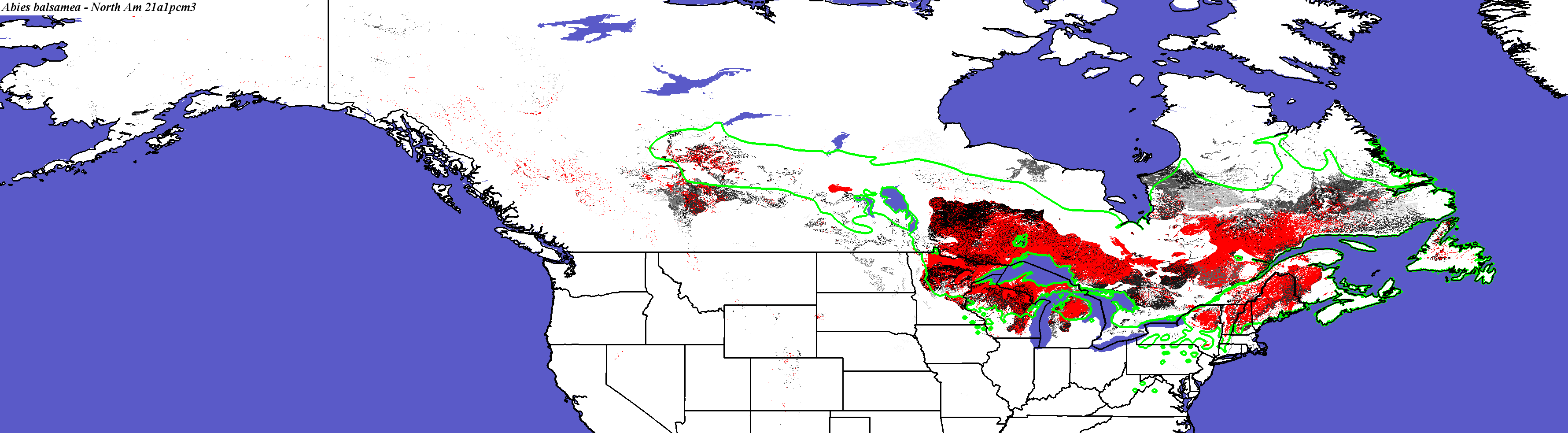

PCM, Scenario A1FI, 2100 - Abies balsamea - CONUS
Compare with Abies balsamea modeled for PCM A1FI in 2100 by Iverson and Prasad

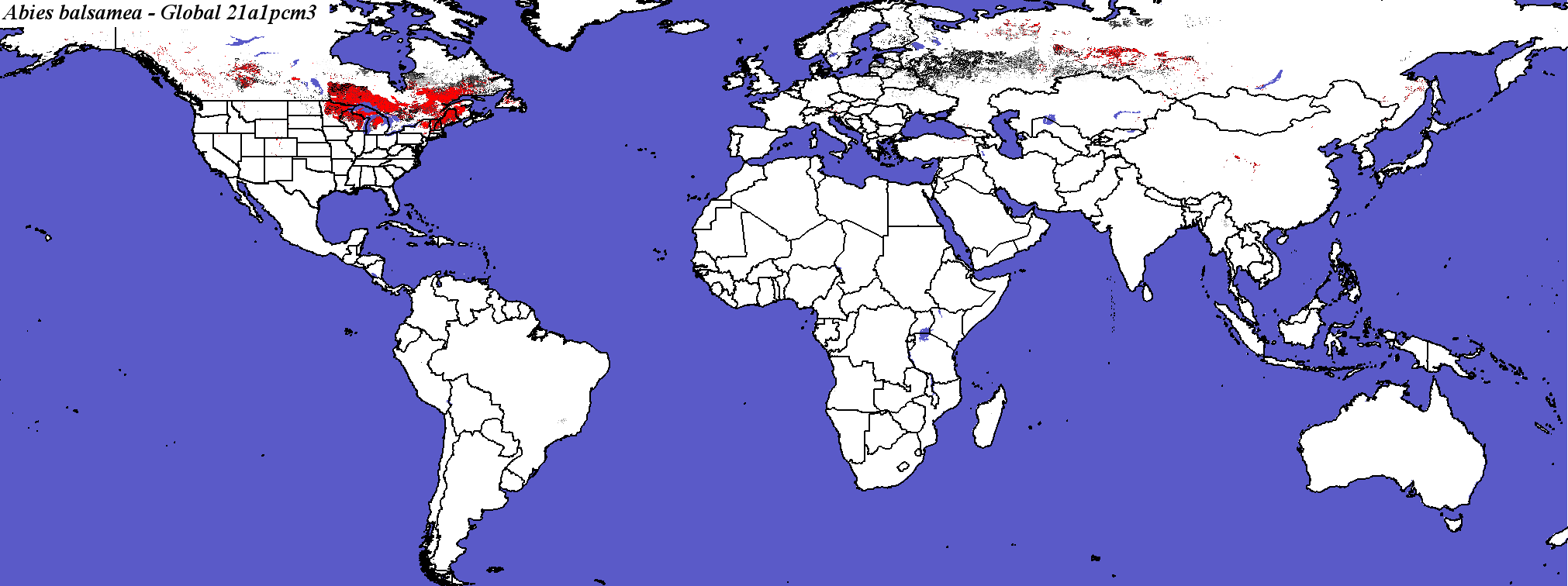

PCM, Scenario A1FI, 2100 - Abies balsamea - Global

Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

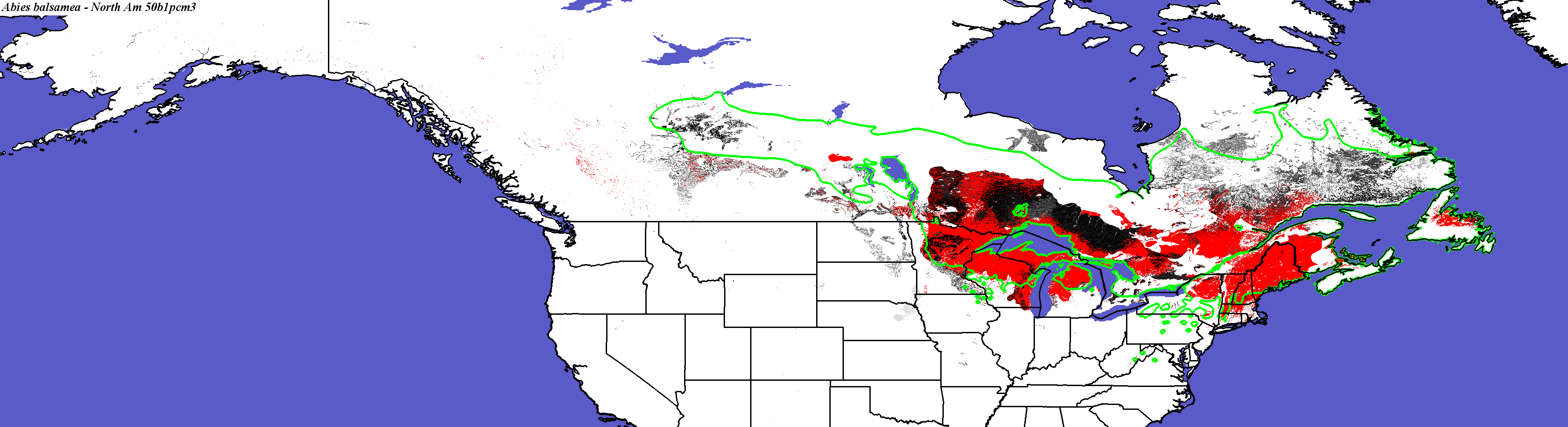

PCM, Scenario B1, 2050 - Abies balsamea - CONUS
PCM, Scenario B1, 2050 - Abies balsamea - Global
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

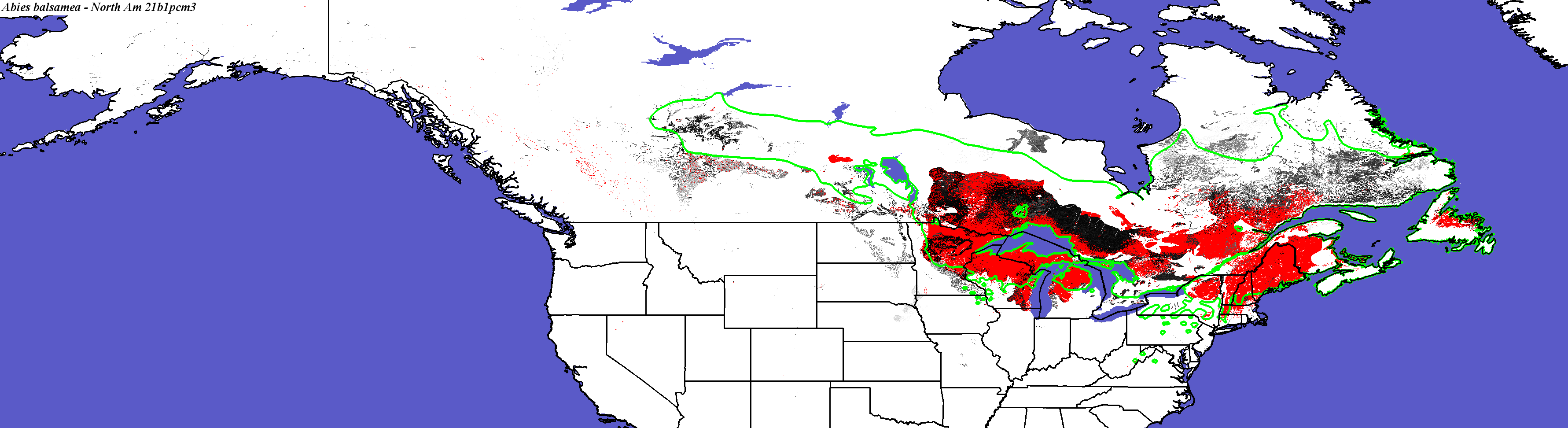

PCM, Scenario B1, 2100 - Abies balsamea - CONUS
Compare with Abies balsamea modeled for PCM B1 in 2100 by Iverson and Prasad

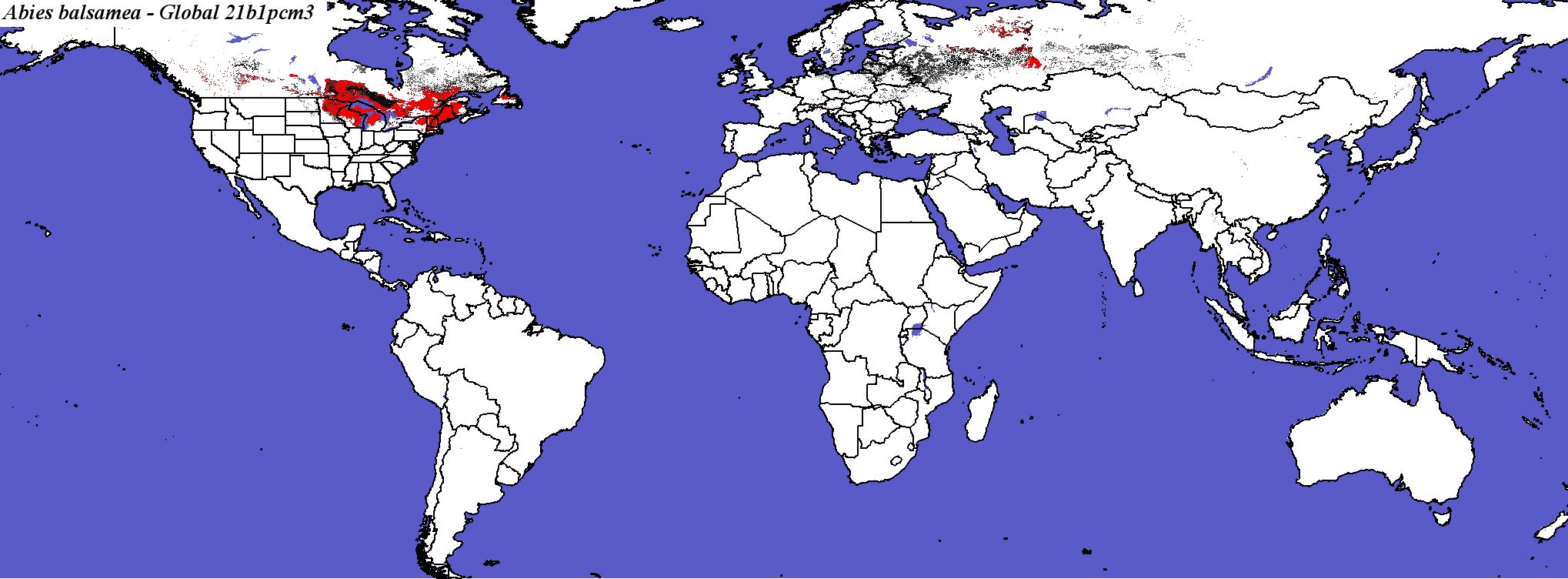

PCM, Scenario B1, 2100 - Abies balsamea - Global

Hadley Climate Model
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

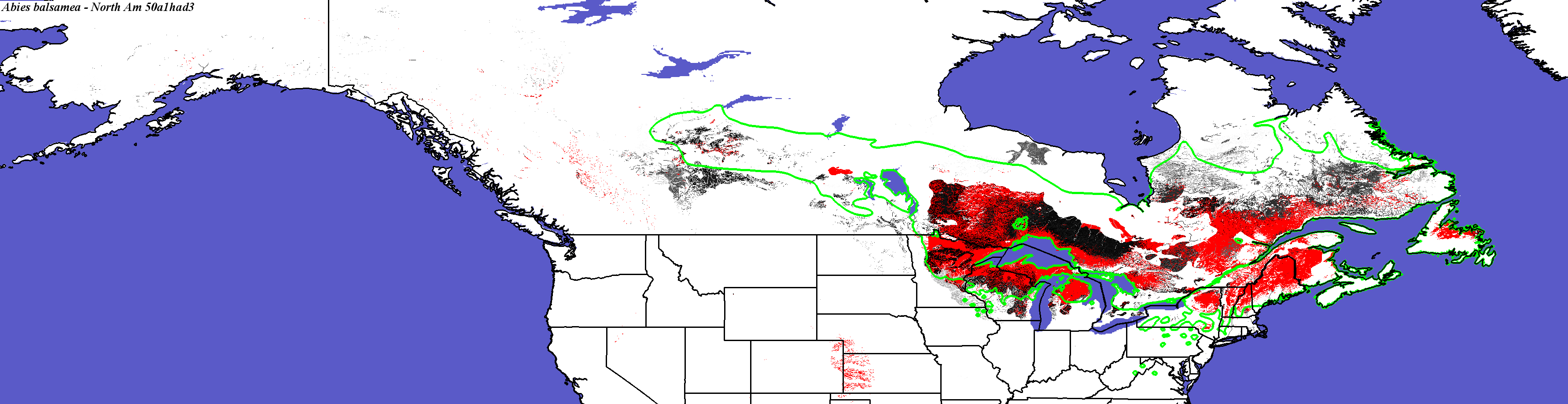

Hadley, Scenario A1FI, 2050 - Abies balsamea - CONUS
Abies balsamea not modeled by Crookston and Rehfeldt

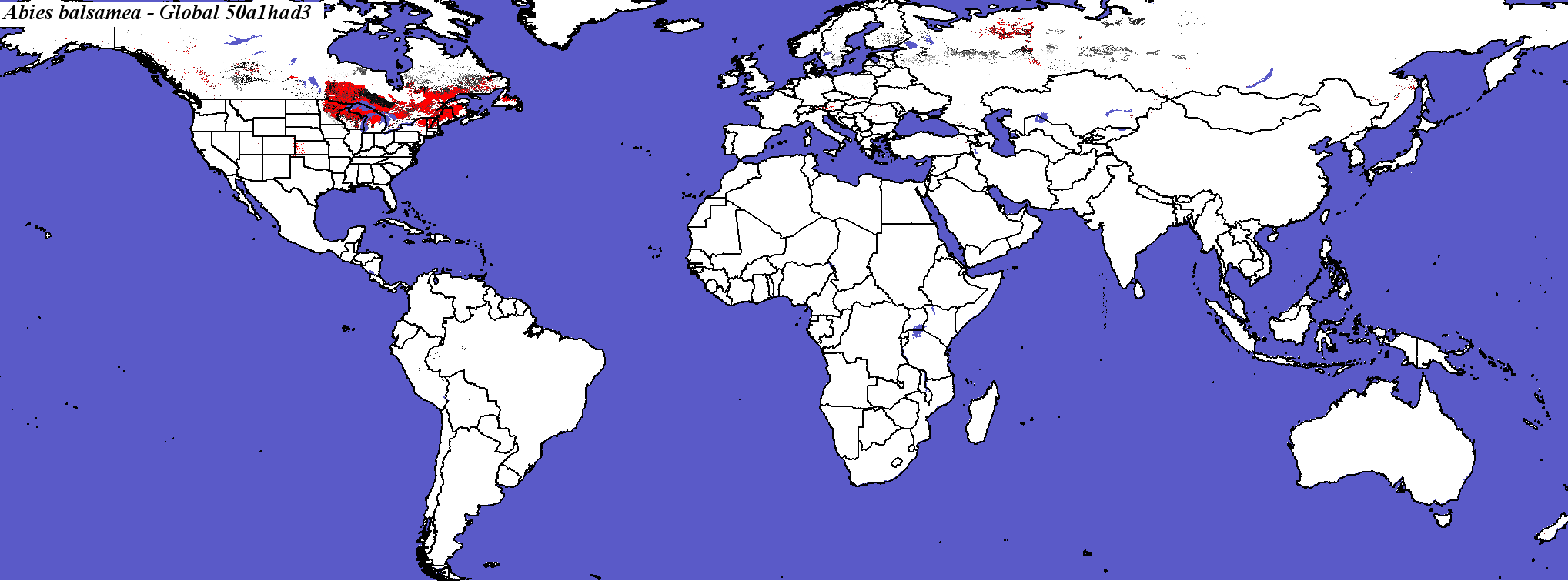

Hadley, Scenario A1FI, 2050 - Abies balsamea - Global
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global.
Hadley, Scenario A1FI, 2100 - Abies balsamea - CONUS
Compare with Abies balsamea modeled for Hadley A1FI in 2100 by Iverson and Prasad
Abies balsamea not modeled by Crookston and Rehfeldt
Abies balsamea not modeled by Coops and Waring

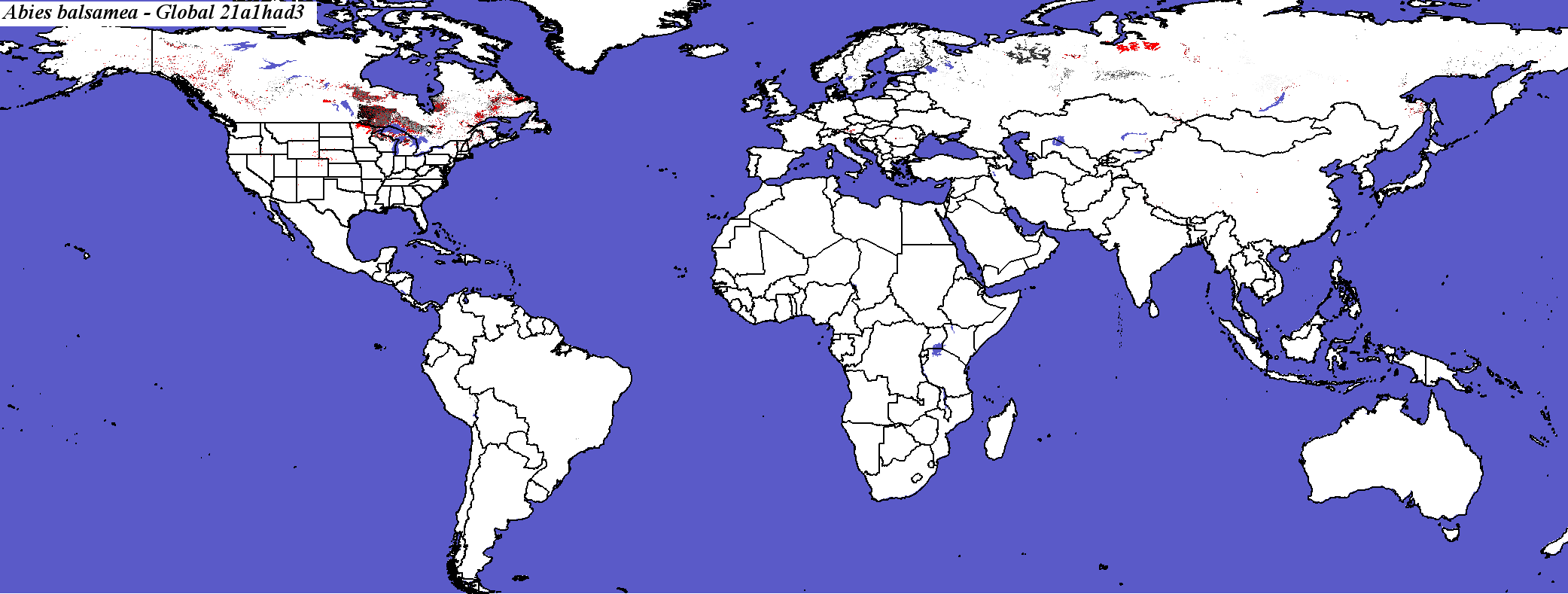

Hadley, Scenario A1FI, 2100 - Abies balsamea - Global

Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global.

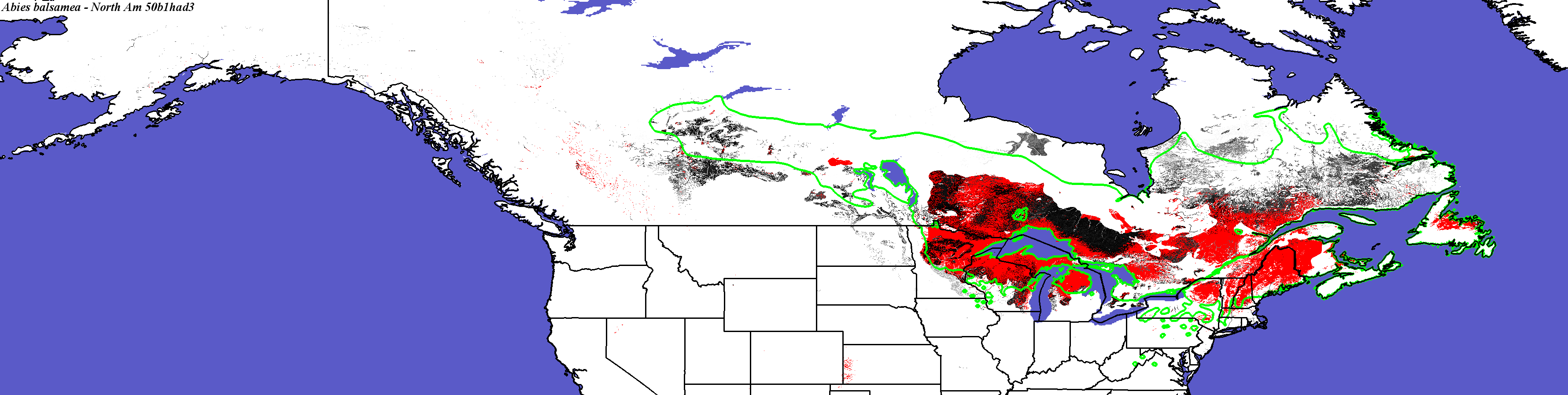

Hadley, Scenario B1, 2050 - Abies balsamea - CONUS
Abies balsamea not modeled by Crookston and Rehfeldt
Abies balsamea not modeled by Coops and Waring

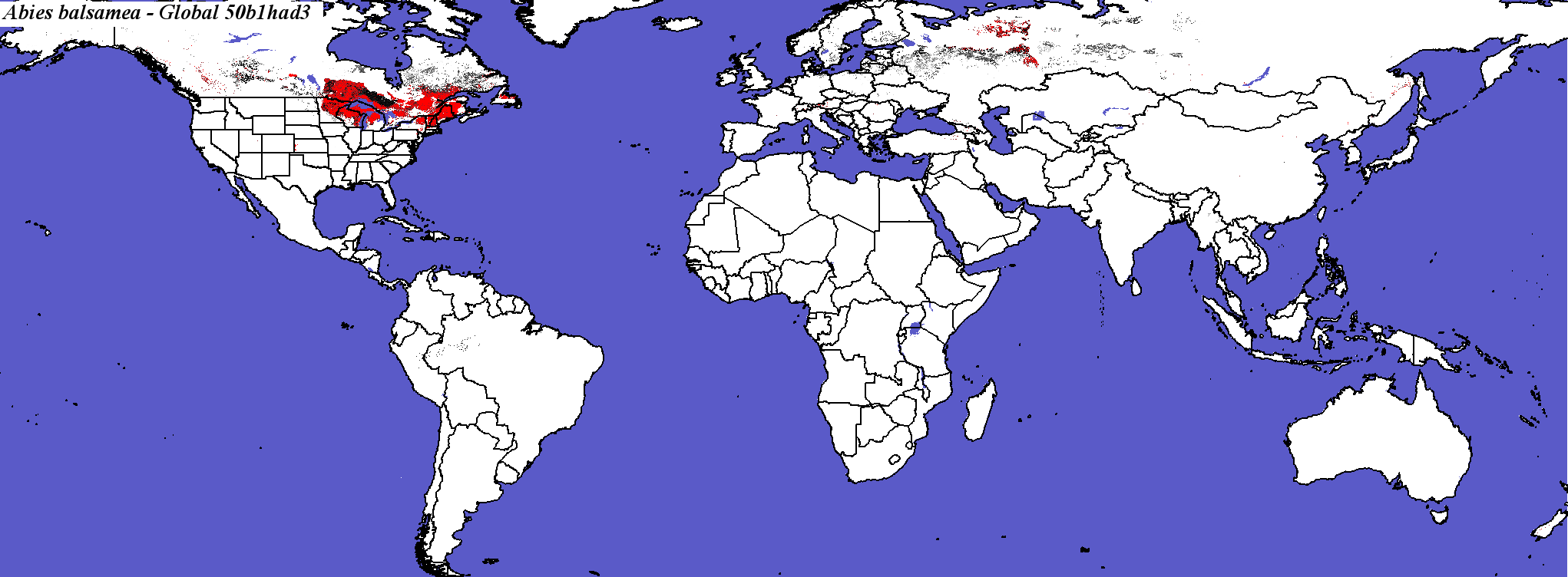

Hadley, Scenario B1, 2050 - Abies balsamea - Global
Abies_balsamea_final.4.conus
Abies_balsamea_final.4.global

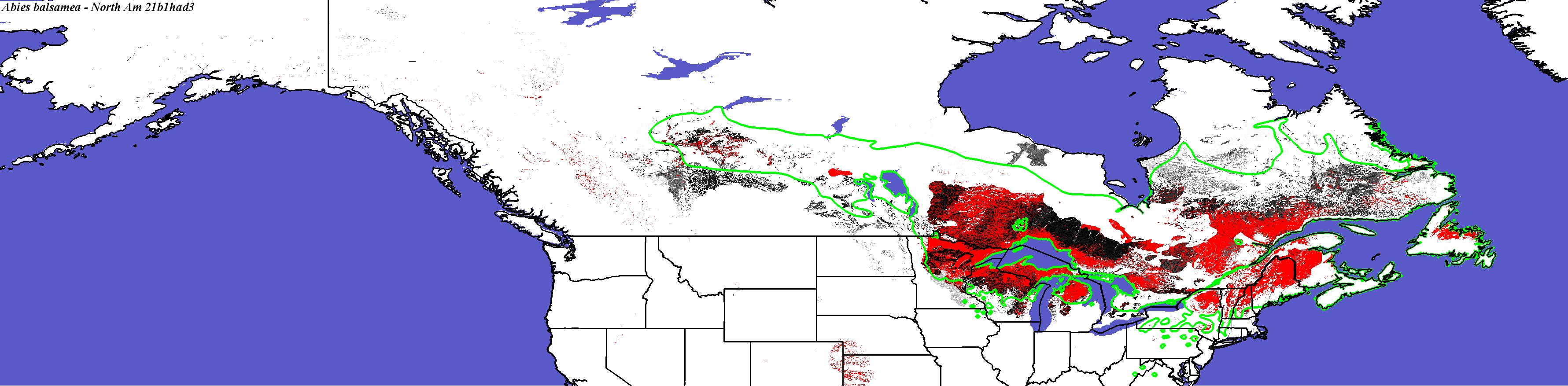

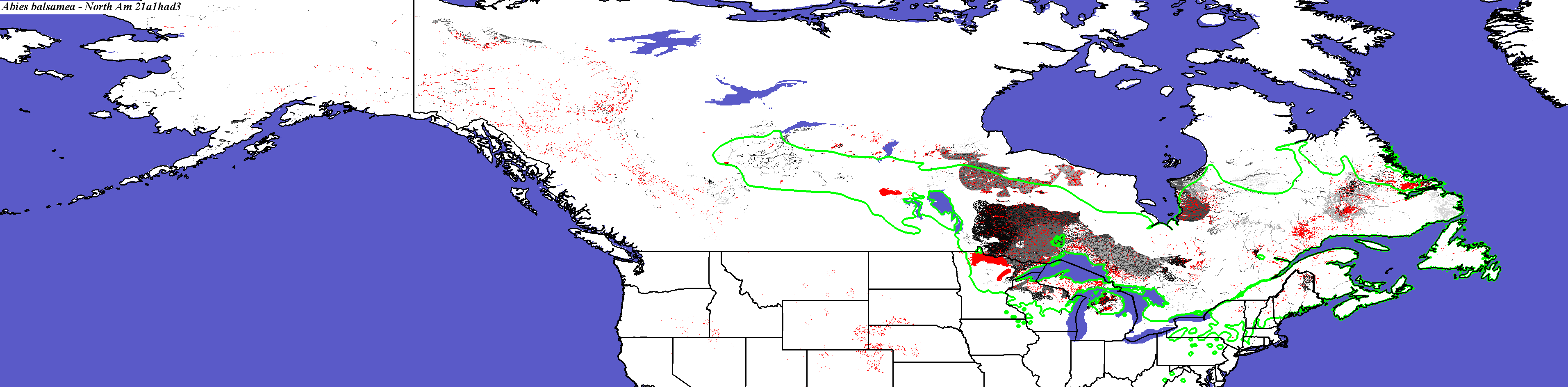

Hadley, Scenario B1, 2100 - Abies balsamea - CONUS
Compare with Abies balsamea modeled for Hadley B1 in 2100 by Iverson and Prasad
Abies balsamea not modeled by Crookston and Rehfeldt

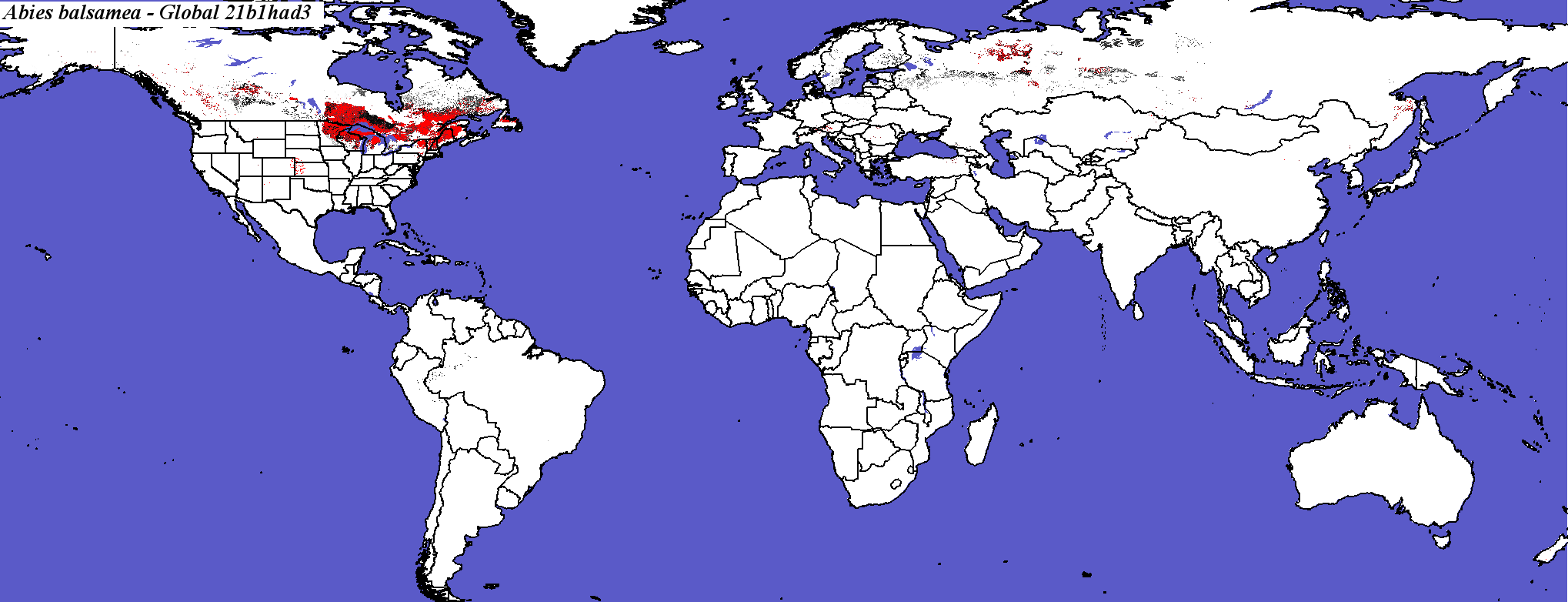

Hadley, Scenario B1, 2100 - Abies balsamea - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Abies_balsamea_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

187

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

9.45205

Area in Present Suitable Range (in km2)

849731

Area in Future Suitable Range (Had B1 2050, in km2)

831307

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

566831

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

66.7000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

13.4247

Percent Change in Area of Suitable Range (Had B1 2050)

-2.1600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

7.26027

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7756.05 +/- 30653.6

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

77.8082

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.99025 +/- 22.7127

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

74.5205

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

119.902 +/- 500.368

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

42.1918

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

22518

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.6500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

40

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

342659

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

40.3200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

20.8219

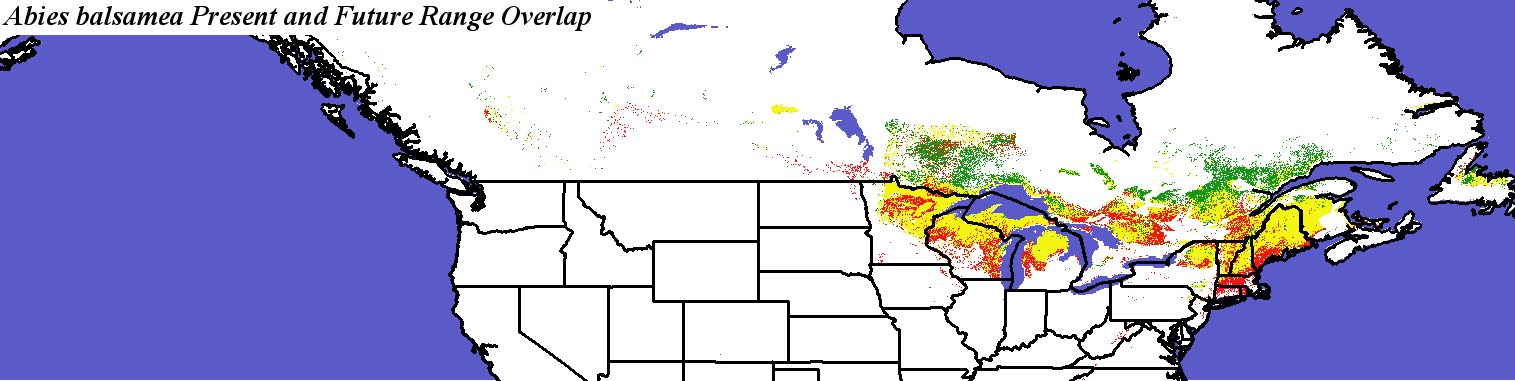

Present and Future Ranges - Hadley, Scenario B1, 2050 - Abies balsamea Abies balsamea - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

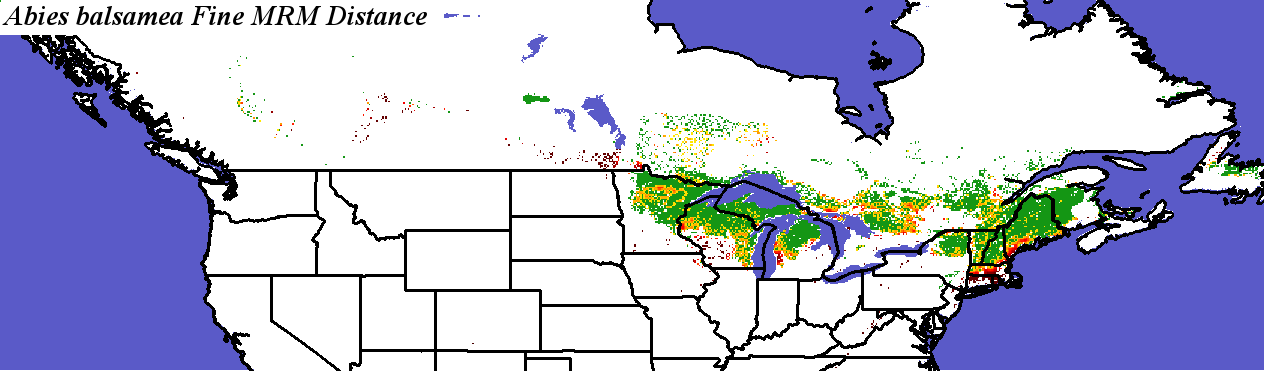

Abies_balsamea_final.noelev Fine MRM Distance

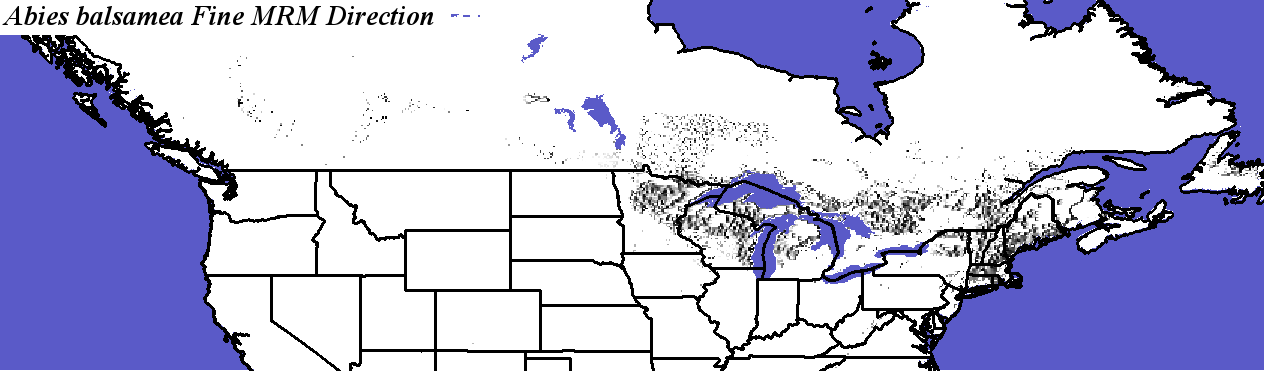

Abies_balsamea_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies balsamea Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Abies balsamea
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

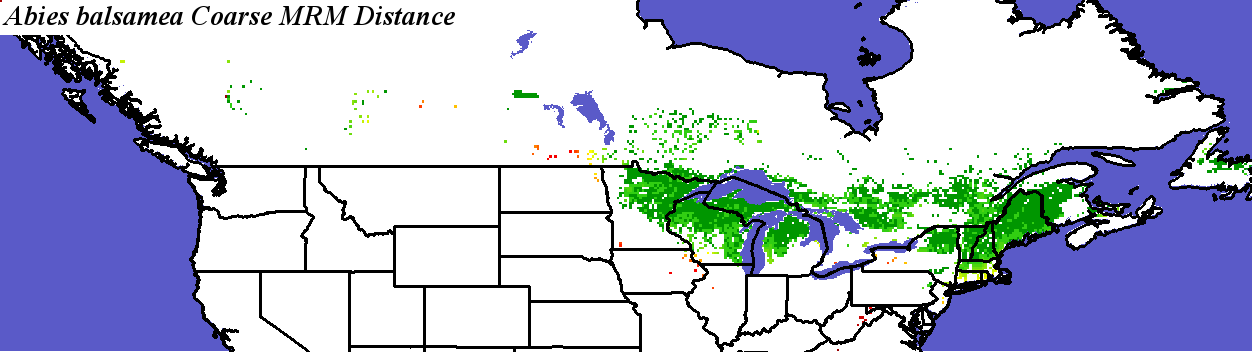

Abies_balsamea_final.noelev Coarse MRM Distance

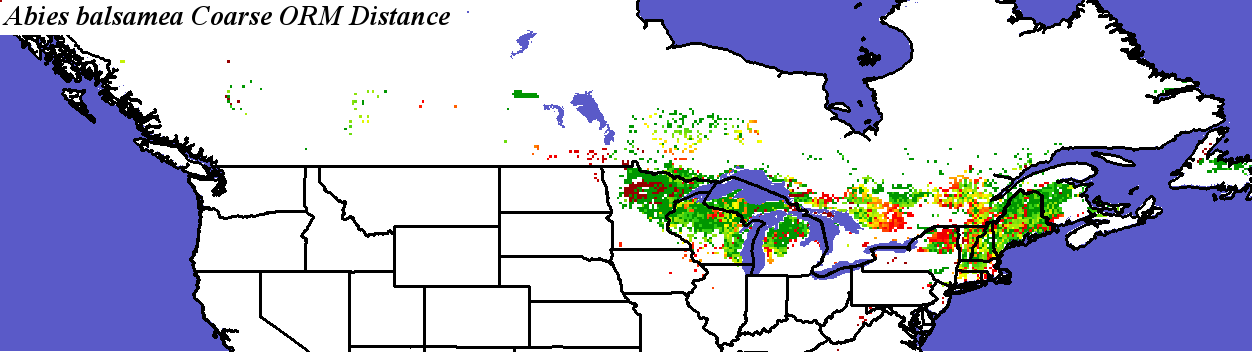

Abies_balsamea_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies balsamea Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Abies balsamea
