Version 5 Tree Atlas


Abies fraseri

Fraser fir

noelev

Abies fraseri Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Abies fraseri

USDA Plants Database entry for Abies fraseri
Silvics Manual entry for Abies fraseri


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
410546Obs (Potter)560range well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Abies_fraseri_final Occurrences
Hargroves Present Suitable Range Outline for Abies_fraseri_final
Abies fraseri - Occurrence Locations Abies fraseri - Hargrove's Present Suitable Range Outline
Present Conditions
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global
Abies fraseri - CONUS
Compare with Current Range from the Silvics Manual for Abies fraseri
Compare with Current Range from Biota of North America Program (BONAP) for Abies fraseri

Abies fraseri not modeled by Iverson and Prasad
Abies fraseri not modeled by Crookston and Rehfeldt
Abies fraseri not modeled by Coops and Waring
Abies fraseri - Global

PCM - Parallel Climate Model
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global
PCM, Scenario A1FI, 2050 - Abies fraseri - CONUS
PCM, Scenario A1FI, 2050 - Abies fraseri - Global
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global
PCM, Scenario A1FI, 2100 - Abies fraseri - CONUS
Abies fraseri species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Abies fraseri - Global

Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global
PCM, Scenario B1, 2050 - Abies fraseri - CONUS

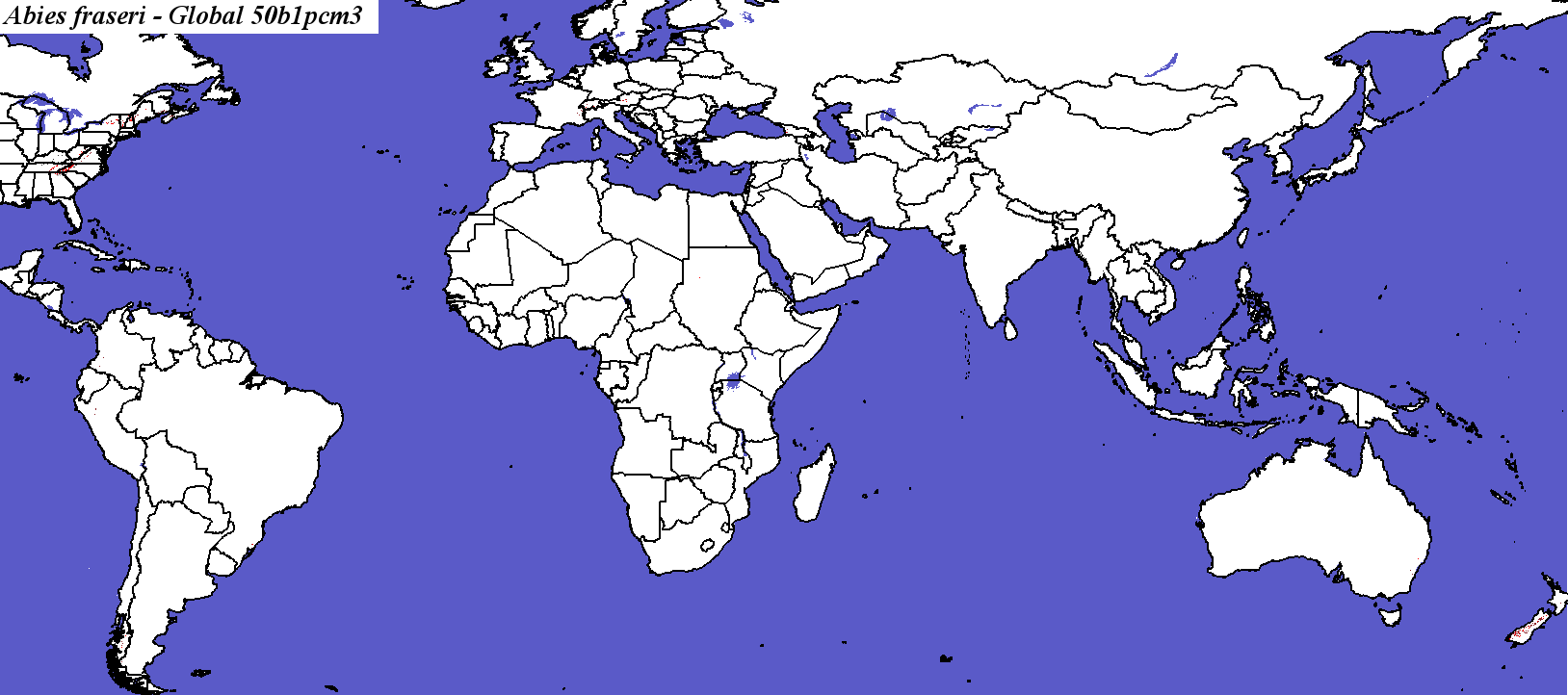

PCM, Scenario B1, 2050 - Abies fraseri - Global
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global

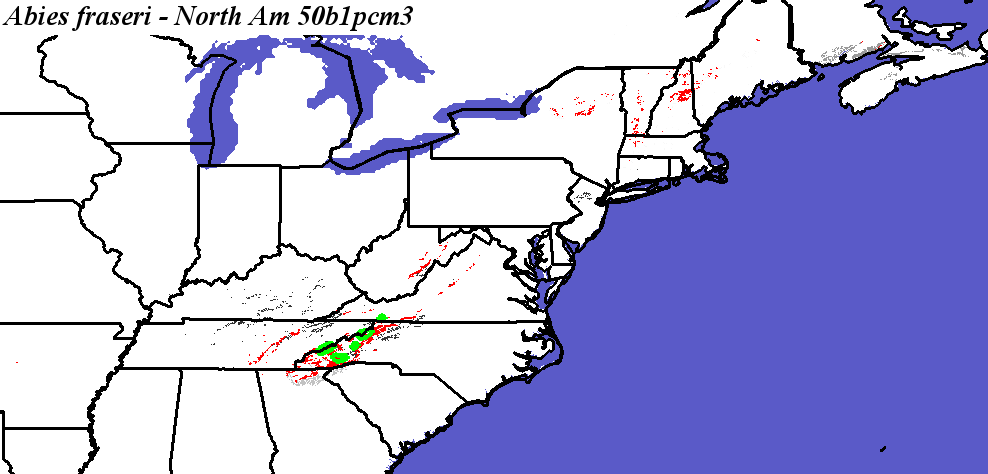

PCM, Scenario B1, 2100 - Abies fraseri - CONUS
Abies fraseri not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Abies fraseri - Global

Hadley Climate Model
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global

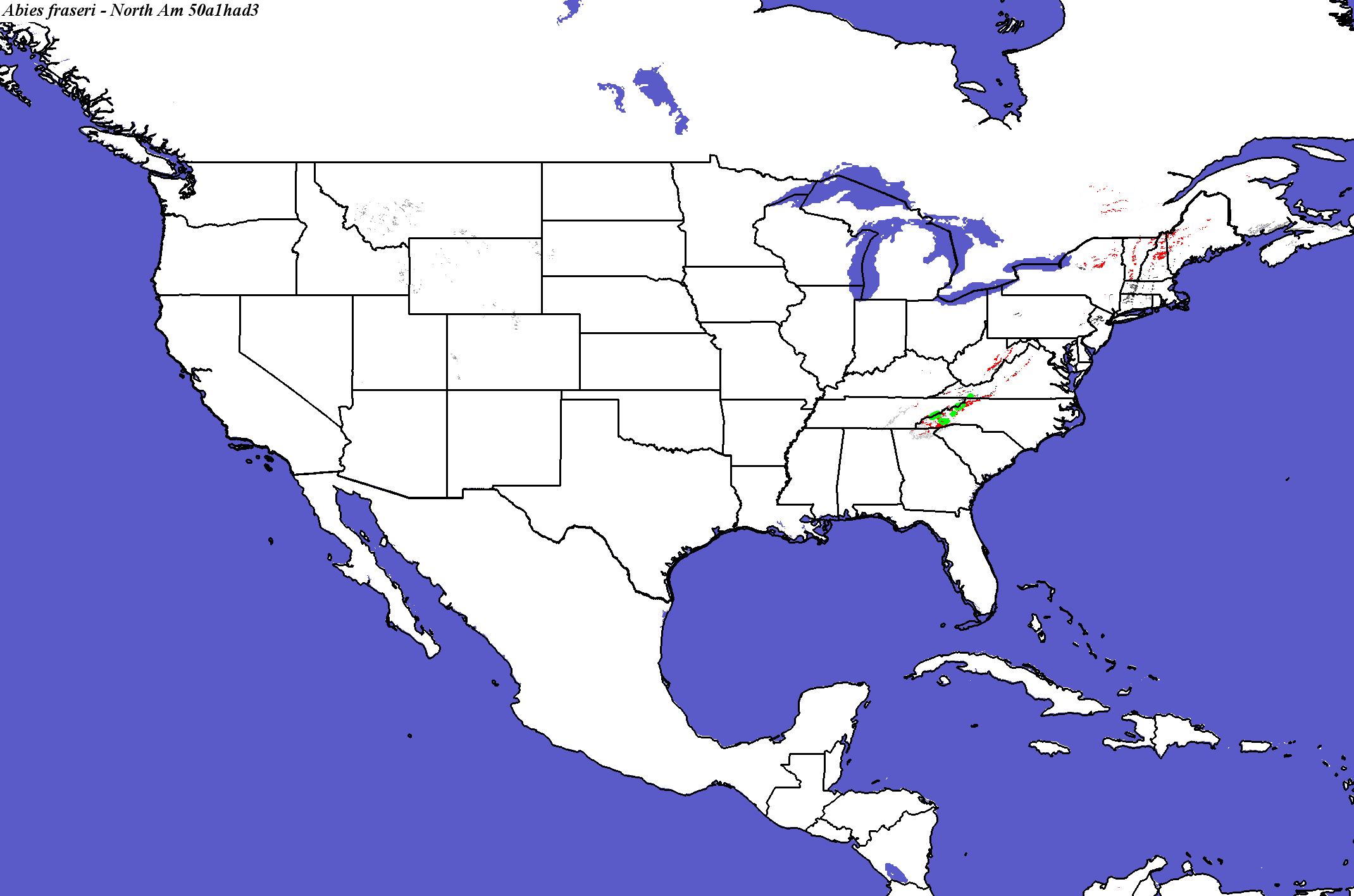

Hadley, Scenario A1FI, 2050 - Abies fraseri - CONUS
Abies fraseri not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Abies fraseri - Global
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global.
Hadley, Scenario A1FI, 2100 - Abies fraseri - CONUS
Abies fraseri not modeled by Iverson and Prasad
Abies fraseri not modeled by Crookston and Rehfeldt
Abies fraseri not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Abies fraseri - Global

Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global.

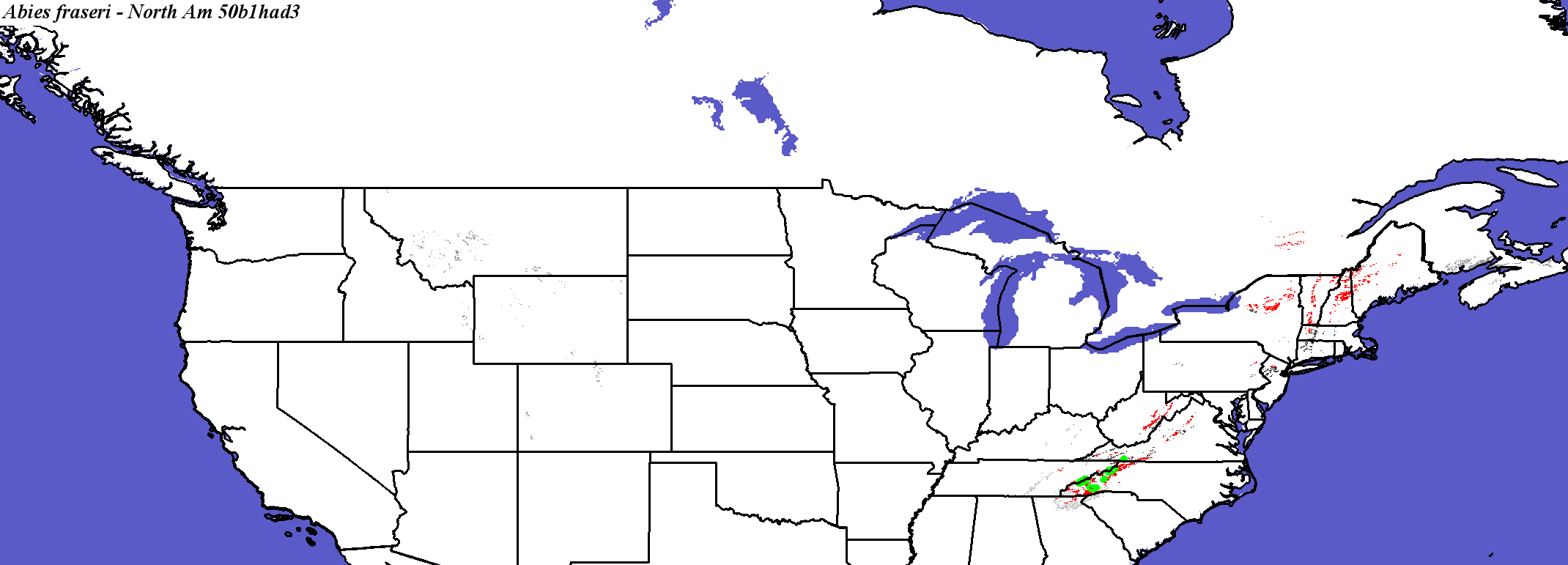

Hadley, Scenario B1, 2050 - Abies fraseri - CONUS
Abies fraseri not modeled by Crookston and Rehfeldt
Abies fraseri not modeled by Coops and Waring

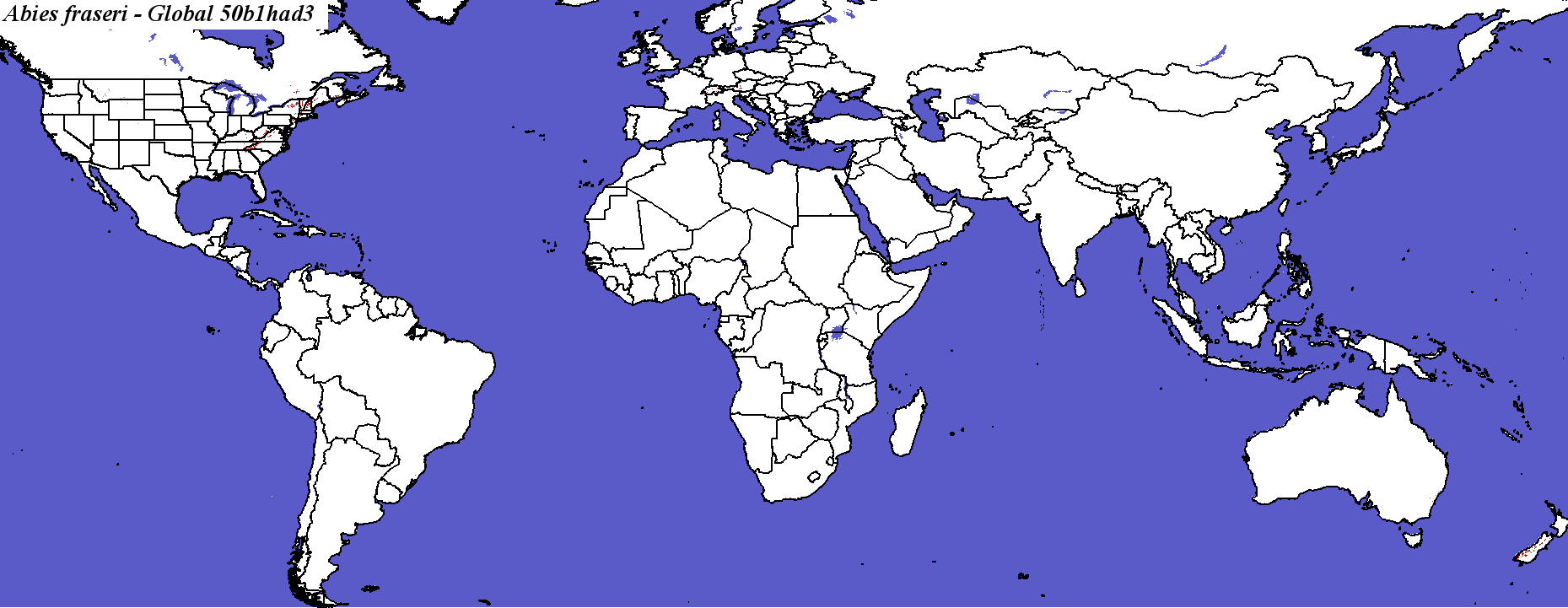

Hadley, Scenario B1, 2050 - Abies fraseri - Global
Abies_fraseri_final.2.conus
Abies_fraseri_final.2.global
Hadley, Scenario B1, 2100 - Abies fraseri - CONUS
Abies fraseri not modeled by Iverson and Prasad
Abies fraseri not modeled by Crookston and Rehfeldt

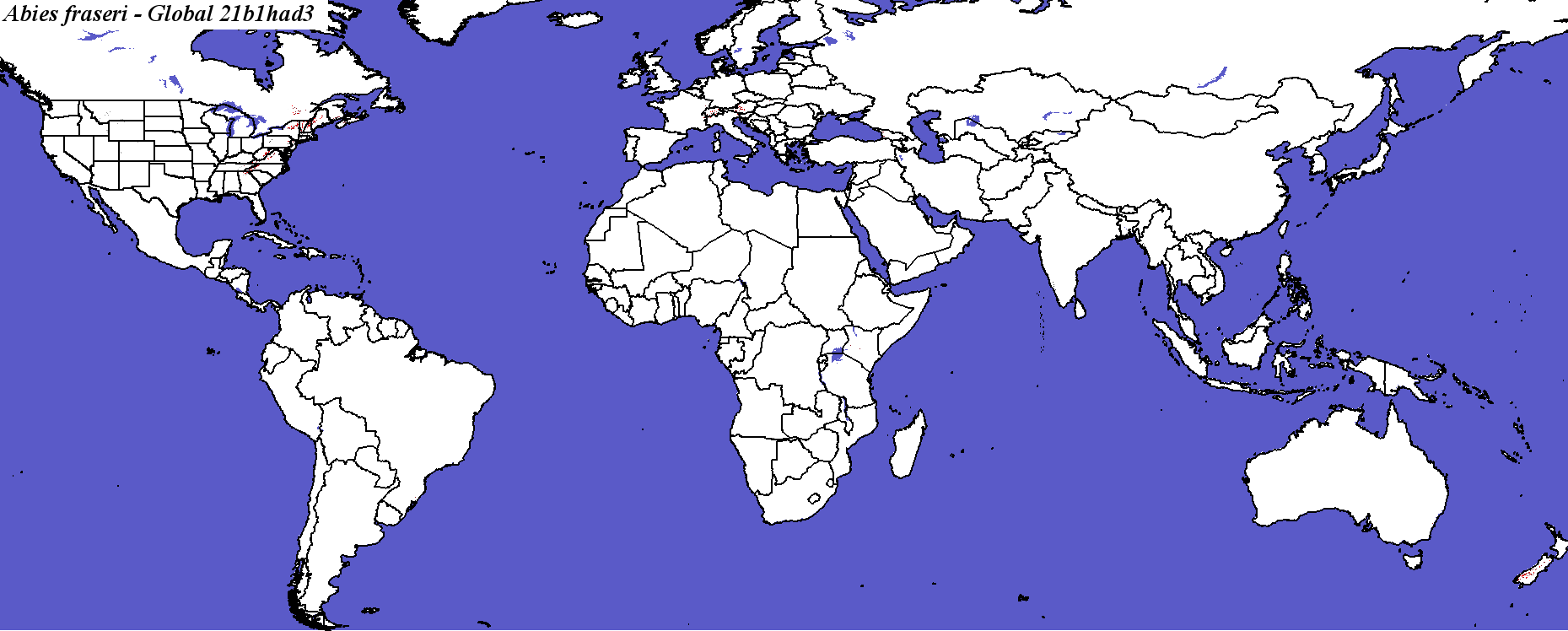

Hadley, Scenario B1, 2100 - Abies fraseri - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Abies_fraseri_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

13

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

79.863

Area in Present Suitable Range (in km2)

31740

Area in Future Suitable Range (Had B1 2050, in km2)

33367

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

21198

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

66.7800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

13.2877

Percent Change in Area of Suitable Range (Had B1 2050)

5.1200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

3.9726

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

22493.7 +/- 68627.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

32.6027

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

13.3537 +/- 40.8451

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

20.411

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

66.5244 +/- 332.782

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

51.0959

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

280

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.8800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

52.3288

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

12054

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

37.9700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

25.7534

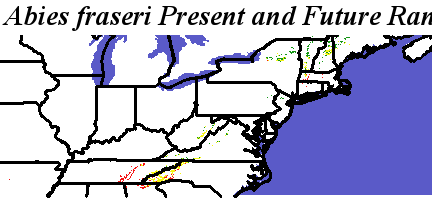

Present and Future Ranges - Hadley, Scenario B1, 2050 - Abies fraseri Abies fraseri - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Abies_fraseri_final.noelev Fine MRM Distance
Abies_fraseri_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies fraseri Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Abies fraseri
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

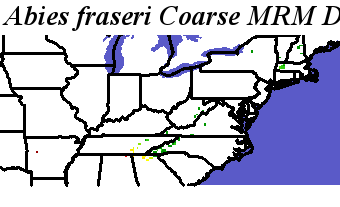

Abies_fraseri_final.noelev Coarse MRM Distance
Abies_fraseri_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies fraseri Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Abies fraseri
