Version 5 Tree Atlas


Acer barbatum

Florida maple

noelev

Acer barbatum Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer barbatum

USDA Plants Database entry for Acer barbatum
Silvics Manual entry for Acer barbatum


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Acer floridanum; Acer saccharum var. floridanum; Acer saccharum subsp. floridanum45422476range is sparsely represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_barbatum_final Occurrences

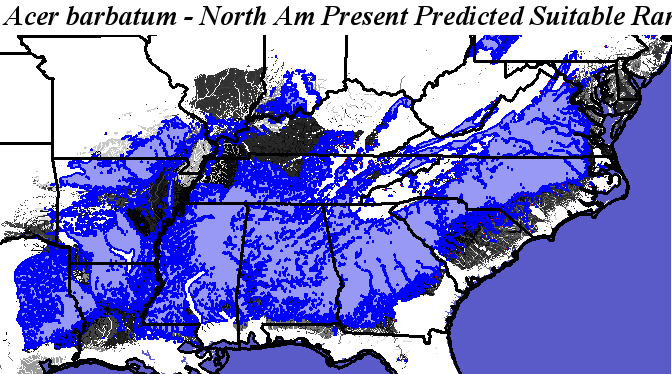

Hargroves Present Suitable Range Outline for Acer_barbatum_final
Acer barbatum - Occurrence Locations Acer barbatum - Hargrove's Present Suitable Range Outline
Present Conditions
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global

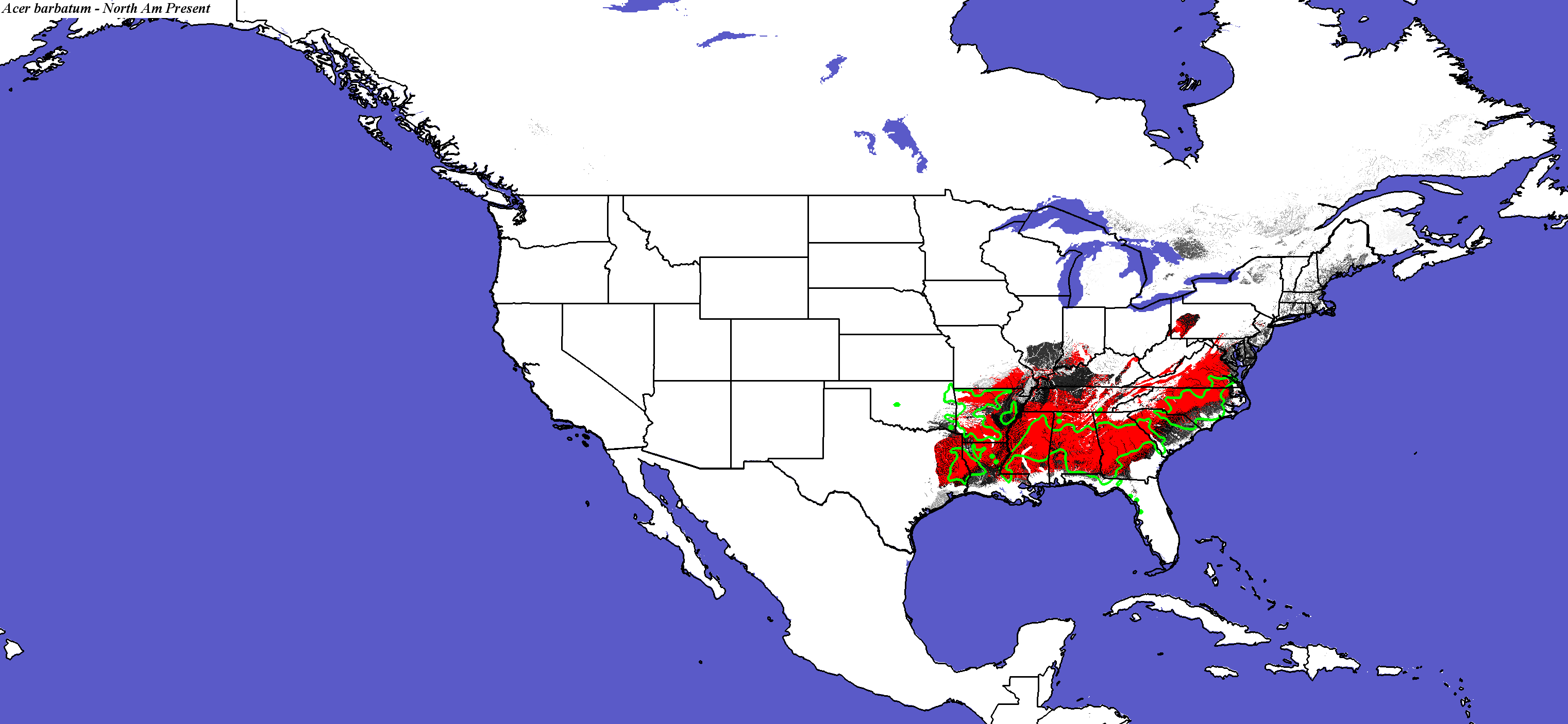

Acer barbatum - CONUS
Compare with Current Range from the Silvics Manual for Acer barbatum
Compare with Current Range from Biota of North America Program (BONAP) for Acer barbatum

Compare with Acer barbatum modeled for Current conditions by Iverson and Prasad
Acer barbatum not modeled by Crookston and Rehfeldt
Acer barbatum not modeled by Coops and Waring
Acer barbatum - Global

PCM - Parallel Climate Model
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global
PCM, Scenario A1FI, 2050 - Acer barbatum - CONUS
PCM, Scenario A1FI, 2050 - Acer barbatum - Global
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global

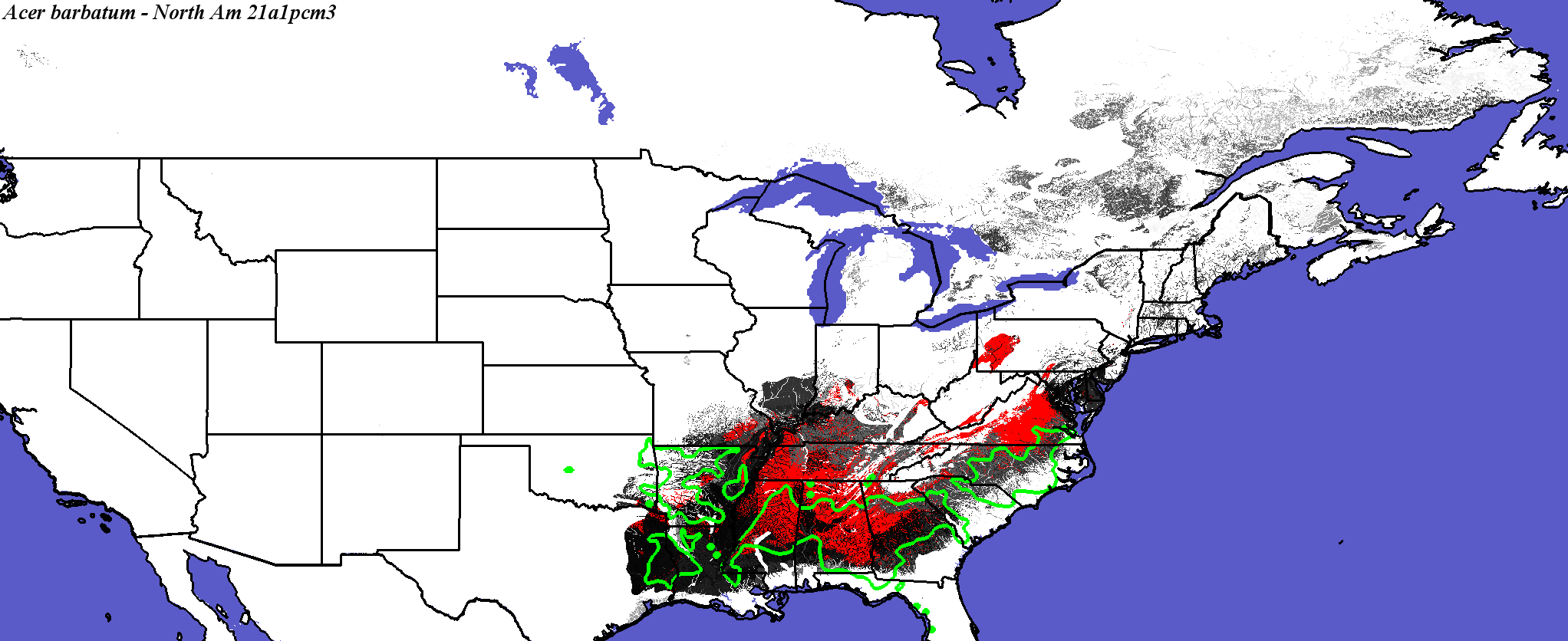

PCM, Scenario A1FI, 2100 - Acer barbatum - CONUS
Compare with Acer barbatum modeled for PCM A1FI in 2100 by Iverson and Prasad

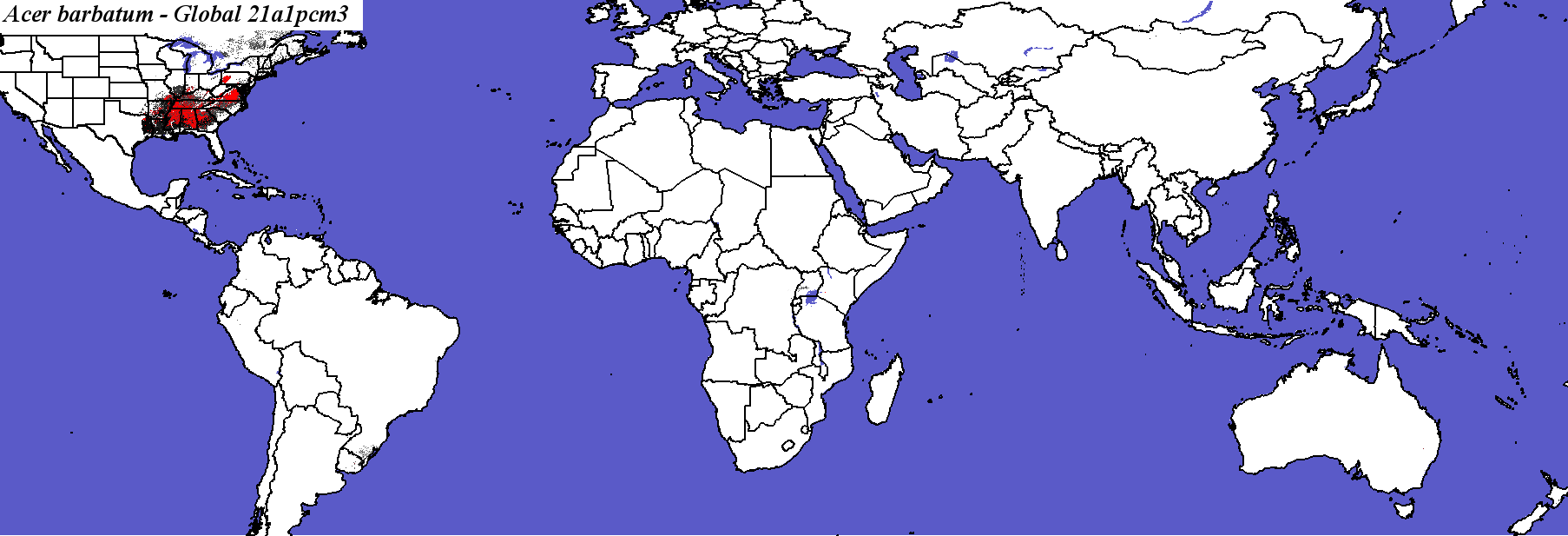

PCM, Scenario A1FI, 2100 - Acer barbatum - Global

Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global
PCM, Scenario B1, 2050 - Acer barbatum - CONUS

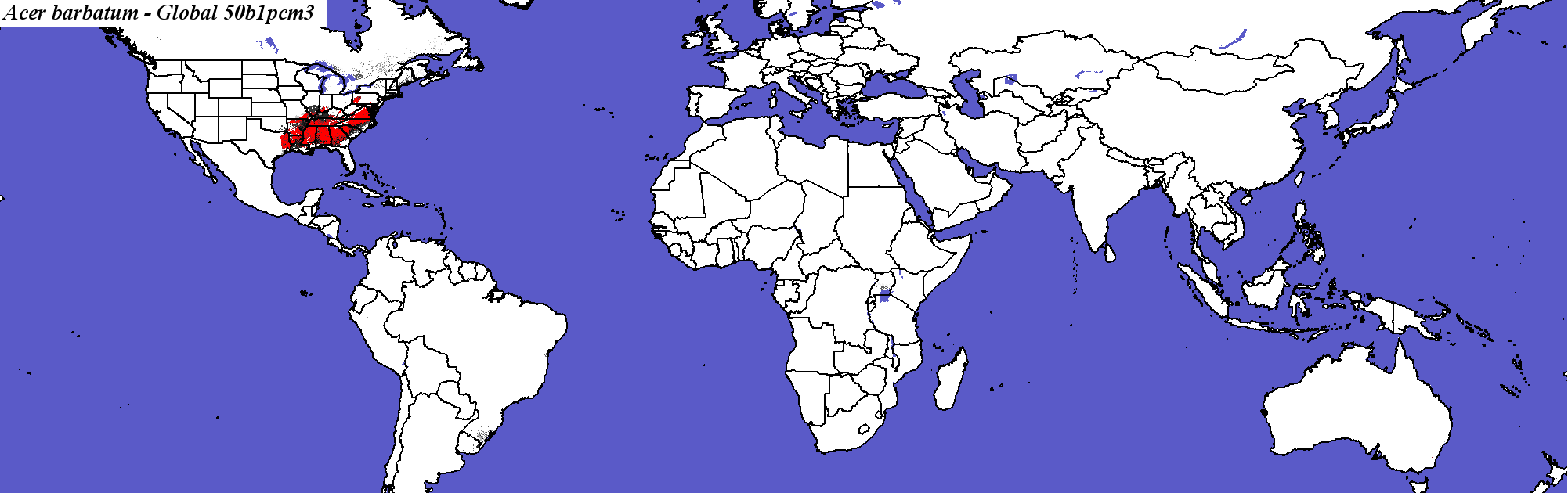

PCM, Scenario B1, 2050 - Acer barbatum - Global
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global

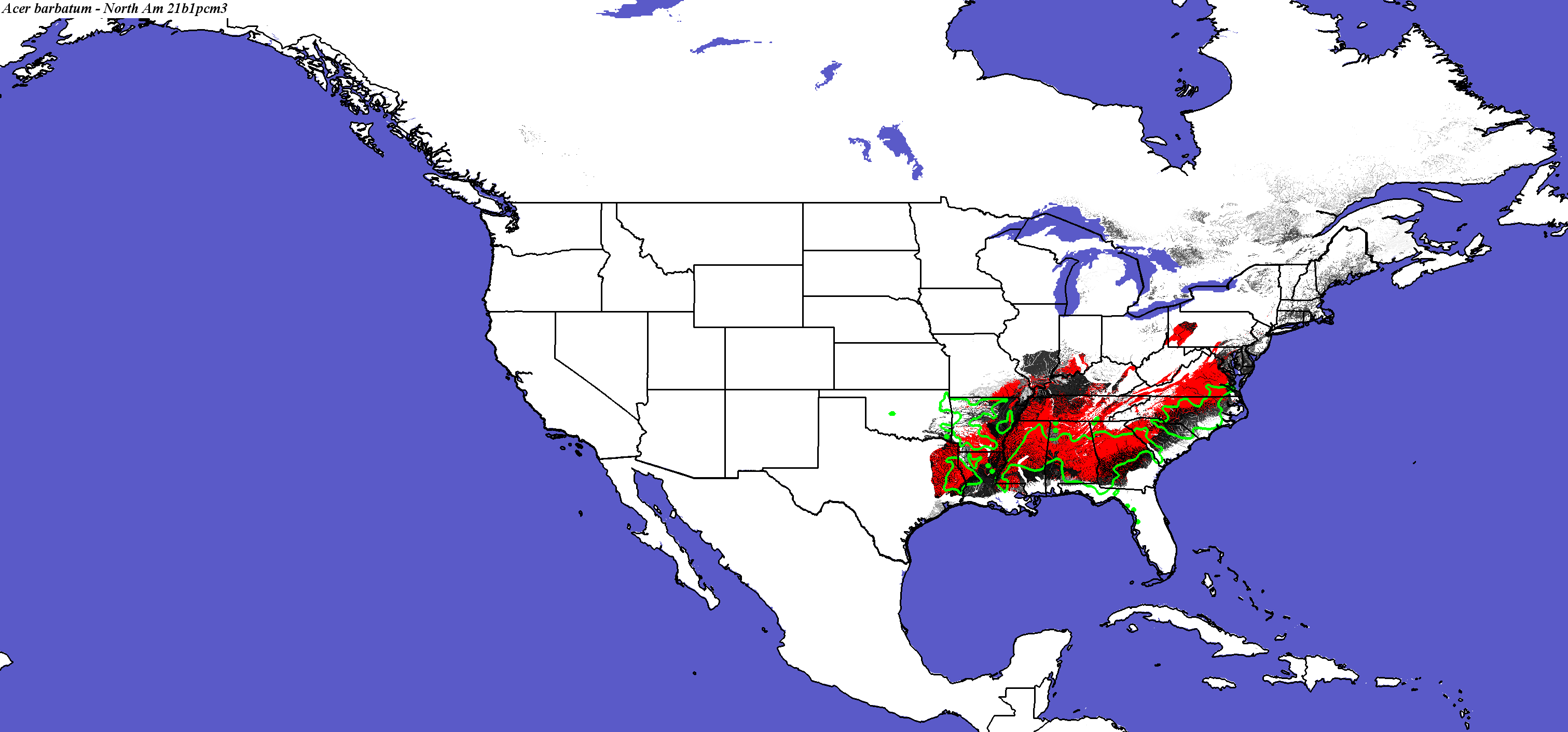

PCM, Scenario B1, 2100 - Acer barbatum - CONUS
Compare with Acer barbatum modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer barbatum - Global

Hadley Climate Model
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global

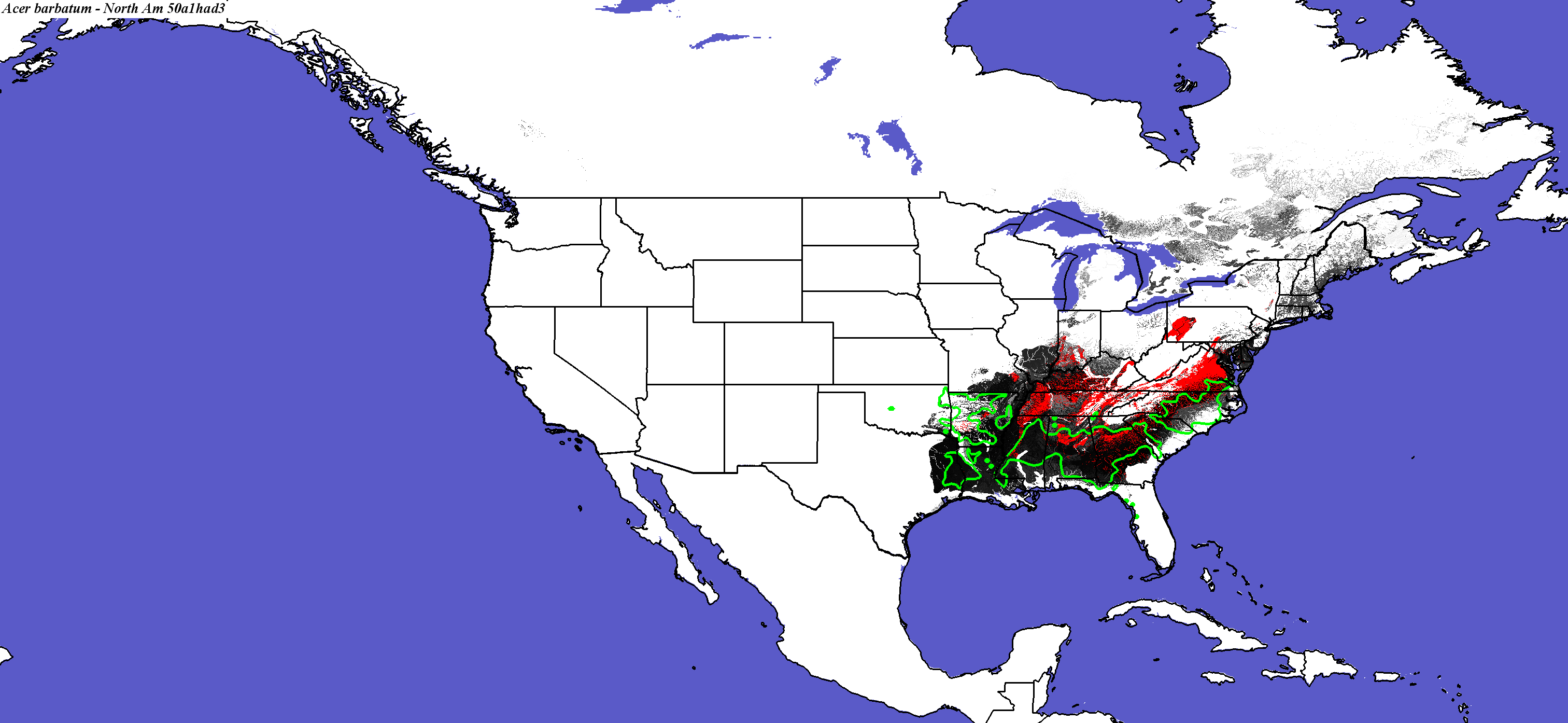

Hadley, Scenario A1FI, 2050 - Acer barbatum - CONUS
Acer barbatum not modeled by Crookston and Rehfeldt

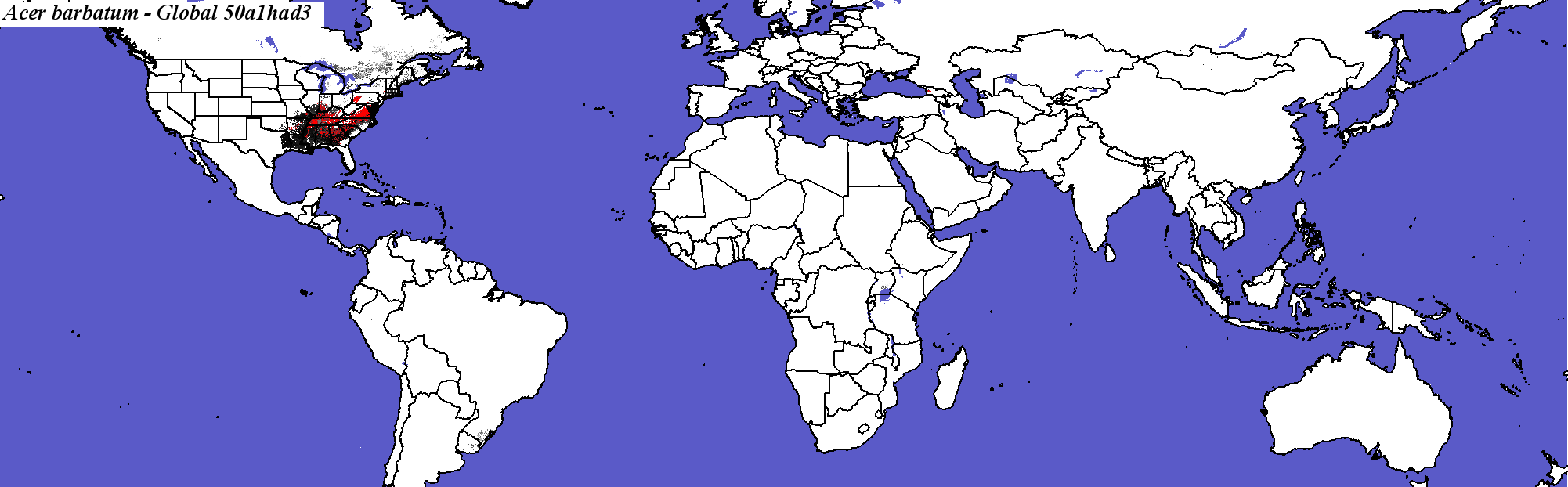

Hadley, Scenario A1FI, 2050 - Acer barbatum - Global
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global.

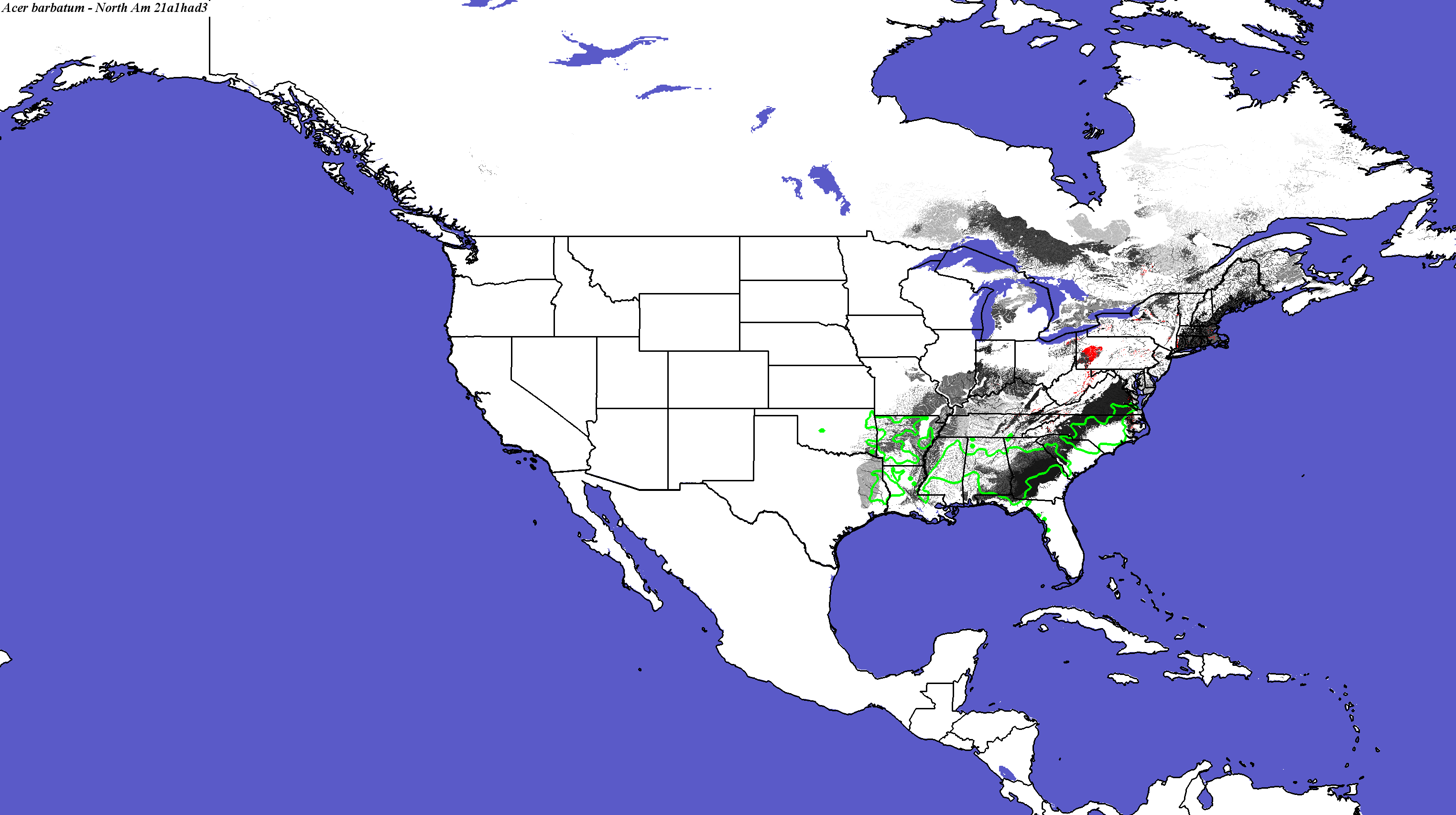

Hadley, Scenario A1FI, 2100 - Acer barbatum - CONUS
Compare with Acer barbatum modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer barbatum not modeled by Crookston and Rehfeldt
Acer barbatum not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Acer barbatum - Global

Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global.

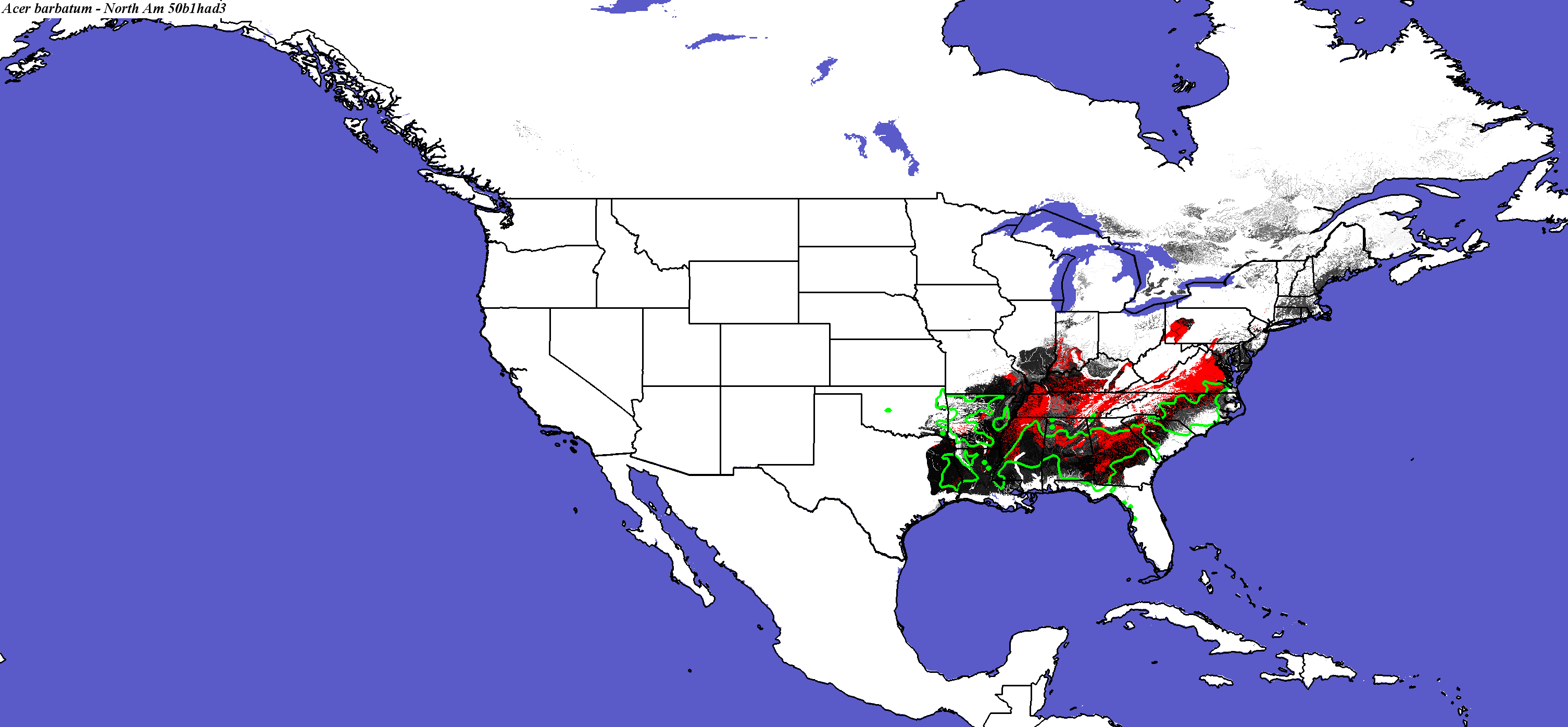

Hadley, Scenario B1, 2050 - Acer barbatum - CONUS
Acer barbatum not modeled by Crookston and Rehfeldt
Acer barbatum not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Acer barbatum - Global
Acer_barbatum_final.3.conus
Acer_barbatum_final.3.global

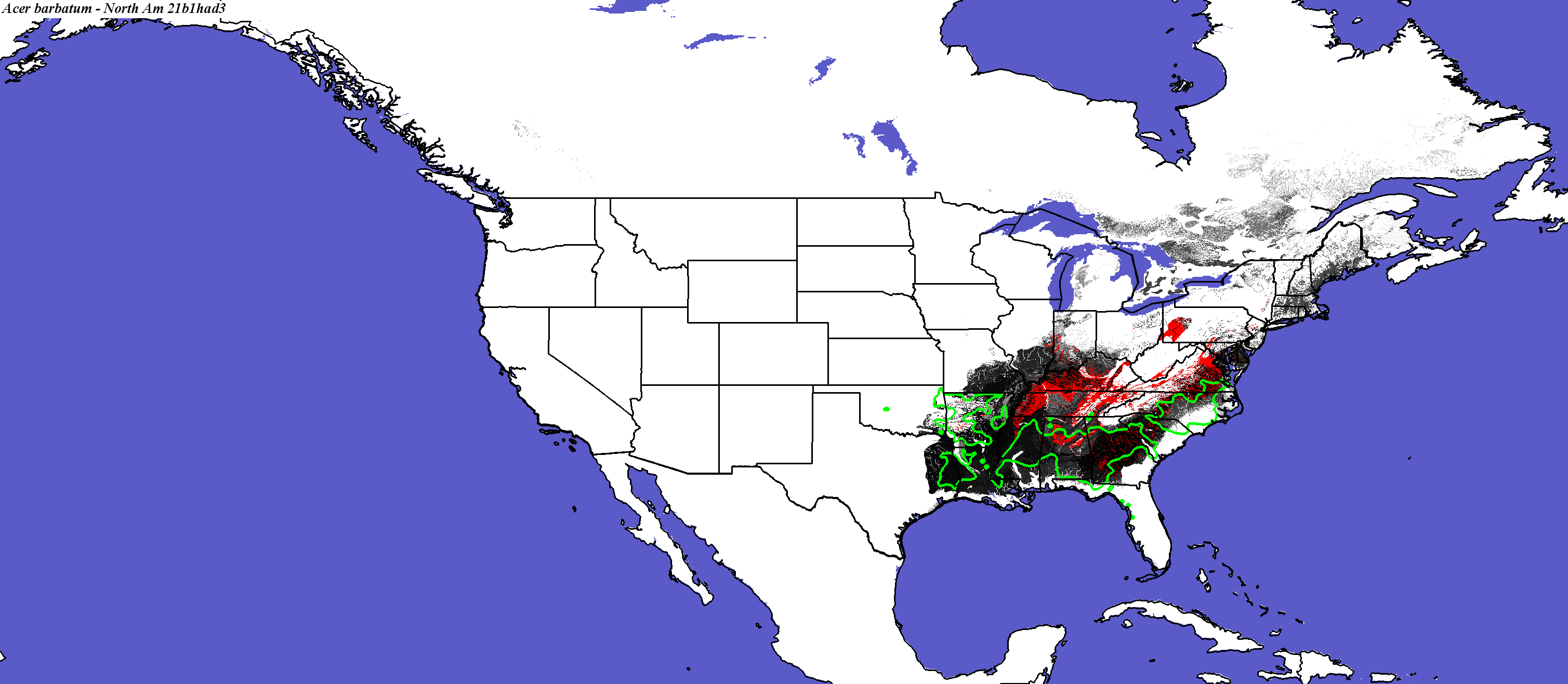

Hadley, Scenario B1, 2100 - Acer barbatum - CONUS
Compare with Acer barbatum modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer barbatum not modeled by Crookston and Rehfeldt

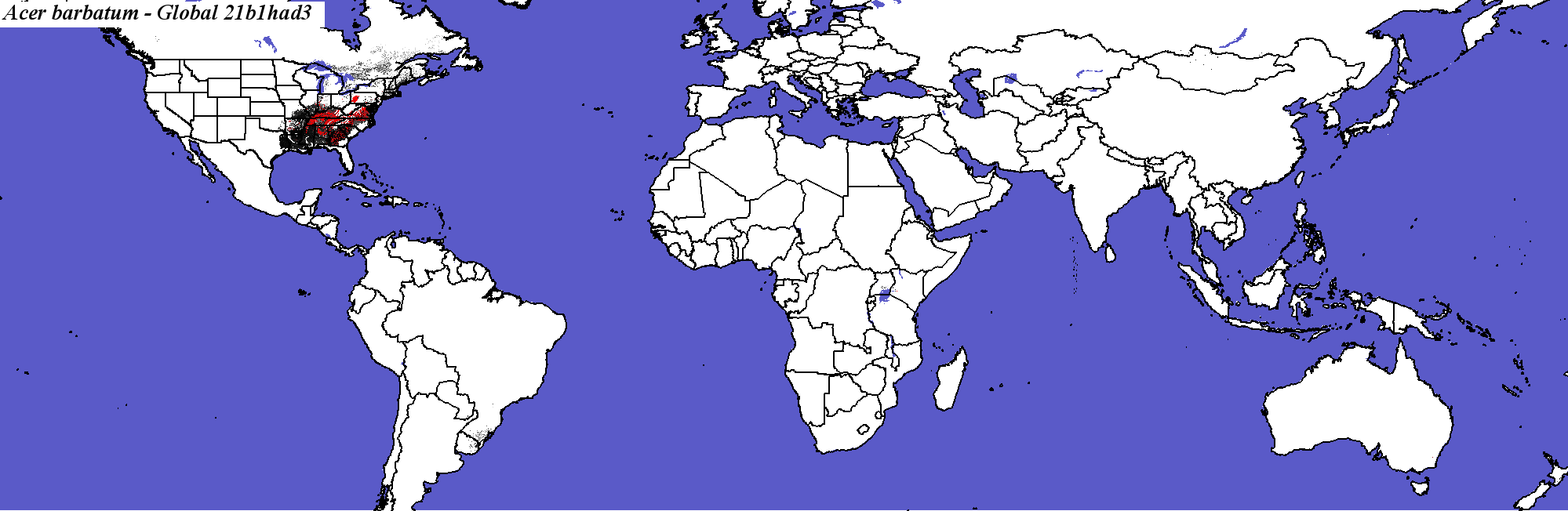

Hadley, Scenario B1, 2100 - Acer barbatum - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_barbatum_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

50

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

38.7671

Area in Present Suitable Range (in km2)

645705

Area in Future Suitable Range (Had B1 2050, in km2)

253061

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

180418

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

27.9400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

86.5753

Percent Change in Area of Suitable Range (Had B1 2050)

-60.8000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

92.4658

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

28220.6 +/- 37855.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

23.2877

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

12.3062 +/- 17.2249

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

23.8356

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

260.328 +/- 747.438

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

17.9452

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

45428

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.0300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

16.1644

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

67961

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

10.5200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

92.4658

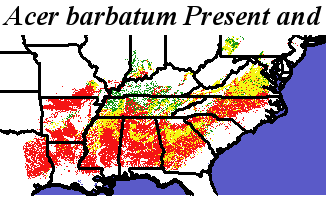

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer barbatum Acer barbatum - Range Change Statistics

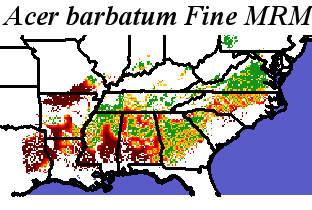

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Acer_barbatum_final.noelev Fine MRM Distance

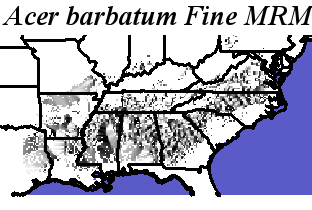

Acer_barbatum_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer barbatum Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer barbatum
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

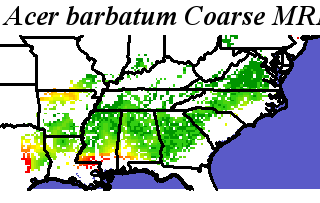

Acer_barbatum_final.noelev Coarse MRM Distance

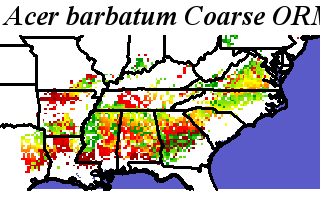

Acer_barbatum_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer barbatum Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer barbatum

Thu Jul 21 10:06:04 EDT 2016
