Version 5 Tree Atlas


Acer rubrum

red maple

noelev

Acer rubrum Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer rubrum

USDA Plants Database entry for Acer rubrum
Silvics Manual entry for Acer rubrum


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2953516829703Parts of range not well sampled

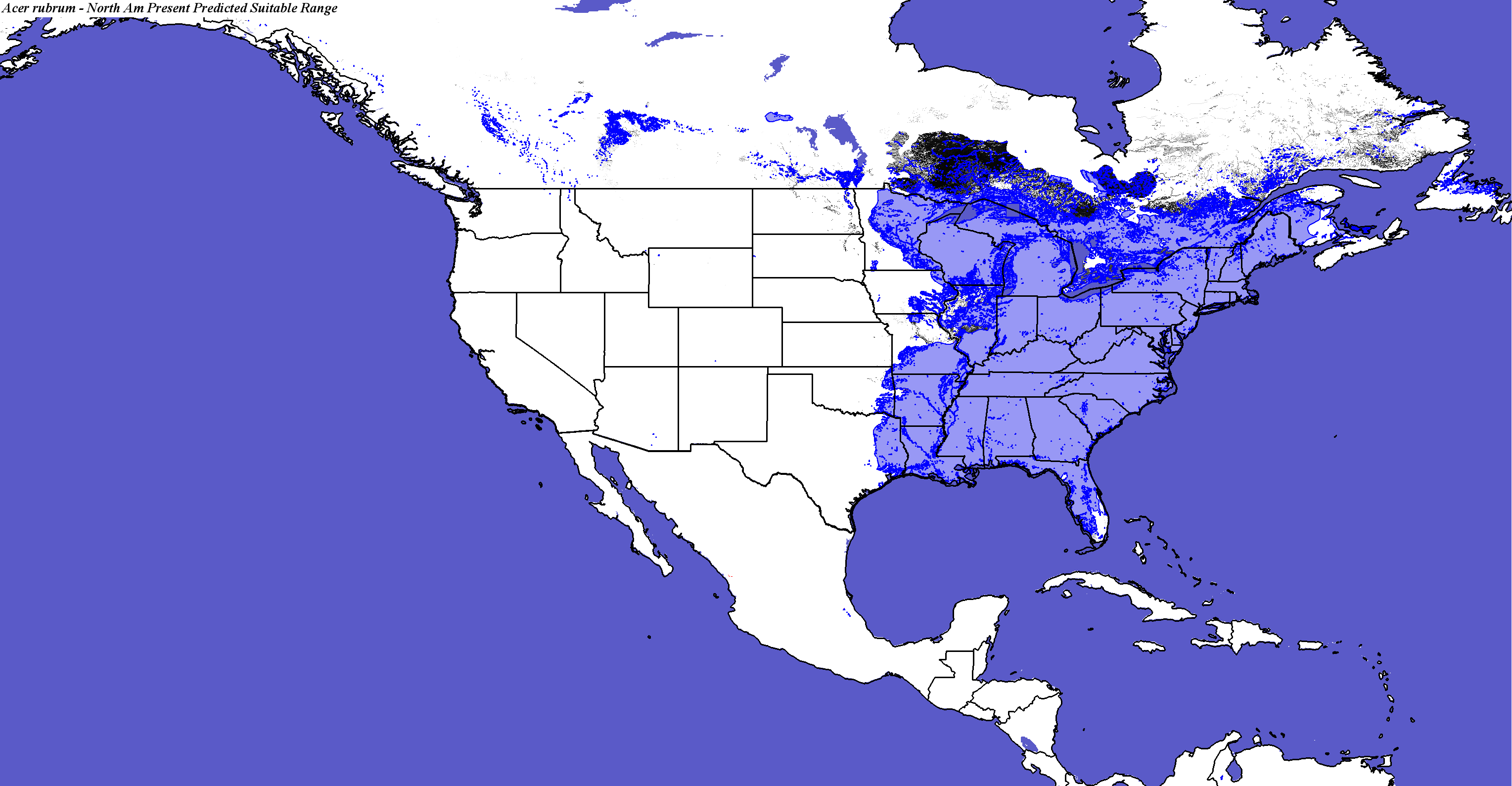

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_rubrum_final Occurrences
Hargroves Present Suitable Range Outline for Acer_rubrum_final
Acer rubrum - Occurrence Locations Acer rubrum - Hargrove's Present Suitable Range Outline
Present Conditions
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

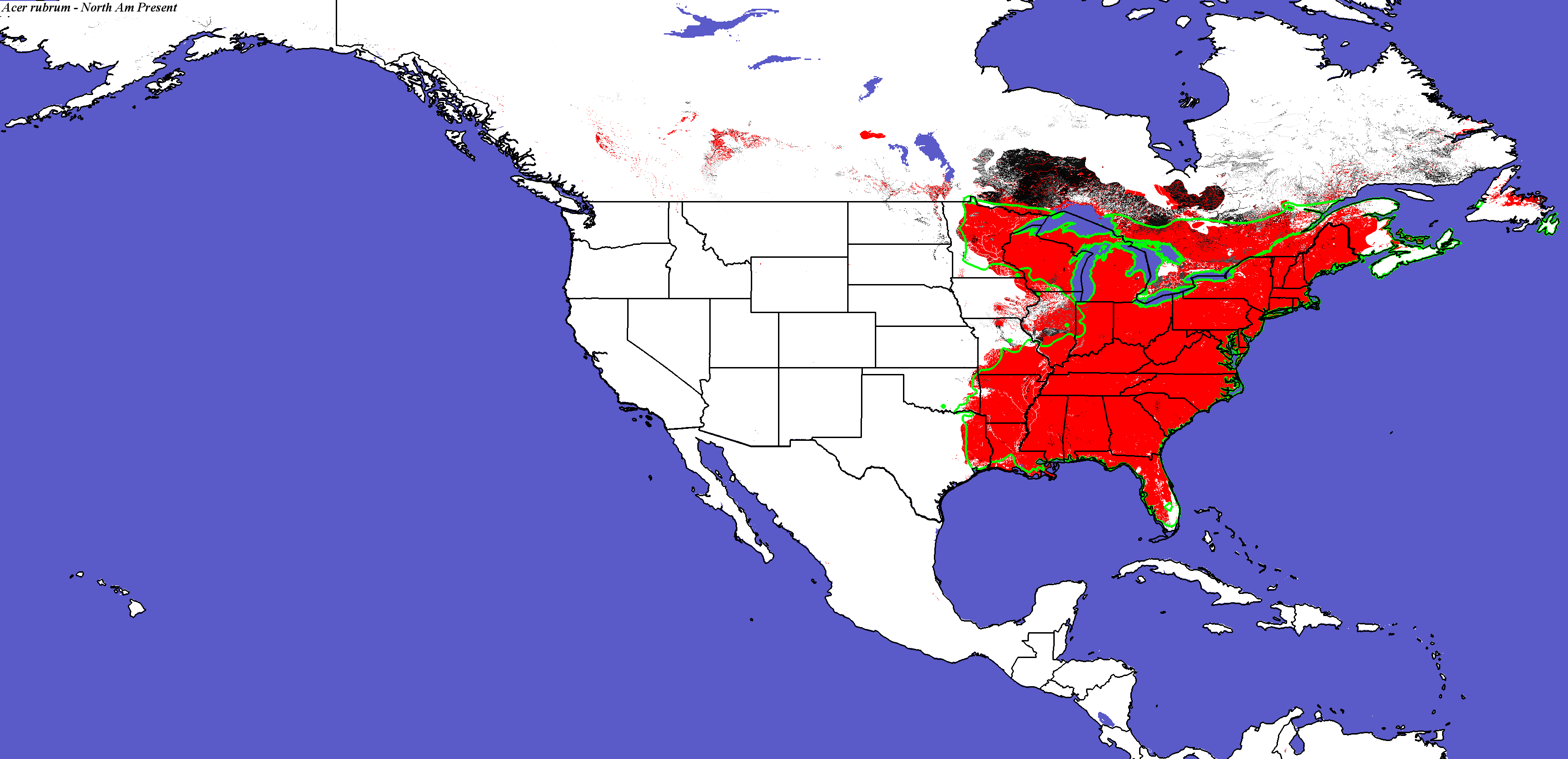

Acer rubrum - CONUS
Compare with Current Range from the Silvics Manual for Acer rubrum
Compare with Current Range from Biota of North America Program (BONAP) for Acer rubrum

Compare with Acer rubrum modeled for Current conditions by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring
Acer rubrum - Global

PCM - Parallel Climate Model
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
PCM, Scenario A1FI, 2050 - Acer rubrum - CONUS

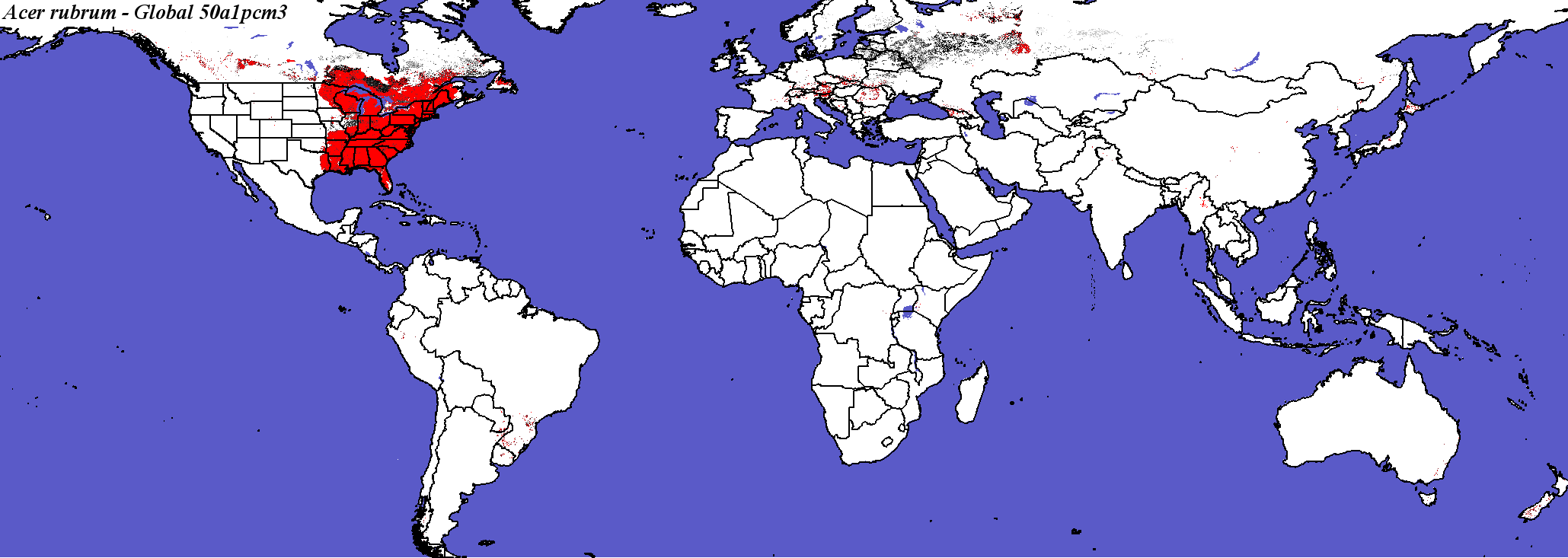

PCM, Scenario A1FI, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
PCM, Scenario A1FI, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Acer rubrum - Global

Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

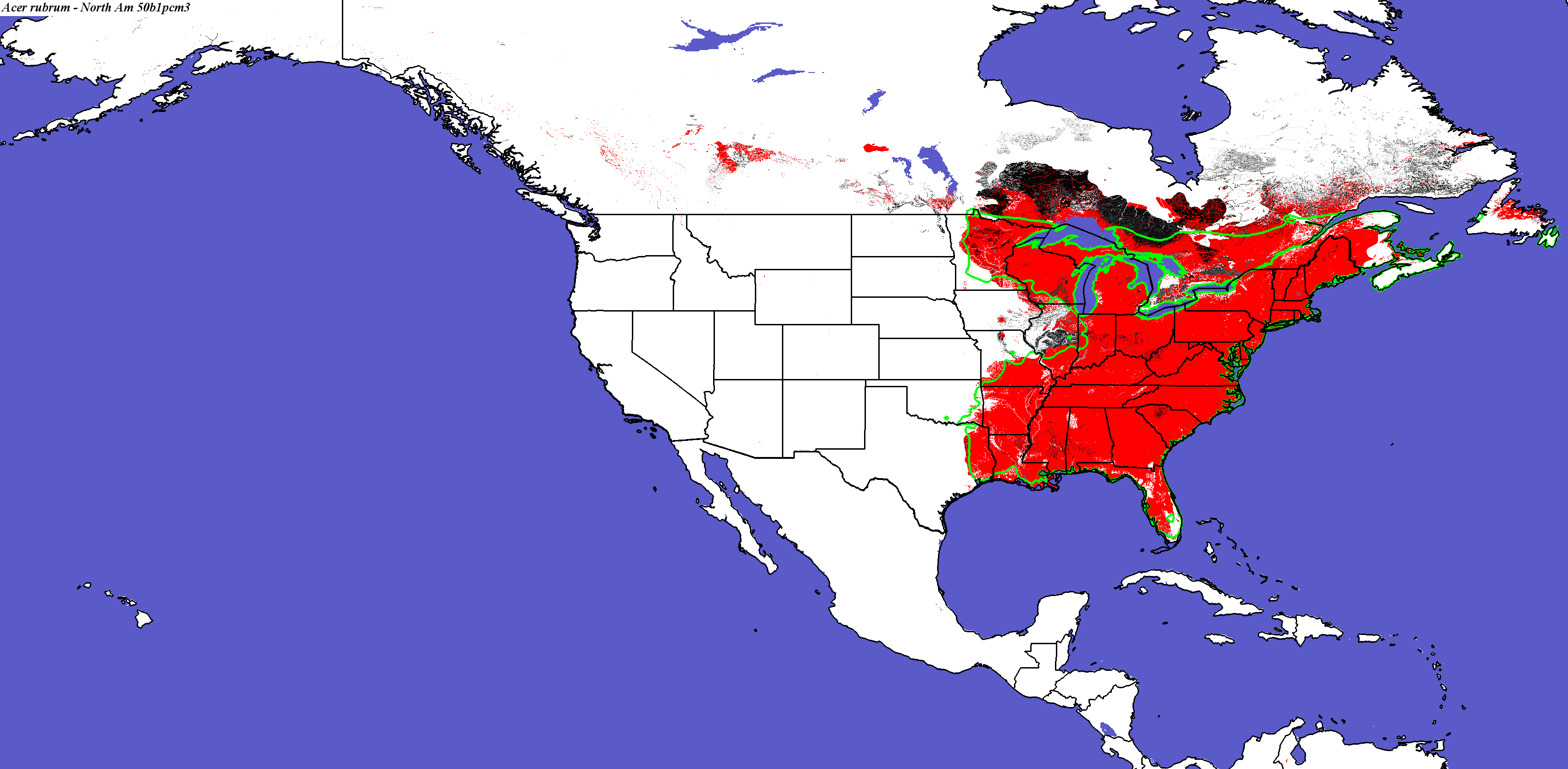

PCM, Scenario B1, 2050 - Acer rubrum - CONUS
PCM, Scenario B1, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

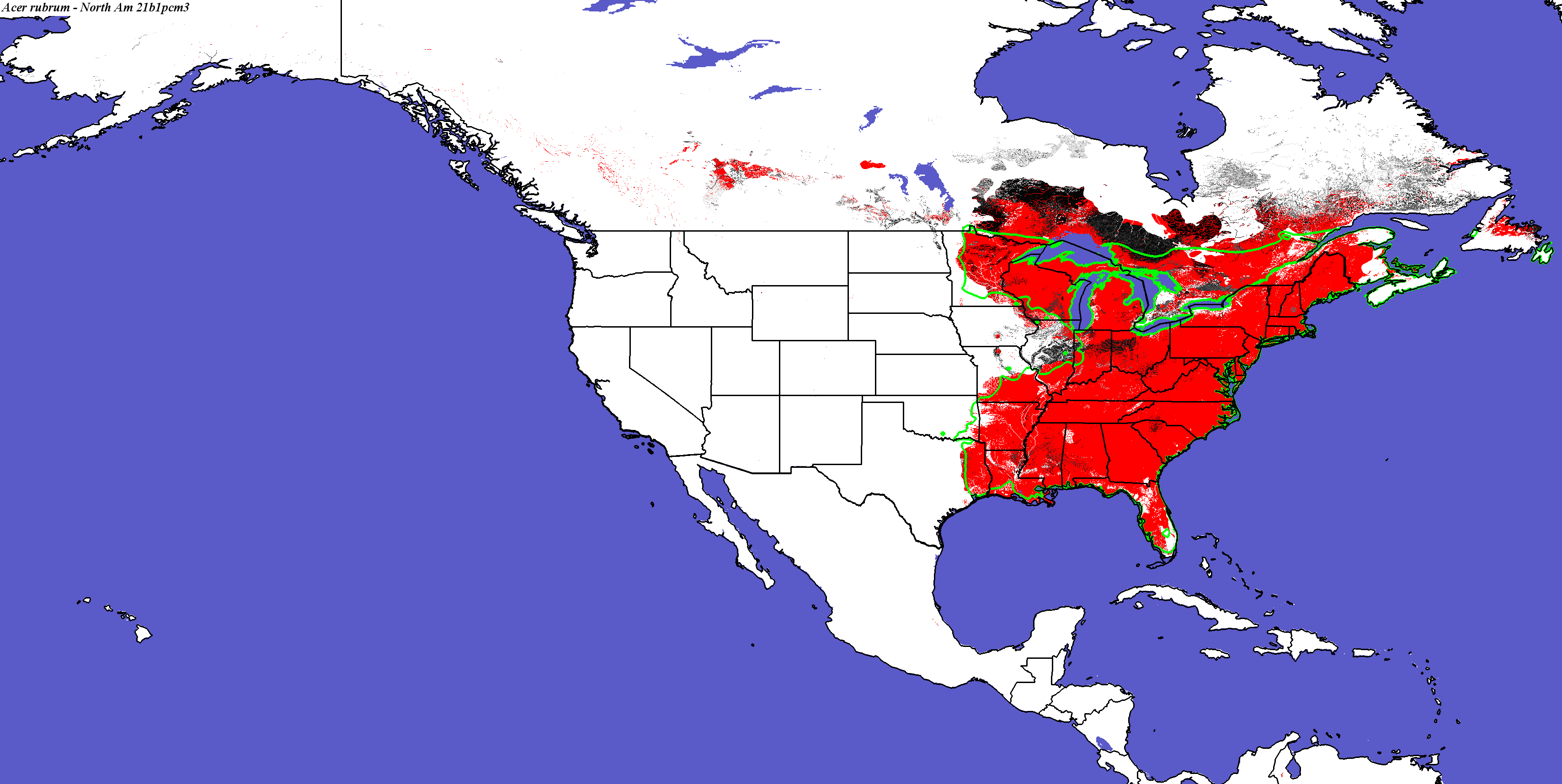

PCM, Scenario B1, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer rubrum - Global

Hadley Climate Model
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
Hadley, Scenario A1FI, 2050 - Acer rubrum - CONUS
Acer rubrum not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global.

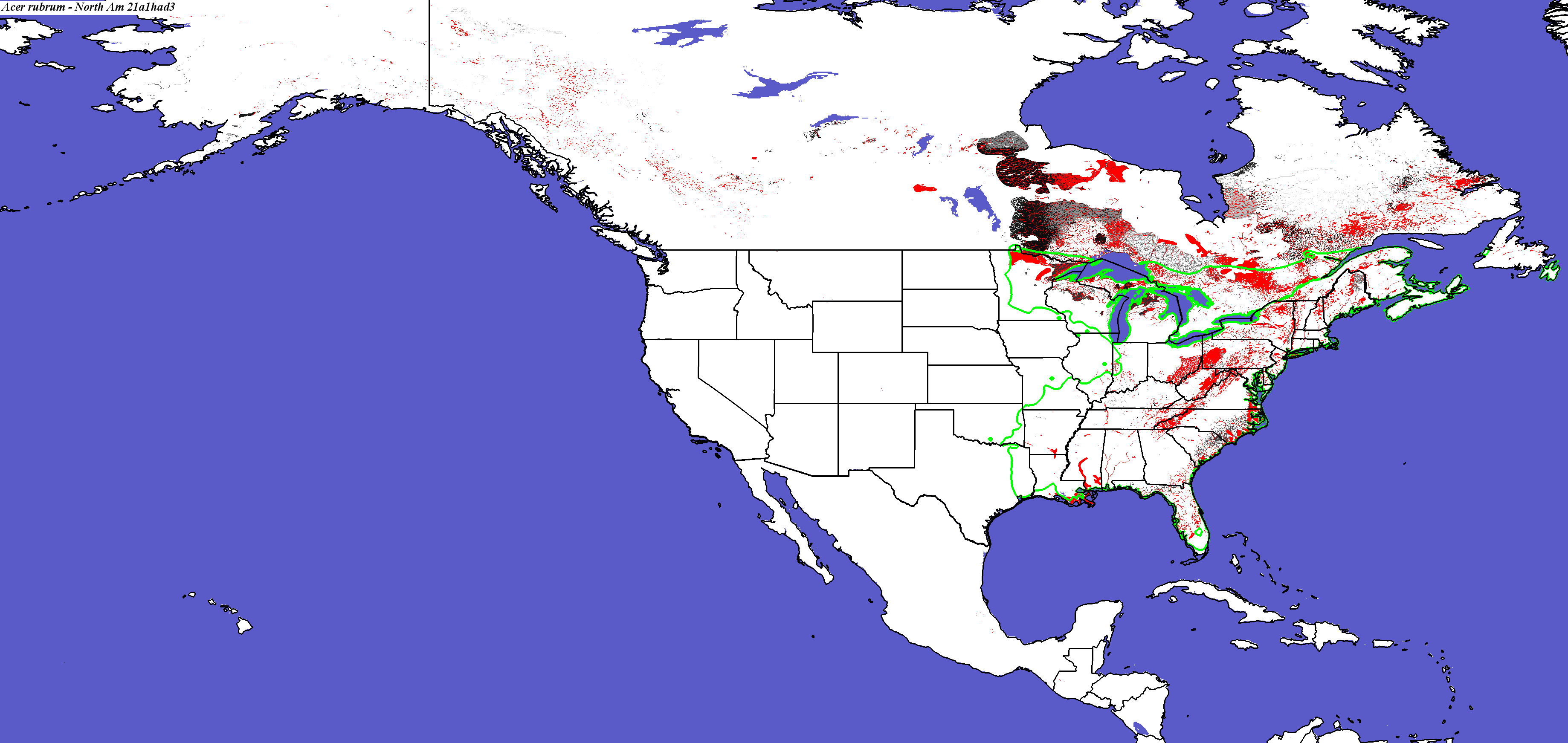

Hadley, Scenario A1FI, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring

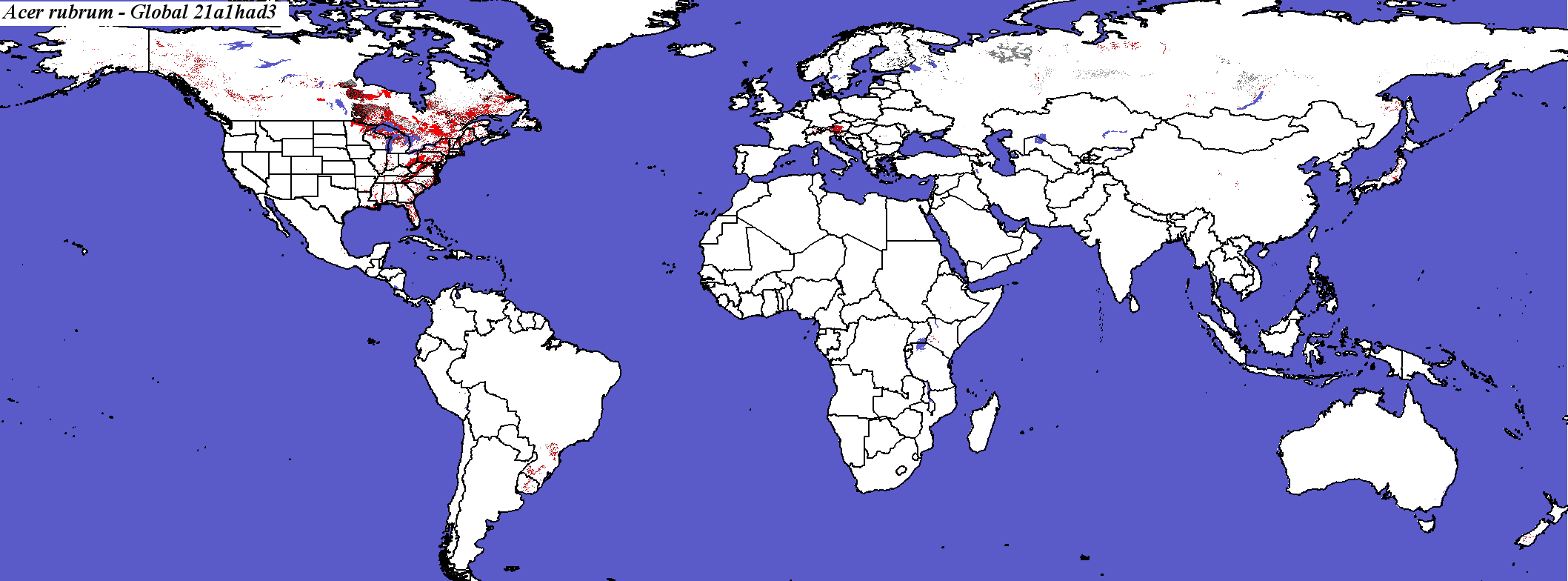

Hadley, Scenario A1FI, 2100 - Acer rubrum - Global

Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global.

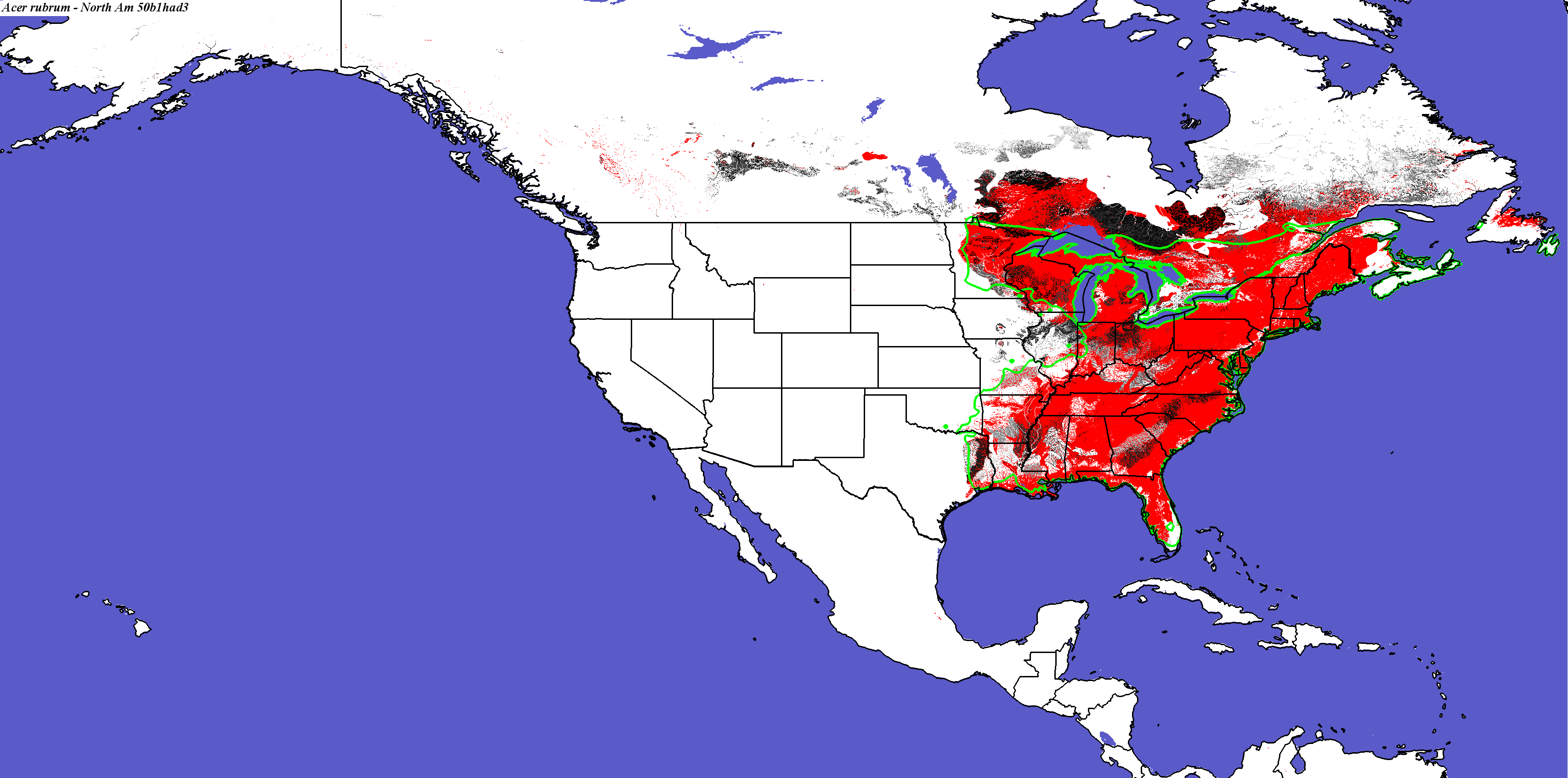

Hadley, Scenario B1, 2050 - Acer rubrum - CONUS
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
Hadley, Scenario B1, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt

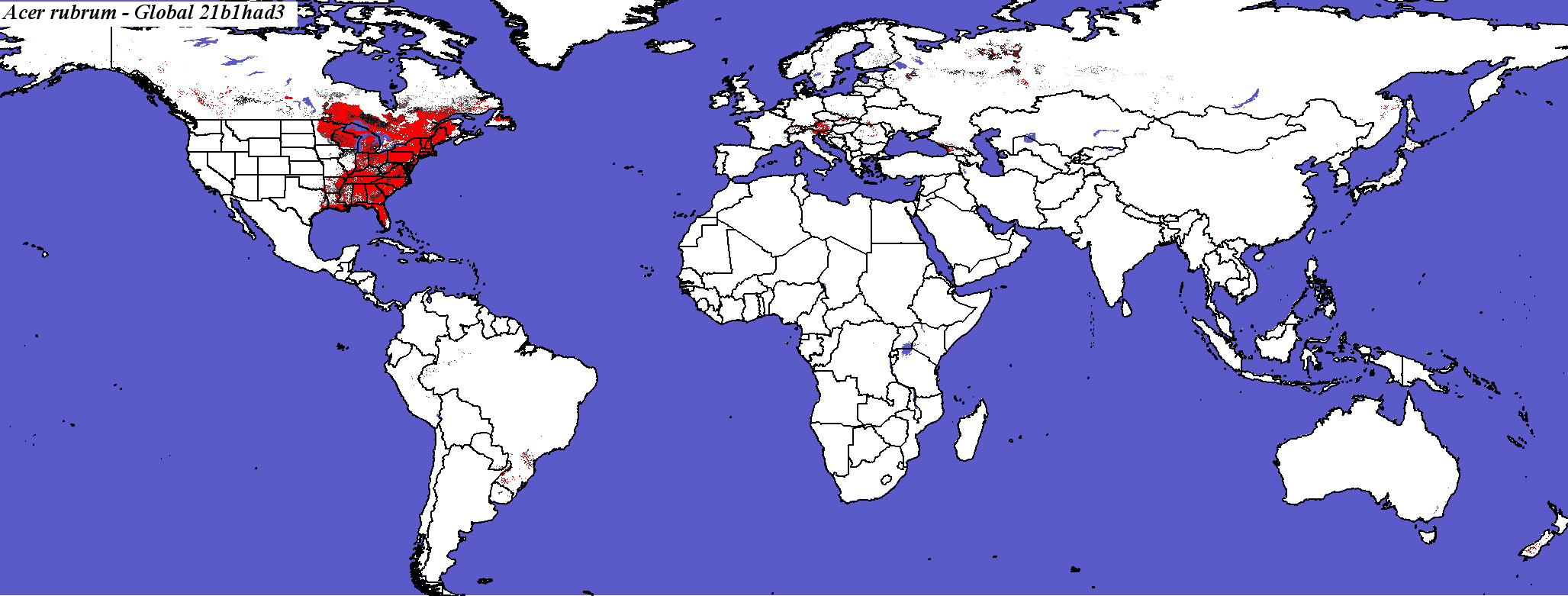

Hadley, Scenario B1, 2100 - Acer rubrum - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_rubrum_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

538

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

0.136986

Area in Present Suitable Range (in km2)

3201634

Area in Future Suitable Range (Had B1 2050, in km2)

2623119

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

2264269

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

70.7200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

8.63014

Percent Change in Area of Suitable Range (Had B1 2050)

-18.0600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

29.1781

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5408 +/- 16011.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

88.6301

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.37036 +/- 6.8442

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

91.3699

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

157.97 +/- 584.852

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

35.7534

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

122949

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.8400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

32.3288

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

982989

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

30.7000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

43.2877

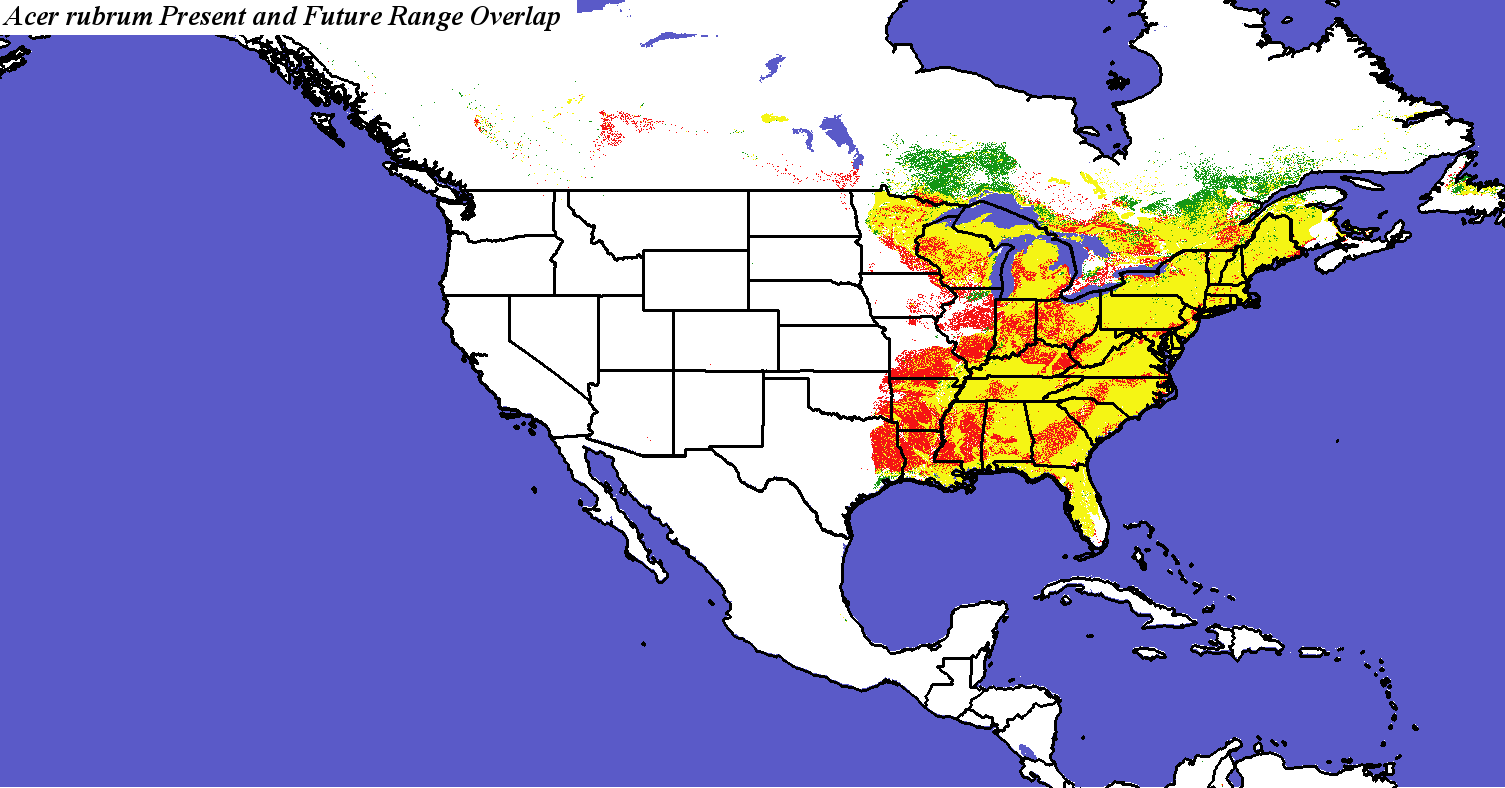

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer rubrum Acer rubrum - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Acer_rubrum_final.noelev Fine MRM Distance
Acer_rubrum_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer rubrum
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

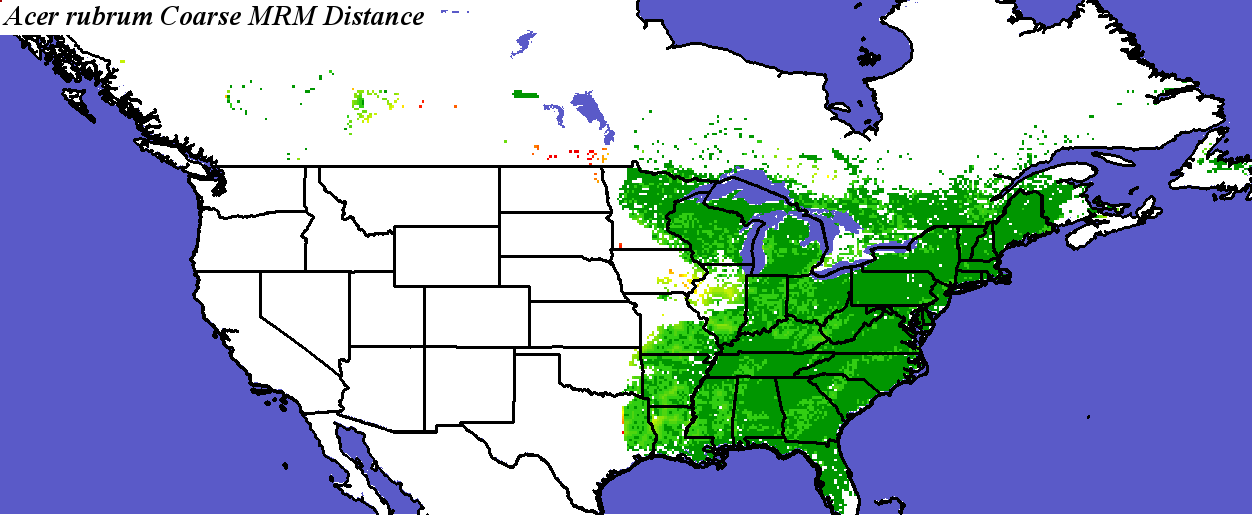

Acer_rubrum_final.noelev Coarse MRM Distance

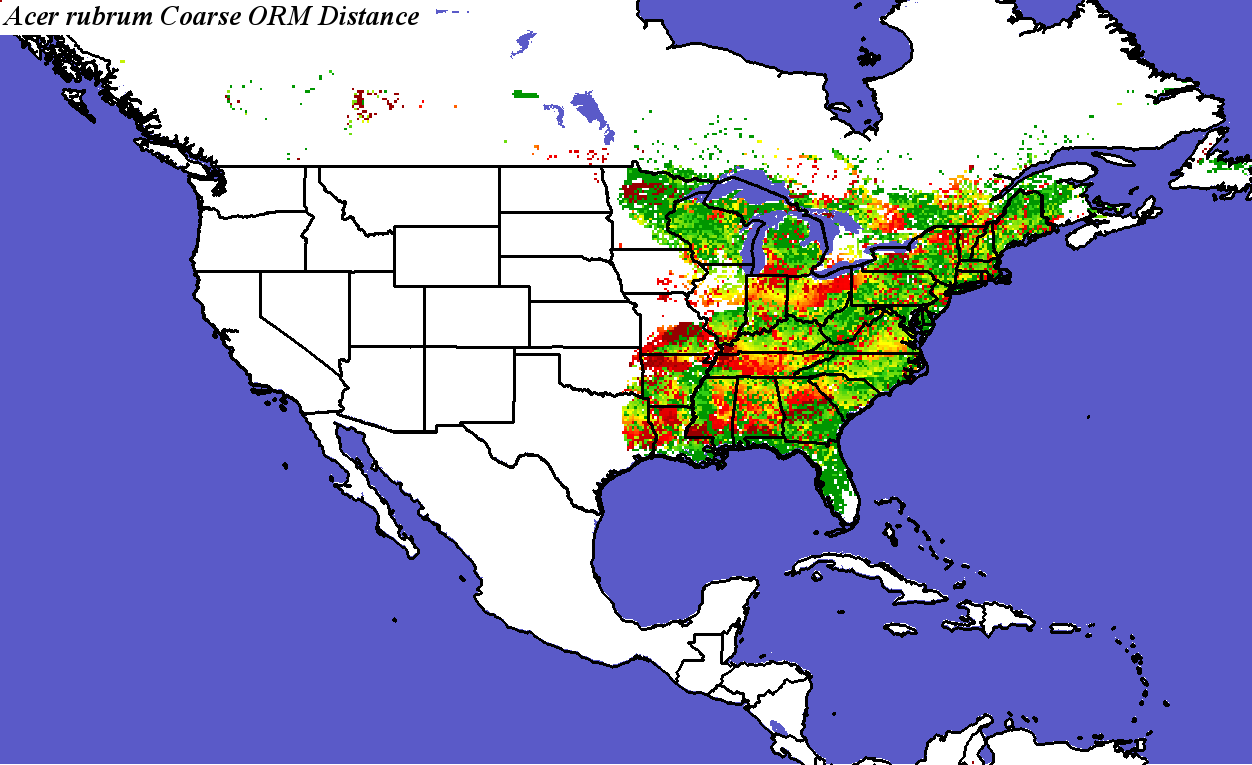

Acer_rubrum_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum
