Version 5 Tree Atlas


Carpinus caroliniana

musclewood

noelev

Carpinus caroliniana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carpinus caroliniana

USDA Plants Database entry for Carpinus caroliniana
Silvics Manual entry for Carpinus caroliniana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Carpinus caroliniana var. virginiana28533893242Parts of range not well sampled

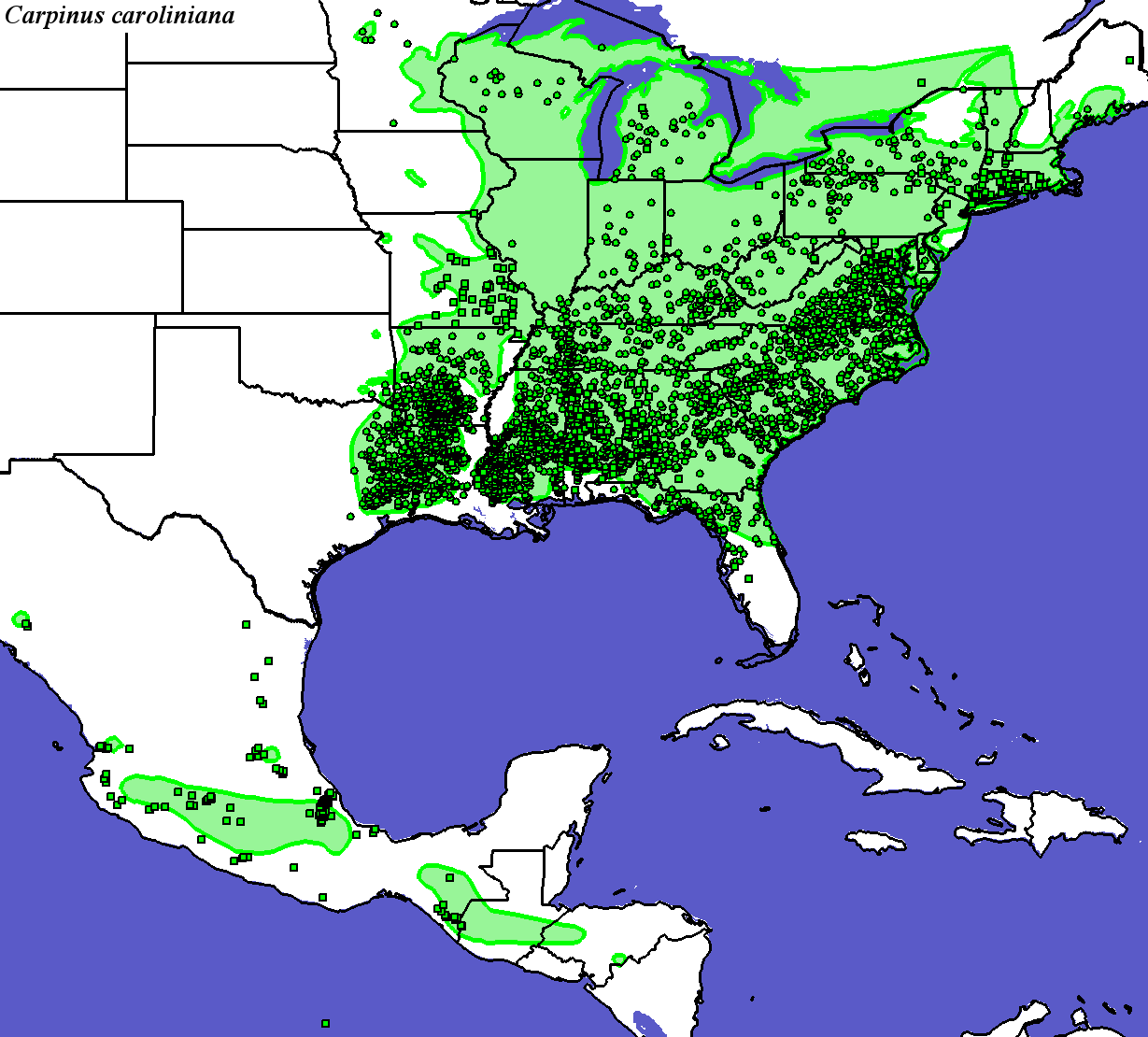

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carpinus_caroliniana_final Occurrences
Hargroves Present Suitable Range Outline for Carpinus_caroliniana_final
Carpinus caroliniana - Occurrence Locations Carpinus caroliniana - Hargrove's Present Suitable Range Outline
Present Conditions
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global
Carpinus caroliniana - CONUS
Compare with Current Range from the Silvics Manual for Carpinus caroliniana
Compare with Current Range from Biota of North America Program (BONAP) for Carpinus caroliniana

Compare with Carpinus caroliniana modeled for Current conditions by Iverson and Prasad
Carpinus caroliniana not modeled by Crookston and Rehfeldt
Carpinus caroliniana not modeled by Coops and Waring
Carpinus caroliniana - Global

PCM - Parallel Climate Model
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global

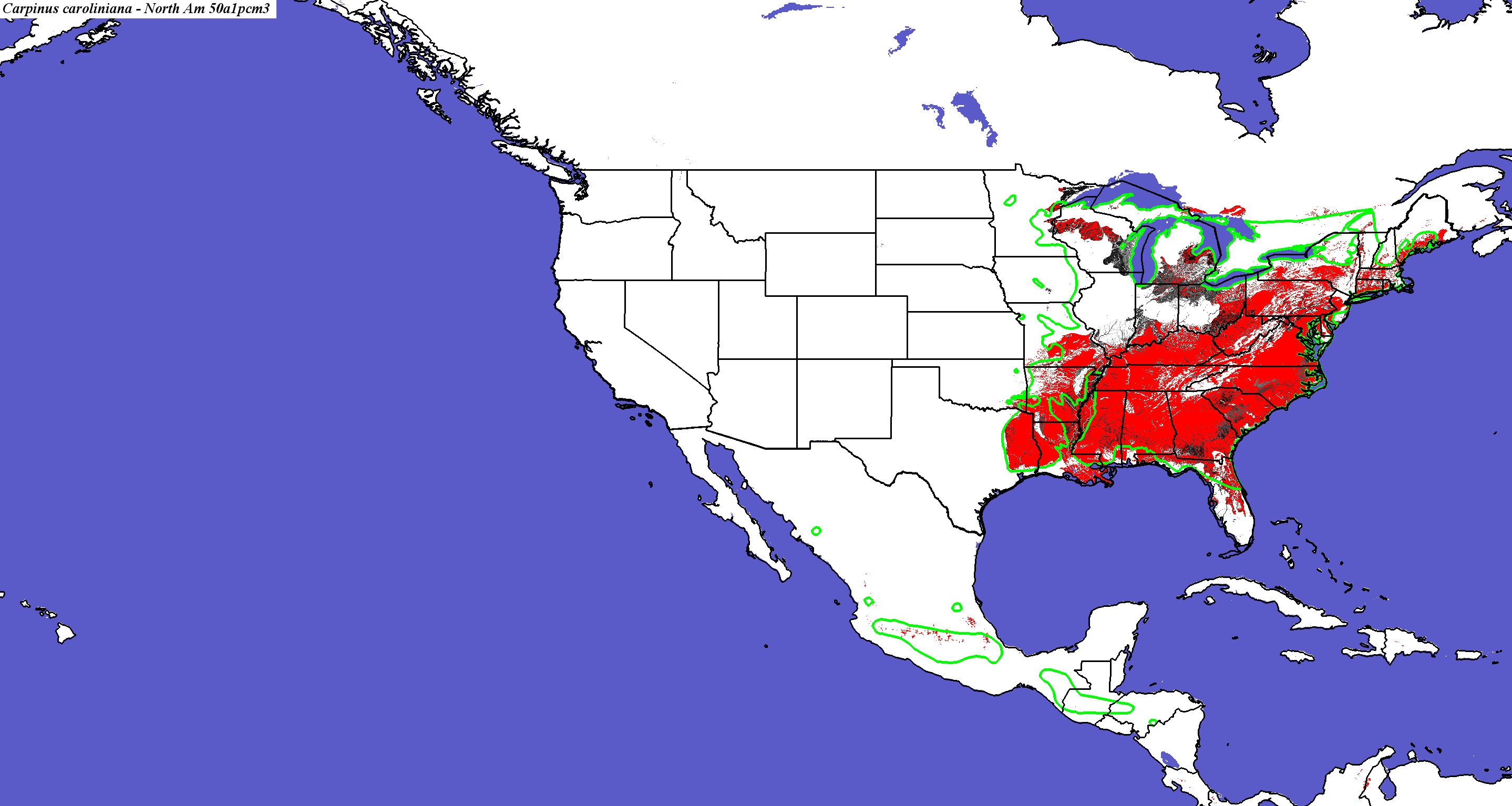

PCM, Scenario A1FI, 2050 - Carpinus caroliniana - CONUS
PCM, Scenario A1FI, 2050 - Carpinus caroliniana - Global
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global

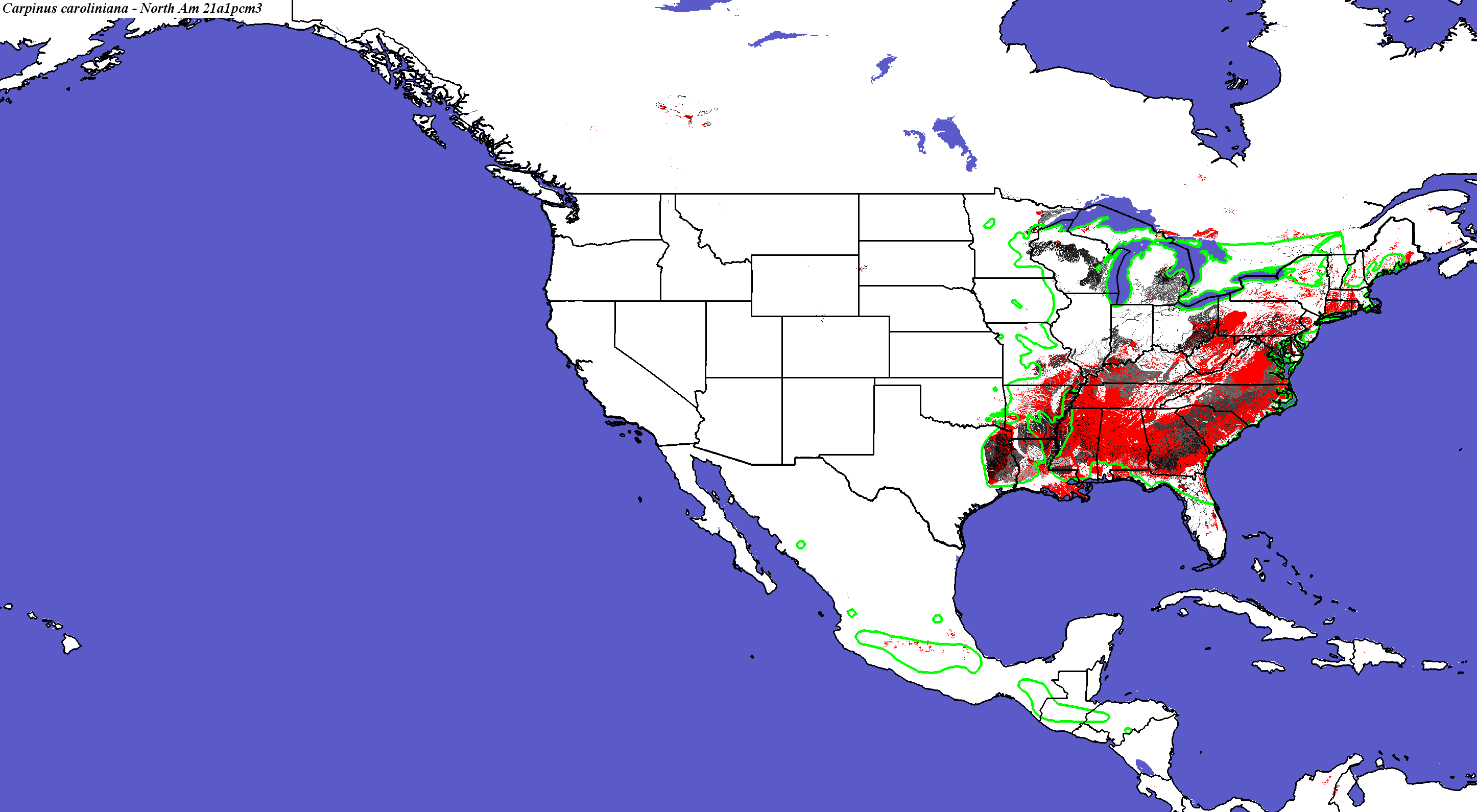

PCM, Scenario A1FI, 2100 - Carpinus caroliniana - CONUS
Compare with Carpinus caroliniana modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Carpinus caroliniana - Global

Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global
PCM, Scenario B1, 2050 - Carpinus caroliniana - CONUS
PCM, Scenario B1, 2050 - Carpinus caroliniana - Global
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global

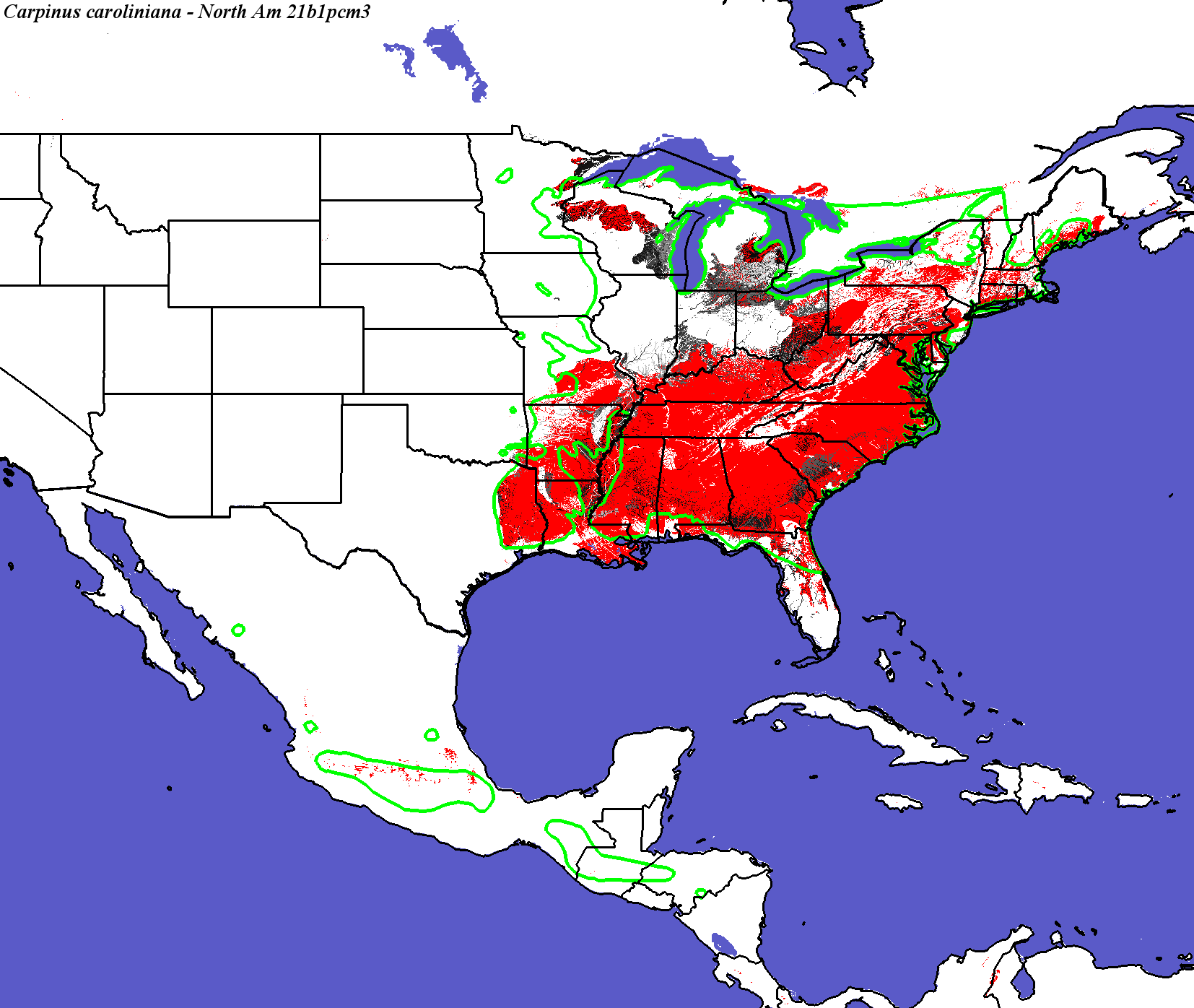

PCM, Scenario B1, 2100 - Carpinus caroliniana - CONUS
Compare with Carpinus caroliniana modeled for PCM B1 in 2100 by Iverson and Prasad

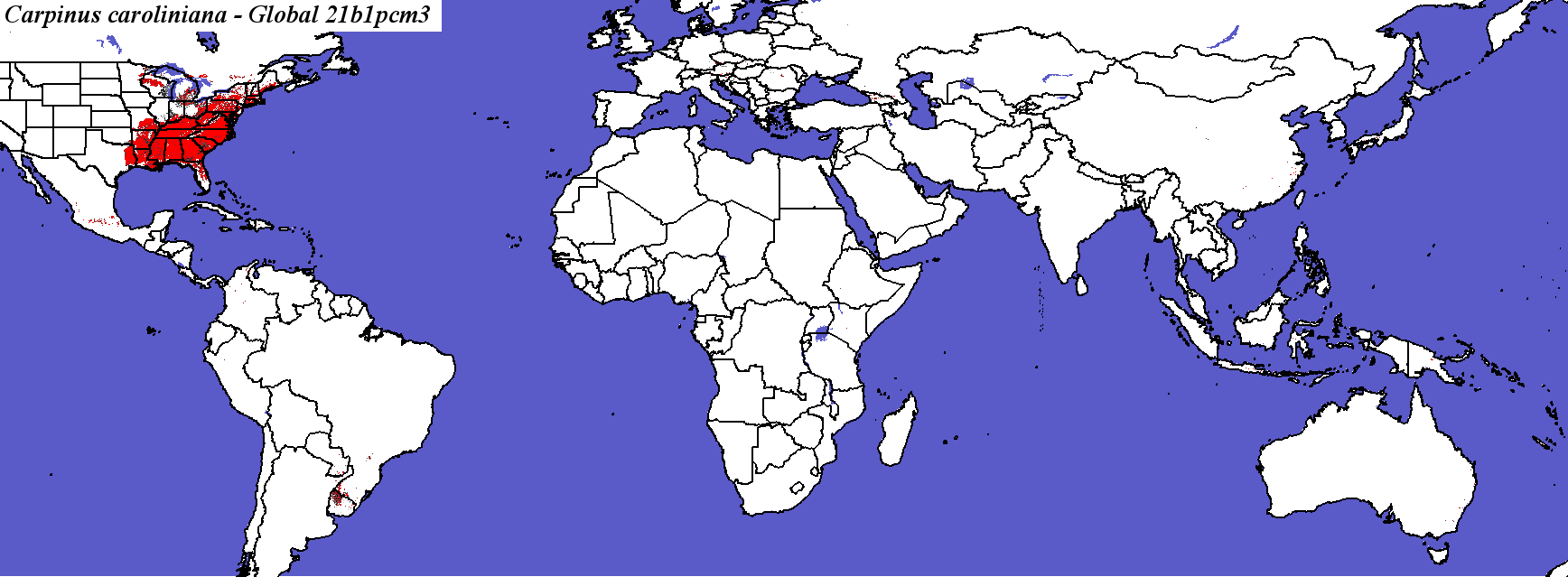

PCM, Scenario B1, 2100 - Carpinus caroliniana - Global

Hadley Climate Model
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global

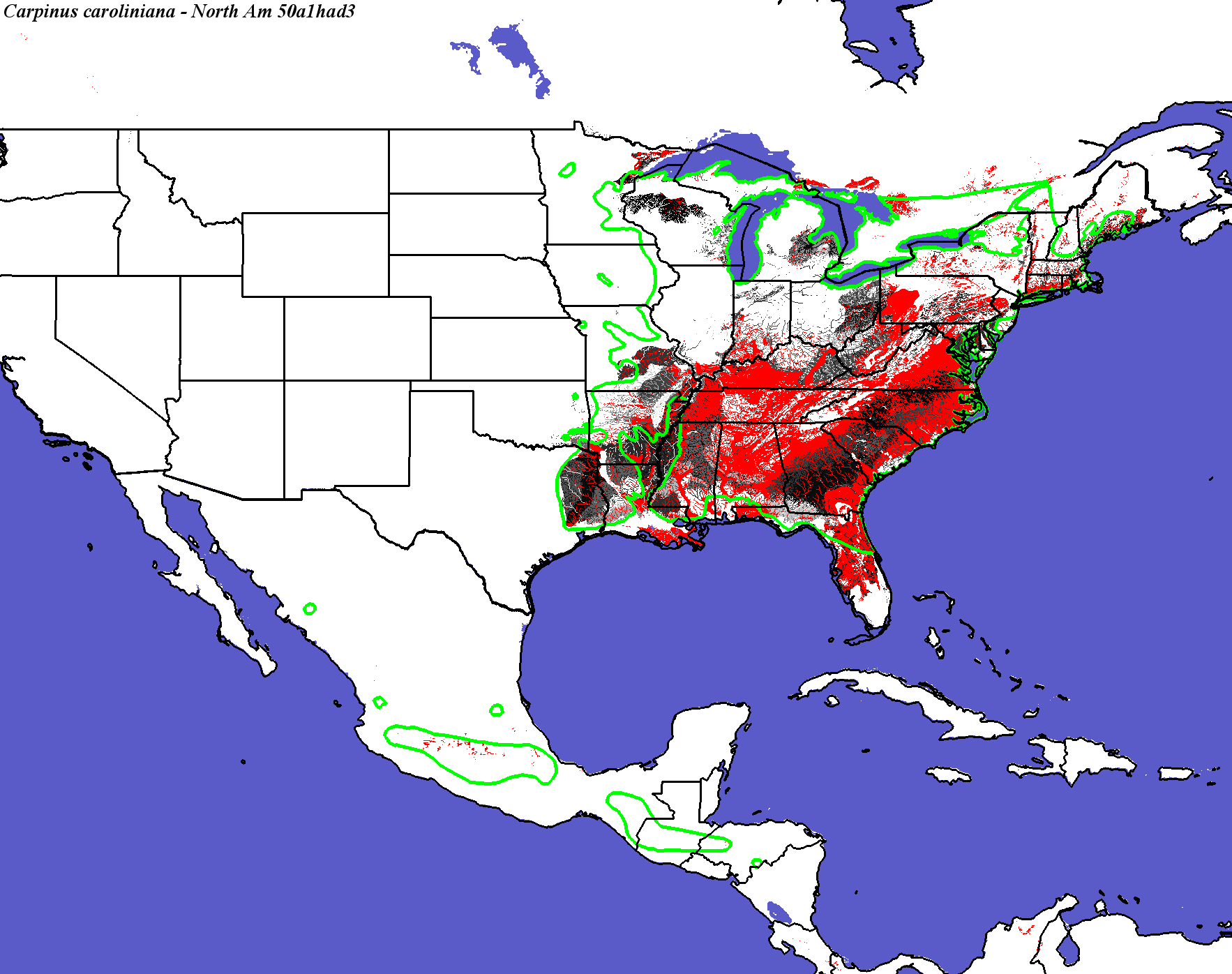

Hadley, Scenario A1FI, 2050 - Carpinus caroliniana - CONUS
Carpinus caroliniana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Carpinus caroliniana - Global
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global.

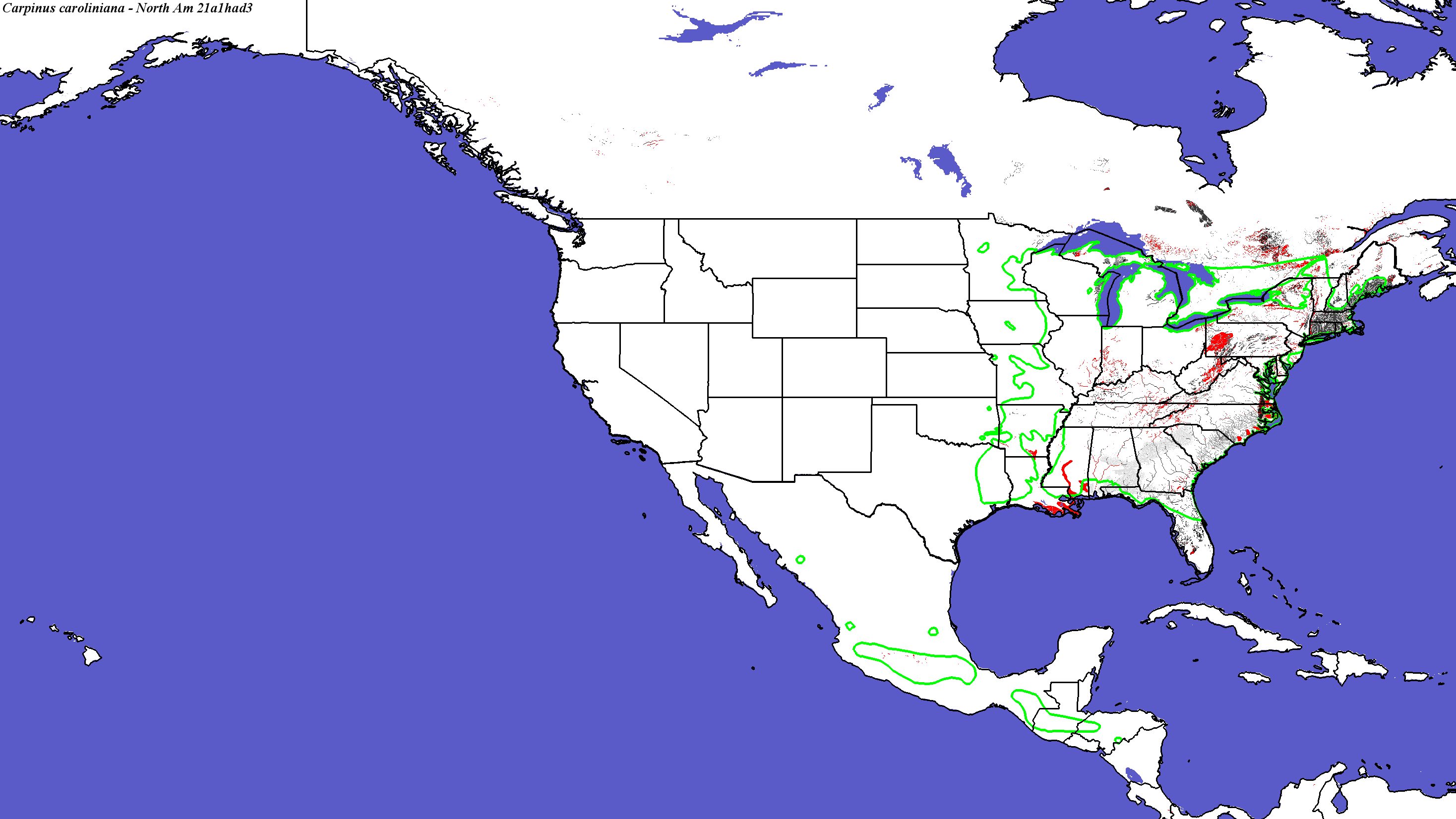

Hadley, Scenario A1FI, 2100 - Carpinus caroliniana - CONUS
Compare with Carpinus caroliniana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Carpinus caroliniana not modeled by Crookston and Rehfeldt
Carpinus caroliniana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Carpinus caroliniana - Global

Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global.
Hadley, Scenario B1, 2050 - Carpinus caroliniana - CONUS
Carpinus caroliniana not modeled by Crookston and Rehfeldt
Carpinus caroliniana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Carpinus caroliniana - Global
Carpinus_caroliniana_final.4.conus
Carpinus_caroliniana_final.4.global
Hadley, Scenario B1, 2100 - Carpinus caroliniana - CONUS
Compare with Carpinus caroliniana modeled for Hadley B1 in 2100 by Iverson and Prasad
Carpinus caroliniana not modeled by Crookston and Rehfeldt

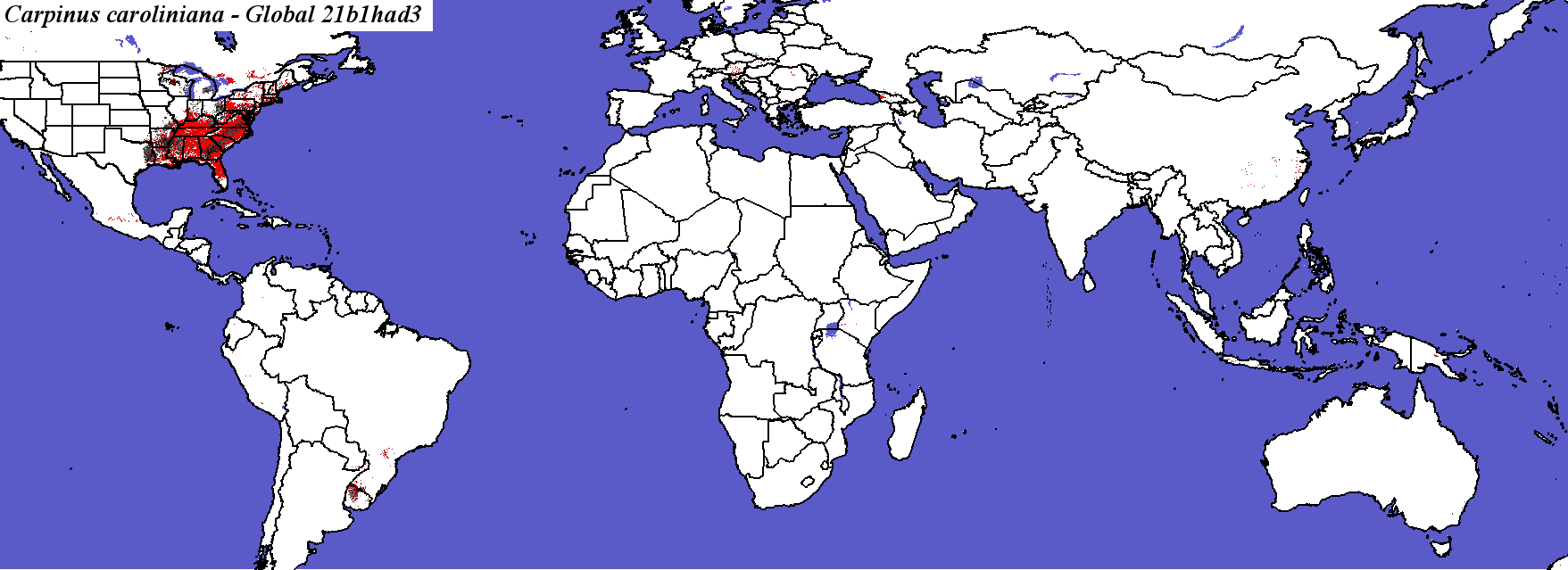

Hadley, Scenario B1, 2100 - Carpinus caroliniana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carpinus_caroliniana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

164

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

12.0548

Area in Present Suitable Range (in km2)

1562474

Area in Future Suitable Range (Had B1 2050, in km2)

922283

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

821310

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

52.5600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

45.8904

Percent Change in Area of Suitable Range (Had B1 2050)

-40.9700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

70.137

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9361.25 +/- 21936.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

69.3151

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.2085 +/- 15.8963

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

72.8767

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

205.152 +/- 673.748

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

26.1644

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

85085

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.4400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

23.6986

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

360388

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

23.0600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

60.5479

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carpinus caroliniana Carpinus caroliniana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Carpinus_caroliniana_final.noelev Fine MRM Distance
Carpinus_caroliniana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carpinus caroliniana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carpinus caroliniana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Carpinus_caroliniana_final.noelev Coarse MRM Distance
Carpinus_caroliniana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carpinus caroliniana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carpinus caroliniana
