Version 5 Tree Atlas


Carya cordiformis

bitternut hickory

noelev

Carya cordiformis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carya cordiformis

USDA Plants Database entry for Carya cordiformis
Silvics Manual entry for Carya cordiformis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
27981952993range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carya_cordiformis_final Occurrences

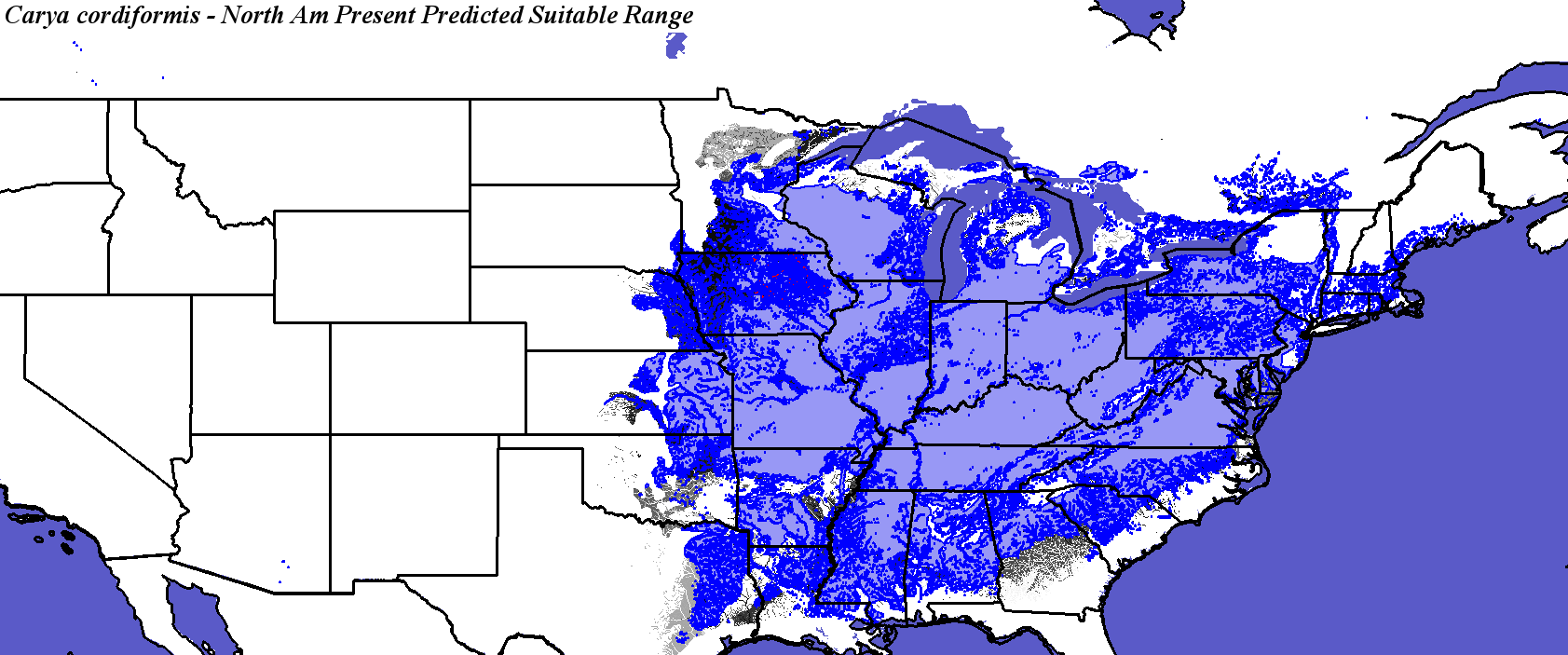

Hargroves Present Suitable Range Outline for Carya_cordiformis_final
Carya cordiformis - Occurrence Locations Carya cordiformis - Hargrove's Present Suitable Range Outline
Present Conditions
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

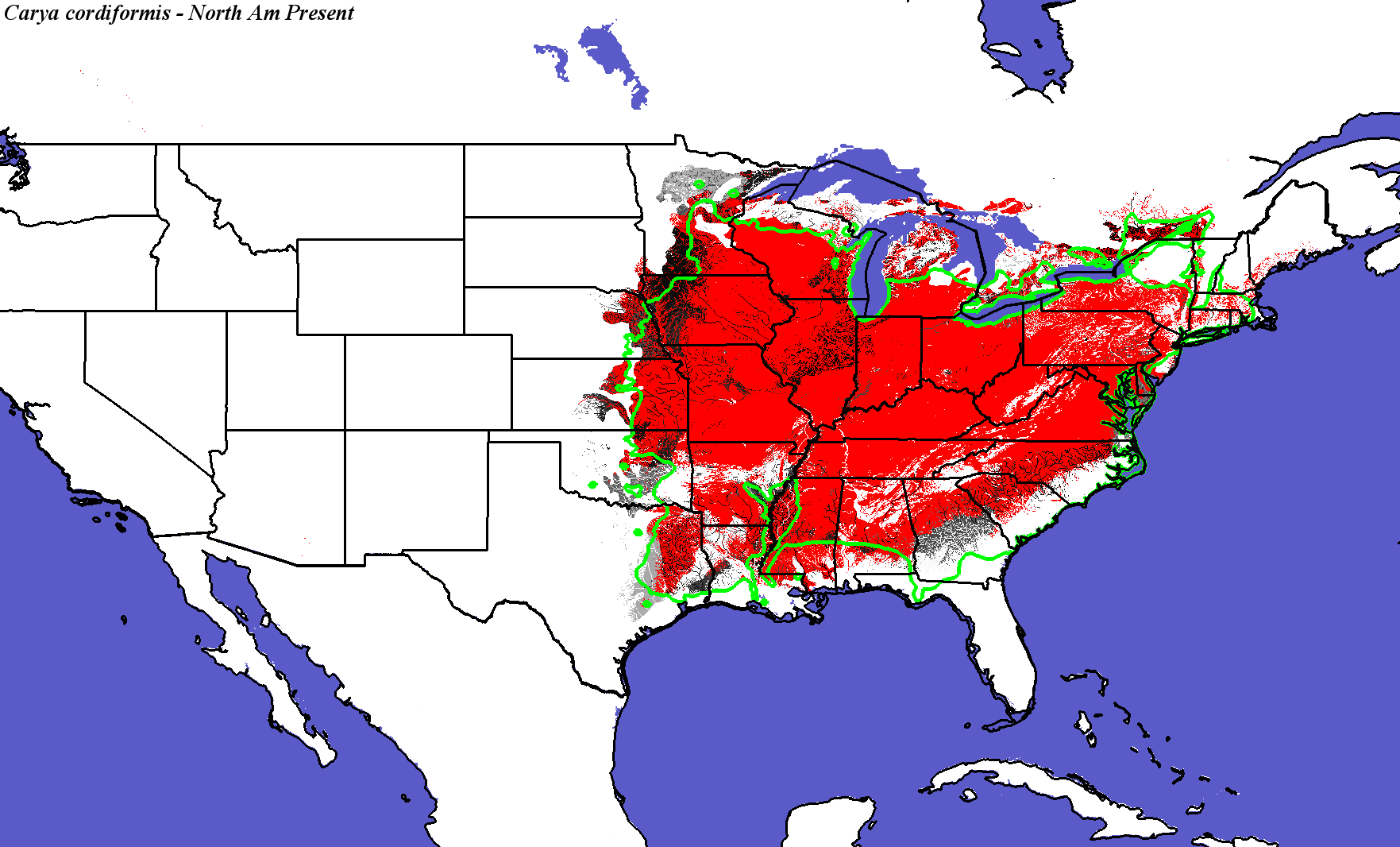

Carya cordiformis - CONUS
Compare with Current Range from the Silvics Manual for Carya cordiformis
Compare with Current Range from Biota of North America Program (BONAP) for Carya cordiformis

Compare with Carya cordiformis modeled for Current conditions by Iverson and Prasad
Carya cordiformis not modeled by Crookston and Rehfeldt
Carya cordiformis not modeled by Coops and Waring

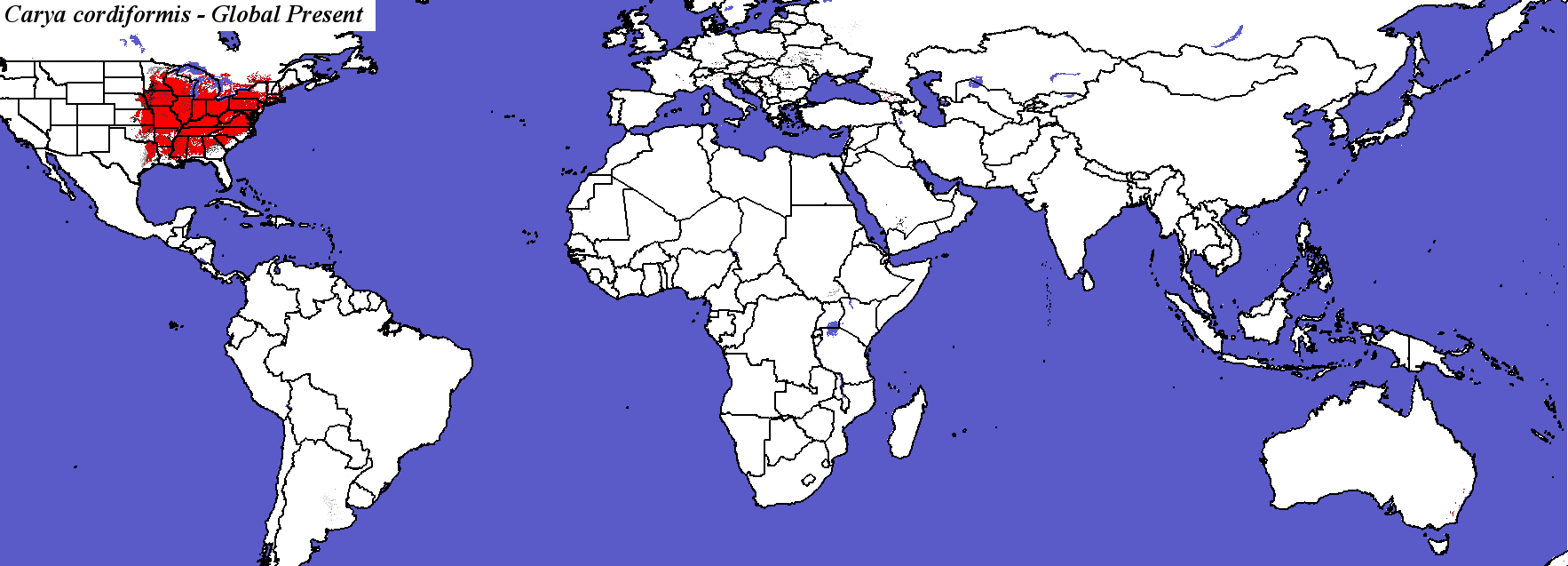

Carya cordiformis - Global

PCM - Parallel Climate Model
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

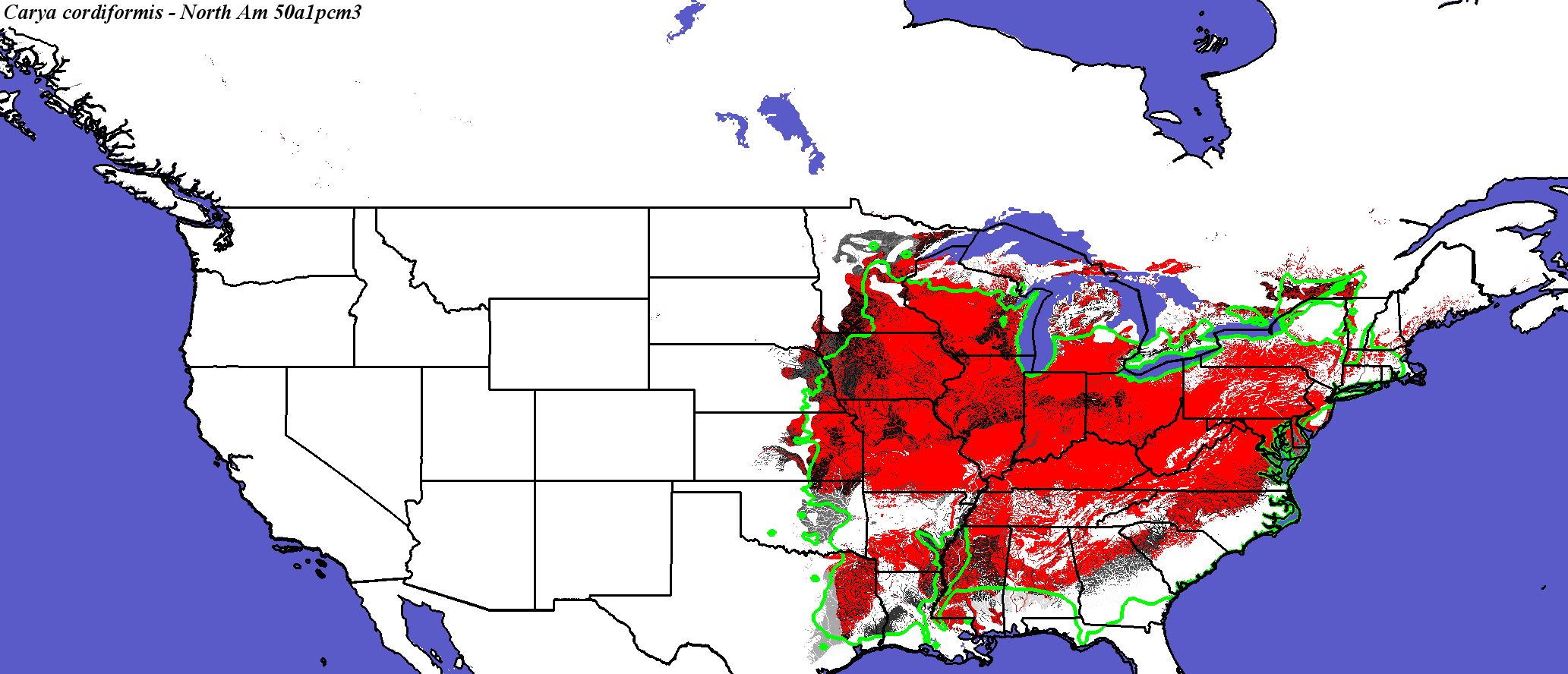

PCM, Scenario A1FI, 2050 - Carya cordiformis - CONUS

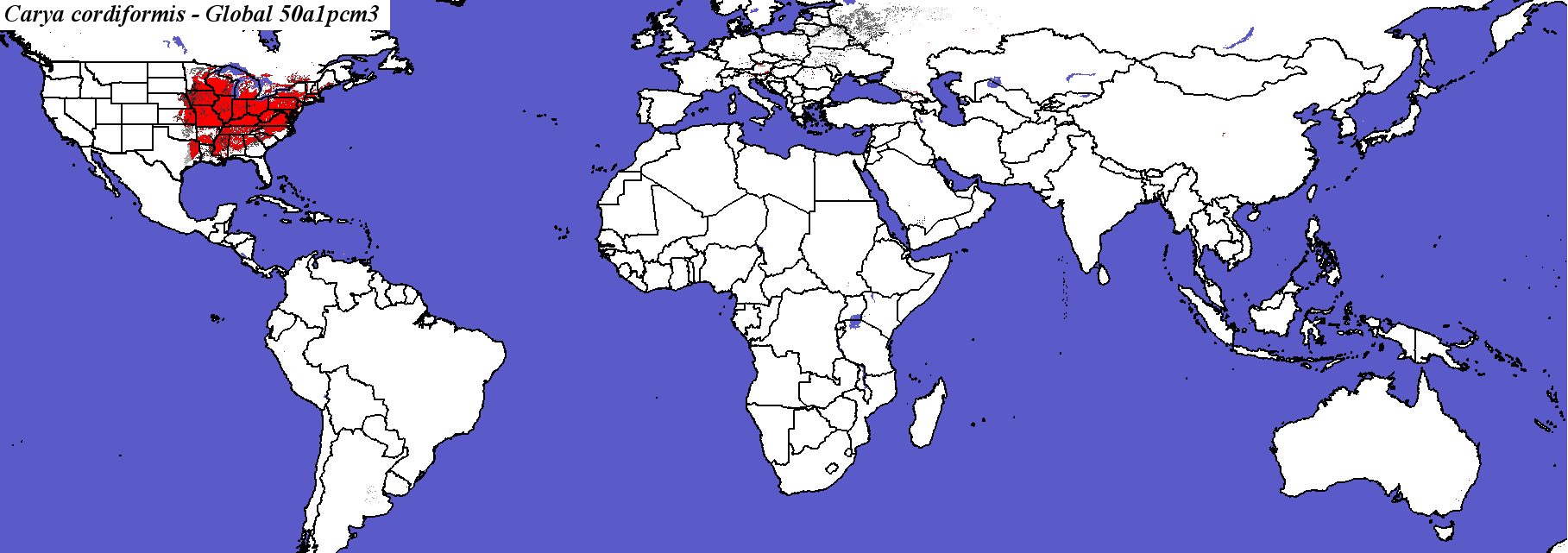

PCM, Scenario A1FI, 2050 - Carya cordiformis - Global
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

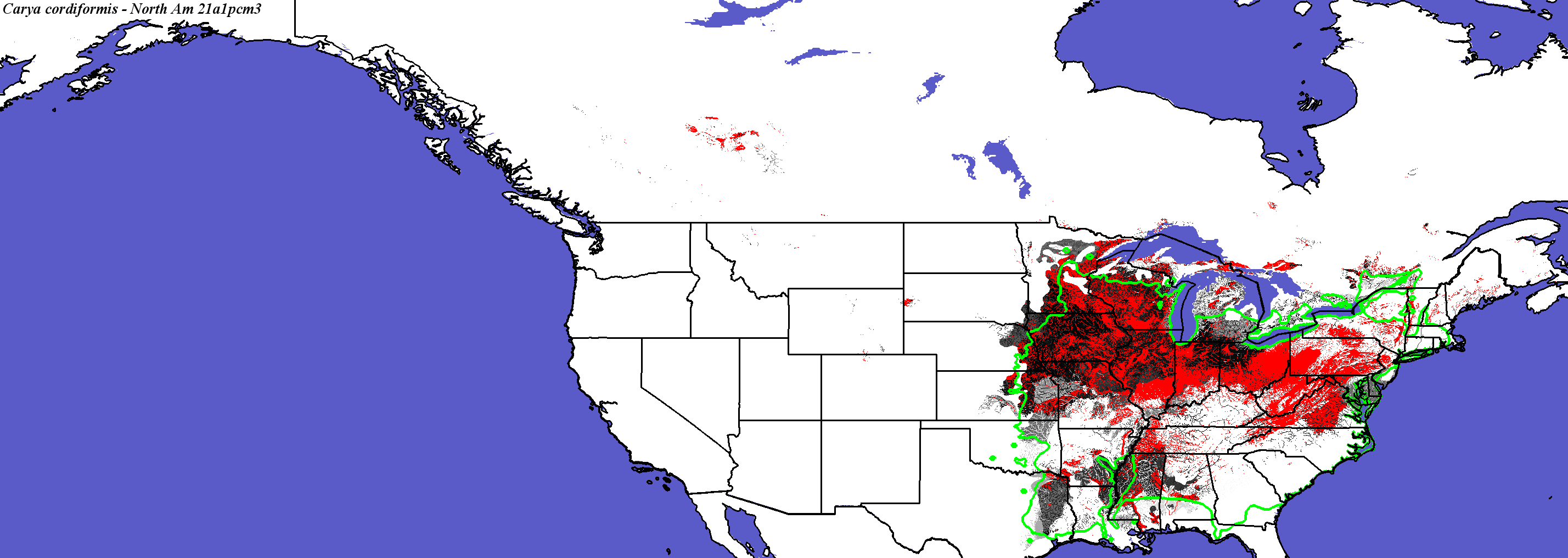

PCM, Scenario A1FI, 2100 - Carya cordiformis - CONUS
Compare with Carya cordiformis modeled for PCM A1FI in 2100 by Iverson and Prasad

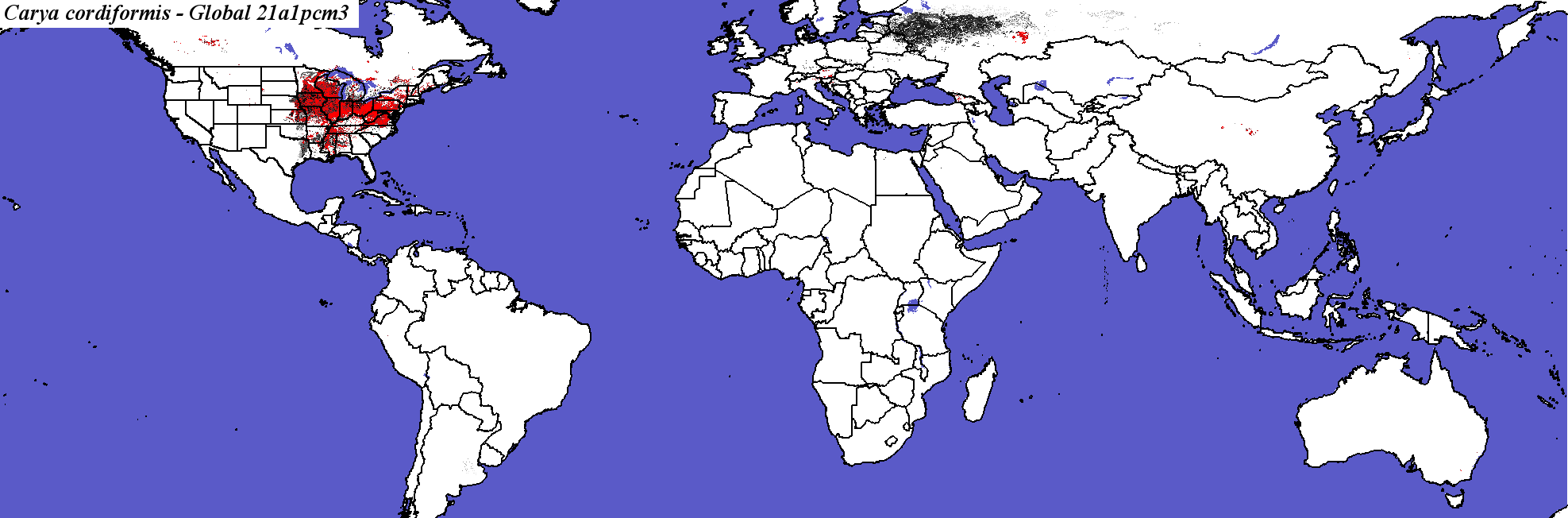

PCM, Scenario A1FI, 2100 - Carya cordiformis - Global

Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

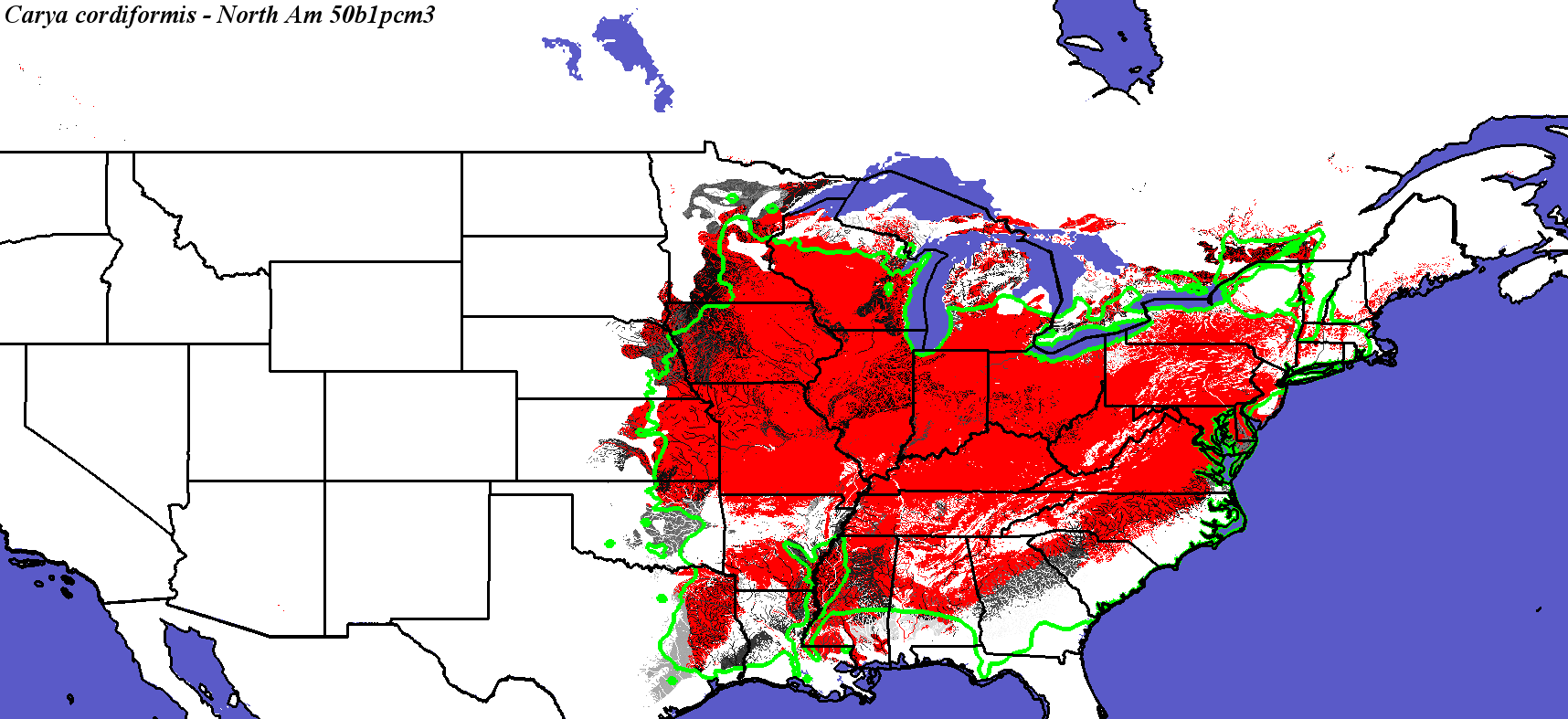

PCM, Scenario B1, 2050 - Carya cordiformis - CONUS

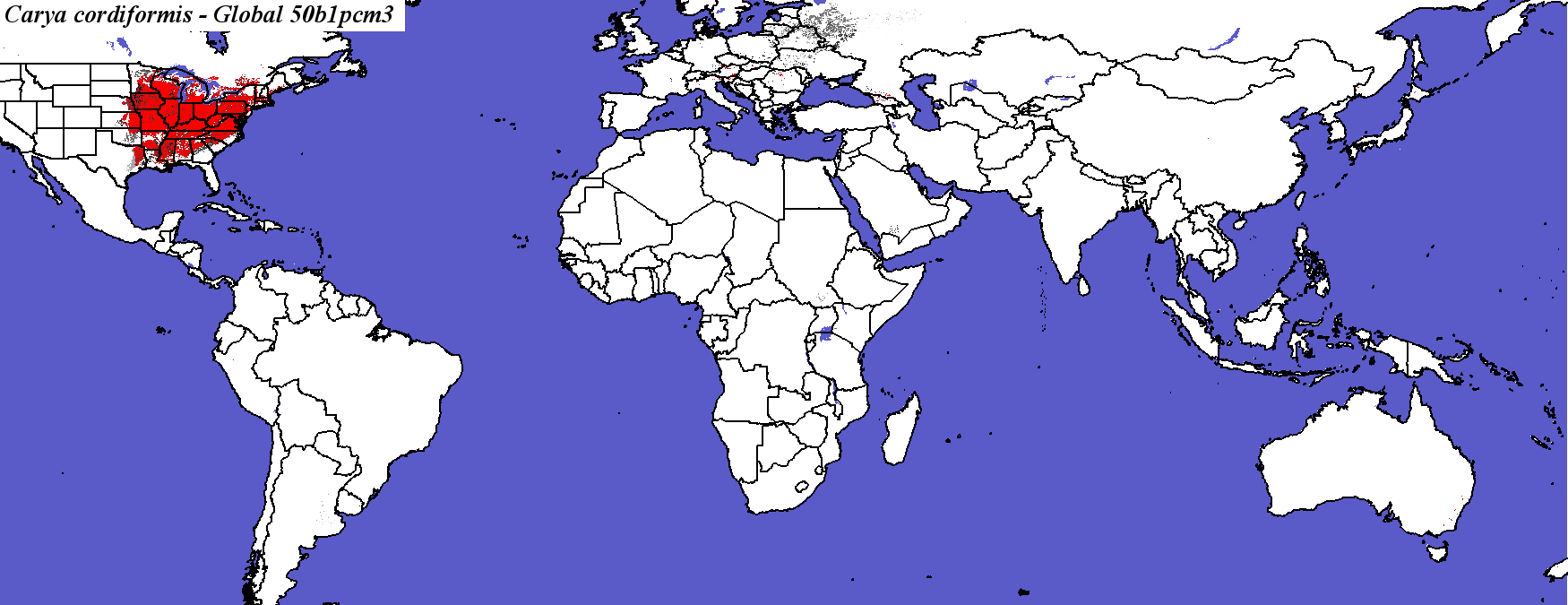

PCM, Scenario B1, 2050 - Carya cordiformis - Global
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

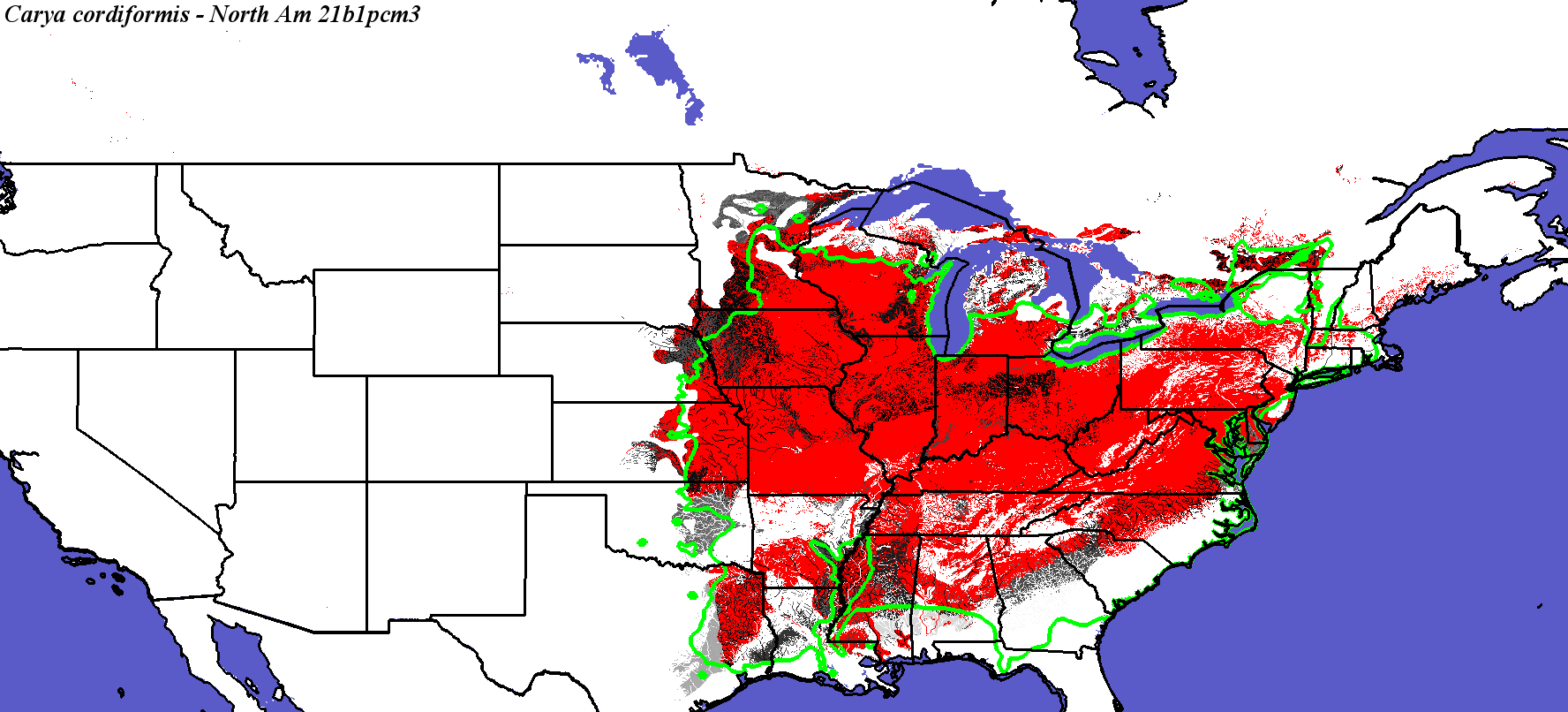

PCM, Scenario B1, 2100 - Carya cordiformis - CONUS
Compare with Carya cordiformis modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Carya cordiformis - Global

Hadley Climate Model
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global
Hadley, Scenario A1FI, 2050 - Carya cordiformis - CONUS
Carya cordiformis not modeled by Crookston and Rehfeldt

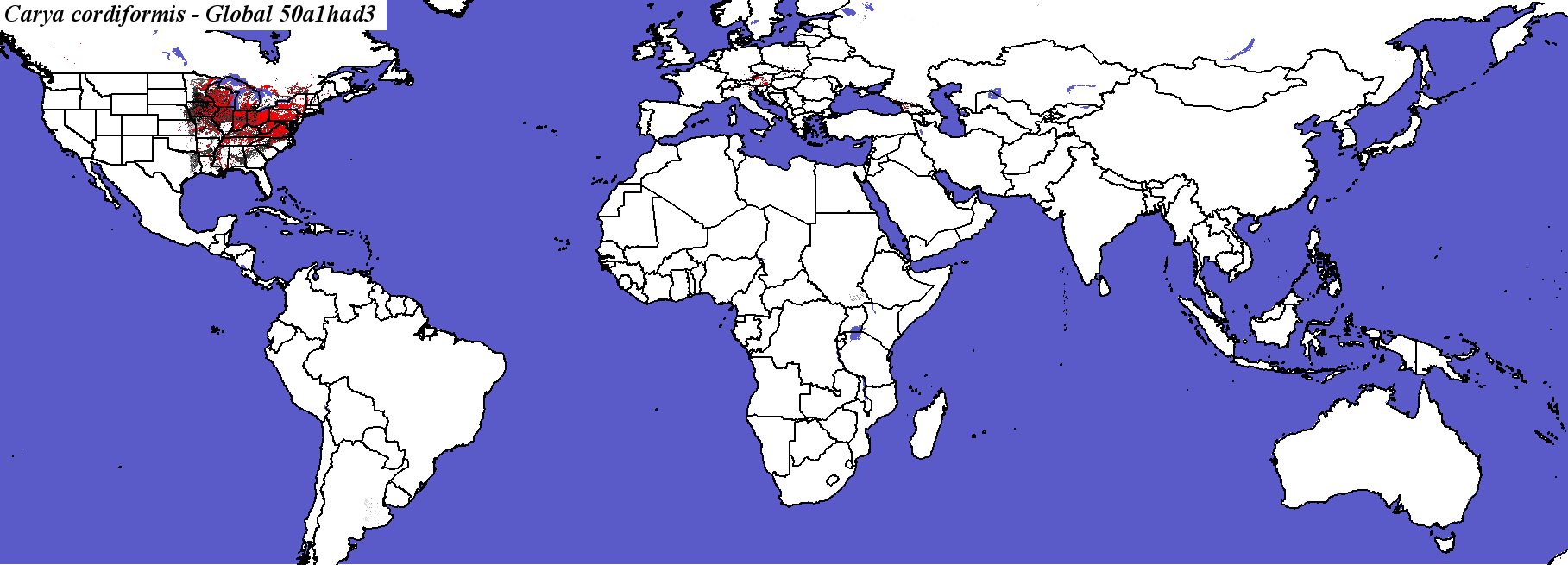

Hadley, Scenario A1FI, 2050 - Carya cordiformis - Global
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global.

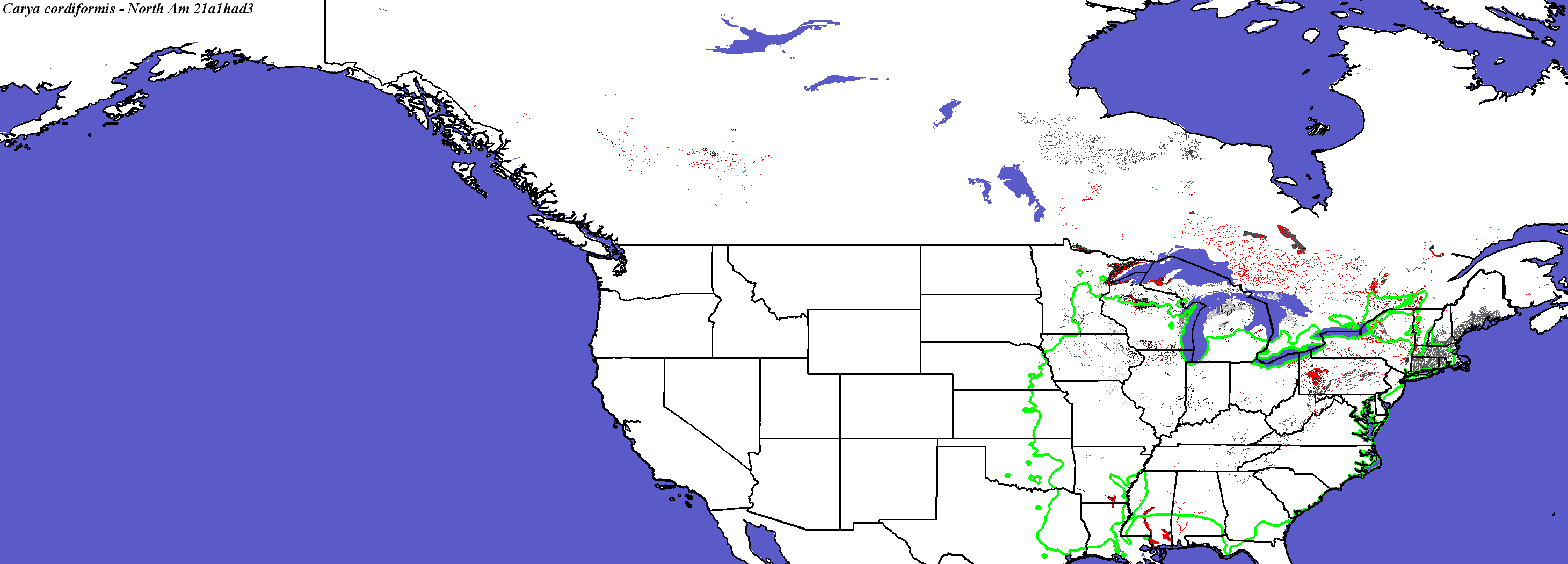

Hadley, Scenario A1FI, 2100 - Carya cordiformis - CONUS
Compare with Carya cordiformis modeled for Hadley A1FI in 2100 by Iverson and Prasad
Carya cordiformis not modeled by Crookston and Rehfeldt
Carya cordiformis not modeled by Coops and Waring

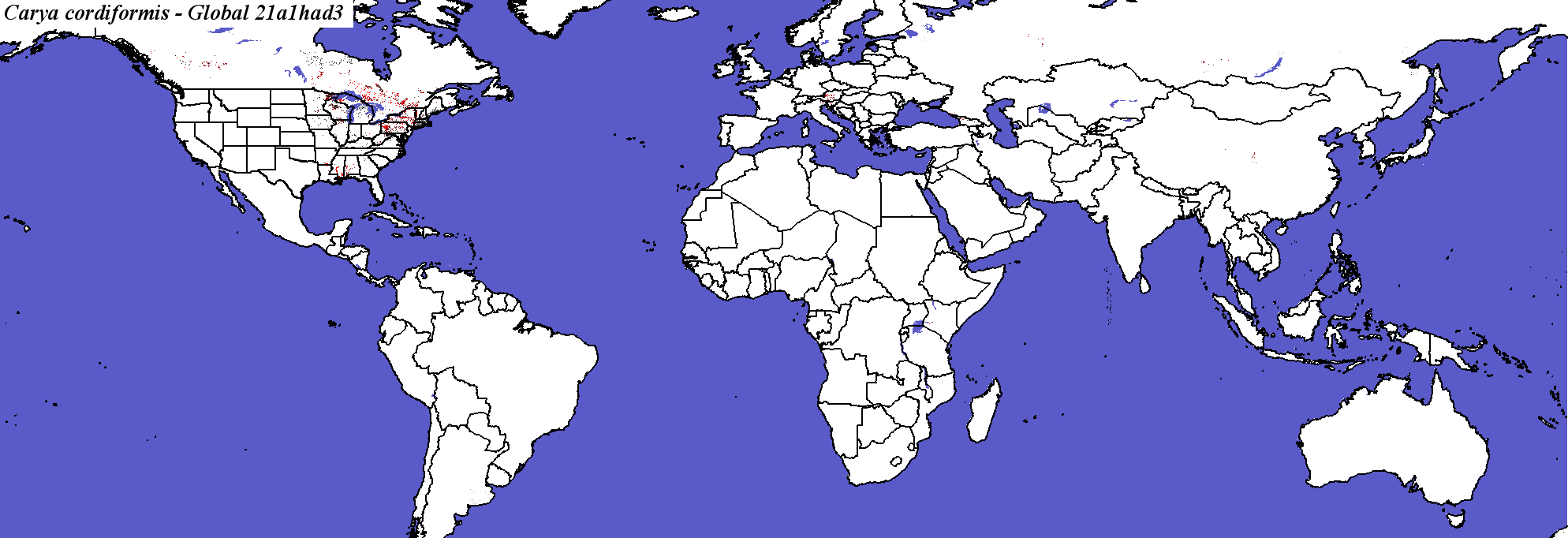

Hadley, Scenario A1FI, 2100 - Carya cordiformis - Global

Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global.

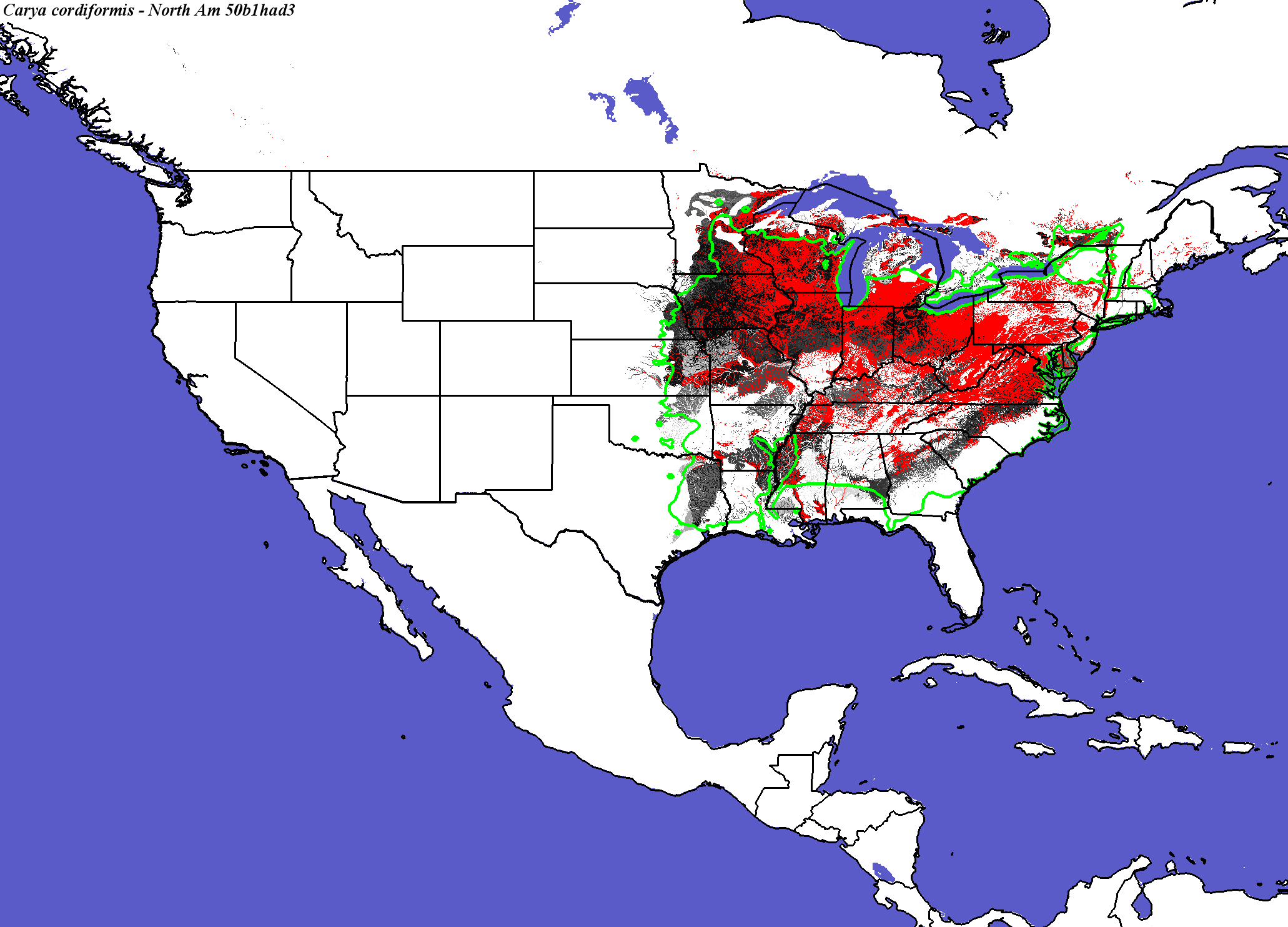

Hadley, Scenario B1, 2050 - Carya cordiformis - CONUS
Carya cordiformis not modeled by Crookston and Rehfeldt
Carya cordiformis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Carya cordiformis - Global
Carya_cordiformis_final.4.conus
Carya_cordiformis_final.4.global

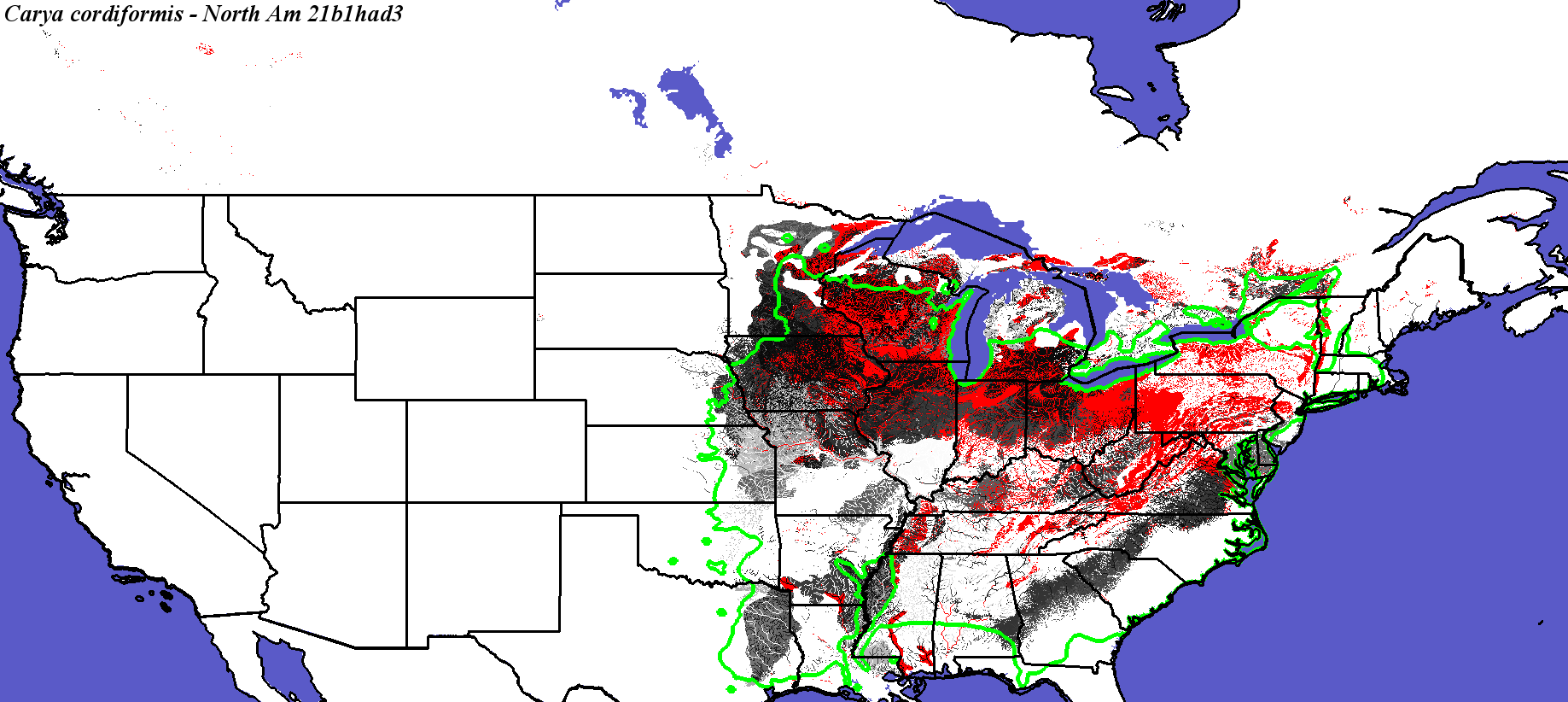

Hadley, Scenario B1, 2100 - Carya cordiformis - CONUS
Compare with Carya cordiformis modeled for Hadley B1 in 2100 by Iverson and Prasad
Carya cordiformis not modeled by Crookston and Rehfeldt

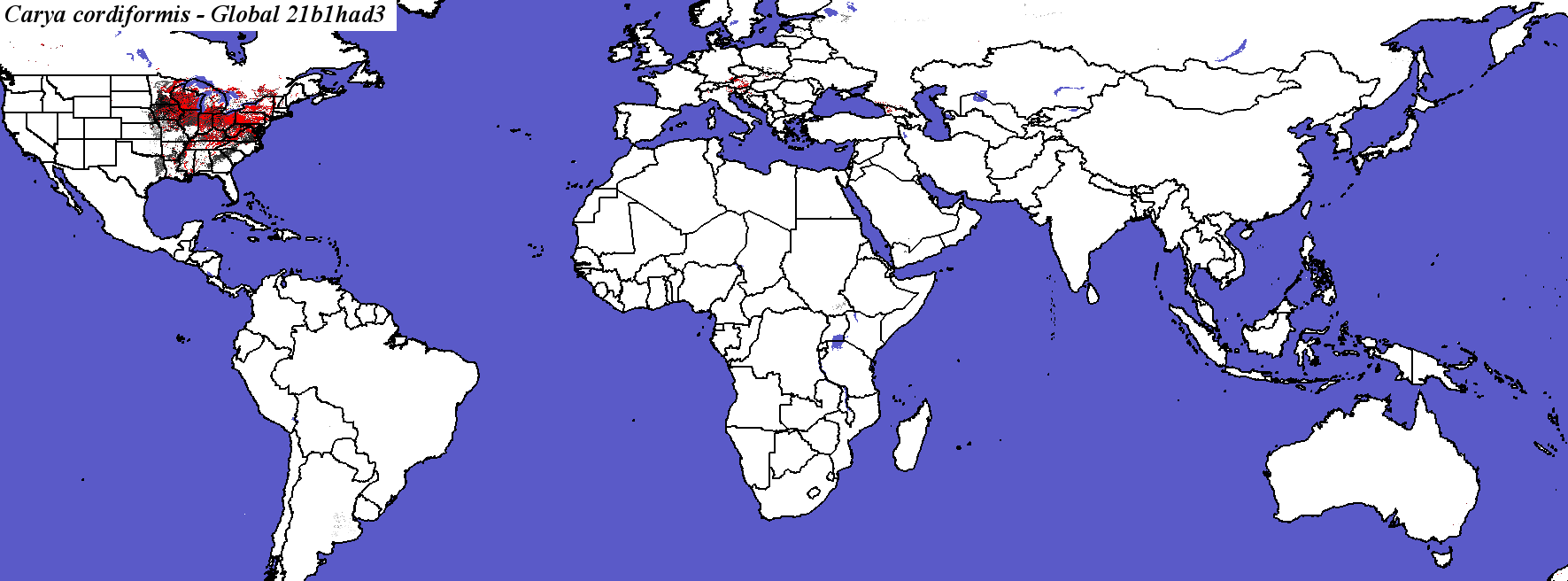

Hadley, Scenario B1, 2100 - Carya cordiformis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carya_cordiformis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

190

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

9.17808

Area in Present Suitable Range (in km2)

1941227

Area in Future Suitable Range (Had B1 2050, in km2)

864811

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

772304

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

39.7800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

71.0959

Percent Change in Area of Suitable Range (Had B1 2050)

-55.4500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.2603

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

16261 +/- 27009.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

44.2466

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.81792 +/- 11.1931

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

52.6027

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

259.027 +/- 766.195

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

18.3562

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

138311

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.1200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

15.8904

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

325578

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

16.7700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

78.3562

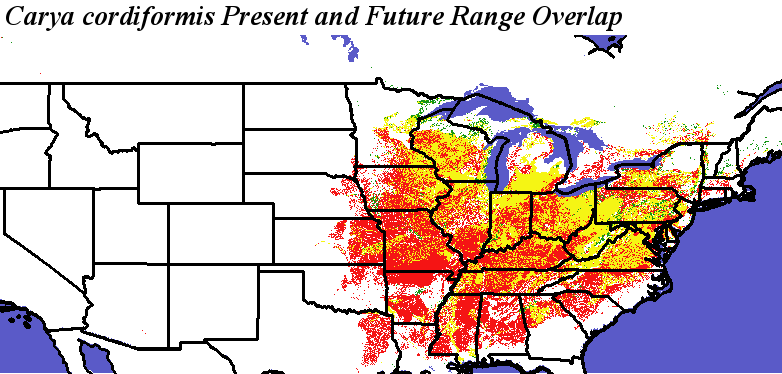

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carya cordiformis Carya cordiformis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

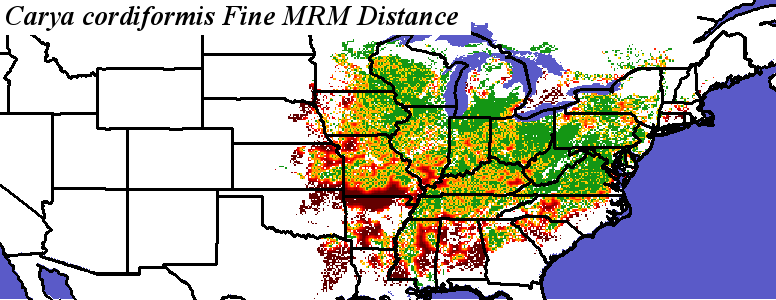

Carya_cordiformis_final.noelev Fine MRM Distance

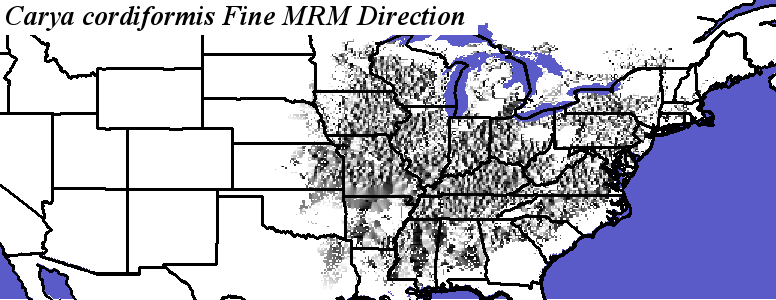

Carya_cordiformis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya cordiformis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carya cordiformis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

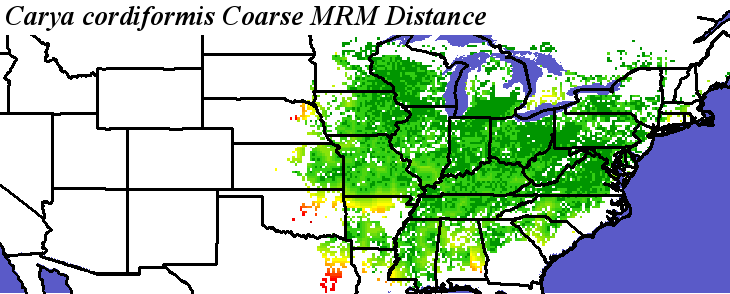

Carya_cordiformis_final.noelev Coarse MRM Distance

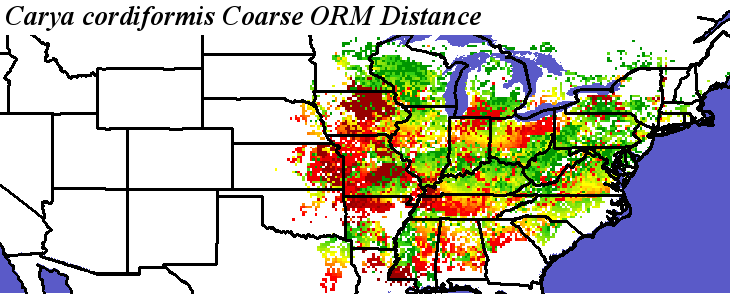

Carya_cordiformis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya cordiformis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carya cordiformis
