Version 5 Tree Atlas


Carya ovata

shagbark hickory

noelev

Carya ovata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carya ovata

USDA Plants Database entry for Carya ovata
Silvics Manual entry for Carya ovata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Carya ovata var. mexicana44411484589range is well-represented

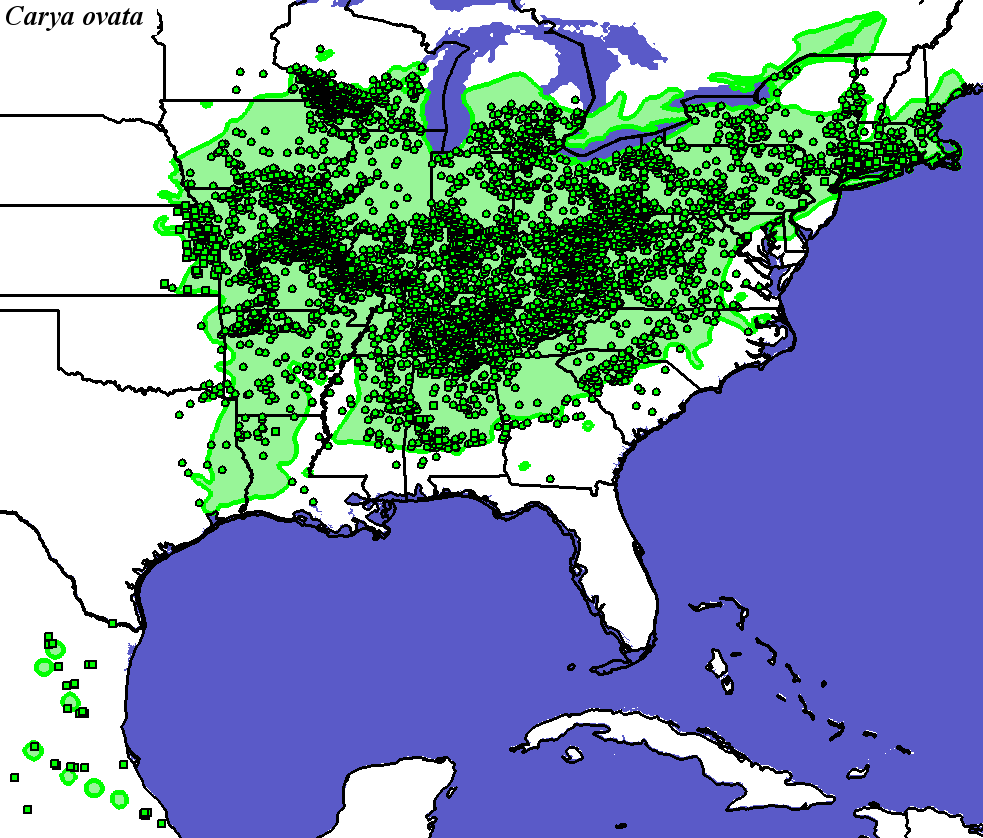

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carya_ovata_final Occurrences
Hargroves Present Suitable Range Outline for Carya_ovata_final
Carya ovata - Occurrence Locations Carya ovata - Hargrove's Present Suitable Range Outline

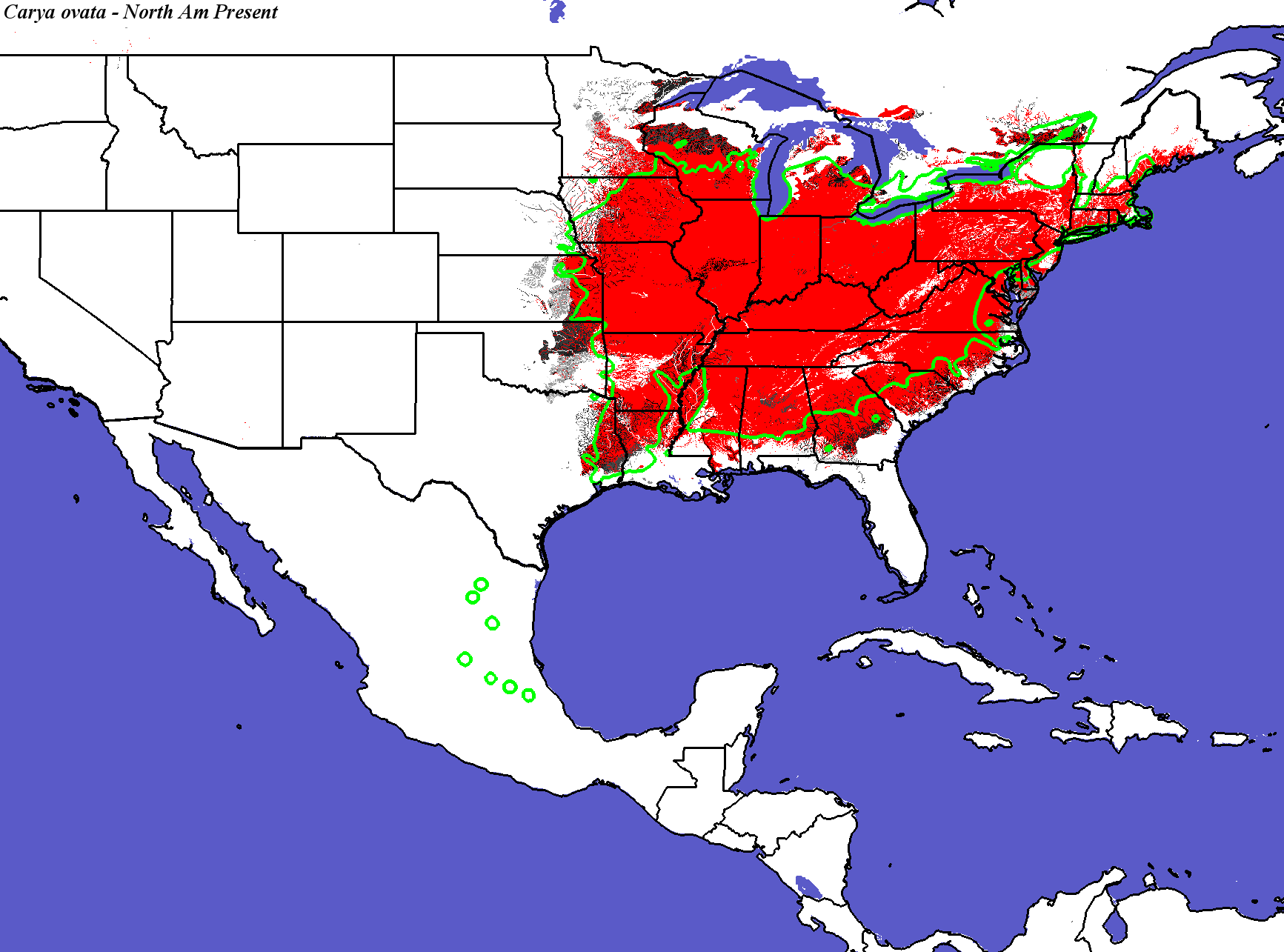

Present Conditions
Carya_ovata_final.4.conus
Carya_ovata_final.4.global

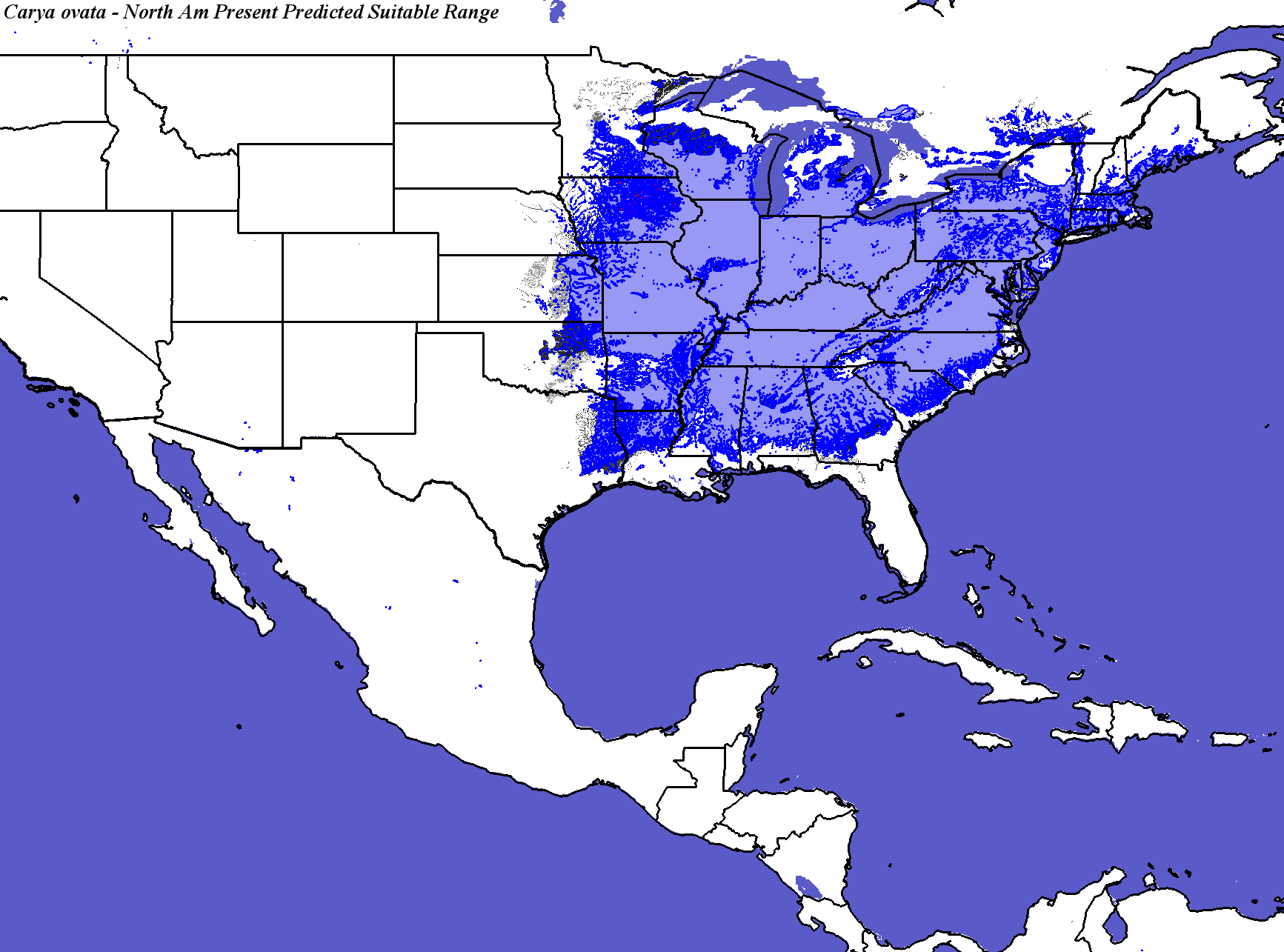

Carya ovata - CONUS
Compare with Current Range from the Silvics Manual for Carya ovata
Compare with Current Range from Biota of North America Program (BONAP) for Carya ovata

Compare with Carya ovata modeled for Current conditions by Iverson and Prasad
Carya ovata not modeled by Crookston and Rehfeldt
Carya ovata not modeled by Coops and Waring

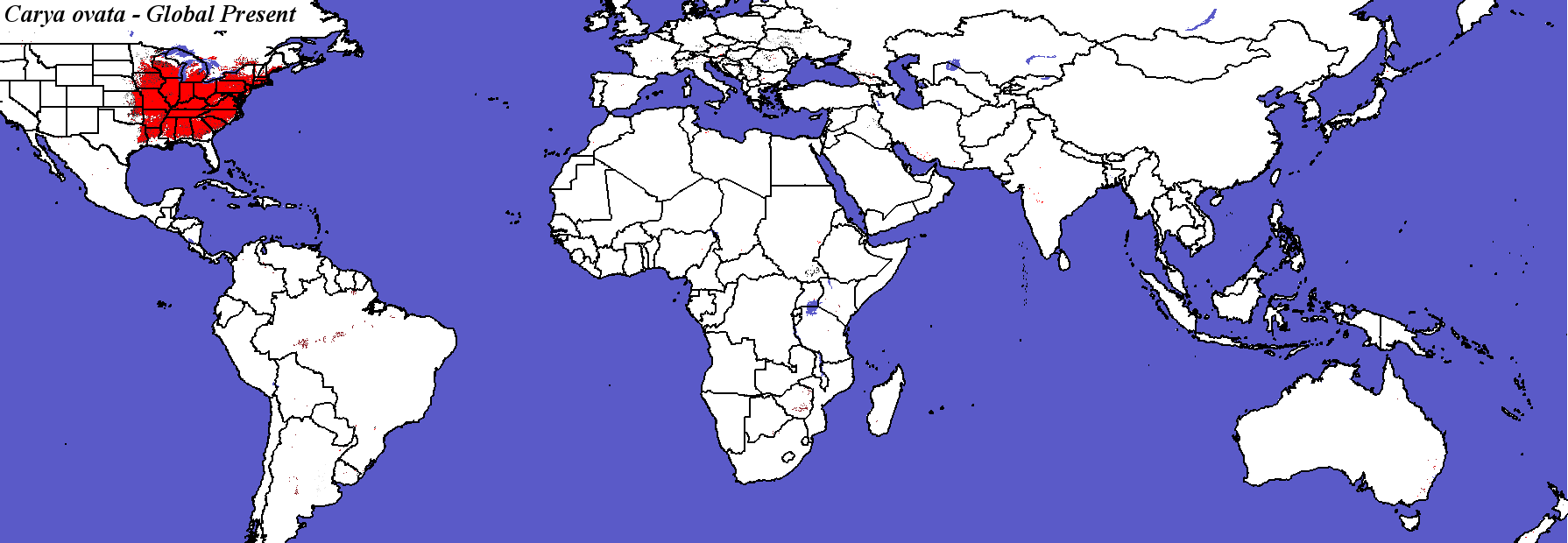

Carya ovata - Global

PCM - Parallel Climate Model
Carya_ovata_final.4.conus
Carya_ovata_final.4.global

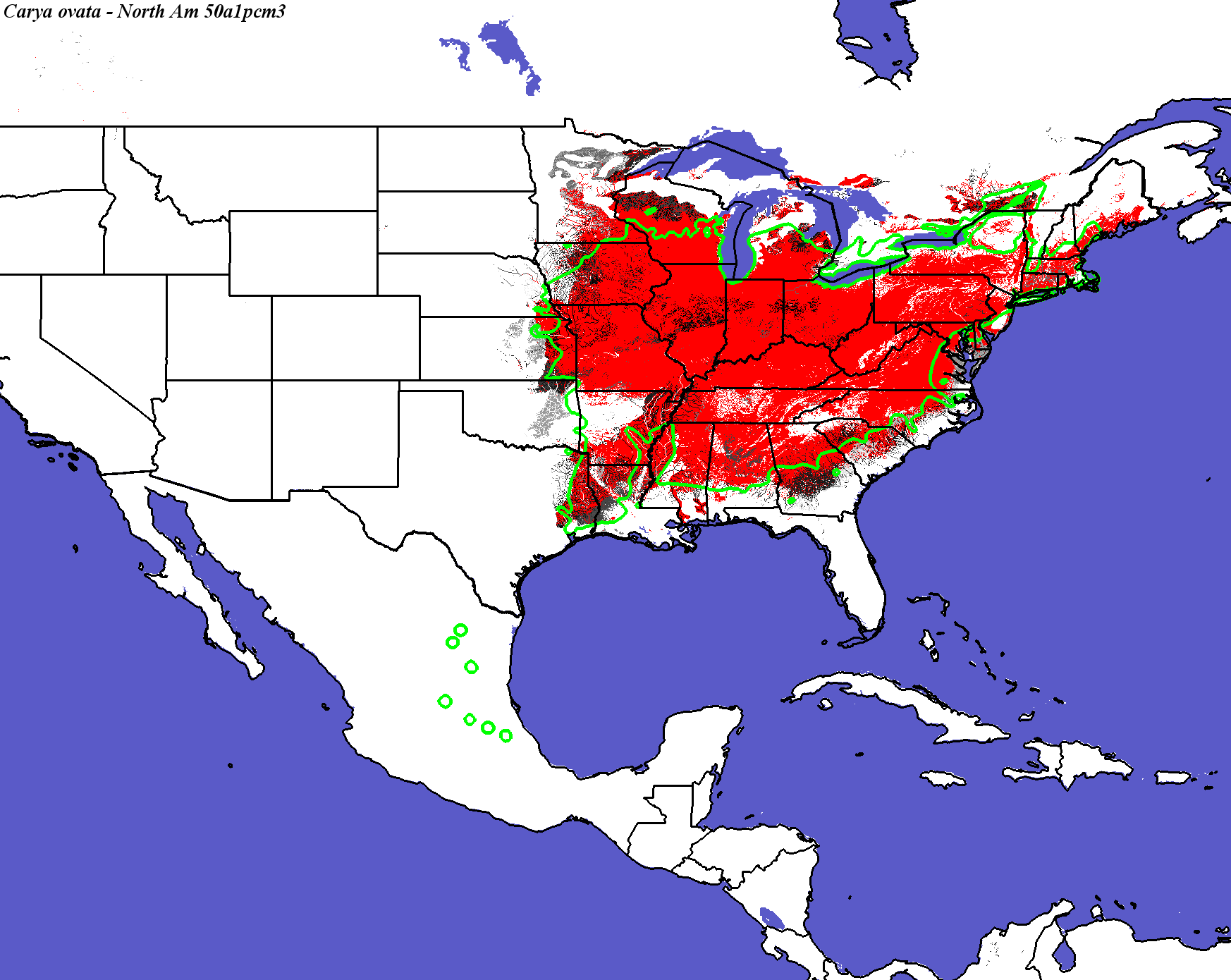

PCM, Scenario A1FI, 2050 - Carya ovata - CONUS

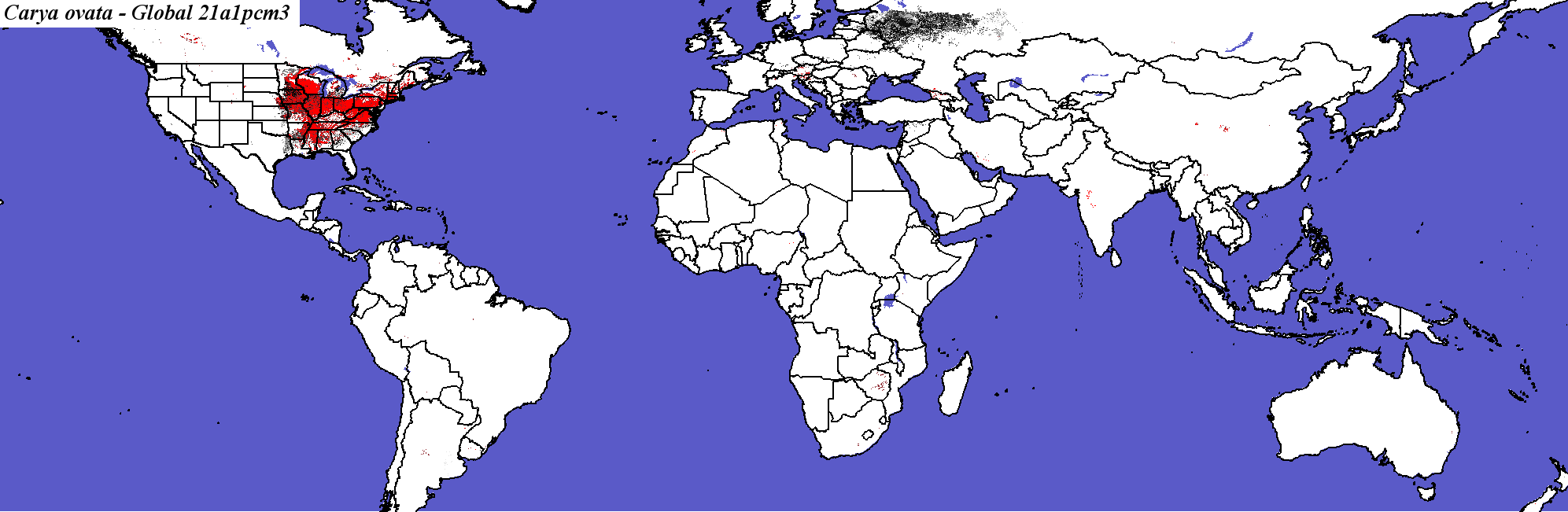

PCM, Scenario A1FI, 2050 - Carya ovata - Global
Carya_ovata_final.4.conus
Carya_ovata_final.4.global

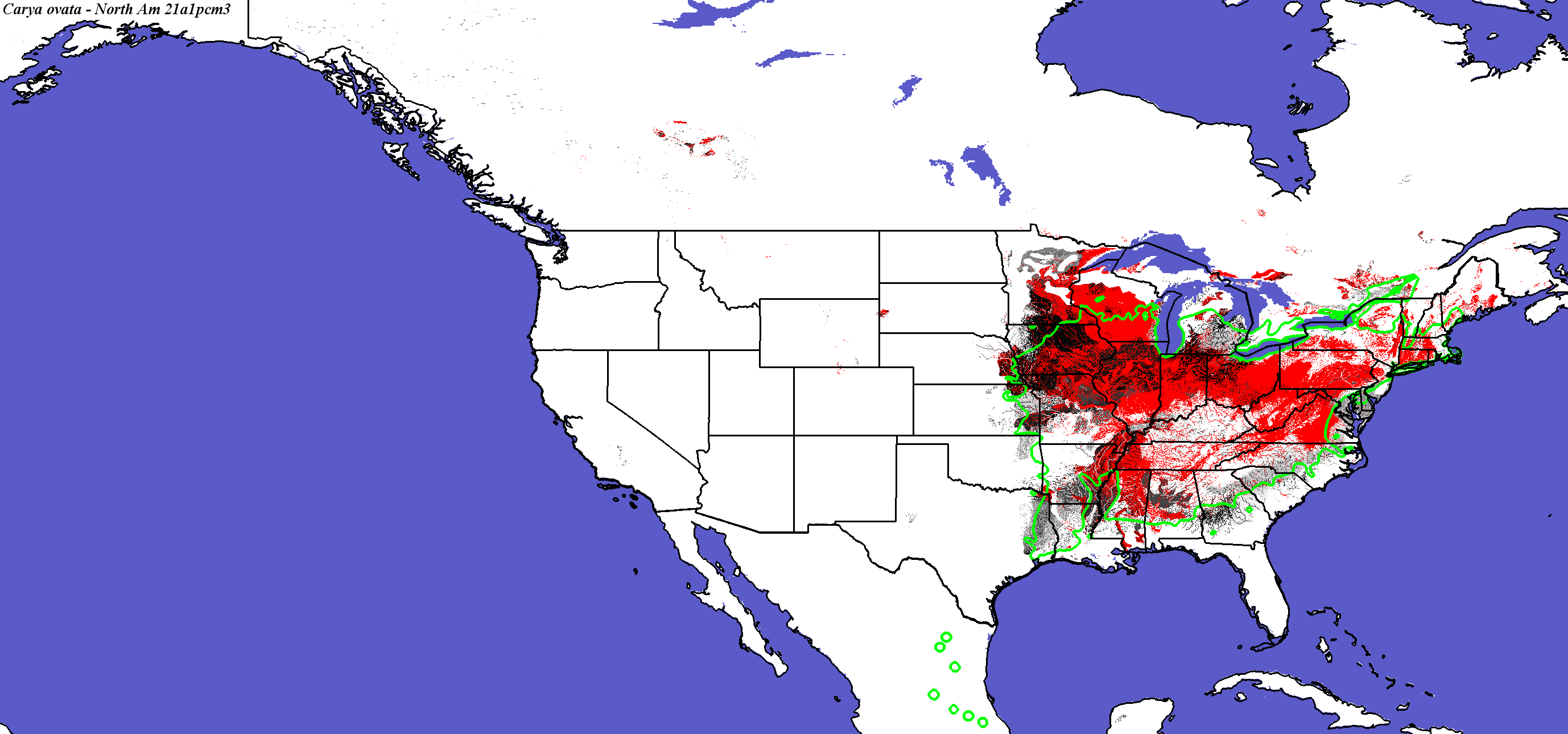

PCM, Scenario A1FI, 2100 - Carya ovata - CONUS
Compare with Carya ovata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Carya ovata - Global

Carya_ovata_final.4.conus
Carya_ovata_final.4.global

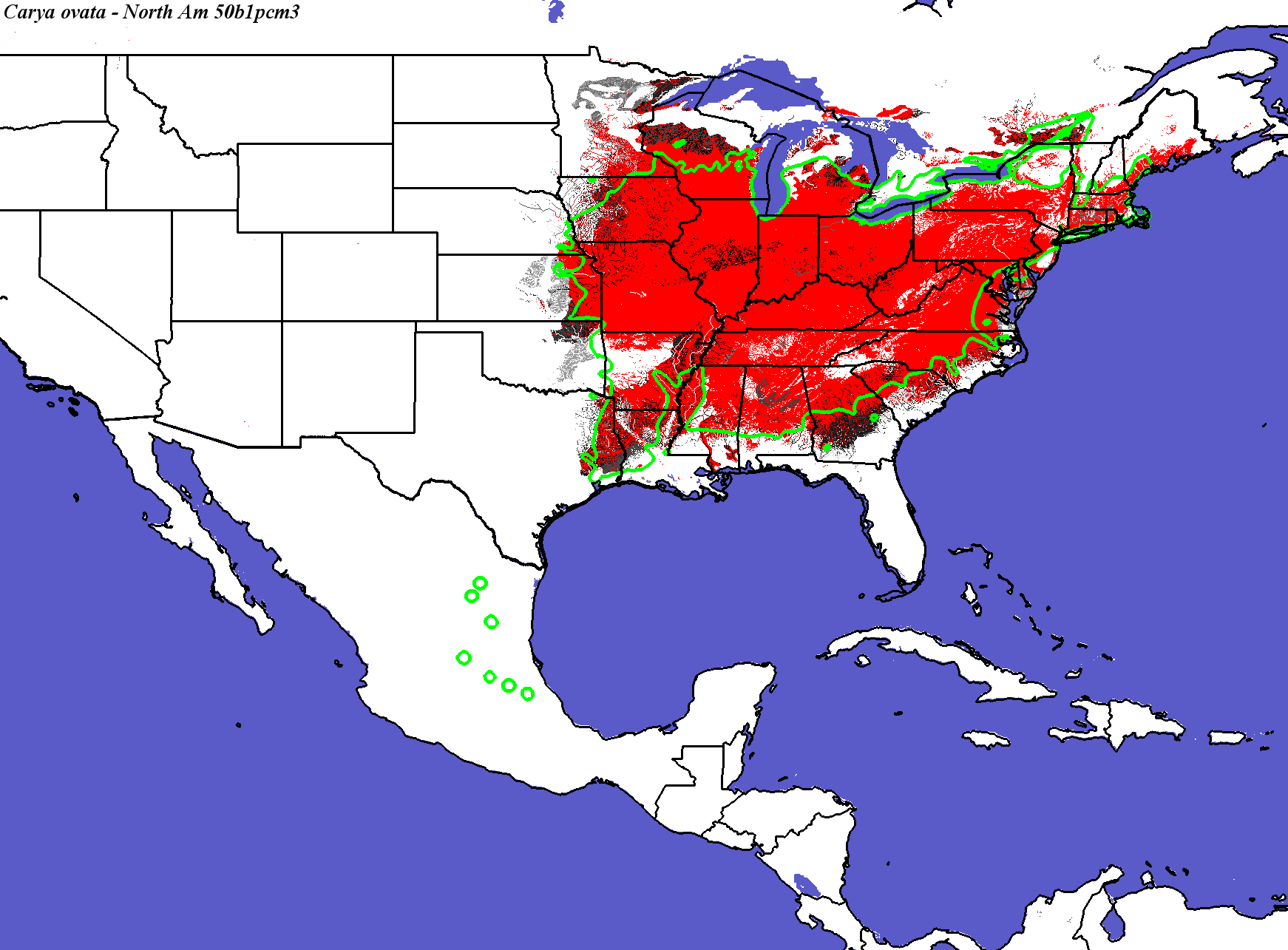

PCM, Scenario B1, 2050 - Carya ovata - CONUS

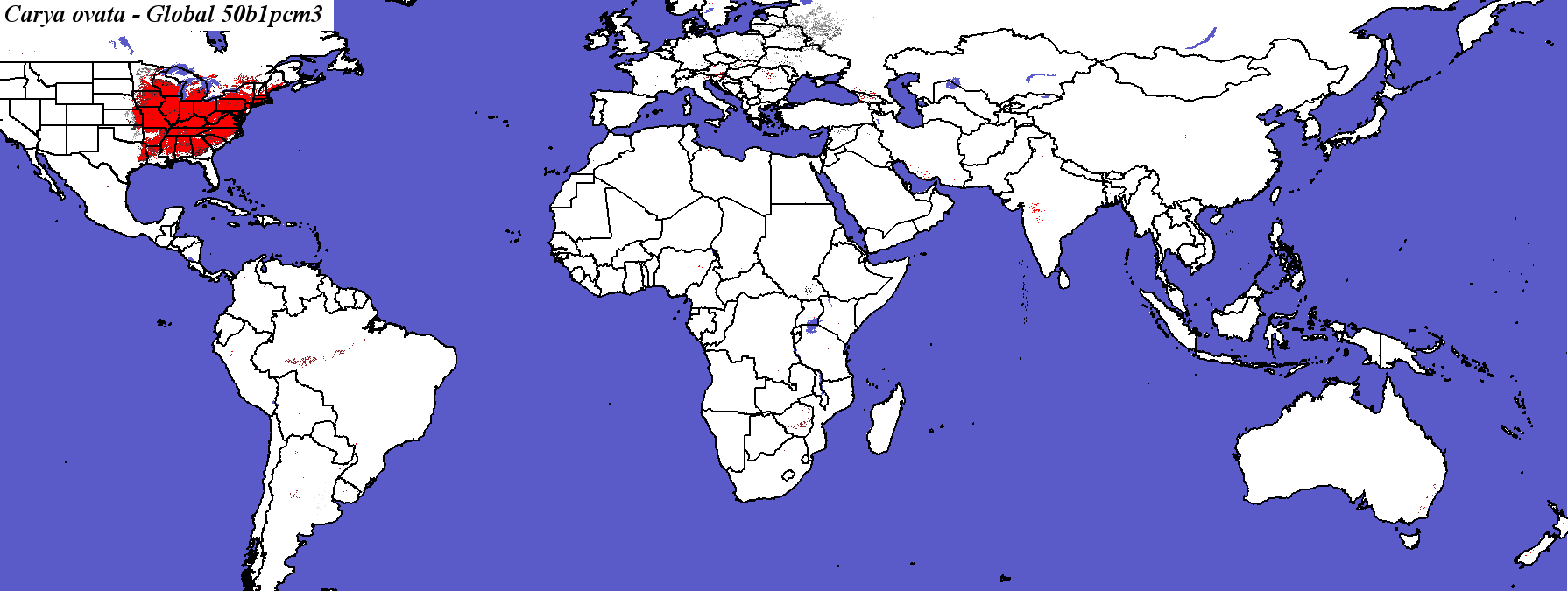

PCM, Scenario B1, 2050 - Carya ovata - Global
Carya_ovata_final.4.conus
Carya_ovata_final.4.global
PCM, Scenario B1, 2100 - Carya ovata - CONUS
Compare with Carya ovata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Carya ovata - Global

Hadley Climate Model
Carya_ovata_final.4.conus
Carya_ovata_final.4.global

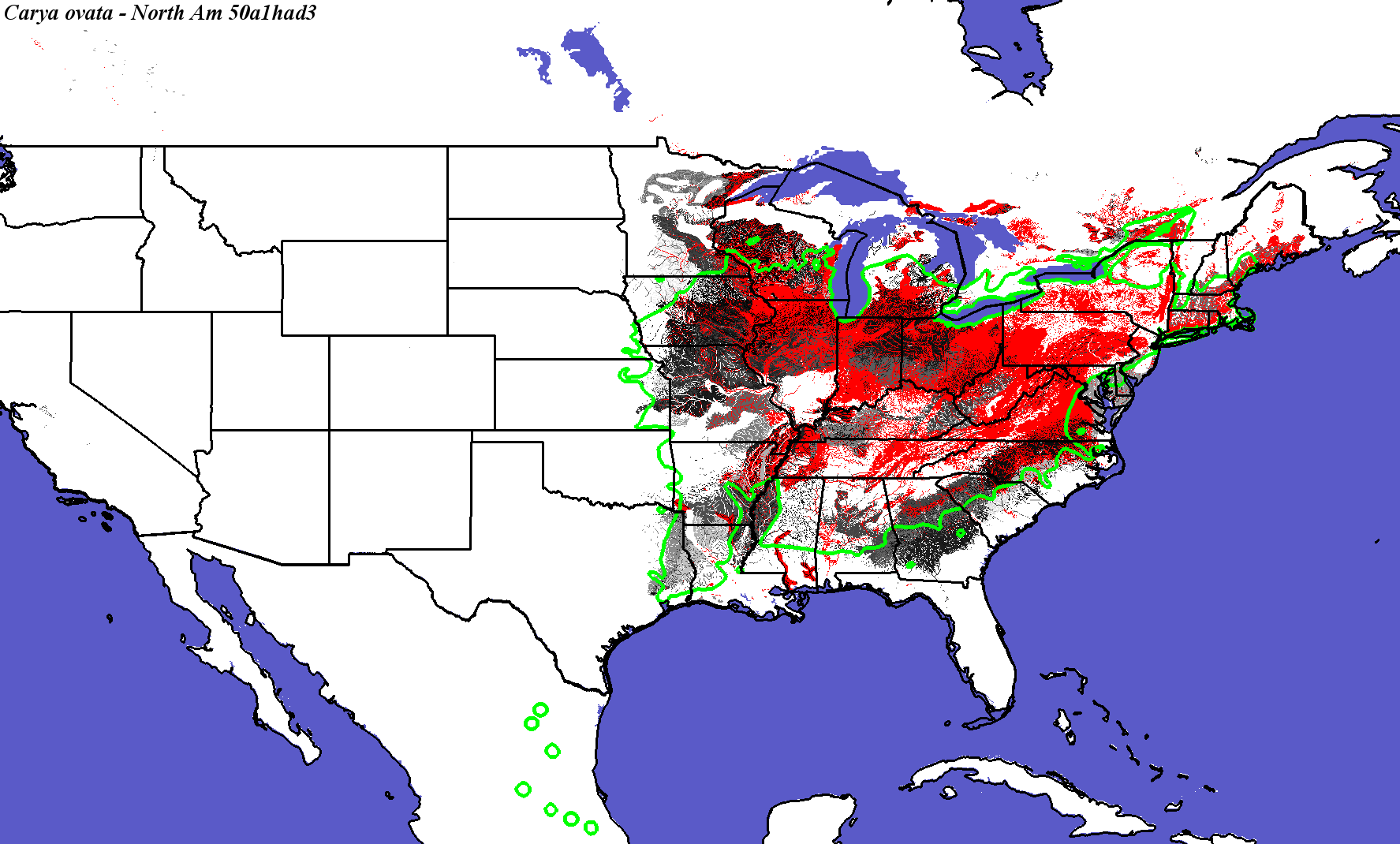

Hadley, Scenario A1FI, 2050 - Carya ovata - CONUS
Carya ovata not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Carya ovata - Global
Carya_ovata_final.4.conus
Carya_ovata_final.4.global.

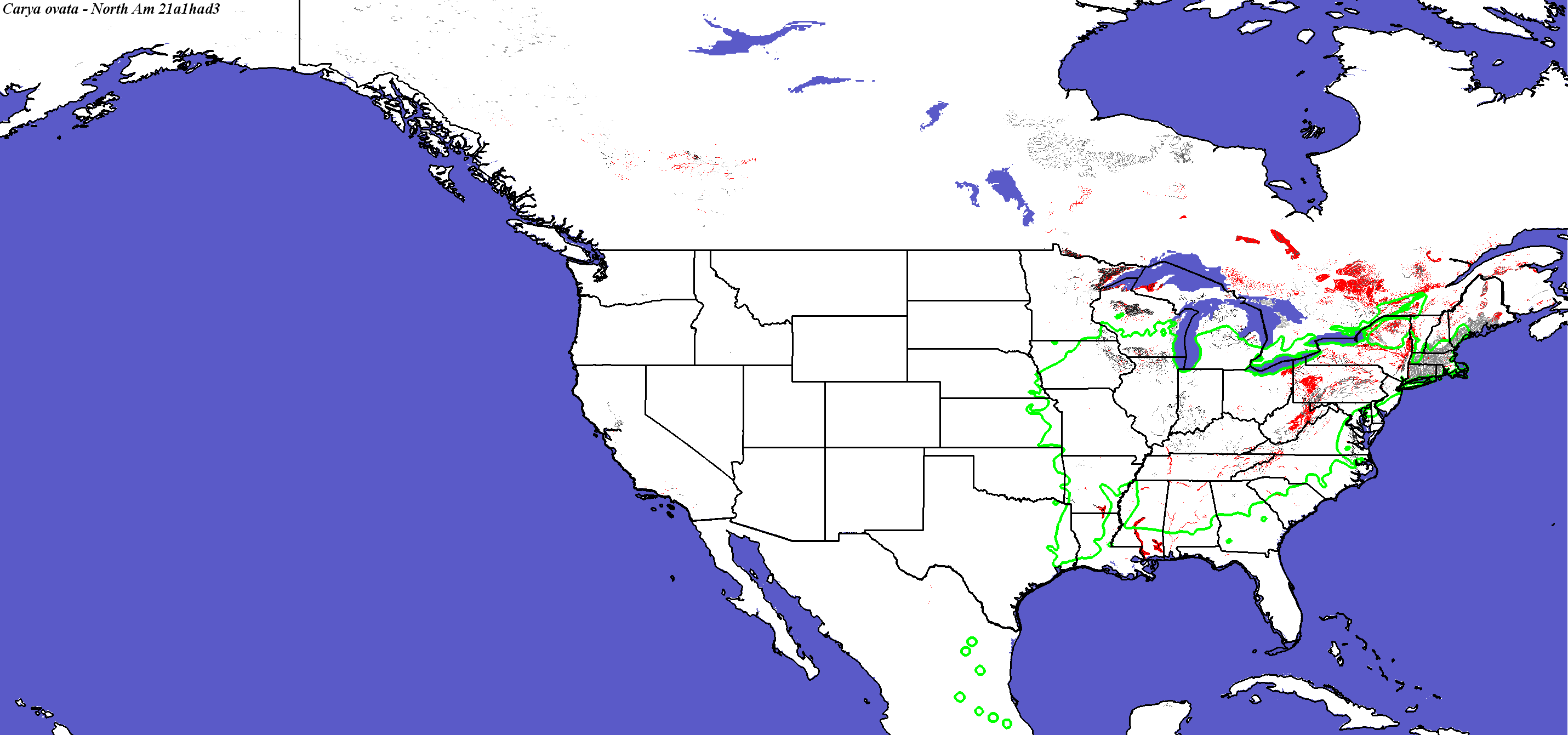

Hadley, Scenario A1FI, 2100 - Carya ovata - CONUS
Compare with Carya ovata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Carya ovata not modeled by Crookston and Rehfeldt
Carya ovata not modeled by Coops and Waring

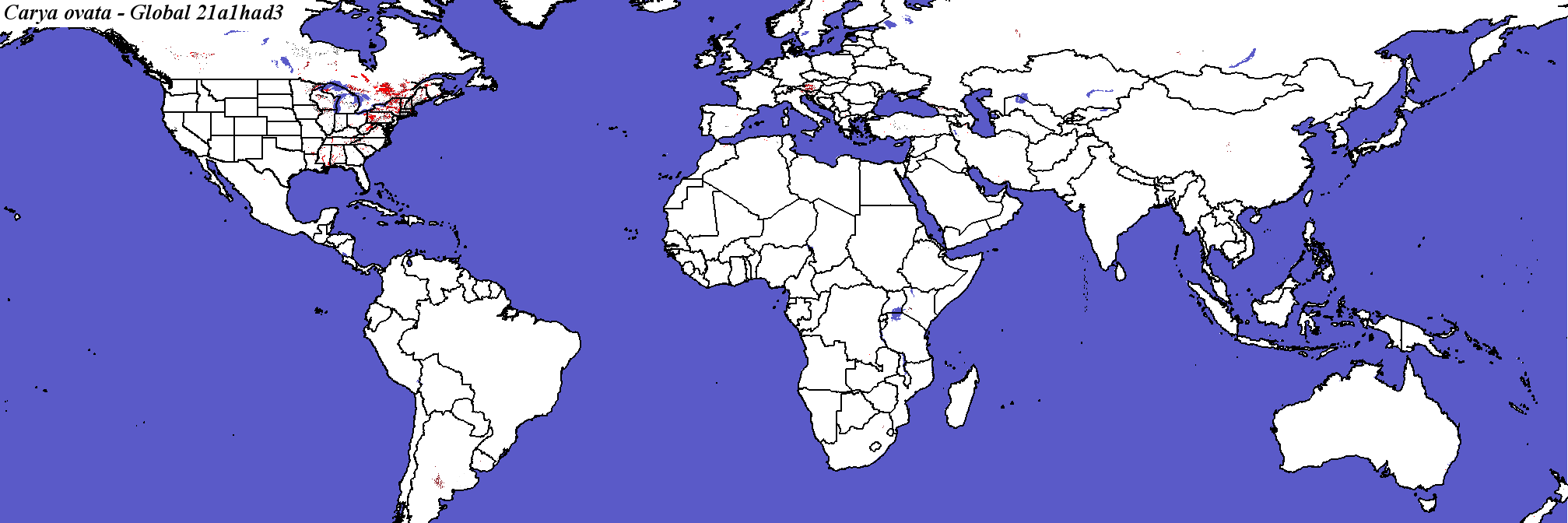

Hadley, Scenario A1FI, 2100 - Carya ovata - Global

Carya_ovata_final.4.conus
Carya_ovata_final.4.global.
Hadley, Scenario B1, 2050 - Carya ovata - CONUS
Carya ovata not modeled by Crookston and Rehfeldt
Carya ovata not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Carya ovata - Global
Carya_ovata_final.4.conus
Carya_ovata_final.4.global

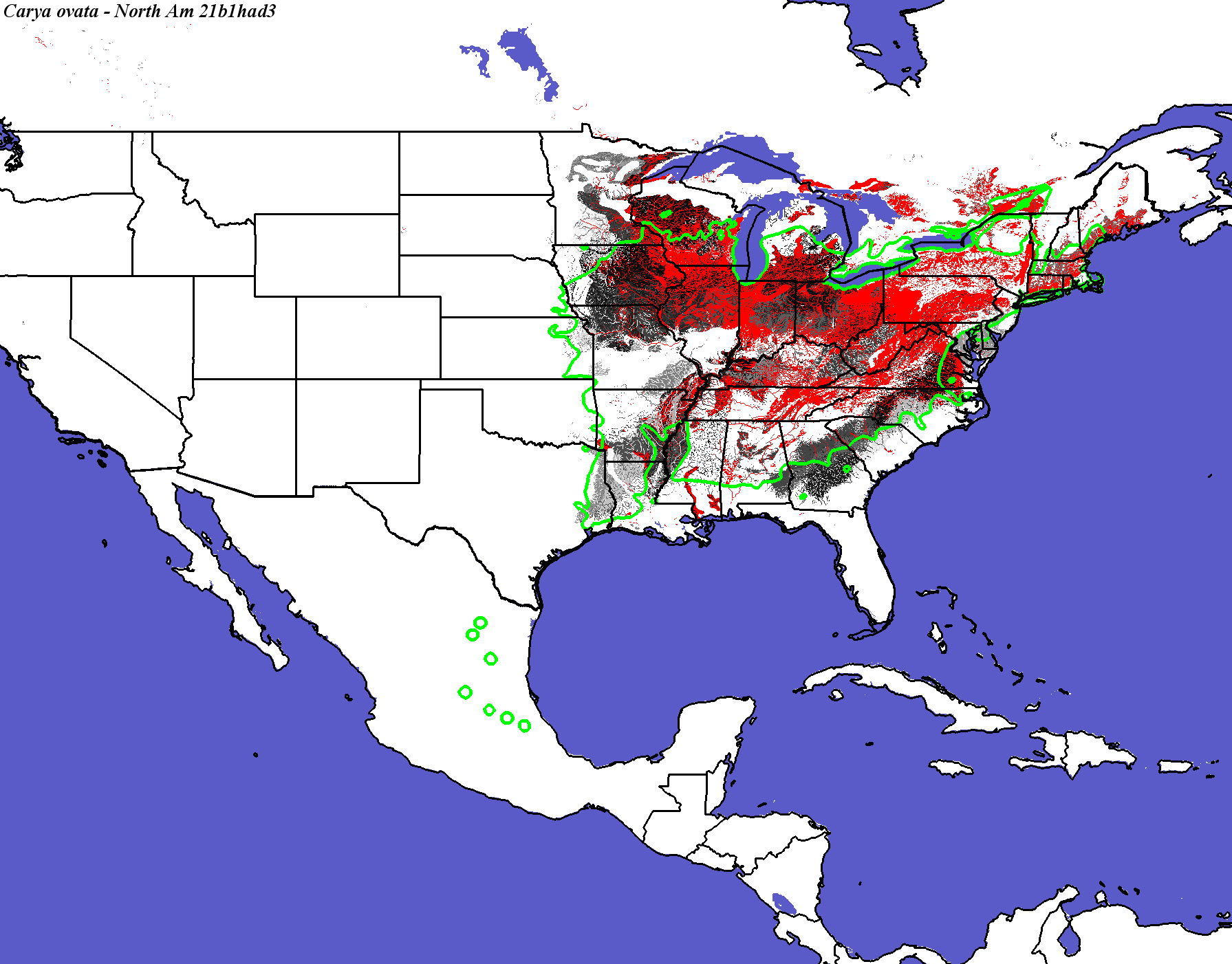

Hadley, Scenario B1, 2100 - Carya ovata - CONUS
Compare with Carya ovata modeled for Hadley B1 in 2100 by Iverson and Prasad
Carya ovata not modeled by Crookston and Rehfeldt

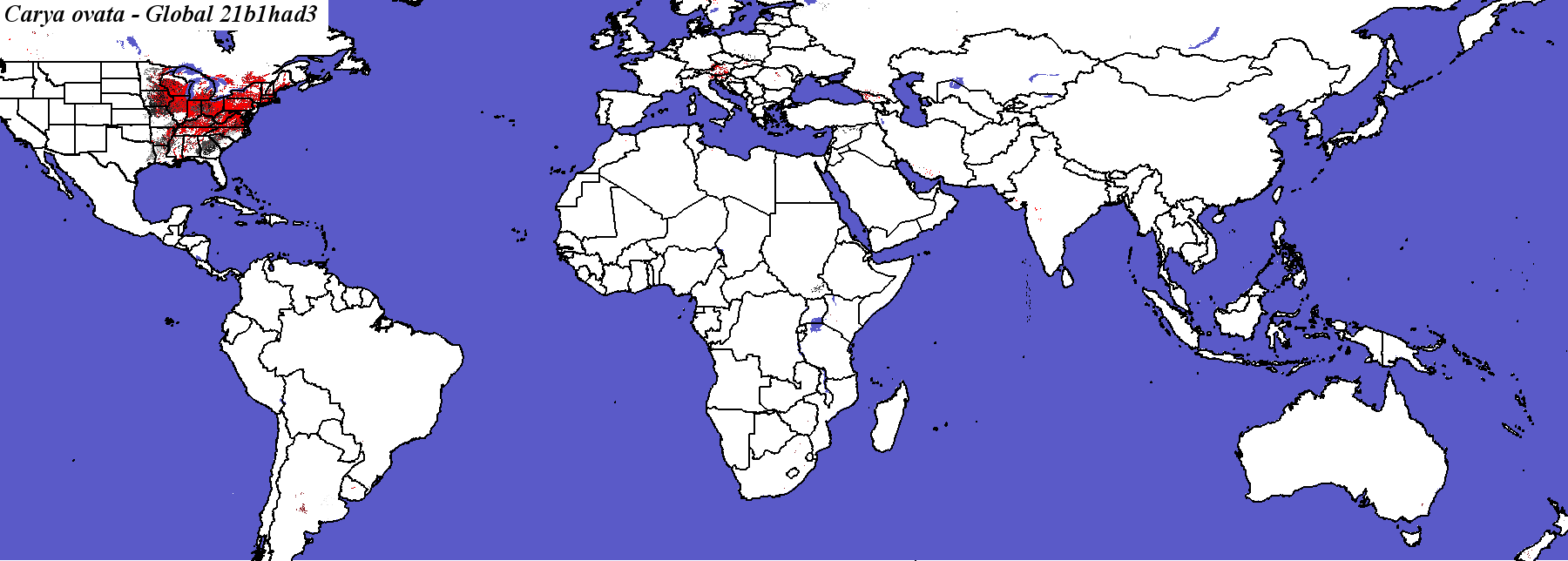

Hadley, Scenario B1, 2100 - Carya ovata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carya_ovata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

225

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

5.47945

Area in Present Suitable Range (in km2)

2031411

Area in Future Suitable Range (Had B1 2050, in km2)

1097229

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

994981

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

48.9700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

53.5616

Percent Change in Area of Suitable Range (Had B1 2050)

-45.9800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

77.2603

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11912.7 +/- 22901.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

59.3151

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.39155 +/- 15.4613

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

61.2329

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

256.797 +/- 761.051

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

18.9041

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

141247

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.9500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

16.3014

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

363043

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

17.8700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

76.0274

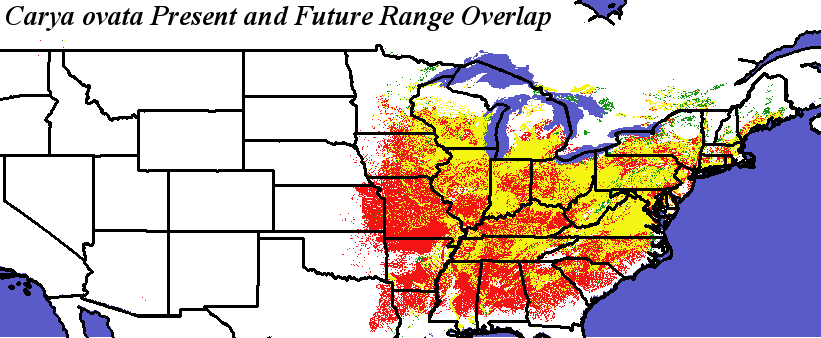

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carya ovata Carya ovata - Range Change Statistics

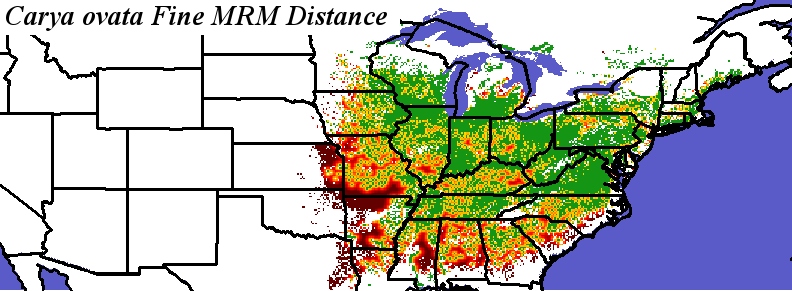

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Carya_ovata_final.noelev Fine MRM Distance

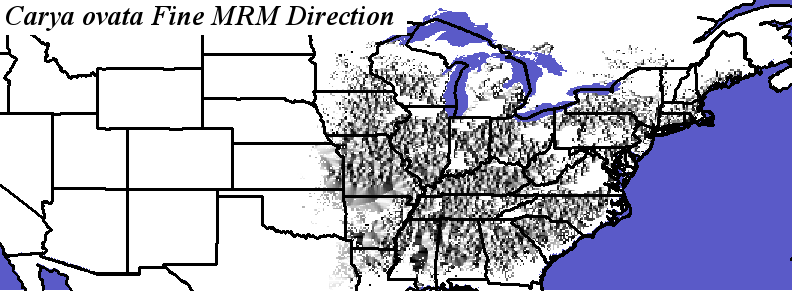

Carya_ovata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya ovata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carya ovata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

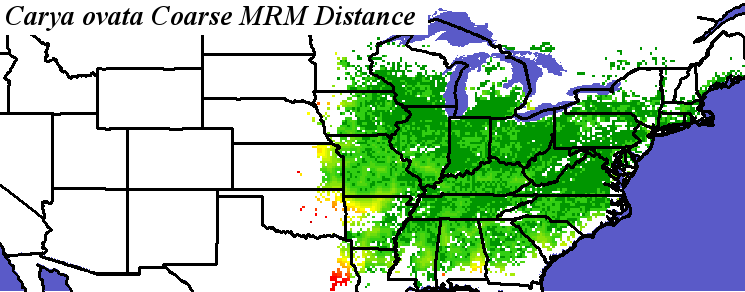

Carya_ovata_final.noelev Coarse MRM Distance

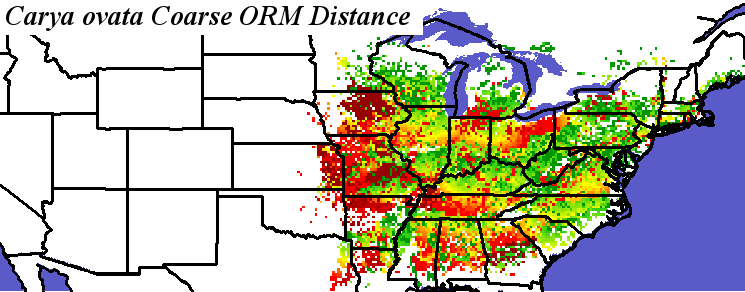

Carya_ovata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya ovata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carya ovata

Thu Jul 21 10:04:57 EDT 2016
