Version 5 Tree Atlas


Fraxinus americana

white ash

noelev

Fraxinus americana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus americana

USDA Plants Database entry for Fraxinus americana
Silvics Manual entry for Fraxinus americana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Fraxinus biltmoreana; Fraxinus americana var. texensis; Fraxinus americana var. biltmoreana83151778492range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_americana_final Occurrences

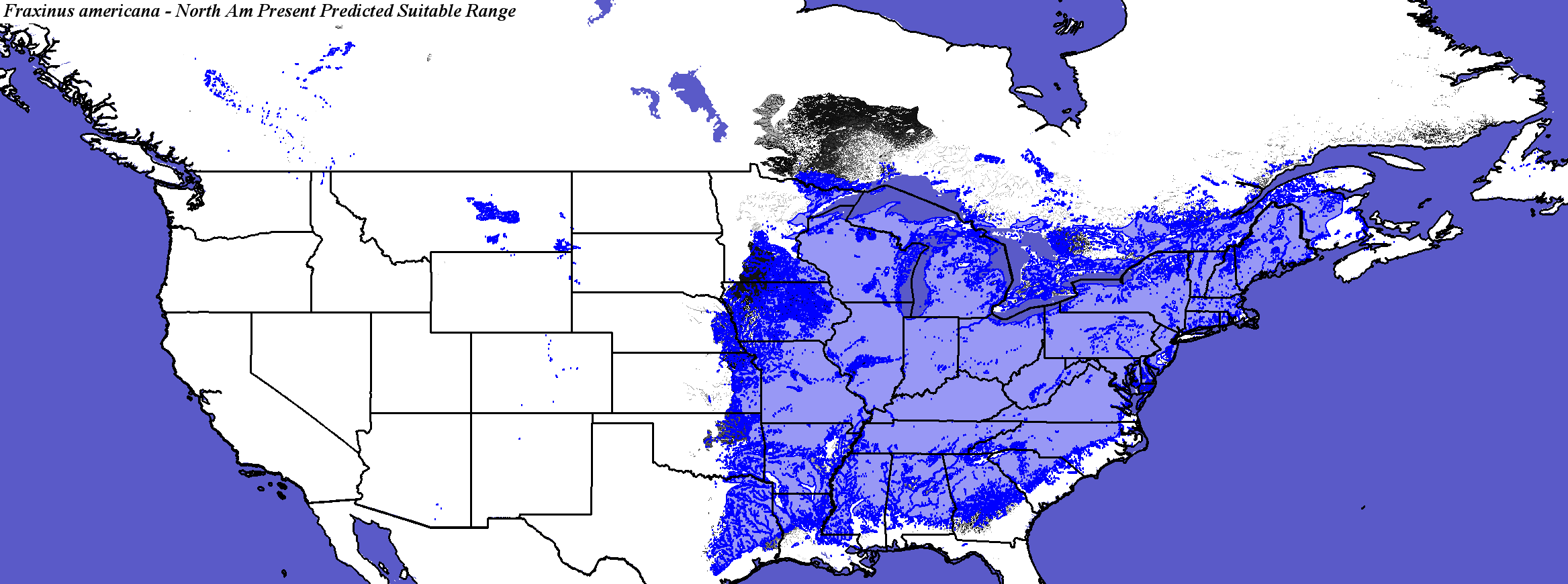

Hargroves Present Suitable Range Outline for Fraxinus_americana_final

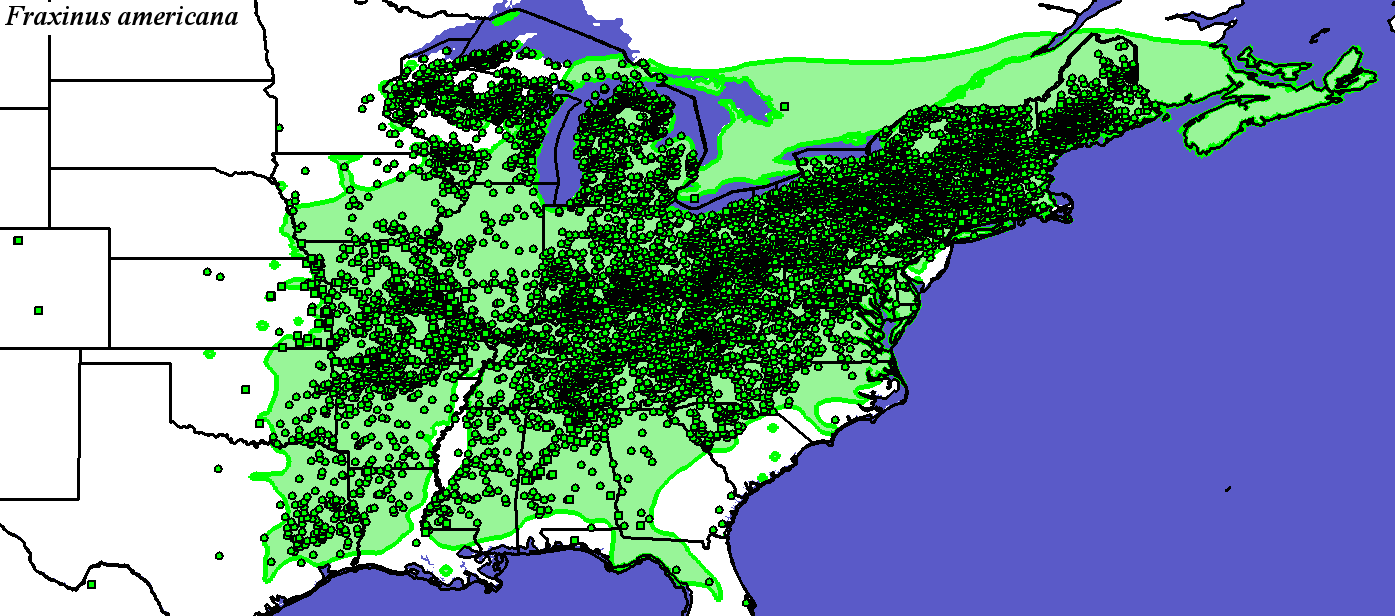

Fraxinus americana - Occurrence Locations Fraxinus americana - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global

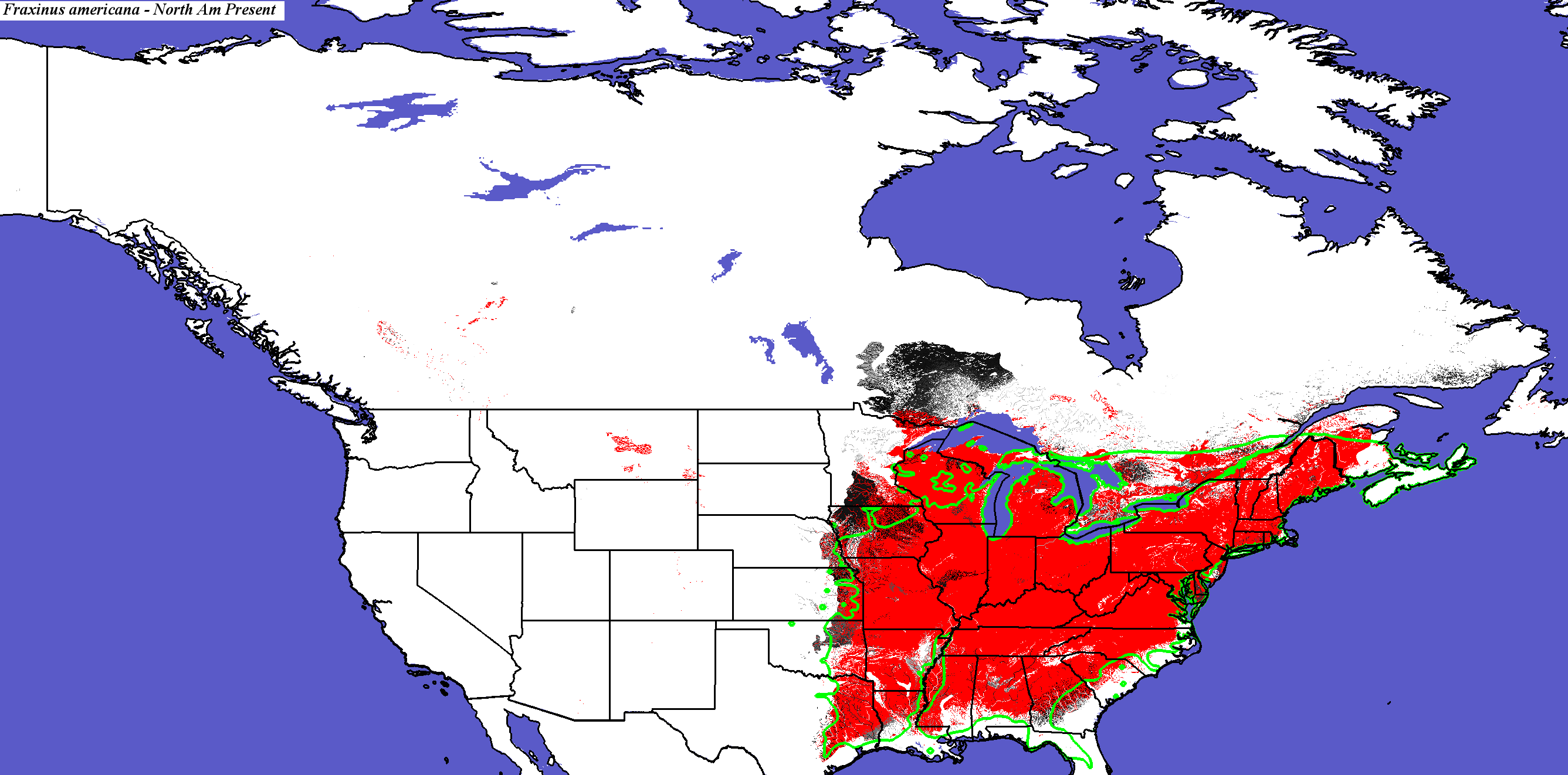

Fraxinus americana - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus americana
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus americana

Compare with Fraxinus americana modeled for Current conditions by Iverson and Prasad
Fraxinus americana not modeled by Crookston and Rehfeldt
Fraxinus americana not modeled by Coops and Waring

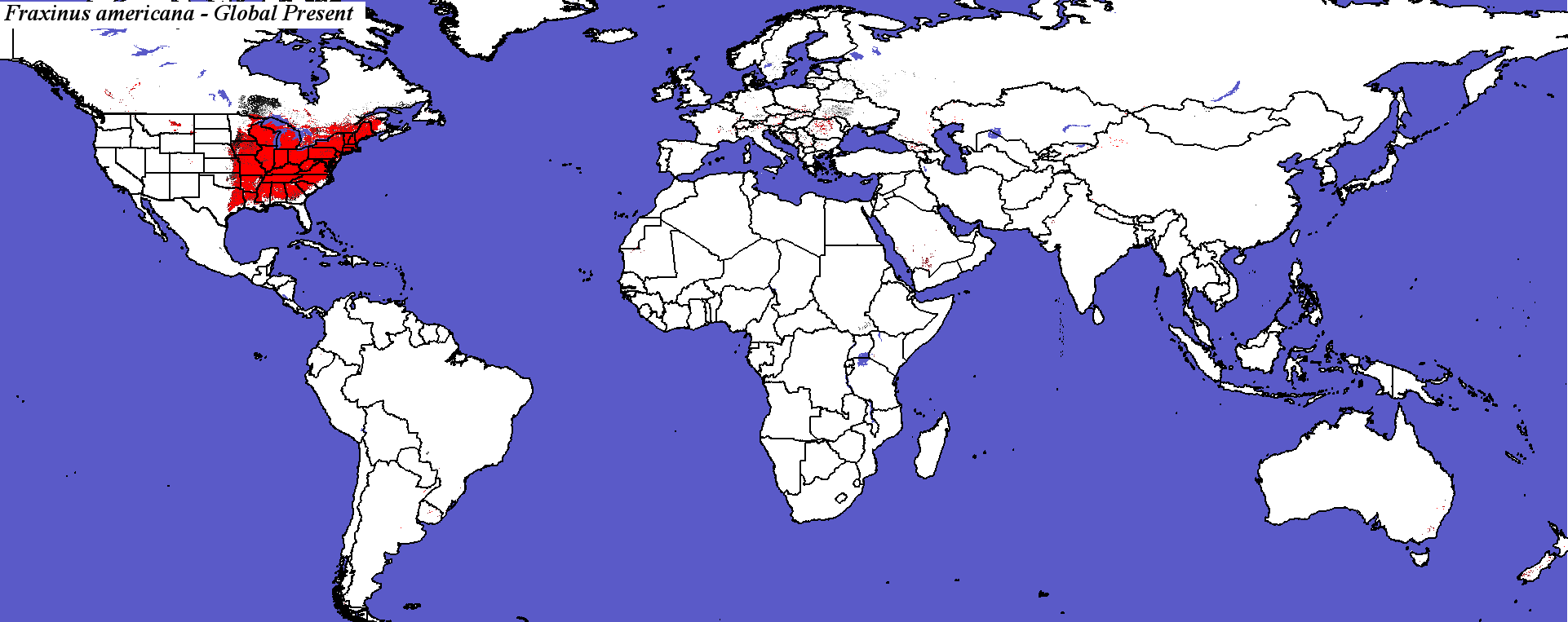

Fraxinus americana - Global

PCM - Parallel Climate Model
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global

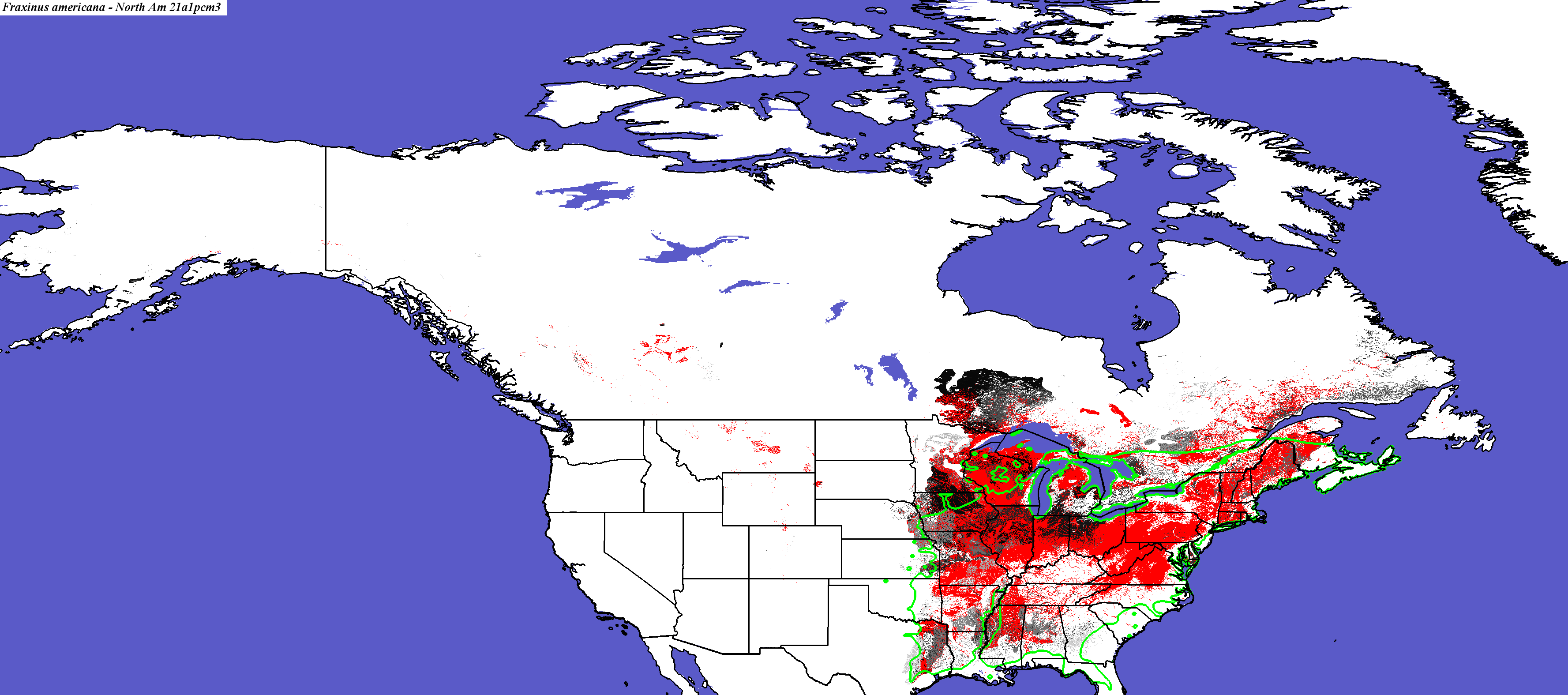

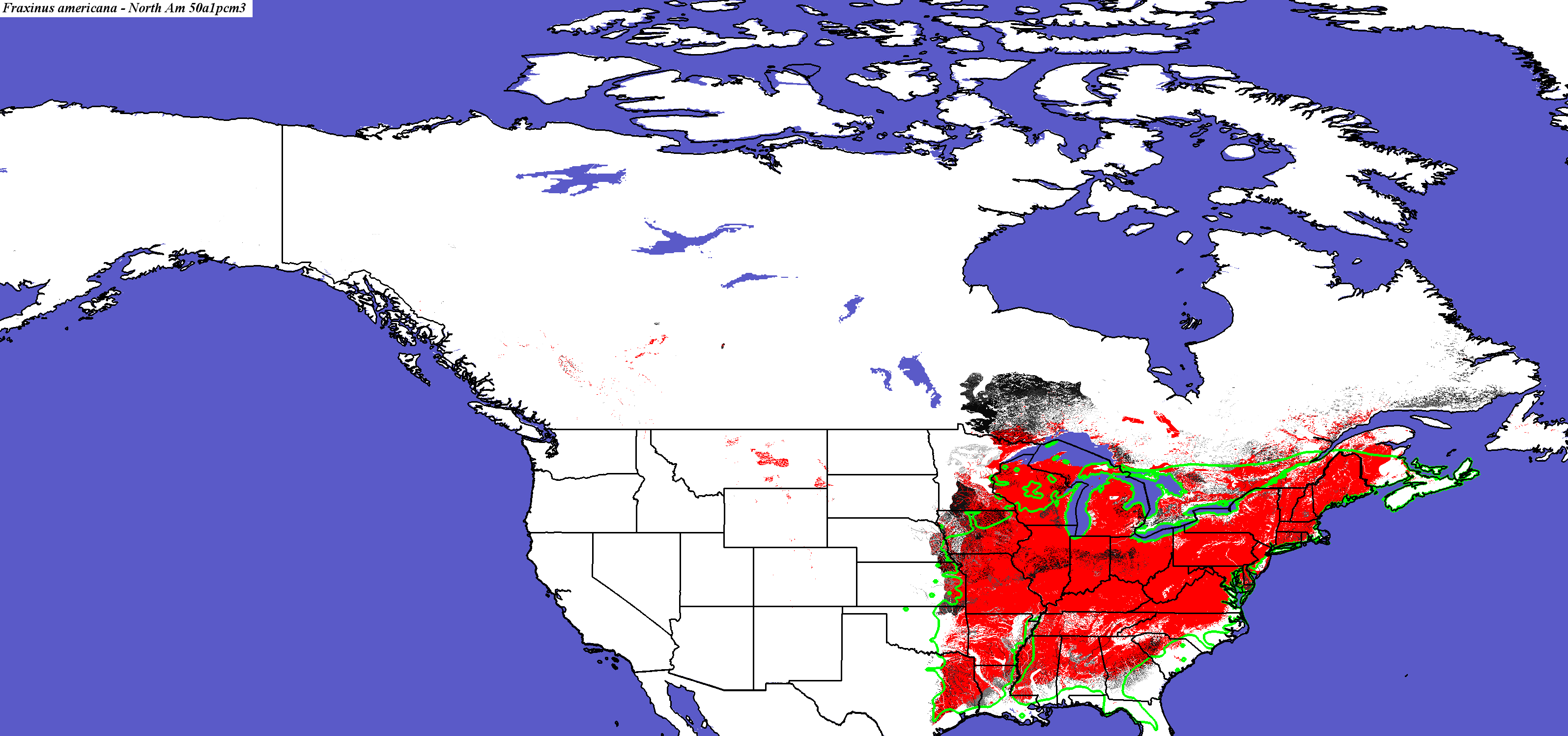

PCM, Scenario A1FI, 2050 - Fraxinus americana - CONUS
PCM, Scenario A1FI, 2050 - Fraxinus americana - Global
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global
PCM, Scenario A1FI, 2100 - Fraxinus americana - CONUS
Compare with Fraxinus americana modeled for PCM A1FI in 2100 by Iverson and Prasad

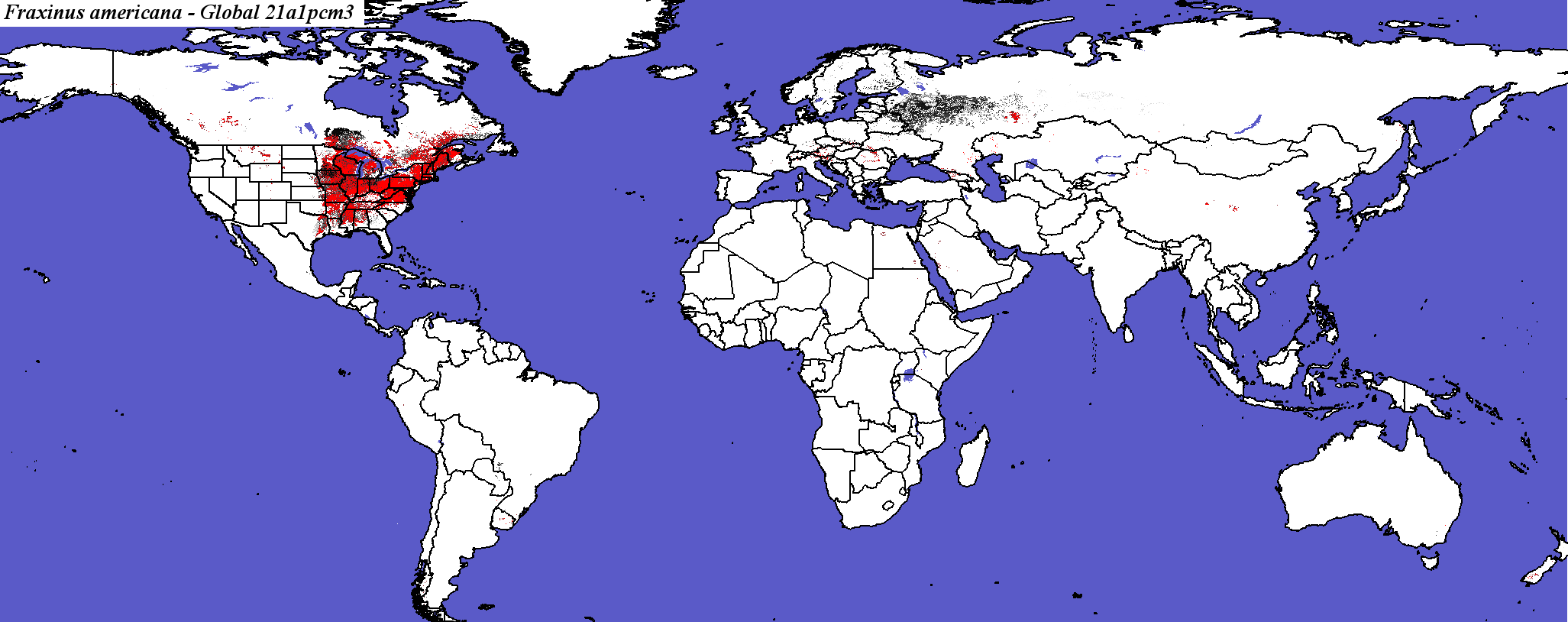

PCM, Scenario A1FI, 2100 - Fraxinus americana - Global

Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global

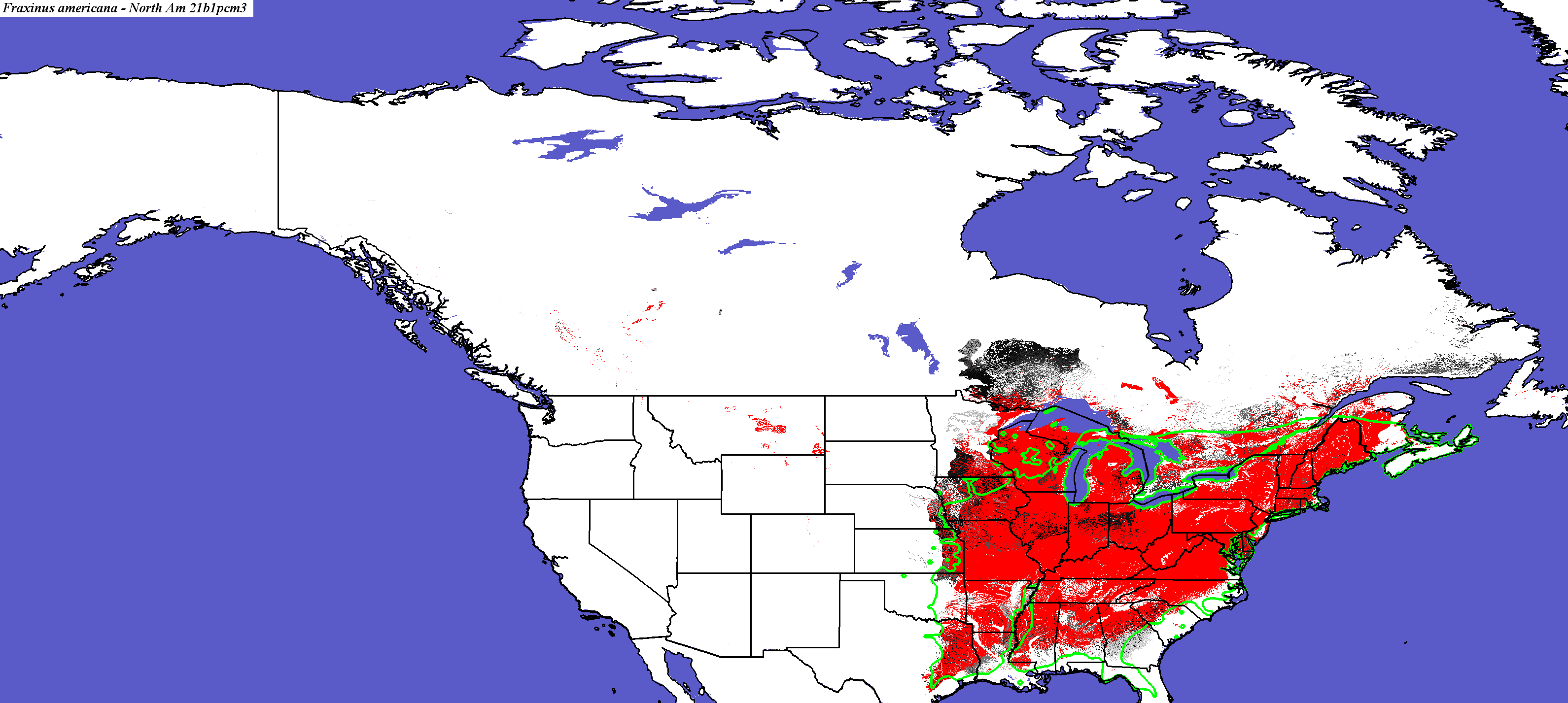

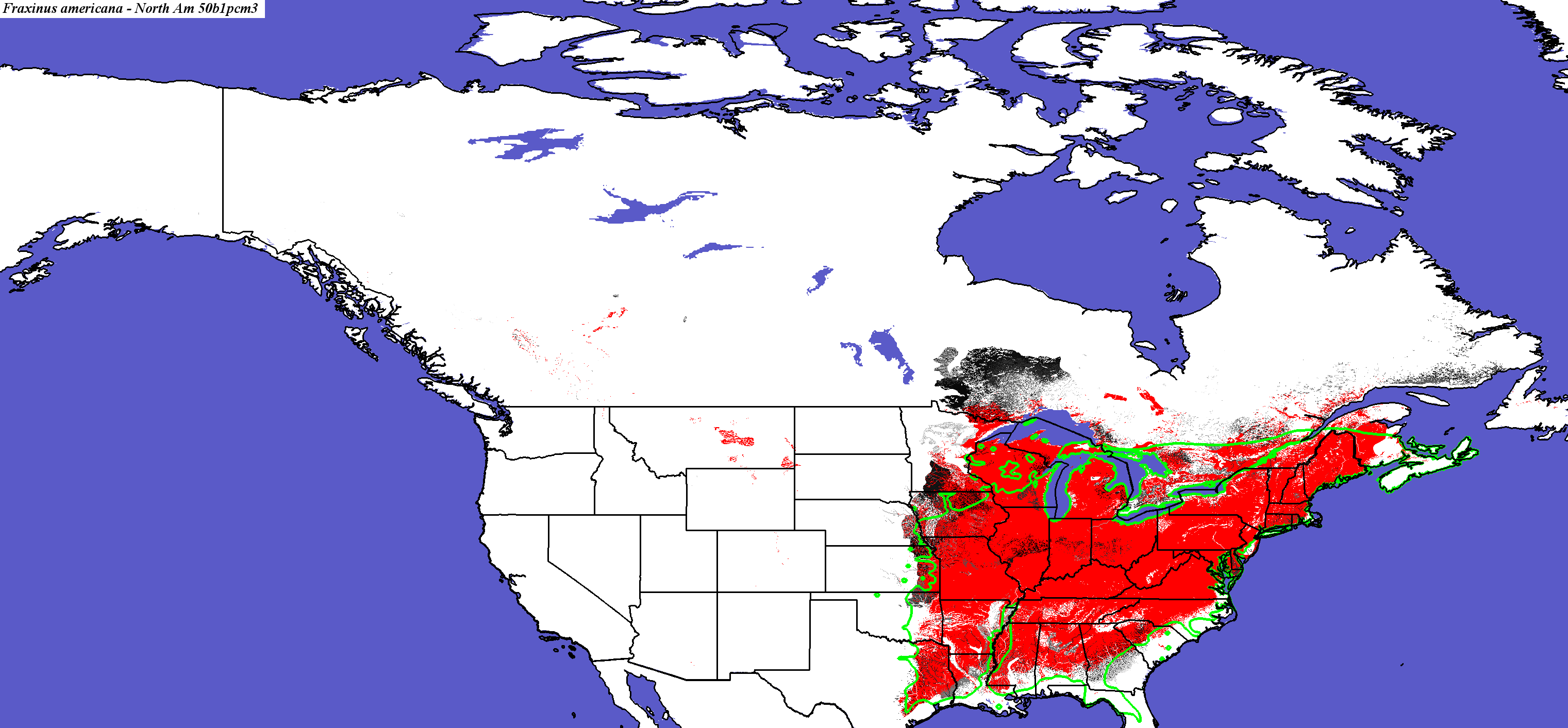

PCM, Scenario B1, 2050 - Fraxinus americana - CONUS

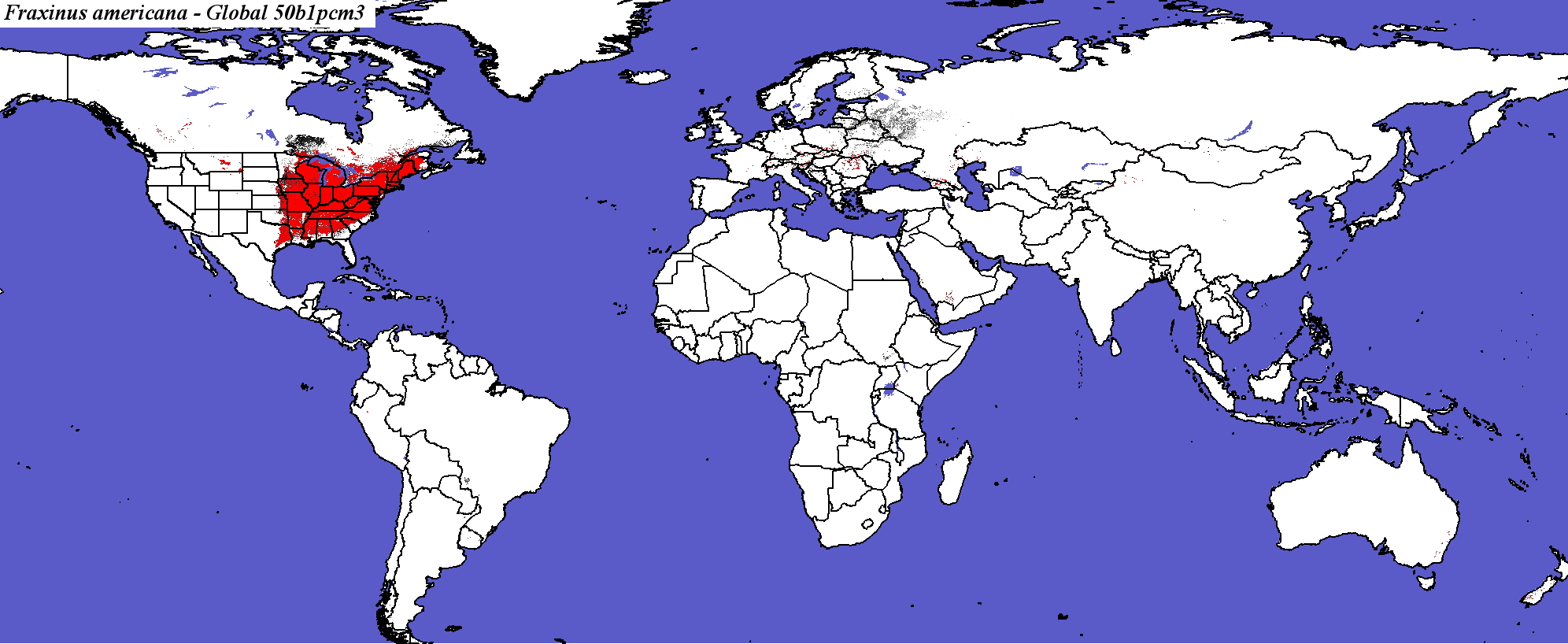

PCM, Scenario B1, 2050 - Fraxinus americana - Global
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global
PCM, Scenario B1, 2100 - Fraxinus americana - CONUS
Compare with Fraxinus americana modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus americana - Global

Hadley Climate Model
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global
Hadley, Scenario A1FI, 2050 - Fraxinus americana - CONUS
Fraxinus americana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Fraxinus americana - Global
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global.

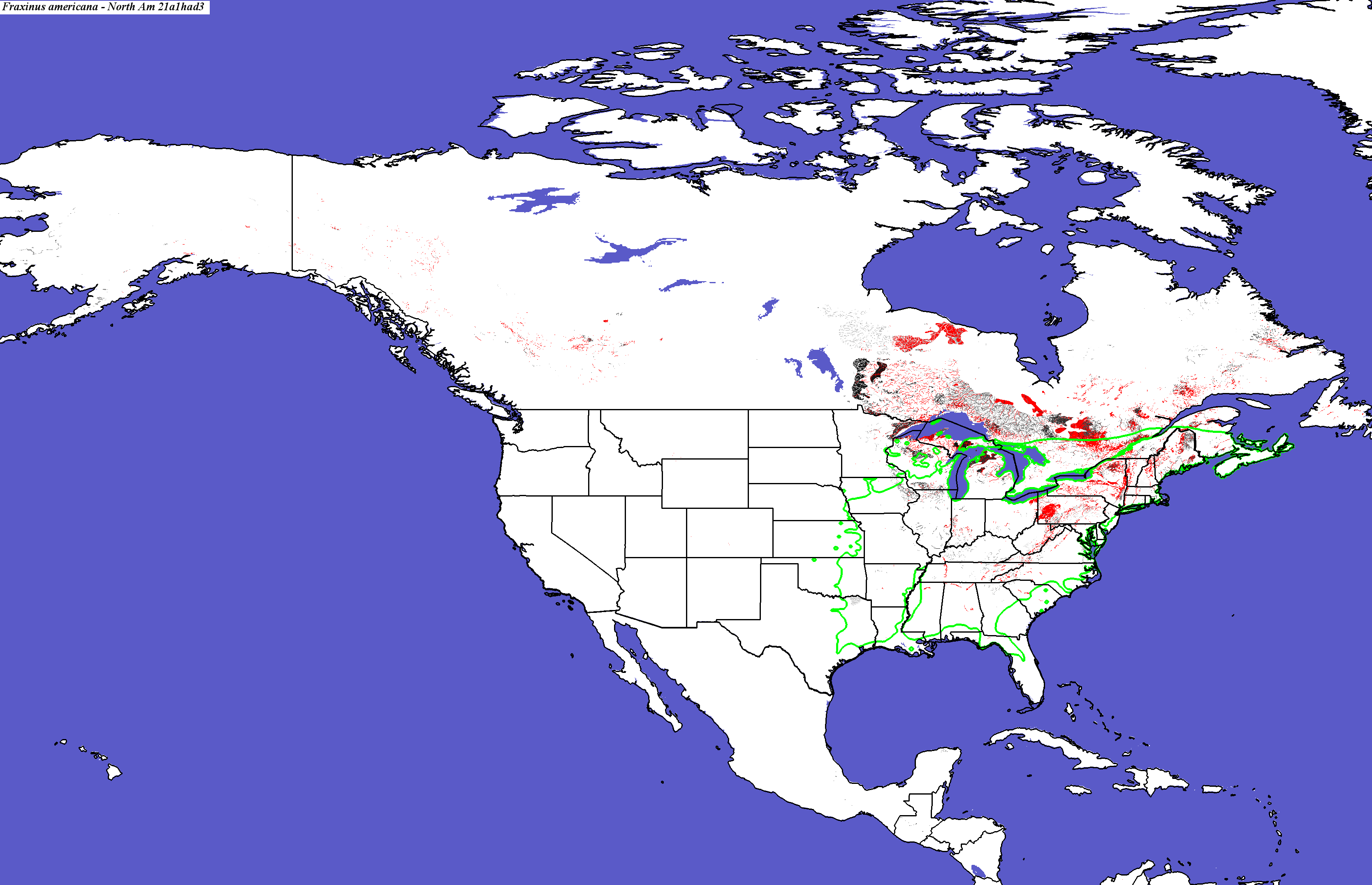

Hadley, Scenario A1FI, 2100 - Fraxinus americana - CONUS
Compare with Fraxinus americana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Fraxinus americana not modeled by Crookston and Rehfeldt
Fraxinus americana not modeled by Coops and Waring

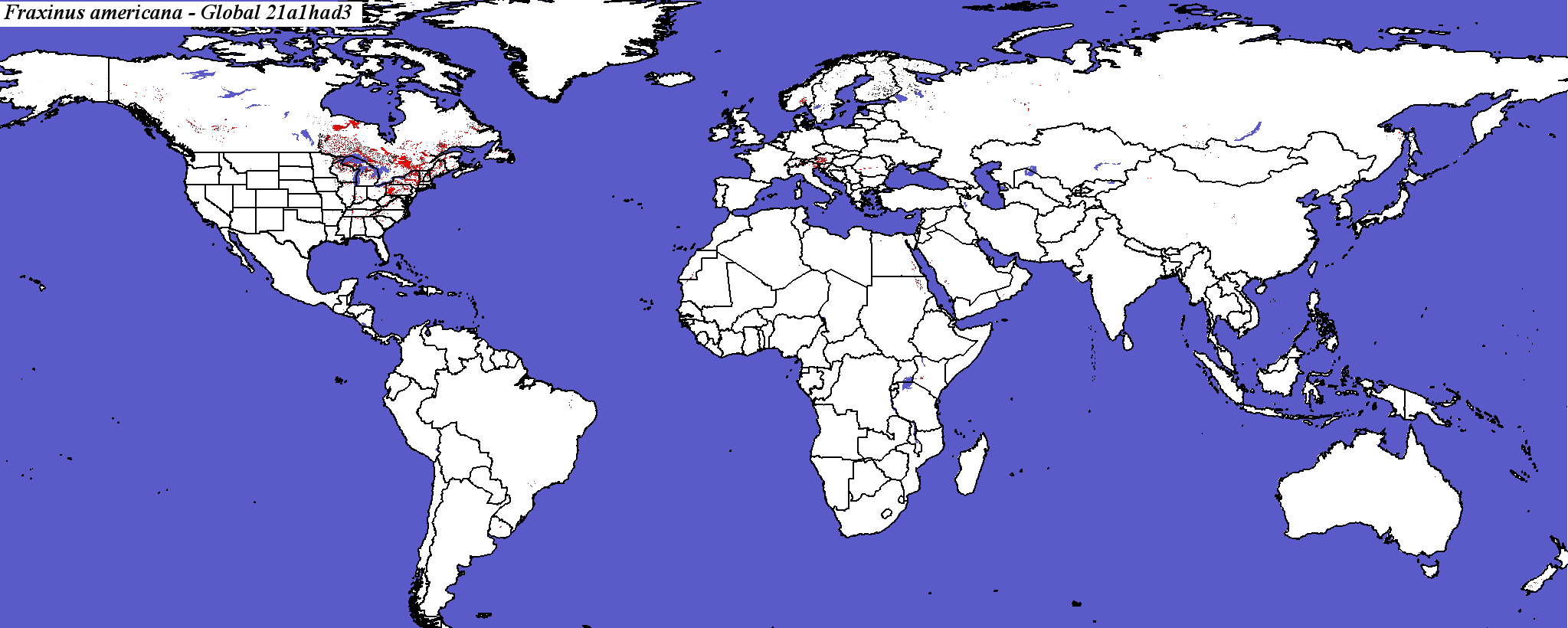

Hadley, Scenario A1FI, 2100 - Fraxinus americana - Global

Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global.

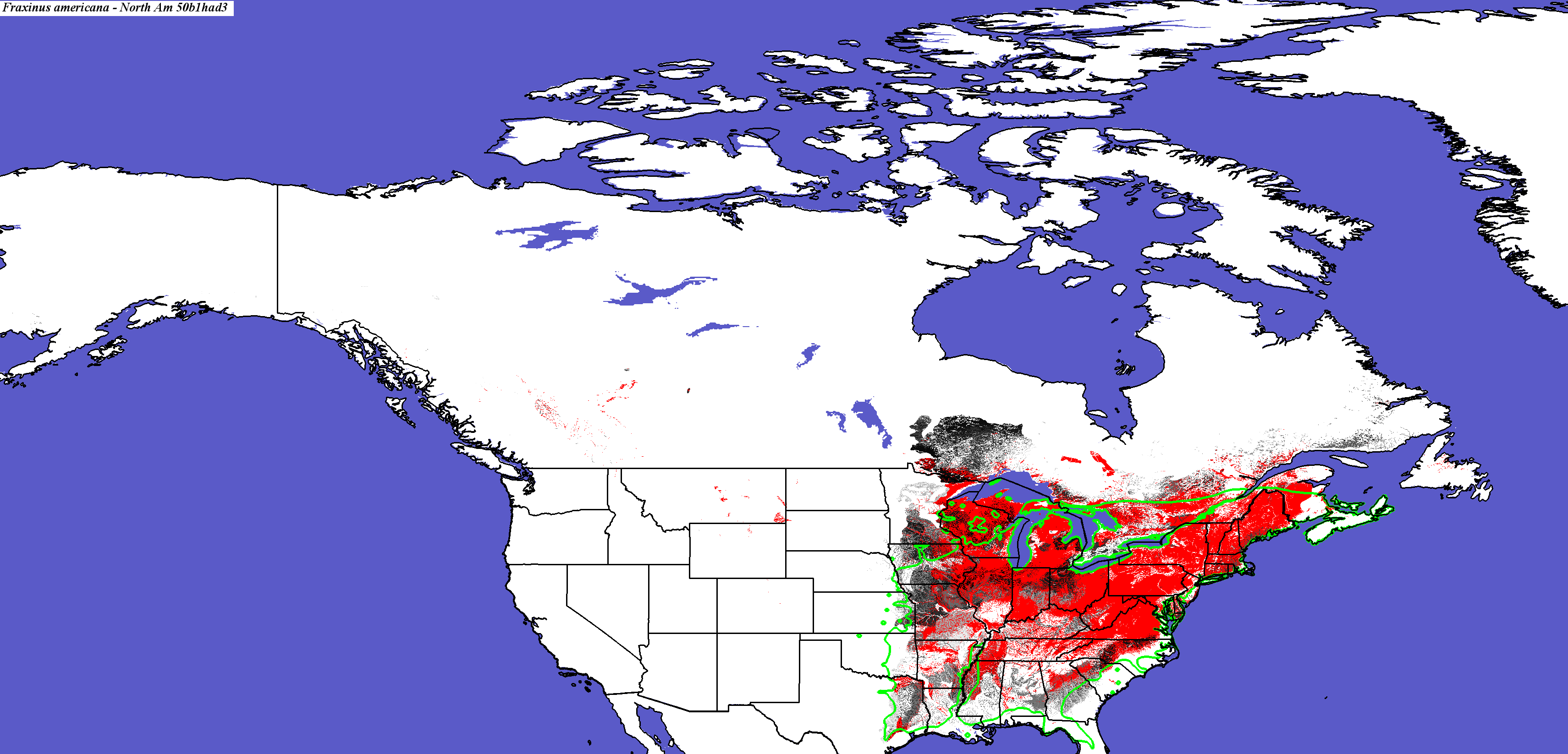

Hadley, Scenario B1, 2050 - Fraxinus americana - CONUS
Fraxinus americana not modeled by Crookston and Rehfeldt
Fraxinus americana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus americana - Global
Fraxinus_americana_final.4.conus
Fraxinus_americana_final.4.global
Hadley, Scenario B1, 2100 - Fraxinus americana - CONUS
Compare with Fraxinus americana modeled for Hadley B1 in 2100 by Iverson and Prasad
Fraxinus americana not modeled by Crookston and Rehfeldt

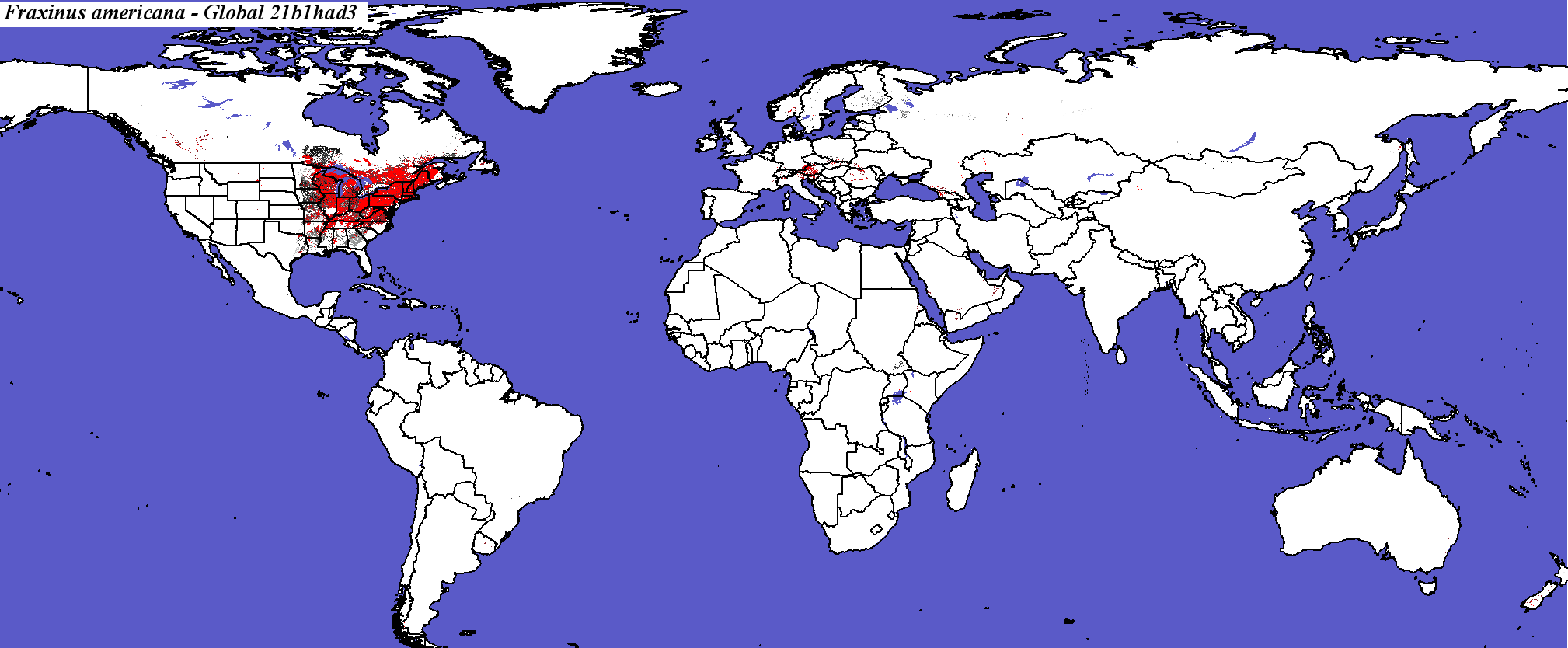

Hadley, Scenario B1, 2100 - Fraxinus americana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_americana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

343

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

2.19178

Area in Present Suitable Range (in km2)

2551480

Area in Future Suitable Range (Had B1 2050, in km2)

1608803

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

1402694

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

54.9700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

37.9452

Percent Change in Area of Suitable Range (Had B1 2050)

-36.9400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

62.7397

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9482.28 +/- 18621

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

68.9041

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.03551 +/- 7.29584

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

74.1096

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

194.359 +/- 656.868

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

28.0822

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

133063

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.2100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

24.2466

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

570213

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

22.3400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

62.8767

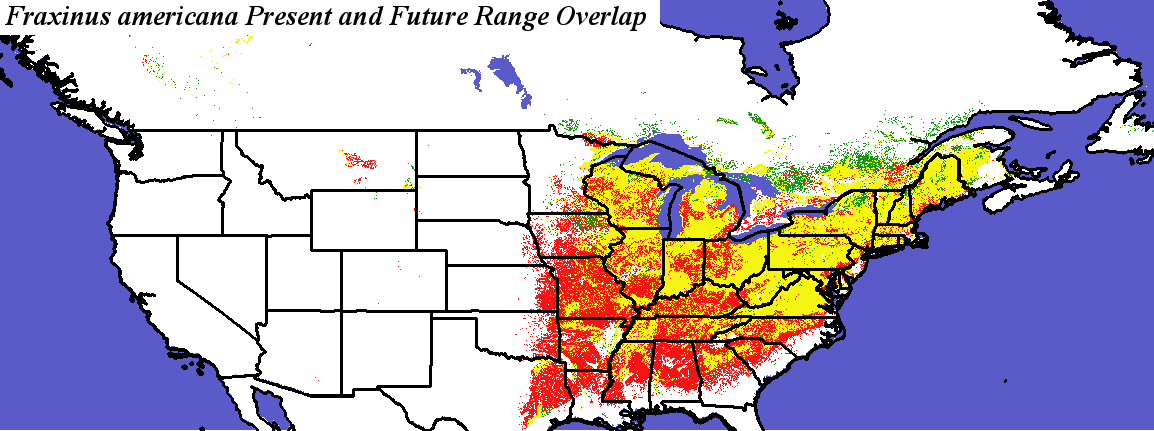

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus americana Fraxinus americana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

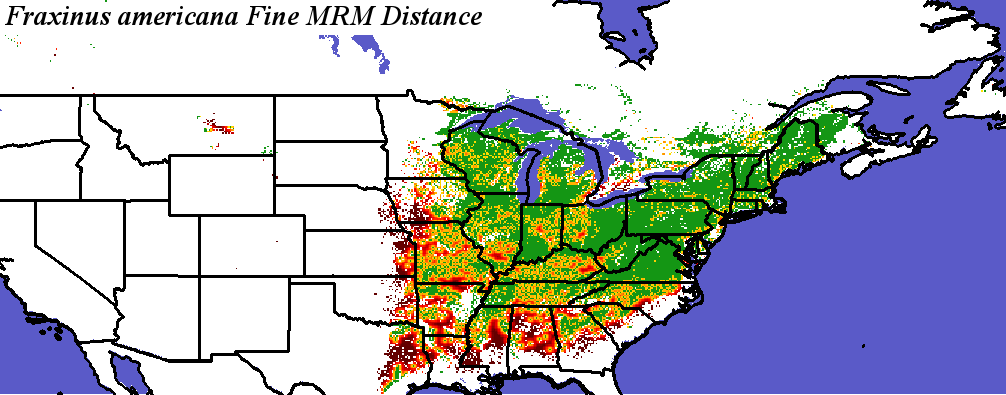

Fraxinus_americana_final.noelev Fine MRM Distance

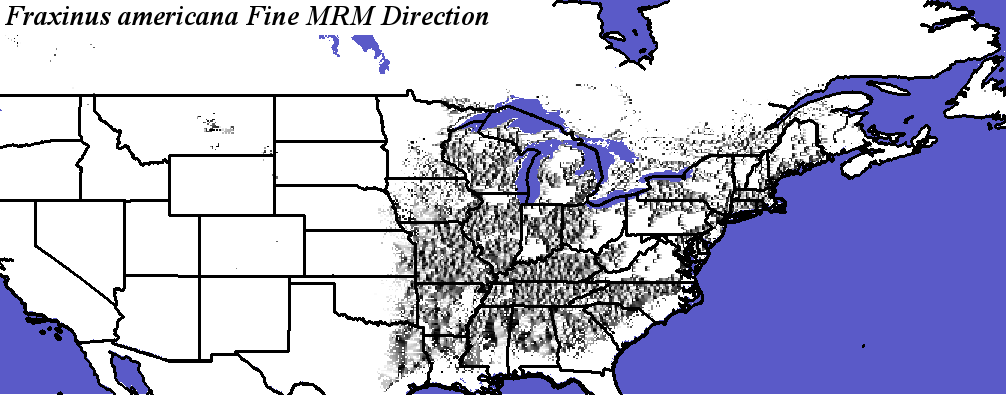

Fraxinus_americana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus americana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus americana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

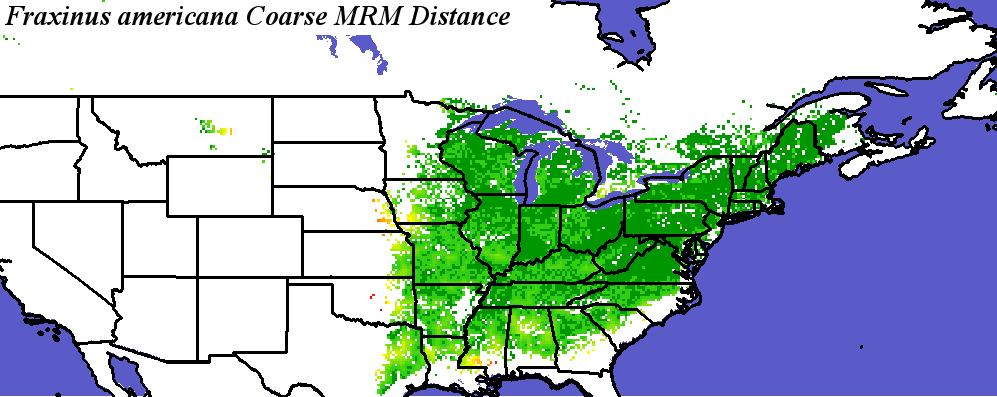

Fraxinus_americana_final.noelev Coarse MRM Distance

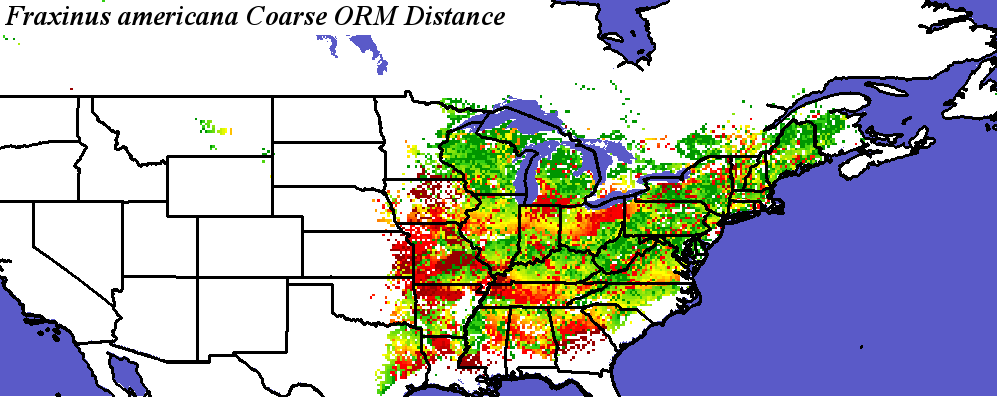

Fraxinus_americana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus americana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus americana
