Version 5 Tree Atlas


Fraxinus caroliniana

Carolina ash

noelev

Fraxinus caroliniana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus caroliniana

USDA Plants Database entry for Fraxinus caroliniana
Silvics Manual entry for Fraxinus caroliniana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
771693Parts of range not well sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_caroliniana_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_caroliniana_final

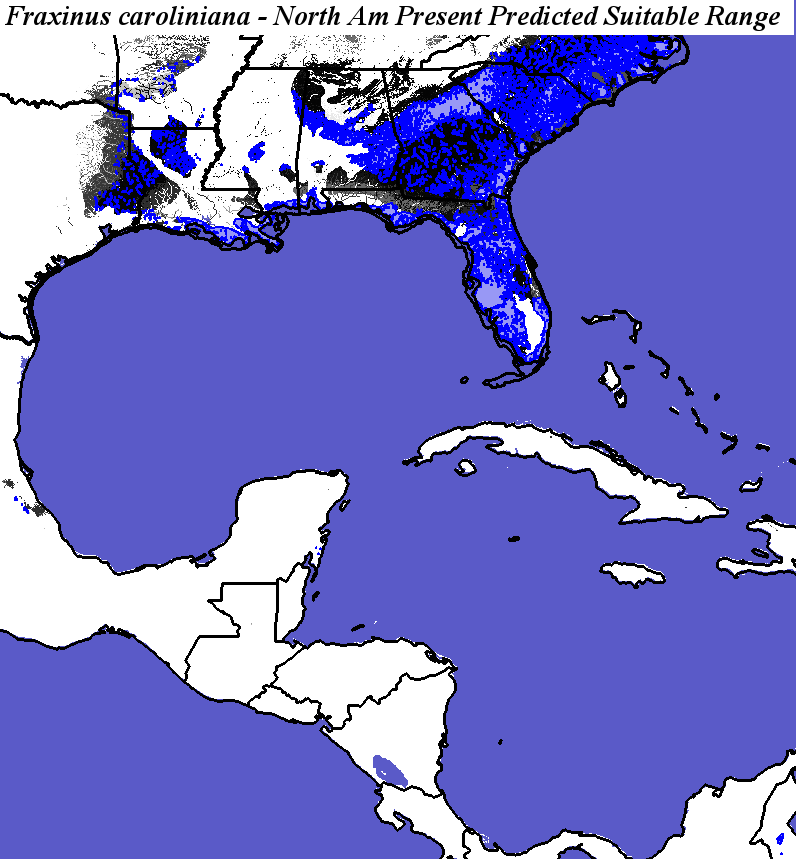

Fraxinus caroliniana - Occurrence Locations Fraxinus caroliniana - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global

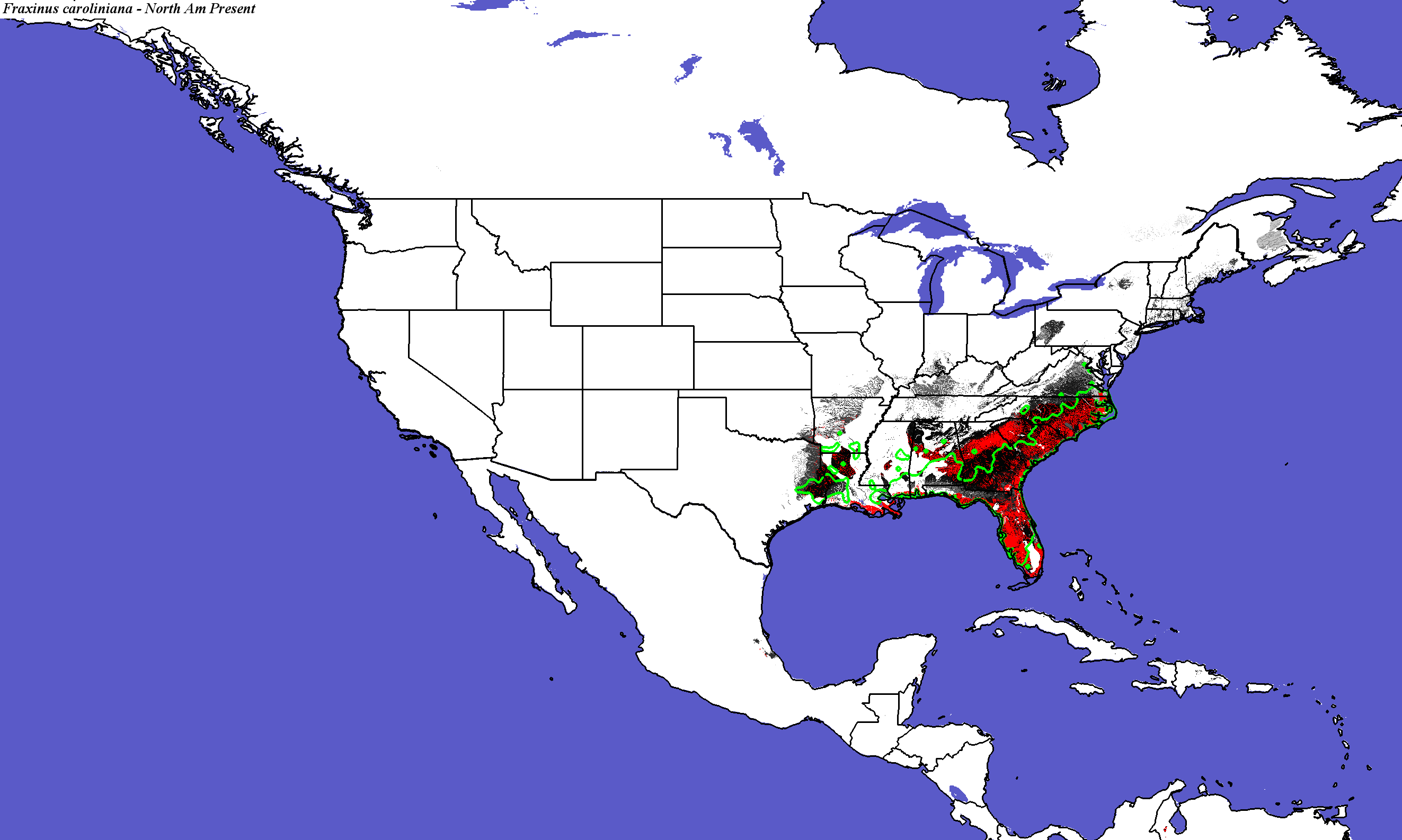

Fraxinus caroliniana - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus caroliniana
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus caroliniana

Fraxinus caroliniana not modeled by Iverson and Prasad
Fraxinus caroliniana not modeled by Crookston and Rehfeldt
Fraxinus caroliniana not modeled by Coops and Waring

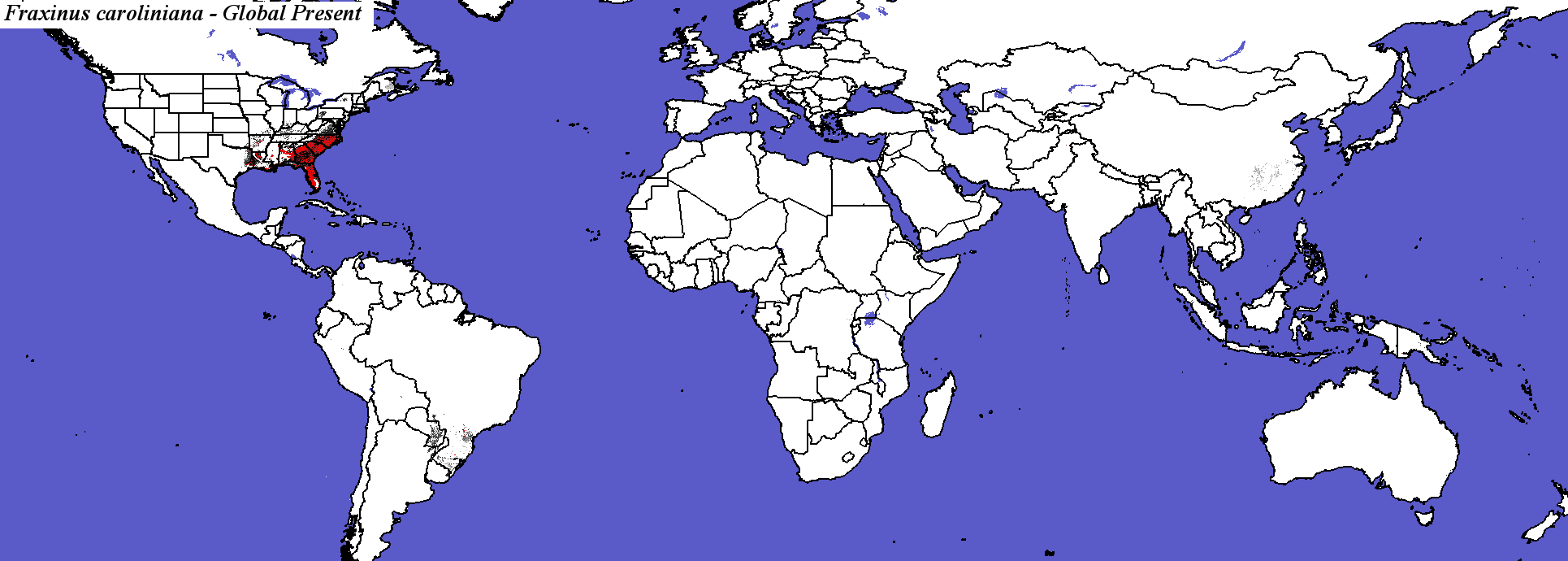

Fraxinus caroliniana - Global

PCM - Parallel Climate Model
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global
PCM, Scenario A1FI, 2050 - Fraxinus caroliniana - CONUS

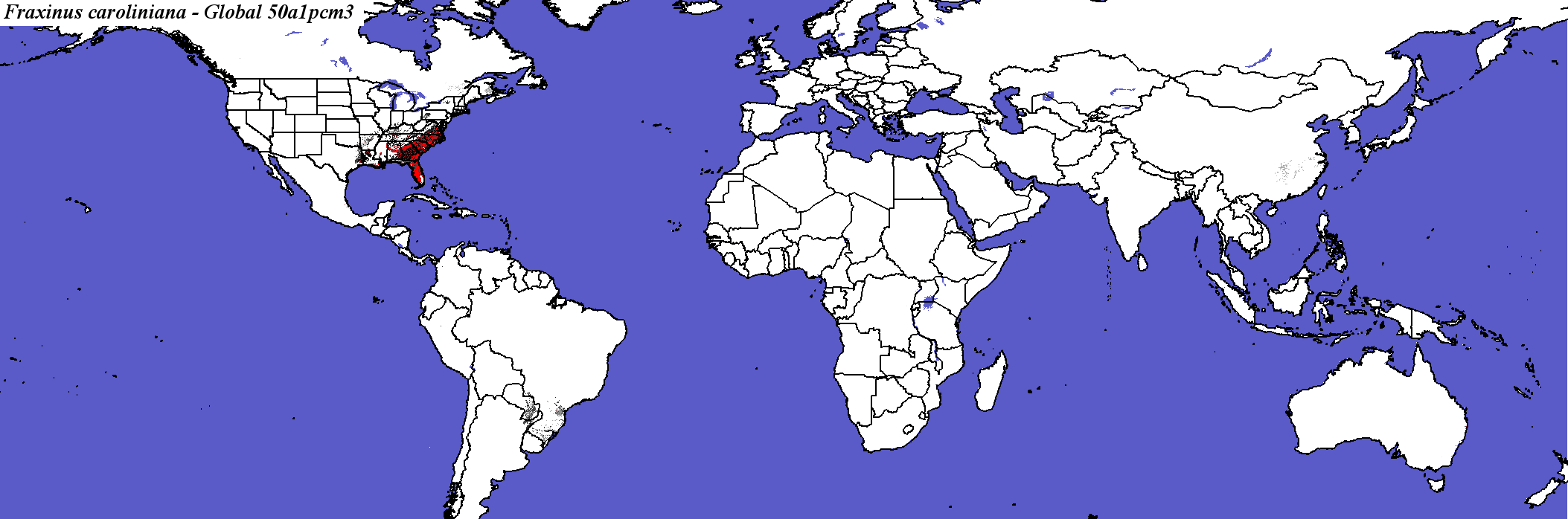

PCM, Scenario A1FI, 2050 - Fraxinus caroliniana - Global
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global

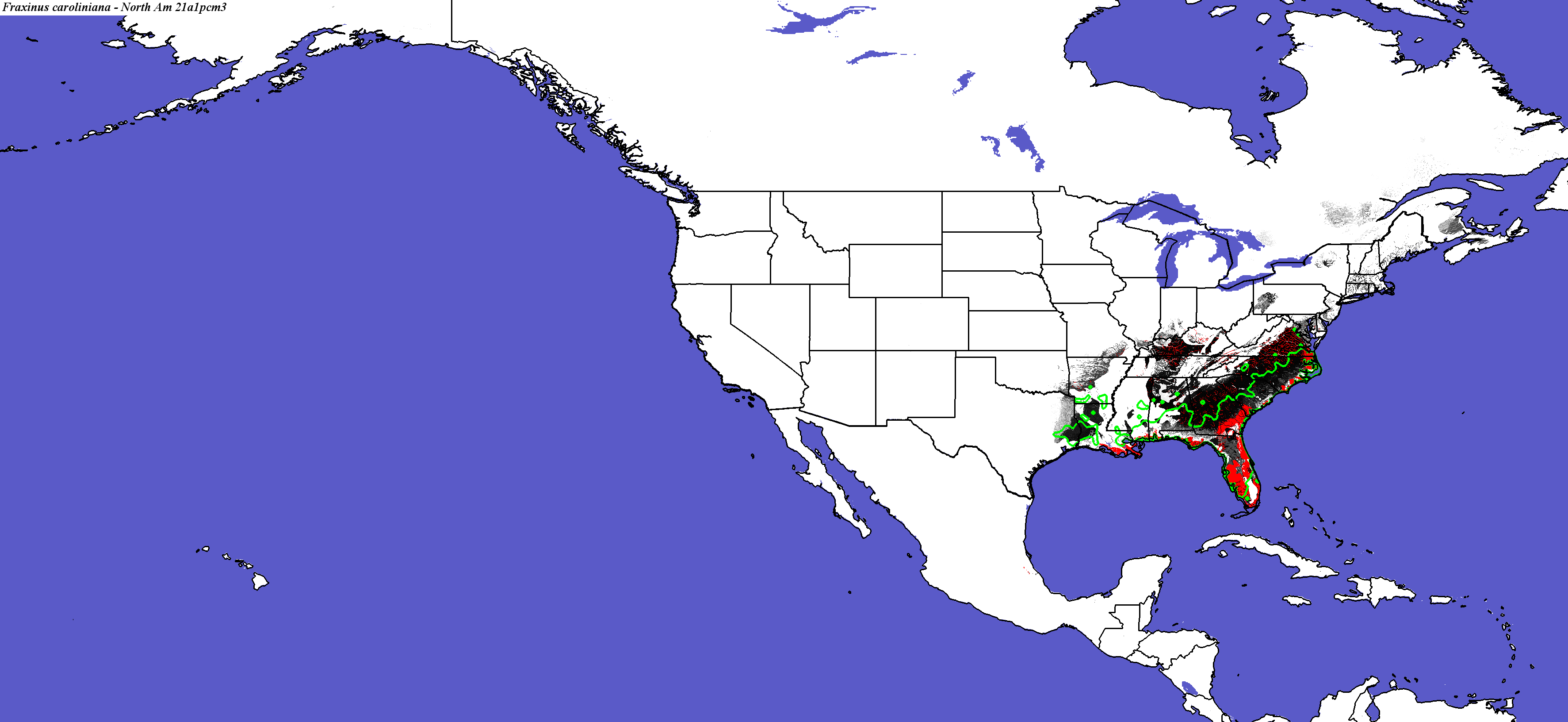

PCM, Scenario A1FI, 2100 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Fraxinus caroliniana - Global

Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global

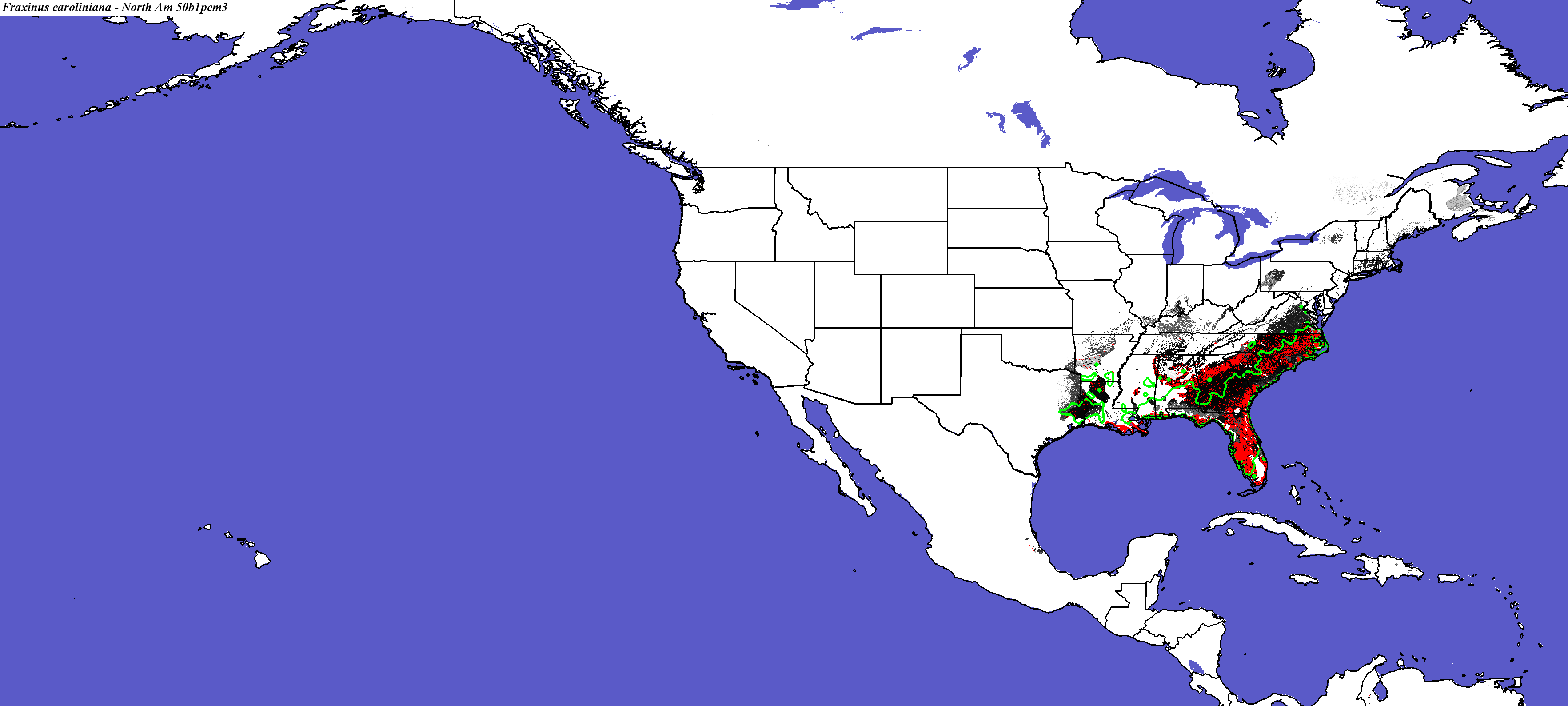

PCM, Scenario B1, 2050 - Fraxinus caroliniana - CONUS
PCM, Scenario B1, 2050 - Fraxinus caroliniana - Global
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global
PCM, Scenario B1, 2100 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana not modeled by Iverson and Prasad

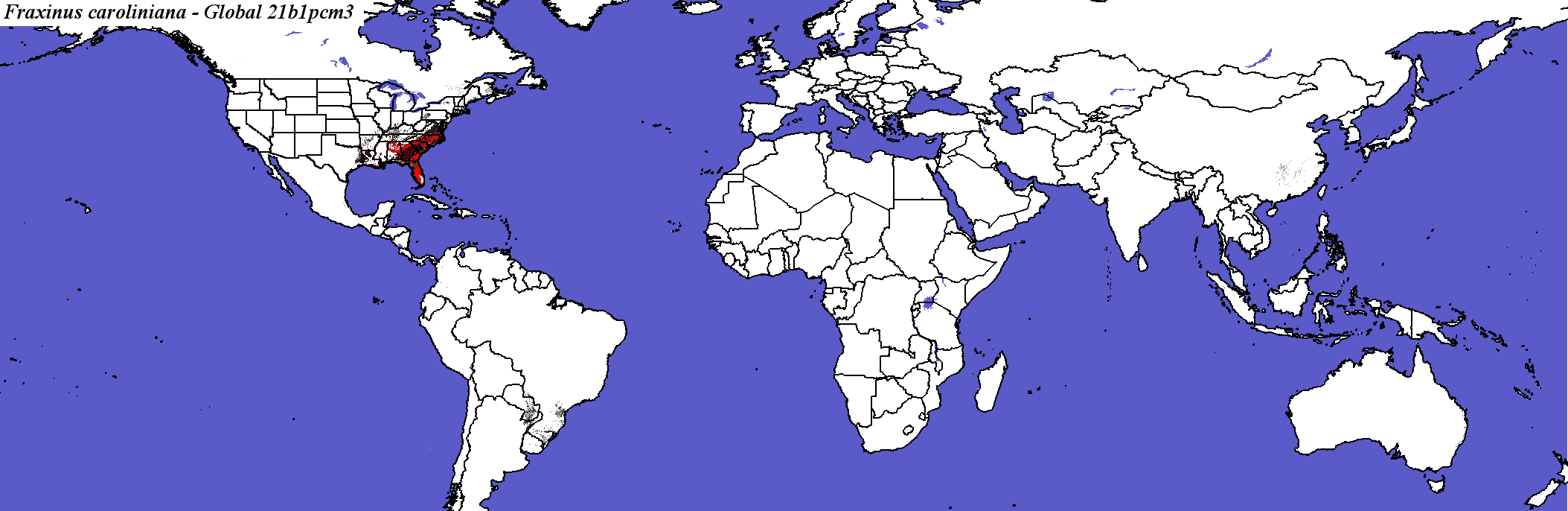

PCM, Scenario B1, 2100 - Fraxinus caroliniana - Global

Hadley Climate Model
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global

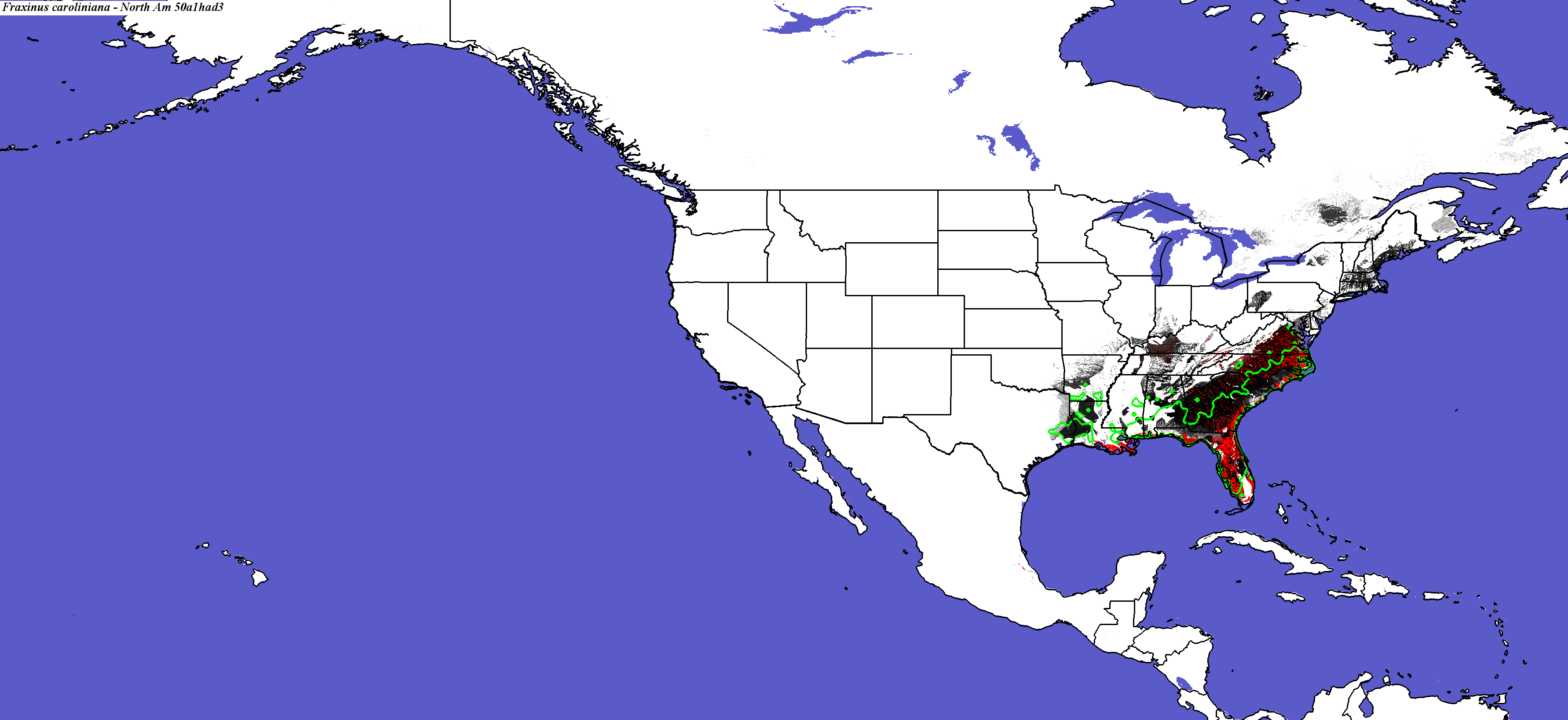

Hadley, Scenario A1FI, 2050 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana not modeled by Crookston and Rehfeldt

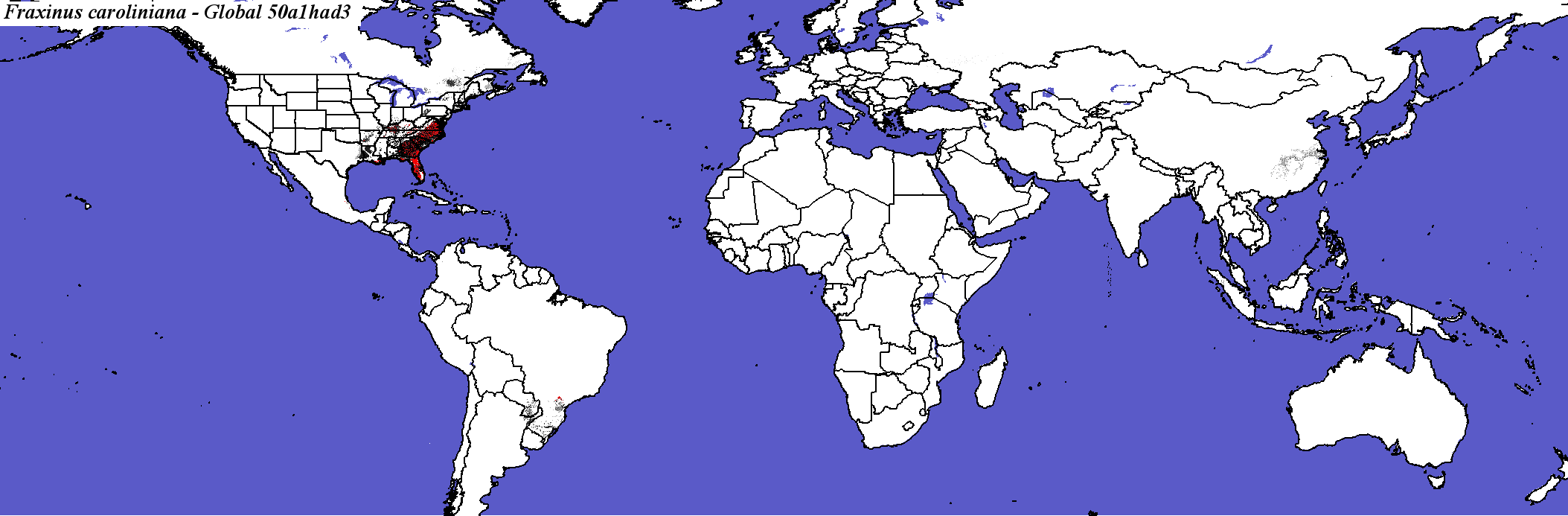

Hadley, Scenario A1FI, 2050 - Fraxinus caroliniana - Global
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global.

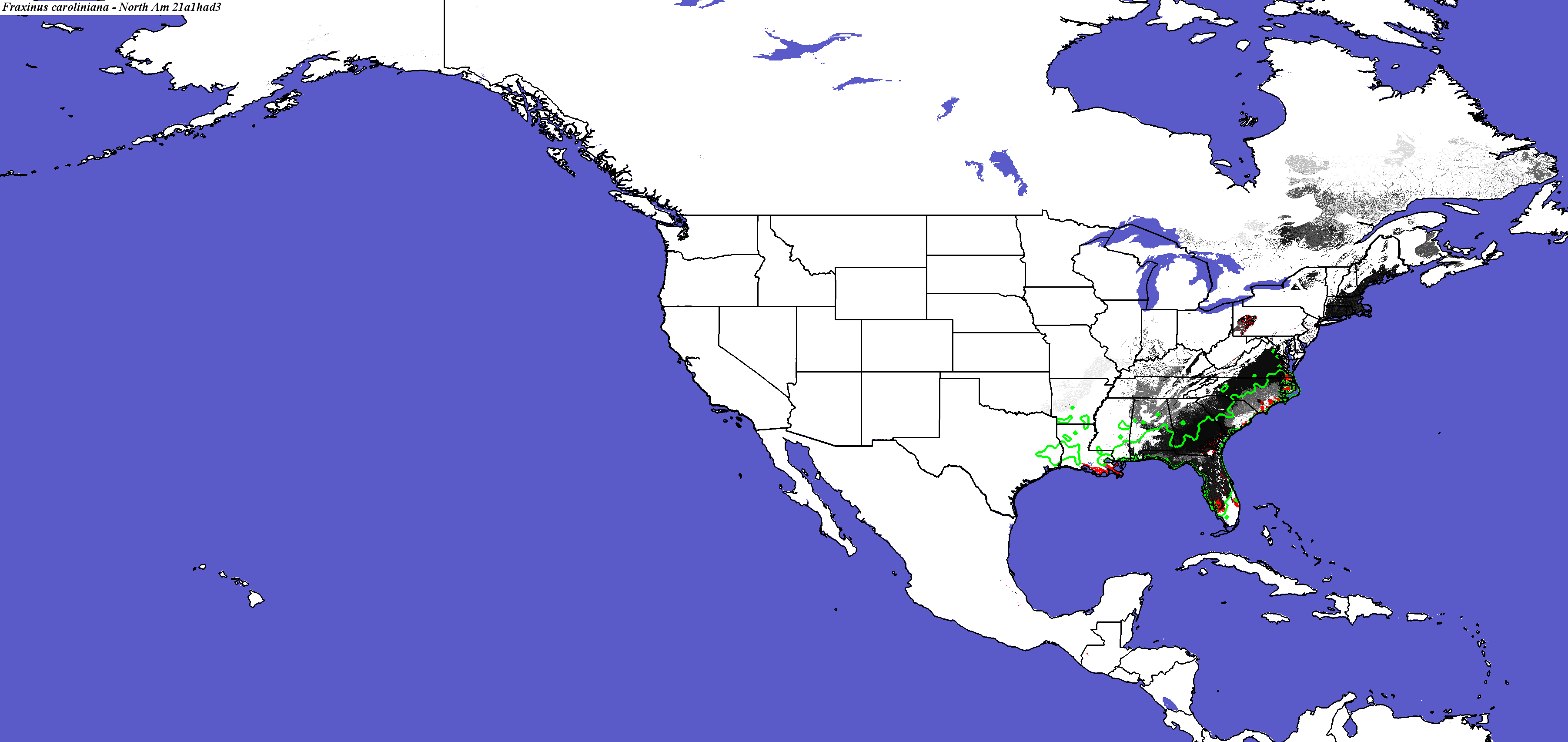

Hadley, Scenario A1FI, 2100 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana not modeled by Iverson and Prasad
Fraxinus caroliniana not modeled by Crookston and Rehfeldt
Fraxinus caroliniana not modeled by Coops and Waring

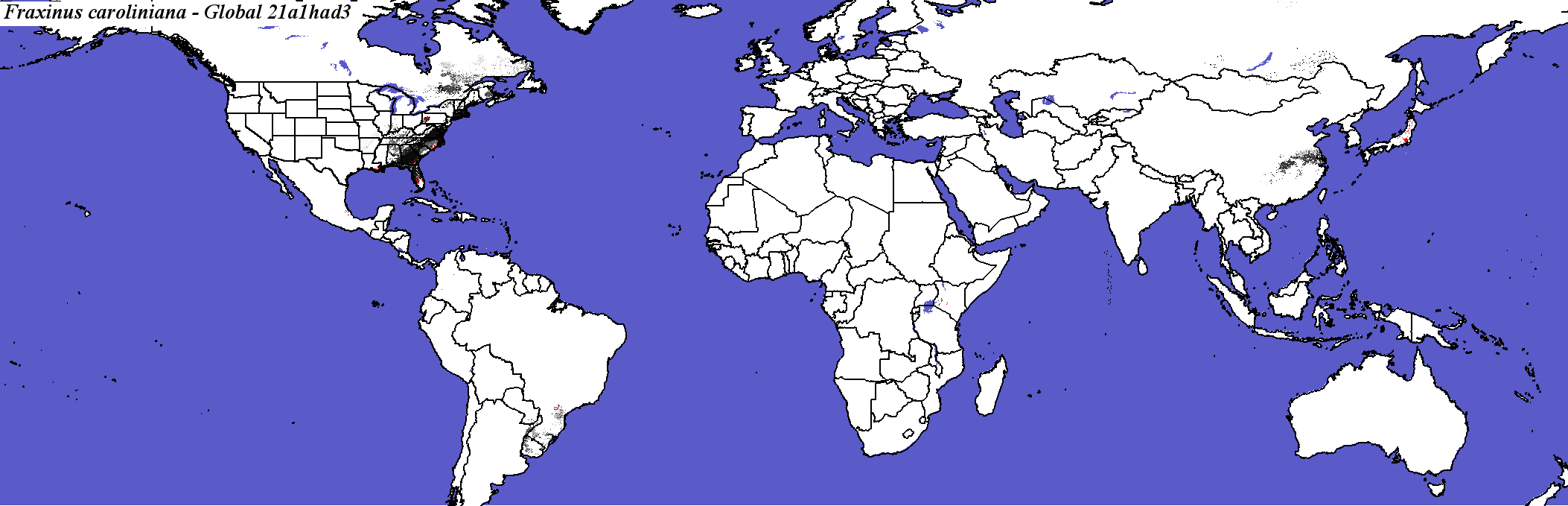

Hadley, Scenario A1FI, 2100 - Fraxinus caroliniana - Global

Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global.

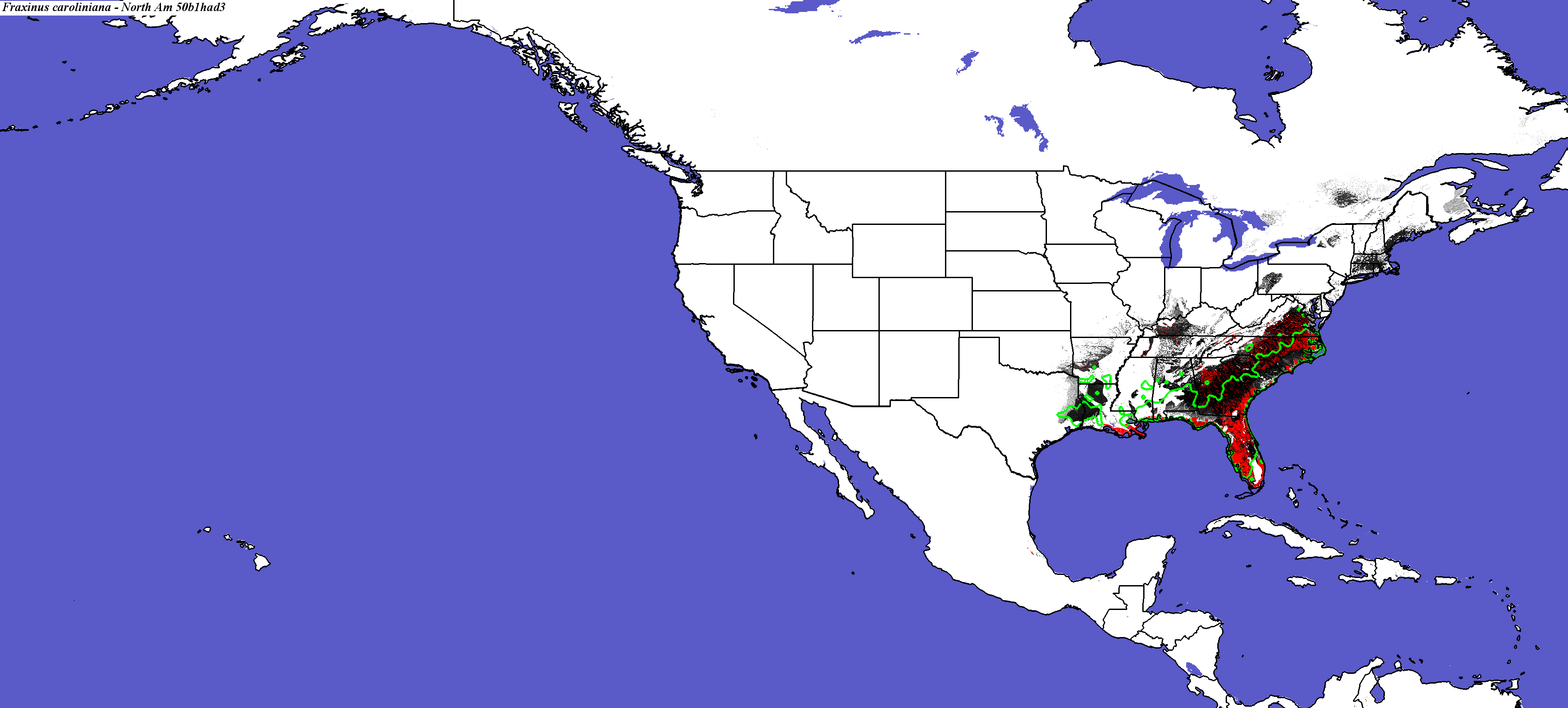

Hadley, Scenario B1, 2050 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana not modeled by Crookston and Rehfeldt
Fraxinus caroliniana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus caroliniana - Global
Fraxinus_caroliniana_final.2.conus
Fraxinus_caroliniana_final.2.global

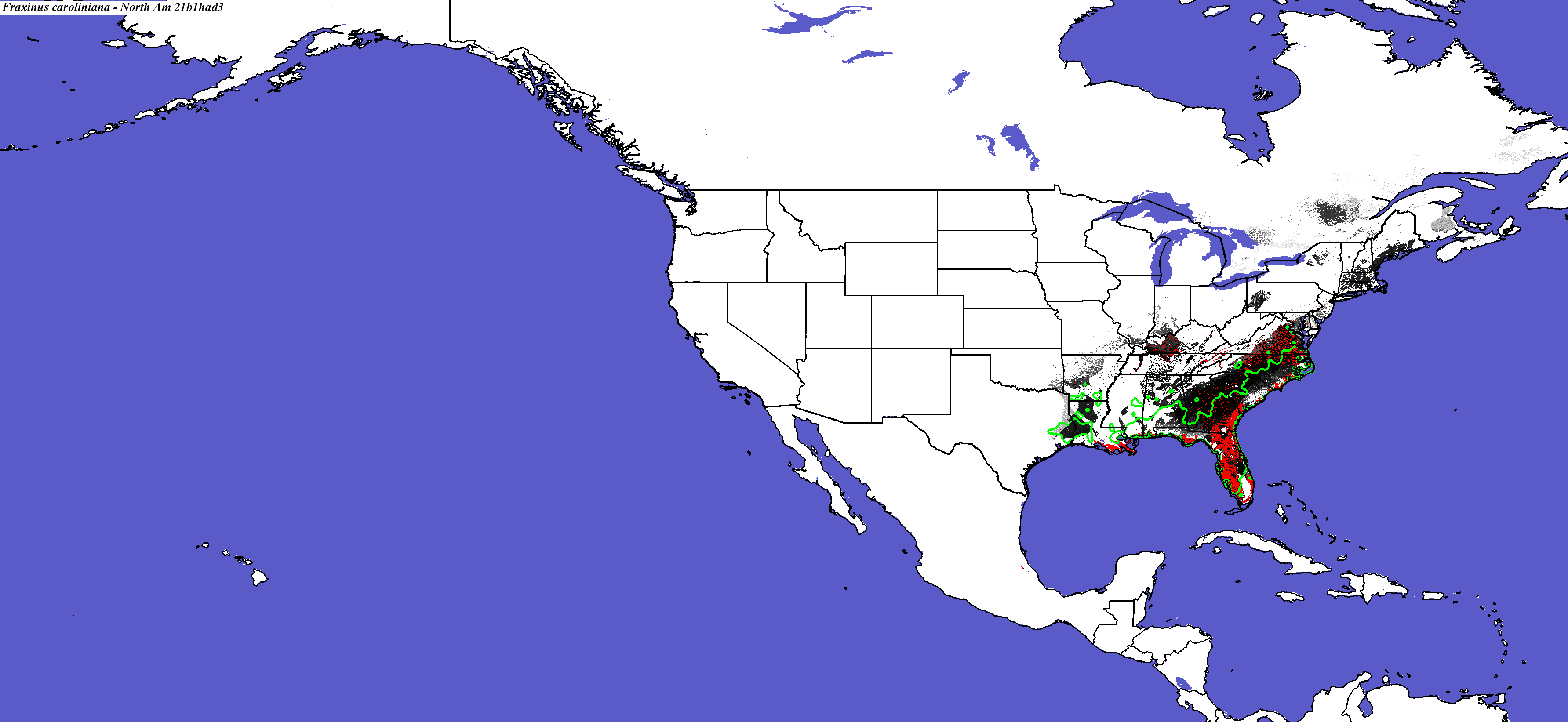

Hadley, Scenario B1, 2100 - Fraxinus caroliniana - CONUS
Fraxinus caroliniana not modeled by Iverson and Prasad
Fraxinus caroliniana not modeled by Crookston and Rehfeldt

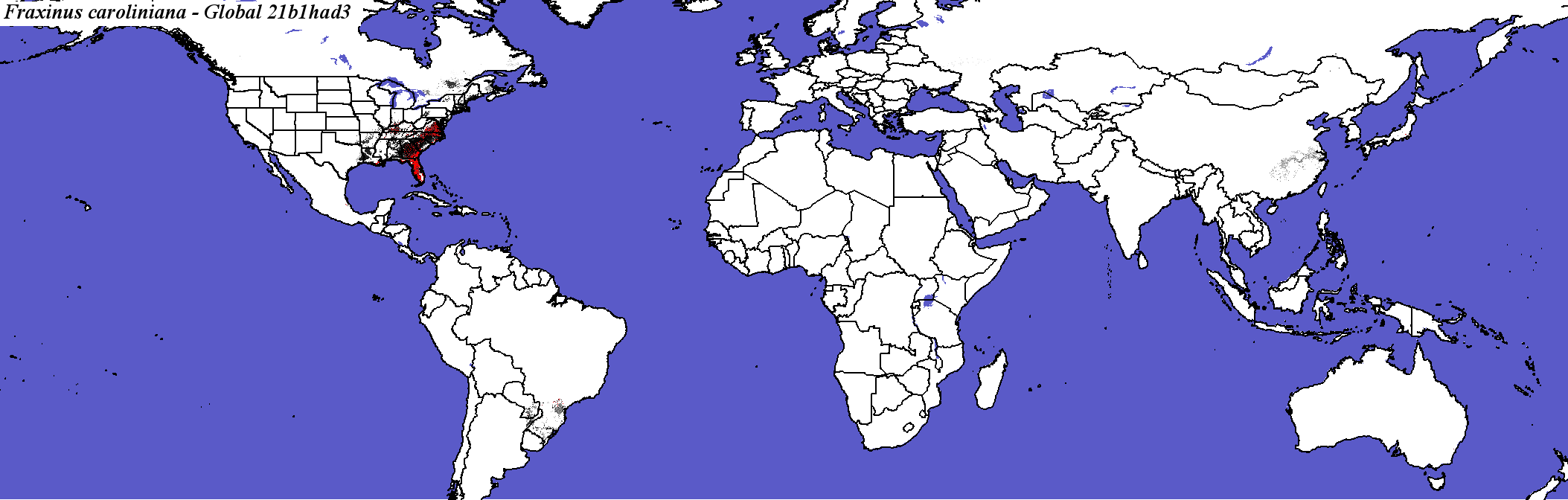

Hadley, Scenario B1, 2100 - Fraxinus caroliniana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_caroliniana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

20

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

62.8767

Area in Present Suitable Range (in km2)

187272

Area in Future Suitable Range (Had B1 2050, in km2)

126178

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

94447

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

50.4300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

50.5479

Percent Change in Area of Suitable Range (Had B1 2050)

-32.6200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

56.1644

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

29126.8 +/- 58348

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

22.8767

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

14.5444 +/- 36.5218

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

18.3562

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

125.296 +/- 514.318

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

40.9589

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

5544

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.9600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

37.3973

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

88509

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

47.2600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

10.8219

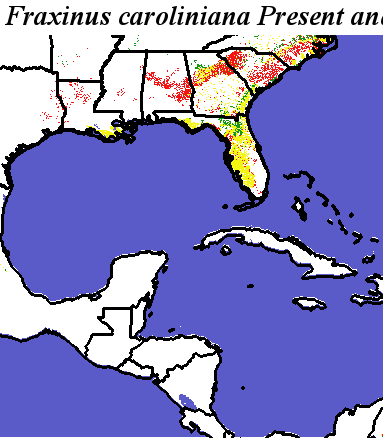

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus caroliniana Fraxinus caroliniana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_caroliniana_final.noelev Fine MRM Distance
Fraxinus_caroliniana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus caroliniana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus caroliniana

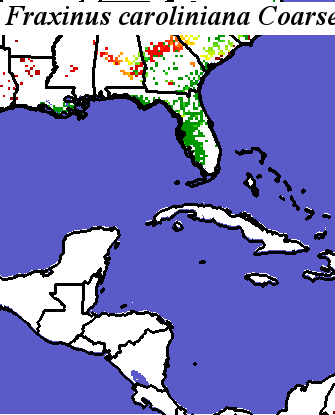

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_caroliniana_final.noelev Coarse MRM Distance
Fraxinus_caroliniana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus caroliniana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus caroliniana
