Version 5 Tree Atlas


Fraxinus latifolia

Oregon ash

noelev

Fraxinus latifolia Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus latifolia

USDA Plants Database entry for Fraxinus latifolia
Silvics Manual entry for Fraxinus latifolia


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
48121169range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_latifolia_final Occurrences

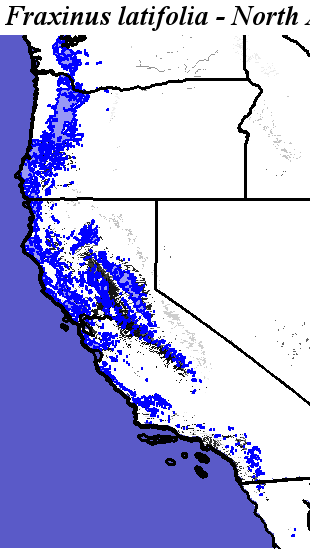

Hargroves Present Suitable Range Outline for Fraxinus_latifolia_final
Fraxinus latifolia - Occurrence Locations Fraxinus latifolia - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

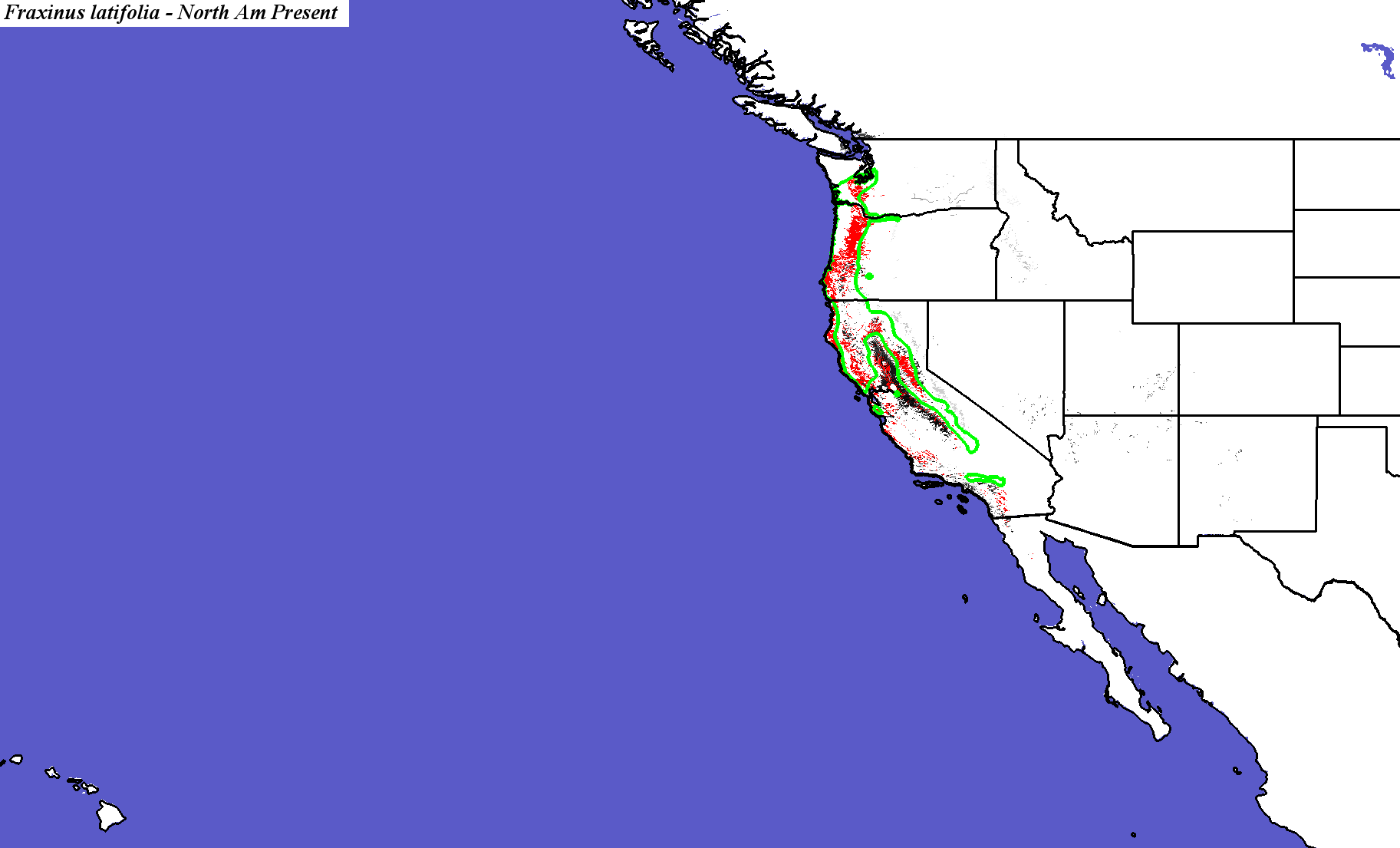

Fraxinus latifolia - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus latifolia
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus latifolia

Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Current conditions by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring

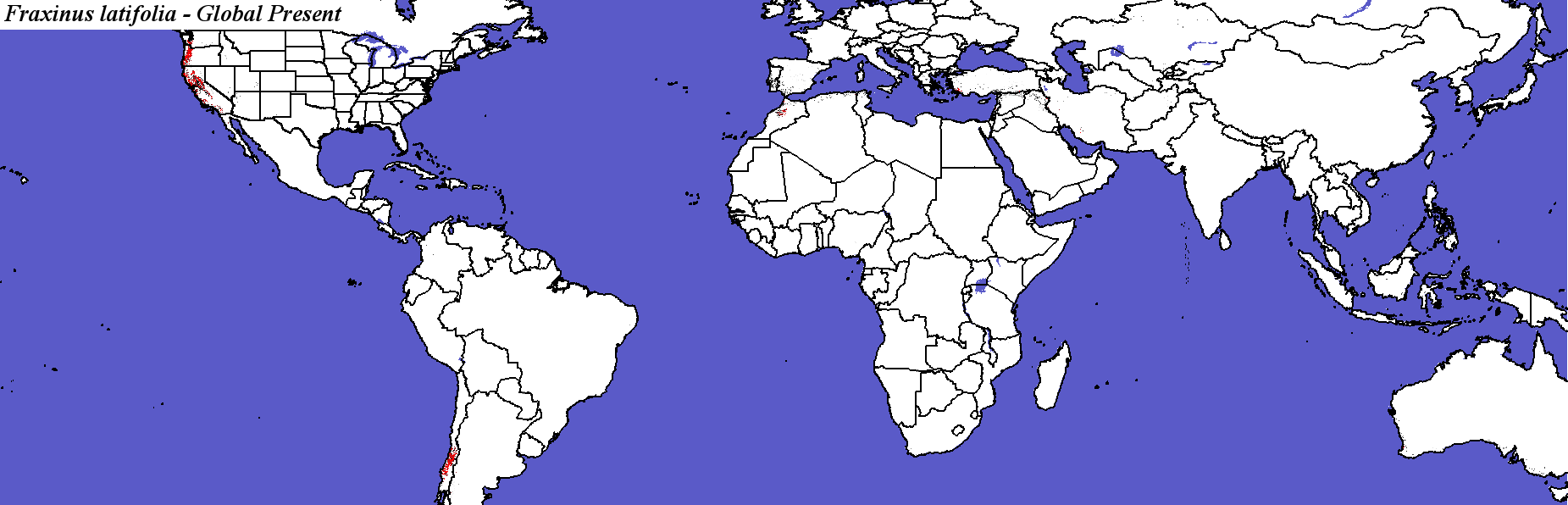

Fraxinus latifolia - Global

PCM - Parallel Climate Model
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

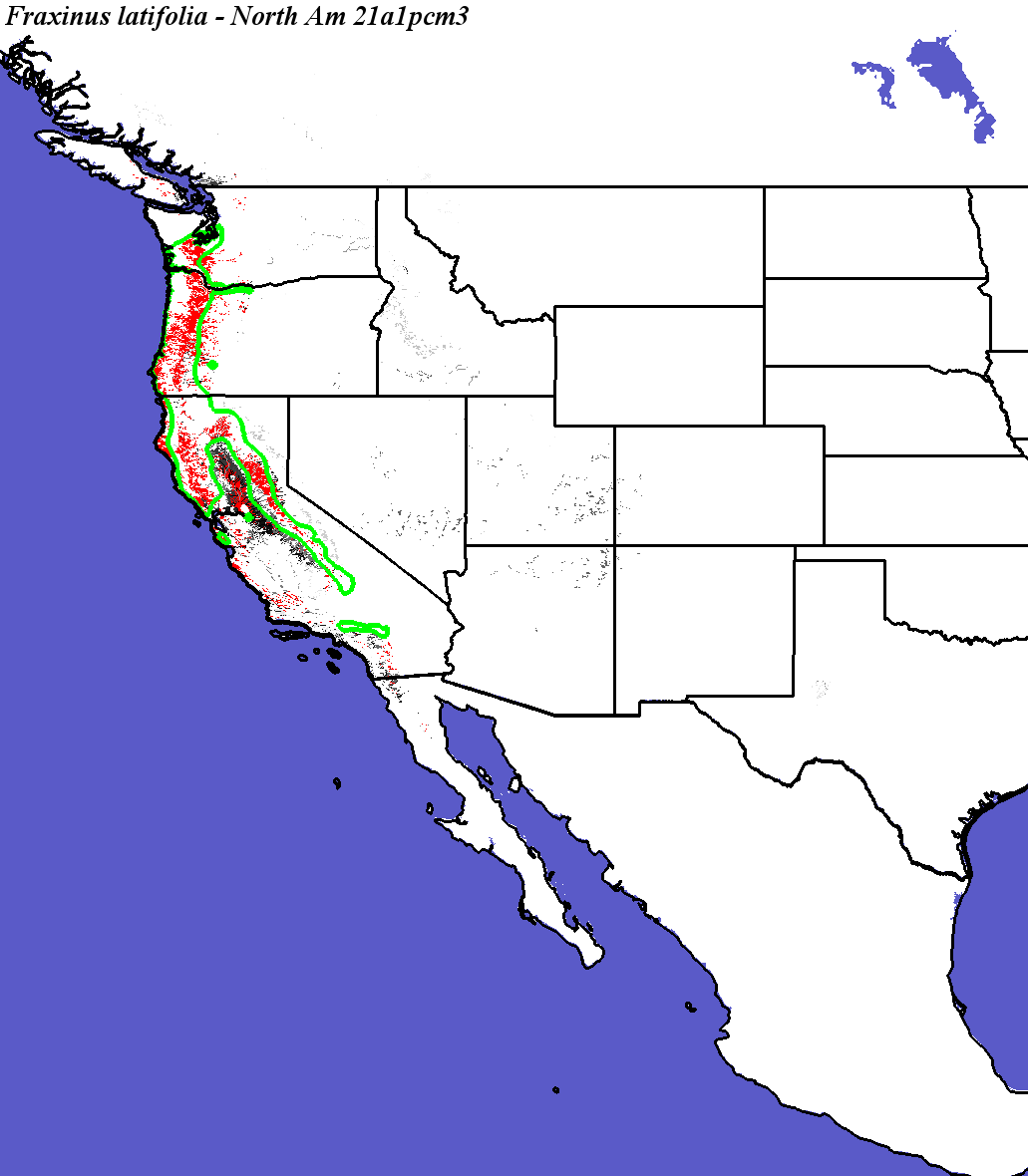

PCM, Scenario A1FI, 2050 - Fraxinus latifolia - CONUS

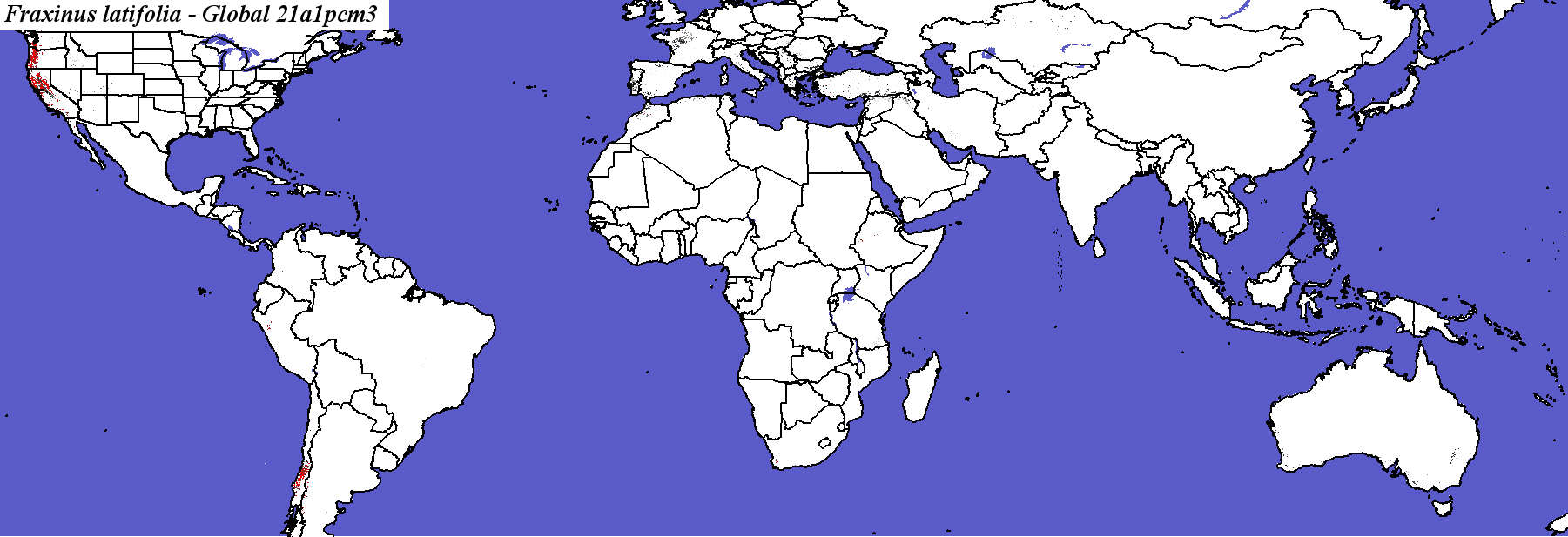

PCM, Scenario A1FI, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
PCM, Scenario A1FI, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Fraxinus latifolia - Global

Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

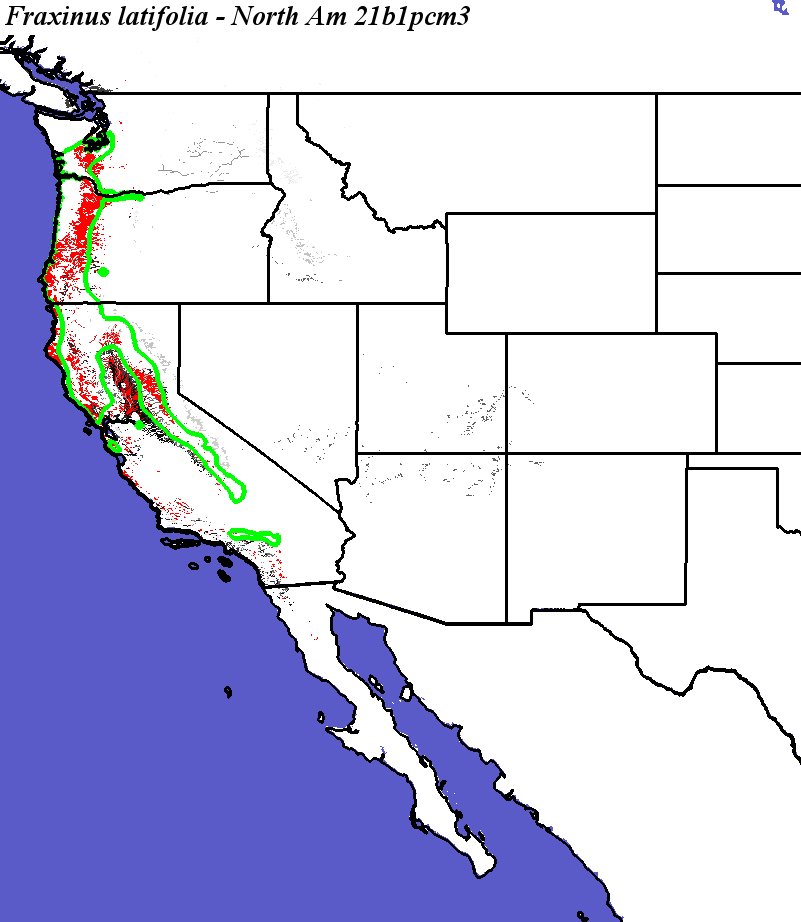

PCM, Scenario B1, 2050 - Fraxinus latifolia - CONUS

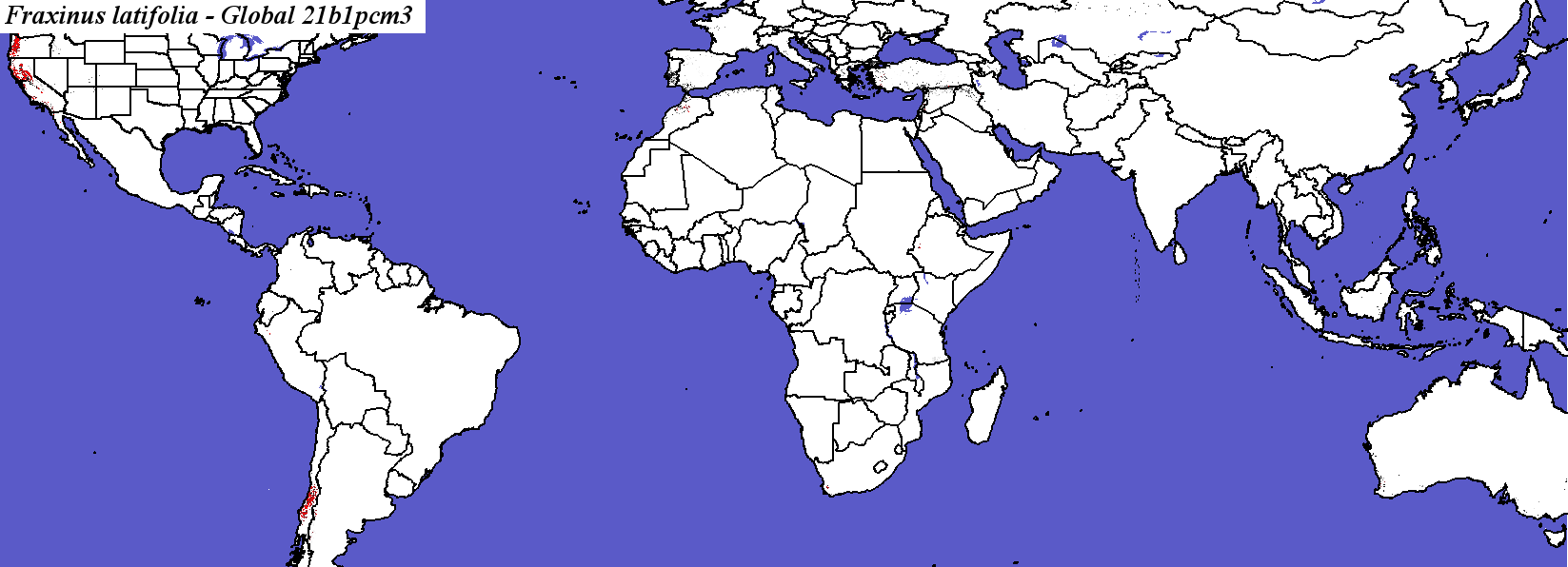

PCM, Scenario B1, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

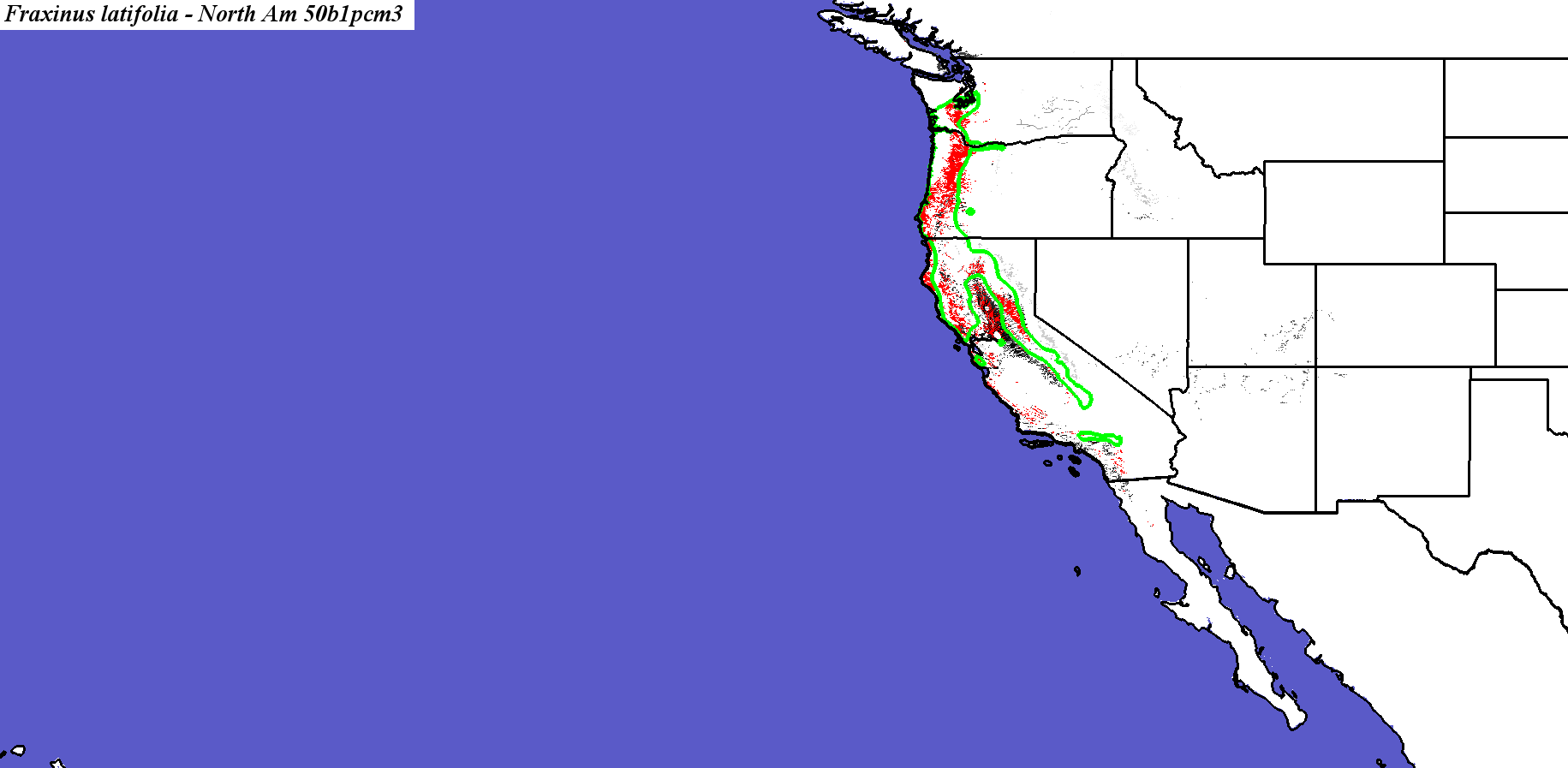

PCM, Scenario B1, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad

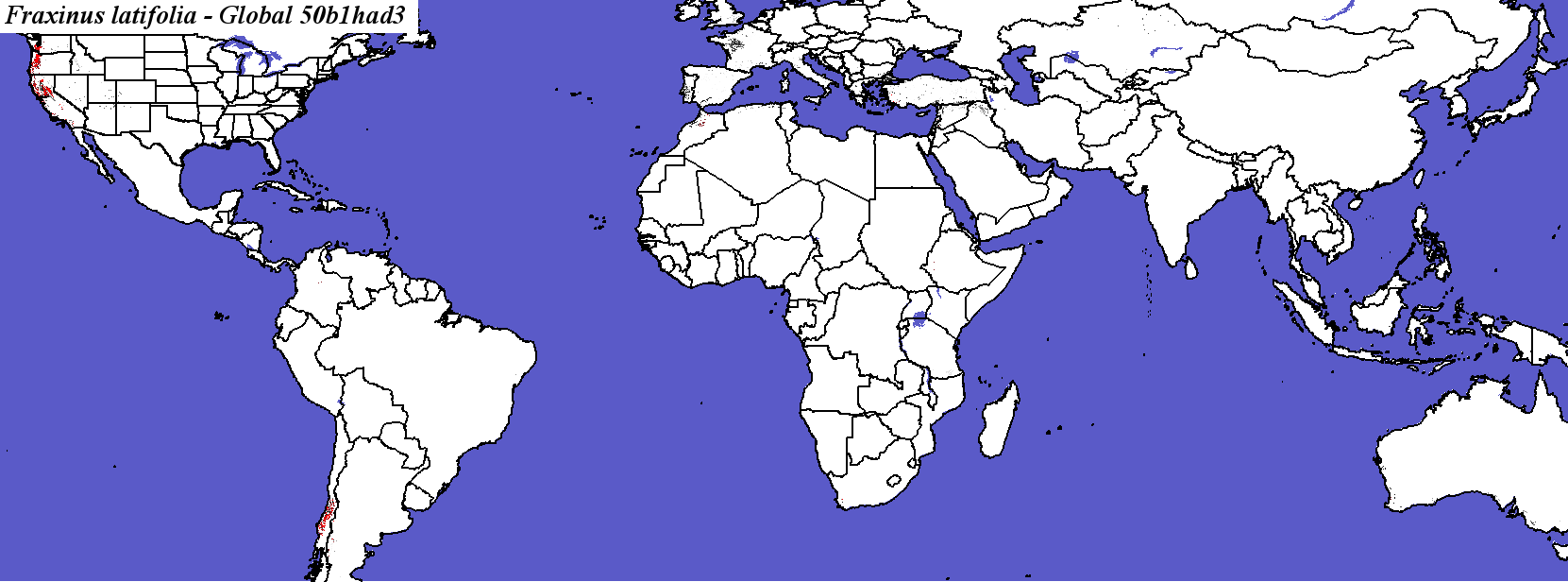

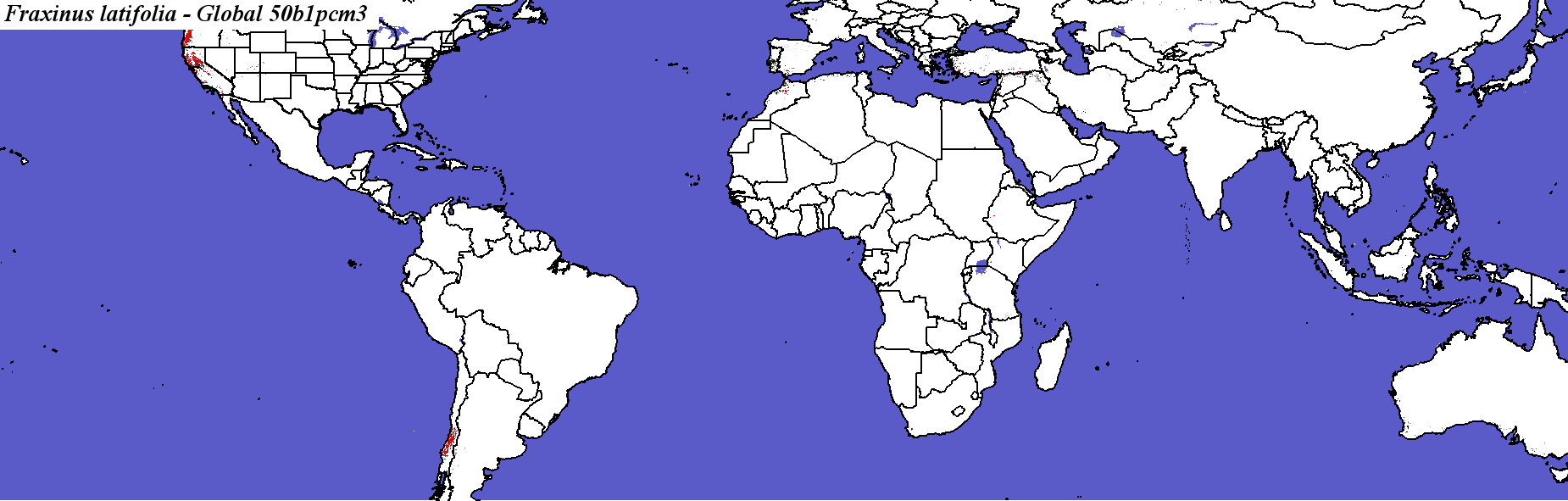

PCM, Scenario B1, 2100 - Fraxinus latifolia - Global

Hadley Climate Model
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

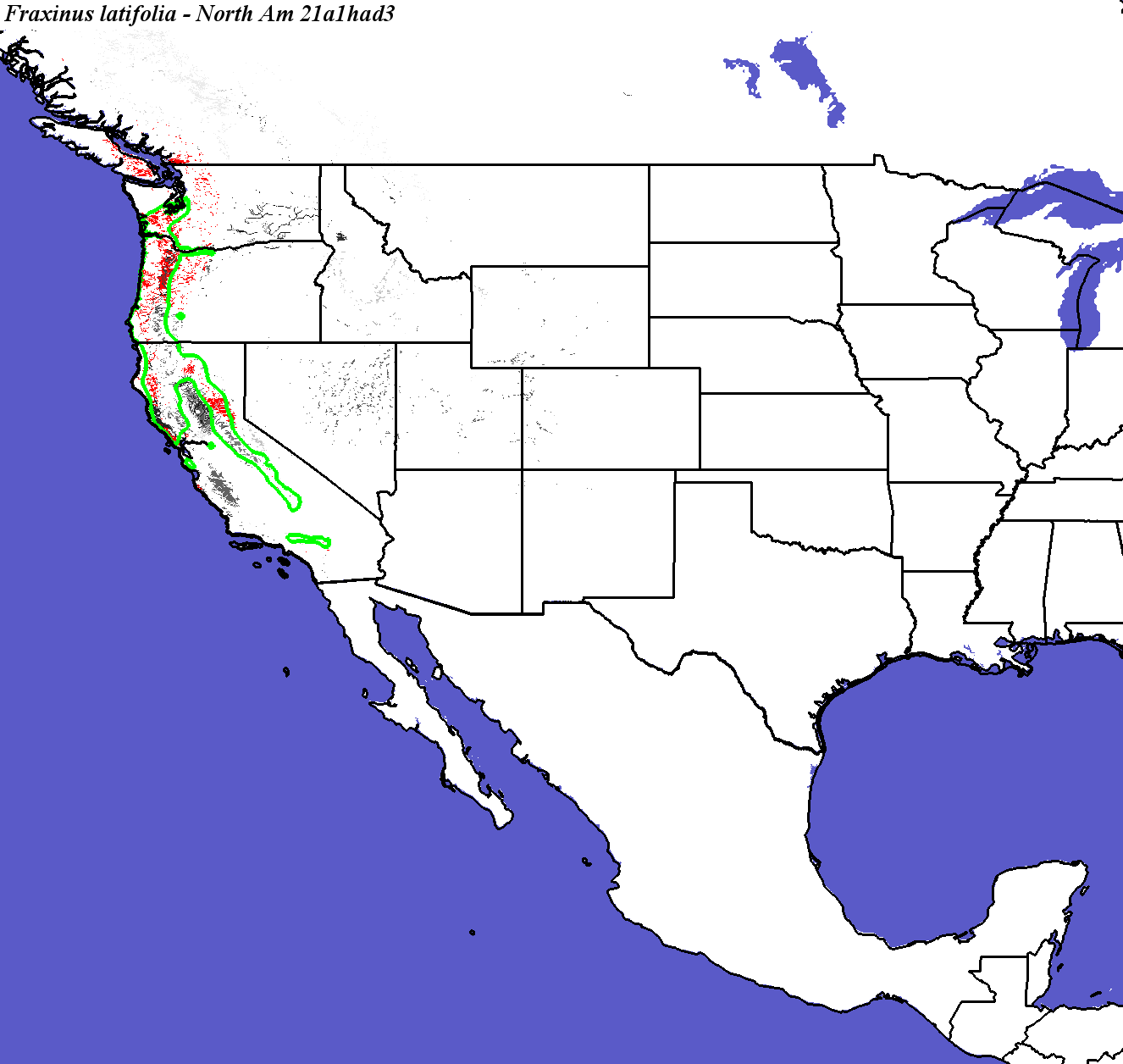

Hadley, Scenario A1FI, 2050 - Fraxinus latifolia - CONUS
Compare with Fraxinus latifolia modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

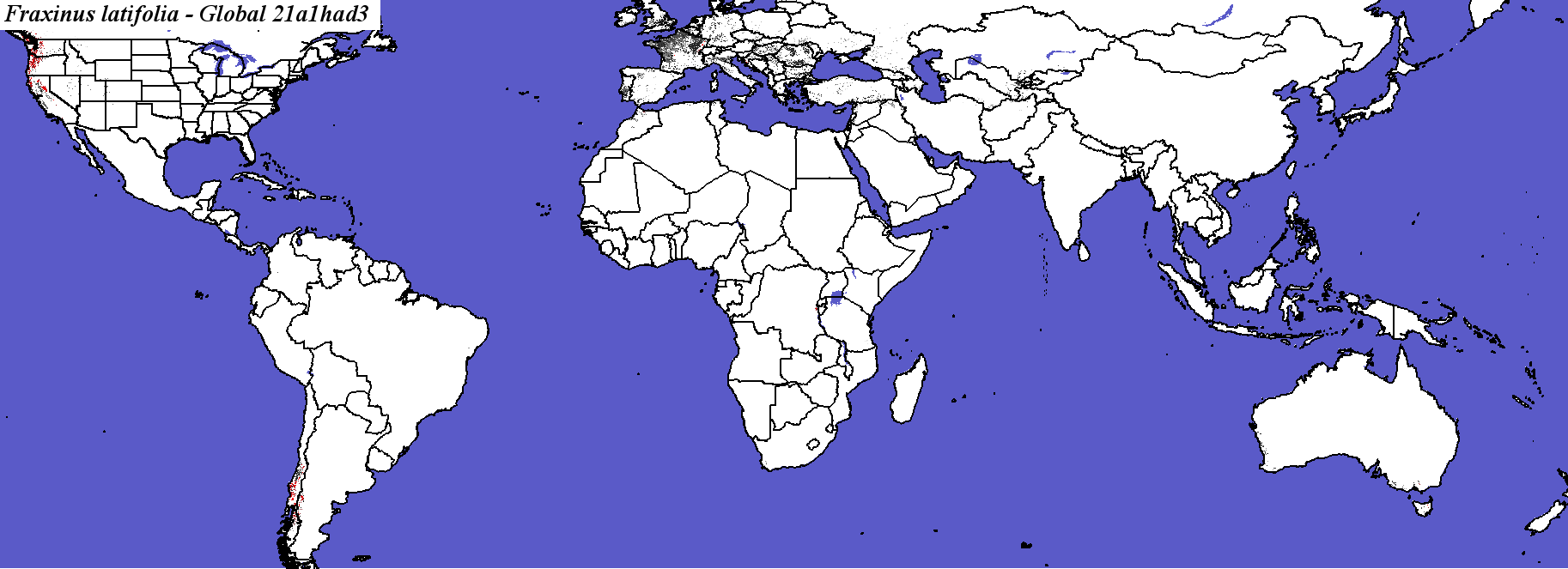

Hadley, Scenario A1FI, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global.
Hadley, Scenario A1FI, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring

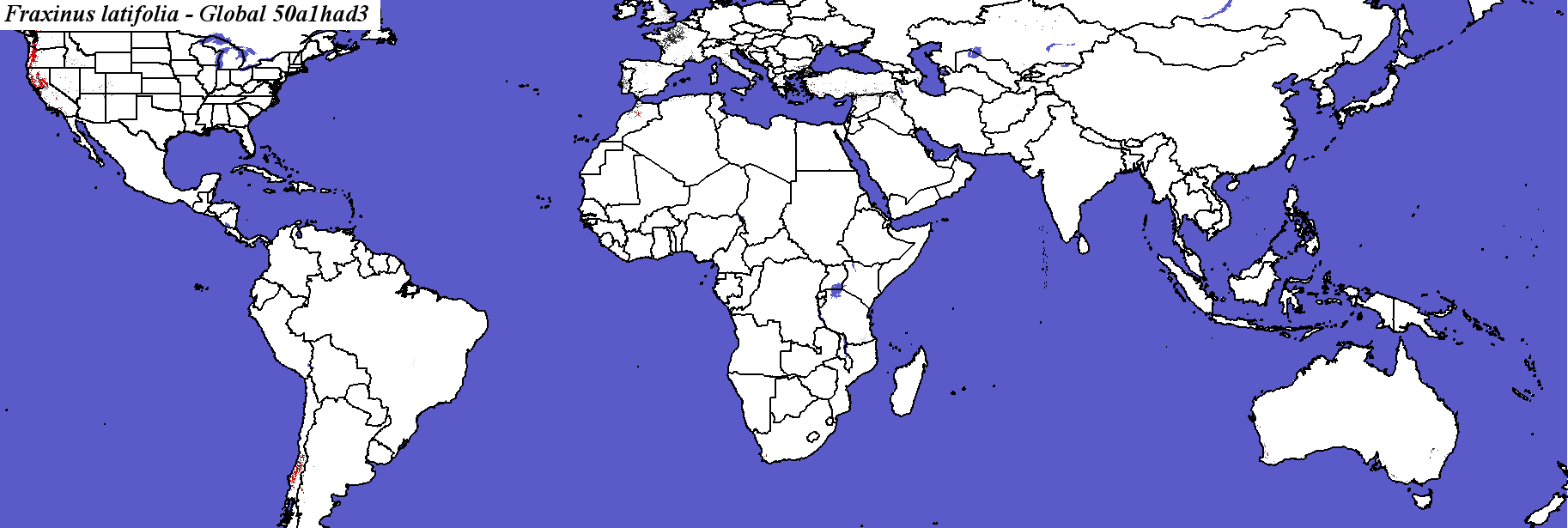

Hadley, Scenario A1FI, 2100 - Fraxinus latifolia - Global

Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global.

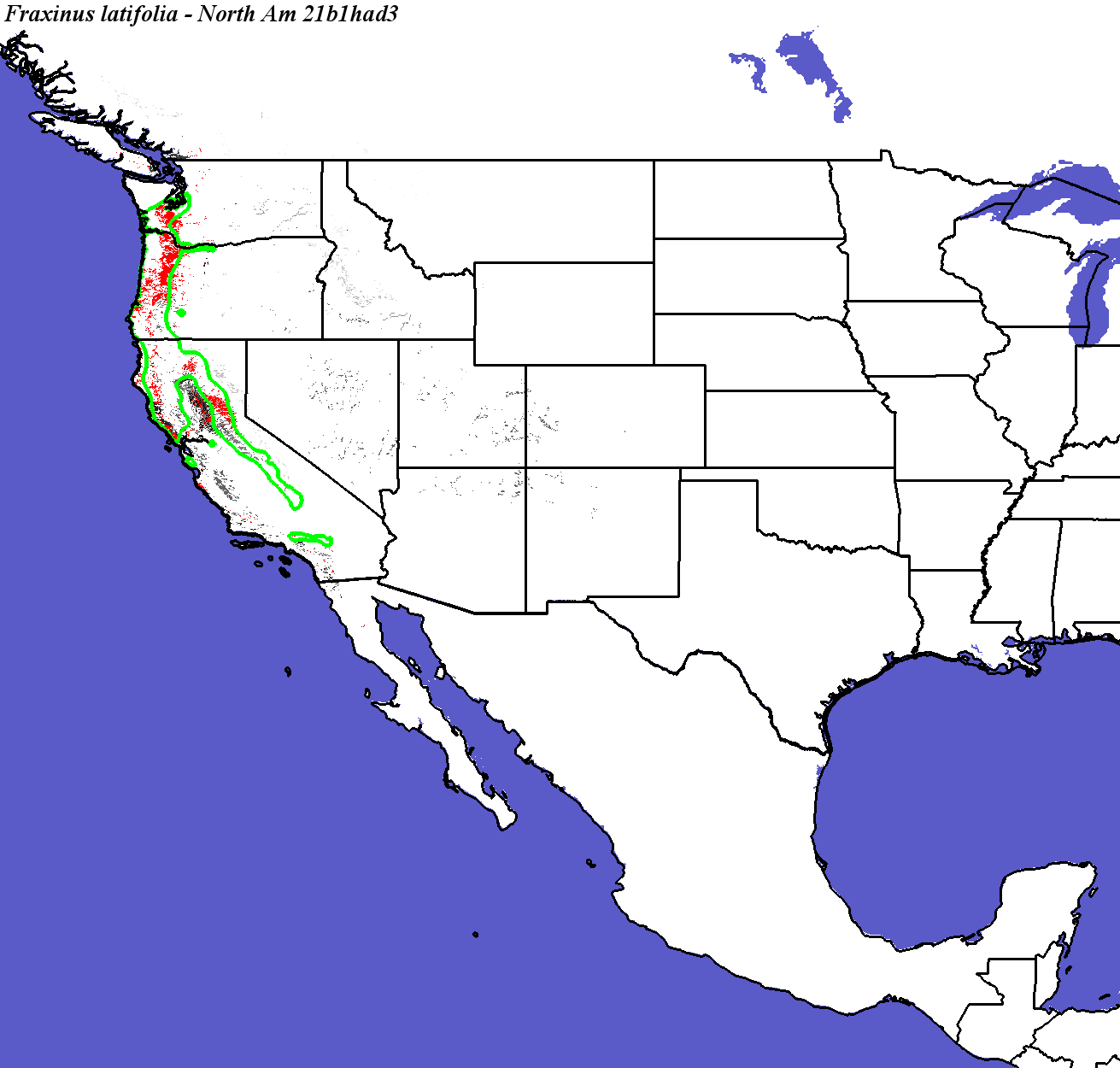

Hadley, Scenario B1, 2050 - Fraxinus latifolia - CONUS
Compare with Fraxinus latifolia modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
Hadley, Scenario B1, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

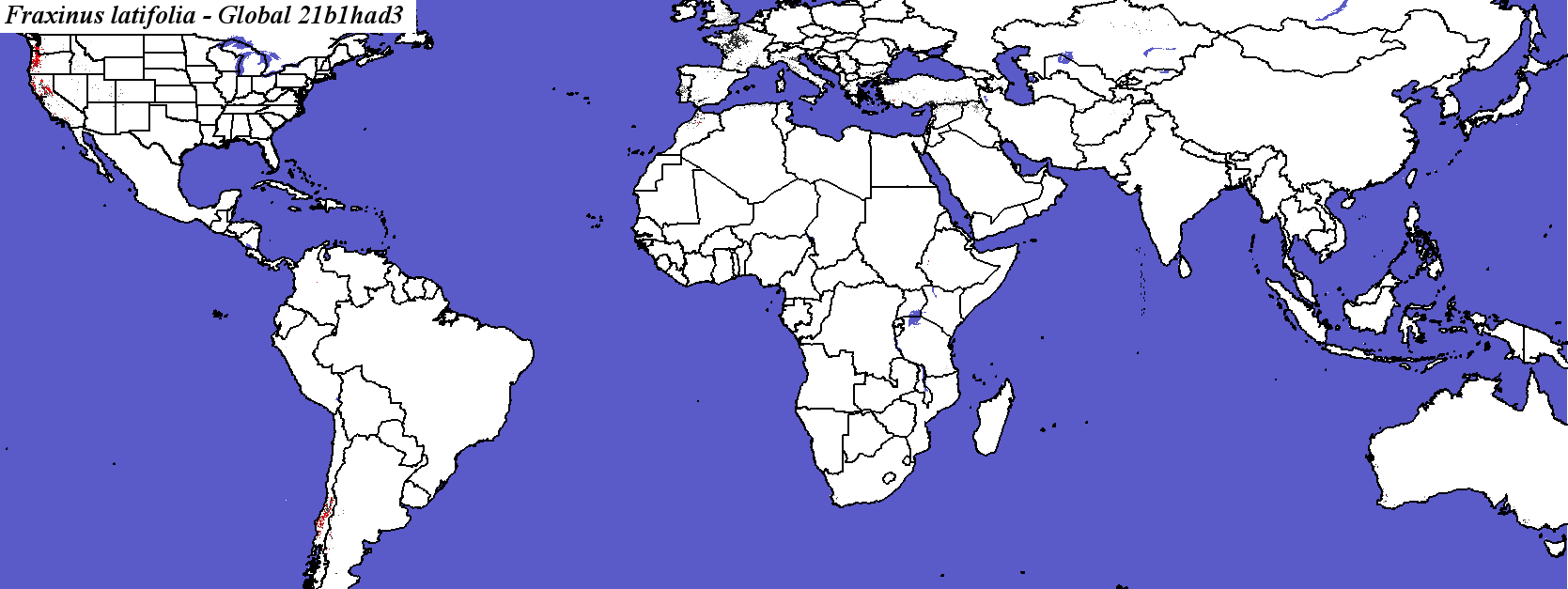

Hadley, Scenario B1, 2100 - Fraxinus latifolia - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

17

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

68.9041

Area in Present Suitable Range (in km2)

71904

Area in Future Suitable Range (Had B1 2050, in km2)

57041

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

38360

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.3400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

43.9726

Percent Change in Area of Suitable Range (Had B1 2050)

-20.6700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

34.3836

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

10231.9 +/- 20213.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

65.8904

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.41234 +/- 6.88149

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

70.5479

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

13.3474 +/- 21.0607

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

93.6986

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

91.9178

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

18275

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

25.4100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

54.7945

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus latifolia Fraxinus latifolia - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.noelev Fine MRM Distance
Fraxinus_latifolia_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus latifolia
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.noelev Coarse MRM Distance
Fraxinus_latifolia_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia
