Version 5 Tree Atlas


Fraxinus quadrangulata

blue ash

noelev

Fraxinus quadrangulata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus quadrangulata

USDA Plants Database entry for Fraxinus quadrangulata
Silvics Manual entry for Fraxinus quadrangulata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
14971220Parts of range not well sampled

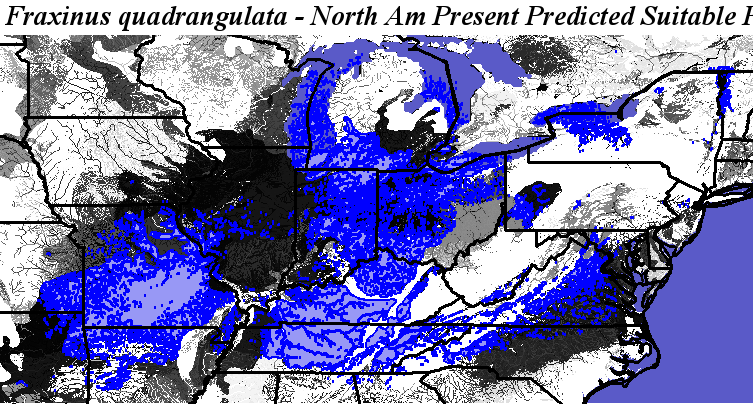

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_quadrangulata_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_quadrangulata_final
Fraxinus quadrangulata - Occurrence Locations Fraxinus quadrangulata - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global

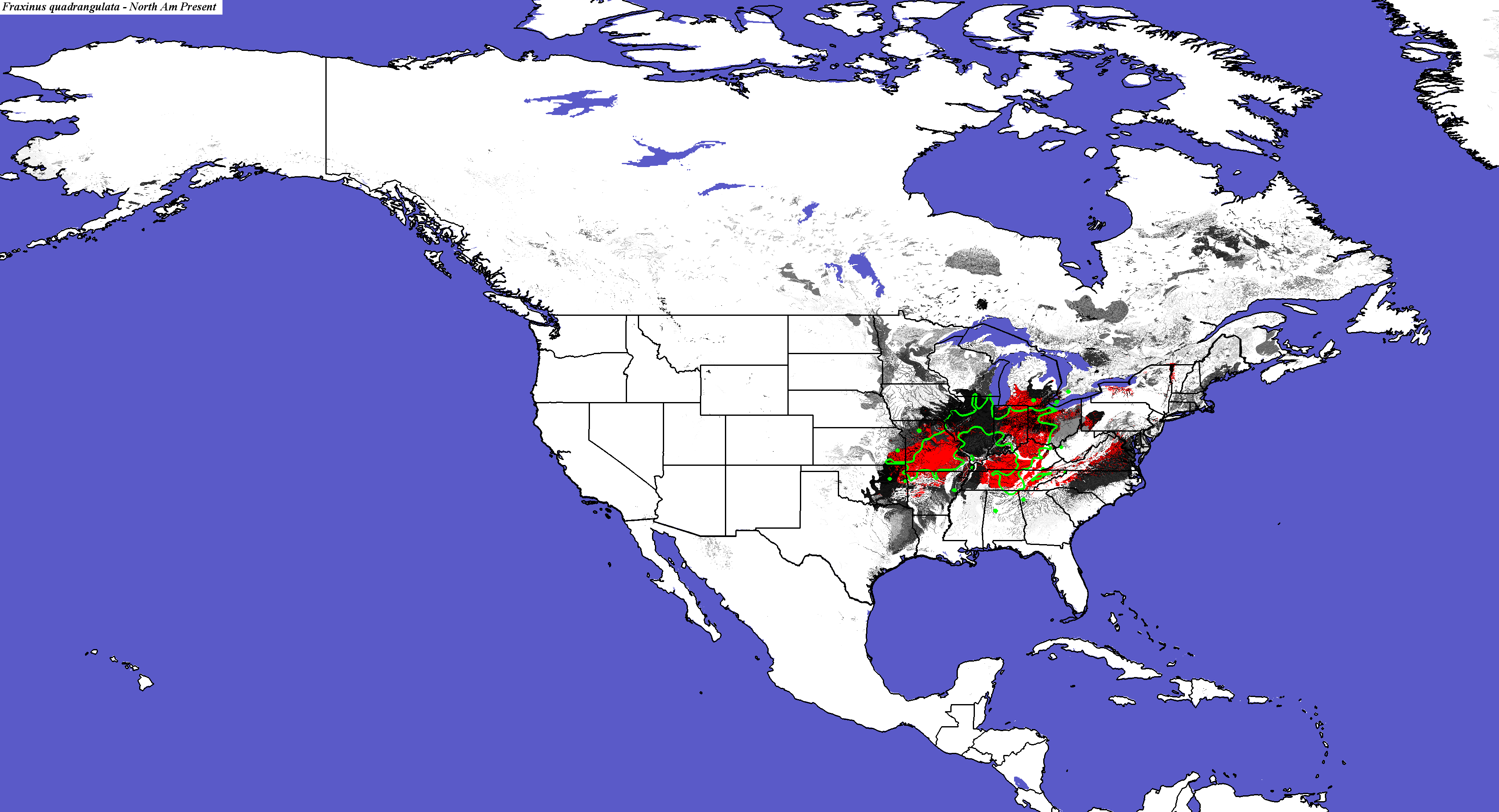

Fraxinus quadrangulata - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus quadrangulata
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus quadrangulata

Compare with Fraxinus quadrangulata modeled for Current conditions by Iverson and Prasad
Fraxinus quadrangulata not modeled by Crookston and Rehfeldt
Fraxinus quadrangulata not modeled by Coops and Waring
Fraxinus quadrangulata - Global

PCM - Parallel Climate Model
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global

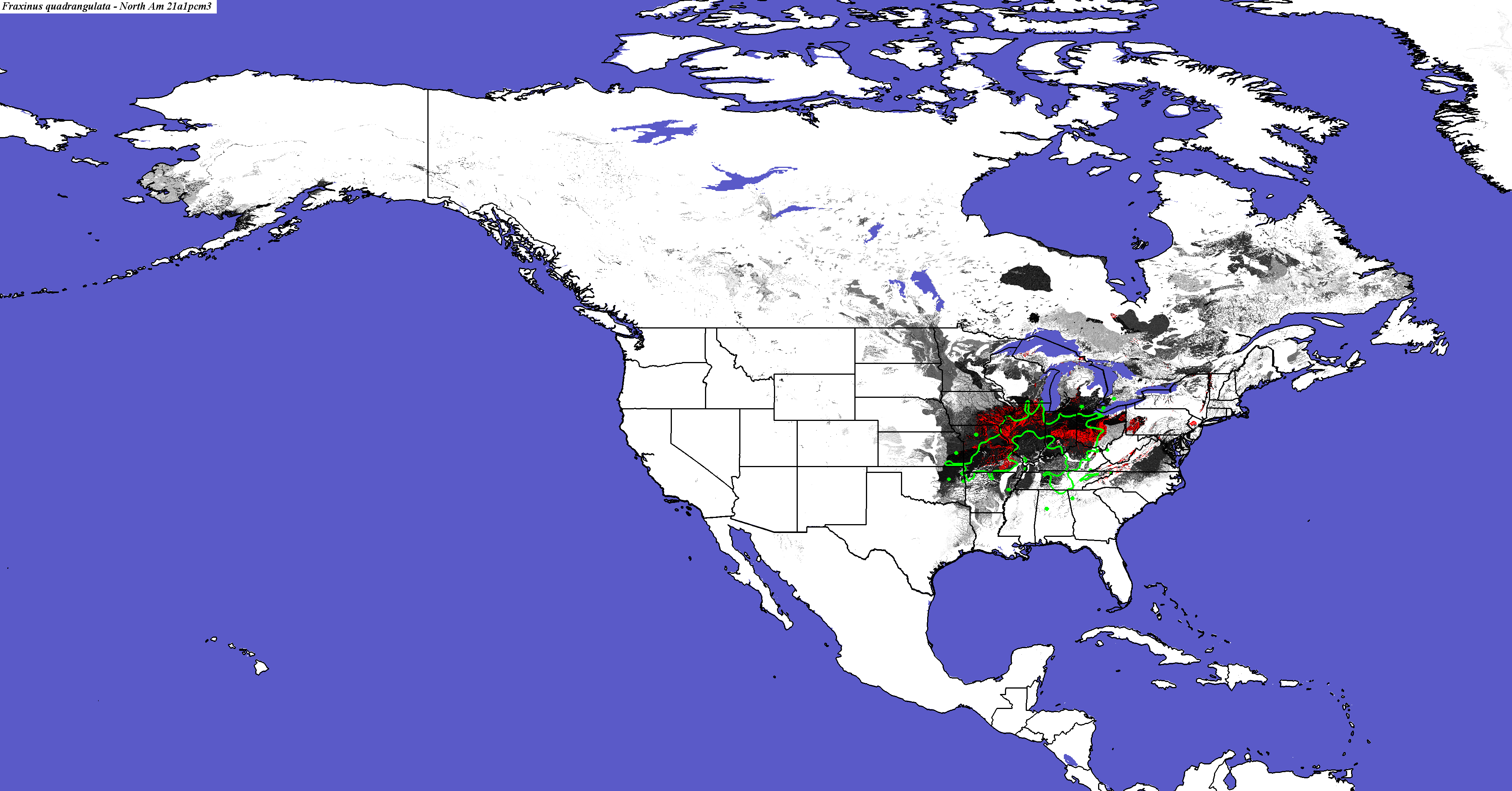

PCM, Scenario A1FI, 2050 - Fraxinus quadrangulata - CONUS

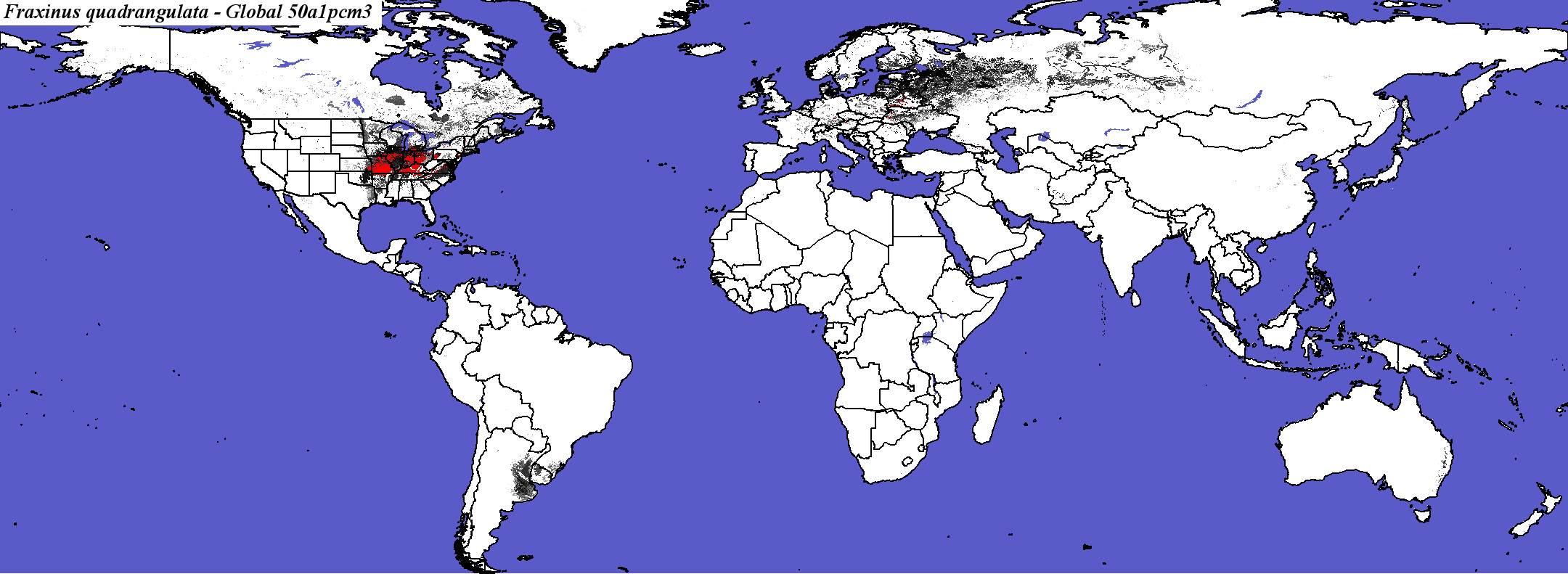

PCM, Scenario A1FI, 2050 - Fraxinus quadrangulata - Global
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global
PCM, Scenario A1FI, 2100 - Fraxinus quadrangulata - CONUS
Compare with Fraxinus quadrangulata modeled for PCM A1FI in 2100 by Iverson and Prasad

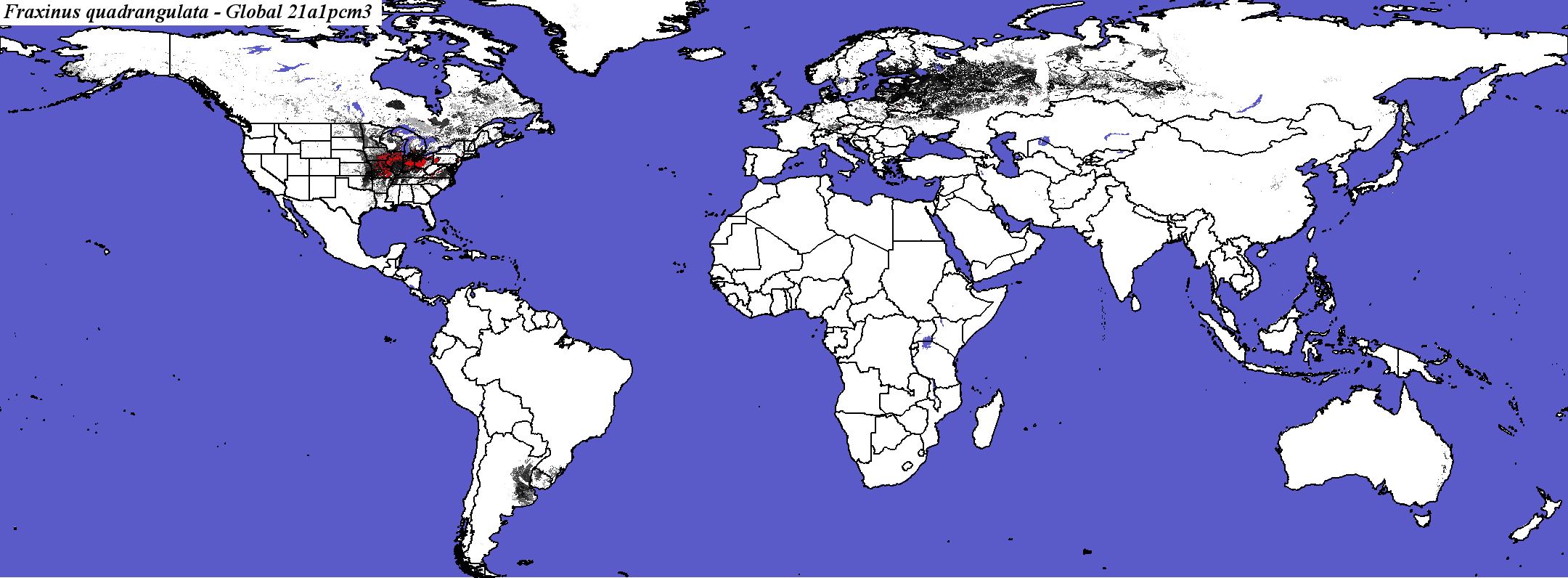

PCM, Scenario A1FI, 2100 - Fraxinus quadrangulata - Global

Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global

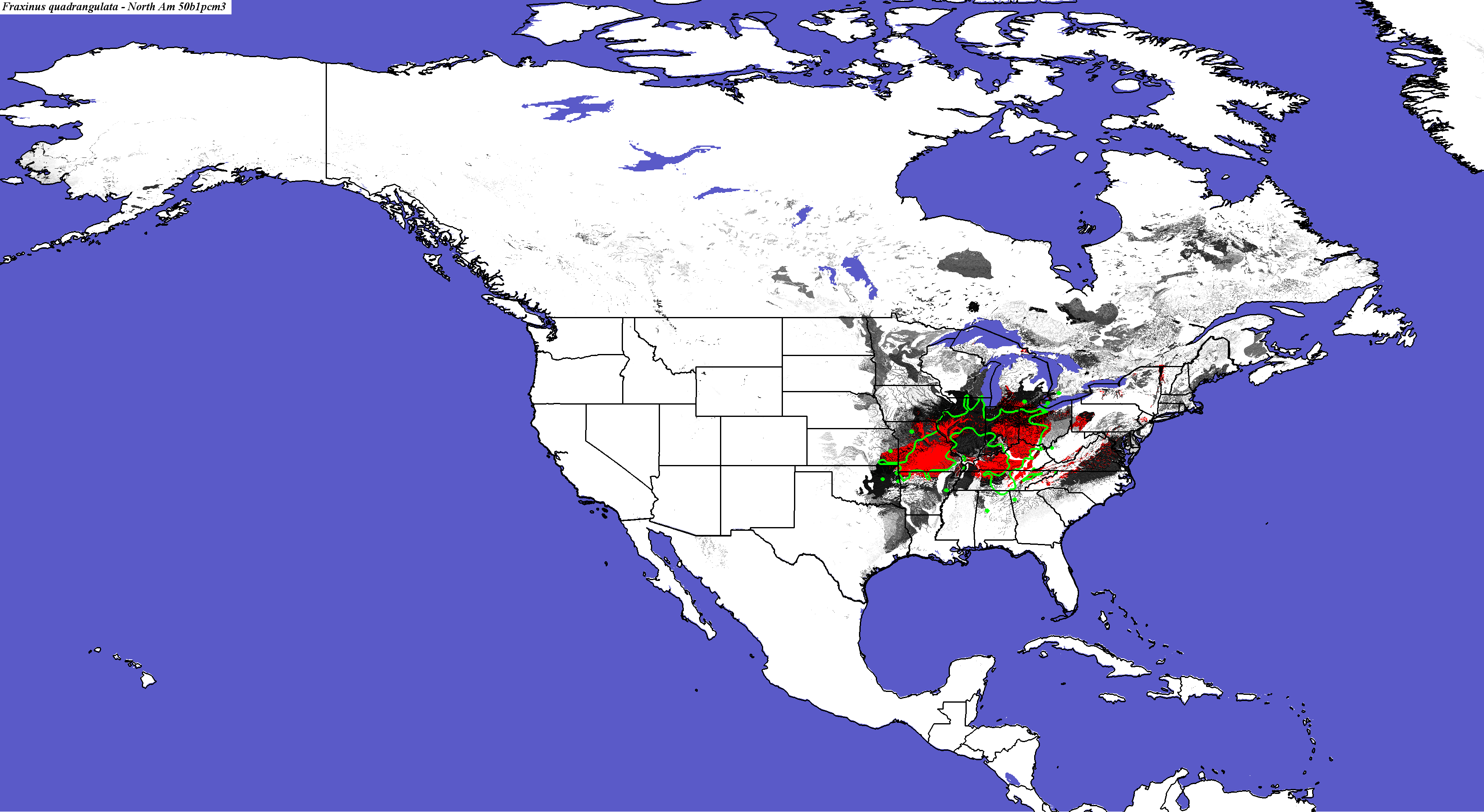

PCM, Scenario B1, 2050 - Fraxinus quadrangulata - CONUS

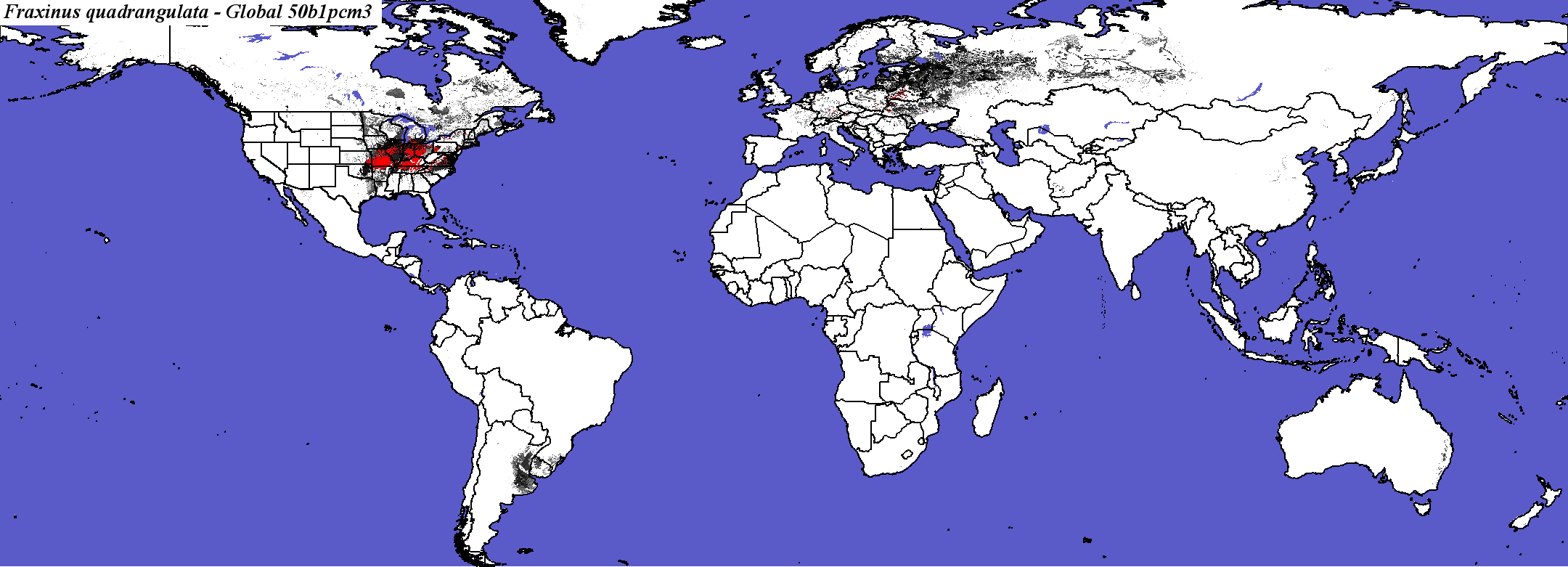

PCM, Scenario B1, 2050 - Fraxinus quadrangulata - Global
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global

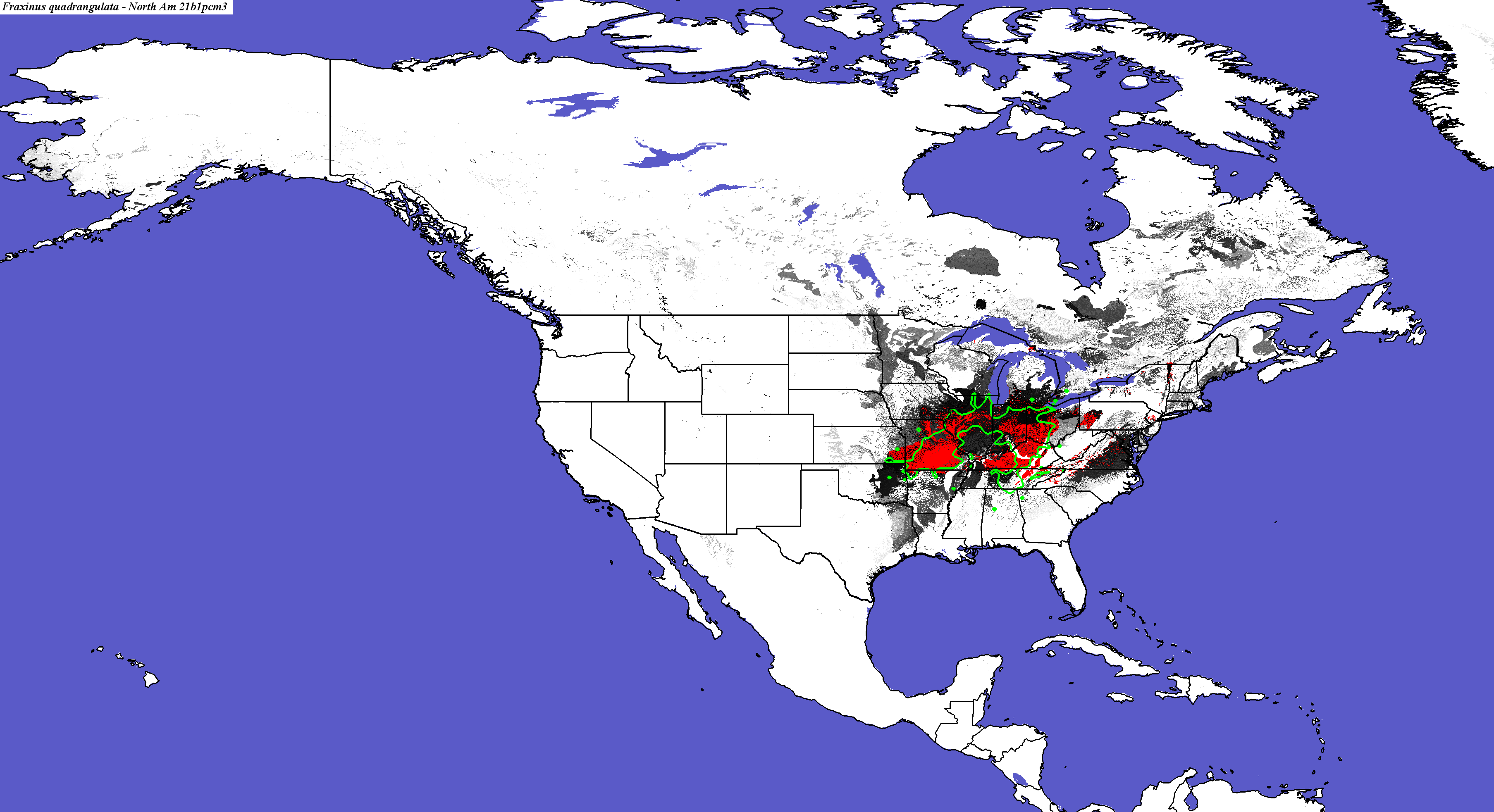

PCM, Scenario B1, 2100 - Fraxinus quadrangulata - CONUS
Compare with Fraxinus quadrangulata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus quadrangulata - Global

Hadley Climate Model
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global

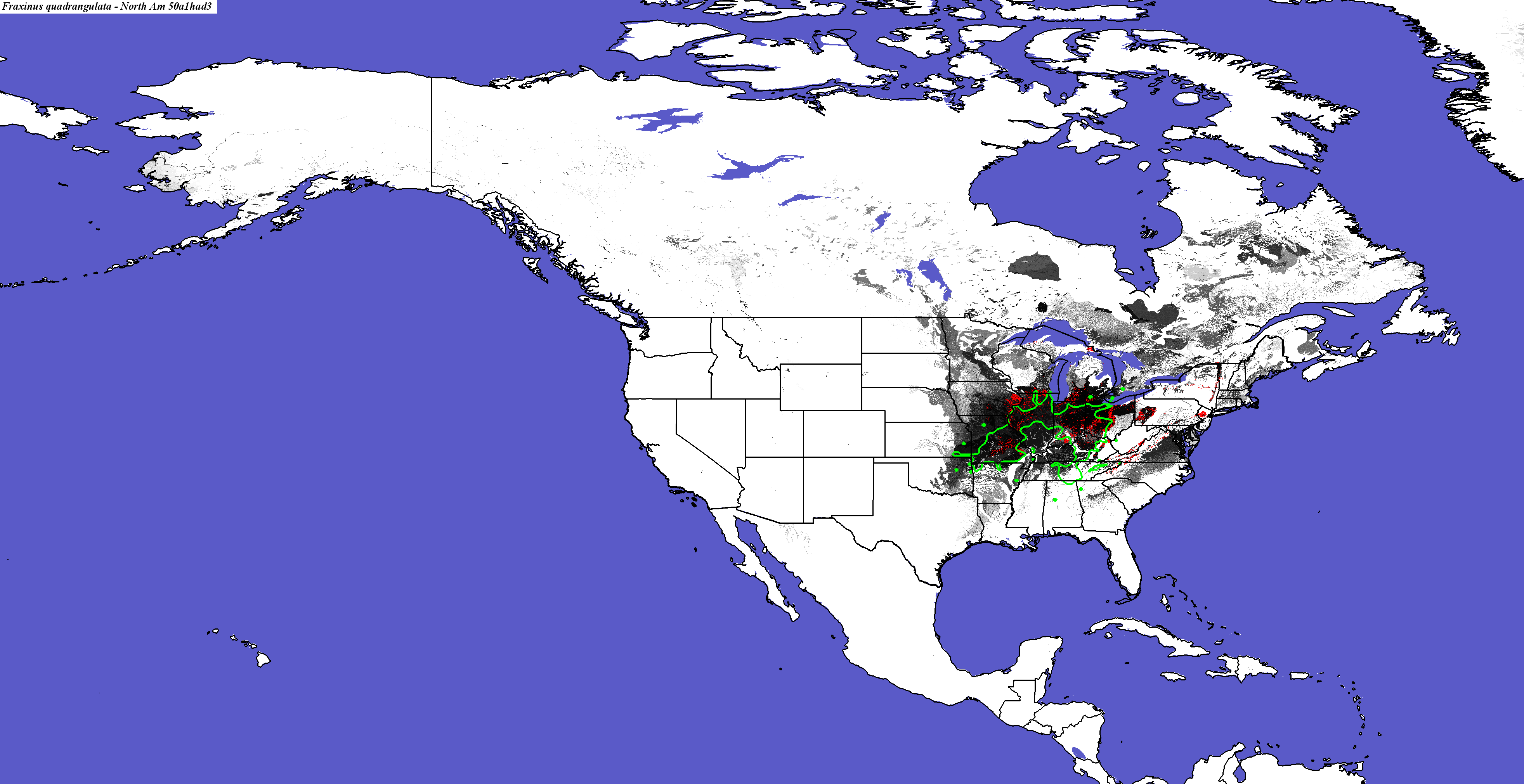

Hadley, Scenario A1FI, 2050 - Fraxinus quadrangulata - CONUS
Fraxinus quadrangulata not modeled by Crookston and Rehfeldt

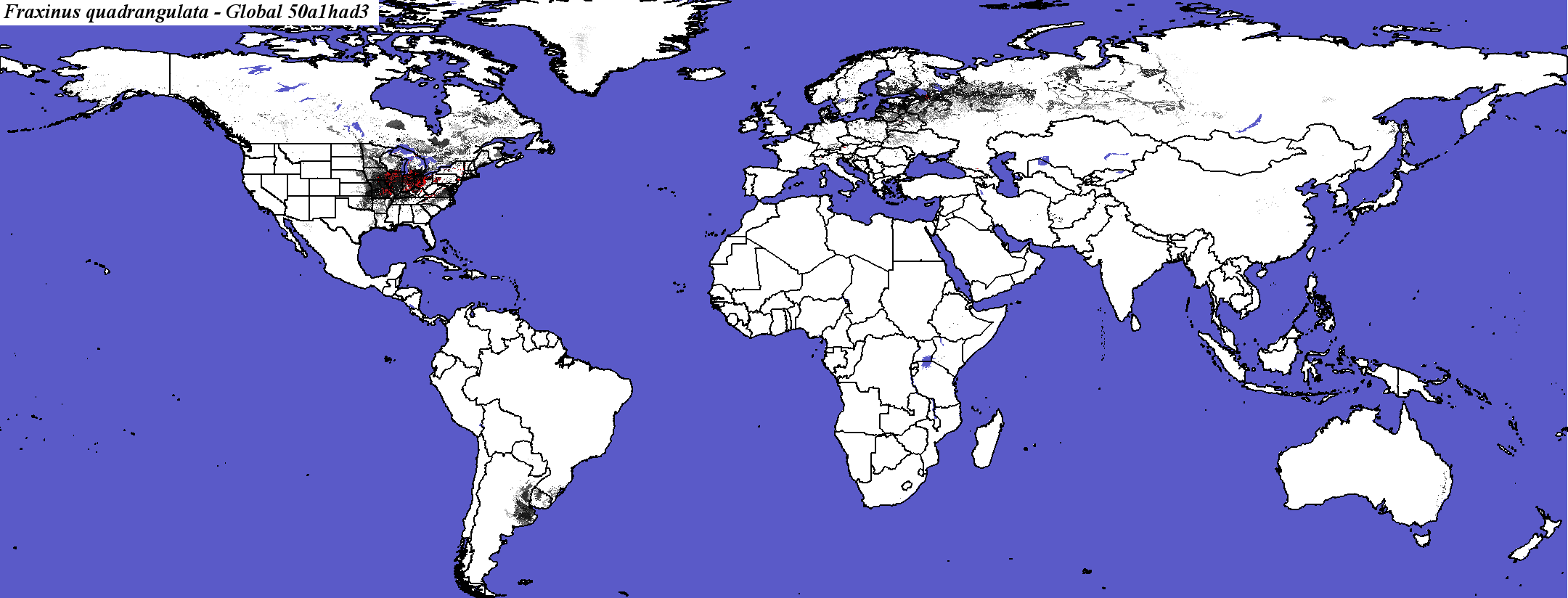

Hadley, Scenario A1FI, 2050 - Fraxinus quadrangulata - Global
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global.

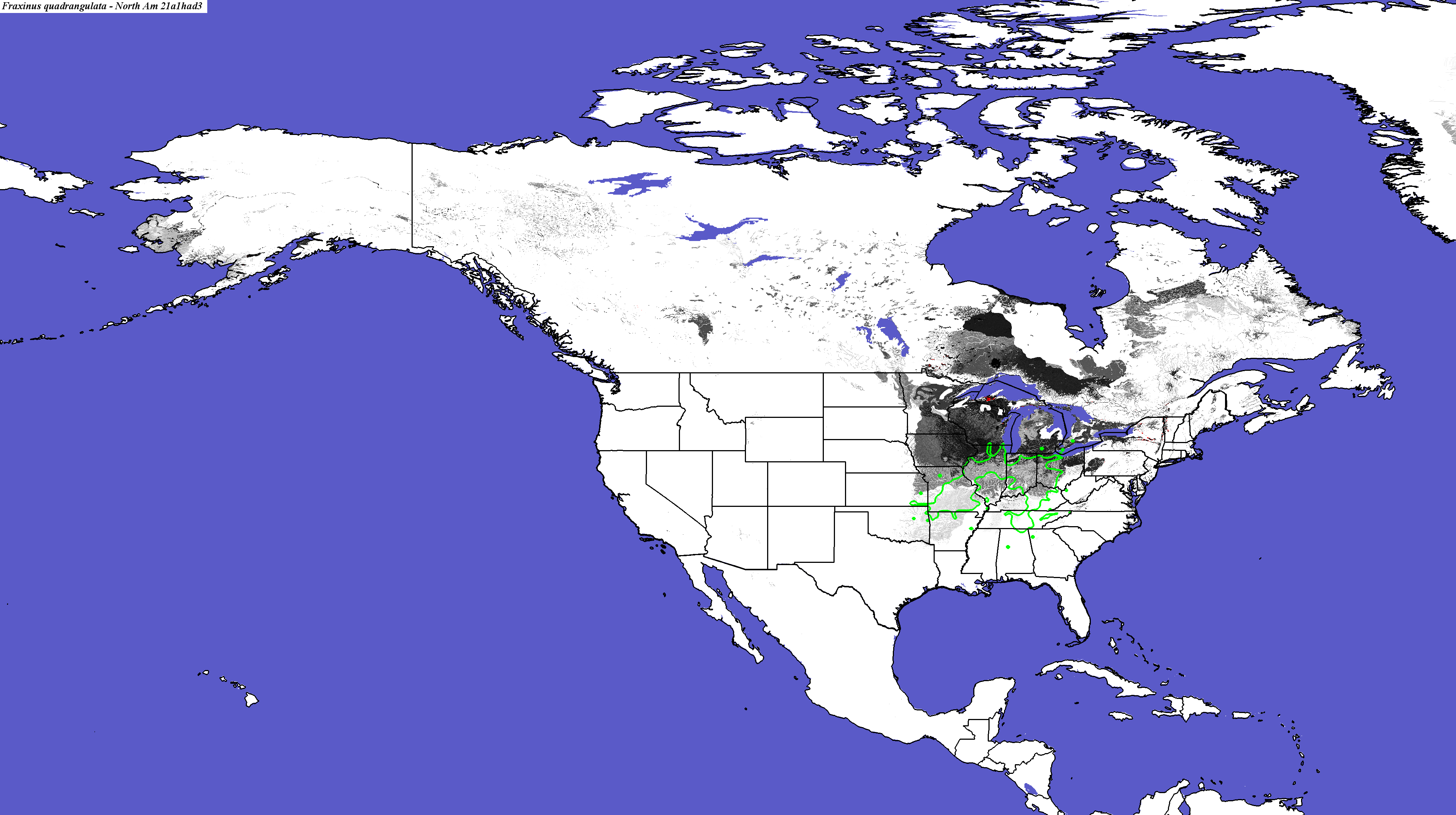

Hadley, Scenario A1FI, 2100 - Fraxinus quadrangulata - CONUS
Compare with Fraxinus quadrangulata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Fraxinus quadrangulata not modeled by Crookston and Rehfeldt
Fraxinus quadrangulata not modeled by Coops and Waring

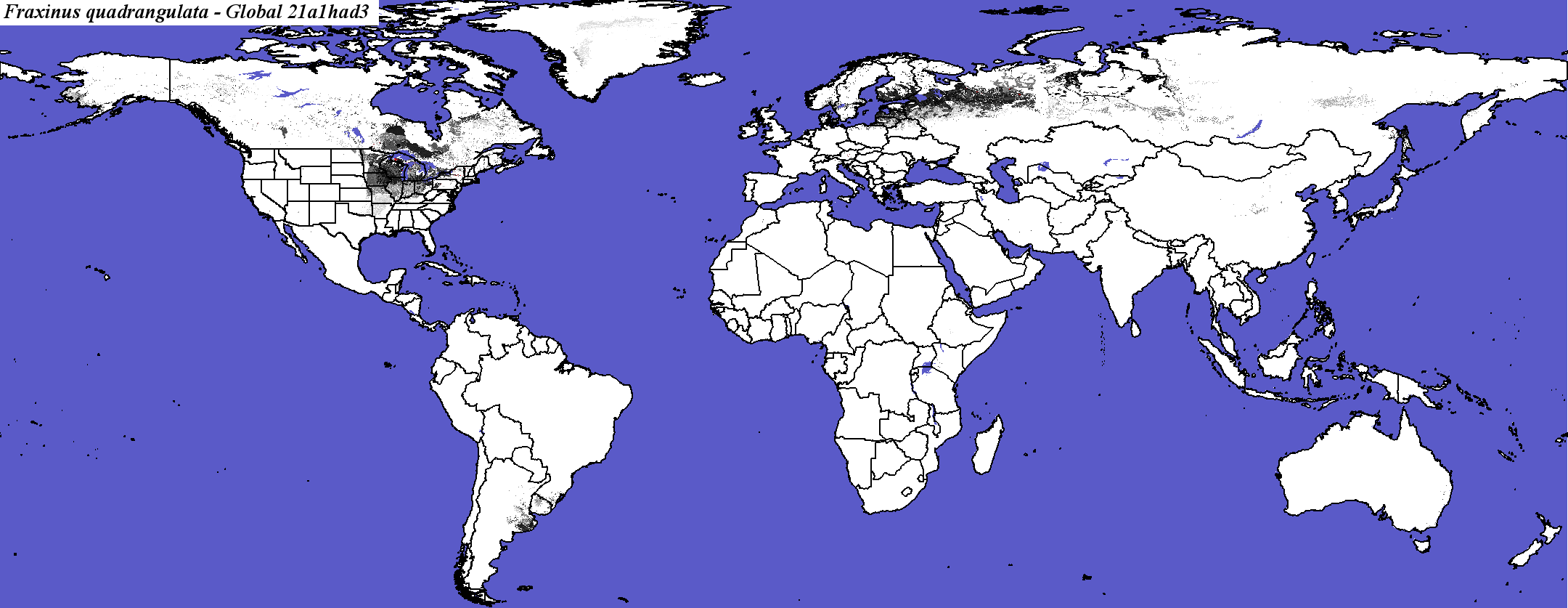

Hadley, Scenario A1FI, 2100 - Fraxinus quadrangulata - Global

Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global.
Hadley, Scenario B1, 2050 - Fraxinus quadrangulata - CONUS
Fraxinus quadrangulata not modeled by Crookston and Rehfeldt
Fraxinus quadrangulata not modeled by Coops and Waring

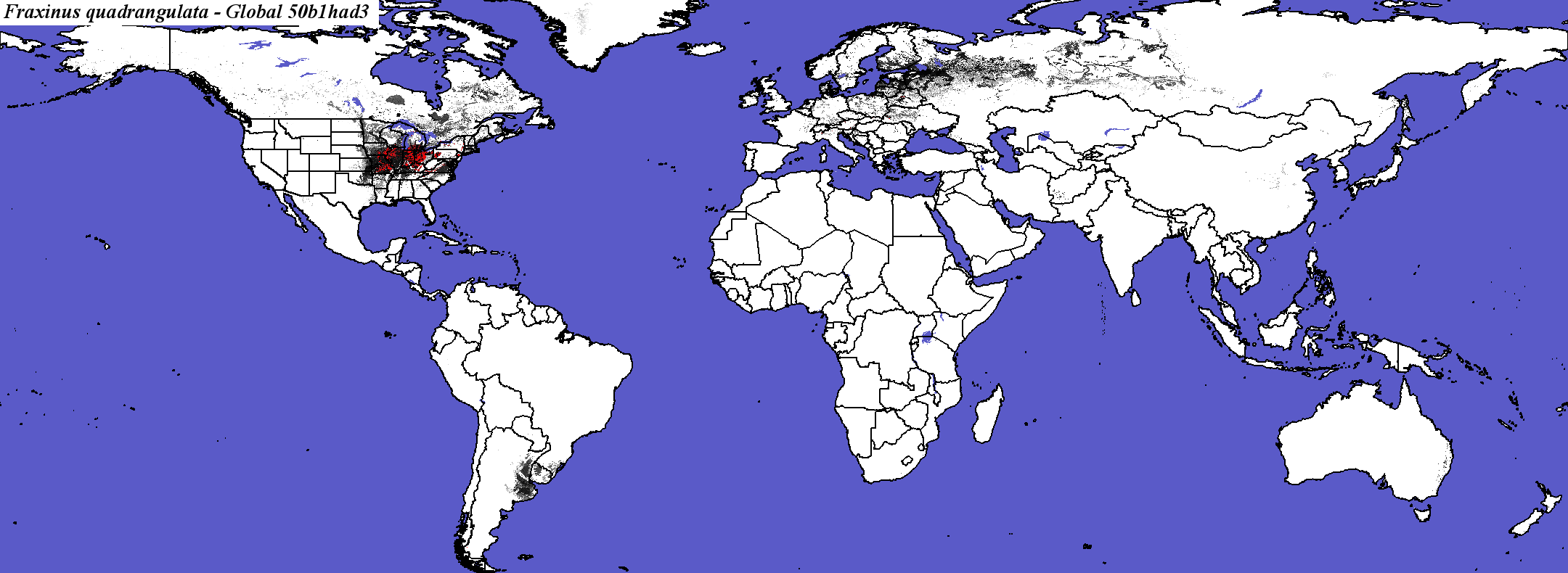

Hadley, Scenario B1, 2050 - Fraxinus quadrangulata - Global
Fraxinus_quadrangulata_final.3.conus
Fraxinus_quadrangulata_final.3.global
Hadley, Scenario B1, 2100 - Fraxinus quadrangulata - CONUS
Compare with Fraxinus quadrangulata modeled for Hadley B1 in 2100 by Iverson and Prasad
Fraxinus quadrangulata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Fraxinus quadrangulata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_quadrangulata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

30

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

49.3151

Area in Present Suitable Range (in km2)

349811

Area in Future Suitable Range (Had B1 2050, in km2)

109965

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

43424

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

12.4100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

97.8082

Percent Change in Area of Suitable Range (Had B1 2050)

-68.5600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

97.3973

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

56234.6 +/- 66461.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

7.26027

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

21.9013 +/- 25.1874

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

8.21918

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

364.851 +/- 888.251

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

9.0411

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

34490

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

9.8500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

8.08219

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

25985

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

7.4200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

97.9452

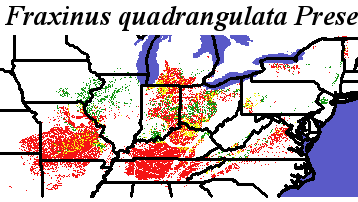

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus quadrangulata Fraxinus quadrangulata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

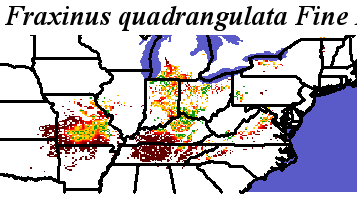

Fraxinus_quadrangulata_final.noelev Fine MRM Distance

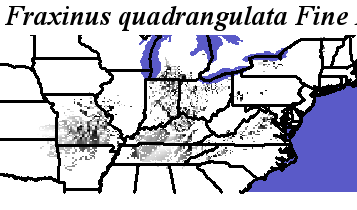

Fraxinus_quadrangulata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus quadrangulata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus quadrangulata

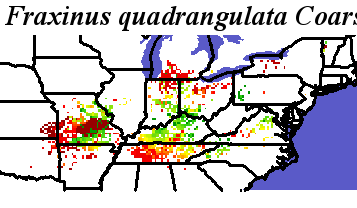

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

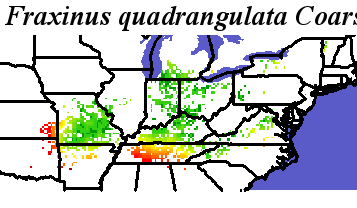

Fraxinus_quadrangulata_final.noelev Coarse MRM Distance
Fraxinus_quadrangulata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus quadrangulata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus quadrangulata
