Version 5 Tree Atlas


Fraxinus texensis

Texas ash

noelev

Fraxinus texensis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus texensis

USDA Plants Database entry for Fraxinus texensis
Silvics Manual entry for Fraxinus texensis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
26329some disjuncts not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_texensis_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_texensis_final
Fraxinus texensis - Occurrence Locations Fraxinus texensis - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global

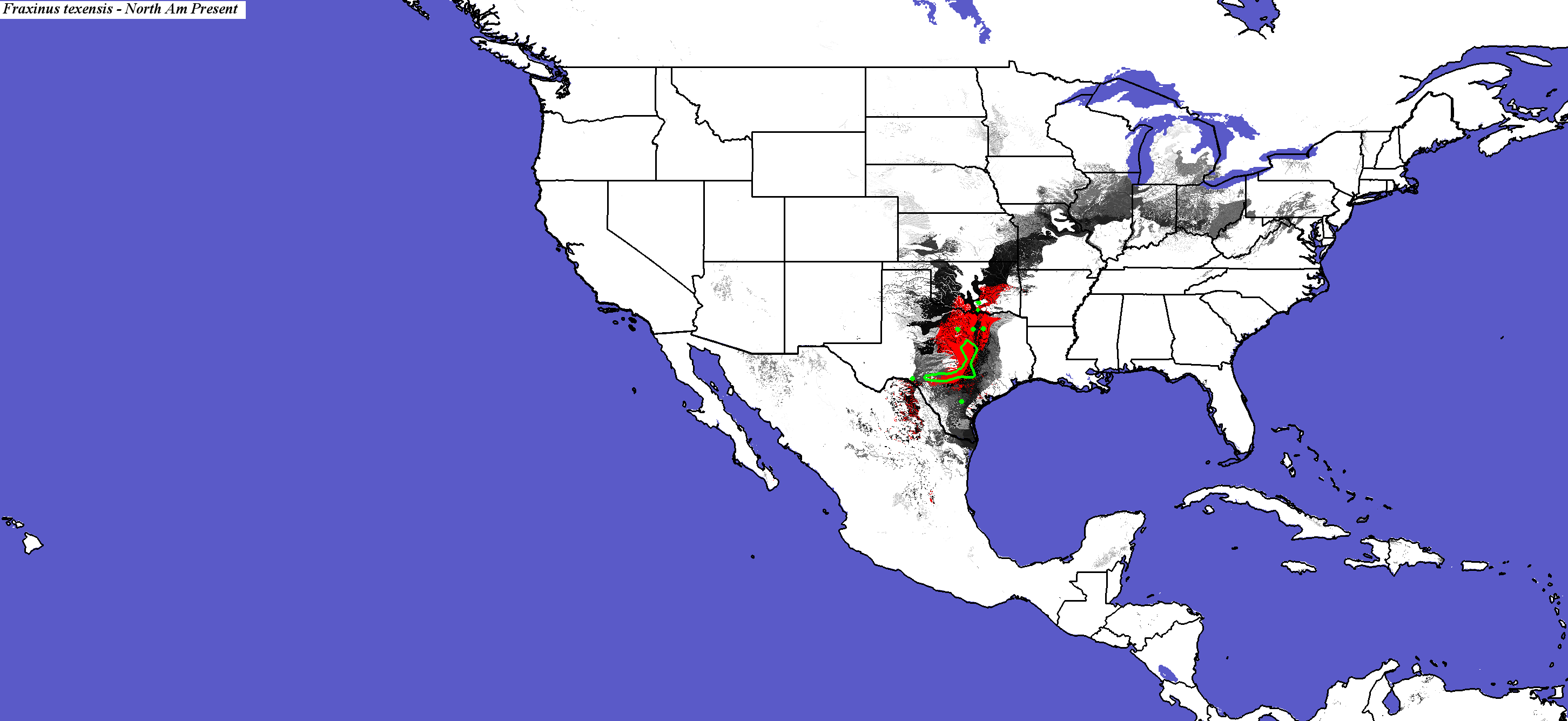

Fraxinus texensis - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus texensis
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus texensis

Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring

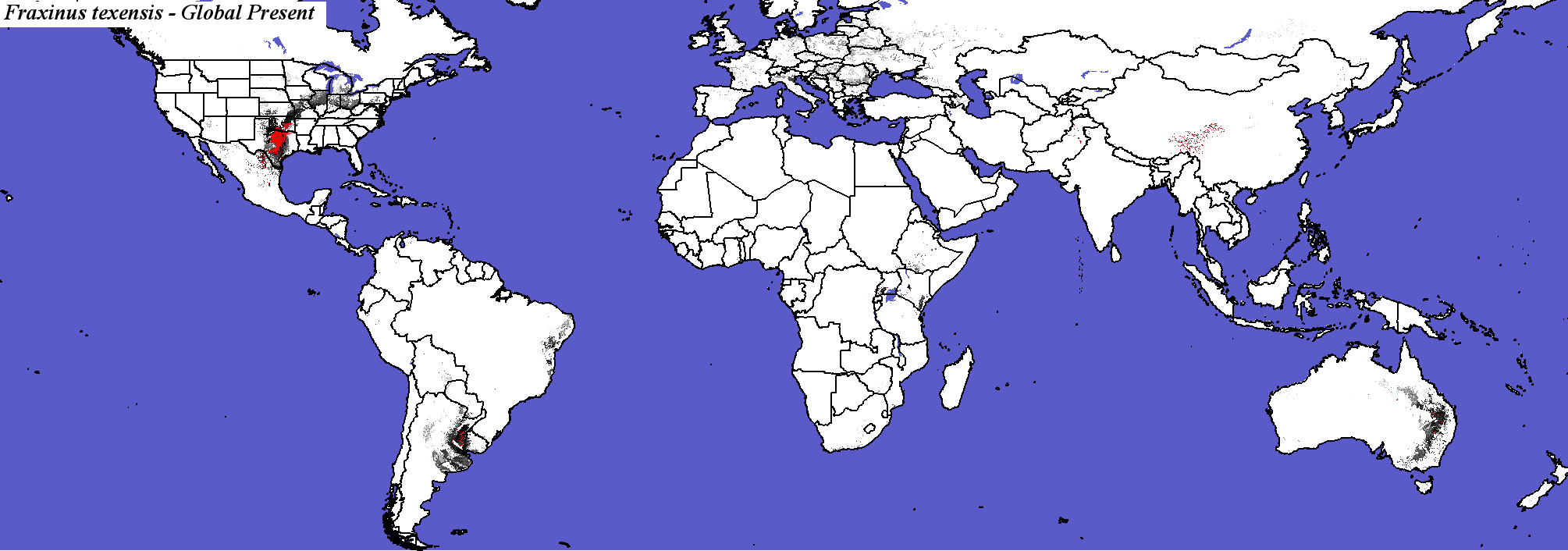

Fraxinus texensis - Global

PCM - Parallel Climate Model
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global

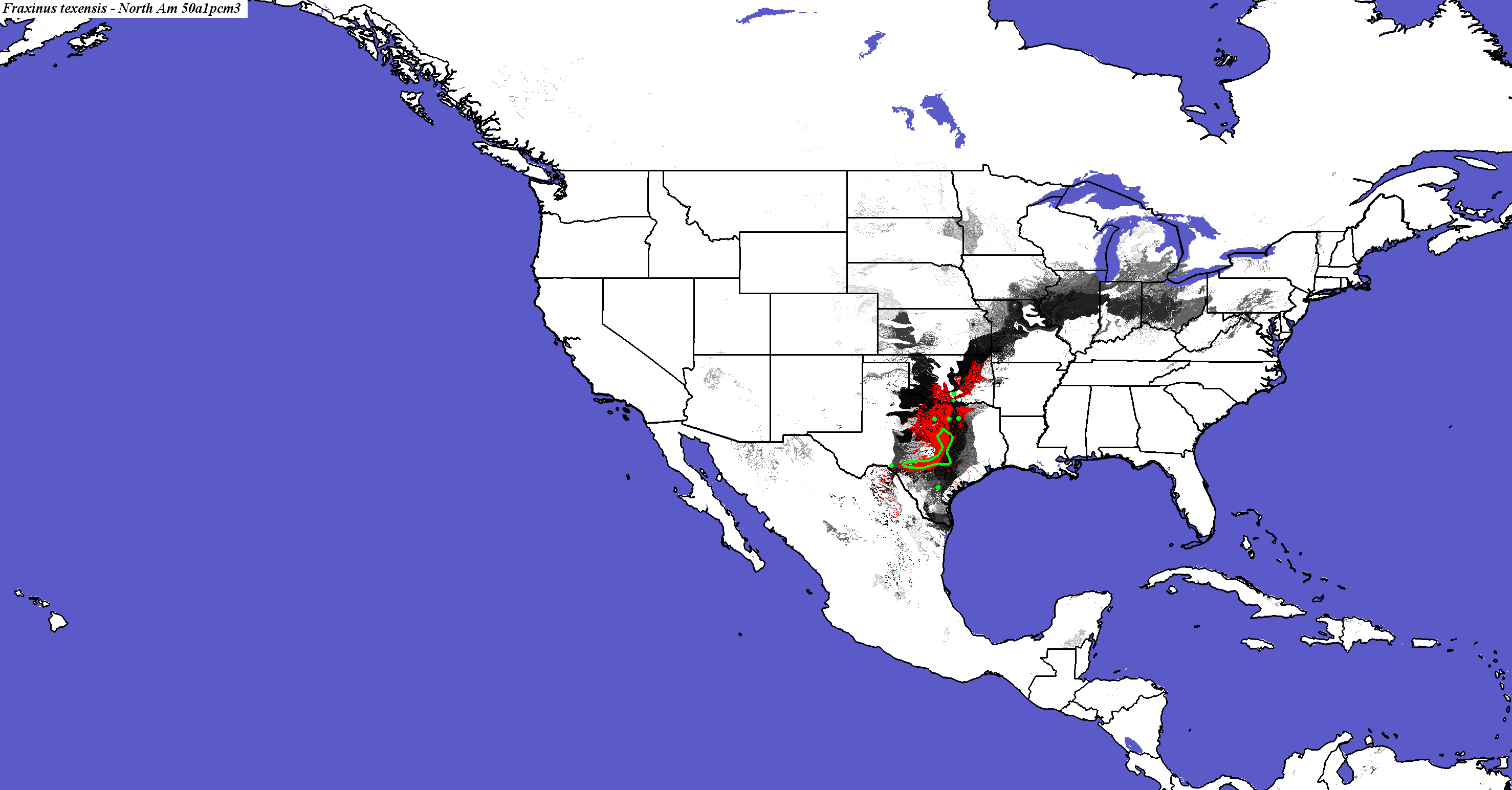

PCM, Scenario A1FI, 2050 - Fraxinus texensis - CONUS
PCM, Scenario A1FI, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global

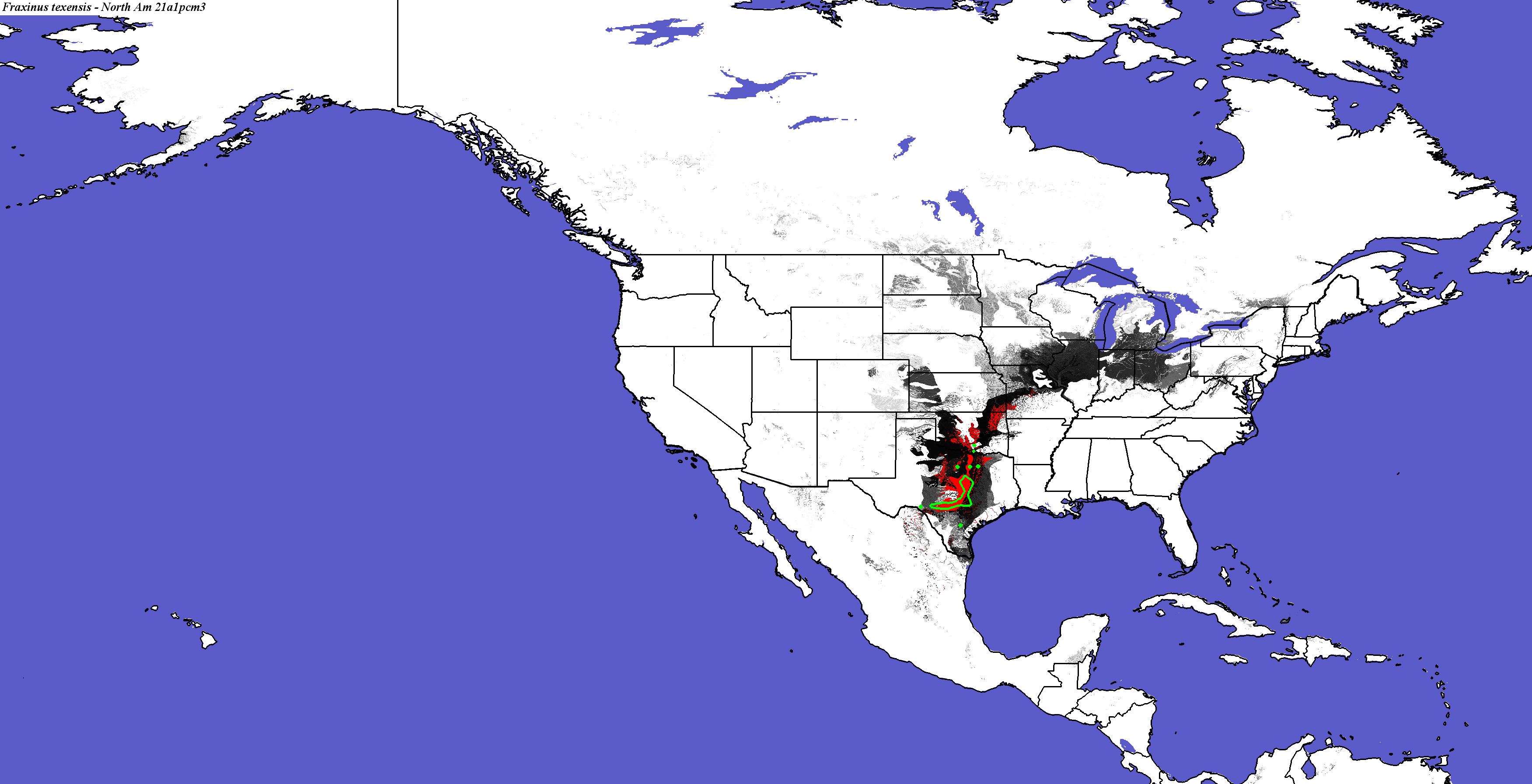

PCM, Scenario A1FI, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Fraxinus texensis - Global

Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global
PCM, Scenario B1, 2050 - Fraxinus texensis - CONUS
PCM, Scenario B1, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global
PCM, Scenario B1, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus texensis - Global

Hadley Climate Model
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global

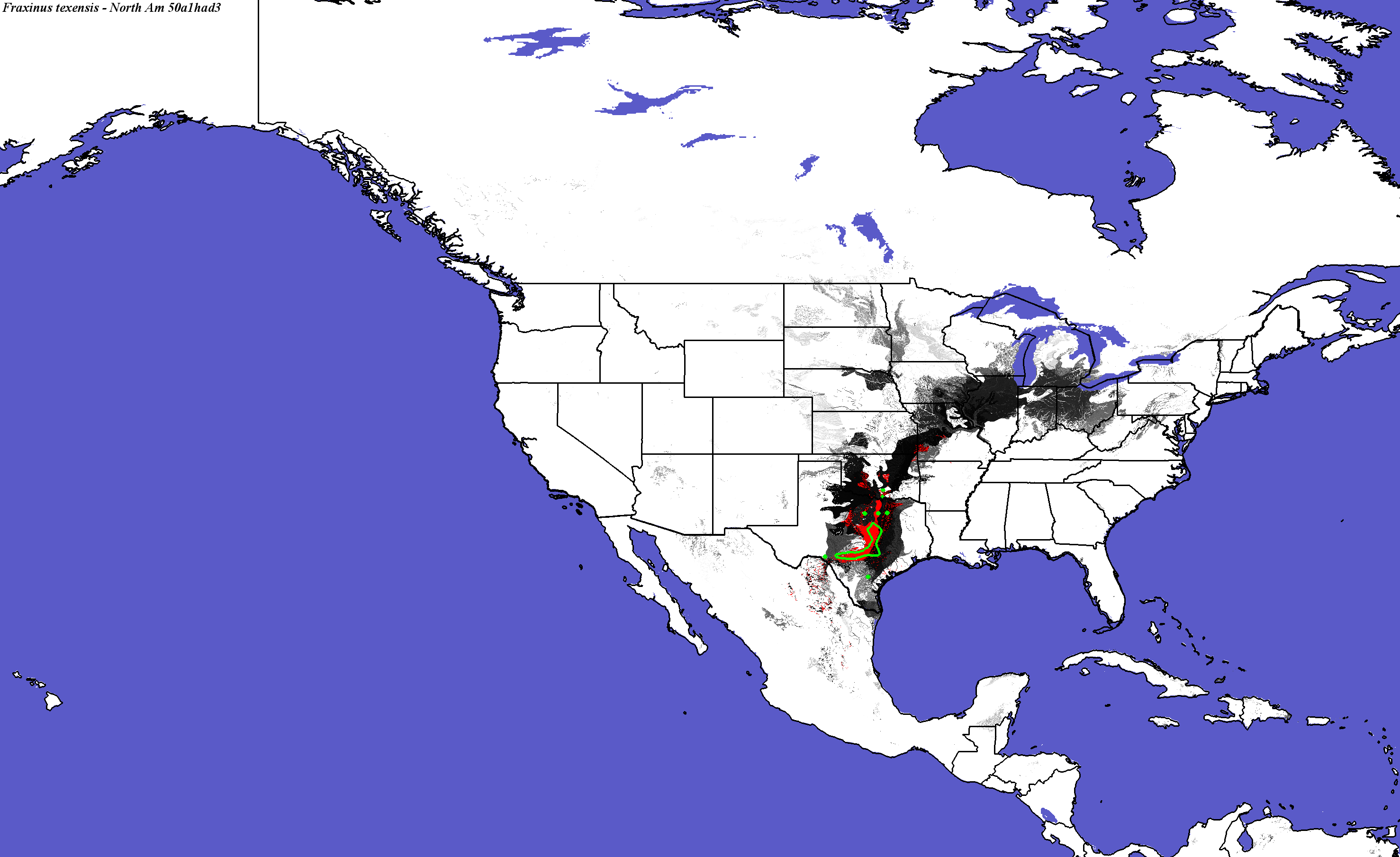

Hadley, Scenario A1FI, 2050 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global.

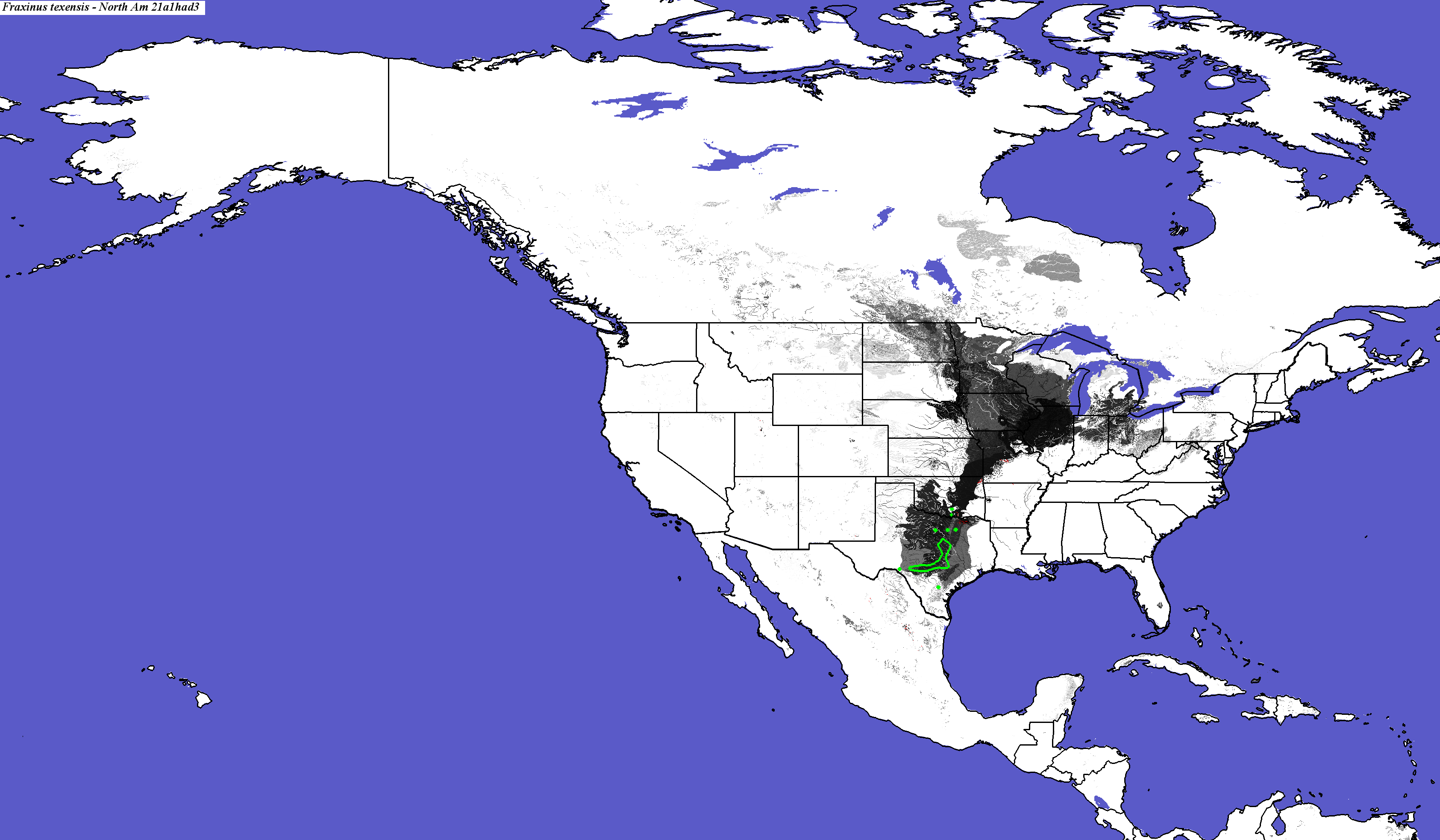

Hadley, Scenario A1FI, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring

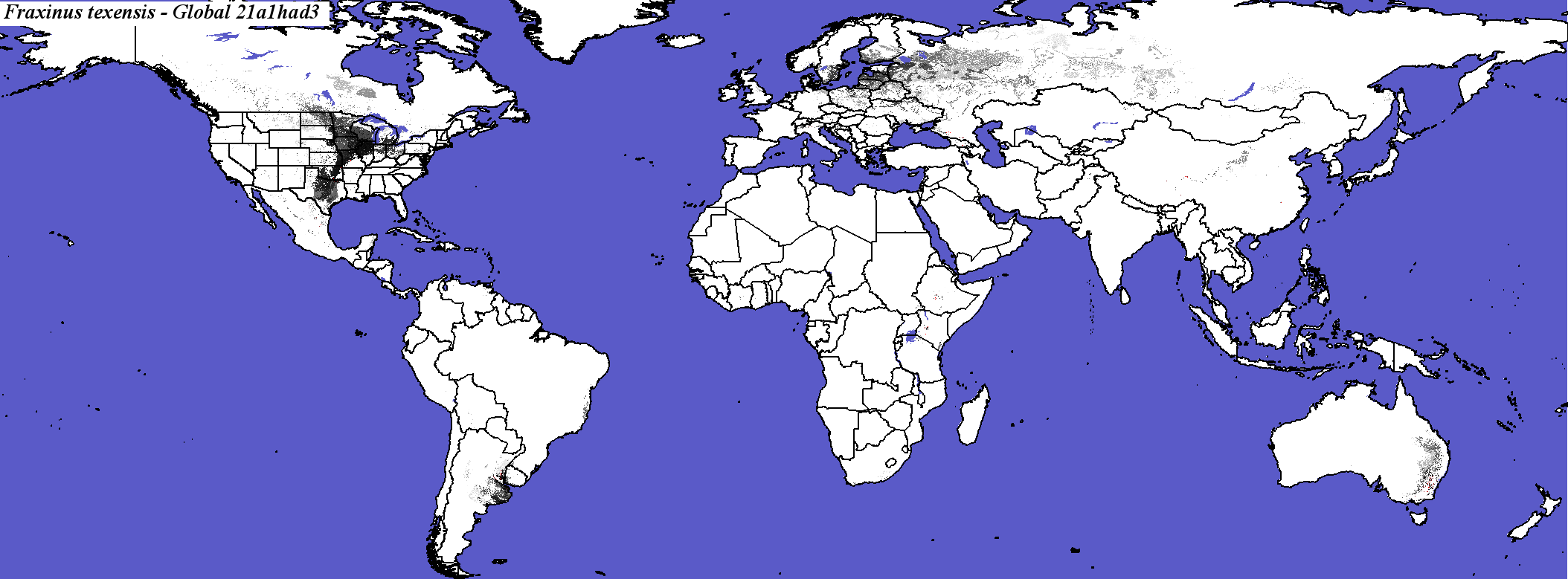

Hadley, Scenario A1FI, 2100 - Fraxinus texensis - Global

Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global.
Hadley, Scenario B1, 2050 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.1.conus
Fraxinus_texensis_final.1.global

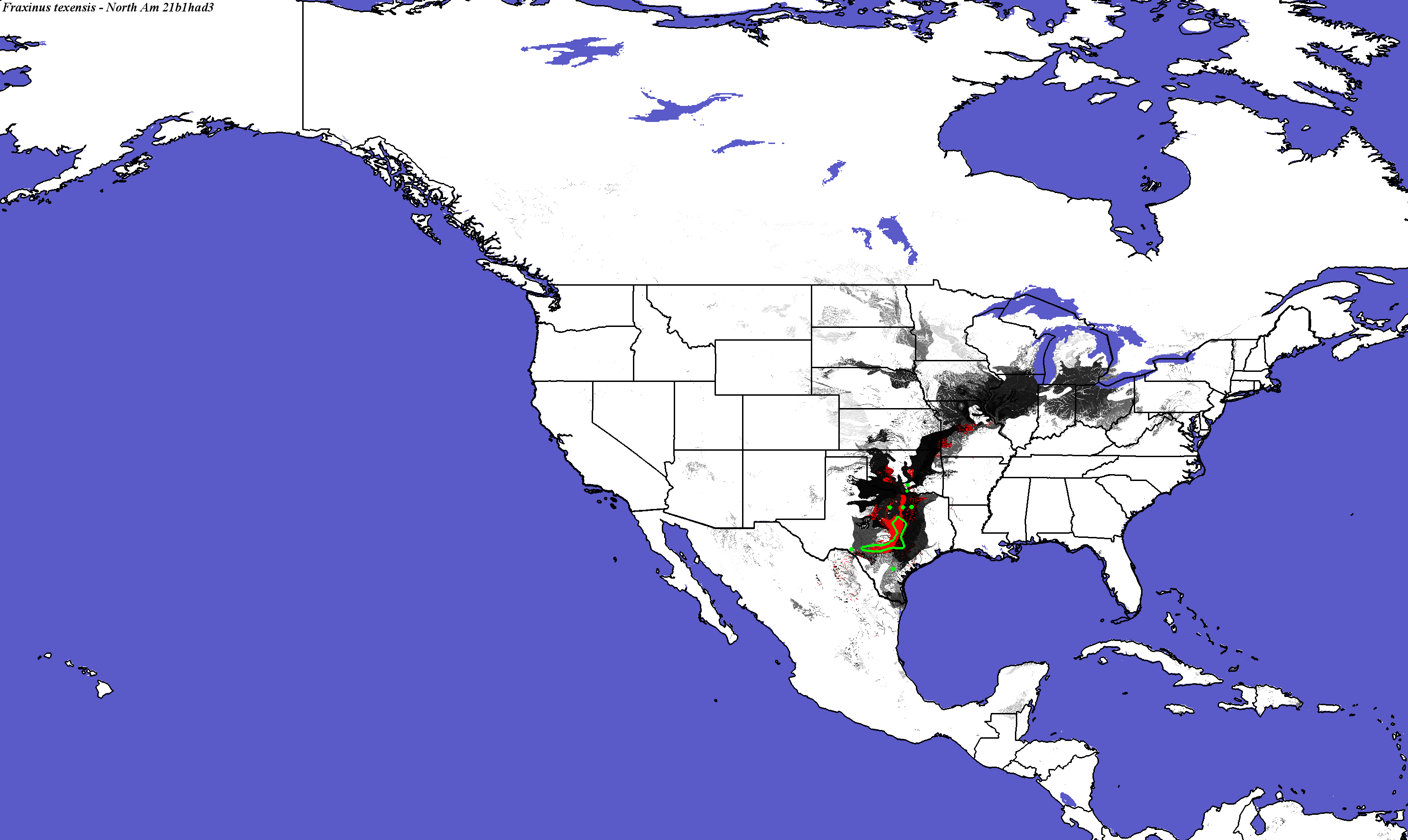

Hadley, Scenario B1, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Fraxinus texensis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

17

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

68.7671

Area in Present Suitable Range (in km2)

148620

Area in Future Suitable Range (Had B1 2050, in km2)

78460

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

57385

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

38.6100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

72.6027

Percent Change in Area of Suitable Range (Had B1 2050)

-47.2000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

78.3562

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

13265.8 +/- 28659.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

54.7945

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.12103 +/- 13.4012

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

50.137

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

57.7539 +/- 261.986

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

53.2877

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

862

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.5800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

55.8904

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

32050

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

21.5600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

64.9315

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus texensis Fraxinus texensis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.noelev Fine MRM Distance
Fraxinus_texensis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus texensis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.noelev Coarse MRM Distance
Fraxinus_texensis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis

Thu Jul 21 10:07:00 EDT 2016
