Version 5 Tree Atlas


Fraxinus velutina

velvet ash

noelev

Fraxinus velutina Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus velutina

USDA Plants Database entry for Fraxinus velutina
Silvics Manual entry for Fraxinus velutina


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Fraxinus velutina var. coriacea; Fraxinus velutina var. glabra; Fraxinus velutina var. toumeyi2326328range seems mostly well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_velutina_final Occurrences

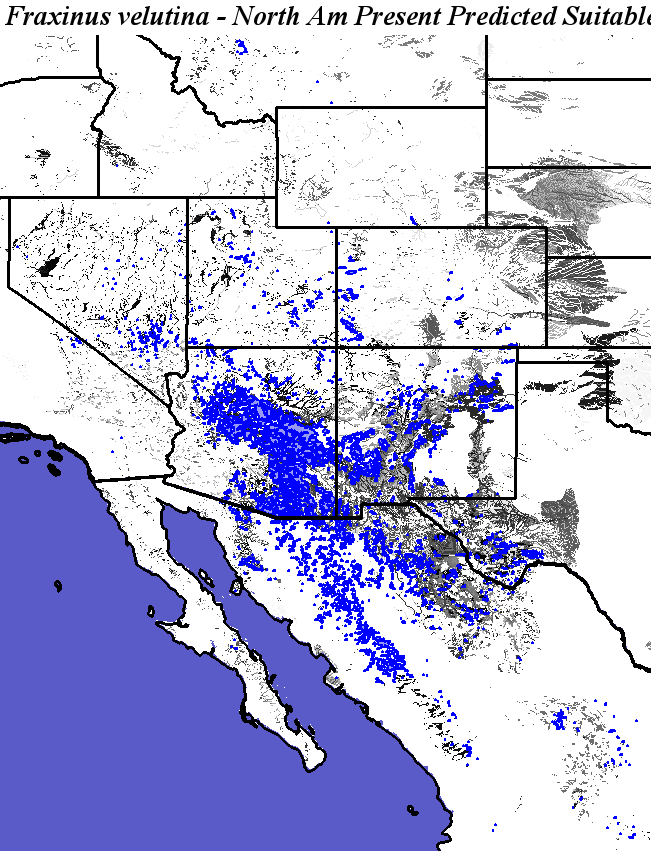

Hargroves Present Suitable Range Outline for Fraxinus_velutina_final
Fraxinus velutina - Occurrence Locations Fraxinus velutina - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

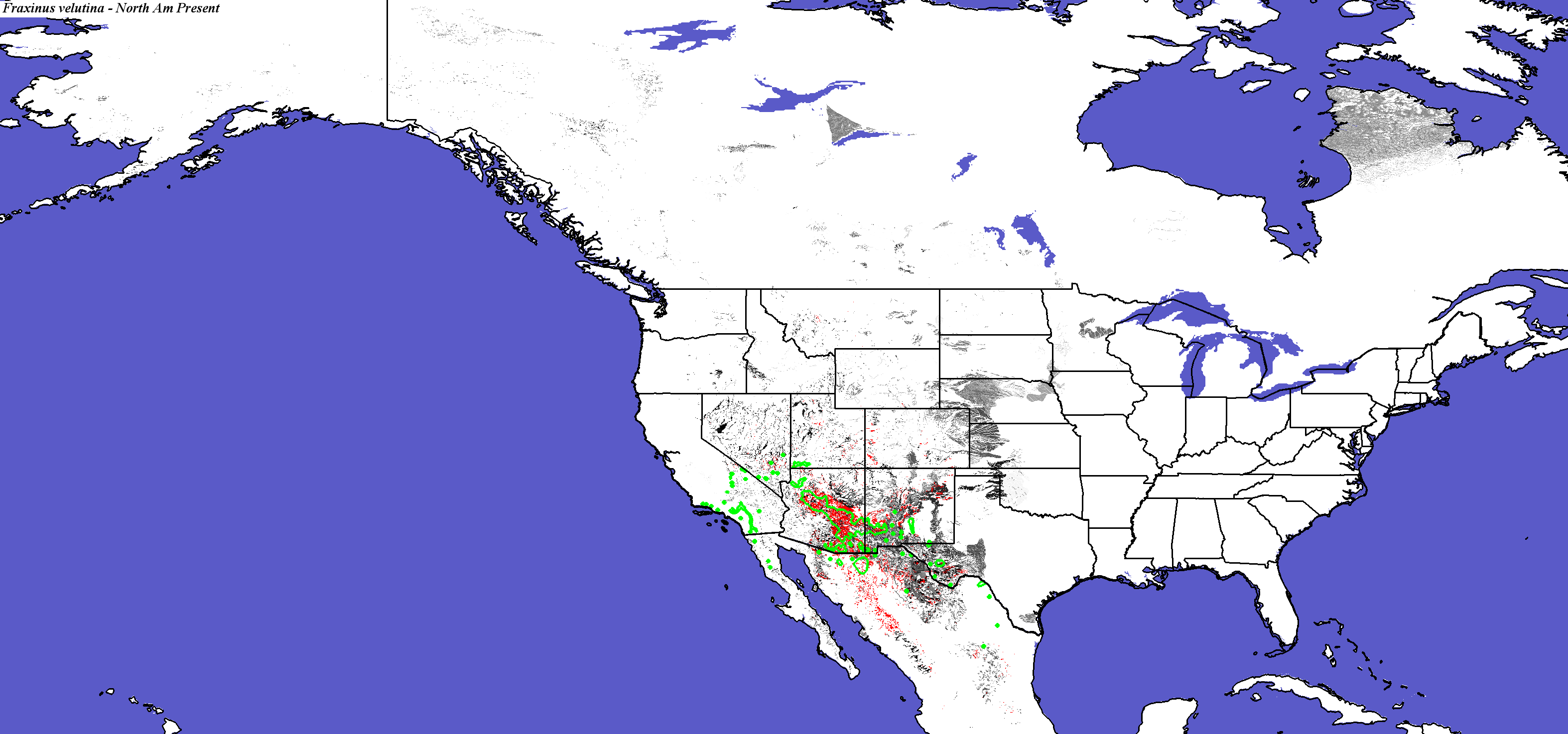

Fraxinus velutina - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus velutina
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus velutina

Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring

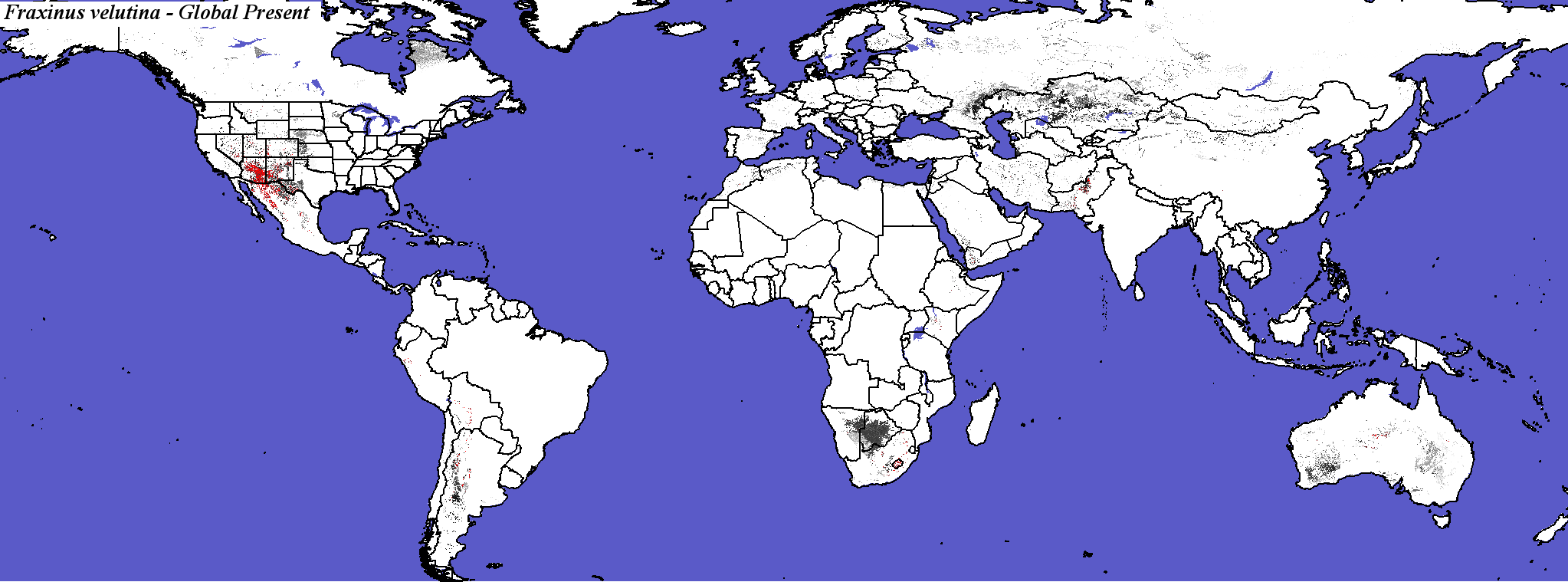

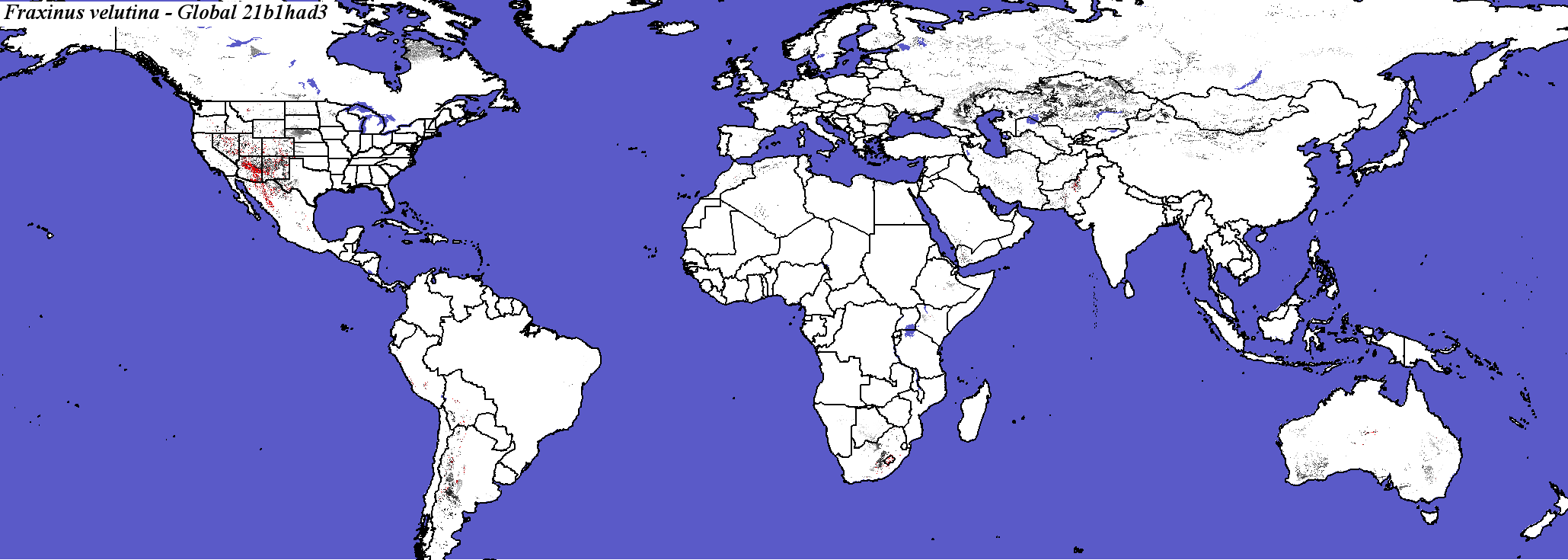

Fraxinus velutina - Global

PCM - Parallel Climate Model
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

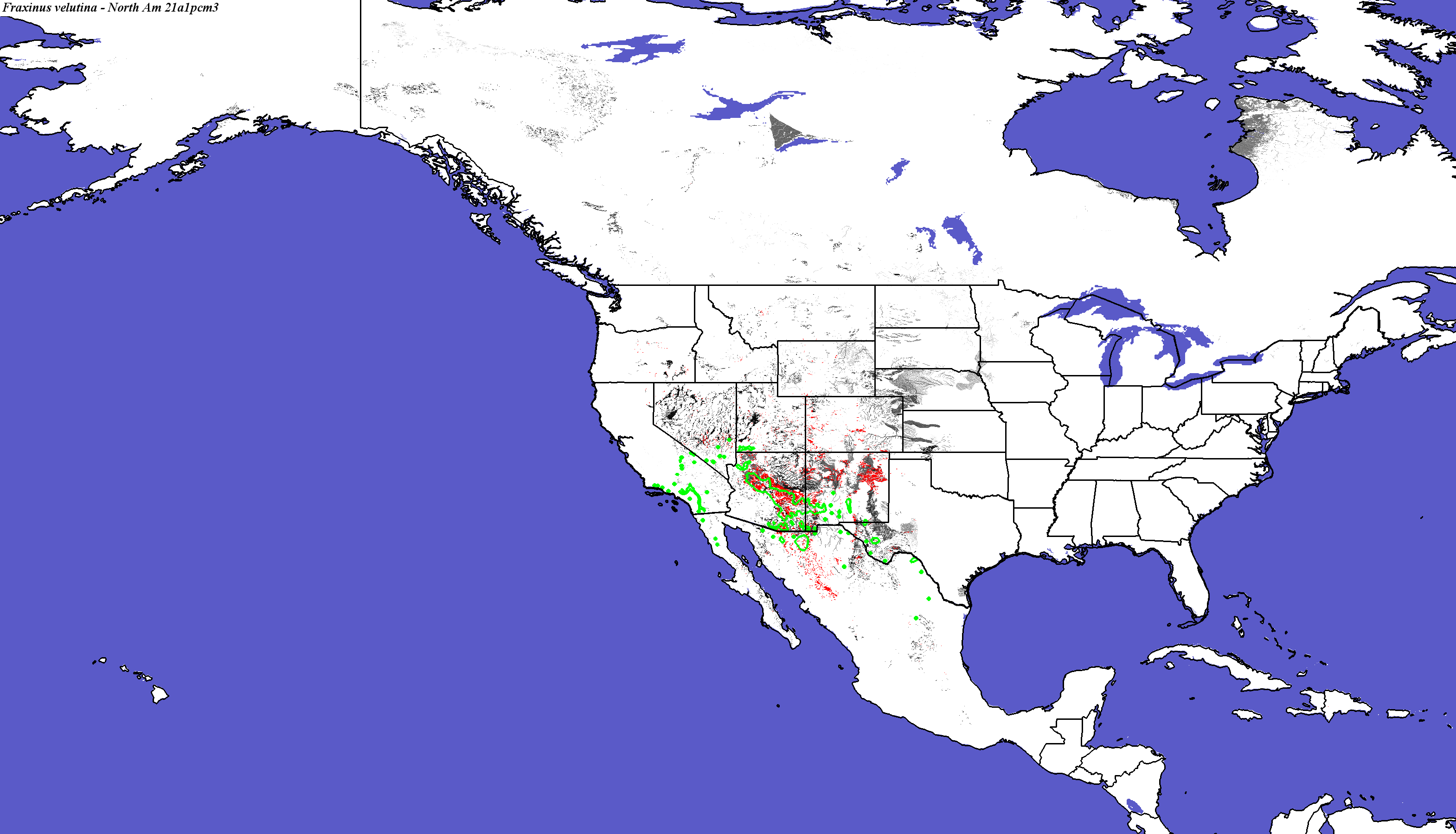

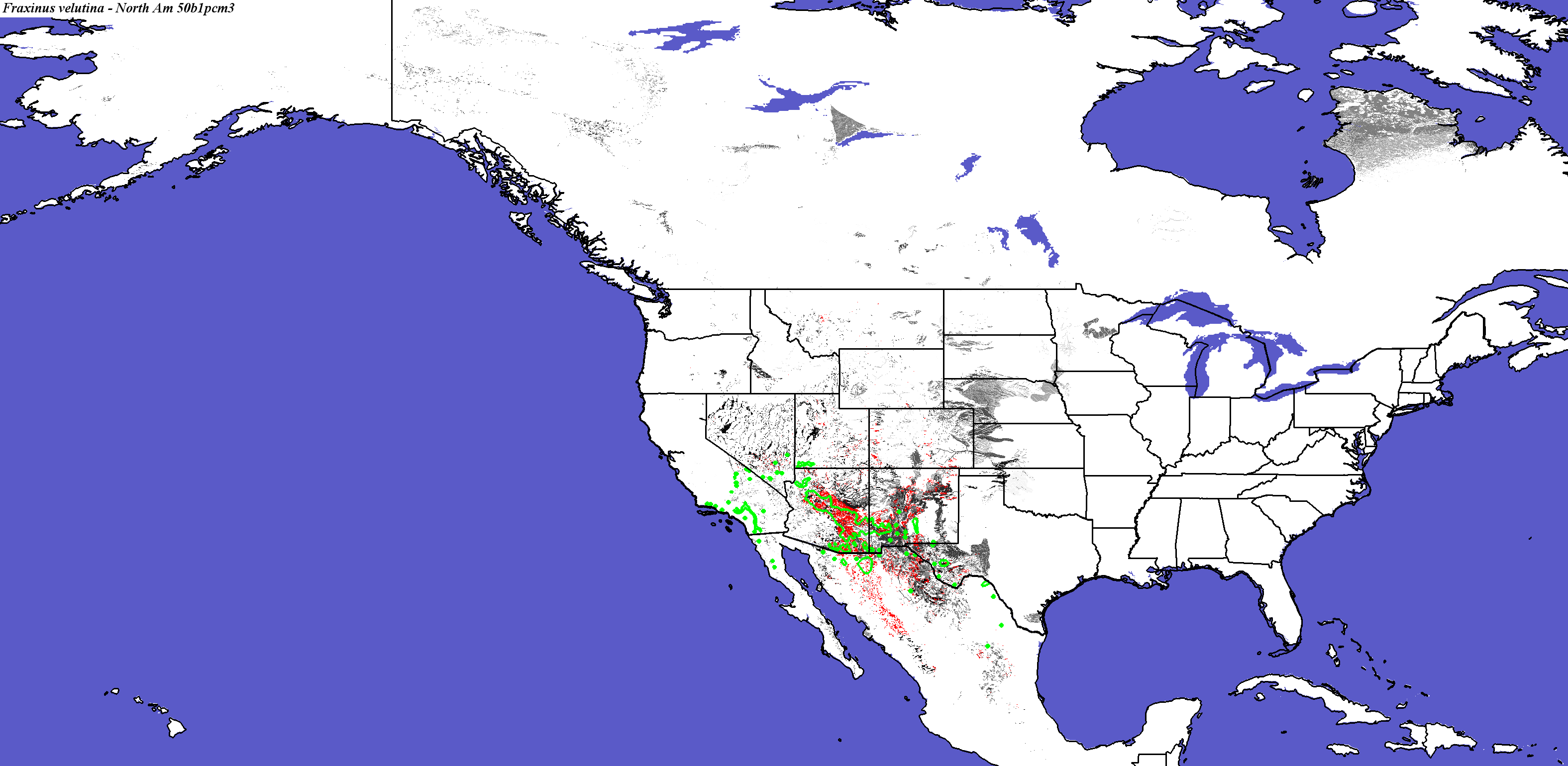

PCM, Scenario A1FI, 2050 - Fraxinus velutina - CONUS

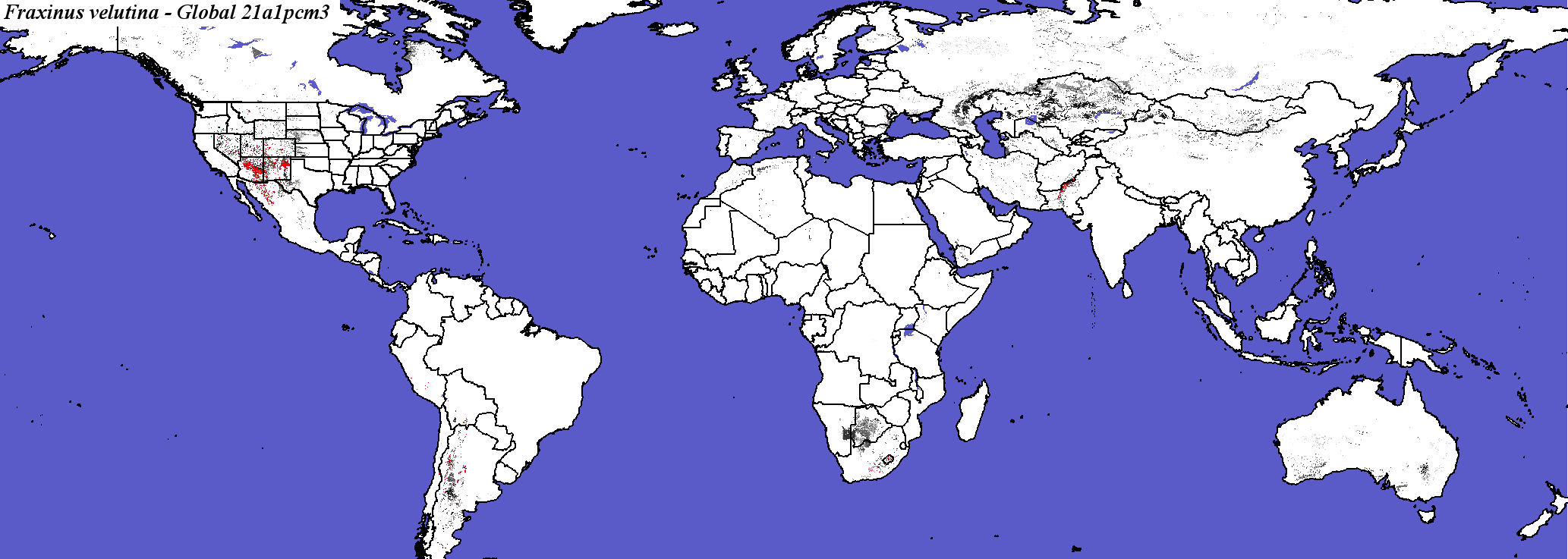

PCM, Scenario A1FI, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
PCM, Scenario A1FI, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Fraxinus velutina - Global

Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
PCM, Scenario B1, 2050 - Fraxinus velutina - CONUS
PCM, Scenario B1, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
PCM, Scenario B1, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus velutina - Global

Hadley Climate Model
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

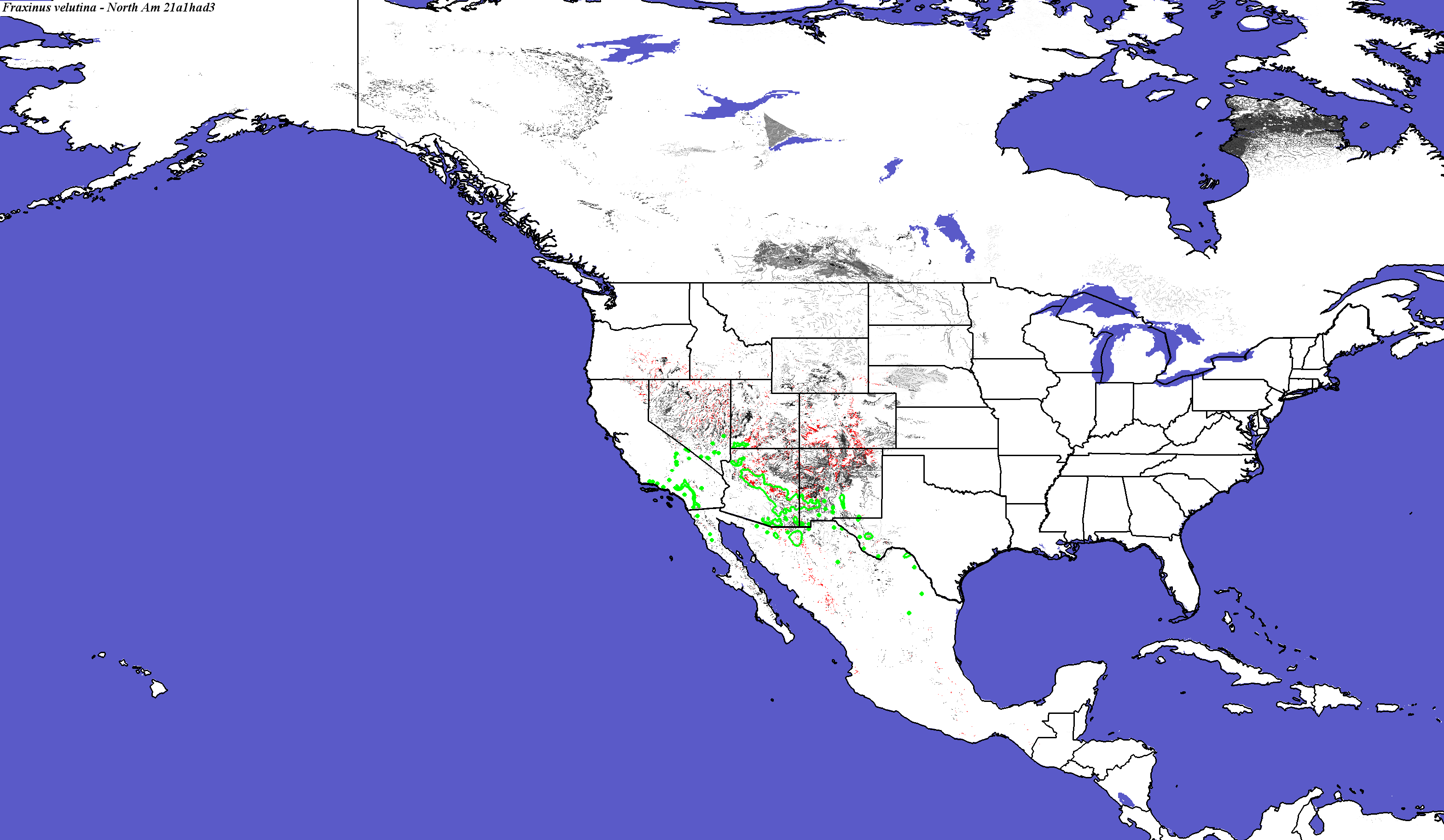

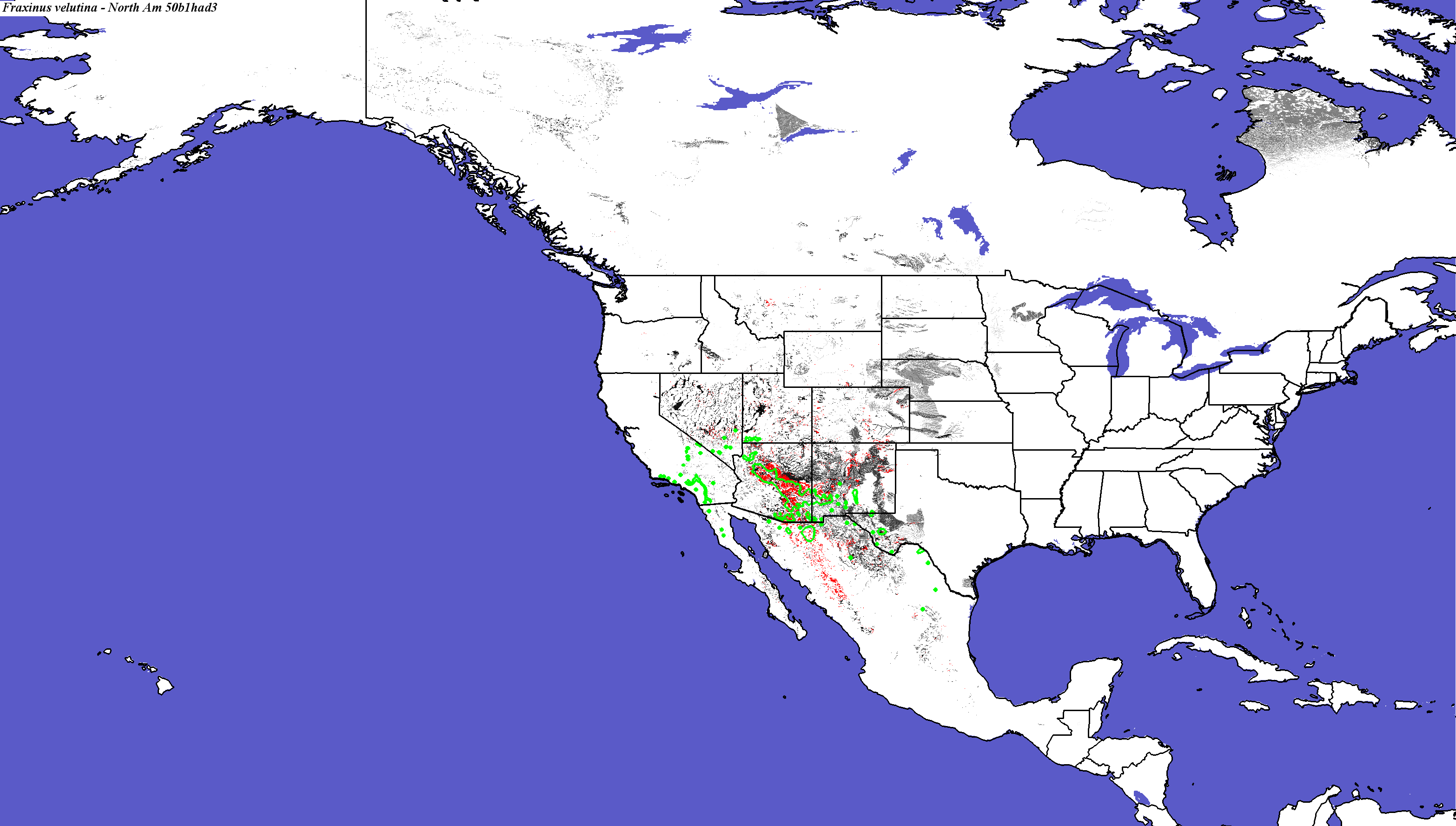

Hadley, Scenario A1FI, 2050 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Crookston and Rehfeldt

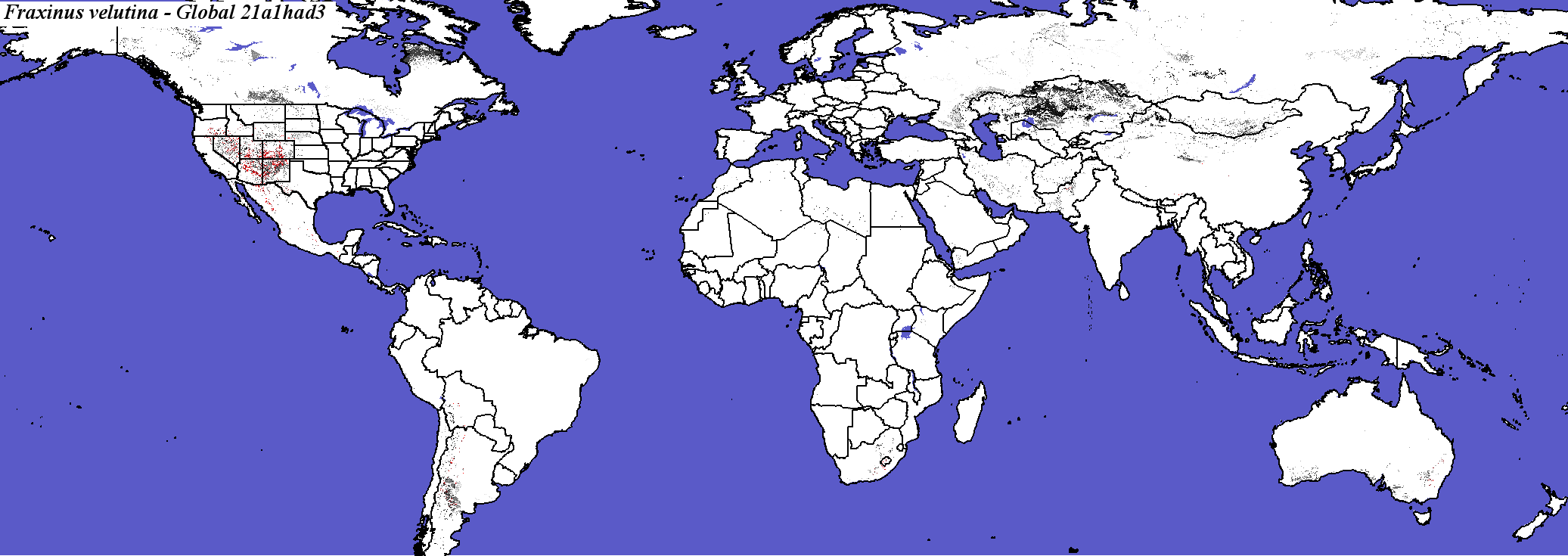

Hadley, Scenario A1FI, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global.
Hadley, Scenario A1FI, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Fraxinus velutina - Global

Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global.
Hadley, Scenario B1, 2050 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
Hadley, Scenario B1, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Fraxinus velutina - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_velutina_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

33

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

48.3562

Area in Present Suitable Range (in km2)

138170

Area in Future Suitable Range (Had B1 2050, in km2)

115304

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

72321

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

52.3400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

46.0274

Percent Change in Area of Suitable Range (Had B1 2050)

-16.5400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

26.1644

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9577.15 +/- 19589.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

68.7671

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.05679 +/- 13.2576

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

57.1233

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

40.6804 +/- 254.318

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

63.6986

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

874

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.6300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

54.7945

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

49820

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

36.0500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

29.4521

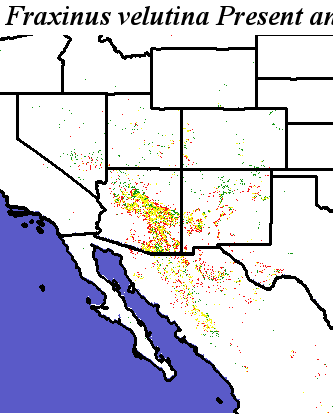

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus velutina Fraxinus velutina - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

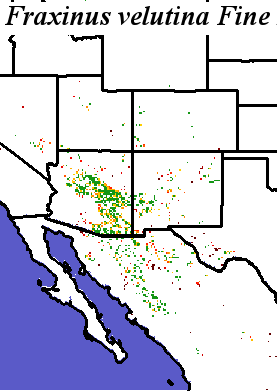

Fraxinus_velutina_final.noelev Fine MRM Distance

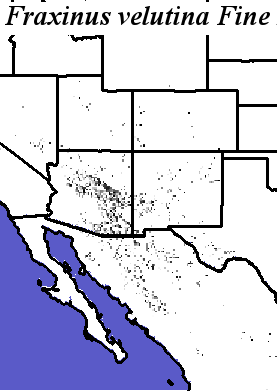

Fraxinus_velutina_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus velutina
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

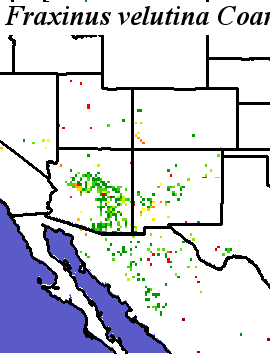

Fraxinus_velutina_final.noelev Coarse MRM Distance

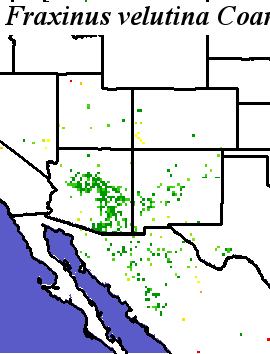

Fraxinus_velutina_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina
