Version 5 Tree Atlas


Juglans major

Arizona walnut

noelev

Juglans major Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juglans major

USDA Plants Database entry for Juglans major
Silvics Manual entry for Juglans major


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Juglans major var. glabrata8166174TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juglans_major_final Occurrences
Hargroves Present Suitable Range Outline for Juglans_major_final
Juglans major - Occurrence Locations Juglans major - Hargrove's Present Suitable Range Outline
Present Conditions
Juglans_major_final.3.conus
Juglans_major_final.3.global

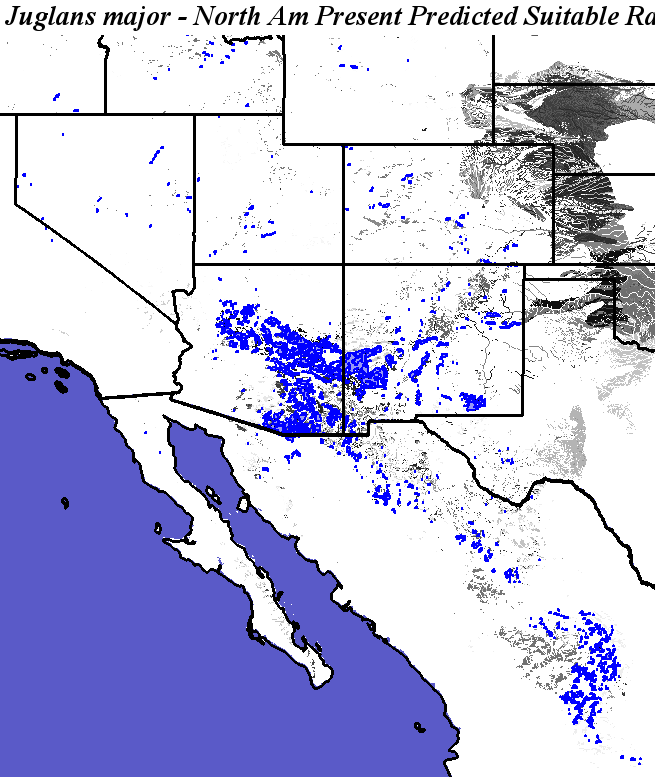

Juglans major - CONUS
Compare with Current Range from the Silvics Manual for Juglans major
Compare with Current Range from Biota of North America Program (BONAP) for Juglans major

Juglans major not modeled by Iverson and Prasad
Juglans major not modeled by Crookston and Rehfeldt
Juglans major not modeled by Coops and Waring
Juglans major - Global

PCM - Parallel Climate Model
Juglans_major_final.3.conus
Juglans_major_final.3.global

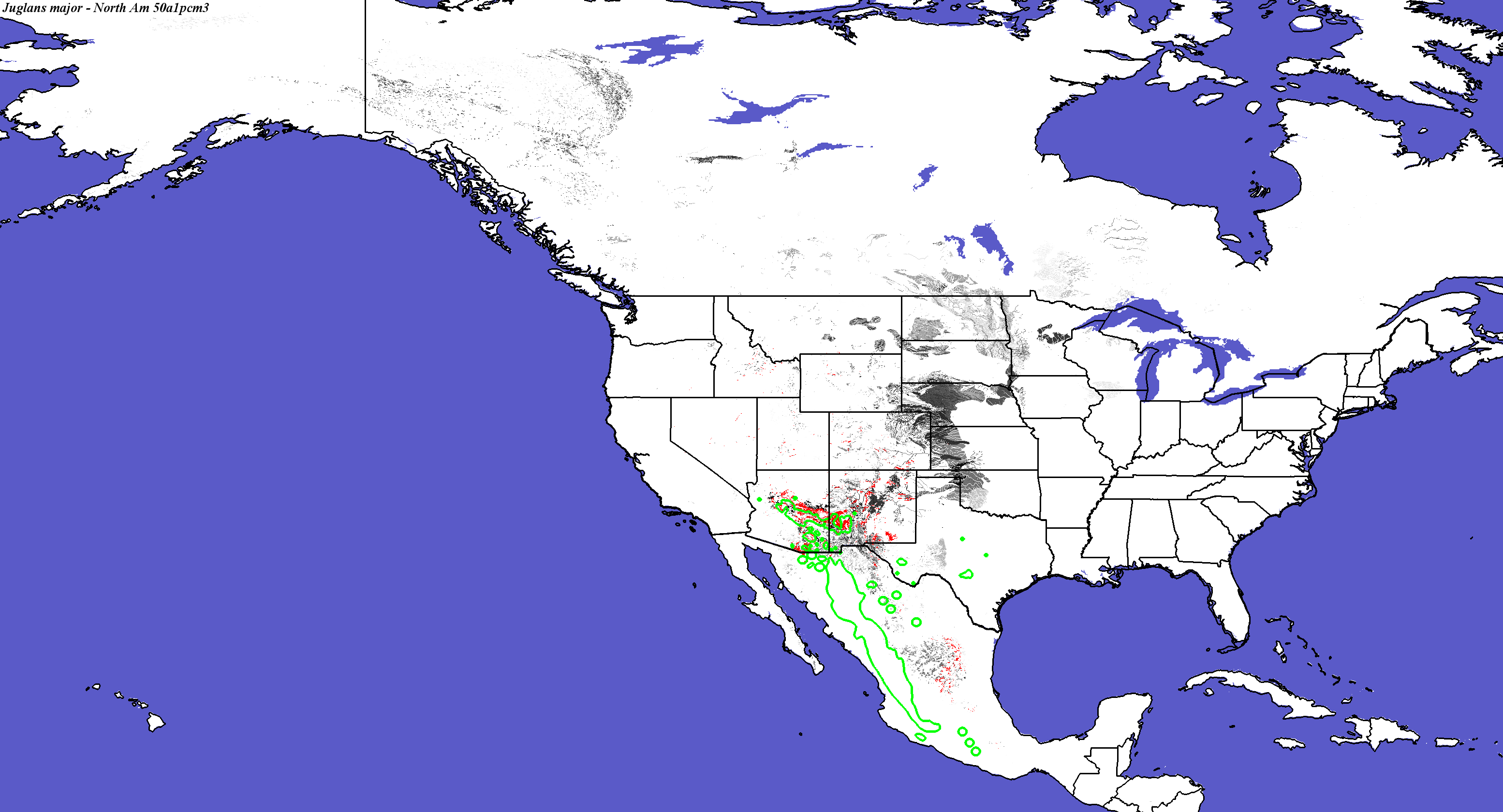

PCM, Scenario A1FI, 2050 - Juglans major - CONUS
PCM, Scenario A1FI, 2050 - Juglans major - Global
Juglans_major_final.3.conus
Juglans_major_final.3.global
PCM, Scenario A1FI, 2100 - Juglans major - CONUS
Juglans major species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Juglans major - Global

Juglans_major_final.3.conus
Juglans_major_final.3.global

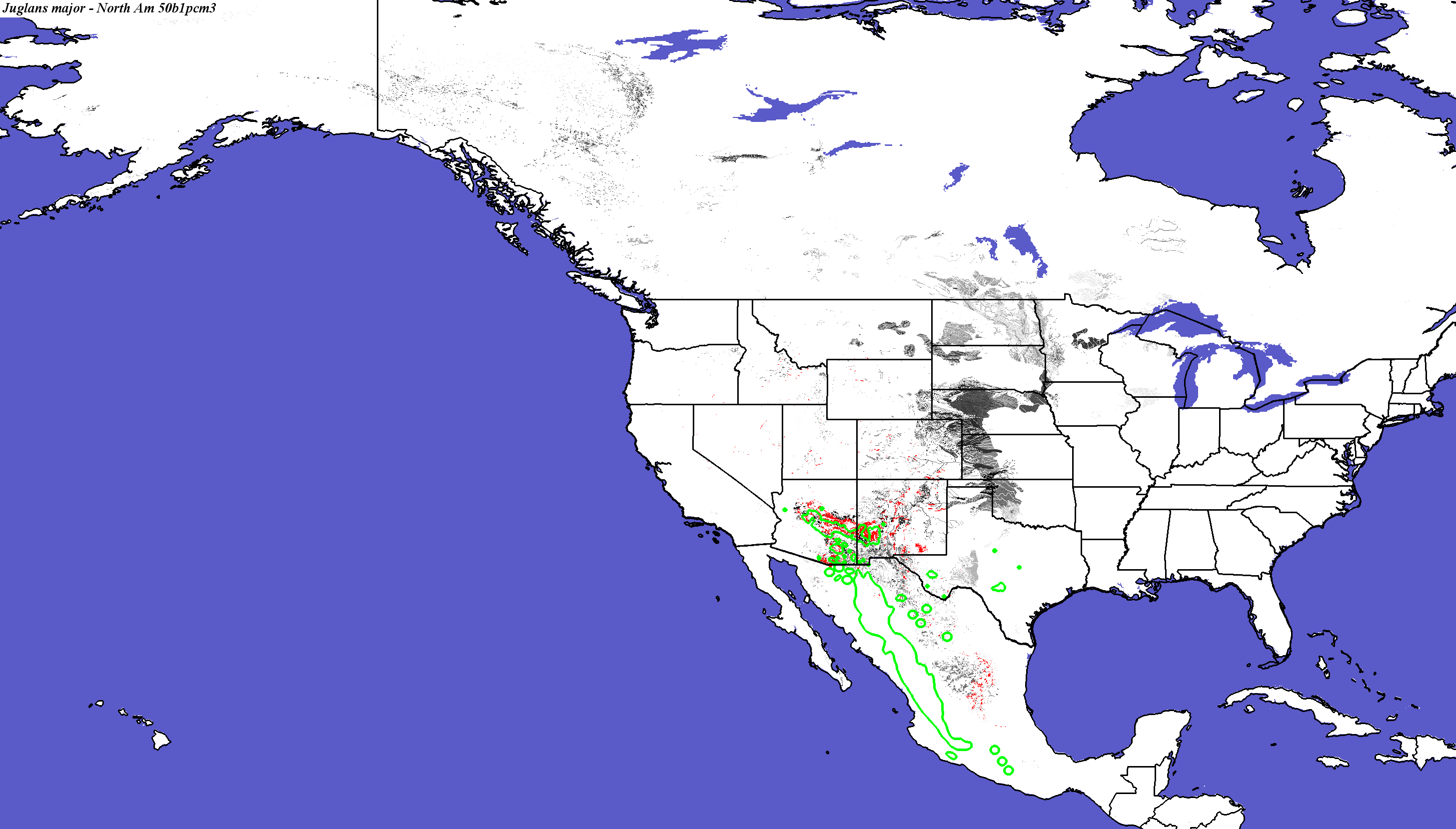

PCM, Scenario B1, 2050 - Juglans major - CONUS
PCM, Scenario B1, 2050 - Juglans major - Global
Juglans_major_final.3.conus
Juglans_major_final.3.global
PCM, Scenario B1, 2100 - Juglans major - CONUS
Juglans major not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Juglans major - Global

Hadley Climate Model
Juglans_major_final.3.conus
Juglans_major_final.3.global
Hadley, Scenario A1FI, 2050 - Juglans major - CONUS
Juglans major not modeled by Crookston and Rehfeldt

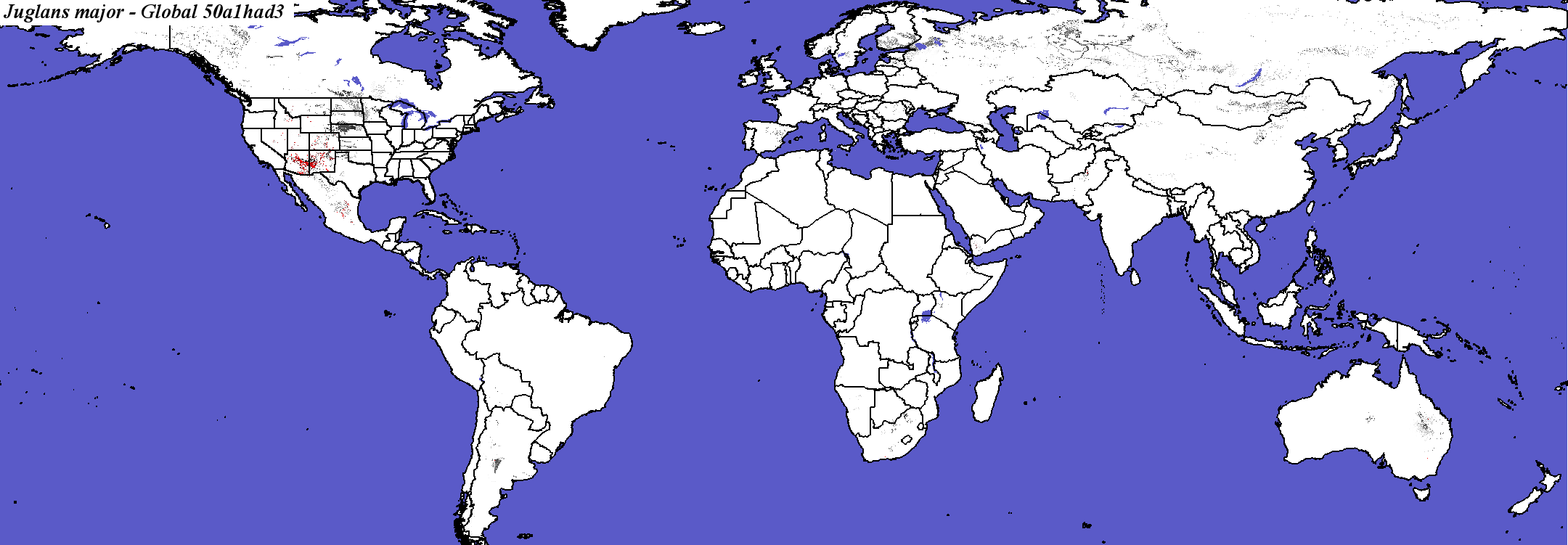

Hadley, Scenario A1FI, 2050 - Juglans major - Global
Juglans_major_final.3.conus
Juglans_major_final.3.global.
Hadley, Scenario A1FI, 2100 - Juglans major - CONUS
Juglans major not modeled by Iverson and Prasad
Juglans major not modeled by Crookston and Rehfeldt
Juglans major not modeled by Coops and Waring

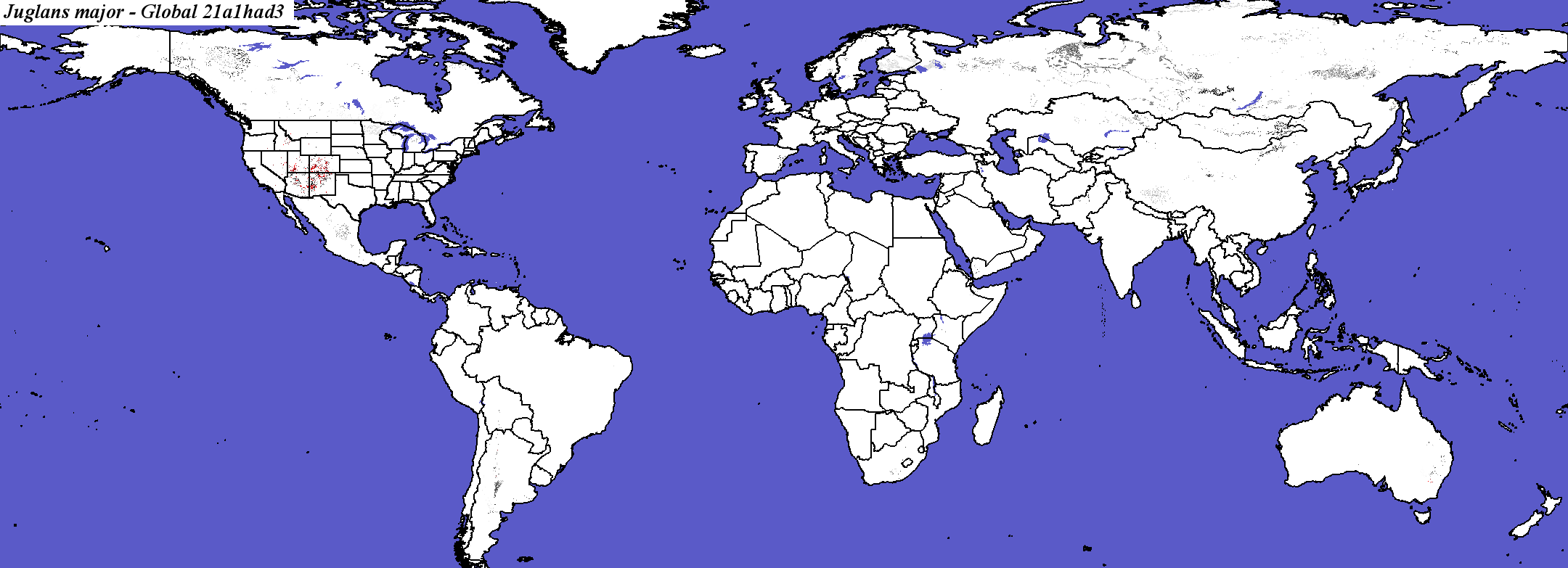

Hadley, Scenario A1FI, 2100 - Juglans major - Global

Juglans_major_final.3.conus
Juglans_major_final.3.global.

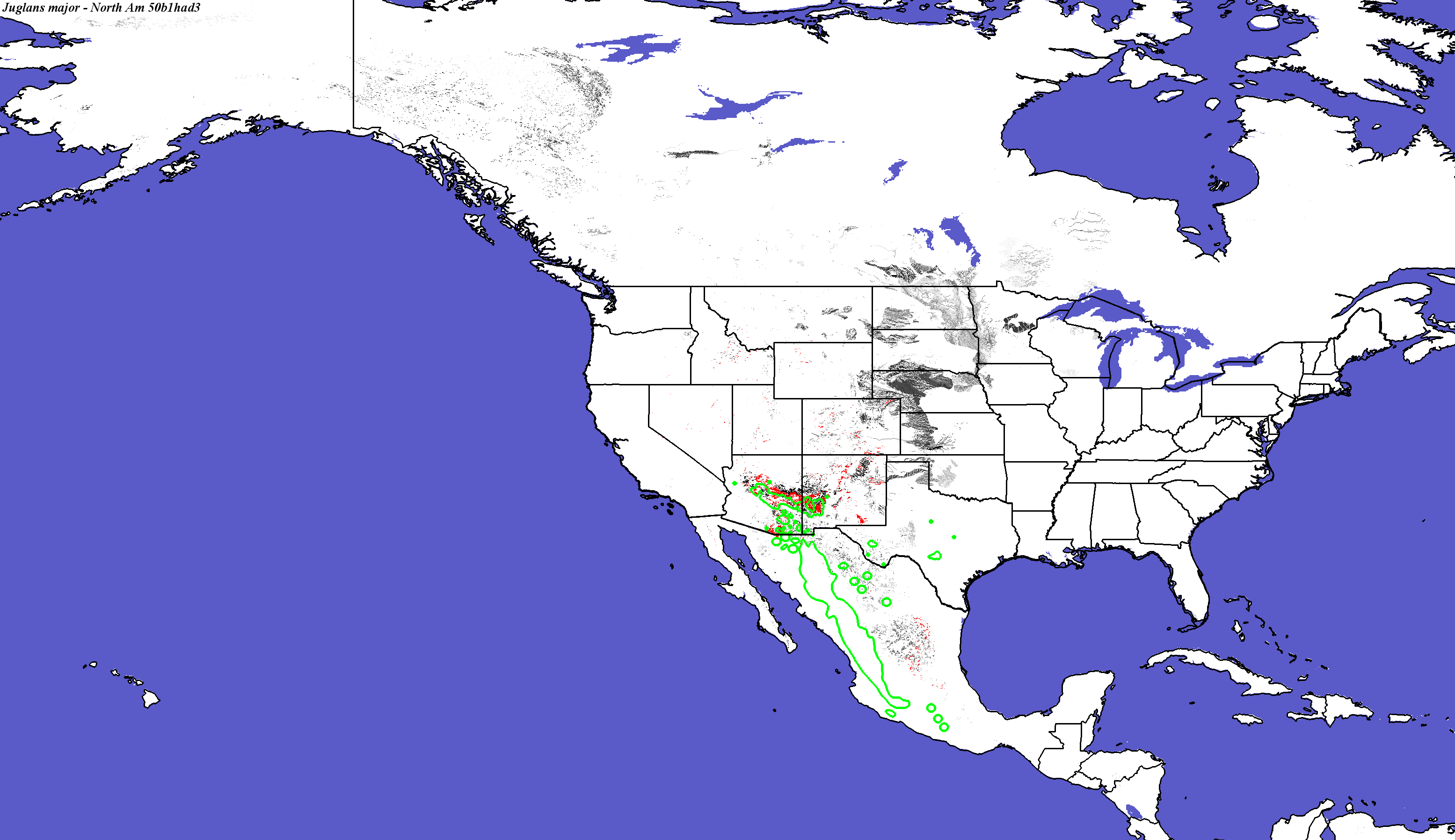

Hadley, Scenario B1, 2050 - Juglans major - CONUS
Juglans major not modeled by Crookston and Rehfeldt
Juglans major not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Juglans major - Global
Juglans_major_final.3.conus
Juglans_major_final.3.global

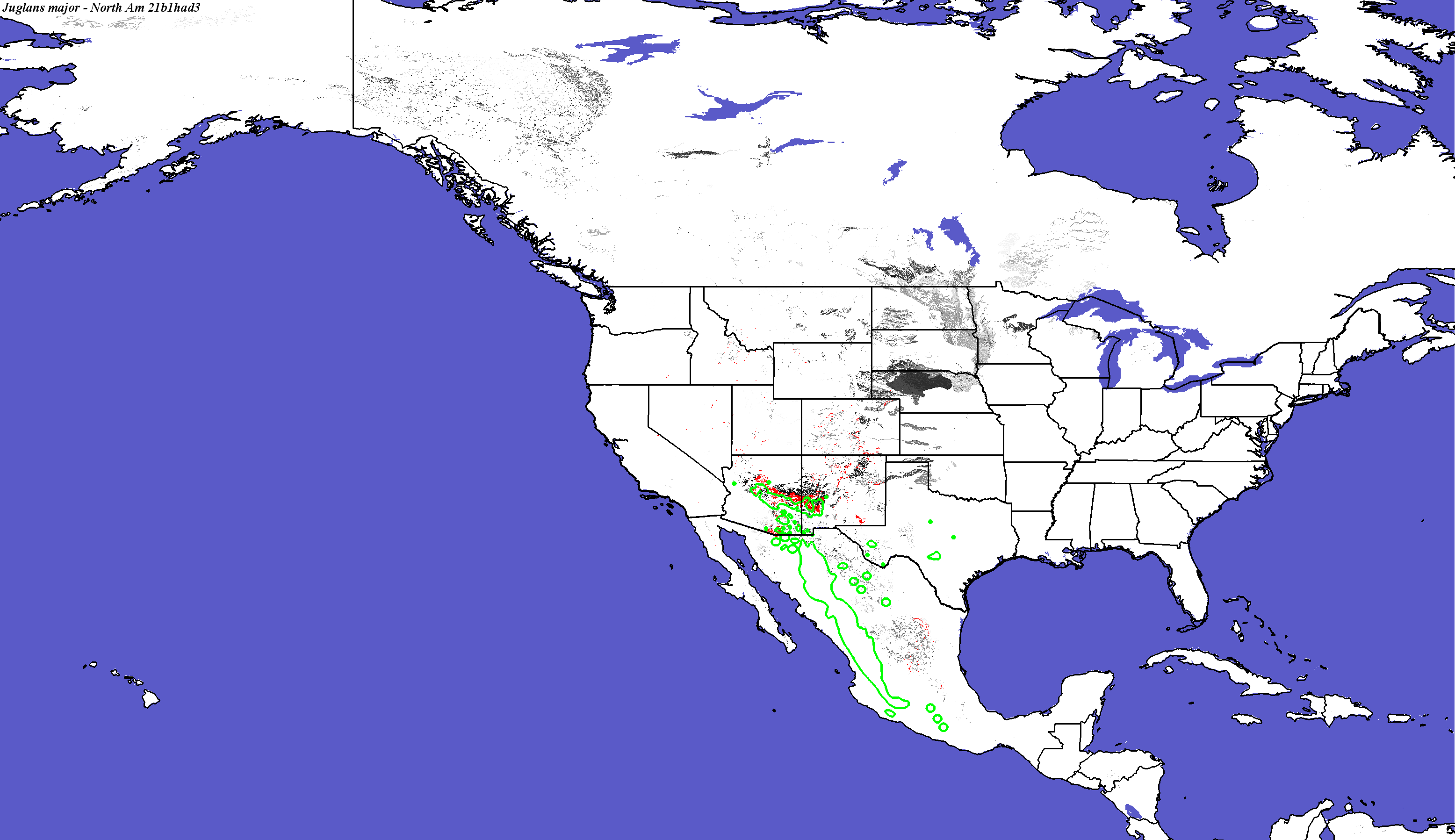

Hadley, Scenario B1, 2100 - Juglans major - CONUS
Juglans major not modeled by Iverson and Prasad
Juglans major not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Juglans major - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juglans_major_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

16

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

70.6849

Area in Present Suitable Range (in km2)

68144

Area in Future Suitable Range (Had B1 2050, in km2)

51207

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

32499

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

47.6900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

56.5753

Percent Change in Area of Suitable Range (Had B1 2050)

-24.8500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

42.7397

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

26660.1 +/- 67201.6

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

24.7945

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

13.1892 +/- 29.7325

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

20.5479

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

71.4538 +/- 390.709

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

49.863

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1174

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

1.7200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

46.0274

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

30196

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

44.3100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

14.3836

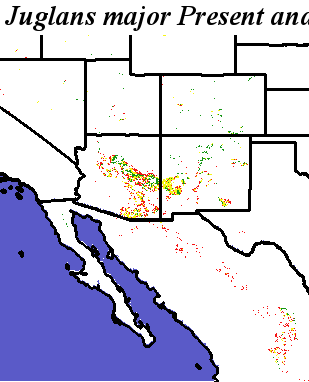

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juglans major Juglans major - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Juglans_major_final.noelev Fine MRM Distance
Juglans_major_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans major Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juglans major
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Juglans_major_final.noelev Coarse MRM Distance
Juglans_major_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans major Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juglans major
