Version 5 Tree Atlas


Juglans microcarpa

Texas walnut

noelev

Juglans microcarpa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juglans microcarpa

USDA Plants Database entry for Juglans microcarpa
Silvics Manual entry for Juglans microcarpa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Juglans rupestris; Juglans rupestris var. major104353TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juglans_microcarpa_final Occurrences

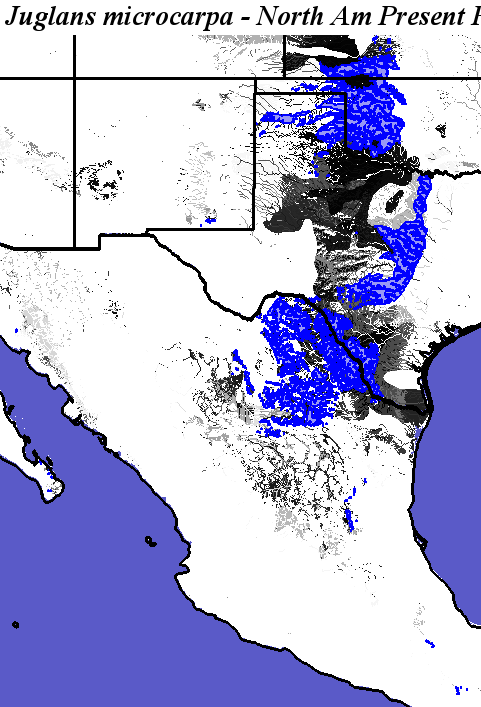

Hargroves Present Suitable Range Outline for Juglans_microcarpa_final
Juglans microcarpa - Occurrence Locations Juglans microcarpa - Hargrove's Present Suitable Range Outline
Present Conditions
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

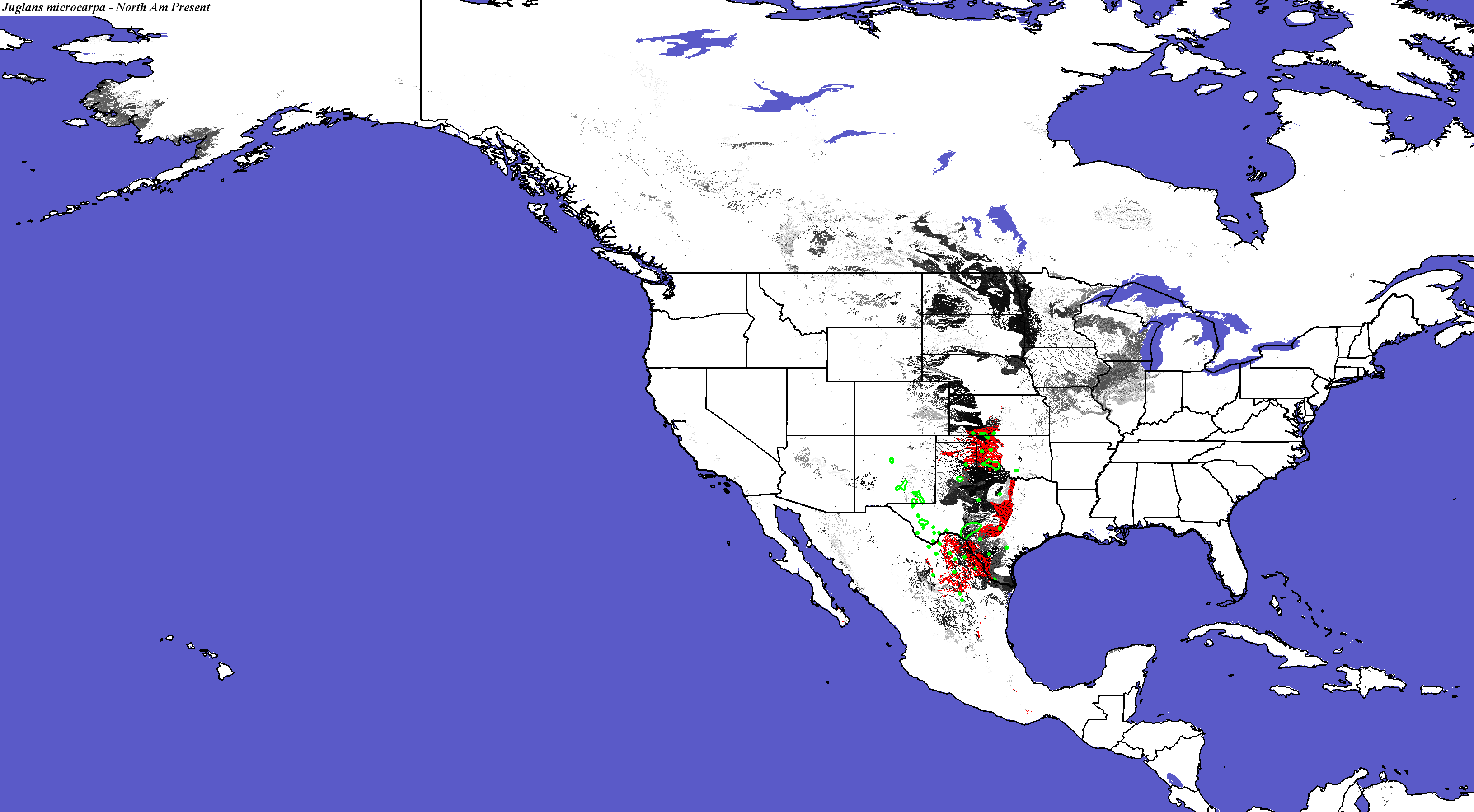

Juglans microcarpa - CONUS
Compare with Current Range from the Silvics Manual for Juglans microcarpa
Compare with Current Range from Biota of North America Program (BONAP) for Juglans microcarpa

Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring
Juglans microcarpa - Global

PCM - Parallel Climate Model
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global
PCM, Scenario A1FI, 2050 - Juglans microcarpa - CONUS

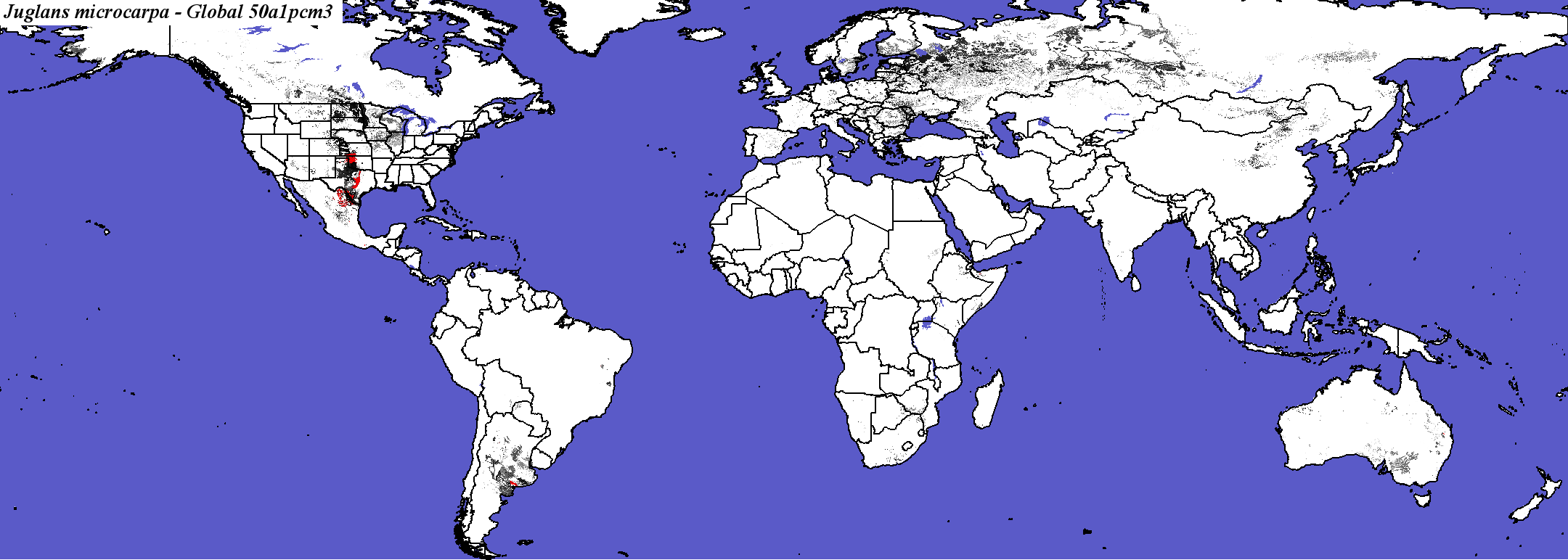

PCM, Scenario A1FI, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

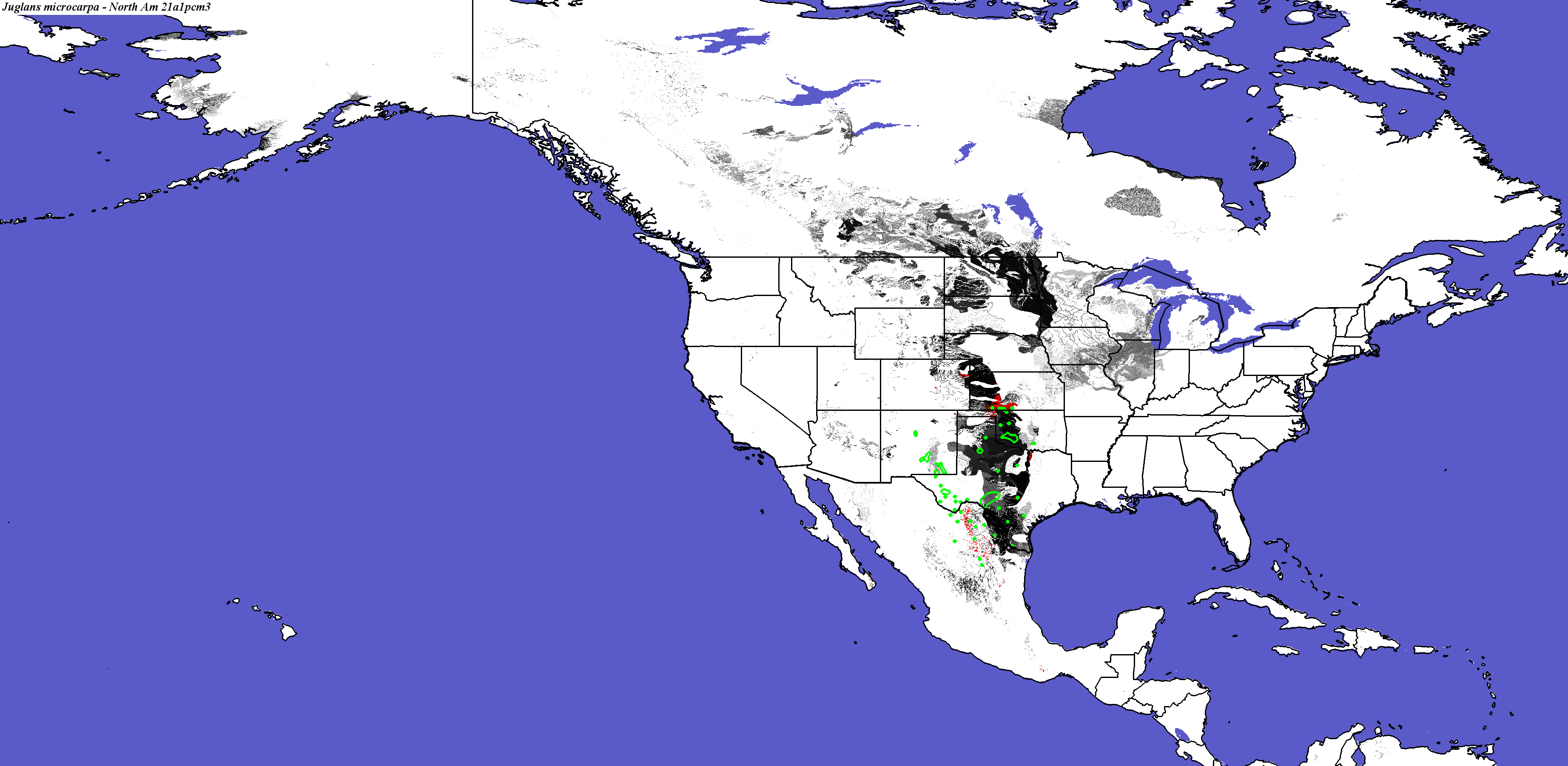

PCM, Scenario A1FI, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa species not modeled by Iverson and Prasad

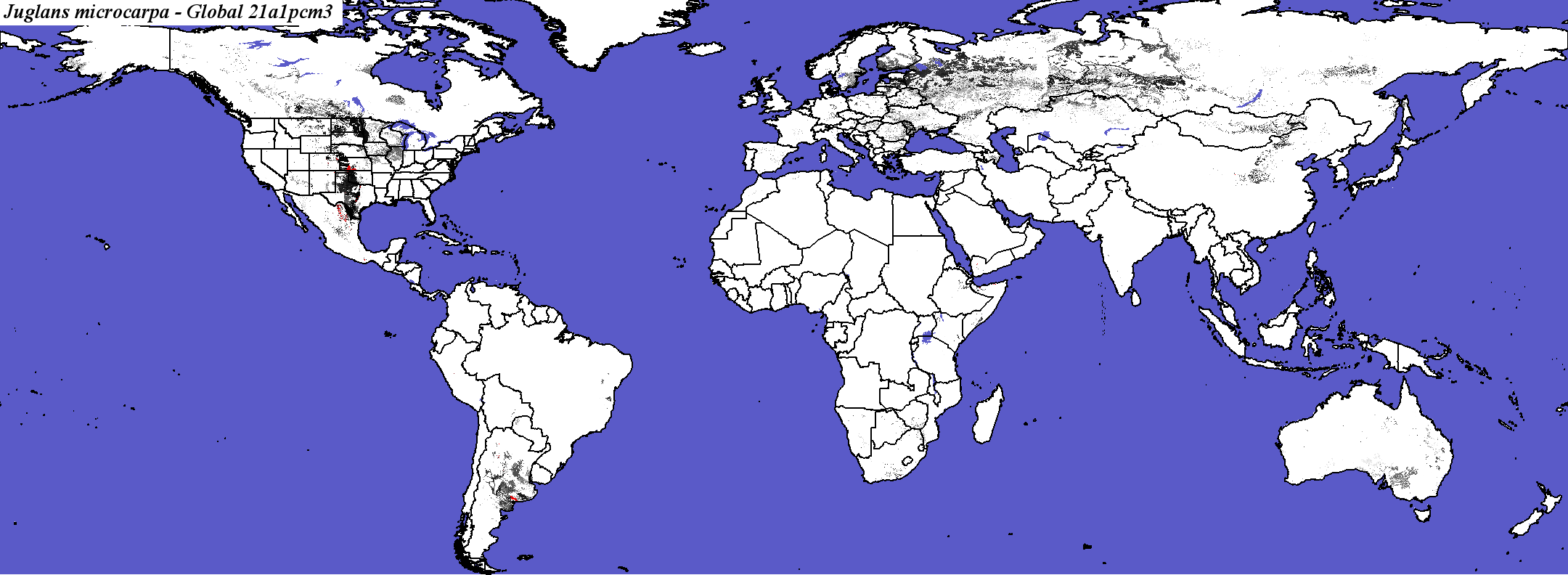

PCM, Scenario A1FI, 2100 - Juglans microcarpa - Global

Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global
PCM, Scenario B1, 2050 - Juglans microcarpa - CONUS
PCM, Scenario B1, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

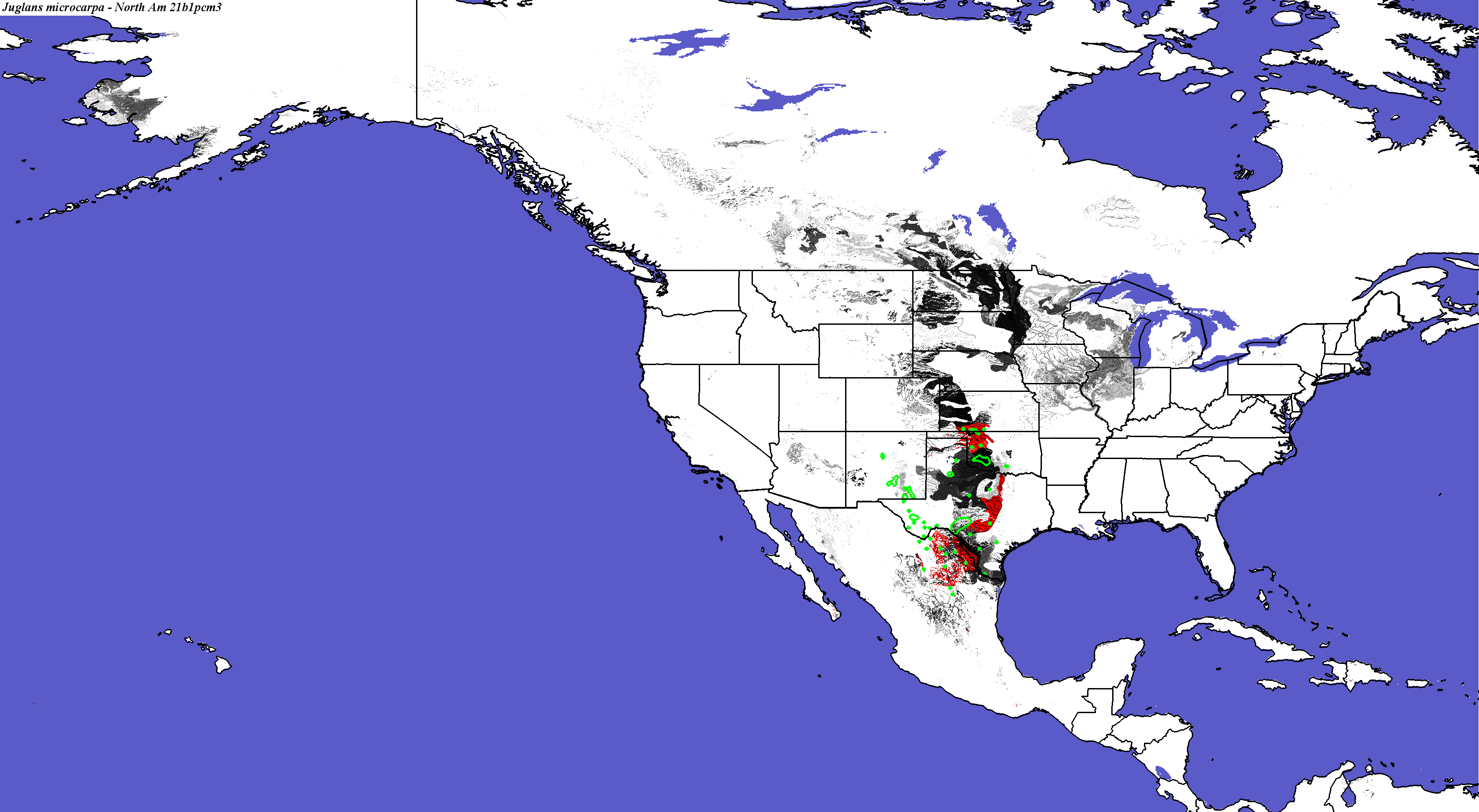

PCM, Scenario B1, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Juglans microcarpa - Global

Hadley Climate Model
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

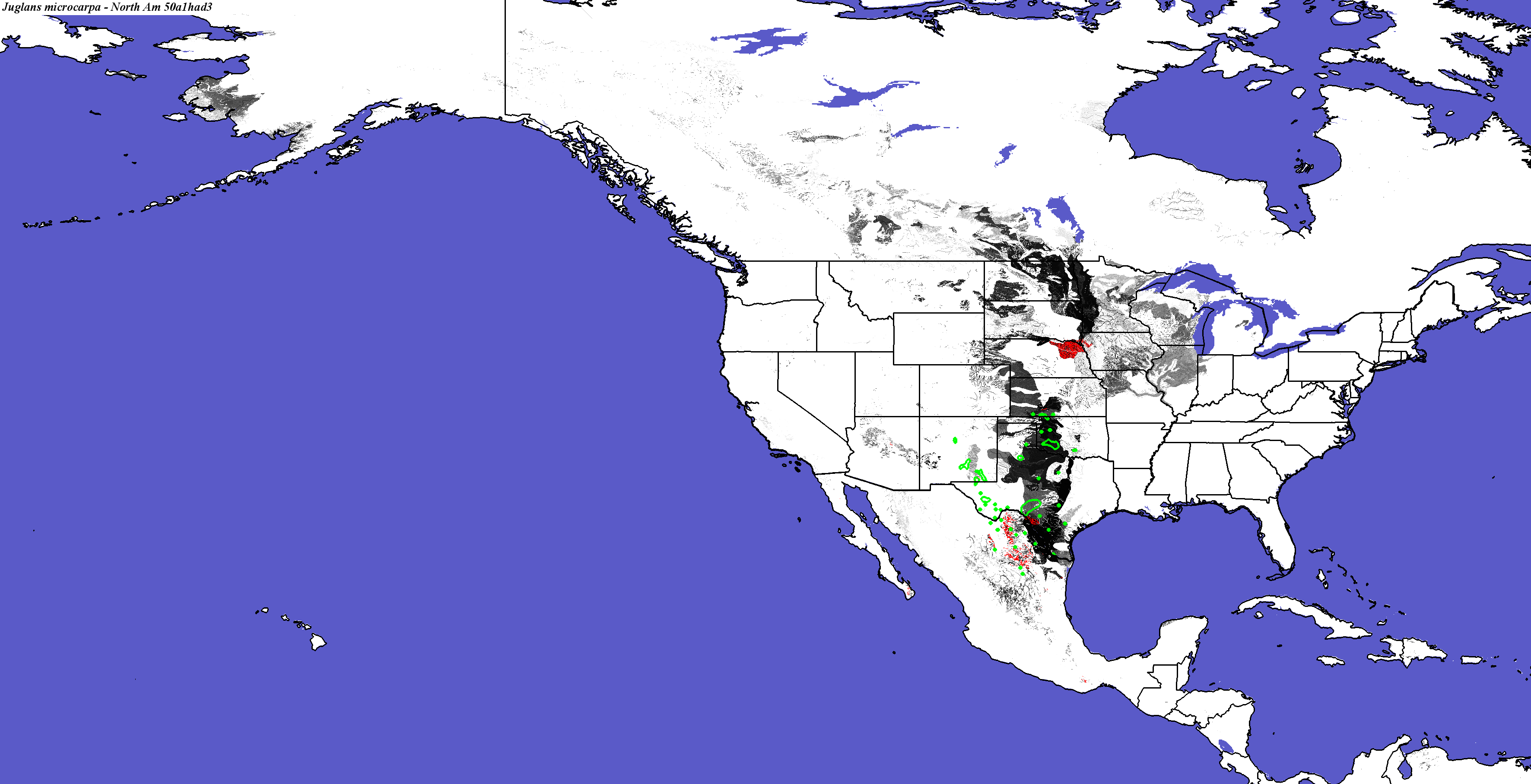

Hadley, Scenario A1FI, 2050 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Crookston and Rehfeldt

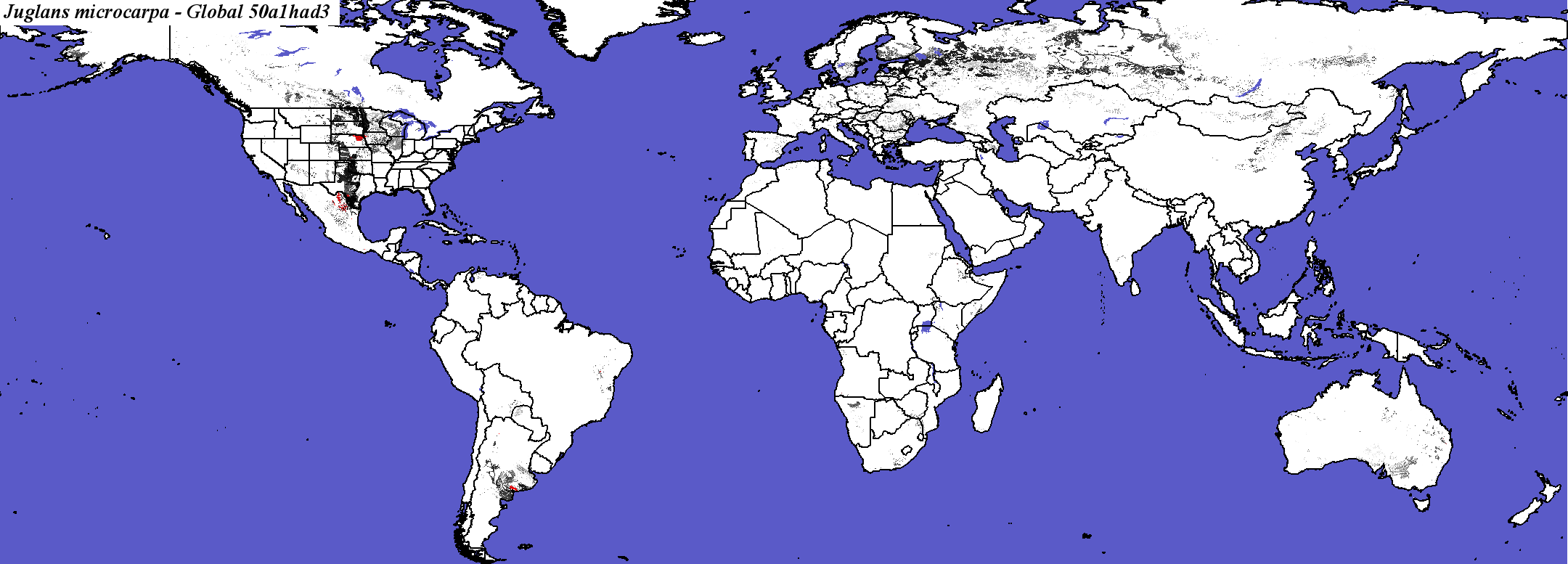

Hadley, Scenario A1FI, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global.
Hadley, Scenario A1FI, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring

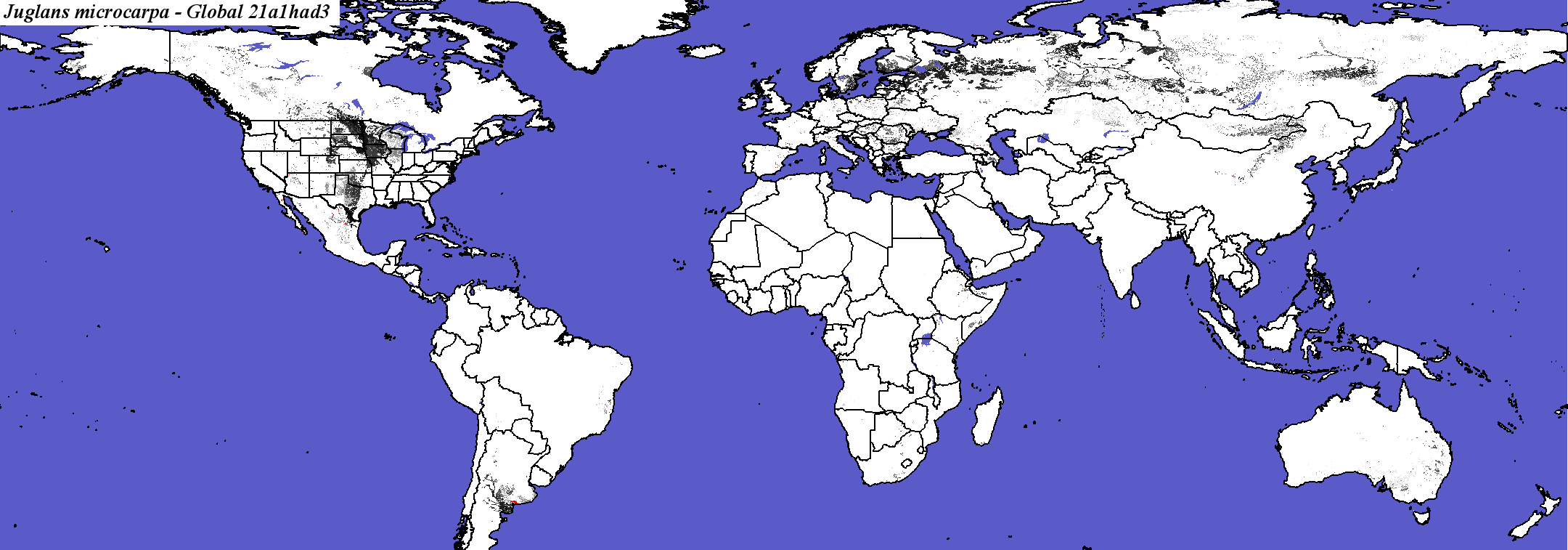

Hadley, Scenario A1FI, 2100 - Juglans microcarpa - Global

Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global.

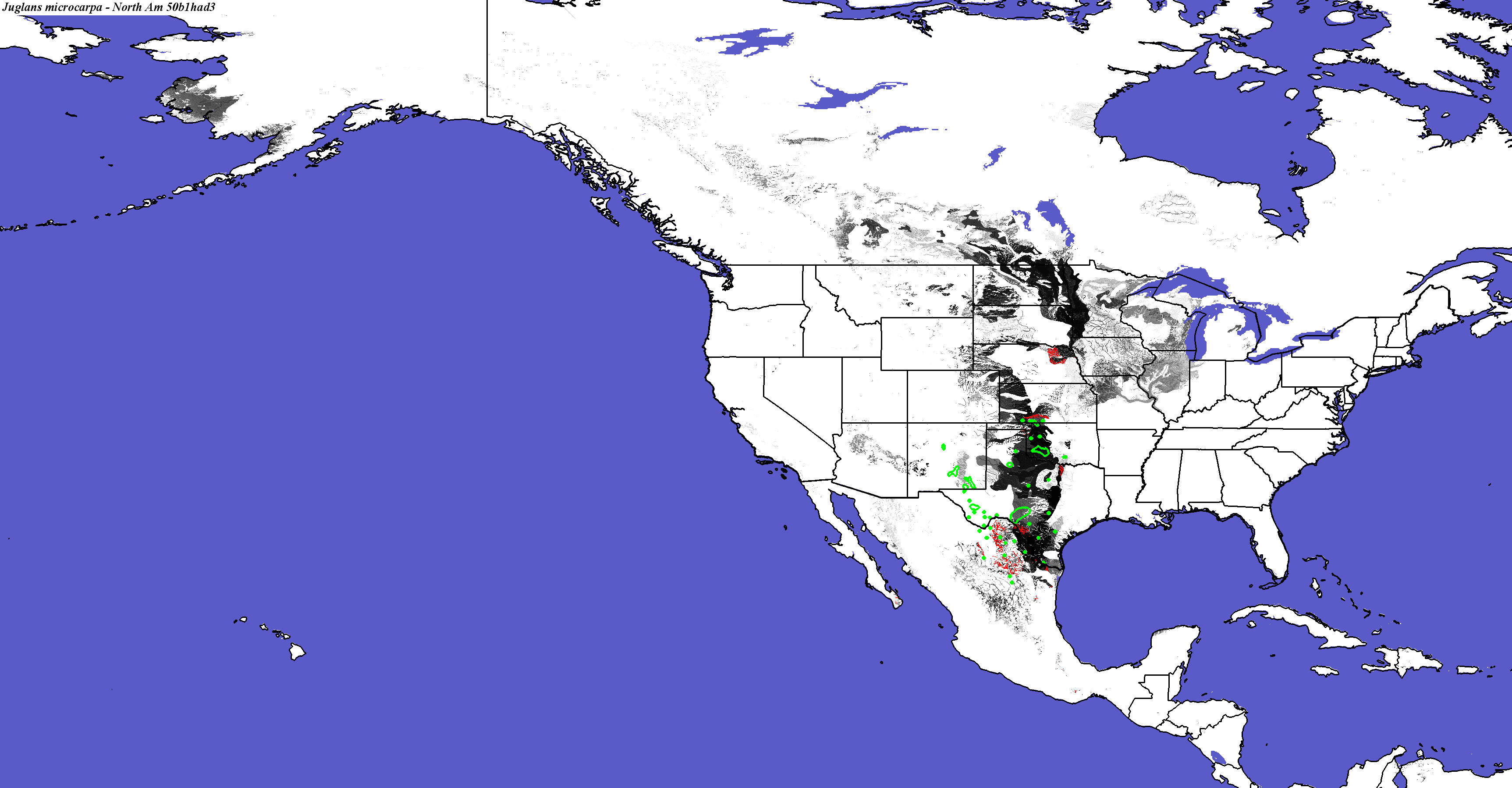

Hadley, Scenario B1, 2050 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

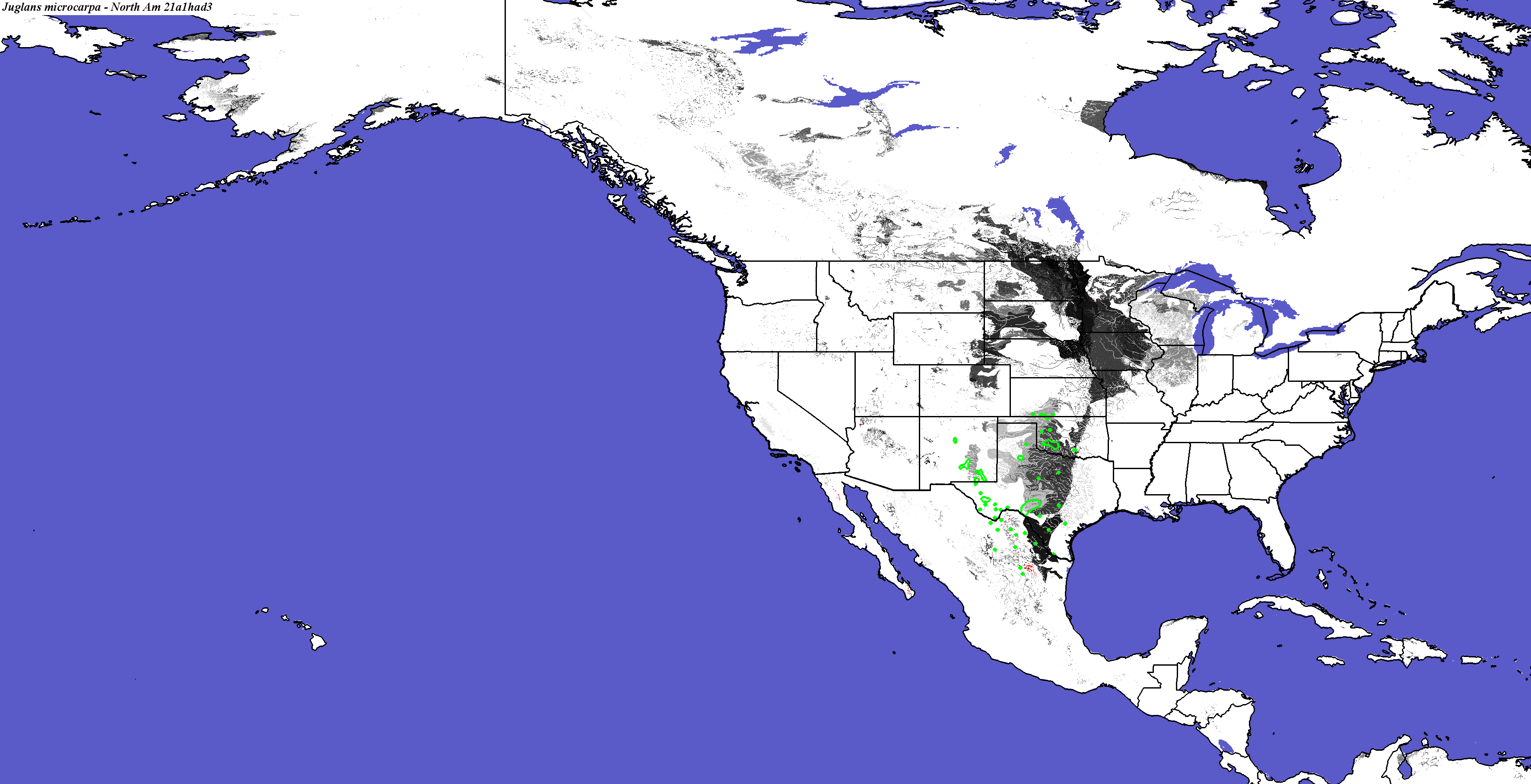

Hadley, Scenario B1, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt

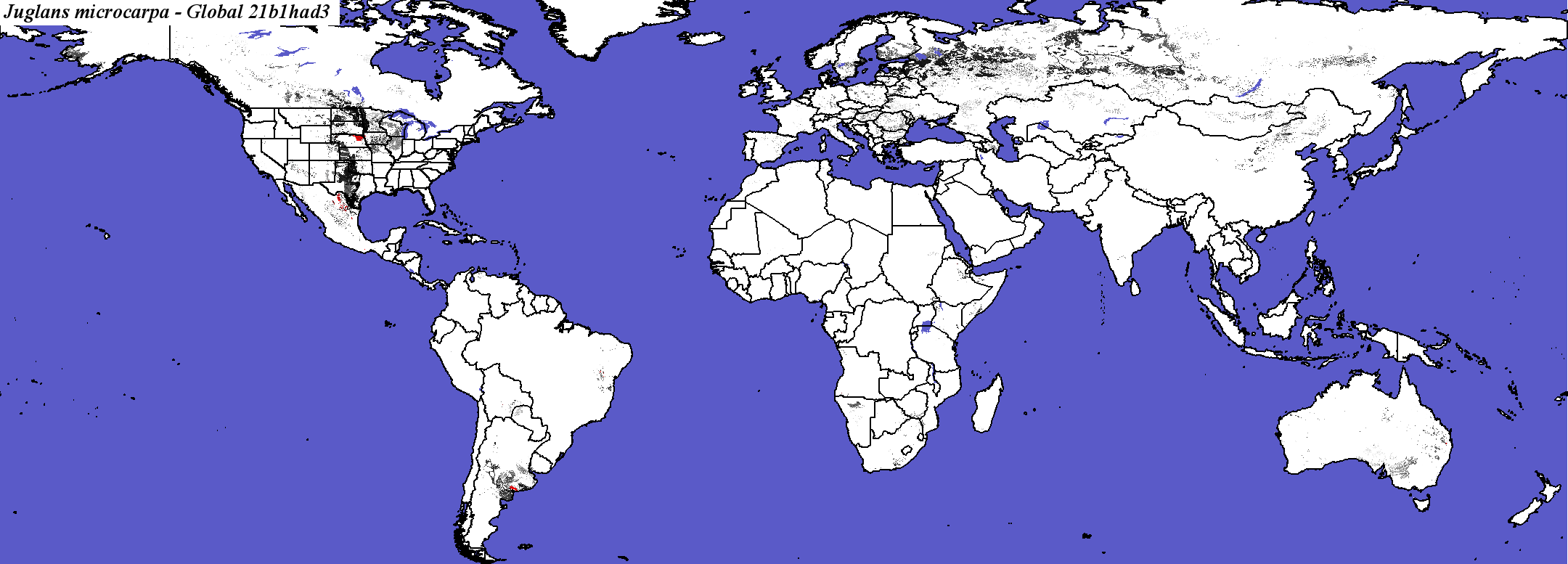

Hadley, Scenario B1, 2100 - Juglans microcarpa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juglans_microcarpa_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

10

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

86.3014

Area in Present Suitable Range (in km2)

142268

Area in Future Suitable Range (Had B1 2050, in km2)

38177

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

29262

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

20.5600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

93.0137

Percent Change in Area of Suitable Range (Had B1 2050)

-73.1600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

98.4932

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

64216.4 +/- 56153.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

4.93151

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

36.796 +/- 33.3069

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

1.64384

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

649.461 +/- 1201.72

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

2.32877

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

26198

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

18.4100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

2.05479

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

19420

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

13.6500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

85.3425

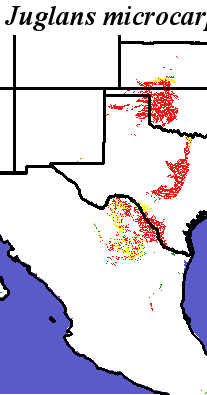

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juglans microcarpa Juglans microcarpa - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

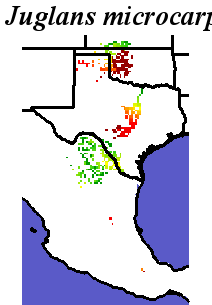

Juglans_microcarpa_final.noelev Fine MRM Distance
Juglans_microcarpa_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juglans microcarpa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Juglans_microcarpa_final.noelev Coarse MRM Distance
Juglans_microcarpa_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa

Thu Jul 21 10:07:33 EDT 2016
