Version 5 Tree Atlas


Juniperus deppeana

alligator juniper

noelev

Juniperus deppeana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juniperus deppeana

USDA Plants Database entry for Juniperus deppeana
Silvics Manual entry for Juniperus deppeana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Juniperus pachyphlaea; Juniperus deppeana var. pachyphlaea; Juniperus deppeana var. robusta; Juniperus deppeana var. zacatecensis; Juniperus deppeana var. patoniana8964201316range is well-represented

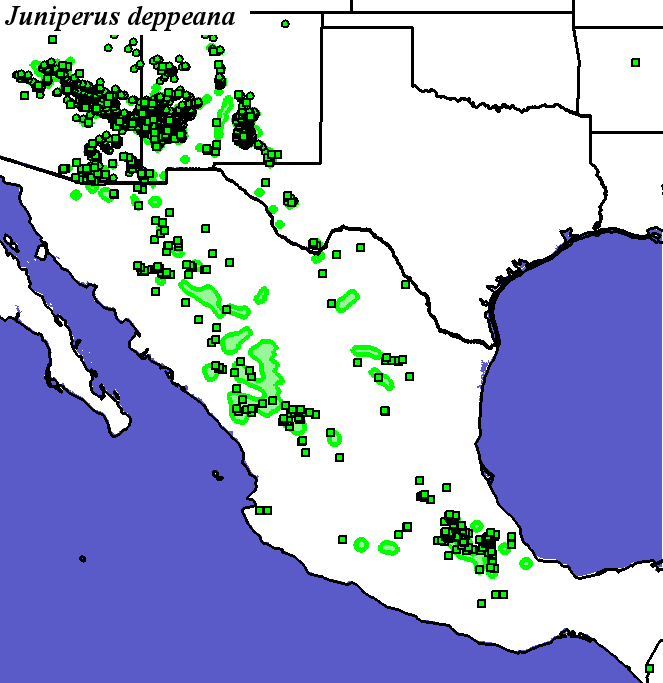

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juniperus_deppeana_final Occurrences
Hargroves Present Suitable Range Outline for Juniperus_deppeana_final
Juniperus deppeana - Occurrence Locations Juniperus deppeana - Hargrove's Present Suitable Range Outline
Present Conditions
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
Juniperus deppeana - CONUS
Compare with Current Range from the Silvics Manual for Juniperus deppeana
Compare with Current Range from Biota of North America Program (BONAP) for Juniperus deppeana

Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Current conditions by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring
Juniperus deppeana - Global

PCM - Parallel Climate Model
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
PCM, Scenario A1FI, 2050 - Juniperus deppeana - CONUS

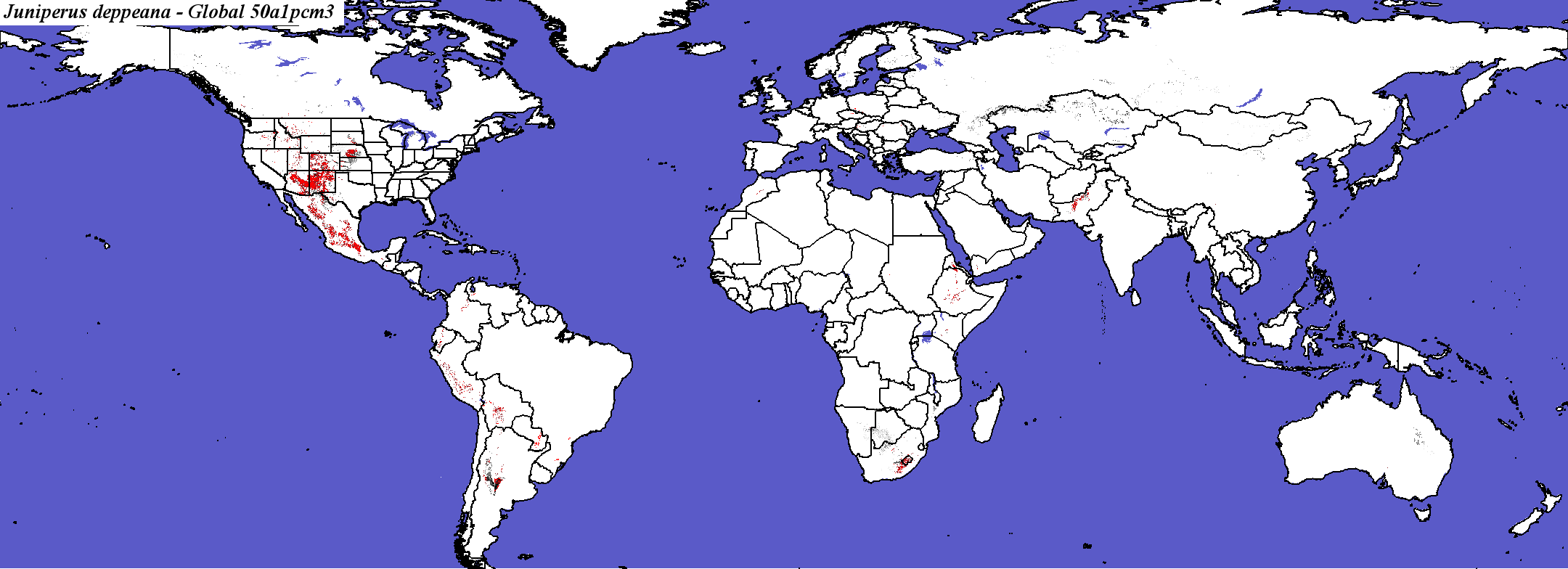

PCM, Scenario A1FI, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

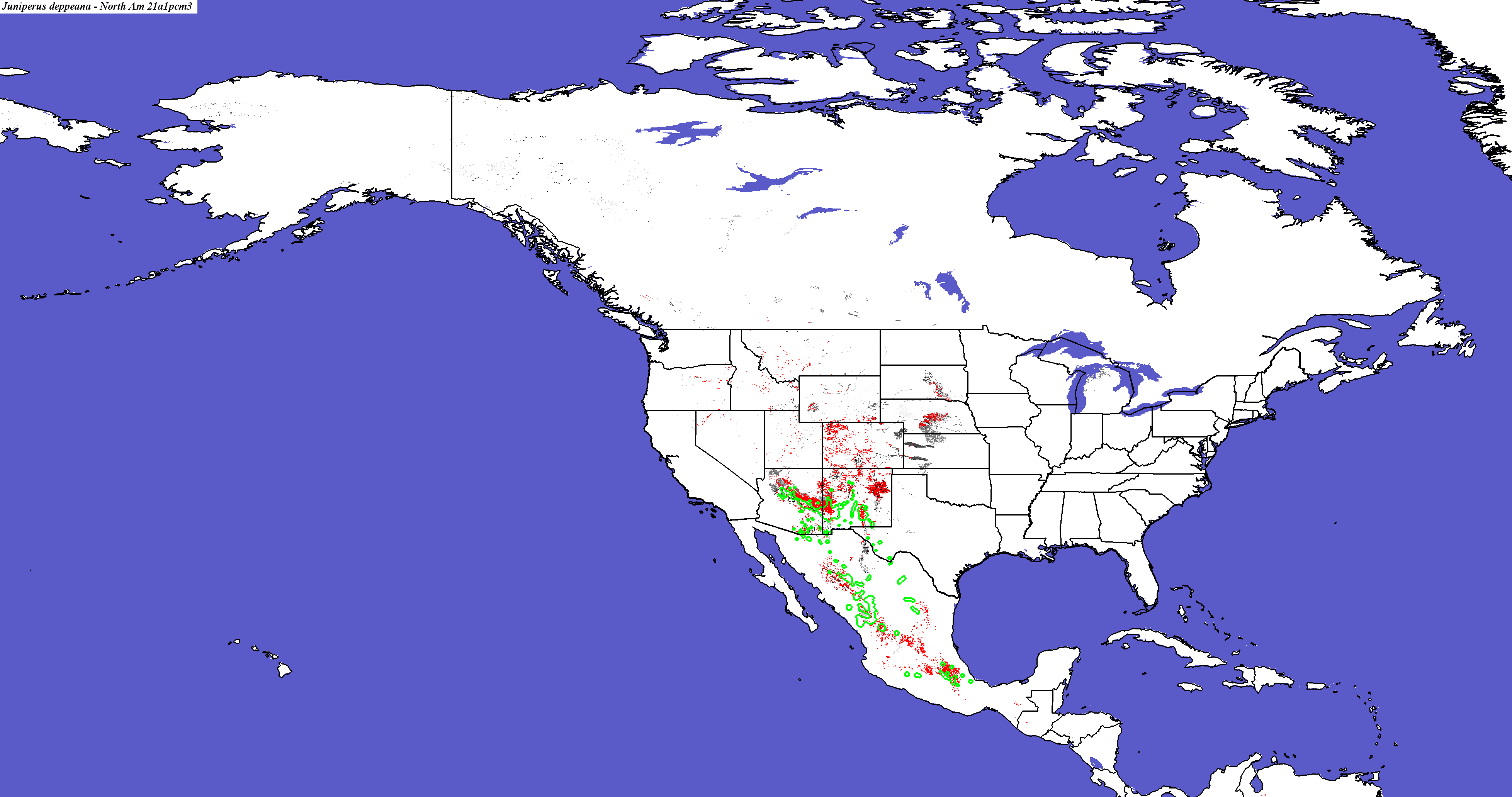

PCM, Scenario A1FI, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Juniperus deppeana - Global

Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
PCM, Scenario B1, 2050 - Juniperus deppeana - CONUS
PCM, Scenario B1, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
PCM, Scenario B1, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Juniperus deppeana - Global

Hadley Climate Model
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
Hadley, Scenario A1FI, 2050 - Juniperus deppeana - CONUS
Compare with Juniperus deppeana modeled for Hadley A2 in 2060 by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global.

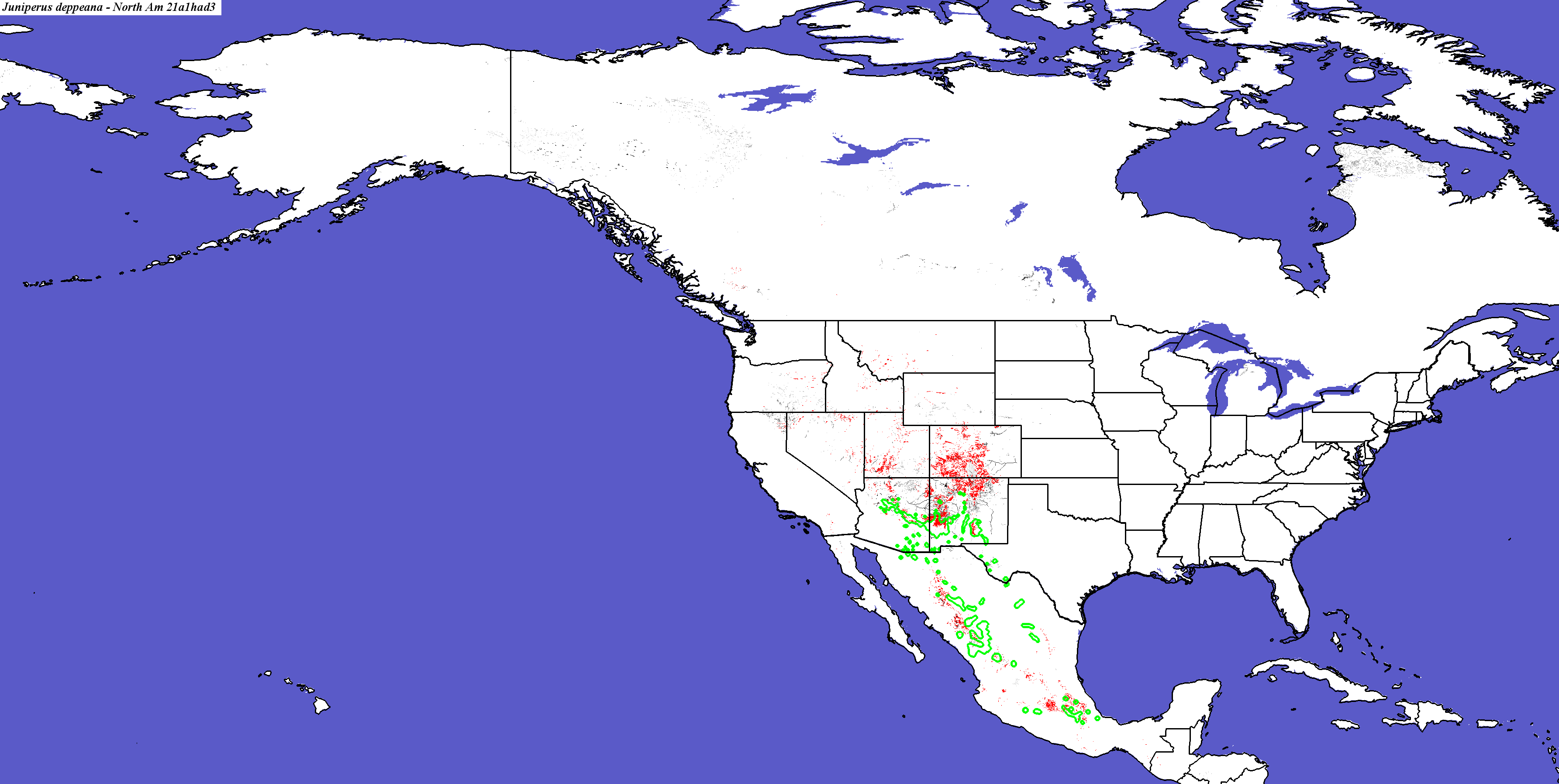

Hadley, Scenario A1FI, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Juniperus deppeana - Global

Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global.

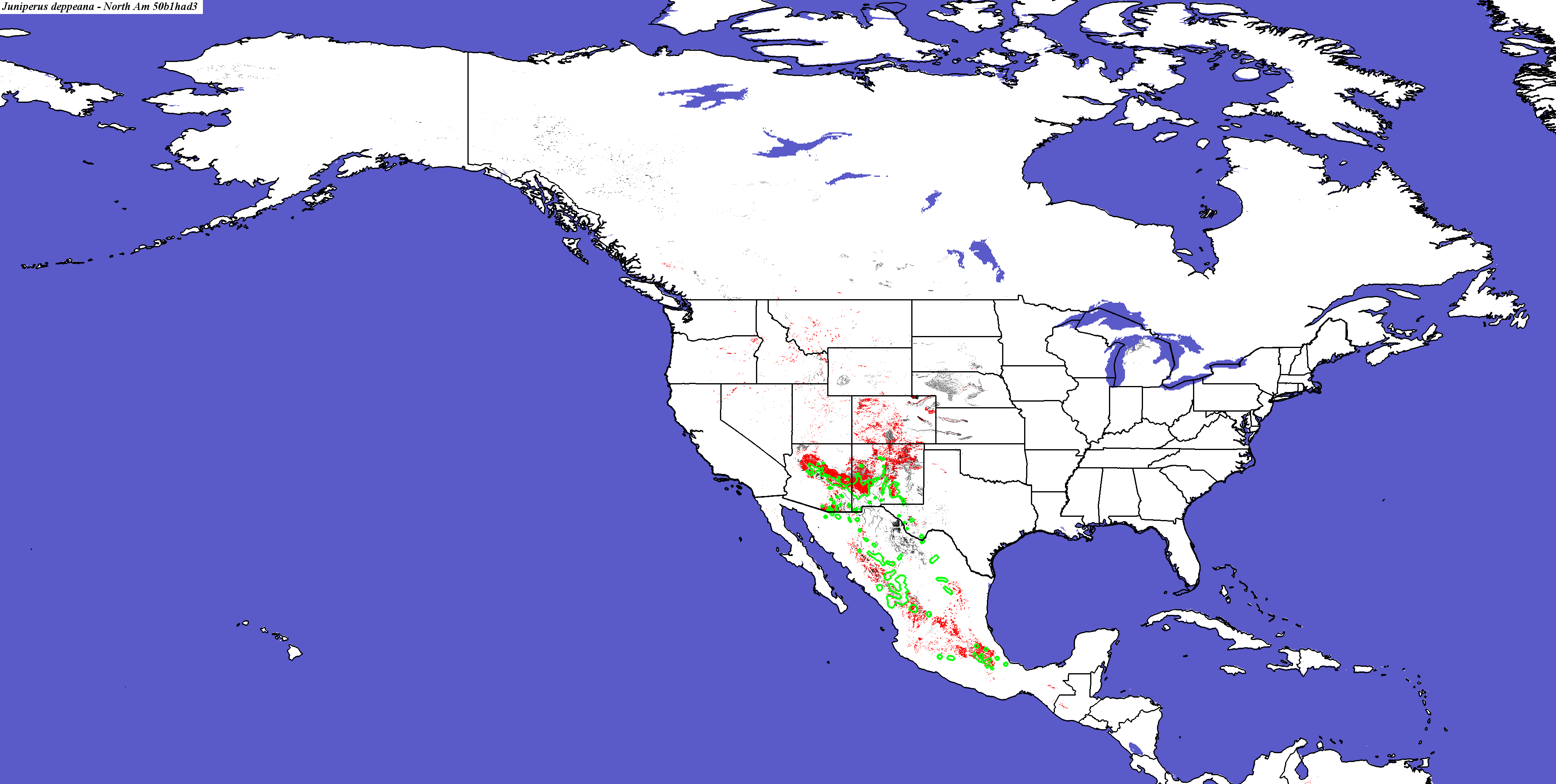

Hadley, Scenario B1, 2050 - Juniperus deppeana - CONUS
Compare with Juniperus deppeana modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

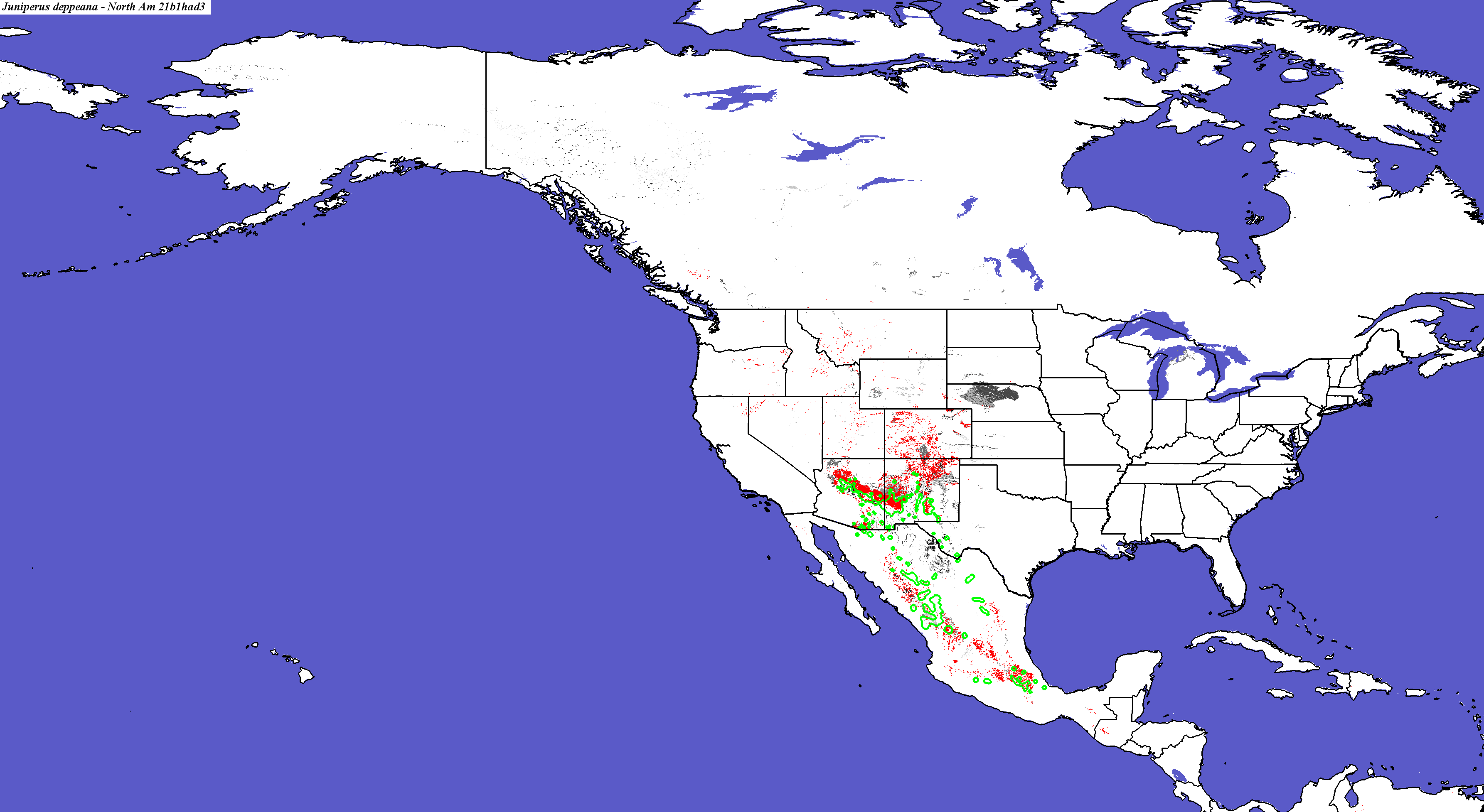

Hadley, Scenario B1, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

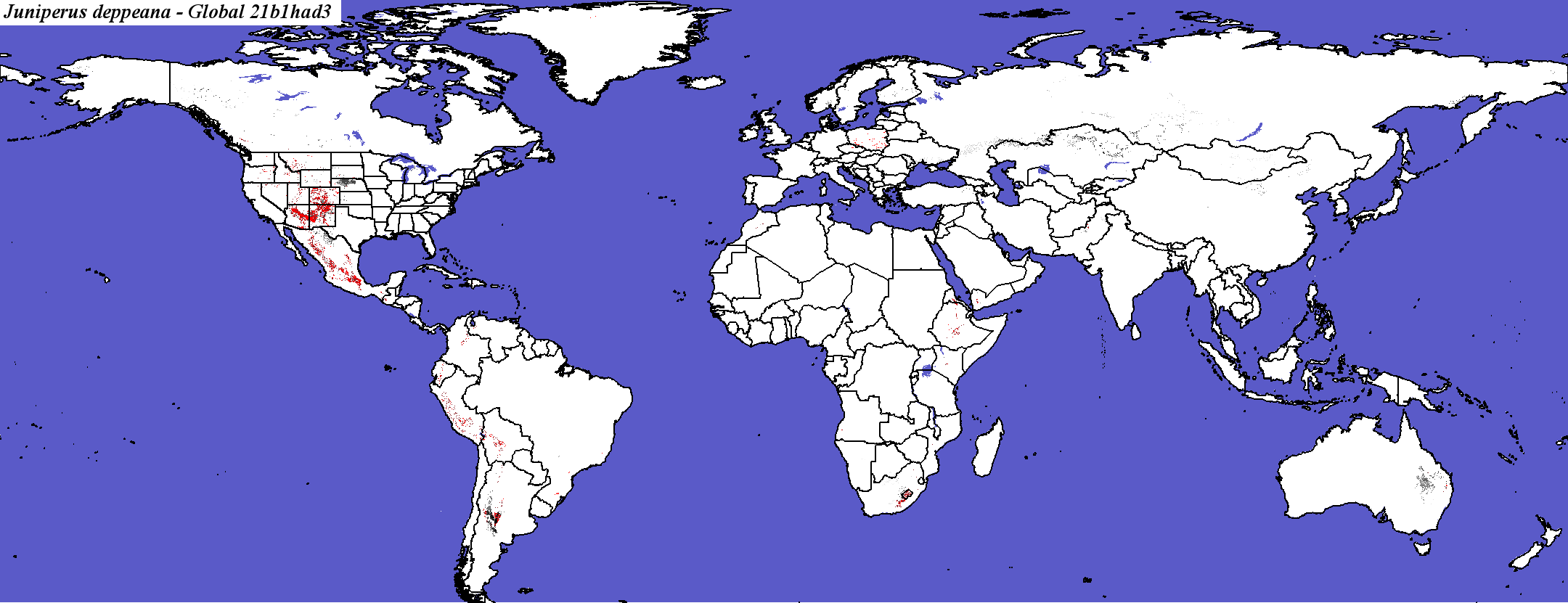

Hadley, Scenario B1, 2100 - Juniperus deppeana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juniperus_deppeana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

78

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

26.7123

Area in Present Suitable Range (in km2)

460580

Area in Future Suitable Range (Had B1 2050, in km2)

331690

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

243166

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

52.7900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

45.0685

Percent Change in Area of Suitable Range (Had B1 2050)

-27.9800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

48.4932

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

17161.1 +/- 31388

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

41.9178

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.2355 +/- 11.897

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

55.2055

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

258.795 +/- 807.454

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

18.4932

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

27350

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.9300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

20.6849

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

143865

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

31.2300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

41.5068

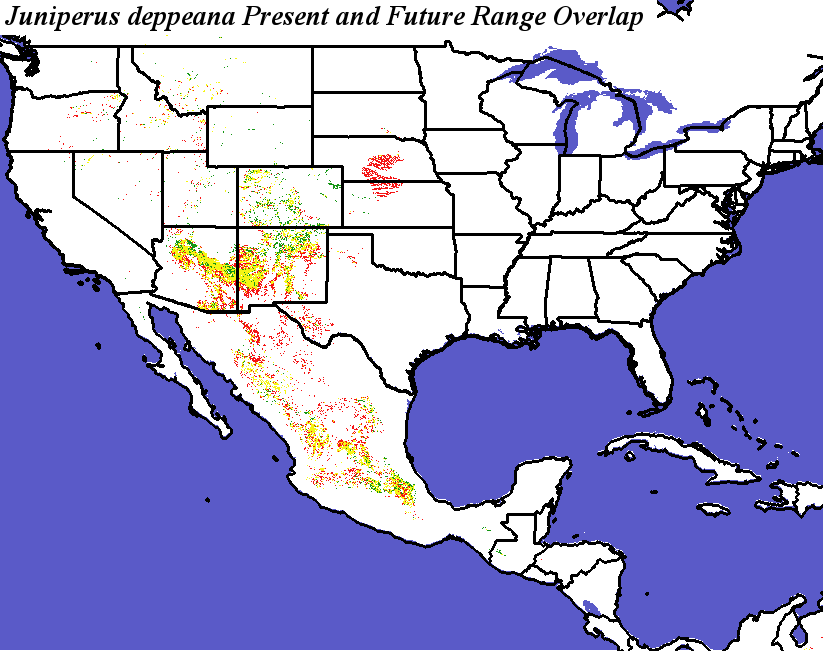

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juniperus deppeana Juniperus deppeana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Juniperus_deppeana_final.noelev Fine MRM Distance

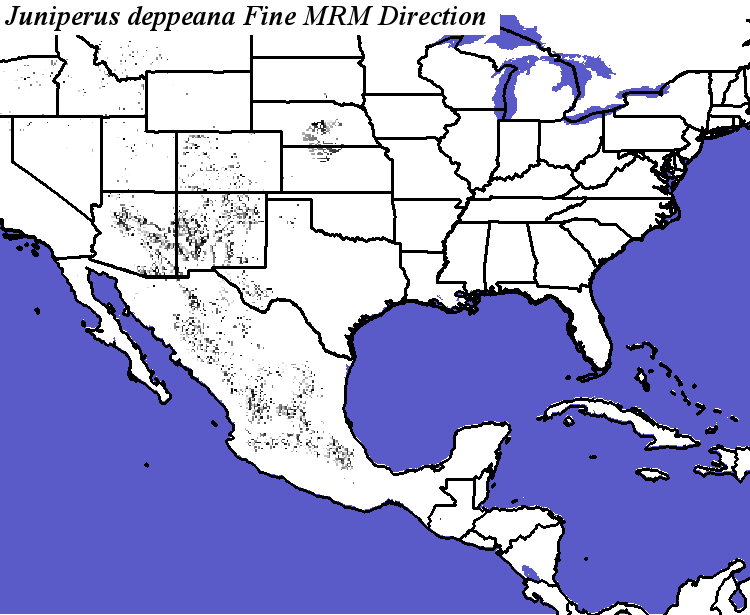

Juniperus_deppeana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juniperus deppeana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

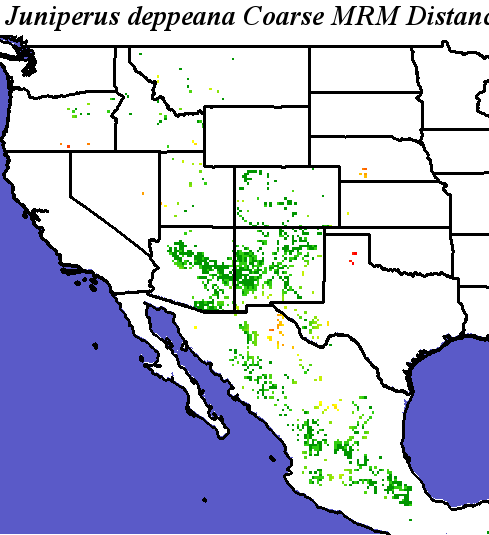

Juniperus_deppeana_final.noelev Coarse MRM Distance

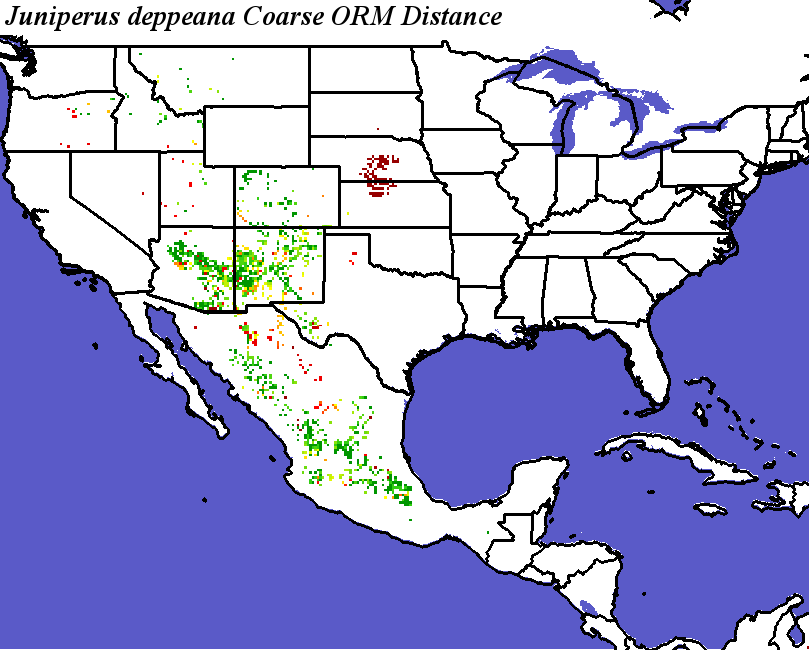

Juniperus_deppeana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana
