Version 5 Tree Atlas


Lithocarpus densiflorus

tanoak

noelev

Lithocarpus densiflorus Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Lithocarpus densiflorus

USDA Plants Database entry for Lithocarpus densiflorus
Silvics Manual entry for Lithocarpus densiflorus


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus densiflora; Notholithocarpus densiflorus548150698range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Lithocarpus_densiflorus_final Occurrences

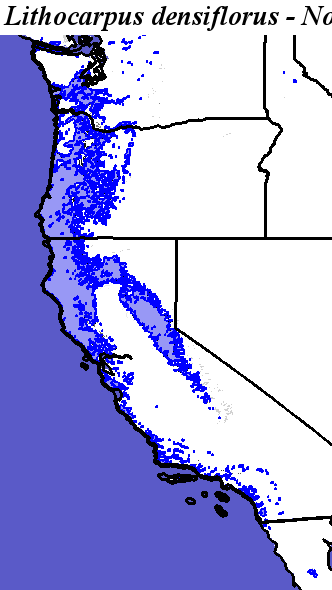

Hargroves Present Suitable Range Outline for Lithocarpus_densiflorus_final
Lithocarpus densiflorus - Occurrence Locations Lithocarpus densiflorus - Hargrove's Present Suitable Range Outline
Present Conditions
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

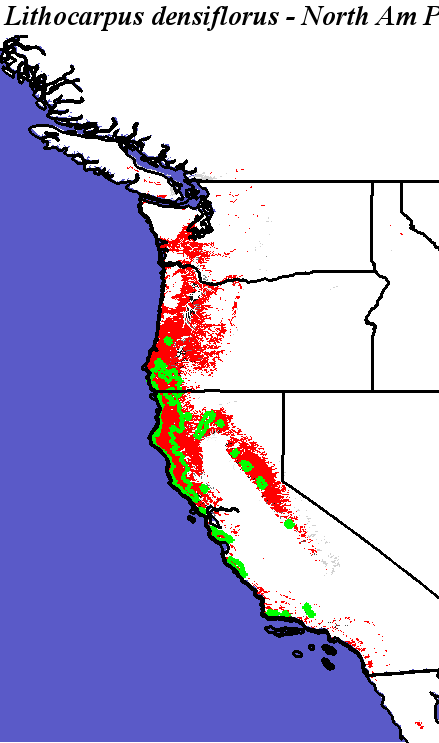

Lithocarpus densiflorus - CONUS
Compare with Current Range from the Silvics Manual for Lithocarpus densiflorus
Compare with Current Range from Biota of North America Program (BONAP) for Lithocarpus densiflorus

Lithocarpus densiflorus not modeled by Iverson and Prasad
Compare with Lithocarpus densiflorus modeled for Current conditions by Crookston and Rehfeldt
Lithocarpus densiflorus not modeled by Coops and Waring

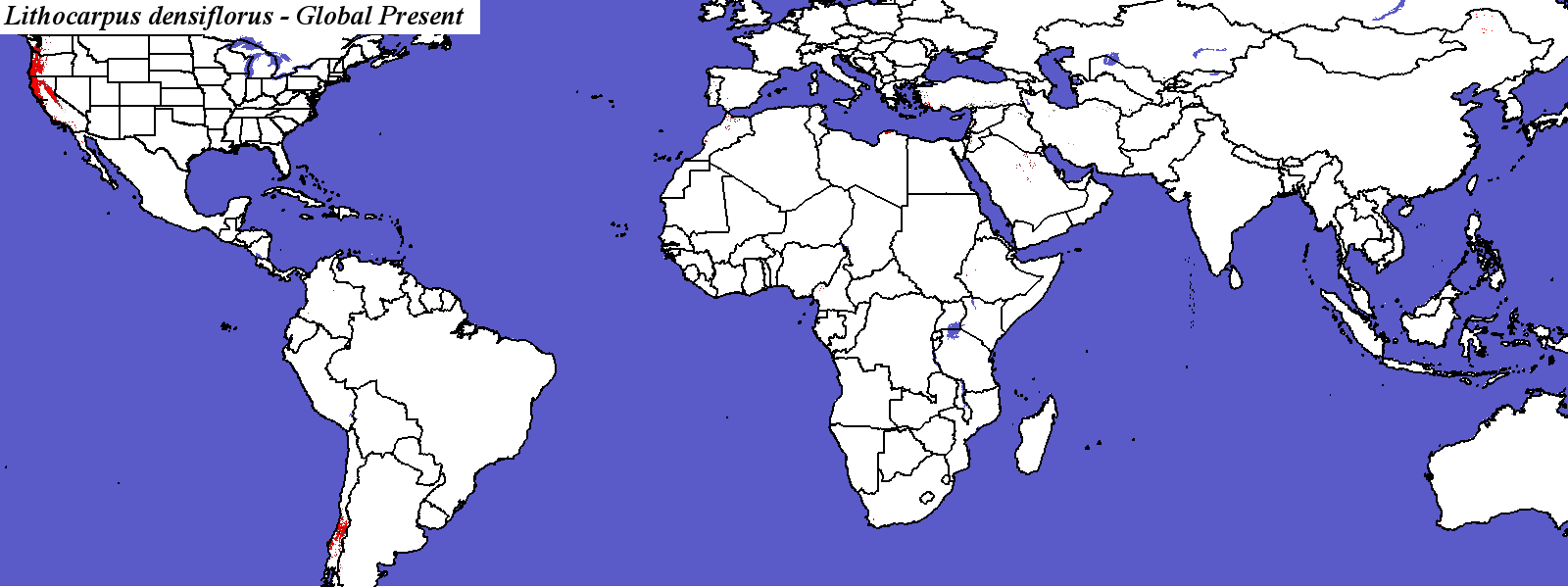

Lithocarpus densiflorus - Global

PCM - Parallel Climate Model
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

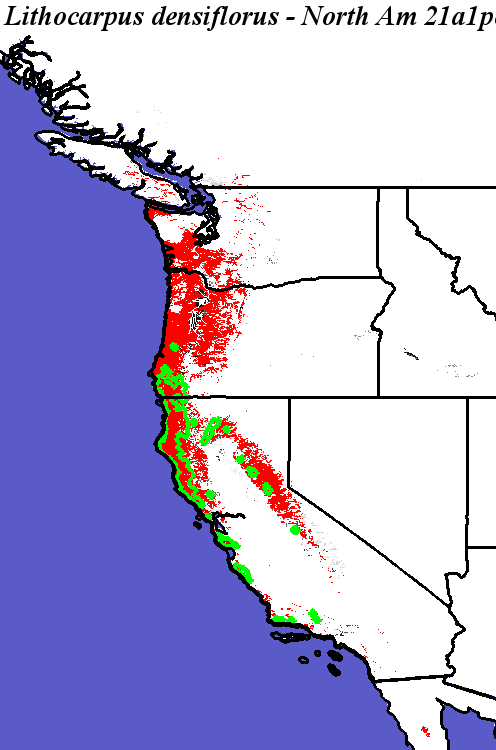

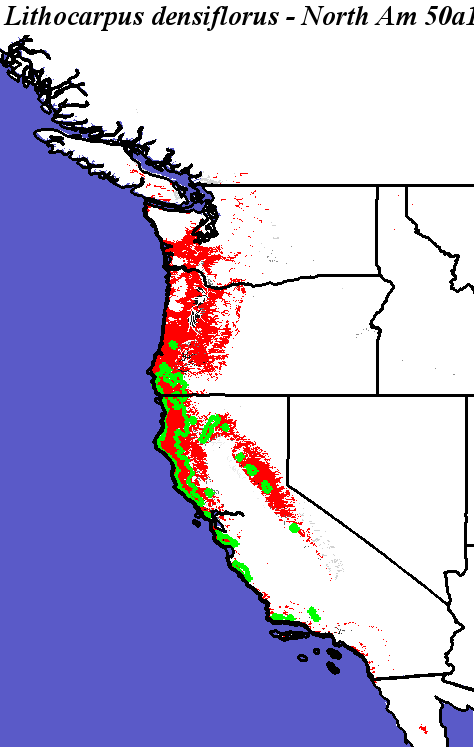

PCM, Scenario A1FI, 2050 - Lithocarpus densiflorus - CONUS

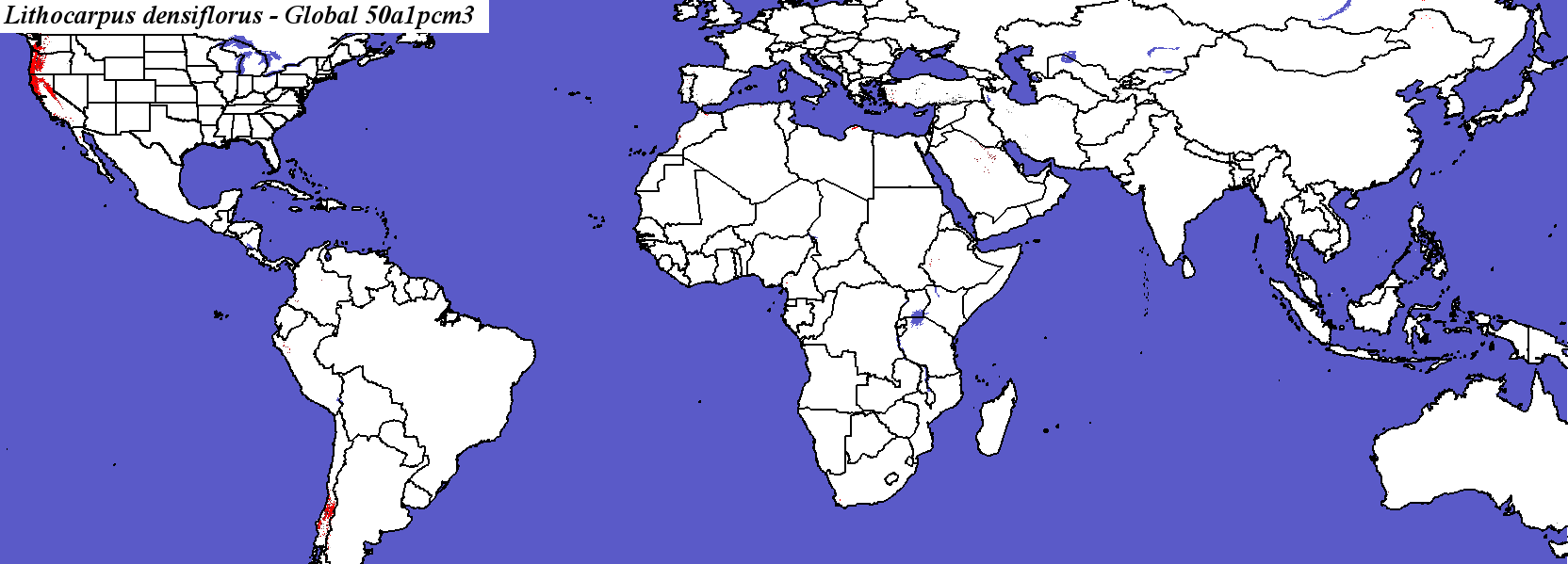

PCM, Scenario A1FI, 2050 - Lithocarpus densiflorus - Global
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

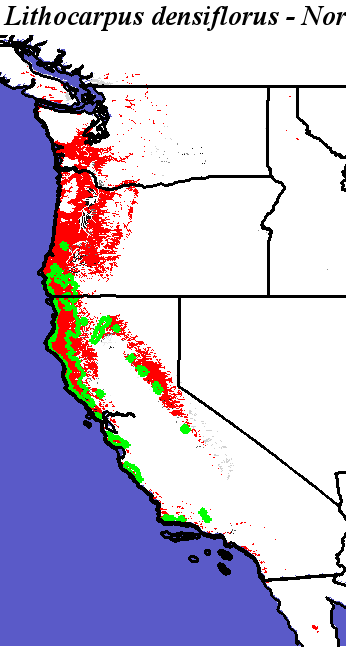

PCM, Scenario A1FI, 2100 - Lithocarpus densiflorus - CONUS
Lithocarpus densiflorus species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Lithocarpus densiflorus - Global

Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

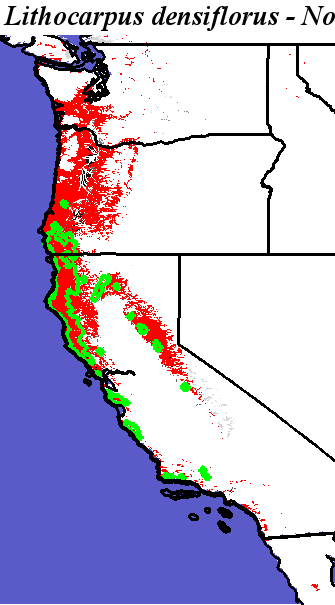

PCM, Scenario B1, 2050 - Lithocarpus densiflorus - CONUS
PCM, Scenario B1, 2050 - Lithocarpus densiflorus - Global
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global
PCM, Scenario B1, 2100 - Lithocarpus densiflorus - CONUS
Lithocarpus densiflorus not modeled by Iverson and Prasad

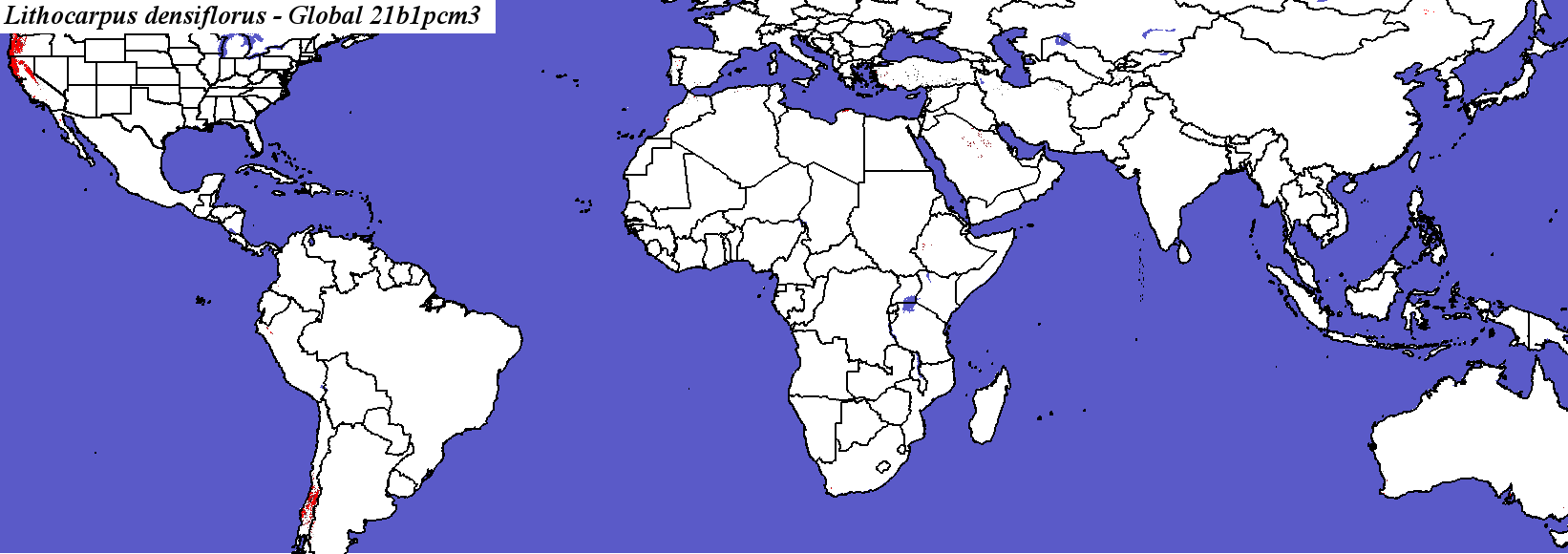

PCM, Scenario B1, 2100 - Lithocarpus densiflorus - Global

Hadley Climate Model
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

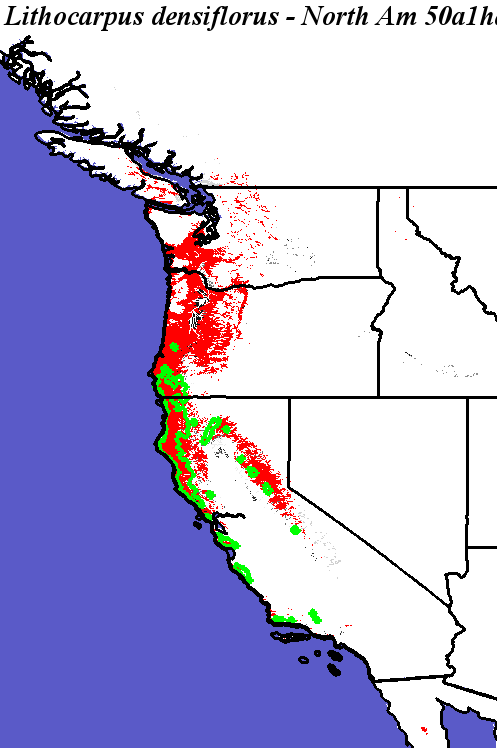

Hadley, Scenario A1FI, 2050 - Lithocarpus densiflorus - CONUS
Compare with Lithocarpus densiflorus modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

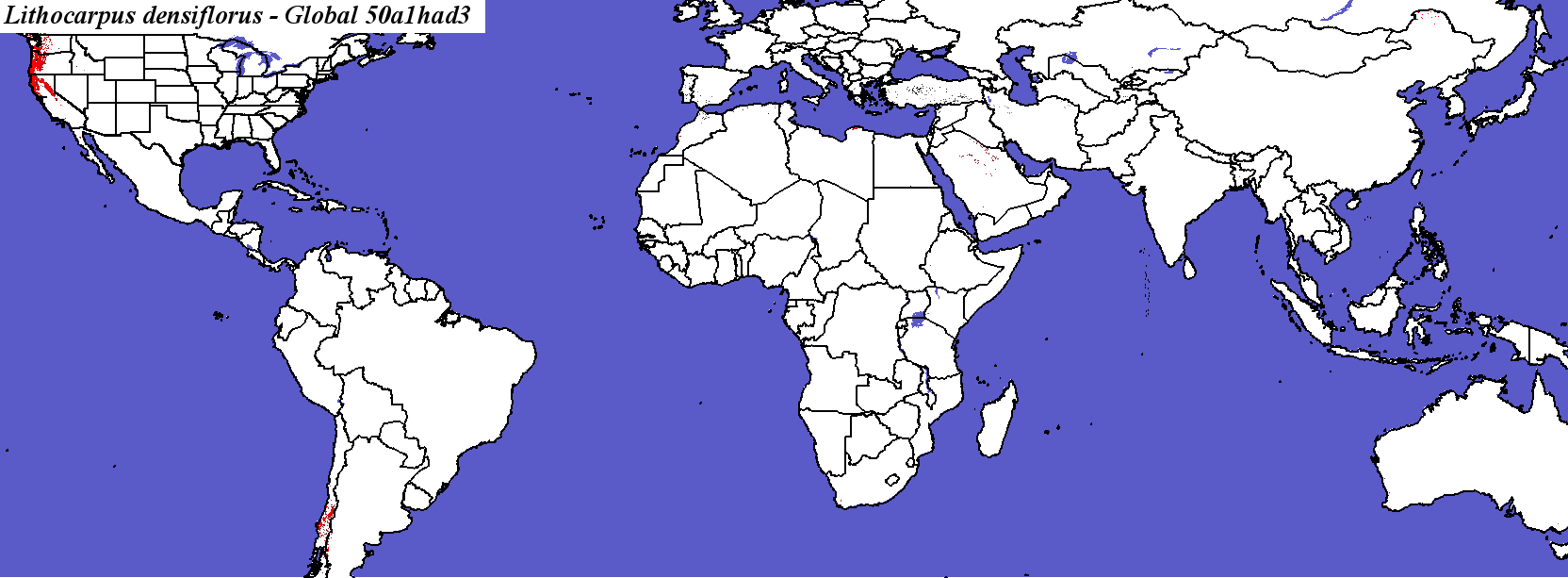

Hadley, Scenario A1FI, 2050 - Lithocarpus densiflorus - Global
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global.

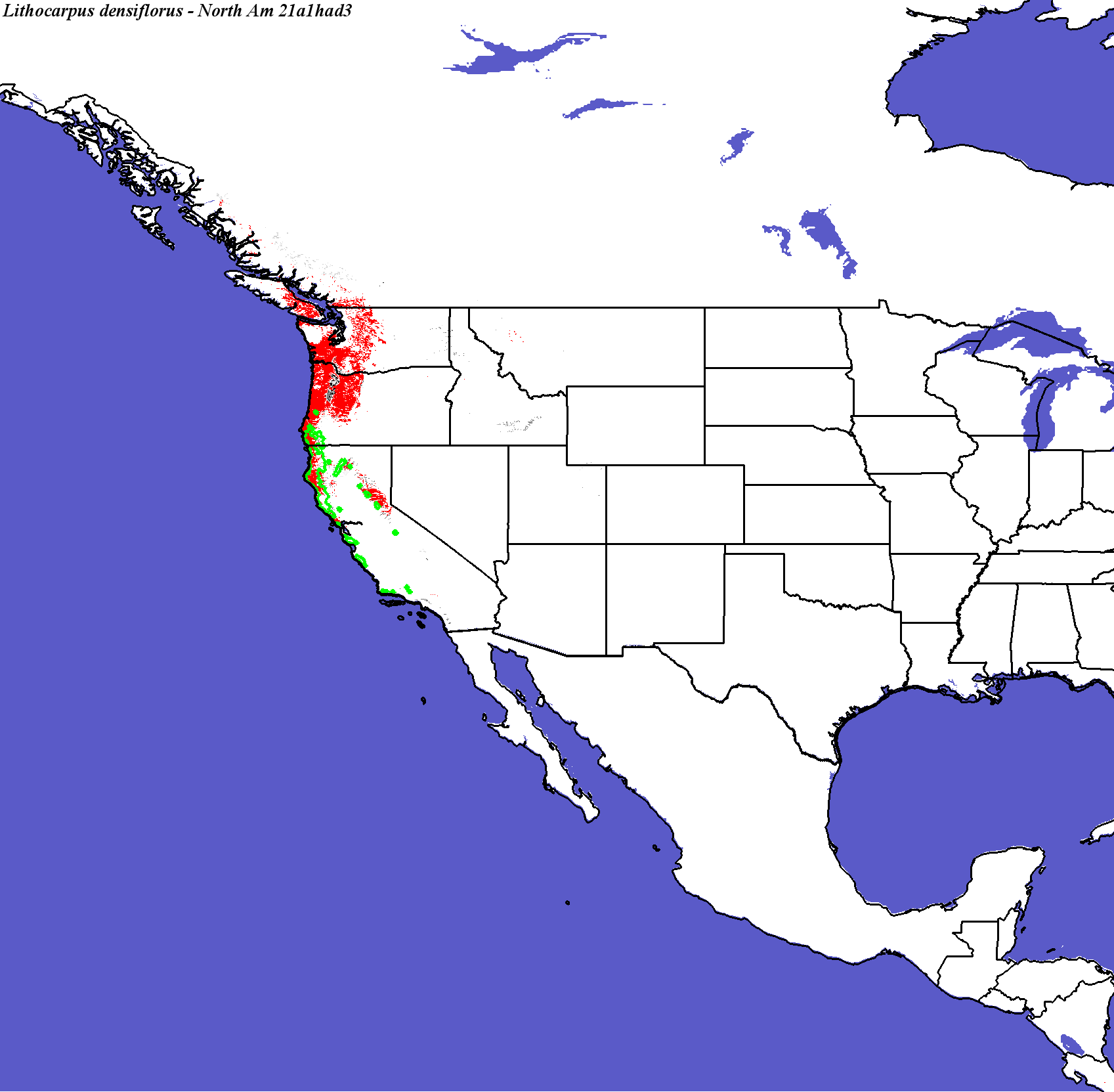

Hadley, Scenario A1FI, 2100 - Lithocarpus densiflorus - CONUS
Lithocarpus densiflorus not modeled by Iverson and Prasad
Compare with Lithocarpus densiflorus modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Lithocarpus densiflorus not modeled by Coops and Waring

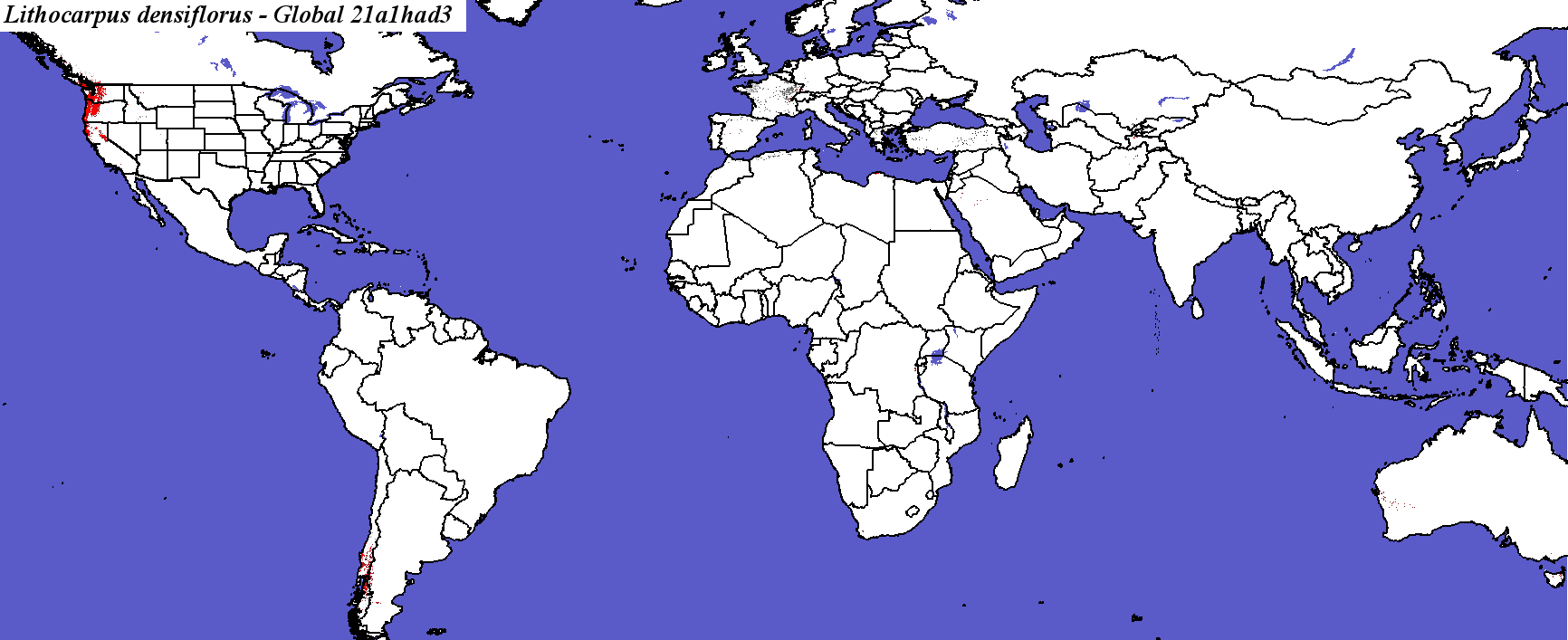

Hadley, Scenario A1FI, 2100 - Lithocarpus densiflorus - Global

Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global.

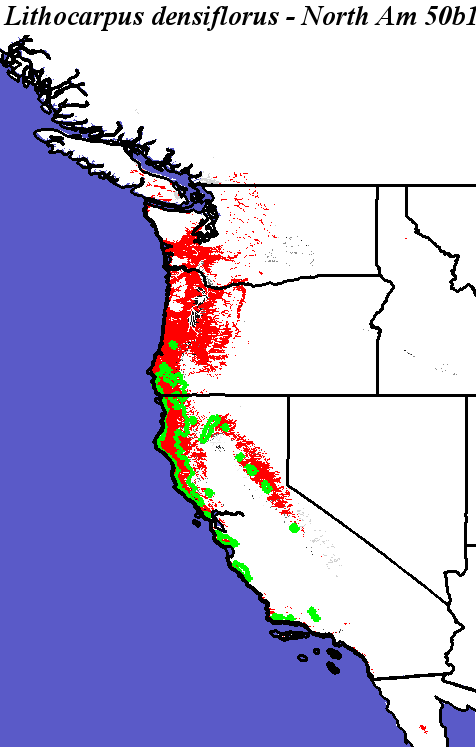

Hadley, Scenario B1, 2050 - Lithocarpus densiflorus - CONUS
Compare with Lithocarpus densiflorus modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Lithocarpus densiflorus not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Lithocarpus densiflorus - Global
Lithocarpus_densiflorus_final.3.conus
Lithocarpus_densiflorus_final.3.global

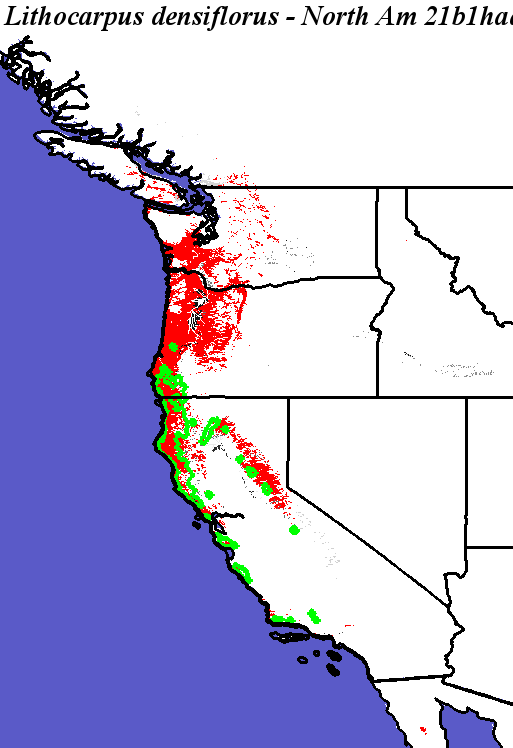

Hadley, Scenario B1, 2100 - Lithocarpus densiflorus - CONUS
Lithocarpus densiflorus not modeled by Iverson and Prasad
Compare with Lithocarpus densiflorus modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

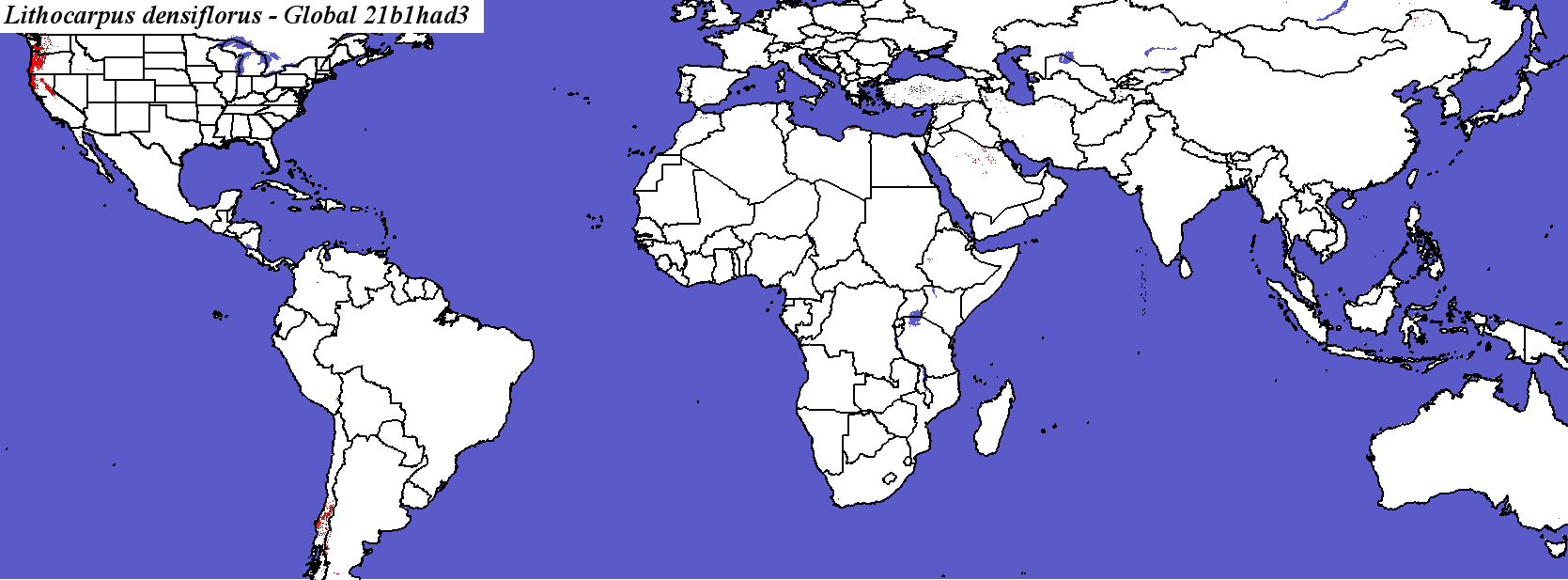

Hadley, Scenario B1, 2100 - Lithocarpus densiflorus - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Lithocarpus_densiflorus_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

46

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

42.7397

Area in Present Suitable Range (in km2)

168464

Area in Future Suitable Range (Had B1 2050, in km2)

148356

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

120710

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

71.6500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

8.08219

Percent Change in Area of Suitable Range (Had B1 2050)

-11.9300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

18.3562

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

4190.48 +/- 13681.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

93.2877

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.57492 +/- 10.6448

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

89.1781

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

15.7873 +/- 26.789

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

89.726

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

89.589

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

50017

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

29.6900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

44.9315

Present and Future Ranges - Hadley, Scenario B1, 2050 - Lithocarpus densiflorus Lithocarpus densiflorus - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Lithocarpus_densiflorus_final.noelev Fine MRM Distance
Lithocarpus_densiflorus_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Lithocarpus densiflorus Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Lithocarpus densiflorus
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Lithocarpus_densiflorus_final.noelev Coarse MRM Distance
Lithocarpus_densiflorus_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Lithocarpus densiflorus Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Lithocarpus densiflorus
