Version 5 Tree Atlas


Magnolia acuminata

cucumbertree

noelev

Magnolia acuminata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Magnolia acuminata

USDA Plants Database entry for Magnolia acuminata
Silvics Manual entry for Magnolia acuminata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Magnolia acuminata var. subcordata69743740range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline
Magnolia_acuminata_final Occurrences

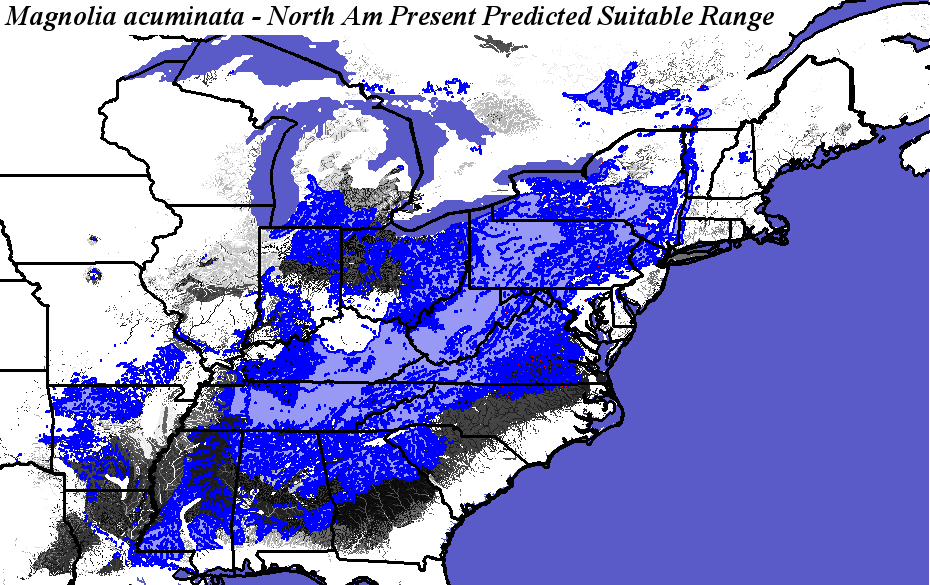

Hargroves Present Suitable Range Outline for Magnolia_acuminata_final
Magnolia acuminata - Occurrence Locations Magnolia acuminata - Hargrove's Present Suitable Range Outline
Present Conditions
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

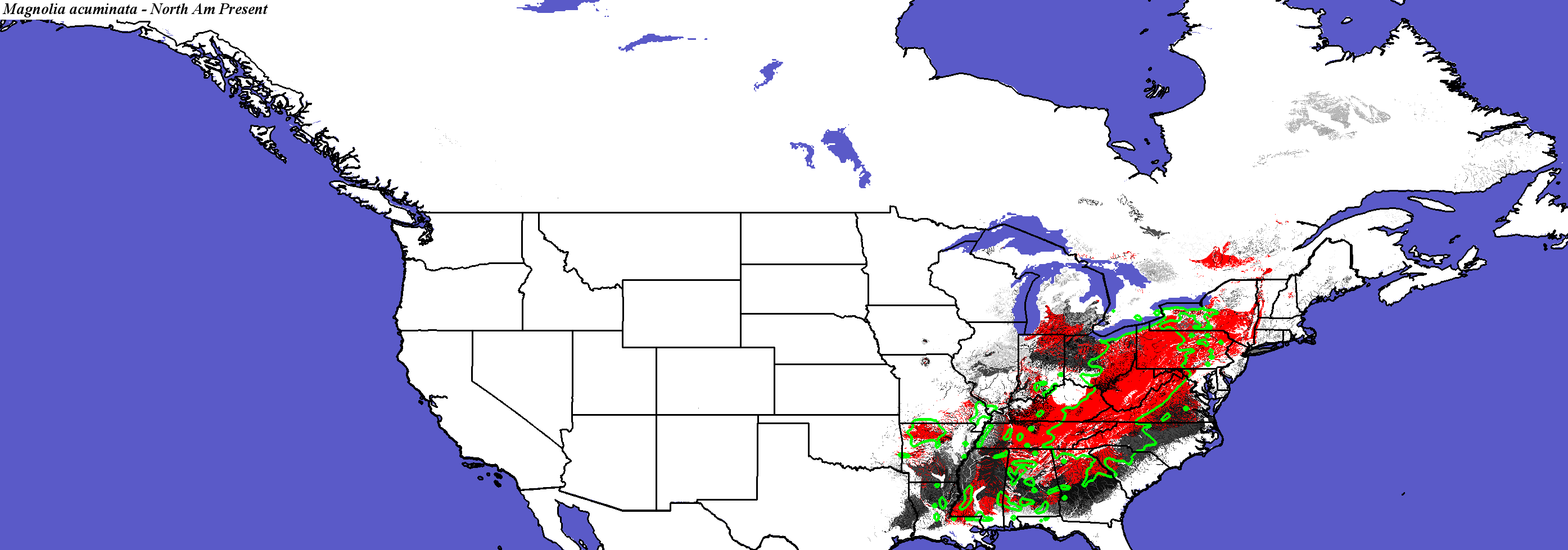

Magnolia acuminata - CONUS
Compare with Current Range from the Silvics Manual for Magnolia acuminata
Compare with Current Range from Biota of North America Program (BONAP) for Magnolia acuminata

Compare with Magnolia acuminata modeled for Current conditions by Iverson and Prasad
Magnolia acuminata not modeled by Crookston and Rehfeldt
Magnolia acuminata not modeled by Coops and Waring

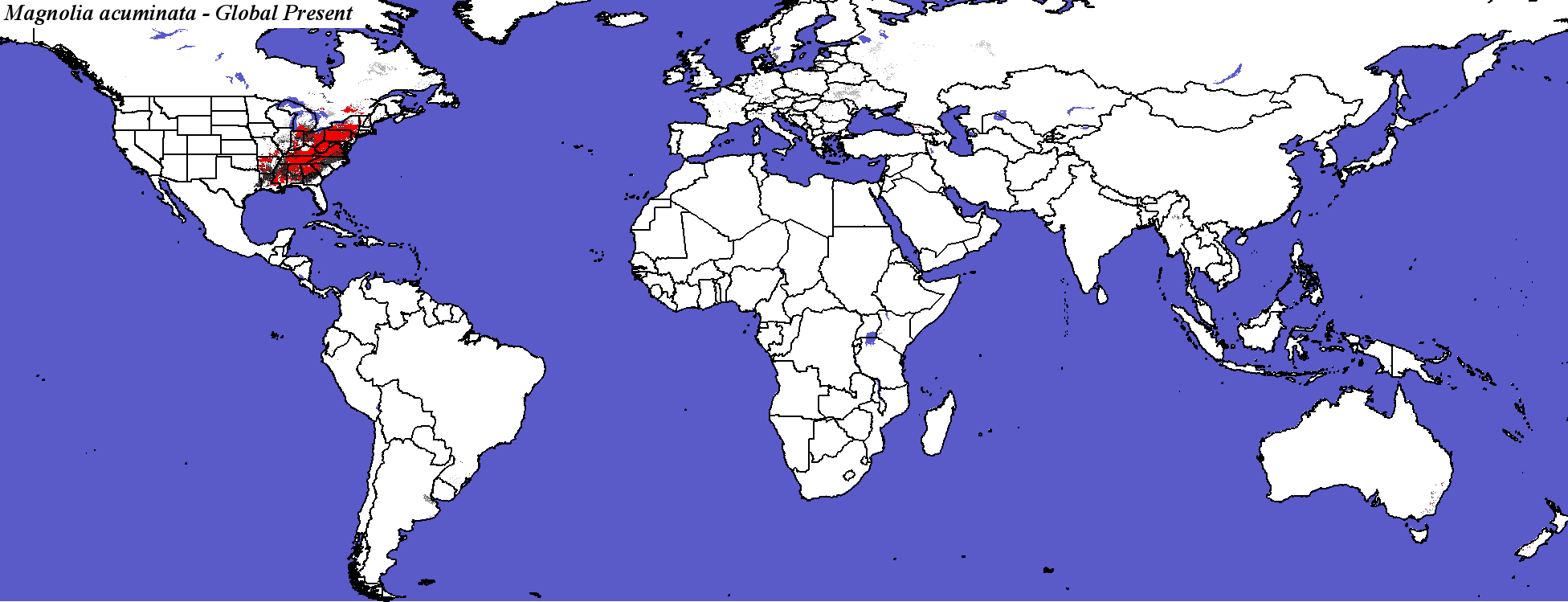

Magnolia acuminata - Global

PCM - Parallel Climate Model
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

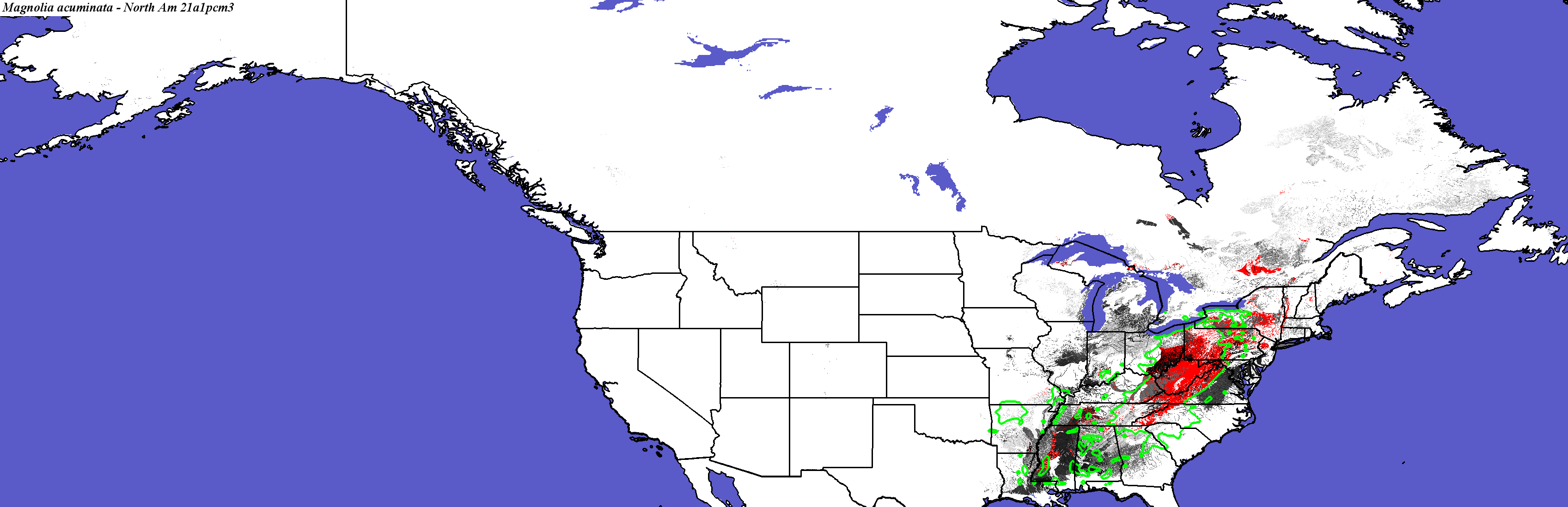

PCM, Scenario A1FI, 2050 - Magnolia acuminata - CONUS

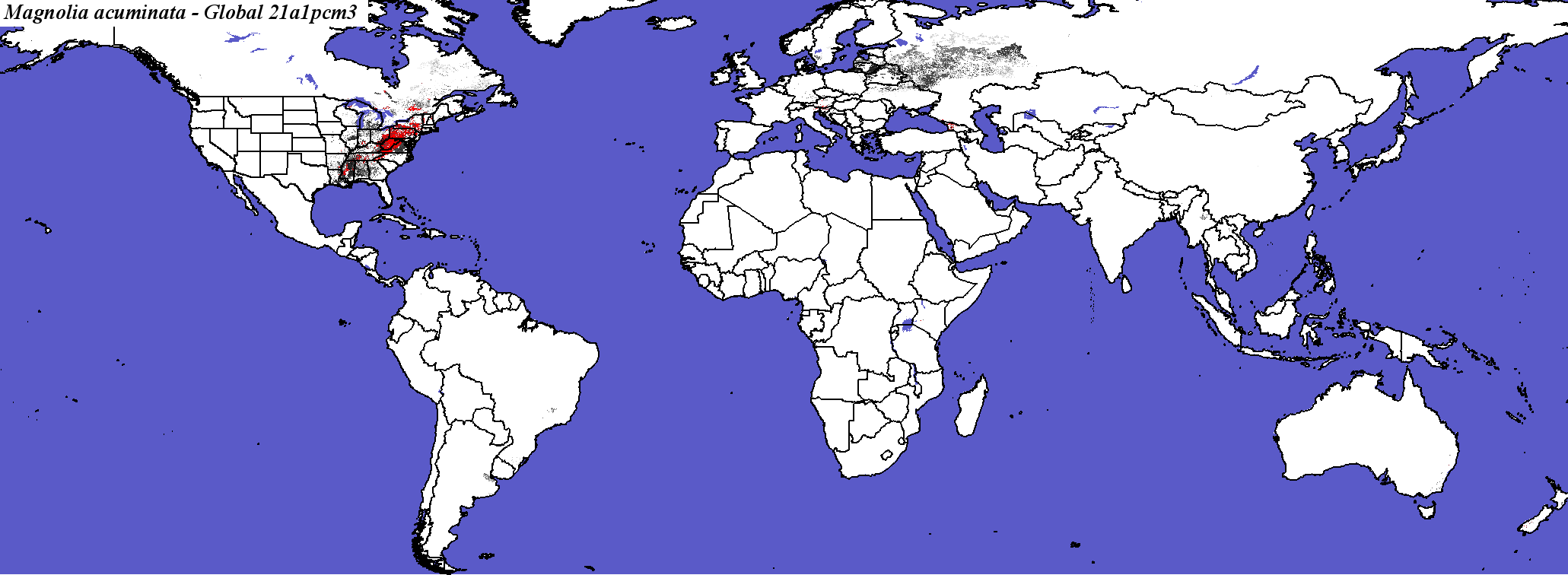

PCM, Scenario A1FI, 2050 - Magnolia acuminata - Global
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

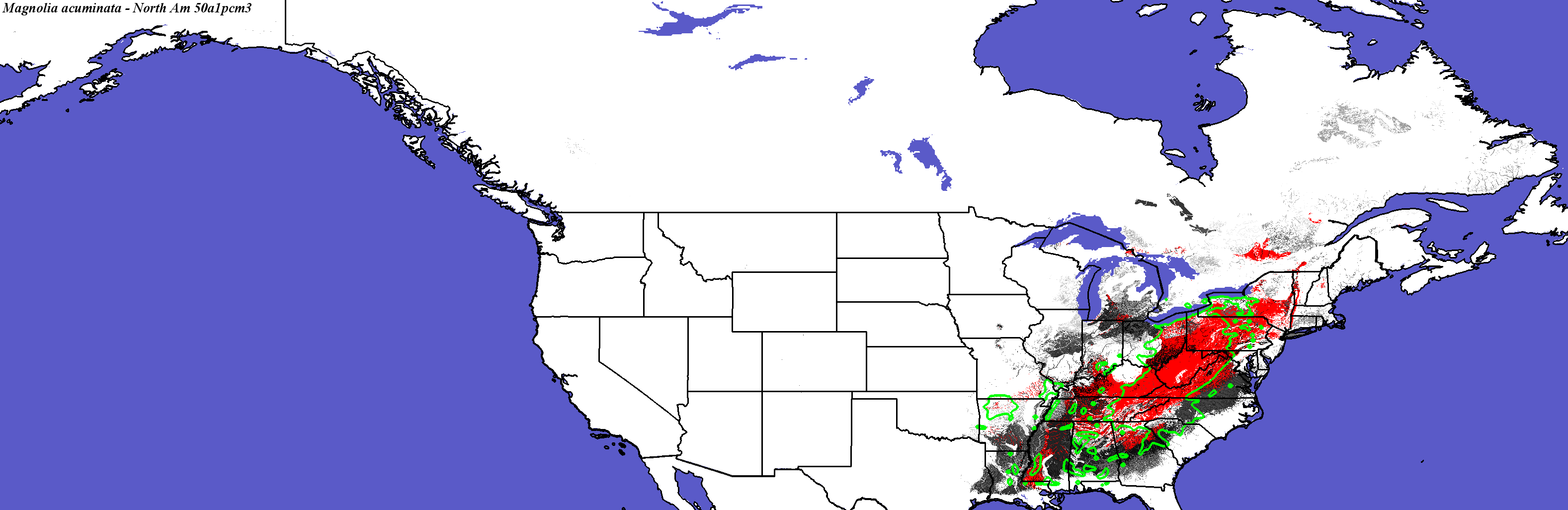

PCM, Scenario A1FI, 2100 - Magnolia acuminata - CONUS
Compare with Magnolia acuminata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Magnolia acuminata - Global

Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

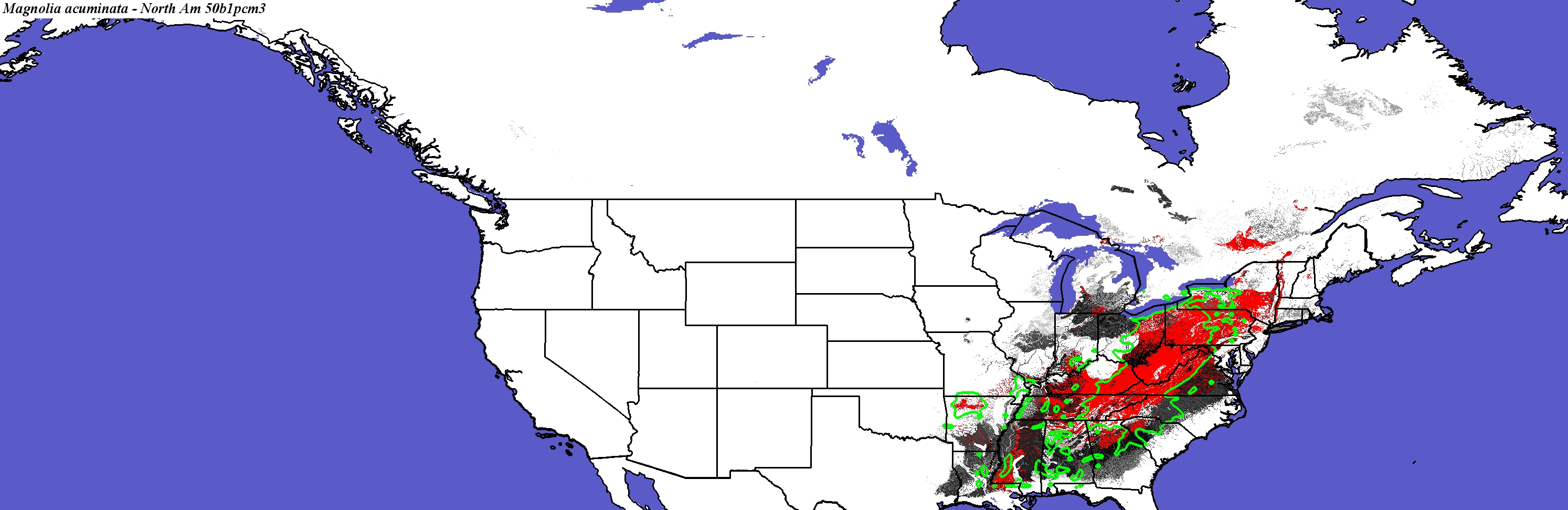

PCM, Scenario B1, 2050 - Magnolia acuminata - CONUS
PCM, Scenario B1, 2050 - Magnolia acuminata - Global
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

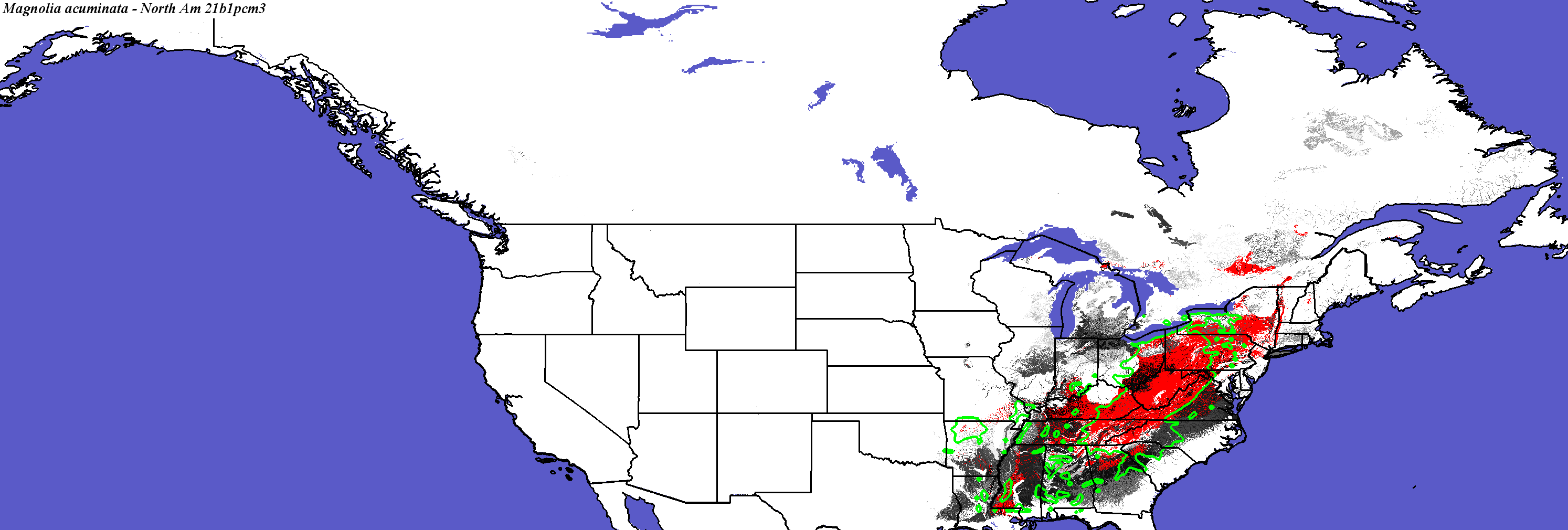

PCM, Scenario B1, 2100 - Magnolia acuminata - CONUS
Compare with Magnolia acuminata modeled for PCM B1 in 2100 by Iverson and Prasad

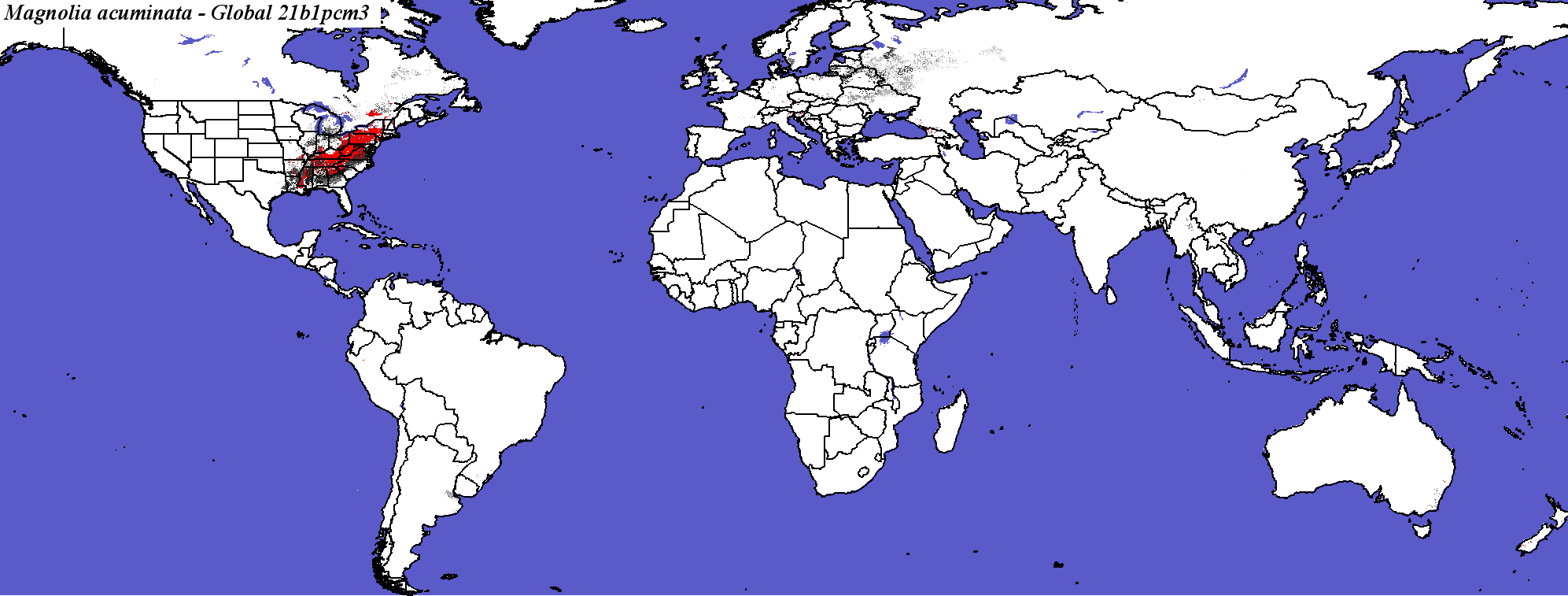

PCM, Scenario B1, 2100 - Magnolia acuminata - Global

Hadley Climate Model
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global

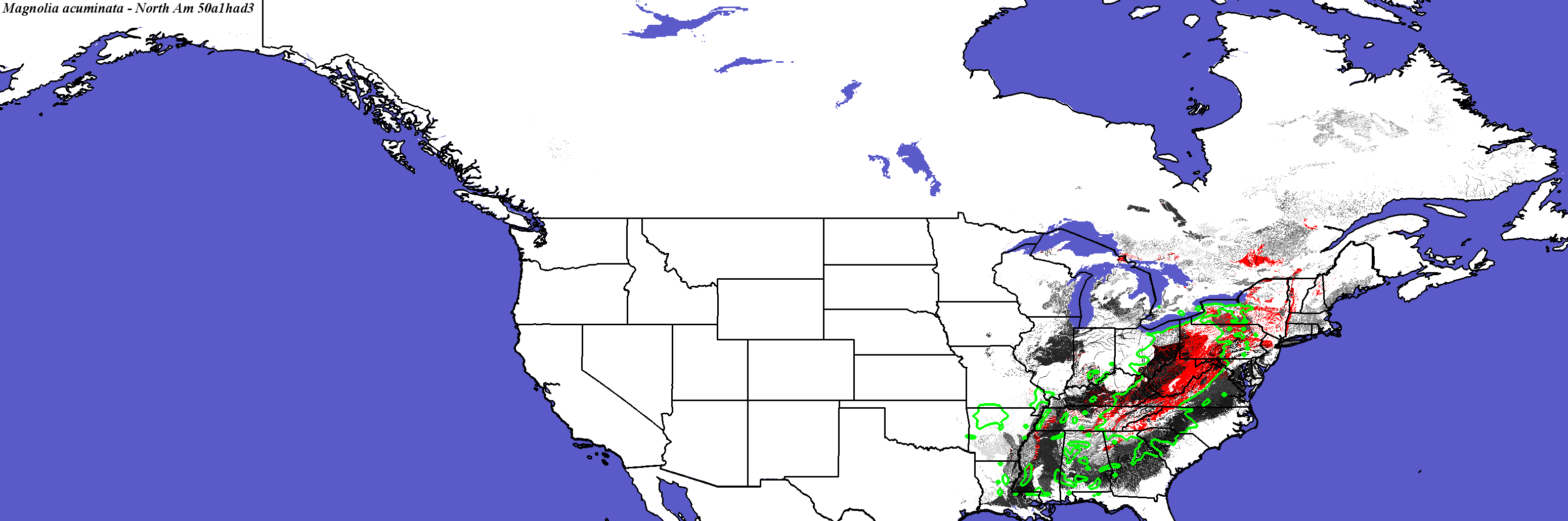

Hadley, Scenario A1FI, 2050 - Magnolia acuminata - CONUS
Magnolia acuminata not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Magnolia acuminata - Global
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global.

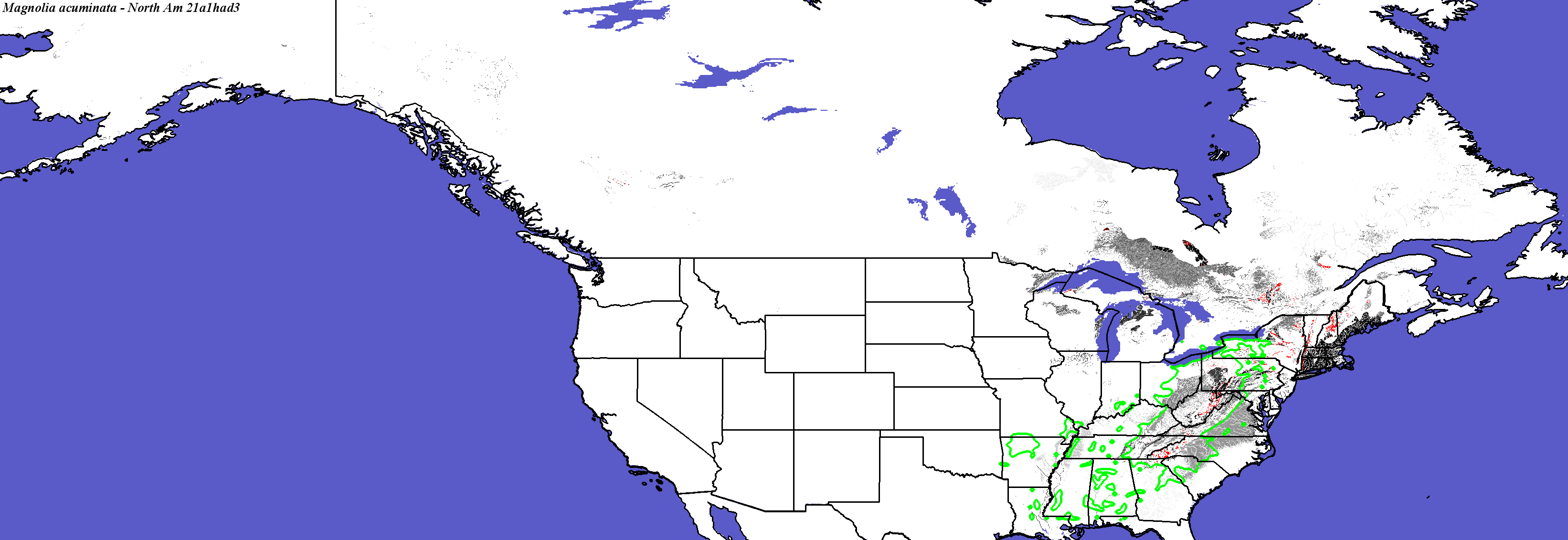

Hadley, Scenario A1FI, 2100 - Magnolia acuminata - CONUS
Compare with Magnolia acuminata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Magnolia acuminata not modeled by Crookston and Rehfeldt
Magnolia acuminata not modeled by Coops and Waring

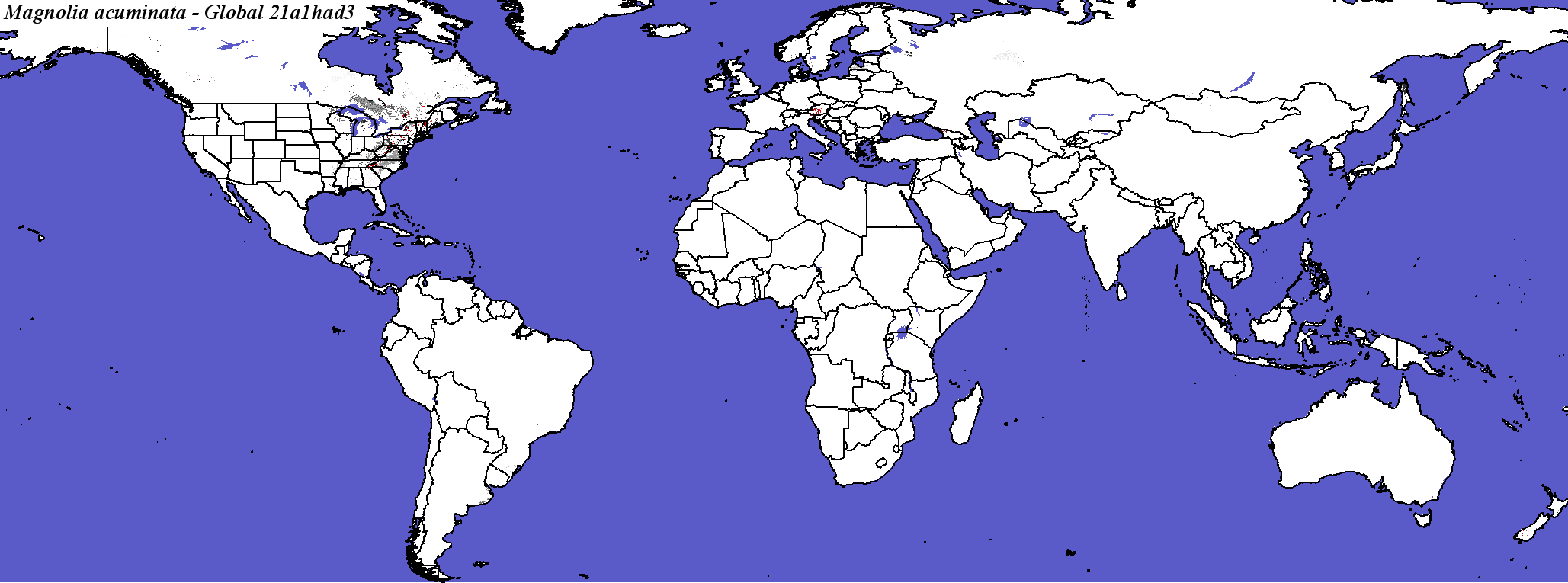

Hadley, Scenario A1FI, 2100 - Magnolia acuminata - Global

Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global.

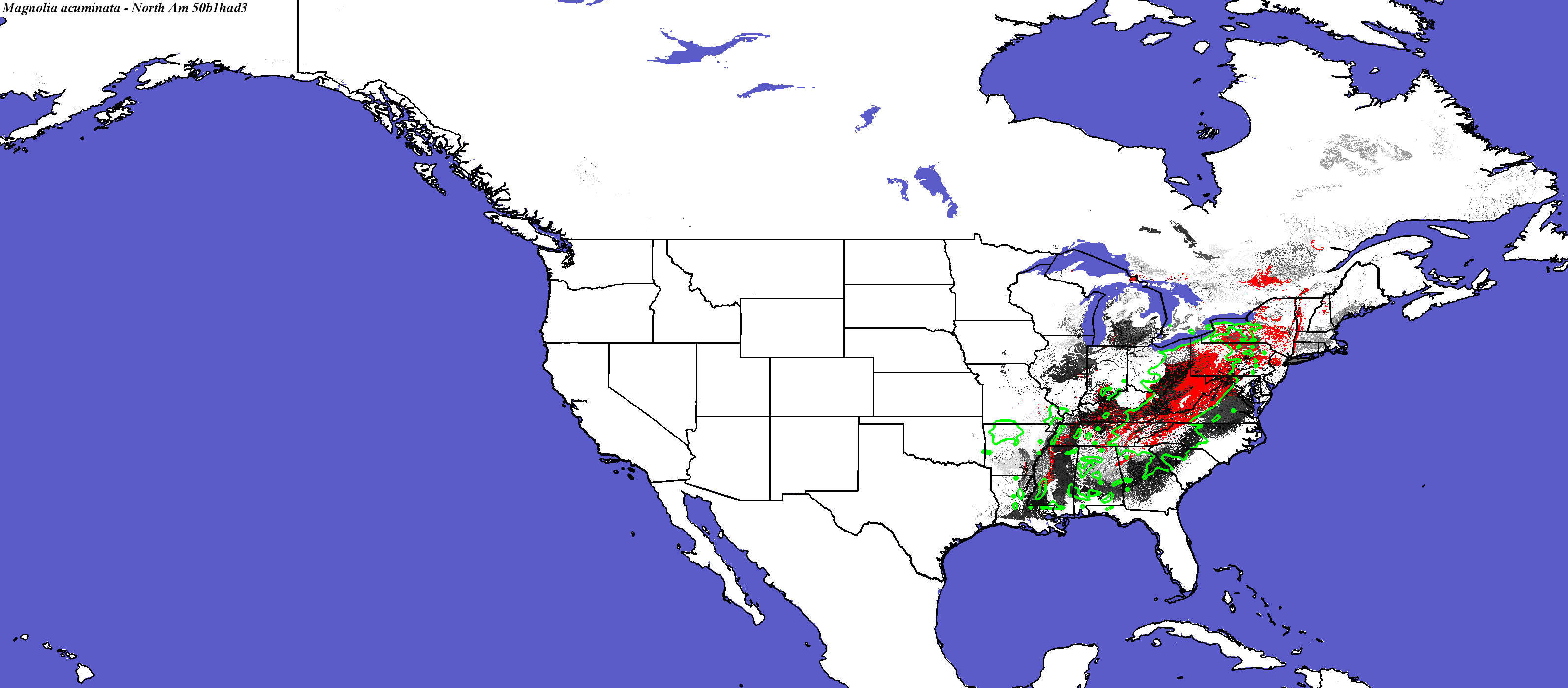

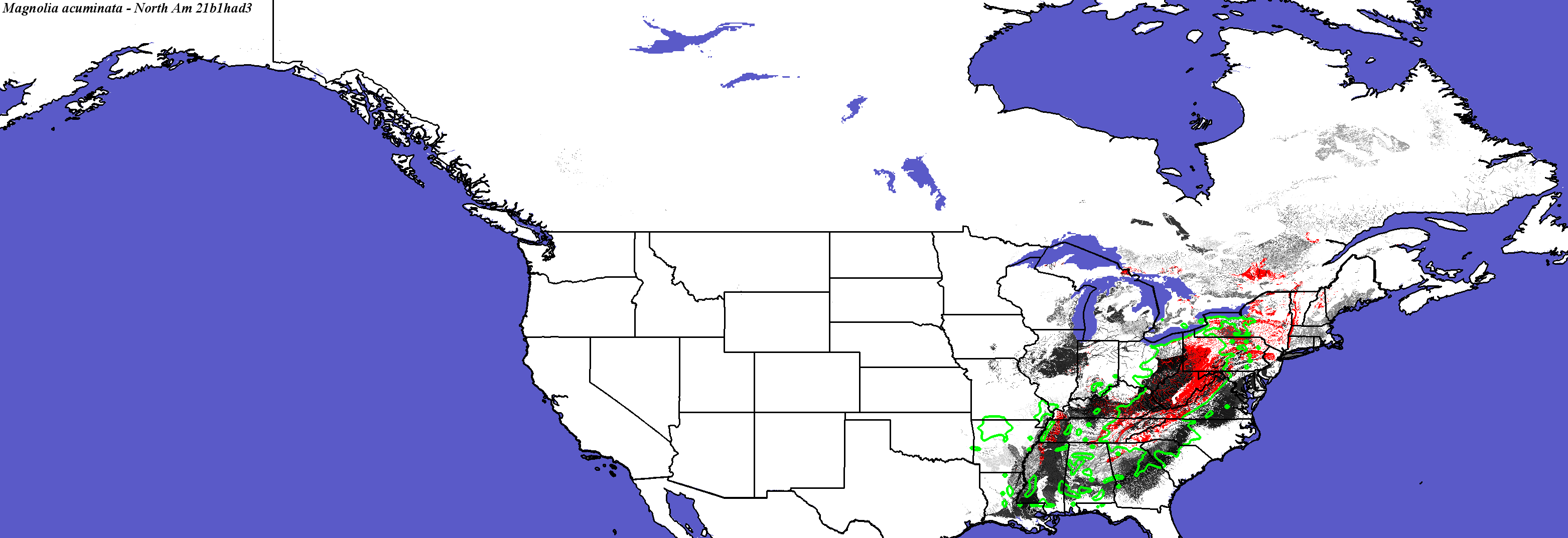

Hadley, Scenario B1, 2050 - Magnolia acuminata - CONUS
Magnolia acuminata not modeled by Crookston and Rehfeldt
Magnolia acuminata not modeled by Coops and Waring

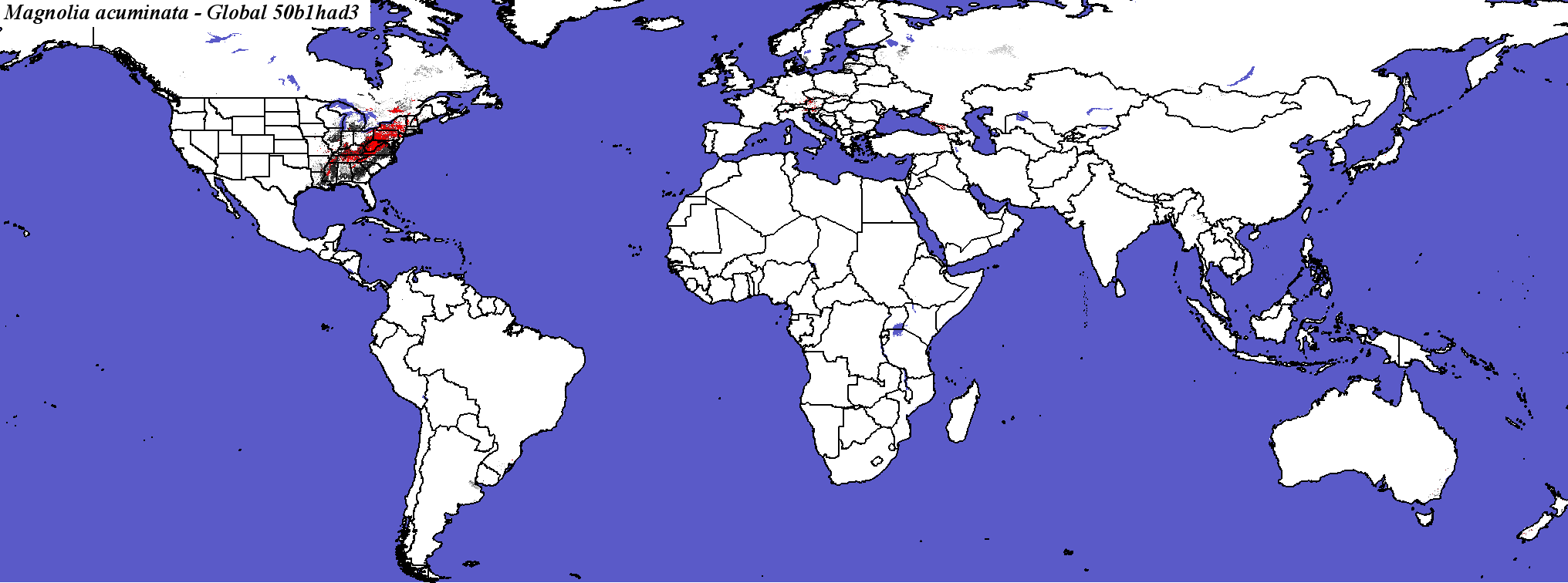

Hadley, Scenario B1, 2050 - Magnolia acuminata - Global
Magnolia_acuminata_final.3.conus
Magnolia_acuminata_final.3.global
Hadley, Scenario B1, 2100 - Magnolia acuminata - CONUS
Compare with Magnolia acuminata modeled for Hadley B1 in 2100 by Iverson and Prasad
Magnolia acuminata not modeled by Crookston and Rehfeldt

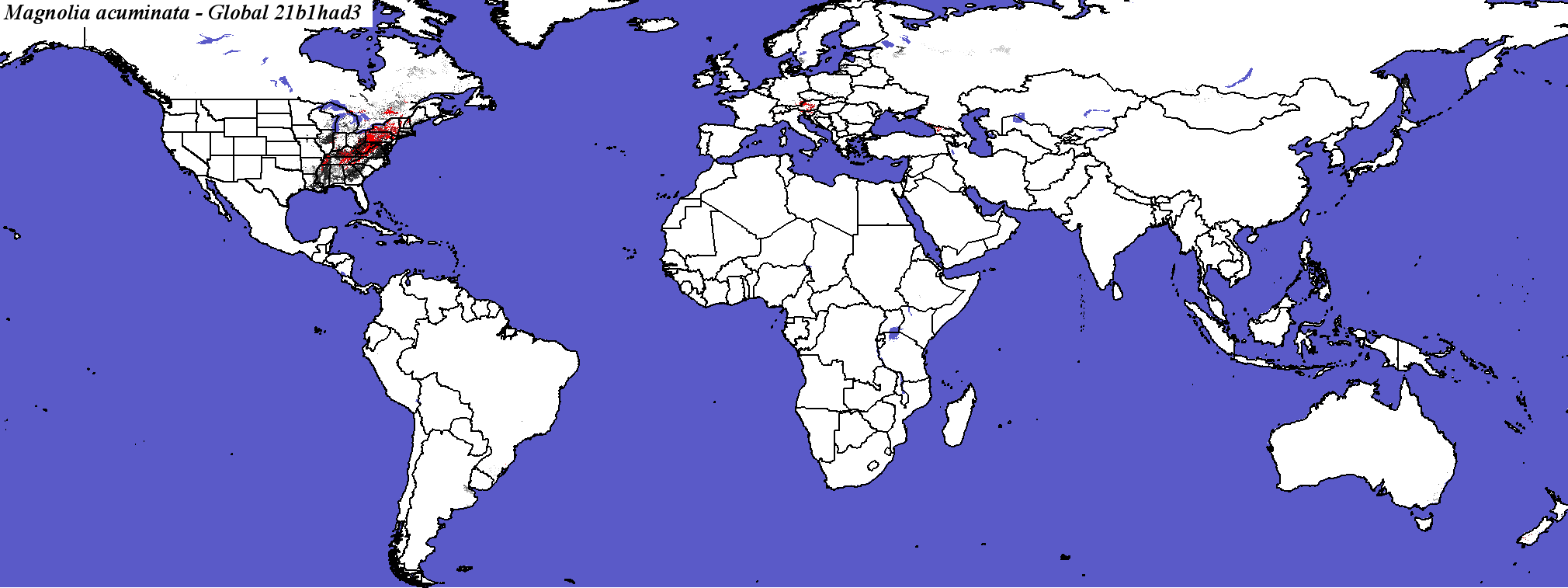

Hadley, Scenario B1, 2100 - Magnolia acuminata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Magnolia_acuminata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

70

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

30.6849

Area in Present Suitable Range (in km2)

662499

Area in Future Suitable Range (Had B1 2050, in km2)

295428

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

239246

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

36.1100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

76.7123

Percent Change in Area of Suitable Range (Had B1 2050)

-55.4000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.1233

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

32081.6 +/- 53012.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

19.589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

14.92 +/- 33.9027

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

17.8082

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

120.443 +/- 445.366

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

42.0548

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

16111

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.4300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

41.5068

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

134012

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.2200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

68.9041

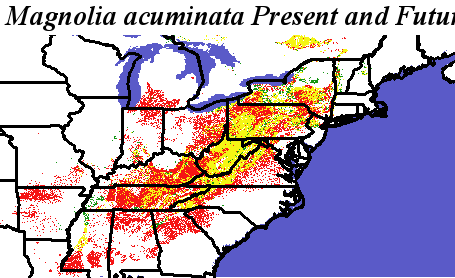

Present and Future Ranges - Hadley, Scenario B1, 2050 - Magnolia acuminata Magnolia acuminata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

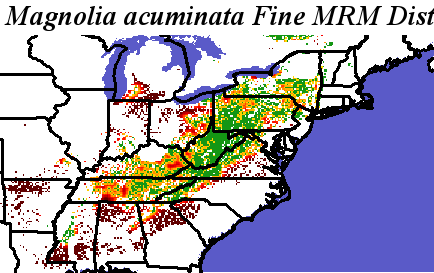

Magnolia_acuminata_final.noelev Fine MRM Distance

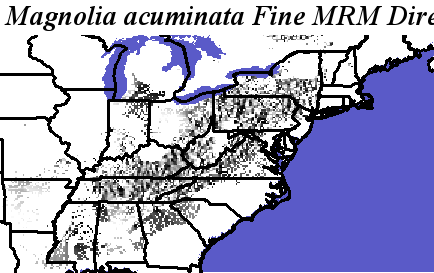

Magnolia_acuminata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia acuminata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Magnolia acuminata

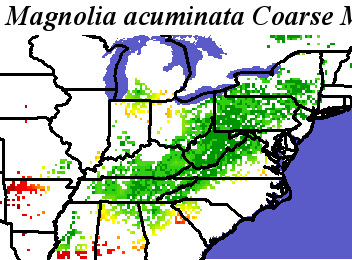

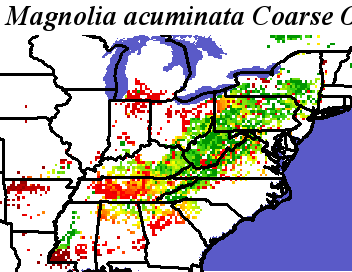

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Magnolia_acuminata_final.noelev Coarse MRM Distance
Magnolia_acuminata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia acuminata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Magnolia acuminata
