Version 5 Tree Atlas


Magnolia fraseri

mountain magnolia

noelev

Magnolia fraseri Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Magnolia fraseri

USDA Plants Database entry for Magnolia fraseri
Silvics Manual entry for Magnolia fraseri


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
21613229TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Magnolia_fraseri_final Occurrences
Hargroves Present Suitable Range Outline for Magnolia_fraseri_final
Magnolia fraseri - Occurrence Locations Magnolia fraseri - Hargrove's Present Suitable Range Outline
Present Conditions
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global

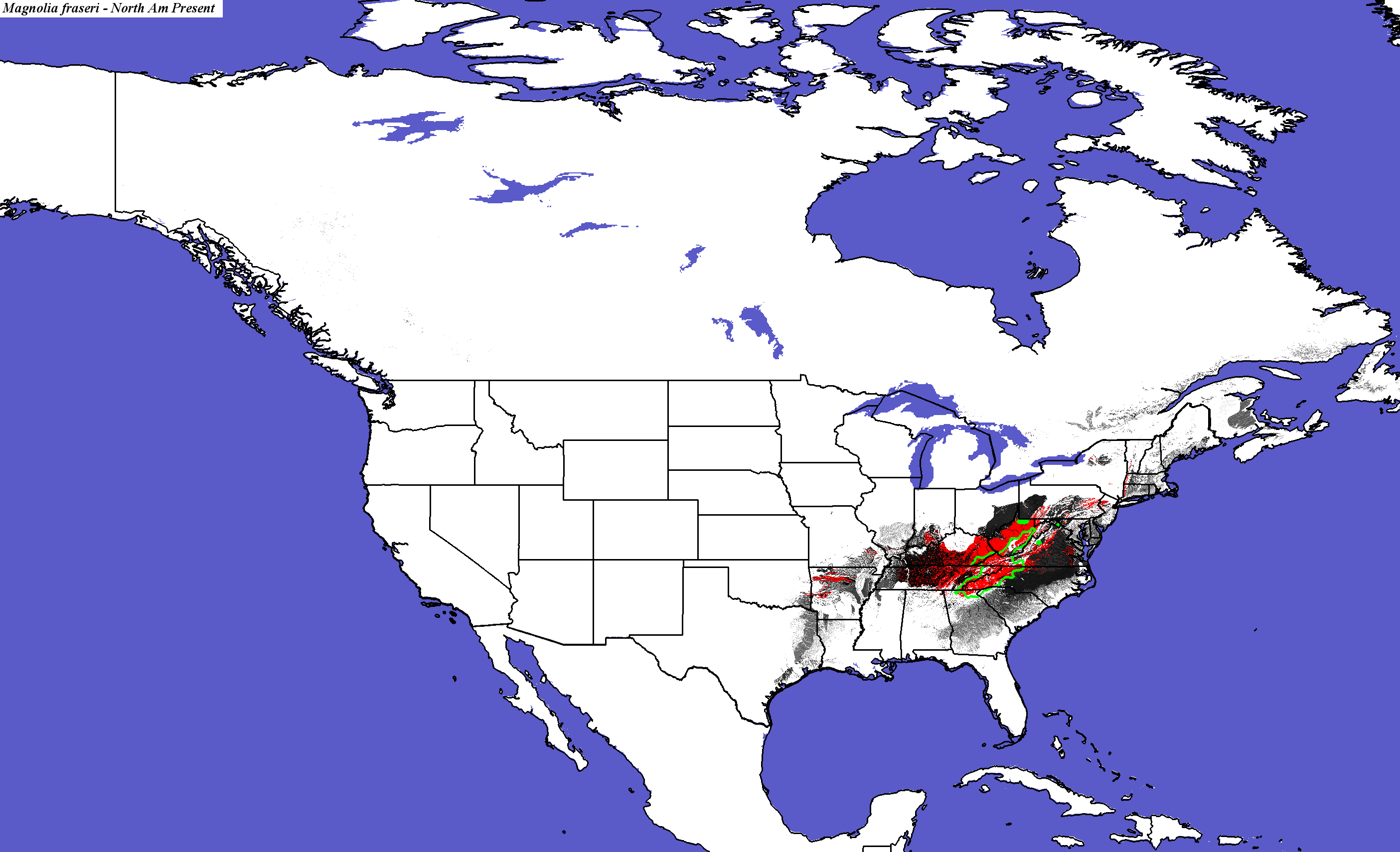

Magnolia fraseri - CONUS
Compare with Current Range from the Silvics Manual for Magnolia fraseri
Compare with Current Range from Biota of North America Program (BONAP) for Magnolia fraseri

Magnolia fraseri not modeled by Iverson and Prasad
Magnolia fraseri not modeled by Crookston and Rehfeldt
Magnolia fraseri not modeled by Coops and Waring
Magnolia fraseri - Global

PCM - Parallel Climate Model
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global

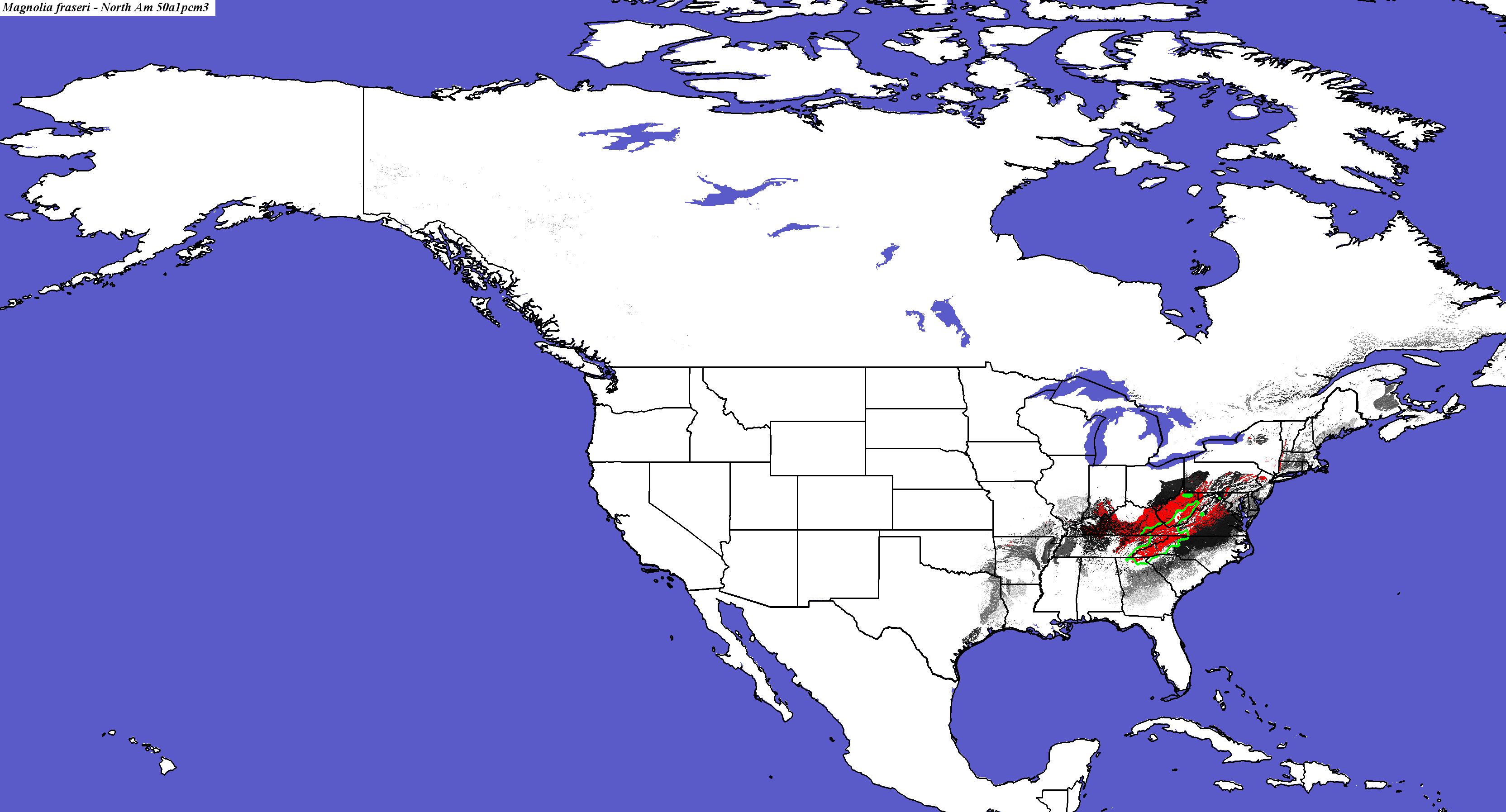

PCM, Scenario A1FI, 2050 - Magnolia fraseri - CONUS
PCM, Scenario A1FI, 2050 - Magnolia fraseri - Global
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global
PCM, Scenario A1FI, 2100 - Magnolia fraseri - CONUS
Magnolia fraseri species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Magnolia fraseri - Global

Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global
PCM, Scenario B1, 2050 - Magnolia fraseri - CONUS
PCM, Scenario B1, 2050 - Magnolia fraseri - Global
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global
PCM, Scenario B1, 2100 - Magnolia fraseri - CONUS
Magnolia fraseri not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Magnolia fraseri - Global

Hadley Climate Model
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global
Hadley, Scenario A1FI, 2050 - Magnolia fraseri - CONUS
Magnolia fraseri not modeled by Crookston and Rehfeldt

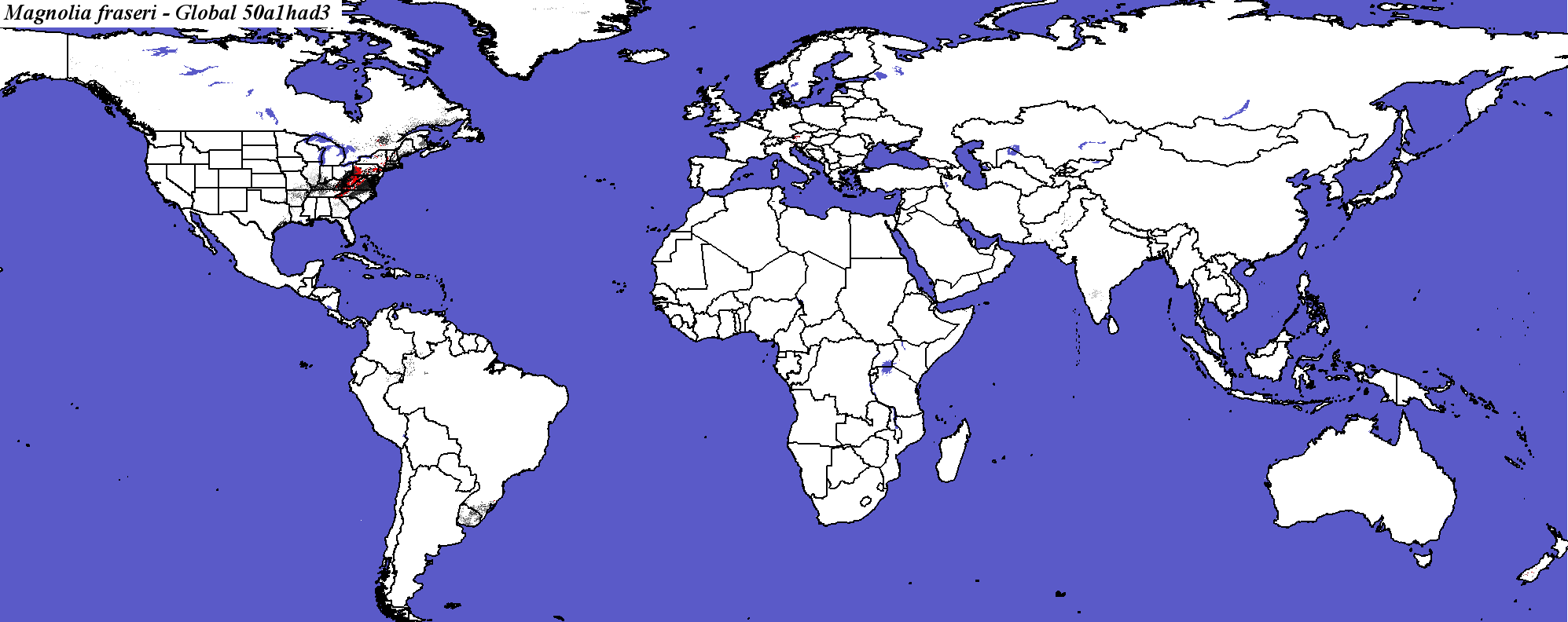

Hadley, Scenario A1FI, 2050 - Magnolia fraseri - Global
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global.

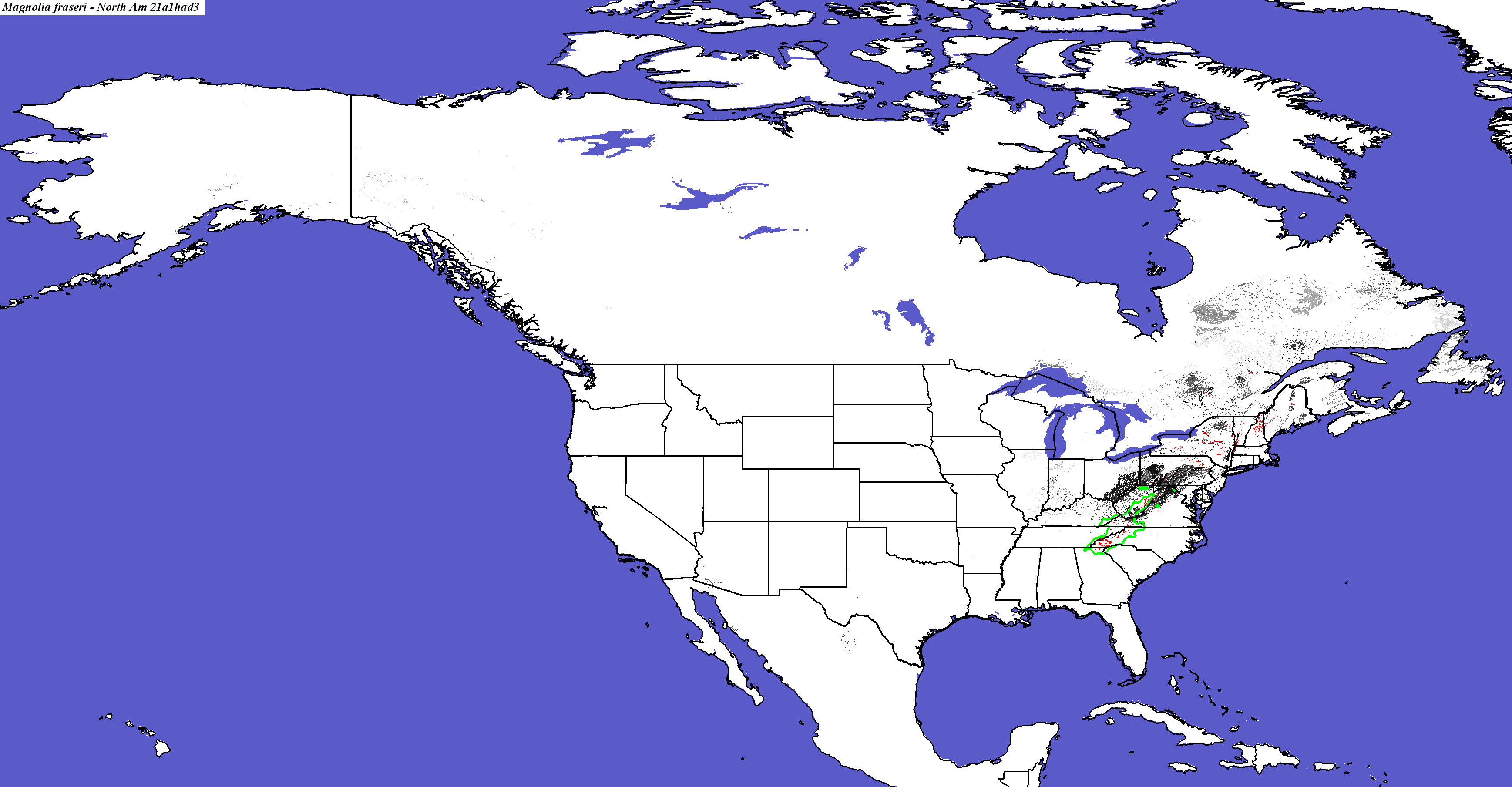

Hadley, Scenario A1FI, 2100 - Magnolia fraseri - CONUS
Magnolia fraseri not modeled by Iverson and Prasad
Magnolia fraseri not modeled by Crookston and Rehfeldt
Magnolia fraseri not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Magnolia fraseri - Global

Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global.

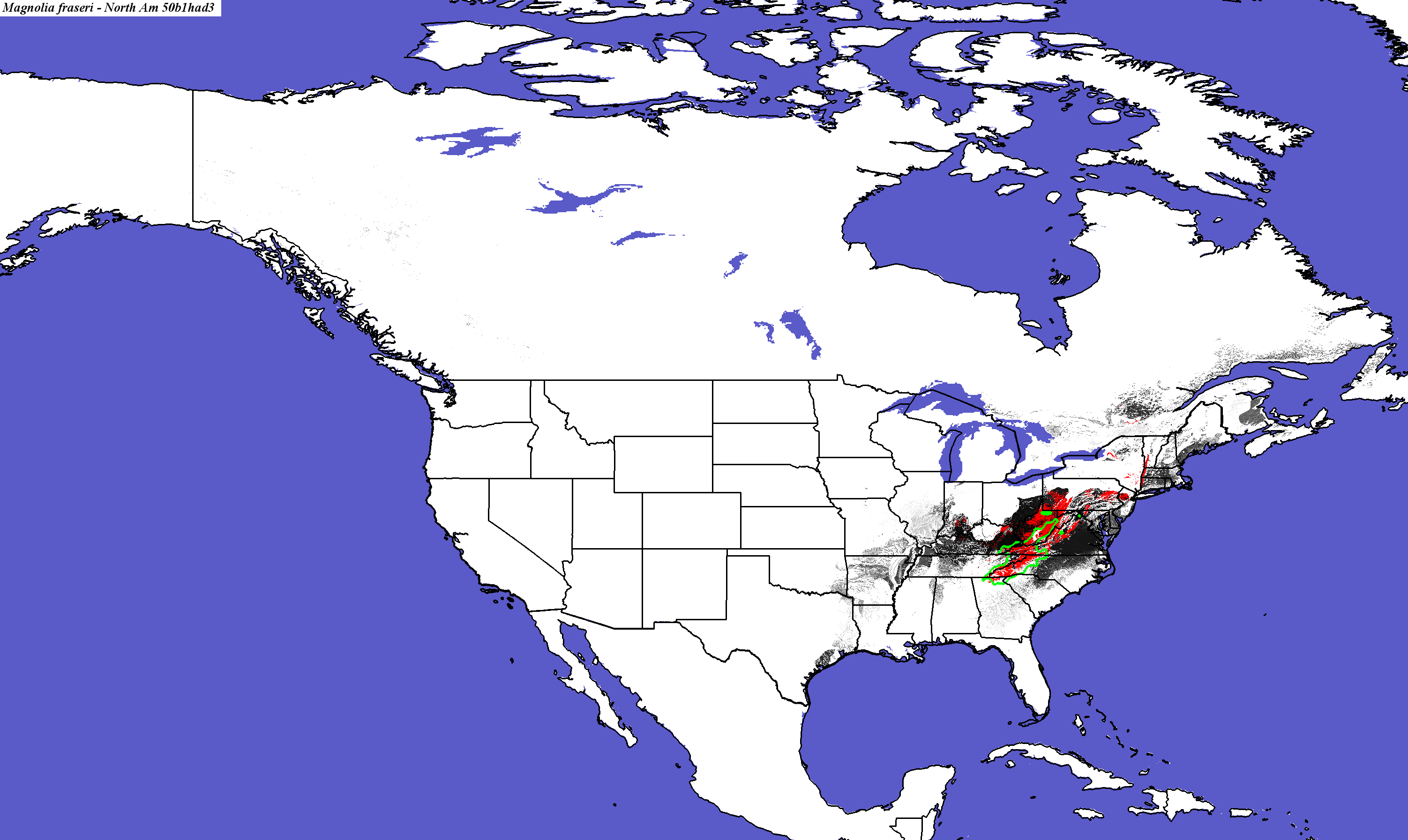

Hadley, Scenario B1, 2050 - Magnolia fraseri - CONUS
Magnolia fraseri not modeled by Crookston and Rehfeldt
Magnolia fraseri not modeled by Coops and Waring

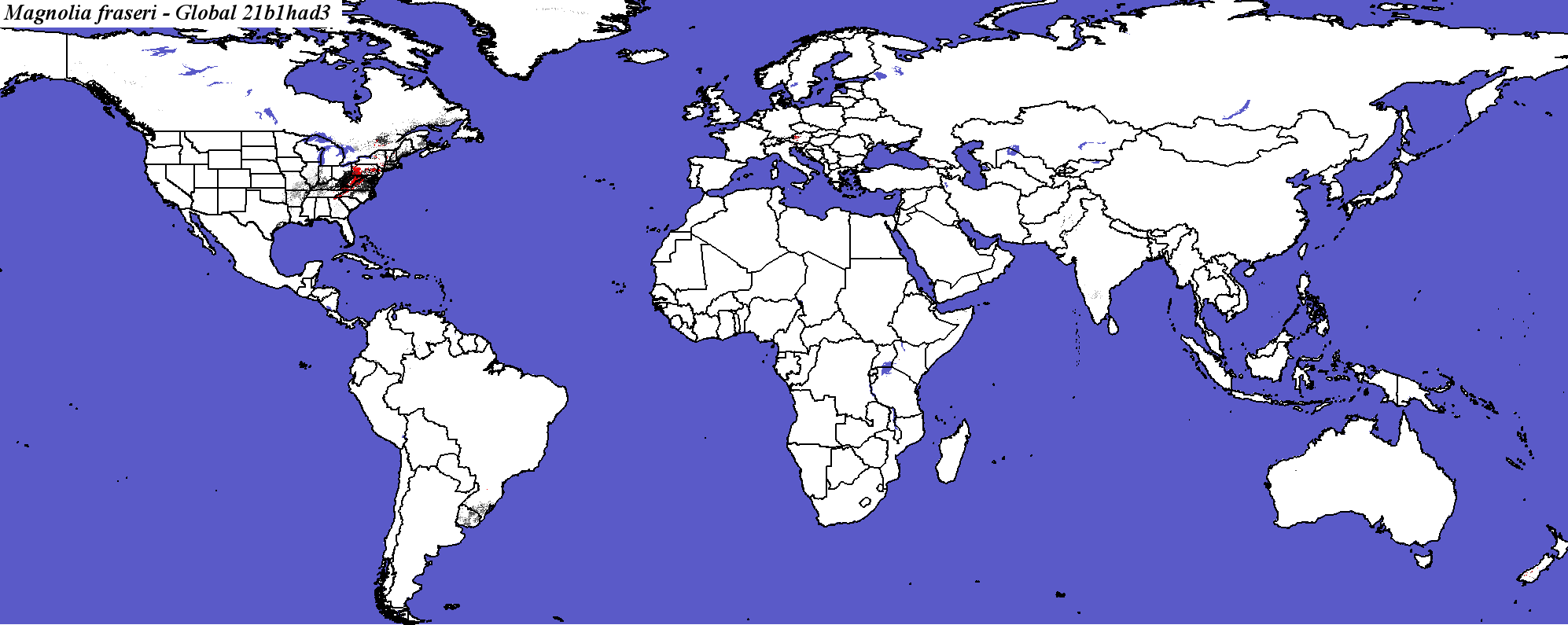

Hadley, Scenario B1, 2050 - Magnolia fraseri - Global
Magnolia_fraseri_final.3.conus
Magnolia_fraseri_final.3.global

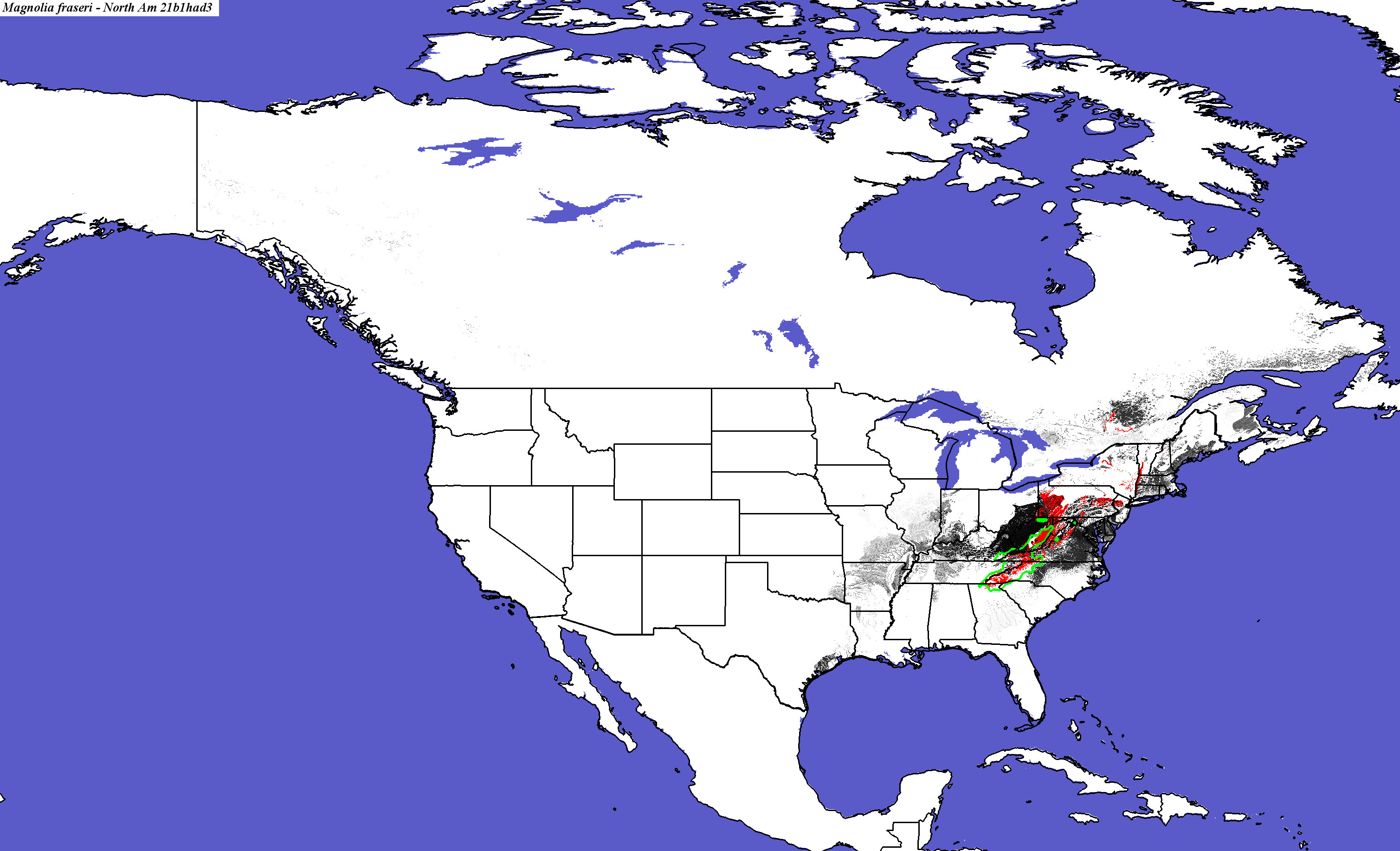

Hadley, Scenario B1, 2100 - Magnolia fraseri - CONUS
Magnolia fraseri not modeled by Iverson and Prasad
Magnolia fraseri not modeled by Crookston and Rehfeldt

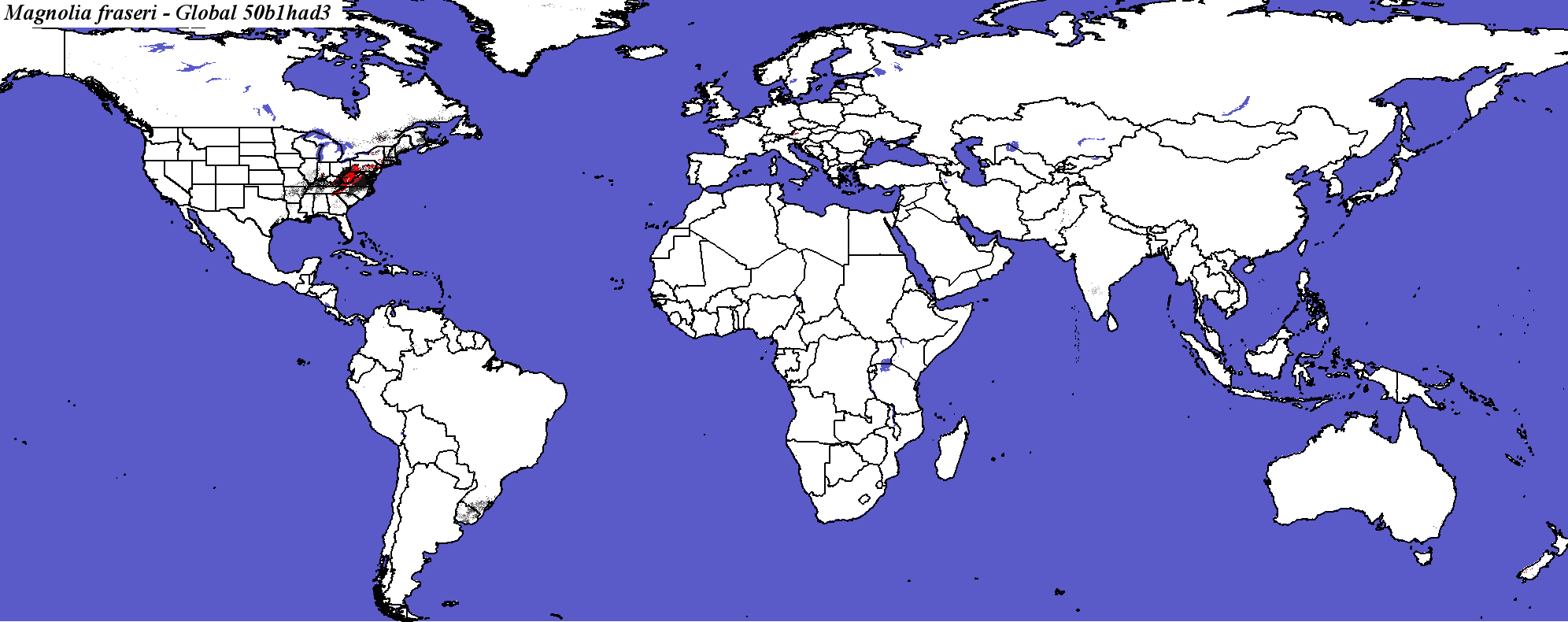

Hadley, Scenario B1, 2100 - Magnolia fraseri - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Magnolia_fraseri_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

27

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

52.4658

Area in Present Suitable Range (in km2)

147723

Area in Future Suitable Range (Had B1 2050, in km2)

96248

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

60233

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

40.7700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

68.2192

Percent Change in Area of Suitable Range (Had B1 2050)

-34.8400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

60.137

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

57492.5 +/- 149229

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

6.71233

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

20.2751 +/- 50.1485

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

9.58904

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

38.7951 +/- 58.9585

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

65.7534

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

89.3151

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

47682

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

32.2700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

39.726

Present and Future Ranges - Hadley, Scenario B1, 2050 - Magnolia fraseri Magnolia fraseri - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Magnolia_fraseri_final.noelev Fine MRM Distance

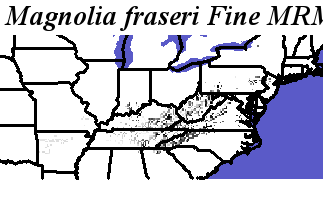

Magnolia_fraseri_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia fraseri Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Magnolia fraseri

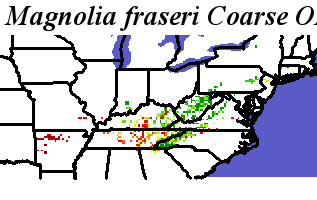

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

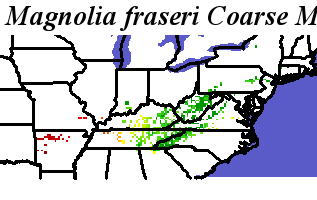

Magnolia_fraseri_final.noelev Coarse MRM Distance
Magnolia_fraseri_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia fraseri Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Magnolia fraseri
