Version 5 Tree Atlas


Magnolia grandiflora

Southern magnolia

noelev

Magnolia grandiflora Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Magnolia grandiflora

USDA Plants Database entry for Magnolia grandiflora
Silvics Manual entry for Magnolia grandiflora


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Magnolia elliptica; Magnolia lanceolata; Magnolia longifolia40740447range mostly well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Magnolia_grandiflora_final Occurrences

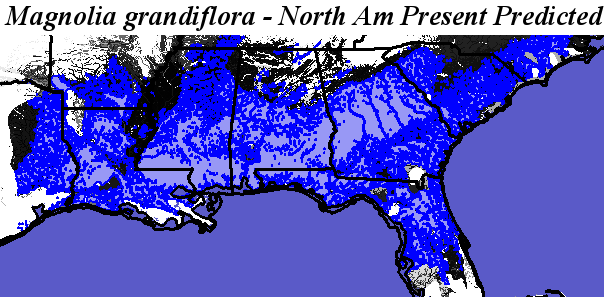

Hargroves Present Suitable Range Outline for Magnolia_grandiflora_final
Magnolia grandiflora - Occurrence Locations Magnolia grandiflora - Hargrove's Present Suitable Range Outline
Present Conditions
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

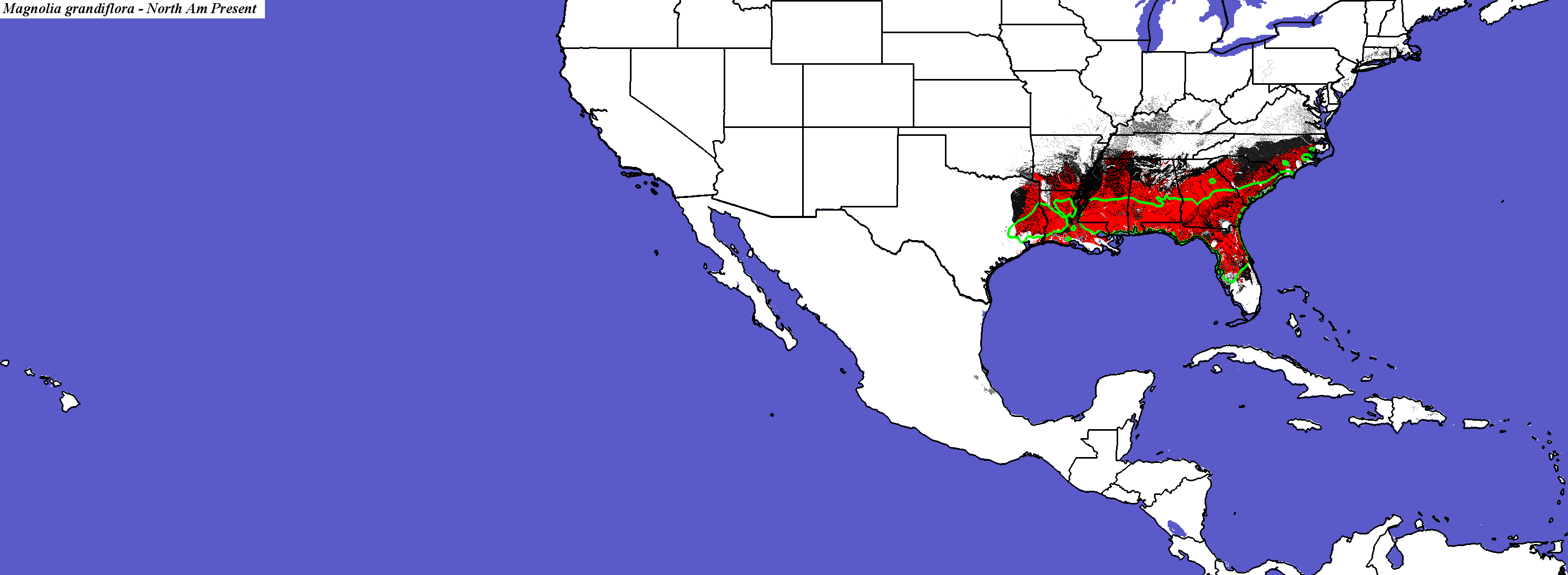

Magnolia grandiflora - CONUS
Compare with Current Range from the Silvics Manual for Magnolia grandiflora
Compare with Current Range from Biota of North America Program (BONAP) for Magnolia grandiflora

Compare with Magnolia grandiflora modeled for Current conditions by Iverson and Prasad
Magnolia grandiflora not modeled by Crookston and Rehfeldt
Magnolia grandiflora not modeled by Coops and Waring
Magnolia grandiflora - Global

PCM - Parallel Climate Model
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

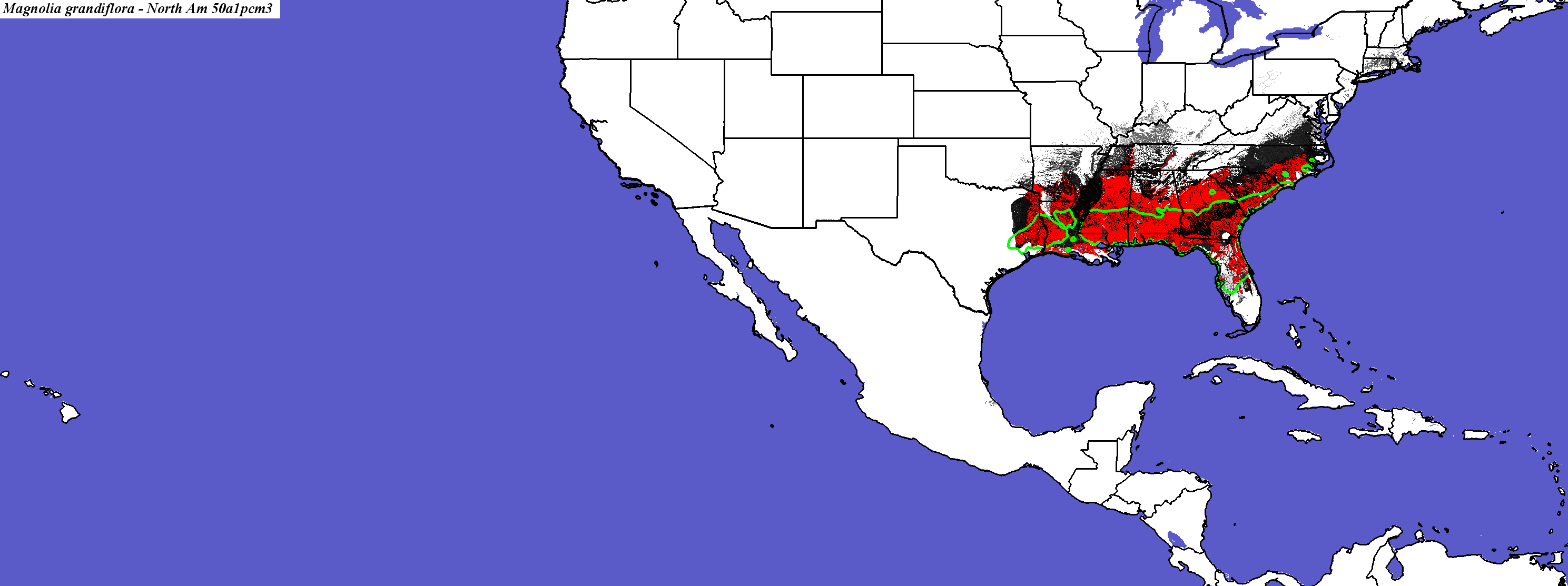

PCM, Scenario A1FI, 2050 - Magnolia grandiflora - CONUS

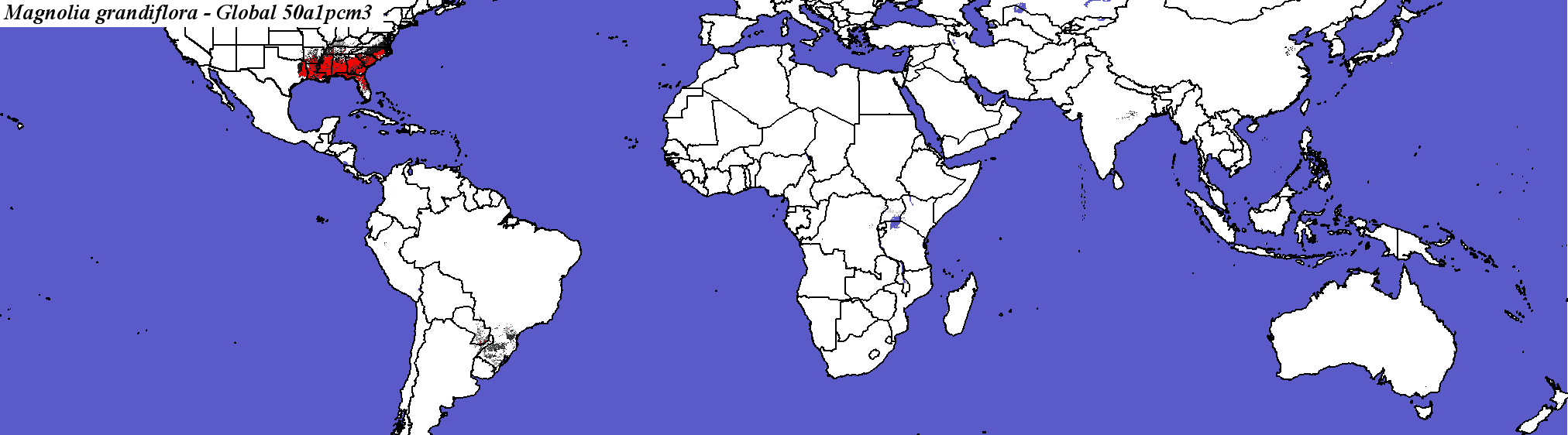

PCM, Scenario A1FI, 2050 - Magnolia grandiflora - Global
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

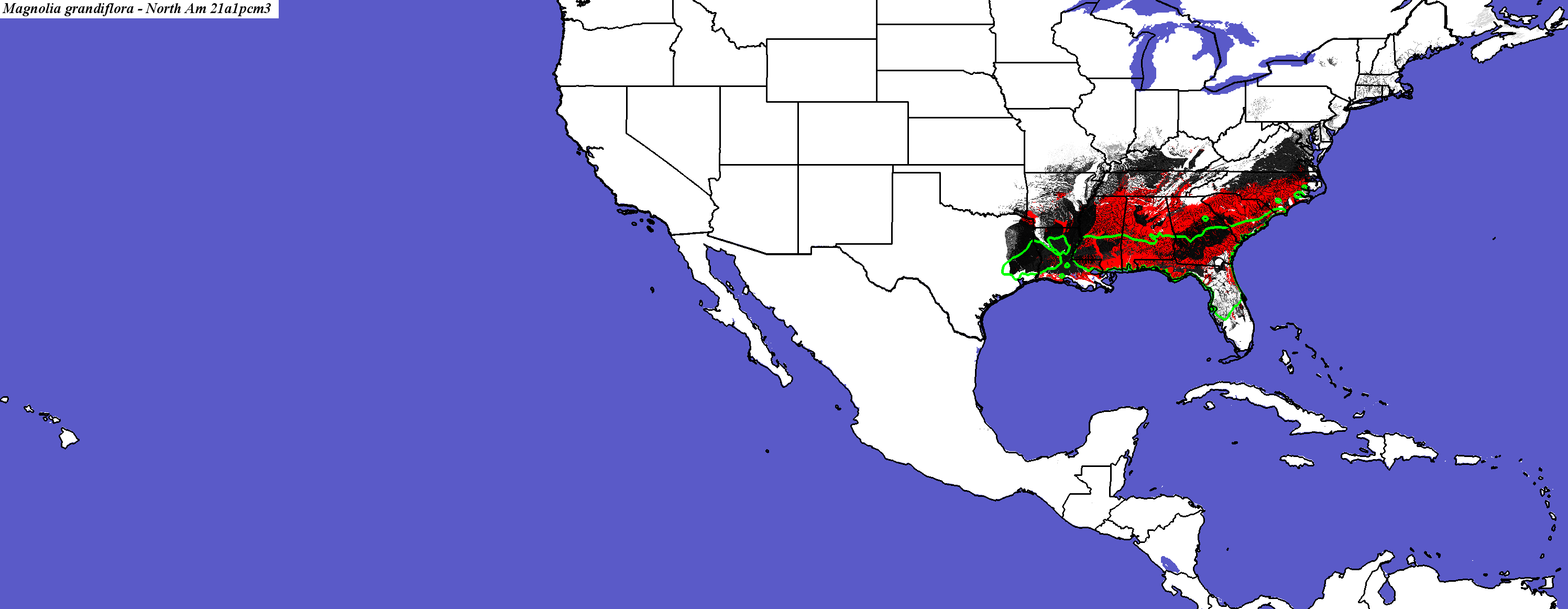

PCM, Scenario A1FI, 2100 - Magnolia grandiflora - CONUS
Compare with Magnolia grandiflora modeled for PCM A1FI in 2100 by Iverson and Prasad

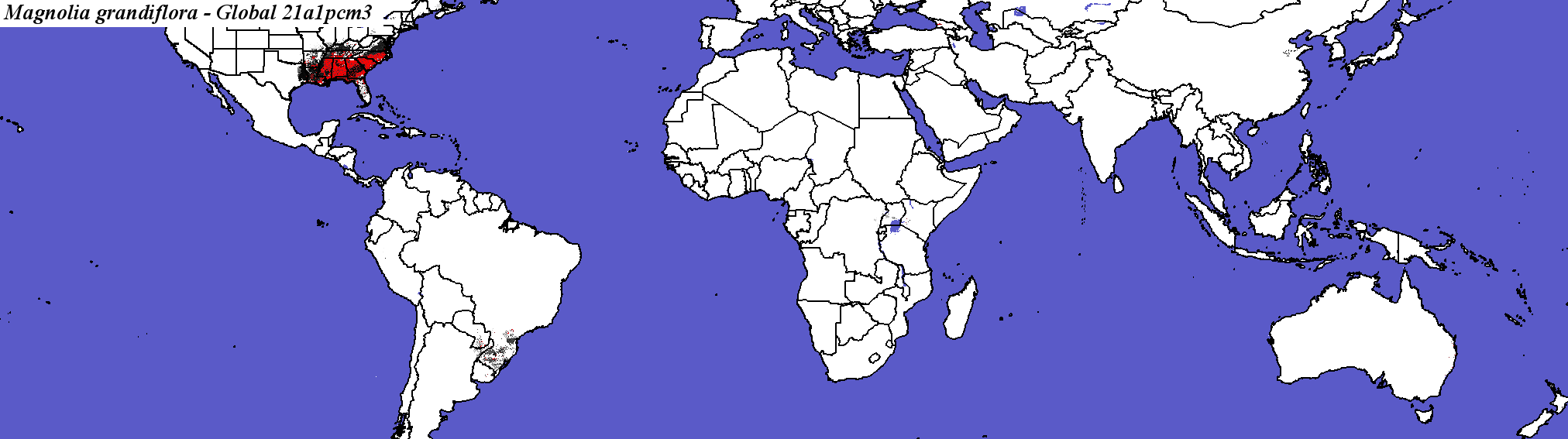

PCM, Scenario A1FI, 2100 - Magnolia grandiflora - Global

Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

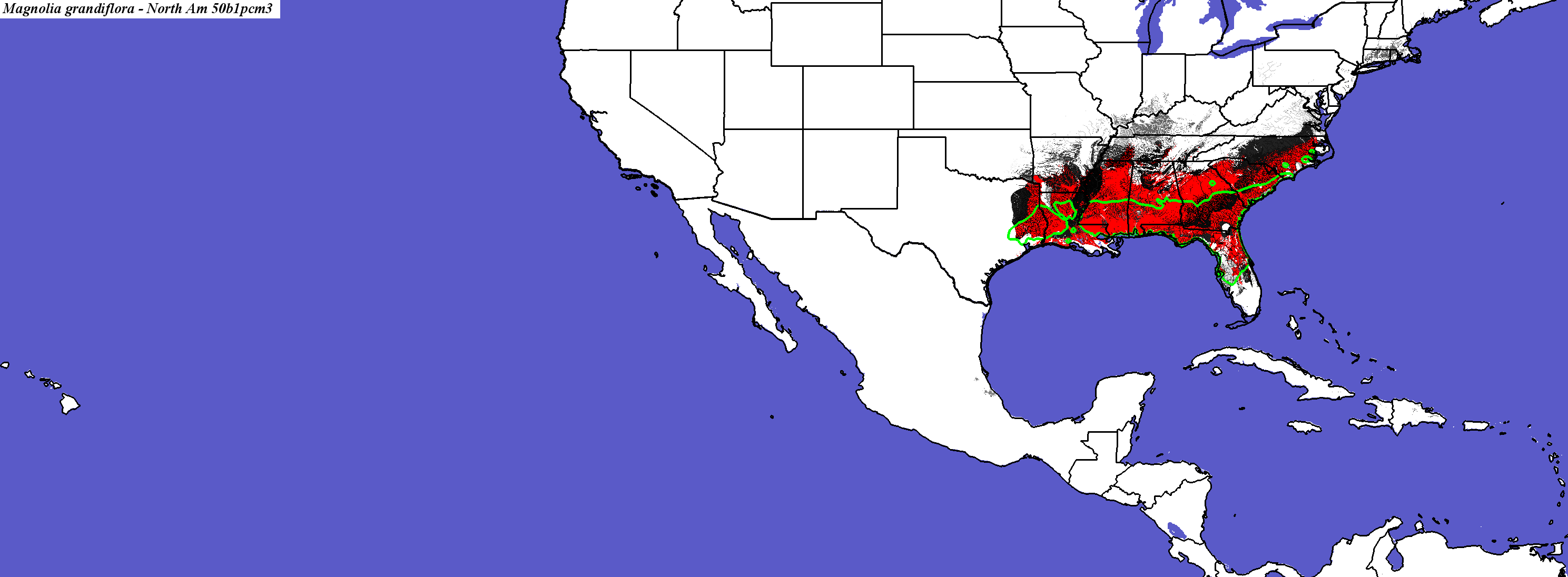

PCM, Scenario B1, 2050 - Magnolia grandiflora - CONUS
PCM, Scenario B1, 2050 - Magnolia grandiflora - Global
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global
PCM, Scenario B1, 2100 - Magnolia grandiflora - CONUS
Compare with Magnolia grandiflora modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Magnolia grandiflora - Global

Hadley Climate Model
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

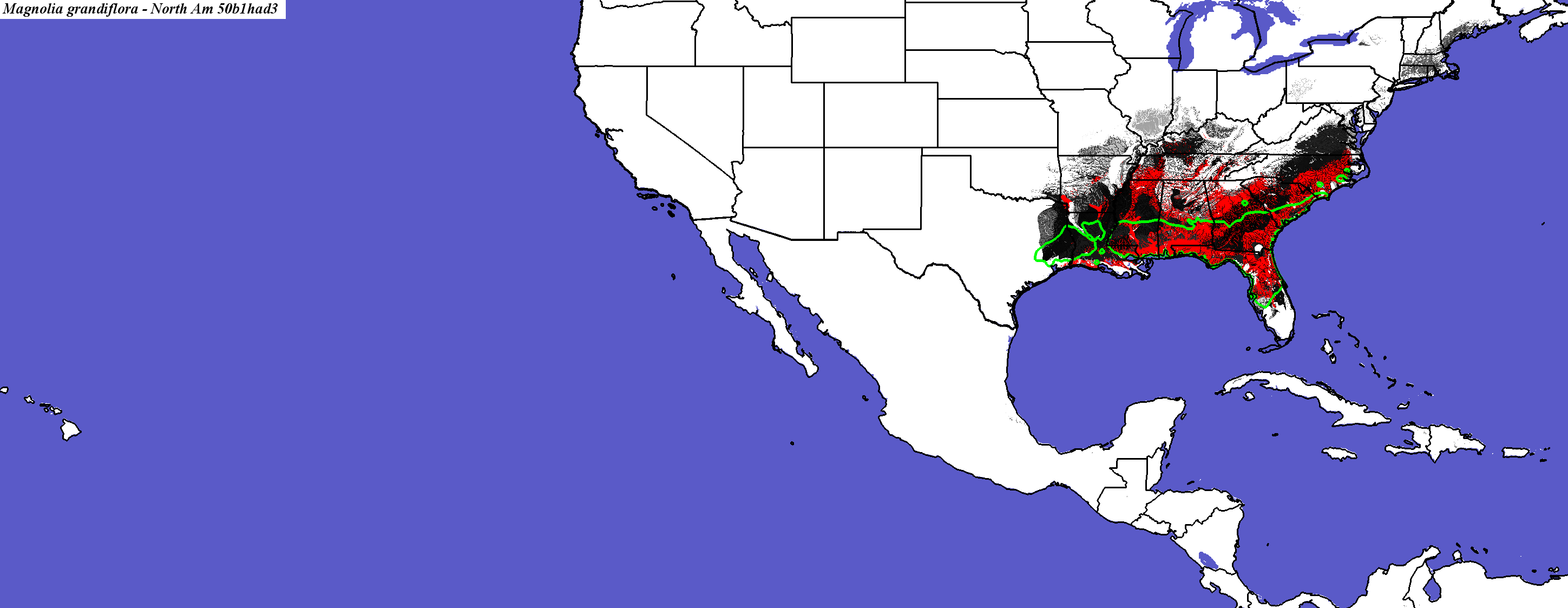

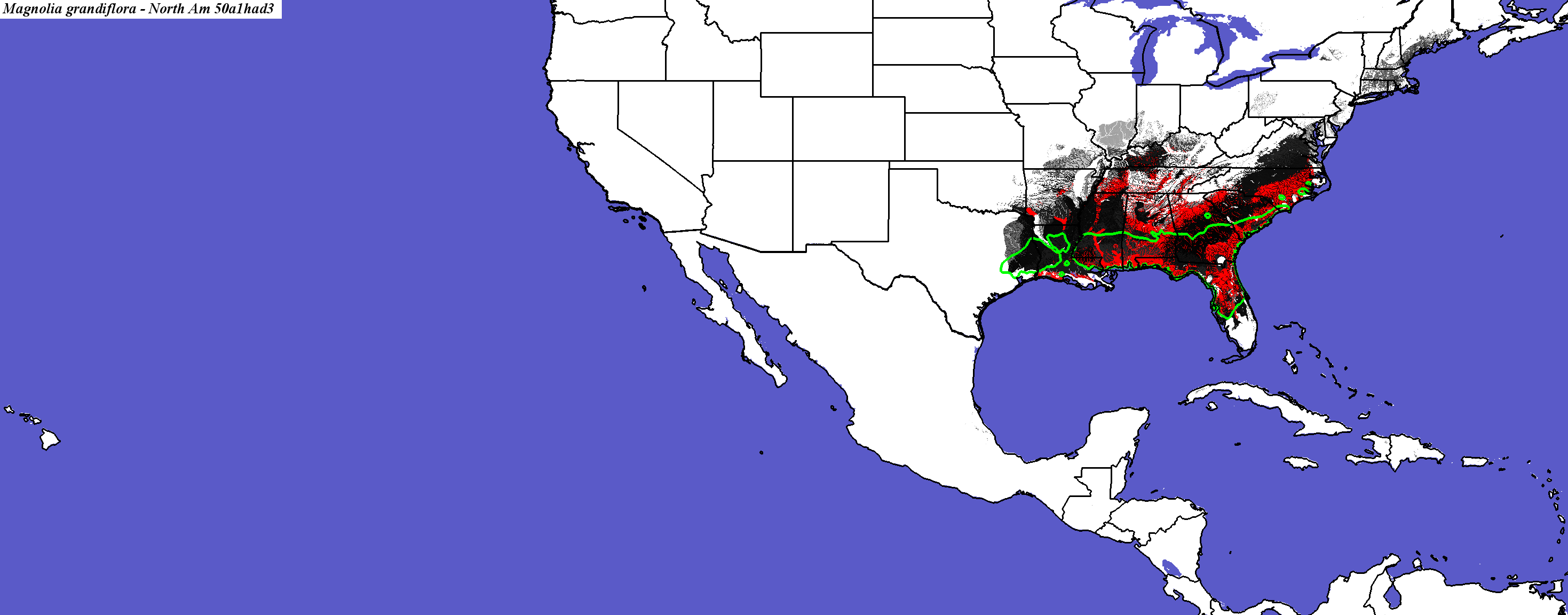

Hadley, Scenario A1FI, 2050 - Magnolia grandiflora - CONUS
Magnolia grandiflora not modeled by Crookston and Rehfeldt

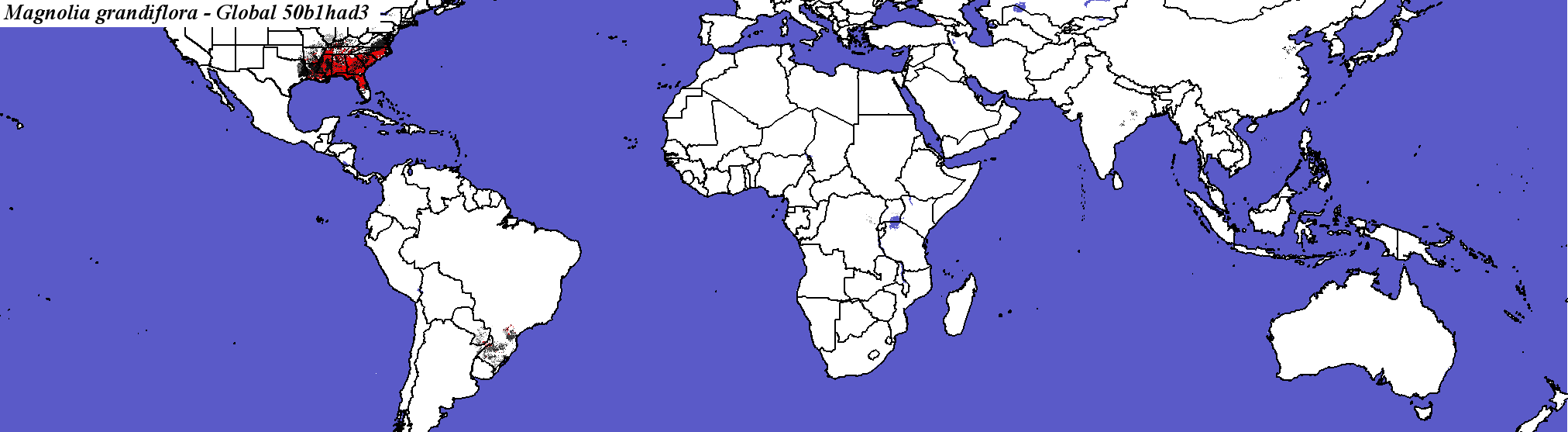

Hadley, Scenario A1FI, 2050 - Magnolia grandiflora - Global
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global.

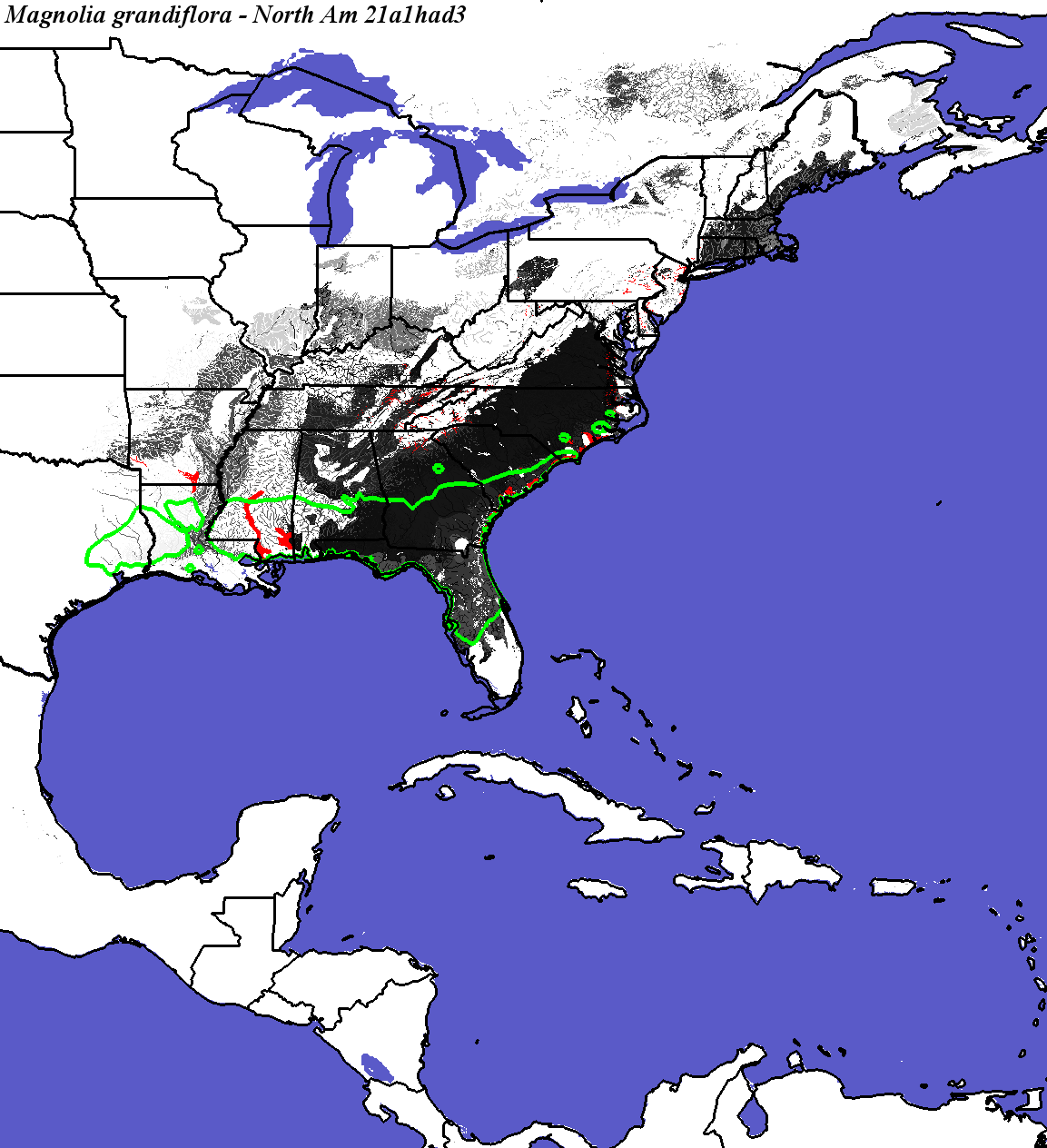

Hadley, Scenario A1FI, 2100 - Magnolia grandiflora - CONUS
Compare with Magnolia grandiflora modeled for Hadley A1FI in 2100 by Iverson and Prasad
Magnolia grandiflora not modeled by Crookston and Rehfeldt
Magnolia grandiflora not modeled by Coops and Waring

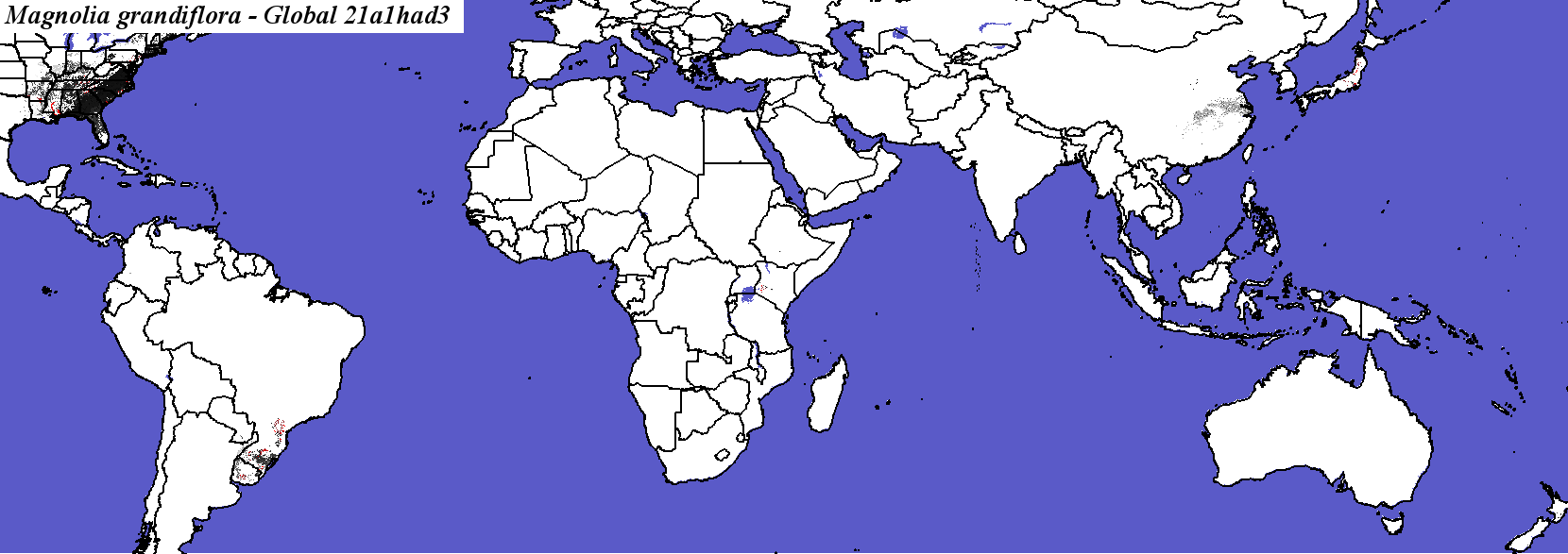

Hadley, Scenario A1FI, 2100 - Magnolia grandiflora - Global

Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global.
Hadley, Scenario B1, 2050 - Magnolia grandiflora - CONUS
Magnolia grandiflora not modeled by Crookston and Rehfeldt
Magnolia grandiflora not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Magnolia grandiflora - Global
Magnolia_grandiflora_final.3.conus
Magnolia_grandiflora_final.3.global

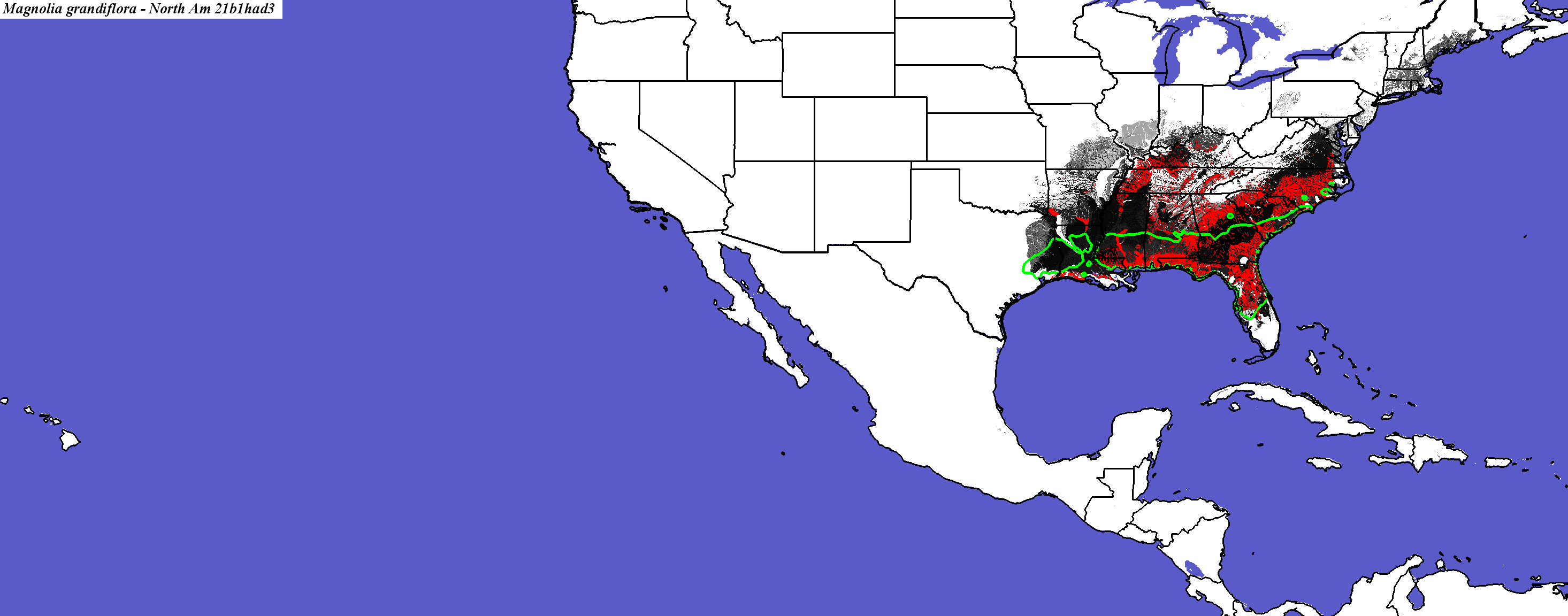

Hadley, Scenario B1, 2100 - Magnolia grandiflora - CONUS
Compare with Magnolia grandiflora modeled for Hadley B1 in 2100 by Iverson and Prasad
Magnolia grandiflora not modeled by Crookston and Rehfeldt

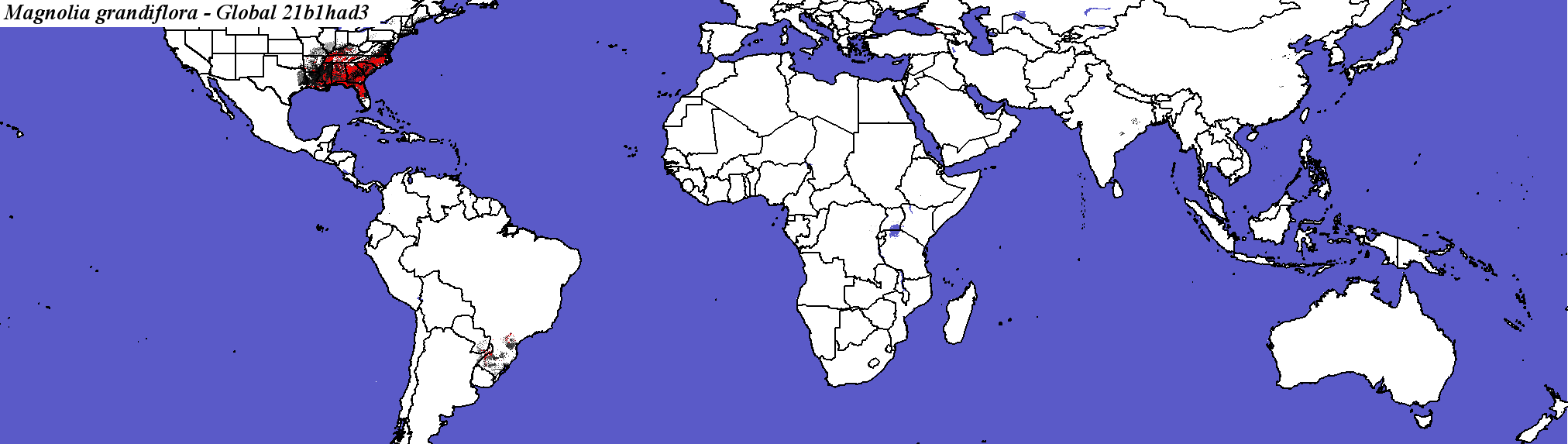

Hadley, Scenario B1, 2100 - Magnolia grandiflora - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Magnolia_grandiflora_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

46

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

42.4658

Area in Present Suitable Range (in km2)

429623

Area in Future Suitable Range (Had B1 2050, in km2)

296553

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

210342

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

48.9500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

53.6986

Percent Change in Area of Suitable Range (Had B1 2050)

-30.9700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

53.1507

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

15534.4 +/- 27468.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

46.9863

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.00279 +/- 16.6541

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

42.0548

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

364.72 +/- 922.67

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

9.17808

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

45428

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

10.5700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

6.84932

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

133315

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

31.0300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

42.1918

Present and Future Ranges - Hadley, Scenario B1, 2050 - Magnolia grandiflora Magnolia grandiflora - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Magnolia_grandiflora_final.noelev Fine MRM Distance
Magnolia_grandiflora_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia grandiflora Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Magnolia grandiflora
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Magnolia_grandiflora_final.noelev Coarse MRM Distance
Magnolia_grandiflora_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia grandiflora Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Magnolia grandiflora
