Version 5 Tree Atlas


Magnolia virginiana

sweetbay

noelev

Magnolia virginiana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Magnolia virginiana

USDA Plants Database entry for Magnolia virginiana
Silvics Manual entry for Magnolia virginiana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2115812196range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Magnolia_virginiana_final Occurrences

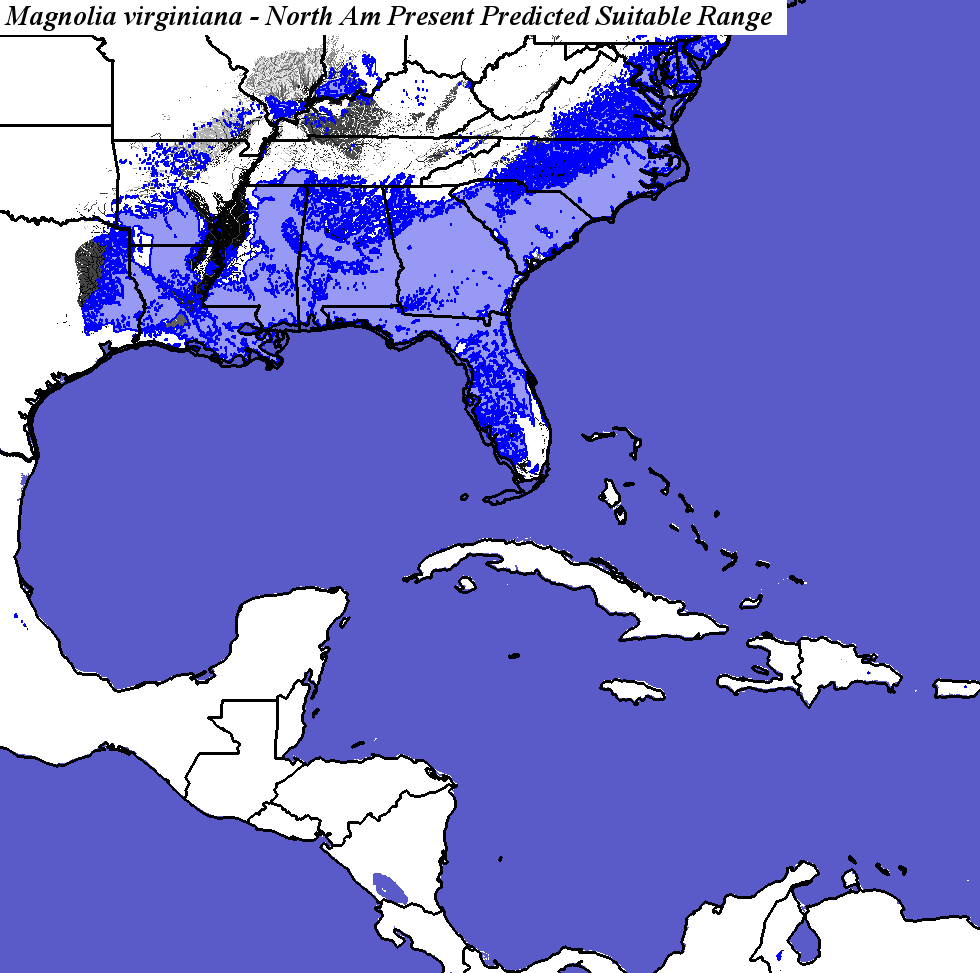

Hargroves Present Suitable Range Outline for Magnolia_virginiana_final
Magnolia virginiana - Occurrence Locations Magnolia virginiana - Hargrove's Present Suitable Range Outline
Present Conditions
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global

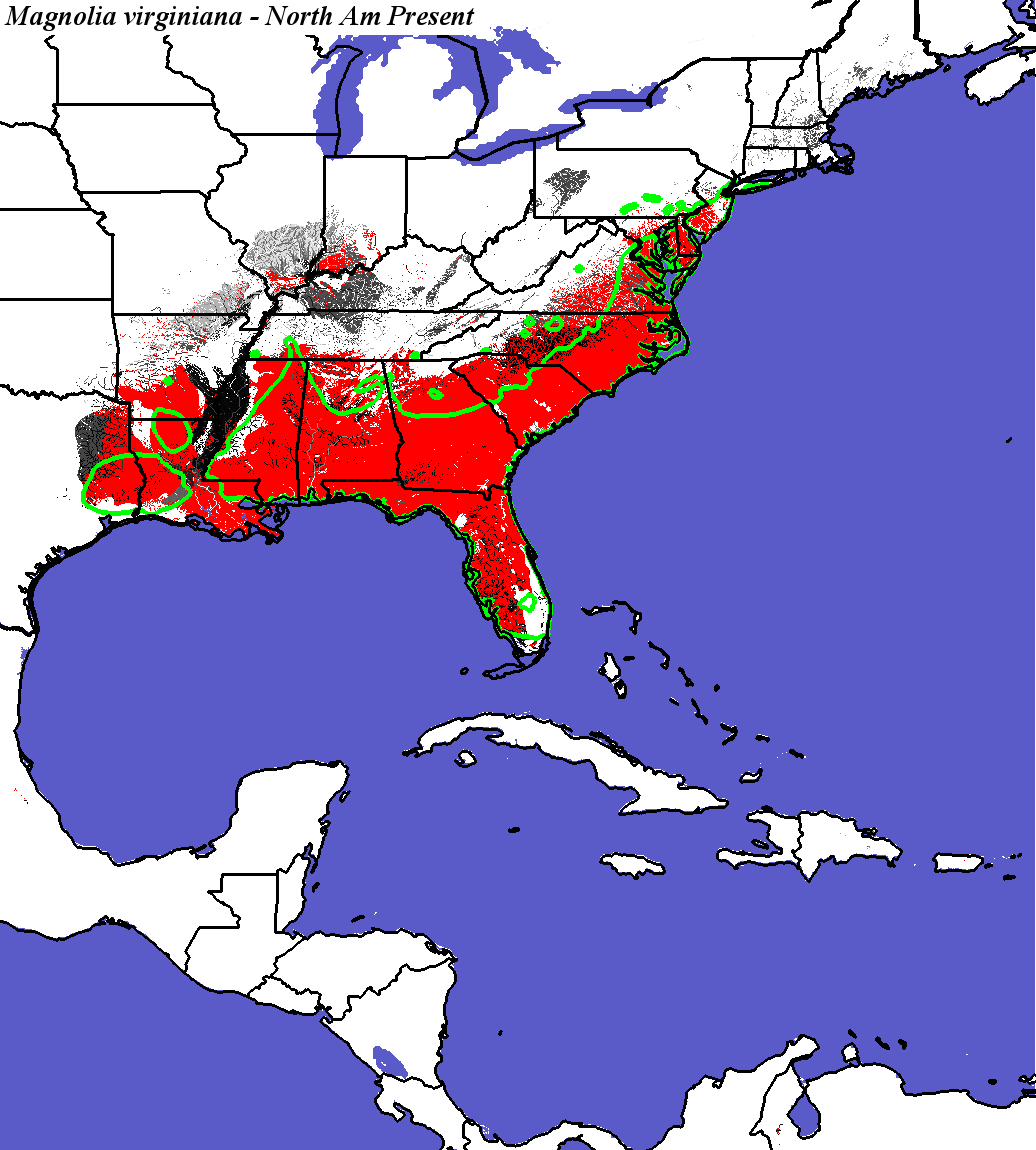

Magnolia virginiana - CONUS
Compare with Current Range from the Silvics Manual for Magnolia virginiana
Compare with Current Range from Biota of North America Program (BONAP) for Magnolia virginiana

Compare with Magnolia virginiana modeled for Current conditions by Iverson and Prasad
Magnolia virginiana not modeled by Crookston and Rehfeldt
Magnolia virginiana not modeled by Coops and Waring

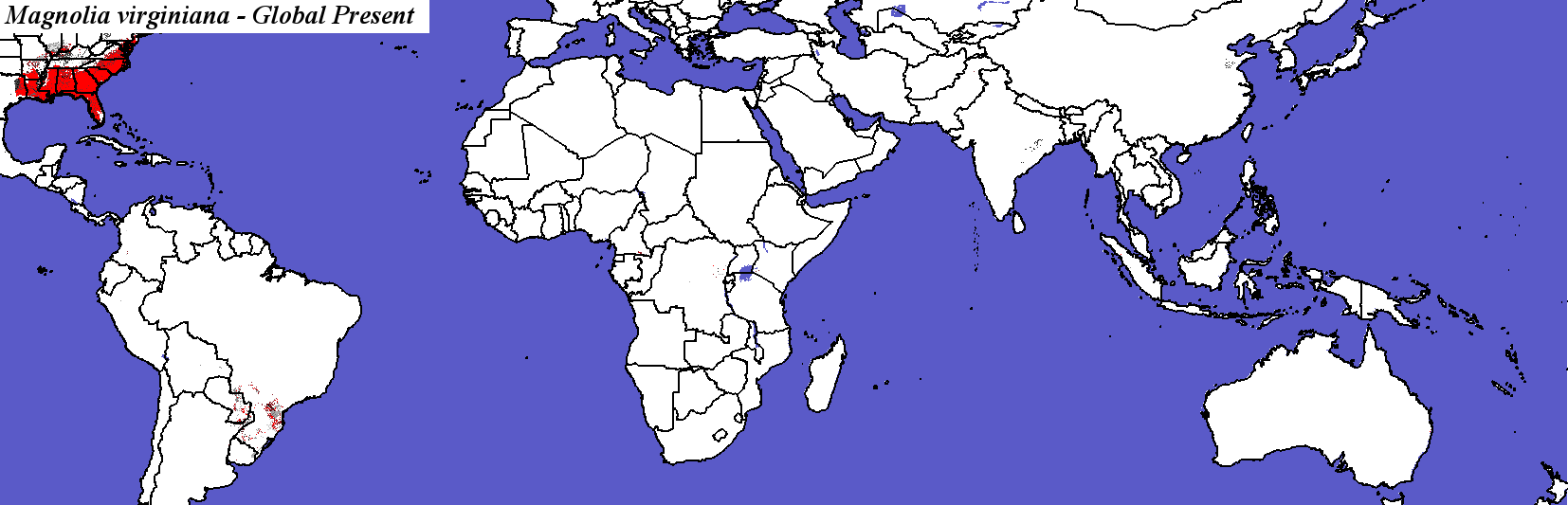

Magnolia virginiana - Global

PCM - Parallel Climate Model
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global

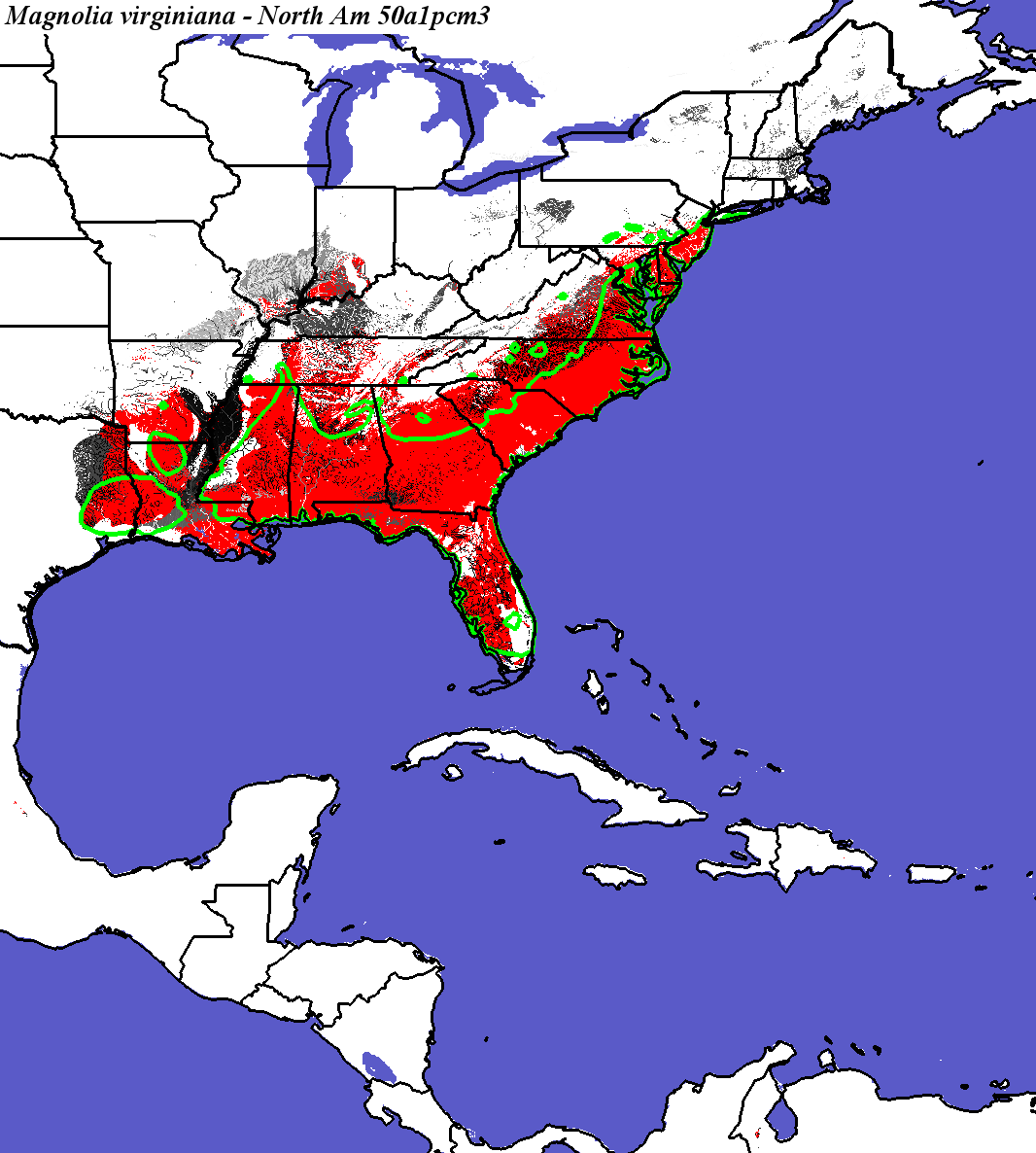

PCM, Scenario A1FI, 2050 - Magnolia virginiana - CONUS

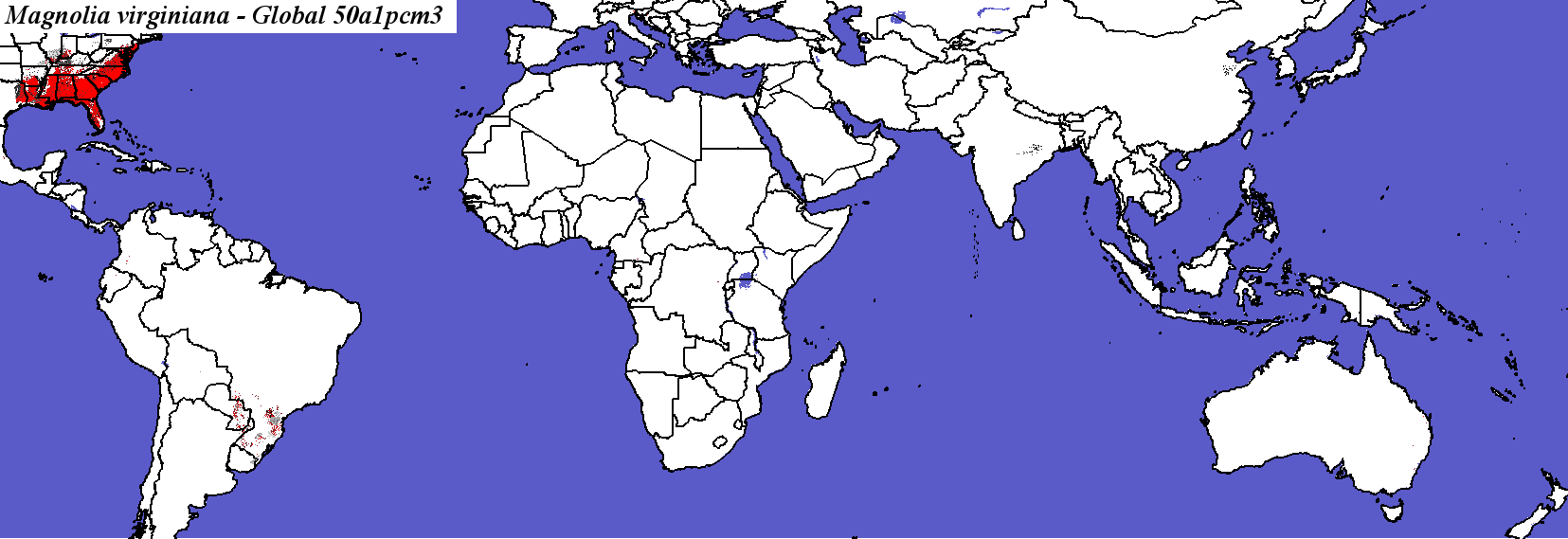

PCM, Scenario A1FI, 2050 - Magnolia virginiana - Global
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global
PCM, Scenario A1FI, 2100 - Magnolia virginiana - CONUS
Compare with Magnolia virginiana modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Magnolia virginiana - Global

Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global
PCM, Scenario B1, 2050 - Magnolia virginiana - CONUS

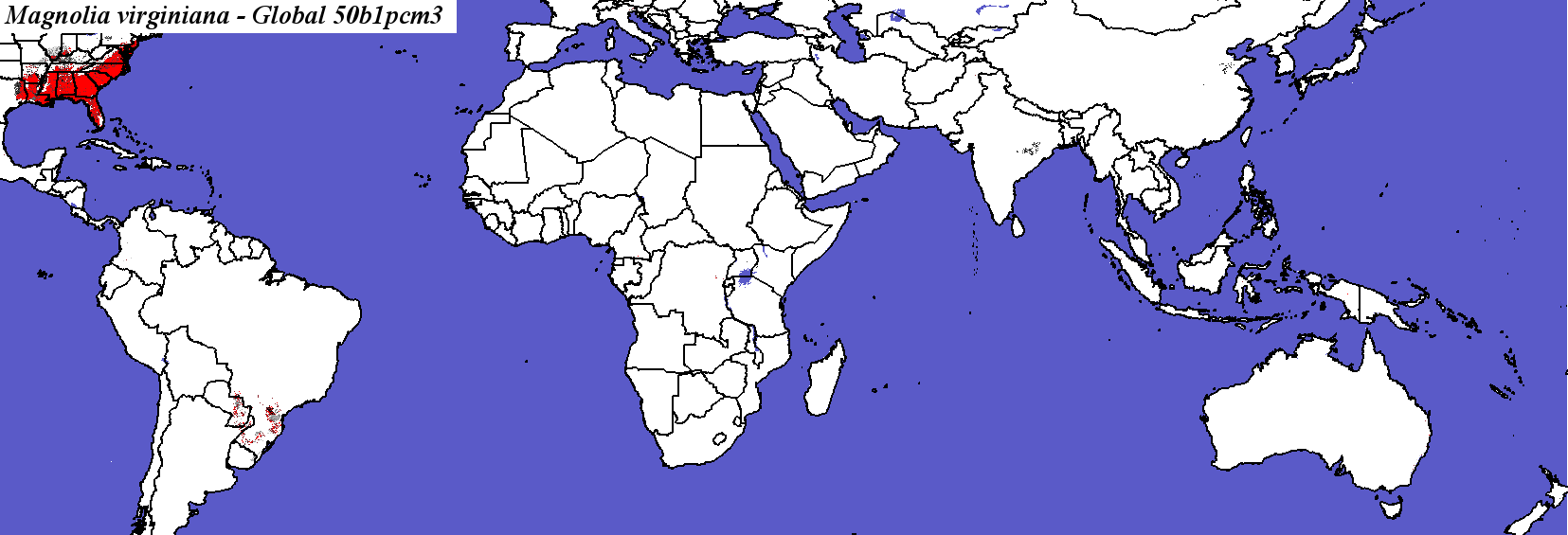

PCM, Scenario B1, 2050 - Magnolia virginiana - Global
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global
PCM, Scenario B1, 2100 - Magnolia virginiana - CONUS
Compare with Magnolia virginiana modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Magnolia virginiana - Global

Hadley Climate Model
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global
Hadley, Scenario A1FI, 2050 - Magnolia virginiana - CONUS
Magnolia virginiana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Magnolia virginiana - Global
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global.

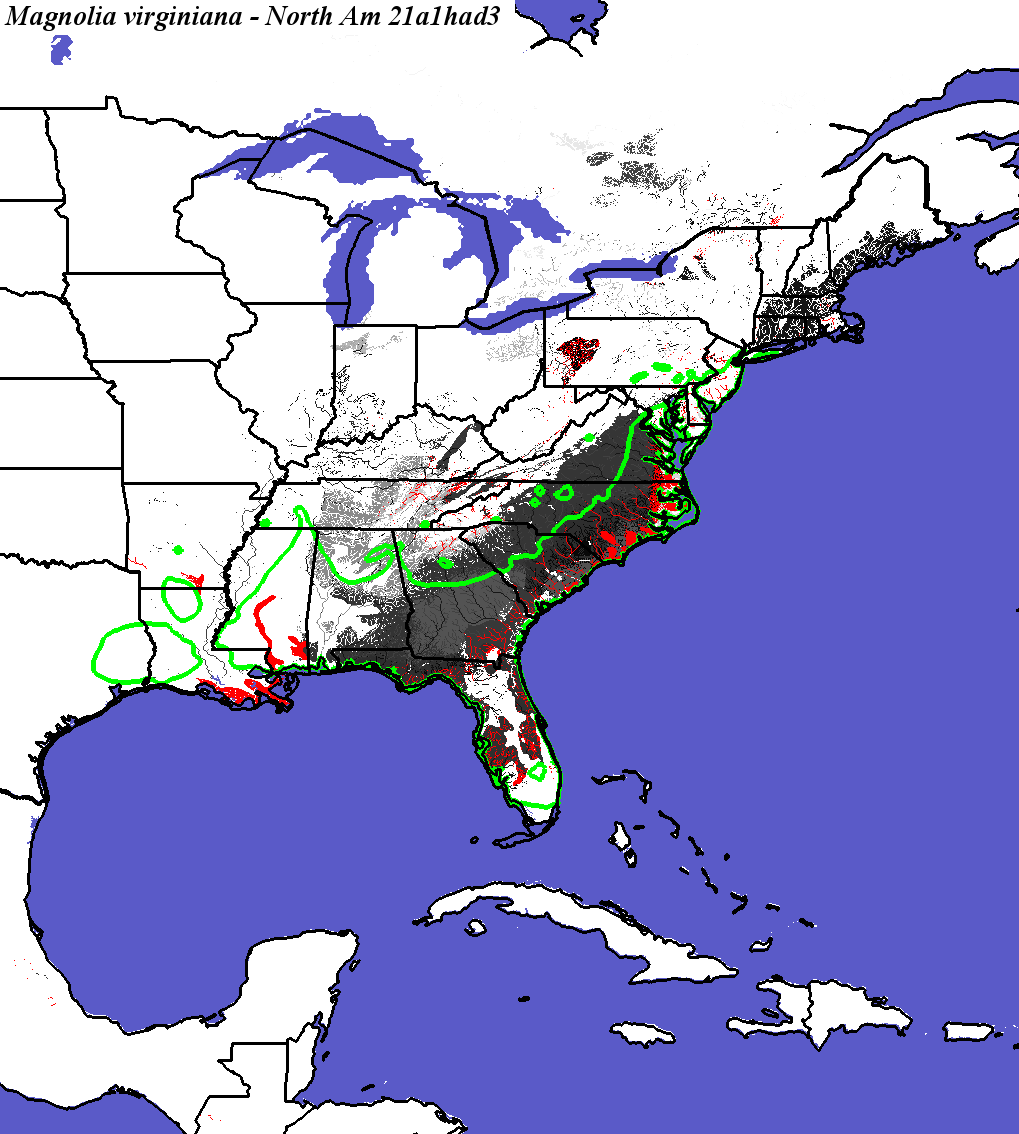

Hadley, Scenario A1FI, 2100 - Magnolia virginiana - CONUS
Compare with Magnolia virginiana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Magnolia virginiana not modeled by Crookston and Rehfeldt
Magnolia virginiana not modeled by Coops and Waring

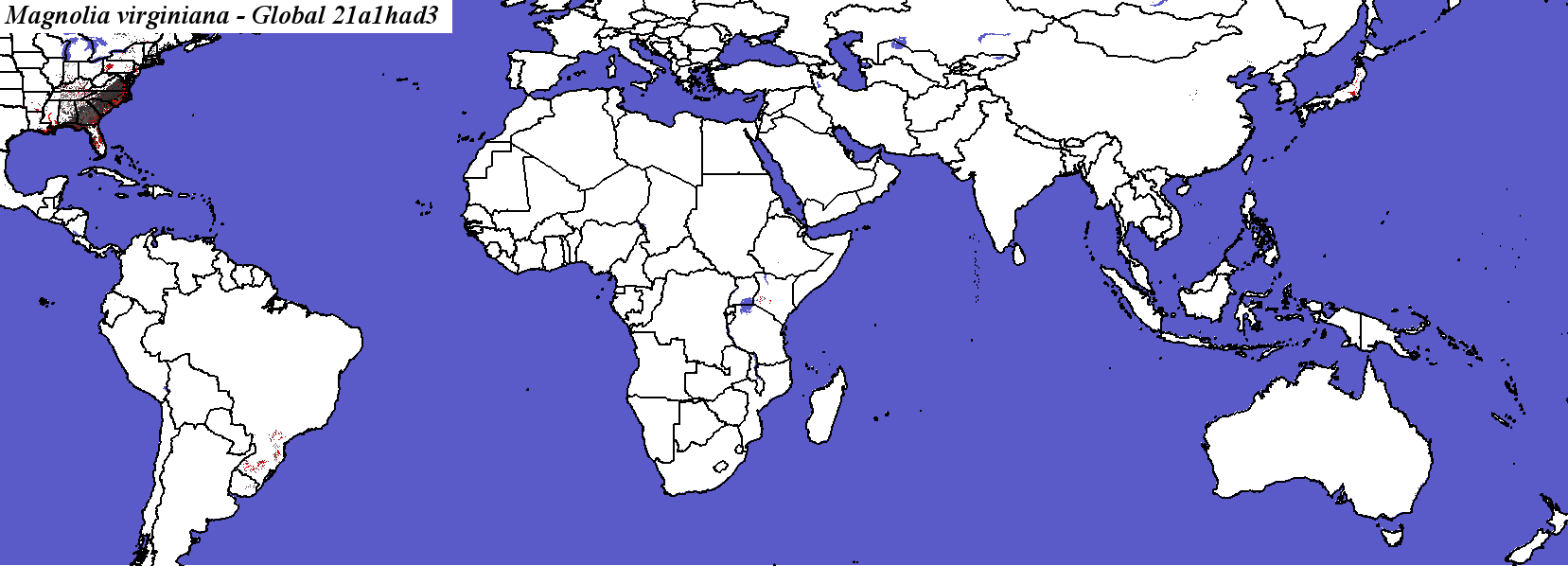

Hadley, Scenario A1FI, 2100 - Magnolia virginiana - Global

Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global.
Hadley, Scenario B1, 2050 - Magnolia virginiana - CONUS
Magnolia virginiana not modeled by Crookston and Rehfeldt
Magnolia virginiana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Magnolia virginiana - Global
Magnolia_virginiana_final.4.conus
Magnolia_virginiana_final.4.global

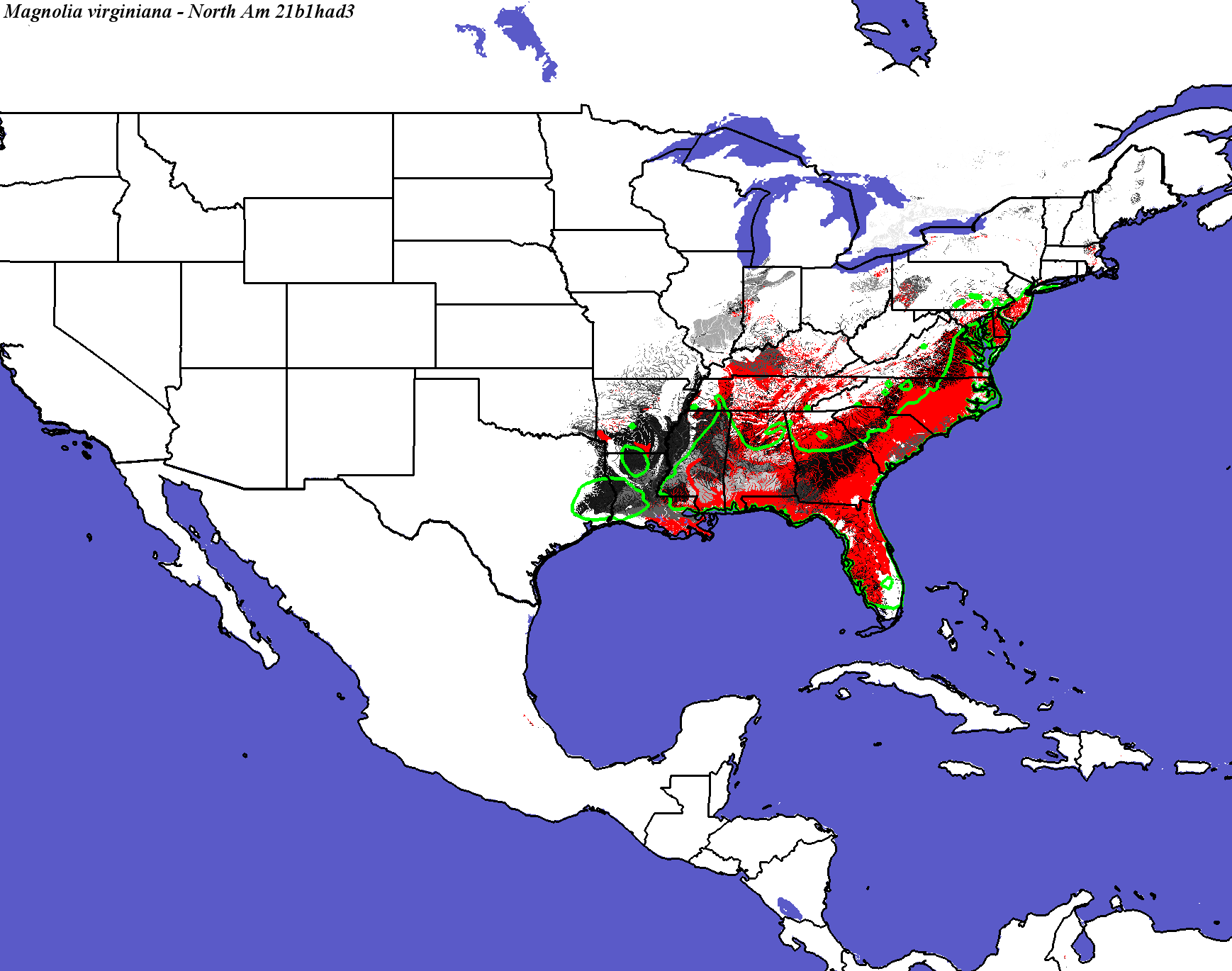

Hadley, Scenario B1, 2100 - Magnolia virginiana - CONUS
Compare with Magnolia virginiana modeled for Hadley B1 in 2100 by Iverson and Prasad
Magnolia virginiana not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Magnolia virginiana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Magnolia_virginiana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

95

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

22.3288

Area in Present Suitable Range (in km2)

815381

Area in Future Suitable Range (Had B1 2050, in km2)

593209

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

485539

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

59.5400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

26.0274

Percent Change in Area of Suitable Range (Had B1 2050)

-27.2400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

46.7123

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9765.64 +/- 24777.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

67.8082

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.62399 +/- 15.6073

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

68.6301

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

233.577 +/- 736.614

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

21.9178

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

51444

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.3000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

18.3562

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

244630

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

30.0000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

44.6575

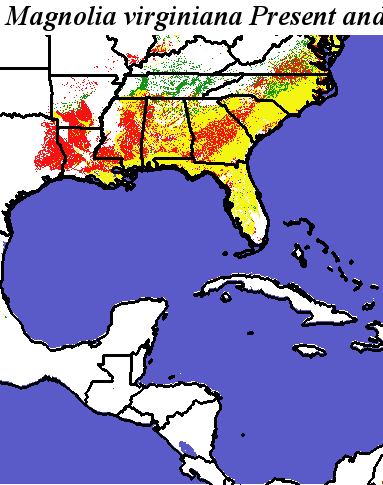

Present and Future Ranges - Hadley, Scenario B1, 2050 - Magnolia virginiana Magnolia virginiana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

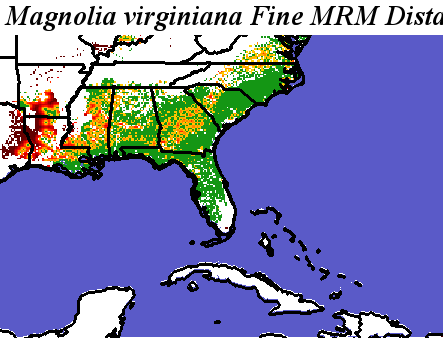

Magnolia_virginiana_final.noelev Fine MRM Distance

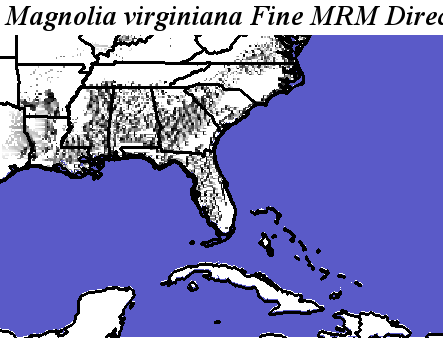

Magnolia_virginiana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia virginiana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Magnolia virginiana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

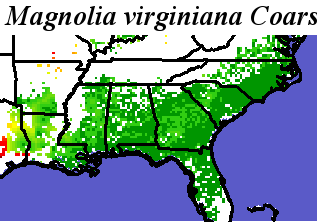

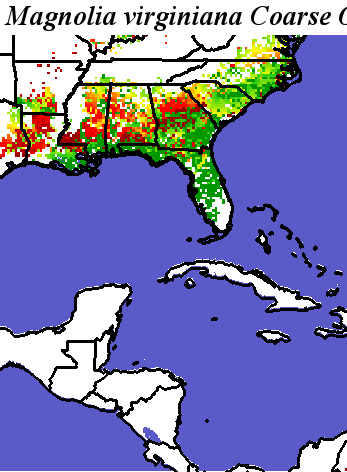

Magnolia_virginiana_final.noelev Coarse MRM Distance
Magnolia_virginiana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia virginiana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Magnolia virginiana
