Version 5 Tree Atlas


Malus ioensis

prairie crabapple

noelev

Malus ioensis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Malus ioensis

USDA Plants Database entry for Malus ioensis
Silvics Manual entry for Malus ioensis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
27678Main range well-sampled, but disjuncts not well-sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Malus_ioensis_final Occurrences
Hargroves Present Suitable Range Outline for Malus_ioensis_final
Malus ioensis - Occurrence Locations Malus ioensis - Hargrove's Present Suitable Range Outline
Present Conditions
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
Malus ioensis - CONUS
Compare with Current Range from the Silvics Manual for Malus ioensis
Compare with Current Range from Biota of North America Program (BONAP) for Malus ioensis

Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring

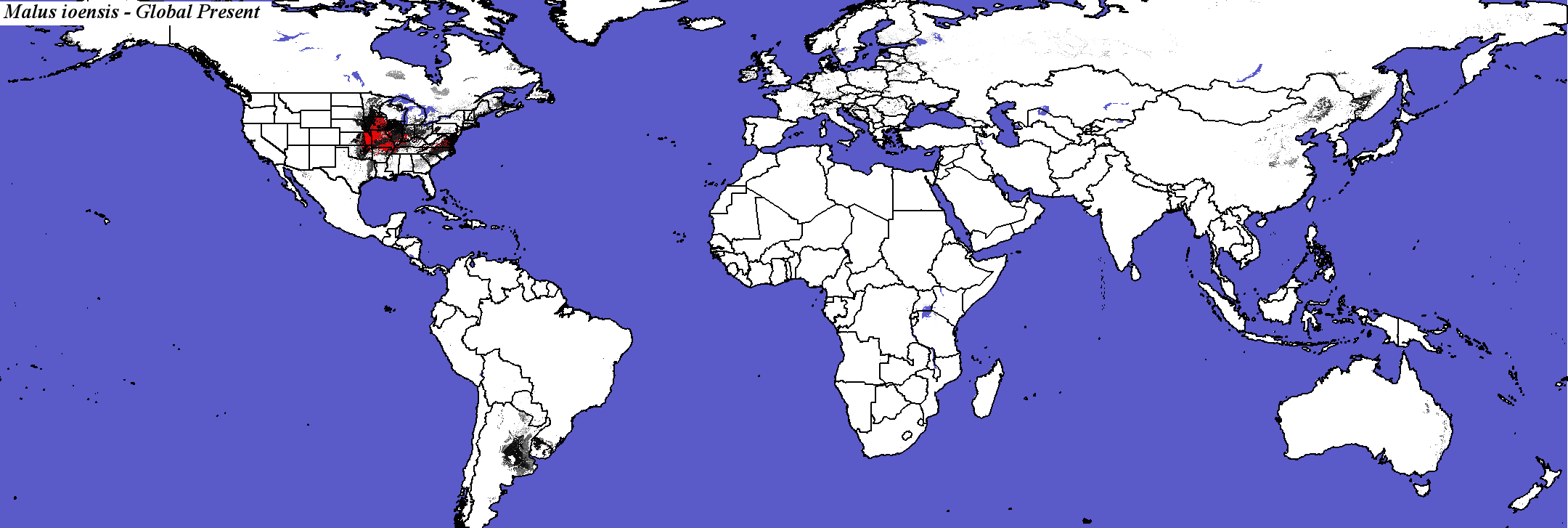

Malus ioensis - Global

PCM - Parallel Climate Model
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
PCM, Scenario A1FI, 2050 - Malus ioensis - CONUS
PCM, Scenario A1FI, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

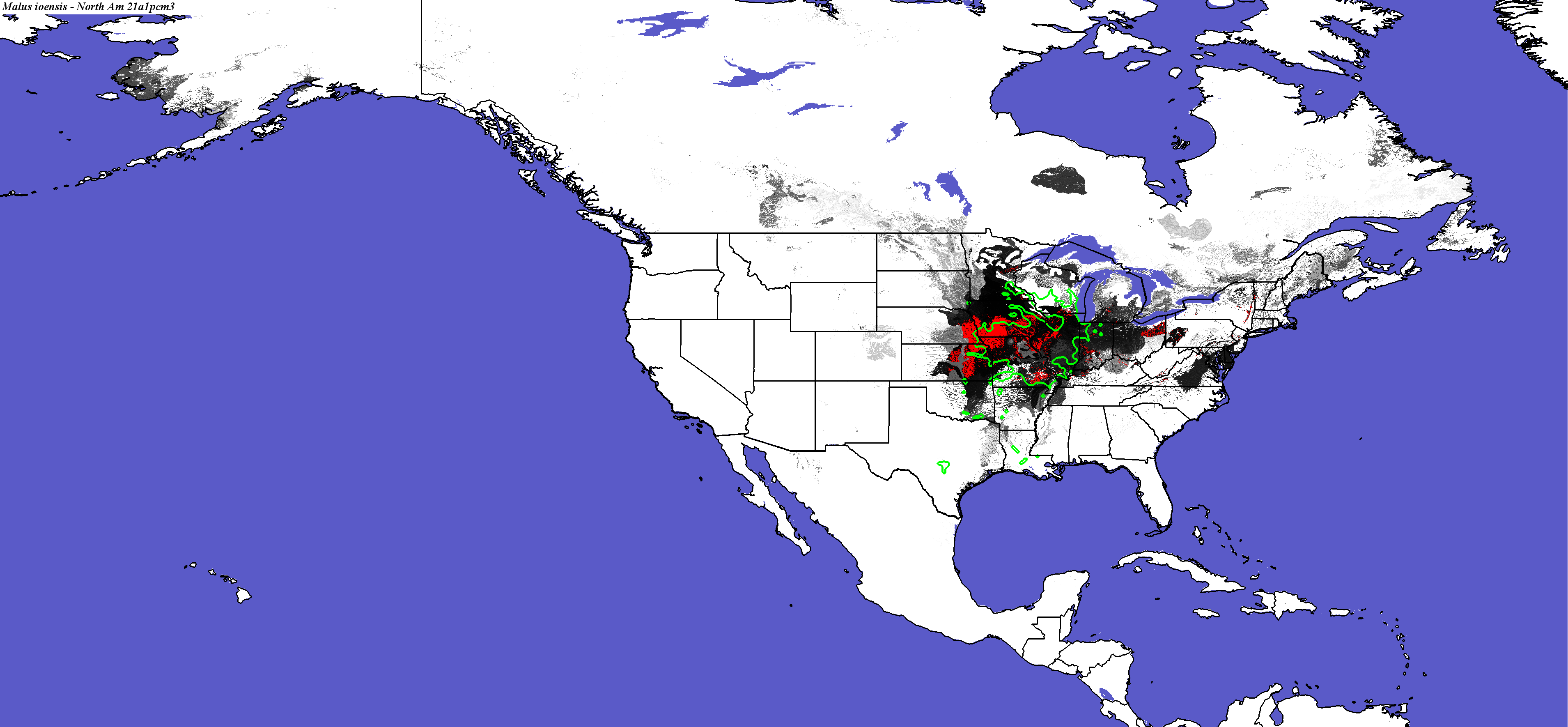

PCM, Scenario A1FI, 2100 - Malus ioensis - CONUS
Malus ioensis species not modeled by Iverson and Prasad

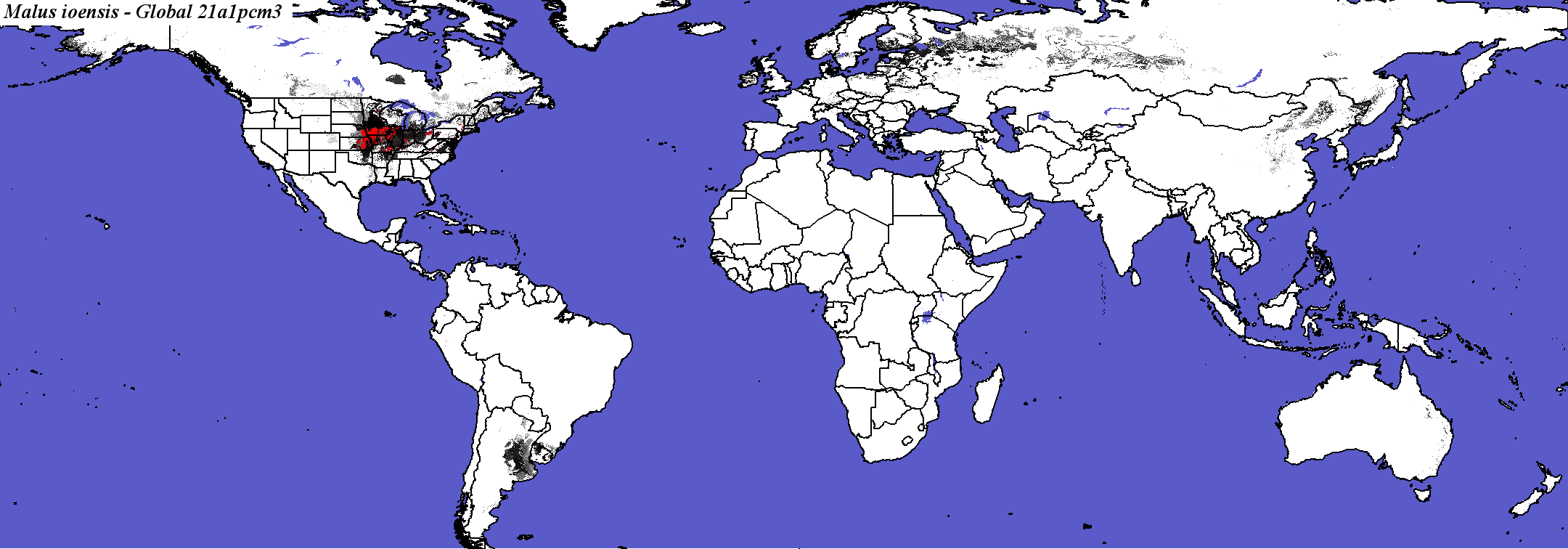

PCM, Scenario A1FI, 2100 - Malus ioensis - Global

Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
PCM, Scenario B1, 2050 - Malus ioensis - CONUS
PCM, Scenario B1, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

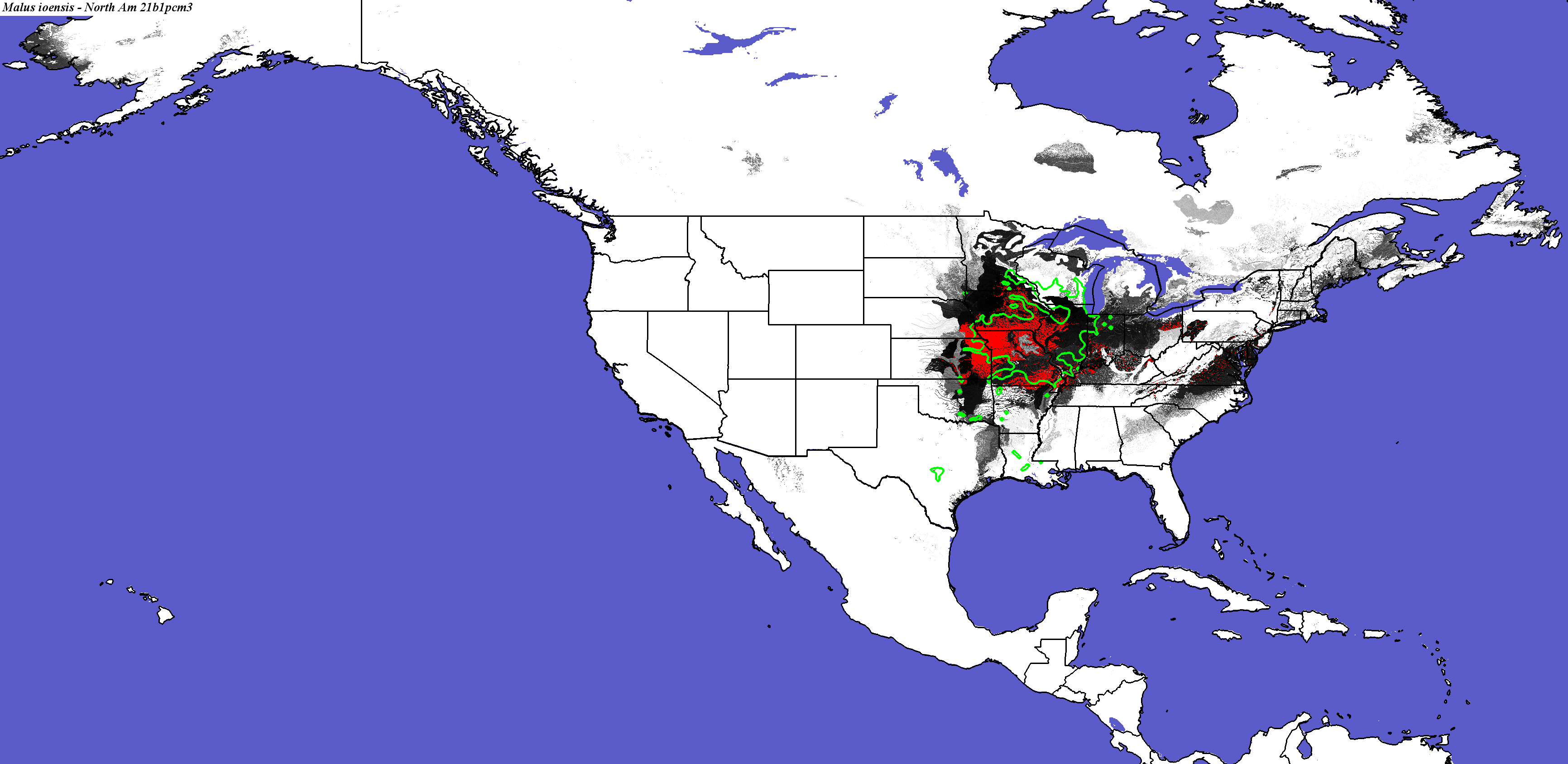

PCM, Scenario B1, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Malus ioensis - Global

Hadley Climate Model
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

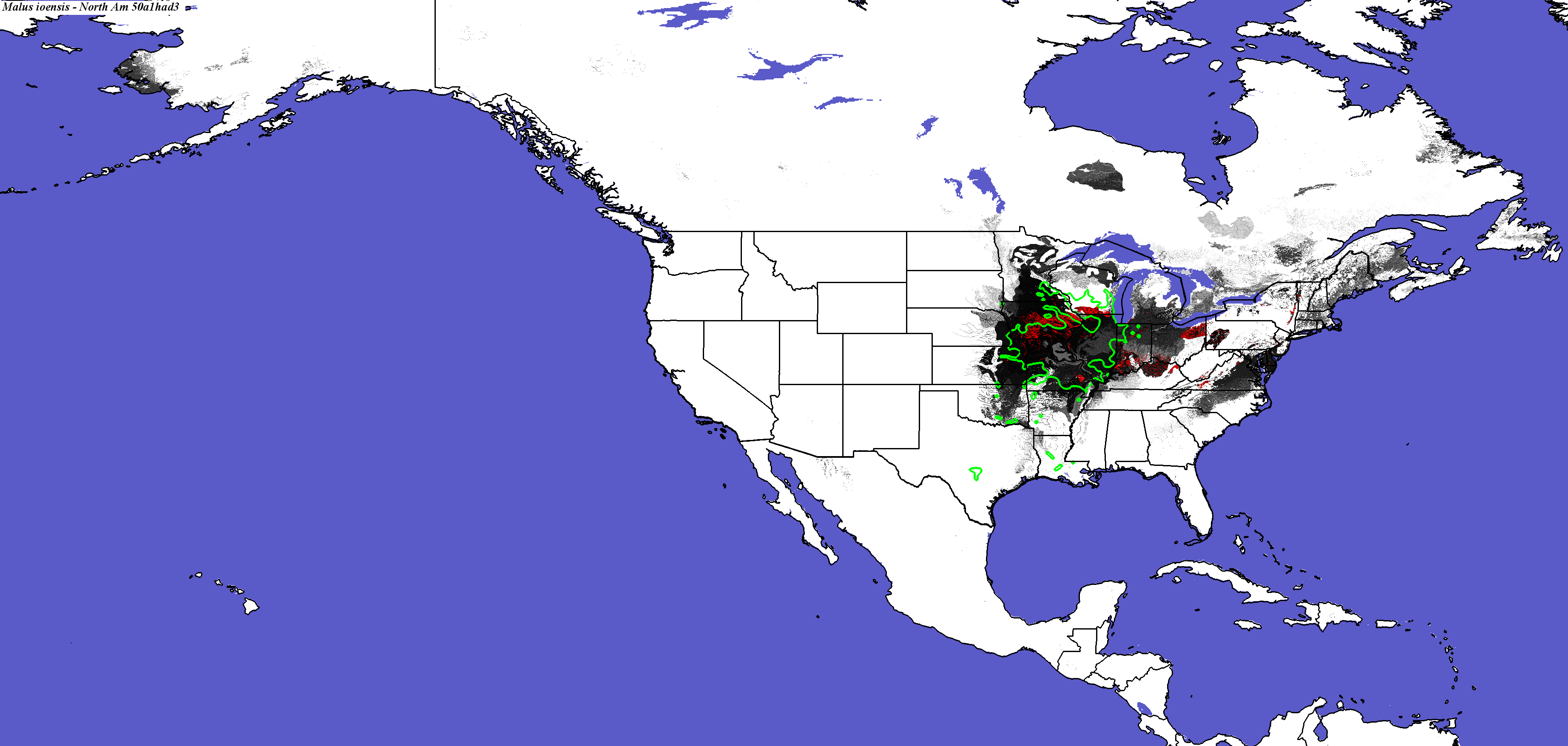

Hadley, Scenario A1FI, 2050 - Malus ioensis - CONUS
Malus ioensis not modeled by Crookston and Rehfeldt

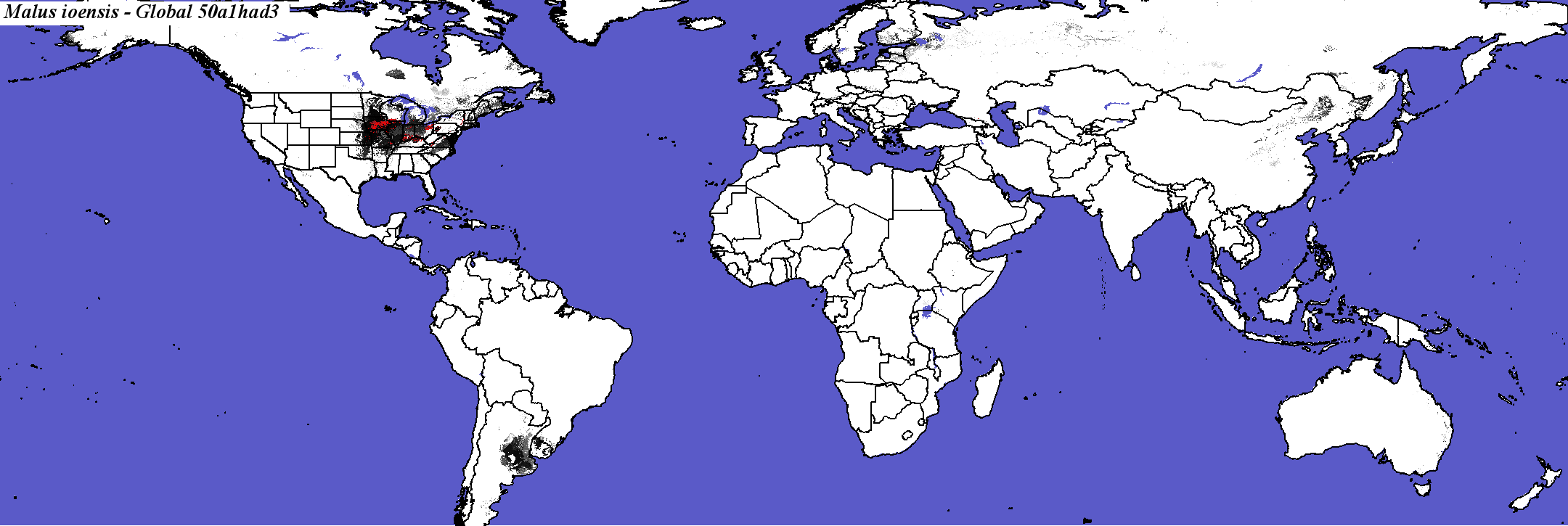

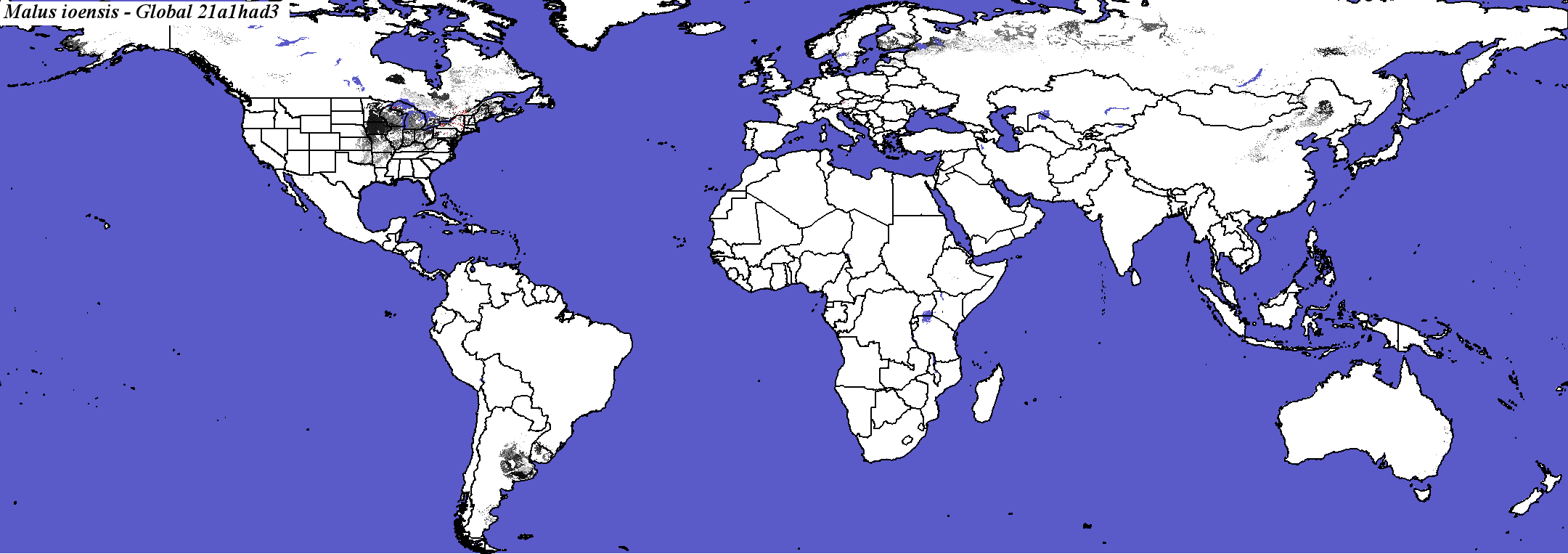

Hadley, Scenario A1FI, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global.
Hadley, Scenario A1FI, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Malus ioensis - Global

Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global.
Hadley, Scenario B1, 2050 - Malus ioensis - CONUS
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
Hadley, Scenario B1, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Malus ioensis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Malus_ioensis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

21

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

60.9589

Area in Present Suitable Range (in km2)

181815

Area in Future Suitable Range (Had B1 2050, in km2)

92629

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

19811

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

10.8900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

98.6301

Percent Change in Area of Suitable Range (Had B1 2050)

-49.0500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

80

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

44701.6 +/- 46108.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

12.1918

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

14.8391 +/- 14.5757

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

17.9452

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

834.729 +/- 1299.42

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

0.958904

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

46458

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

25.5500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

0.821918

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

9343

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

5.1300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

99.0411

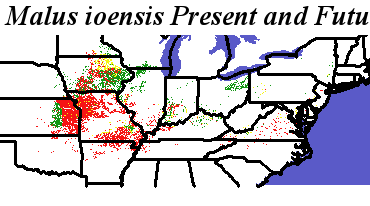

Present and Future Ranges - Hadley, Scenario B1, 2050 - Malus ioensis Malus ioensis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

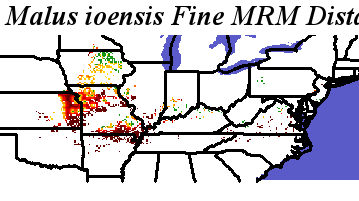

Malus_ioensis_final.noelev Fine MRM Distance
Malus_ioensis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Malus ioensis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Malus_ioensis_final.noelev Coarse MRM Distance

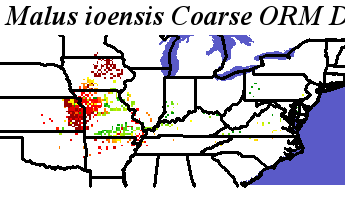

Malus_ioensis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis
