Version 5 Tree Atlas


Nyssa biflora

swamp tupelo

noelev

Nyssa biflora Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Nyssa biflora

USDA Plants Database entry for Nyssa biflora
Silvics Manual entry for Nyssa biflora


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Nyssa sylvatica var. biflora2142452187TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Nyssa_biflora_final Occurrences
Hargroves Present Suitable Range Outline for Nyssa_biflora_final
Nyssa biflora - Occurrence Locations Nyssa biflora - Hargrove's Present Suitable Range Outline
Present Conditions
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
Nyssa biflora - CONUS
Compare with Current Range from the Silvics Manual for Nyssa biflora
Compare with Current Range from Biota of North America Program (BONAP) for Nyssa biflora

Compare with Nyssa biflora modeled for Current conditions by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring
Nyssa biflora - Global

PCM - Parallel Climate Model
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

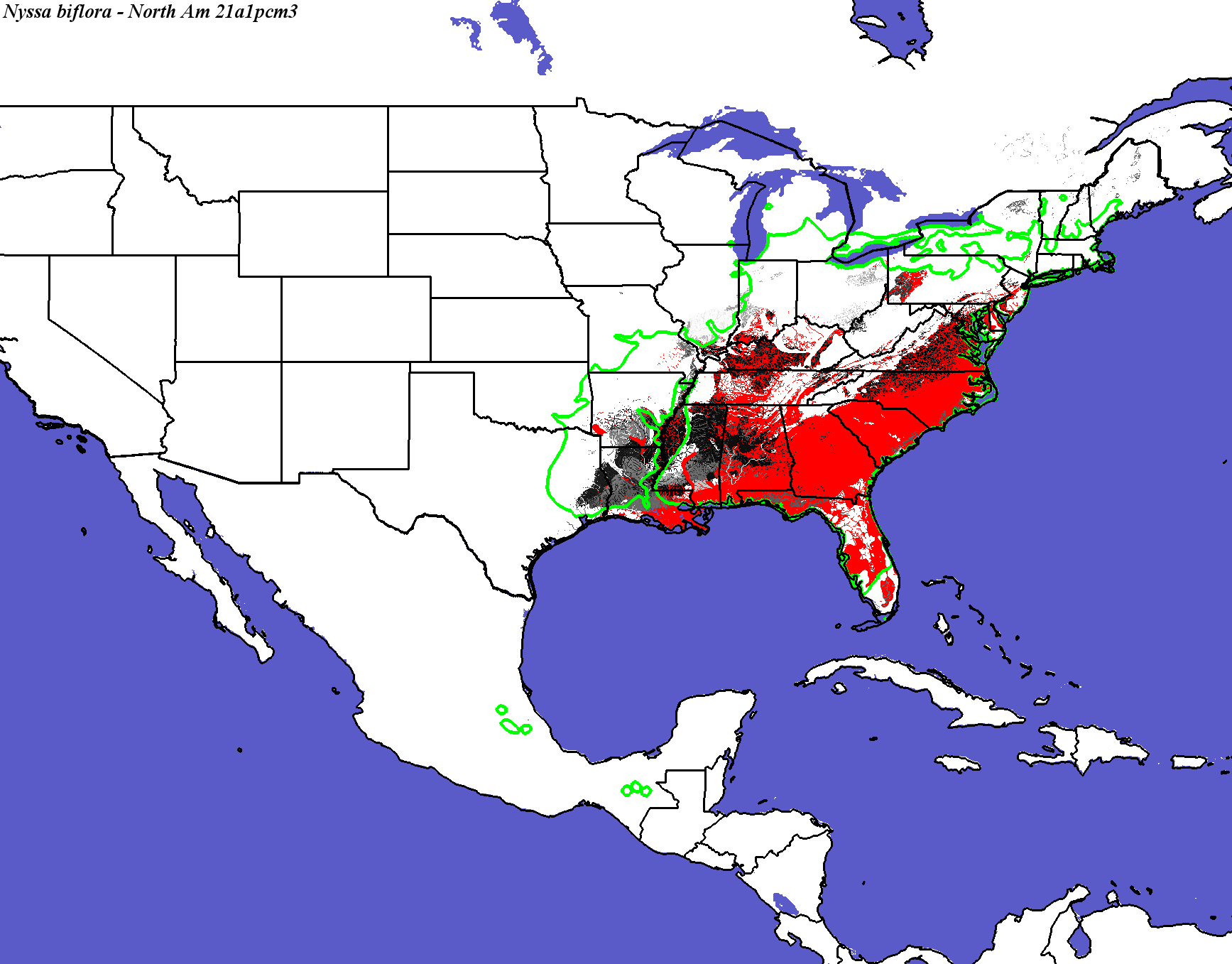

PCM, Scenario A1FI, 2050 - Nyssa biflora - CONUS
PCM, Scenario A1FI, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

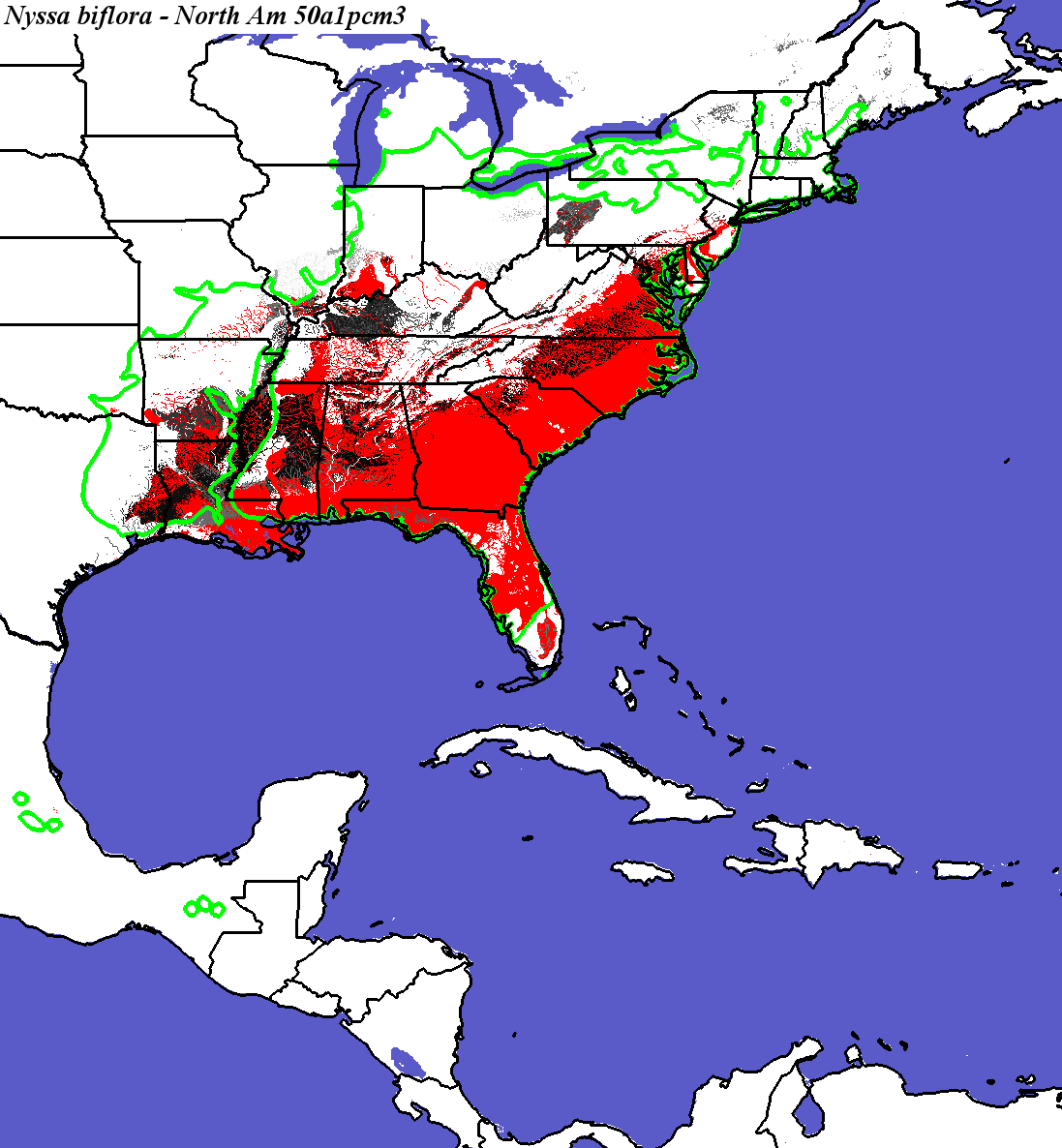

PCM, Scenario A1FI, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for PCM A1FI in 2100 by Iverson and Prasad

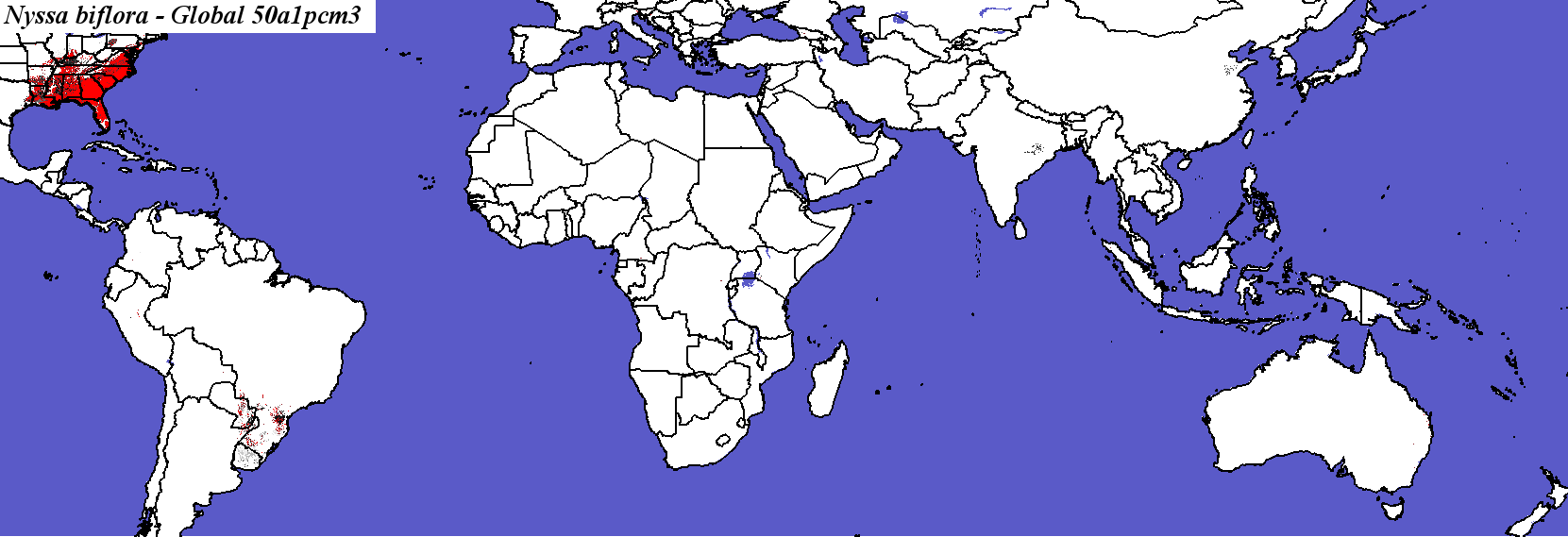

PCM, Scenario A1FI, 2100 - Nyssa biflora - Global

Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
PCM, Scenario B1, 2050 - Nyssa biflora - CONUS
PCM, Scenario B1, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

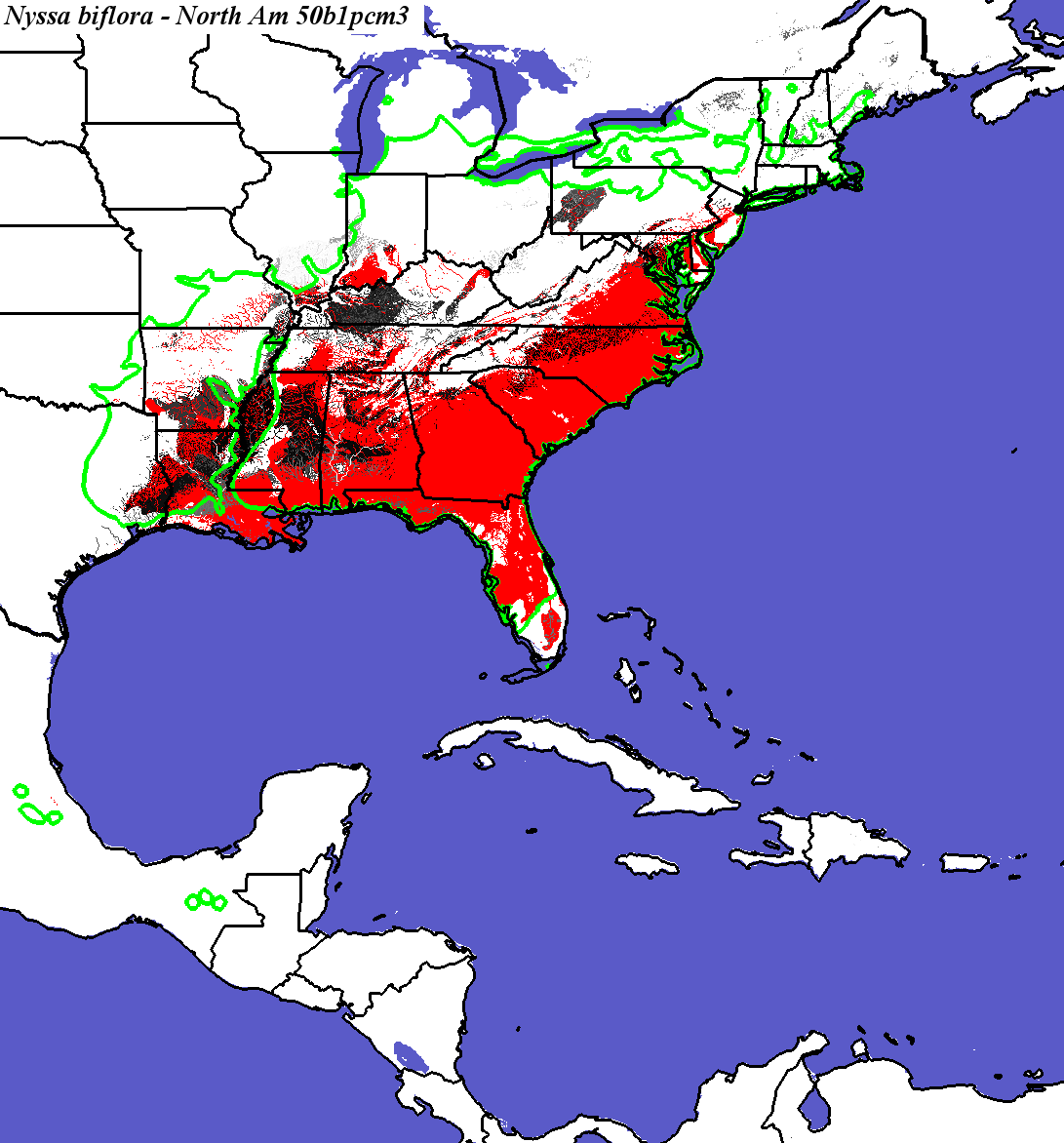

PCM, Scenario B1, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Nyssa biflora - Global

Hadley Climate Model
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
Hadley, Scenario A1FI, 2050 - Nyssa biflora - CONUS
Nyssa biflora not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global.

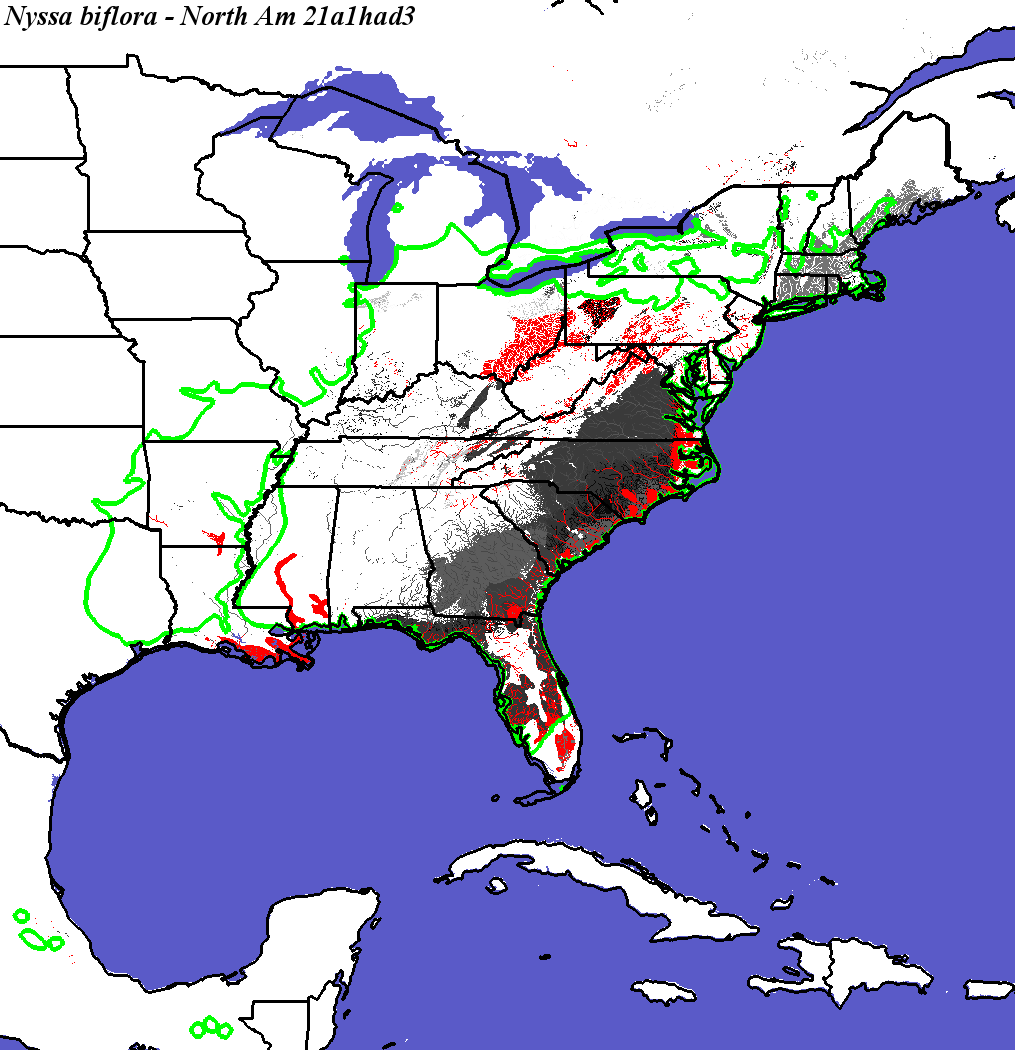

Hadley, Scenario A1FI, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for Hadley A1FI in 2100 by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Nyssa biflora - Global

Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global.

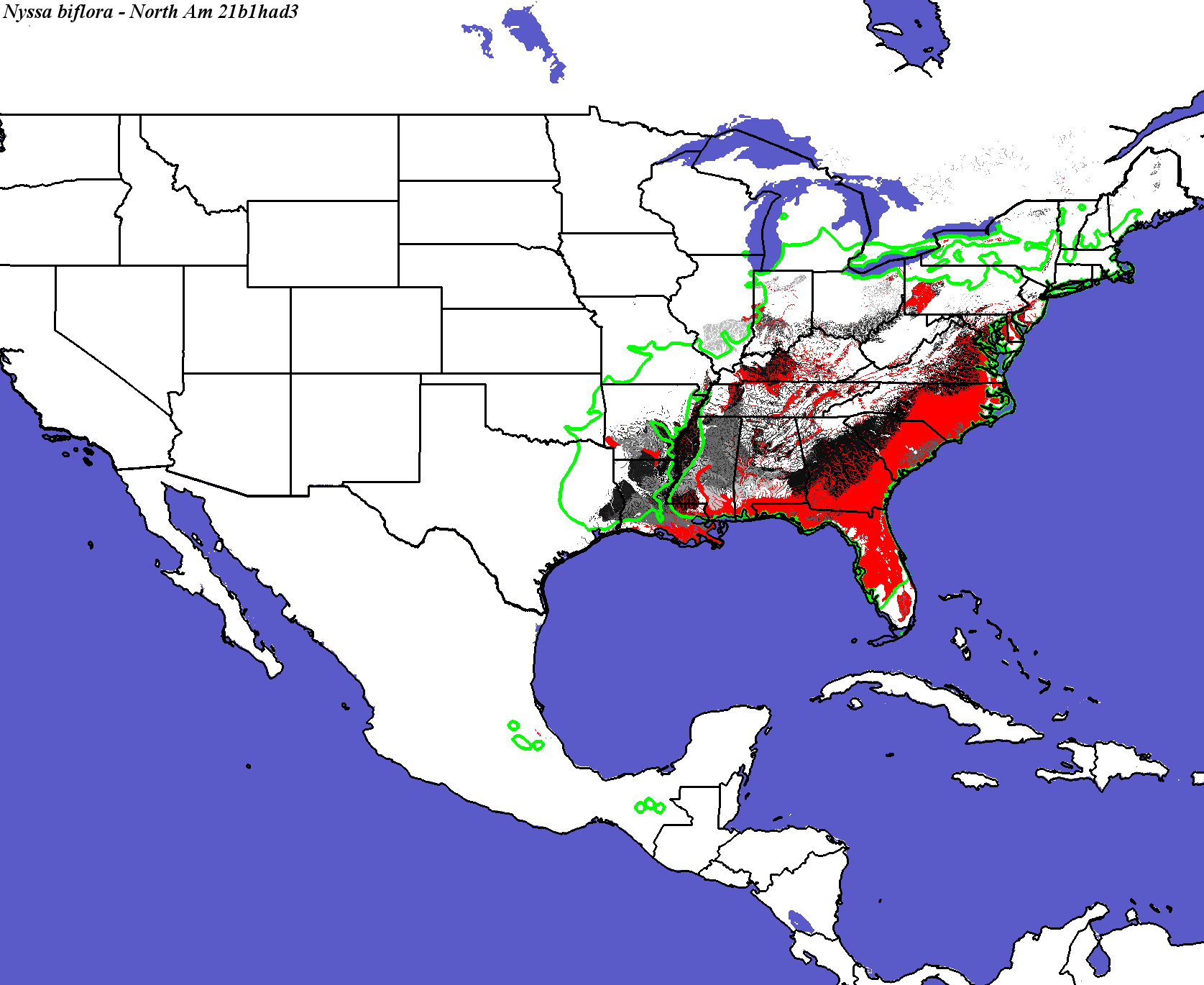

Hadley, Scenario B1, 2050 - Nyssa biflora - CONUS
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
Hadley, Scenario B1, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for Hadley B1 in 2100 by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt

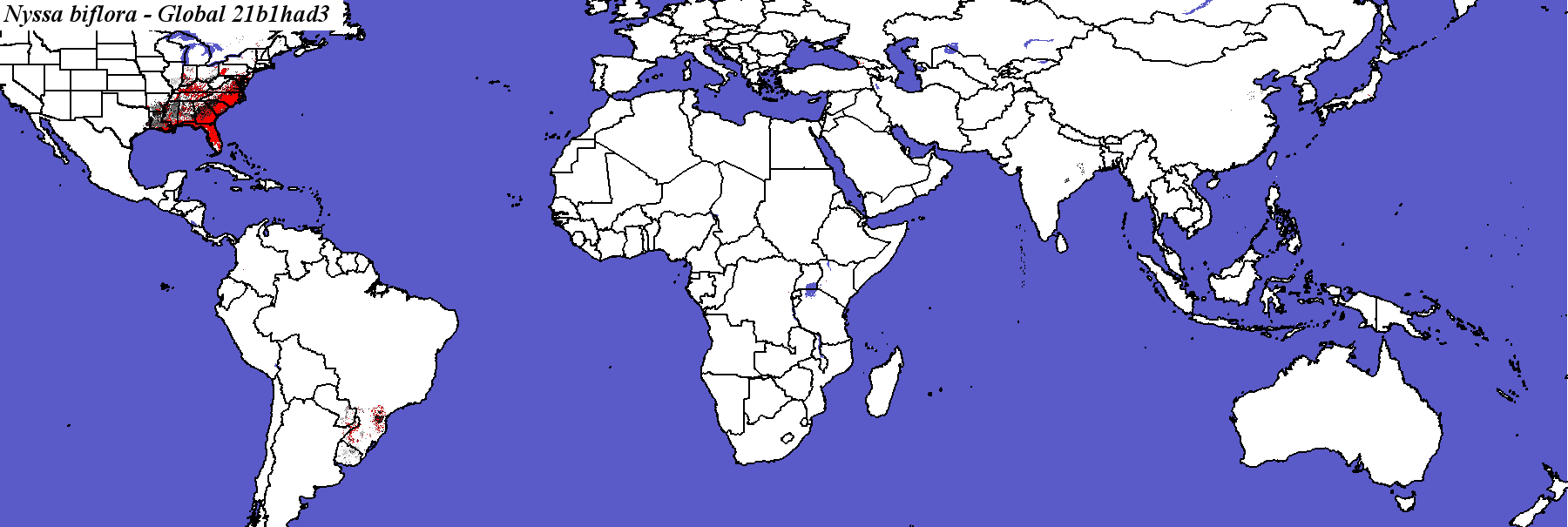

Hadley, Scenario B1, 2100 - Nyssa biflora - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Nyssa_biflora_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

98

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

21.3699

Area in Present Suitable Range (in km2)

775654

Area in Future Suitable Range (Had B1 2050, in km2)

538628

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

446462

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

57.5500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

30.9589

Percent Change in Area of Suitable Range (Had B1 2050)

-30.5500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

51.9178

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11271.3 +/- 22435.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

61.9178

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.61983 +/- 16.8746

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

60

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

242.878 +/- 752.612

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

21.0959

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

50929

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.5600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

17.8082

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

253246

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

32.6400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

38.7671

Present and Future Ranges - Hadley, Scenario B1, 2050 - Nyssa biflora Nyssa biflora - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Nyssa_biflora_final.noelev Fine MRM Distance

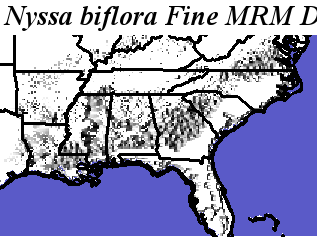

Nyssa_biflora_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Nyssa biflora
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Nyssa_biflora_final.noelev Coarse MRM Distance
Nyssa_biflora_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora
