Version 5 Tree Atlas


Pinus arizonica

Arizona pine

noelev

Pinus arizonica Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus arizonica

USDA Plants Database entry for Pinus arizonica
Silvics Manual entry for Pinus arizonica


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus arizonica var. stormiae; Pinus cooperi; Pinus cooperi var. ornelasi; Pinus lutea; Pinus ponderosa var. arizonica; Pinus ponderosa var. stormiae1200201some disjuncts not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_arizonica_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_arizonica_final
Pinus arizonica - Occurrence Locations Pinus arizonica - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global
Pinus arizonica - CONUS
Compare with Current Range from the Silvics Manual for Pinus arizonica
Compare with Current Range from Biota of North America Program (BONAP) for Pinus arizonica

Pinus arizonica not modeled by Iverson and Prasad
Pinus arizonica not modeled by Crookston and Rehfeldt
Pinus arizonica not modeled by Coops and Waring

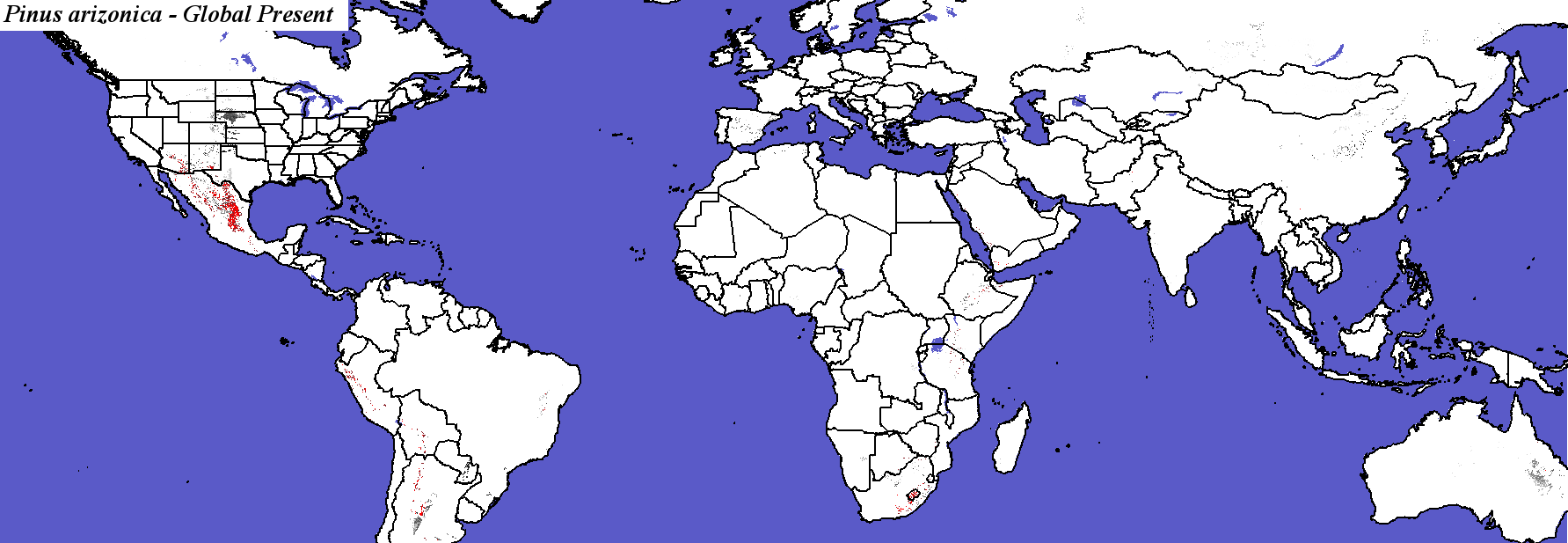

Pinus arizonica - Global

PCM - Parallel Climate Model
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global

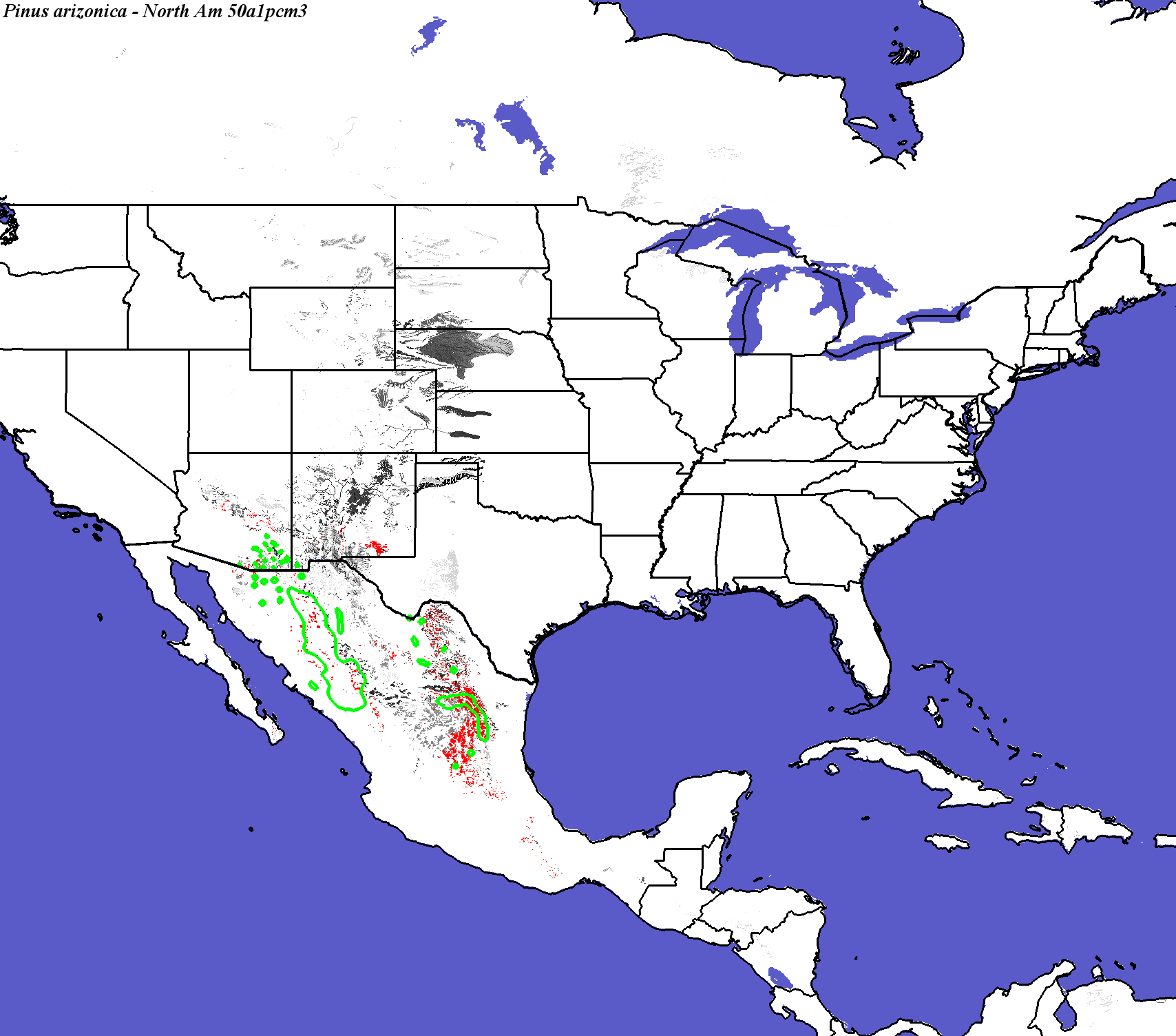

PCM, Scenario A1FI, 2050 - Pinus arizonica - CONUS

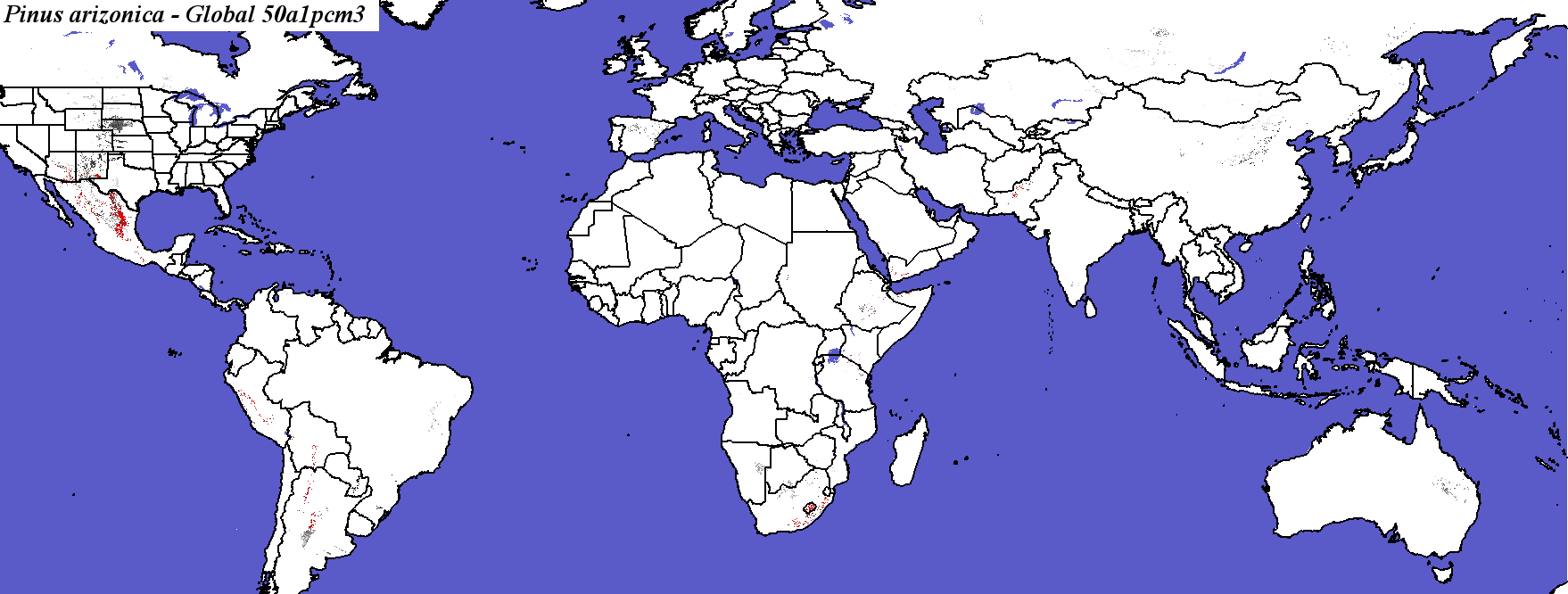

PCM, Scenario A1FI, 2050 - Pinus arizonica - Global
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global

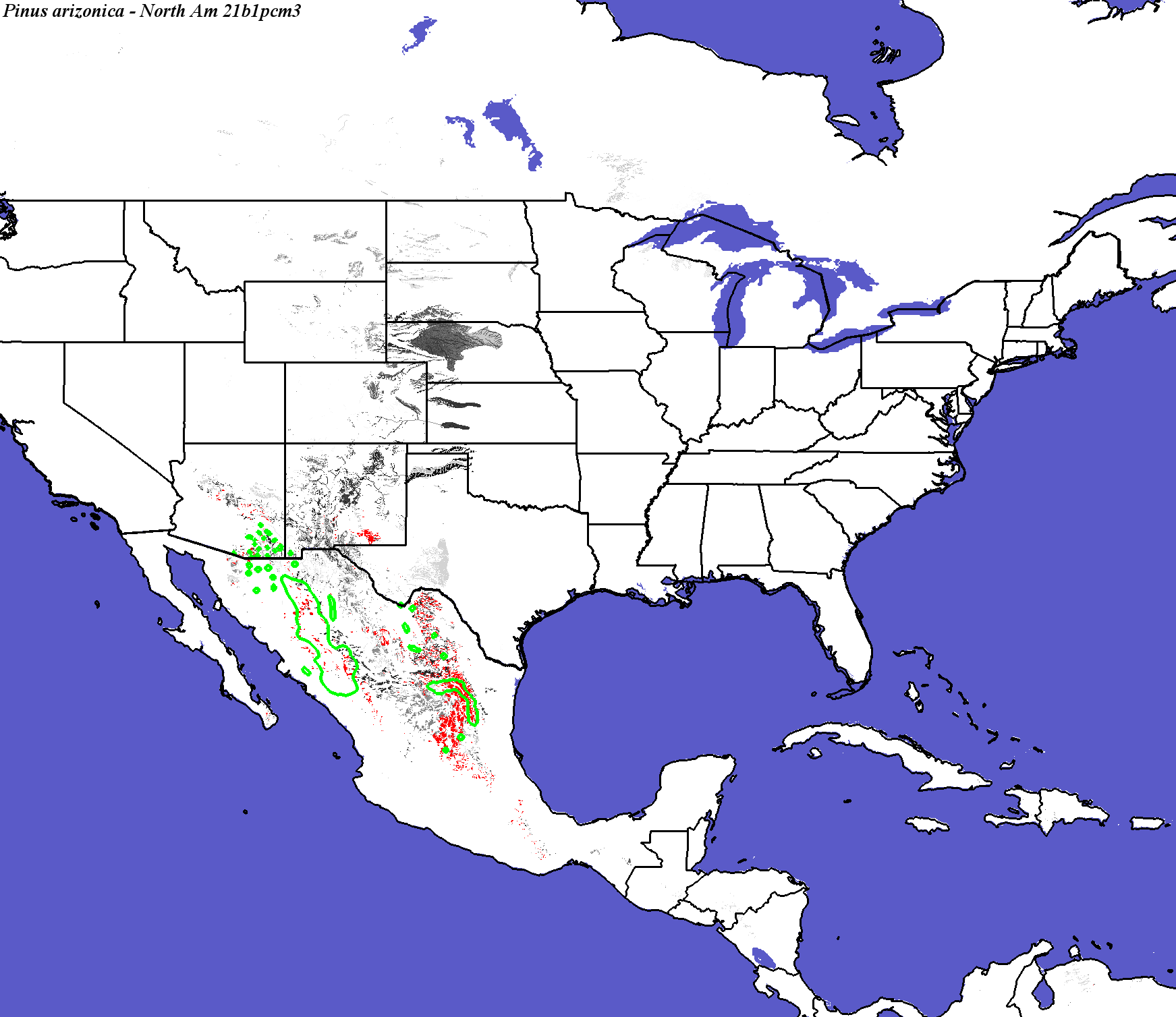

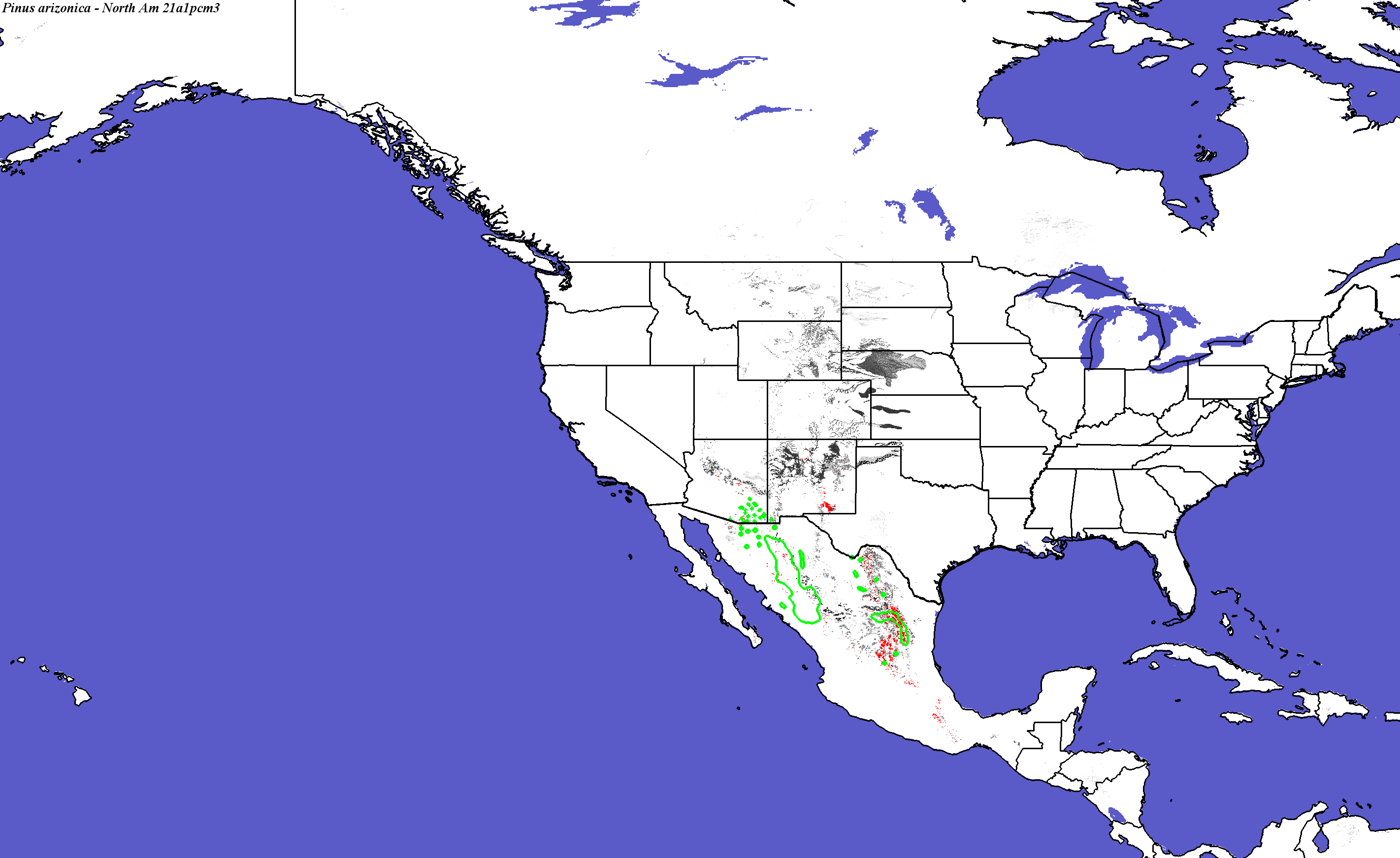

PCM, Scenario A1FI, 2100 - Pinus arizonica - CONUS
Pinus arizonica species not modeled by Iverson and Prasad

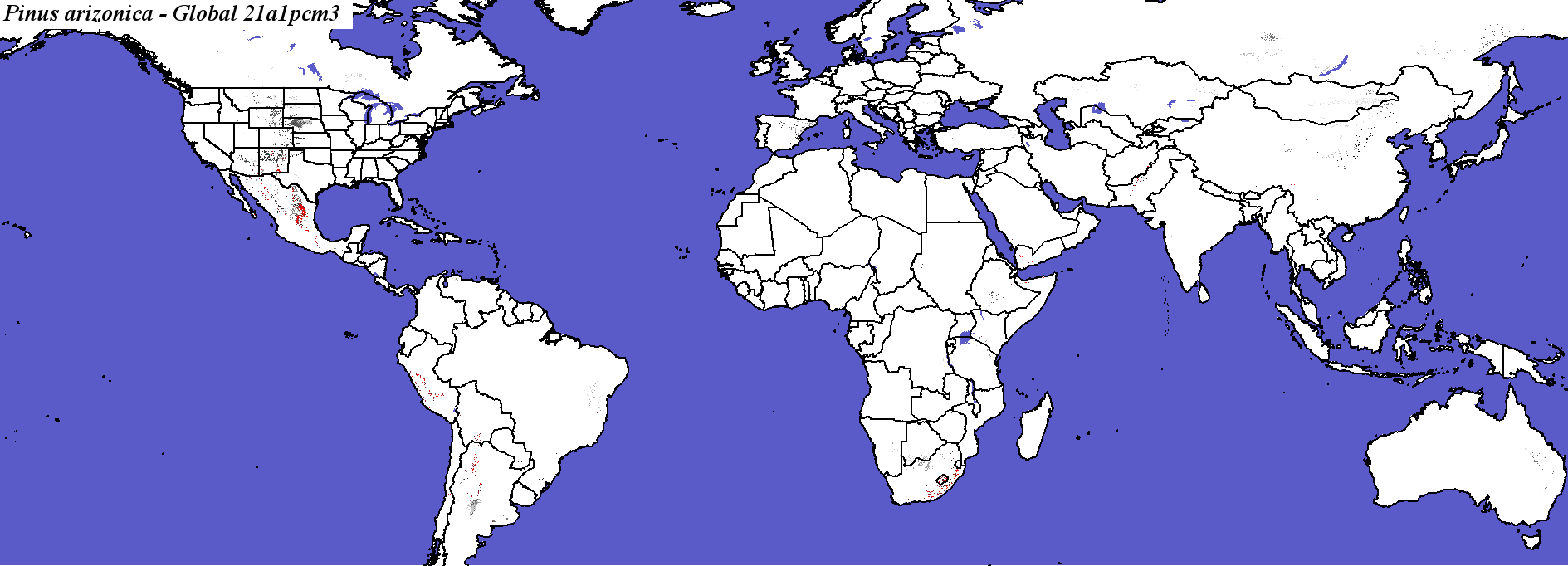

PCM, Scenario A1FI, 2100 - Pinus arizonica - Global

Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global

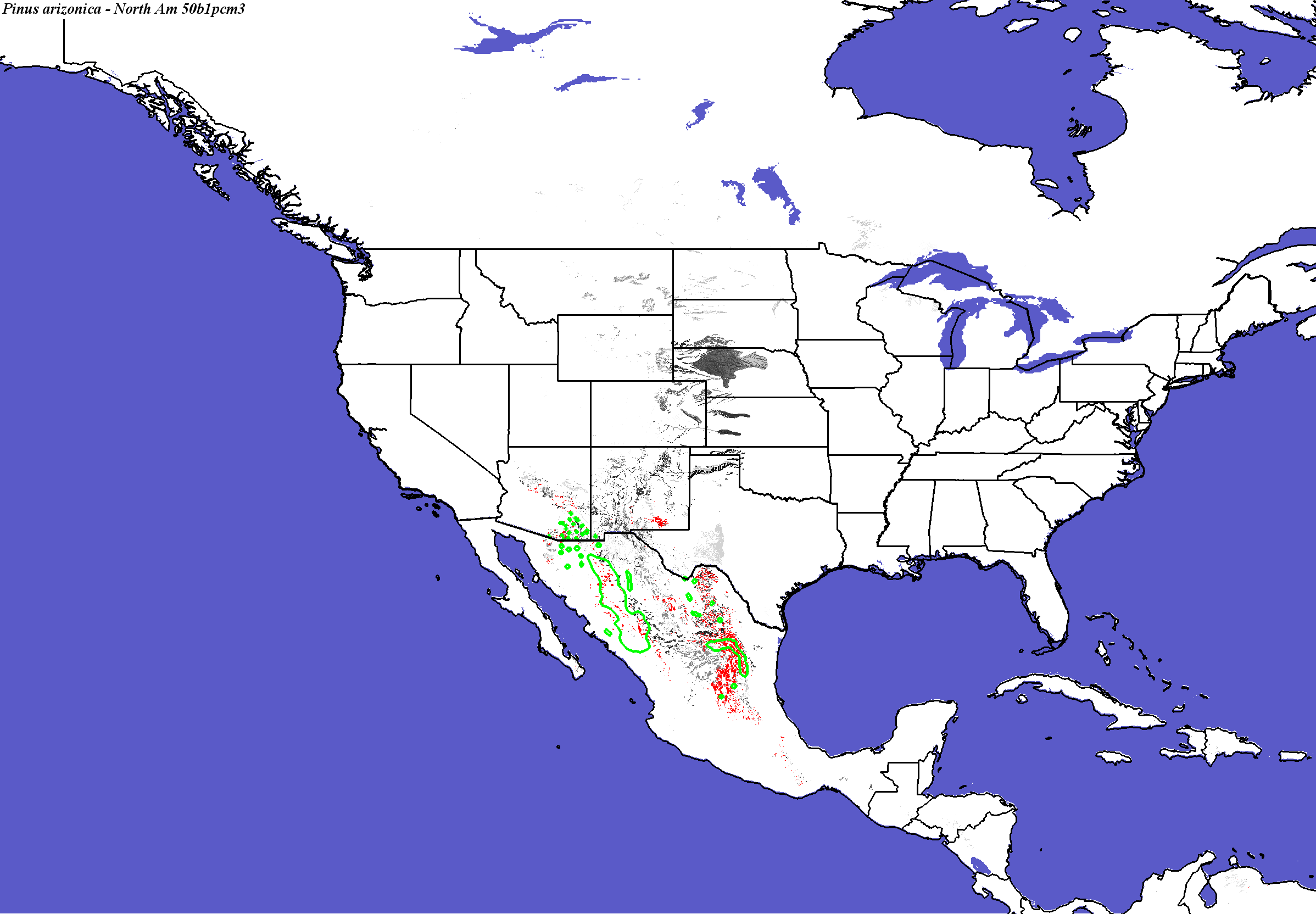

PCM, Scenario B1, 2050 - Pinus arizonica - CONUS

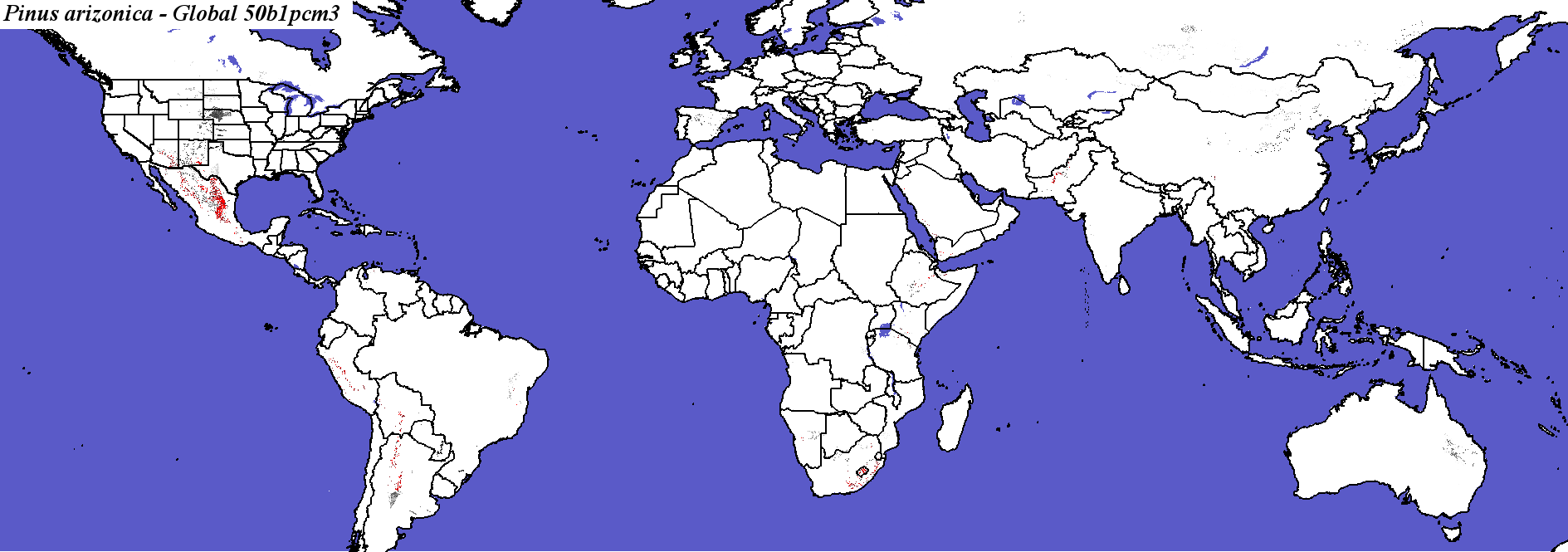

PCM, Scenario B1, 2050 - Pinus arizonica - Global
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global
PCM, Scenario B1, 2100 - Pinus arizonica - CONUS
Pinus arizonica not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus arizonica - Global

Hadley Climate Model
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global

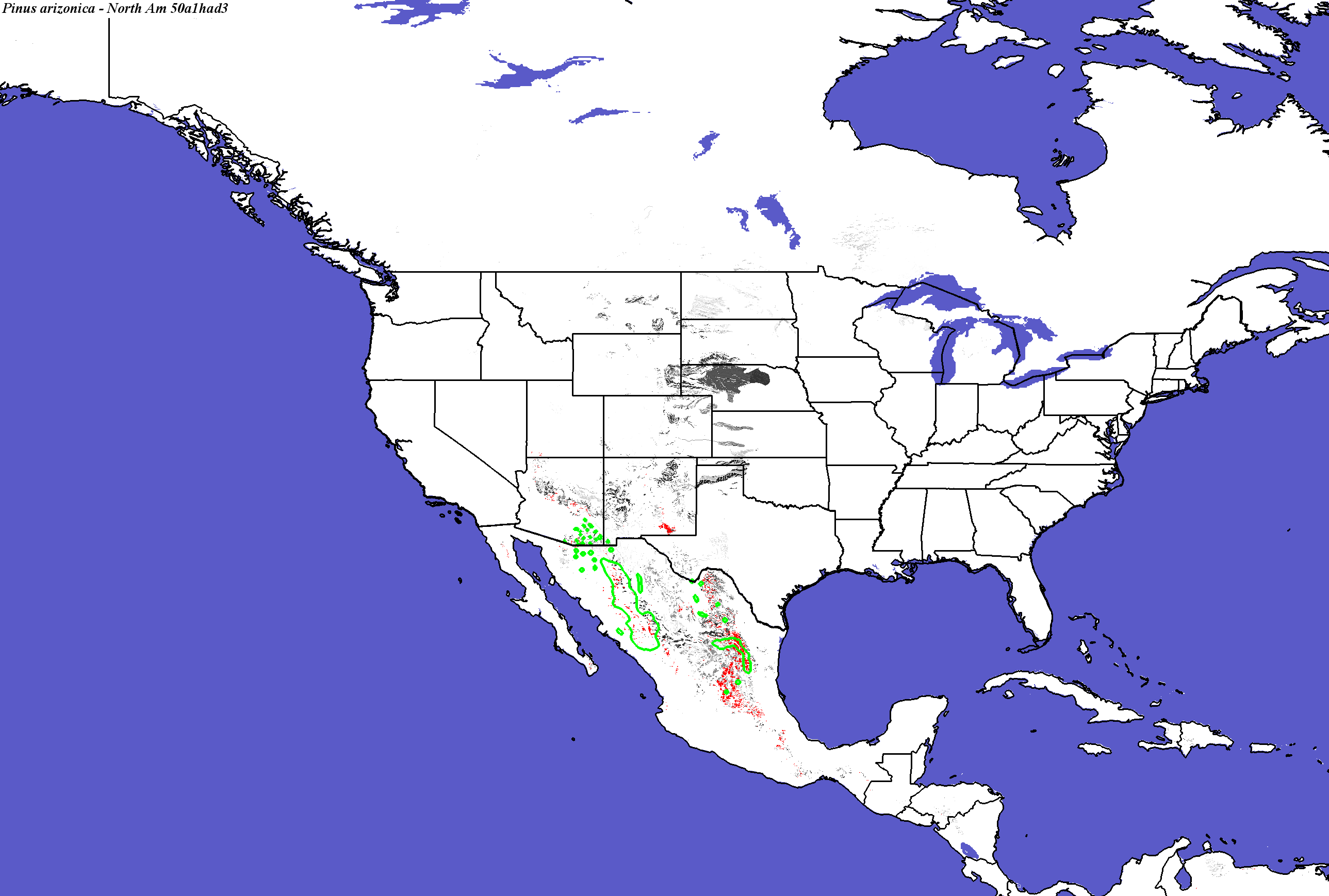

Hadley, Scenario A1FI, 2050 - Pinus arizonica - CONUS
Pinus arizonica not modeled by Crookston and Rehfeldt

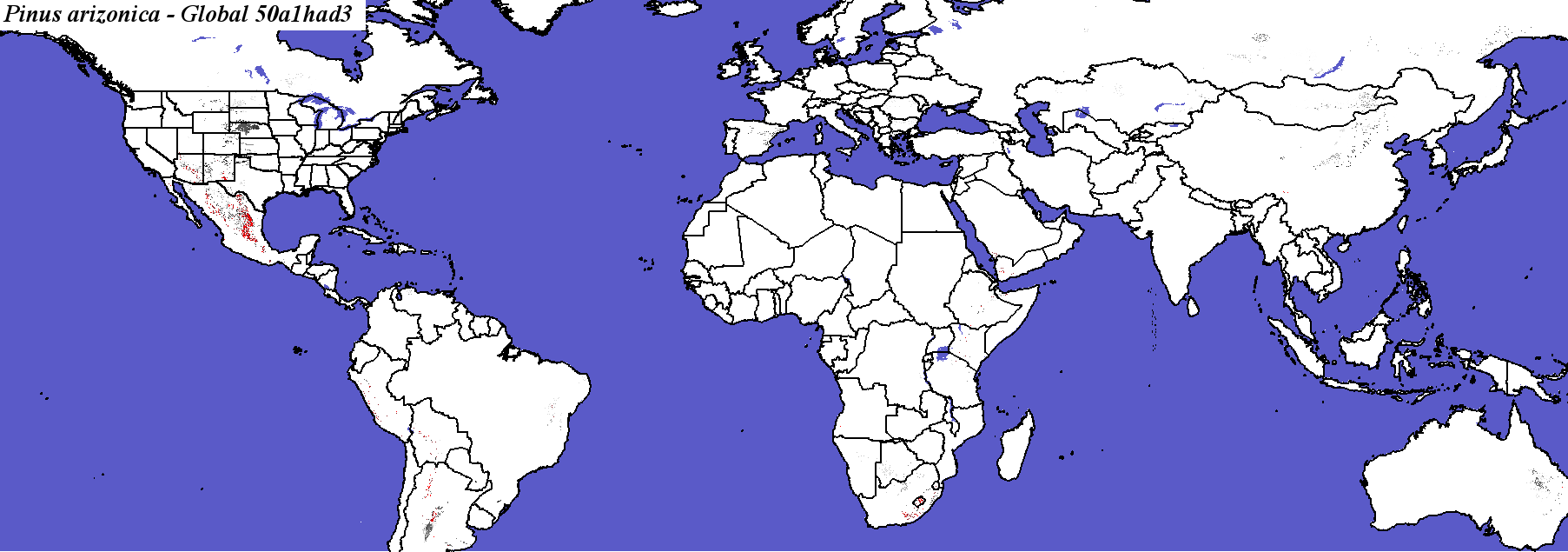

Hadley, Scenario A1FI, 2050 - Pinus arizonica - Global
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global.
Hadley, Scenario A1FI, 2100 - Pinus arizonica - CONUS
Pinus arizonica not modeled by Iverson and Prasad
Pinus arizonica not modeled by Crookston and Rehfeldt
Pinus arizonica not modeled by Coops and Waring

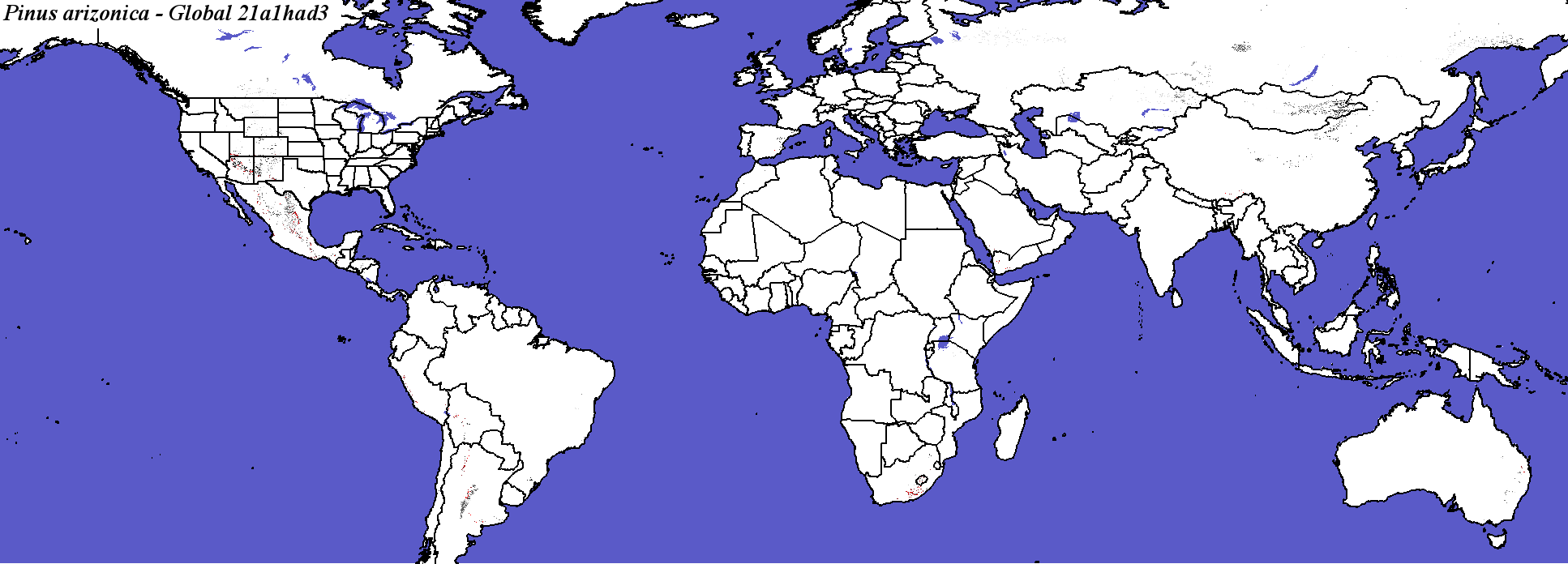

Hadley, Scenario A1FI, 2100 - Pinus arizonica - Global

Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global.

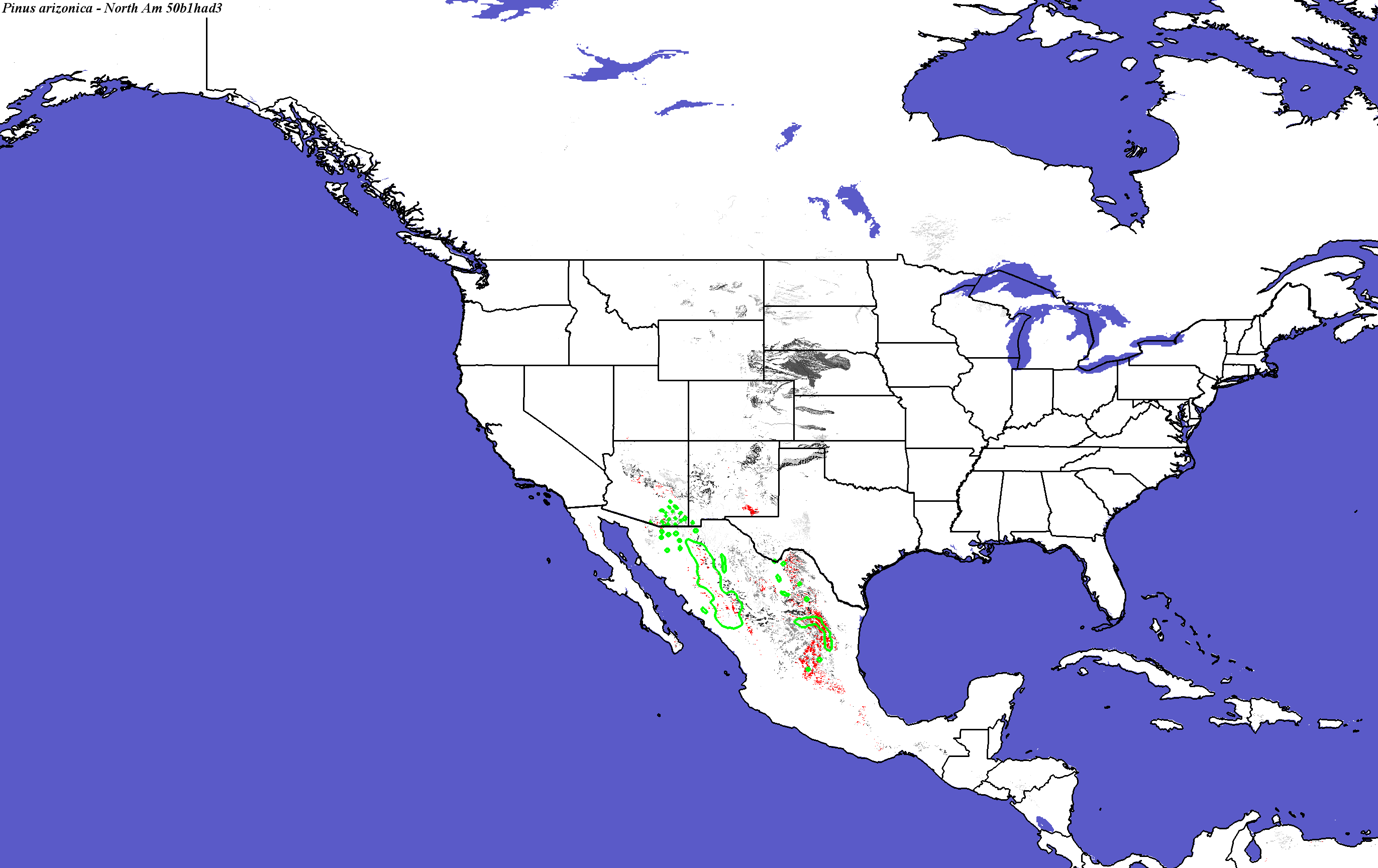

Hadley, Scenario B1, 2050 - Pinus arizonica - CONUS
Pinus arizonica not modeled by Crookston and Rehfeldt
Pinus arizonica not modeled by Coops and Waring

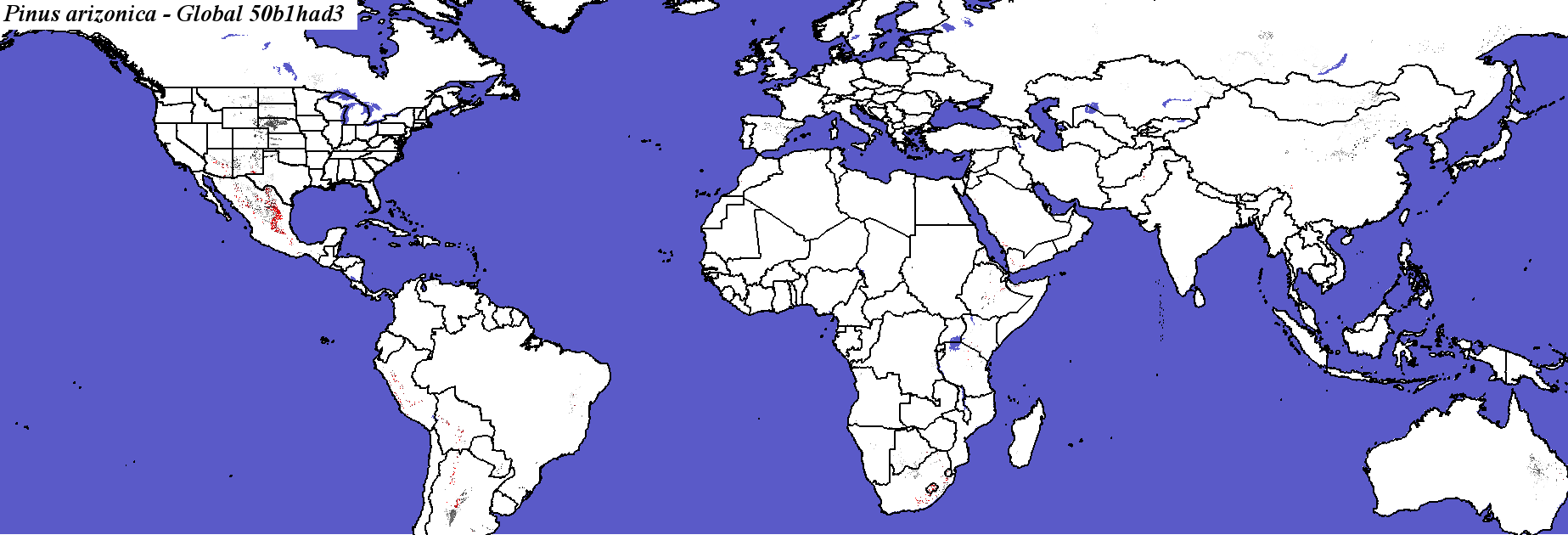

Hadley, Scenario B1, 2050 - Pinus arizonica - Global
Pinus_arizonica_final.3.conus
Pinus_arizonica_final.3.global

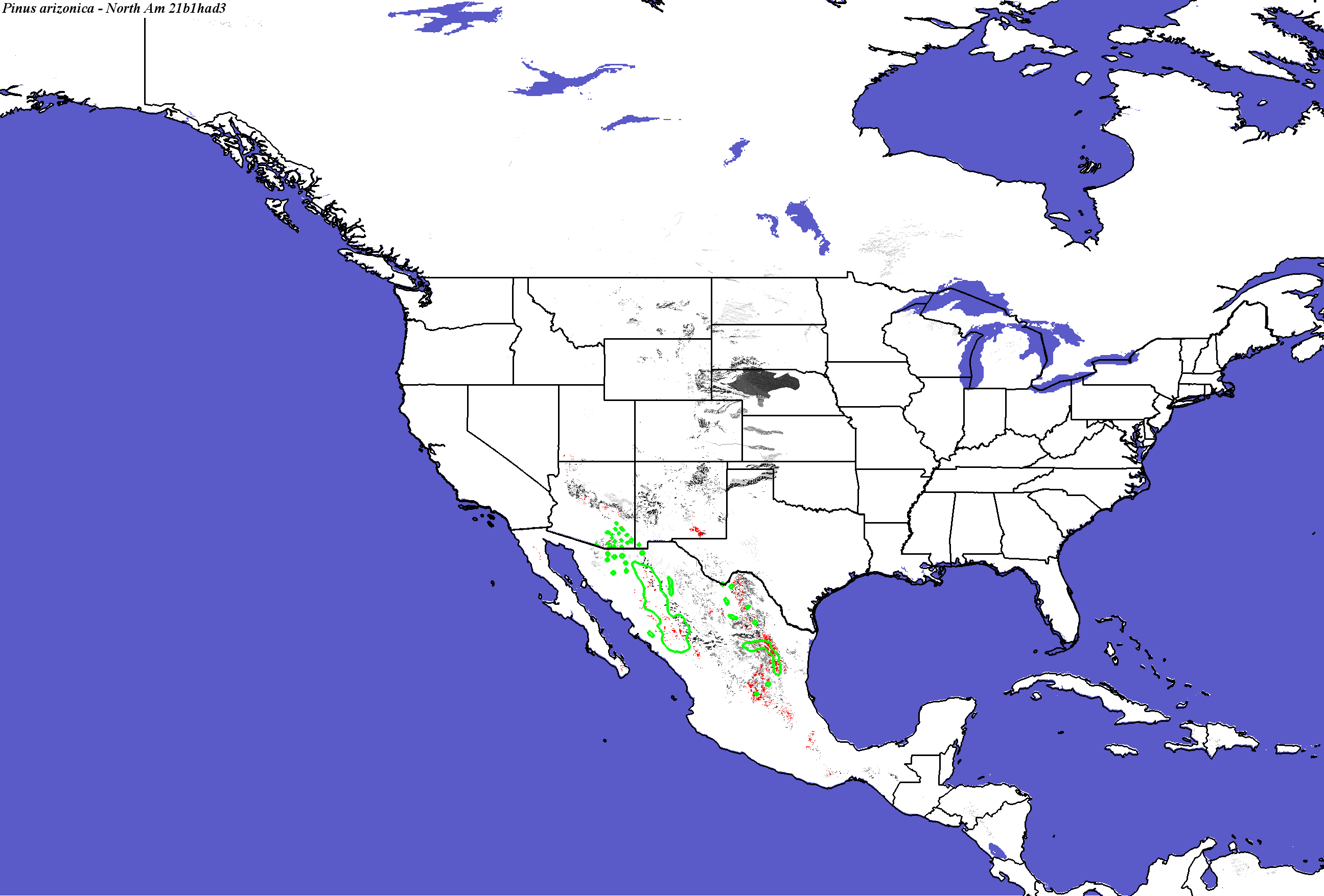

Hadley, Scenario B1, 2100 - Pinus arizonica - CONUS
Pinus arizonica not modeled by Iverson and Prasad
Pinus arizonica not modeled by Crookston and Rehfeldt

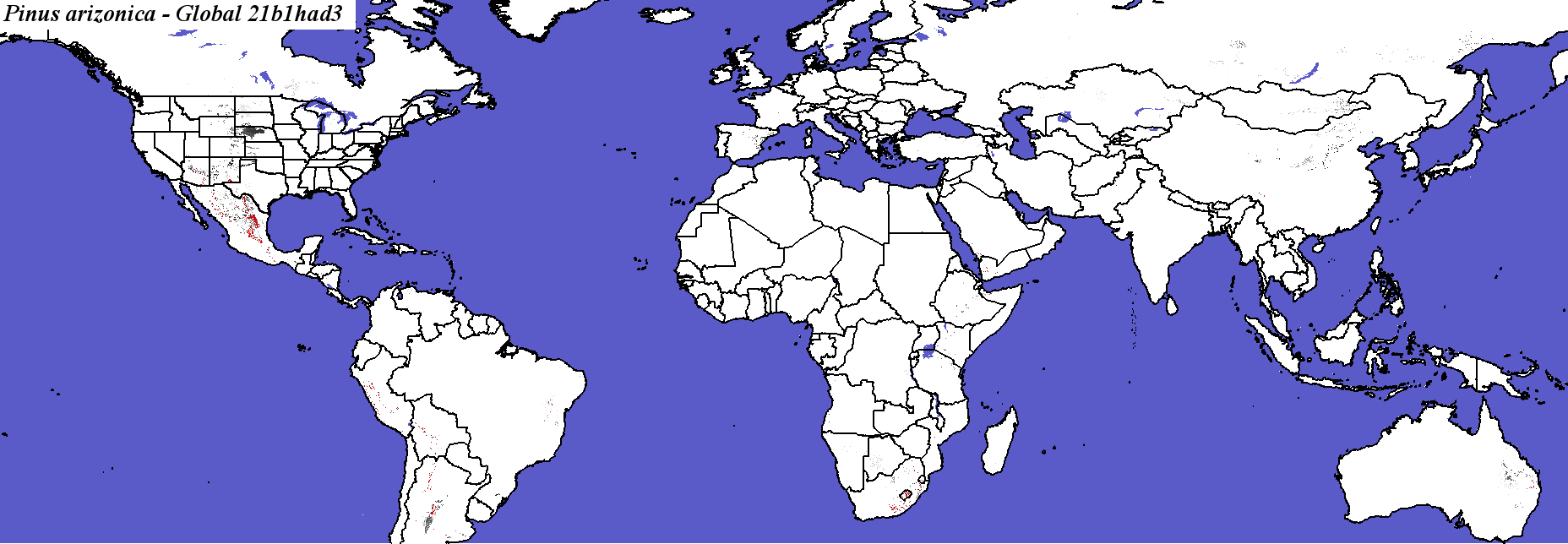

Hadley, Scenario B1, 2100 - Pinus arizonica - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_arizonica_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

19

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

64.3836

Area in Present Suitable Range (in km2)

124792

Area in Future Suitable Range (Had B1 2050, in km2)

76387

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

59033

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

47.3000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

56.9863

Percent Change in Area of Suitable Range (Had B1 2050)

-38.7800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

67.2603

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14401.8 +/- 26303.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

51.0959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.04694 +/- 9.93865

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

57.3973

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

59.0146 +/- 325.409

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

53.1507

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1176

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.9400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

51.7808

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

35568

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

28.5000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

46.7123

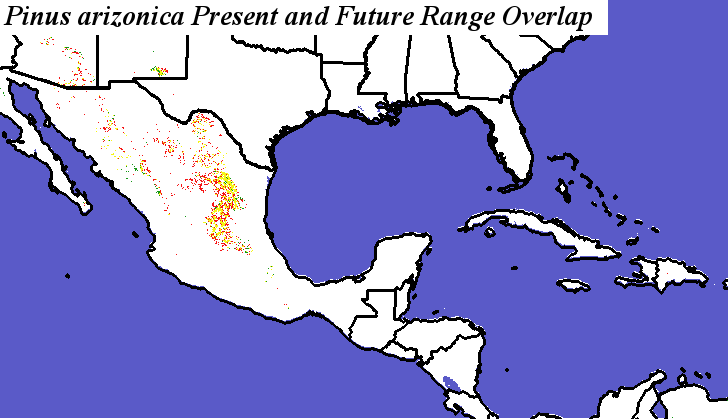

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus arizonica Pinus arizonica - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_arizonica_final.noelev Fine MRM Distance
Pinus_arizonica_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus arizonica Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus arizonica
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_arizonica_final.noelev Coarse MRM Distance
Pinus_arizonica_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus arizonica Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus arizonica

Thu Jul 21 10:06:52 EDT 2016
