Version 5 Tree Atlas


Pinus engelmannii

Apache pine

noelev

Pinus engelmannii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus engelmannii

USDA Plants Database entry for Pinus engelmannii
Silvics Manual entry for Pinus engelmannii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
64854much of range not well represented

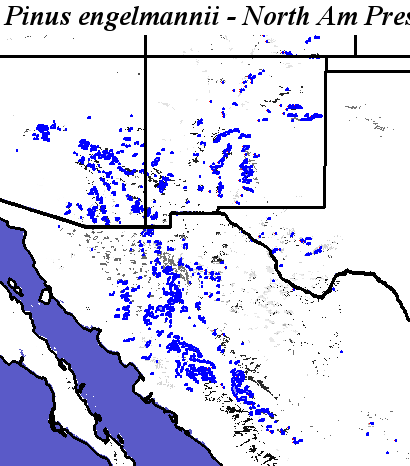

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_engelmannii_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_engelmannii_final
Pinus engelmannii - Occurrence Locations Pinus engelmannii - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

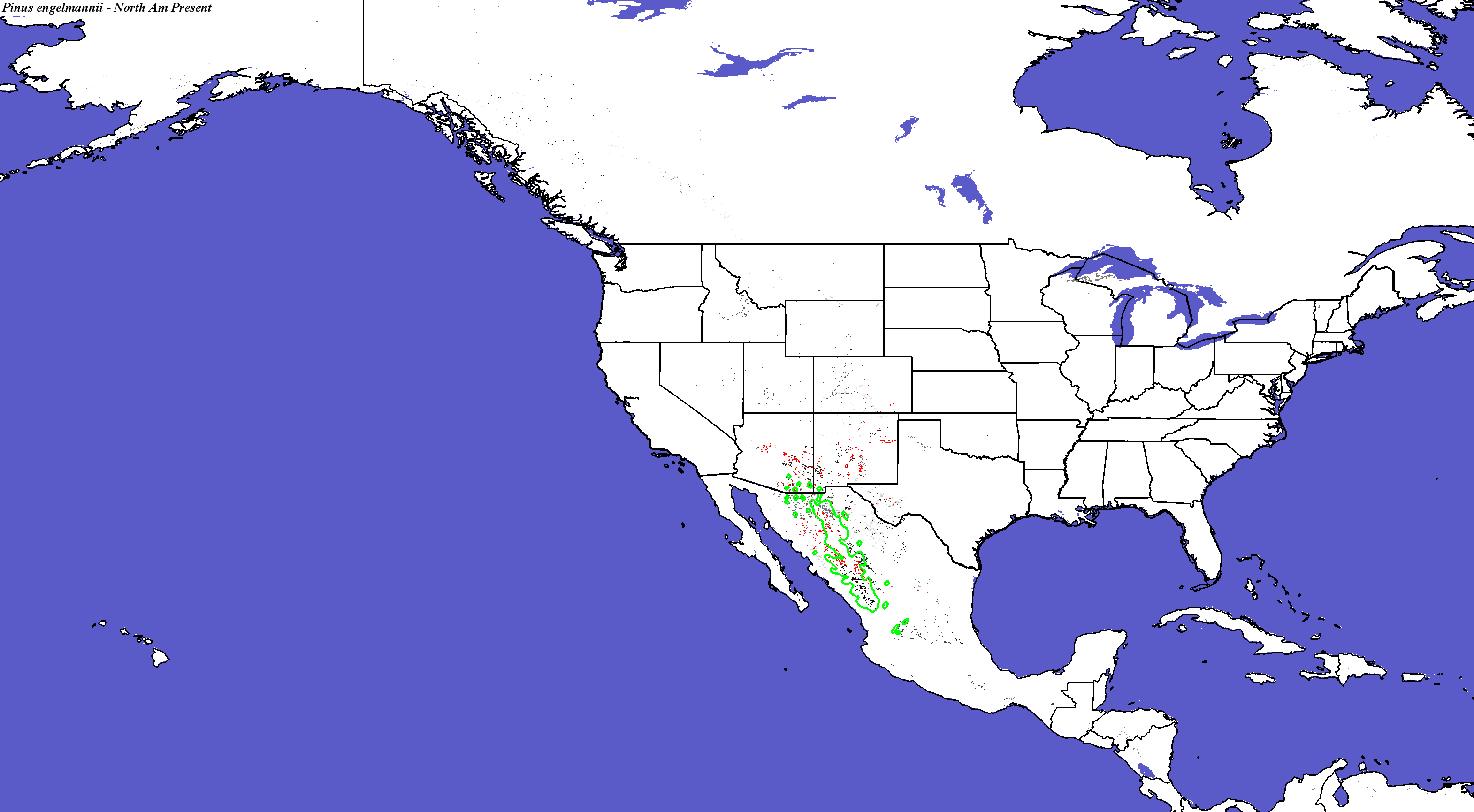

Pinus engelmannii - CONUS
Compare with Current Range from the Silvics Manual for Pinus engelmannii
Compare with Current Range from Biota of North America Program (BONAP) for Pinus engelmannii

Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring
Pinus engelmannii - Global

PCM - Parallel Climate Model
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
PCM, Scenario A1FI, 2050 - Pinus engelmannii - CONUS

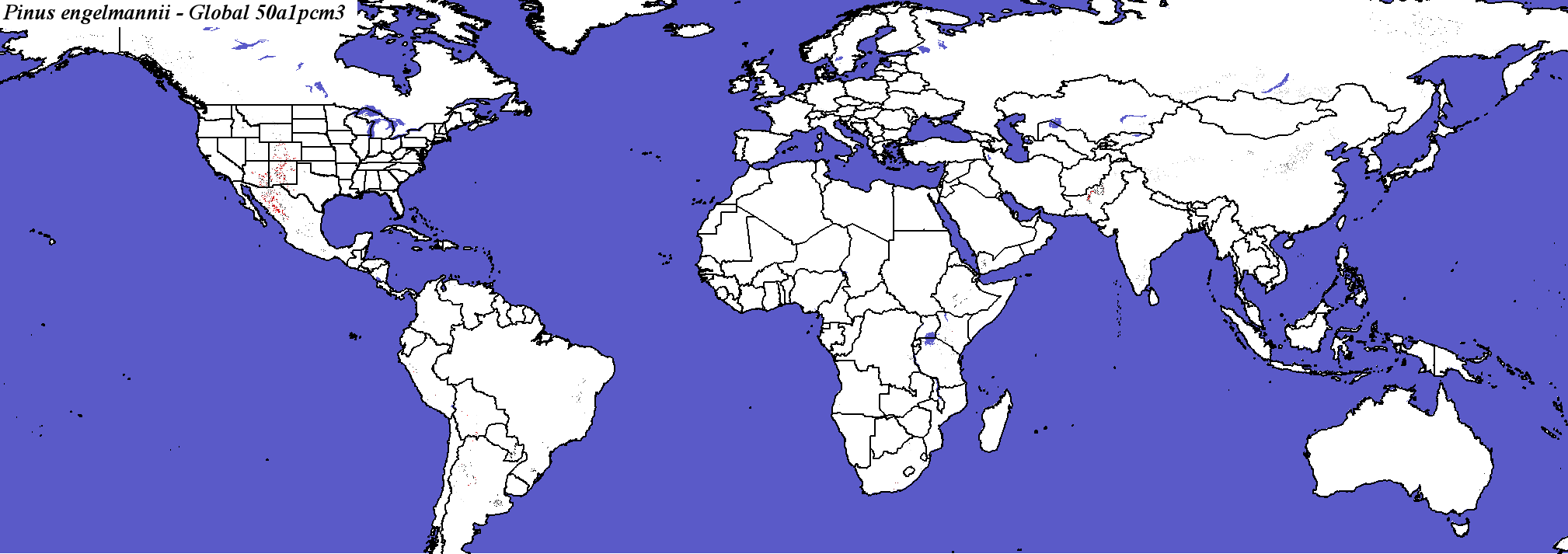

PCM, Scenario A1FI, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
PCM, Scenario A1FI, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii species not modeled by Iverson and Prasad

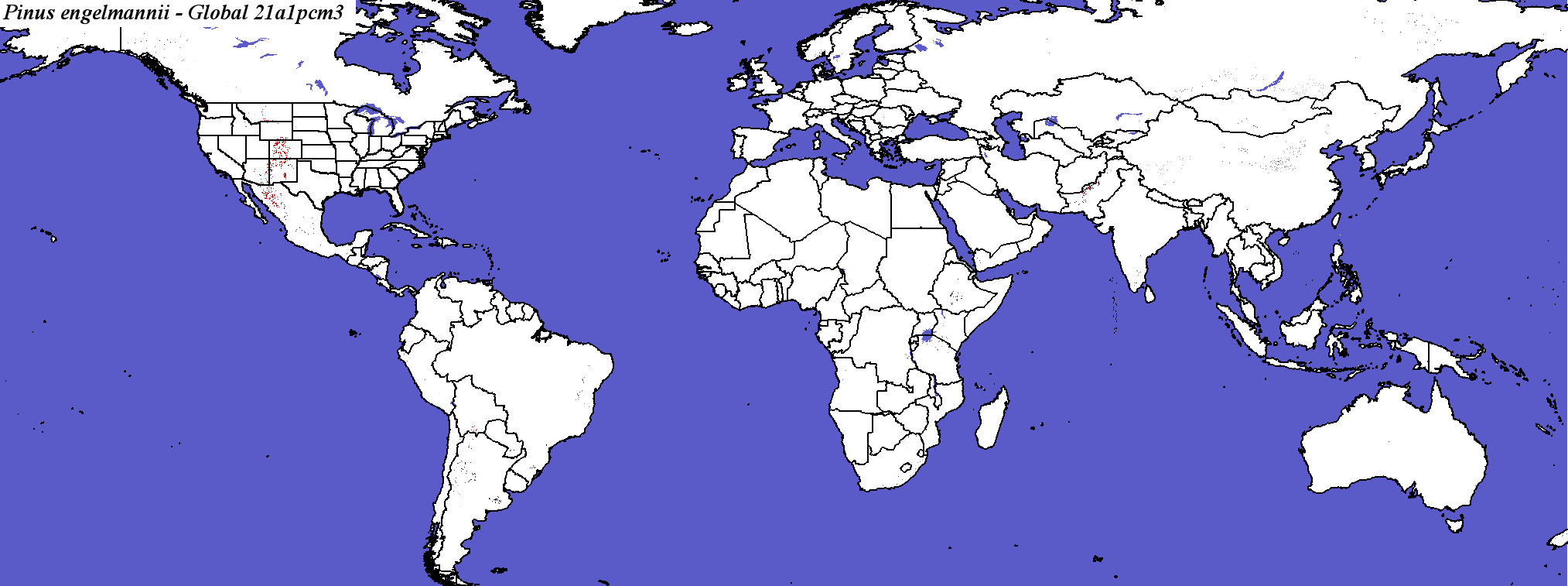

PCM, Scenario A1FI, 2100 - Pinus engelmannii - Global

Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
PCM, Scenario B1, 2050 - Pinus engelmannii - CONUS
PCM, Scenario B1, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

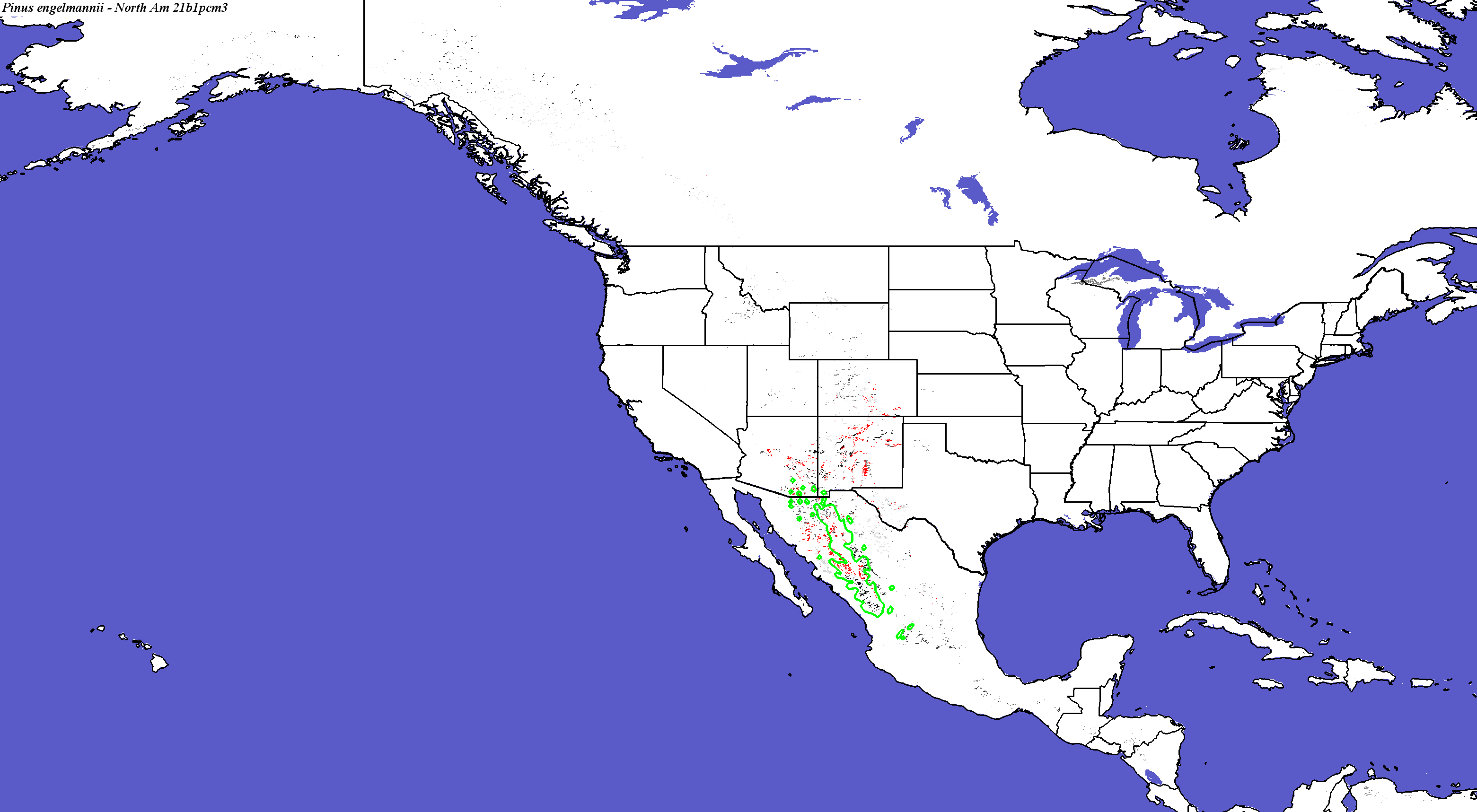

PCM, Scenario B1, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus engelmannii - Global

Hadley Climate Model
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

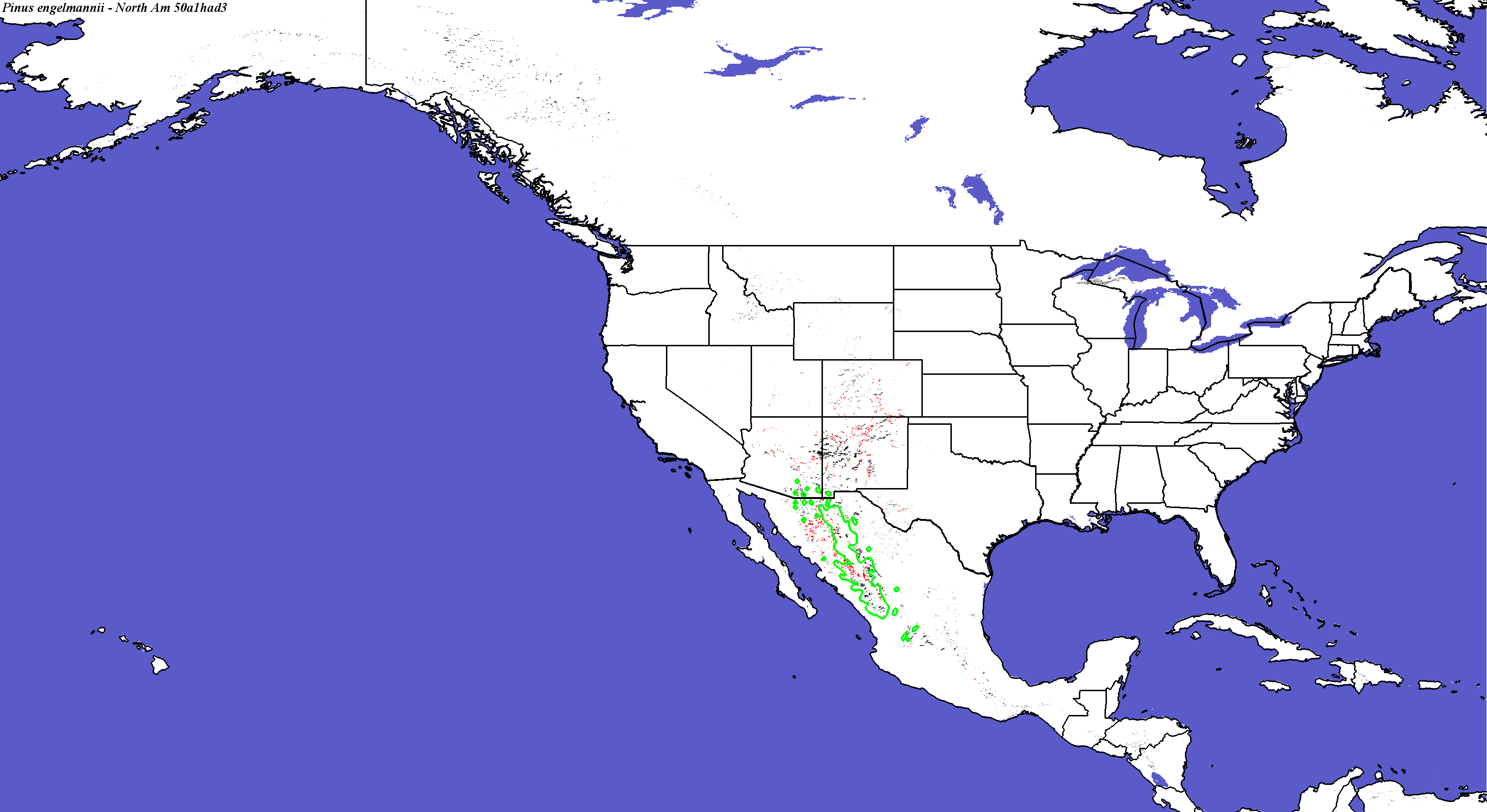

Hadley, Scenario A1FI, 2050 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global.

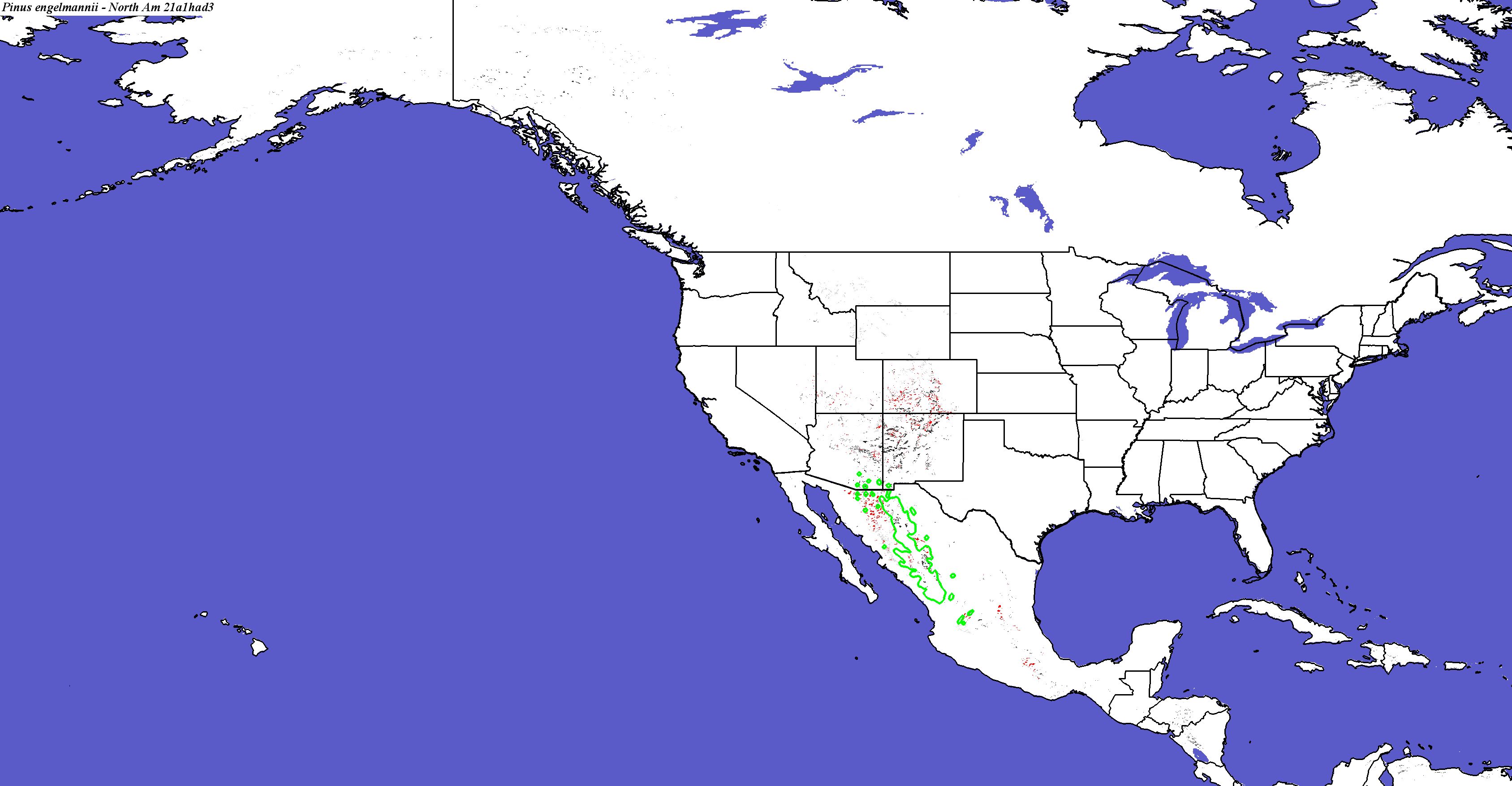

Hadley, Scenario A1FI, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus engelmannii - Global

Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global.
Hadley, Scenario B1, 2050 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
Hadley, Scenario B1, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus engelmannii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

10

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

85.6164

Area in Present Suitable Range (in km2)

30053

Area in Future Suitable Range (Had B1 2050, in km2)

24206

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

13387

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

44.5400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

61.2329

Percent Change in Area of Suitable Range (Had B1 2050)

-19.4500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

31.5068

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

15676.9 +/- 20649.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

46.4384

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.39583 +/- 11.0628

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

47.1233

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

15.4688 +/- 30.4059

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

90.5479

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

86.4384

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

14517

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

48.3000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

9.17808

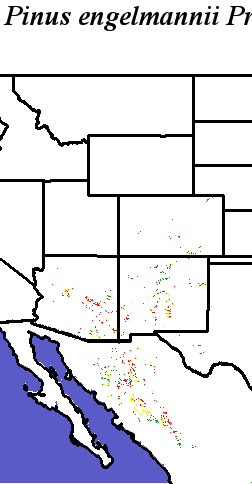

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus engelmannii Pinus engelmannii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.noelev Fine MRM Distance
Pinus_engelmannii_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus engelmannii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.noelev Coarse MRM Distance
Pinus_engelmannii_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii
