Version 5 Tree Atlas


Pinus flexilis

limber pine

noelev

Pinus flexilis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus flexilis

USDA Plants Database entry for Pinus flexilis
Silvics Manual entry for Pinus flexilis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus flexilis var. reflexa; Pinus reflexa573202775TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_flexilis_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_flexilis_final
Pinus flexilis - Occurrence Locations Pinus flexilis - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global

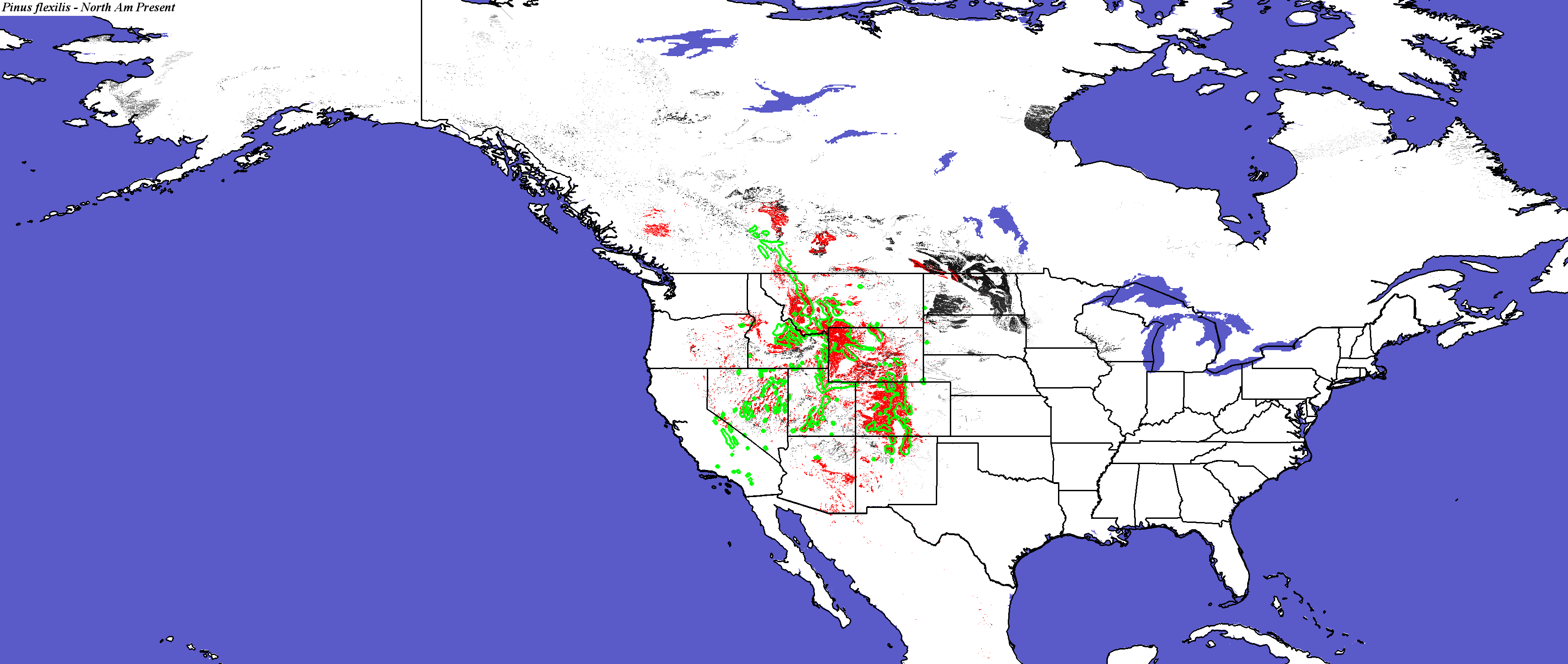

Pinus flexilis - CONUS
Compare with Current Range from the Silvics Manual for Pinus flexilis
Compare with Current Range from Biota of North America Program (BONAP) for Pinus flexilis

Pinus flexilis not modeled by Iverson and Prasad
Compare with Pinus flexilis modeled for Current conditions by Crookston and Rehfeldt
Pinus flexilis not modeled by Coops and Waring
Pinus flexilis - Global

PCM - Parallel Climate Model
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global

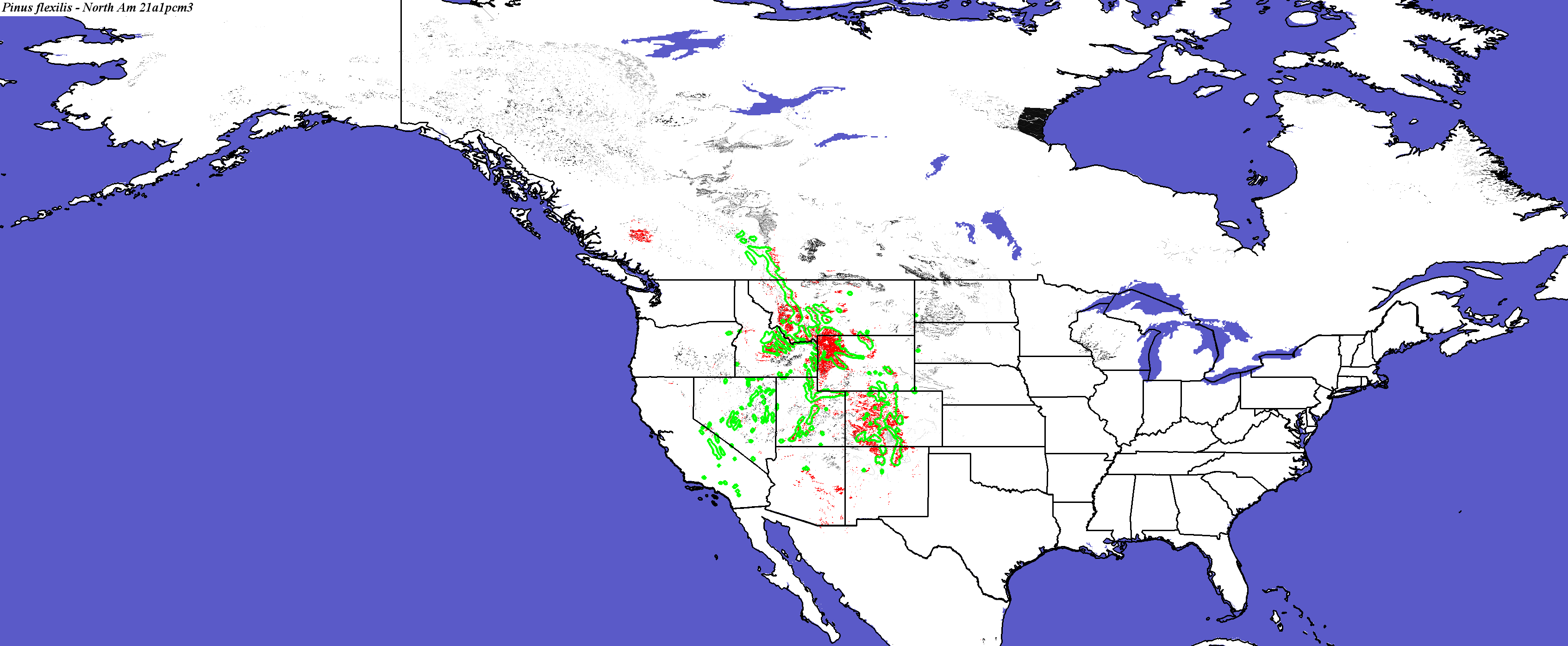

PCM, Scenario A1FI, 2050 - Pinus flexilis - CONUS
PCM, Scenario A1FI, 2050 - Pinus flexilis - Global
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global
PCM, Scenario A1FI, 2100 - Pinus flexilis - CONUS
Pinus flexilis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus flexilis - Global

Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global
PCM, Scenario B1, 2050 - Pinus flexilis - CONUS
PCM, Scenario B1, 2050 - Pinus flexilis - Global
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global
PCM, Scenario B1, 2100 - Pinus flexilis - CONUS
Pinus flexilis not modeled by Iverson and Prasad

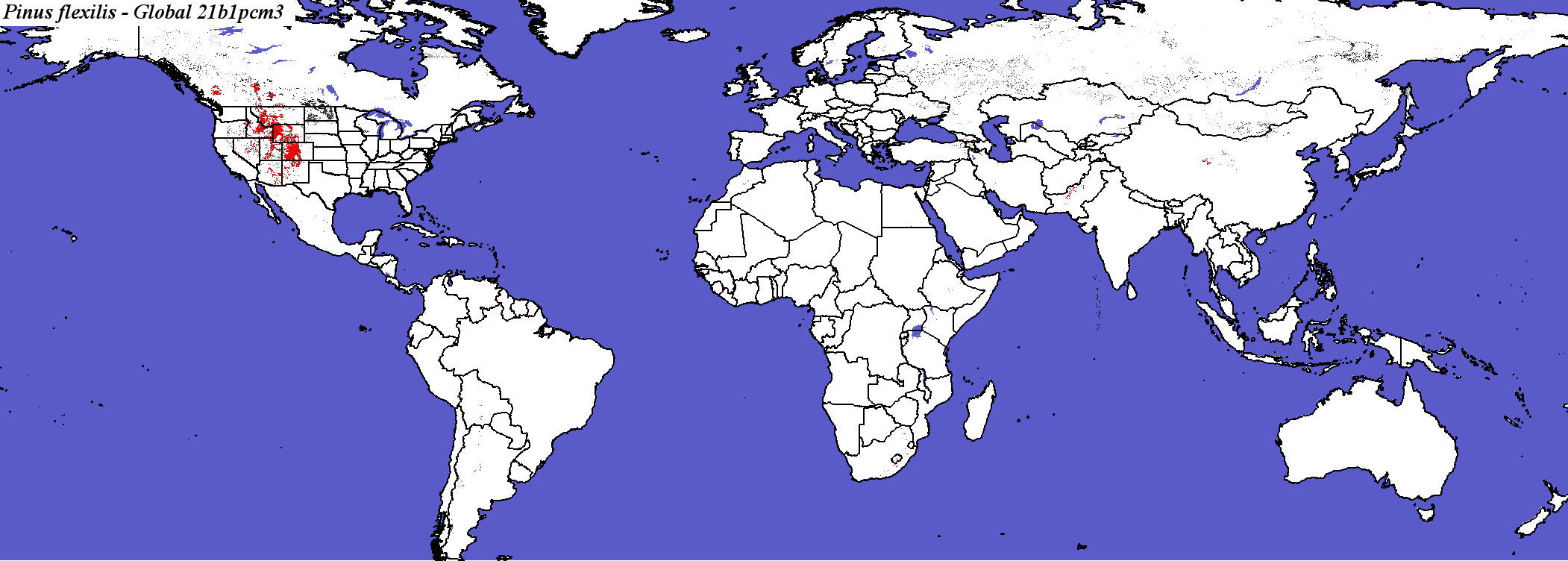

PCM, Scenario B1, 2100 - Pinus flexilis - Global

Hadley Climate Model
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global

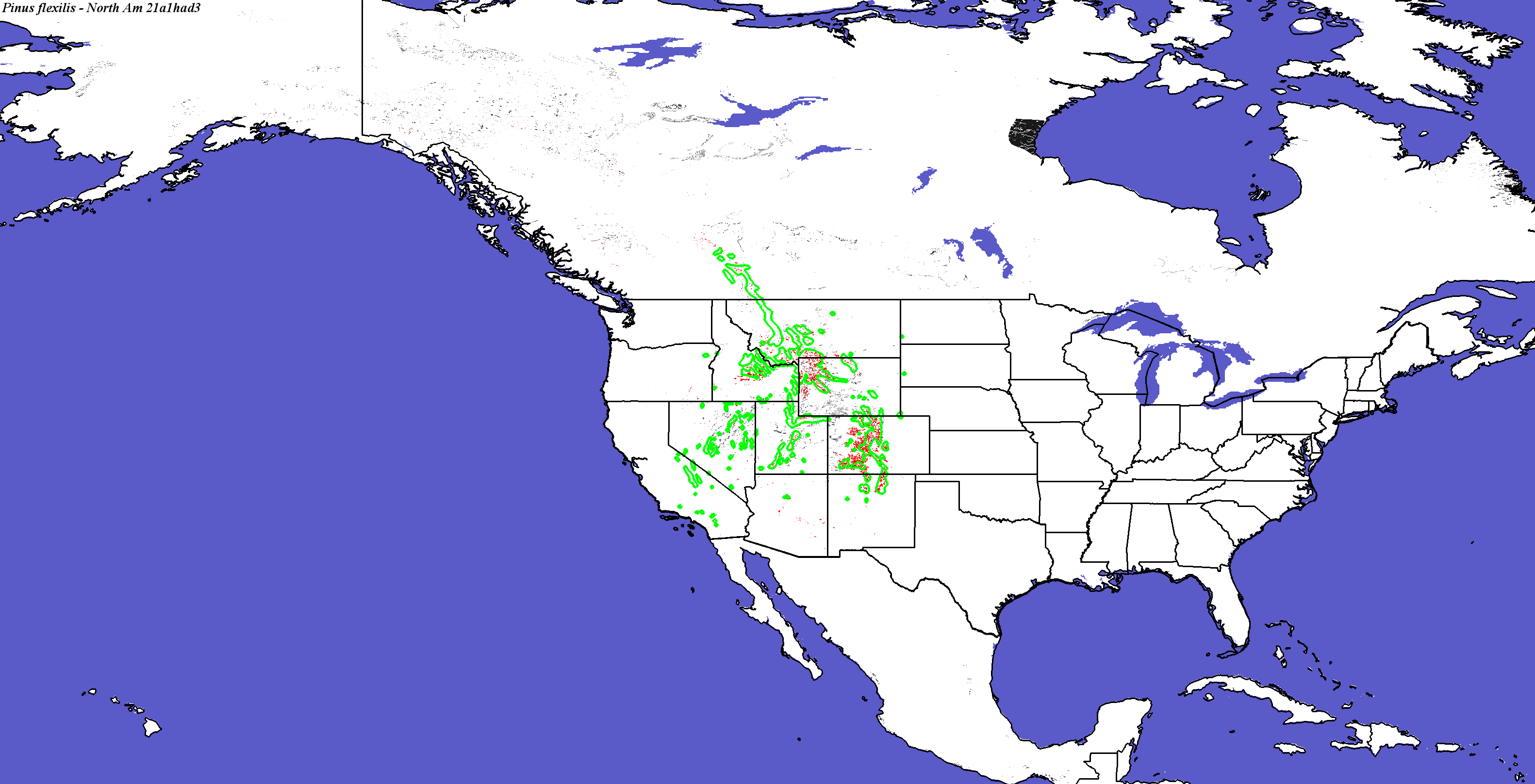

Hadley, Scenario A1FI, 2050 - Pinus flexilis - CONUS
Compare with Pinus flexilis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

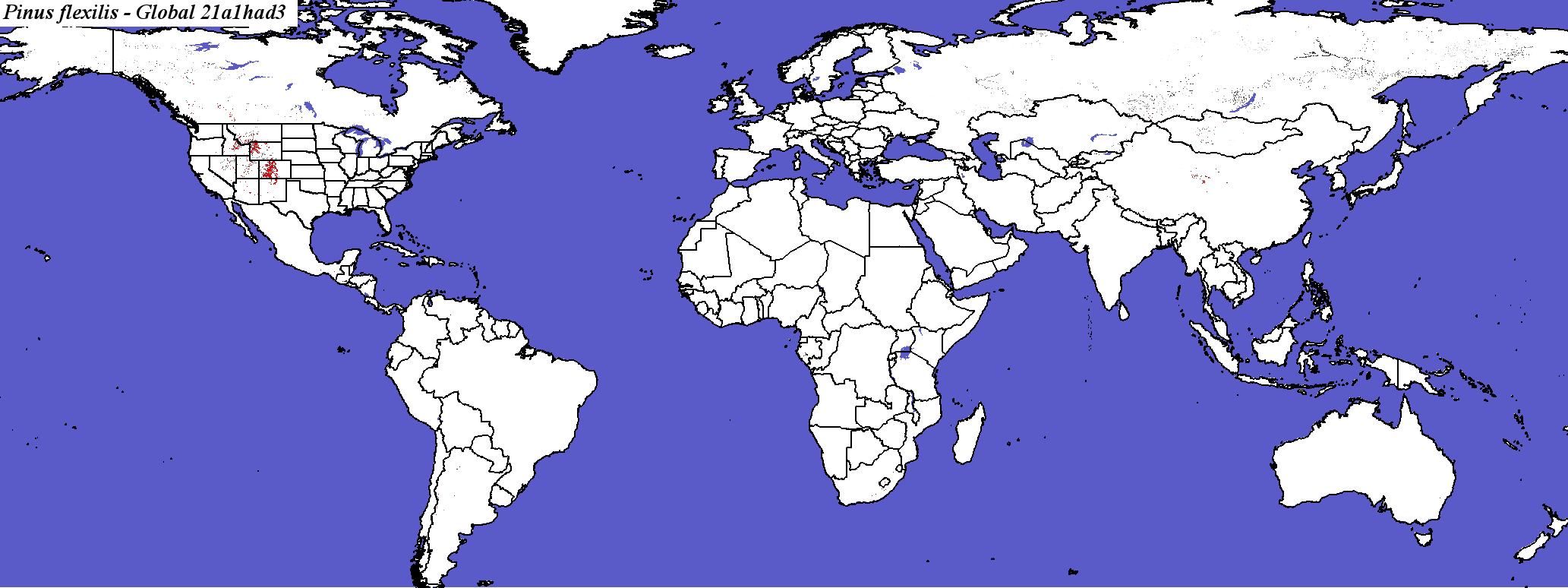

Hadley, Scenario A1FI, 2050 - Pinus flexilis - Global
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global.
Hadley, Scenario A1FI, 2100 - Pinus flexilis - CONUS
Pinus flexilis not modeled by Iverson and Prasad
Compare with Pinus flexilis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Pinus flexilis not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus flexilis - Global

Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global.

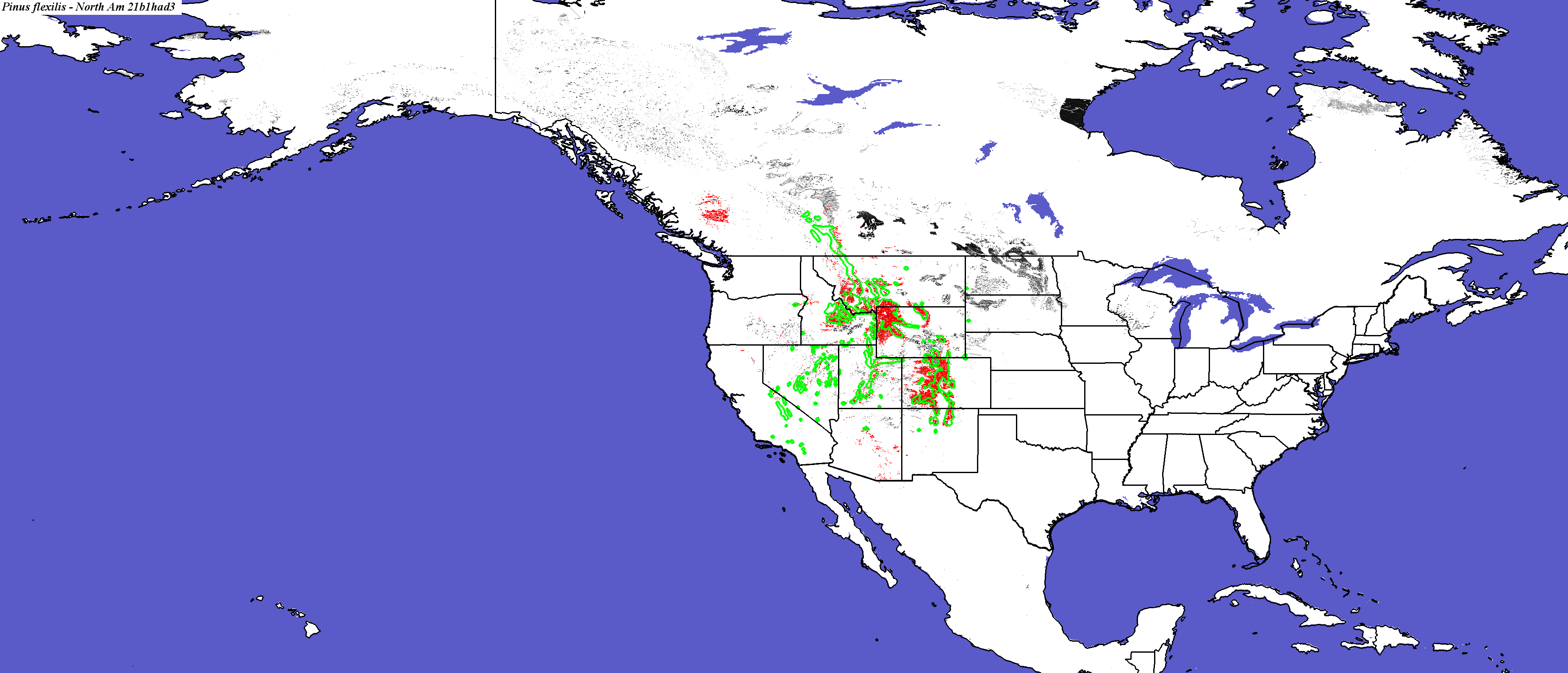

Hadley, Scenario B1, 2050 - Pinus flexilis - CONUS
Compare with Pinus flexilis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Pinus flexilis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus flexilis - Global
Pinus_flexilis_final.3.conus
Pinus_flexilis_final.3.global
Hadley, Scenario B1, 2100 - Pinus flexilis - CONUS
Pinus flexilis not modeled by Iverson and Prasad
Compare with Pinus flexilis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus flexilis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_flexilis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

78

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

26.5753

Area in Present Suitable Range (in km2)

450868

Area in Future Suitable Range (Had B1 2050, in km2)

289725

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

260138

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

57.6900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

30.274

Percent Change in Area of Suitable Range (Had B1 2050)

-35.7400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

60.9589

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14086.8 +/- 43467.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

51.9178

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.21029 +/- 32.7457

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

41.3699

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

33.3151 +/- 137.735

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

69.726

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

791

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.1700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

65.6164

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

201502

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

44.6900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

13.4247

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus flexilis Pinus flexilis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_flexilis_final.noelev Fine MRM Distance

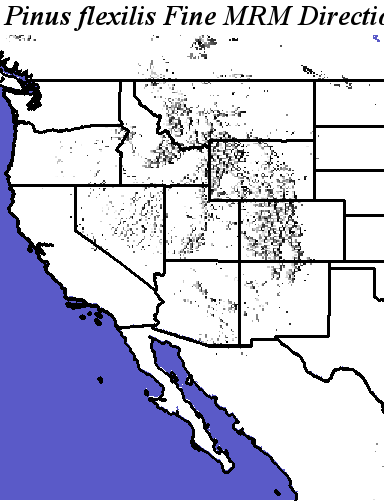

Pinus_flexilis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus flexilis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus flexilis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

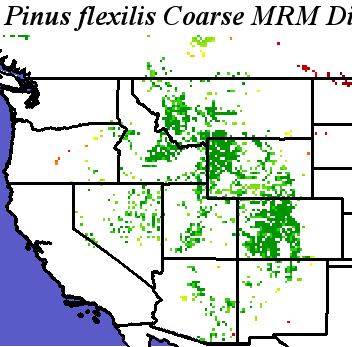

Pinus_flexilis_final.noelev Coarse MRM Distance
Pinus_flexilis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus flexilis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus flexilis

Thu Jul 21 10:05:40 EDT 2016
