Version 5 Tree Atlas


Pinus monticola

western white pine

noelev

Pinus monticola Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus monticola

USDA Plants Database entry for Pinus monticola
Silvics Manual entry for Pinus monticola


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
499101600TBD

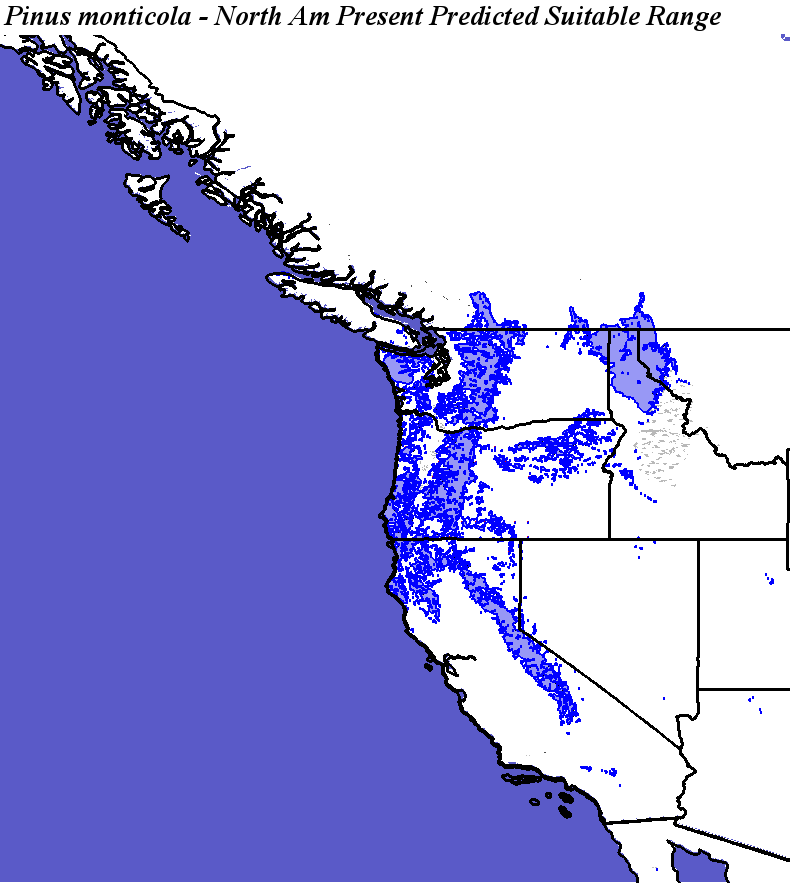

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_monticola_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_monticola_final
Pinus monticola - Occurrence Locations Pinus monticola - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global

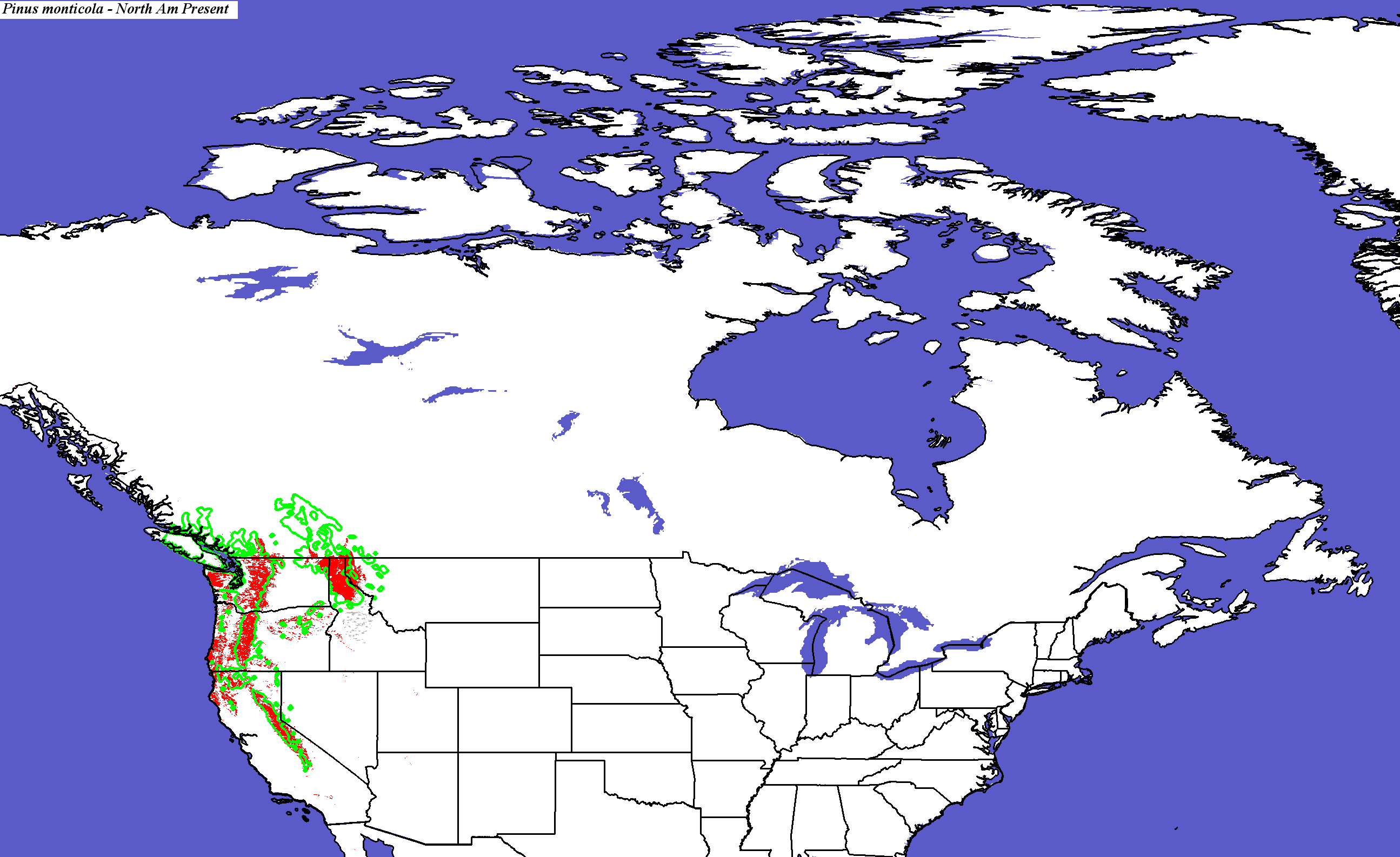

Pinus monticola - CONUS
Compare with Current Range from the Silvics Manual for Pinus monticola
Compare with Current Range from Biota of North America Program (BONAP) for Pinus monticola

Pinus monticola not modeled by Iverson and Prasad
Compare with Pinus monticola modeled for Current conditions by Crookston and Rehfeldt
Pinus monticola not modeled by Coops and Waring
Pinus monticola - Global

PCM - Parallel Climate Model
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global

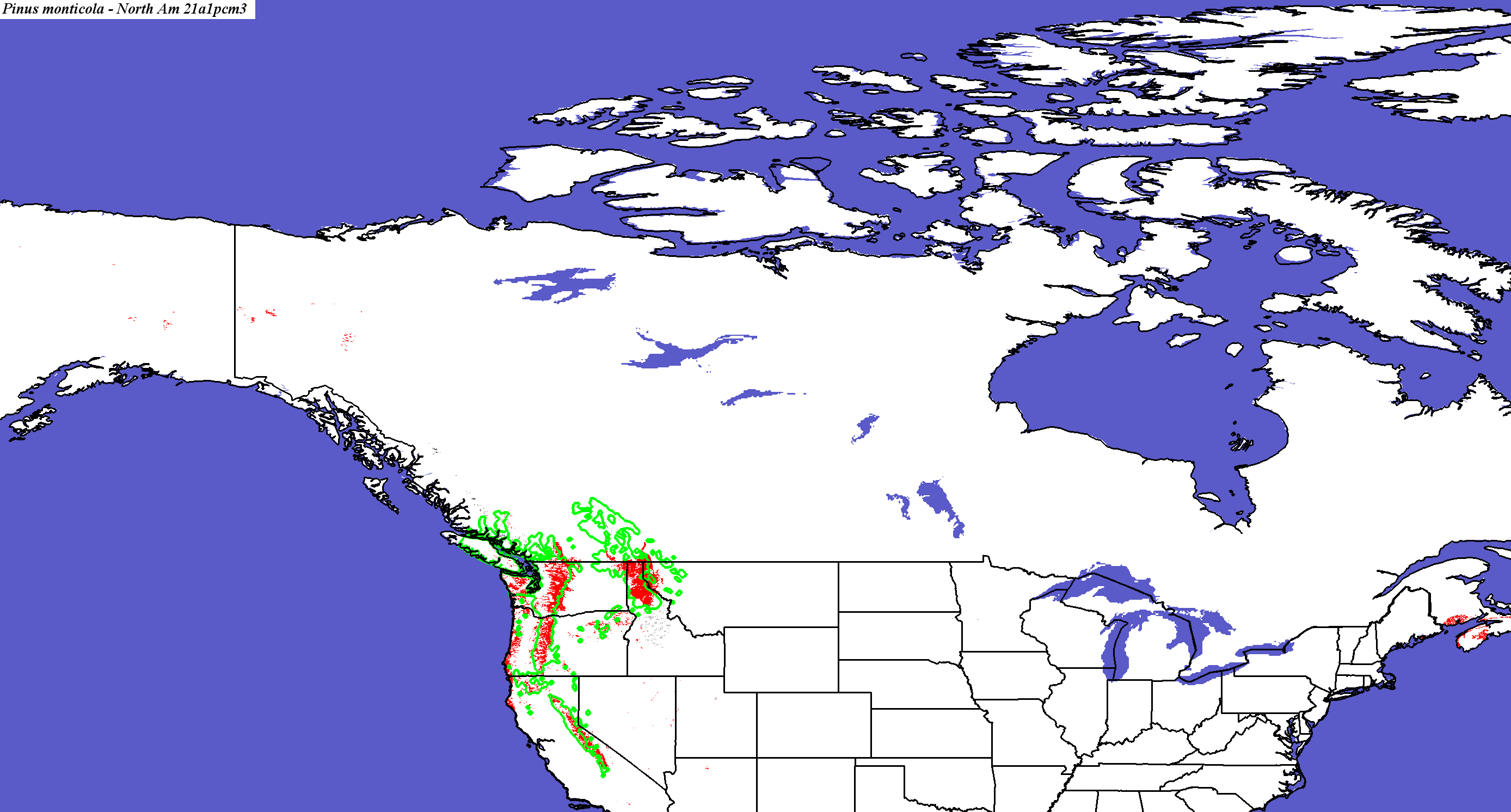

PCM, Scenario A1FI, 2050 - Pinus monticola - CONUS

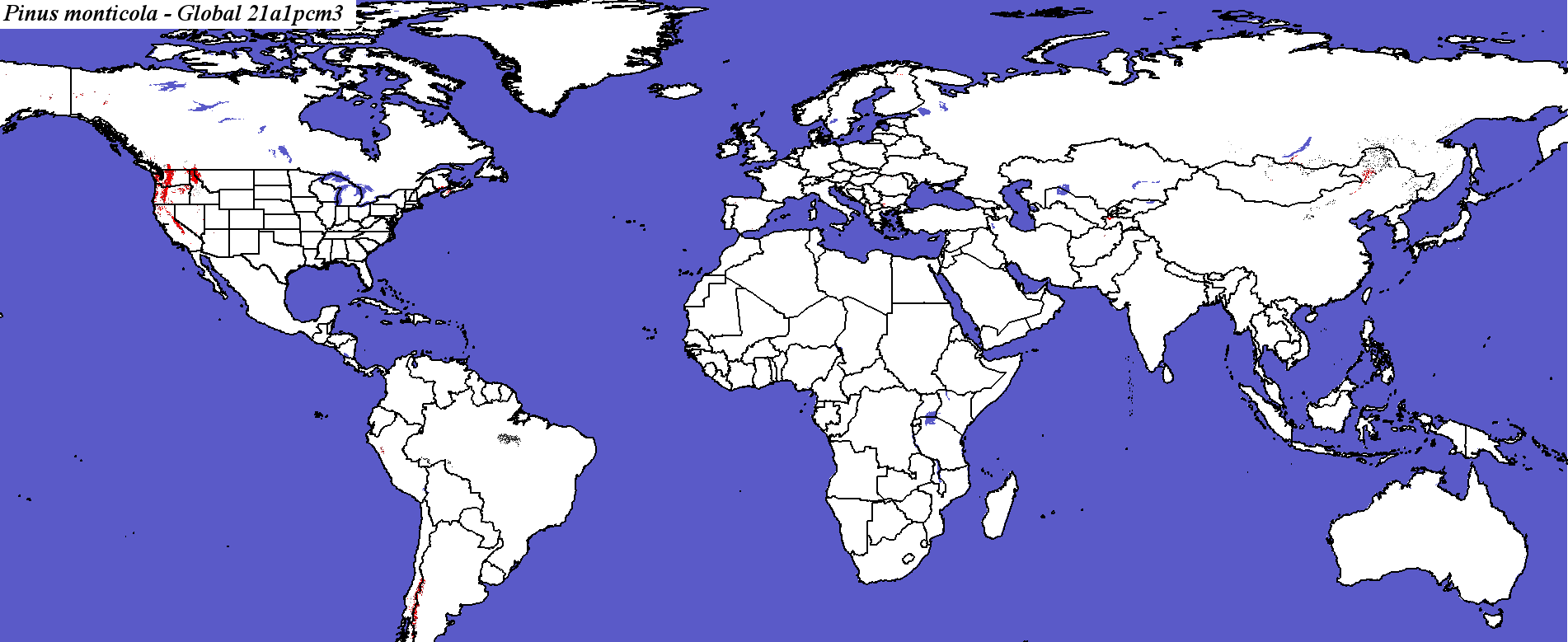

PCM, Scenario A1FI, 2050 - Pinus monticola - Global
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global

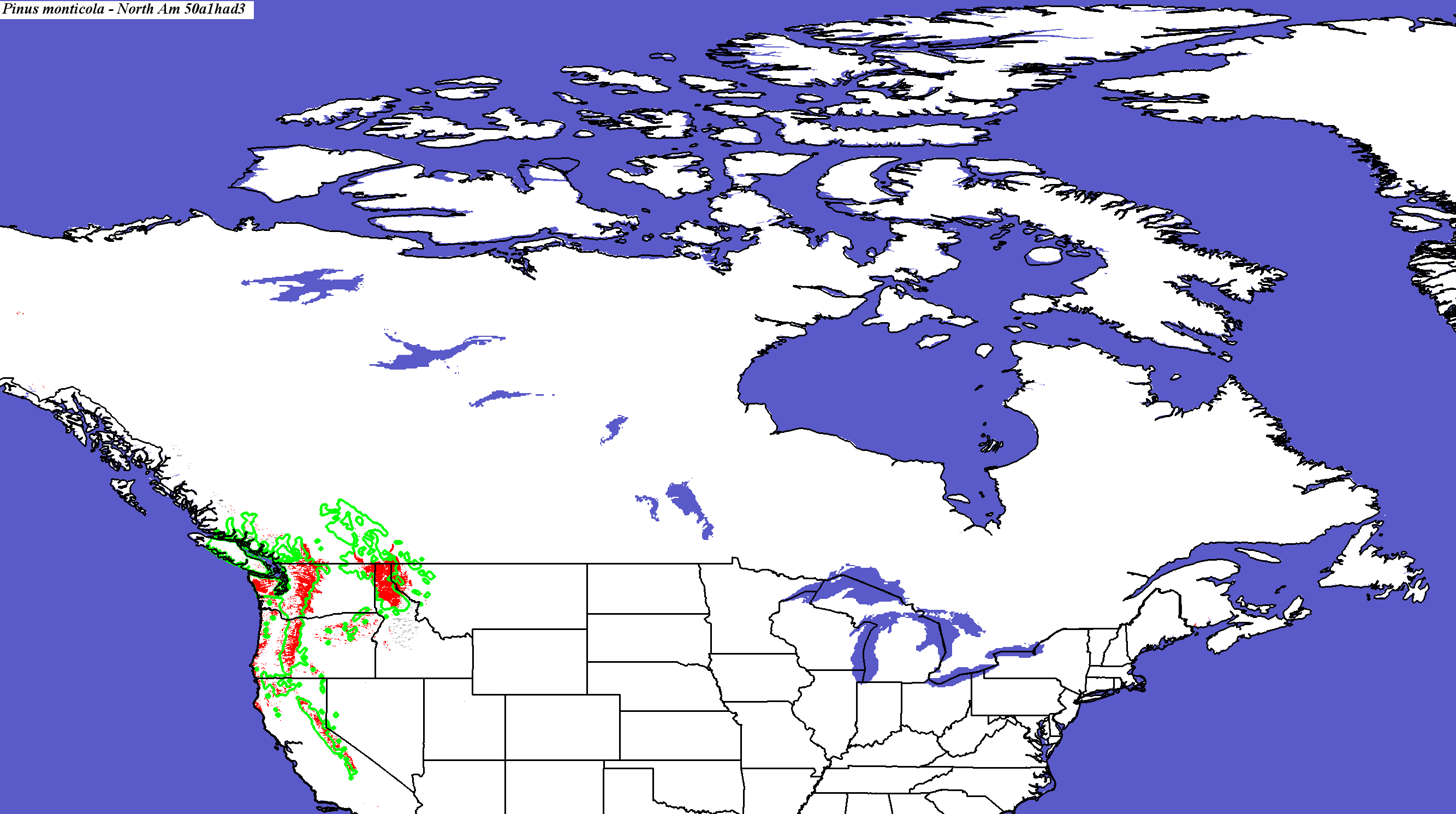

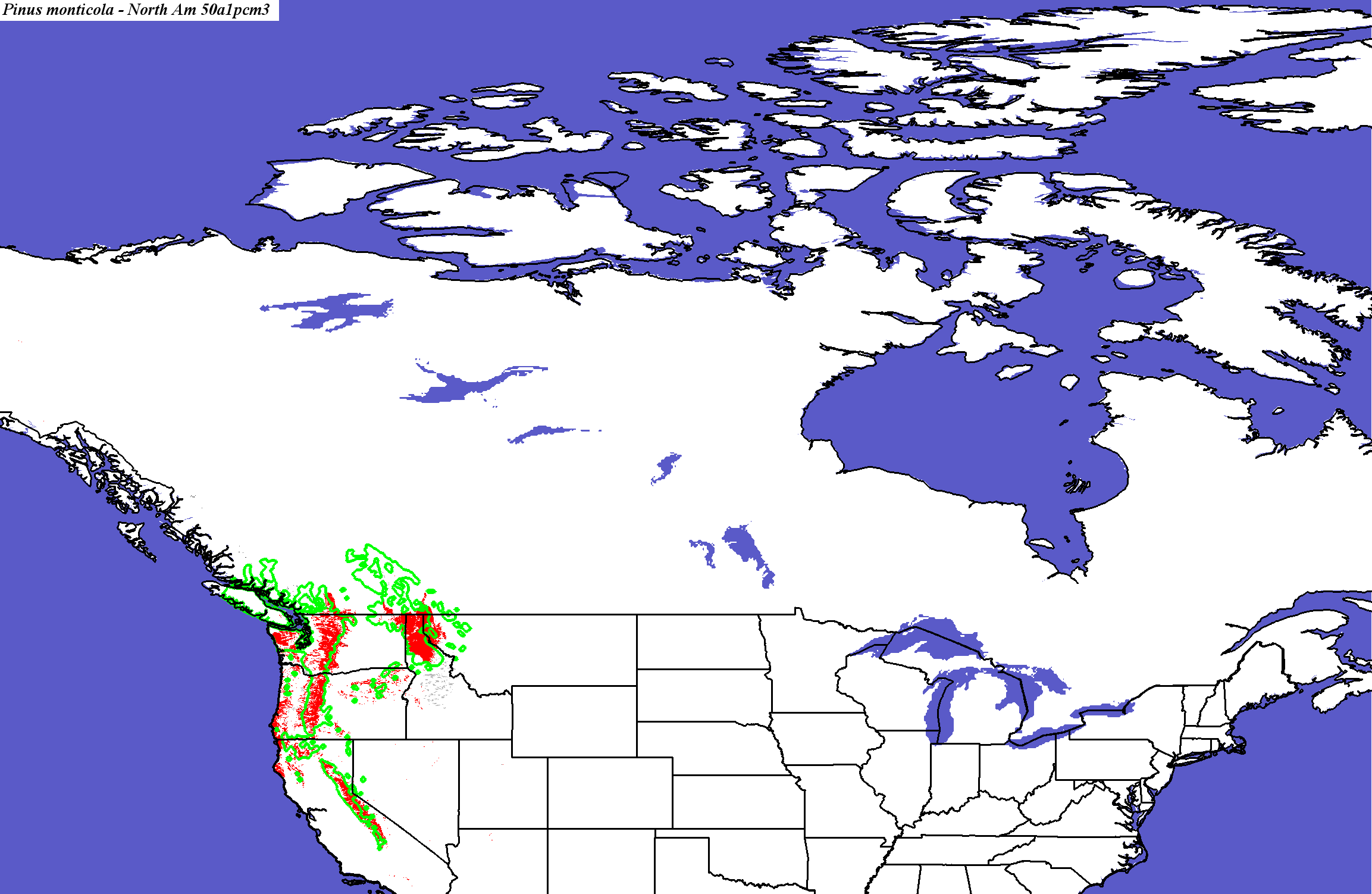

PCM, Scenario A1FI, 2100 - Pinus monticola - CONUS
Pinus monticola species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus monticola - Global

Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global
PCM, Scenario B1, 2050 - Pinus monticola - CONUS

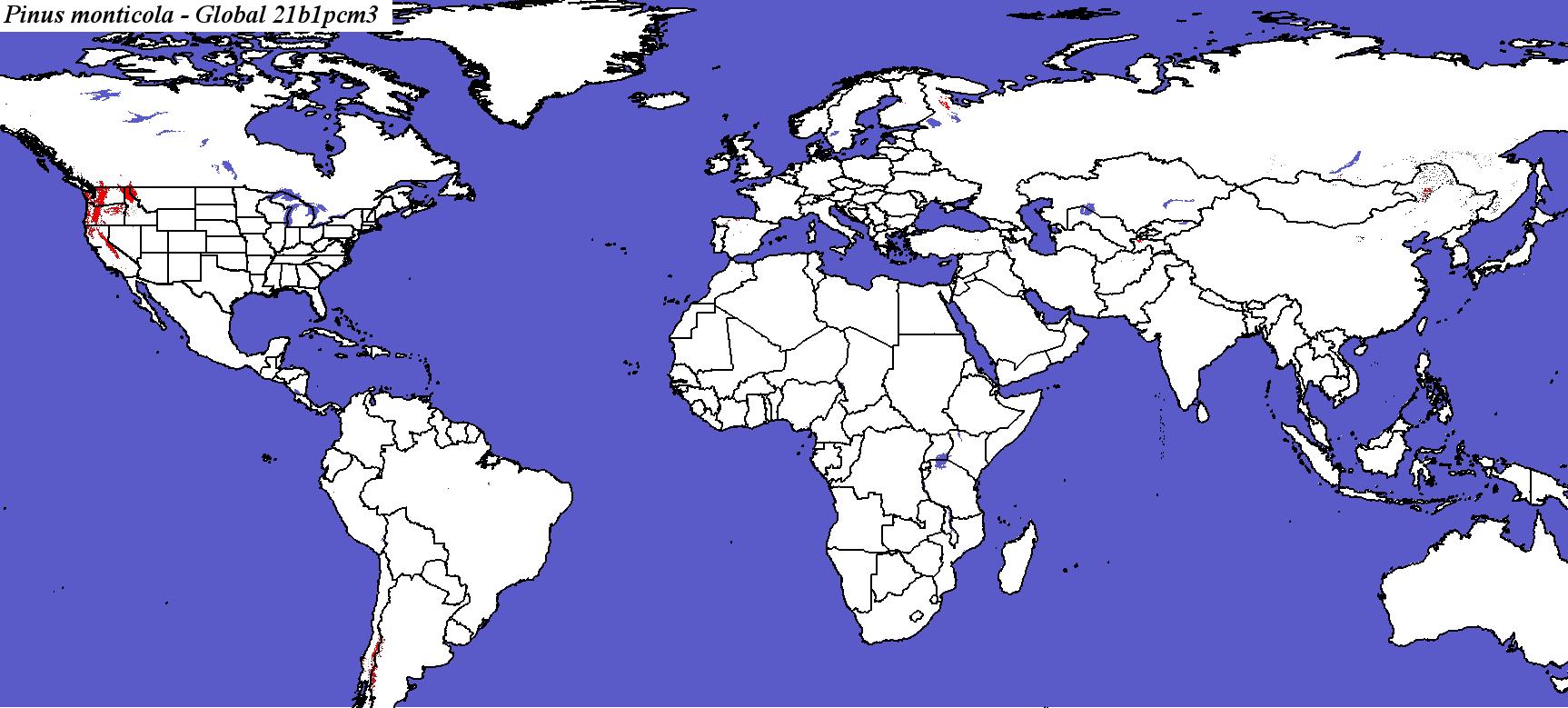

PCM, Scenario B1, 2050 - Pinus monticola - Global
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global
PCM, Scenario B1, 2100 - Pinus monticola - CONUS
Pinus monticola not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus monticola - Global

Hadley Climate Model
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global

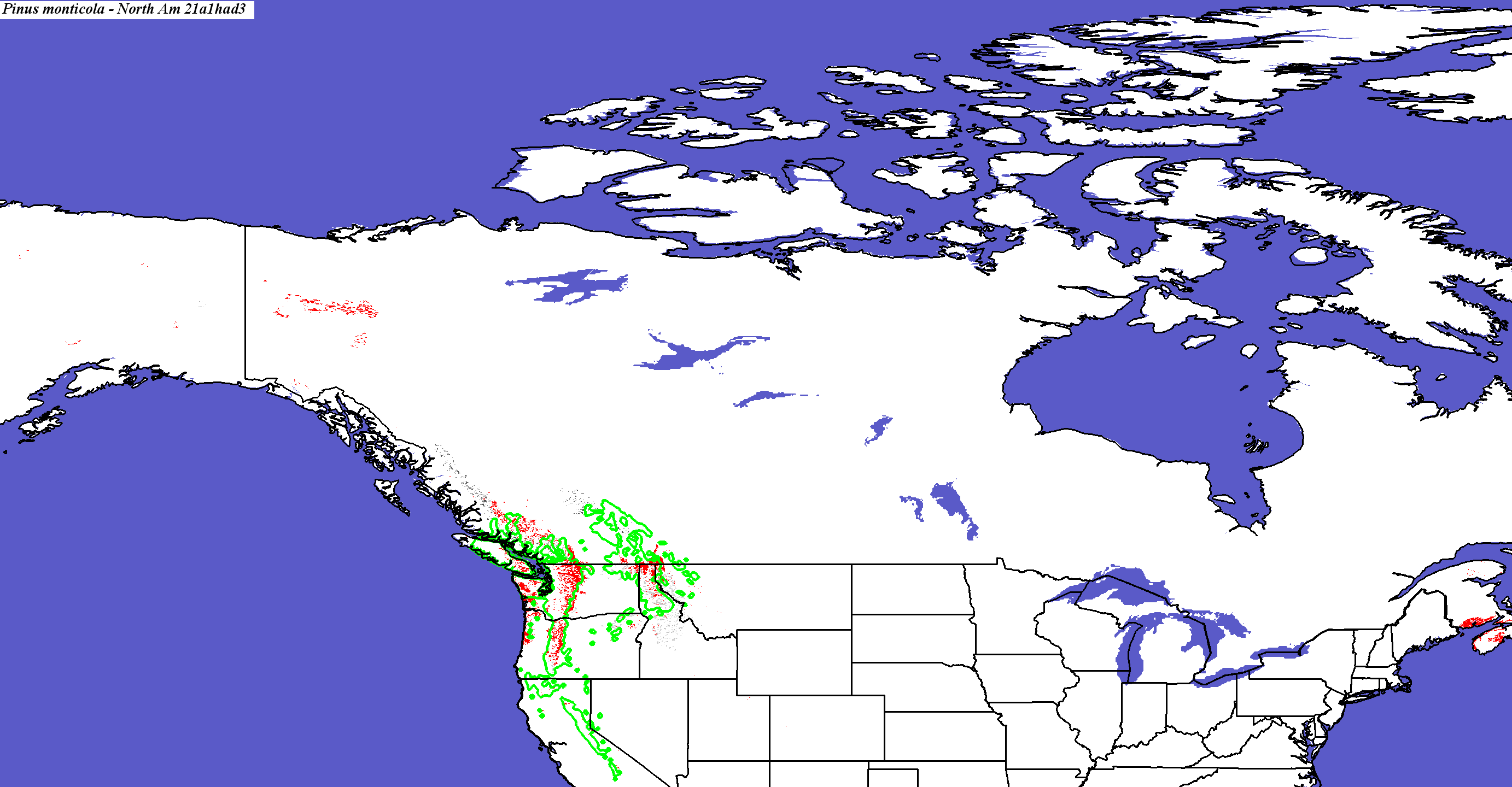

Hadley, Scenario A1FI, 2050 - Pinus monticola - CONUS
Compare with Pinus monticola modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

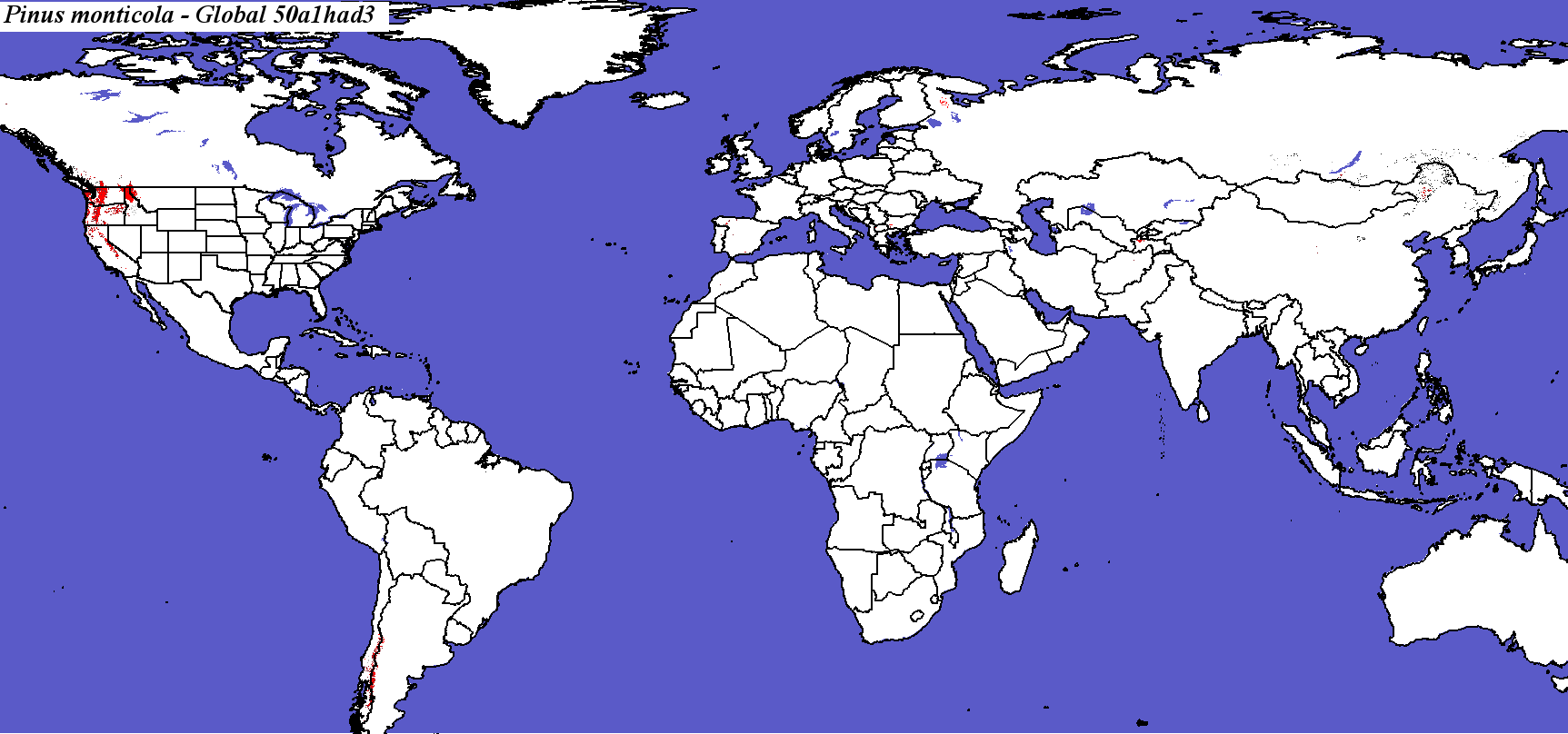

Hadley, Scenario A1FI, 2050 - Pinus monticola - Global
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global.
Hadley, Scenario A1FI, 2100 - Pinus monticola - CONUS
Pinus monticola not modeled by Iverson and Prasad
Compare with Pinus monticola modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Pinus monticola not modeled by Coops and Waring

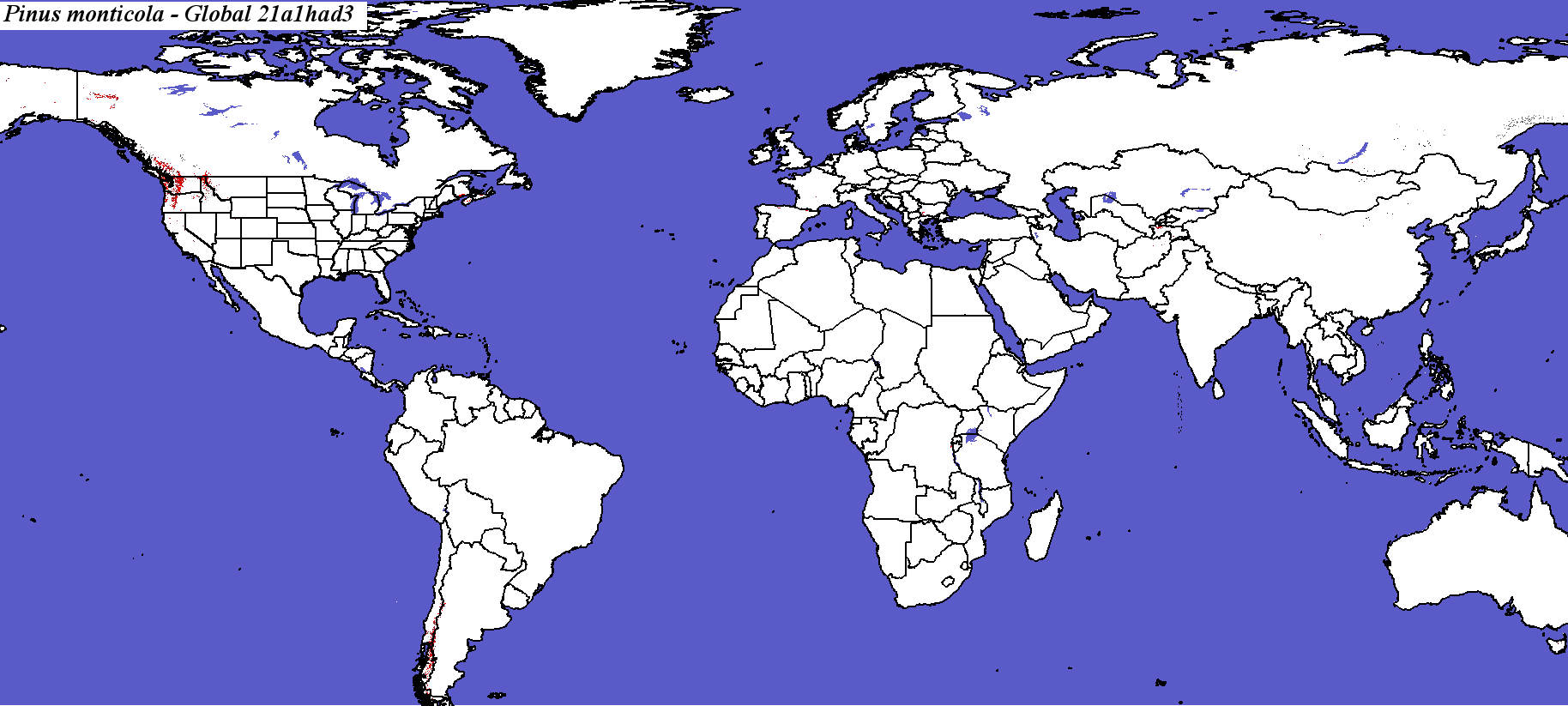

Hadley, Scenario A1FI, 2100 - Pinus monticola - Global

Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global.
Hadley, Scenario B1, 2050 - Pinus monticola - CONUS
Compare with Pinus monticola modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Pinus monticola not modeled by Coops and Waring

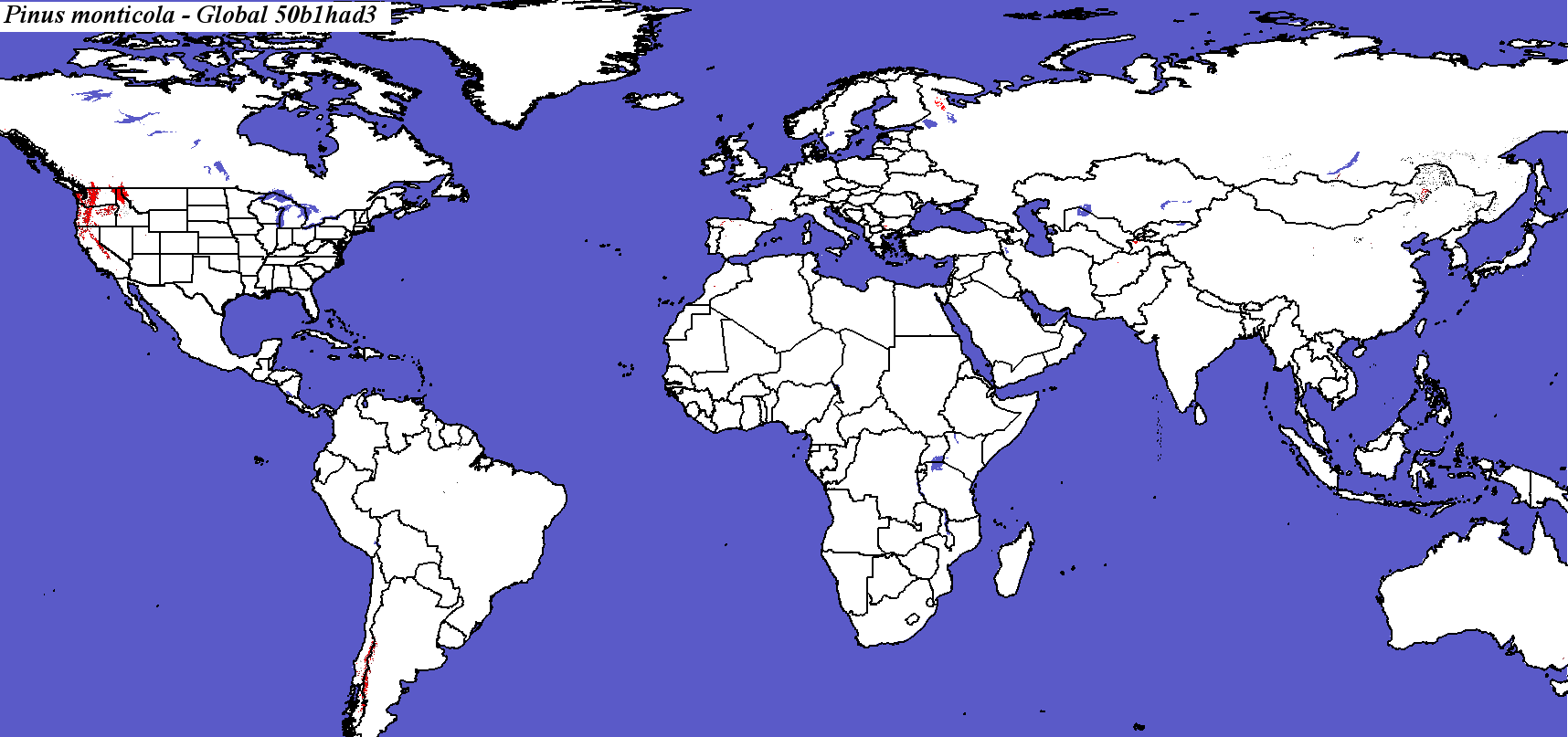

Hadley, Scenario B1, 2050 - Pinus monticola - Global
Pinus_monticola_final.3.conus
Pinus_monticola_final.3.global
Hadley, Scenario B1, 2100 - Pinus monticola - CONUS
Pinus monticola not modeled by Iverson and Prasad
Compare with Pinus monticola modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus monticola - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_monticola_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

56

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

35.8904

Area in Present Suitable Range (in km2)

274761

Area in Future Suitable Range (Had B1 2050, in km2)

197919

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

167272

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

60.8700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

23.6986

Percent Change in Area of Suitable Range (Had B1 2050)

-27.9600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

48.3562

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5225.67 +/- 17055.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

89.589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.11337 +/- 12.5615

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

83.4247

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

25.4065 +/- 182.811

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

77.2603

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

739

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.2600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

62.7397

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

97732

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

35.5600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

30.411

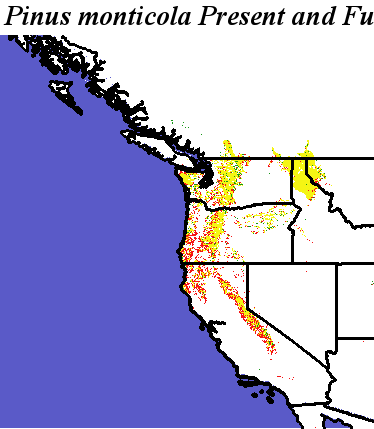

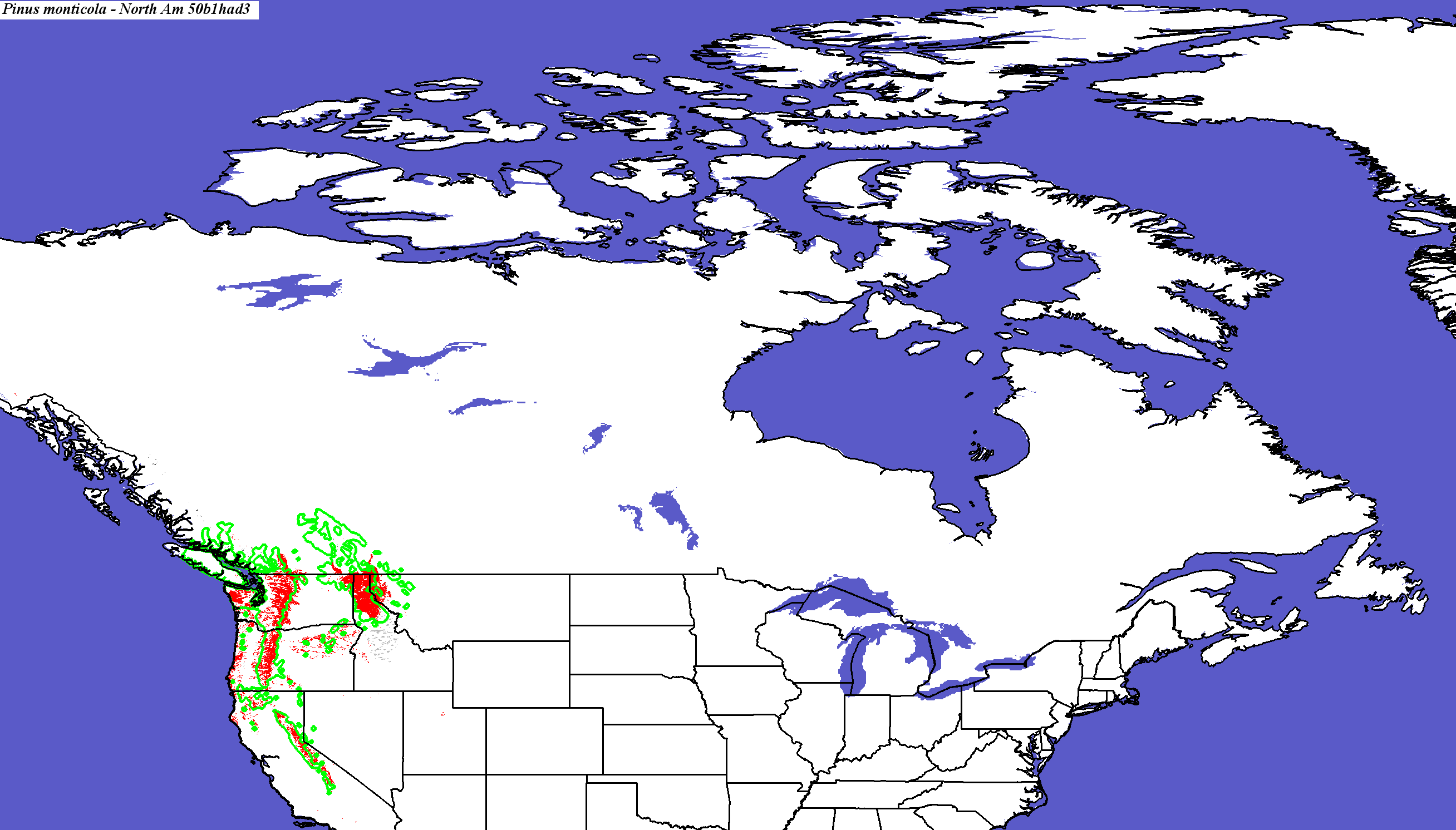

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus monticola Pinus monticola - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_monticola_final.noelev Fine MRM Distance
Pinus_monticola_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus monticola Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus monticola
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_monticola_final.noelev Coarse MRM Distance
Pinus_monticola_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus monticola Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus monticola

Thu Jul 21 10:05:58 EDT 2016
