Version 5 Tree Atlas


Pinus rigida

pitch pine

noelev

Pinus rigida Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus rigida

USDA Plants Database entry for Pinus rigida
Silvics Manual entry for Pinus rigida


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
62677703some disjuncts and parts of the range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_rigida_final Occurrences

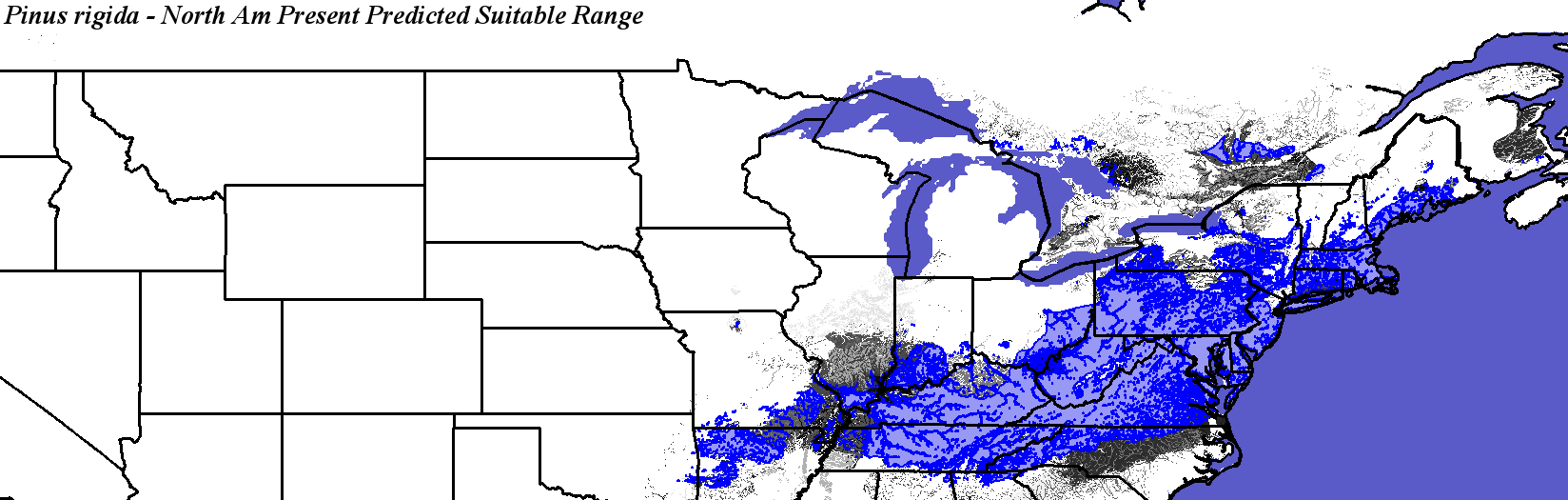

Hargroves Present Suitable Range Outline for Pinus_rigida_final
Pinus rigida - Occurrence Locations Pinus rigida - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global

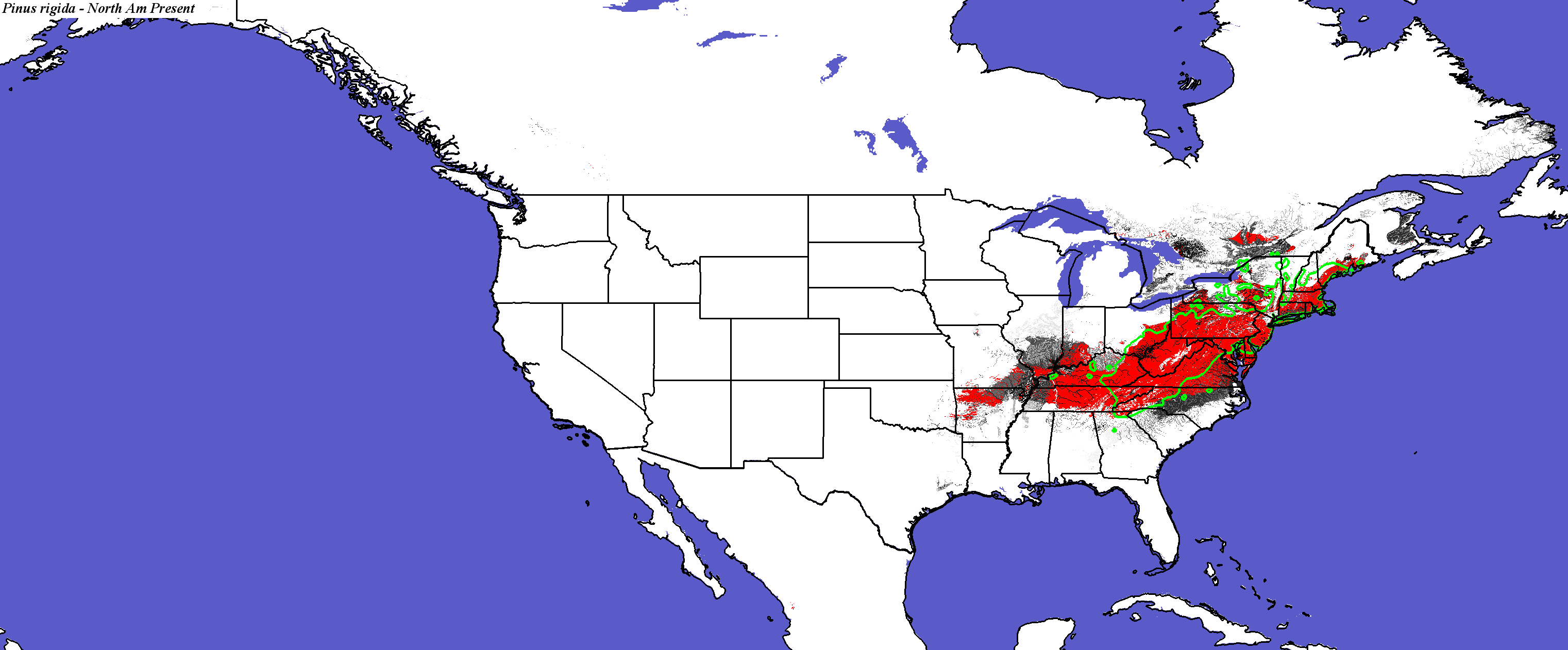

Pinus rigida - CONUS
Compare with Current Range from the Silvics Manual for Pinus rigida
Compare with Current Range from Biota of North America Program (BONAP) for Pinus rigida

Compare with Pinus rigida modeled for Current conditions by Iverson and Prasad
Pinus rigida not modeled by Crookston and Rehfeldt
Pinus rigida not modeled by Coops and Waring
Pinus rigida - Global

PCM - Parallel Climate Model
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global

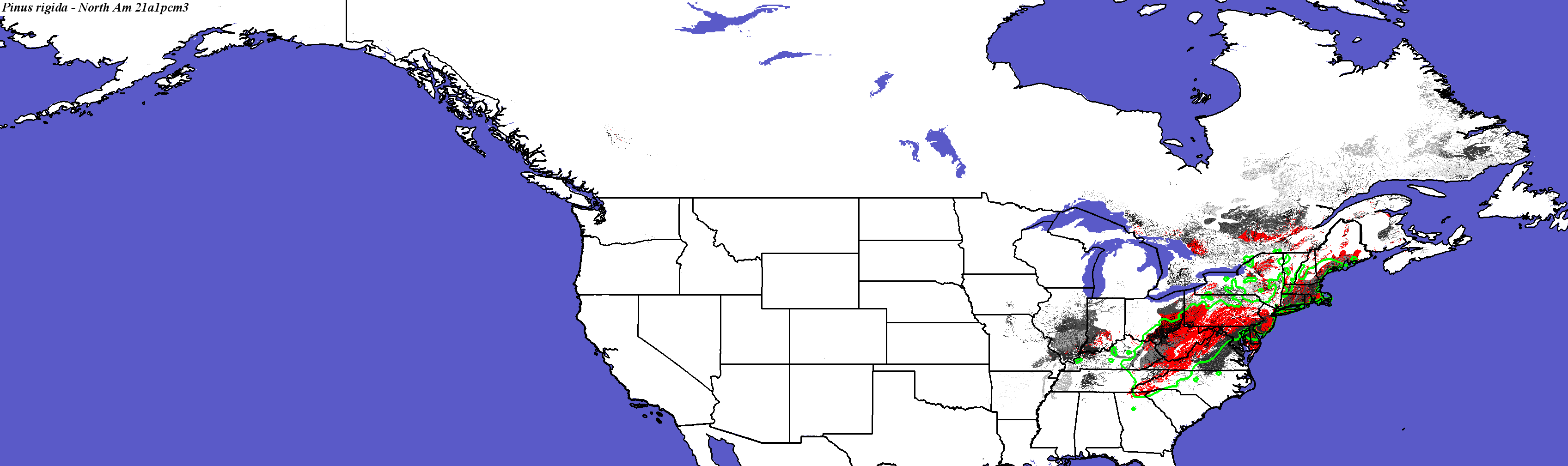

PCM, Scenario A1FI, 2050 - Pinus rigida - CONUS
PCM, Scenario A1FI, 2050 - Pinus rigida - Global
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global
PCM, Scenario A1FI, 2100 - Pinus rigida - CONUS
Compare with Pinus rigida modeled for PCM A1FI in 2100 by Iverson and Prasad

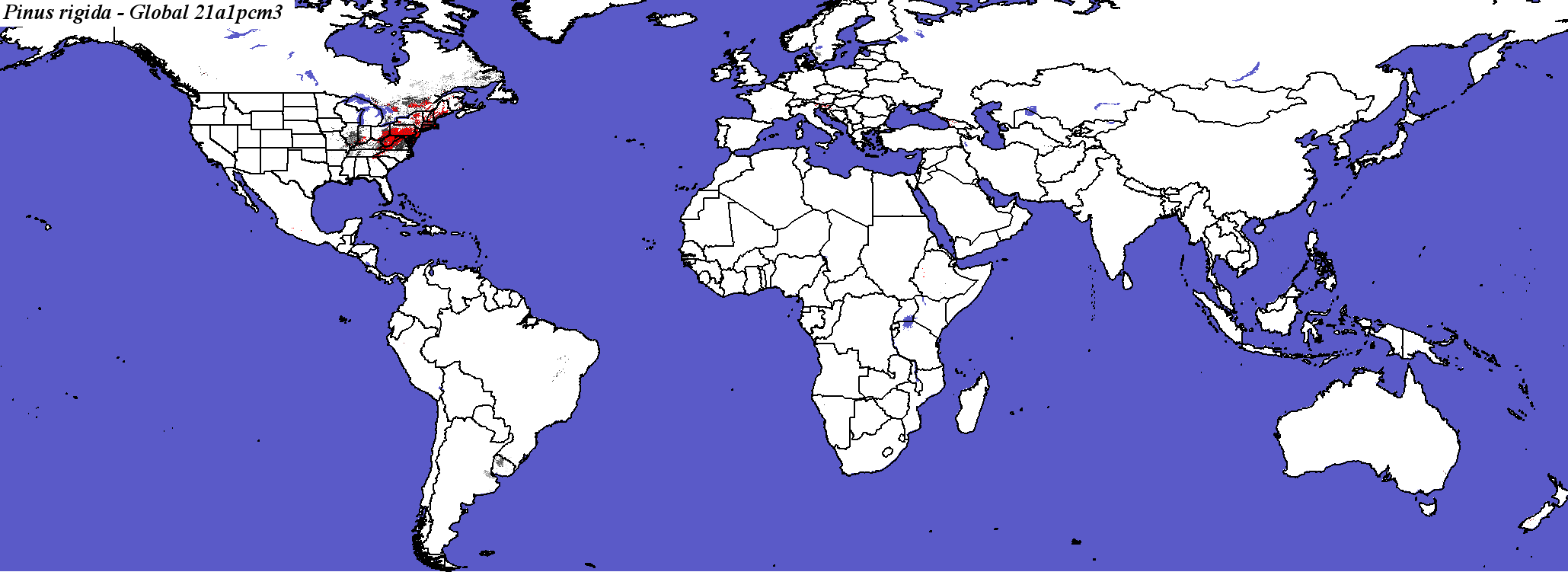

PCM, Scenario A1FI, 2100 - Pinus rigida - Global

Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global

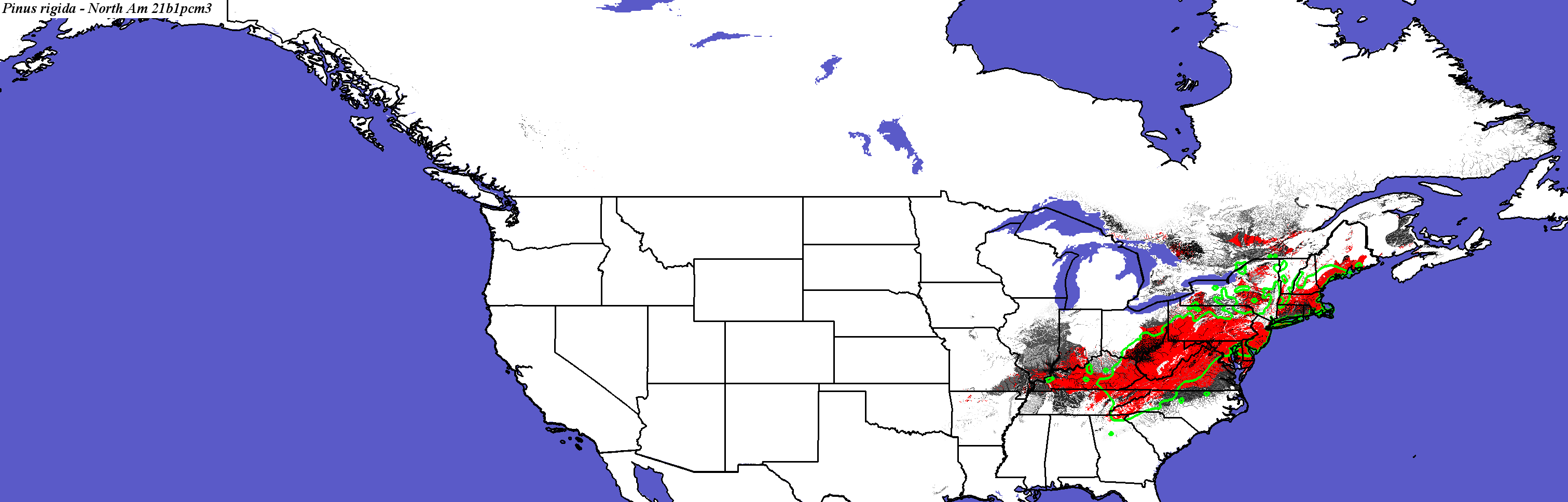

PCM, Scenario B1, 2050 - Pinus rigida - CONUS

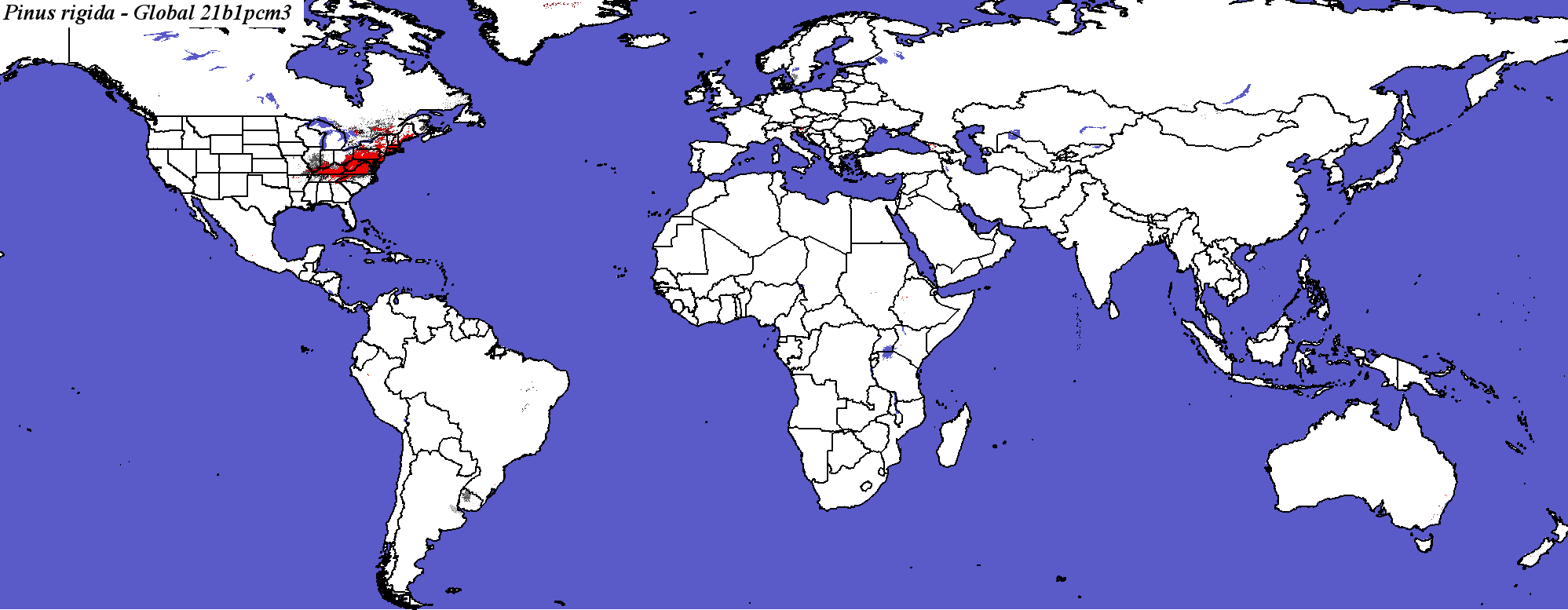

PCM, Scenario B1, 2050 - Pinus rigida - Global
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global
PCM, Scenario B1, 2100 - Pinus rigida - CONUS
Compare with Pinus rigida modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus rigida - Global

Hadley Climate Model
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global

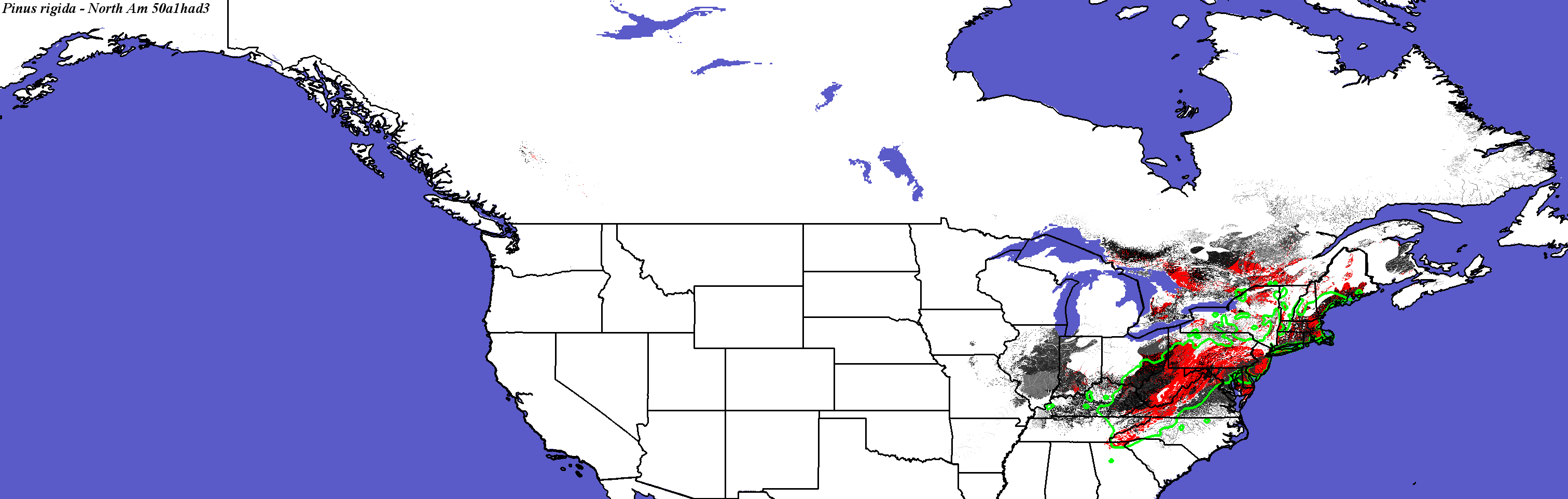

Hadley, Scenario A1FI, 2050 - Pinus rigida - CONUS
Pinus rigida not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus rigida - Global
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global.

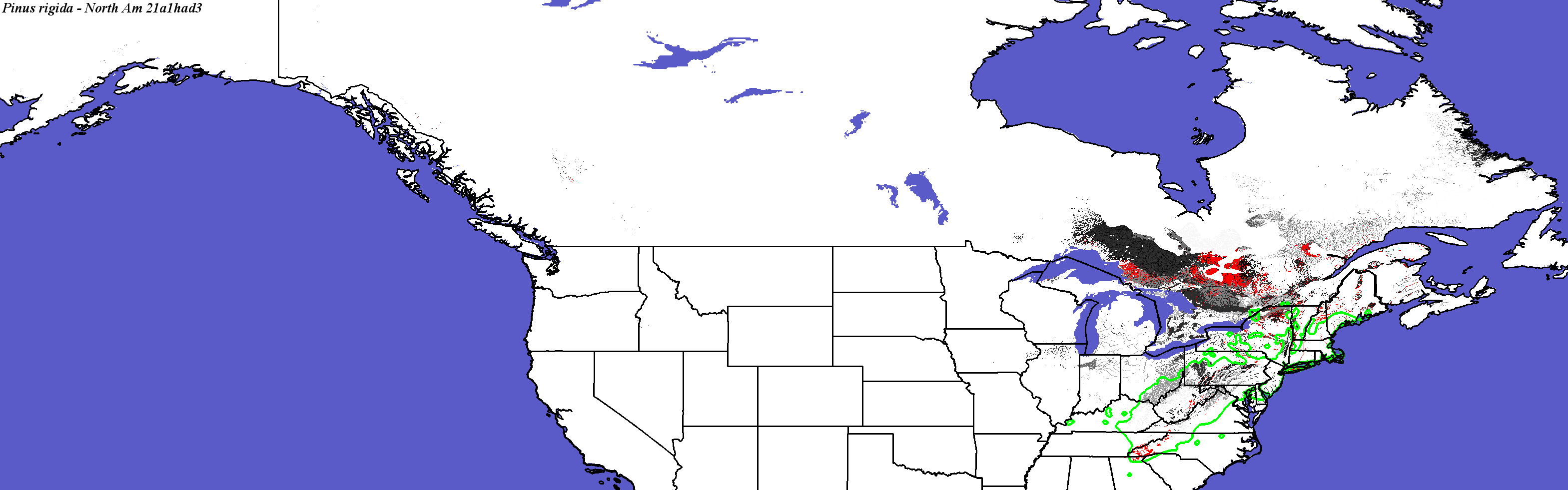

Hadley, Scenario A1FI, 2100 - Pinus rigida - CONUS
Compare with Pinus rigida modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus rigida not modeled by Crookston and Rehfeldt
Pinus rigida not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus rigida - Global

Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global.
Hadley, Scenario B1, 2050 - Pinus rigida - CONUS
Pinus rigida not modeled by Crookston and Rehfeldt
Pinus rigida not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus rigida - Global
Pinus_rigida_final.3.conus
Pinus_rigida_final.3.global

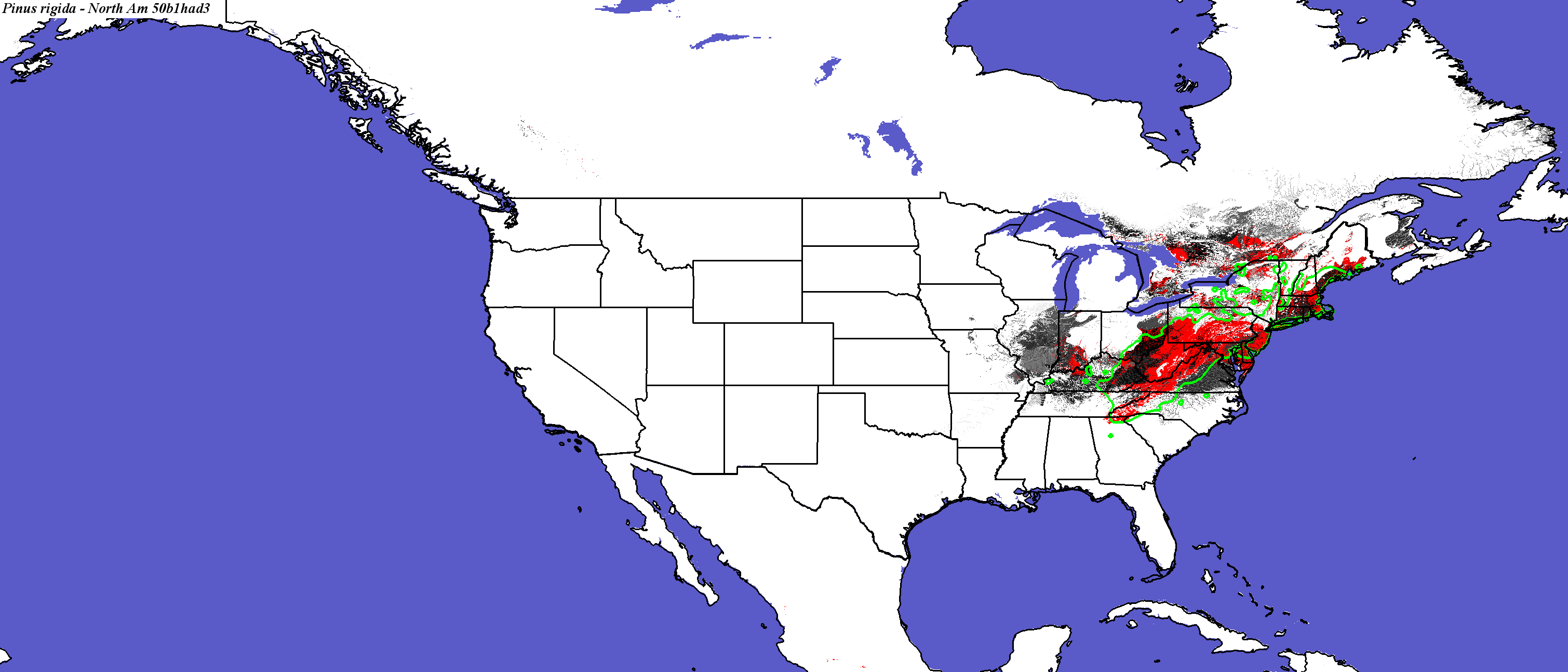

Hadley, Scenario B1, 2100 - Pinus rigida - CONUS
Compare with Pinus rigida modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus rigida not modeled by Crookston and Rehfeldt

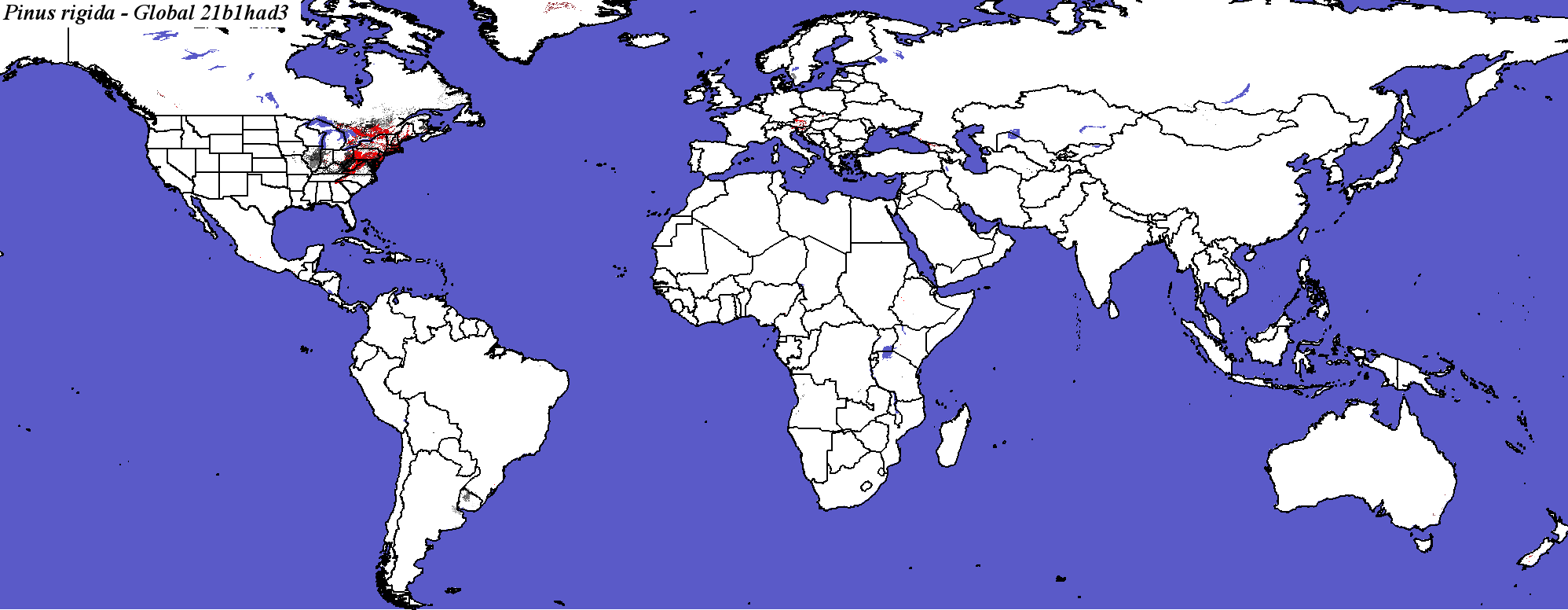

Hadley, Scenario B1, 2100 - Pinus rigida - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_rigida_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

74

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

27.8082

Area in Present Suitable Range (in km2)

578549

Area in Future Suitable Range (Had B1 2050, in km2)

303853

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

229910

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

39.7300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

71.3699

Percent Change in Area of Suitable Range (Had B1 2050)

-47.4800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

78.4932

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

51982.8 +/- 118102

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

8.76712

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

20.1717 +/- 44.1475

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

9.86301

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

45.2891 +/- 67.613

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

59.0411

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

81.7808

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

143412

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

24.7800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

56.5753

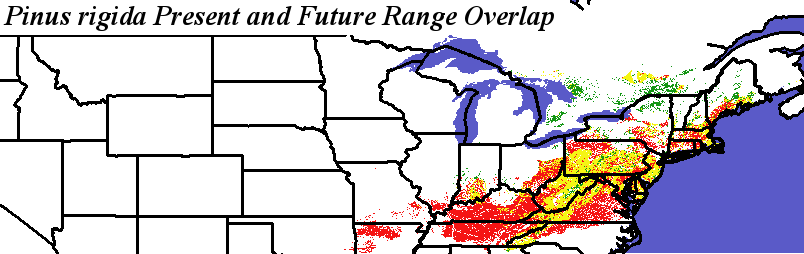

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus rigida Pinus rigida - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

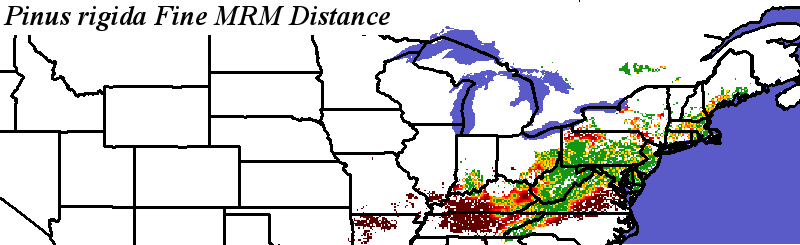

Pinus_rigida_final.noelev Fine MRM Distance

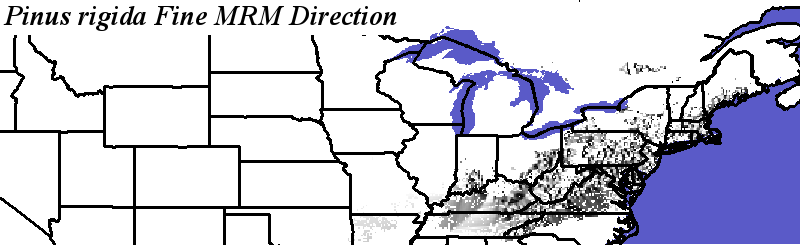

Pinus_rigida_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus rigida Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus rigida
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

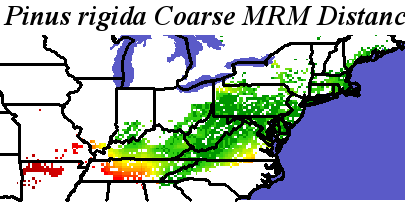

Pinus_rigida_final.noelev Coarse MRM Distance

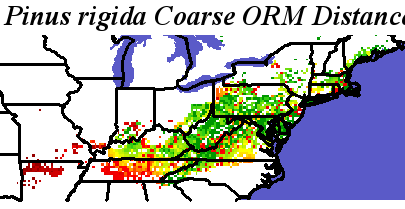

Pinus_rigida_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus rigida Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus rigida
