Version 5 Tree Atlas


Pinus strobiformis

southwestern white pine

noelev

Pinus strobiformis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus strobiformis

USDA Plants Database entry for Pinus strobiformis
Silvics Manual entry for Pinus strobiformis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
1212123TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_strobiformis_final Occurrences

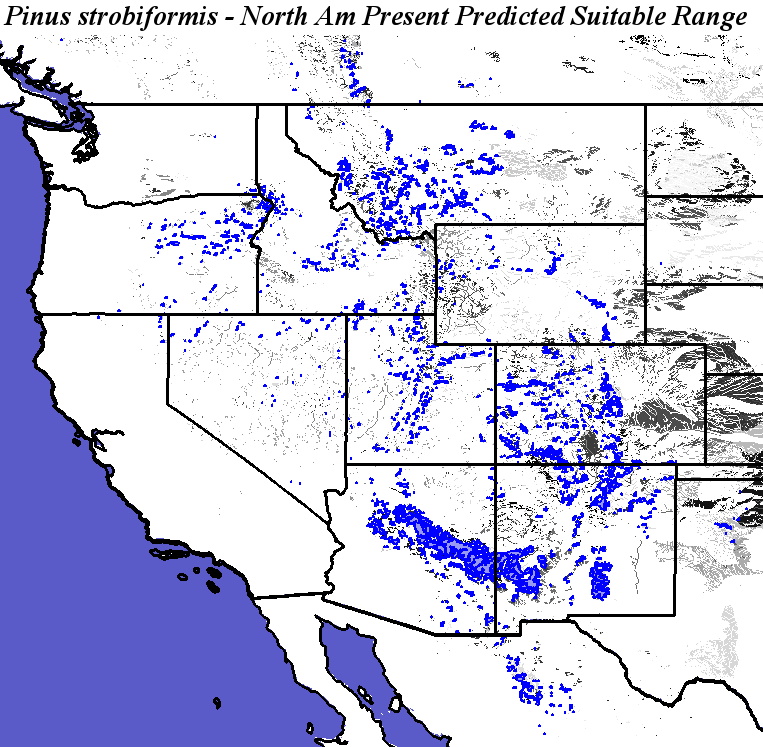

Hargroves Present Suitable Range Outline for Pinus_strobiformis_final
Pinus strobiformis - Occurrence Locations Pinus strobiformis - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global

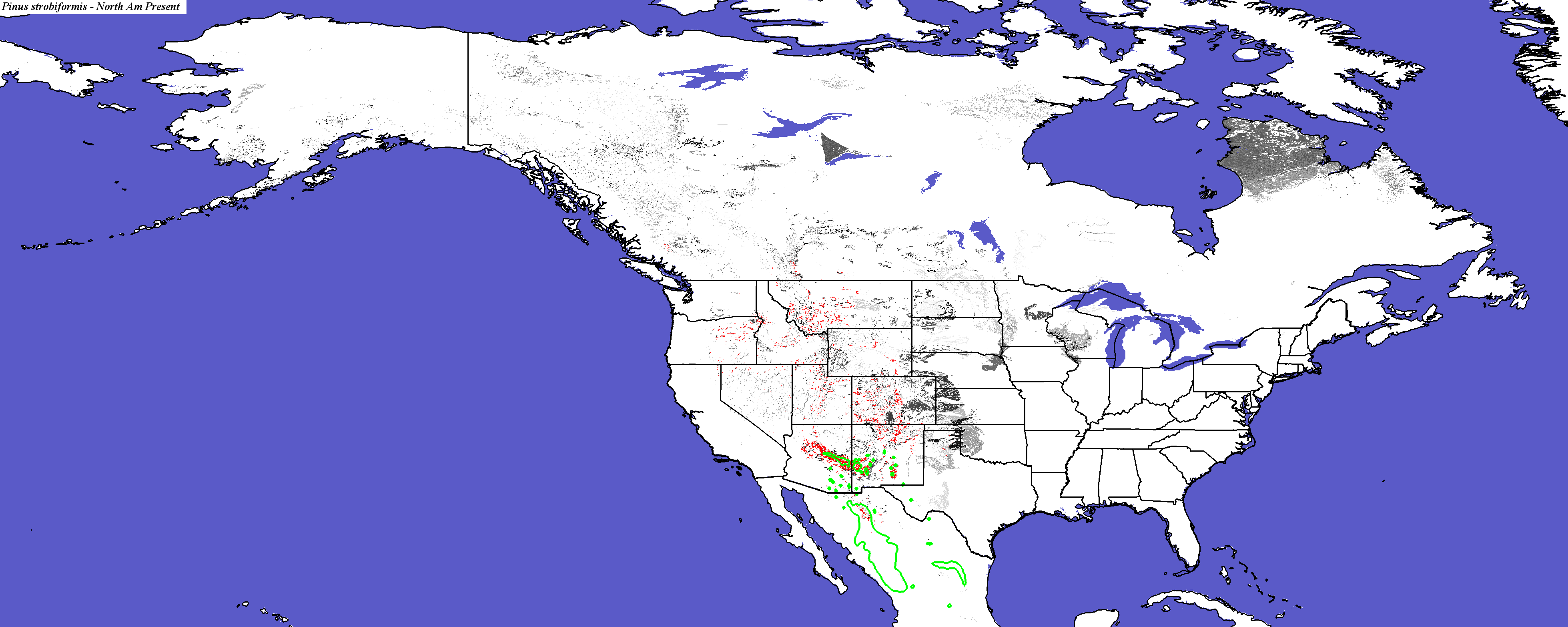

Pinus strobiformis - CONUS
Compare with Current Range from the Silvics Manual for Pinus strobiformis
Compare with Current Range from Biota of North America Program (BONAP) for Pinus strobiformis

Pinus strobiformis not modeled by Iverson and Prasad
Compare with Pinus strobiformis modeled for Current conditions by Crookston and Rehfeldt
Pinus strobiformis not modeled by Coops and Waring

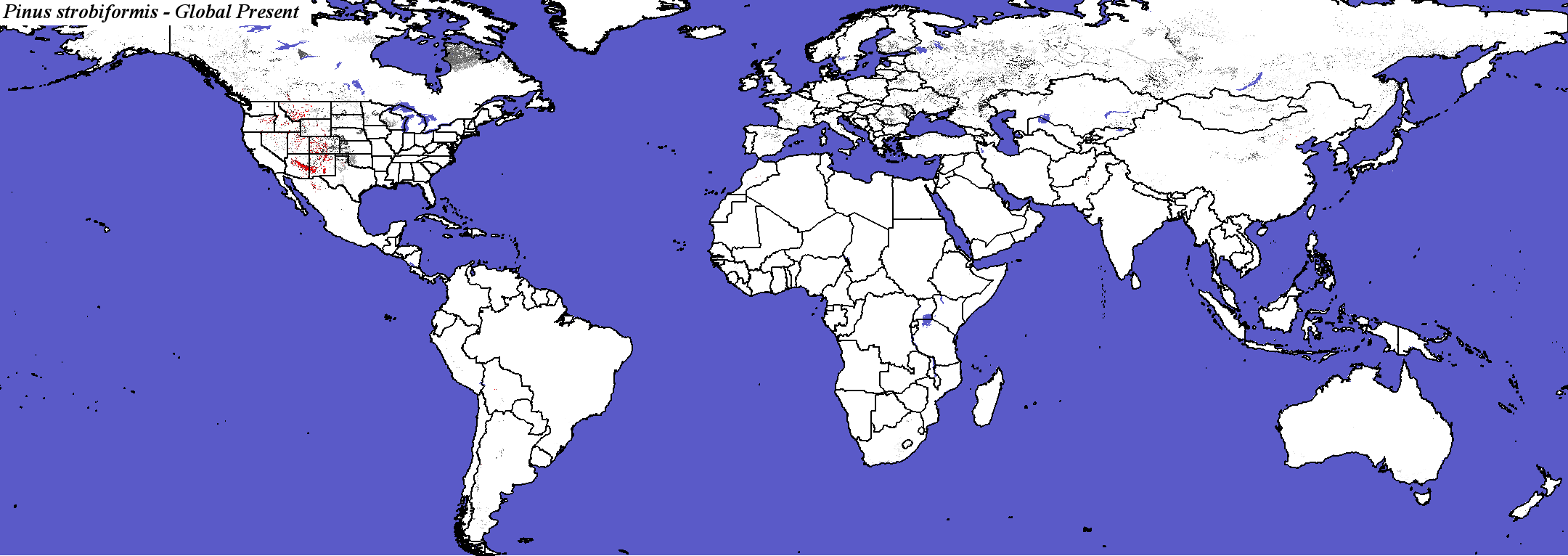

Pinus strobiformis - Global

PCM - Parallel Climate Model
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global

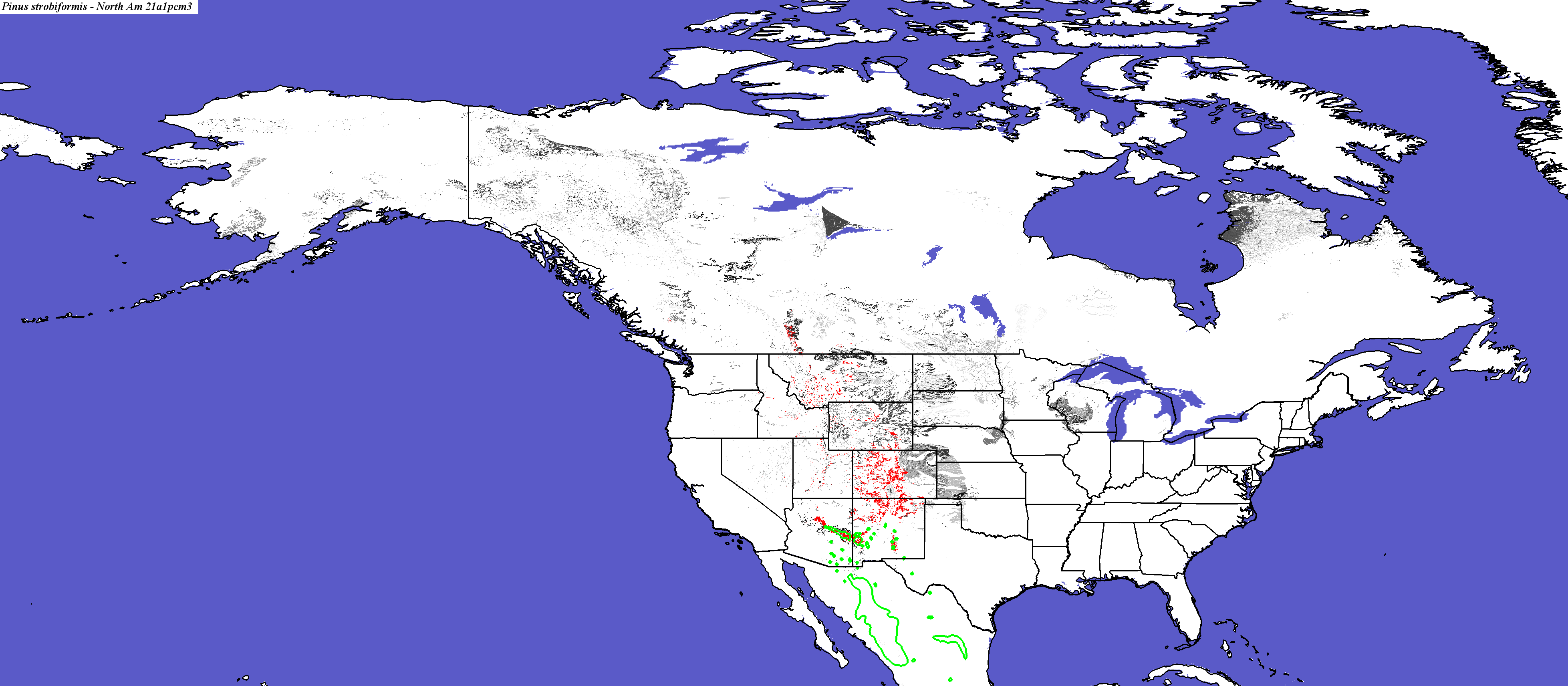

PCM, Scenario A1FI, 2050 - Pinus strobiformis - CONUS

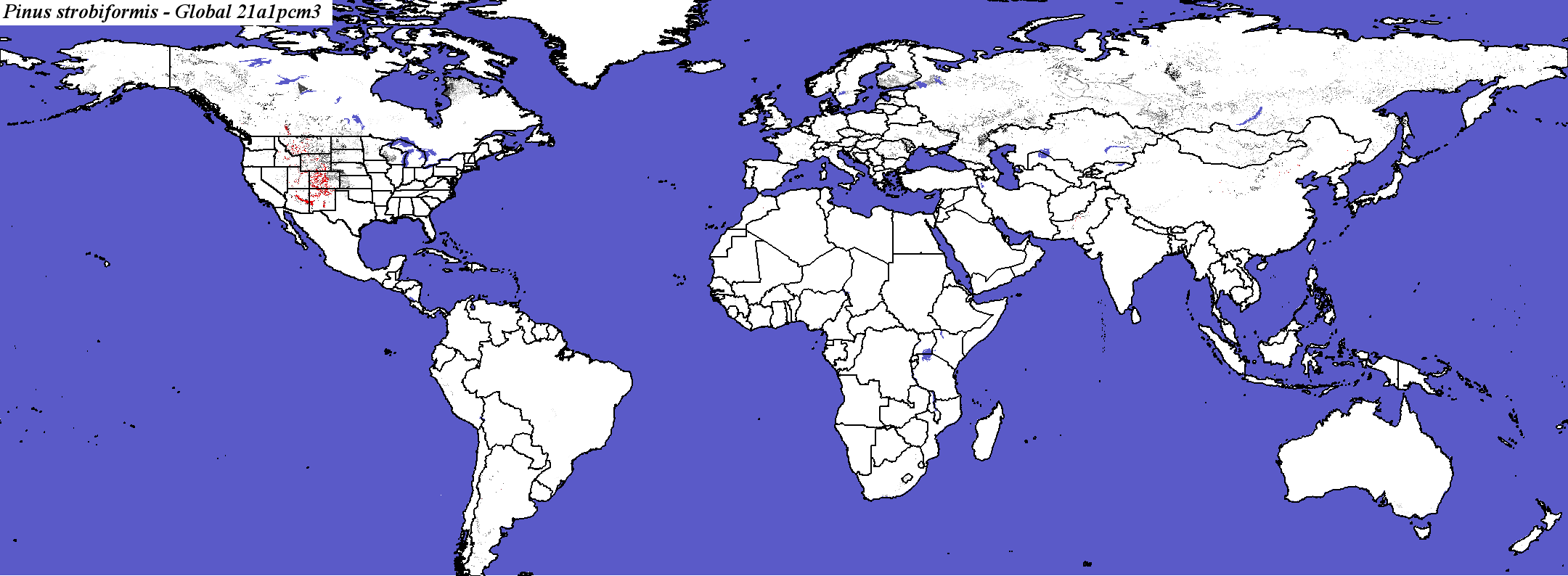

PCM, Scenario A1FI, 2050 - Pinus strobiformis - Global
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global
PCM, Scenario A1FI, 2100 - Pinus strobiformis - CONUS
Pinus strobiformis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus strobiformis - Global

Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global

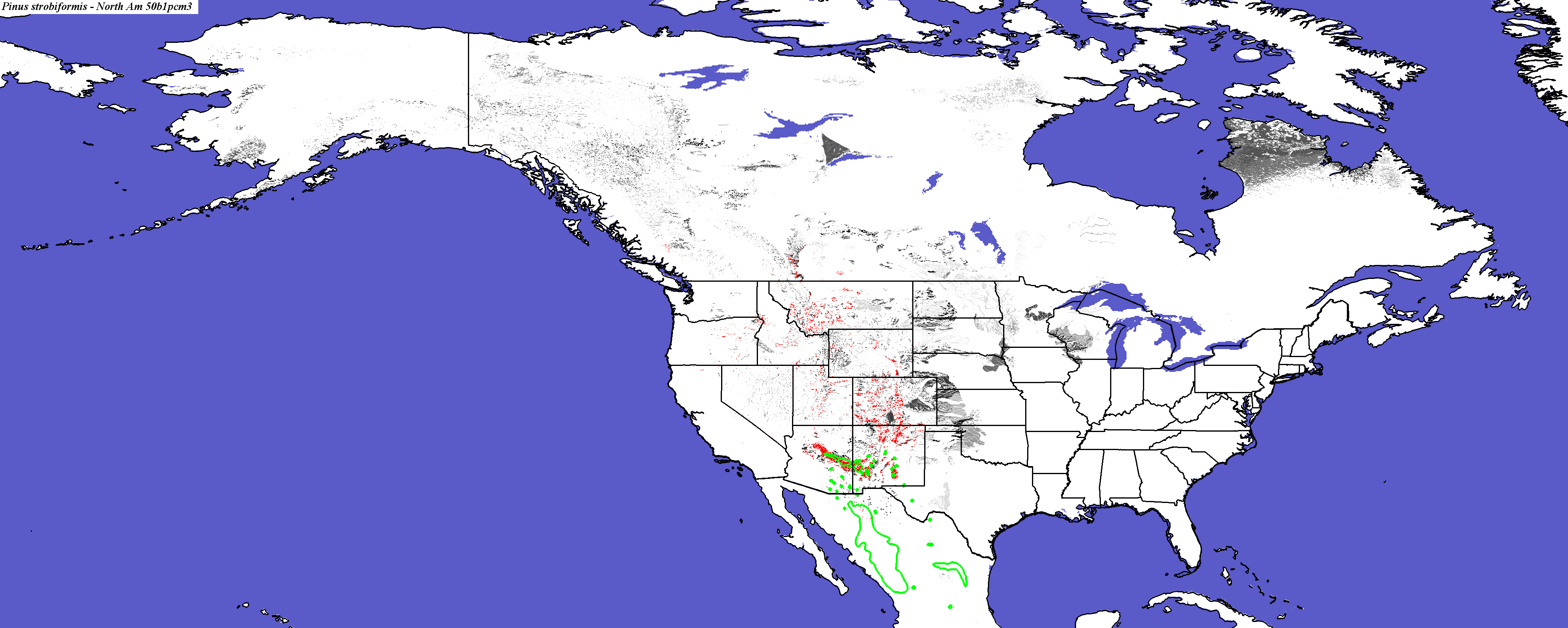

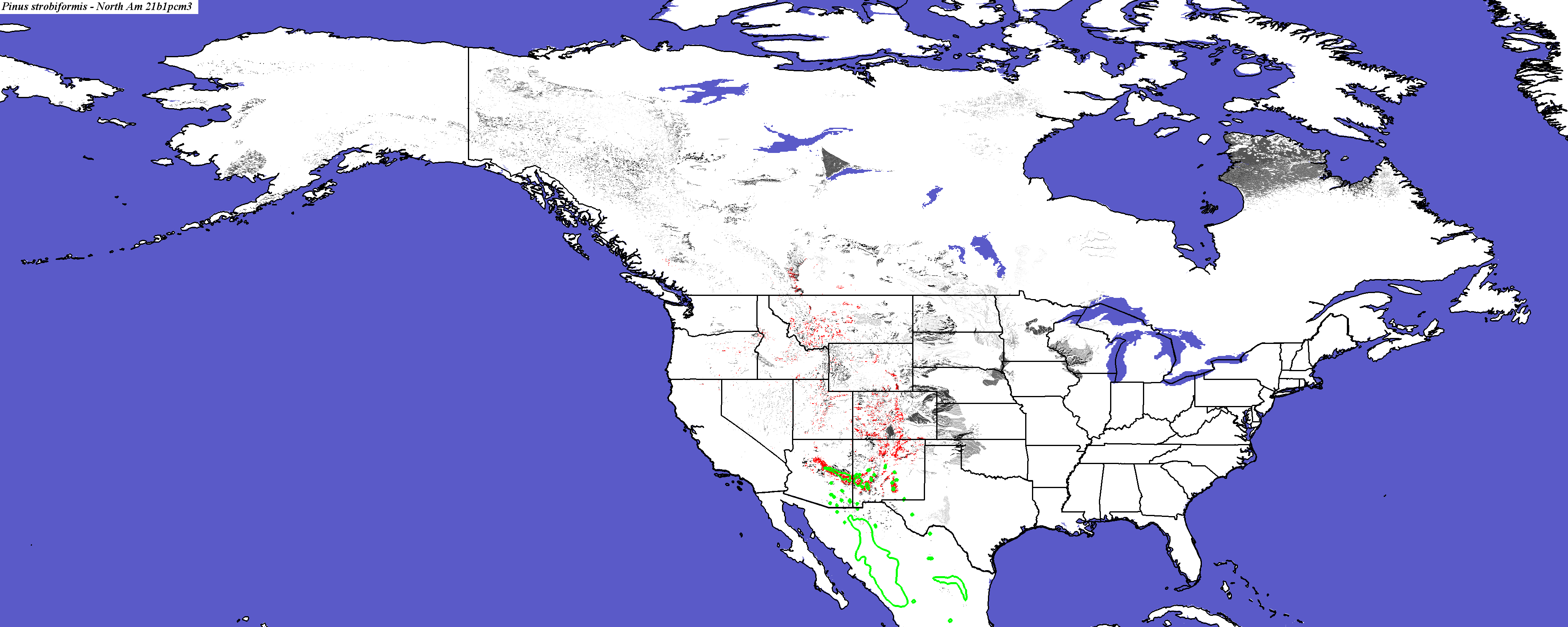

PCM, Scenario B1, 2050 - Pinus strobiformis - CONUS

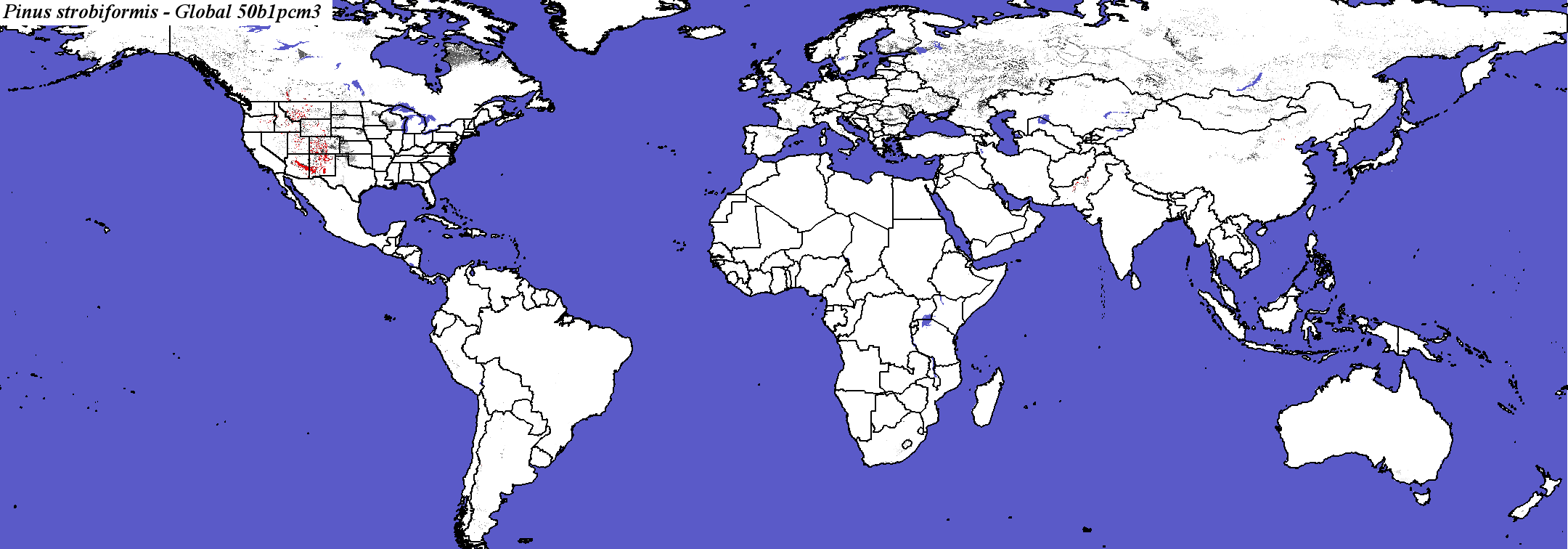

PCM, Scenario B1, 2050 - Pinus strobiformis - Global
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global
PCM, Scenario B1, 2100 - Pinus strobiformis - CONUS
Pinus strobiformis not modeled by Iverson and Prasad

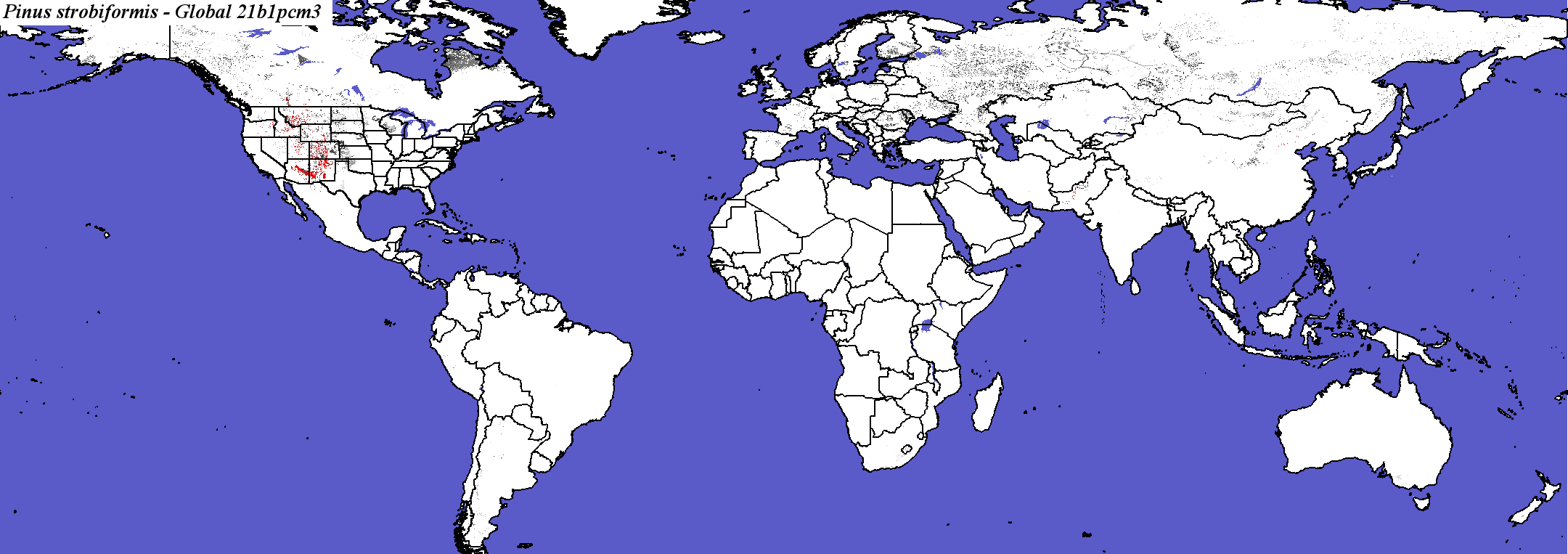

PCM, Scenario B1, 2100 - Pinus strobiformis - Global

Hadley Climate Model
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global

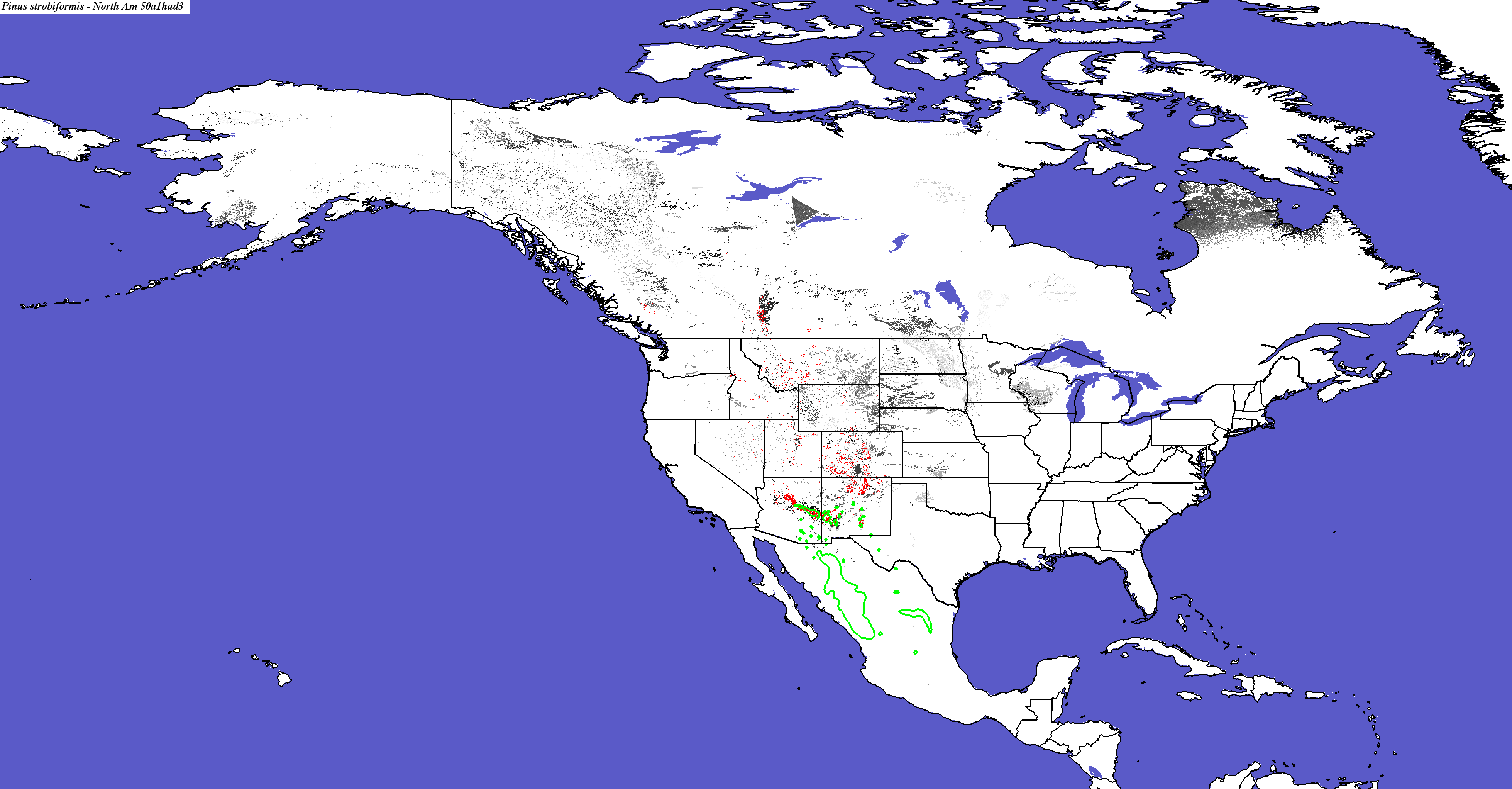

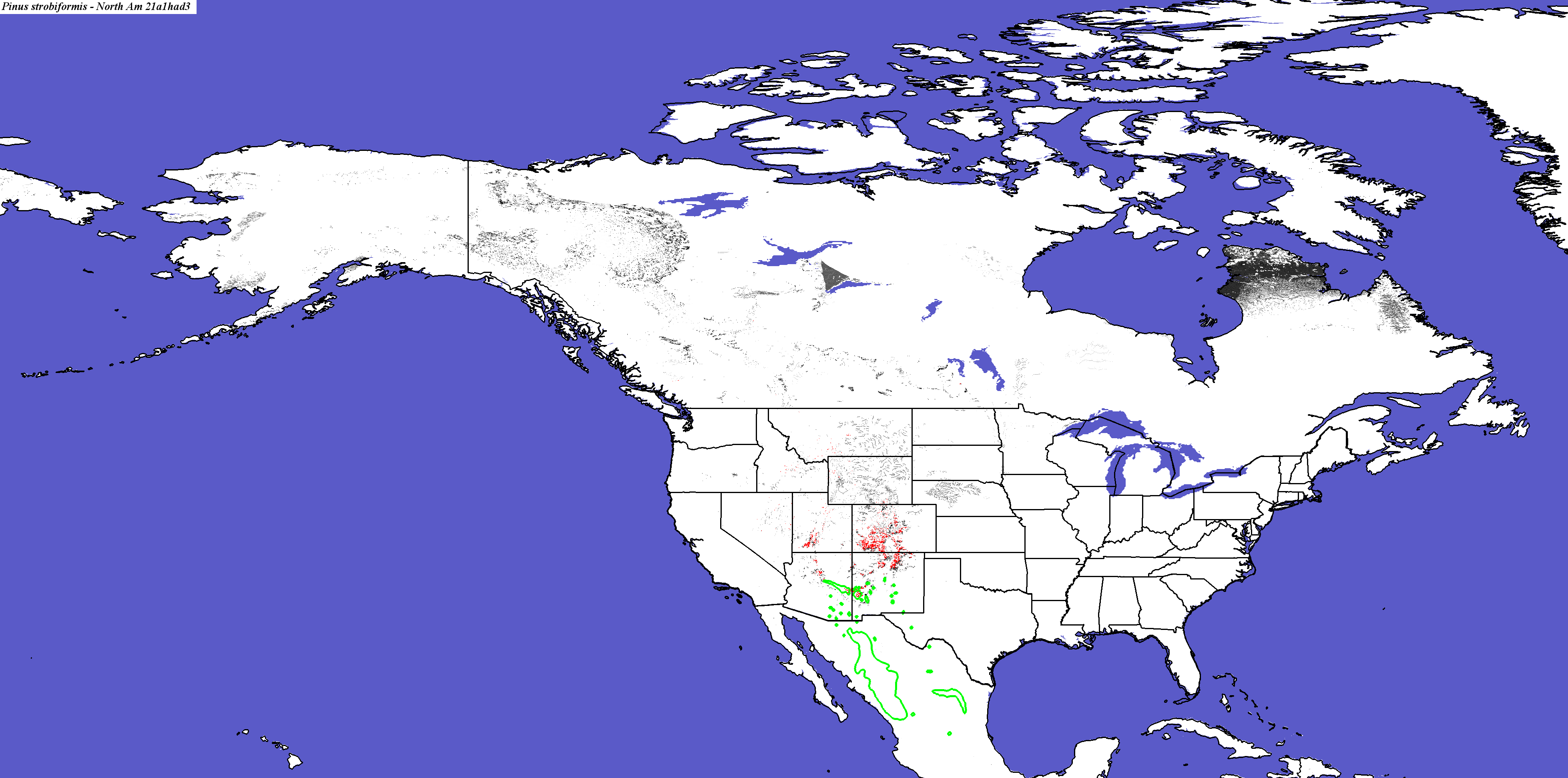

Hadley, Scenario A1FI, 2050 - Pinus strobiformis - CONUS
Compare with Pinus strobiformis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus strobiformis - Global
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global.
Hadley, Scenario A1FI, 2100 - Pinus strobiformis - CONUS
Pinus strobiformis not modeled by Iverson and Prasad
Compare with Pinus strobiformis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Pinus strobiformis not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus strobiformis - Global

Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global.

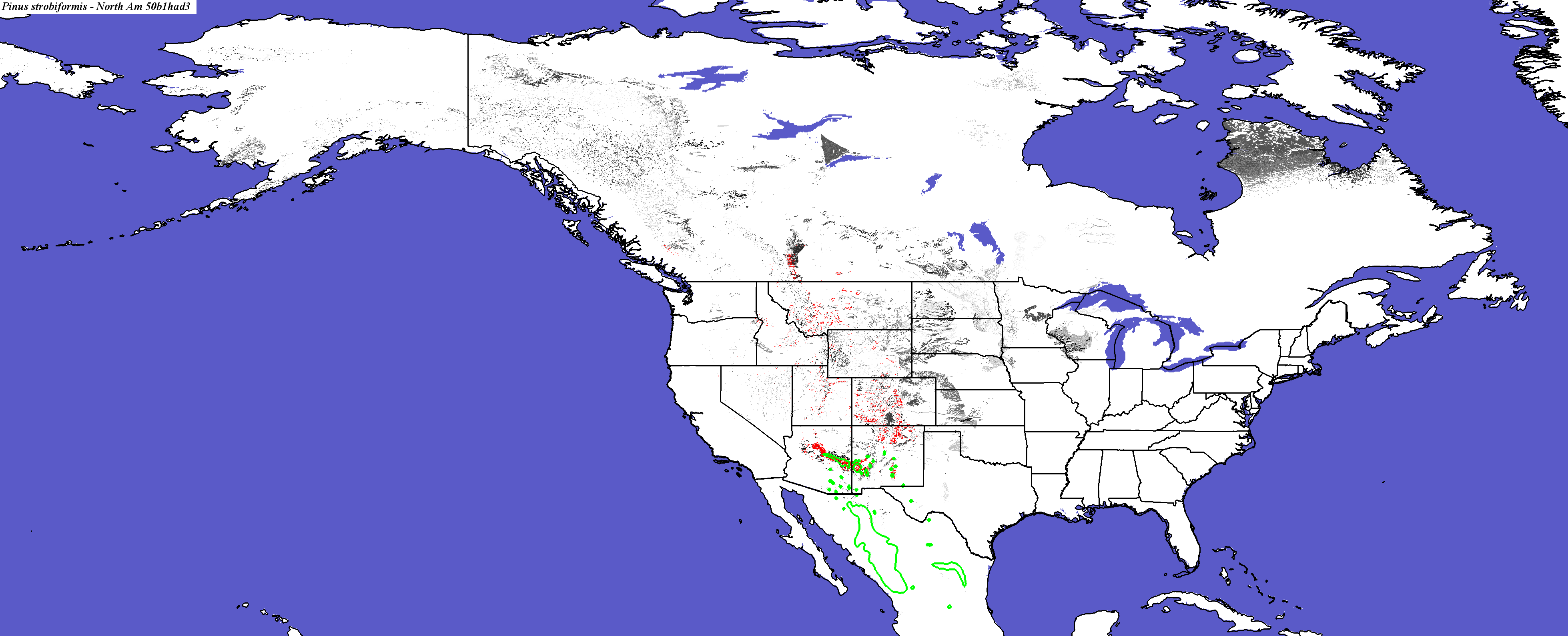

Hadley, Scenario B1, 2050 - Pinus strobiformis - CONUS
Compare with Pinus strobiformis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Pinus strobiformis not modeled by Coops and Waring

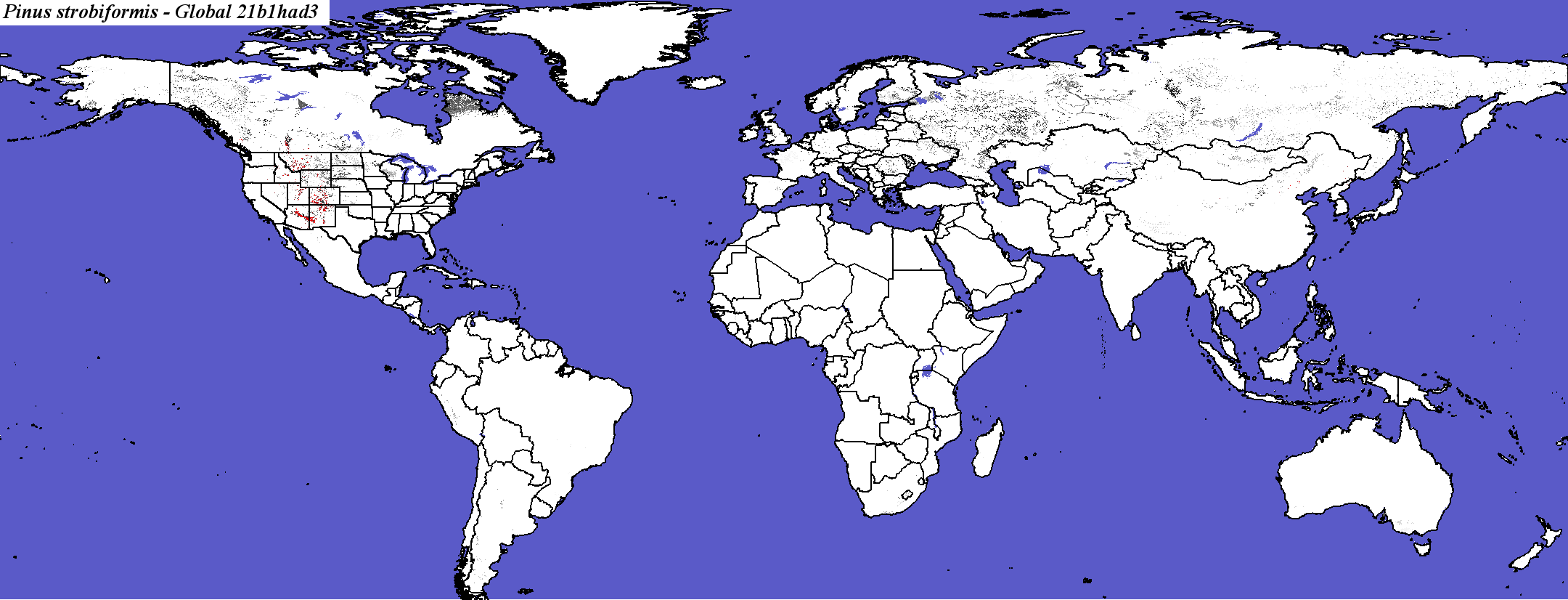

Hadley, Scenario B1, 2050 - Pinus strobiformis - Global
Pinus_strobiformis_final.2.conus
Pinus_strobiformis_final.2.global
Hadley, Scenario B1, 2100 - Pinus strobiformis - CONUS
Pinus strobiformis not modeled by Iverson and Prasad
Compare with Pinus strobiformis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus strobiformis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_strobiformis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

23

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

57.1233

Area in Present Suitable Range (in km2)

87111

Area in Future Suitable Range (Had B1 2050, in km2)

65859

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

47034

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.9900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

40.6849

Percent Change in Area of Suitable Range (Had B1 2050)

-24.3900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

41.3699

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

26822.1 +/- 67305.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

24.6575

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

10.6306 +/- 23.9223

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

30

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

28.2432 +/- 45.678

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

74.2466

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

81.3699

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

38125

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

43.7600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

15.4795

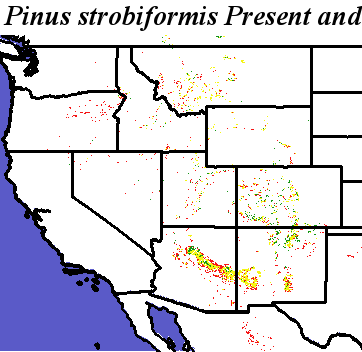

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus strobiformis Pinus strobiformis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_strobiformis_final.noelev Fine MRM Distance
Pinus_strobiformis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus strobiformis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus strobiformis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

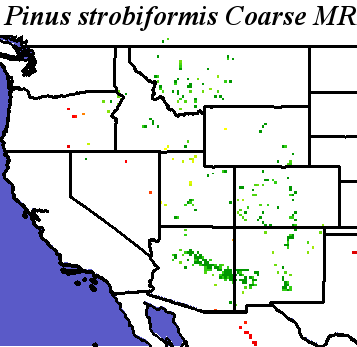

Pinus_strobiformis_final.noelev Coarse MRM Distance

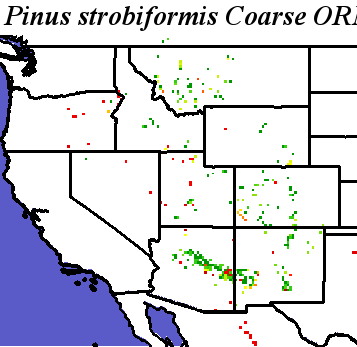

Pinus_strobiformis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus strobiformis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus strobiformis

Thu Jul 21 10:06:38 EDT 2016
