Version 5 Tree Atlas


Pinus strobus

eastern white pine

noelev

Pinus strobus Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus strobus

USDA Plants Database entry for Pinus strobus
Silvics Manual entry for Pinus strobus


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
5941836024TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_strobus_final Occurrences

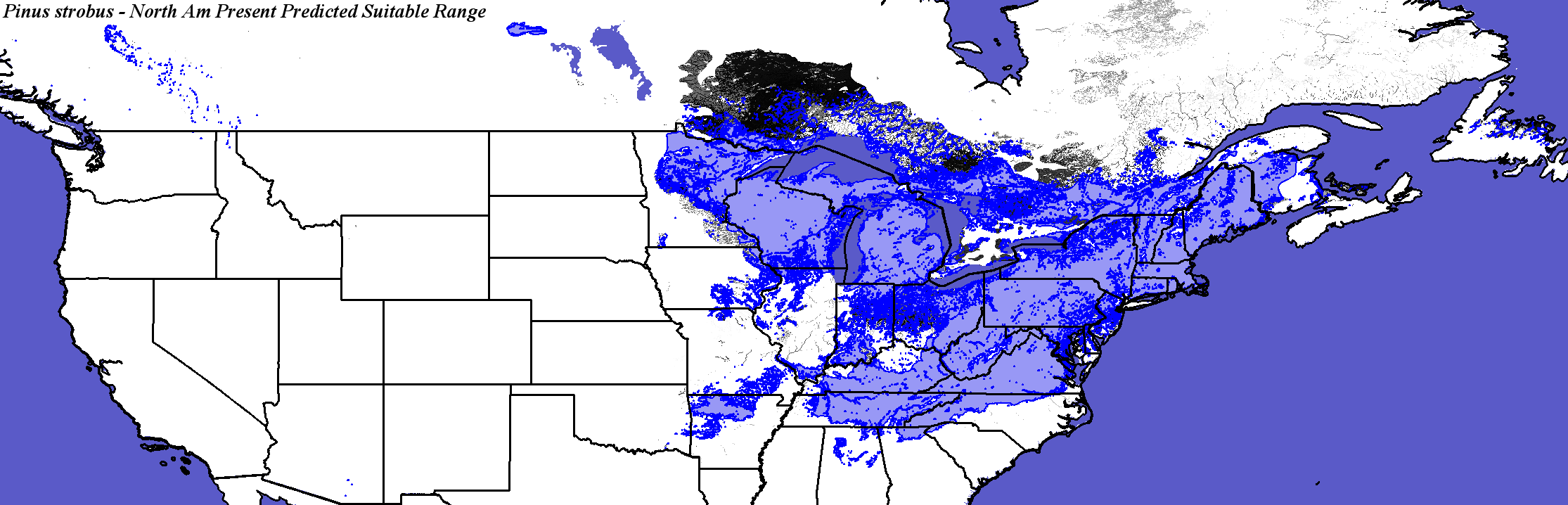

Hargroves Present Suitable Range Outline for Pinus_strobus_final
Pinus strobus - Occurrence Locations Pinus strobus - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

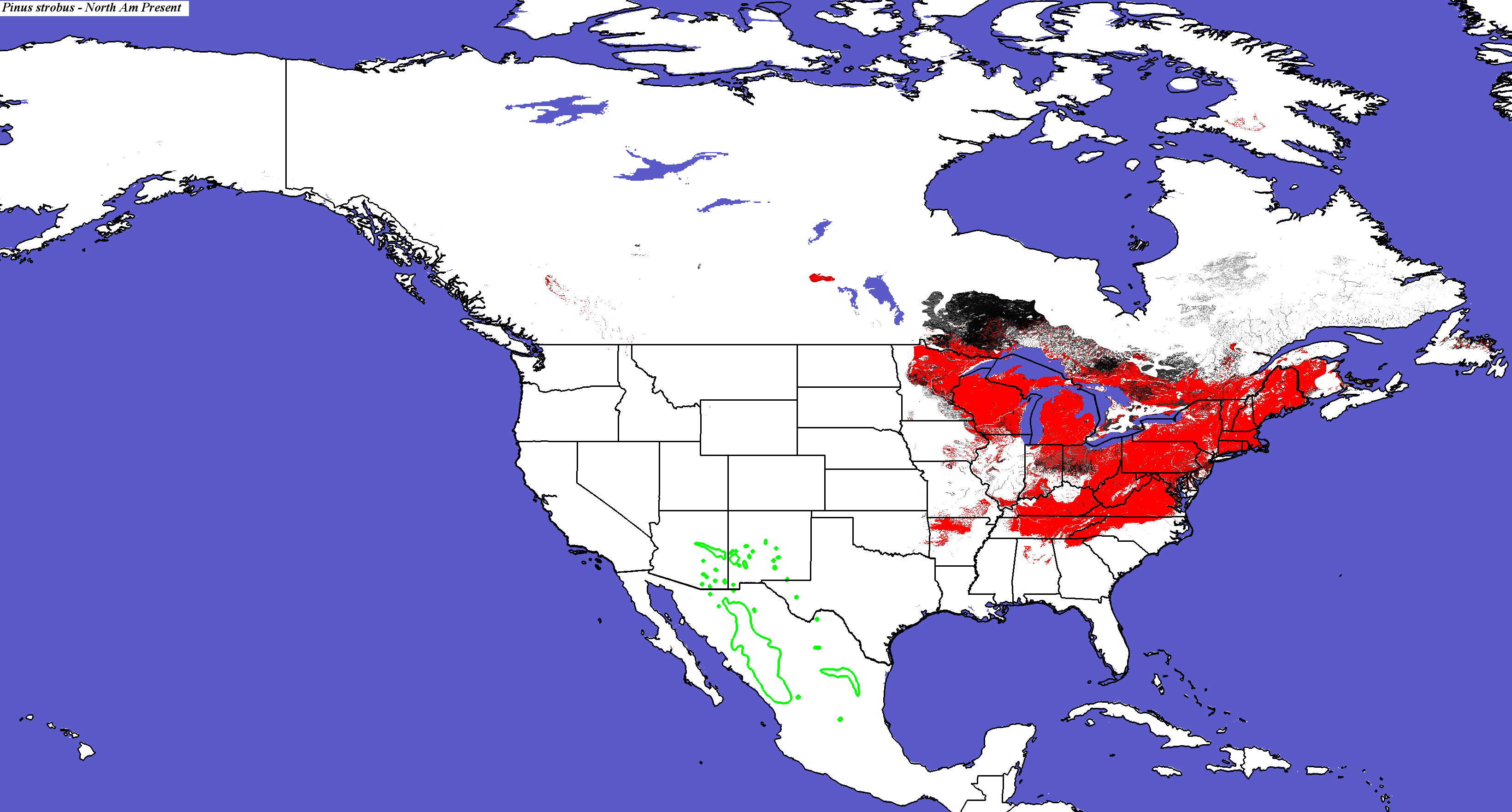

Pinus strobus - CONUS
Compare with Current Range from the Silvics Manual for Pinus strobus
Compare with Current Range from Biota of North America Program (BONAP) for Pinus strobus

Compare with Pinus strobus modeled for Current conditions by Iverson and Prasad
Pinus strobus not modeled by Crookston and Rehfeldt
Pinus strobus not modeled by Coops and Waring

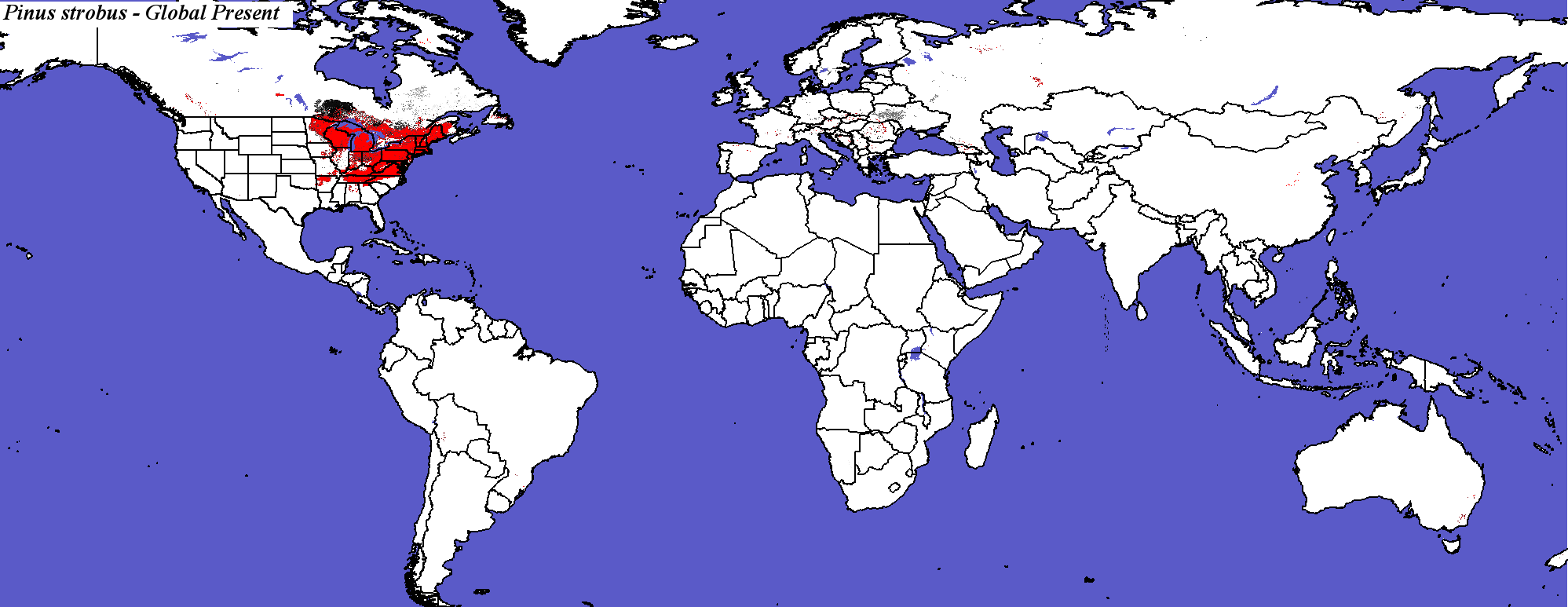

Pinus strobus - Global

PCM - Parallel Climate Model
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

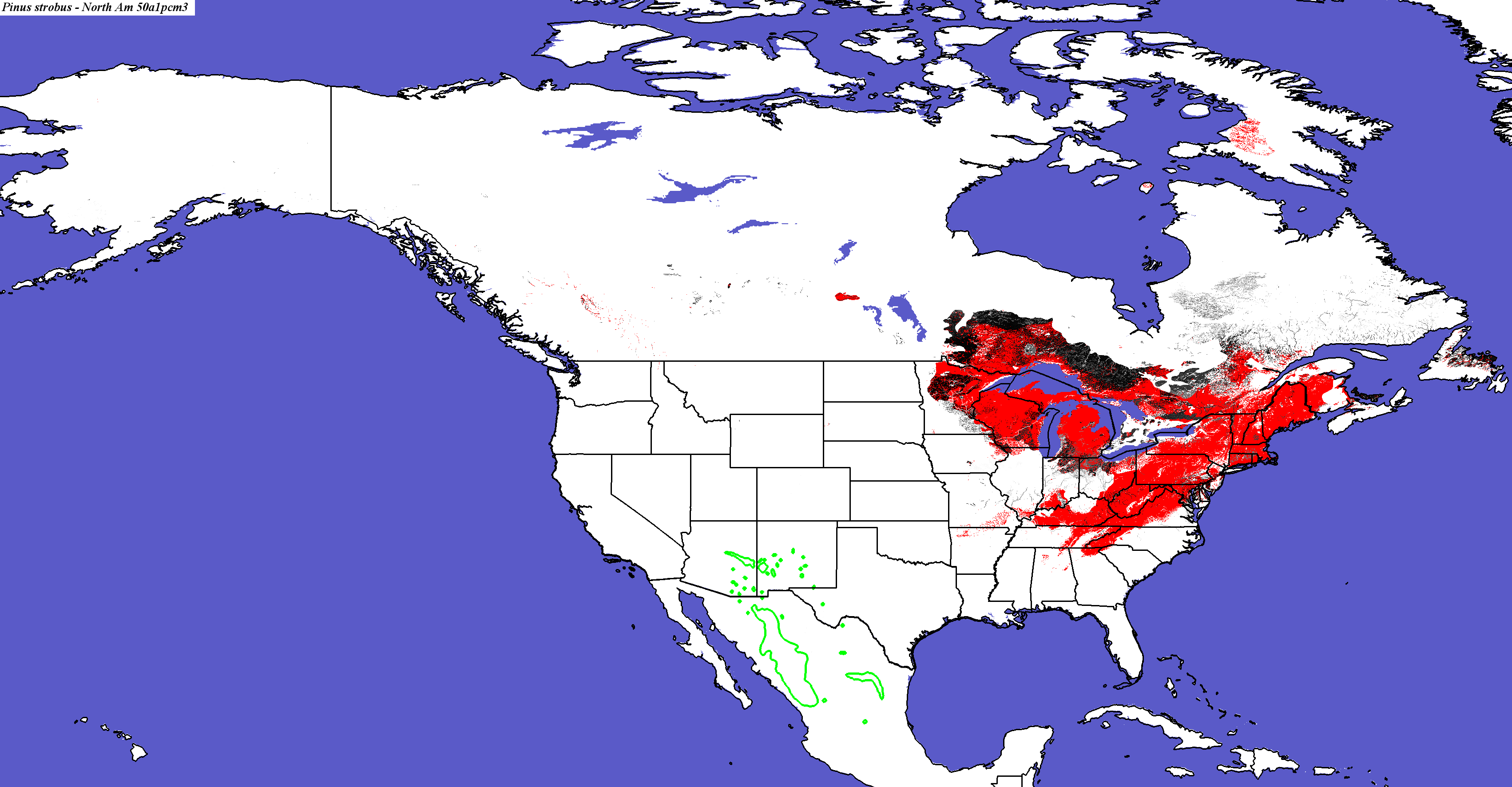

PCM, Scenario A1FI, 2050 - Pinus strobus - CONUS
PCM, Scenario A1FI, 2050 - Pinus strobus - Global
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

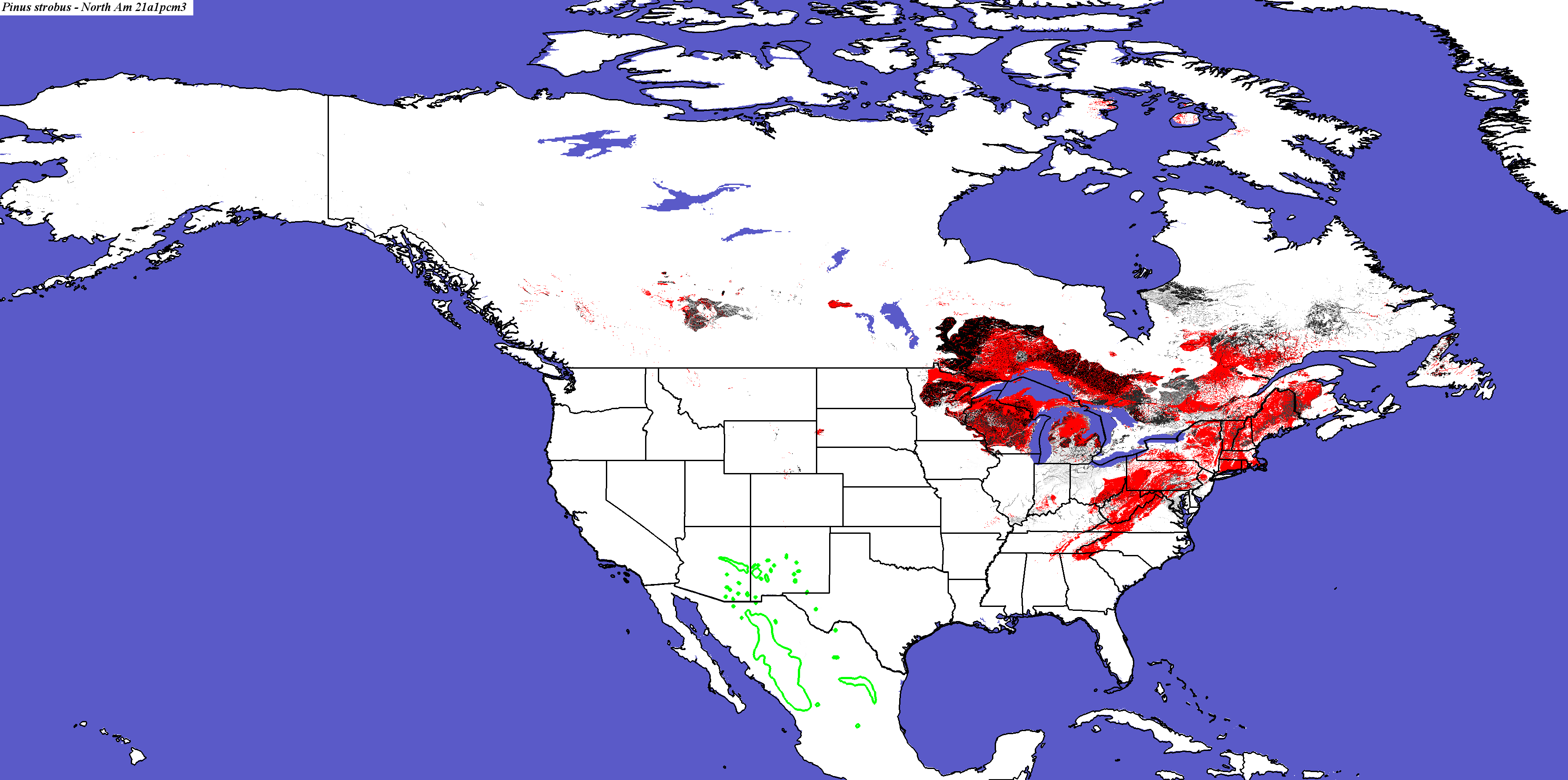

PCM, Scenario A1FI, 2100 - Pinus strobus - CONUS
Compare with Pinus strobus modeled for PCM A1FI in 2100 by Iverson and Prasad

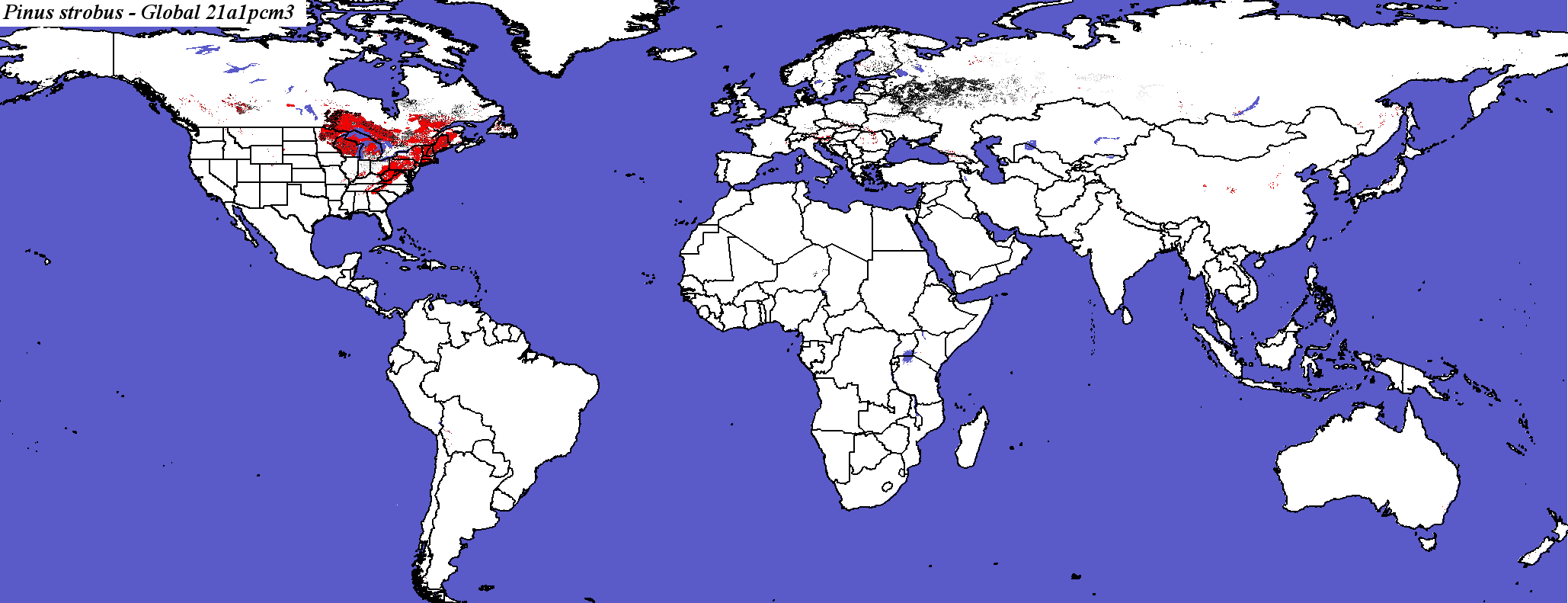

PCM, Scenario A1FI, 2100 - Pinus strobus - Global

Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

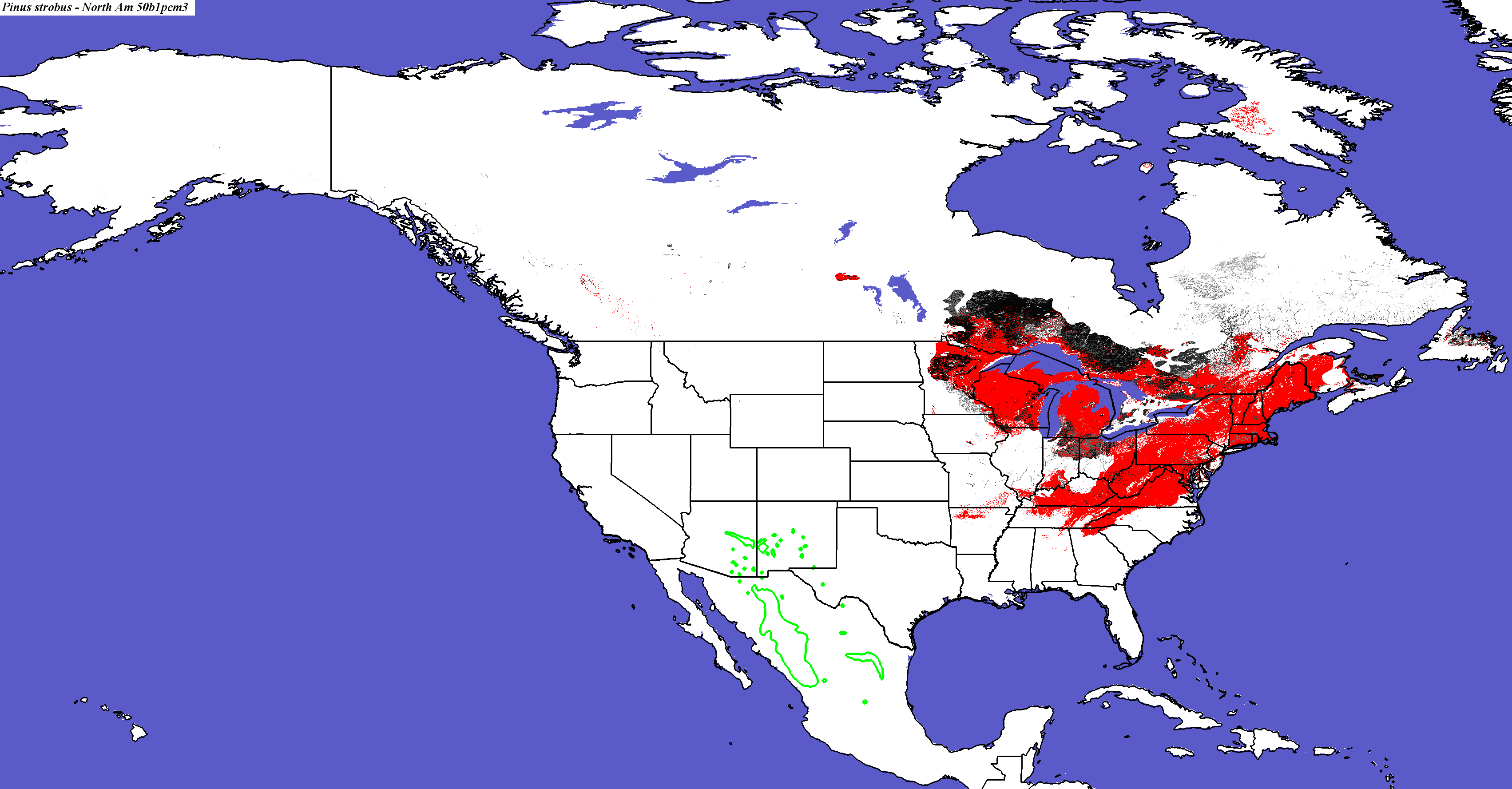

PCM, Scenario B1, 2050 - Pinus strobus - CONUS

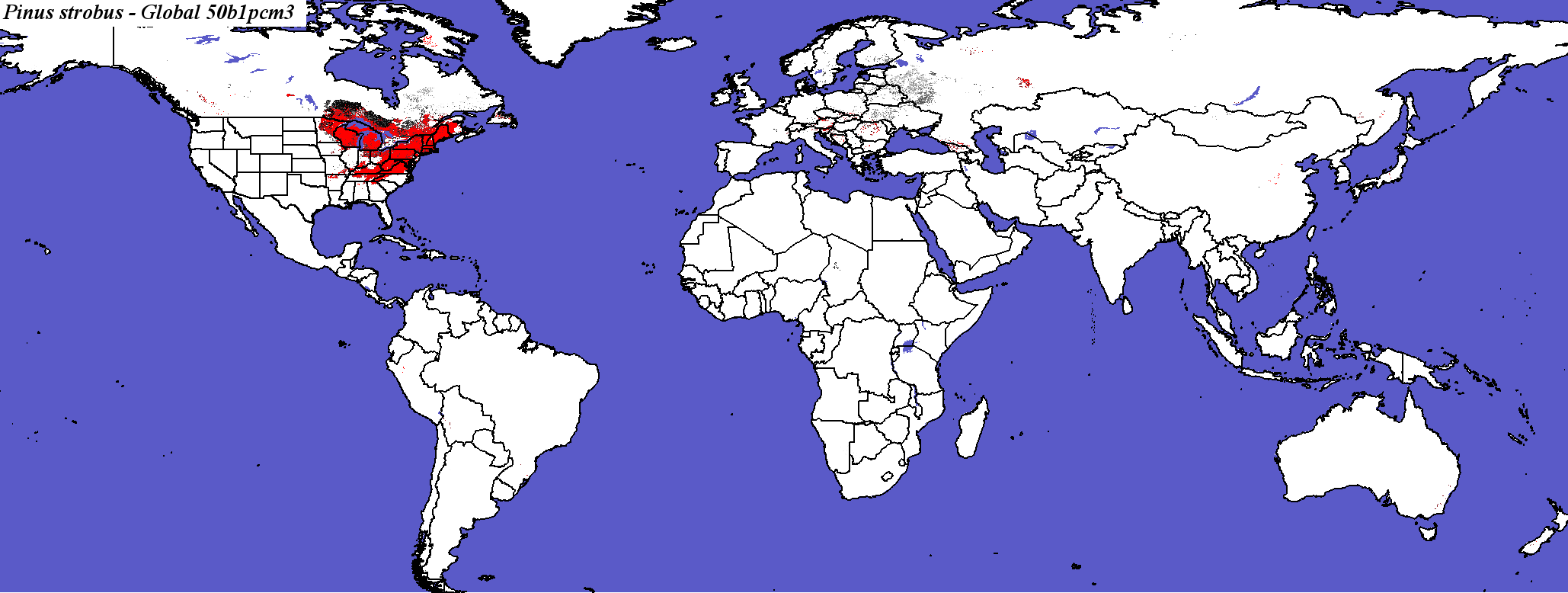

PCM, Scenario B1, 2050 - Pinus strobus - Global
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

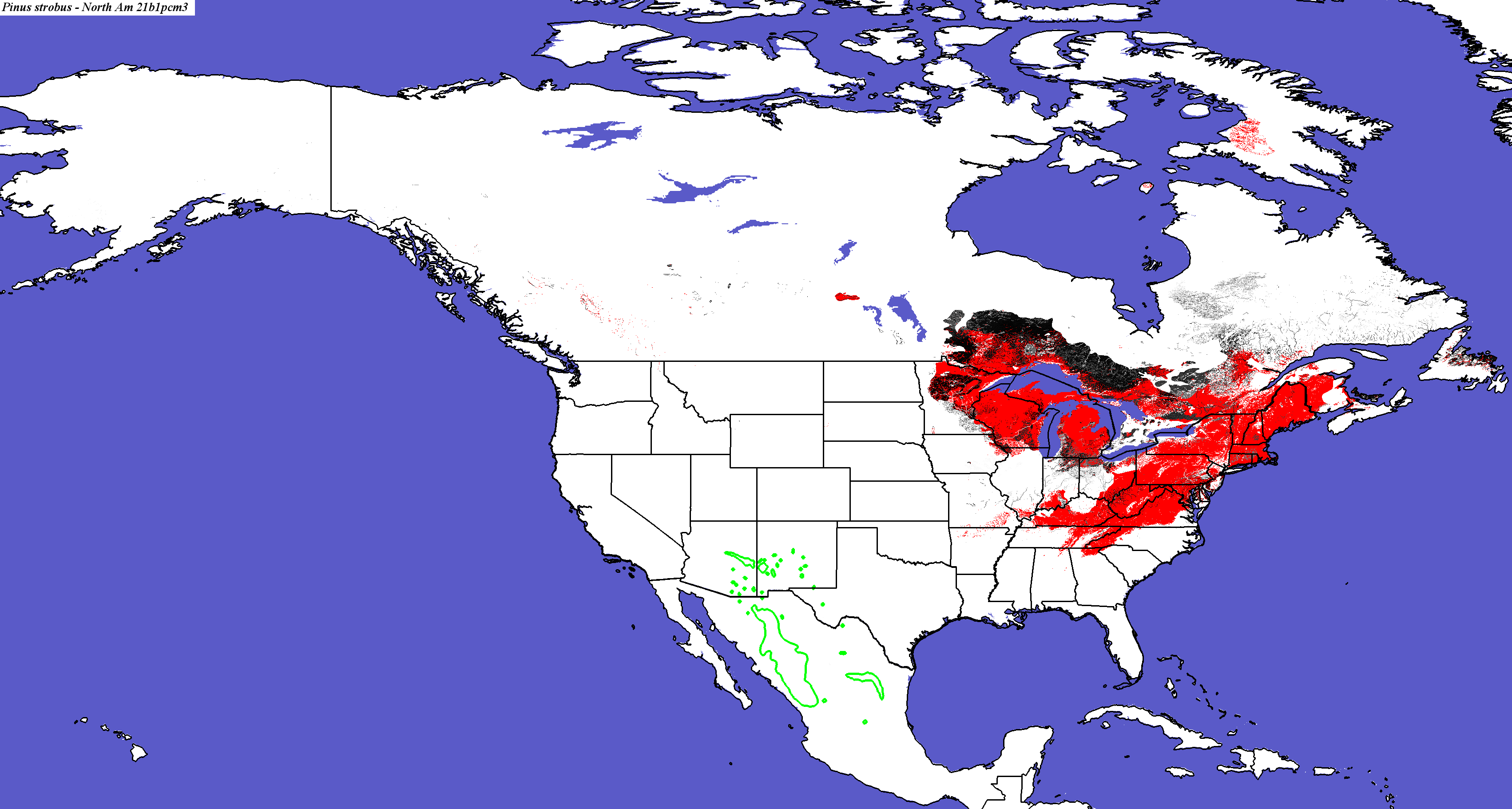

PCM, Scenario B1, 2100 - Pinus strobus - CONUS
Compare with Pinus strobus modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus strobus - Global

Hadley Climate Model
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global
Hadley, Scenario A1FI, 2050 - Pinus strobus - CONUS
Pinus strobus not modeled by Crookston and Rehfeldt

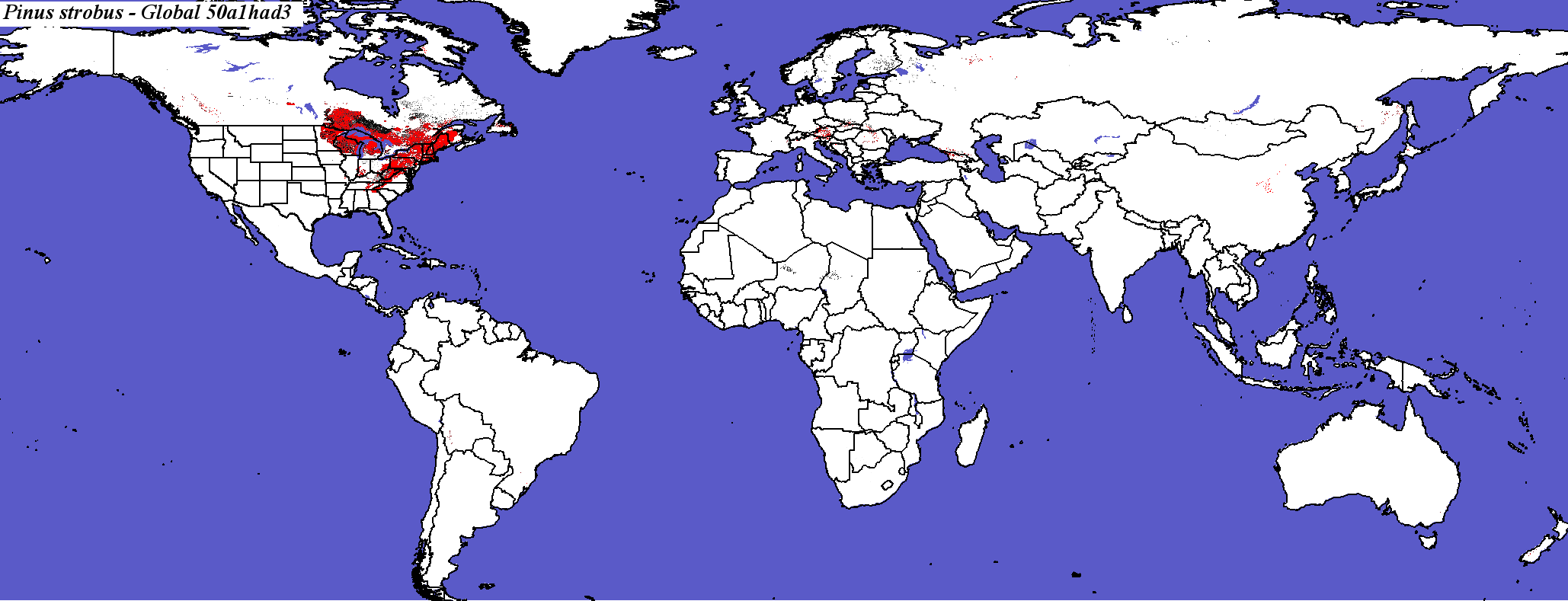

Hadley, Scenario A1FI, 2050 - Pinus strobus - Global
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global.

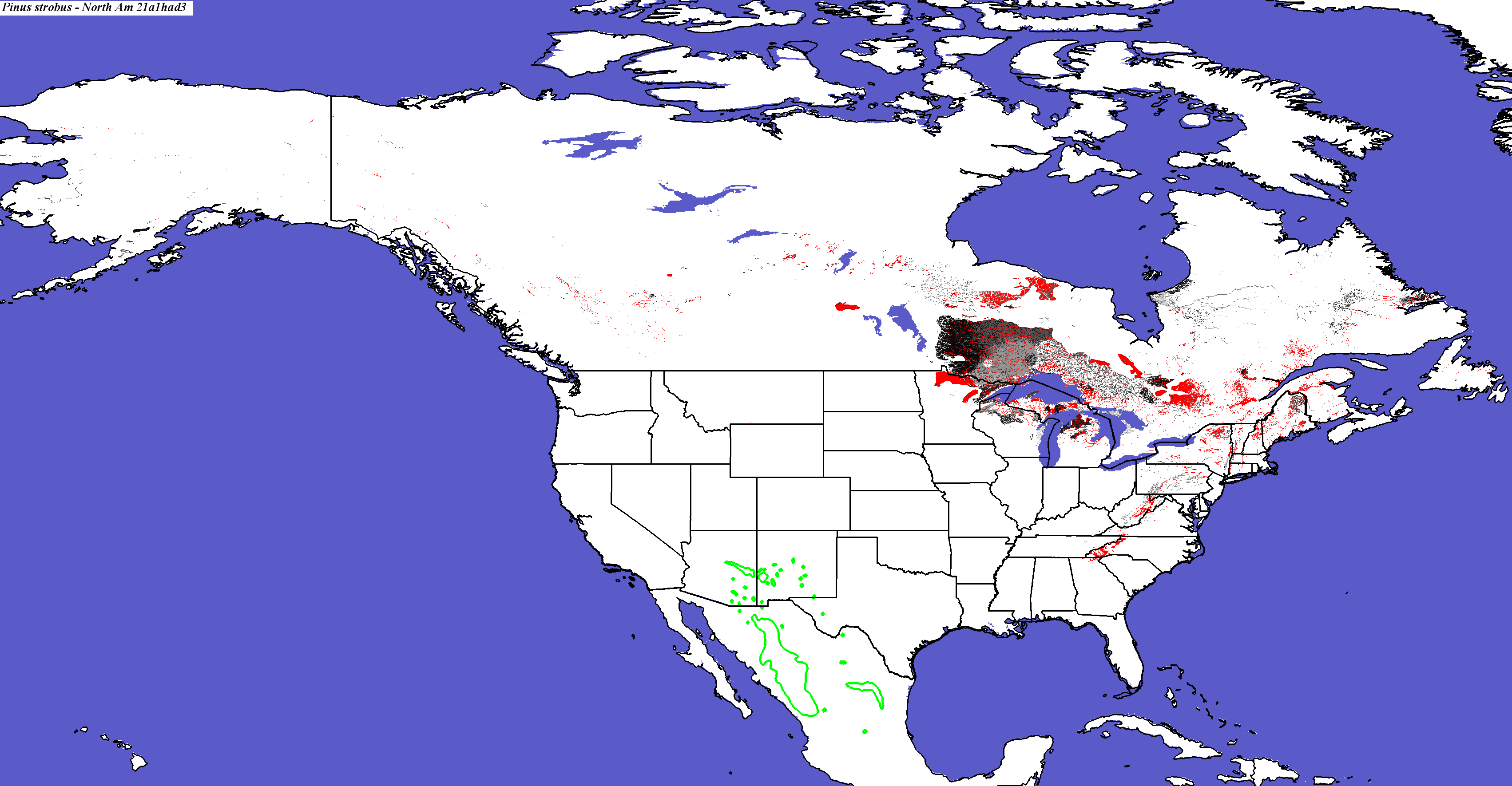

Hadley, Scenario A1FI, 2100 - Pinus strobus - CONUS
Compare with Pinus strobus modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus strobus not modeled by Crookston and Rehfeldt
Pinus strobus not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus strobus - Global

Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global.
Hadley, Scenario B1, 2050 - Pinus strobus - CONUS
Pinus strobus not modeled by Crookston and Rehfeldt
Pinus strobus not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus strobus - Global
Pinus_strobus_final.4.conus
Pinus_strobus_final.4.global

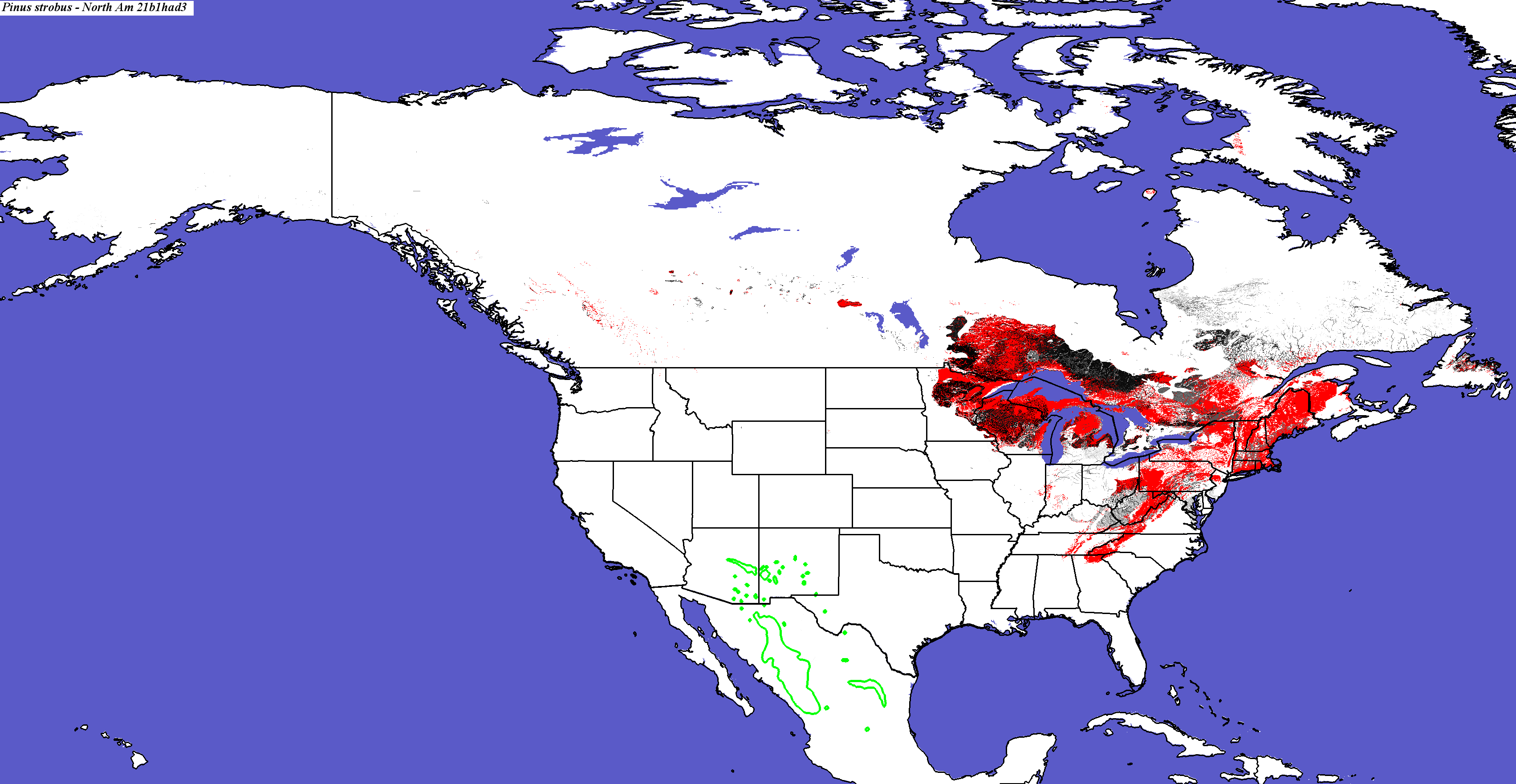

Hadley, Scenario B1, 2100 - Pinus strobus - CONUS
Compare with Pinus strobus modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus strobus not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus strobus - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_strobus_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

237

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

4.93151

Area in Present Suitable Range (in km2)

1503121

Area in Future Suitable Range (Had B1 2050, in km2)

1048268

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

835670

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

55.5900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

35.8904

Percent Change in Area of Suitable Range (Had B1 2050)

-30.2600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

51.7808

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

18956.2 +/- 46283.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

37.6712

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.55697 +/- 20.908

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

45.8904

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

80.1522 +/- 358.714

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

48.2192

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

19580

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

1.3000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

48.6301

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

504622

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.5700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

35.7534

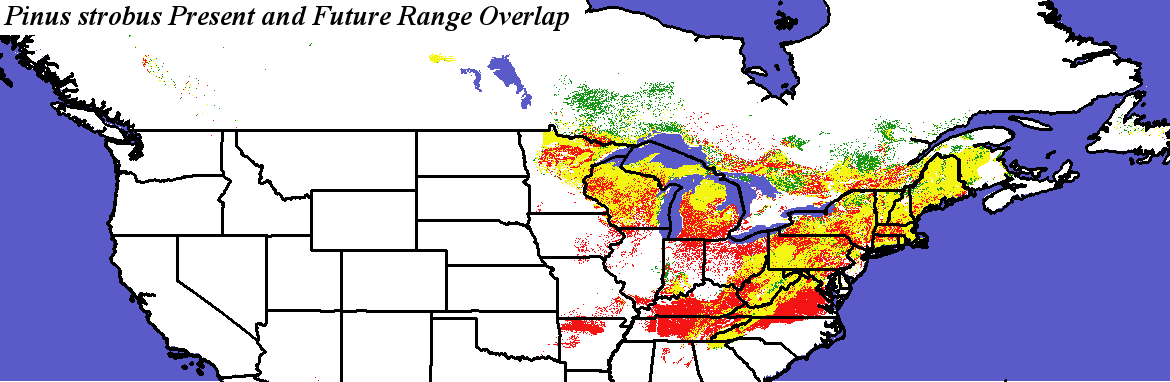

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus strobus Pinus strobus - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

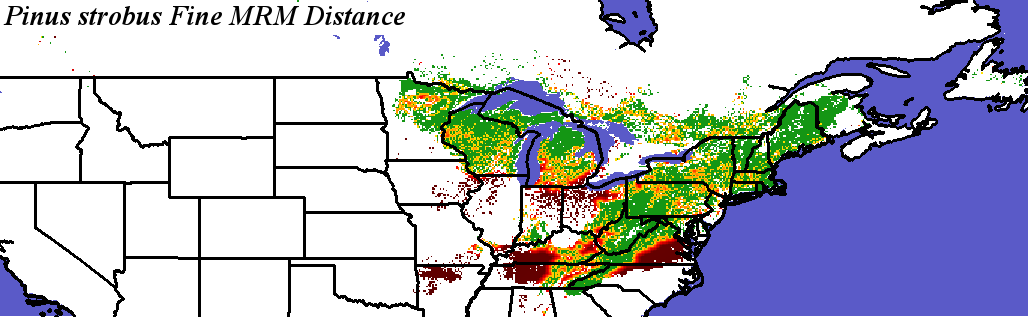

Pinus_strobus_final.noelev Fine MRM Distance

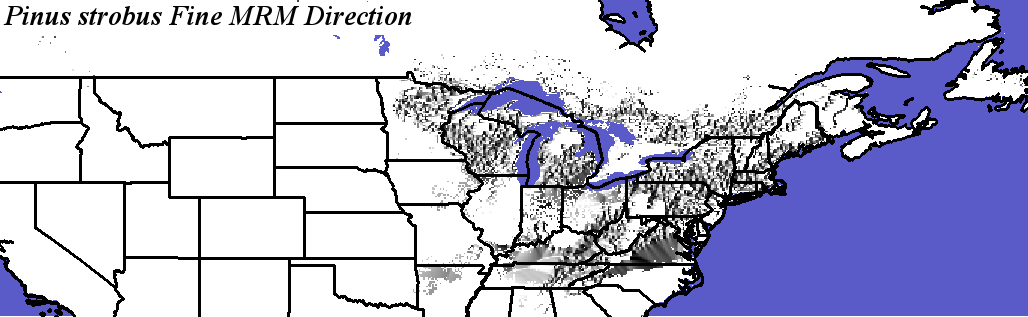

Pinus_strobus_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus strobus Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus strobus
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

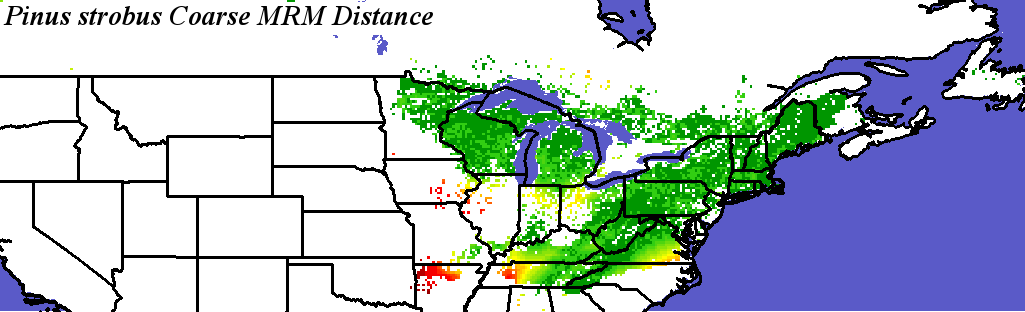

Pinus_strobus_final.noelev Coarse MRM Distance

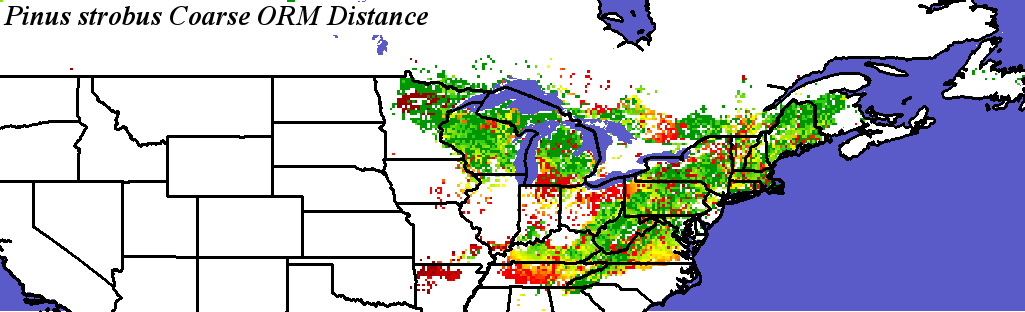

Pinus_strobus_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus strobus Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus strobus
