Version 5 Tree Atlas


Planera aquatica

water-elm

noelev

Planera aquatica Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Planera aquatica

USDA Plants Database entry for Planera aquatica
Silvics Manual entry for Planera aquatica


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
15324177much of range is well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Planera_aquatica_final Occurrences

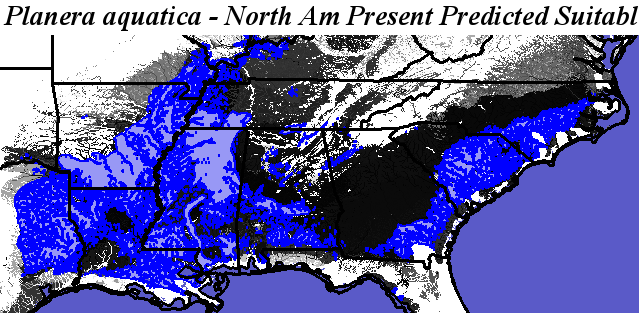

Hargroves Present Suitable Range Outline for Planera_aquatica_final
Planera aquatica - Occurrence Locations Planera aquatica - Hargrove's Present Suitable Range Outline
Present Conditions
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global

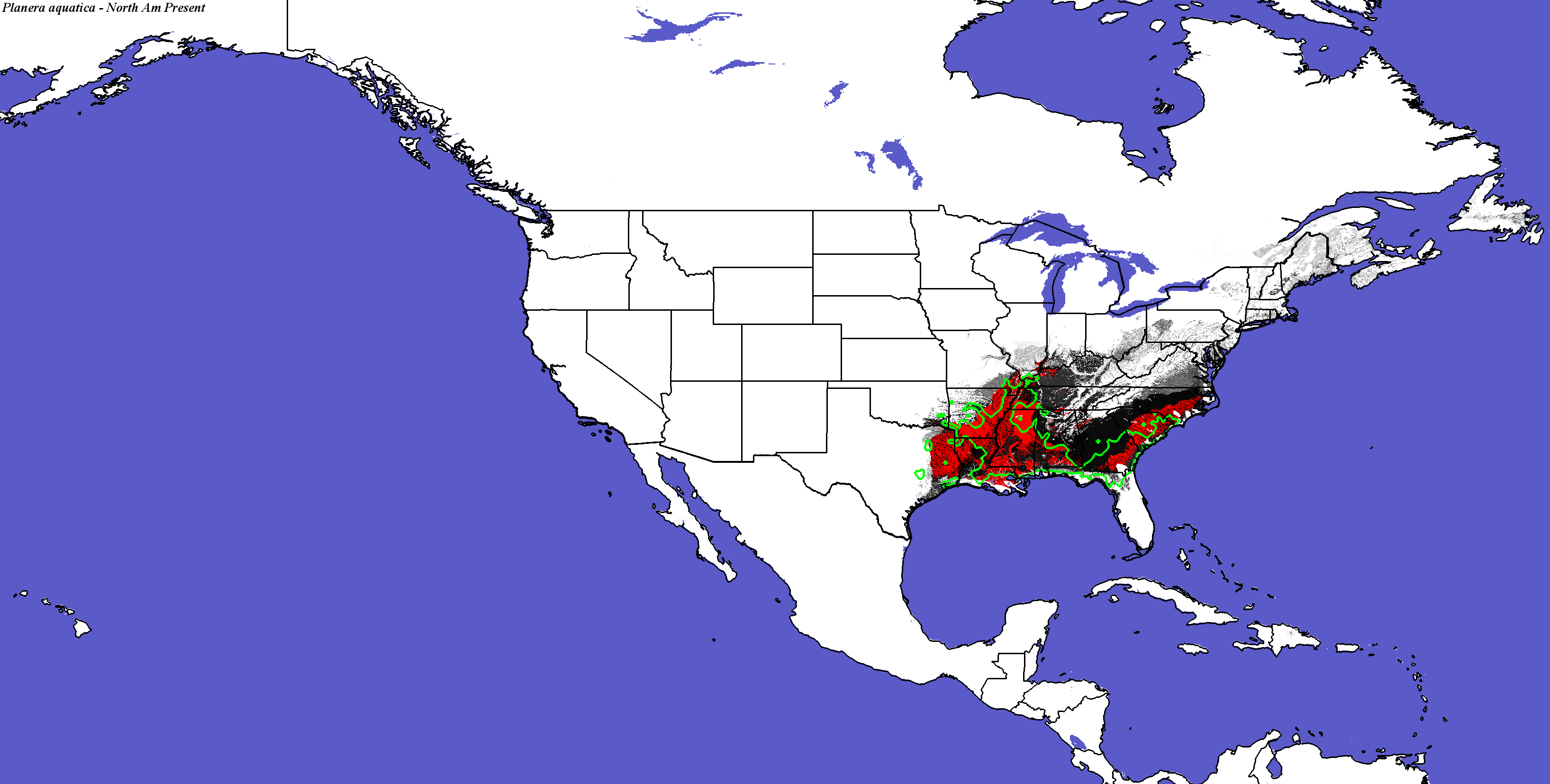

Planera aquatica - CONUS
Compare with Current Range from the Silvics Manual for Planera aquatica
Compare with Current Range from Biota of North America Program (BONAP) for Planera aquatica

Compare with Planera aquatica modeled for Current conditions by Iverson and Prasad
Planera aquatica not modeled by Crookston and Rehfeldt
Planera aquatica not modeled by Coops and Waring

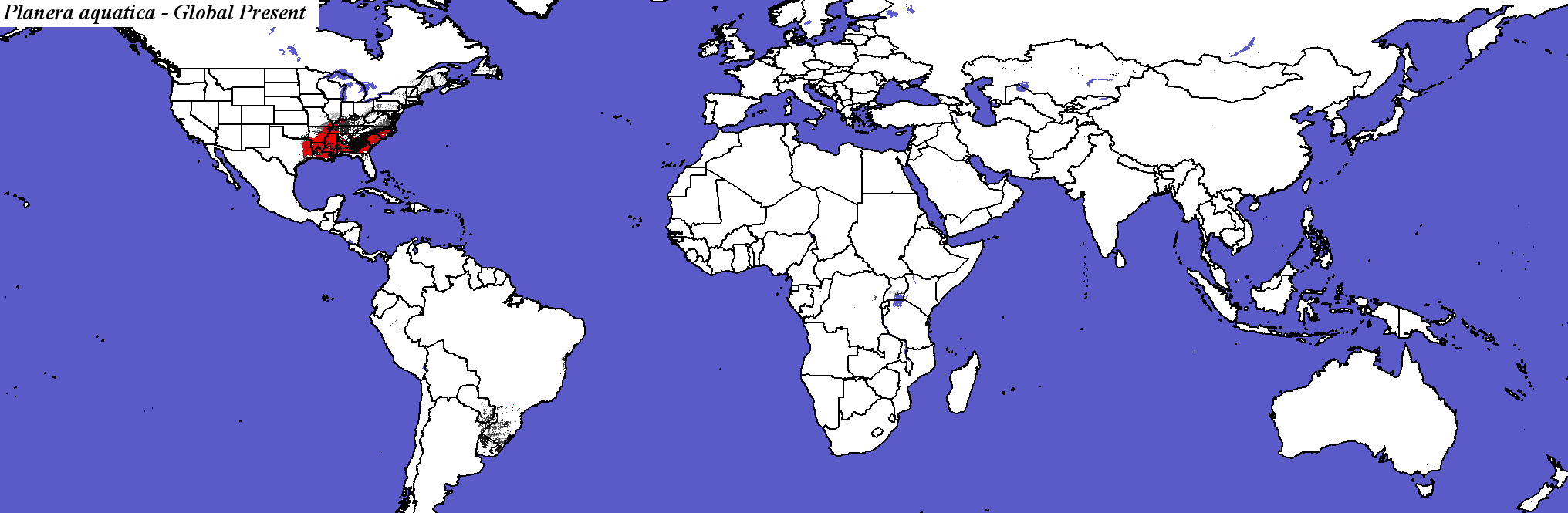

Planera aquatica - Global

PCM - Parallel Climate Model
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global
PCM, Scenario A1FI, 2050 - Planera aquatica - CONUS
PCM, Scenario A1FI, 2050 - Planera aquatica - Global
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global
PCM, Scenario A1FI, 2100 - Planera aquatica - CONUS
Compare with Planera aquatica modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Planera aquatica - Global

Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global

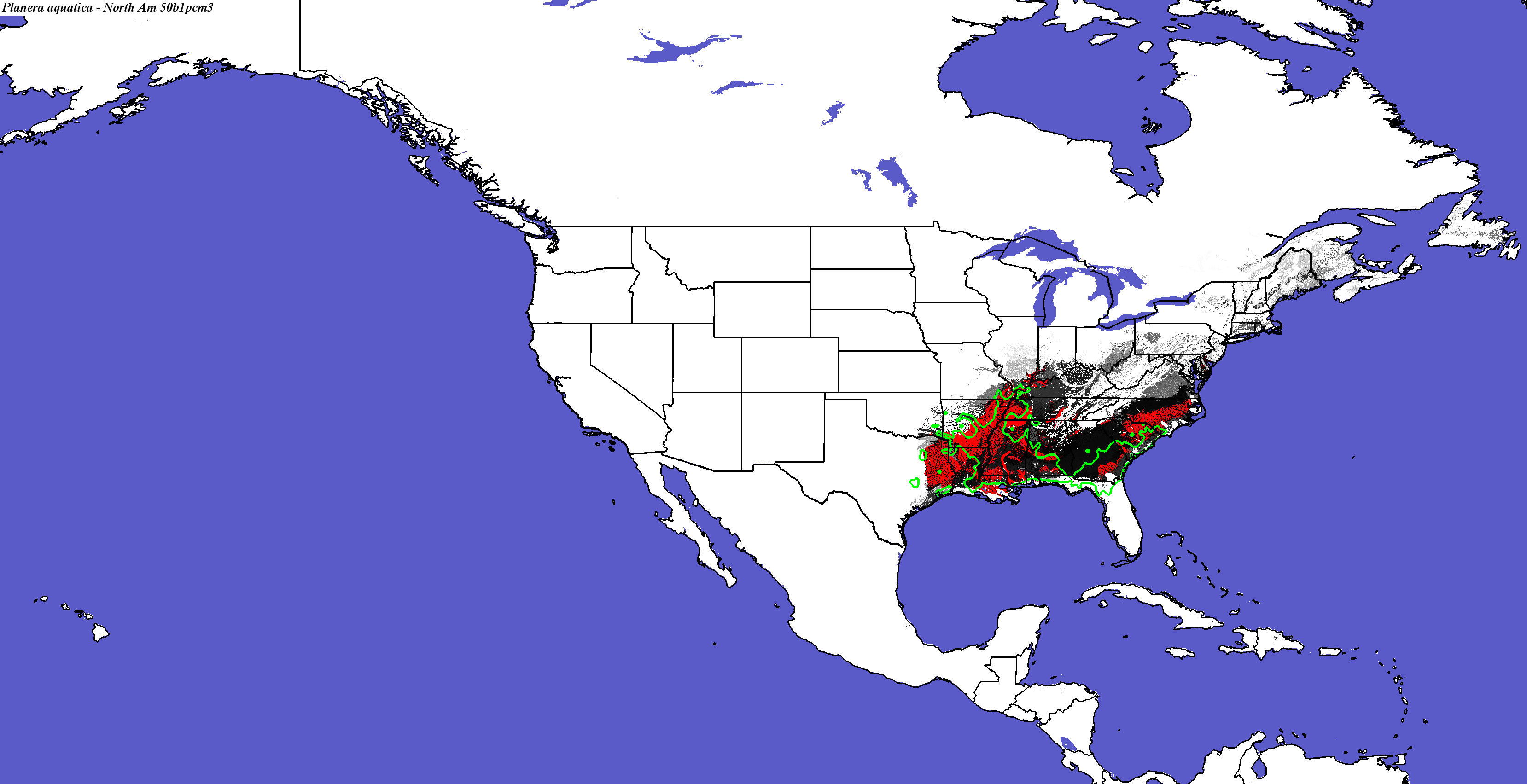

PCM, Scenario B1, 2050 - Planera aquatica - CONUS
PCM, Scenario B1, 2050 - Planera aquatica - Global
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global
PCM, Scenario B1, 2100 - Planera aquatica - CONUS
Compare with Planera aquatica modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Planera aquatica - Global

Hadley Climate Model
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global
Hadley, Scenario A1FI, 2050 - Planera aquatica - CONUS
Planera aquatica not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Planera aquatica - Global
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global.
Hadley, Scenario A1FI, 2100 - Planera aquatica - CONUS
Compare with Planera aquatica modeled for Hadley A1FI in 2100 by Iverson and Prasad
Planera aquatica not modeled by Crookston and Rehfeldt
Planera aquatica not modeled by Coops and Waring

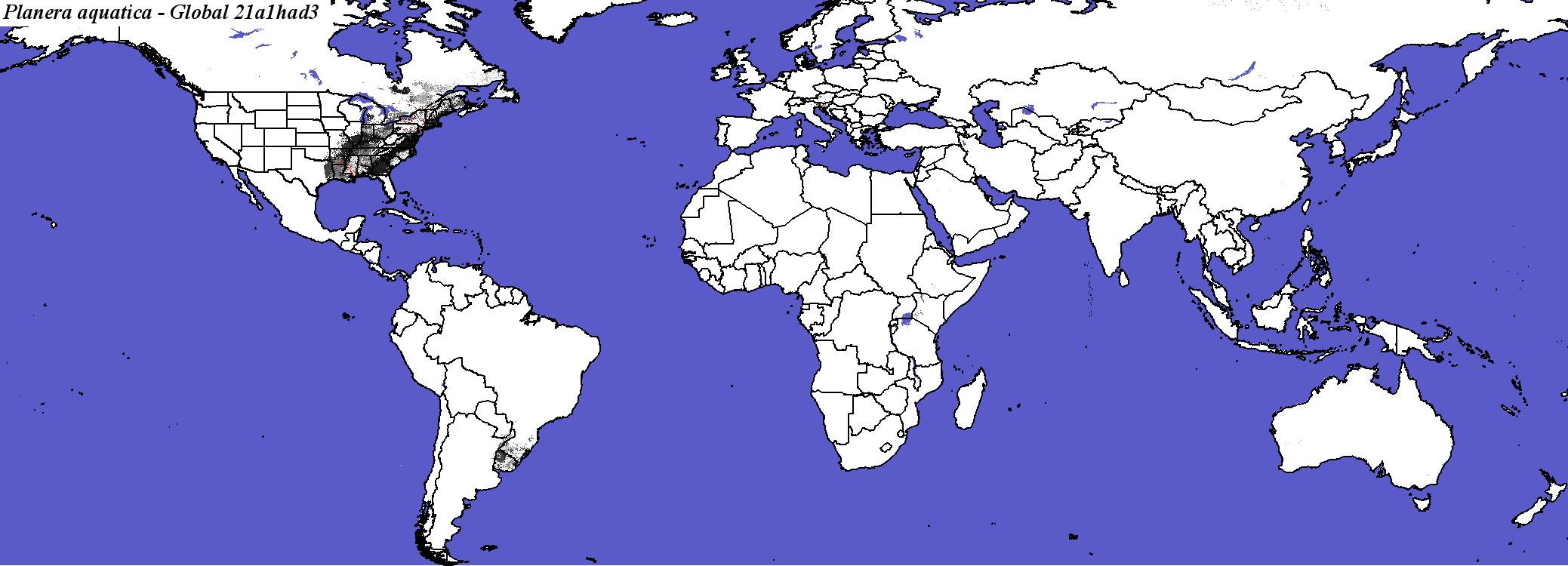

Hadley, Scenario A1FI, 2100 - Planera aquatica - Global

Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global.
Hadley, Scenario B1, 2050 - Planera aquatica - CONUS
Planera aquatica not modeled by Crookston and Rehfeldt
Planera aquatica not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Planera aquatica - Global
Planera_aquatica_final.3.conus
Planera_aquatica_final.3.global

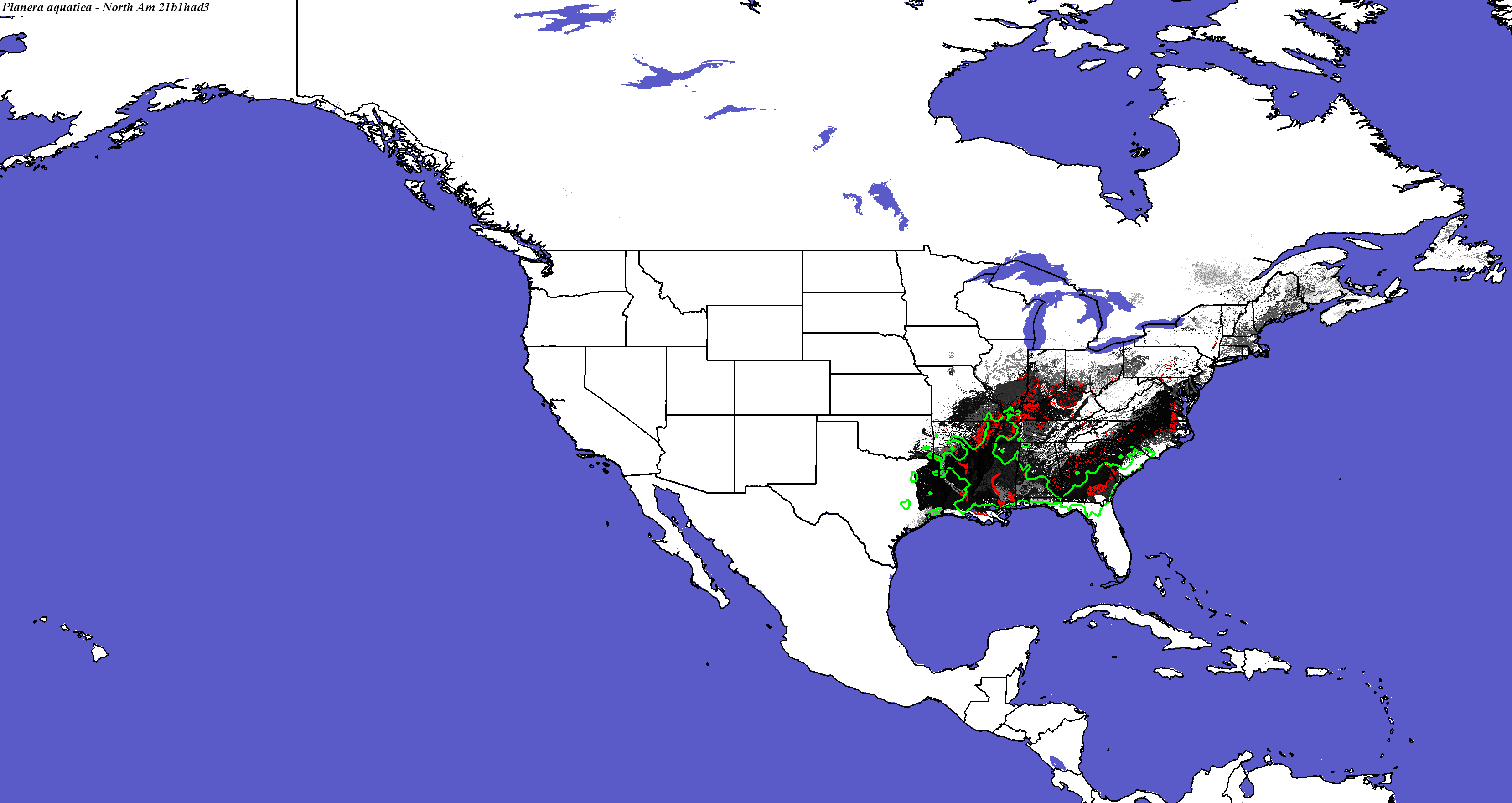

Hadley, Scenario B1, 2100 - Planera aquatica - CONUS
Compare with Planera aquatica modeled for Hadley B1 in 2100 by Iverson and Prasad
Planera aquatica not modeled by Crookston and Rehfeldt

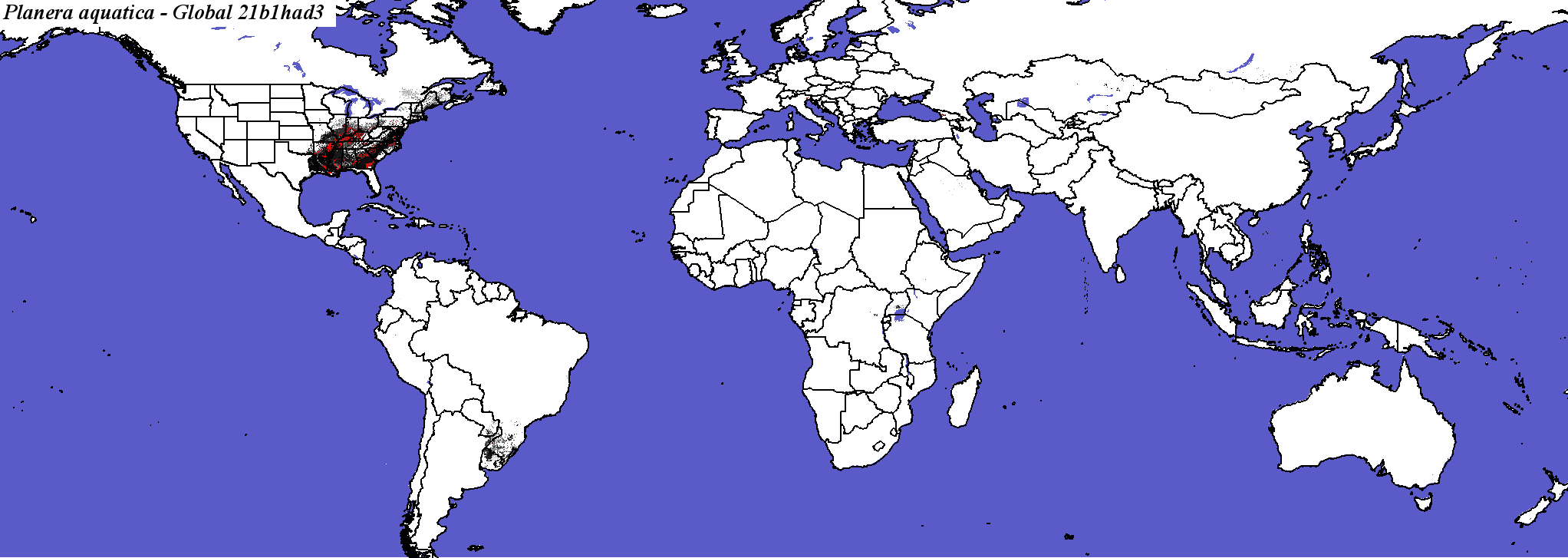

Hadley, Scenario B1, 2100 - Planera aquatica - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Planera_aquatica_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

27

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

51.9178

Area in Present Suitable Range (in km2)

316983

Area in Future Suitable Range (Had B1 2050, in km2)

140958

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

76450

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

24.1100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

90.5479

Percent Change in Area of Suitable Range (Had B1 2050)

-55.5300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.6712

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

29755.1 +/- 31674.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

22.3288

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

12.6355 +/- 15.554

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

22.4658

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

271.232 +/- 798.092

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

16.7123

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

24617

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.7600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

13.0137

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

62778

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

19.8000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

71.3699

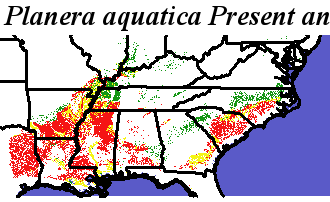

Present and Future Ranges - Hadley, Scenario B1, 2050 - Planera aquatica Planera aquatica - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Planera_aquatica_final.noelev Fine MRM Distance
Planera_aquatica_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Planera aquatica Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Planera aquatica
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Planera_aquatica_final.noelev Coarse MRM Distance
Planera_aquatica_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Planera aquatica Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Planera aquatica
