Version 5 Tree Atlas


Platanus occidentalis

American sycamore

noelev

Platanus occidentalis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Platanus occidentalis

USDA Plants Database entry for Platanus occidentalis
Silvics Manual entry for Platanus occidentalis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Platanus occidentalis var. glabrata; Platanus glabrata20142242238TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Platanus_occidentalis_final Occurrences

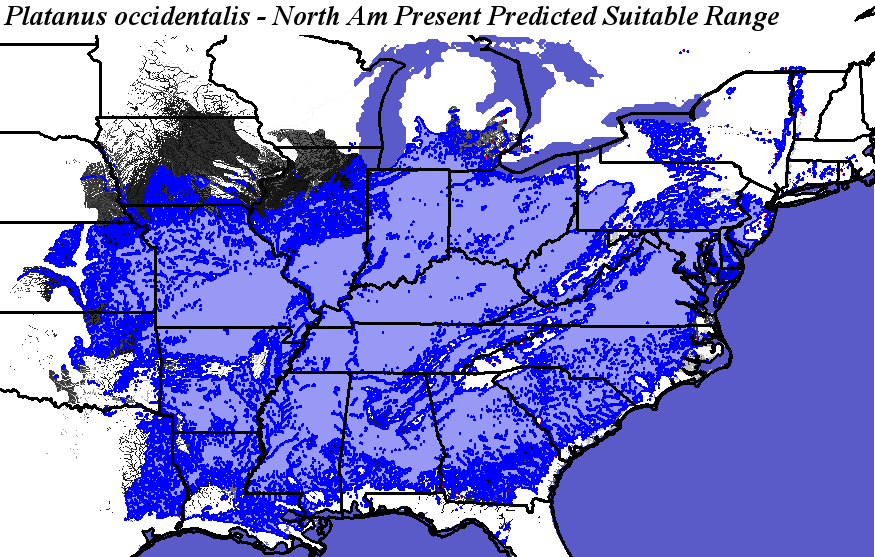

Hargroves Present Suitable Range Outline for Platanus_occidentalis_final
Platanus occidentalis - Occurrence Locations Platanus occidentalis - Hargrove's Present Suitable Range Outline

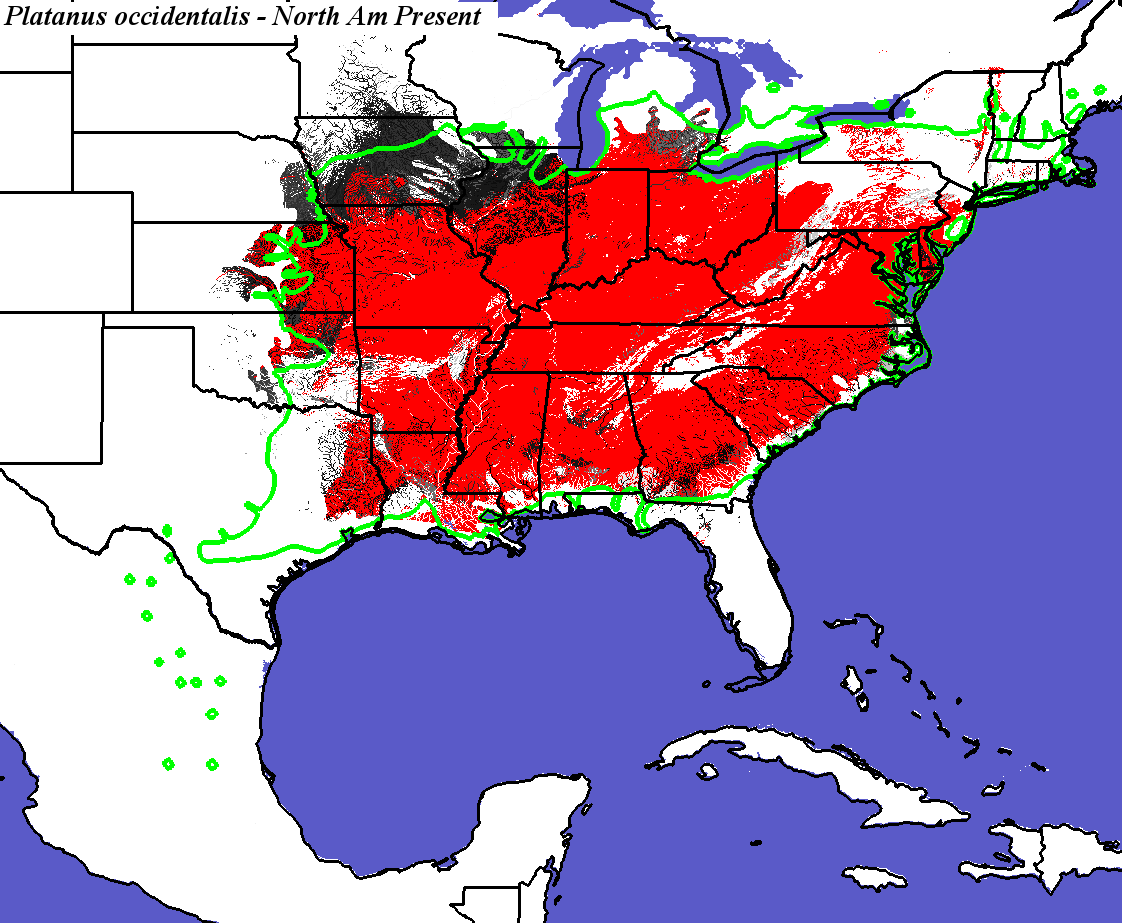

Present Conditions
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global
Platanus occidentalis - CONUS
Compare with Current Range from the Silvics Manual for Platanus occidentalis
Compare with Current Range from Biota of North America Program (BONAP) for Platanus occidentalis

Platanus occidentalis not modeled by Iverson and Prasad
Platanus occidentalis not modeled by Crookston and Rehfeldt
Platanus occidentalis not modeled by Coops and Waring
Platanus occidentalis - Global

PCM - Parallel Climate Model
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global
PCM, Scenario A1FI, 2050 - Platanus occidentalis - CONUS
PCM, Scenario A1FI, 2050 - Platanus occidentalis - Global
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global

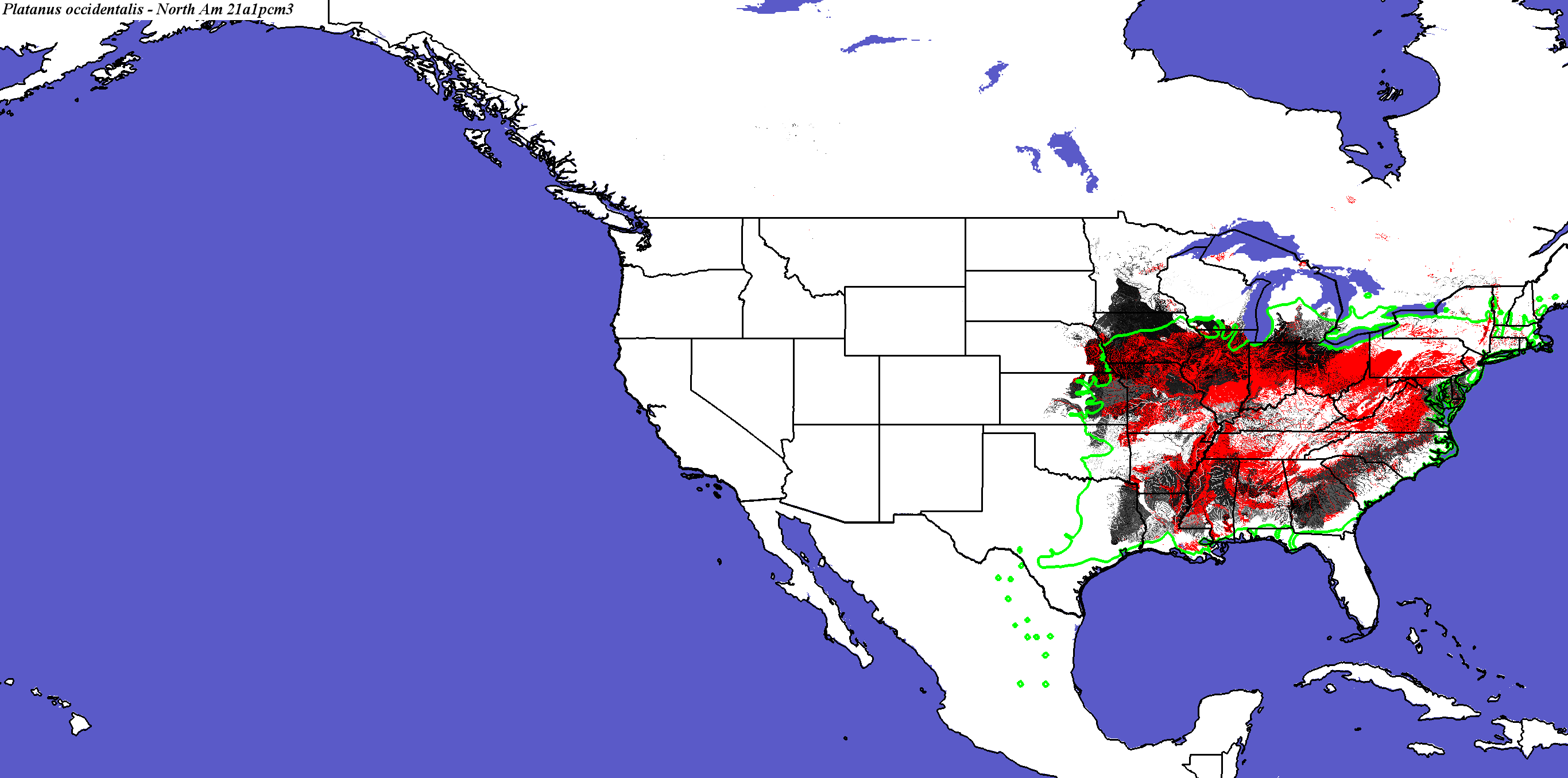

PCM, Scenario A1FI, 2100 - Platanus occidentalis - CONUS
Platanus occidentalis species not modeled by Iverson and Prasad

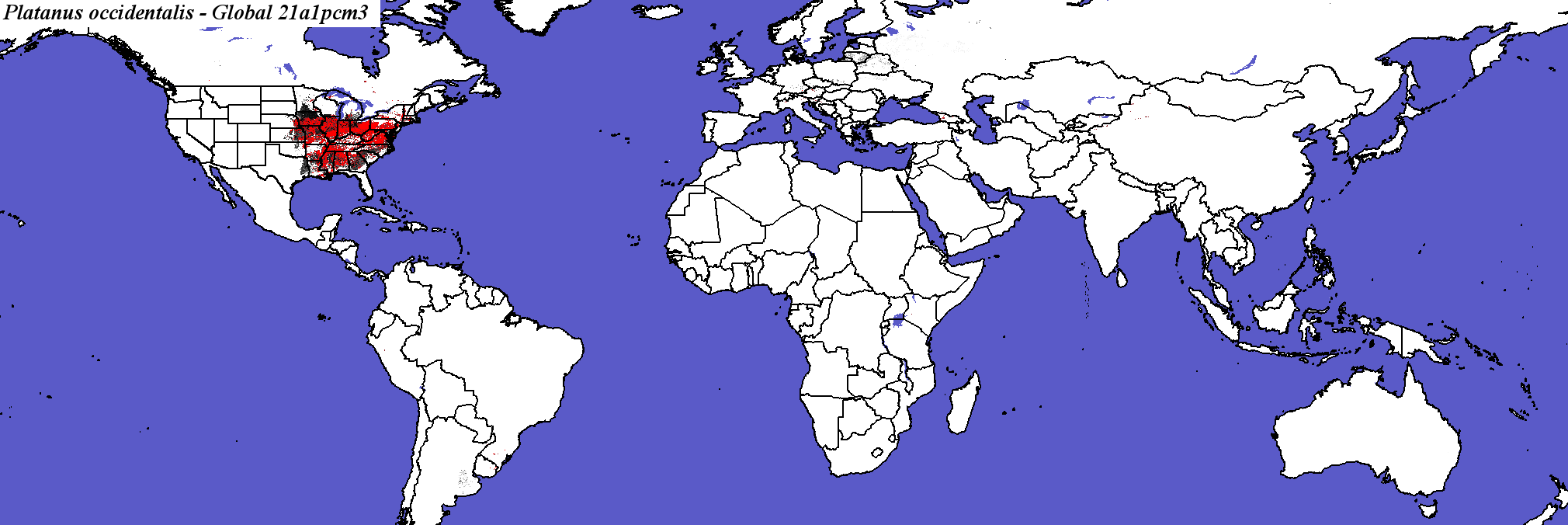

PCM, Scenario A1FI, 2100 - Platanus occidentalis - Global

Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global
PCM, Scenario B1, 2050 - Platanus occidentalis - CONUS
PCM, Scenario B1, 2050 - Platanus occidentalis - Global
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global
PCM, Scenario B1, 2100 - Platanus occidentalis - CONUS
Platanus occidentalis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Platanus occidentalis - Global

Hadley Climate Model
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global

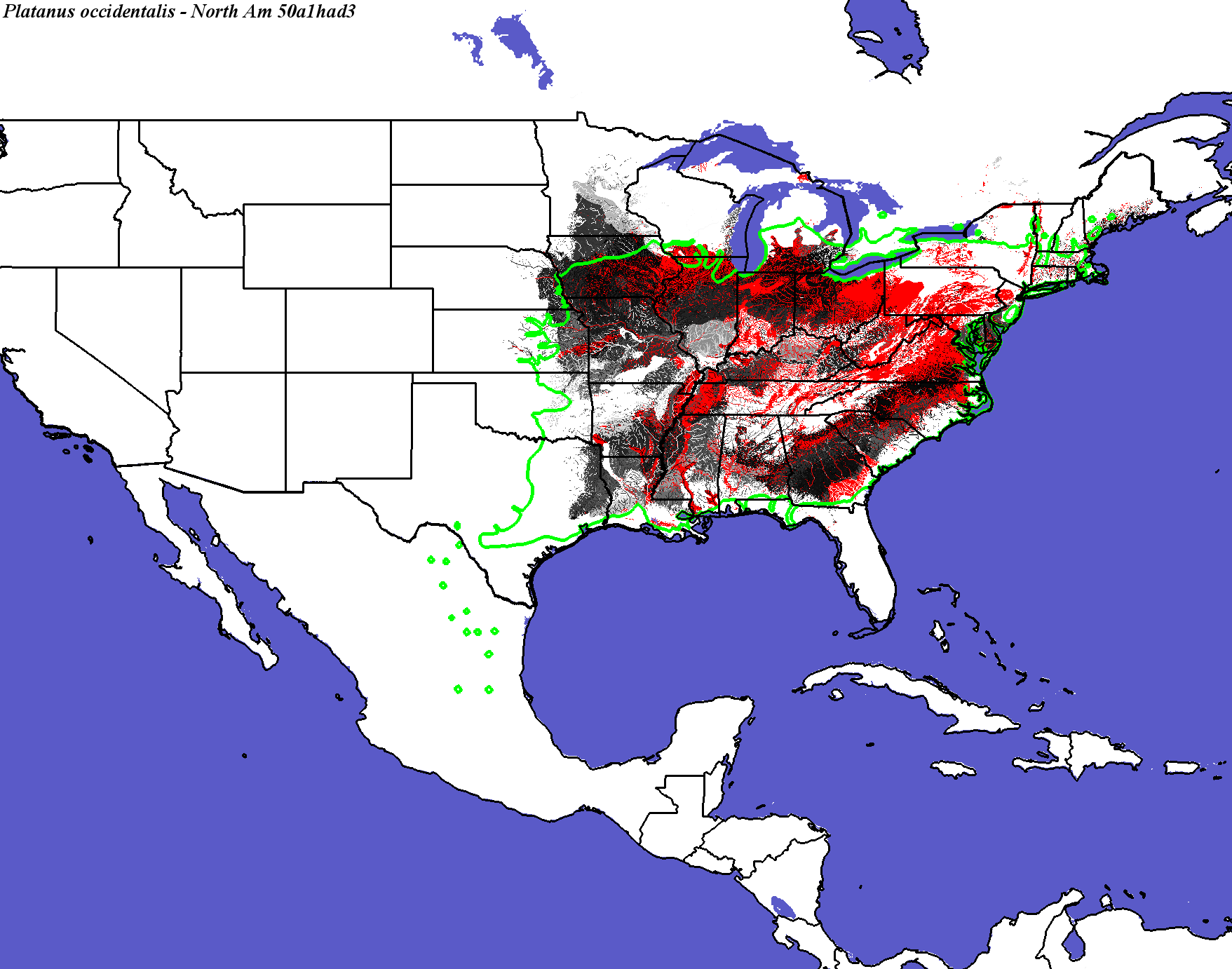

Hadley, Scenario A1FI, 2050 - Platanus occidentalis - CONUS
Platanus occidentalis not modeled by Crookston and Rehfeldt

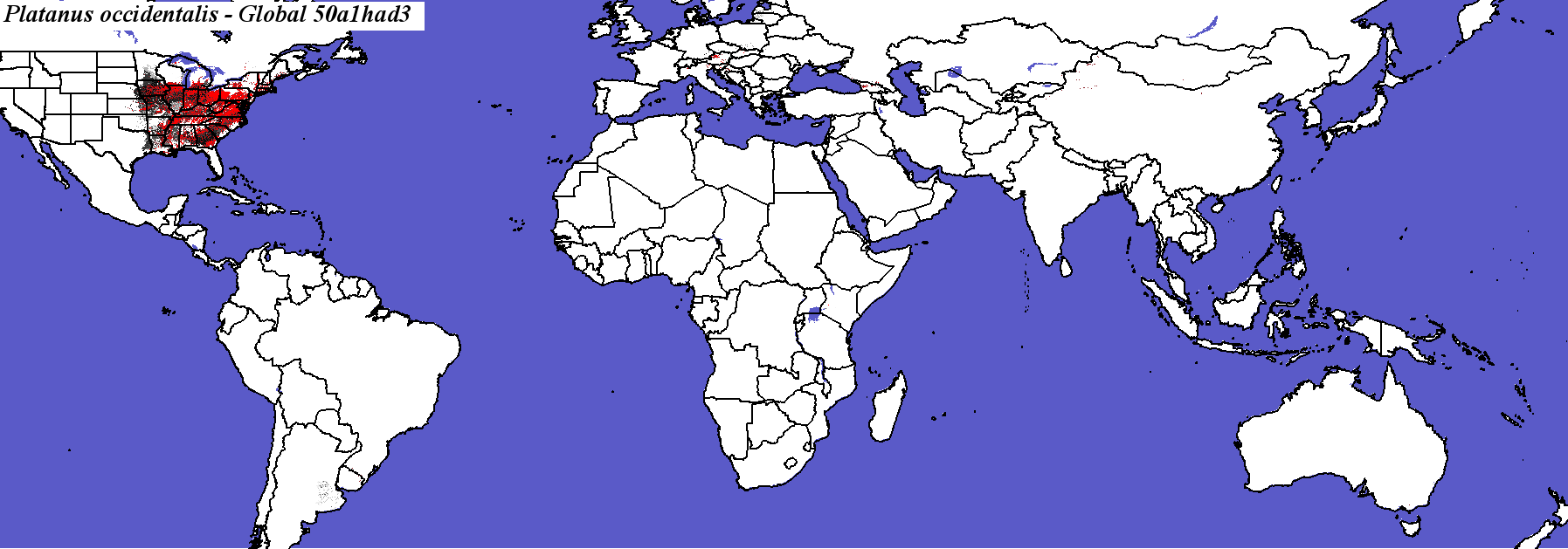

Hadley, Scenario A1FI, 2050 - Platanus occidentalis - Global
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global.

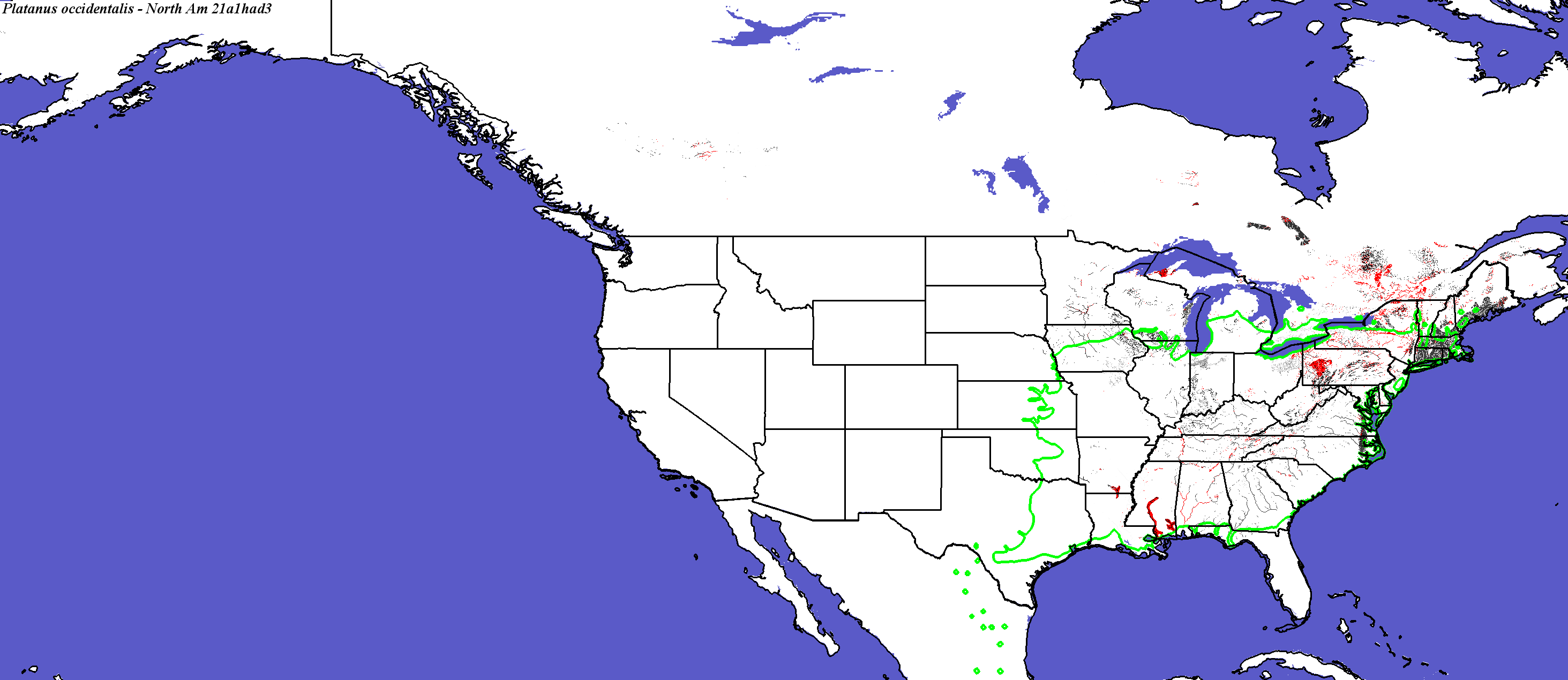

Hadley, Scenario A1FI, 2100 - Platanus occidentalis - CONUS
Platanus occidentalis not modeled by Iverson and Prasad
Platanus occidentalis not modeled by Crookston and Rehfeldt
Platanus occidentalis not modeled by Coops and Waring

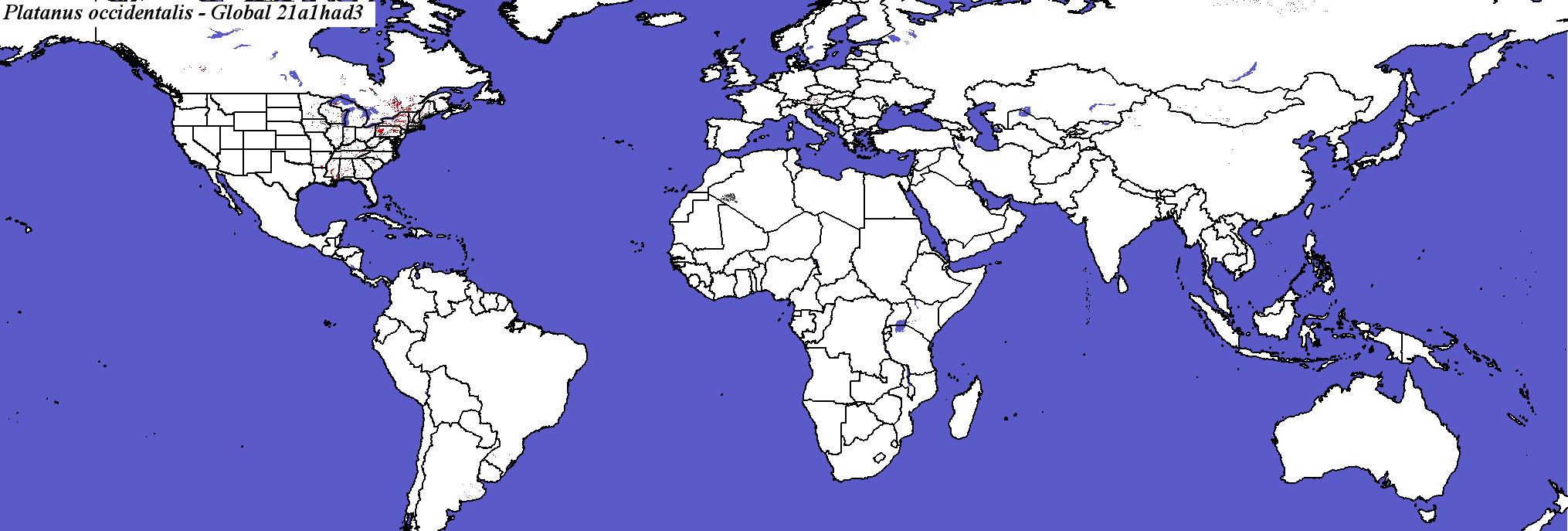

Hadley, Scenario A1FI, 2100 - Platanus occidentalis - Global

Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global.

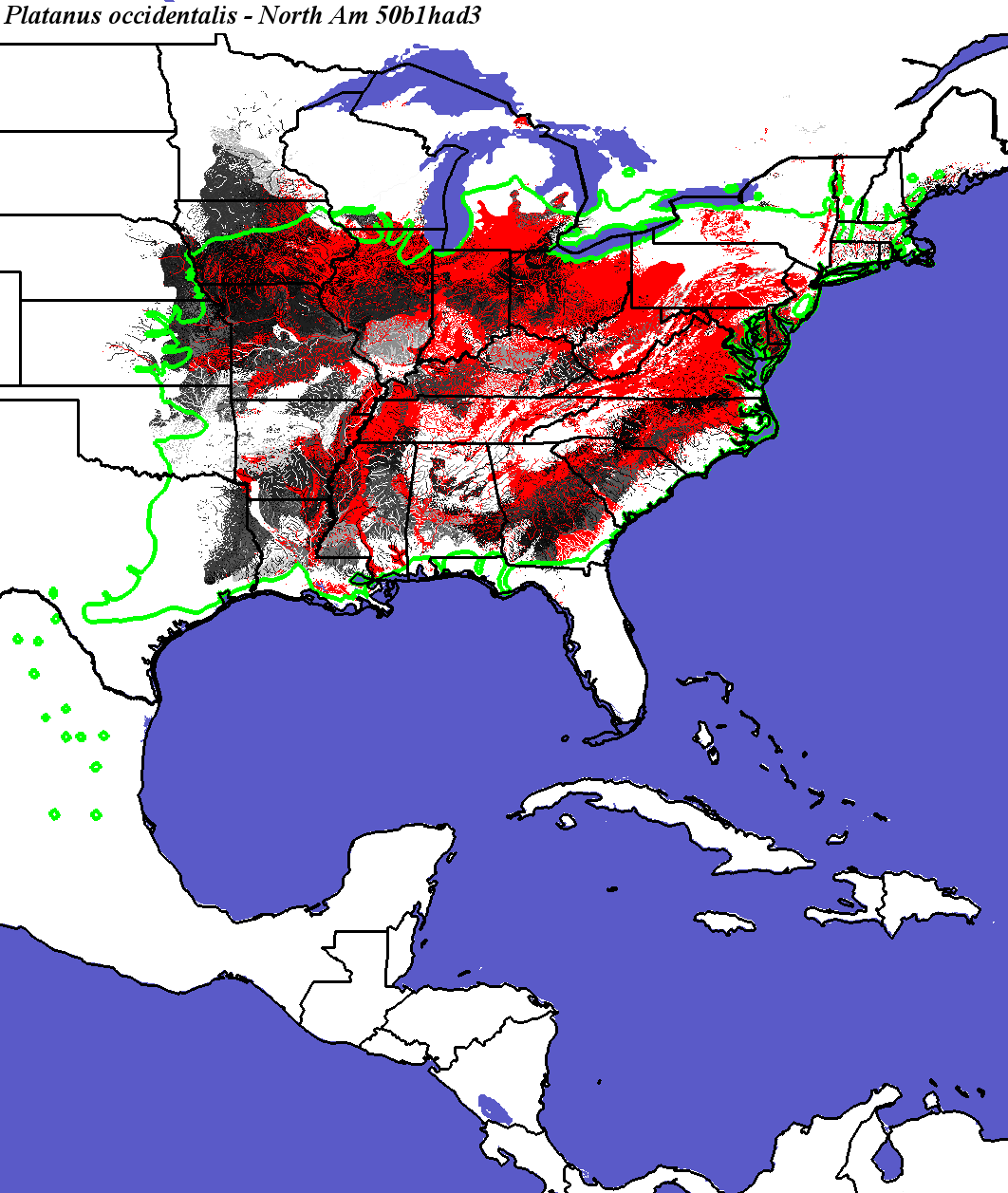

Hadley, Scenario B1, 2050 - Platanus occidentalis - CONUS
Platanus occidentalis not modeled by Crookston and Rehfeldt
Platanus occidentalis not modeled by Coops and Waring

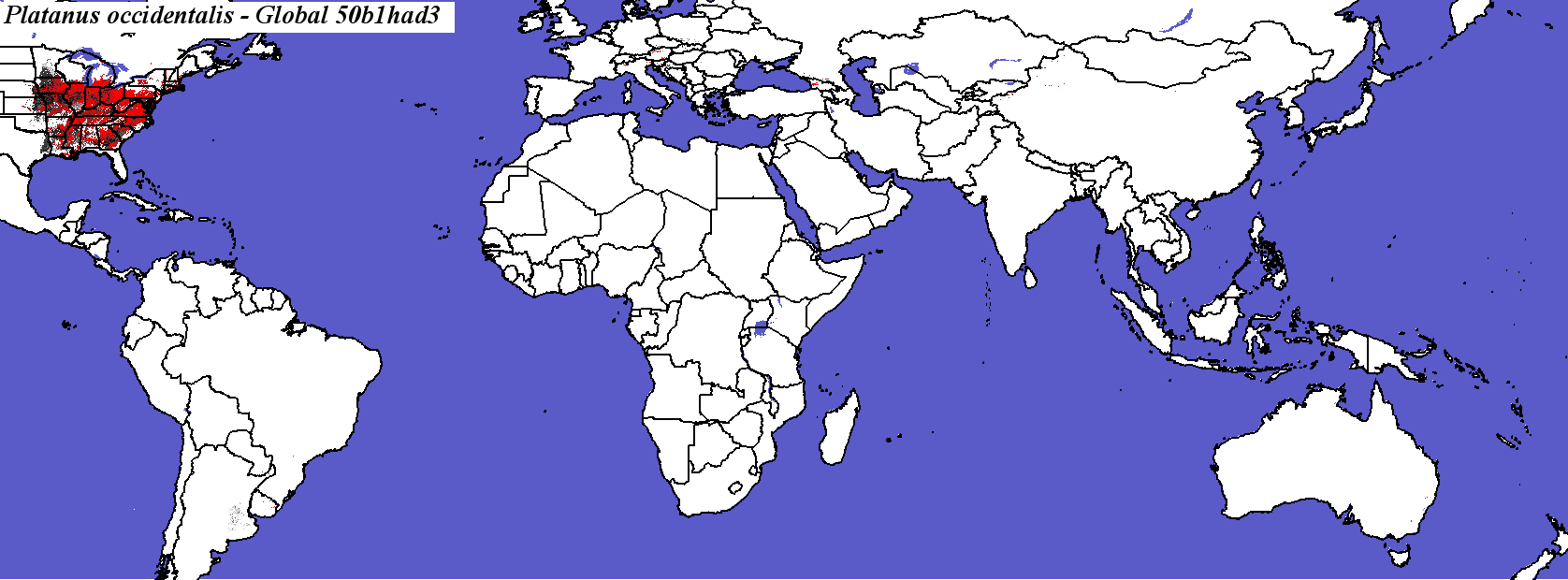

Hadley, Scenario B1, 2050 - Platanus occidentalis - Global
Platanus_occidentalis_final.4.conus
Platanus_occidentalis_final.4.global
Hadley, Scenario B1, 2100 - Platanus occidentalis - CONUS
Platanus occidentalis not modeled by Iverson and Prasad
Platanus occidentalis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Platanus occidentalis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Platanus_occidentalis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

152

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

12.8767

Area in Present Suitable Range (in km2)

1593261

Area in Future Suitable Range (Had B1 2050, in km2)

781397

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

621305

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

38.9900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

72.3288

Percent Change in Area of Suitable Range (Had B1 2050)

-50.9500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

80.6849

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14268 +/- 23728.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

51.7808

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.44937 +/- 11.3739

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

54.1096

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

245.311 +/- 732.56

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

20.8219

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

105642

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.6300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

17.5342

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

250278

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

15.7000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

81.2329

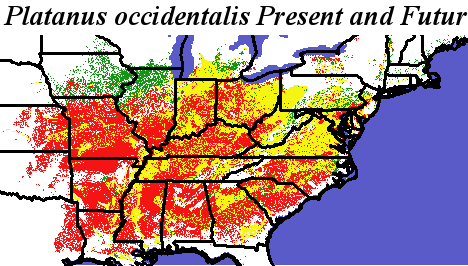

Present and Future Ranges - Hadley, Scenario B1, 2050 - Platanus occidentalis Platanus occidentalis - Range Change Statistics

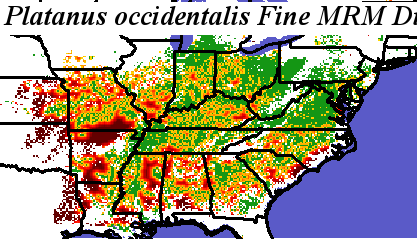

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Platanus_occidentalis_final.noelev Fine MRM Distance
Platanus_occidentalis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus occidentalis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Platanus occidentalis

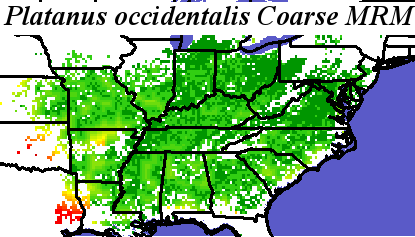

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Platanus_occidentalis_final.noelev Coarse MRM Distance
Platanus_occidentalis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus occidentalis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Platanus occidentalis
