Version 5 Tree Atlas


Quercus arkansana

Arkansas oak

noelev

Quercus arkansana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus arkansana

USDA Plants Database entry for Quercus arkansana
Silvics Manual entry for Quercus arkansana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
01818TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_arkansana_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_arkansana_final
Quercus arkansana - Occurrence Locations Quercus arkansana - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

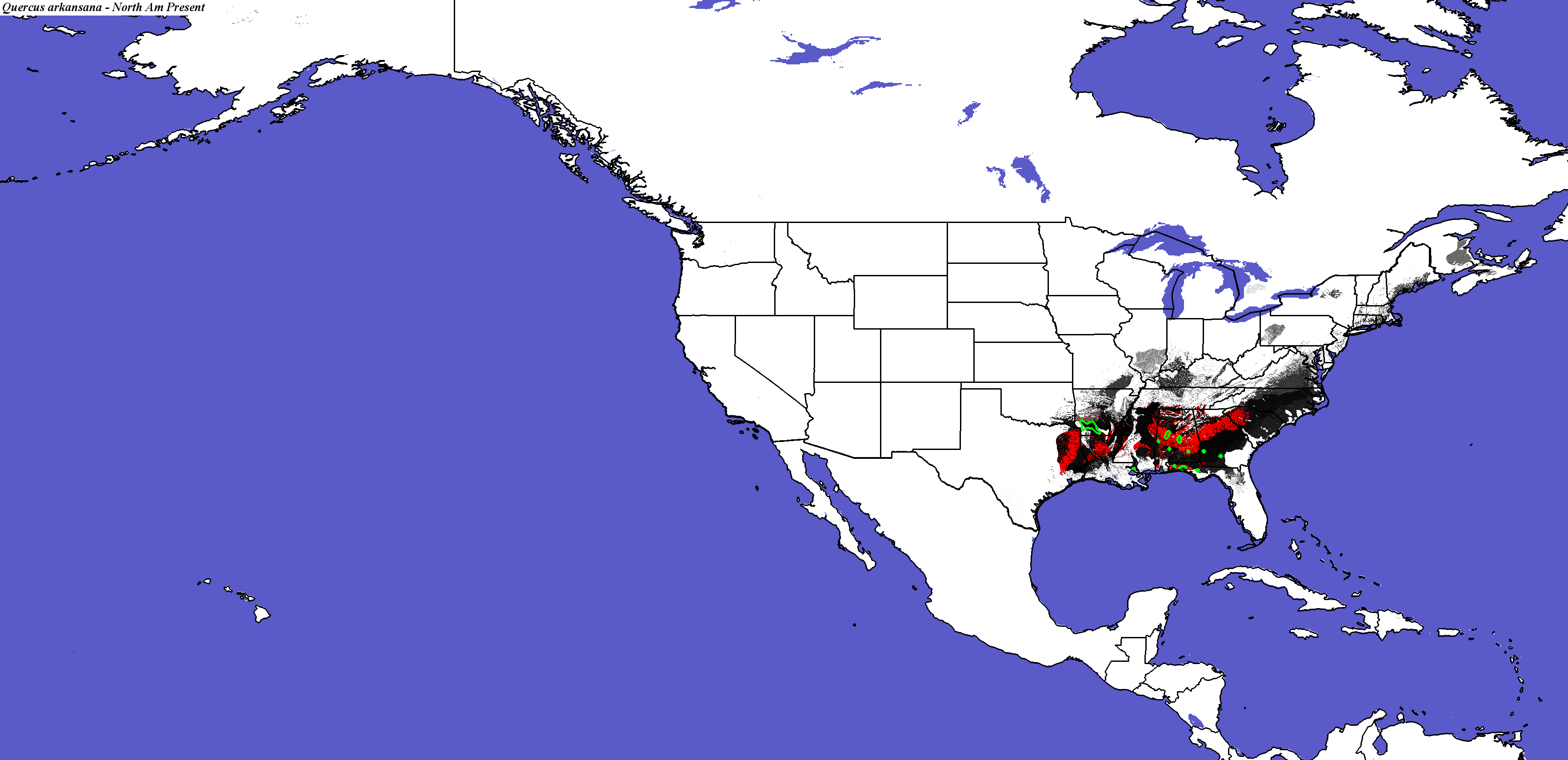

Quercus arkansana - CONUS
Compare with Current Range from the Silvics Manual for Quercus arkansana
Compare with Current Range from Biota of North America Program (BONAP) for Quercus arkansana

Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Quercus arkansana - Global

PCM - Parallel Climate Model
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

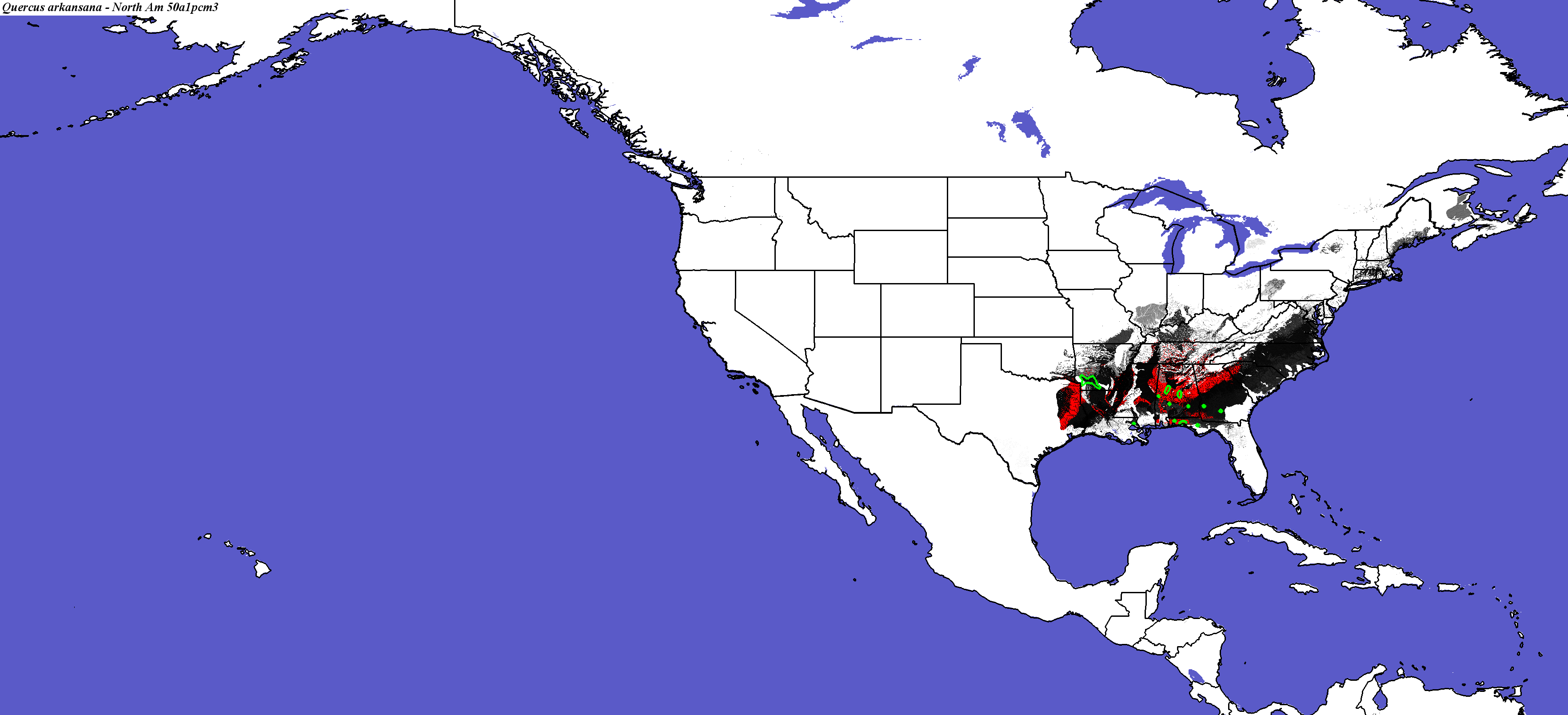

PCM, Scenario A1FI, 2050 - Quercus arkansana - CONUS

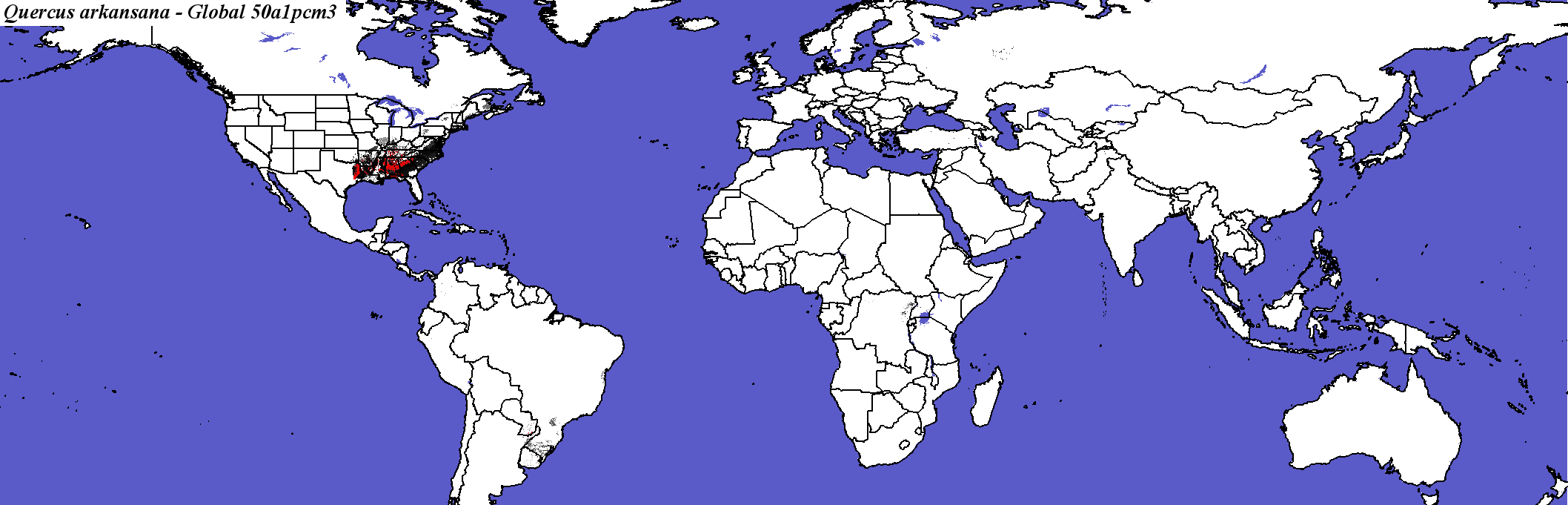

PCM, Scenario A1FI, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

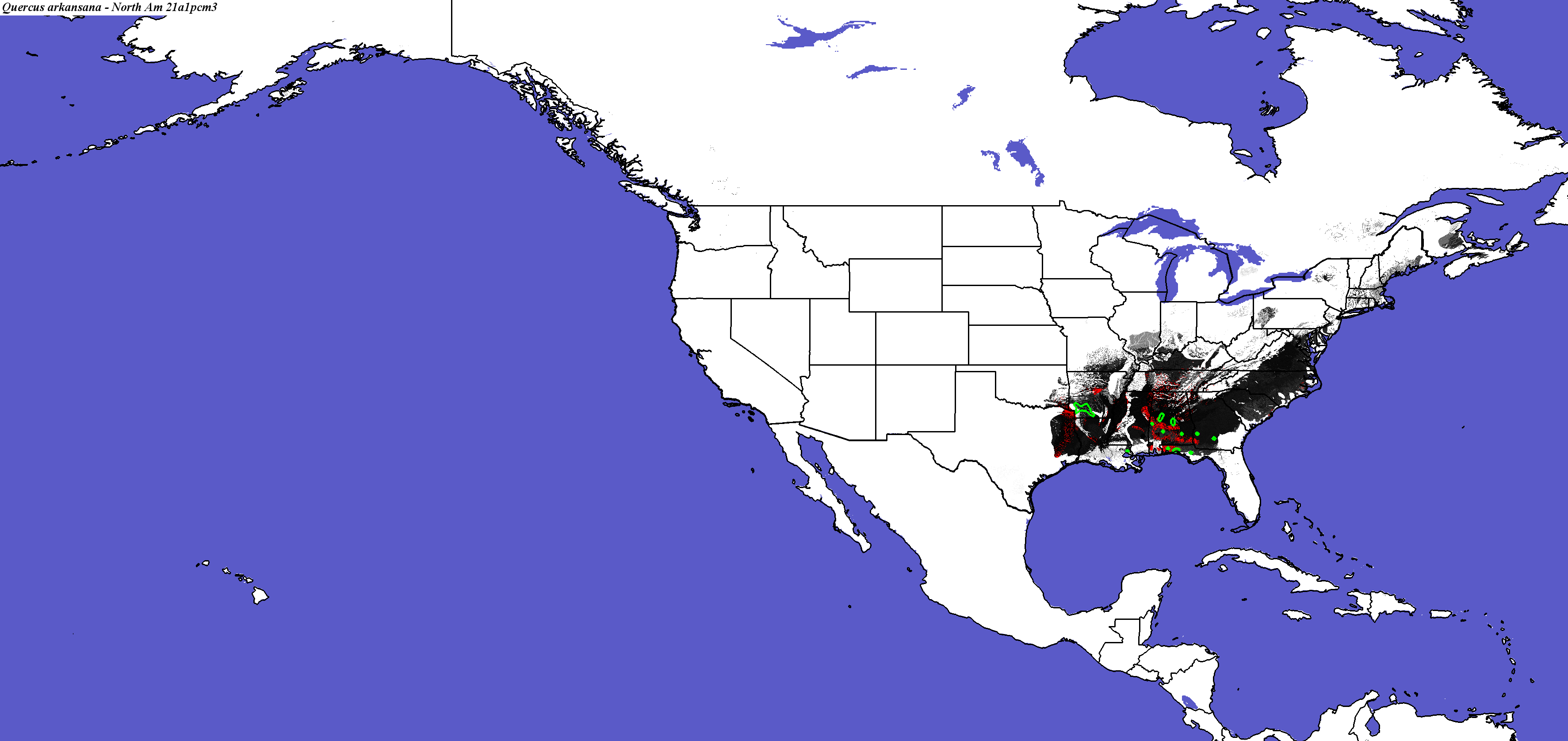

PCM, Scenario A1FI, 2100 - Quercus arkansana - CONUS
Quercus arkansana species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus arkansana - Global

Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
PCM, Scenario B1, 2050 - Quercus arkansana - CONUS
PCM, Scenario B1, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
PCM, Scenario B1, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus arkansana - Global

Hadley Climate Model
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
Hadley, Scenario A1FI, 2050 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global.

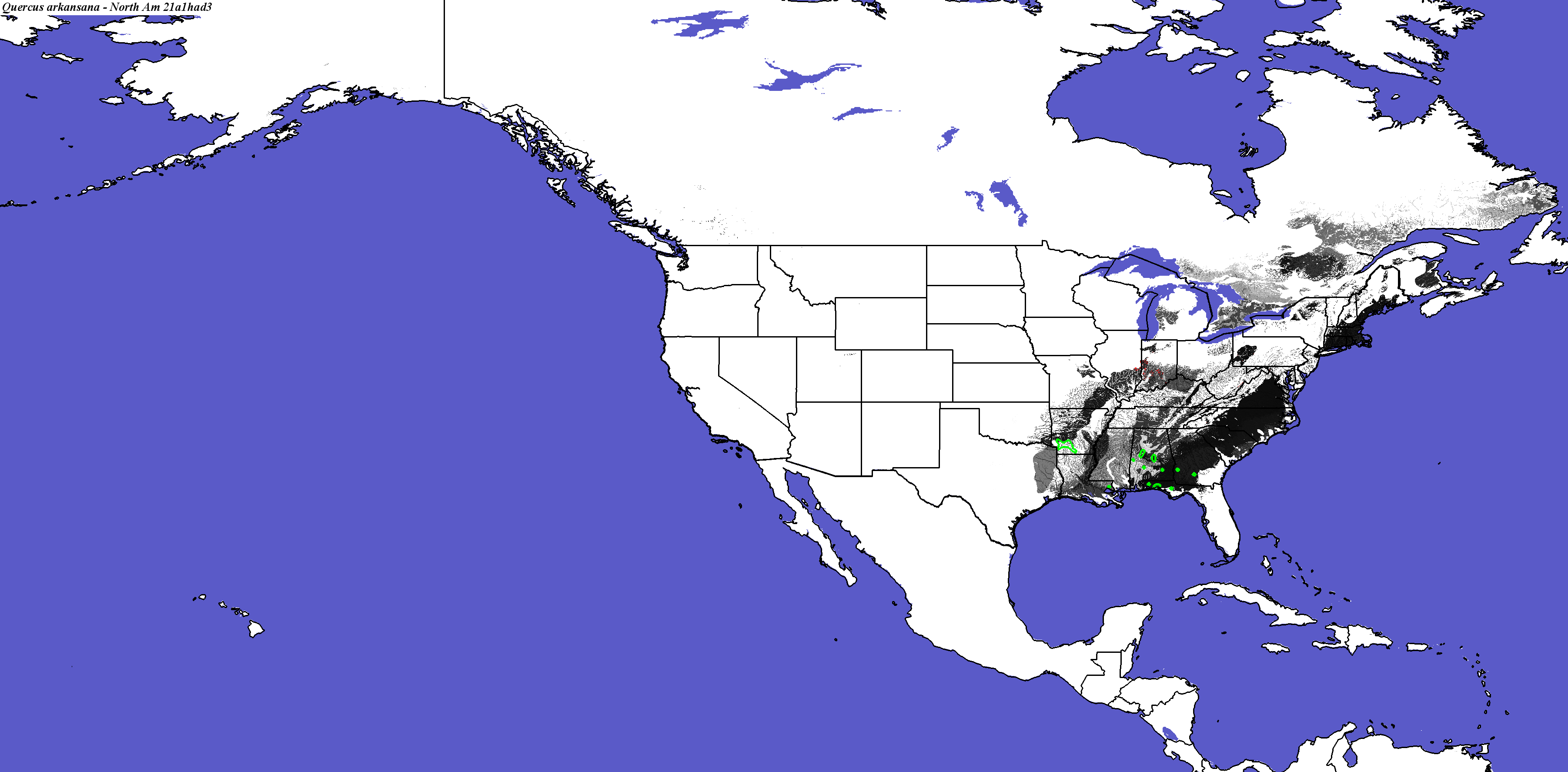

Hadley, Scenario A1FI, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus arkansana - Global

Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global.

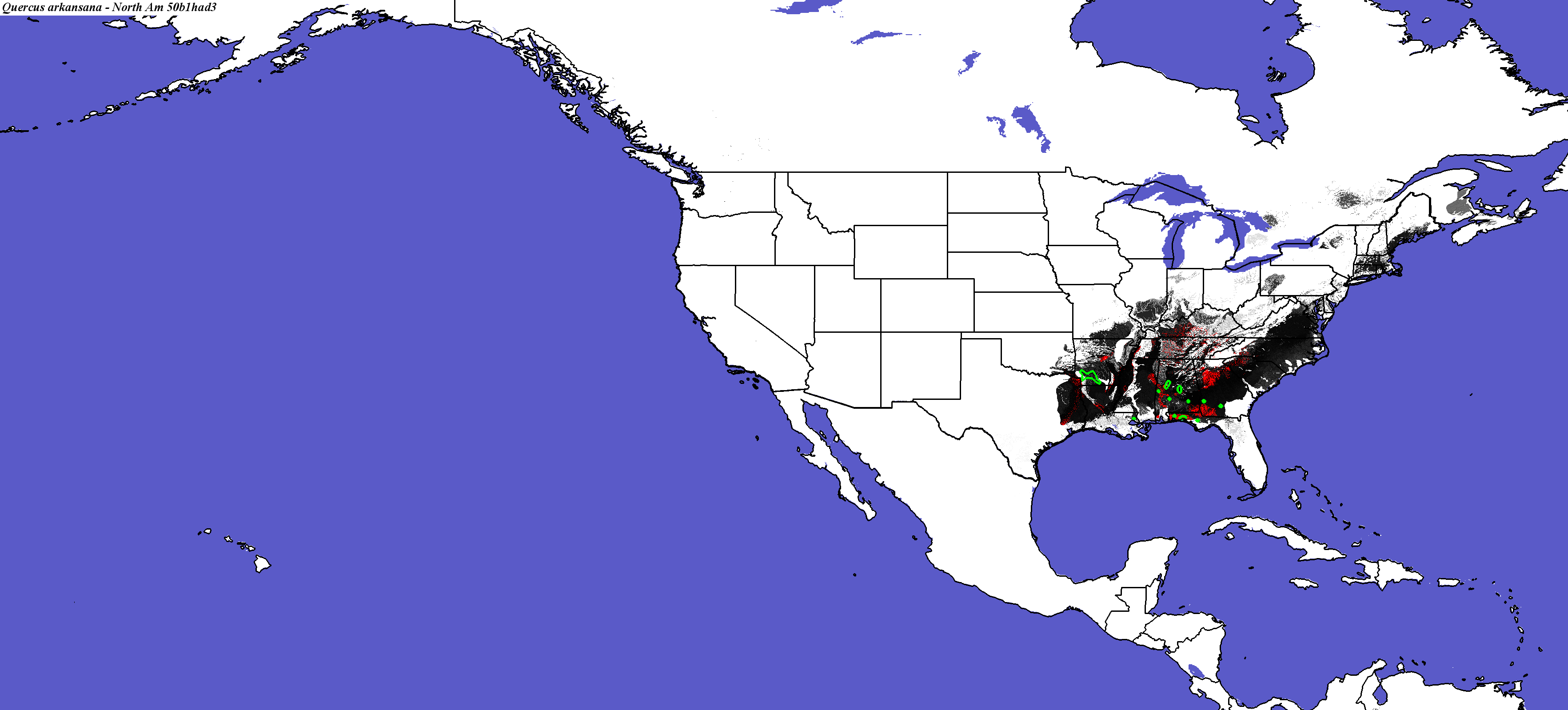

Hadley, Scenario B1, 2050 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

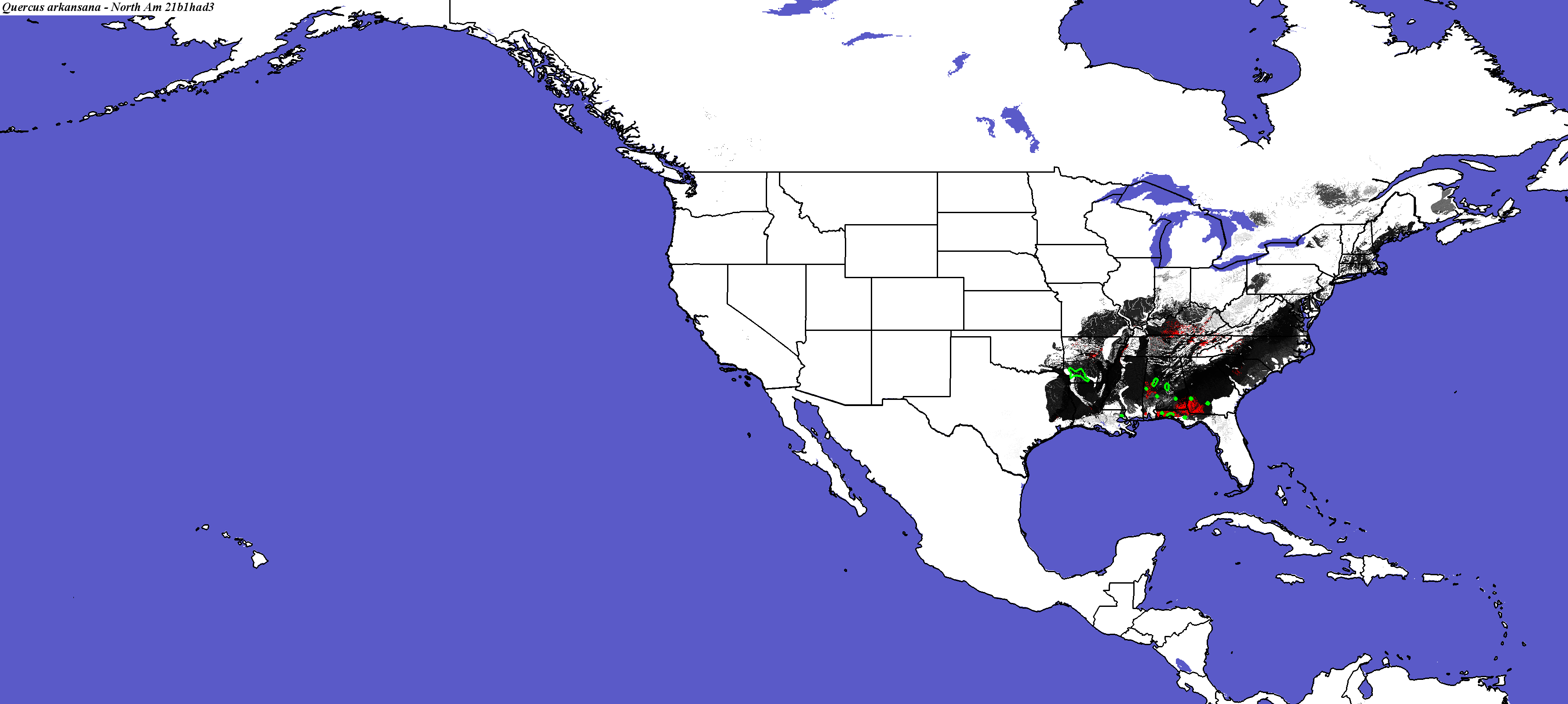

Hadley, Scenario B1, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt

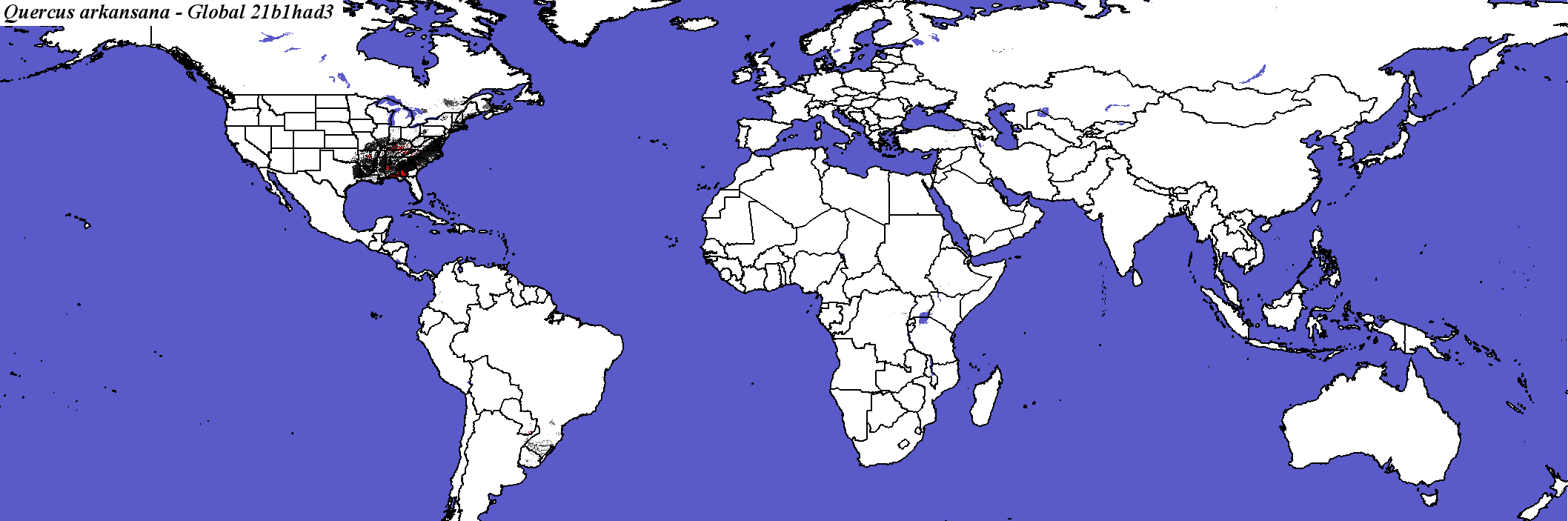

Hadley, Scenario B1, 2100 - Quercus arkansana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_arkansana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

9

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

87.8082

Area in Present Suitable Range (in km2)

119179

Area in Future Suitable Range (Had B1 2050, in km2)

43225

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

23607

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

19.8000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

93.8356

Percent Change in Area of Suitable Range (Had B1 2050)

-63.7300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

94.7945

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

49253.2 +/- 55630.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

9.86301

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

19.9922 +/- 21.5593

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

10

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

64.1967 +/- 61.9971

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

51.7808

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

78.2192

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

15462

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.9700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

86.8493

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus arkansana Quercus arkansana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_arkansana_final.noelev Fine MRM Distance
Quercus_arkansana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus arkansana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_arkansana_final.noelev Coarse MRM Distance
Quercus_arkansana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana
