Version 5 Tree Atlas


Quercus boyntonii

Boynton oak

noelev

Quercus boyntonii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus boyntonii

USDA Plants Database entry for Quercus boyntonii
Silvics Manual entry for Quercus boyntonii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
055TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_boyntonii_final Occurrences

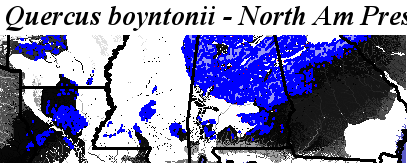

Hargroves Present Suitable Range Outline for Quercus_boyntonii_final
Quercus boyntonii - Occurrence Locations Quercus boyntonii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global
Quercus boyntonii - CONUS
Compare with Current Range from the Silvics Manual for Quercus boyntonii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus boyntonii

Quercus boyntonii not modeled by Iverson and Prasad
Quercus boyntonii not modeled by Crookston and Rehfeldt
Quercus boyntonii not modeled by Coops and Waring

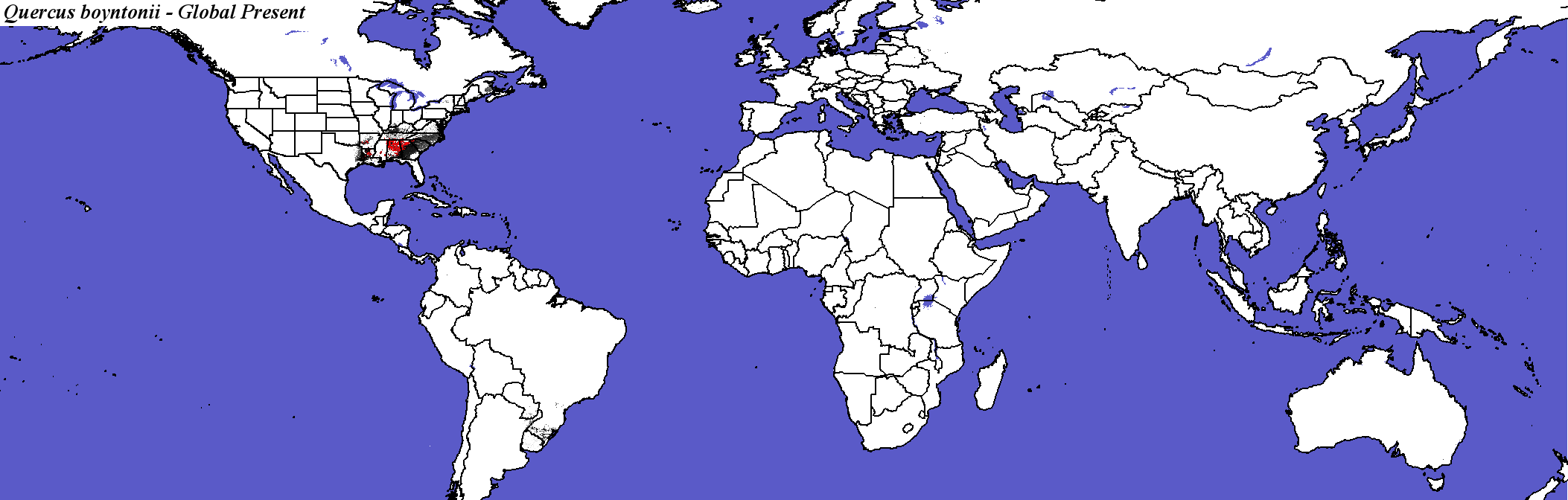

Quercus boyntonii - Global

PCM - Parallel Climate Model
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global

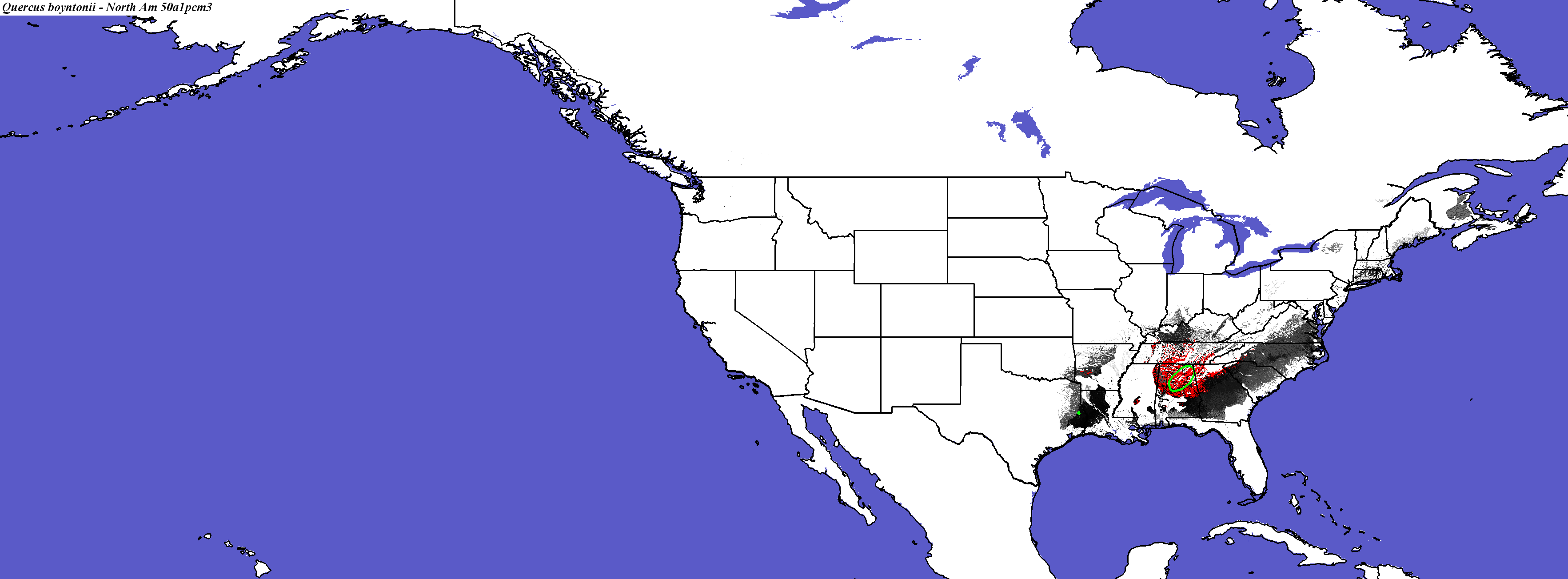

PCM, Scenario A1FI, 2050 - Quercus boyntonii - CONUS
PCM, Scenario A1FI, 2050 - Quercus boyntonii - Global
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global
PCM, Scenario A1FI, 2100 - Quercus boyntonii - CONUS
Quercus boyntonii species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus boyntonii - Global

Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global
PCM, Scenario B1, 2050 - Quercus boyntonii - CONUS
PCM, Scenario B1, 2050 - Quercus boyntonii - Global
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global
PCM, Scenario B1, 2100 - Quercus boyntonii - CONUS
Quercus boyntonii not modeled by Iverson and Prasad

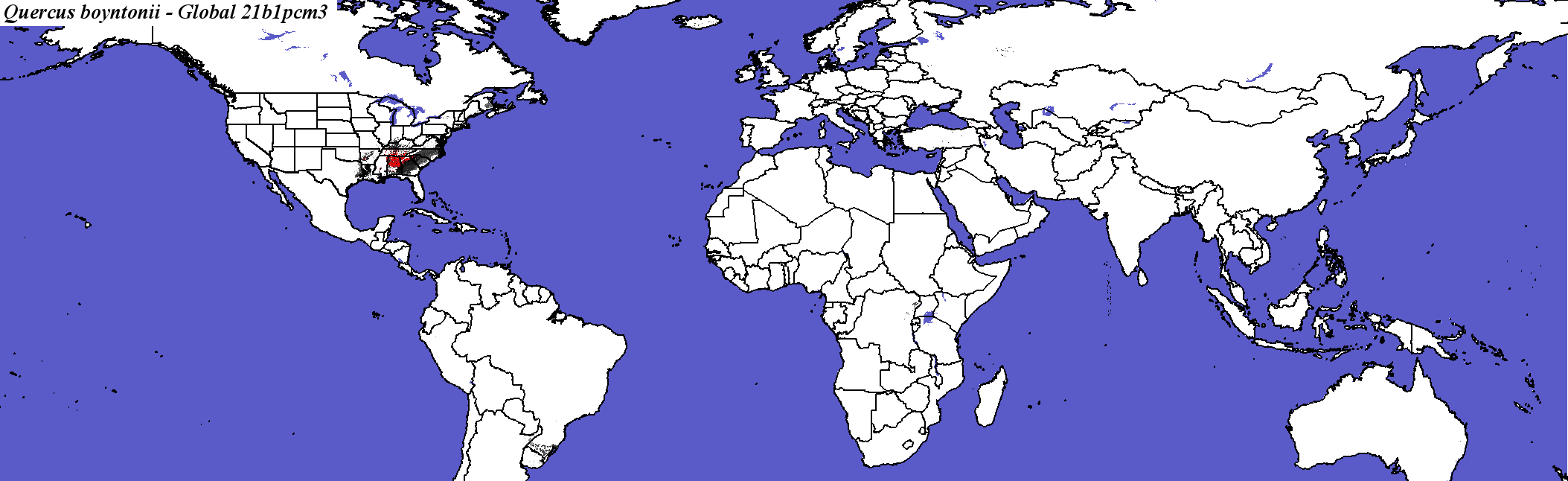

PCM, Scenario B1, 2100 - Quercus boyntonii - Global

Hadley Climate Model
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global

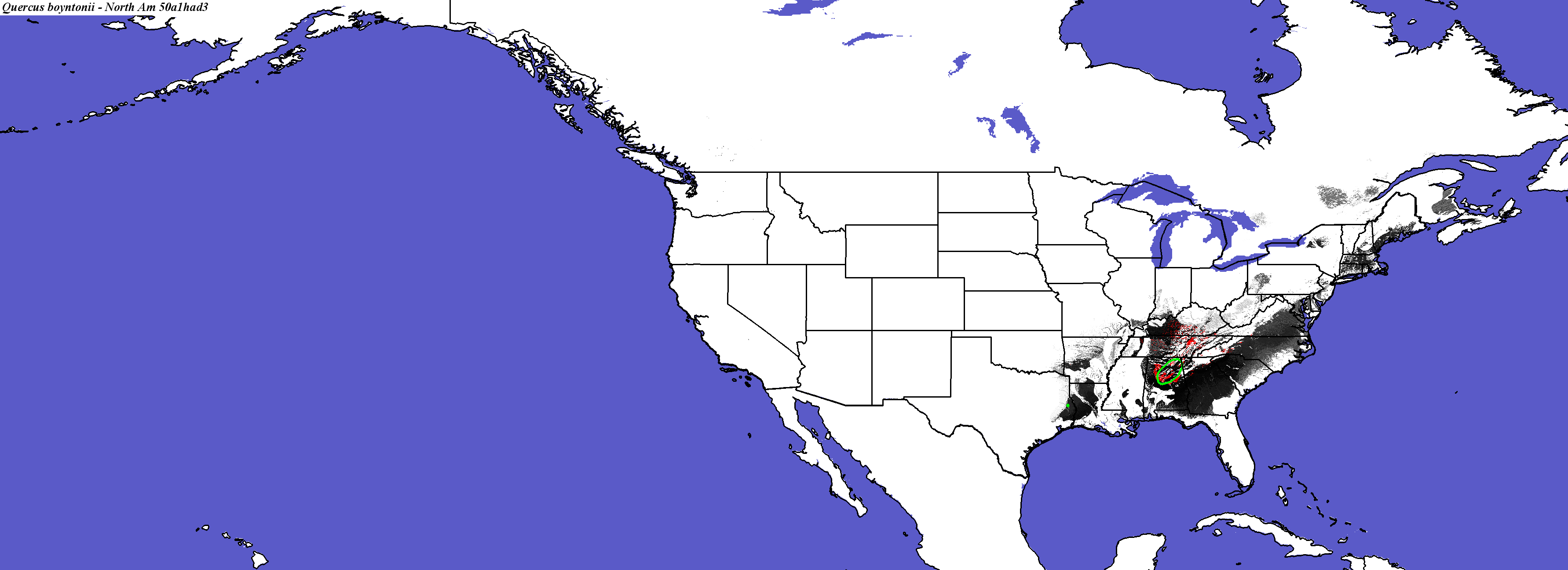

Hadley, Scenario A1FI, 2050 - Quercus boyntonii - CONUS
Quercus boyntonii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus boyntonii - Global
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global.

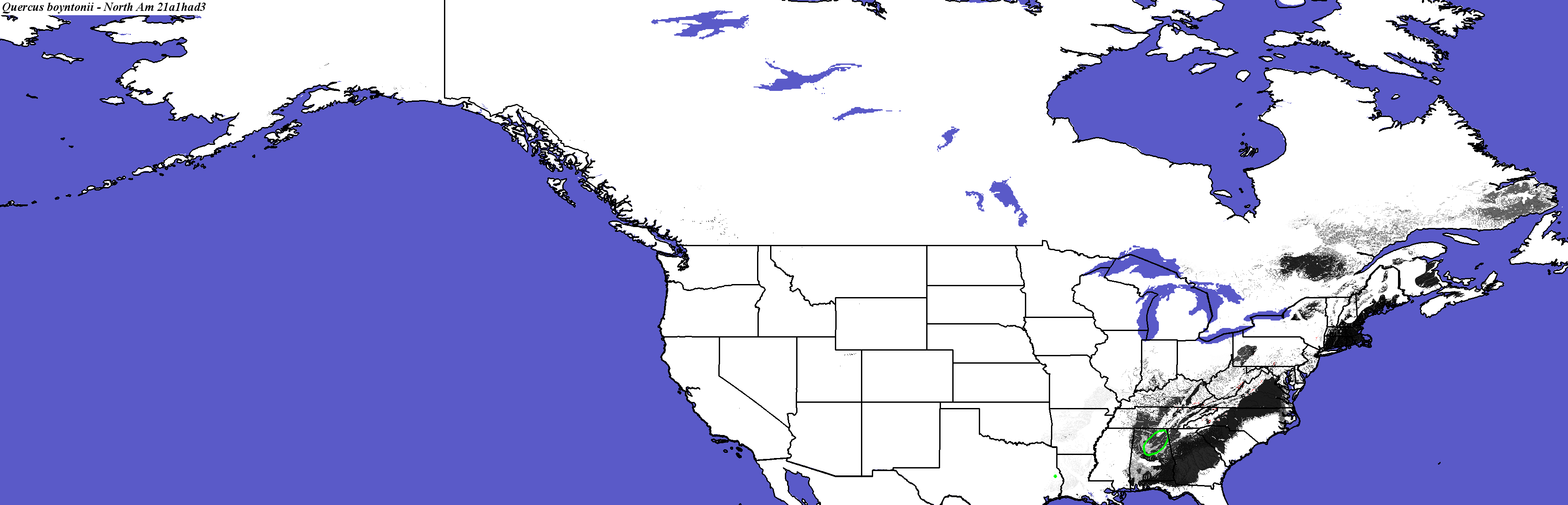

Hadley, Scenario A1FI, 2100 - Quercus boyntonii - CONUS
Quercus boyntonii not modeled by Iverson and Prasad
Quercus boyntonii not modeled by Crookston and Rehfeldt
Quercus boyntonii not modeled by Coops and Waring

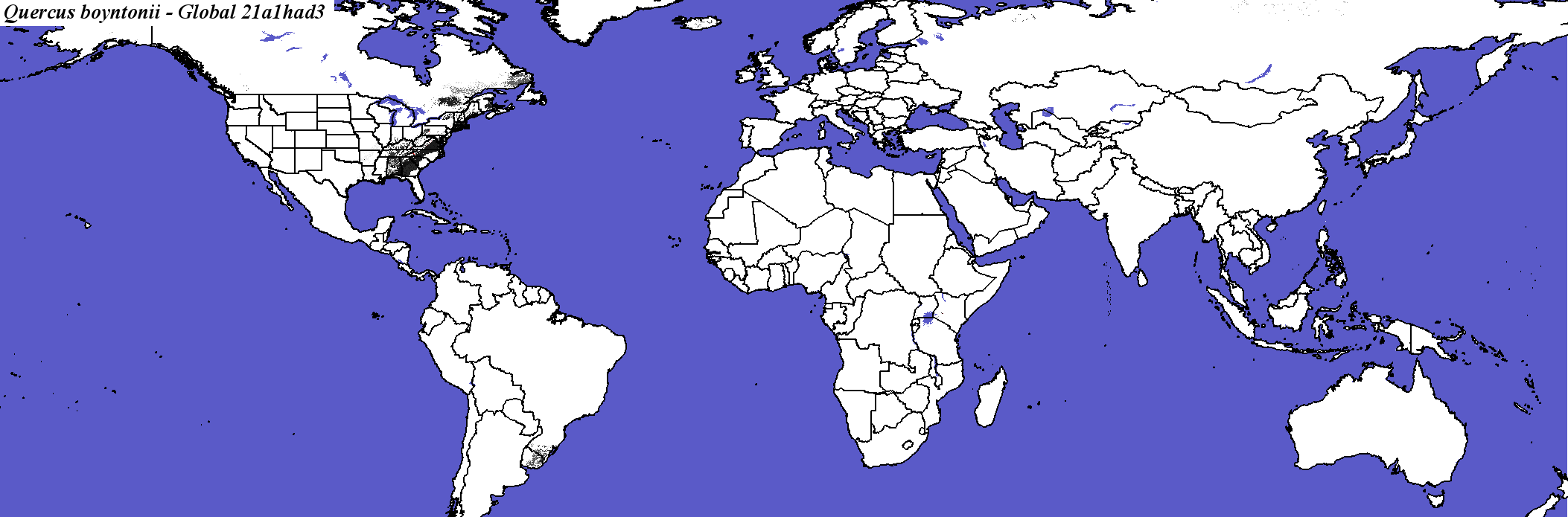

Hadley, Scenario A1FI, 2100 - Quercus boyntonii - Global

Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global.
Hadley, Scenario B1, 2050 - Quercus boyntonii - CONUS
Quercus boyntonii not modeled by Crookston and Rehfeldt
Quercus boyntonii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus boyntonii - Global
Quercus_boyntonii_final.1.conus
Quercus_boyntonii_final.1.global

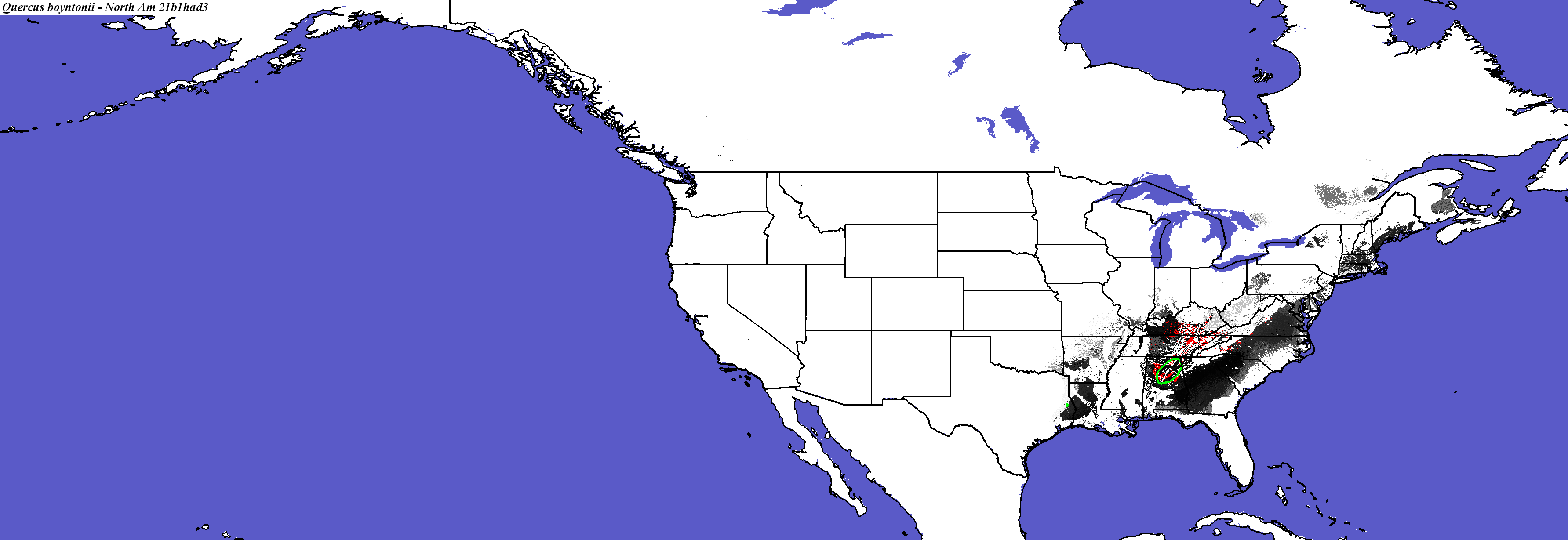

Hadley, Scenario B1, 2100 - Quercus boyntonii - CONUS
Quercus boyntonii not modeled by Iverson and Prasad
Quercus boyntonii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus boyntonii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_boyntonii_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

5

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

95.8904

Area in Present Suitable Range (in km2)

64053

Area in Future Suitable Range (Had B1 2050, in km2)

30626

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

6968

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

10.8700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

98.7671

Percent Change in Area of Suitable Range (Had B1 2050)

-52.1800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

82.4658

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

68578.6 +/- 124938

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

4.10959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

38.7946 +/- 59.5378

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

0.958904

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

57.4222 +/- 53.4688

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

53.4247

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

77.8082

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

5152

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

8.0400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

97.2603

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus boyntonii Quercus boyntonii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_boyntonii_final.noelev Fine MRM Distance
Quercus_boyntonii_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus boyntonii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus boyntonii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_boyntonii_final.noelev Coarse MRM Distance
Quercus_boyntonii_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus boyntonii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus boyntonii

Thu Jul 21 10:07:51 EDT 2016
