Version 5 Tree Atlas


Quercus coccinea

scarlet oak

noelev

Quercus coccinea Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus coccinea

USDA Plants Database entry for Quercus coccinea
Silvics Manual entry for Quercus coccinea


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
43982304628much of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_coccinea_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_coccinea_final
Quercus coccinea - Occurrence Locations Quercus coccinea - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
Quercus coccinea - CONUS
Compare with Current Range from the Silvics Manual for Quercus coccinea
Compare with Current Range from Biota of North America Program (BONAP) for Quercus coccinea

Compare with Quercus coccinea modeled for Current conditions by Iverson and Prasad
Quercus coccinea not modeled by Crookston and Rehfeldt
Quercus coccinea not modeled by Coops and Waring
Quercus coccinea - Global

PCM - Parallel Climate Model
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
PCM, Scenario A1FI, 2050 - Quercus coccinea - CONUS

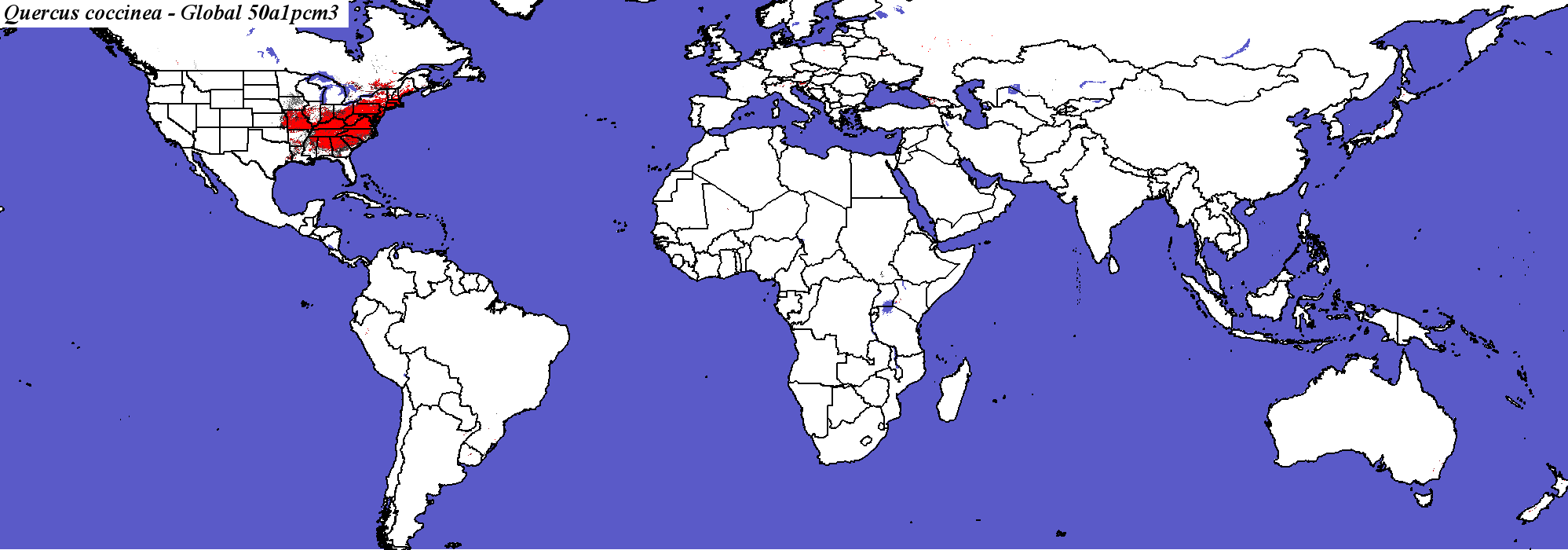

PCM, Scenario A1FI, 2050 - Quercus coccinea - Global
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
PCM, Scenario A1FI, 2100 - Quercus coccinea - CONUS
Compare with Quercus coccinea modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus coccinea - Global

Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global

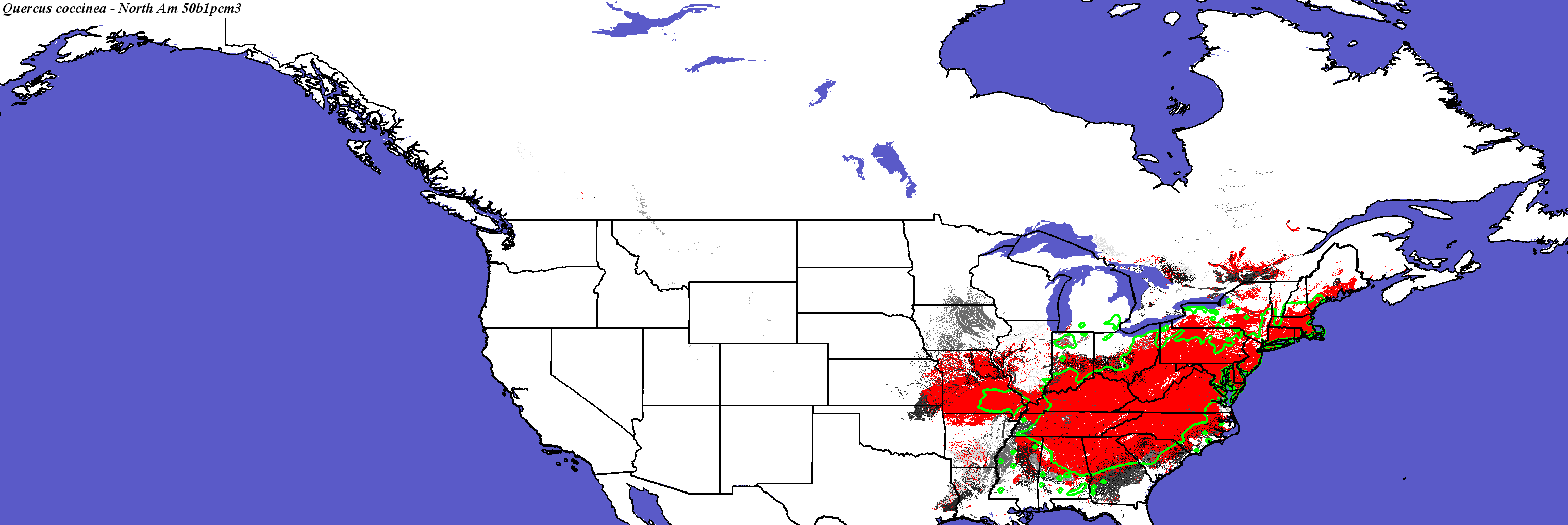

PCM, Scenario B1, 2050 - Quercus coccinea - CONUS
PCM, Scenario B1, 2050 - Quercus coccinea - Global
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
PCM, Scenario B1, 2100 - Quercus coccinea - CONUS
Compare with Quercus coccinea modeled for PCM B1 in 2100 by Iverson and Prasad

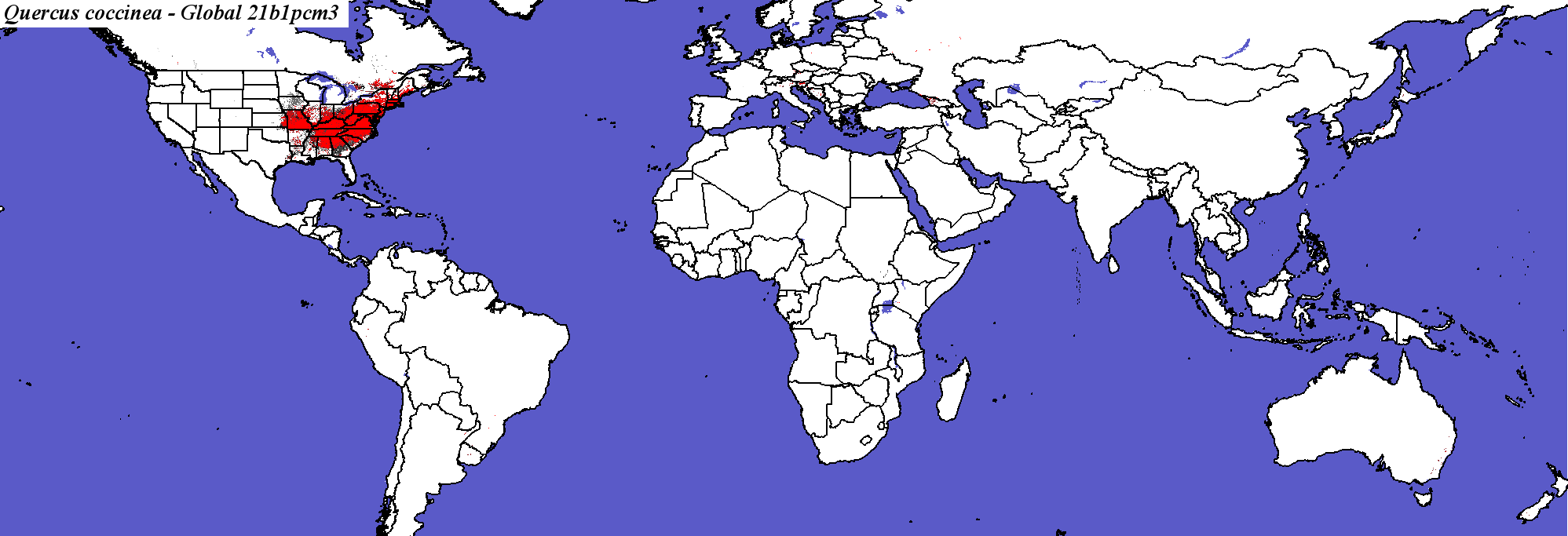

PCM, Scenario B1, 2100 - Quercus coccinea - Global

Hadley Climate Model
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus coccinea - CONUS
Quercus coccinea not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus coccinea - Global
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global.

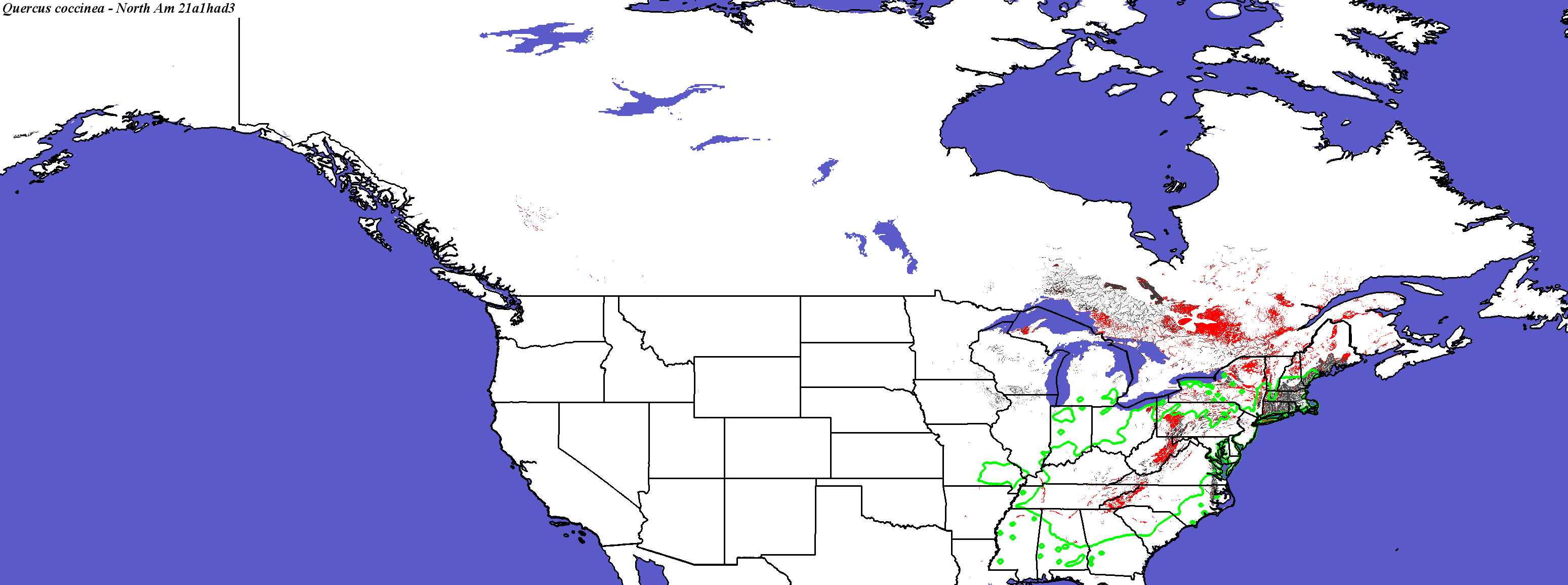

Hadley, Scenario A1FI, 2100 - Quercus coccinea - CONUS
Compare with Quercus coccinea modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus coccinea not modeled by Crookston and Rehfeldt
Quercus coccinea not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus coccinea - Global

Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global.

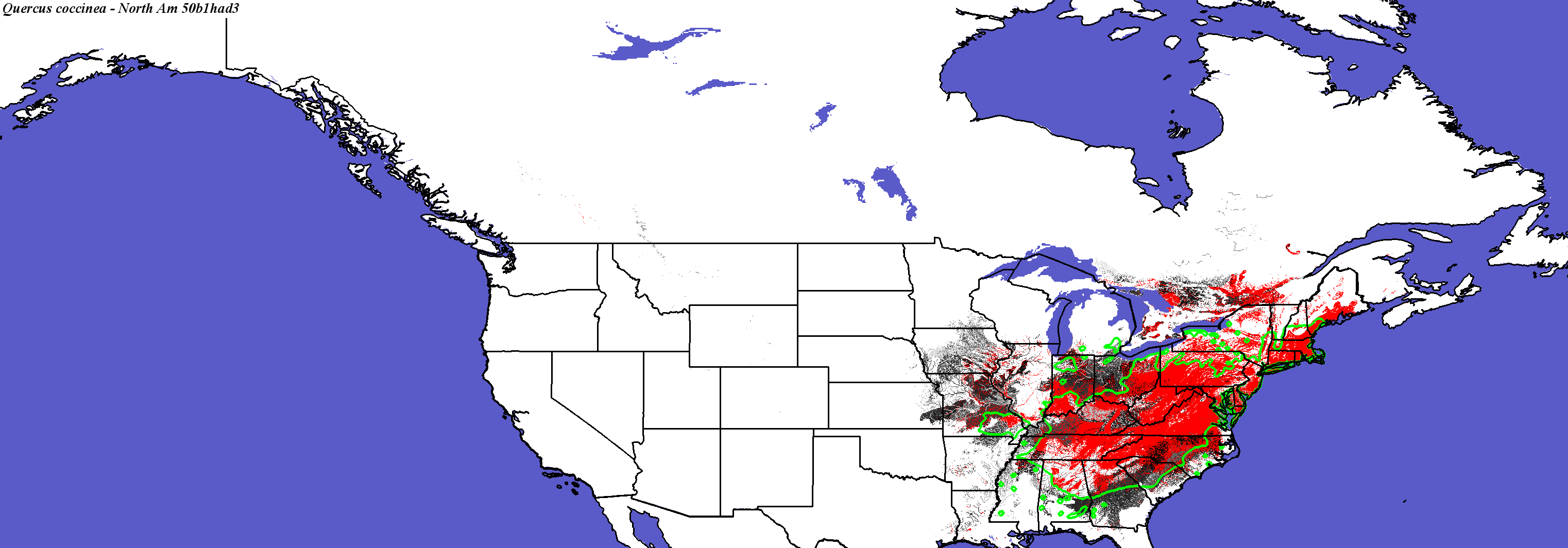

Hadley, Scenario B1, 2050 - Quercus coccinea - CONUS
Quercus coccinea not modeled by Crookston and Rehfeldt
Quercus coccinea not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus coccinea - Global
Quercus_coccinea_final.4.conus
Quercus_coccinea_final.4.global
Hadley, Scenario B1, 2100 - Quercus coccinea - CONUS
Compare with Quercus coccinea modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus coccinea not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus coccinea - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_coccinea_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

167

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

11.3699

Area in Present Suitable Range (in km2)

1316763

Area in Future Suitable Range (Had B1 2050, in km2)

797217

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

652767

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

49.5700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

52.7397

Percent Change in Area of Suitable Range (Had B1 2050)

-39.4500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

68.3562

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

17169.7 +/- 32960

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

41.7808

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.03409 +/- 14.7252

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

50.9589

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

216.355 +/- 691.287

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

24.2466

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

75137

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.7000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

21.7808

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

266198

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.2100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

69.0411

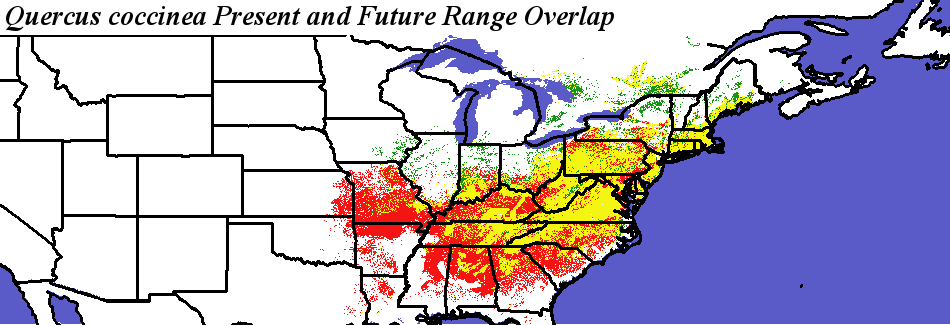

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus coccinea Quercus coccinea - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_coccinea_final.noelev Fine MRM Distance
Quercus_coccinea_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus coccinea Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus coccinea
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

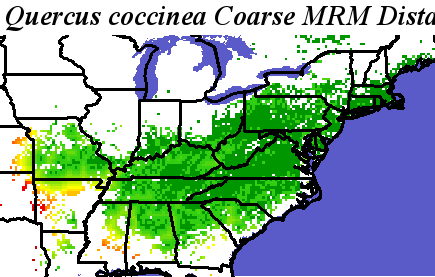

Quercus_coccinea_final.noelev Coarse MRM Distance

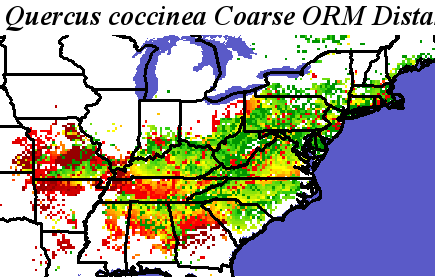

Quercus_coccinea_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus coccinea Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus coccinea
