Version 5 Tree Atlas


Quercus ellipsoidalis

northern pin oak

noelev

Quercus ellipsoidalis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus ellipsoidalis

USDA Plants Database entry for Quercus ellipsoidalis
Silvics Manual entry for Quercus ellipsoidalis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
1146151161range mostly well-represented; some disjuncts missing

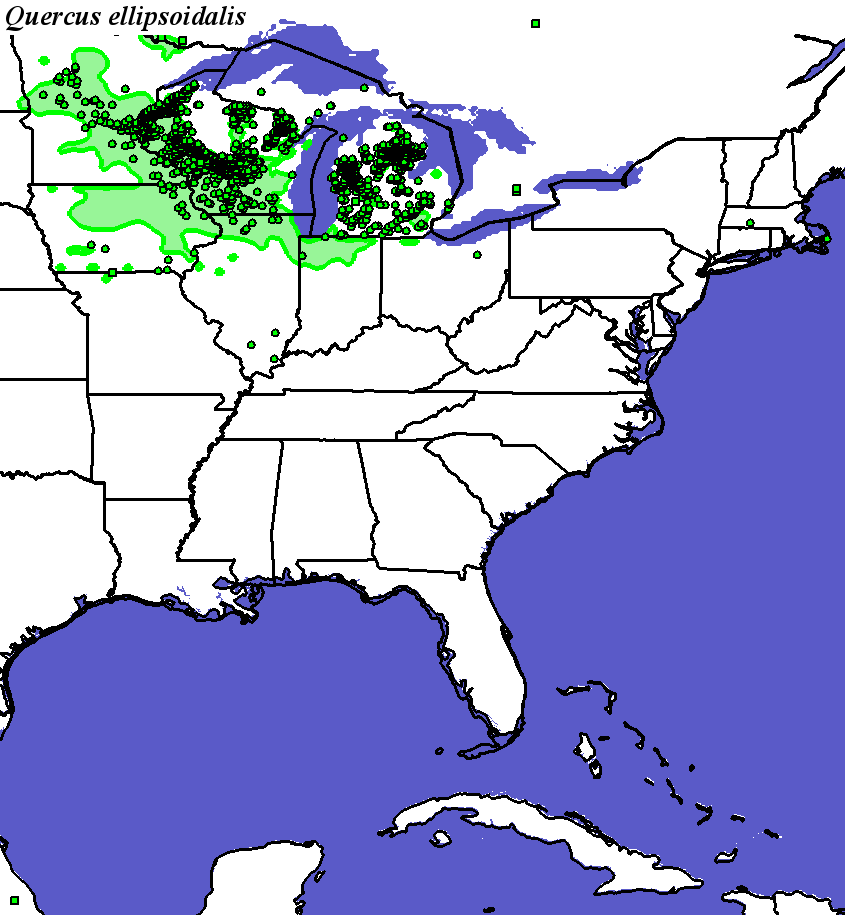

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_ellipsoidalis_final Occurrences

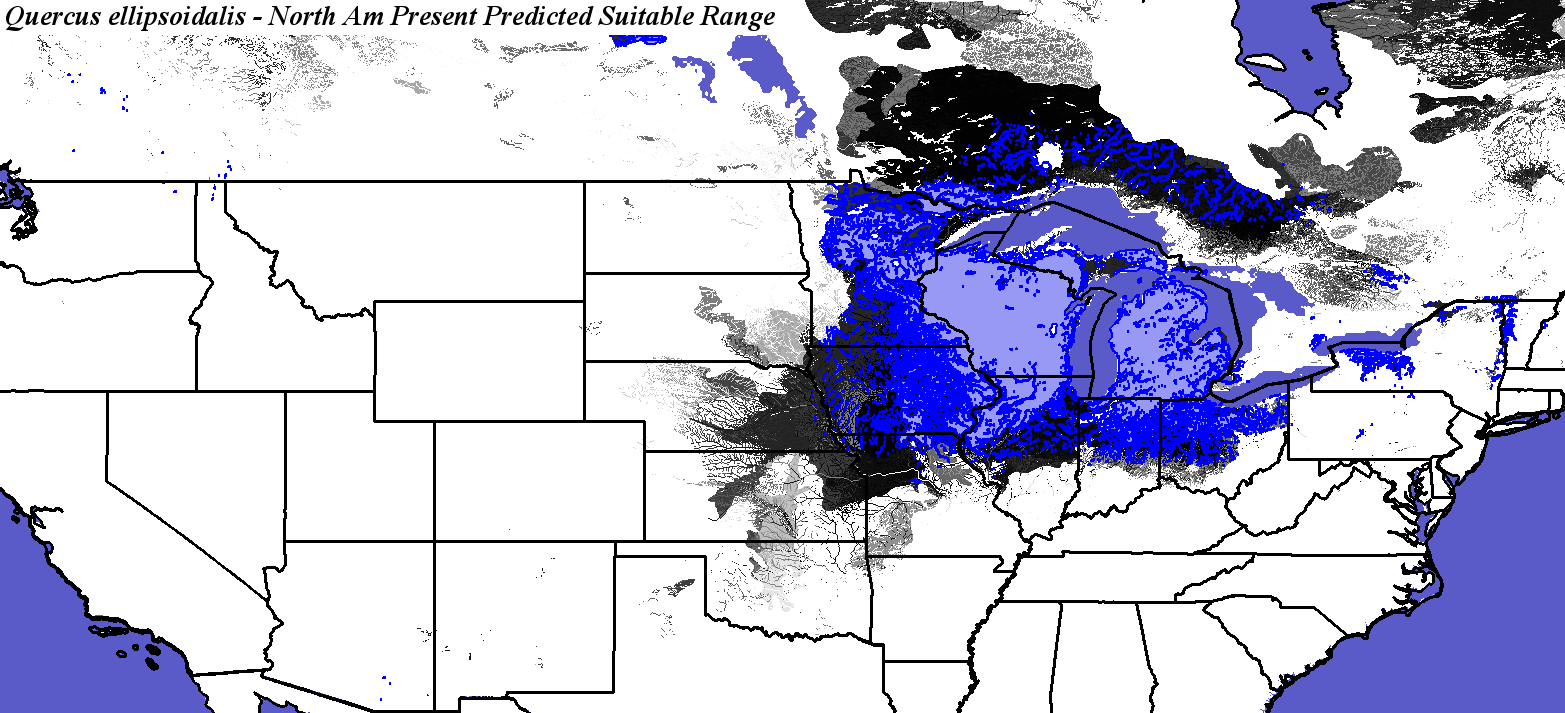

Hargroves Present Suitable Range Outline for Quercus_ellipsoidalis_final
Quercus ellipsoidalis - Occurrence Locations Quercus ellipsoidalis - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
Quercus ellipsoidalis - CONUS
Compare with Current Range from the Silvics Manual for Quercus ellipsoidalis
Compare with Current Range from Biota of North America Program (BONAP) for Quercus ellipsoidalis

Compare with Quercus ellipsoidalis modeled for Current conditions by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring

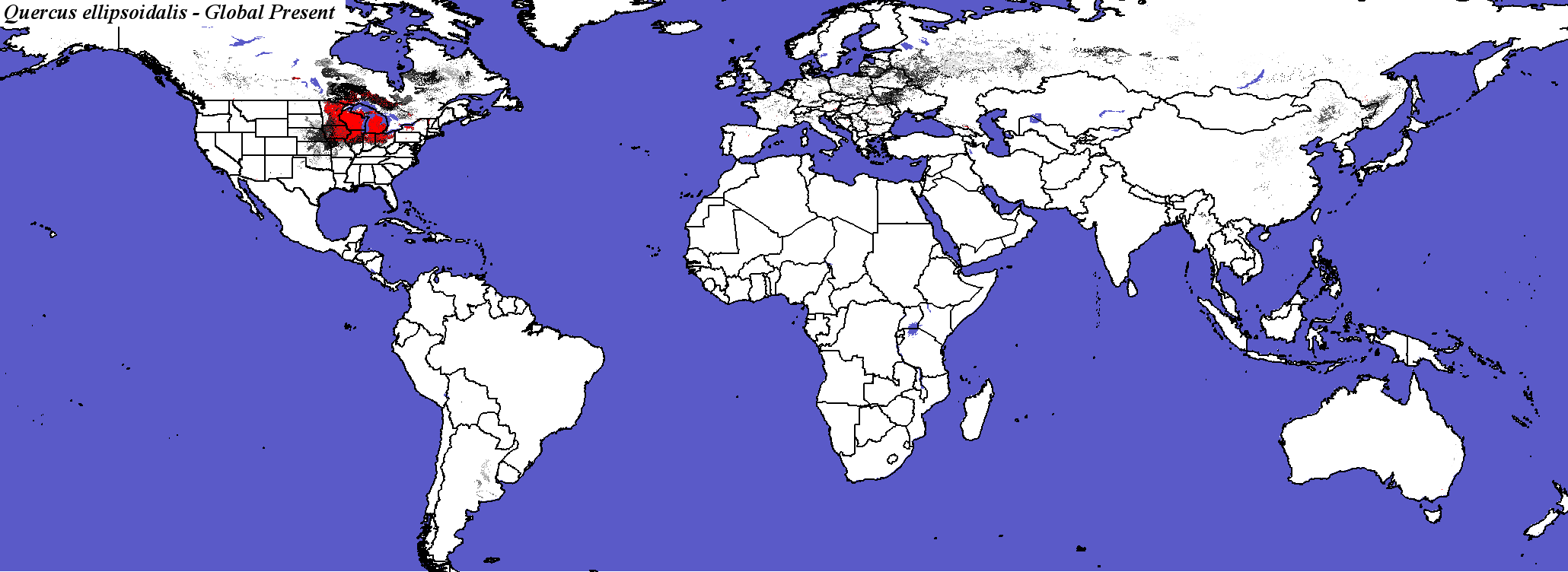

Quercus ellipsoidalis - Global

PCM - Parallel Climate Model
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

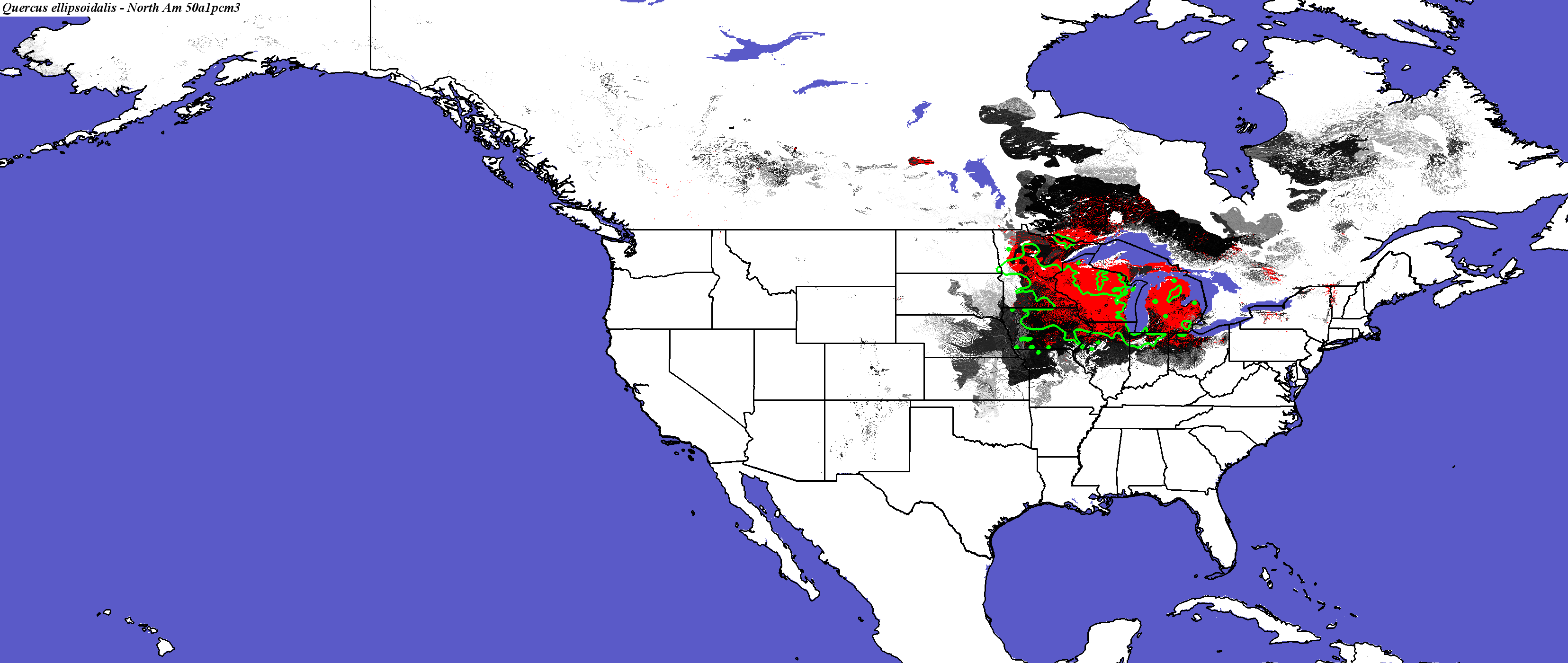

PCM, Scenario A1FI, 2050 - Quercus ellipsoidalis - CONUS
PCM, Scenario A1FI, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

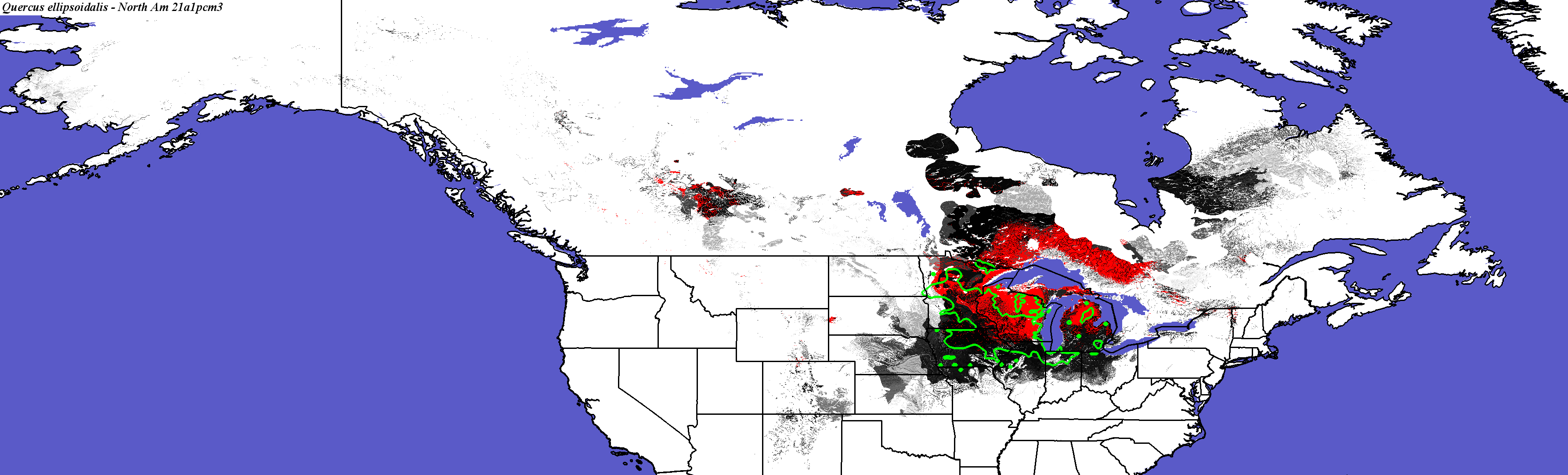

PCM, Scenario A1FI, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for PCM A1FI in 2100 by Iverson and Prasad

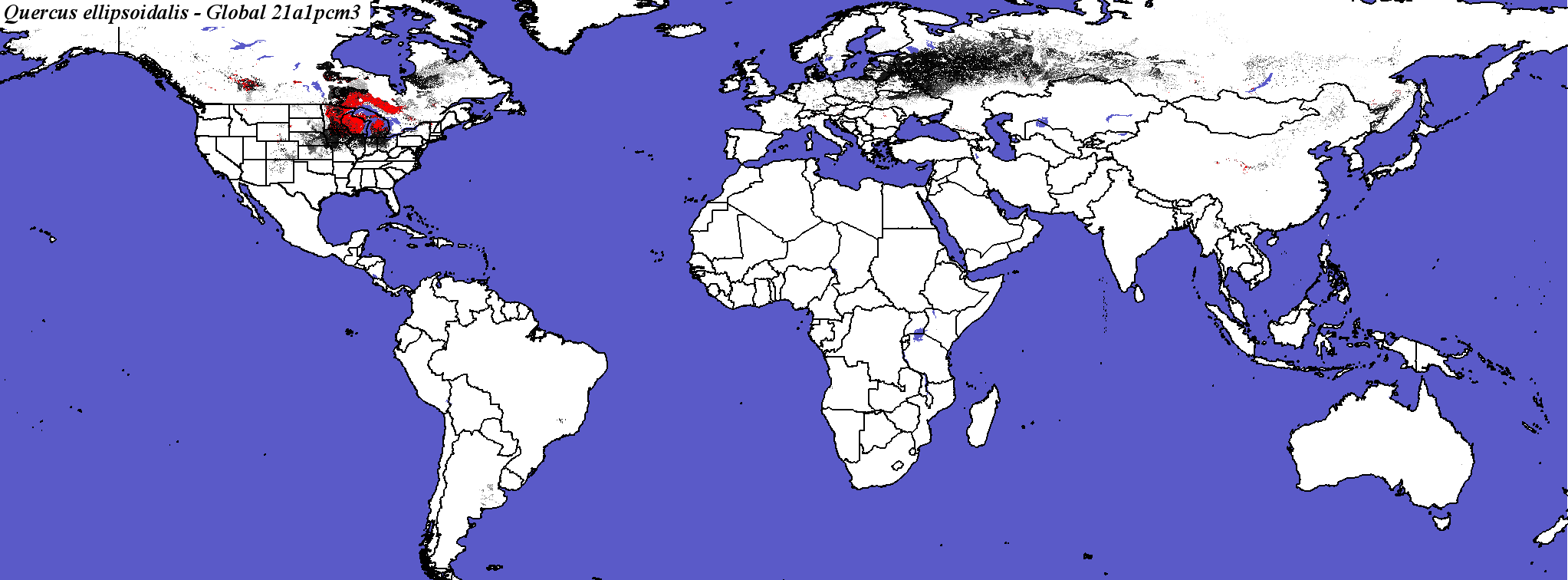

PCM, Scenario A1FI, 2100 - Quercus ellipsoidalis - Global

Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
PCM, Scenario B1, 2050 - Quercus ellipsoidalis - CONUS

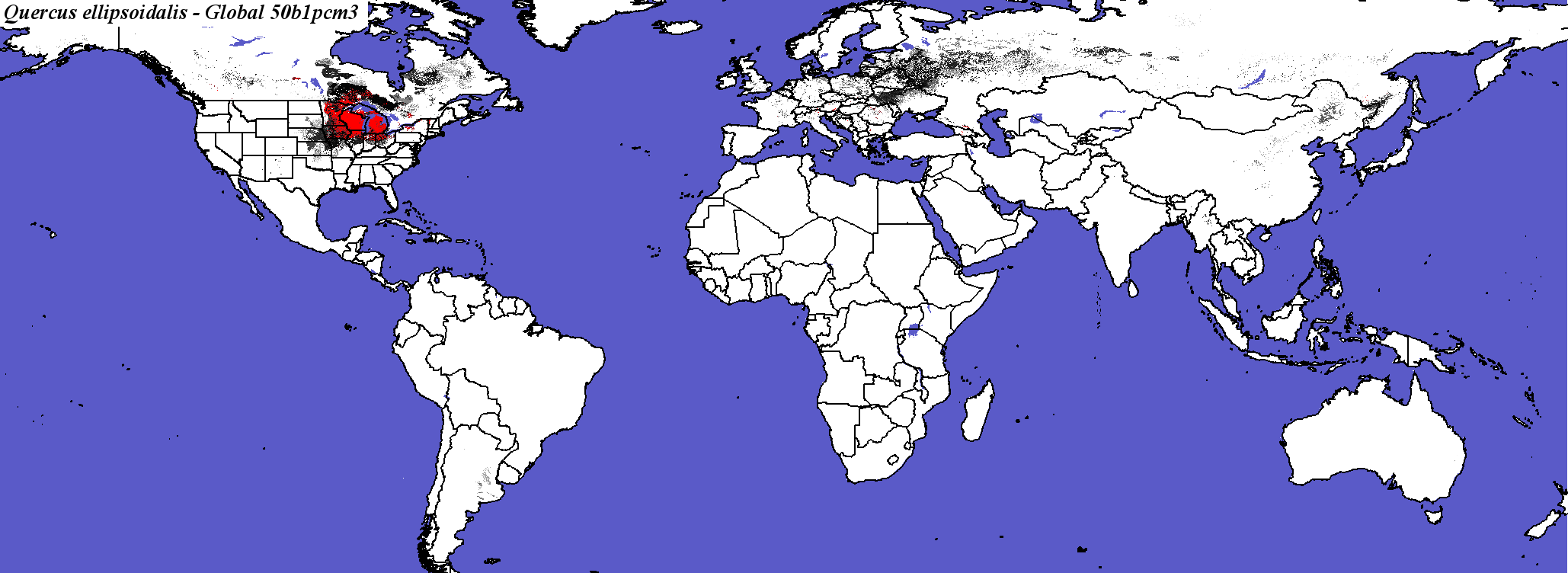

PCM, Scenario B1, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
PCM, Scenario B1, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for PCM B1 in 2100 by Iverson and Prasad

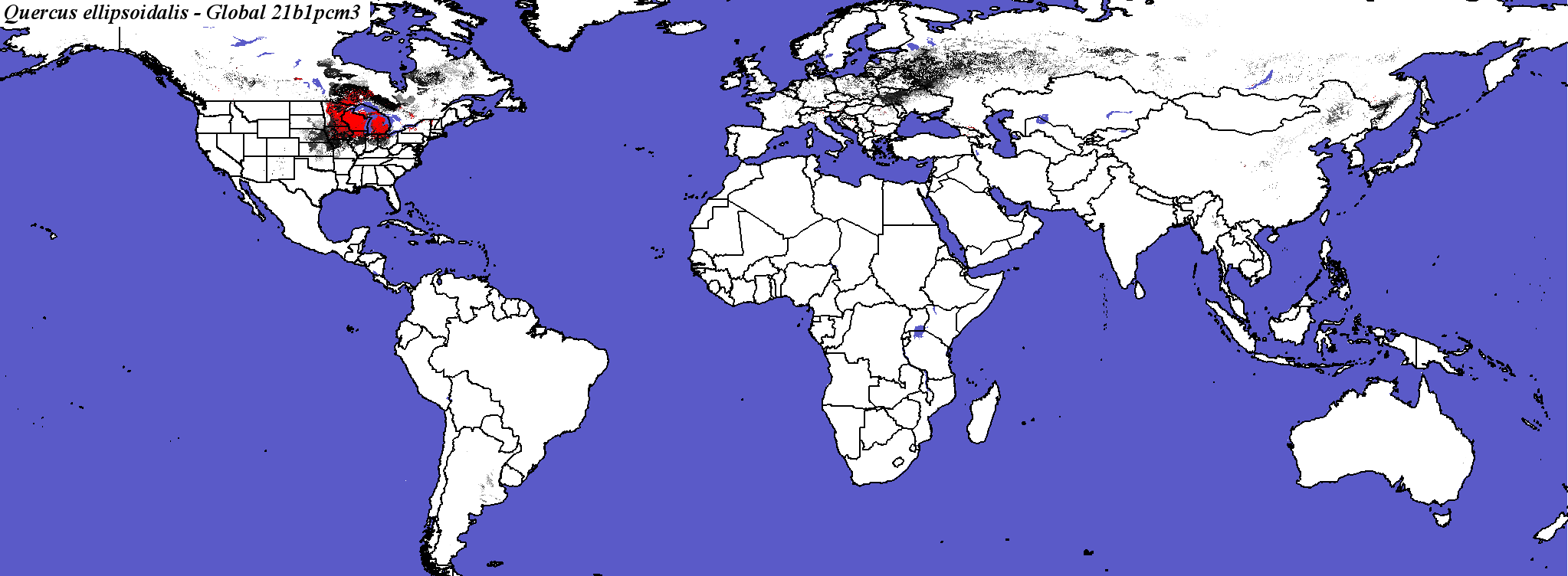

PCM, Scenario B1, 2100 - Quercus ellipsoidalis - Global

Hadley Climate Model
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

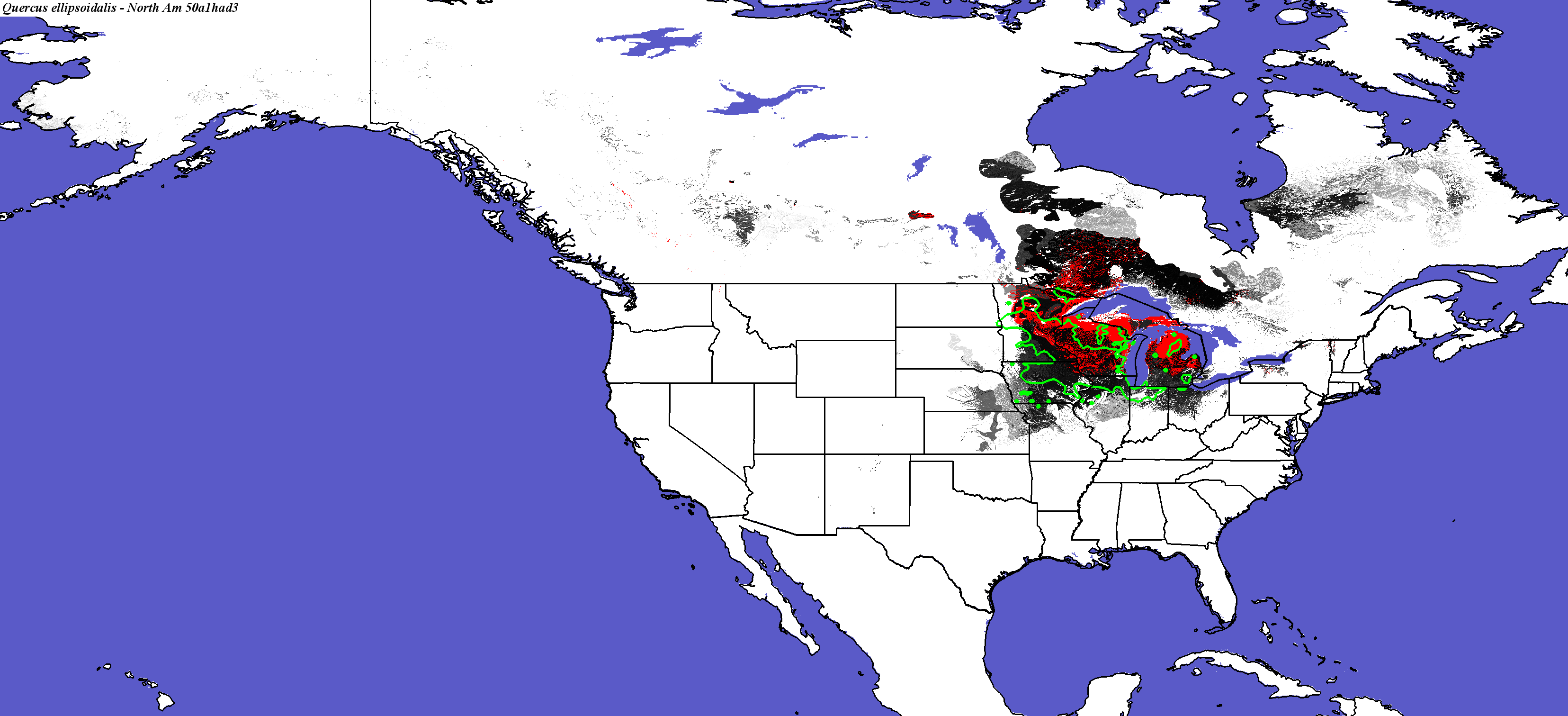

Hadley, Scenario A1FI, 2050 - Quercus ellipsoidalis - CONUS
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global.

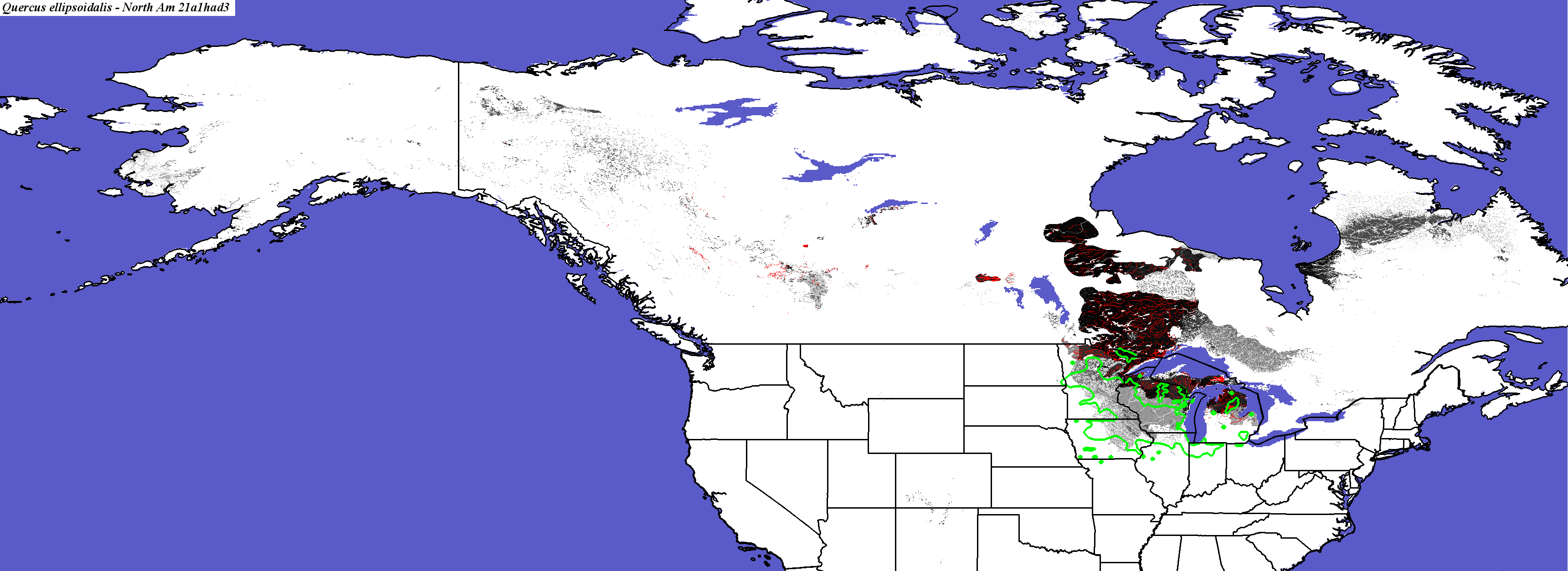

Hadley, Scenario A1FI, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring

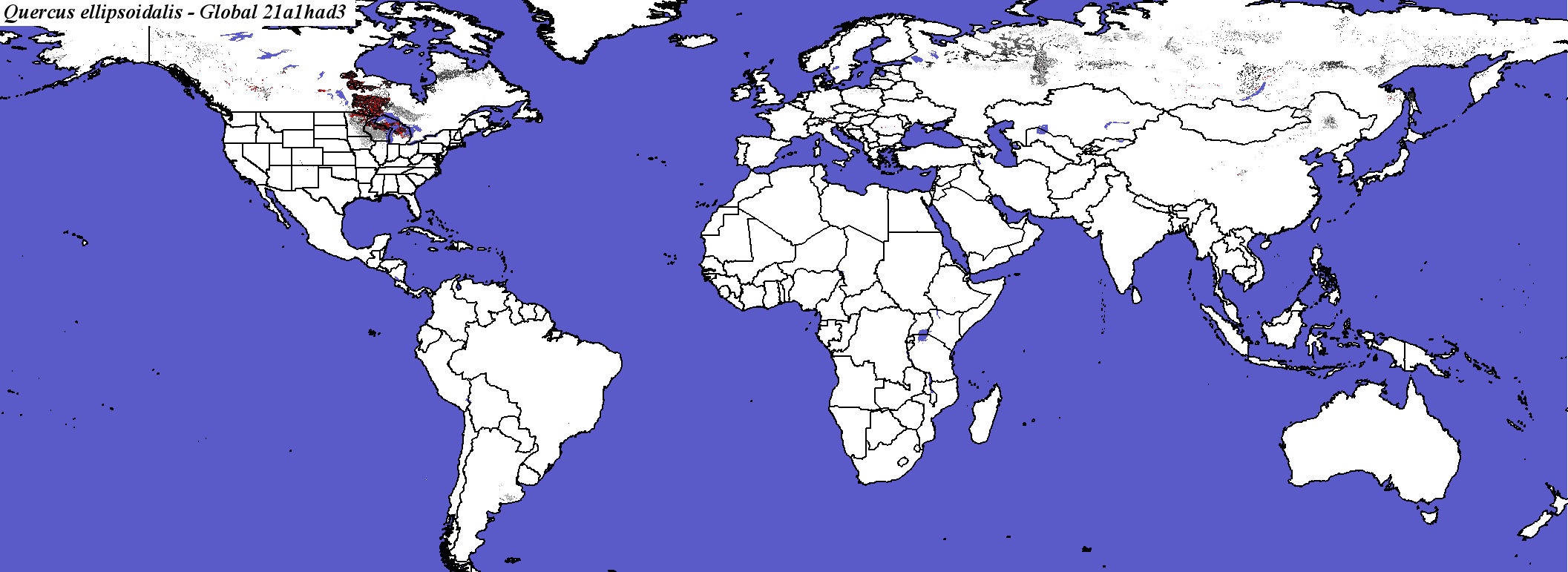

Hadley, Scenario A1FI, 2100 - Quercus ellipsoidalis - Global

Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global.

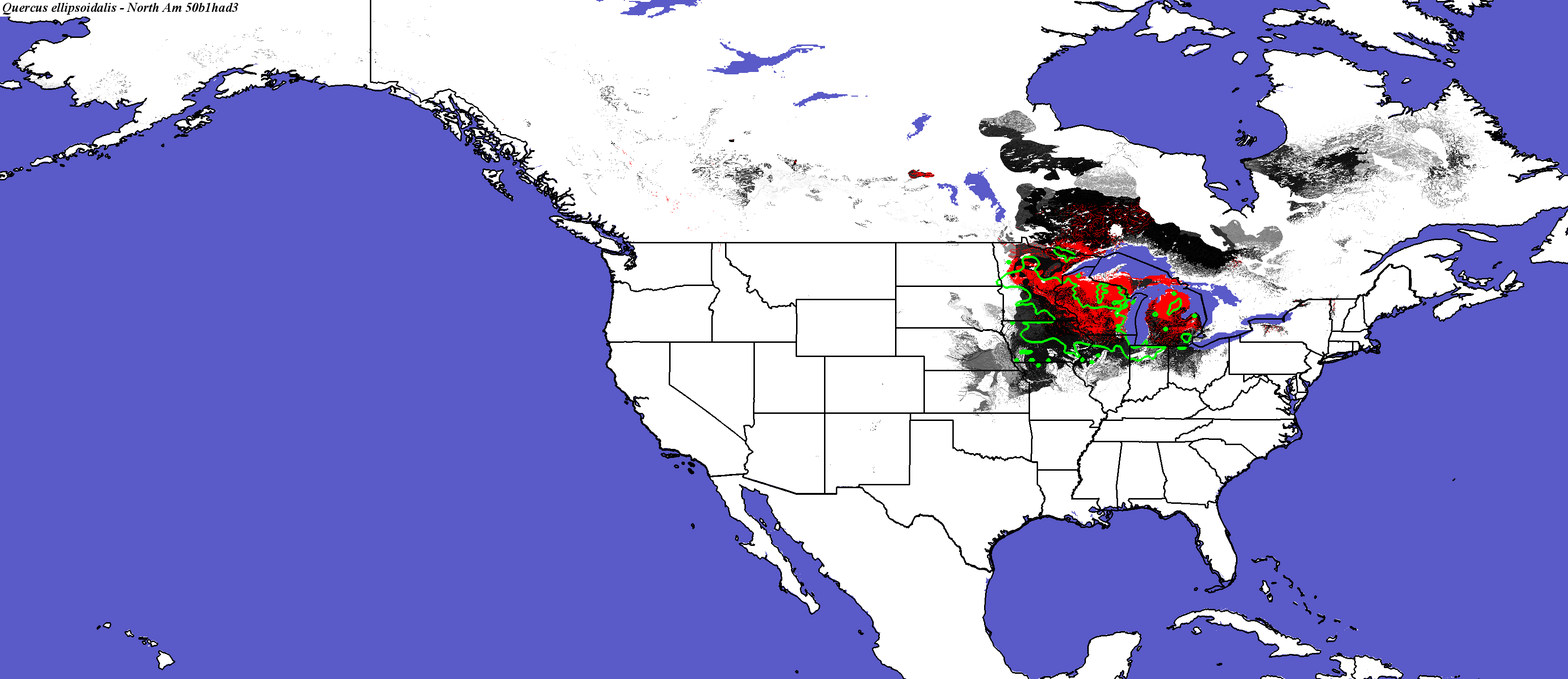

Hadley, Scenario B1, 2050 - Quercus ellipsoidalis - CONUS
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

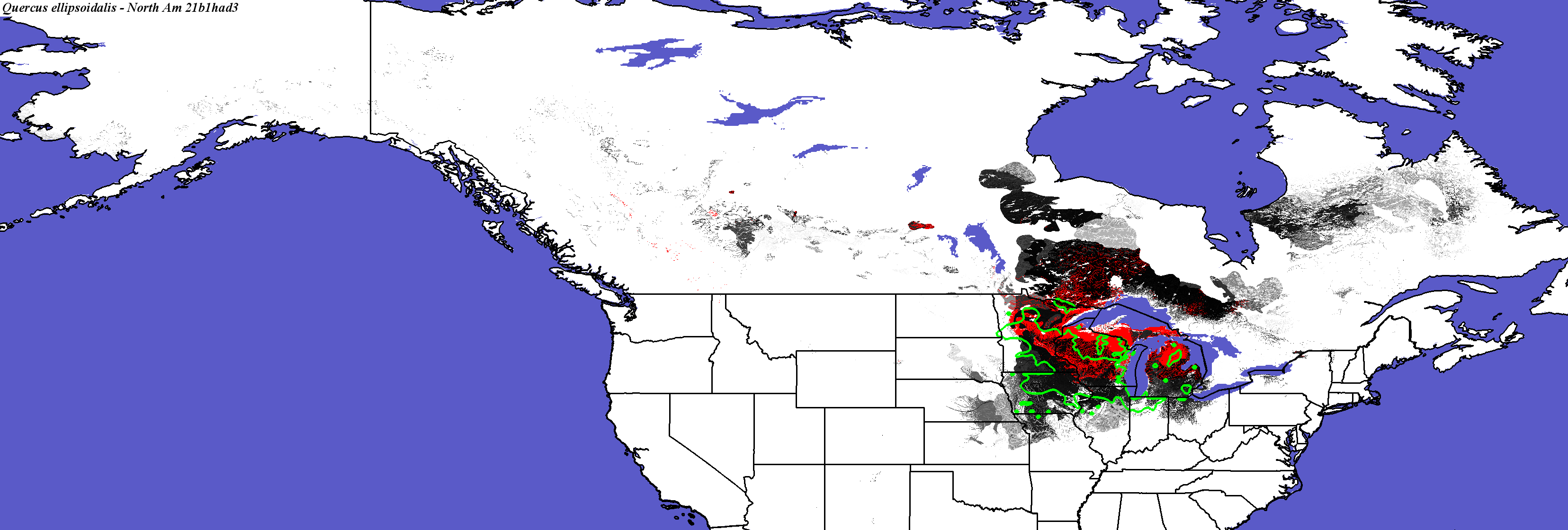

Hadley, Scenario B1, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus ellipsoidalis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_ellipsoidalis_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

69

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

30.8219

Area in Present Suitable Range (in km2)

499266

Area in Future Suitable Range (Had B1 2050, in km2)

257057

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

220729

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

44.2100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

61.9178

Percent Change in Area of Suitable Range (Had B1 2050)

-48.5100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

79.3151

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

33231 +/- 59695.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

18.6301

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

11.4964 +/- 19.3245

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

26.0274

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

260.277 +/- 787.033

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

18.0822

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

36537

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.3100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

14.9315

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

166074

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.2600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

36.8493

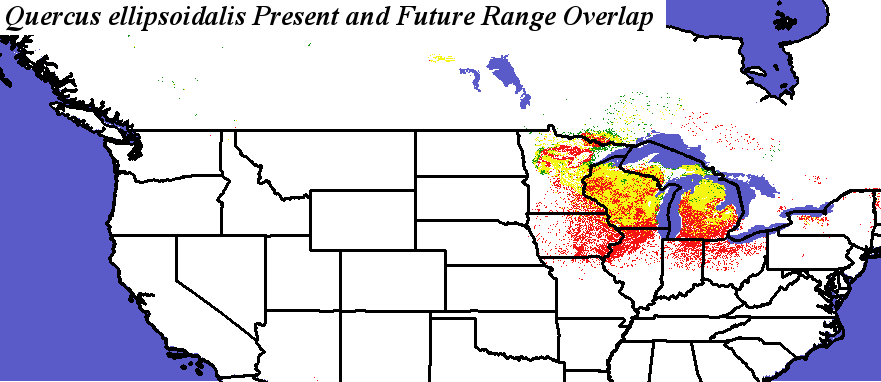

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus ellipsoidalis Quercus ellipsoidalis - Range Change Statistics

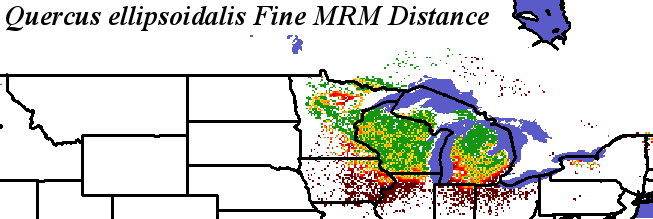

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_ellipsoidalis_final.noelev Fine MRM Distance

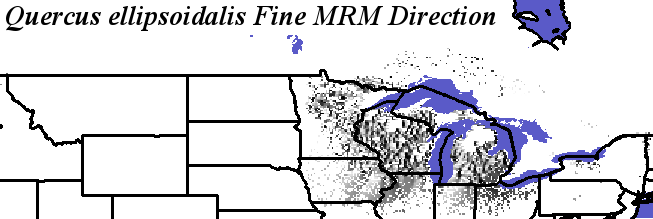

Quercus_ellipsoidalis_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

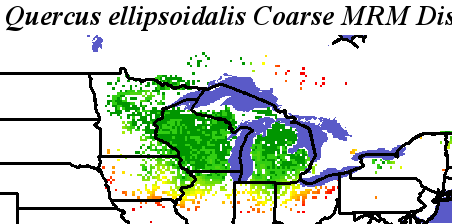

Quercus_ellipsoidalis_final.noelev Coarse MRM Distance

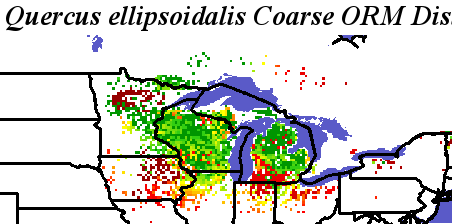

Quercus_ellipsoidalis_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis
