Version 5 Tree Atlas


Quercus emoryi

Emory oak

noelev

Quercus emoryi Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus emoryi

USDA Plants Database entry for Quercus emoryi
Silvics Manual entry for Quercus emoryi


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus emoryi var. atrata; Quercus emoryi var. san-ysidroana226267493range mostly well-represented; some disjuncts missing

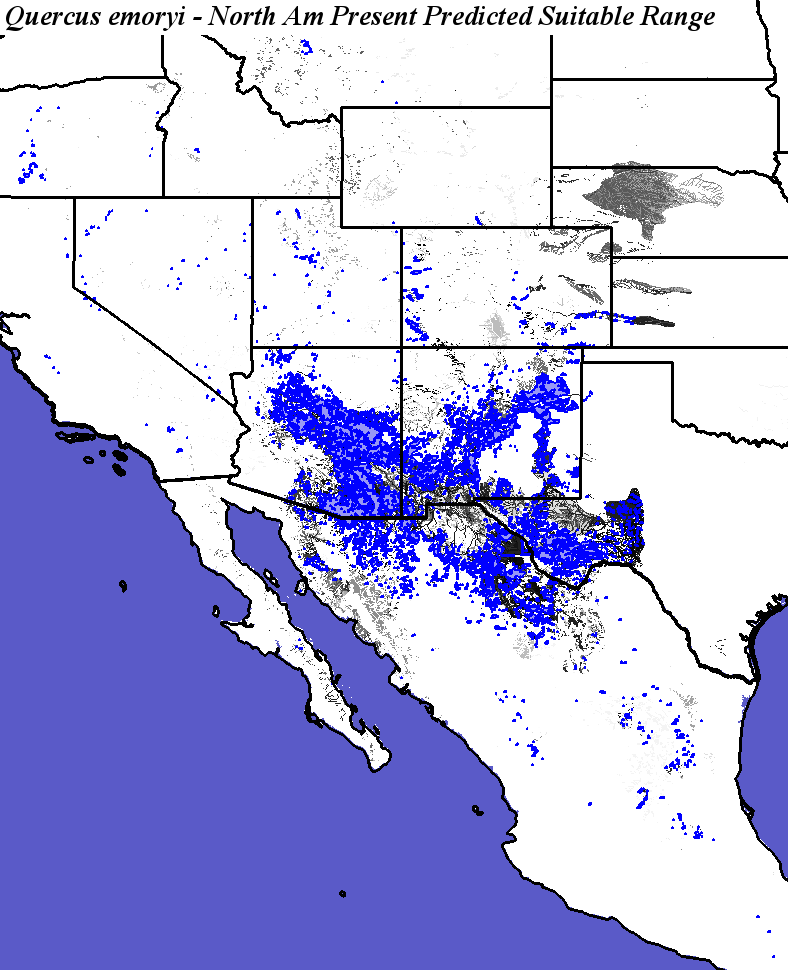

Occurrence Locations and Hargrove's Present Suitable Range Outline

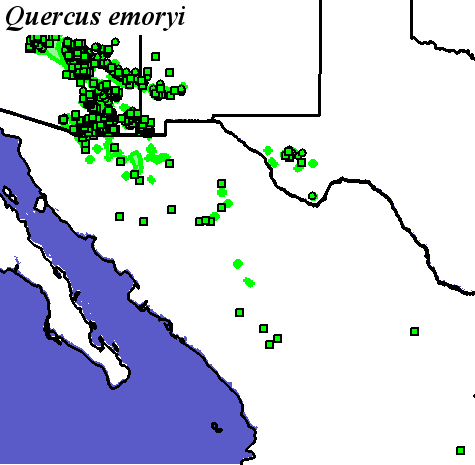

Quercus_emoryi_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_emoryi_final
Quercus emoryi - Occurrence Locations Quercus emoryi - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_emoryi_final.3.conus

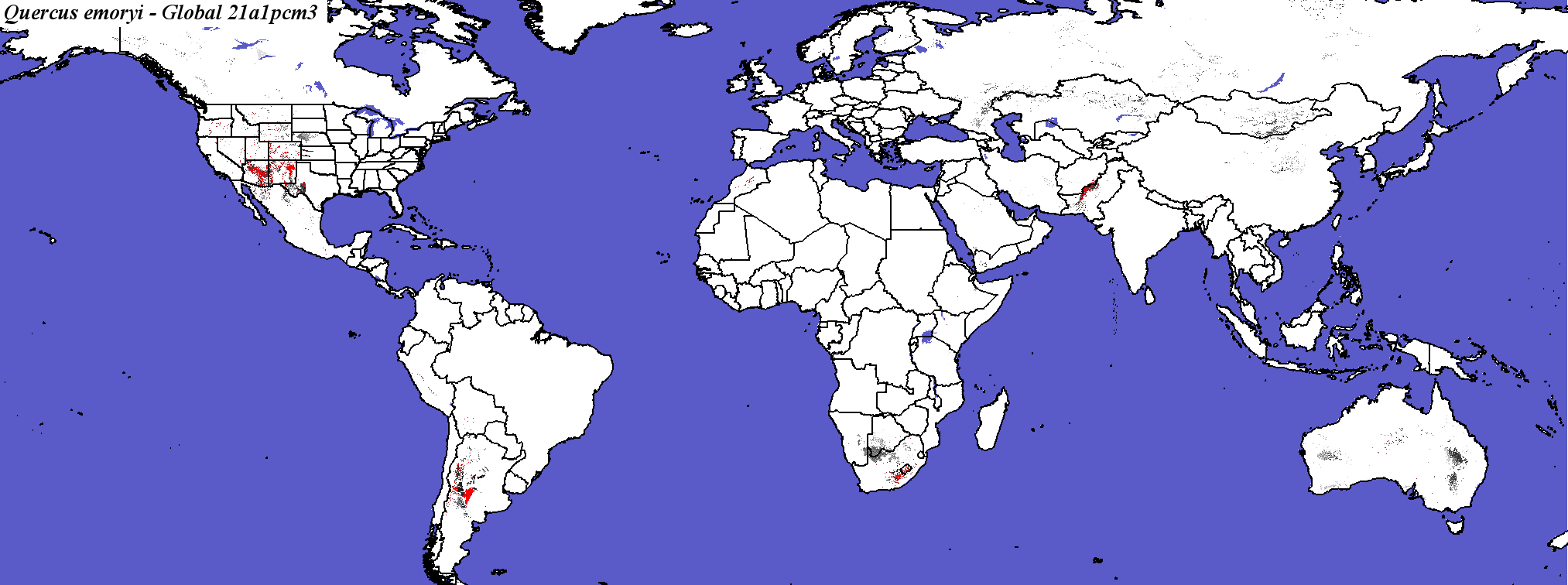

Quercus_emoryi_final.3.global

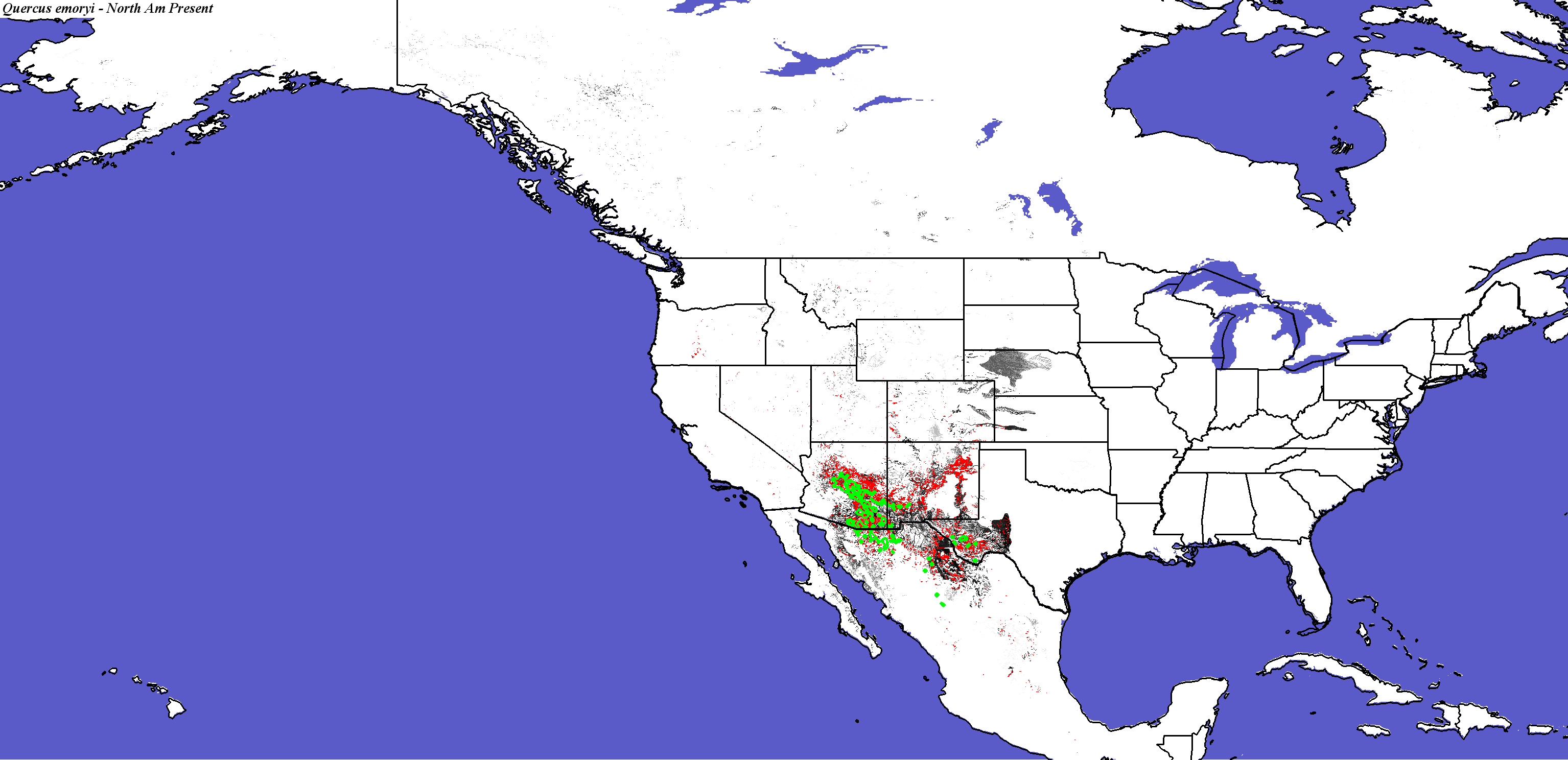

Quercus emoryi - CONUS
Compare with Current Range from the Silvics Manual for Quercus emoryi
Compare with Current Range from Biota of North America Program (BONAP) for Quercus emoryi

Quercus emoryi not modeled by Iverson and Prasad
Compare with Quercus emoryi modeled for Current conditions by Crookston and Rehfeldt
Quercus emoryi not modeled by Coops and Waring

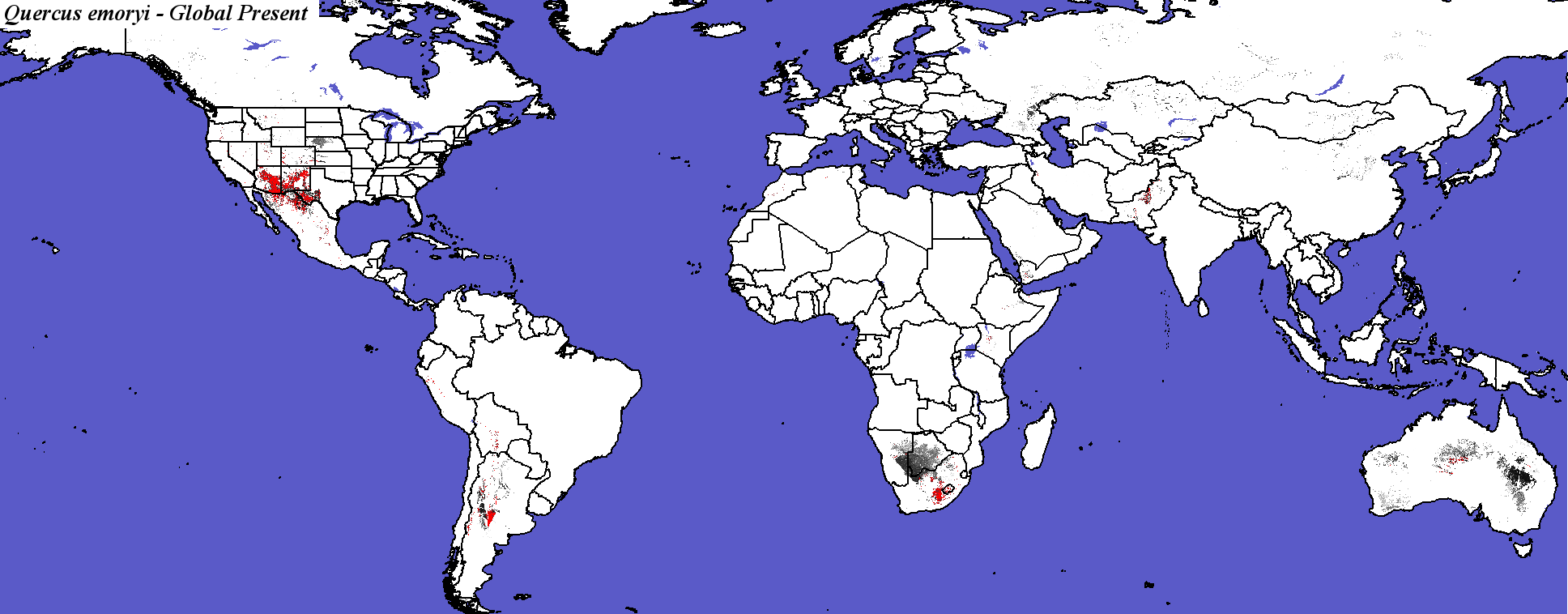

Quercus emoryi - Global

PCM - Parallel Climate Model
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global
PCM, Scenario A1FI, 2050 - Quercus emoryi - CONUS
PCM, Scenario A1FI, 2050 - Quercus emoryi - Global
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global

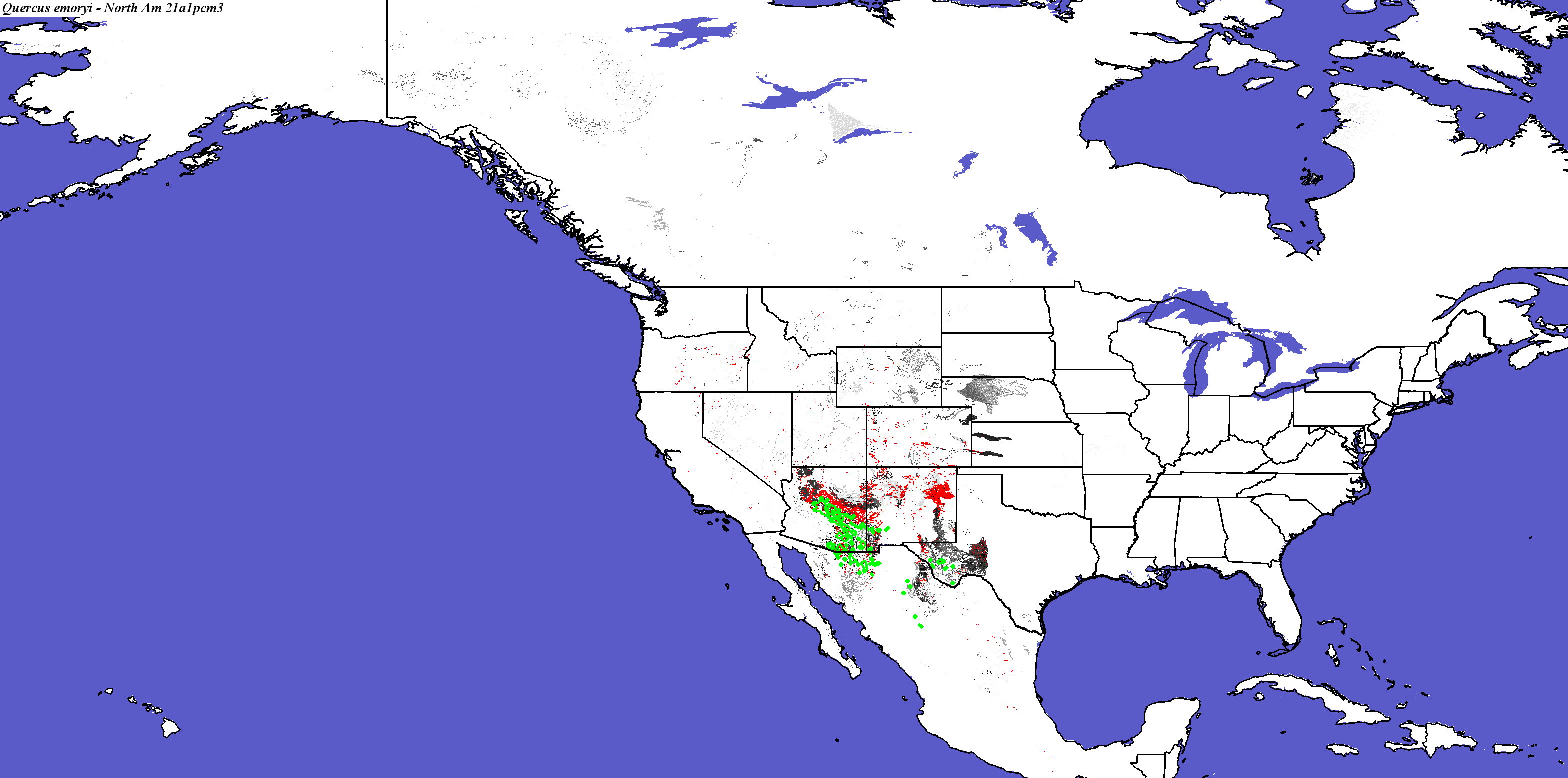

PCM, Scenario A1FI, 2100 - Quercus emoryi - CONUS
Quercus emoryi species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus emoryi - Global

Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global

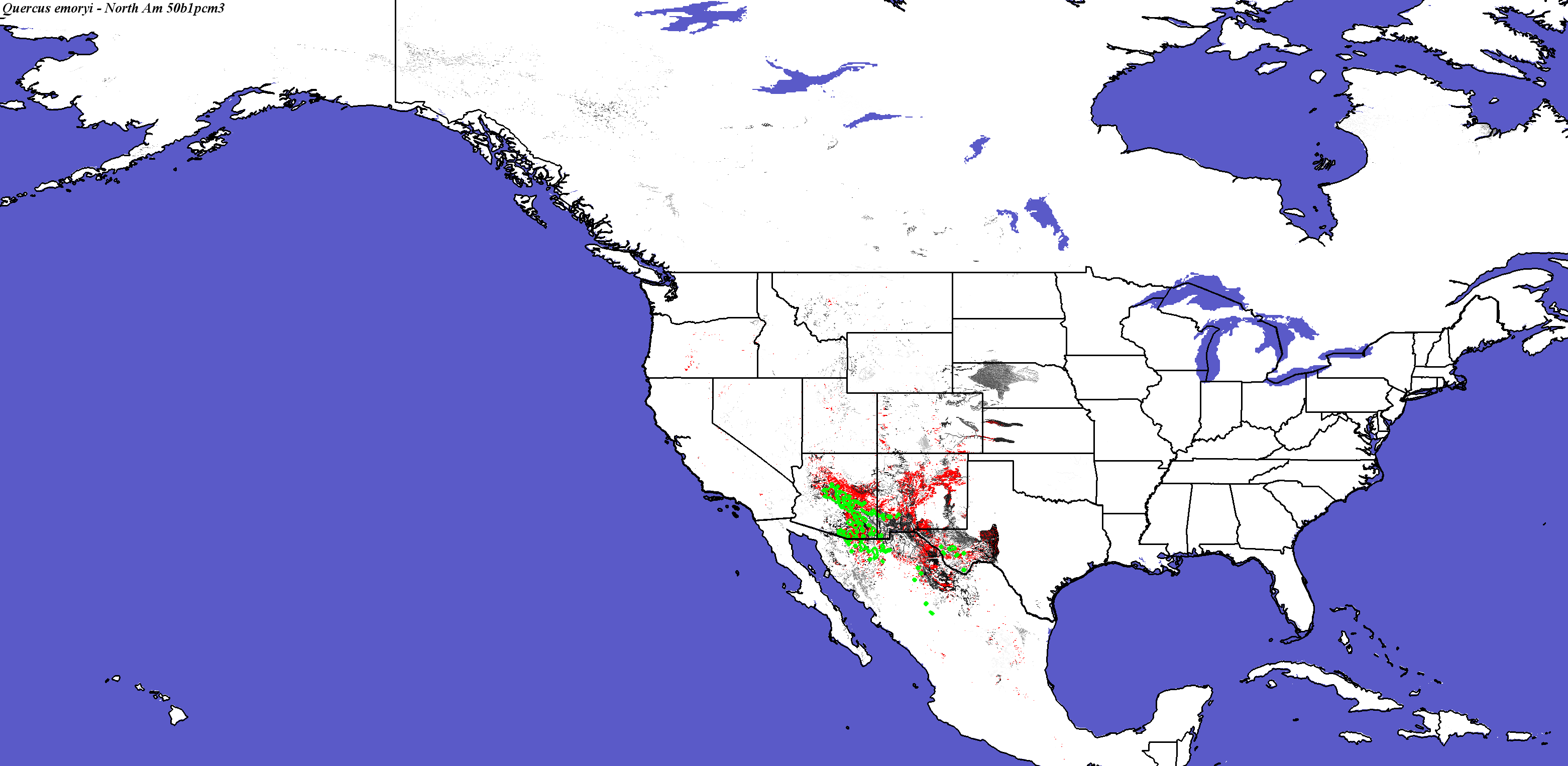

PCM, Scenario B1, 2050 - Quercus emoryi - CONUS
PCM, Scenario B1, 2050 - Quercus emoryi - Global
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global

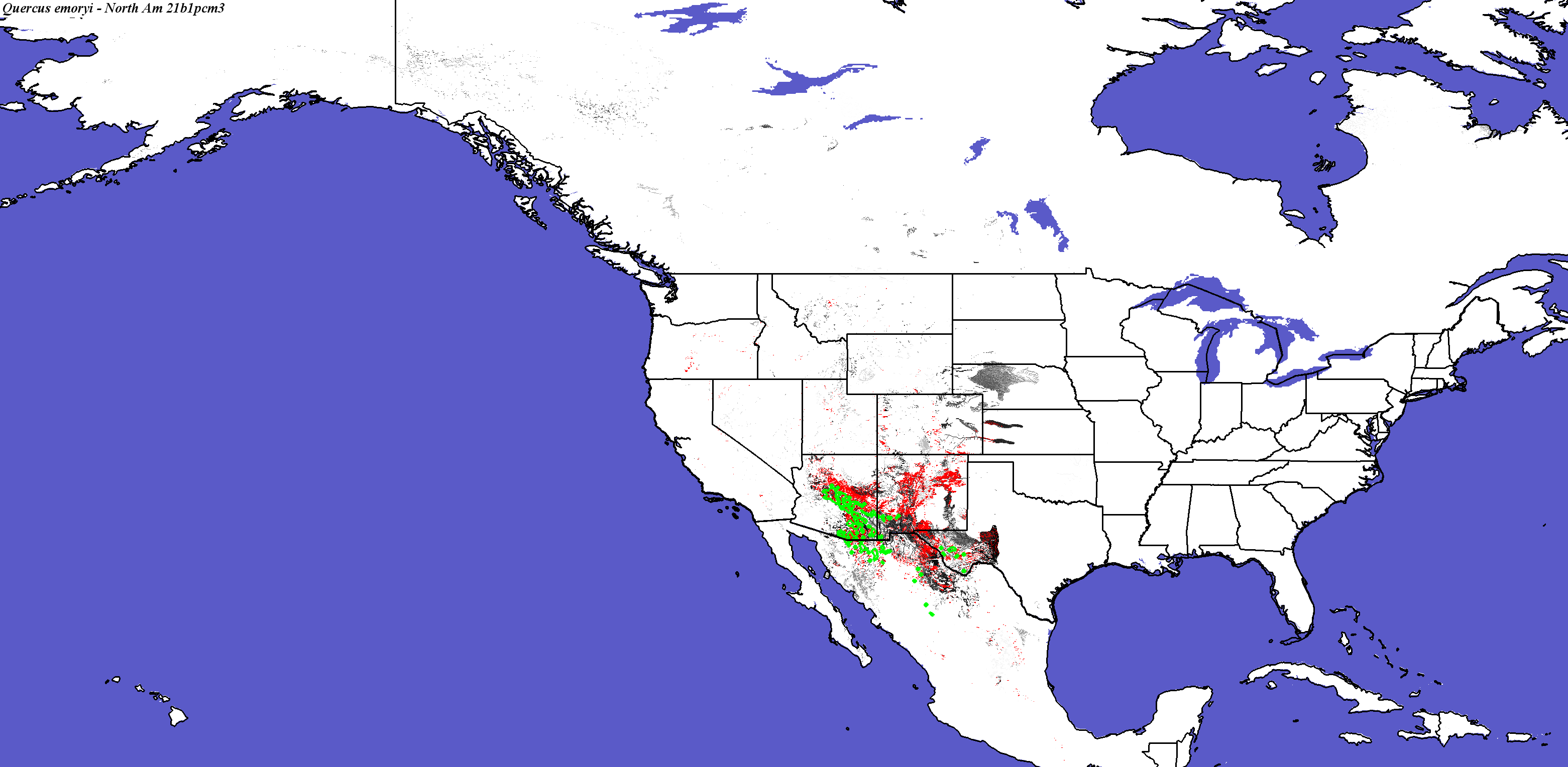

PCM, Scenario B1, 2100 - Quercus emoryi - CONUS
Quercus emoryi not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus emoryi - Global

Hadley Climate Model
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global

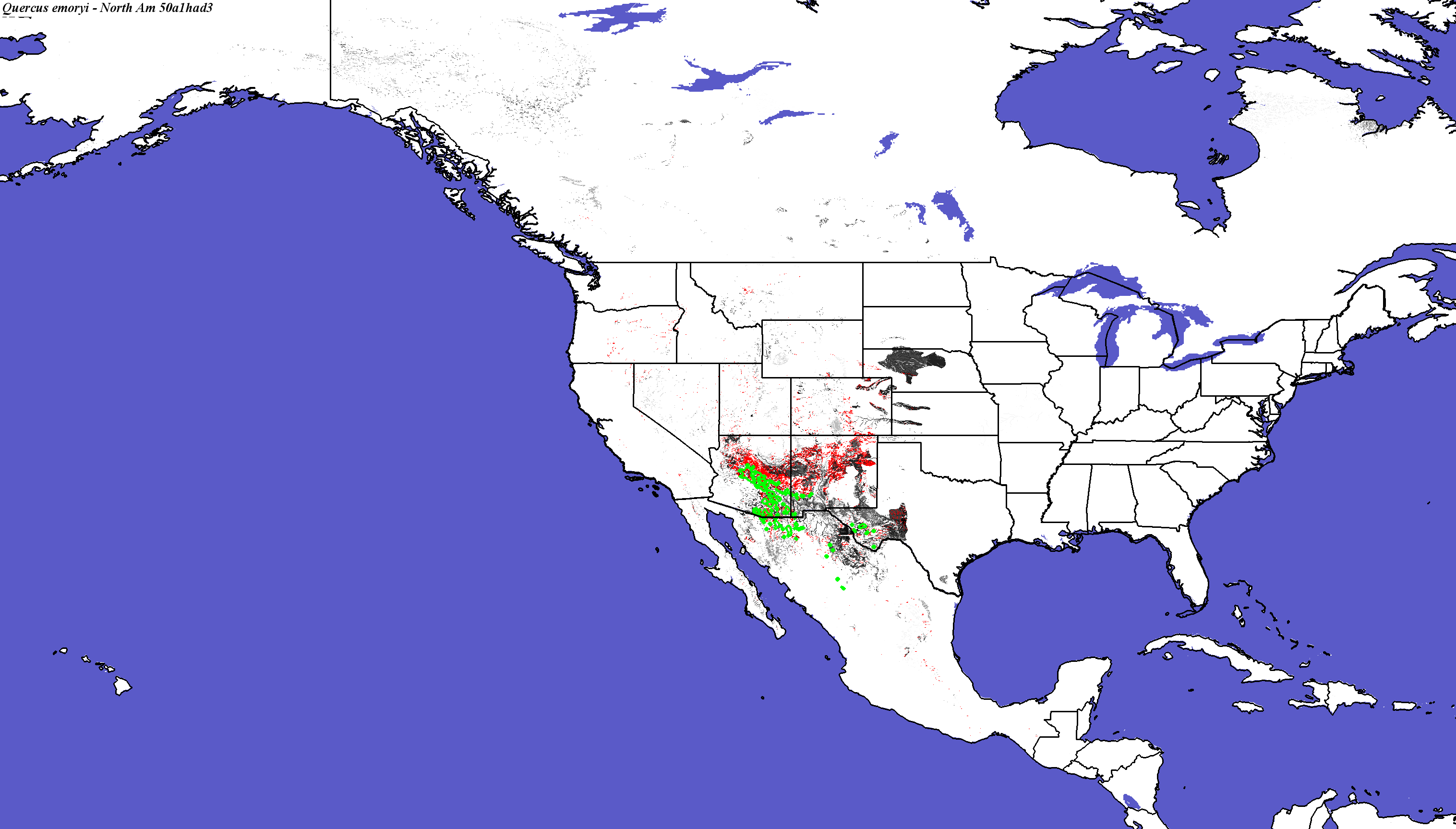

Hadley, Scenario A1FI, 2050 - Quercus emoryi - CONUS
Compare with Quercus emoryi modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

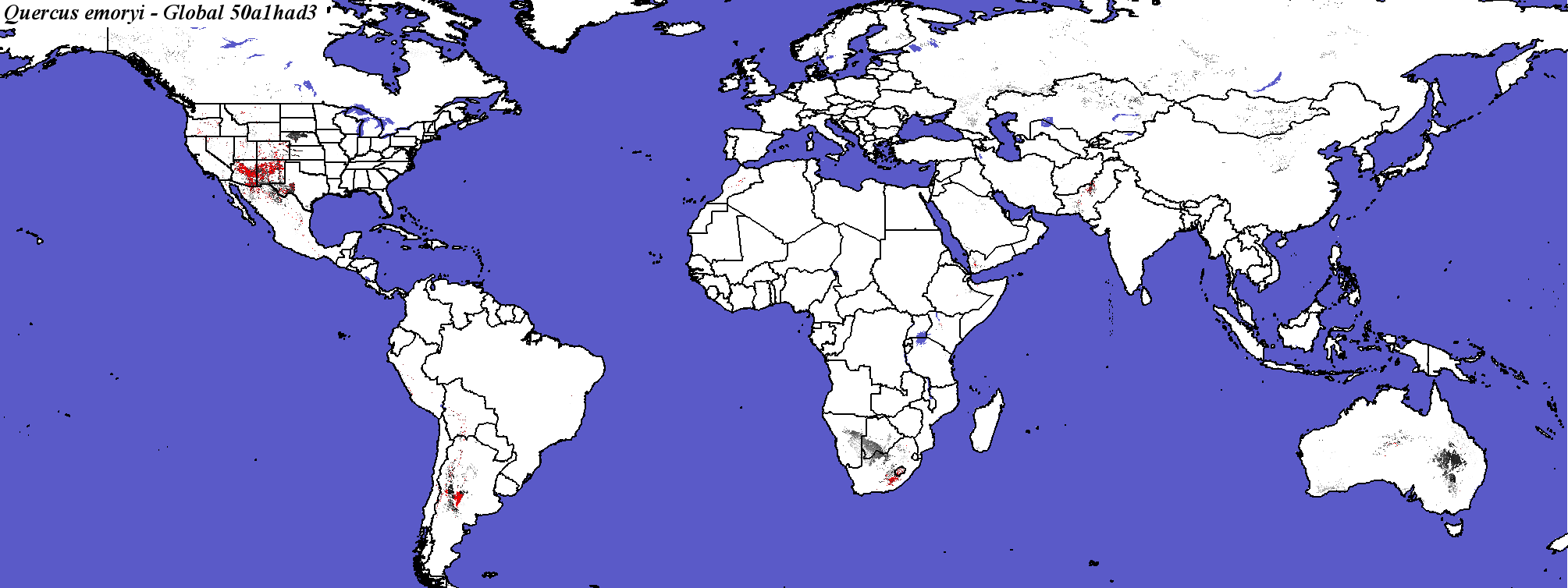

Hadley, Scenario A1FI, 2050 - Quercus emoryi - Global
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global.

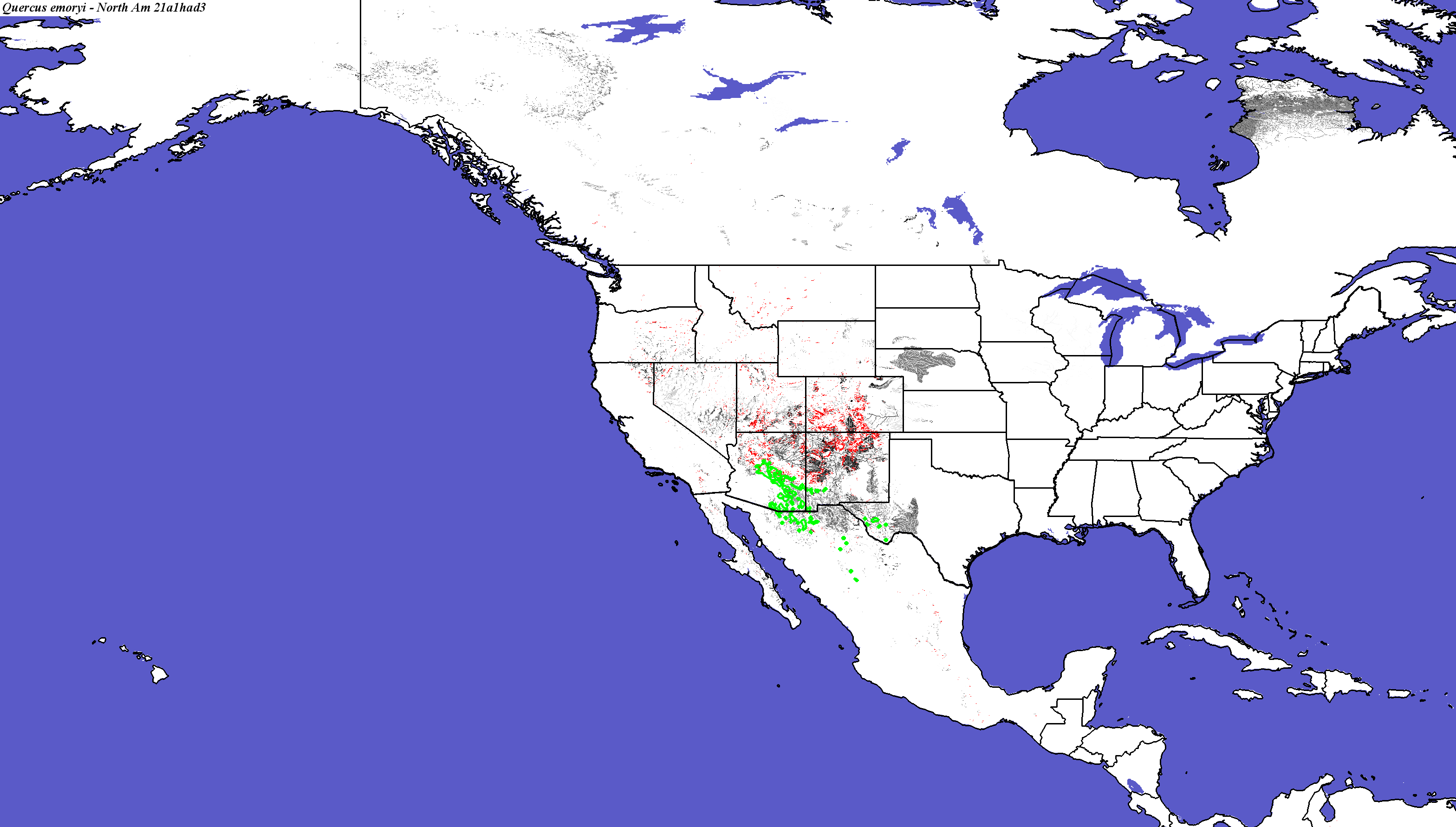

Hadley, Scenario A1FI, 2100 - Quercus emoryi - CONUS
Quercus emoryi not modeled by Iverson and Prasad
Compare with Quercus emoryi modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus emoryi not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus emoryi - Global

Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global.

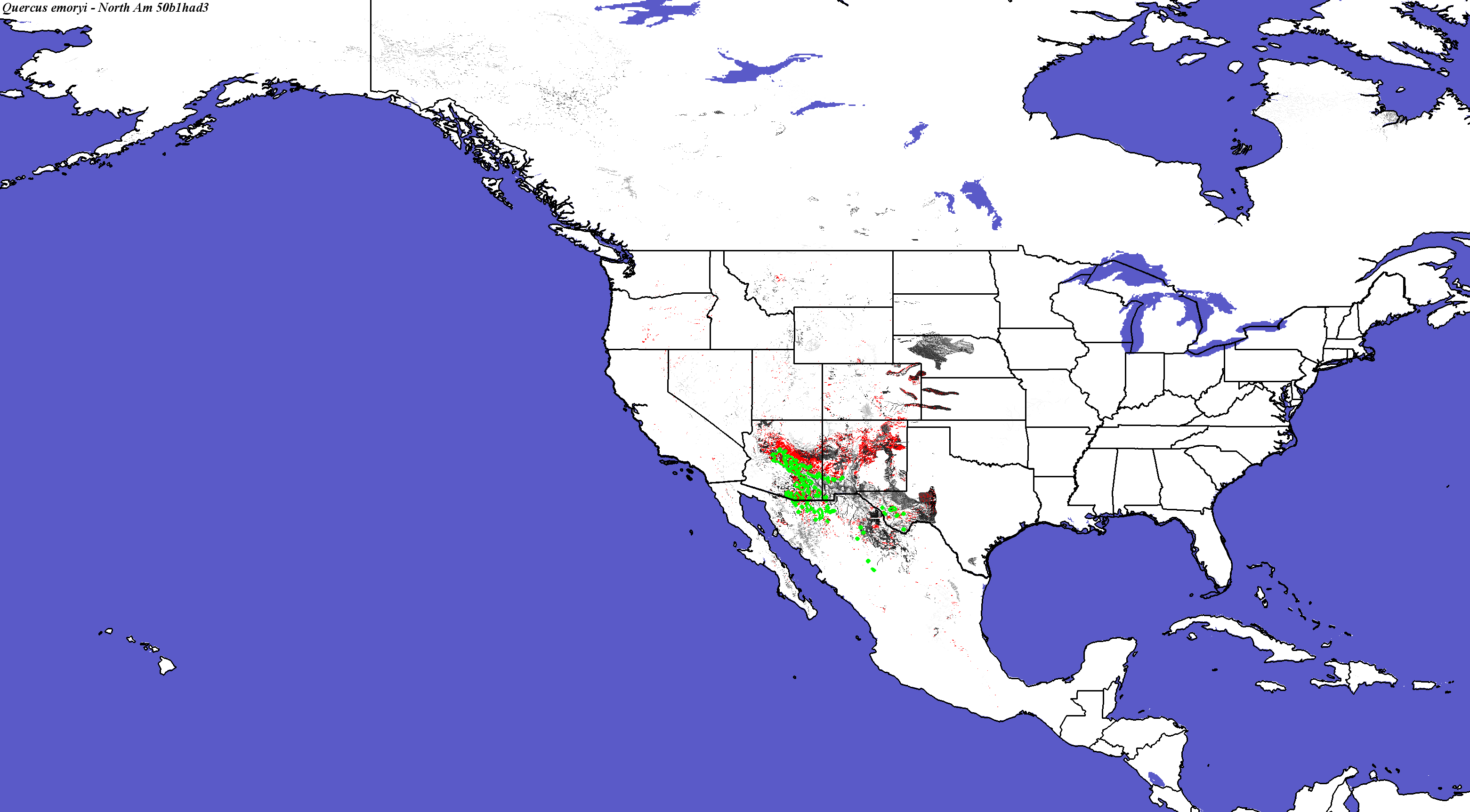

Hadley, Scenario B1, 2050 - Quercus emoryi - CONUS
Compare with Quercus emoryi modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus emoryi not modeled by Coops and Waring

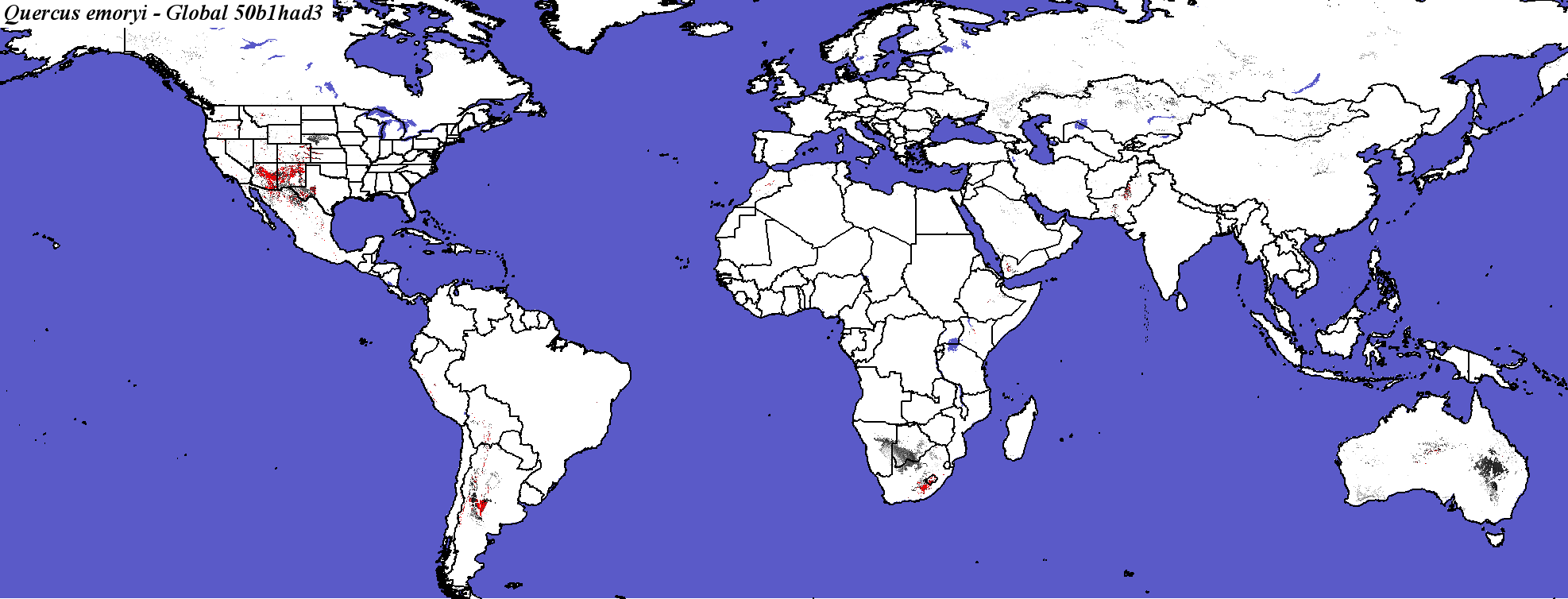

Hadley, Scenario B1, 2050 - Quercus emoryi - Global
Quercus_emoryi_final.3.conus
Quercus_emoryi_final.3.global

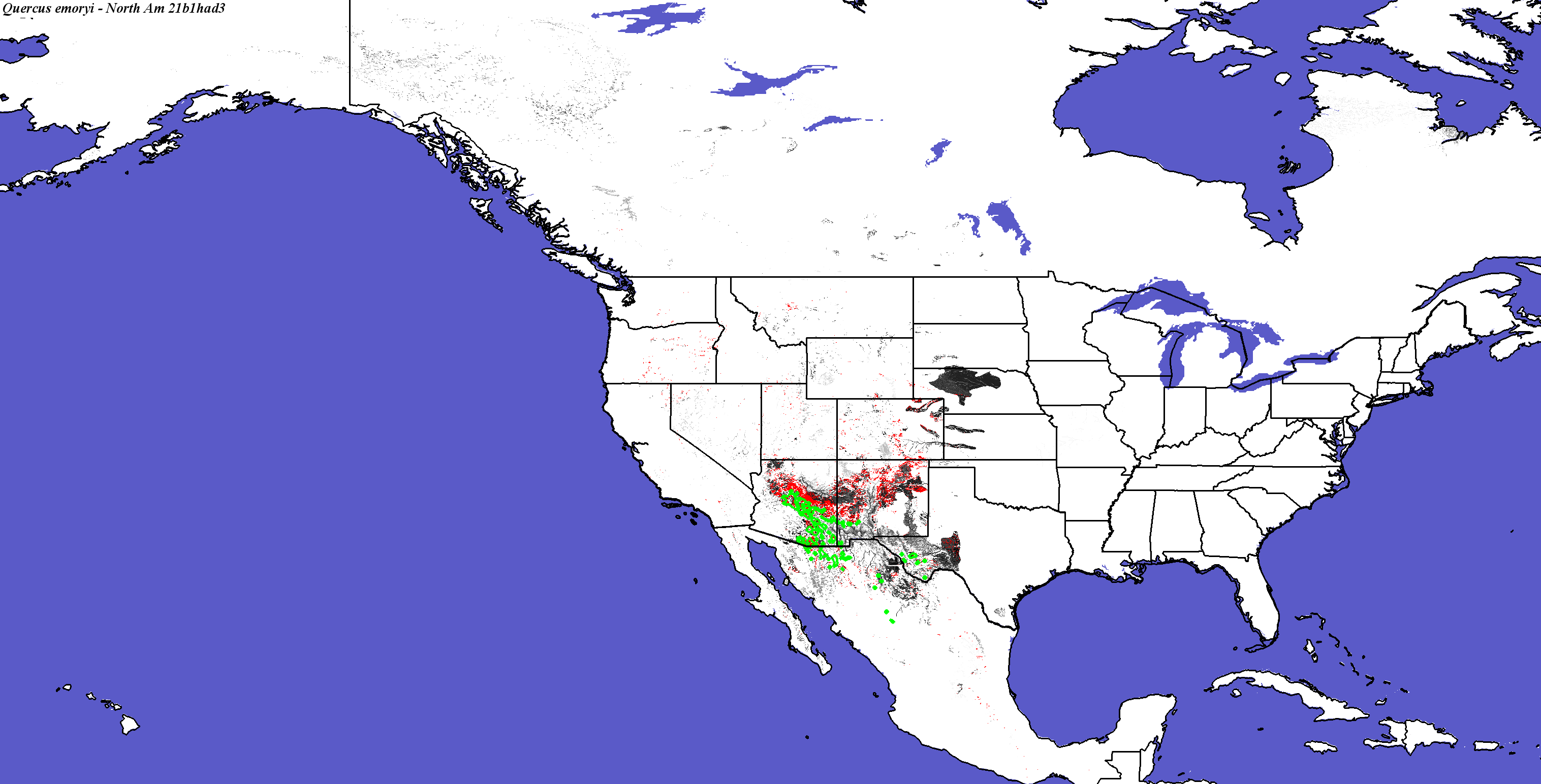

Hadley, Scenario B1, 2100 - Quercus emoryi - CONUS
Quercus emoryi not modeled by Iverson and Prasad
Compare with Quercus emoryi modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus emoryi - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_emoryi_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

51

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

37.9452

Area in Present Suitable Range (in km2)

273575

Area in Future Suitable Range (Had B1 2050, in km2)

192216

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

121495

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

44.4100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

61.3699

Percent Change in Area of Suitable Range (Had B1 2050)

-29.7300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

50.6849

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11530.5 +/- 16900

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

60.9589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.33641 +/- 15.41

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

47.9452

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

86.7569 +/- 424.747

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

47.6712

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

3801

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

1.3800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

48.4932

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

61716

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

22.5500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

61.9178

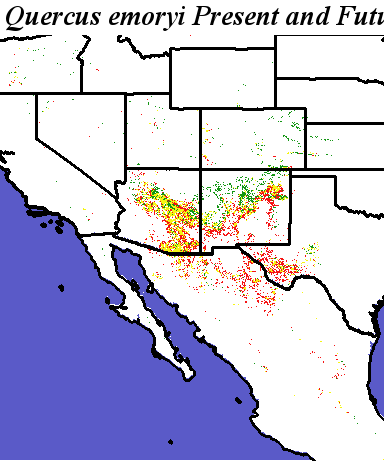

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus emoryi Quercus emoryi - Range Change Statistics

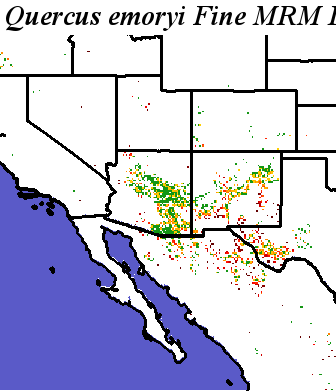

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_emoryi_final.noelev Fine MRM Distance

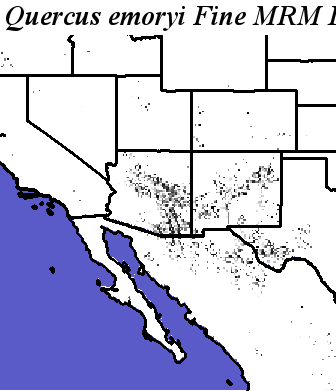

Quercus_emoryi_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus emoryi Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus emoryi

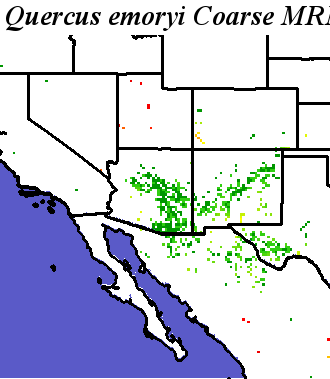

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_emoryi_final.noelev Coarse MRM Distance

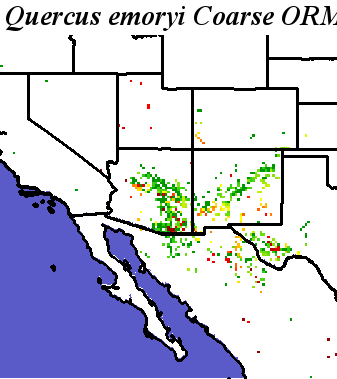

Quercus_emoryi_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus emoryi Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus emoryi

Thu Jul 21 10:06:02 EDT 2016
