Version 5 Tree Atlas


Quercus gambelii

Gambel oak

noelev

Quercus gambelii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus gambelii

USDA Plants Database entry for Quercus gambelii
Silvics Manual entry for Quercus gambelii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
17964582254range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_gambelii_final Occurrences

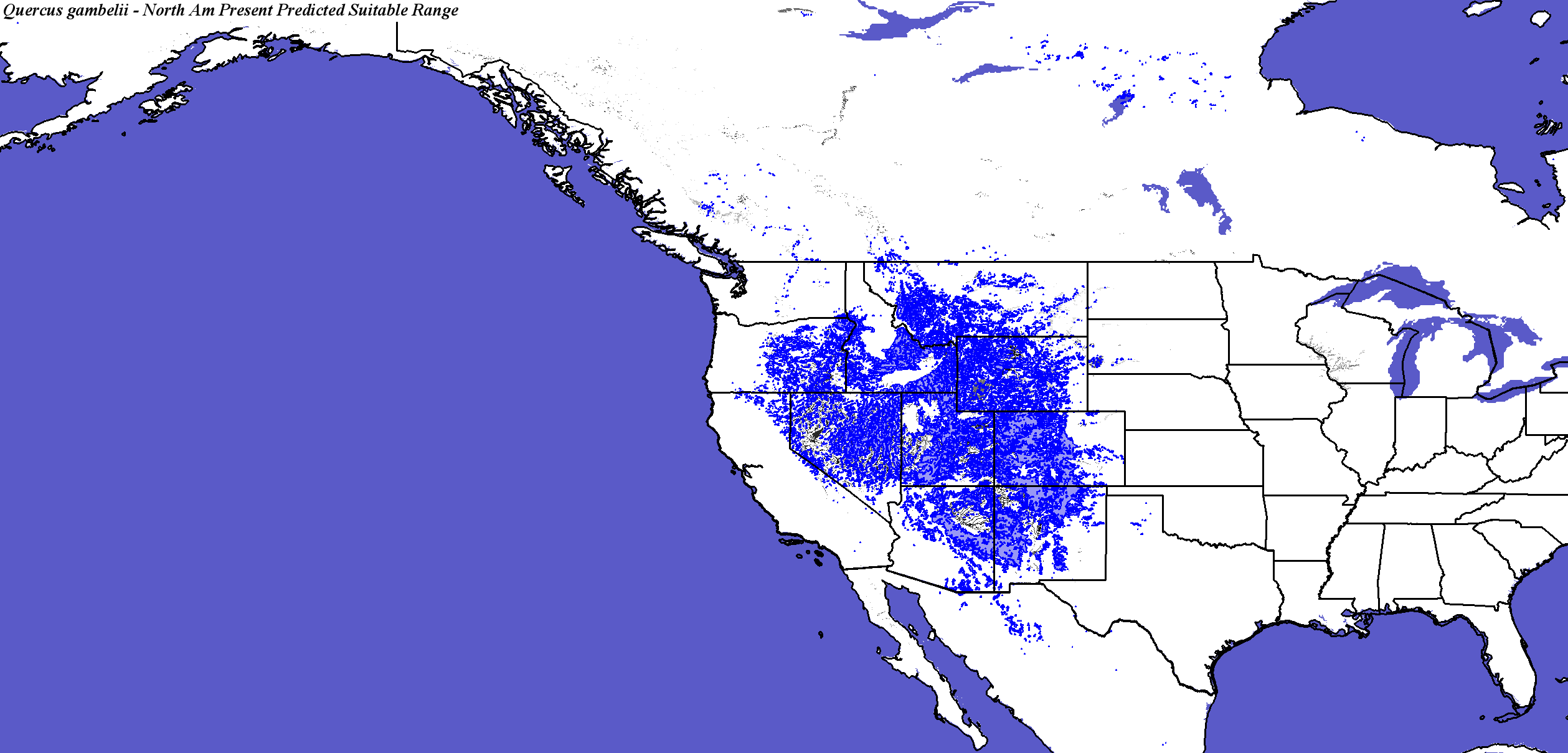

Hargroves Present Suitable Range Outline for Quercus_gambelii_final
Quercus gambelii - Occurrence Locations Quercus gambelii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

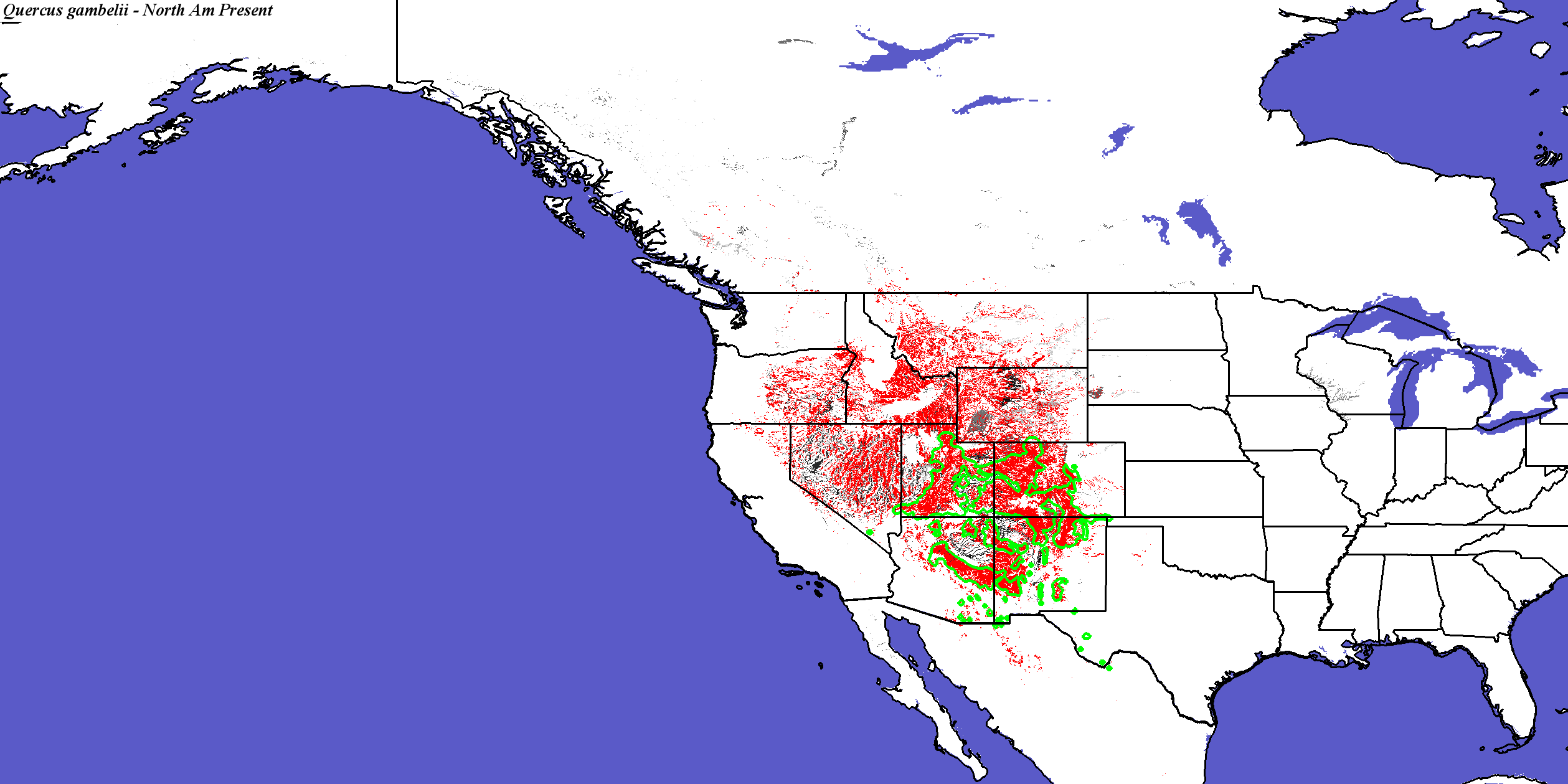

Quercus gambelii - CONUS
Compare with Current Range from the Silvics Manual for Quercus gambelii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus gambelii

Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Current conditions by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring

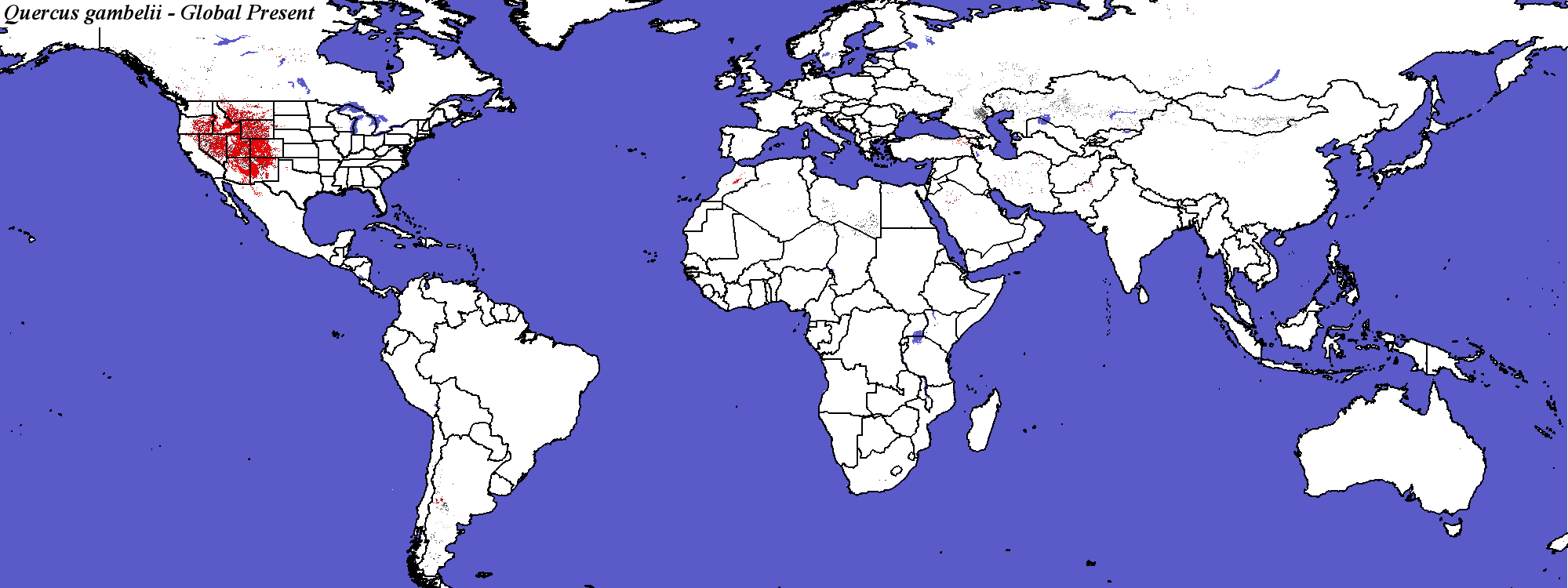

Quercus gambelii - Global

PCM - Parallel Climate Model
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

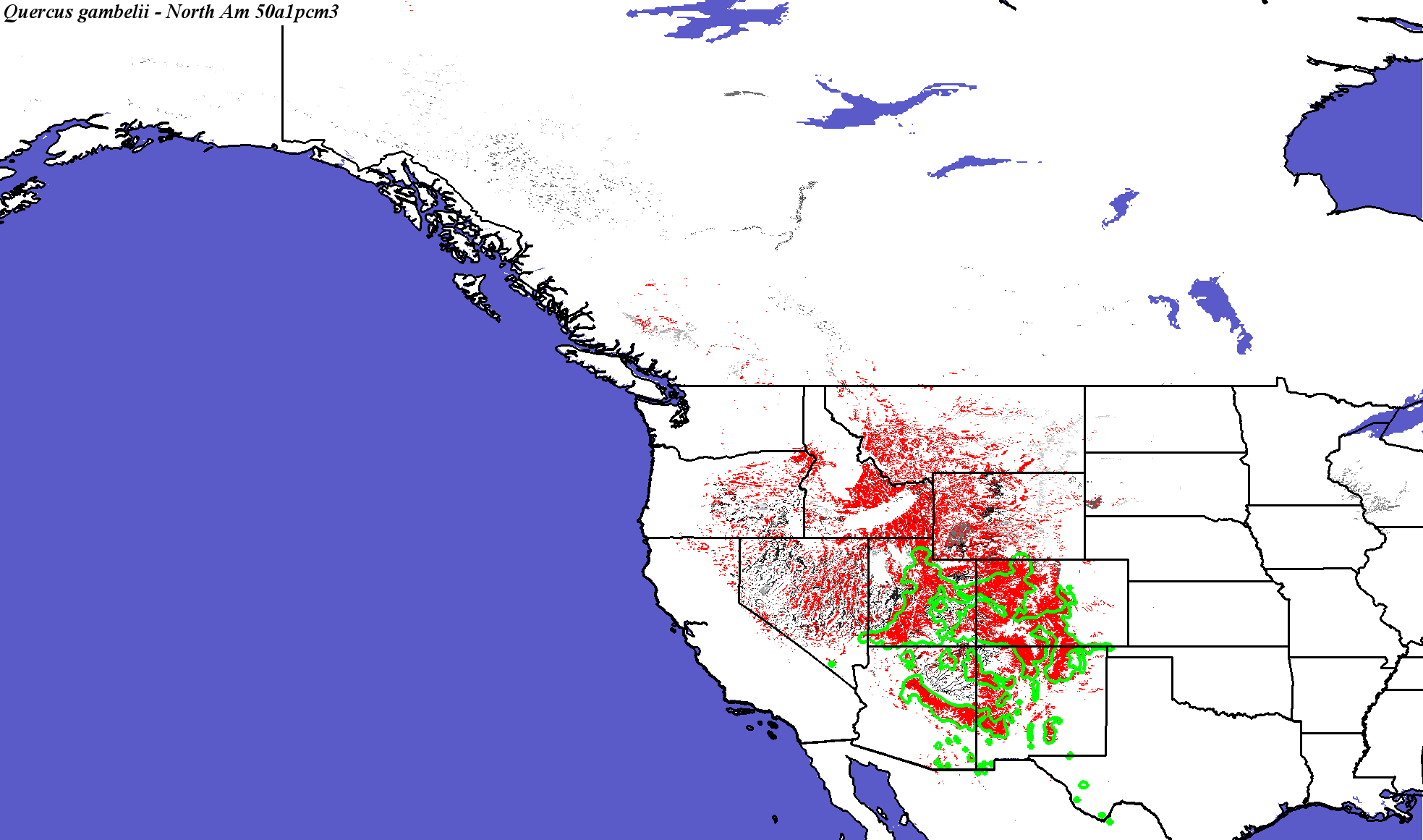

PCM, Scenario A1FI, 2050 - Quercus gambelii - CONUS
PCM, Scenario A1FI, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

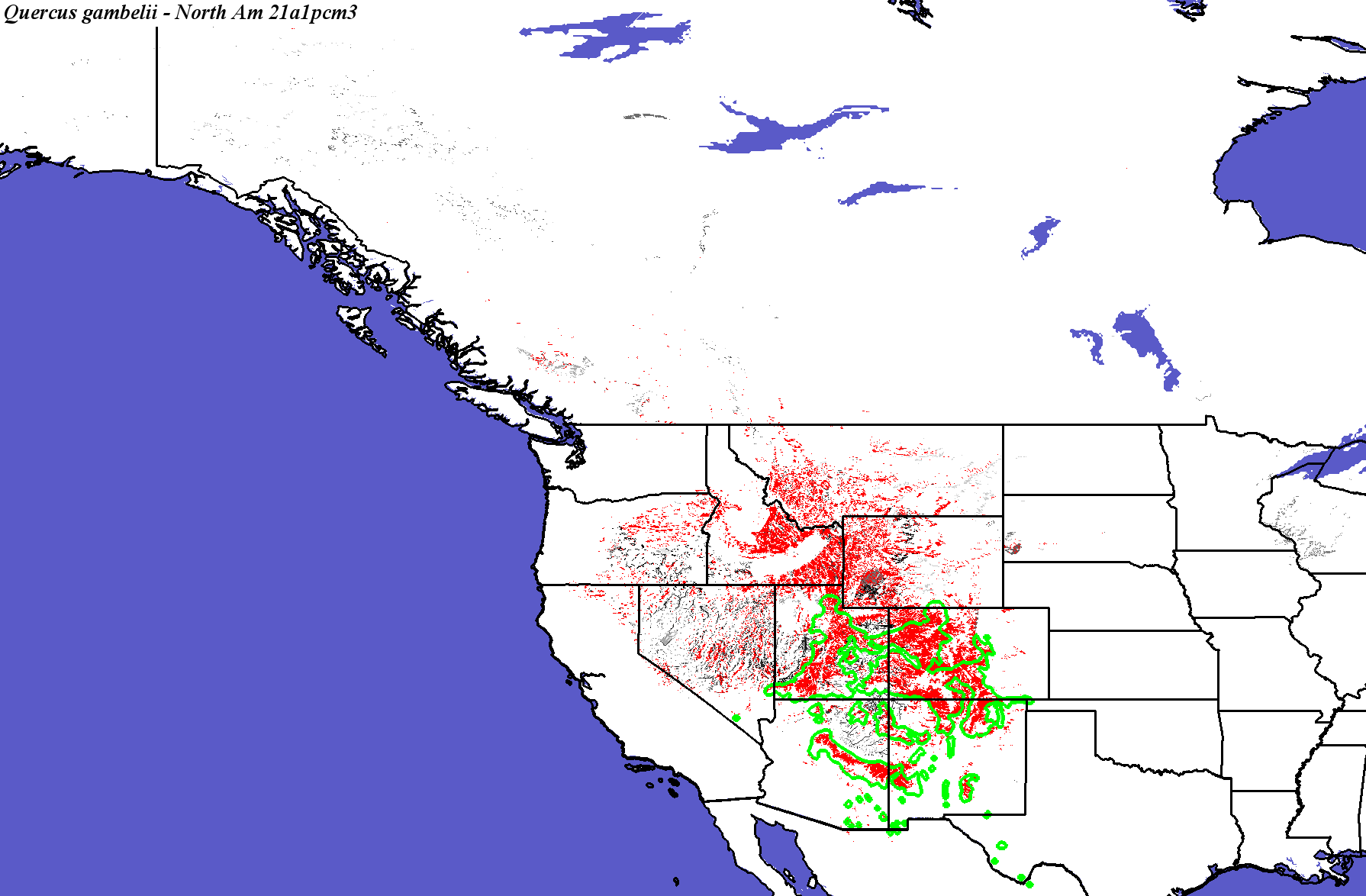

PCM, Scenario A1FI, 2100 - Quercus gambelii - CONUS
Quercus gambelii species not modeled by Iverson and Prasad

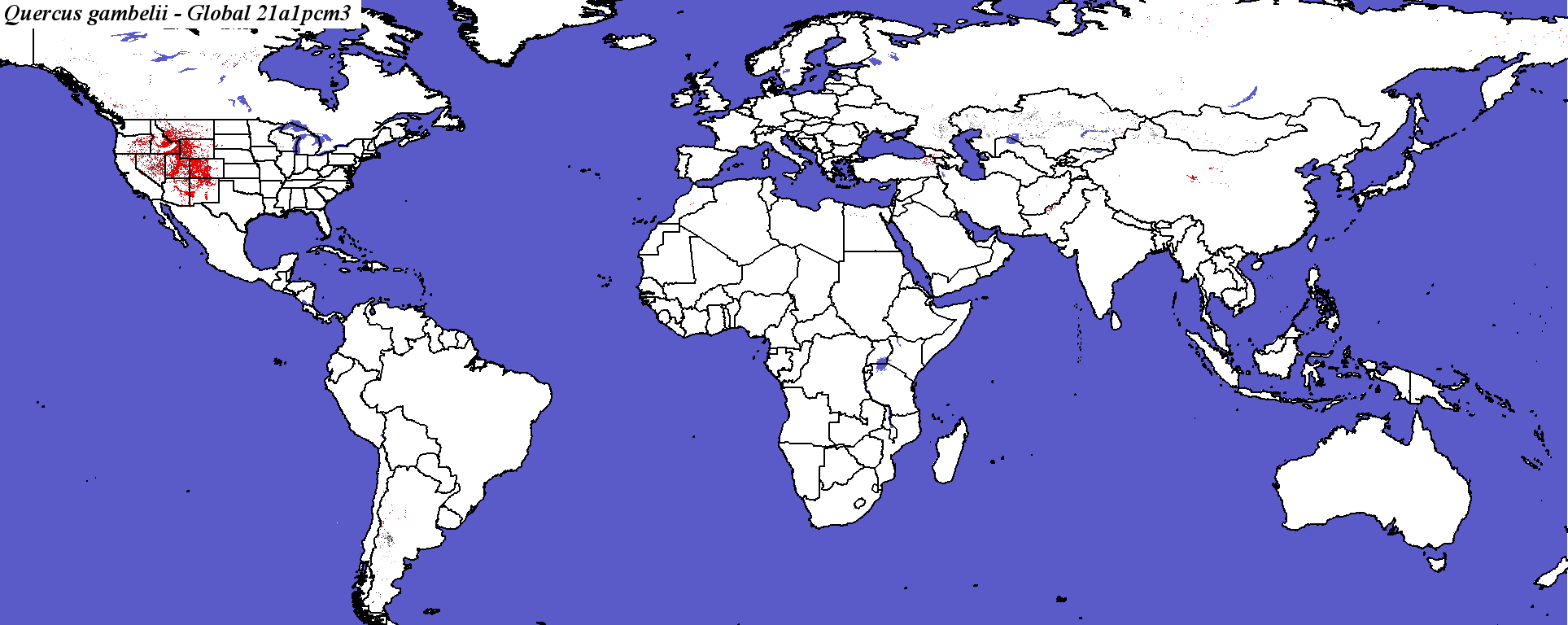

PCM, Scenario A1FI, 2100 - Quercus gambelii - Global

Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

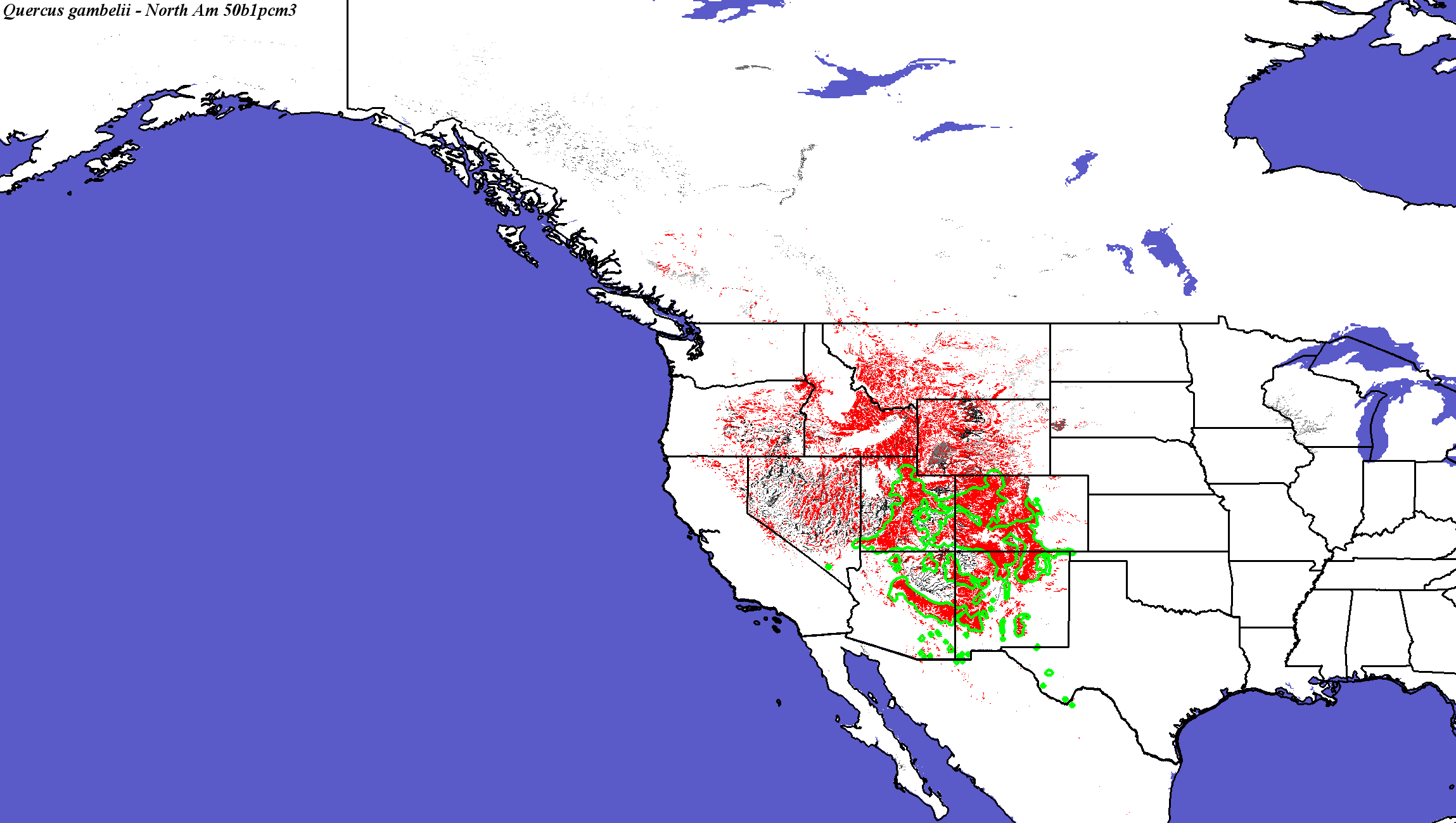

PCM, Scenario B1, 2050 - Quercus gambelii - CONUS

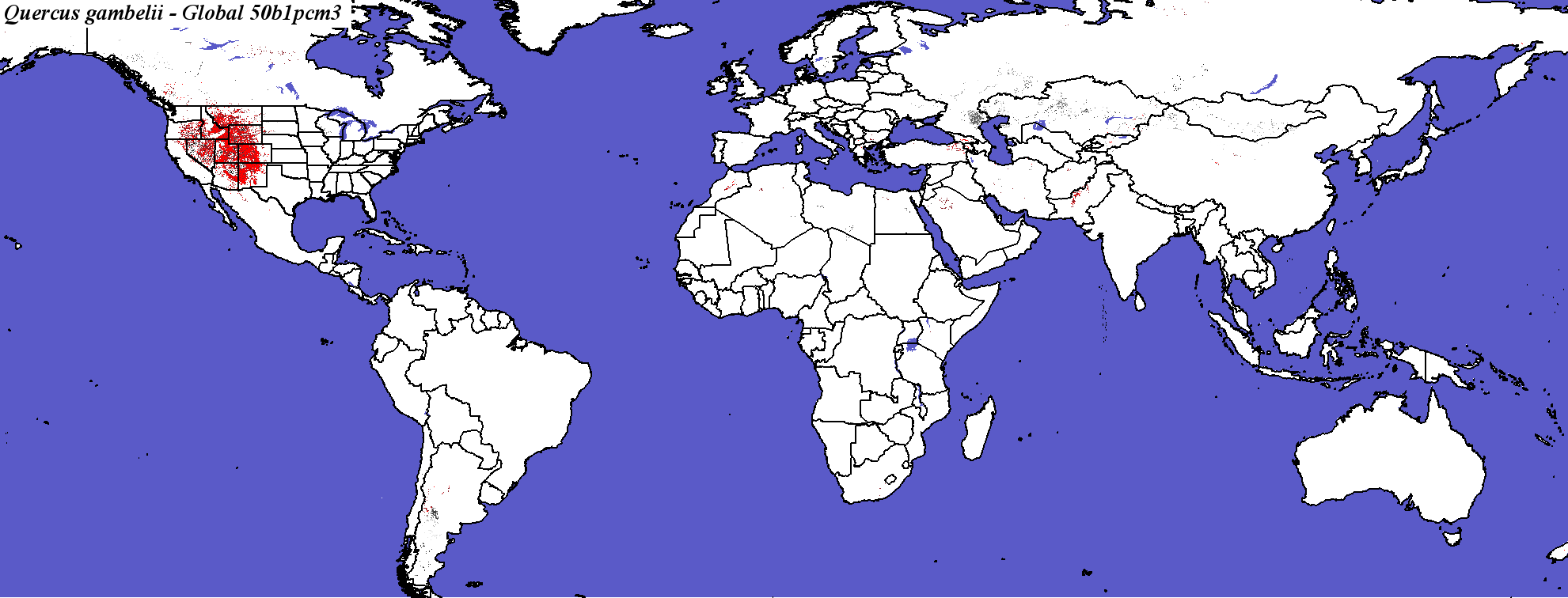

PCM, Scenario B1, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

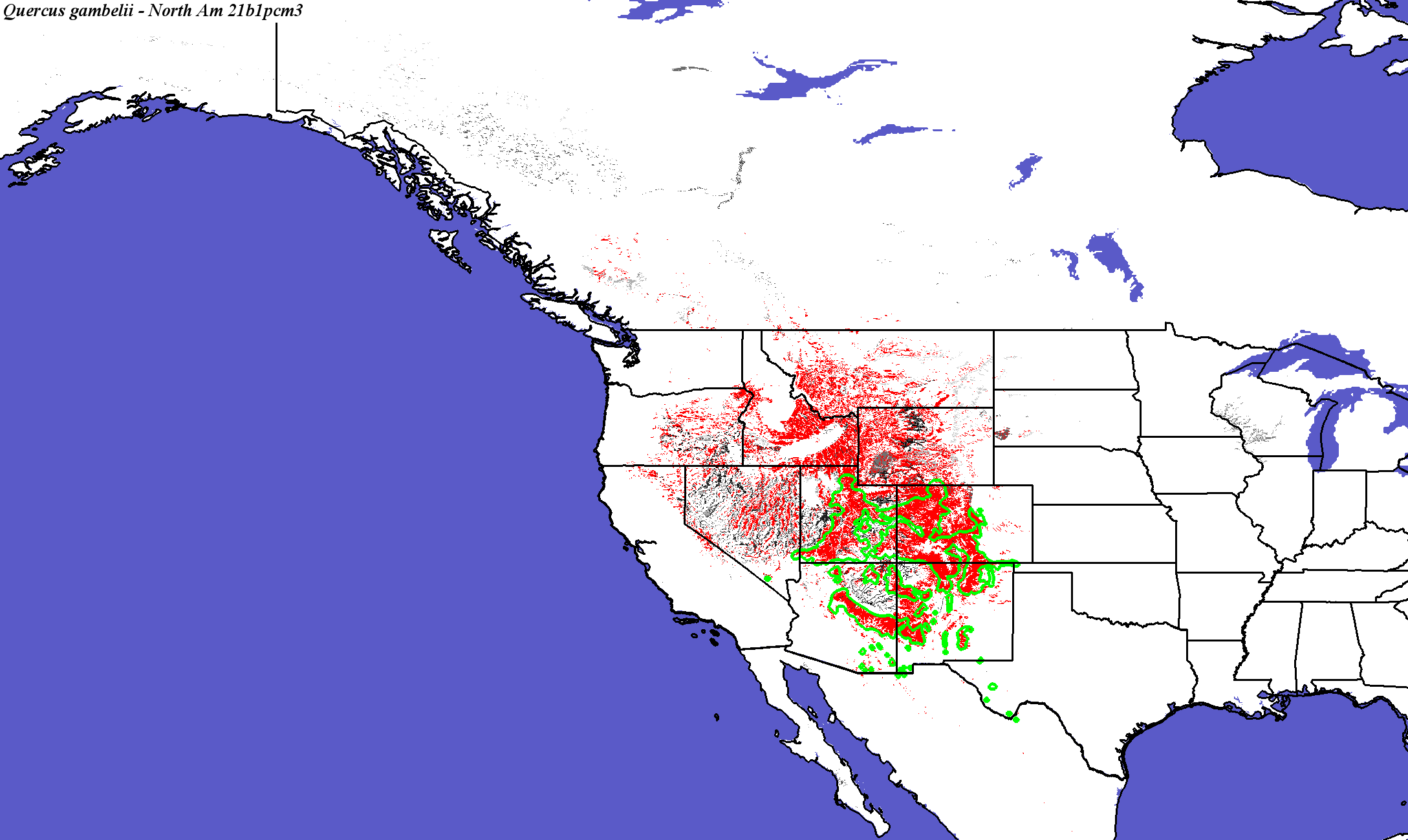

PCM, Scenario B1, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus gambelii - Global

Hadley Climate Model
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

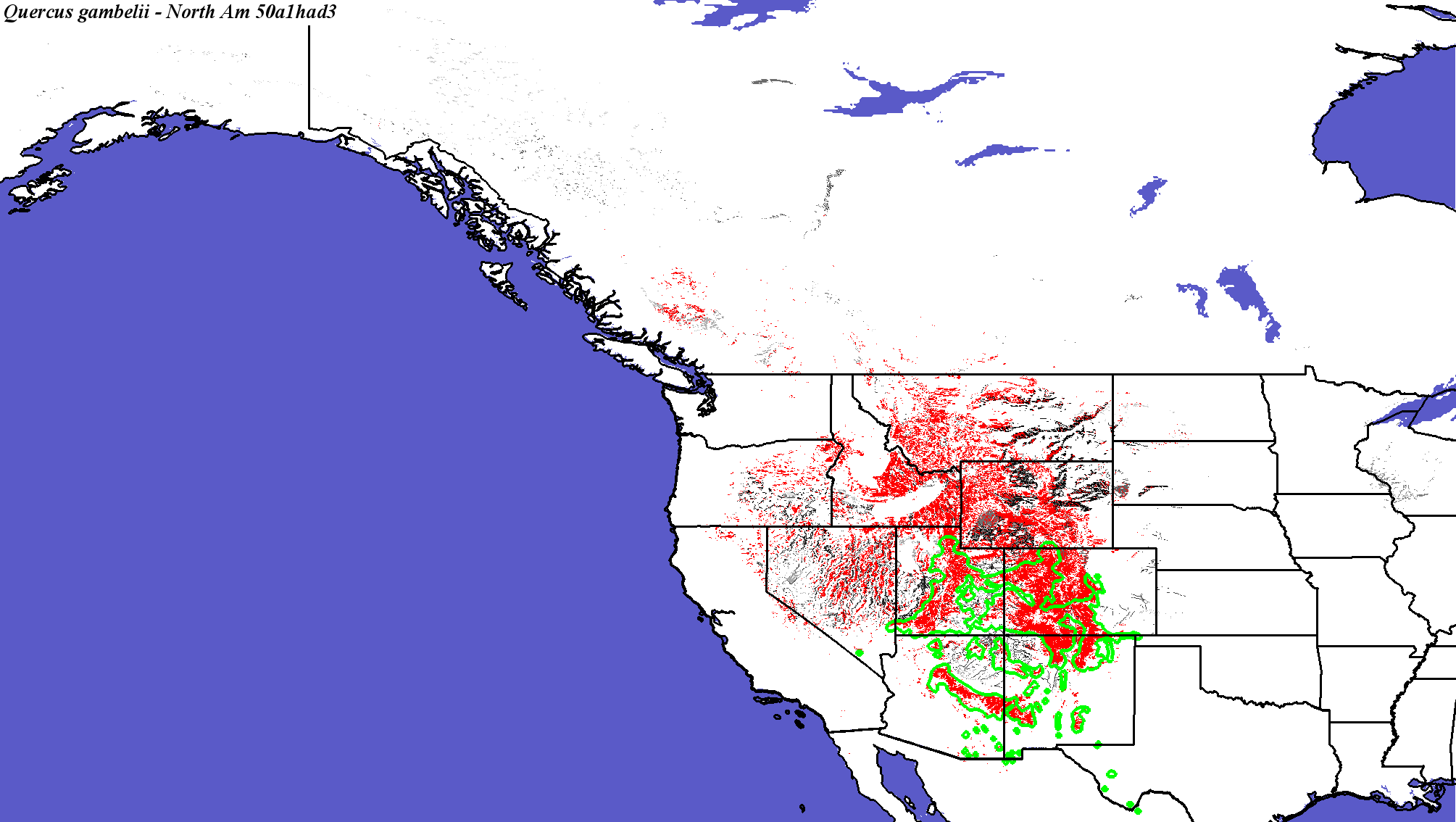

Hadley, Scenario A1FI, 2050 - Quercus gambelii - CONUS
Compare with Quercus gambelii modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

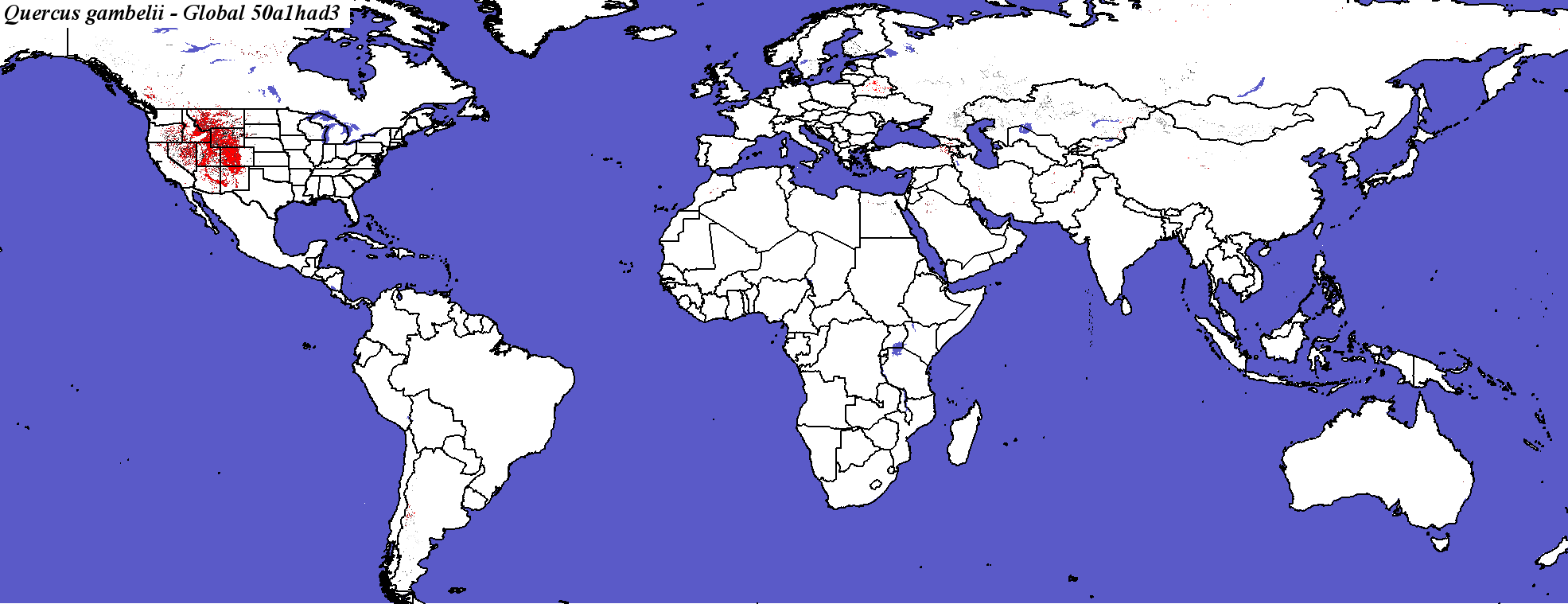

Hadley, Scenario A1FI, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global.

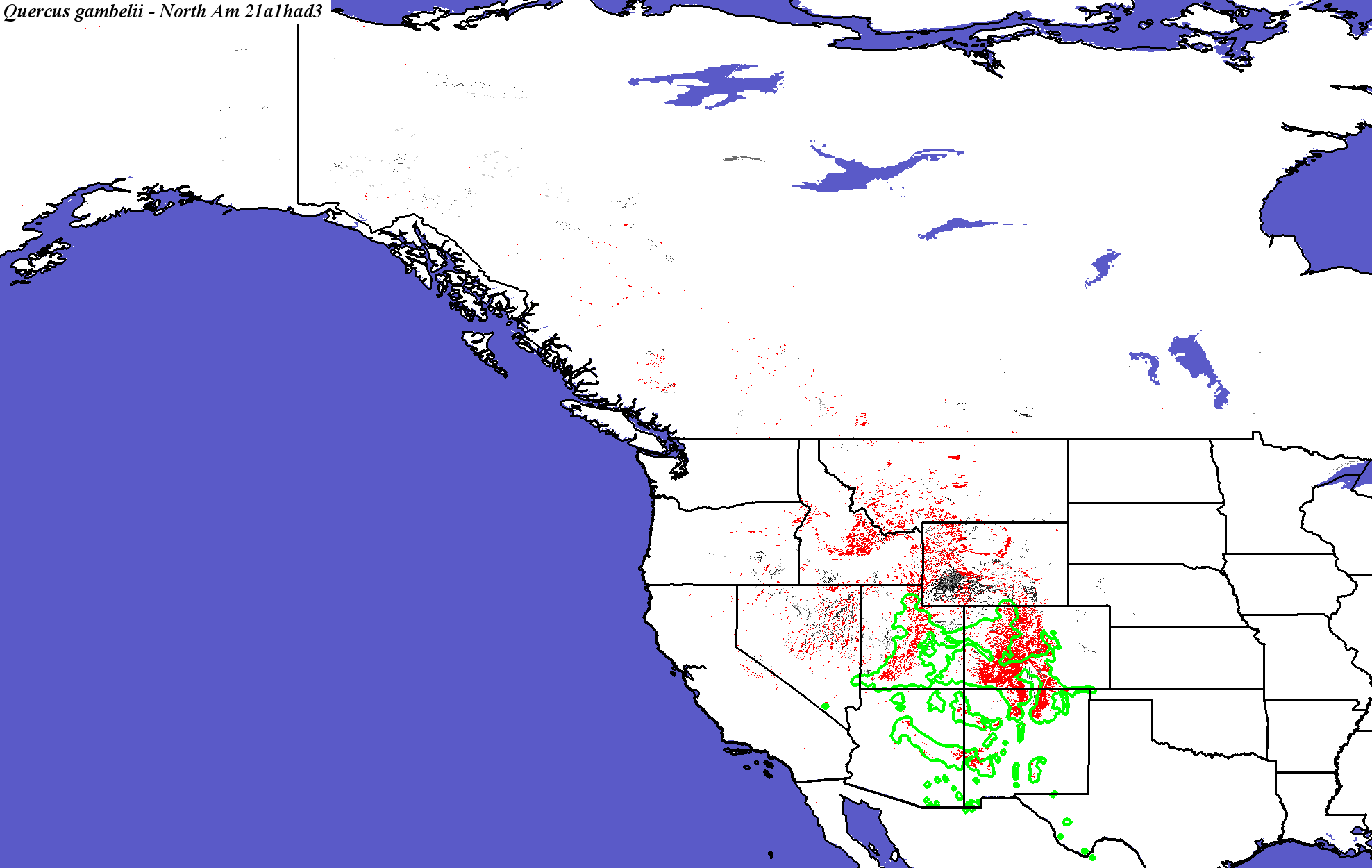

Hadley, Scenario A1FI, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring

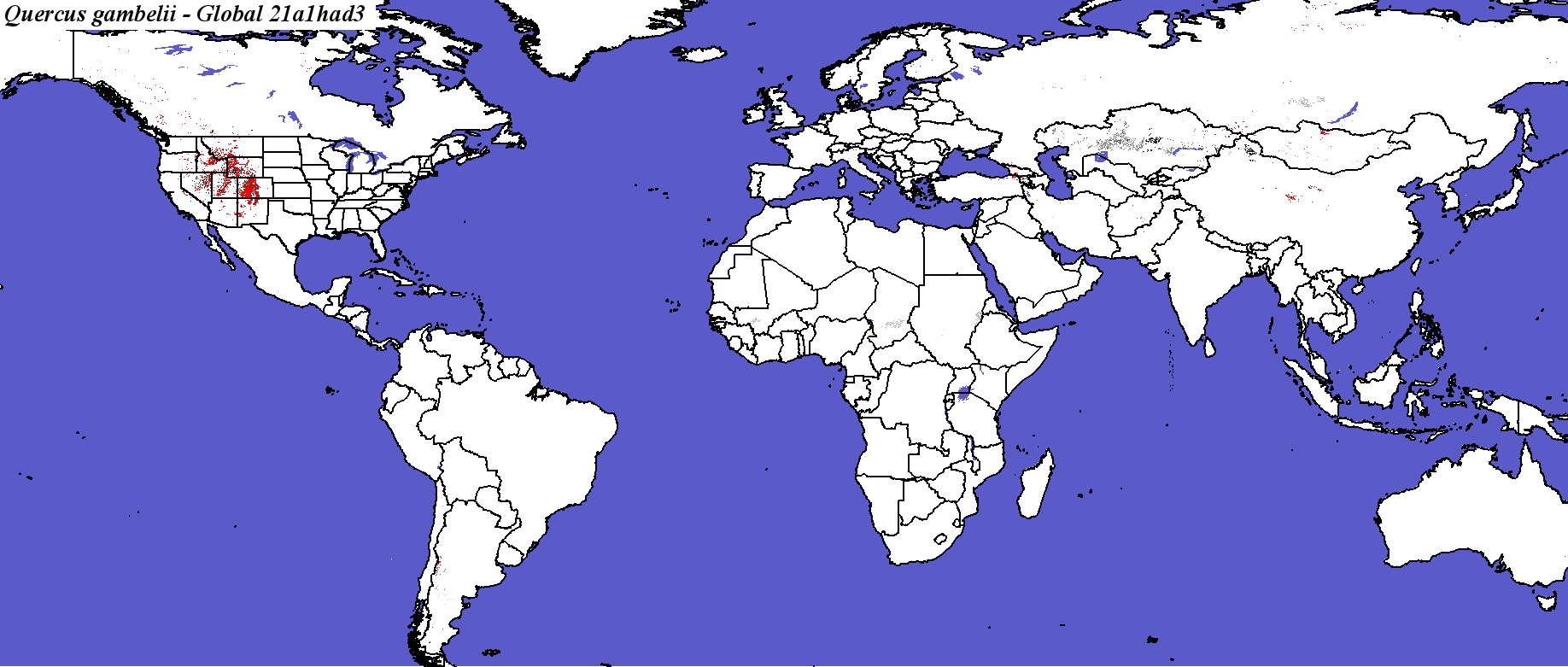

Hadley, Scenario A1FI, 2100 - Quercus gambelii - Global

Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global.

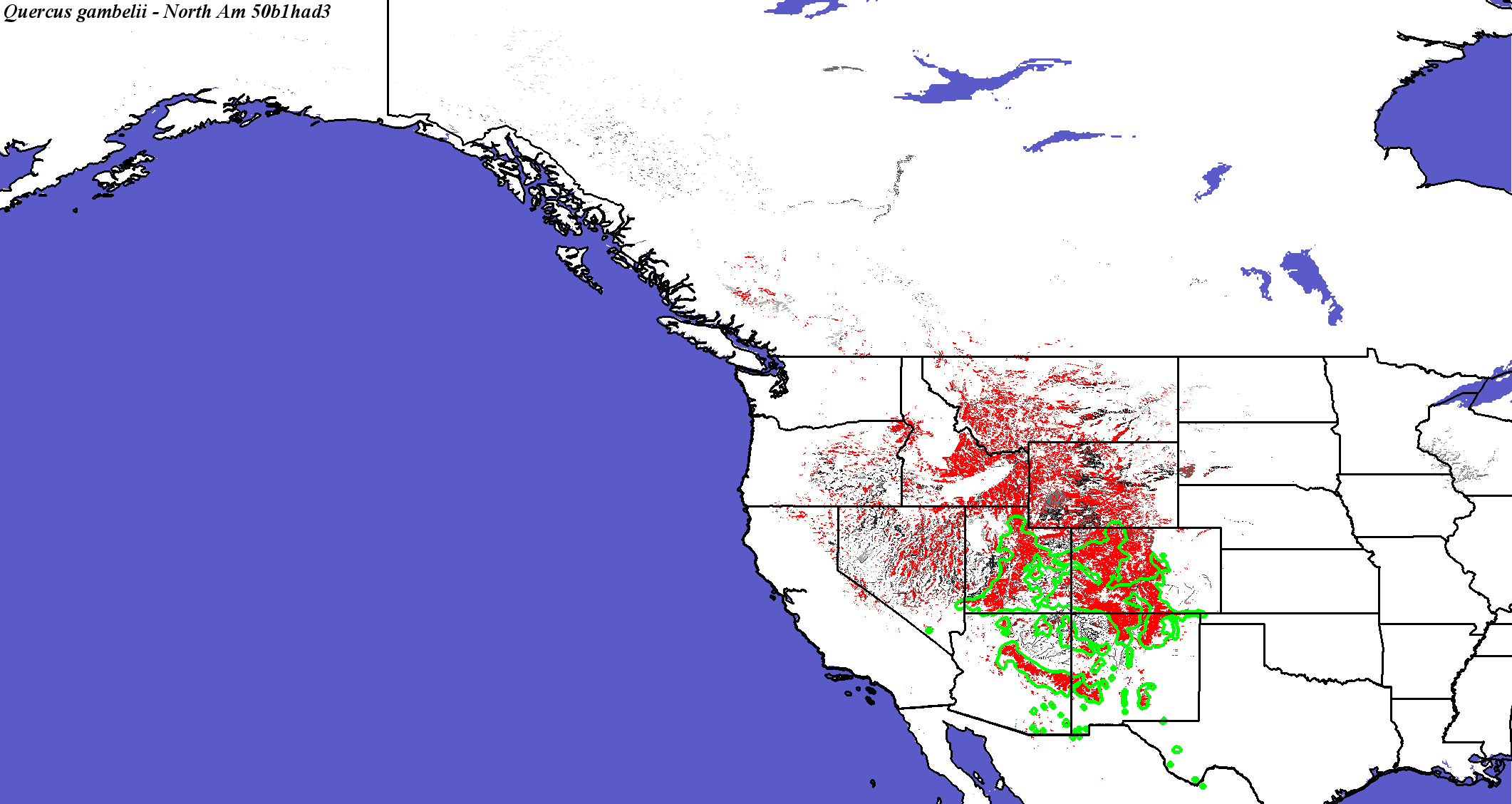

Hadley, Scenario B1, 2050 - Quercus gambelii - CONUS
Compare with Quercus gambelii modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring

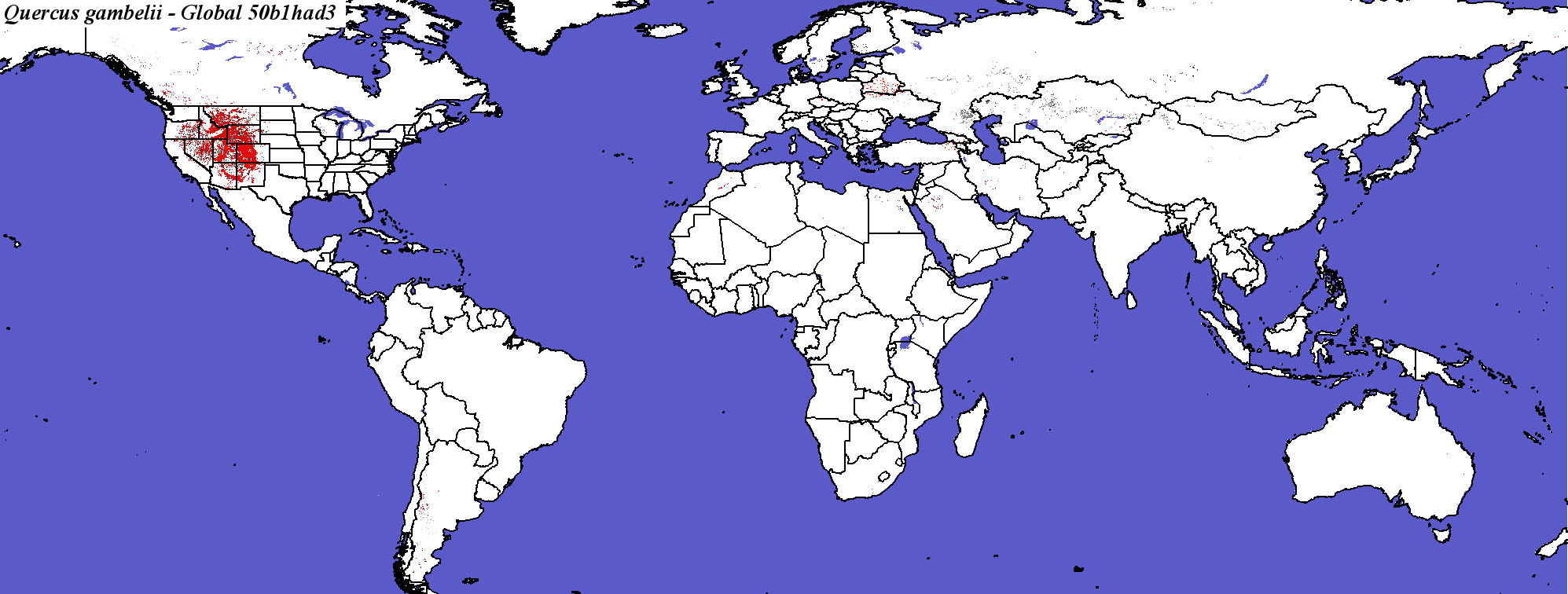

Hadley, Scenario B1, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

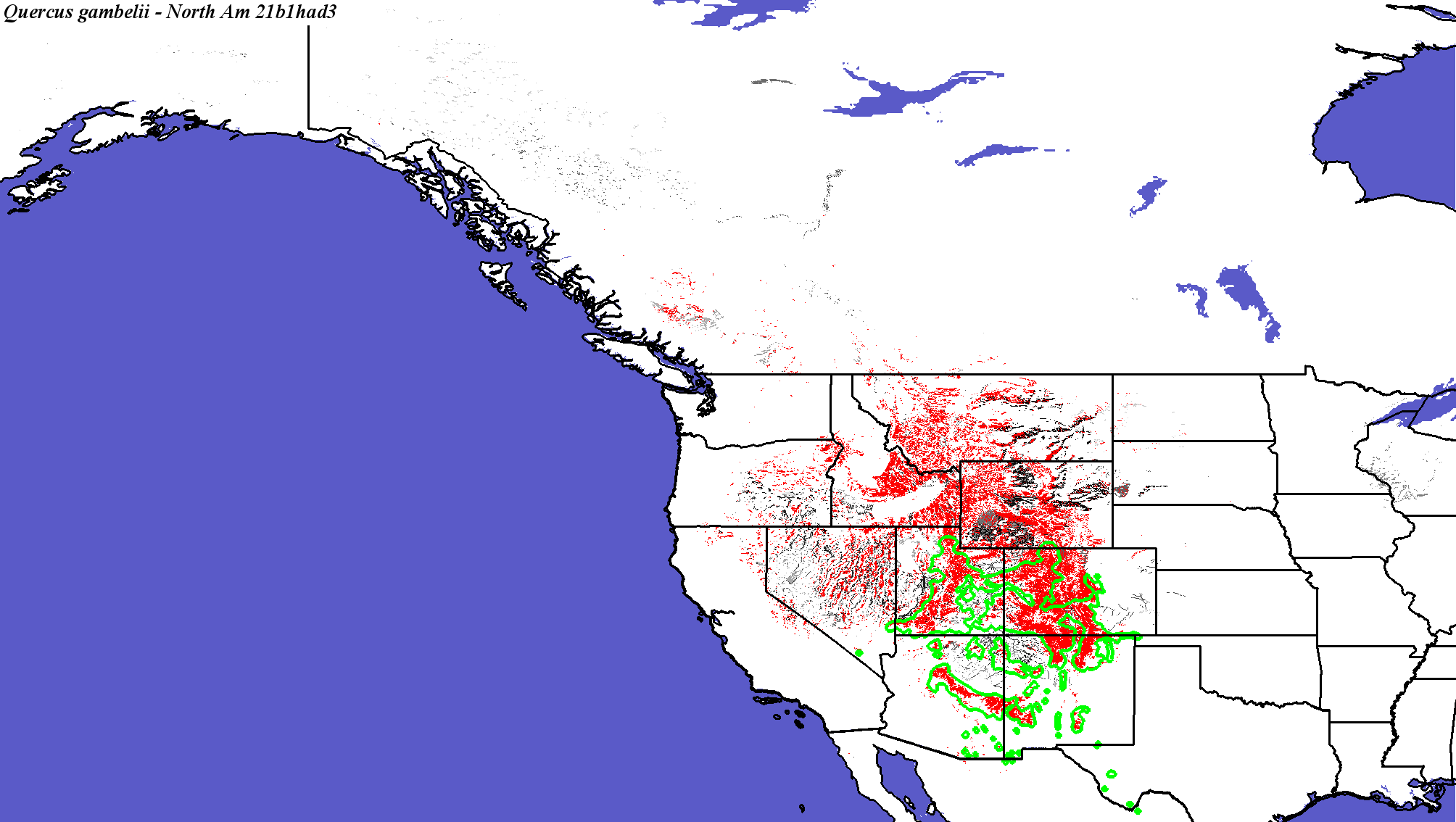

Hadley, Scenario B1, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

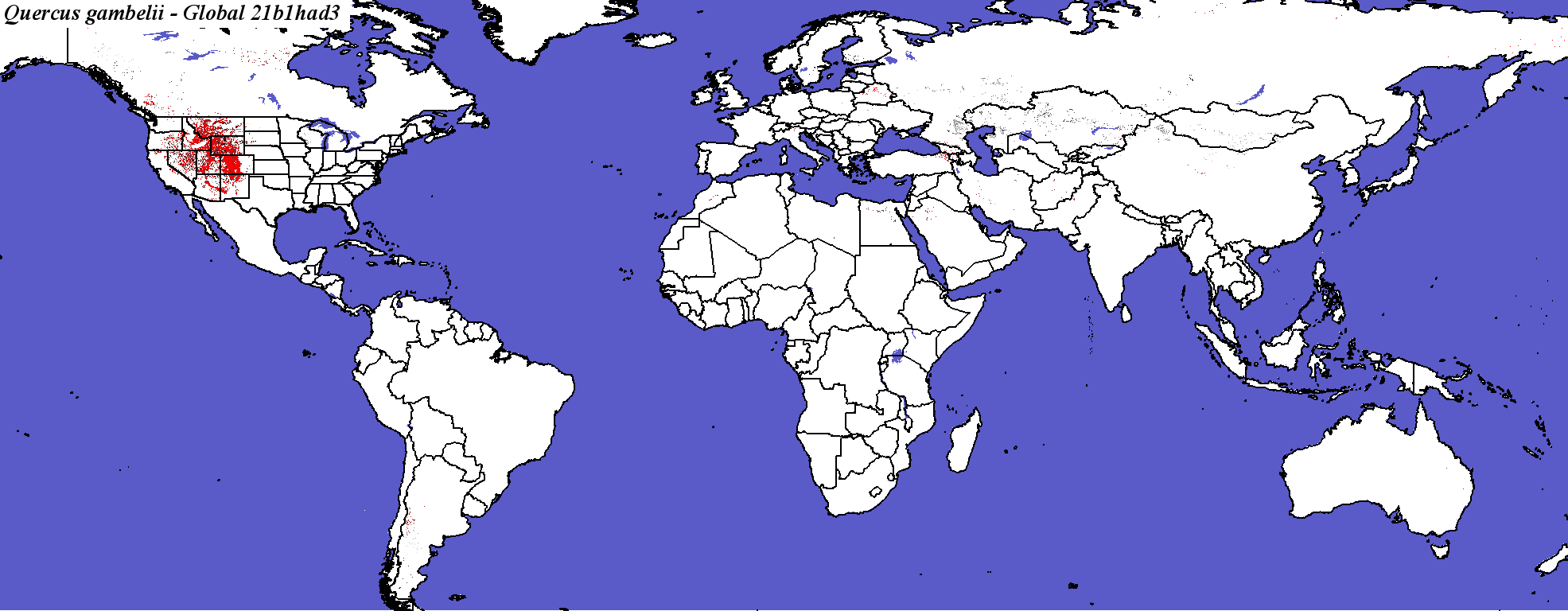

Hadley, Scenario B1, 2100 - Quercus gambelii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_gambelii_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

136

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

14.2466

Area in Present Suitable Range (in km2)

703088

Area in Future Suitable Range (Had B1 2050, in km2)

544994

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

434828

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

61.8400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

21.6438

Percent Change in Area of Suitable Range (Had B1 2050)

-22.4800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

37.1233

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

6667.04 +/- 18428.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

83.2877

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.48608 +/- 10.1216

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

79.589

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

25.7113 +/- 44.7839

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

77.1233

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

77.3973

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

317094

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

45.1000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

12.7397

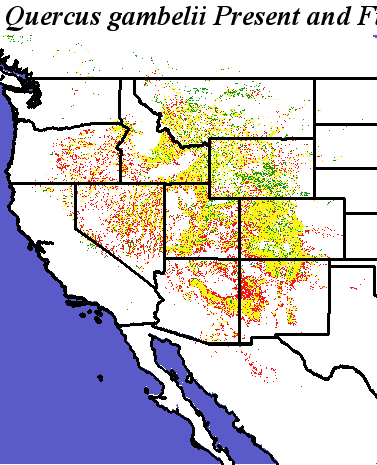

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus gambelii Quercus gambelii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

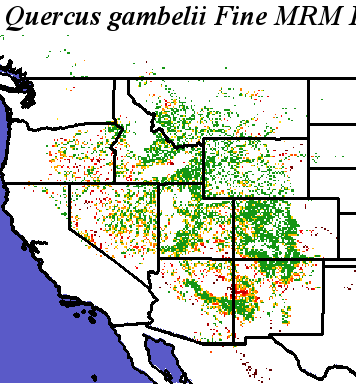

Quercus_gambelii_final.noelev Fine MRM Distance

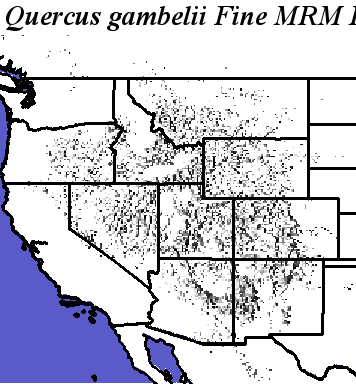

Quercus_gambelii_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus gambelii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

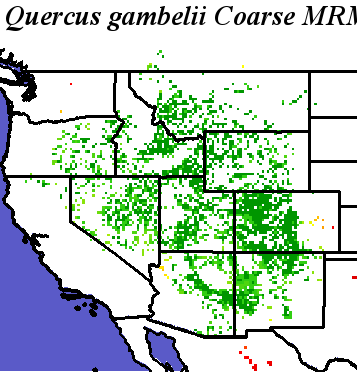

Quercus_gambelii_final.noelev Coarse MRM Distance
Quercus_gambelii_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii
