Version 5 Tree Atlas


Quercus ilicifolia

scrub oak

noelev

Quercus ilicifolia Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus ilicifolia

USDA Plants Database entry for Quercus ilicifolia
Silvics Manual entry for Quercus ilicifolia


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
5277129some parts of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_ilicifolia_final Occurrences

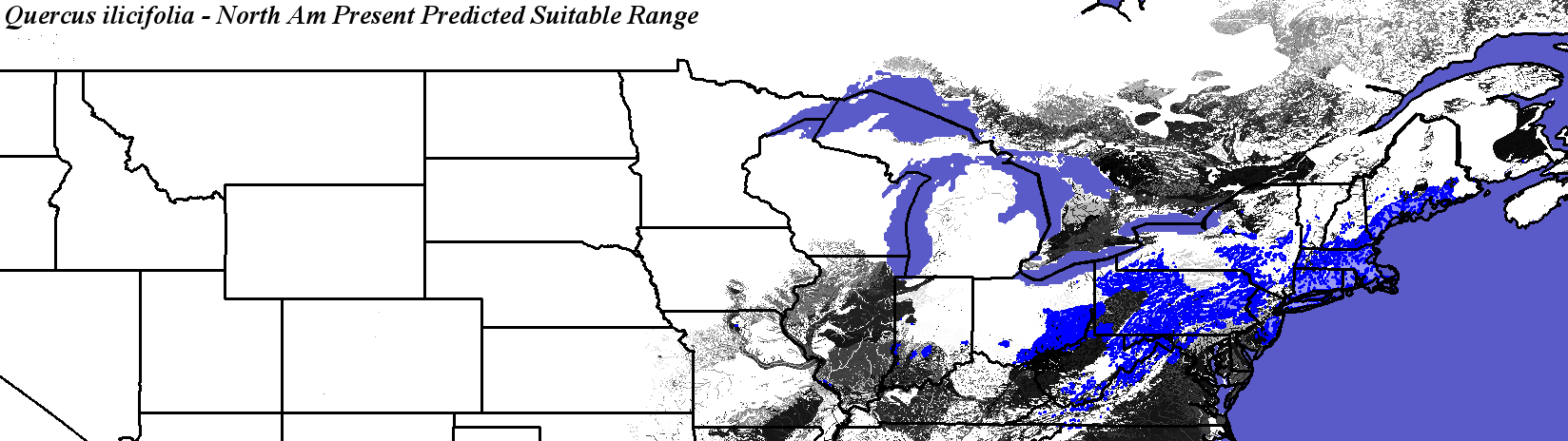

Hargroves Present Suitable Range Outline for Quercus_ilicifolia_final
Quercus ilicifolia - Occurrence Locations Quercus ilicifolia - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global

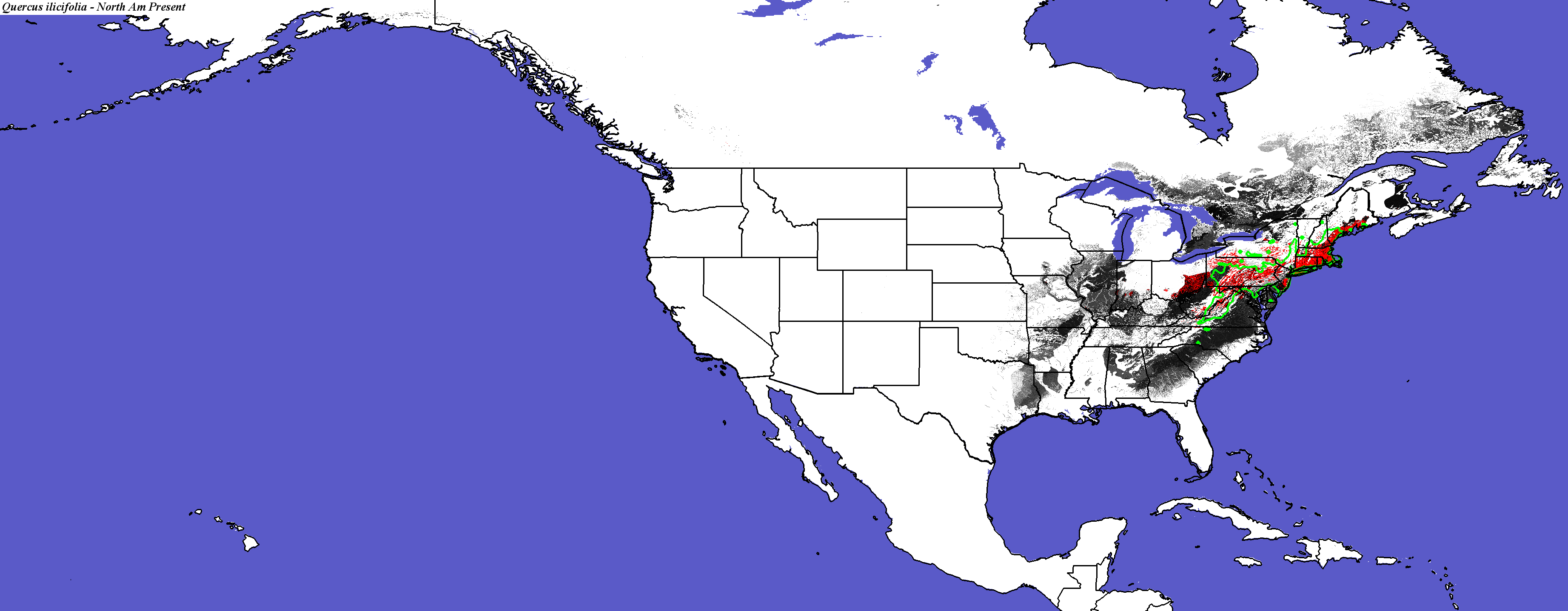

Quercus ilicifolia - CONUS
Compare with Current Range from the Silvics Manual for Quercus ilicifolia
Compare with Current Range from Biota of North America Program (BONAP) for Quercus ilicifolia

Compare with Quercus ilicifolia modeled for Current conditions by Iverson and Prasad
Quercus ilicifolia not modeled by Crookston and Rehfeldt
Quercus ilicifolia not modeled by Coops and Waring
Quercus ilicifolia - Global

PCM - Parallel Climate Model
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global

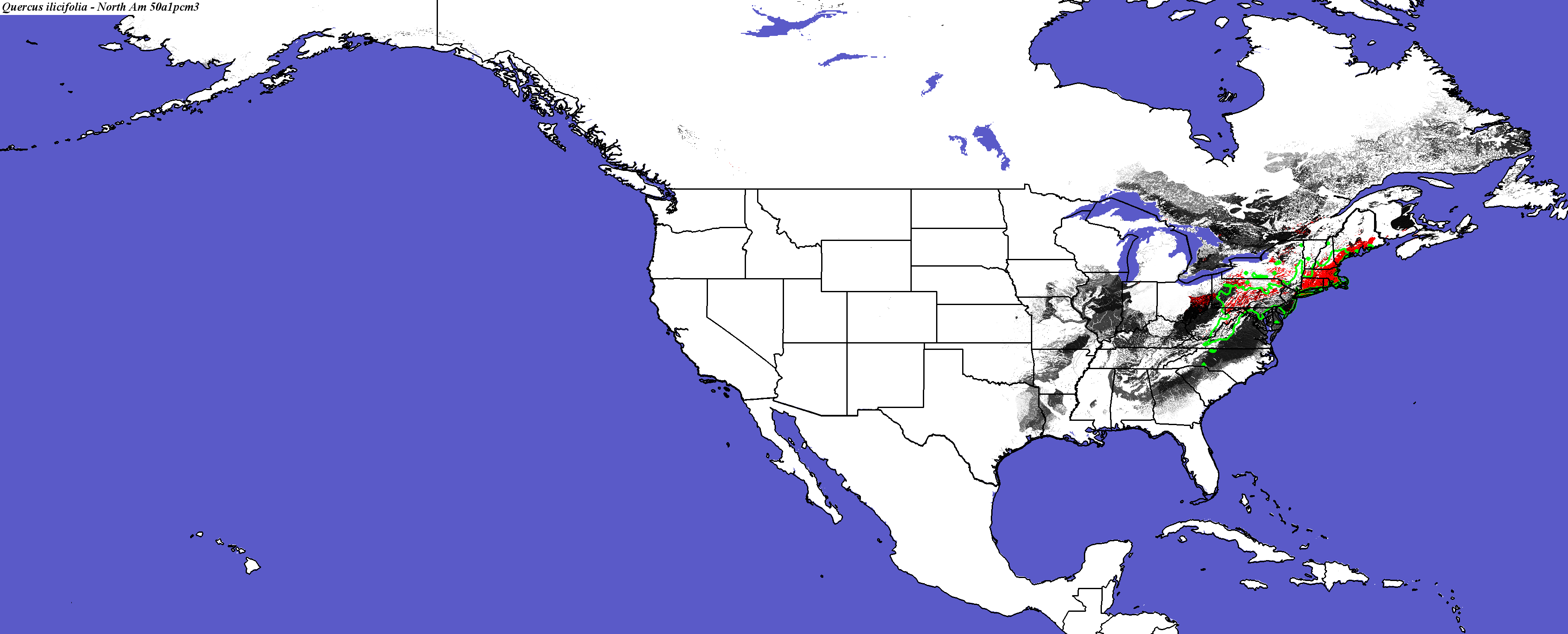

PCM, Scenario A1FI, 2050 - Quercus ilicifolia - CONUS

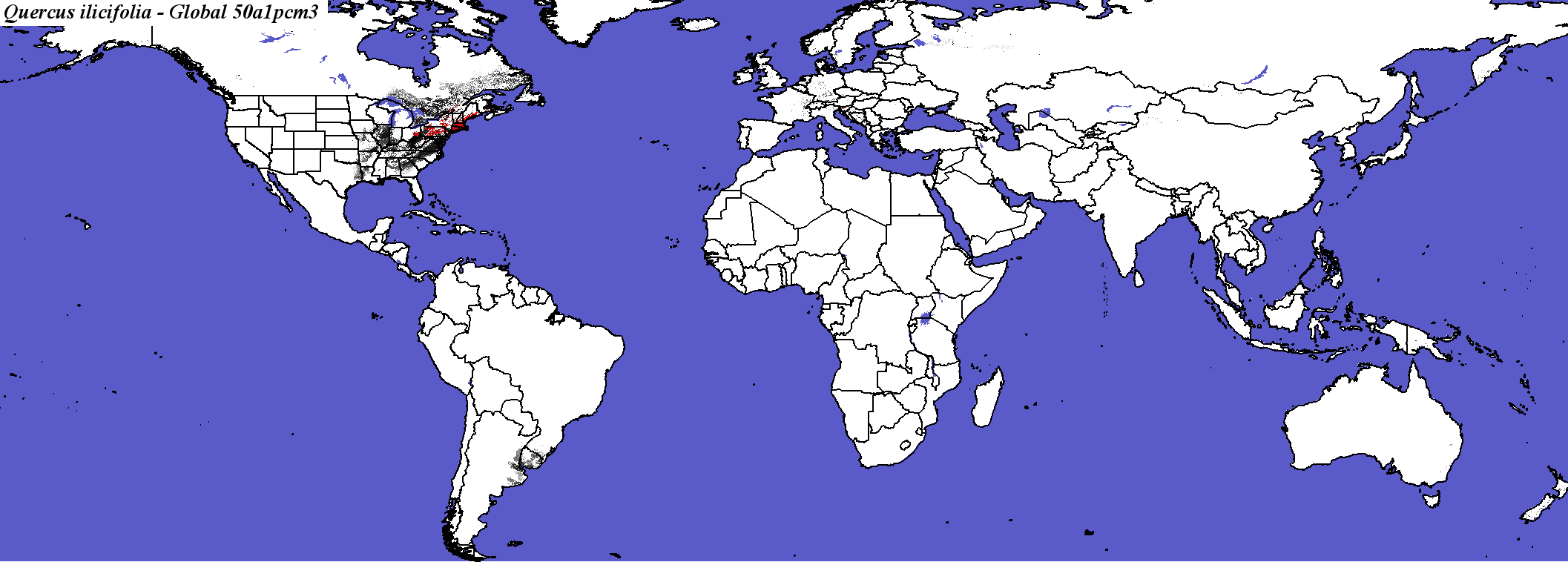

PCM, Scenario A1FI, 2050 - Quercus ilicifolia - Global
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global
PCM, Scenario A1FI, 2100 - Quercus ilicifolia - CONUS
Compare with Quercus ilicifolia modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus ilicifolia - Global

Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global
PCM, Scenario B1, 2050 - Quercus ilicifolia - CONUS

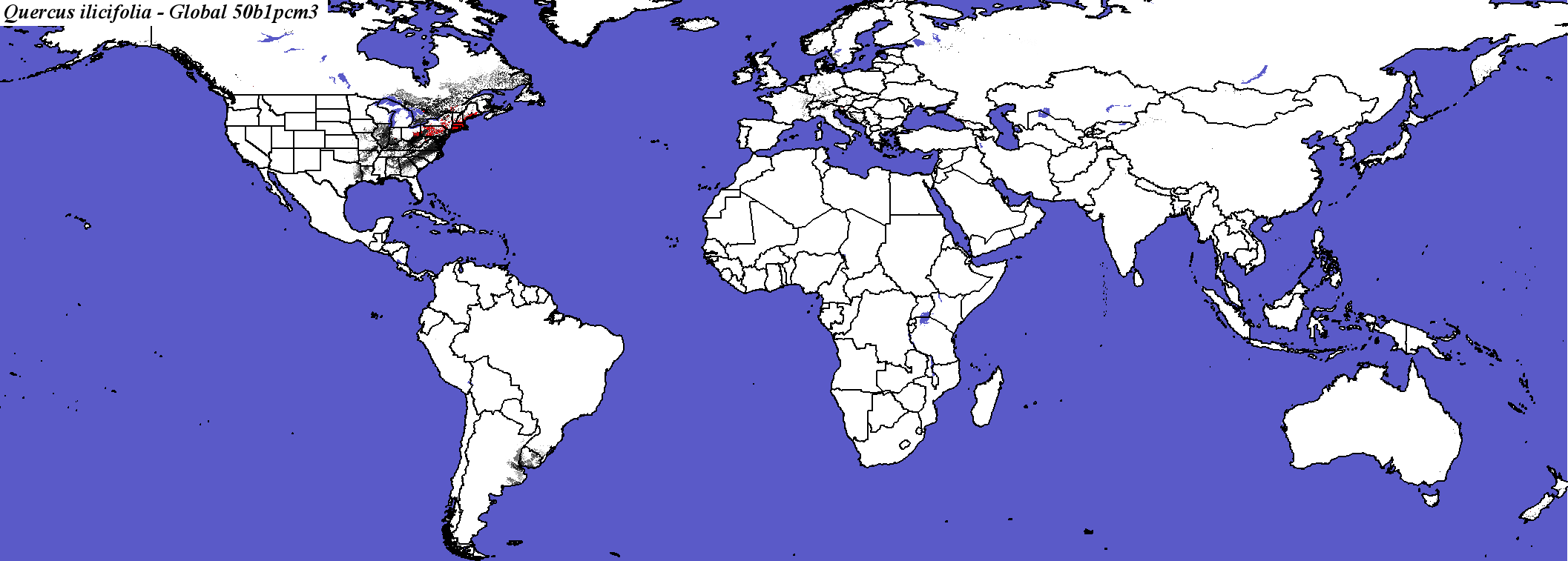

PCM, Scenario B1, 2050 - Quercus ilicifolia - Global
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global
PCM, Scenario B1, 2100 - Quercus ilicifolia - CONUS
Compare with Quercus ilicifolia modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus ilicifolia - Global

Hadley Climate Model
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus ilicifolia - CONUS
Quercus ilicifolia not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus ilicifolia - Global
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus ilicifolia - CONUS
Compare with Quercus ilicifolia modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus ilicifolia not modeled by Crookston and Rehfeldt
Quercus ilicifolia not modeled by Coops and Waring

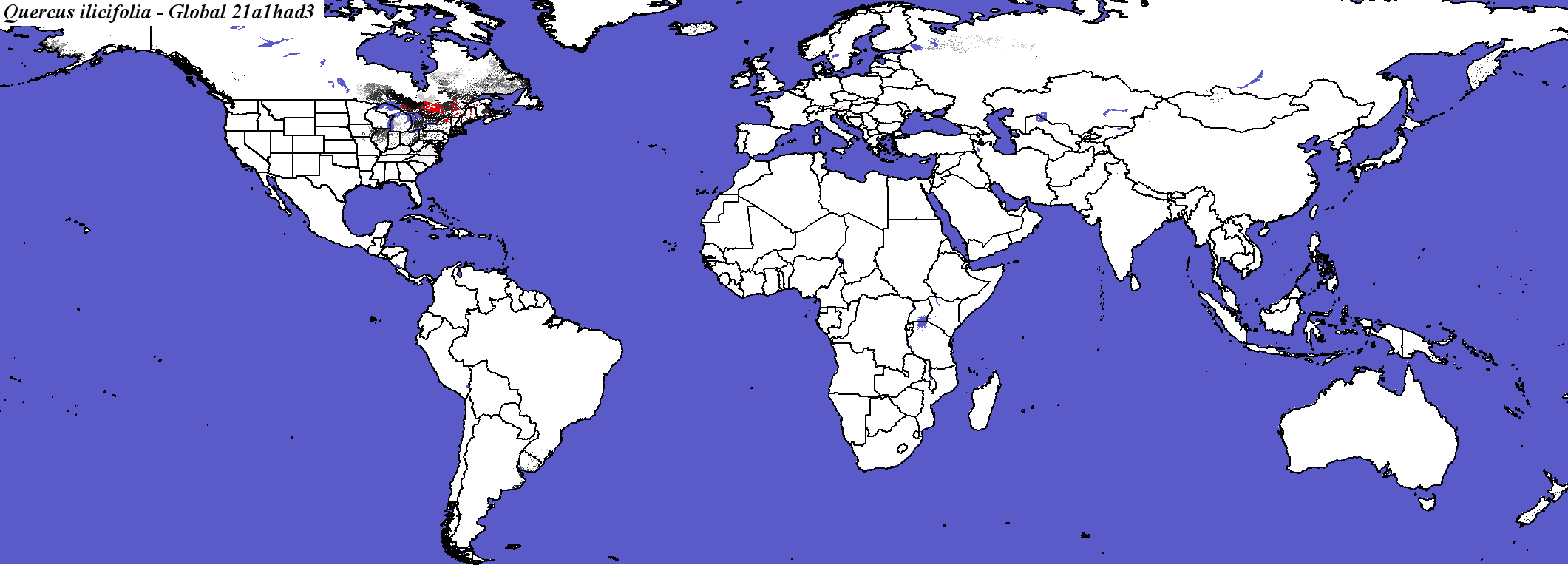

Hadley, Scenario A1FI, 2100 - Quercus ilicifolia - Global

Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global.
Hadley, Scenario B1, 2050 - Quercus ilicifolia - CONUS
Quercus ilicifolia not modeled by Crookston and Rehfeldt
Quercus ilicifolia not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus ilicifolia - Global
Quercus_ilicifolia_final.3.conus
Quercus_ilicifolia_final.3.global
Hadley, Scenario B1, 2100 - Quercus ilicifolia - CONUS
Compare with Quercus ilicifolia modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus ilicifolia not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus ilicifolia - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_ilicifolia_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

18

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

66.3014

Area in Present Suitable Range (in km2)

115874

Area in Future Suitable Range (Had B1 2050, in km2)

90048

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

46141

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

39.8100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

70.9589

Percent Change in Area of Suitable Range (Had B1 2050)

-22.2800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

36.7123

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

40146.5 +/- 63481.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

14.9315

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

13.5433 +/- 19.7635

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

19.863

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

32.0431 +/- 39.123

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

70.8219

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

76.7123

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

20844

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

17.9800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

75.7534

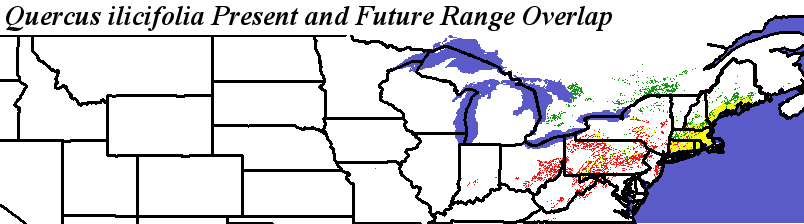

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus ilicifolia Quercus ilicifolia - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_ilicifolia_final.noelev Fine MRM Distance
Quercus_ilicifolia_final.noelev Fine MRM Direction

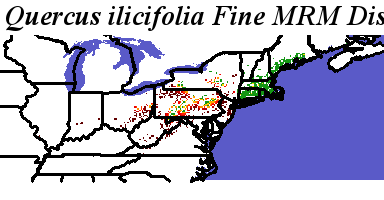

Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ilicifolia Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus ilicifolia
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_ilicifolia_final.noelev Coarse MRM Distance
Quercus_ilicifolia_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ilicifolia Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus ilicifolia
