Version 5 Tree Atlas


Quercus lobata

California white oak

noelev

Quercus lobata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus lobata

USDA Plants Database entry for Quercus lobata
Silvics Manual entry for Quercus lobata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus lobata var. turbinata; Quercus lobata var. walteri7086156range is well-represented

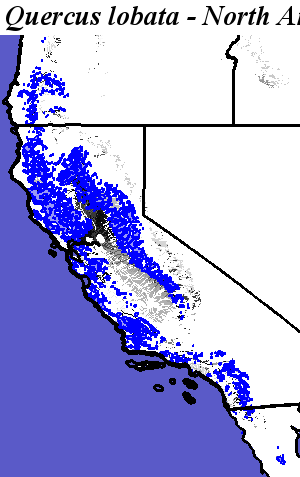

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_lobata_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_lobata_final
Quercus lobata - Occurrence Locations Quercus lobata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global
Quercus lobata - CONUS
Compare with Current Range from the Silvics Manual for Quercus lobata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus lobata

Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Current conditions by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring
Quercus lobata - Global

PCM - Parallel Climate Model
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

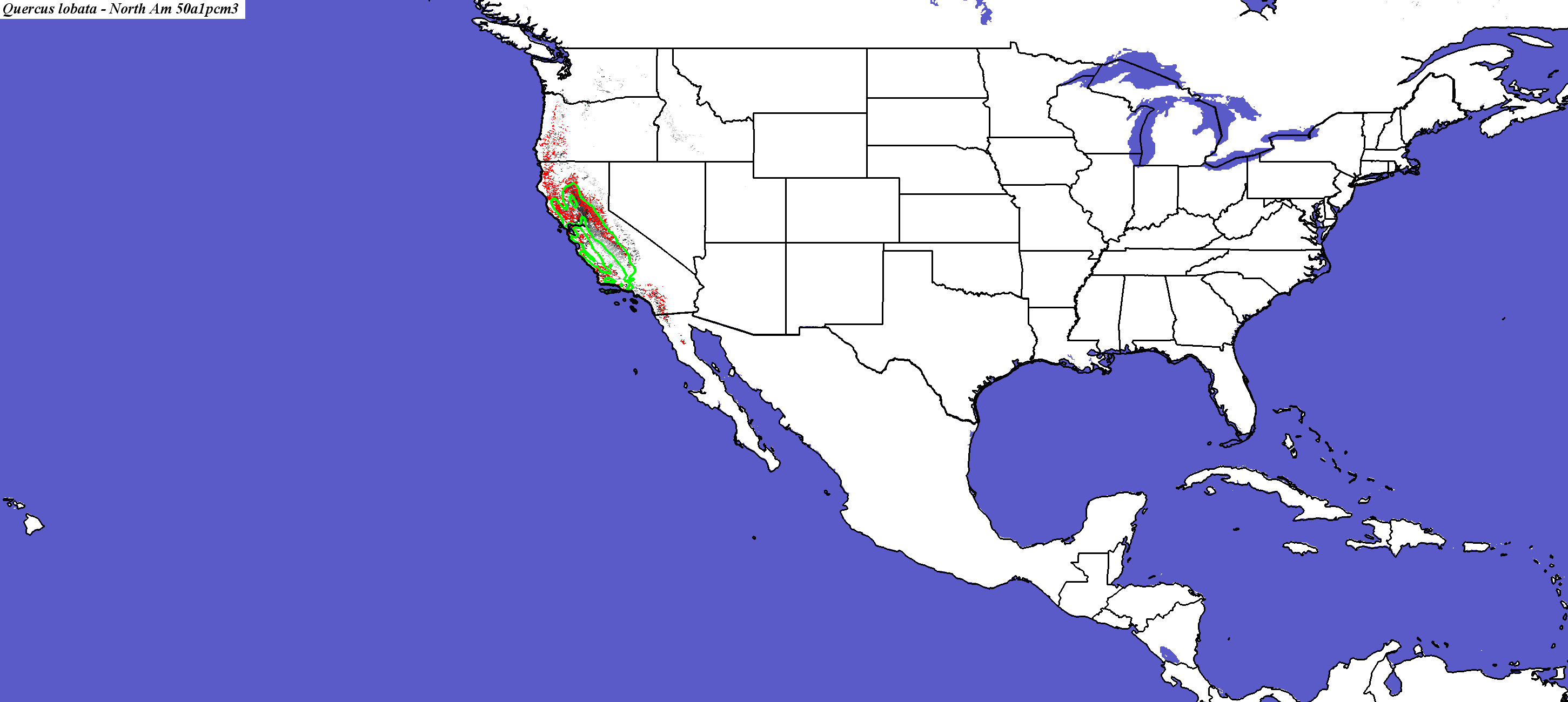

PCM, Scenario A1FI, 2050 - Quercus lobata - CONUS
PCM, Scenario A1FI, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

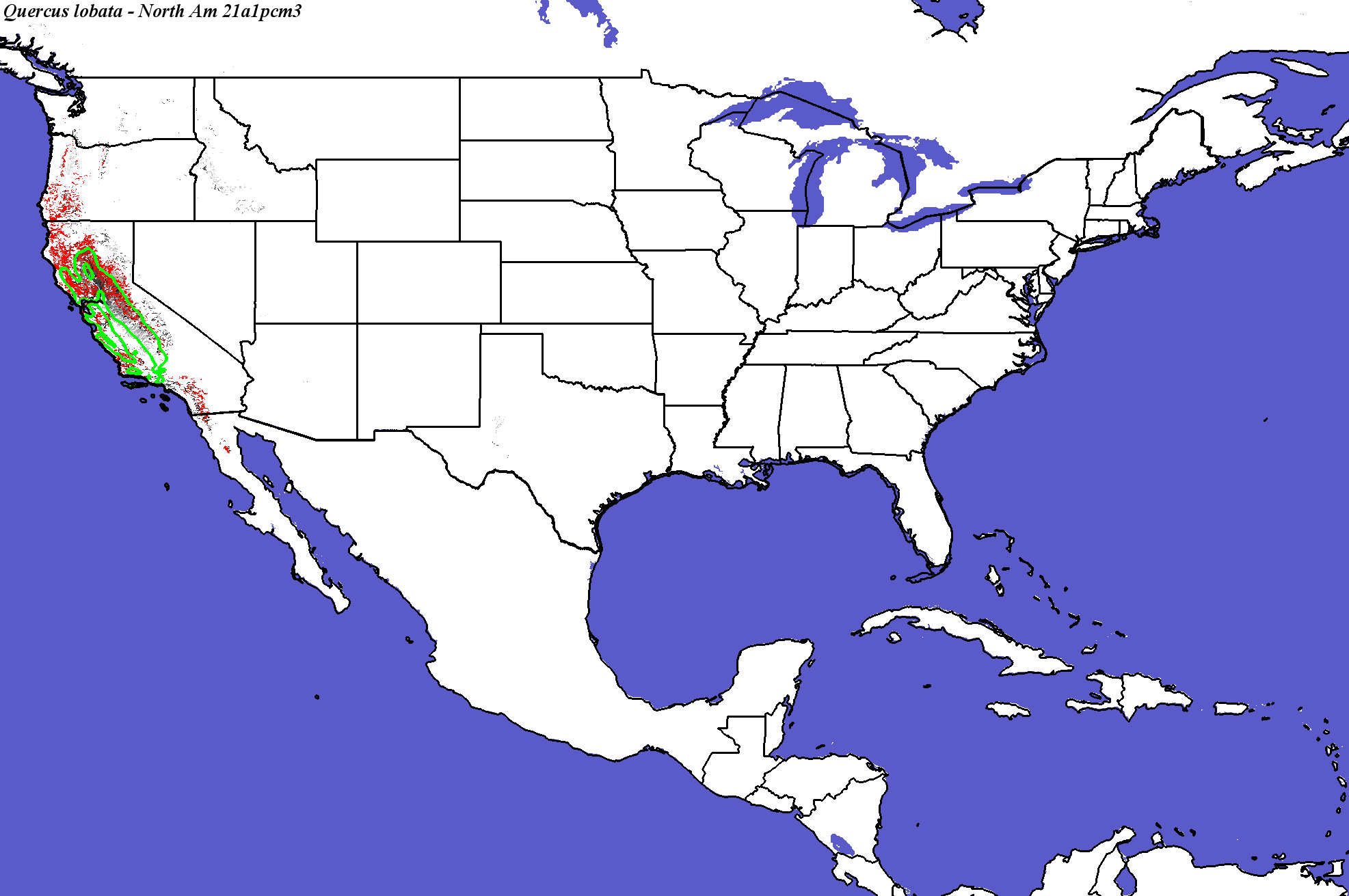

PCM, Scenario A1FI, 2100 - Quercus lobata - CONUS
Quercus lobata species not modeled by Iverson and Prasad

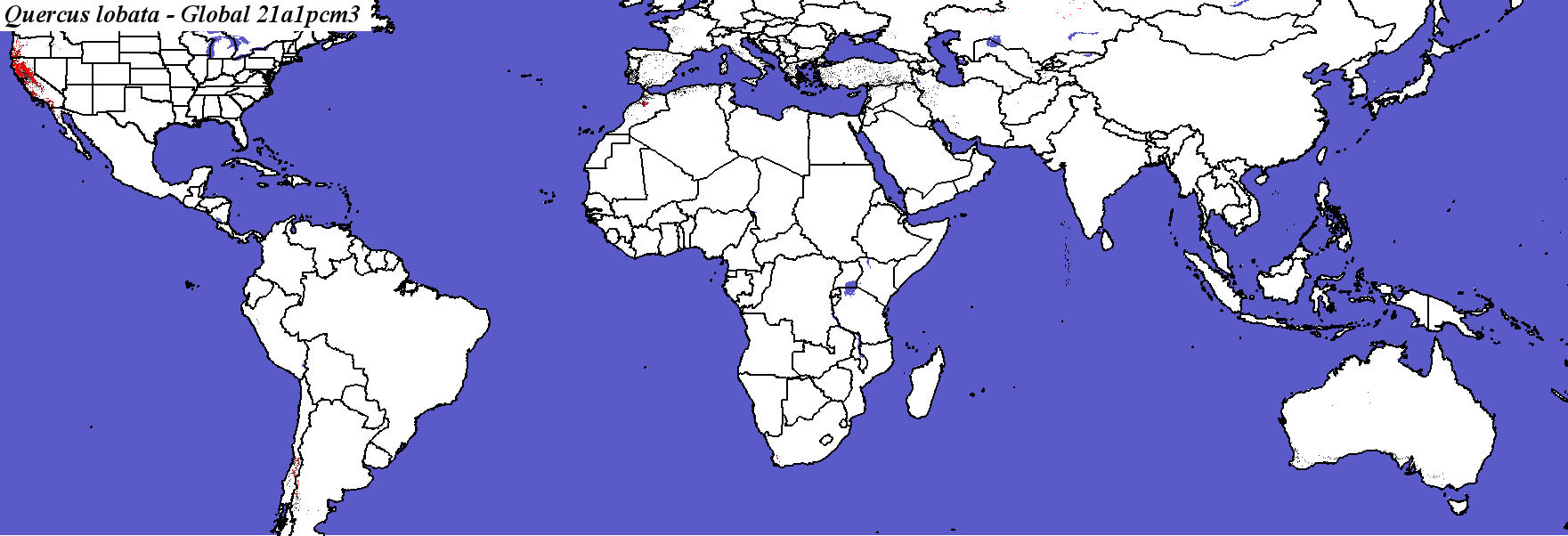

PCM, Scenario A1FI, 2100 - Quercus lobata - Global

Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

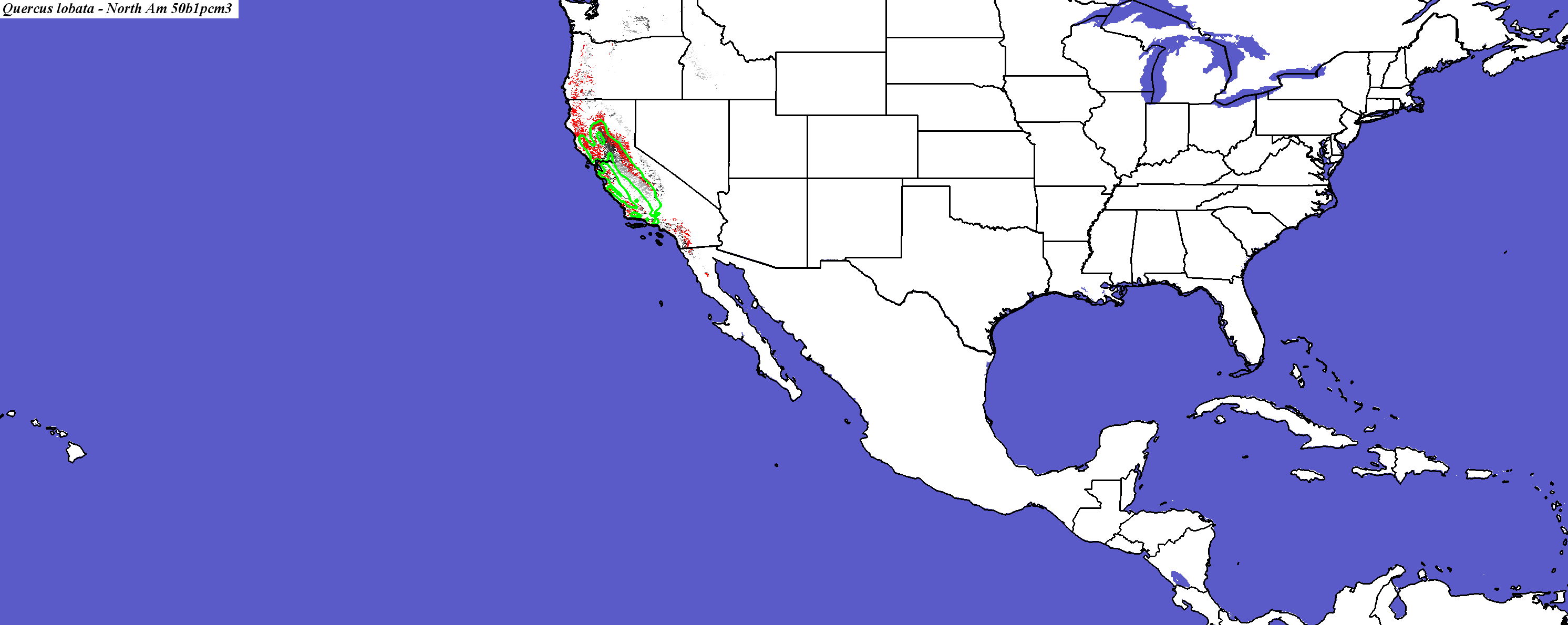

PCM, Scenario B1, 2050 - Quercus lobata - CONUS

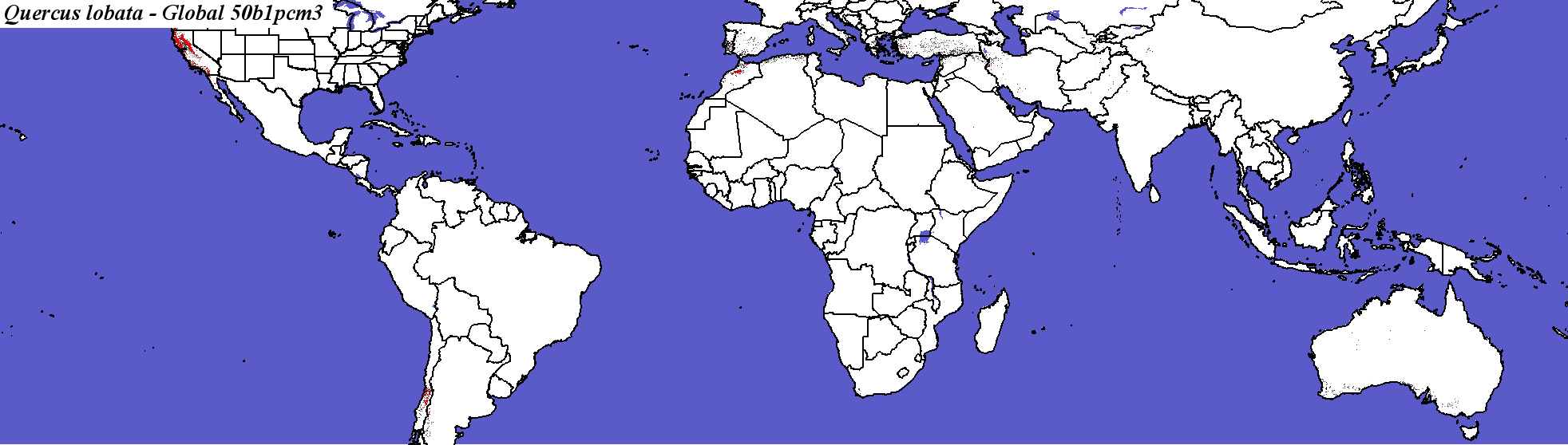

PCM, Scenario B1, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global
PCM, Scenario B1, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad

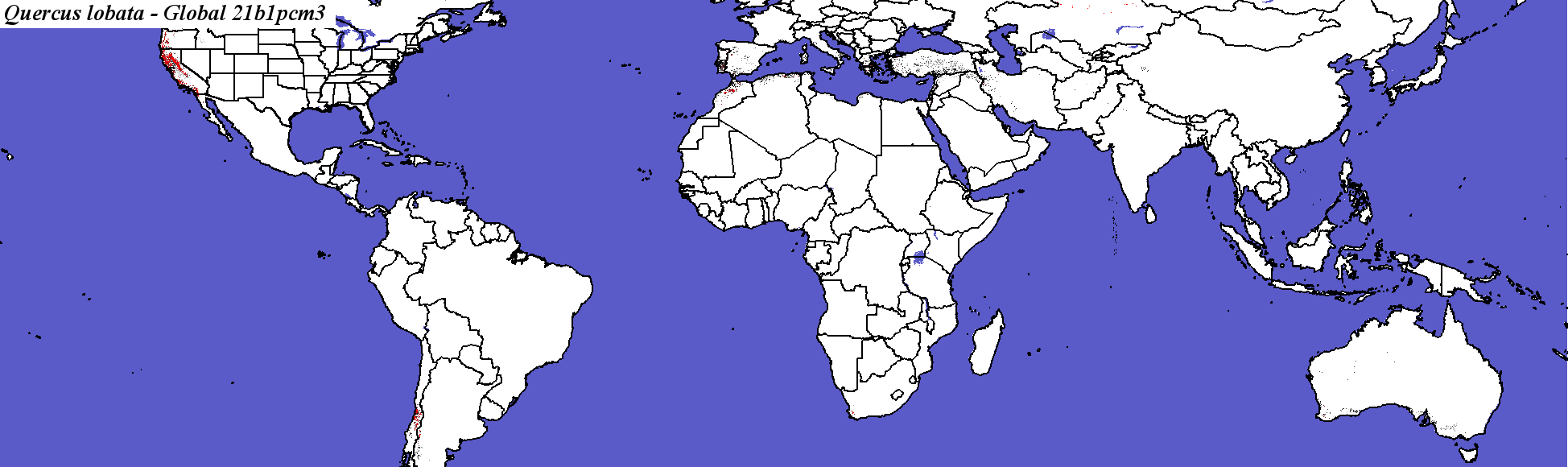

PCM, Scenario B1, 2100 - Quercus lobata - Global

Hadley Climate Model
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

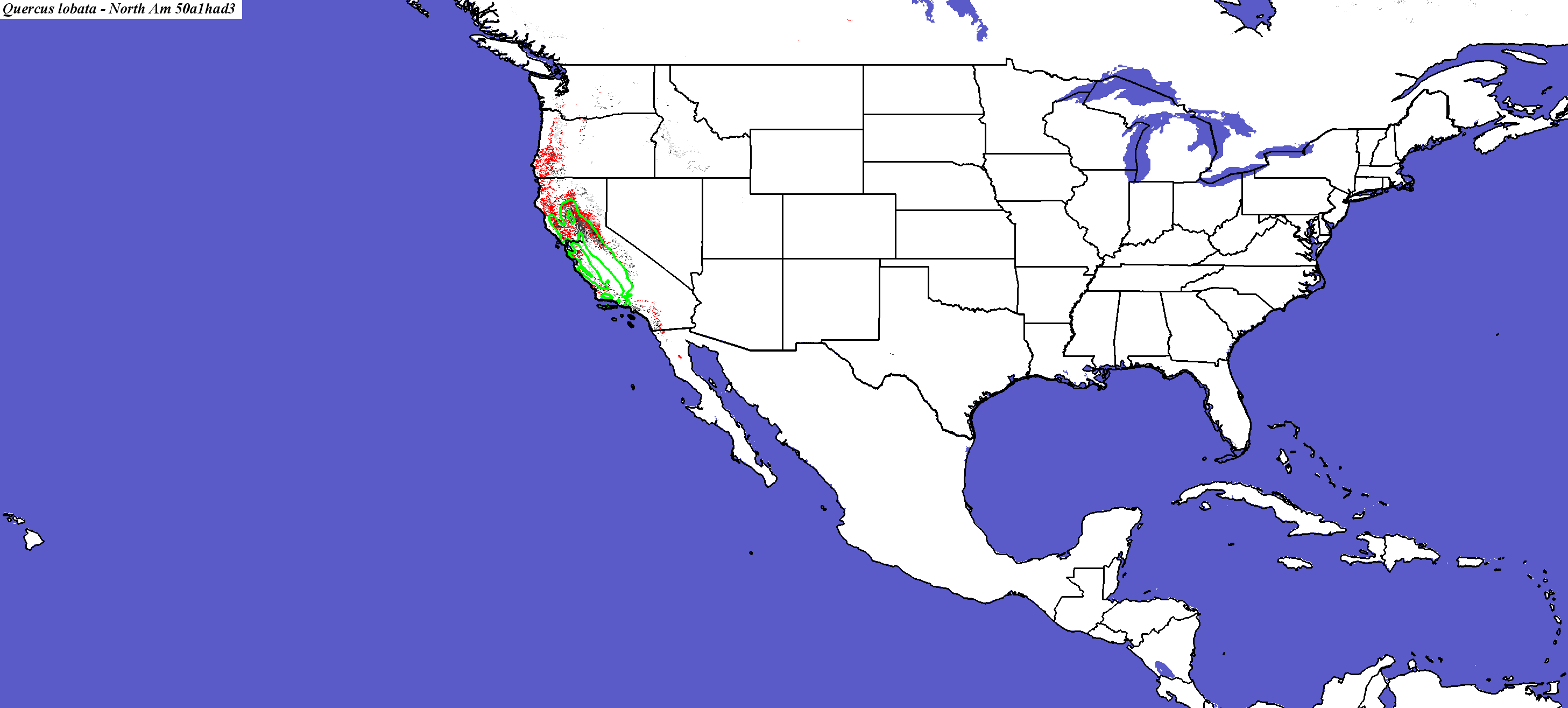

Hadley, Scenario A1FI, 2050 - Quercus lobata - CONUS
Compare with Quercus lobata modeled for Hadley A2 in 2060 by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global.

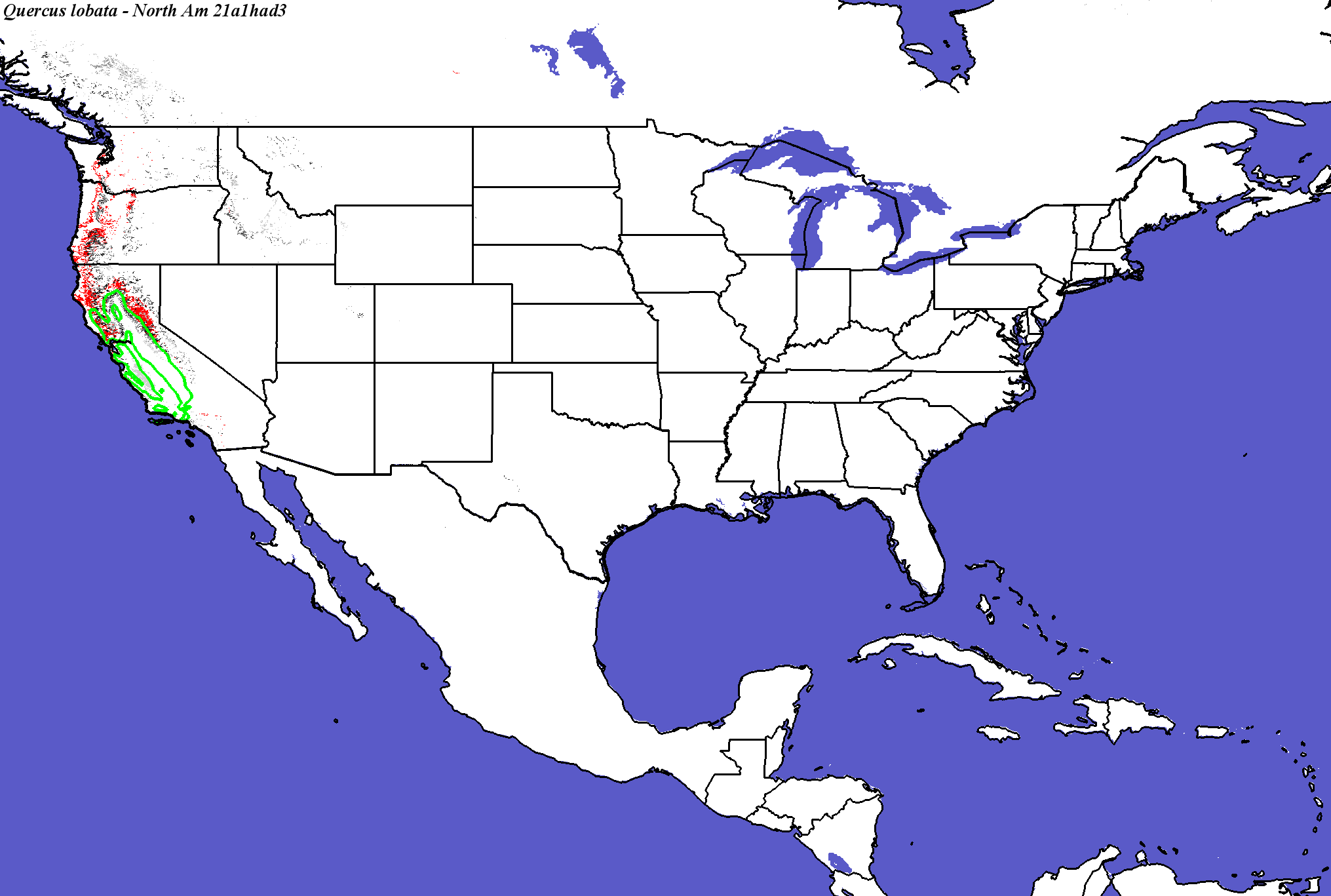

Hadley, Scenario A1FI, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring

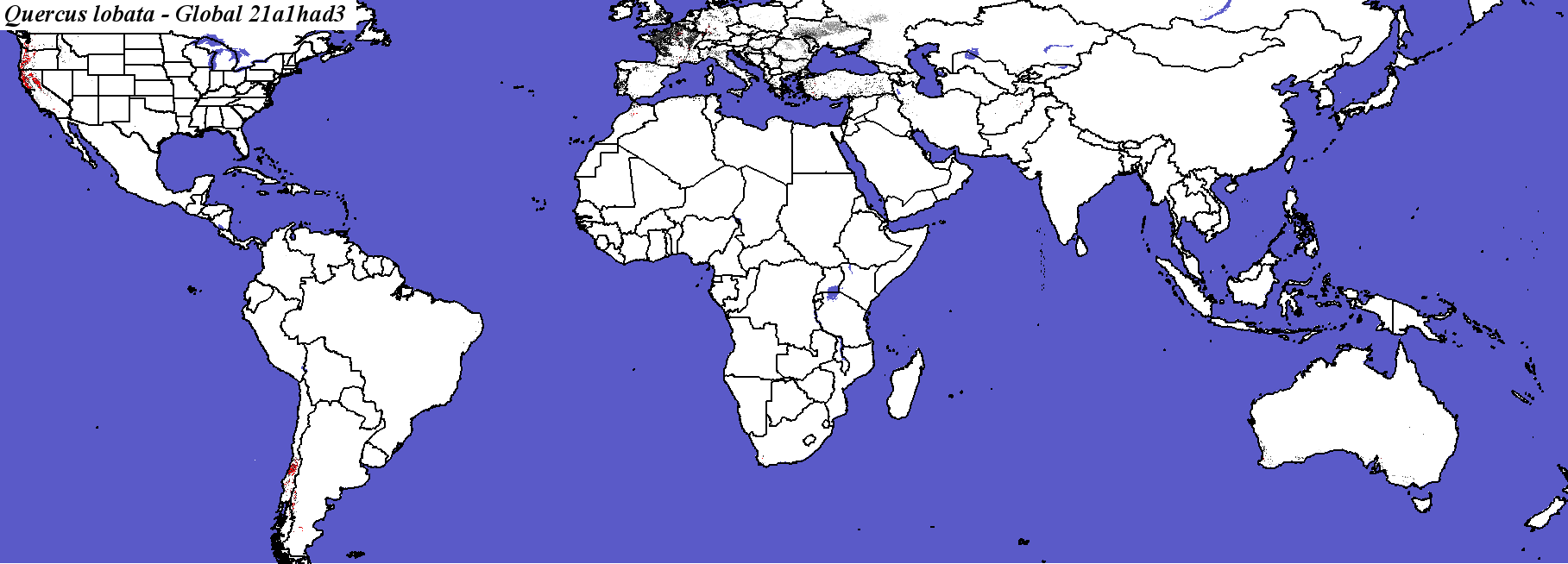

Hadley, Scenario A1FI, 2100 - Quercus lobata - Global

Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global.
Hadley, Scenario B1, 2050 - Quercus lobata - CONUS
Compare with Quercus lobata modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring

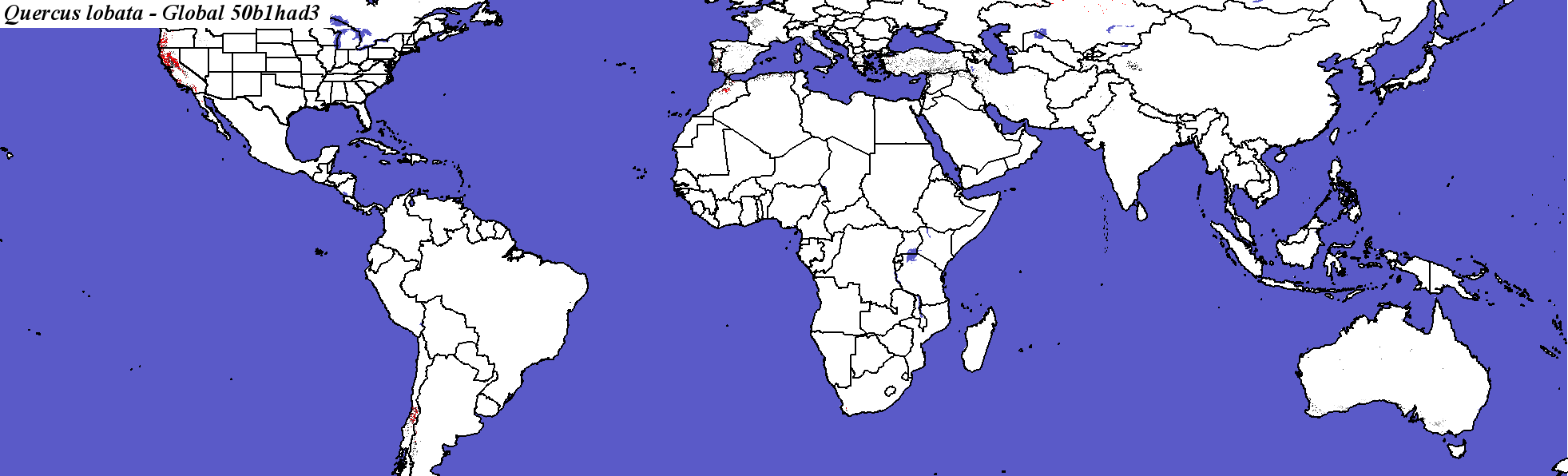

Hadley, Scenario B1, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

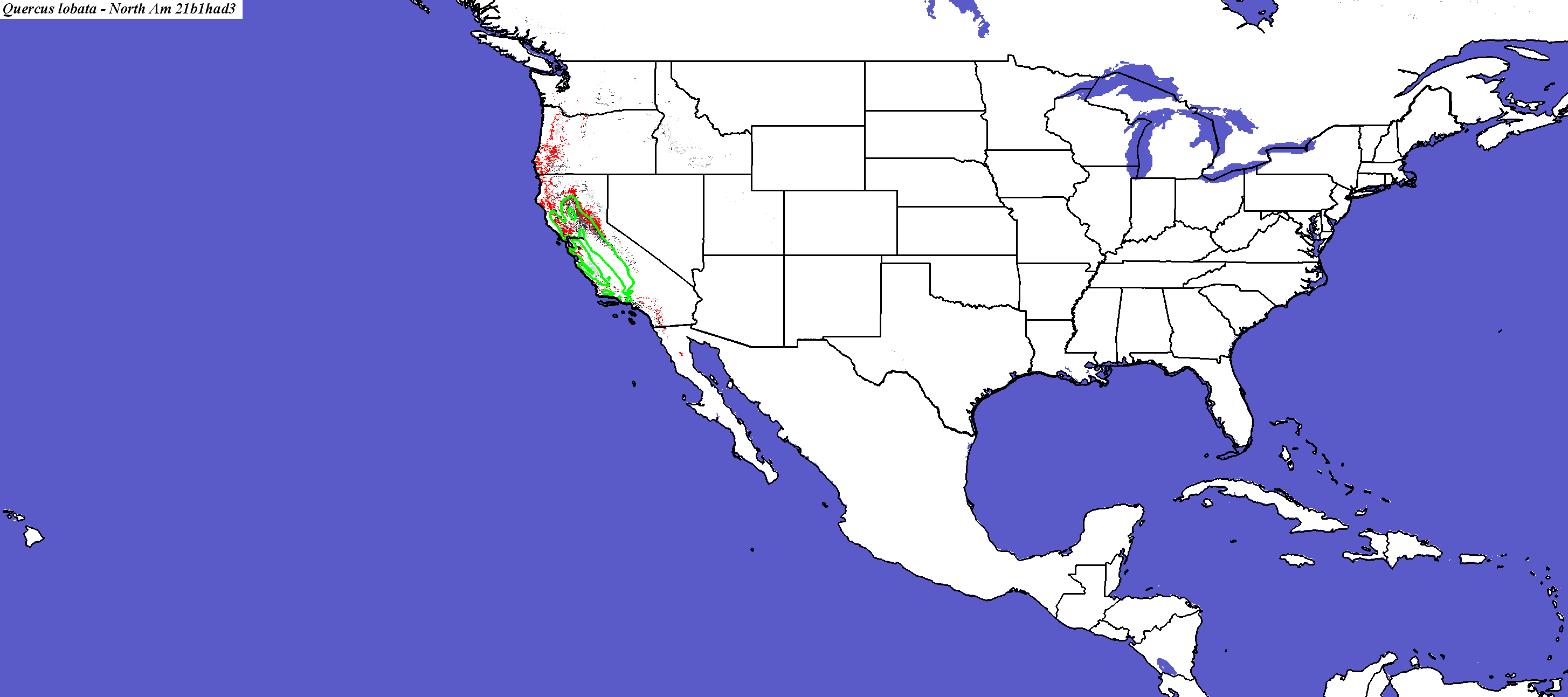

Hadley, Scenario B1, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

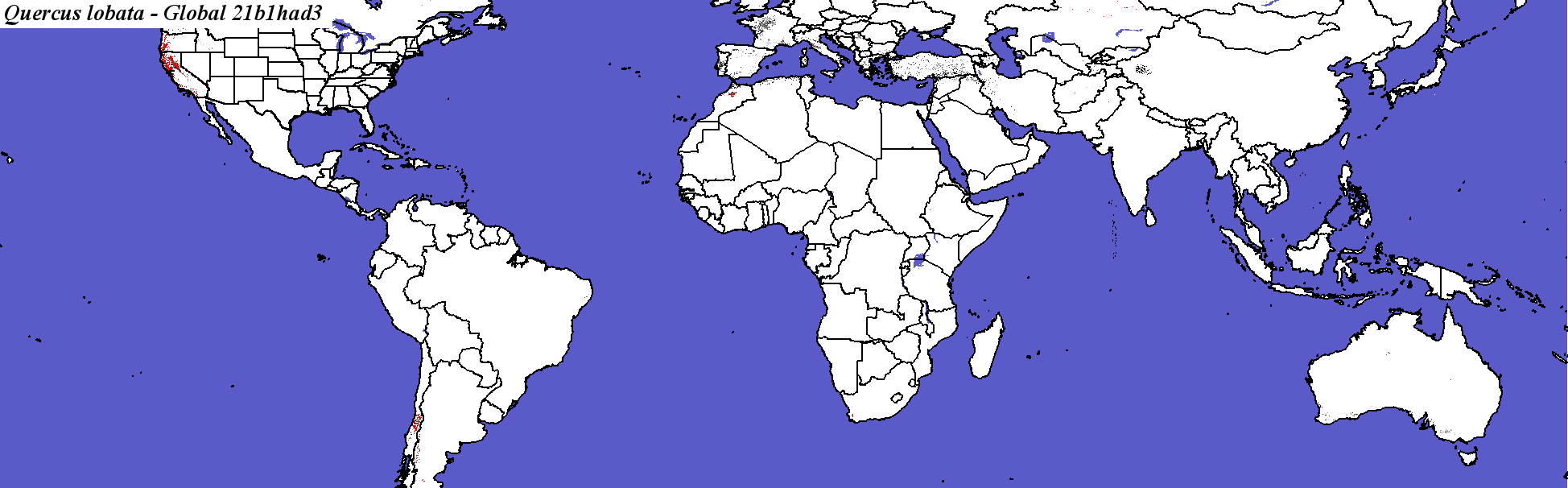

Hadley, Scenario B1, 2100 - Quercus lobata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_lobata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

18

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

66.1644

Area in Present Suitable Range (in km2)

76026

Area in Future Suitable Range (Had B1 2050, in km2)

67610

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

34074

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

44.8100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

61.0959

Percent Change in Area of Suitable Range (Had B1 2050)

-11.0600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

17.1233

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8634.71 +/- 12117.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

74.1096

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.50813 +/- 4.68421

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

79.3151

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

16.7876 +/- 24.0683

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

87.9452

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

76.1644

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

16479

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

21.6700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

64.6575

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus lobata Quercus lobata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_lobata_final.noelev Fine MRM Distance
Quercus_lobata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus lobata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_lobata_final.noelev Coarse MRM Distance
Quercus_lobata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata
