Version 5 Tree Atlas


Quercus lyrata

overcup oak

noelev

Quercus lyrata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus lyrata

USDA Plants Database entry for Quercus lyrata
Silvics Manual entry for Quercus lyrata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
66036696TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_lyrata_final Occurrences

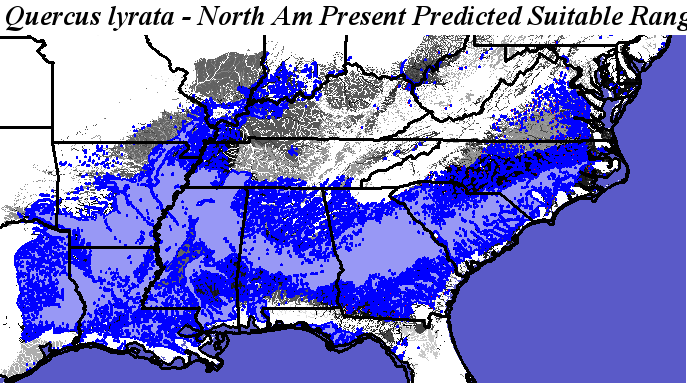

Hargroves Present Suitable Range Outline for Quercus_lyrata_final
Quercus lyrata - Occurrence Locations Quercus lyrata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global
Quercus lyrata - CONUS
Compare with Current Range from the Silvics Manual for Quercus lyrata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus lyrata

Compare with Quercus lyrata modeled for Current conditions by Iverson and Prasad
Quercus lyrata not modeled by Crookston and Rehfeldt
Quercus lyrata not modeled by Coops and Waring

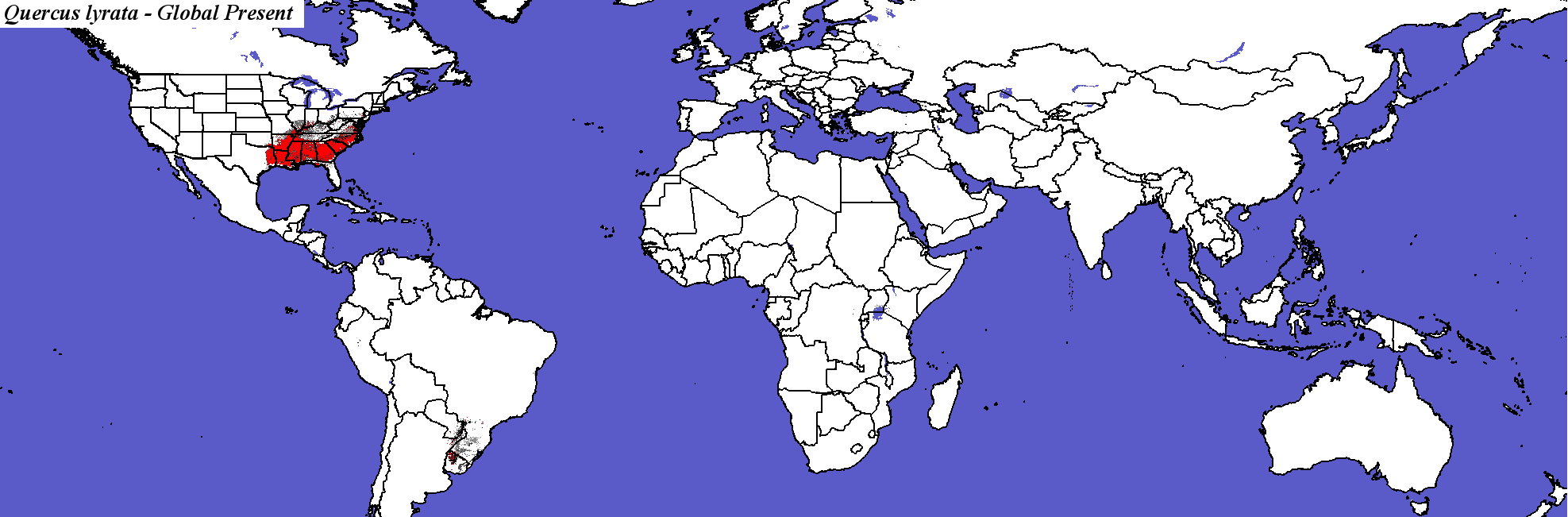

Quercus lyrata - Global

PCM - Parallel Climate Model
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global
PCM, Scenario A1FI, 2050 - Quercus lyrata - CONUS

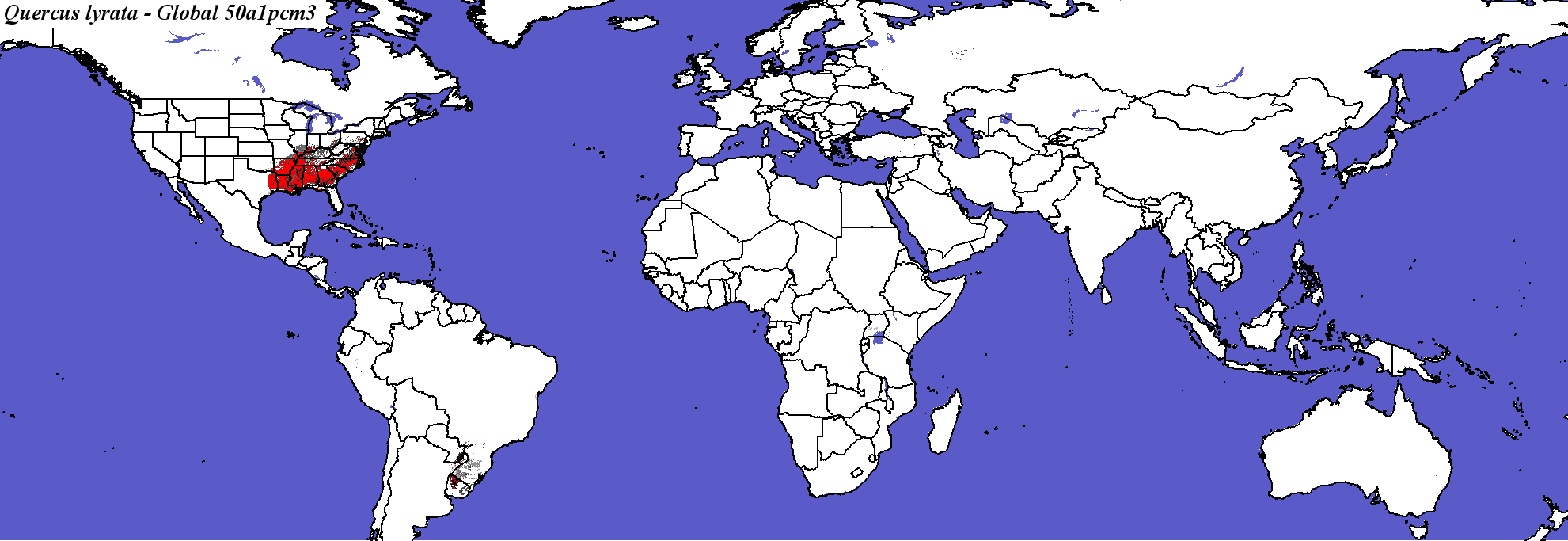

PCM, Scenario A1FI, 2050 - Quercus lyrata - Global
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global
PCM, Scenario A1FI, 2100 - Quercus lyrata - CONUS
Compare with Quercus lyrata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus lyrata - Global

Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global
PCM, Scenario B1, 2050 - Quercus lyrata - CONUS
PCM, Scenario B1, 2050 - Quercus lyrata - Global
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global

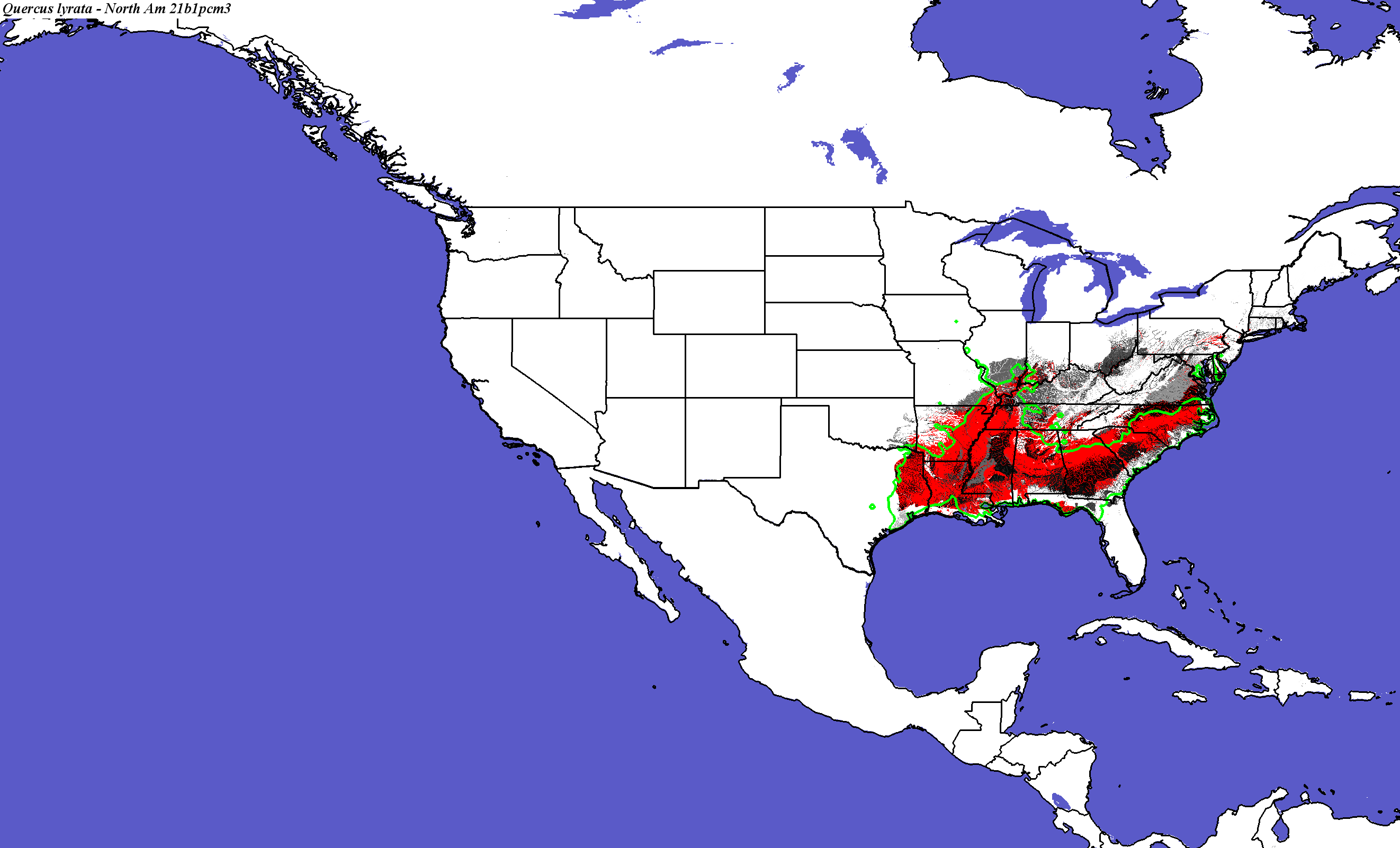

PCM, Scenario B1, 2100 - Quercus lyrata - CONUS
Compare with Quercus lyrata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus lyrata - Global

Hadley Climate Model
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global

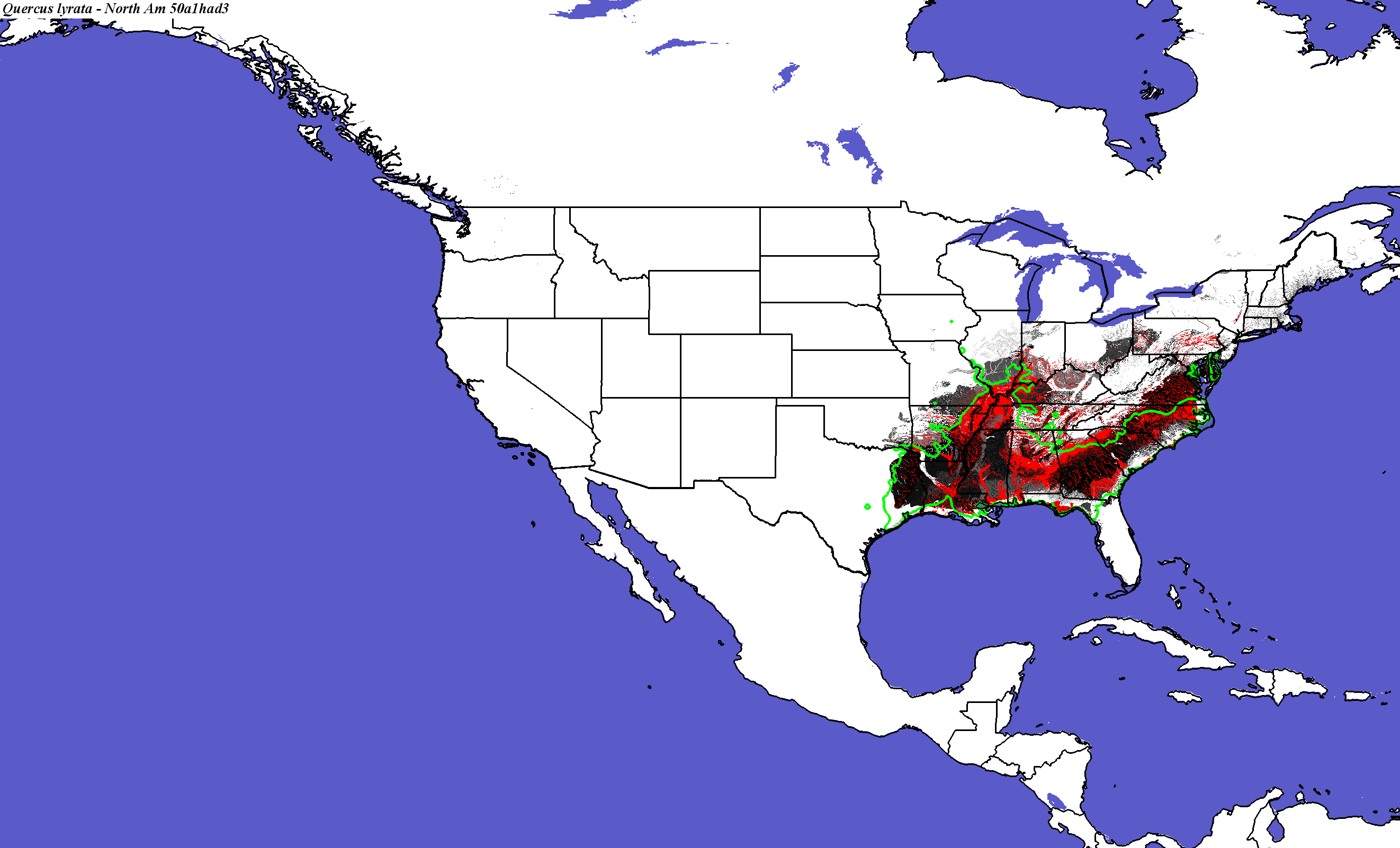

Hadley, Scenario A1FI, 2050 - Quercus lyrata - CONUS
Quercus lyrata not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus lyrata - Global
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus lyrata - CONUS
Compare with Quercus lyrata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus lyrata not modeled by Crookston and Rehfeldt
Quercus lyrata not modeled by Coops and Waring

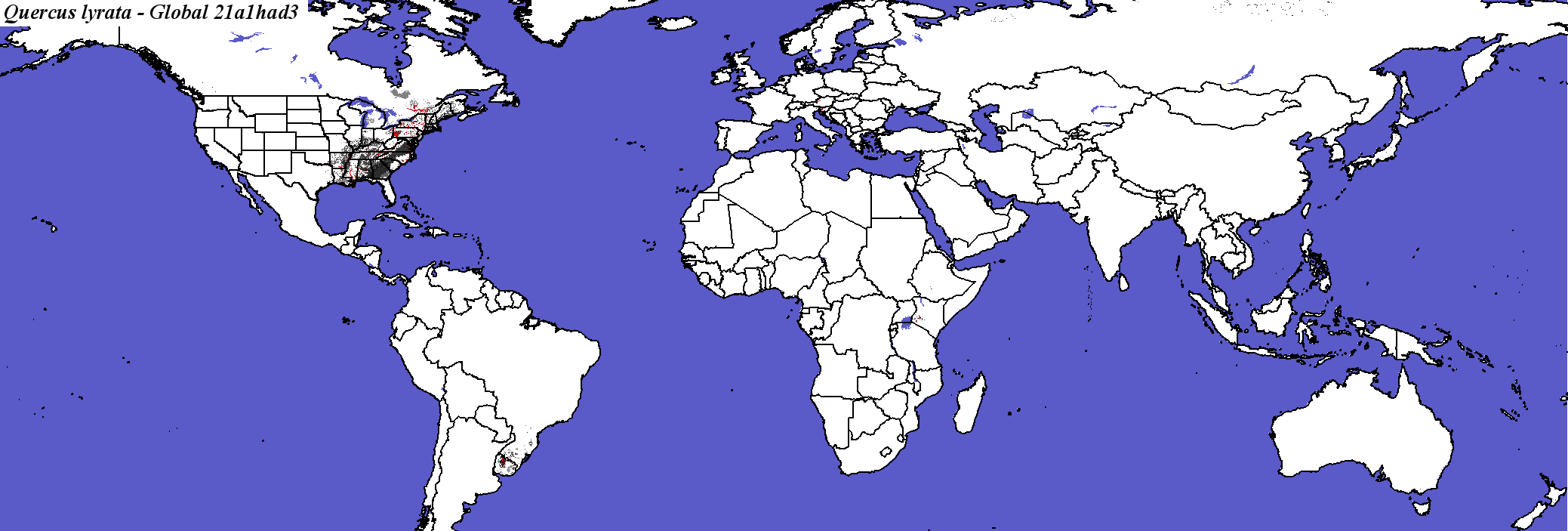

Hadley, Scenario A1FI, 2100 - Quercus lyrata - Global

Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global.

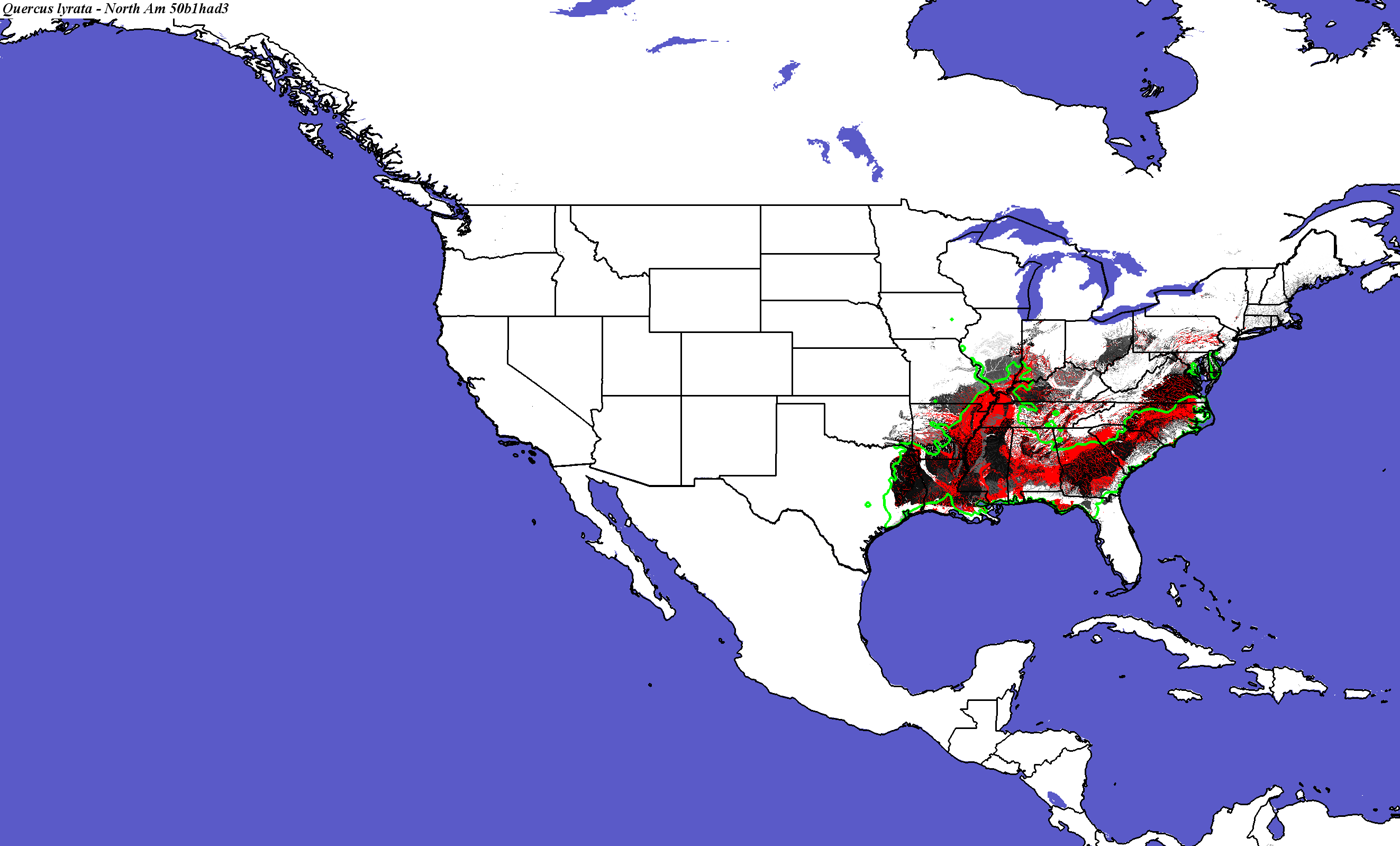

Hadley, Scenario B1, 2050 - Quercus lyrata - CONUS
Quercus lyrata not modeled by Crookston and Rehfeldt
Quercus lyrata not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus lyrata - Global
Quercus_lyrata_final.3.conus
Quercus_lyrata_final.3.global

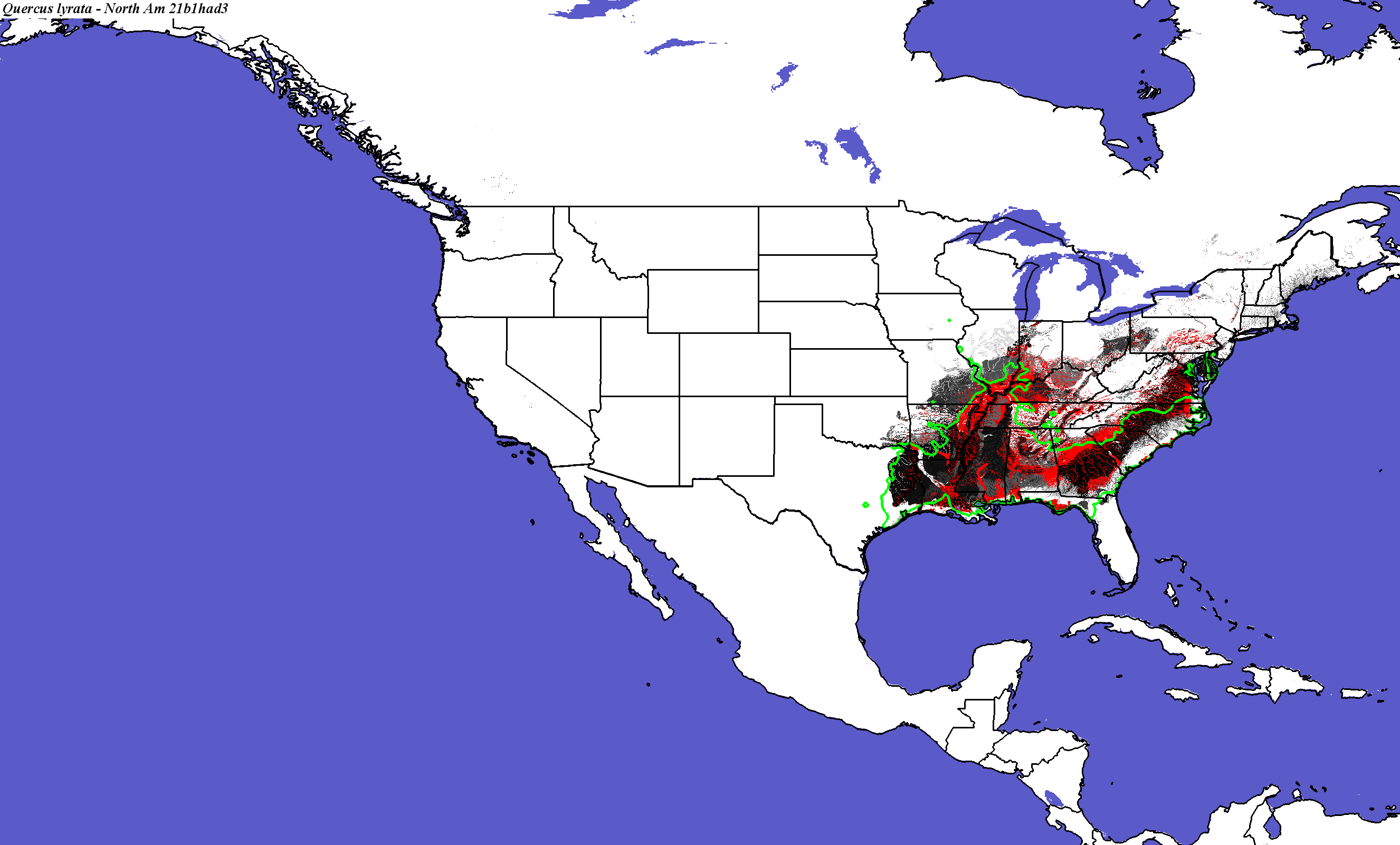

Hadley, Scenario B1, 2100 - Quercus lyrata - CONUS
Compare with Quercus lyrata modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus lyrata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus lyrata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_lyrata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

70

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

30.411

Area in Present Suitable Range (in km2)

621982

Area in Future Suitable Range (Had B1 2050, in km2)

390036

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

249178

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

40.0600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

70.274

Percent Change in Area of Suitable Range (Had B1 2050)

-37.2900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

63.6986

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

10503.9 +/- 12029.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

64.5205

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.91063 +/- 6.27798

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

66.3014

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

226.58 +/- 717.305

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

23.0137

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

37812

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.0700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

20

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

145844

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

23.4400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

59.4521

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus lyrata Quercus lyrata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

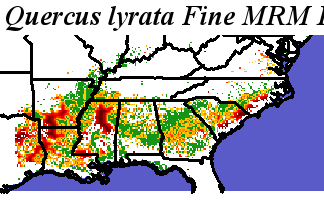

Quercus_lyrata_final.noelev Fine MRM Distance

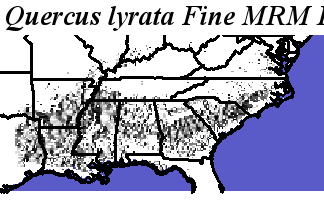

Quercus_lyrata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lyrata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus lyrata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_lyrata_final.noelev Coarse MRM Distance

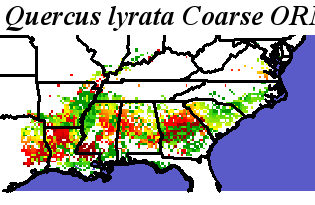

Quercus_lyrata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lyrata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus lyrata
