Version 5 Tree Atlas


Quercus marilandica

blackjack oak

noelev

Quercus marilandica Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus marilandica

USDA Plants Database entry for Quercus marilandica
Silvics Manual entry for Quercus marilandica


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
12161801396some small populations not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline

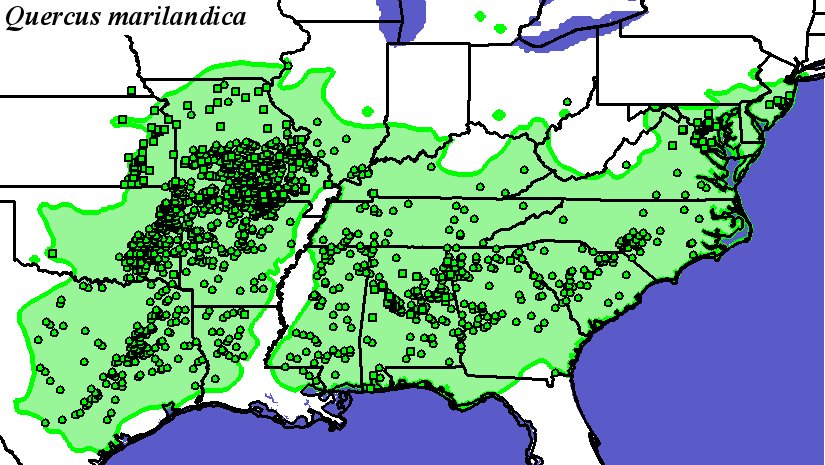

Quercus_marilandica_final Occurrences

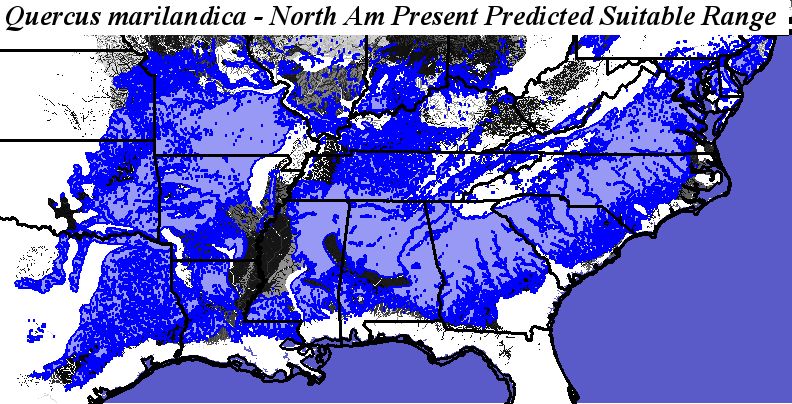

Hargroves Present Suitable Range Outline for Quercus_marilandica_final
Quercus marilandica - Occurrence Locations Quercus marilandica - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global

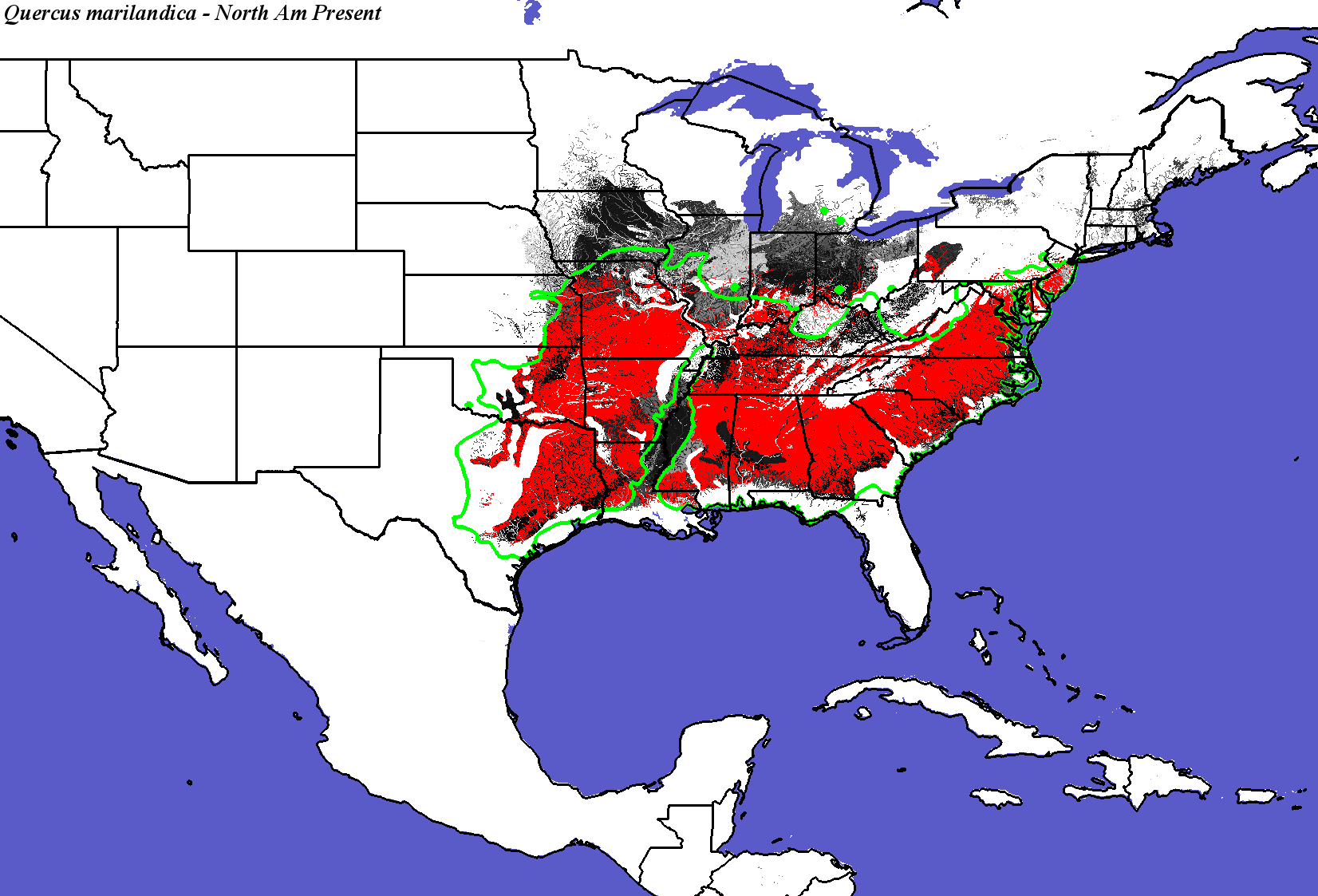

Quercus marilandica - CONUS
Compare with Current Range from the Silvics Manual for Quercus marilandica
Compare with Current Range from Biota of North America Program (BONAP) for Quercus marilandica

Compare with Quercus marilandica modeled for Current conditions by Iverson and Prasad
Quercus marilandica not modeled by Crookston and Rehfeldt
Quercus marilandica not modeled by Coops and Waring

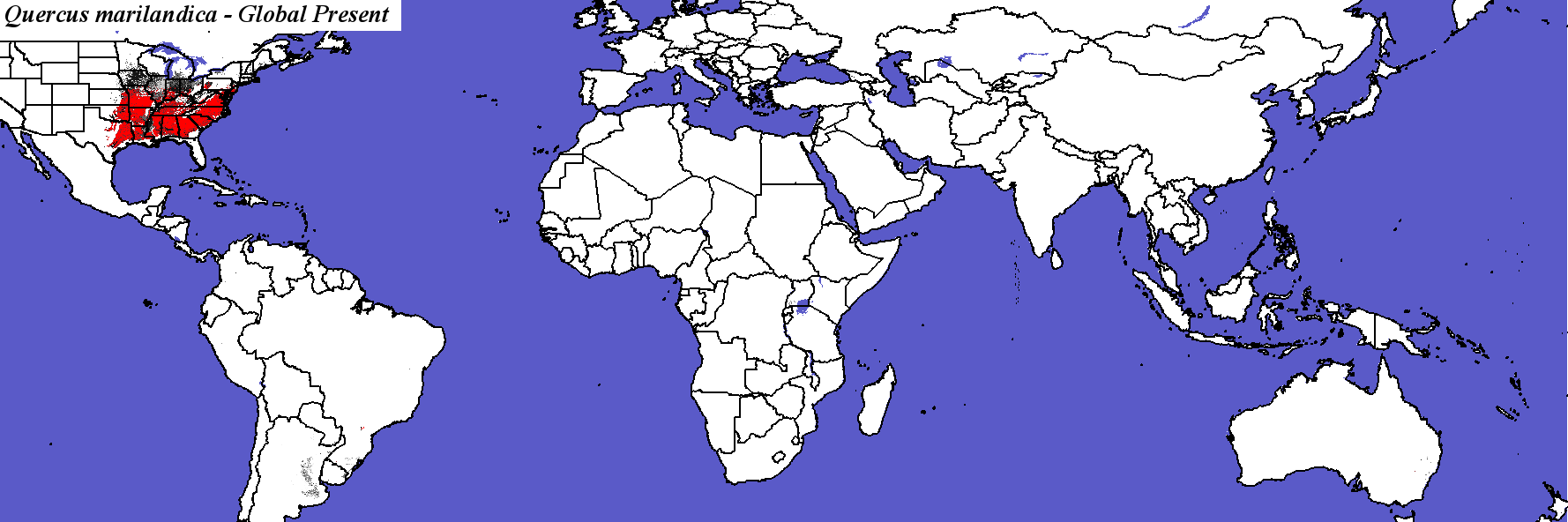

Quercus marilandica - Global

PCM - Parallel Climate Model
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global

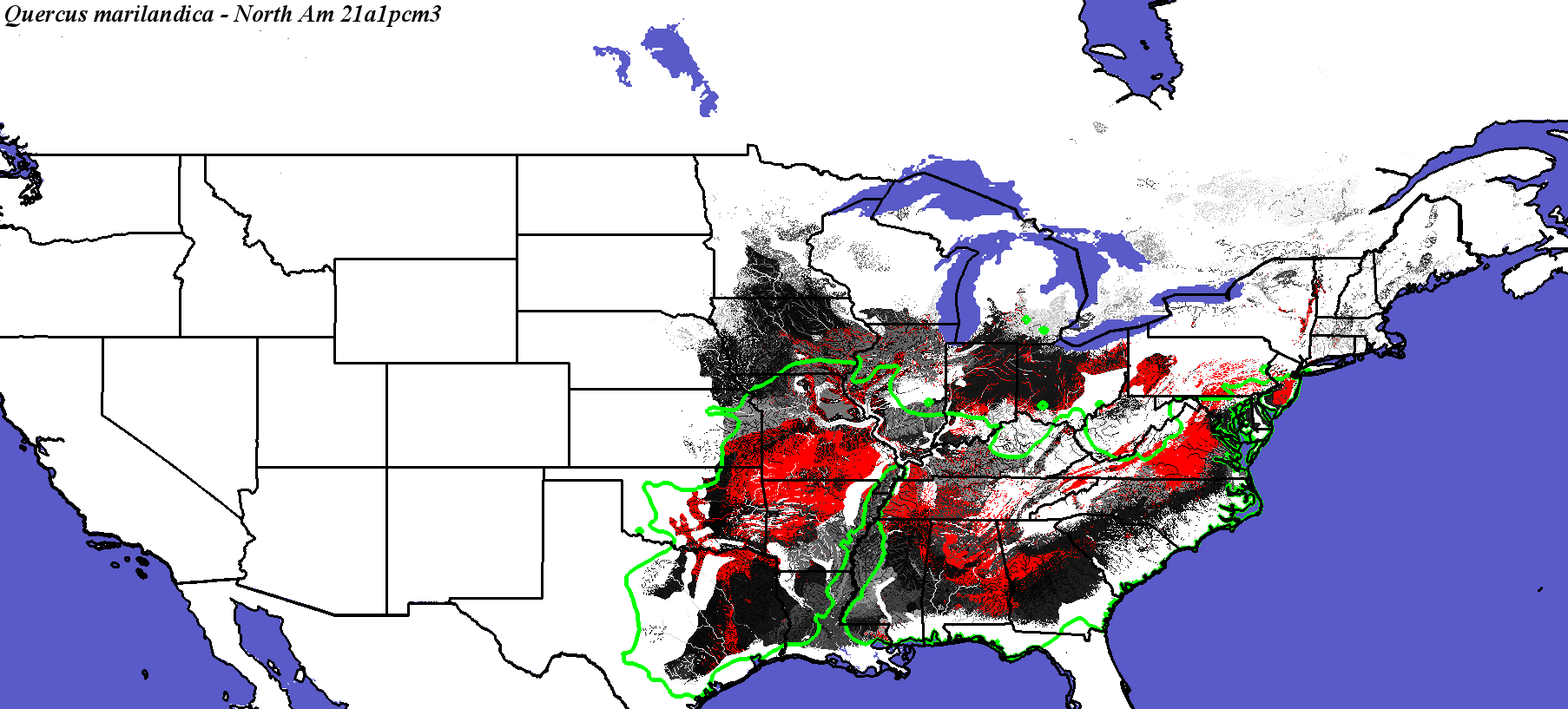

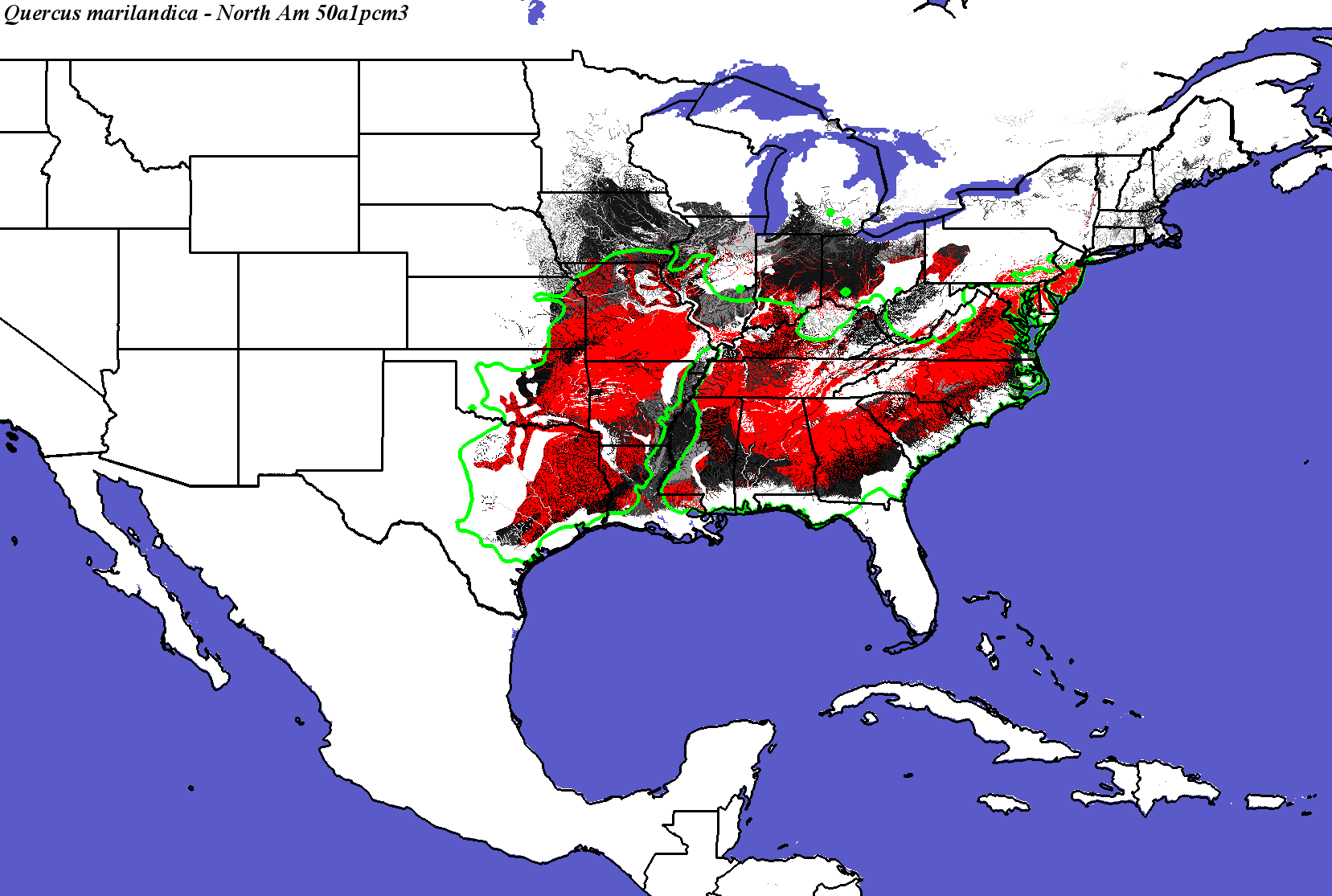

PCM, Scenario A1FI, 2050 - Quercus marilandica - CONUS

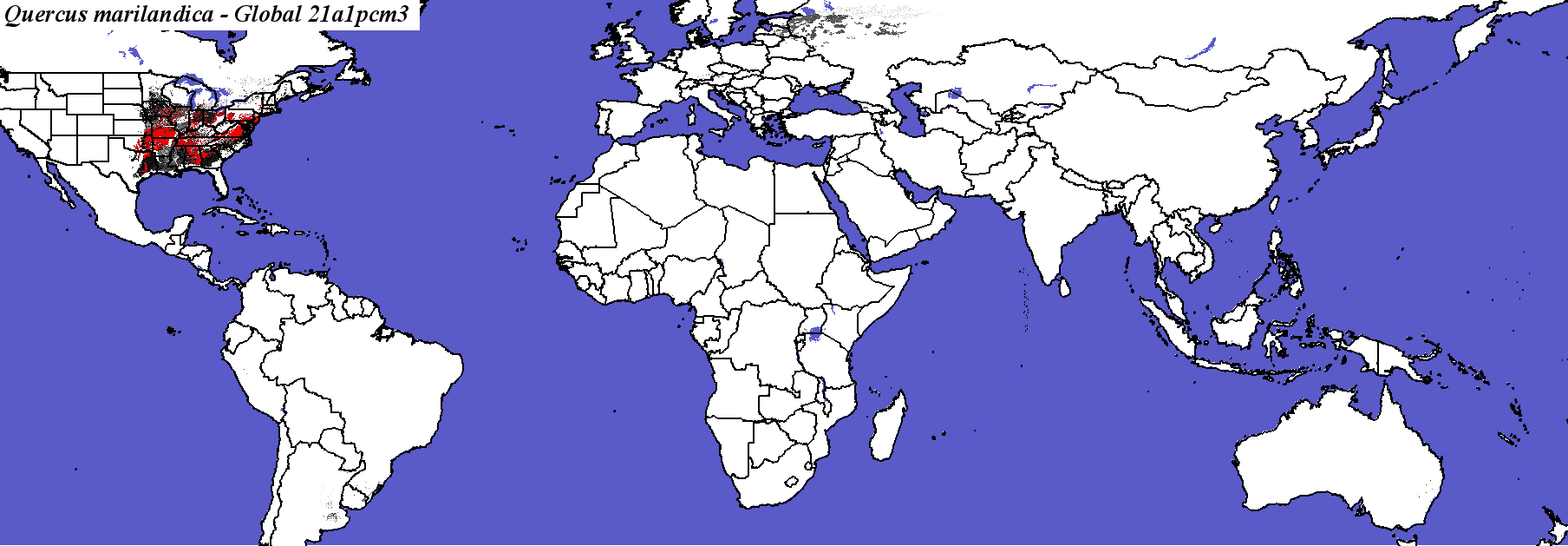

PCM, Scenario A1FI, 2050 - Quercus marilandica - Global
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global
PCM, Scenario A1FI, 2100 - Quercus marilandica - CONUS
Compare with Quercus marilandica modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus marilandica - Global

Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global
PCM, Scenario B1, 2050 - Quercus marilandica - CONUS
PCM, Scenario B1, 2050 - Quercus marilandica - Global
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global

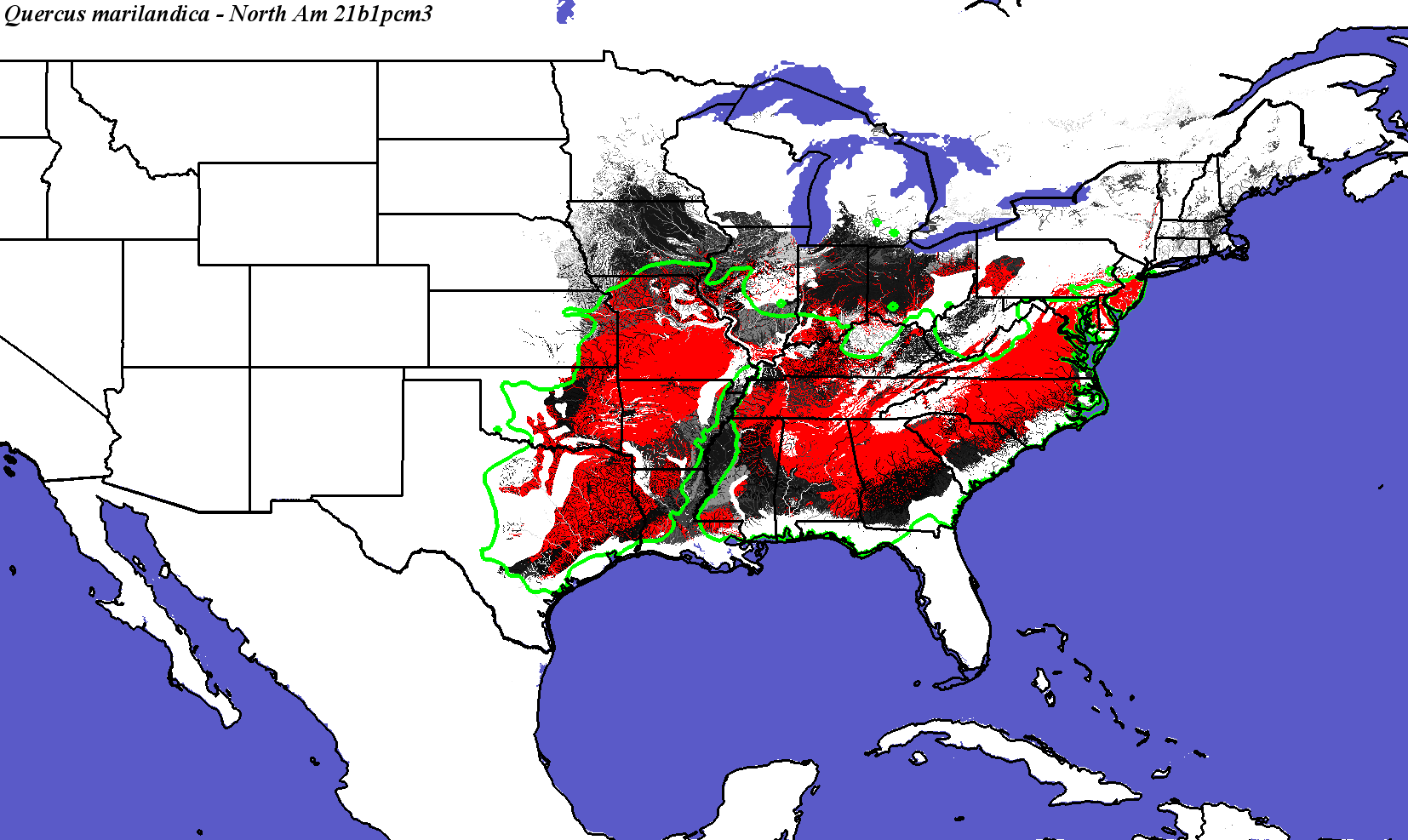

PCM, Scenario B1, 2100 - Quercus marilandica - CONUS
Compare with Quercus marilandica modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus marilandica - Global

Hadley Climate Model
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus marilandica - CONUS
Quercus marilandica not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus marilandica - Global
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global.

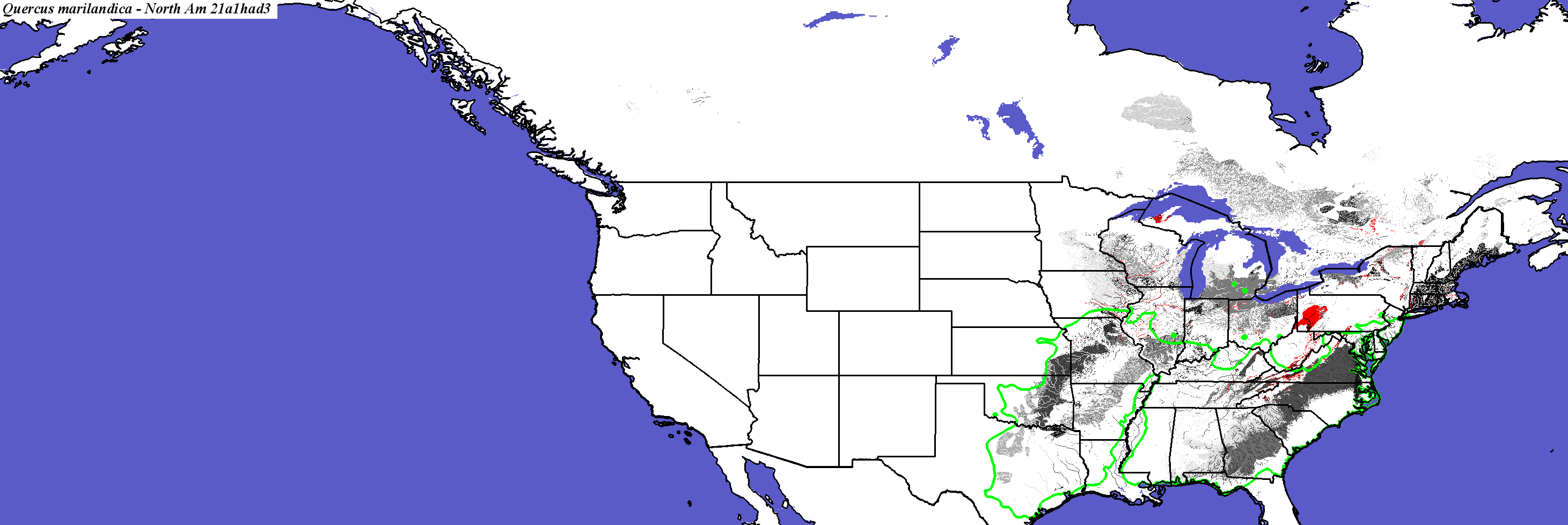

Hadley, Scenario A1FI, 2100 - Quercus marilandica - CONUS
Compare with Quercus marilandica modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus marilandica not modeled by Crookston and Rehfeldt
Quercus marilandica not modeled by Coops and Waring

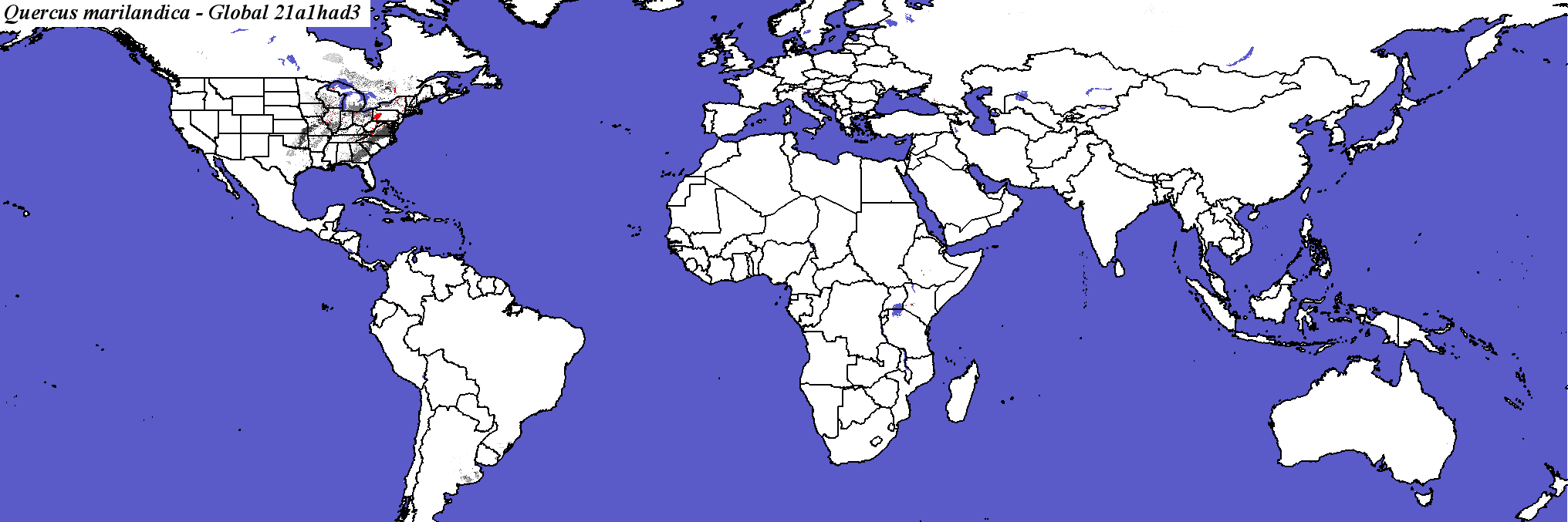

Hadley, Scenario A1FI, 2100 - Quercus marilandica - Global

Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global.

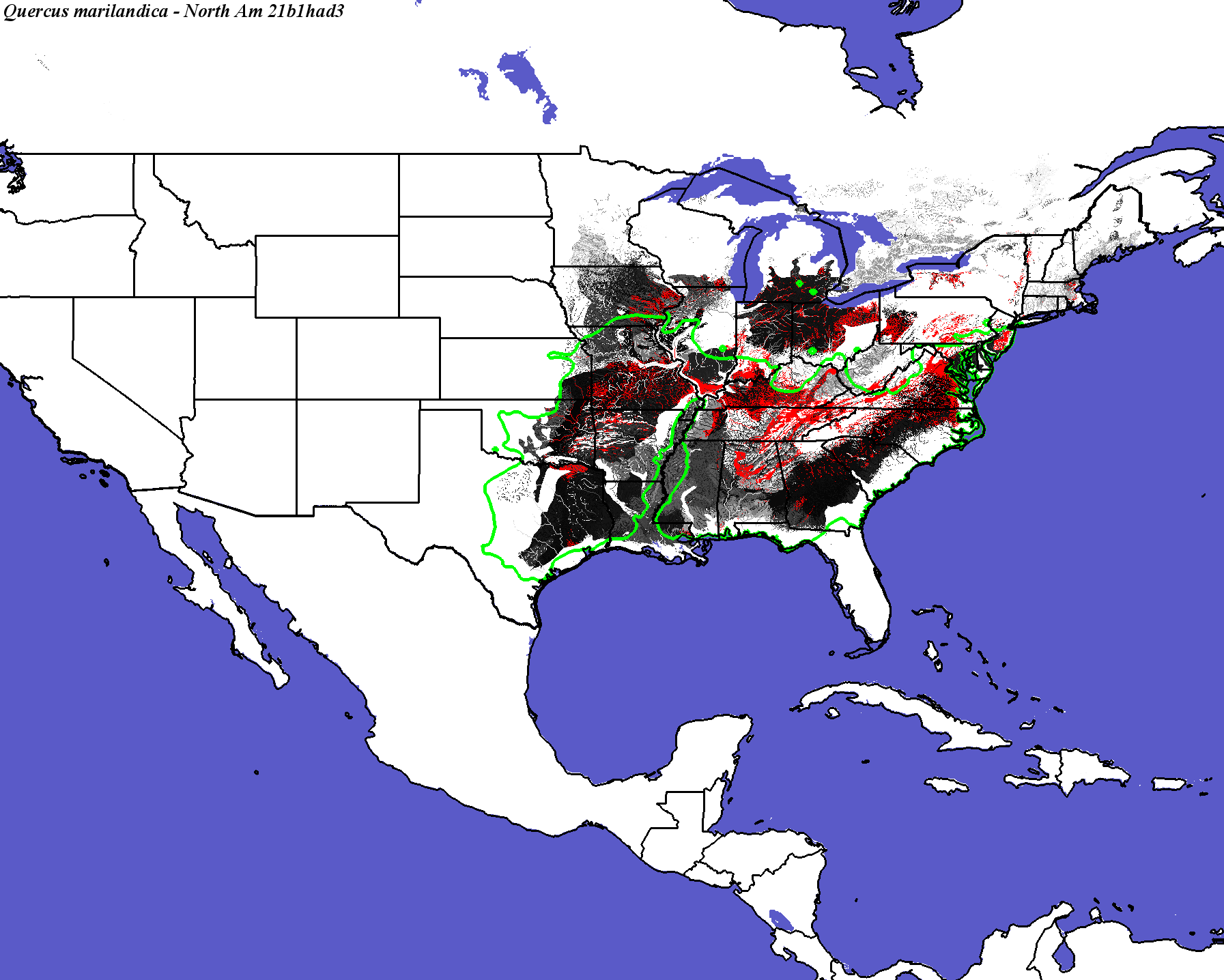

Hadley, Scenario B1, 2050 - Quercus marilandica - CONUS
Quercus marilandica not modeled by Crookston and Rehfeldt
Quercus marilandica not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus marilandica - Global
Quercus_marilandica_final.4.conus
Quercus_marilandica_final.4.global
Hadley, Scenario B1, 2100 - Quercus marilandica - CONUS
Compare with Quercus marilandica modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus marilandica not modeled by Crookston and Rehfeldt

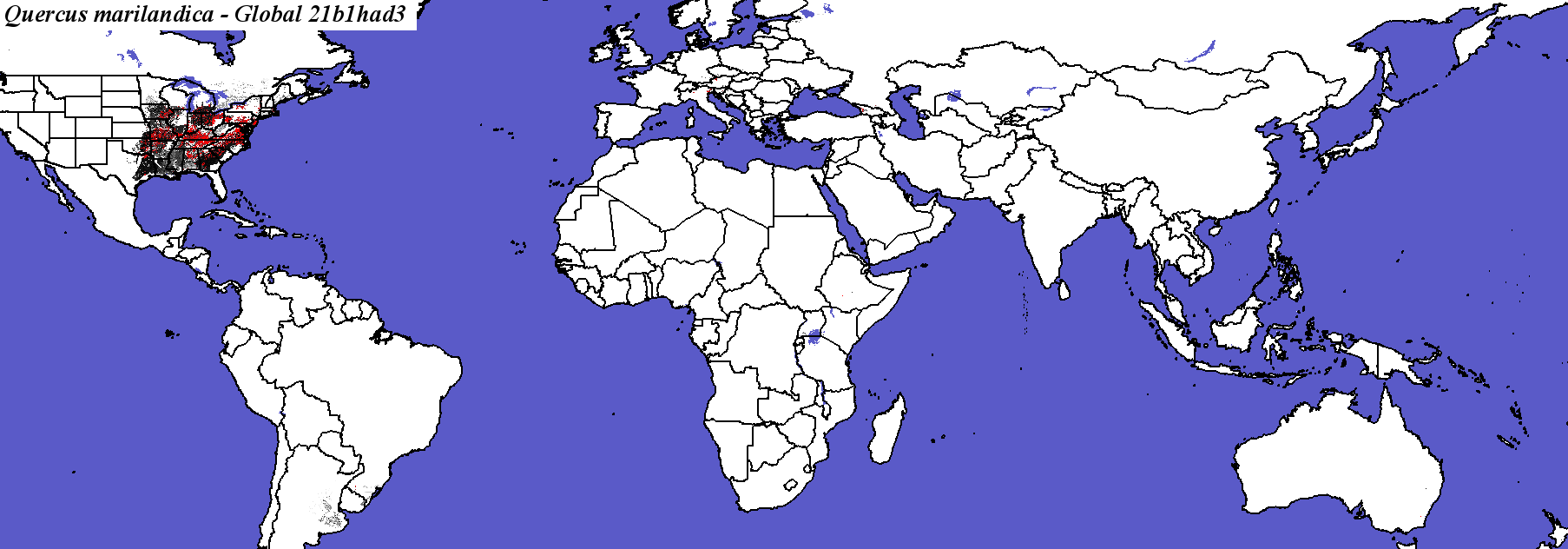

Hadley, Scenario B1, 2100 - Quercus marilandica - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_marilandica_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

82

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

25.4795

Area in Present Suitable Range (in km2)

921702

Area in Future Suitable Range (Had B1 2050, in km2)

396010

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

261352

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

28.3500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

86.1644

Percent Change in Area of Suitable Range (Had B1 2050)

-57.0300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

89.0411

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

22896.1 +/- 29859.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

31.9178

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

11.2844 +/- 17.2531

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

26.7123

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

288.554 +/- 797.788

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

14.9315

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

71411

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.7400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

13.1507

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

100077

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

10.8500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

91.7808

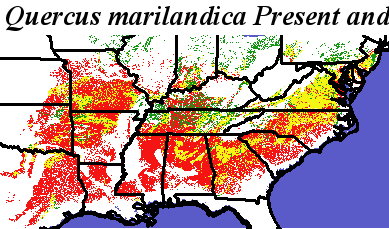

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus marilandica Quercus marilandica - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

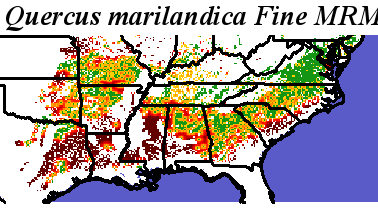

Quercus_marilandica_final.noelev Fine MRM Distance

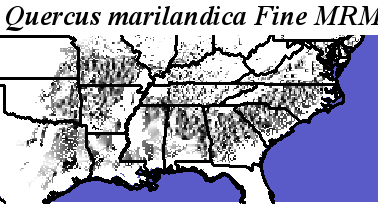

Quercus_marilandica_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus marilandica Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus marilandica
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

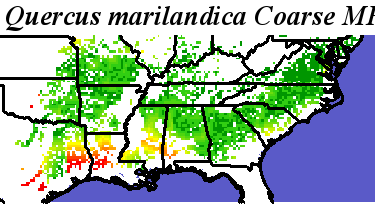

Quercus_marilandica_final.noelev Coarse MRM Distance

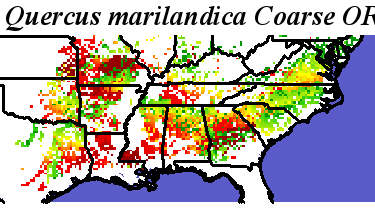

Quercus_marilandica_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus marilandica Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus marilandica
