Version 5 Tree Atlas


Quercus michauxii

swamp chestnut oak

noelev

Quercus michauxii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus michauxii

USDA Plants Database entry for Quercus michauxii
Silvics Manual entry for Quercus michauxii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
62444668TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_michauxii_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_michauxii_final
Quercus michauxii - Occurrence Locations Quercus michauxii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

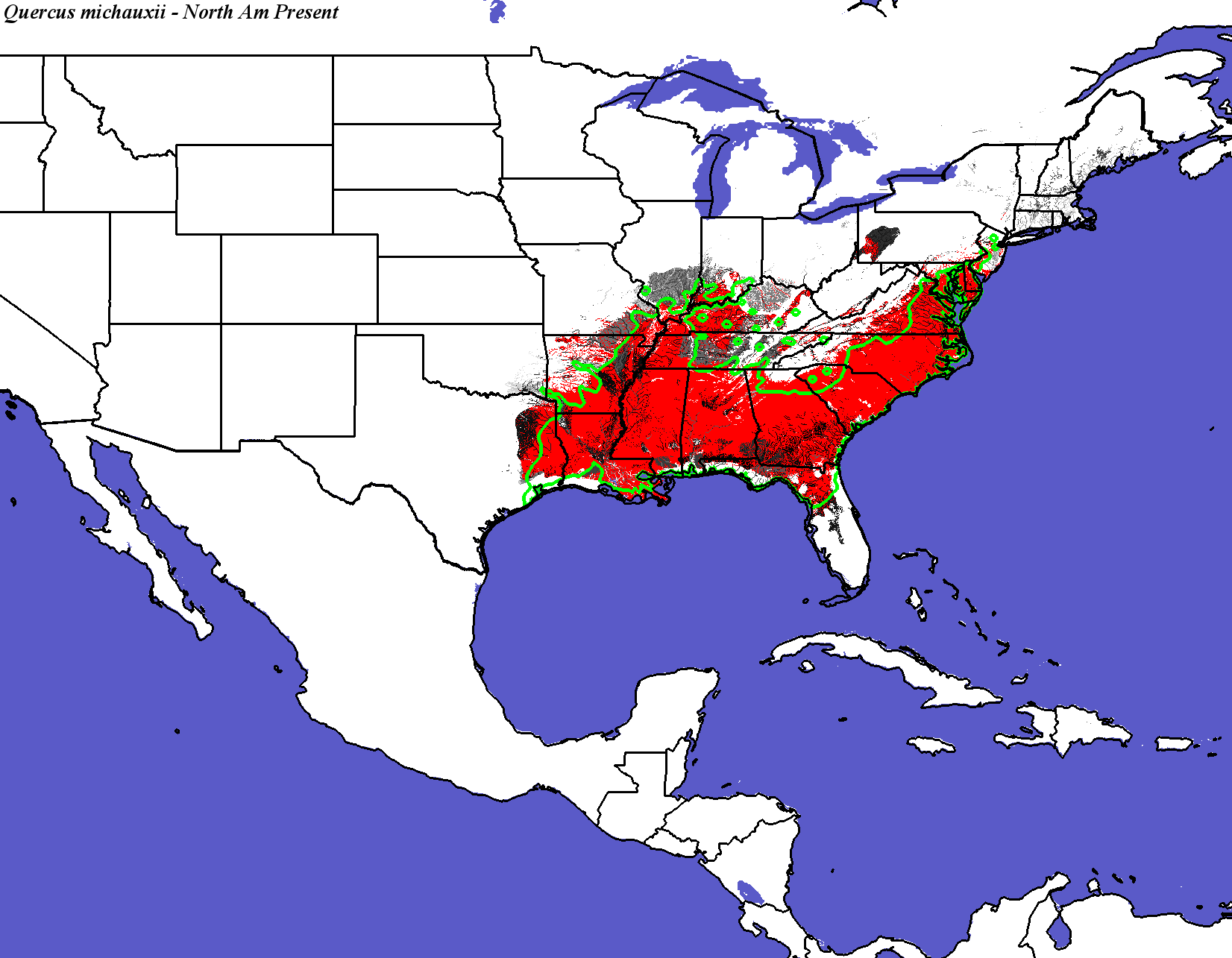

Quercus michauxii - CONUS
Compare with Current Range from the Silvics Manual for Quercus michauxii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus michauxii

Compare with Quercus michauxii modeled for Current conditions by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring

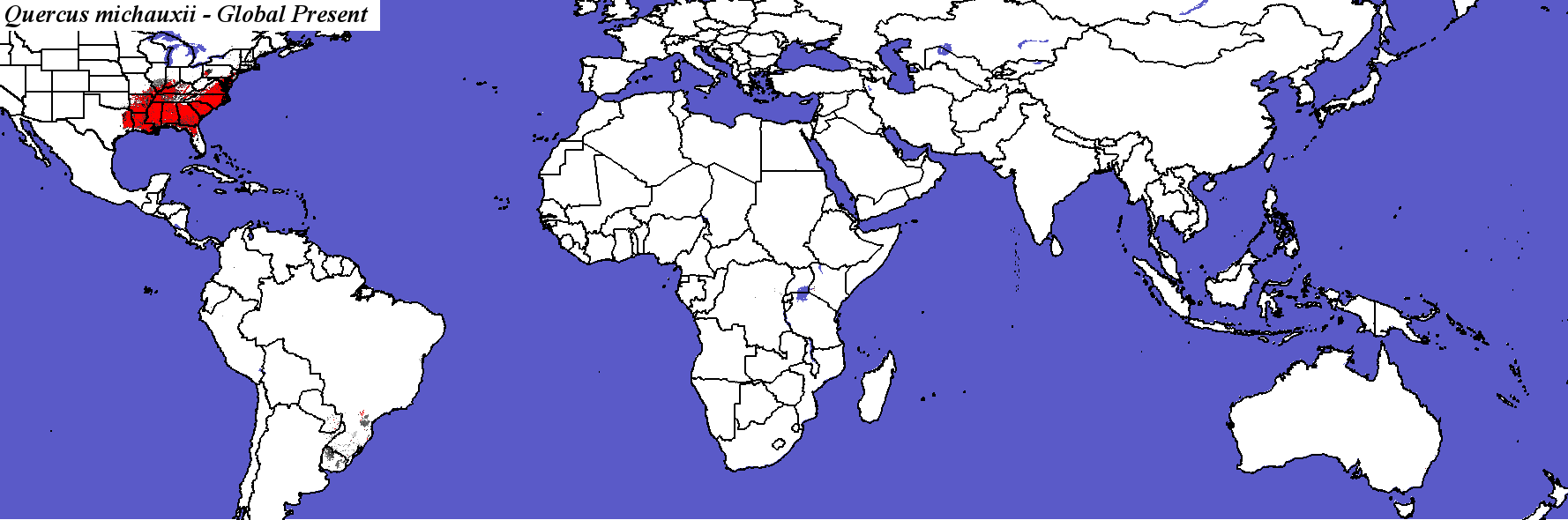

Quercus michauxii - Global

PCM - Parallel Climate Model
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

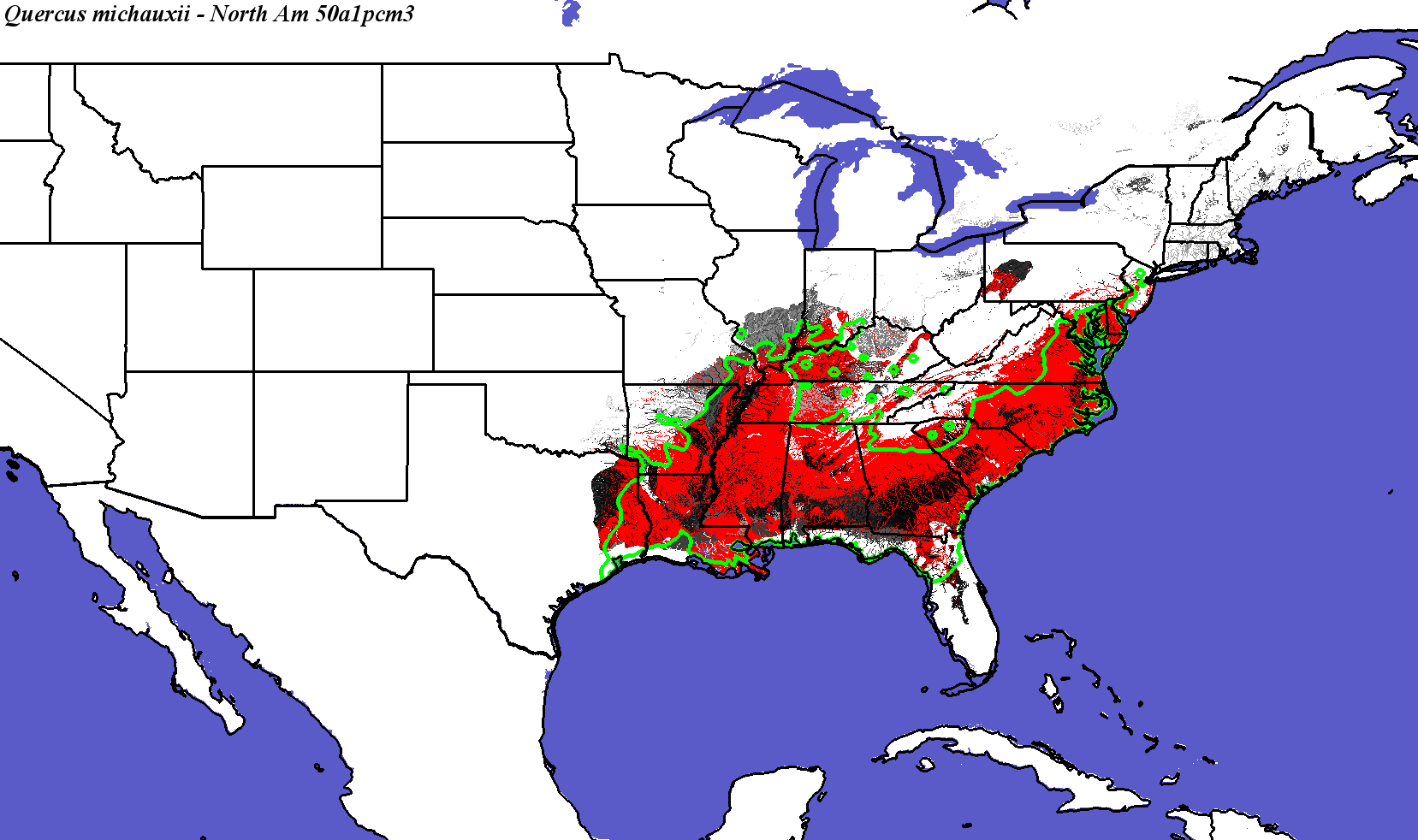

PCM, Scenario A1FI, 2050 - Quercus michauxii - CONUS

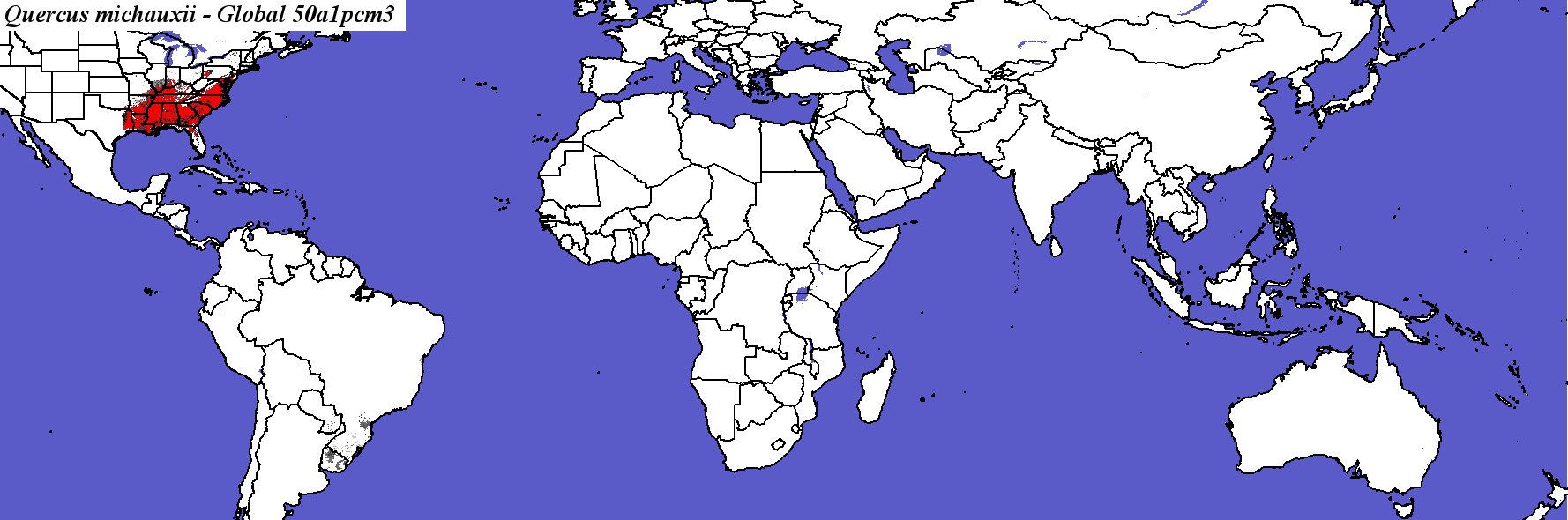

PCM, Scenario A1FI, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global
PCM, Scenario A1FI, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for PCM A1FI in 2100 by Iverson and Prasad

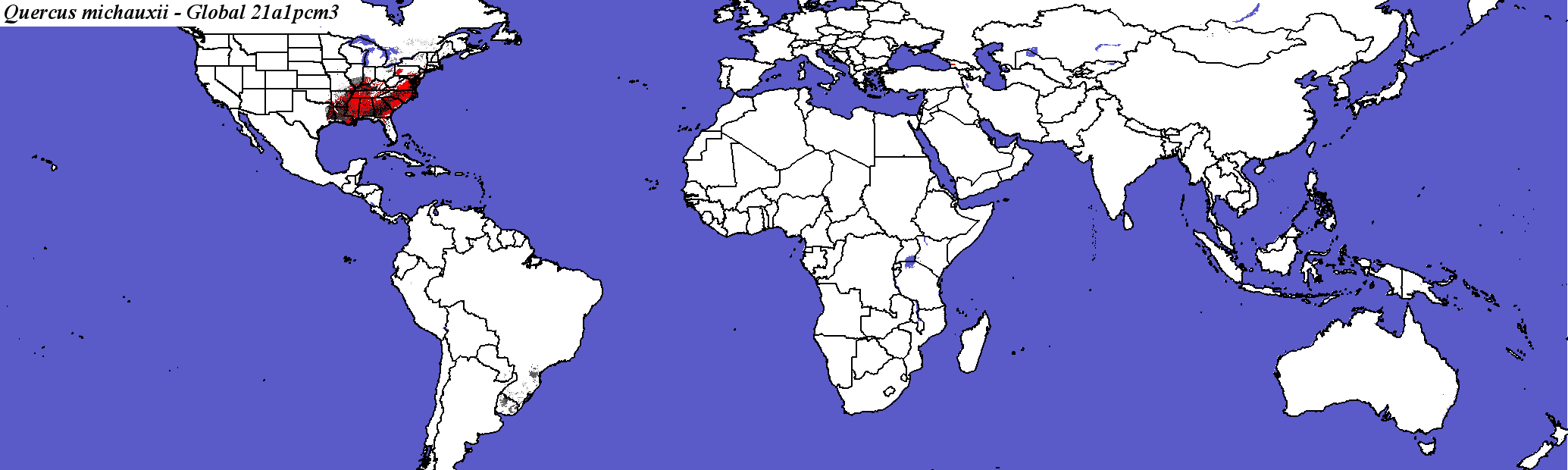

PCM, Scenario A1FI, 2100 - Quercus michauxii - Global

Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

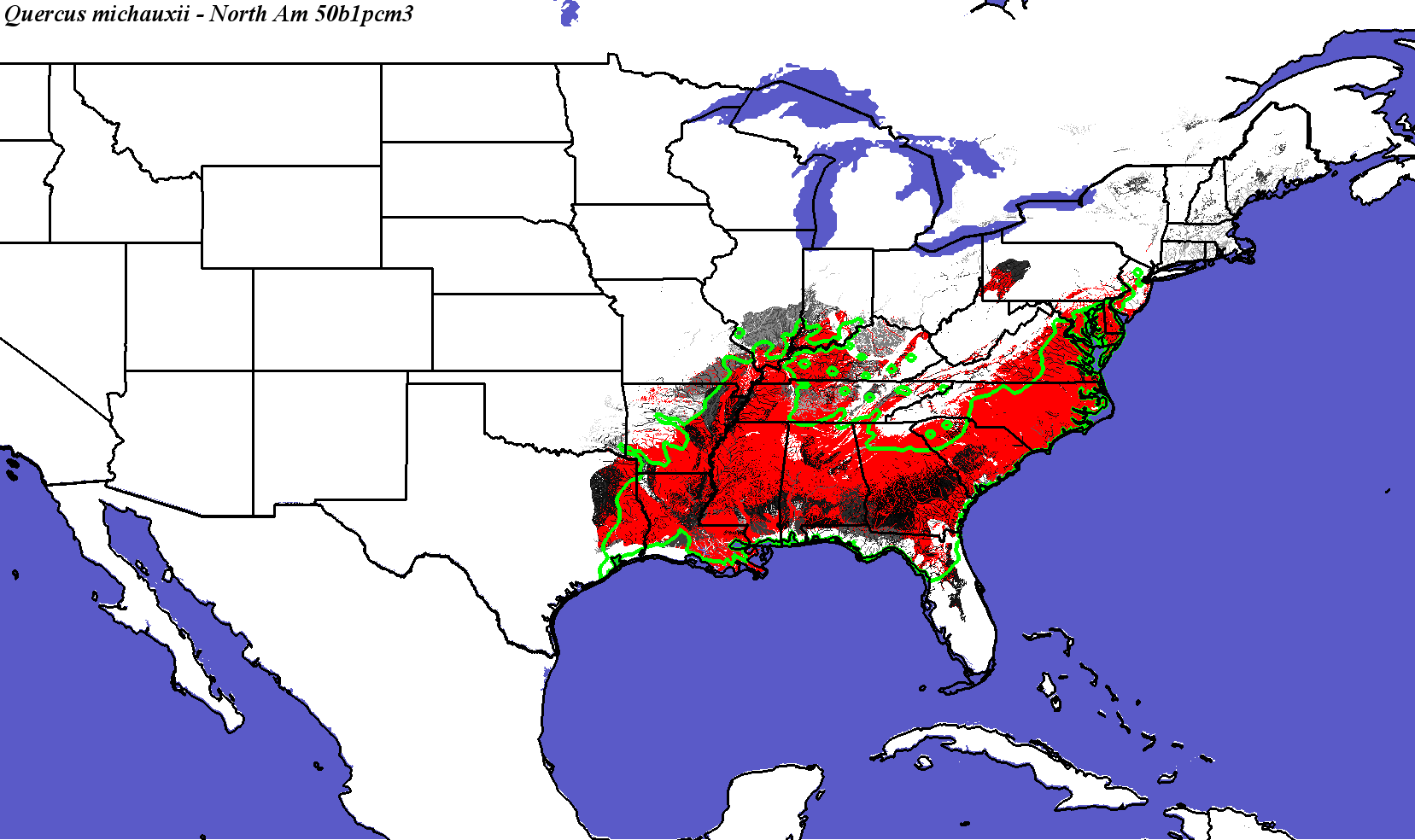

PCM, Scenario B1, 2050 - Quercus michauxii - CONUS
PCM, Scenario B1, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global
PCM, Scenario B1, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus michauxii - Global

Hadley Climate Model
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus michauxii - CONUS
Quercus michauxii not modeled by Crookston and Rehfeldt

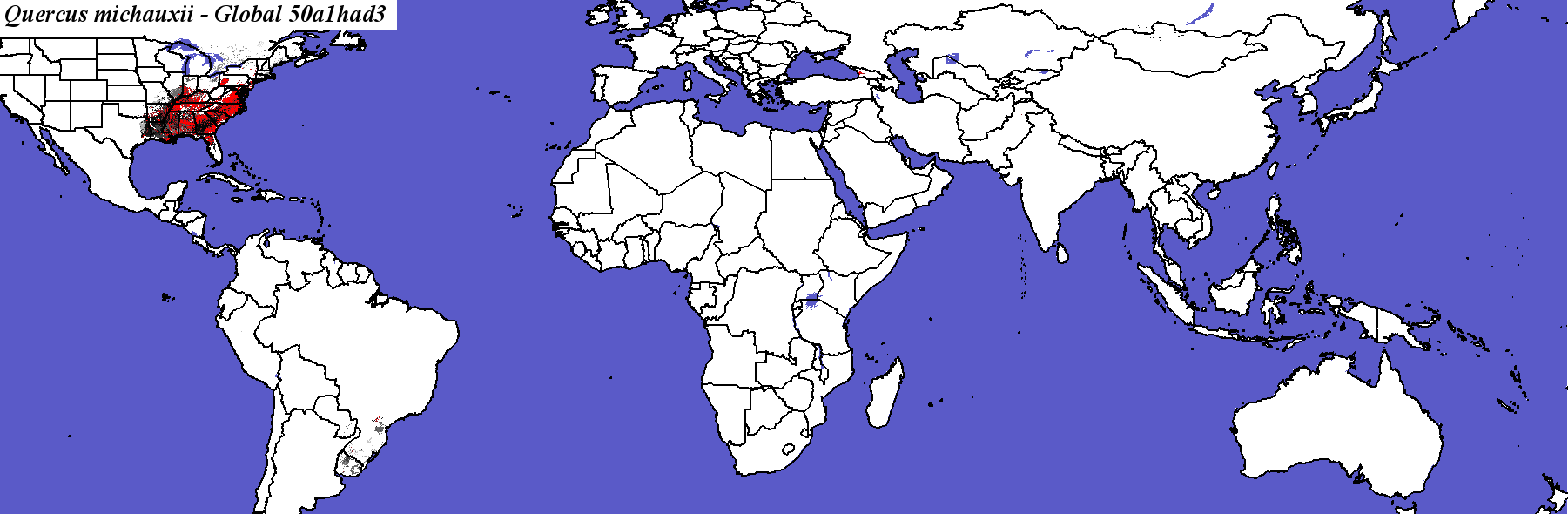

Hadley, Scenario A1FI, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global.

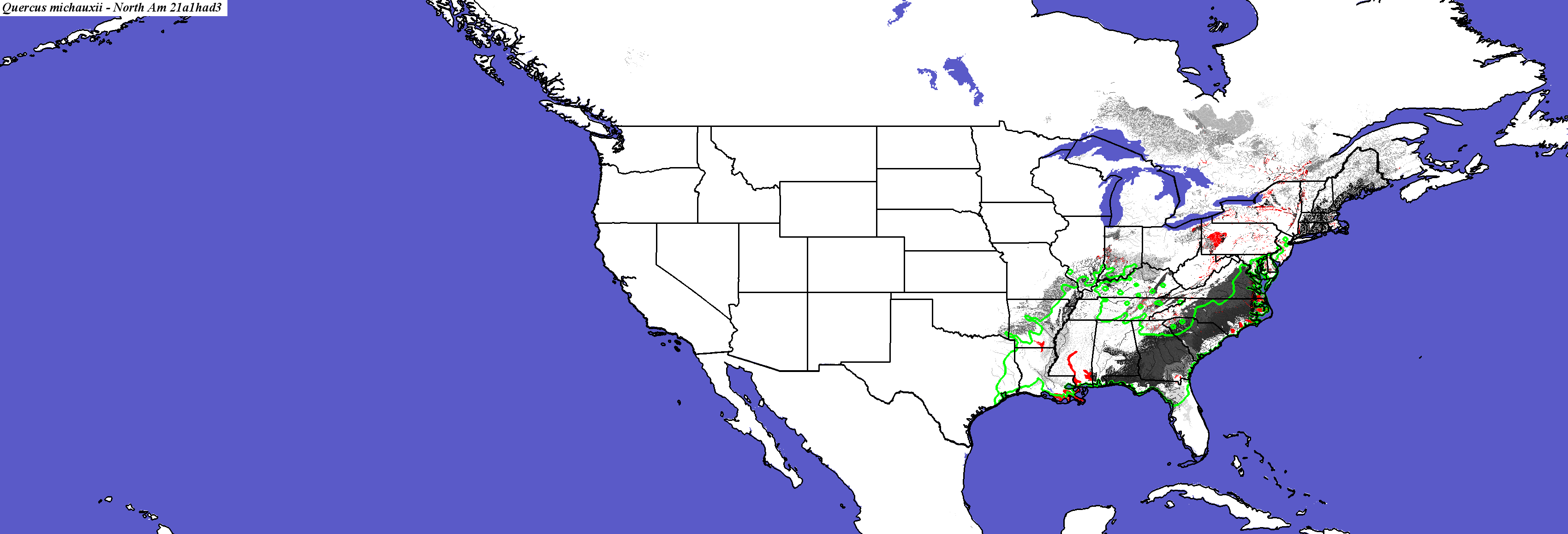

Hadley, Scenario A1FI, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring

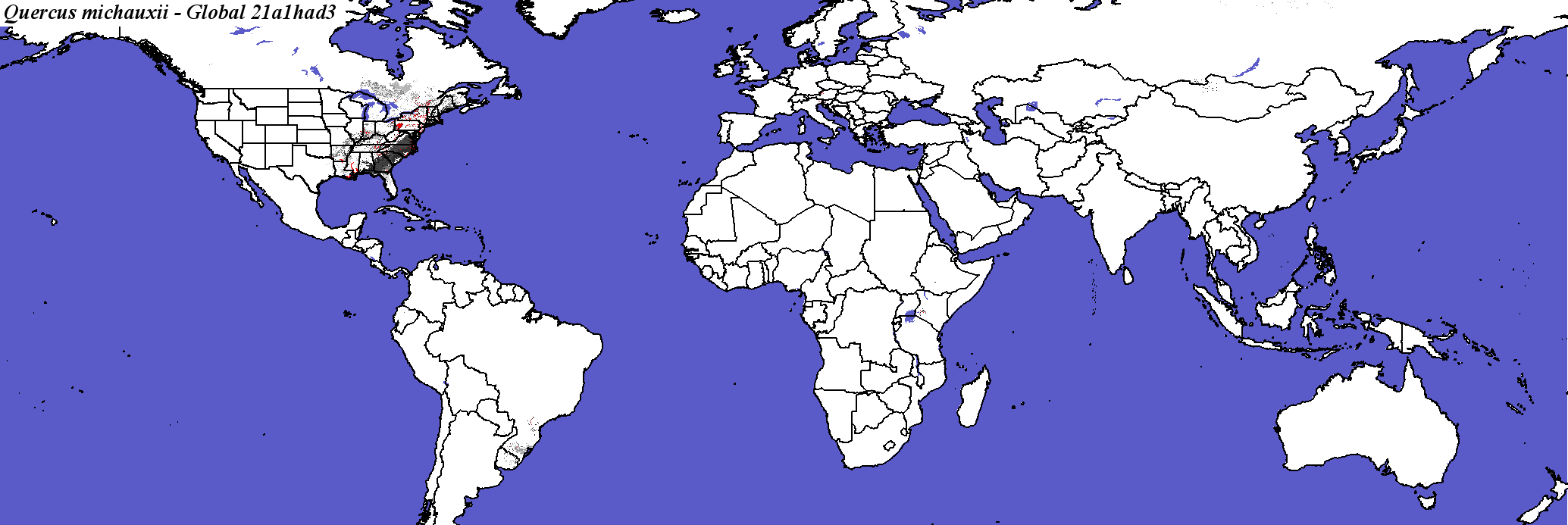

Hadley, Scenario A1FI, 2100 - Quercus michauxii - Global

Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global.
Hadley, Scenario B1, 2050 - Quercus michauxii - CONUS
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring

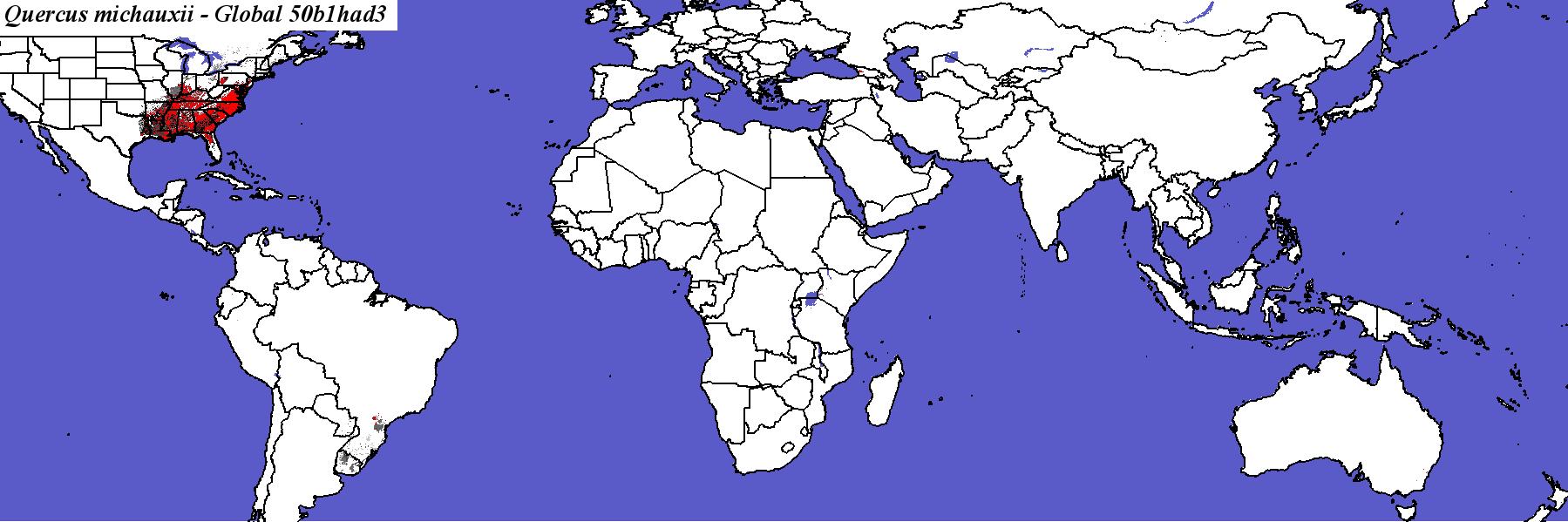

Hadley, Scenario B1, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global
Hadley, Scenario B1, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt

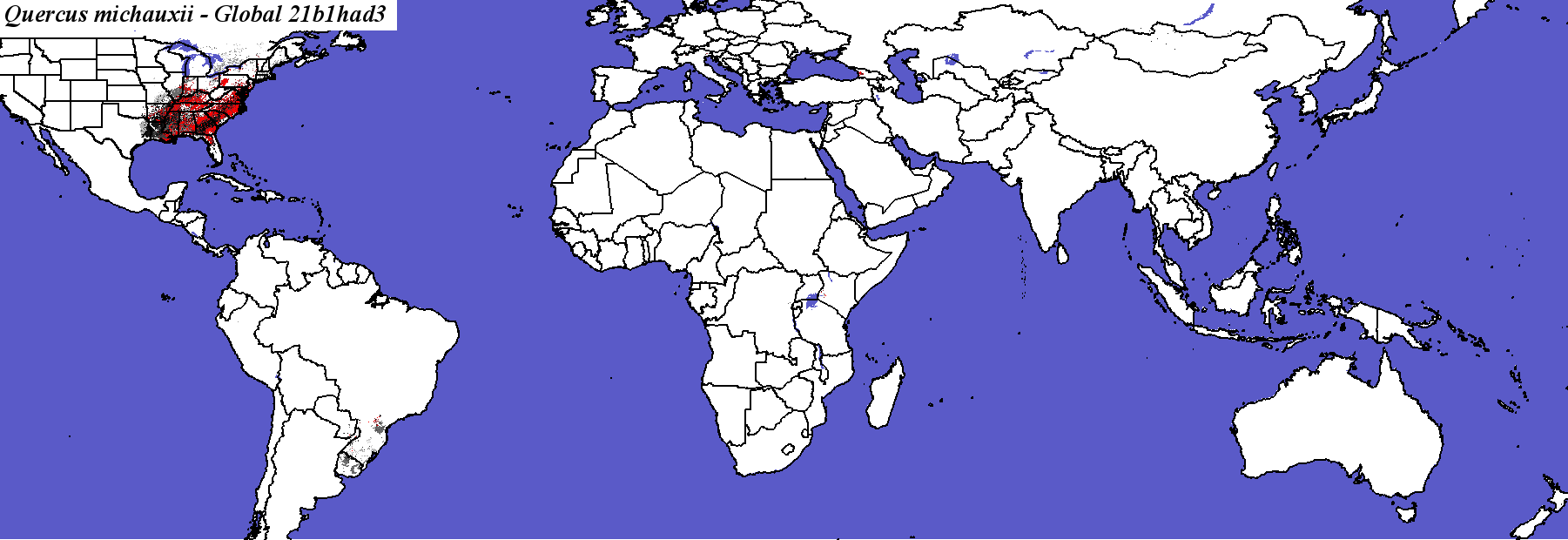

Hadley, Scenario B1, 2100 - Quercus michauxii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_michauxii_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

80

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

26.0274

Area in Present Suitable Range (in km2)

876597

Area in Future Suitable Range (Had B1 2050, in km2)

479385

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

379897

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

43.3300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

62.8767

Percent Change in Area of Suitable Range (Had B1 2050)

-45.3100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

75.4795

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

10884 +/- 16343.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

62.8767

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.01298 +/- 12.8995

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

65.2055

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

255.421 +/- 762.259

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

19.3151

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

61987

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.0700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

16.0274

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

175591

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.0300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

70.411

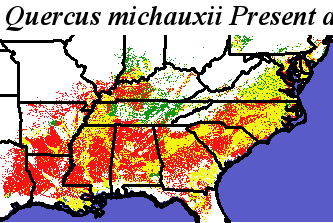

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus michauxii Quercus michauxii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_michauxii_final.noelev Fine MRM Distance
Quercus_michauxii_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus michauxii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_michauxii_final.noelev Coarse MRM Distance
Quercus_michauxii_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii
