Version 5 Tree Atlas


Quercus minima

dwarf live oak

noelev

Quercus minima Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus minima

USDA Plants Database entry for Quercus minima
Silvics Manual entry for Quercus minima


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus virginiana var. minima; Q. virginiana var. dentata1027109parts of range not well sampled

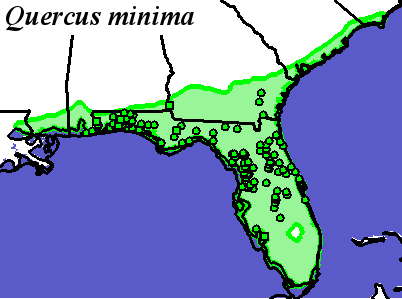

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_minima_final Occurrences

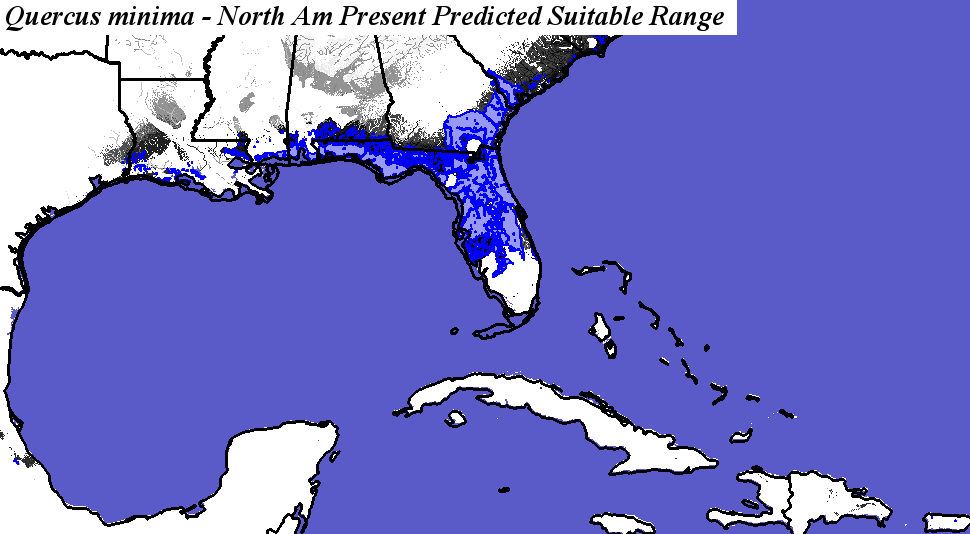

Hargroves Present Suitable Range Outline for Quercus_minima_final
Quercus minima - Occurrence Locations Quercus minima - Hargrove's Present Suitable Range Outline

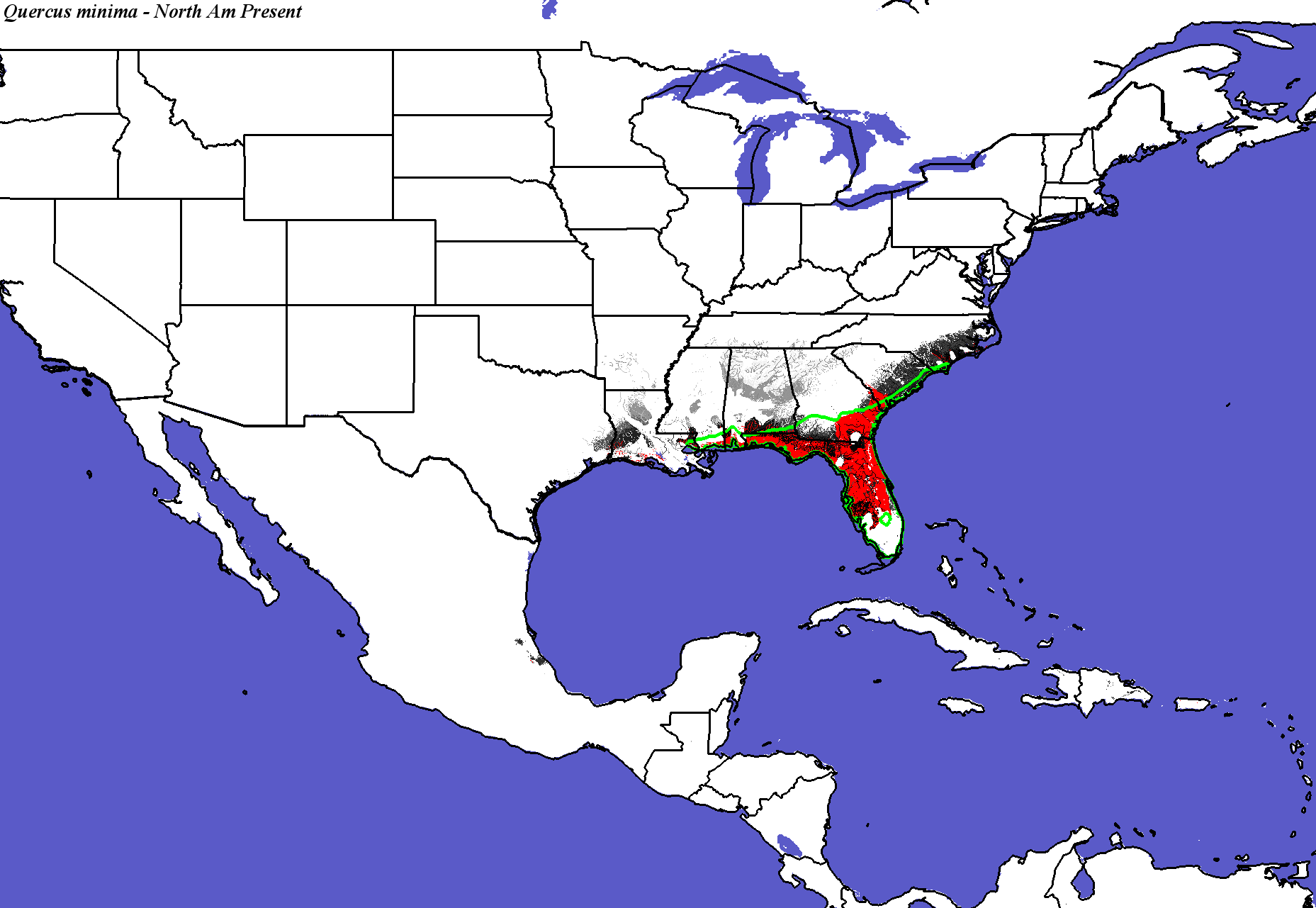

Present Conditions
Quercus_minima_final.2.conus
Quercus_minima_final.2.global
Quercus minima - CONUS
Compare with Current Range from the Silvics Manual for Quercus minima
Compare with Current Range from Biota of North America Program (BONAP) for Quercus minima

Quercus minima not modeled by Iverson and Prasad
Quercus minima not modeled by Crookston and Rehfeldt
Quercus minima not modeled by Coops and Waring

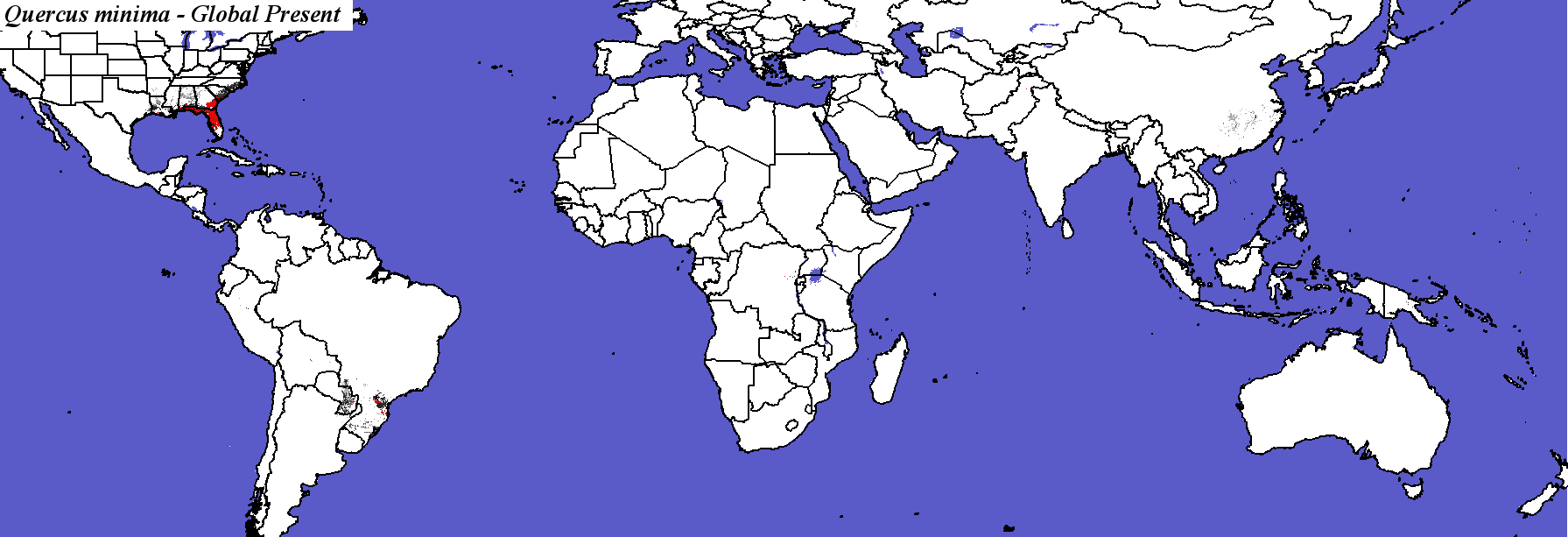

Quercus minima - Global

PCM - Parallel Climate Model
Quercus_minima_final.2.conus
Quercus_minima_final.2.global

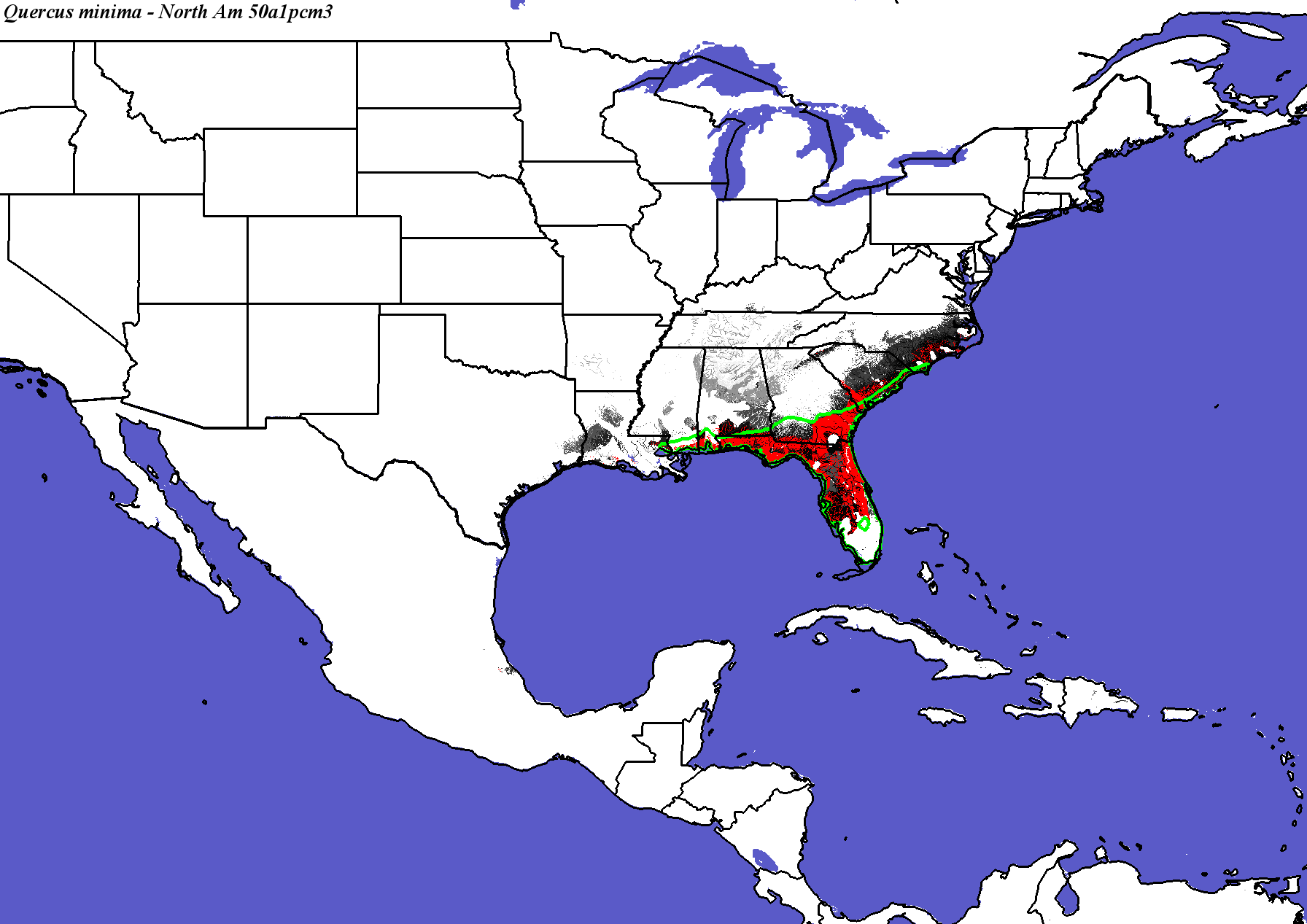

PCM, Scenario A1FI, 2050 - Quercus minima - CONUS

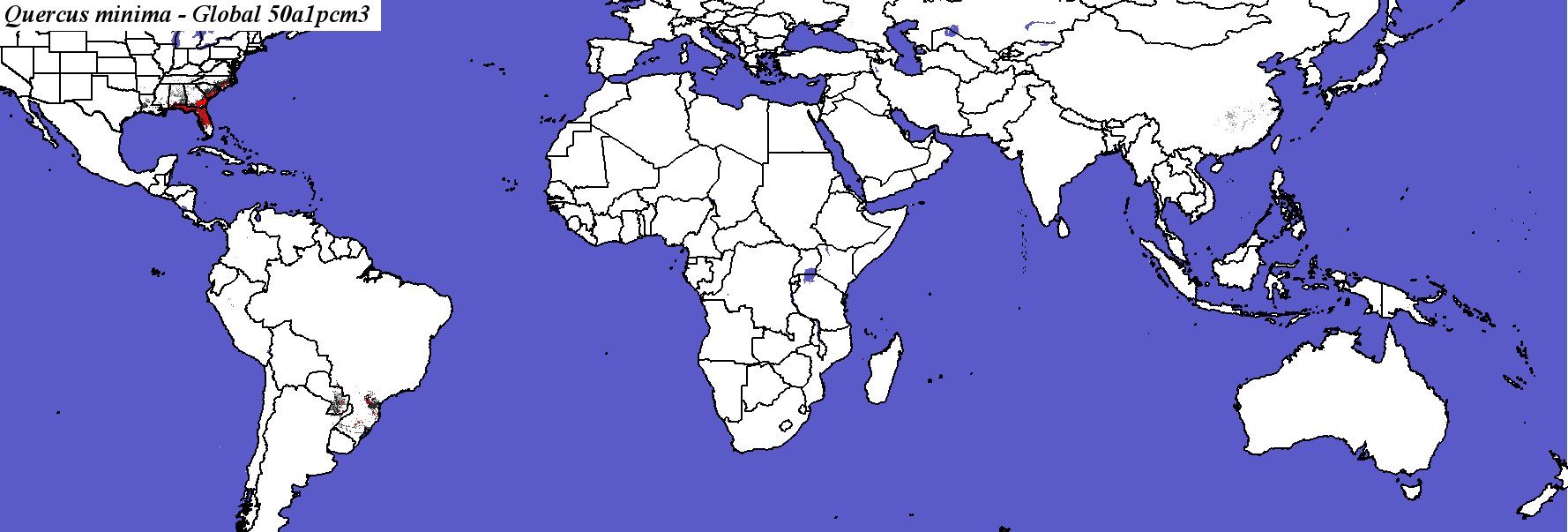

PCM, Scenario A1FI, 2050 - Quercus minima - Global
Quercus_minima_final.2.conus
Quercus_minima_final.2.global

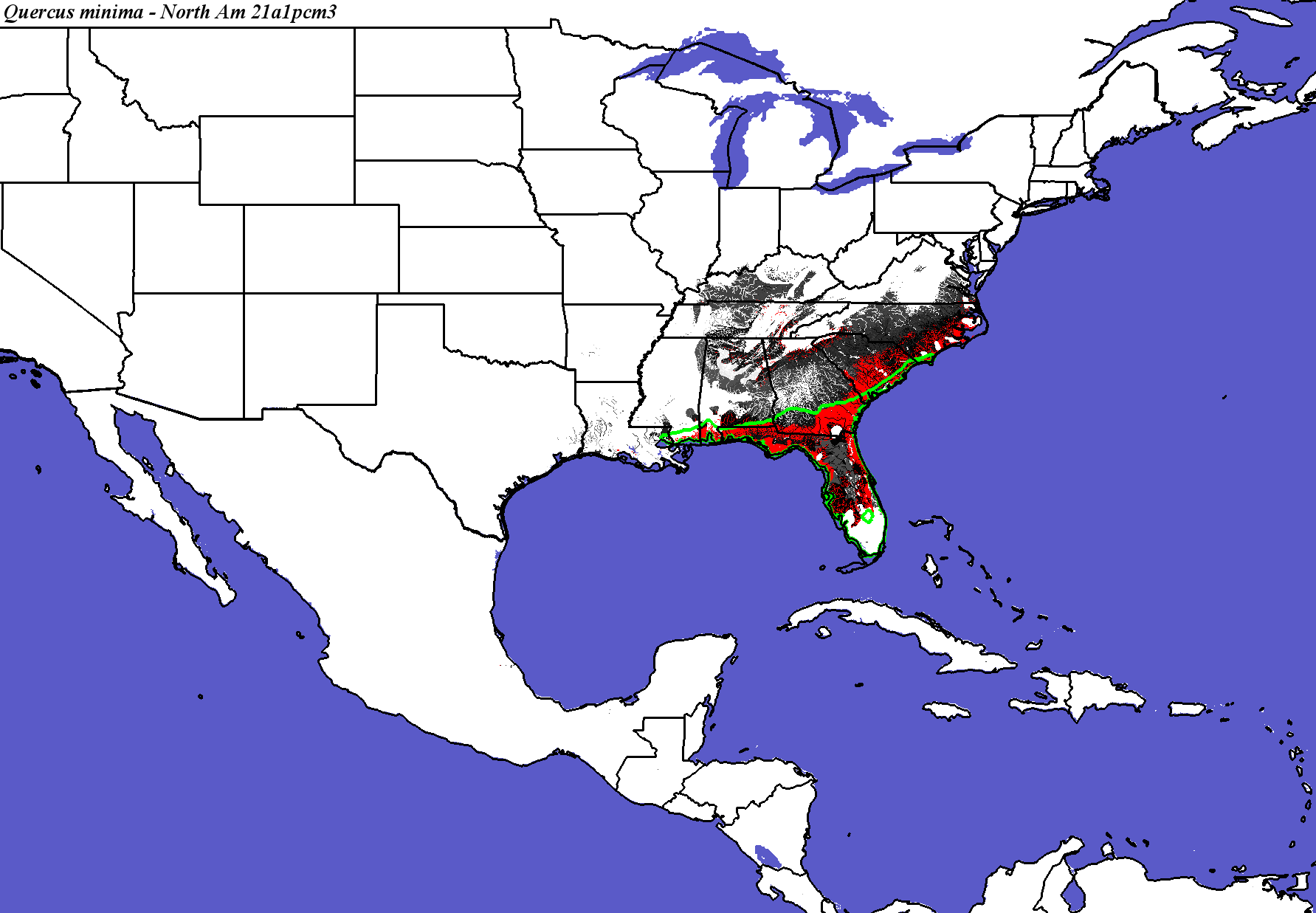

PCM, Scenario A1FI, 2100 - Quercus minima - CONUS
Quercus minima species not modeled by Iverson and Prasad

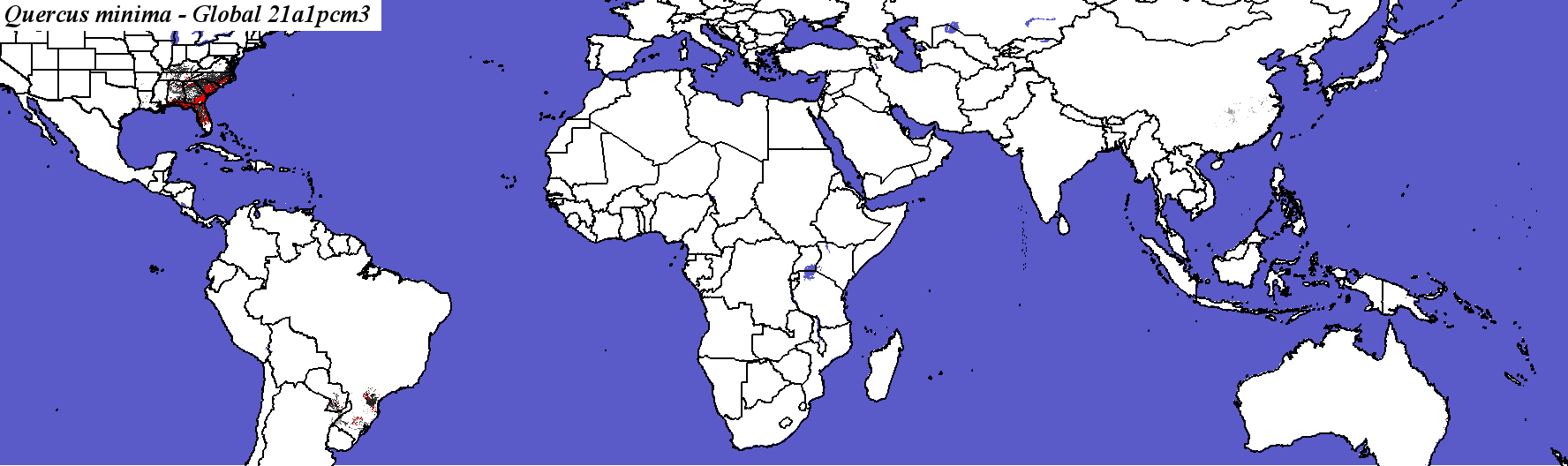

PCM, Scenario A1FI, 2100 - Quercus minima - Global

Quercus_minima_final.2.conus
Quercus_minima_final.2.global
PCM, Scenario B1, 2050 - Quercus minima - CONUS

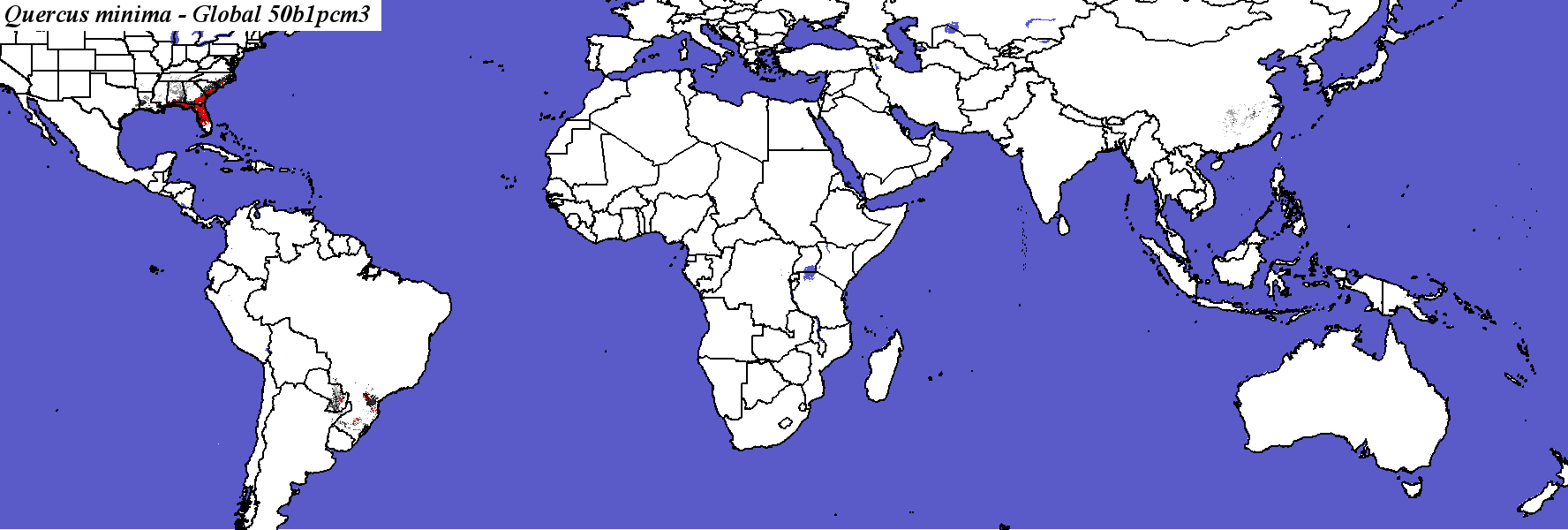

PCM, Scenario B1, 2050 - Quercus minima - Global
Quercus_minima_final.2.conus
Quercus_minima_final.2.global
PCM, Scenario B1, 2100 - Quercus minima - CONUS
Quercus minima not modeled by Iverson and Prasad

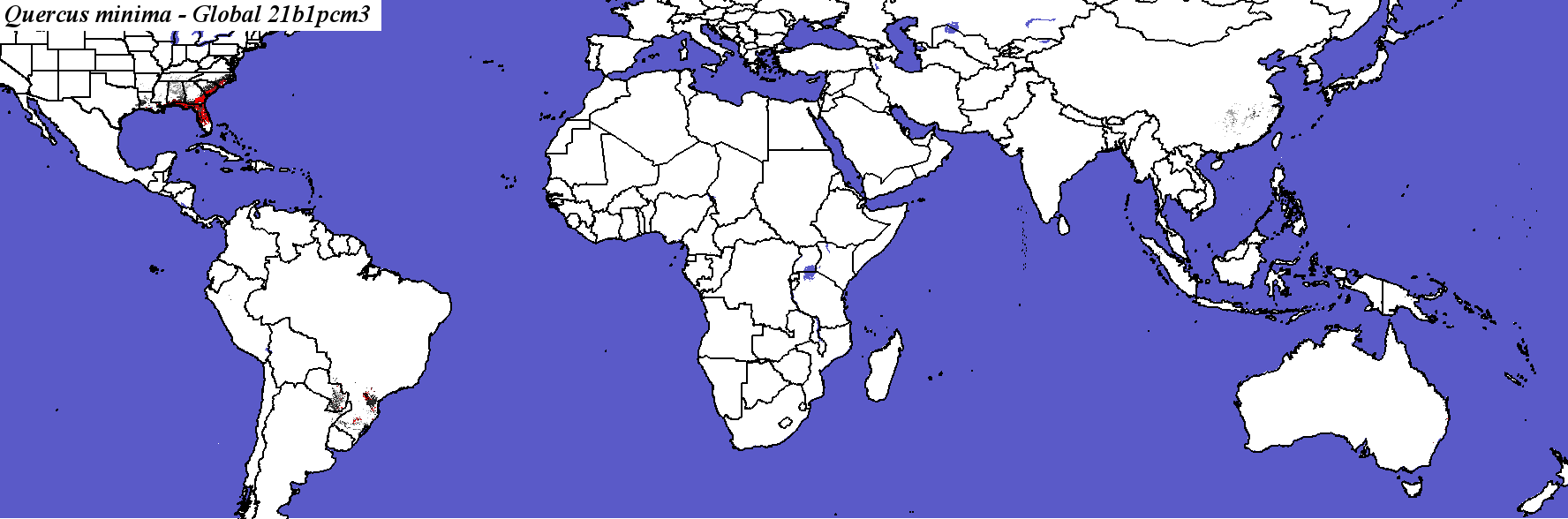

PCM, Scenario B1, 2100 - Quercus minima - Global

Hadley Climate Model
Quercus_minima_final.2.conus
Quercus_minima_final.2.global

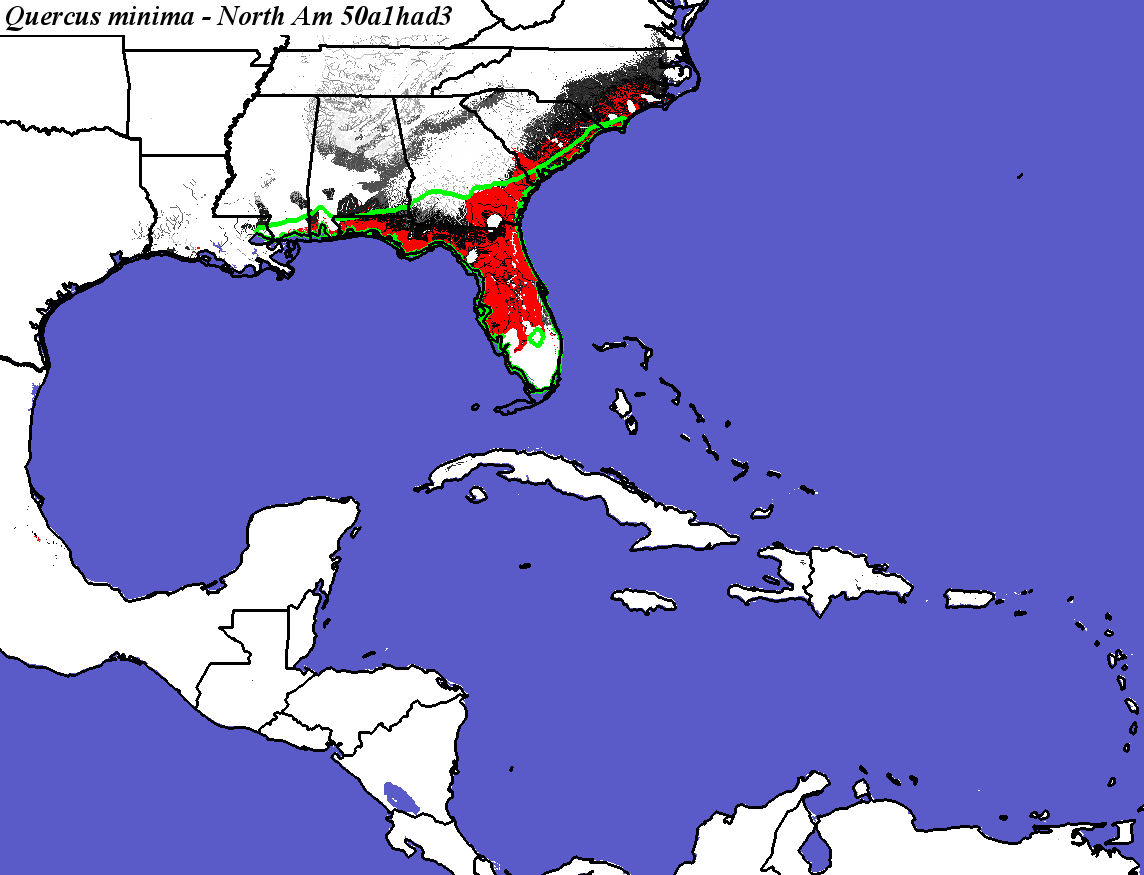

Hadley, Scenario A1FI, 2050 - Quercus minima - CONUS
Quercus minima not modeled by Crookston and Rehfeldt

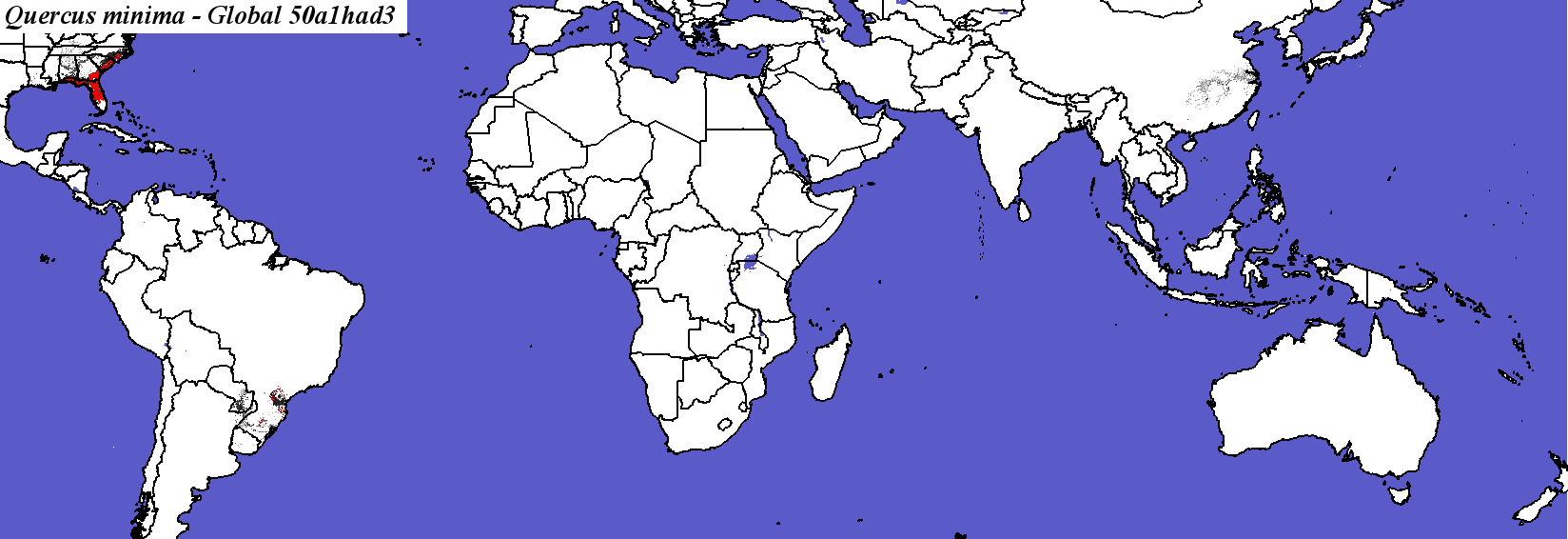

Hadley, Scenario A1FI, 2050 - Quercus minima - Global
Quercus_minima_final.2.conus
Quercus_minima_final.2.global.
Hadley, Scenario A1FI, 2100 - Quercus minima - CONUS
Quercus minima not modeled by Iverson and Prasad
Quercus minima not modeled by Crookston and Rehfeldt
Quercus minima not modeled by Coops and Waring

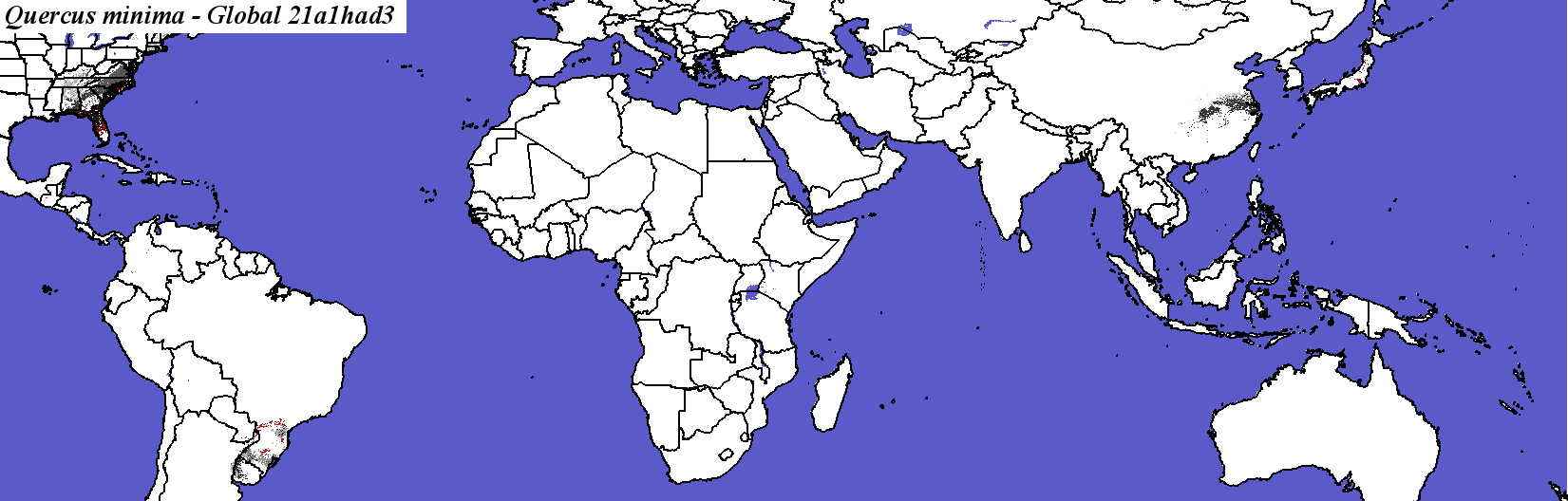

Hadley, Scenario A1FI, 2100 - Quercus minima - Global

Quercus_minima_final.2.conus
Quercus_minima_final.2.global.

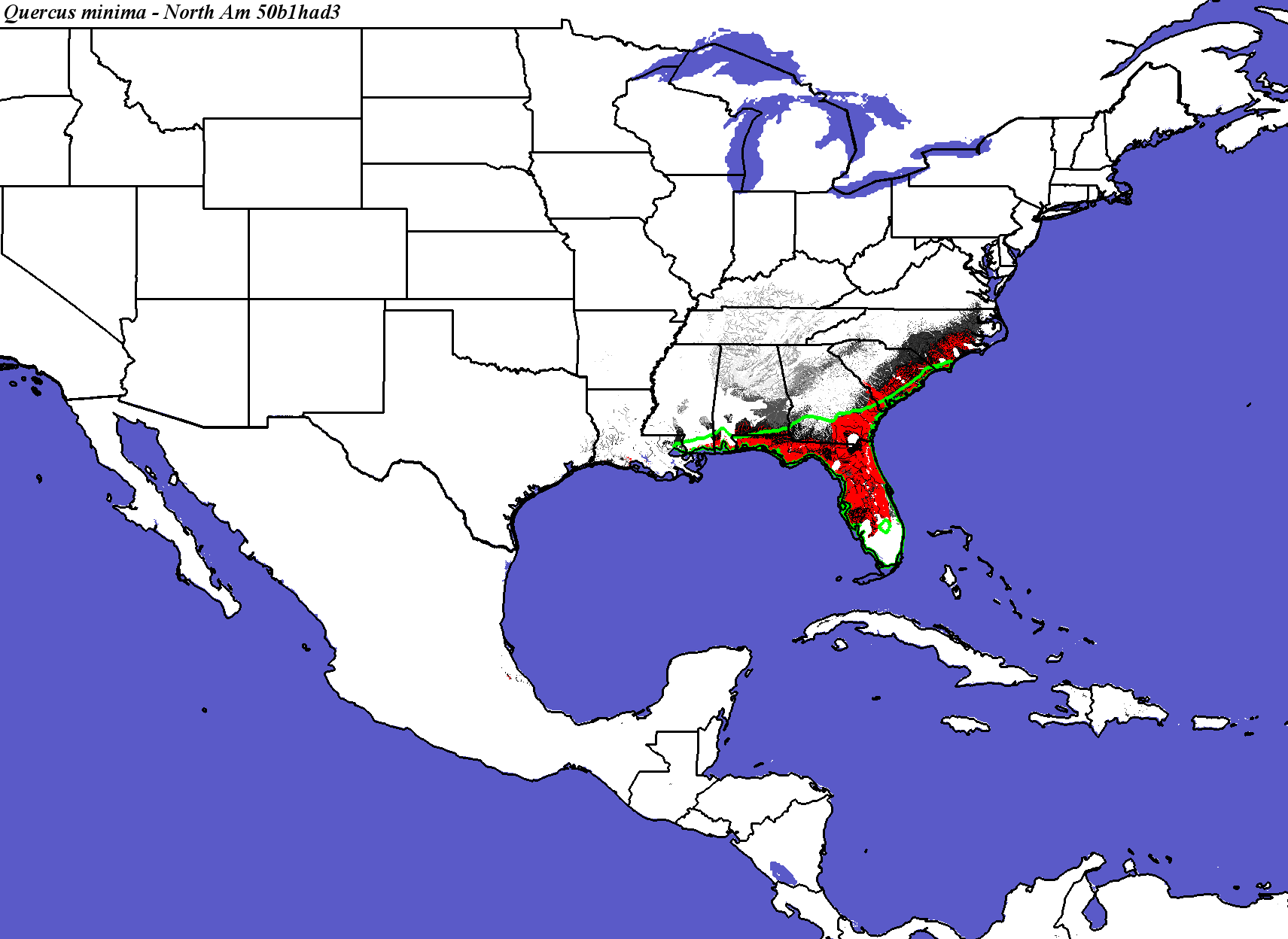

Hadley, Scenario B1, 2050 - Quercus minima - CONUS
Quercus minima not modeled by Crookston and Rehfeldt
Quercus minima not modeled by Coops and Waring

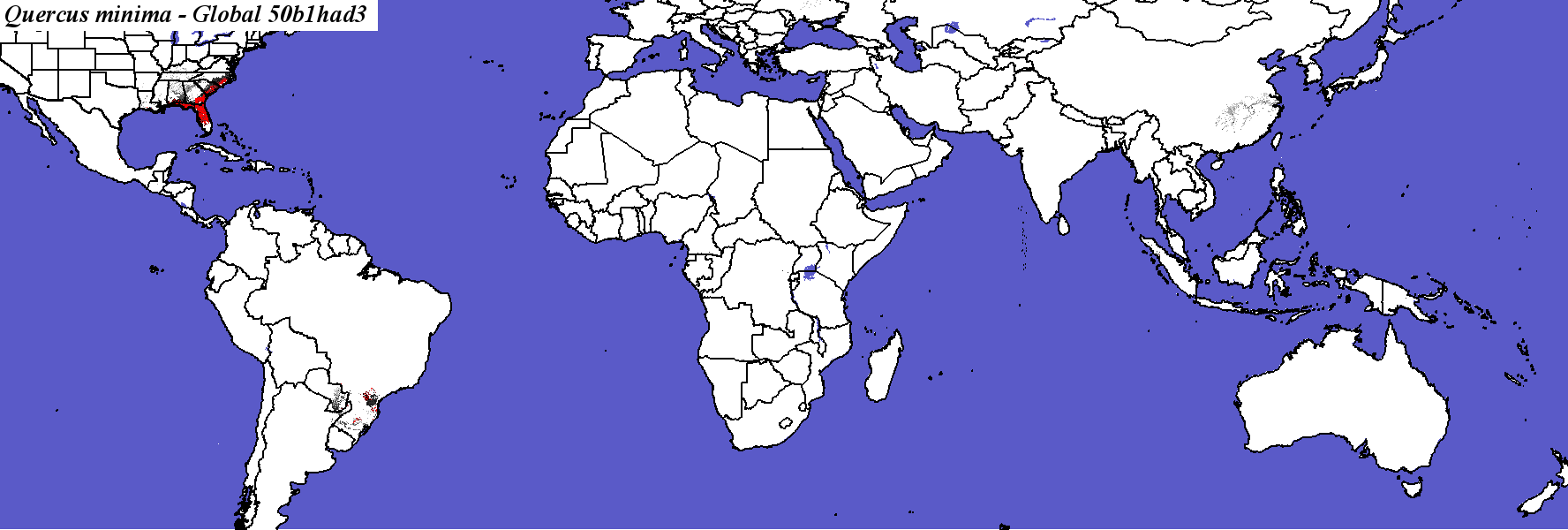

Hadley, Scenario B1, 2050 - Quercus minima - Global
Quercus_minima_final.2.conus
Quercus_minima_final.2.global
Hadley, Scenario B1, 2100 - Quercus minima - CONUS
Quercus minima not modeled by Iverson and Prasad
Quercus minima not modeled by Crookston and Rehfeldt

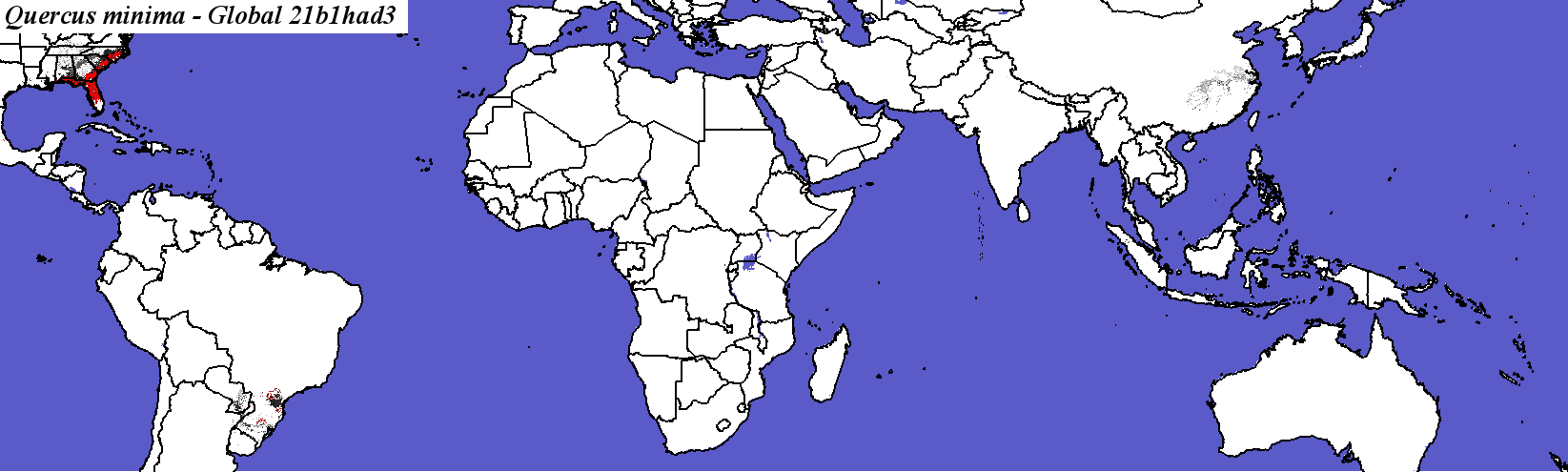

Hadley, Scenario B1, 2100 - Quercus minima - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_minima_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

20

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

62.3288

Area in Present Suitable Range (in km2)

105663

Area in Future Suitable Range (Had B1 2050, in km2)

117477

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

94771

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

89.6900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

0.958904

Percent Change in Area of Suitable Range (Had B1 2050)

11.1800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

2.05479

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

6060.48 +/- 80524.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

86.0274

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.61669 +/- 13.9107

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

95.8904

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

11.528 +/- 131.466

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

95.7534

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

177

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.1600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

65.7534

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

74414

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

70.4200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

1.23288

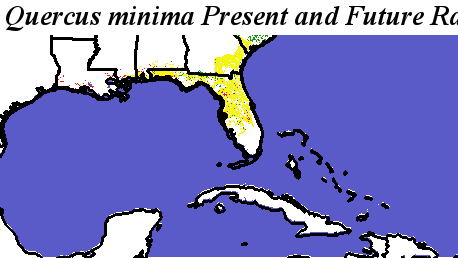

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus minima Quercus minima - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

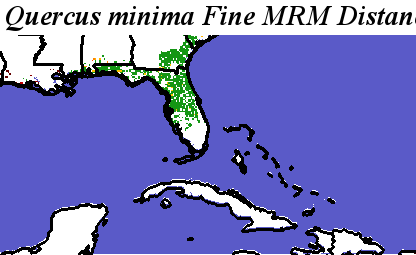

Quercus_minima_final.noelev Fine MRM Distance

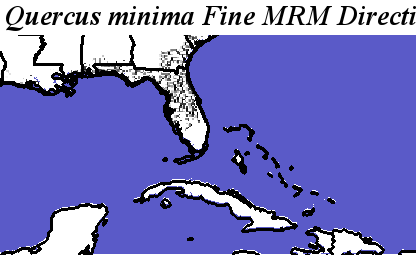

Quercus_minima_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus minima Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus minima
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_minima_final.noelev Coarse MRM Distance
Quercus_minima_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus minima Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus minima
