Version 5 Tree Atlas


Quercus nigra

Water oak

noelev

Quercus nigra Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus nigra

USDA Plants Database entry for Quercus nigra
Silvics Manual entry for Quercus nigra


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus nigra var. heterophylla7586607646TBD

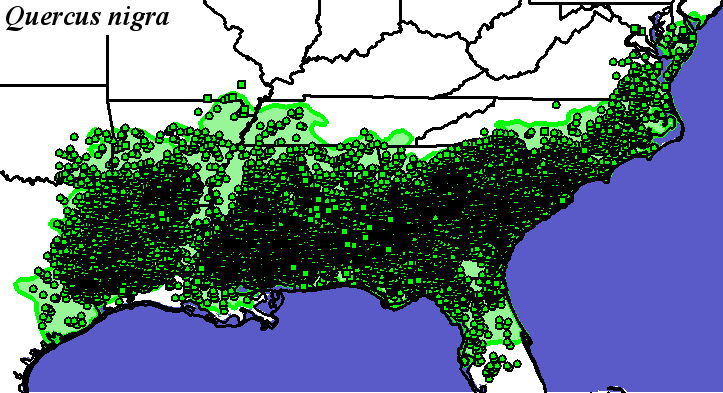

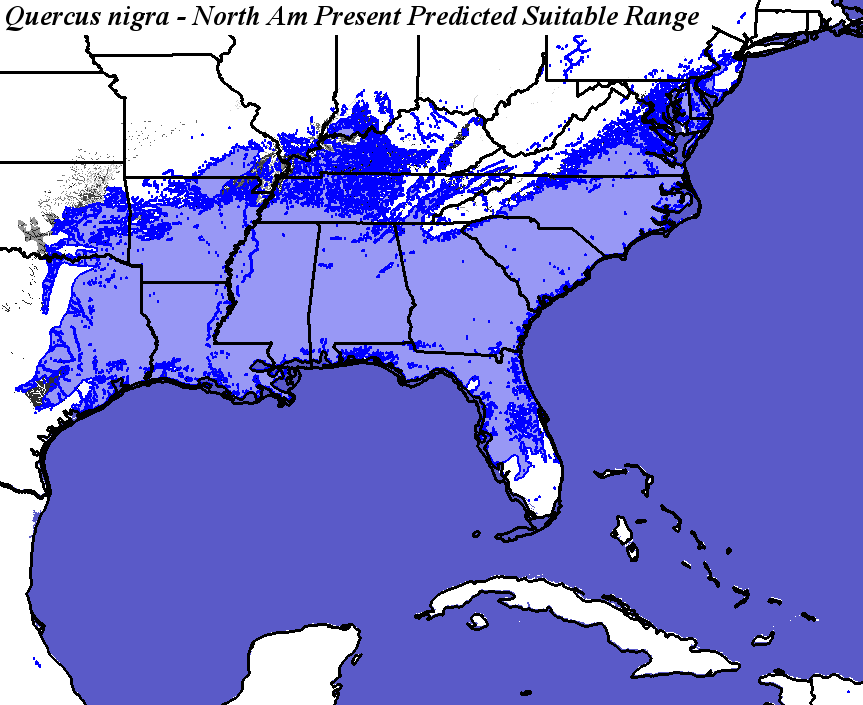

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_nigra_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_nigra_final
Quercus nigra - Occurrence Locations Quercus nigra - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

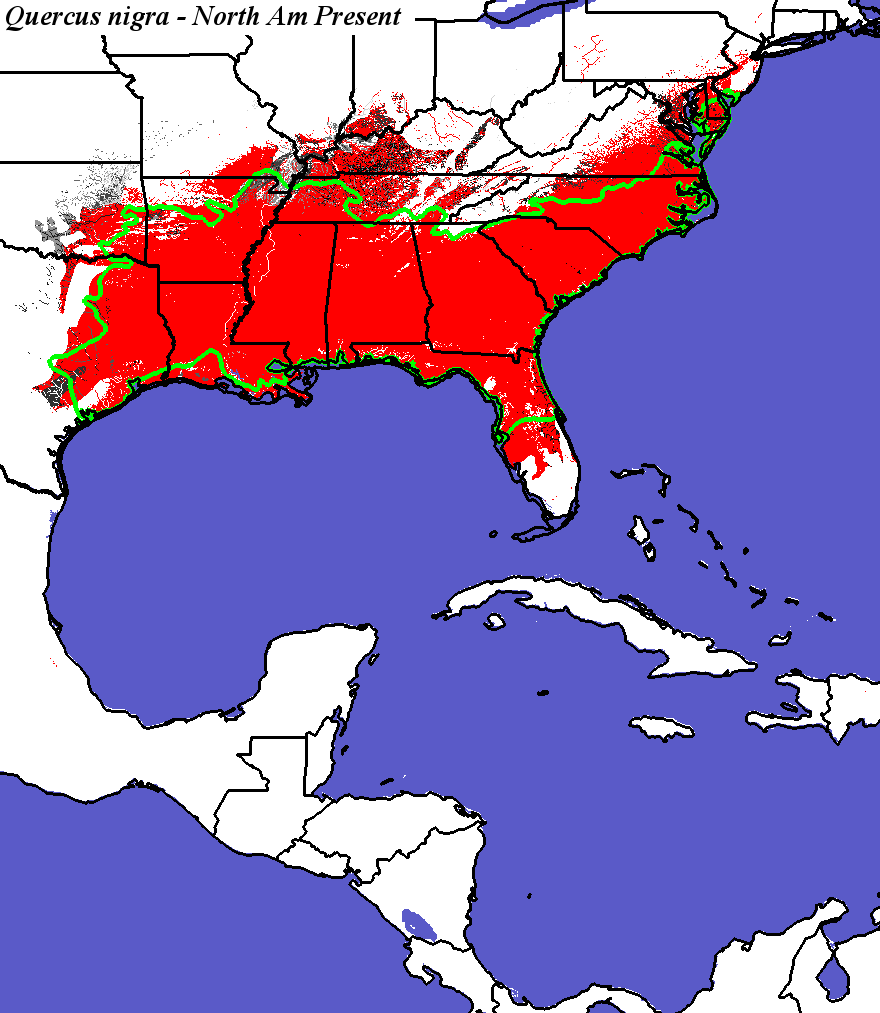

Quercus nigra - CONUS
Compare with Current Range from the Silvics Manual for Quercus nigra
Compare with Current Range from Biota of North America Program (BONAP) for Quercus nigra

Compare with Quercus nigra modeled for Current conditions by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring

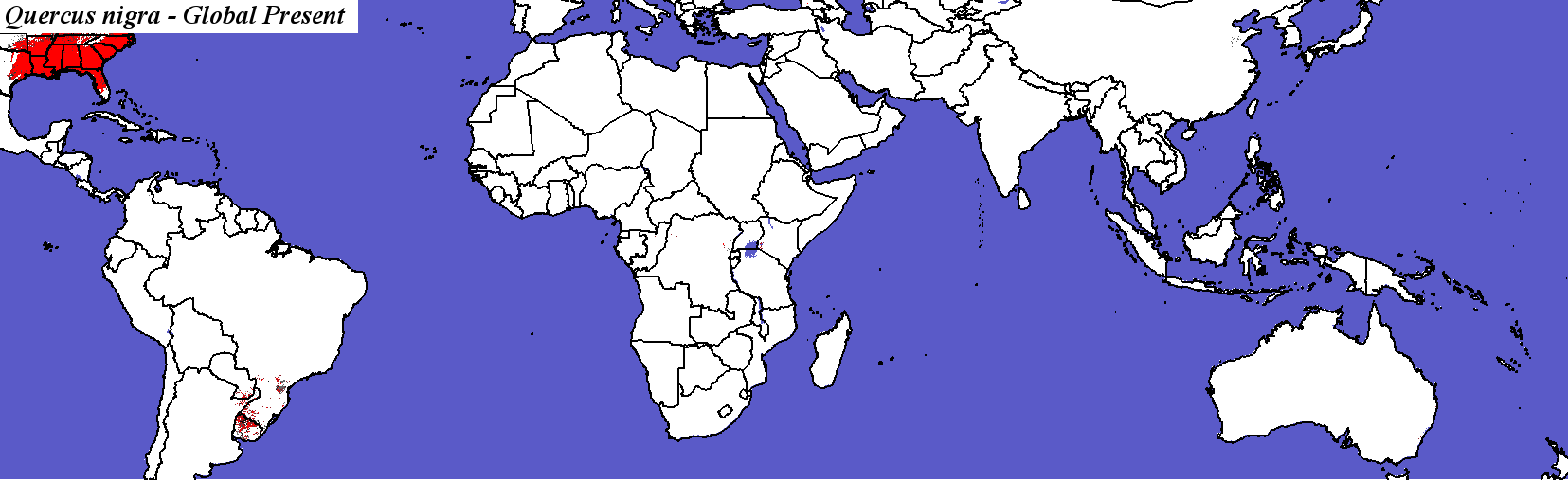

Quercus nigra - Global

PCM - Parallel Climate Model
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

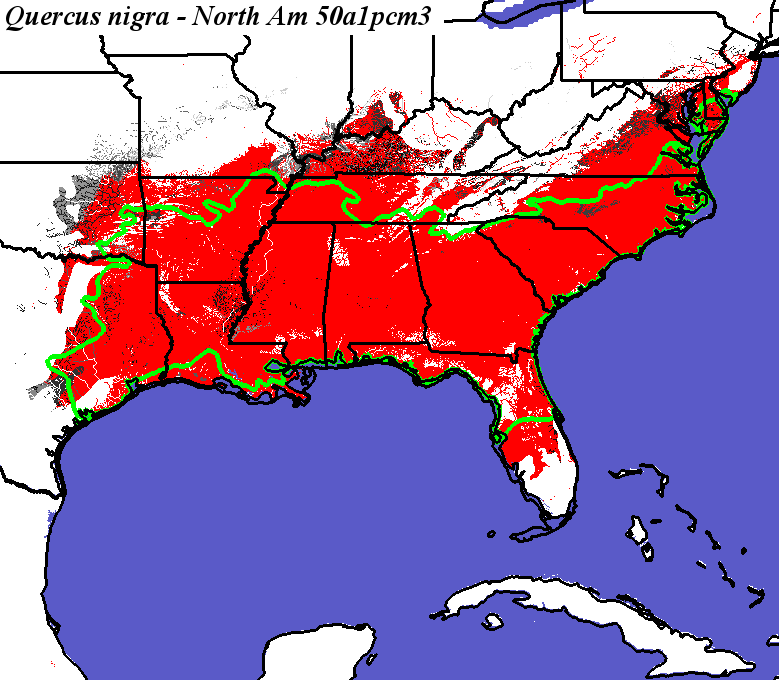

PCM, Scenario A1FI, 2050 - Quercus nigra - CONUS
PCM, Scenario A1FI, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
PCM, Scenario A1FI, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus nigra - Global

Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

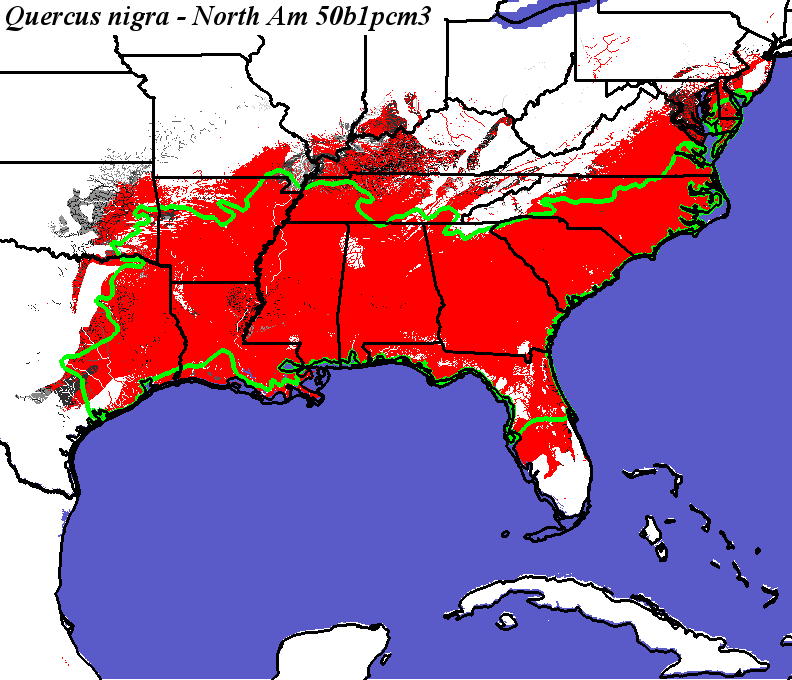

PCM, Scenario B1, 2050 - Quercus nigra - CONUS
PCM, Scenario B1, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

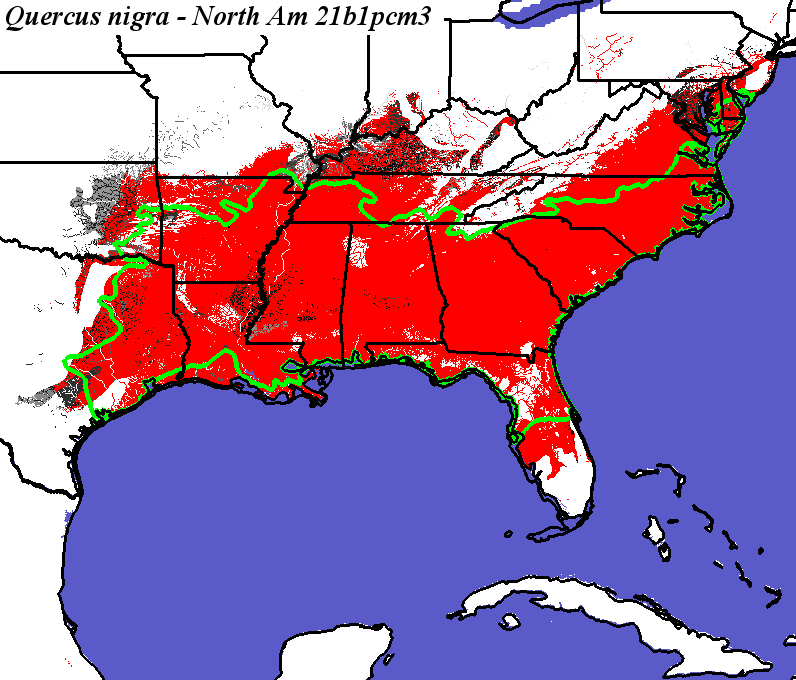

PCM, Scenario B1, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for PCM B1 in 2100 by Iverson and Prasad

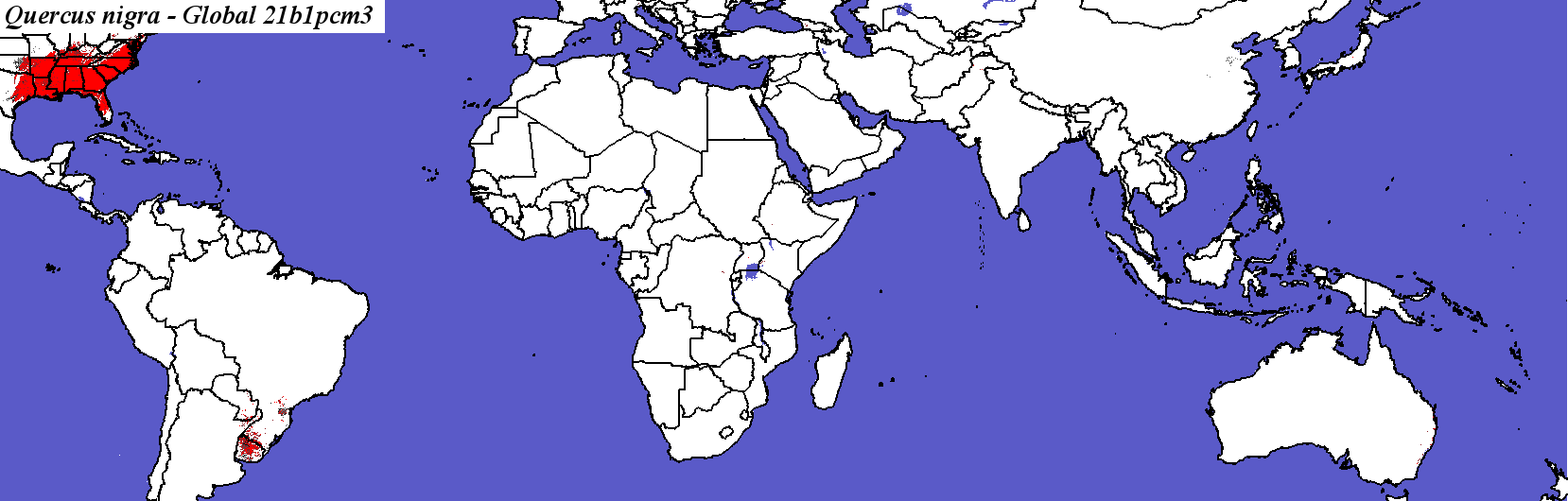

PCM, Scenario B1, 2100 - Quercus nigra - Global

Hadley Climate Model
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

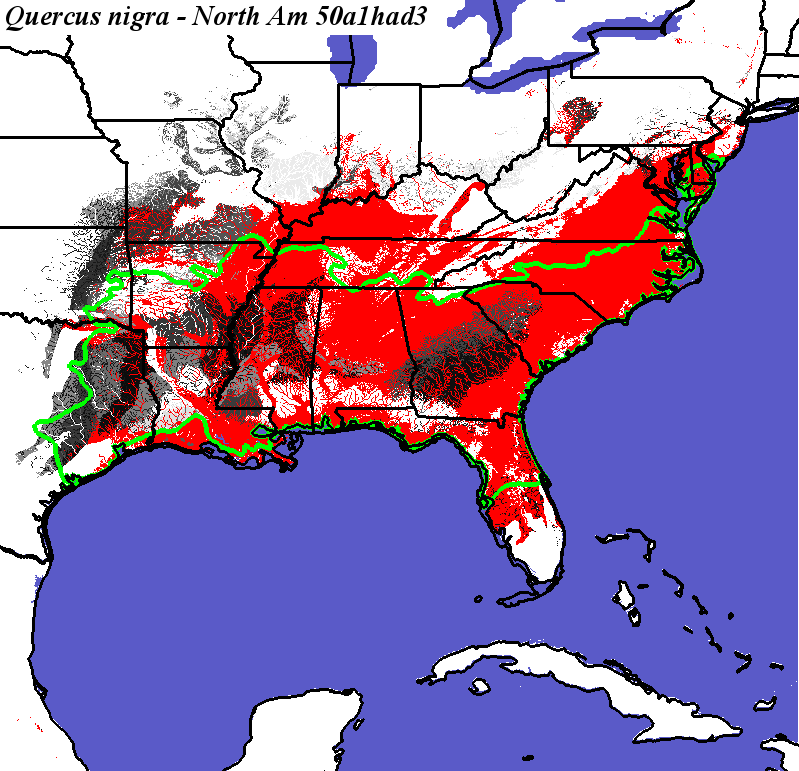

Hadley, Scenario A1FI, 2050 - Quercus nigra - CONUS
Quercus nigra not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global.

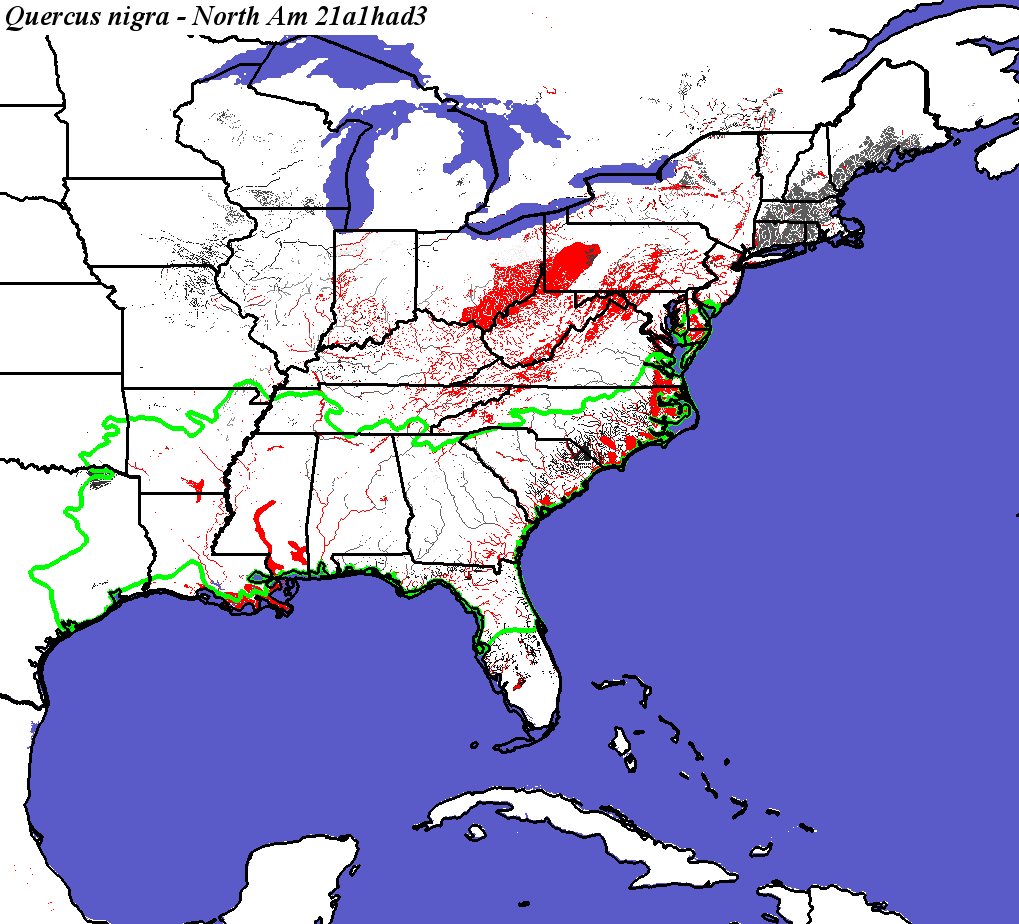

Hadley, Scenario A1FI, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring

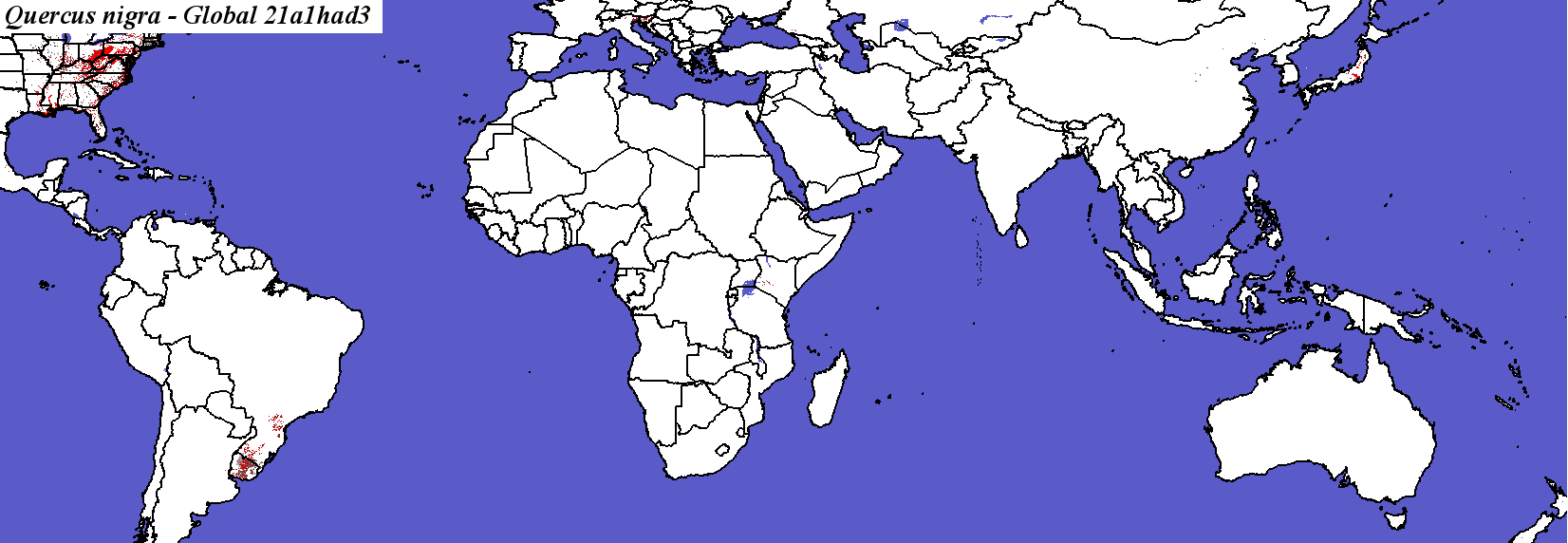

Hadley, Scenario A1FI, 2100 - Quercus nigra - Global

Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global.

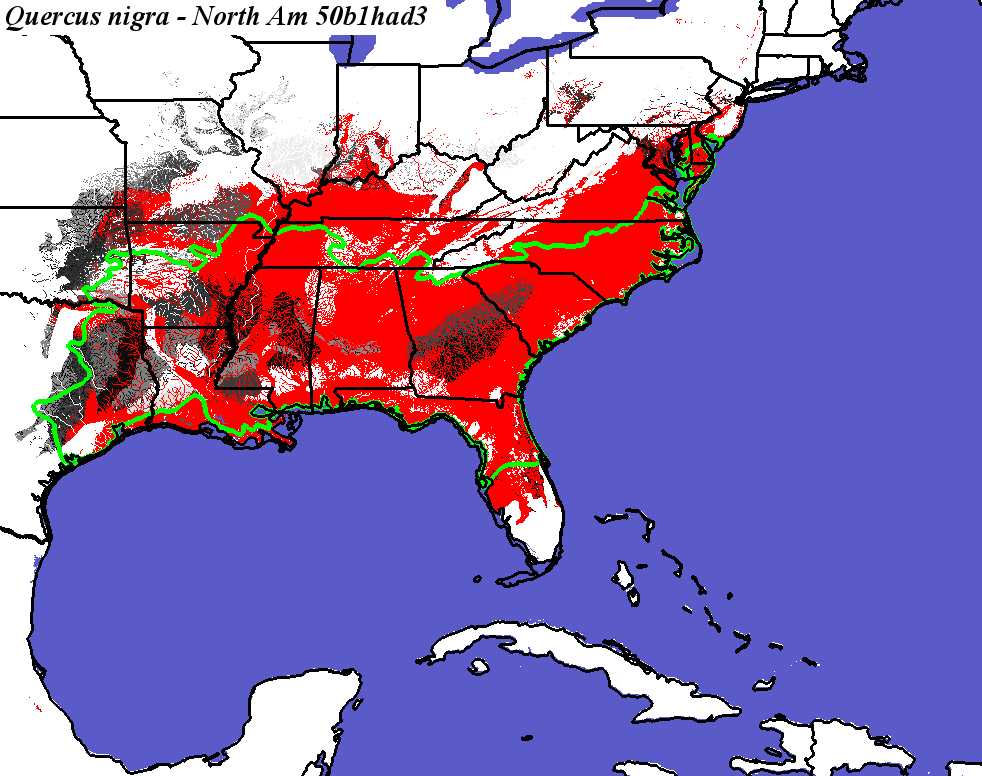

Hadley, Scenario B1, 2050 - Quercus nigra - CONUS
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring

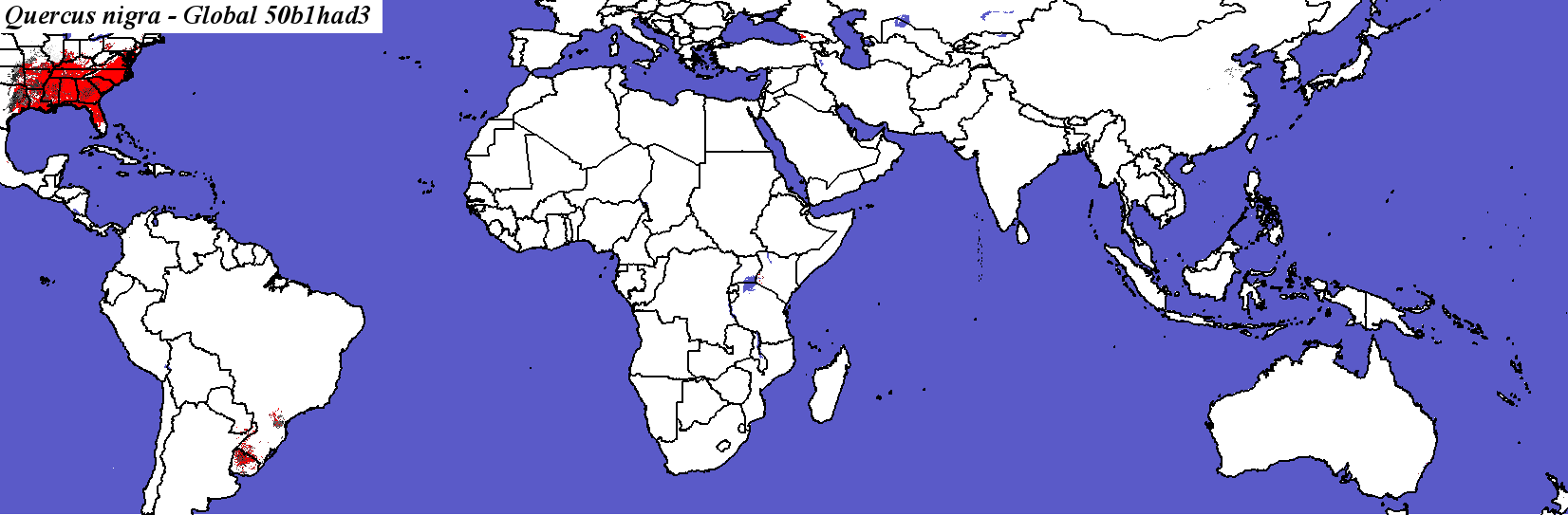

Hadley, Scenario B1, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

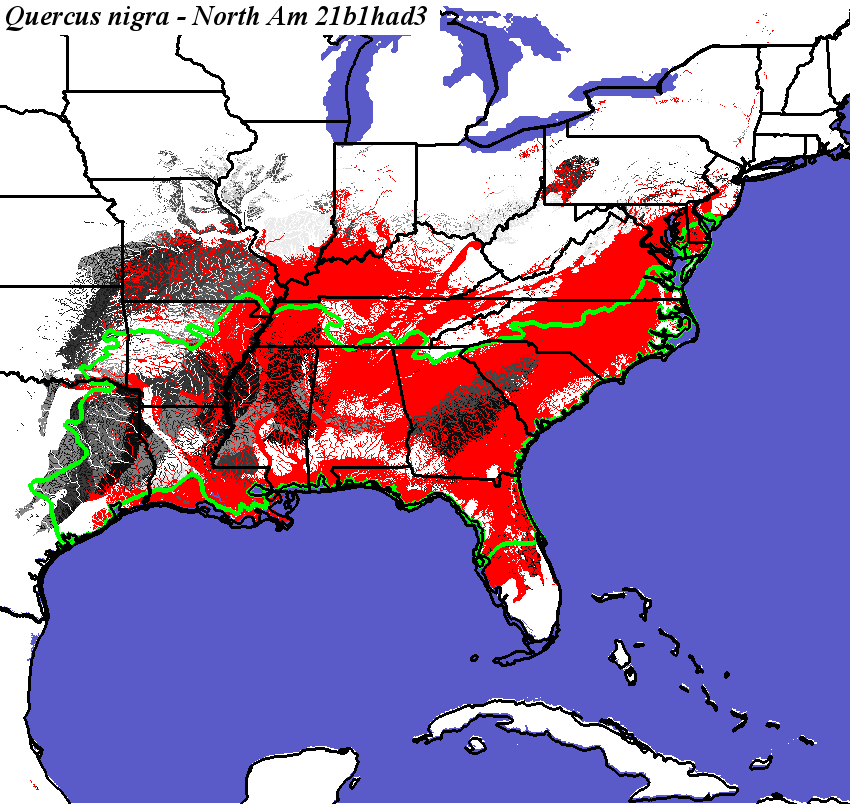

Hadley, Scenario B1, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus nigra - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_nigra_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

181

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

9.86301

Area in Present Suitable Range (in km2)

1264119

Area in Future Suitable Range (Had B1 2050, in km2)

1054501

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

864294

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

68.3700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

10.5479

Percent Change in Area of Suitable Range (Had B1 2050)

-16.5800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

26.3014

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5533.94 +/- 12386.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

87.8082

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.88747 +/- 8.73558

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

86.3014

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

194.178 +/- 666.049

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

28.2192

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

64332

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.0800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

25.4795

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

347501

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

27.4800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

48.2192

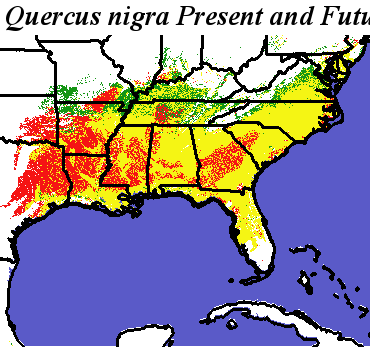

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus nigra Quercus nigra - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

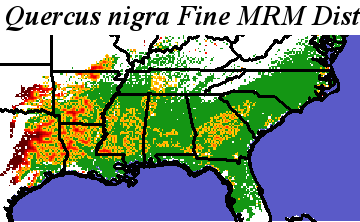

Quercus_nigra_final.noelev Fine MRM Distance

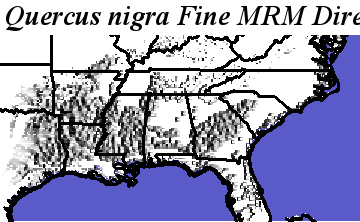

Quercus_nigra_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus nigra
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

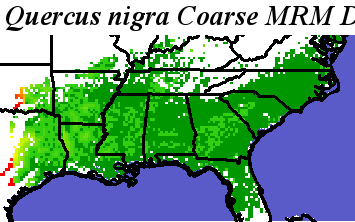

Quercus_nigra_final.noelev Coarse MRM Distance

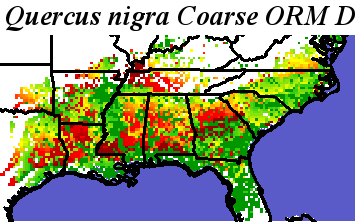

Quercus_nigra_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra
