Version 5 Tree Atlas


Quercus palustris

pin oak

noelev

Quercus palustris Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus palustris

USDA Plants Database entry for Quercus palustris
Silvics Manual entry for Quercus palustris


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
493148641TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_palustris_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_palustris_final
Quercus palustris - Occurrence Locations Quercus palustris - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global
Quercus palustris - CONUS
Compare with Current Range from the Silvics Manual for Quercus palustris
Compare with Current Range from Biota of North America Program (BONAP) for Quercus palustris

Compare with Quercus palustris modeled for Current conditions by Iverson and Prasad
Quercus palustris not modeled by Crookston and Rehfeldt
Quercus palustris not modeled by Coops and Waring
Quercus palustris - Global

PCM - Parallel Climate Model
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global

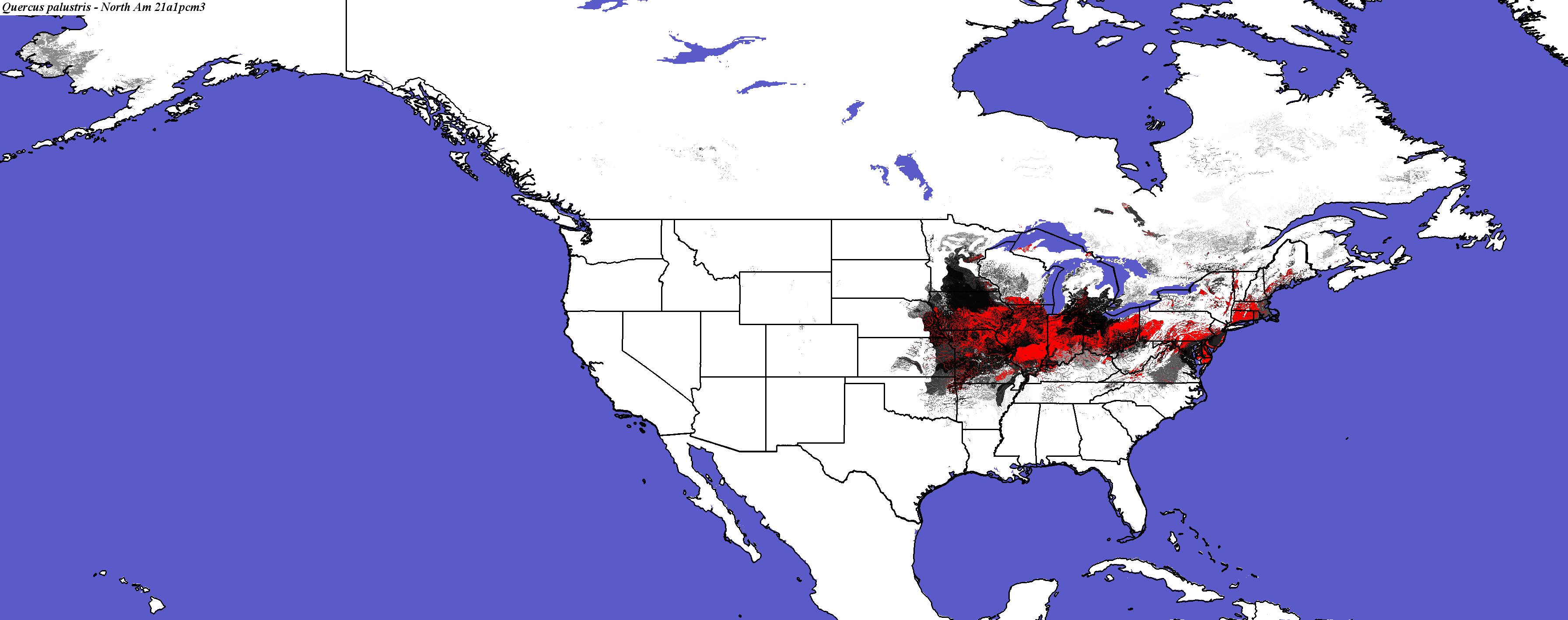

PCM, Scenario A1FI, 2050 - Quercus palustris - CONUS
PCM, Scenario A1FI, 2050 - Quercus palustris - Global
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global
PCM, Scenario A1FI, 2100 - Quercus palustris - CONUS
Compare with Quercus palustris modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus palustris - Global

Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global

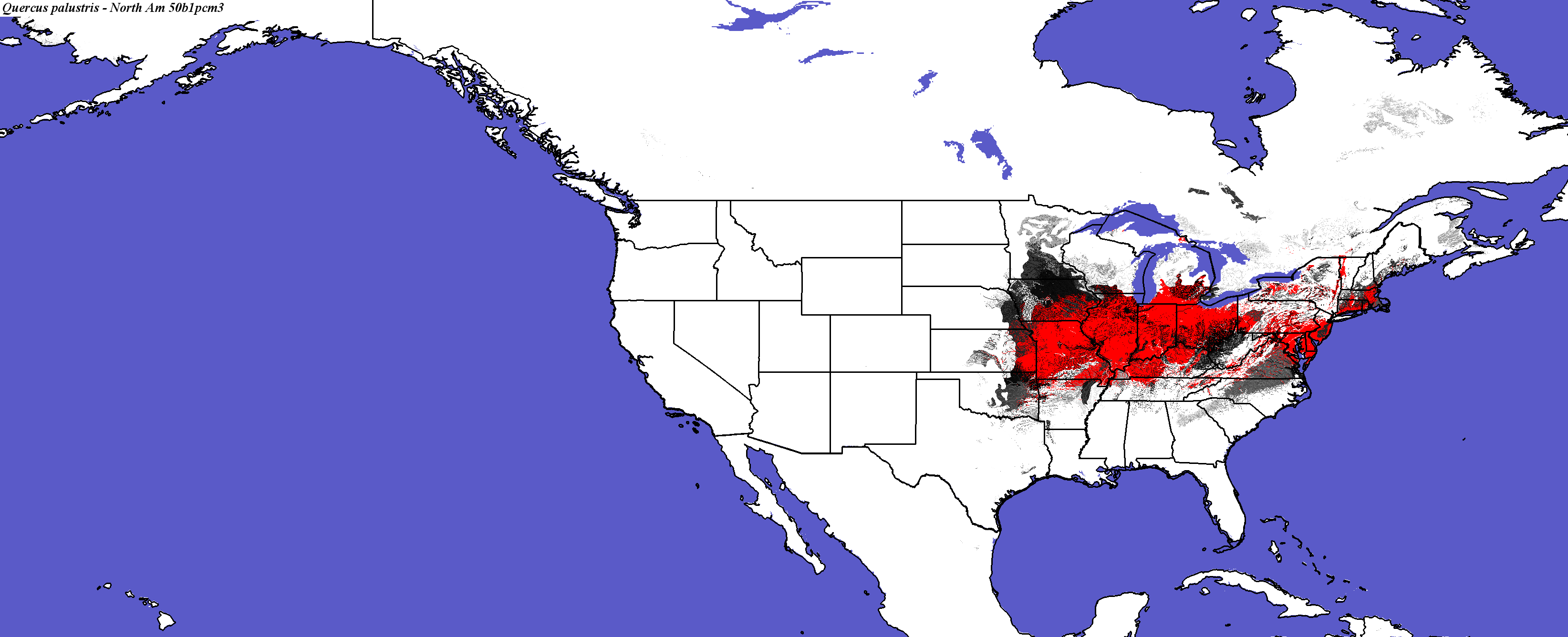

PCM, Scenario B1, 2050 - Quercus palustris - CONUS
PCM, Scenario B1, 2050 - Quercus palustris - Global
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global

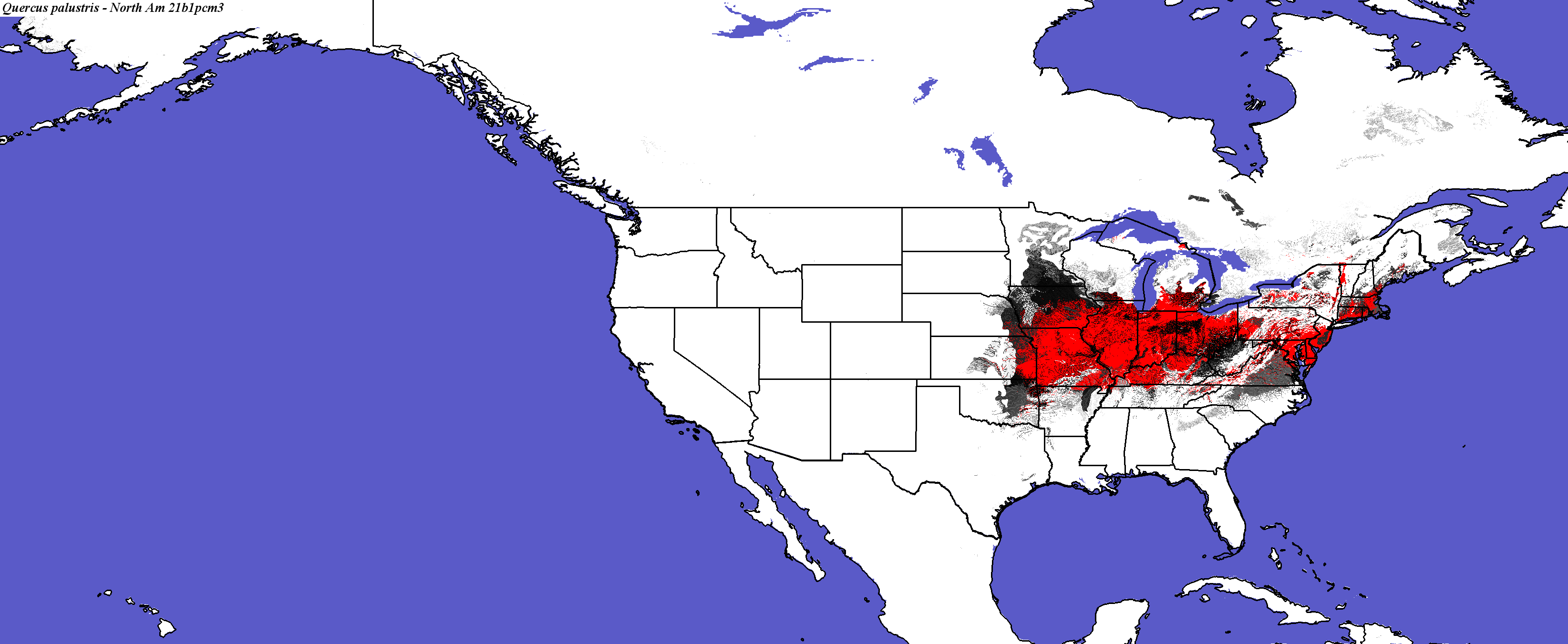

PCM, Scenario B1, 2100 - Quercus palustris - CONUS
Compare with Quercus palustris modeled for PCM B1 in 2100 by Iverson and Prasad

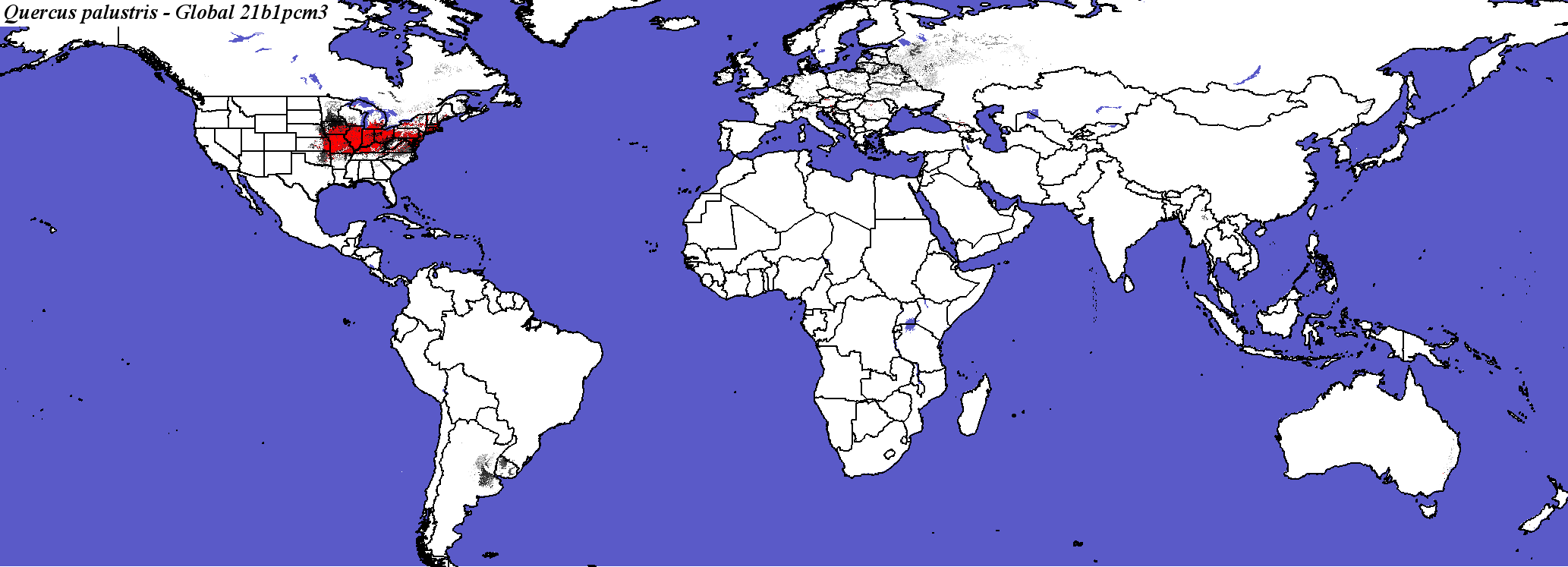

PCM, Scenario B1, 2100 - Quercus palustris - Global

Hadley Climate Model
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus palustris - CONUS
Quercus palustris not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus palustris - Global
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global.

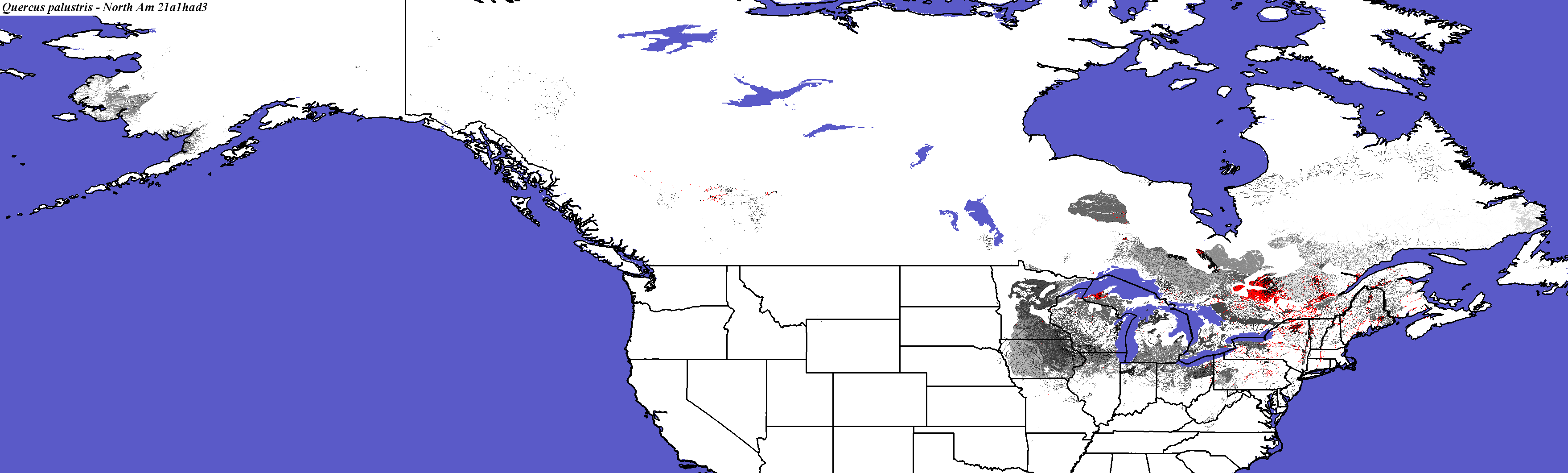

Hadley, Scenario A1FI, 2100 - Quercus palustris - CONUS
Compare with Quercus palustris modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus palustris not modeled by Crookston and Rehfeldt
Quercus palustris not modeled by Coops and Waring

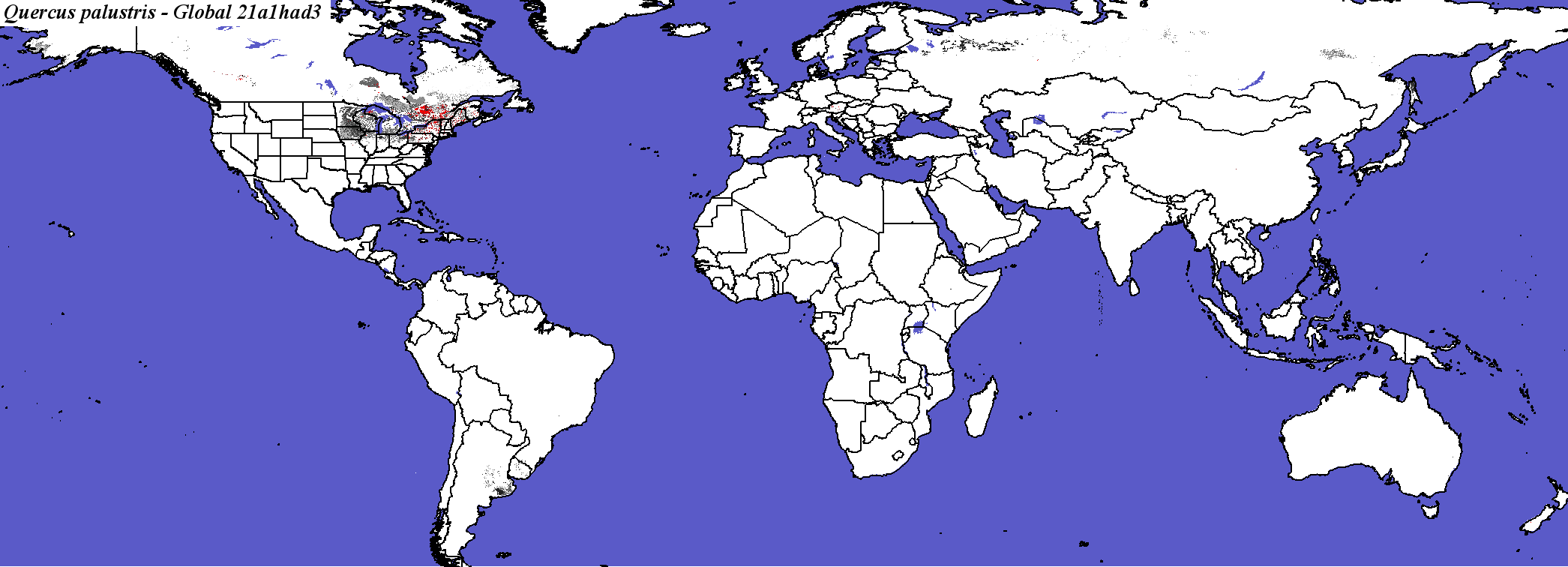

Hadley, Scenario A1FI, 2100 - Quercus palustris - Global

Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global.
Hadley, Scenario B1, 2050 - Quercus palustris - CONUS
Quercus palustris not modeled by Crookston and Rehfeldt
Quercus palustris not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus palustris - Global
Quercus_palustris_final.3.conus
Quercus_palustris_final.3.global
Hadley, Scenario B1, 2100 - Quercus palustris - CONUS
Compare with Quercus palustris modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus palustris not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus palustris - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_palustris_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

73

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

28.2192

Area in Present Suitable Range (in km2)

711958

Area in Future Suitable Range (Had B1 2050, in km2)

325994

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

206622

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

29.0200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

84.9315

Percent Change in Area of Suitable Range (Had B1 2050)

-54.2100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

85.7534

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

23269.2 +/- 34807.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

31.0959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

9.29394 +/- 12.7508

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

34.5205

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

237.554 +/- 706.542

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

21.5068

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

42974

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.0300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

20.411

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

86323

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.1200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

88.9041

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus palustris Quercus palustris - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

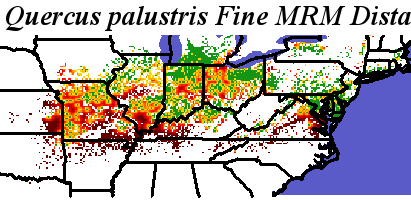

Quercus_palustris_final.noelev Fine MRM Distance

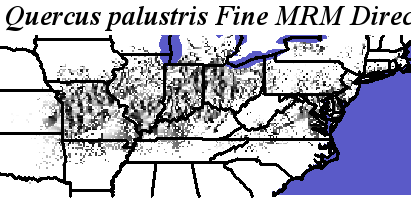

Quercus_palustris_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus palustris Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus palustris
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

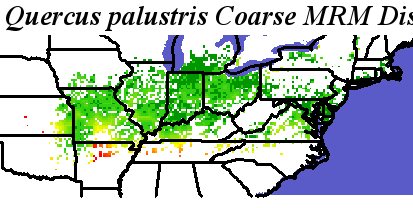

Quercus_palustris_final.noelev Coarse MRM Distance
Quercus_palustris_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus palustris Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus palustris

Thu Jul 21 10:05:43 EDT 2016
