Version 5 Tree Atlas


Quercus rubra

northern red oak

noelev

Quercus rubra Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus rubra

USDA Plants Database entry for Quercus rubra
Silvics Manual entry for Quercus rubra


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus rubra var. borealis; Quercus rubra var. ambigua1223221012442TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_rubra_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_rubra_final
Quercus rubra - Occurrence Locations Quercus rubra - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global
Quercus rubra - CONUS
Compare with Current Range from the Silvics Manual for Quercus rubra
Compare with Current Range from Biota of North America Program (BONAP) for Quercus rubra

Compare with Quercus rubra modeled for Current conditions by Iverson and Prasad
Quercus rubra not modeled by Crookston and Rehfeldt
Quercus rubra not modeled by Coops and Waring
Quercus rubra - Global

PCM - Parallel Climate Model
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global

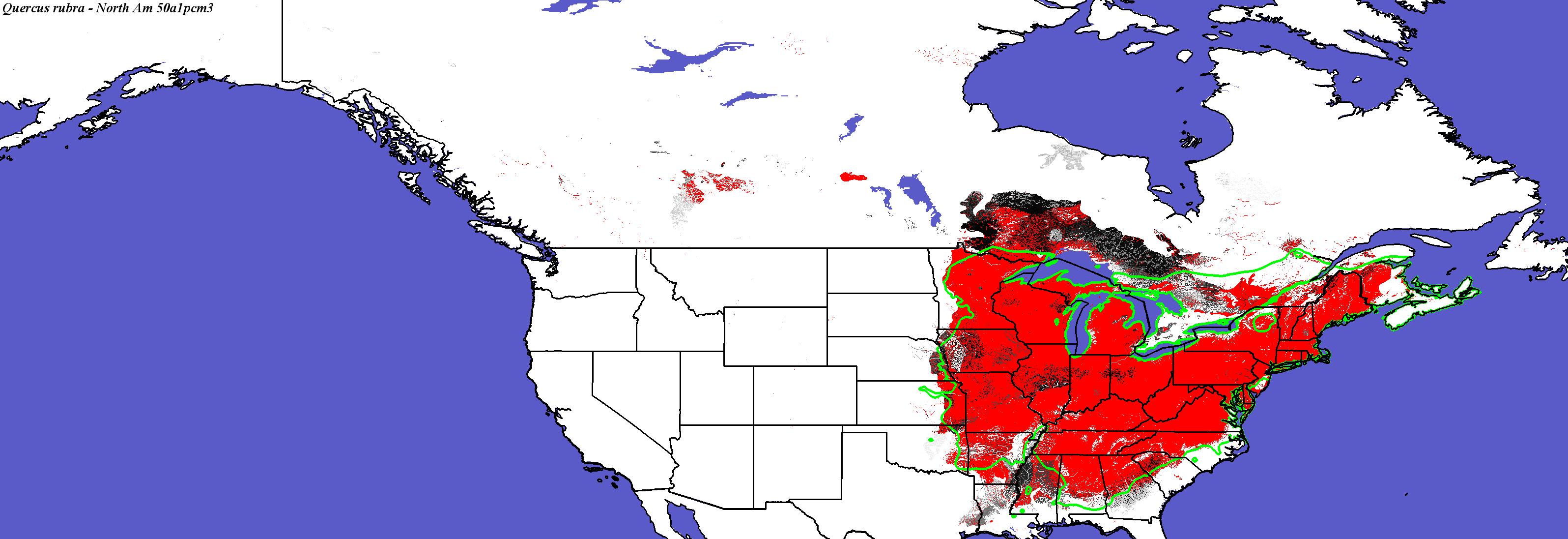

PCM, Scenario A1FI, 2050 - Quercus rubra - CONUS
PCM, Scenario A1FI, 2050 - Quercus rubra - Global
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global
PCM, Scenario A1FI, 2100 - Quercus rubra - CONUS
Compare with Quercus rubra modeled for PCM A1FI in 2100 by Iverson and Prasad

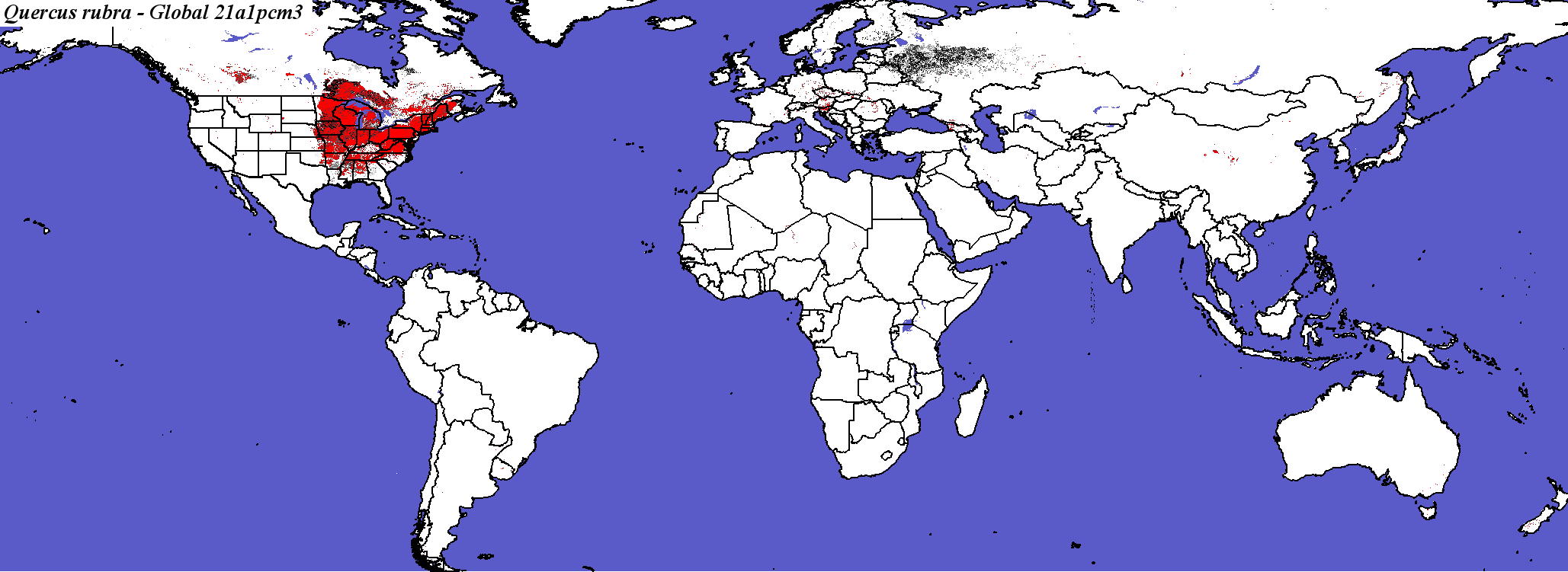

PCM, Scenario A1FI, 2100 - Quercus rubra - Global

Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global
PCM, Scenario B1, 2050 - Quercus rubra - CONUS
PCM, Scenario B1, 2050 - Quercus rubra - Global
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global
PCM, Scenario B1, 2100 - Quercus rubra - CONUS
Compare with Quercus rubra modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus rubra - Global

Hadley Climate Model
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus rubra - CONUS
Quercus rubra not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus rubra - Global
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global.
Hadley, Scenario A1FI, 2100 - Quercus rubra - CONUS
Compare with Quercus rubra modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus rubra not modeled by Crookston and Rehfeldt
Quercus rubra not modeled by Coops and Waring

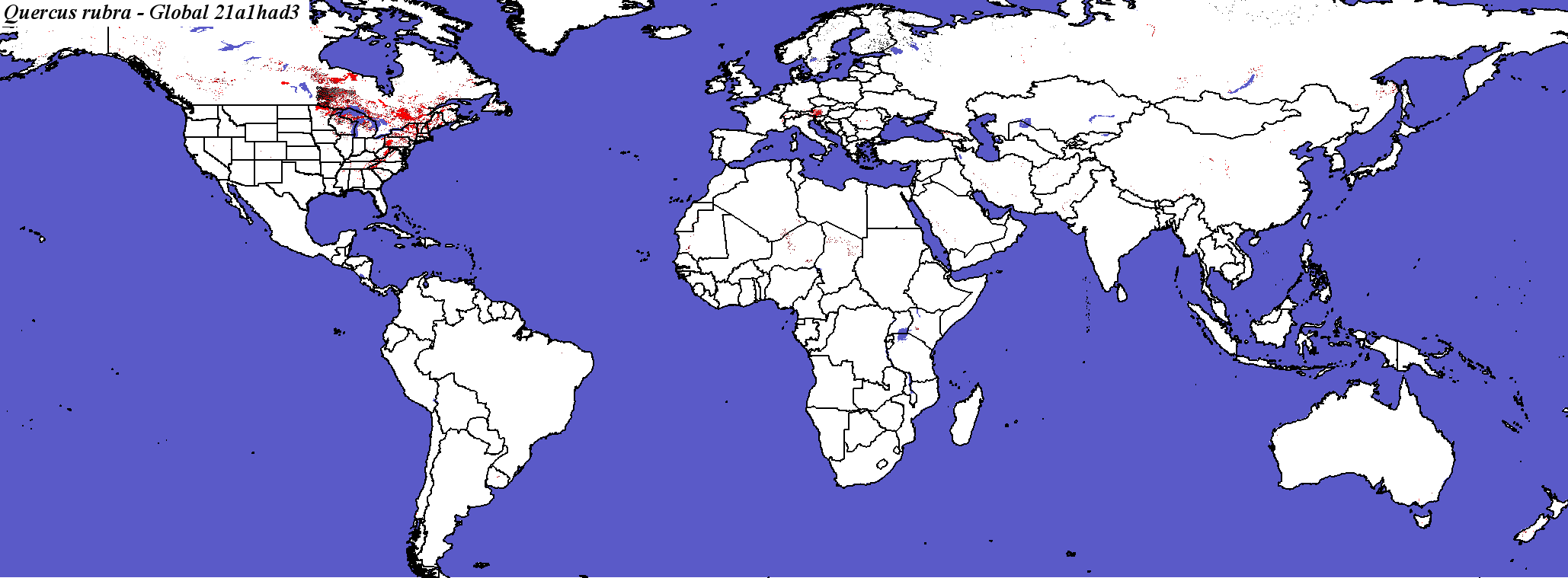

Hadley, Scenario A1FI, 2100 - Quercus rubra - Global

Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global.
Hadley, Scenario B1, 2050 - Quercus rubra - CONUS
Quercus rubra not modeled by Crookston and Rehfeldt
Quercus rubra not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus rubra - Global
Quercus_rubra_final.4.conus
Quercus_rubra_final.4.global

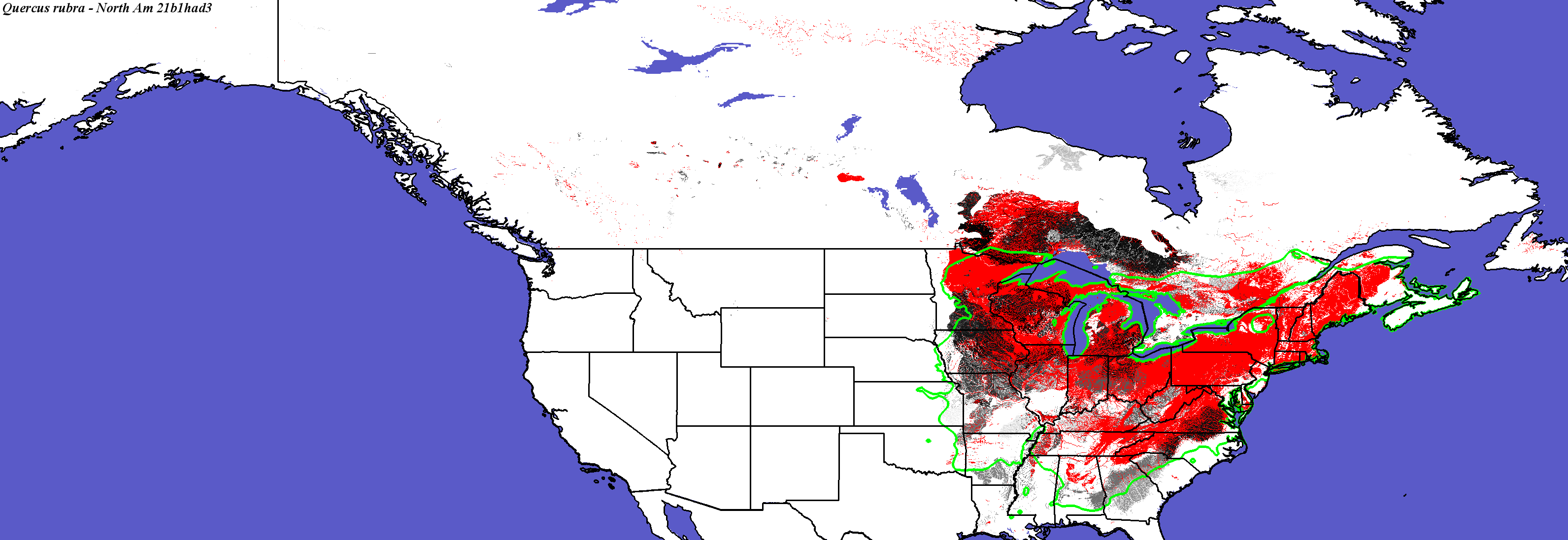

Hadley, Scenario B1, 2100 - Quercus rubra - CONUS
Compare with Quercus rubra modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus rubra not modeled by Crookston and Rehfeldt

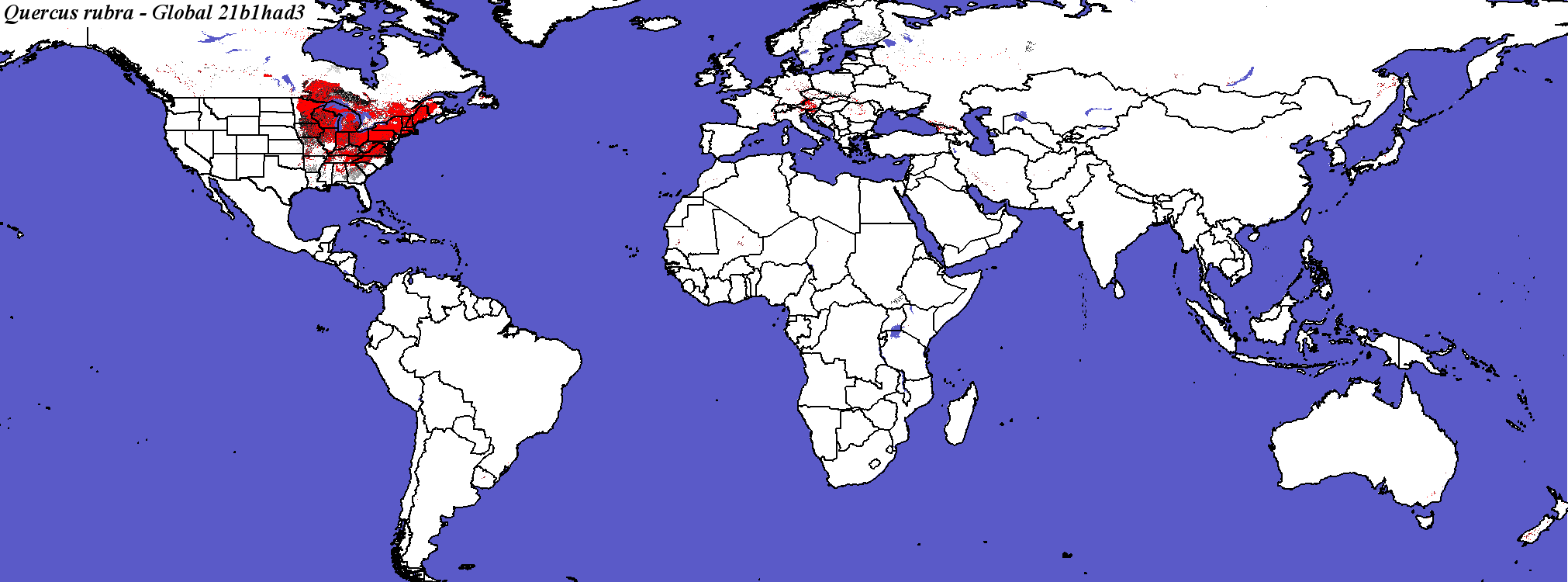

Hadley, Scenario B1, 2100 - Quercus rubra - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_rubra_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

382

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

1.23288

Area in Present Suitable Range (in km2)

2564972

Area in Future Suitable Range (Had B1 2050, in km2)

1815060

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

1567115

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

61.0900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

23.4247

Percent Change in Area of Suitable Range (Had B1 2050)

-29.2300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

50.274

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8215.97 +/- 18355

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

75.4795

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.72145 +/- 10.2798

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

77.5342

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

275.685 +/- 801.281

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

16.5753

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

194631

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.5800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

13.4247

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

630625

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

24.5800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

57.2603

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus rubra Quercus rubra - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

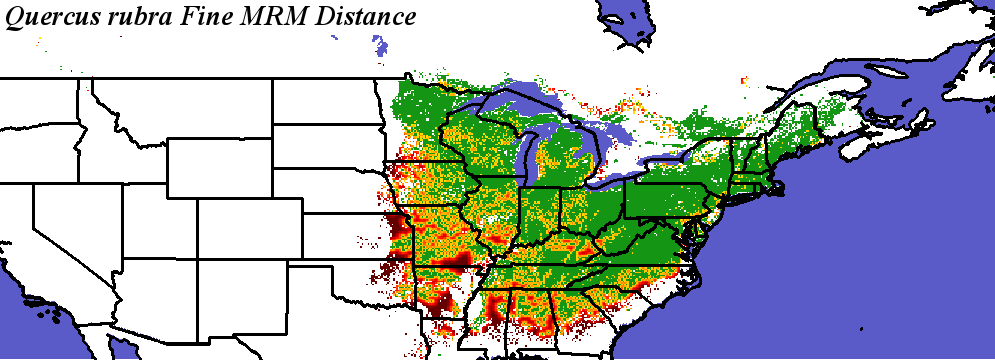

Quercus_rubra_final.noelev Fine MRM Distance

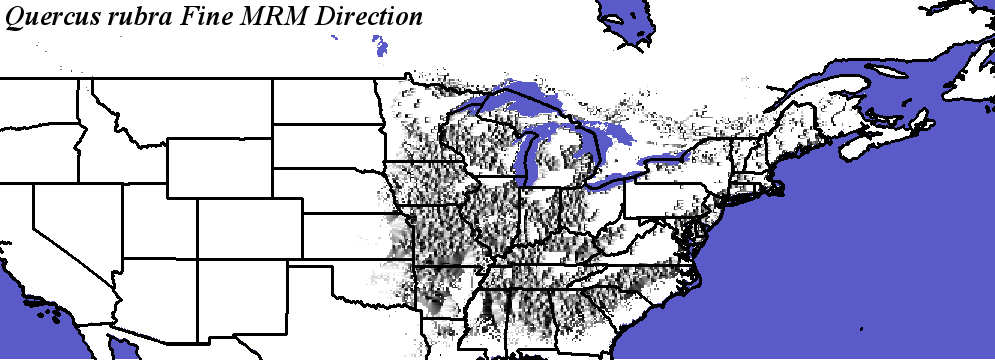

Quercus_rubra_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rubra Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus rubra
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_rubra_final.noelev Coarse MRM Distance

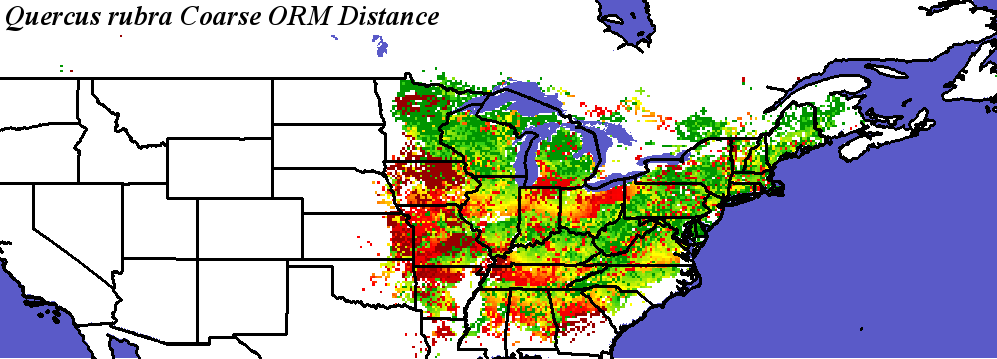

Quercus_rubra_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rubra Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus rubra
