Version 5 Tree Atlas


Quercus rugosa

netleaf oak

noelev

Quercus rugosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus rugosa

USDA Plants Database entry for Quercus rugosa
Silvics Manual entry for Quercus rugosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
19395414range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_rugosa_final Occurrences

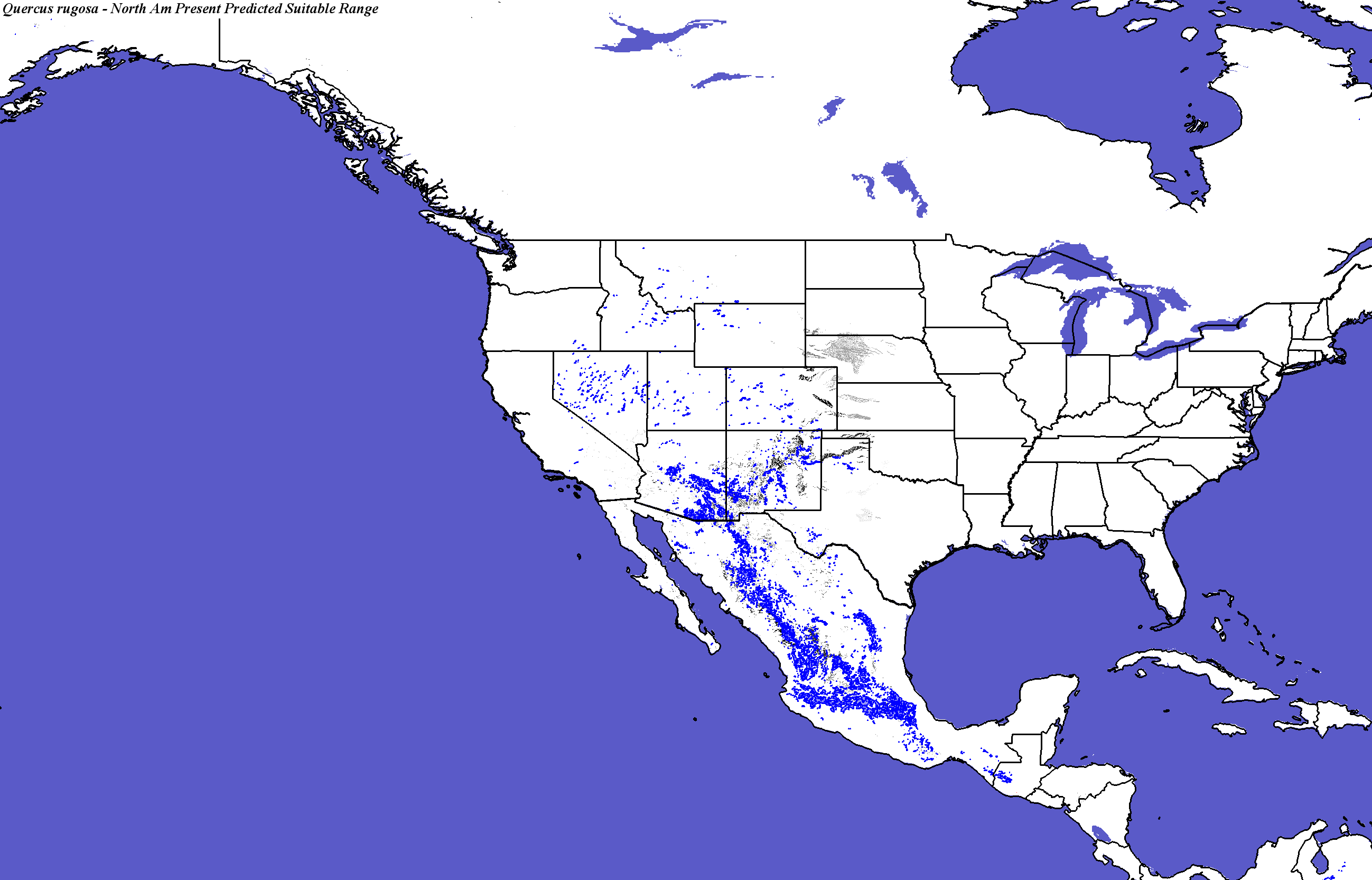

Hargroves Present Suitable Range Outline for Quercus_rugosa_final
Quercus rugosa - Occurrence Locations Quercus rugosa - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
Quercus rugosa - CONUS
Compare with Current Range from the Silvics Manual for Quercus rugosa
Compare with Current Range from Biota of North America Program (BONAP) for Quercus rugosa

Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring

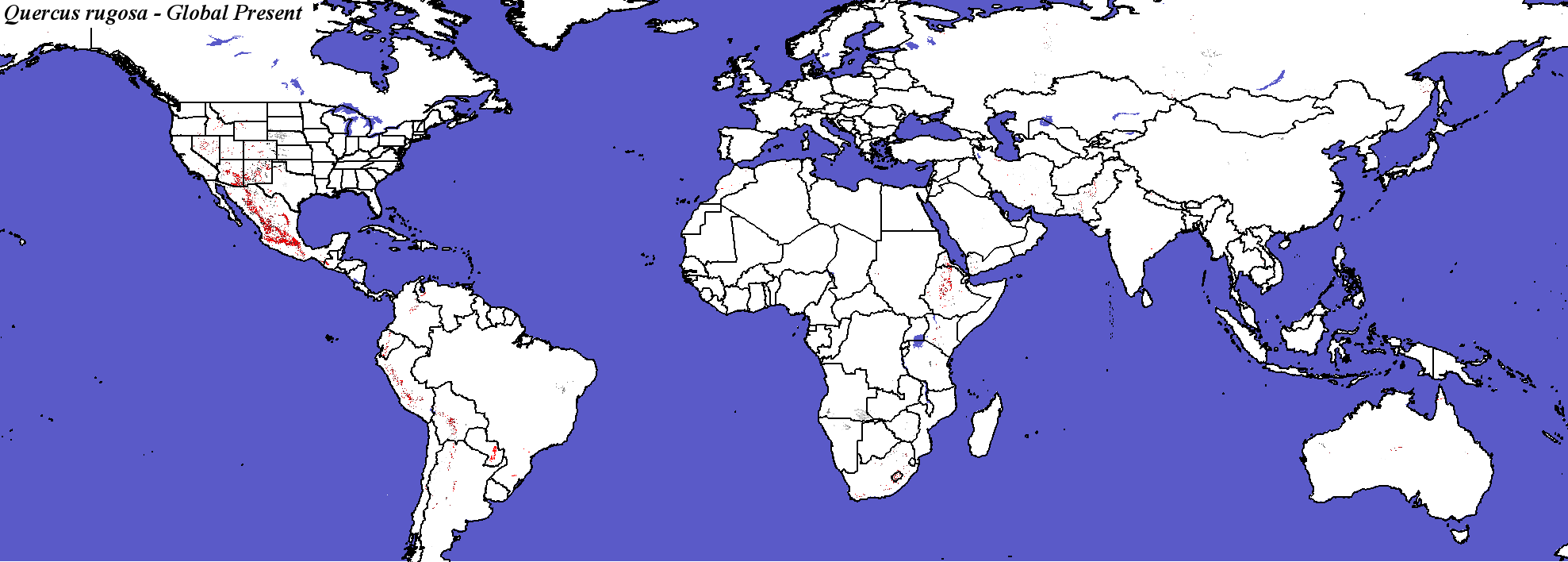

Quercus rugosa - Global

PCM - Parallel Climate Model
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

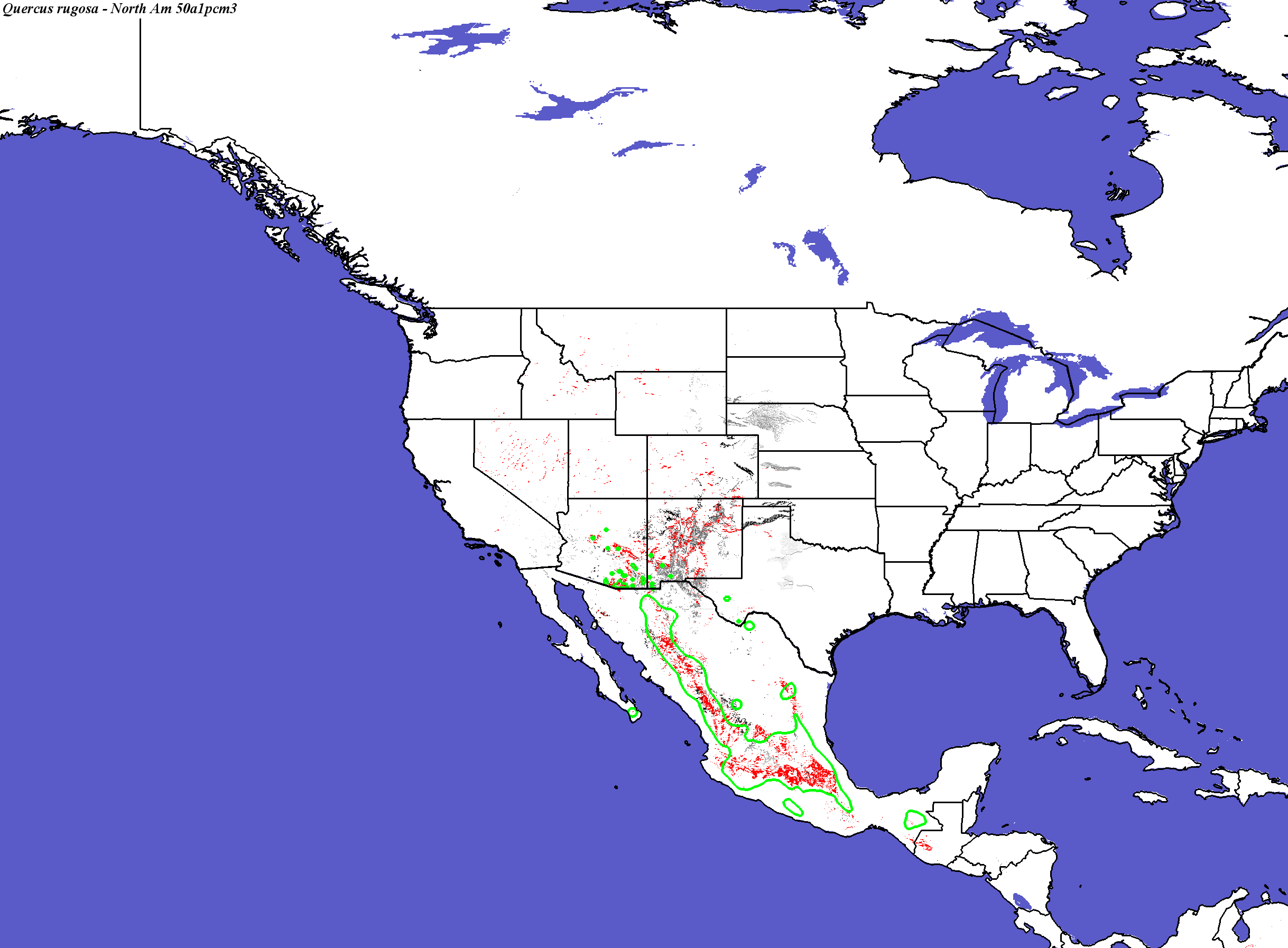

PCM, Scenario A1FI, 2050 - Quercus rugosa - CONUS

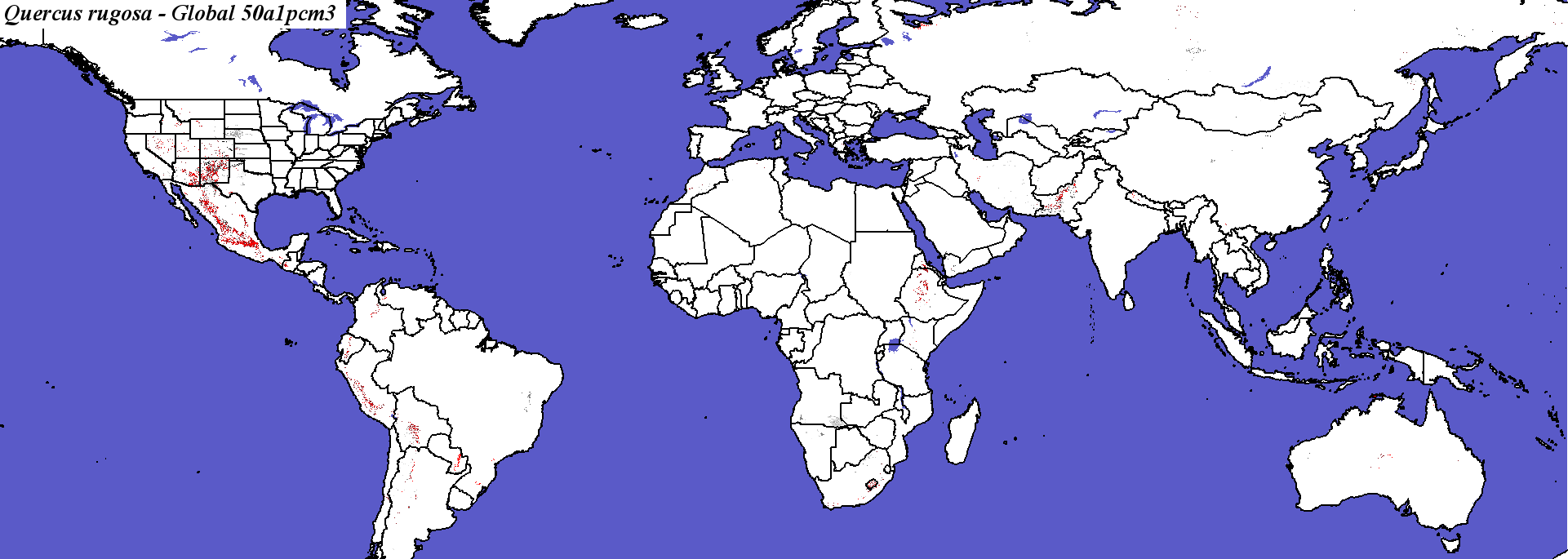

PCM, Scenario A1FI, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

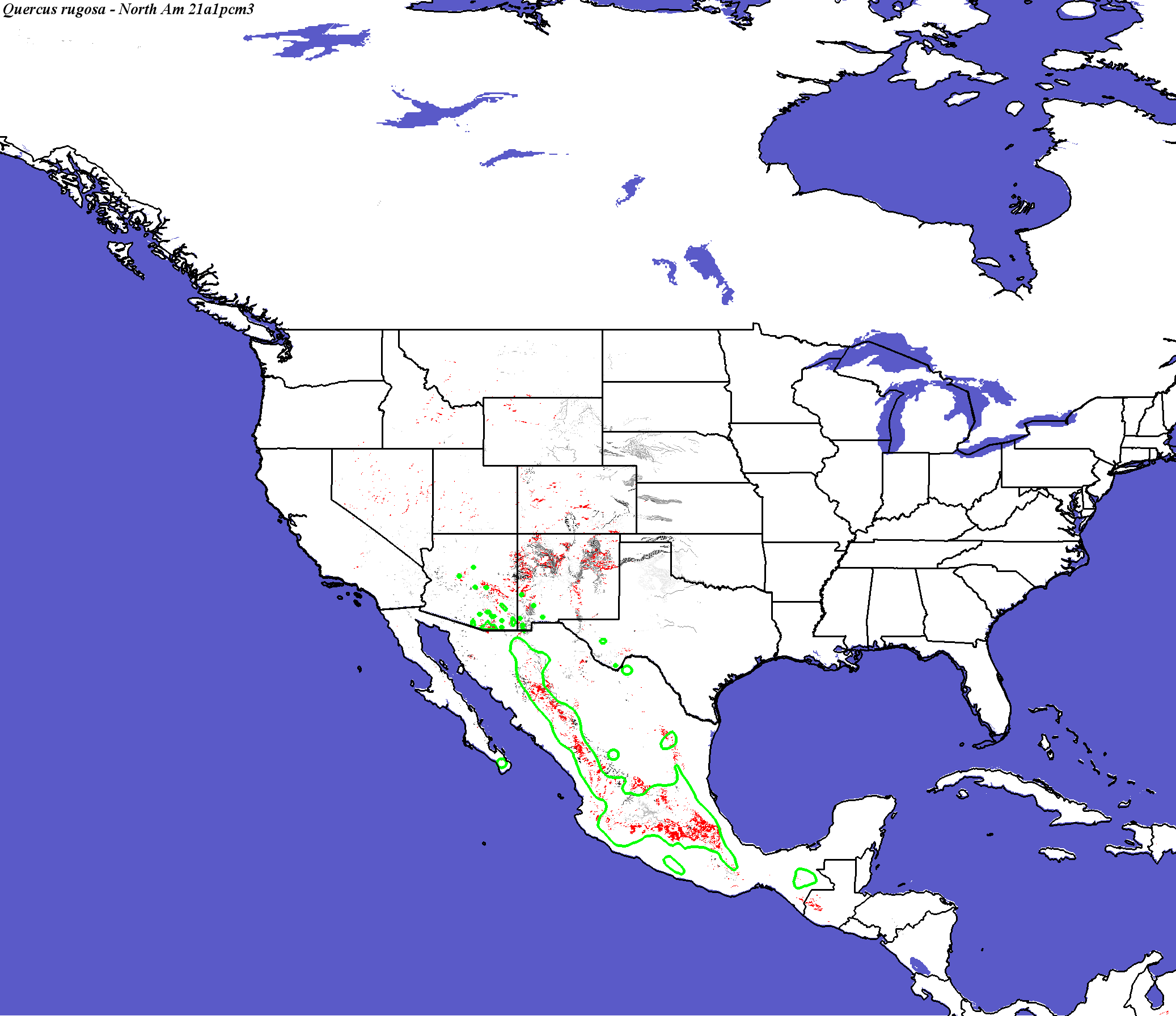

PCM, Scenario A1FI, 2100 - Quercus rugosa - CONUS
Quercus rugosa species not modeled by Iverson and Prasad

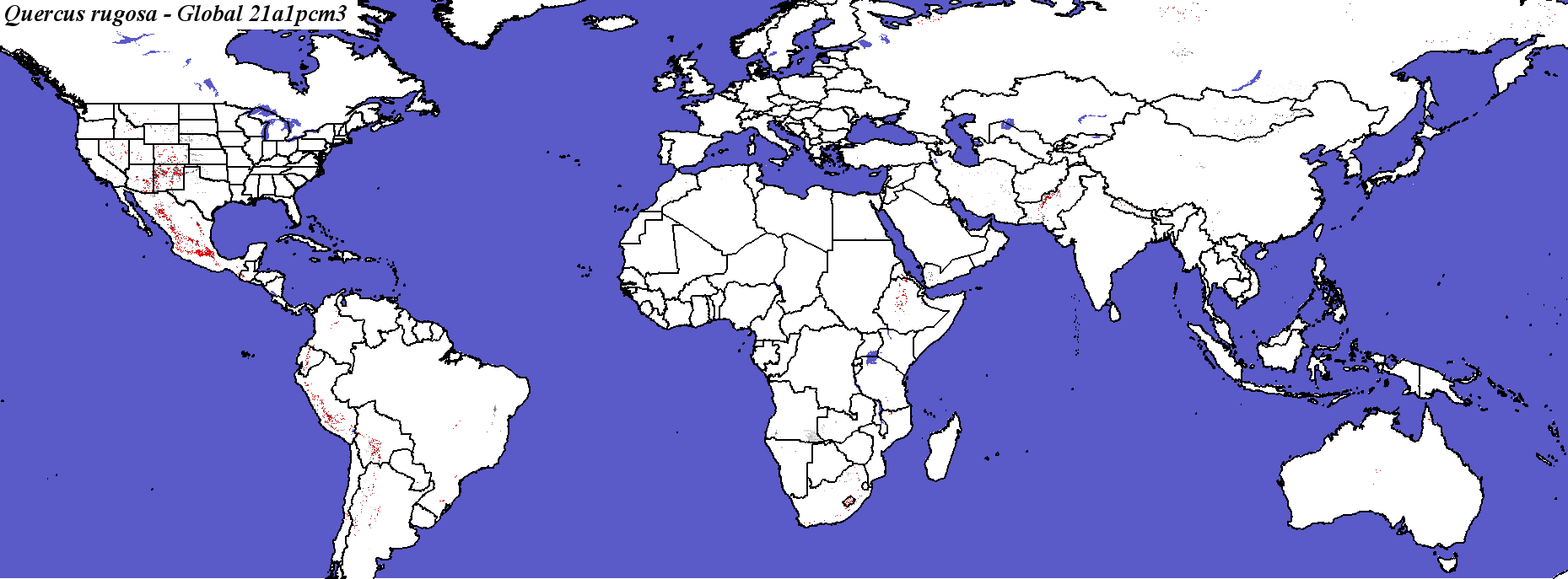

PCM, Scenario A1FI, 2100 - Quercus rugosa - Global

Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
PCM, Scenario B1, 2050 - Quercus rugosa - CONUS
PCM, Scenario B1, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

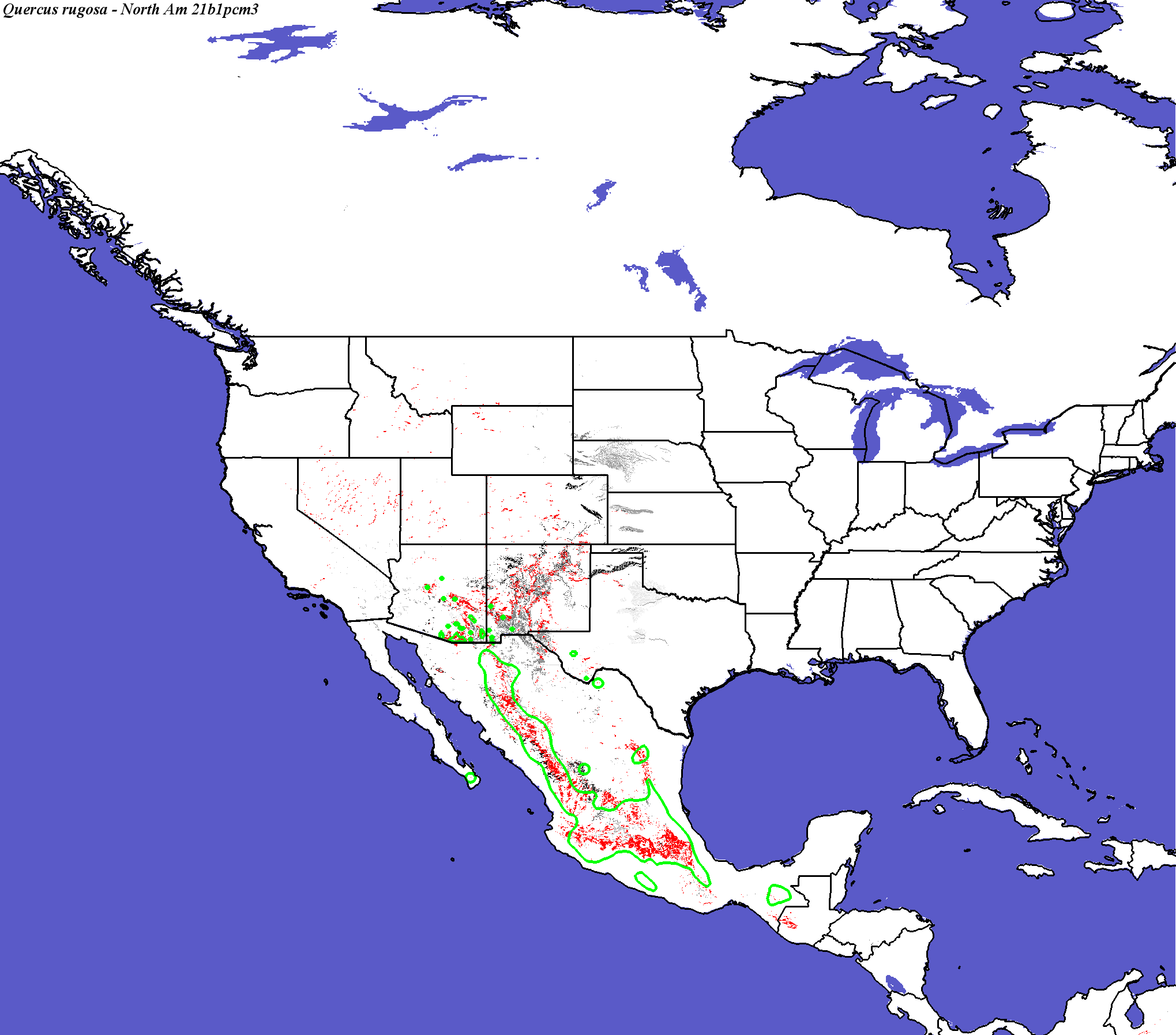

PCM, Scenario B1, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad

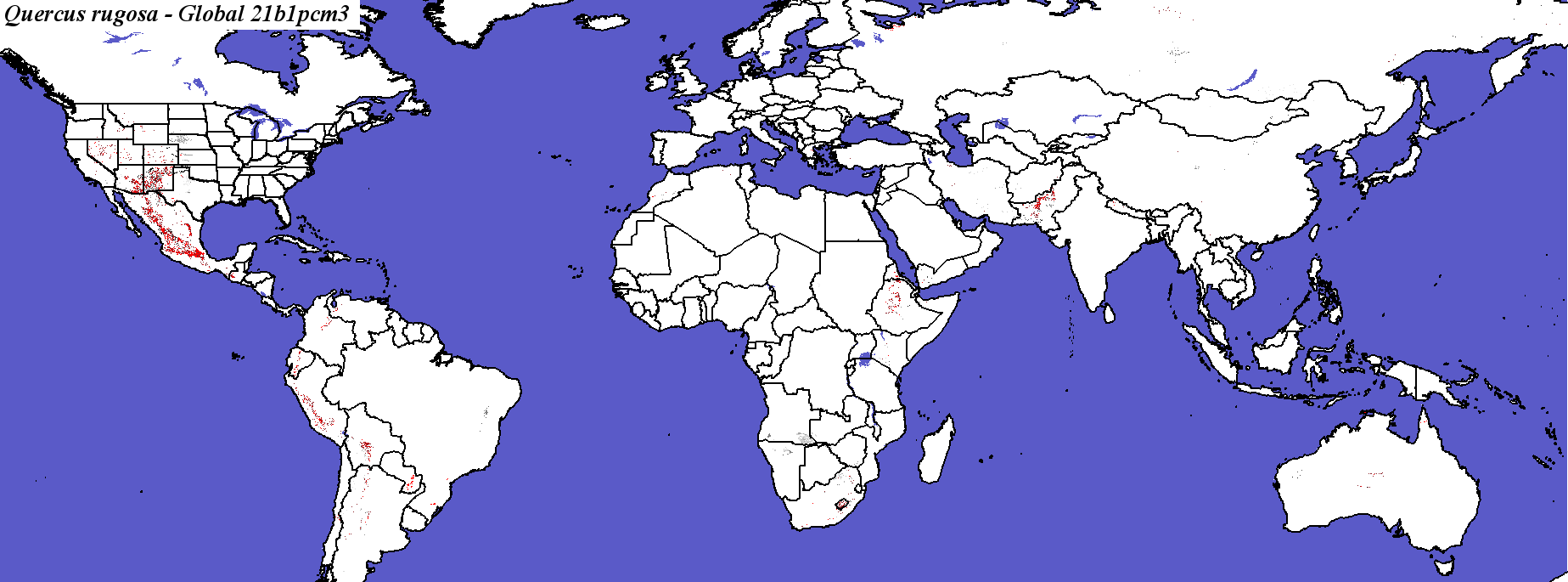

PCM, Scenario B1, 2100 - Quercus rugosa - Global

Hadley Climate Model
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global.

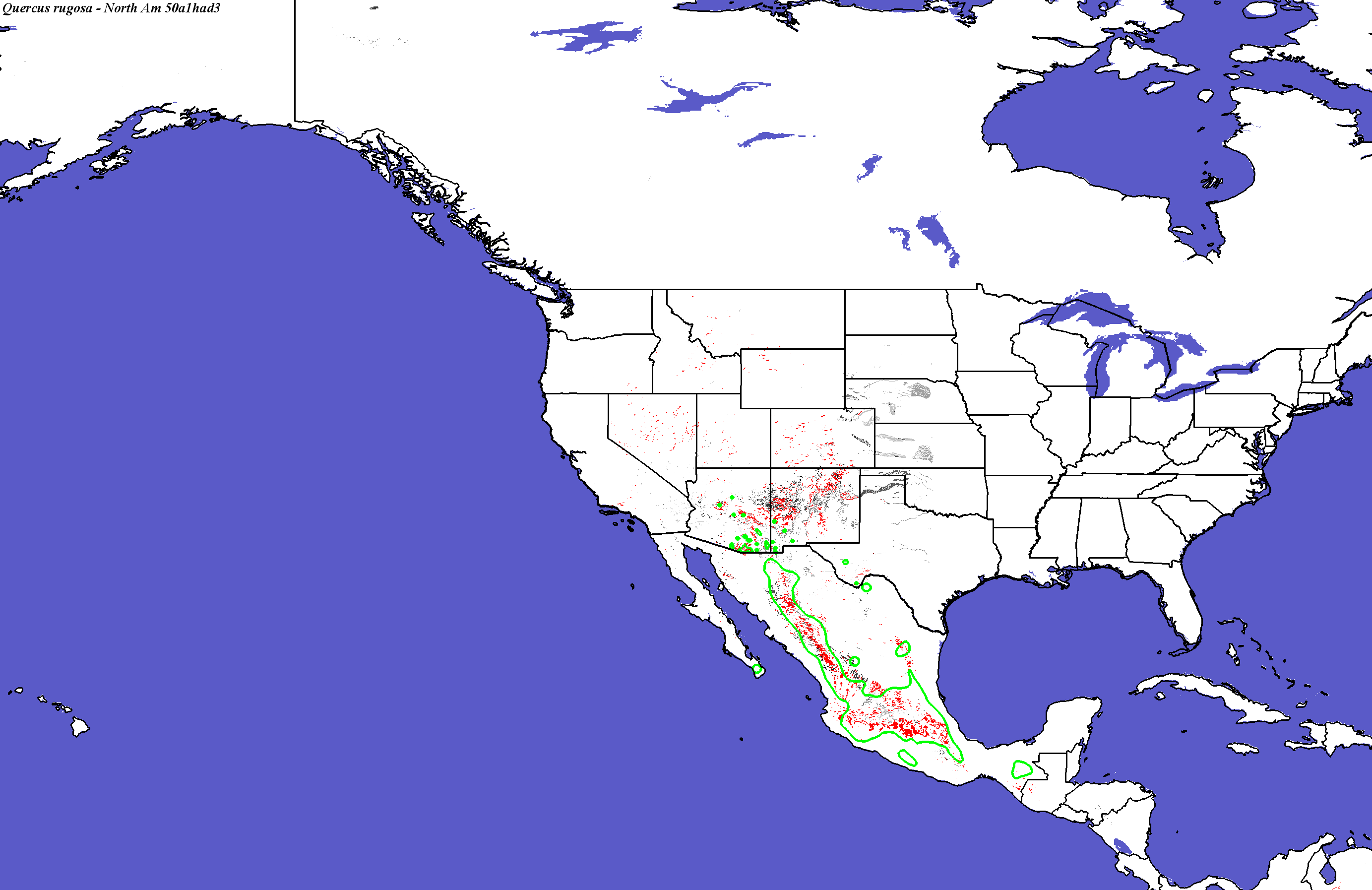

Hadley, Scenario A1FI, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring

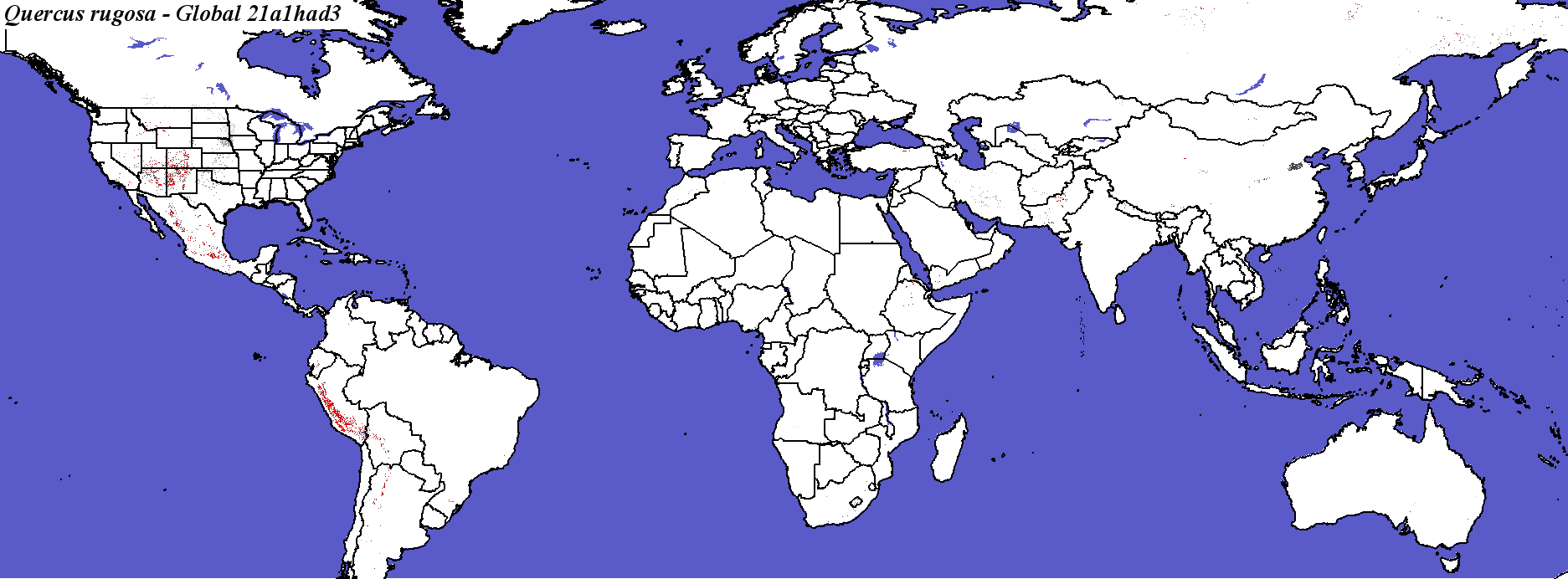

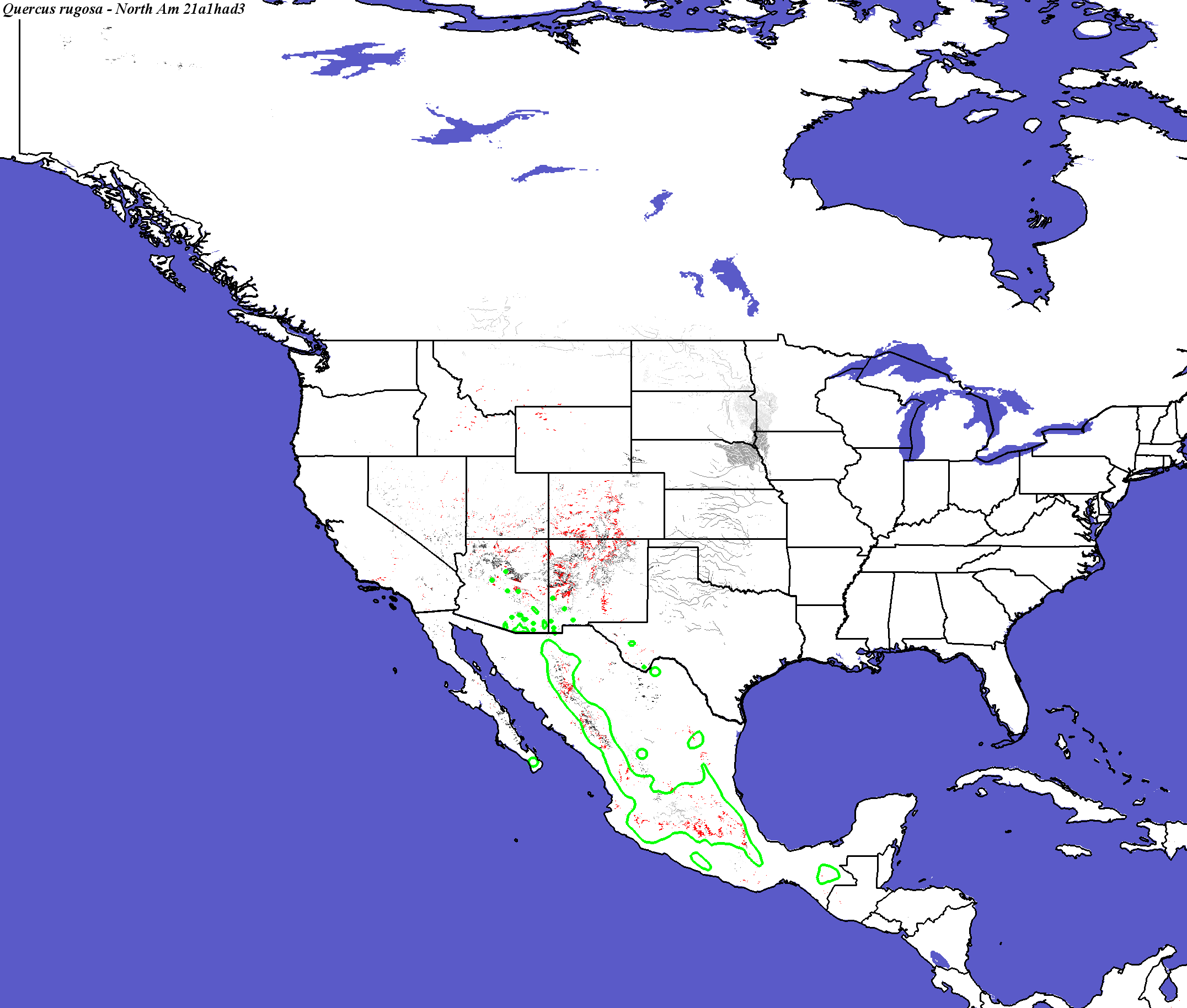

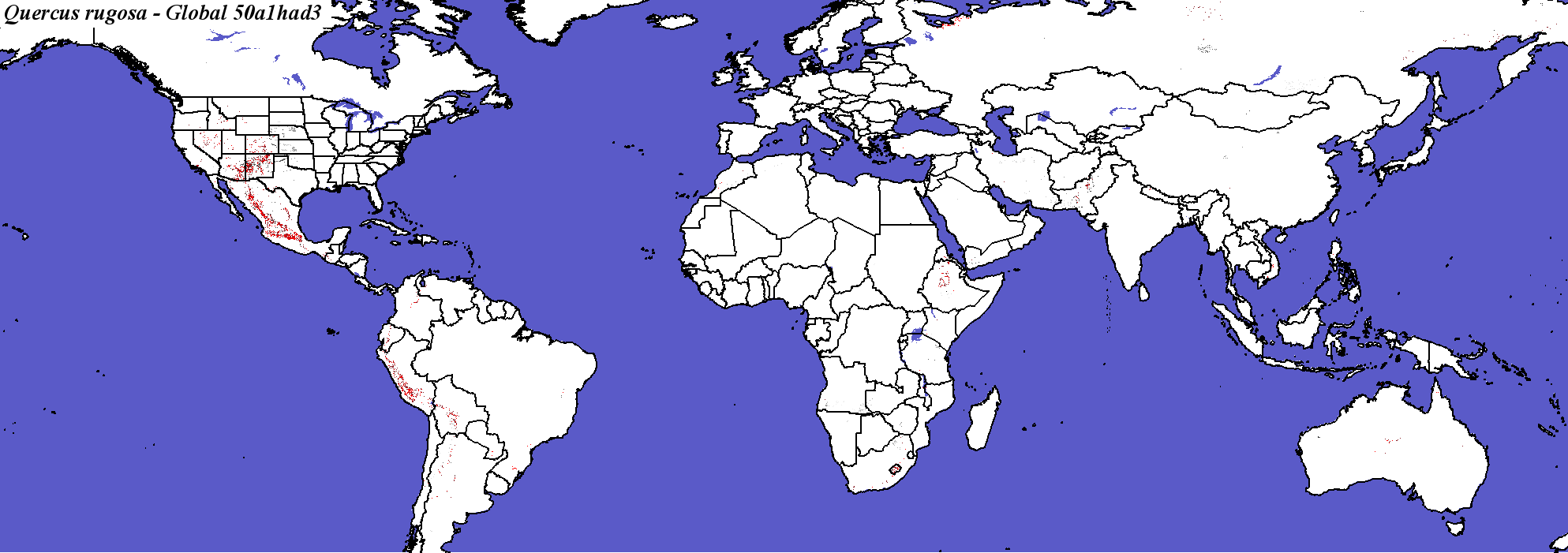

Hadley, Scenario A1FI, 2100 - Quercus rugosa - Global

Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global.
Hadley, Scenario B1, 2050 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring

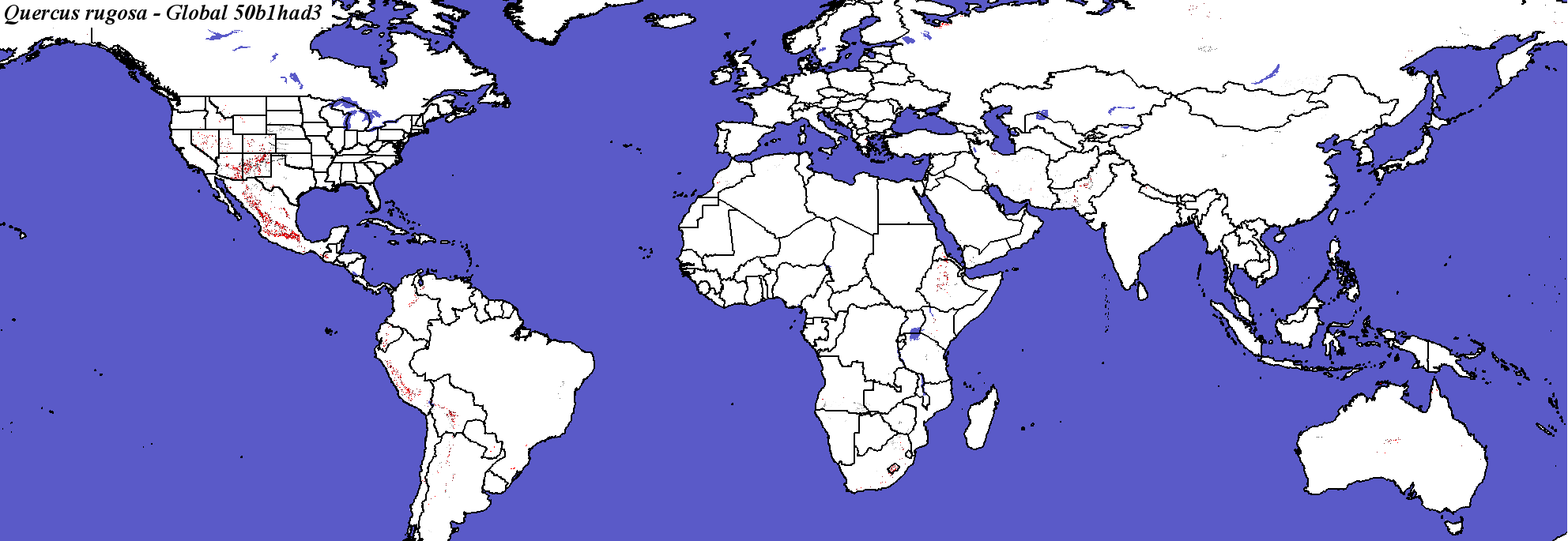

Hadley, Scenario B1, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

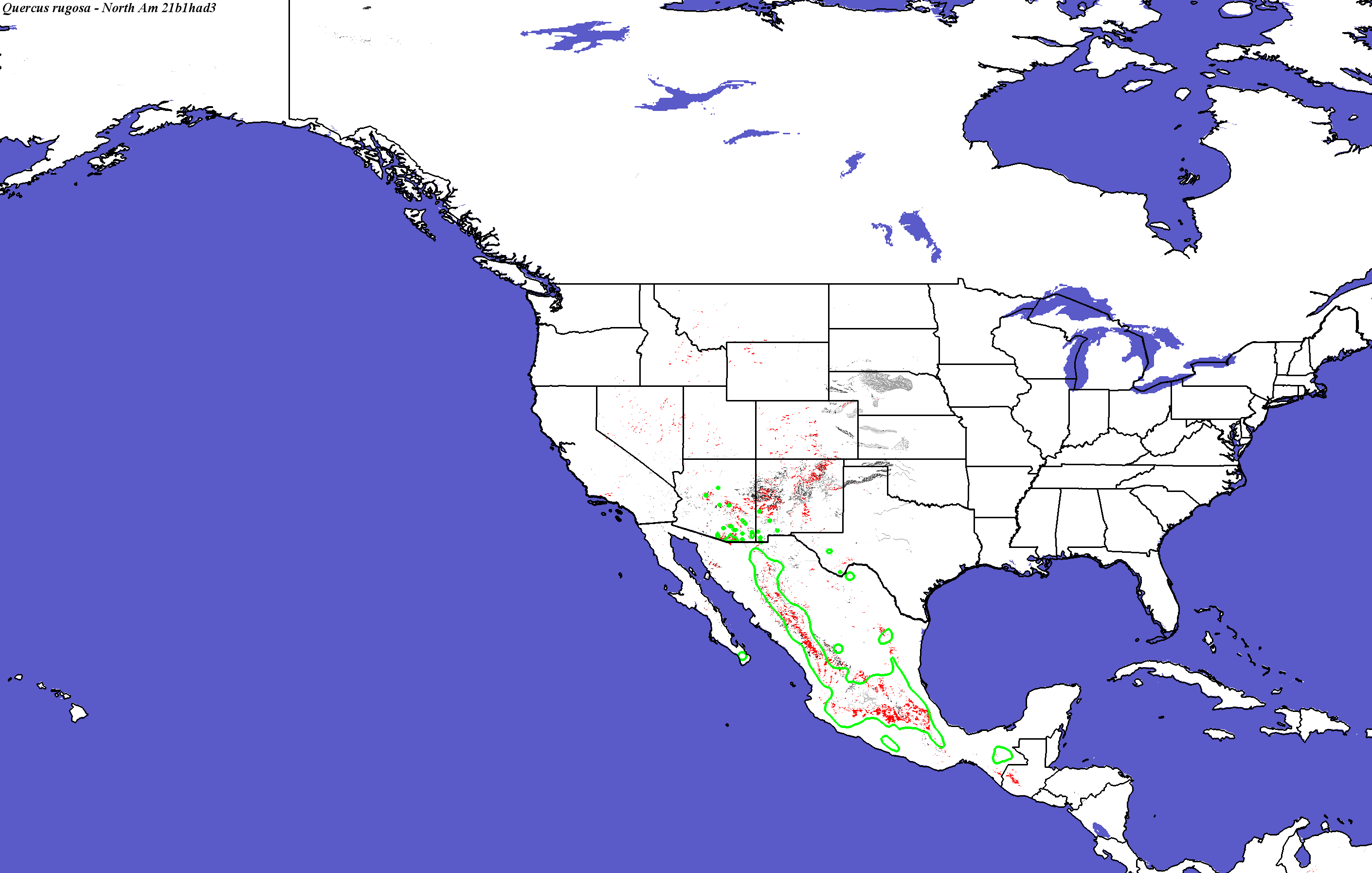

Hadley, Scenario B1, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt

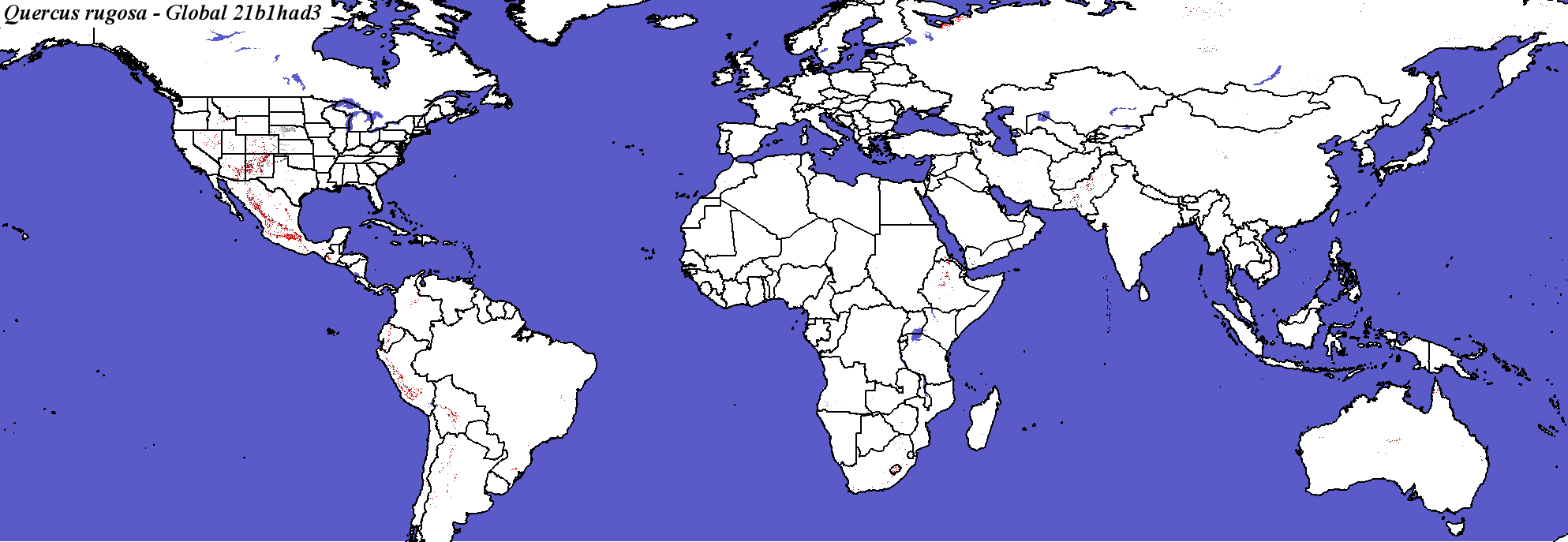

Hadley, Scenario B1, 2100 - Quercus rugosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_rugosa_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

47

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

40.8219

Area in Present Suitable Range (in km2)

240209

Area in Future Suitable Range (Had B1 2050, in km2)

180407

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

127674

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.1500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

44.3836

Percent Change in Area of Suitable Range (Had B1 2050)

-24.8900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

42.8767

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11862.3 +/- 20425.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

59.589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.06772 +/- 9.16569

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

64.6575

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

56.3095 +/- 344.174

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

54.5205

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

2385

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.9900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

51.3699

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

83292

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

34.6700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

32.8767

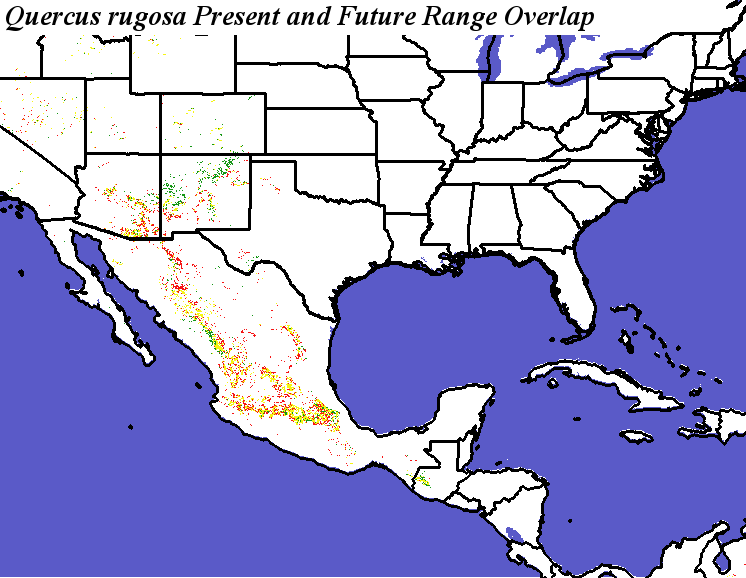

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus rugosa Quercus rugosa - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_rugosa_final.noelev Fine MRM Distance

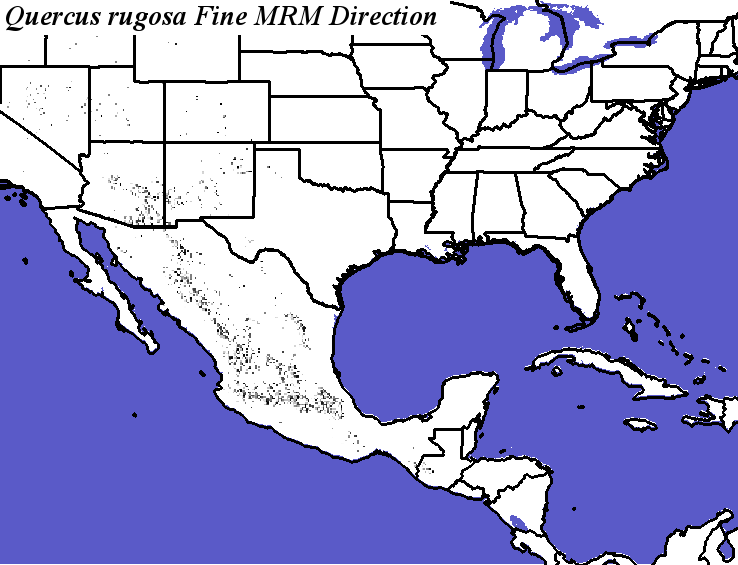

Quercus_rugosa_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus rugosa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

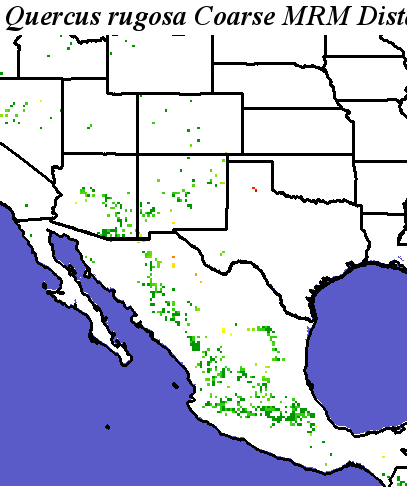

Quercus_rugosa_final.noelev Coarse MRM Distance
Quercus_rugosa_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa

Thu Jul 21 10:06:07 EDT 2016
