Version 5 Tree Atlas


Quercus sinuata

Durand oak

noelev

Quercus sinuata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus sinuata

USDA Plants Database entry for Quercus sinuata
Silvics Manual entry for Quercus sinuata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus durandii; Quercus sinuata var. breviloba311041most of range not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_sinuata_final Occurrences

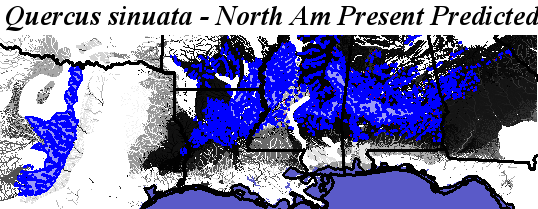

Hargroves Present Suitable Range Outline for Quercus_sinuata_final
Quercus sinuata - Occurrence Locations Quercus sinuata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global

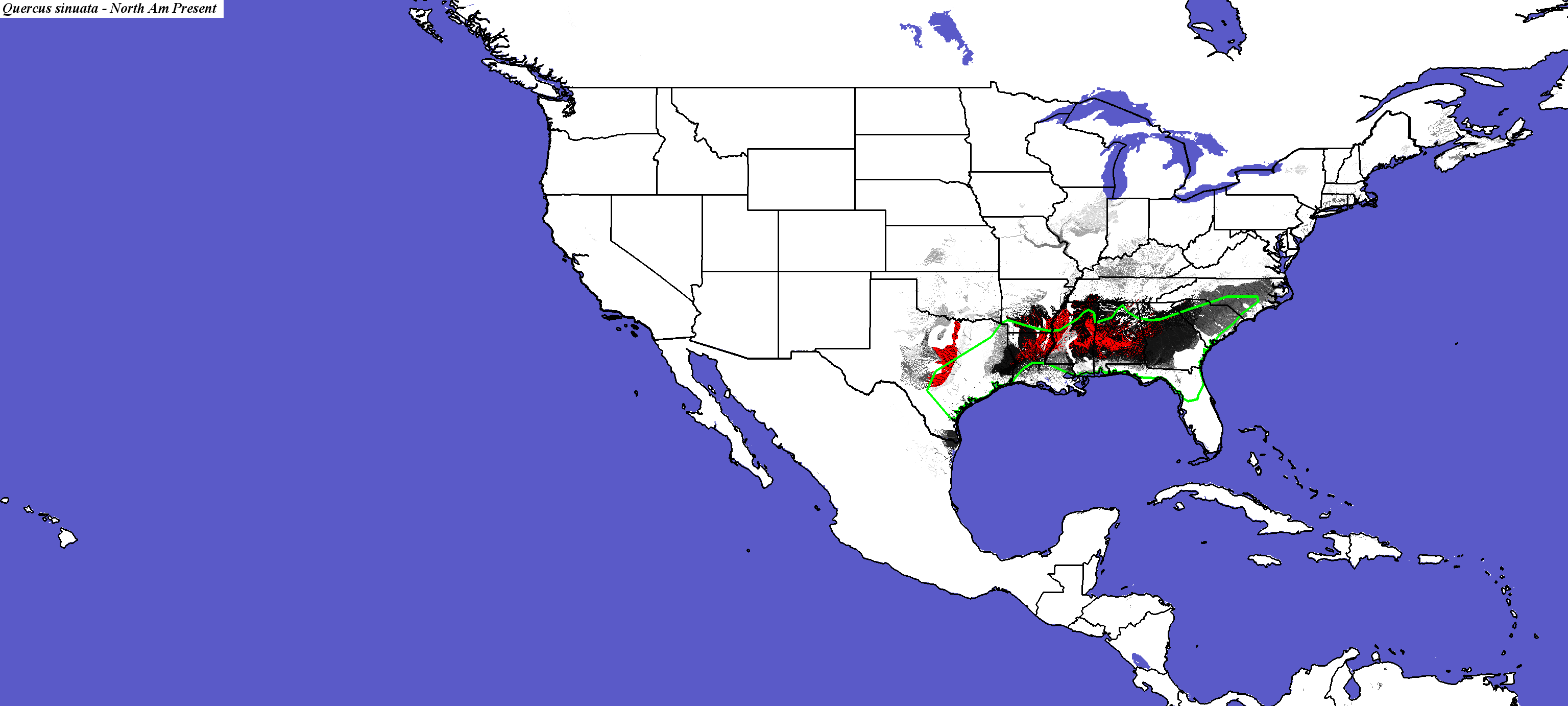

Quercus sinuata - CONUS
Compare with Current Range from the Silvics Manual for Quercus sinuata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus sinuata

Quercus sinuata not modeled by Iverson and Prasad
Quercus sinuata not modeled by Crookston and Rehfeldt
Quercus sinuata not modeled by Coops and Waring

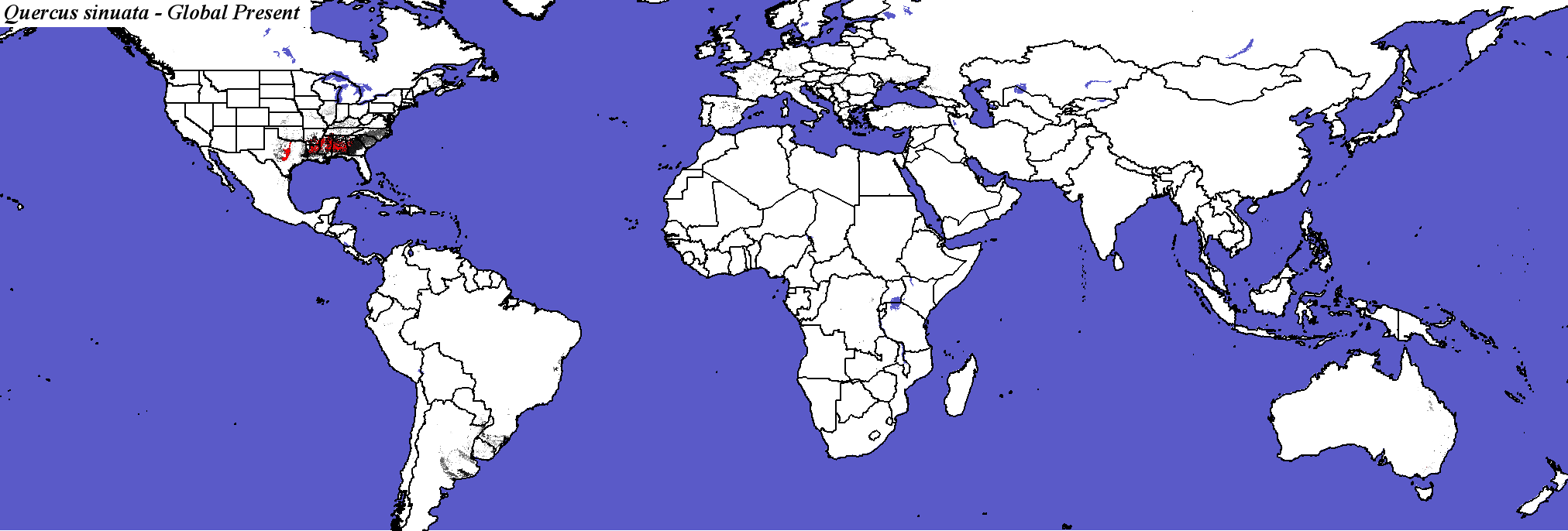

Quercus sinuata - Global

PCM - Parallel Climate Model
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global
PCM, Scenario A1FI, 2050 - Quercus sinuata - CONUS

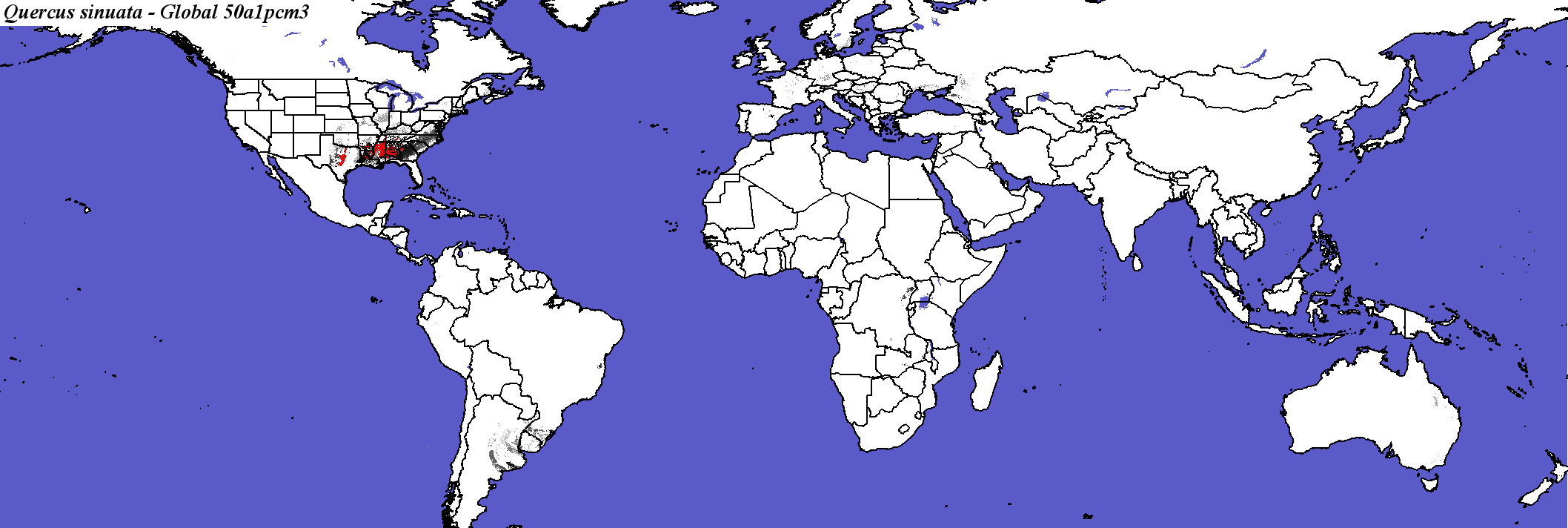

PCM, Scenario A1FI, 2050 - Quercus sinuata - Global
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global

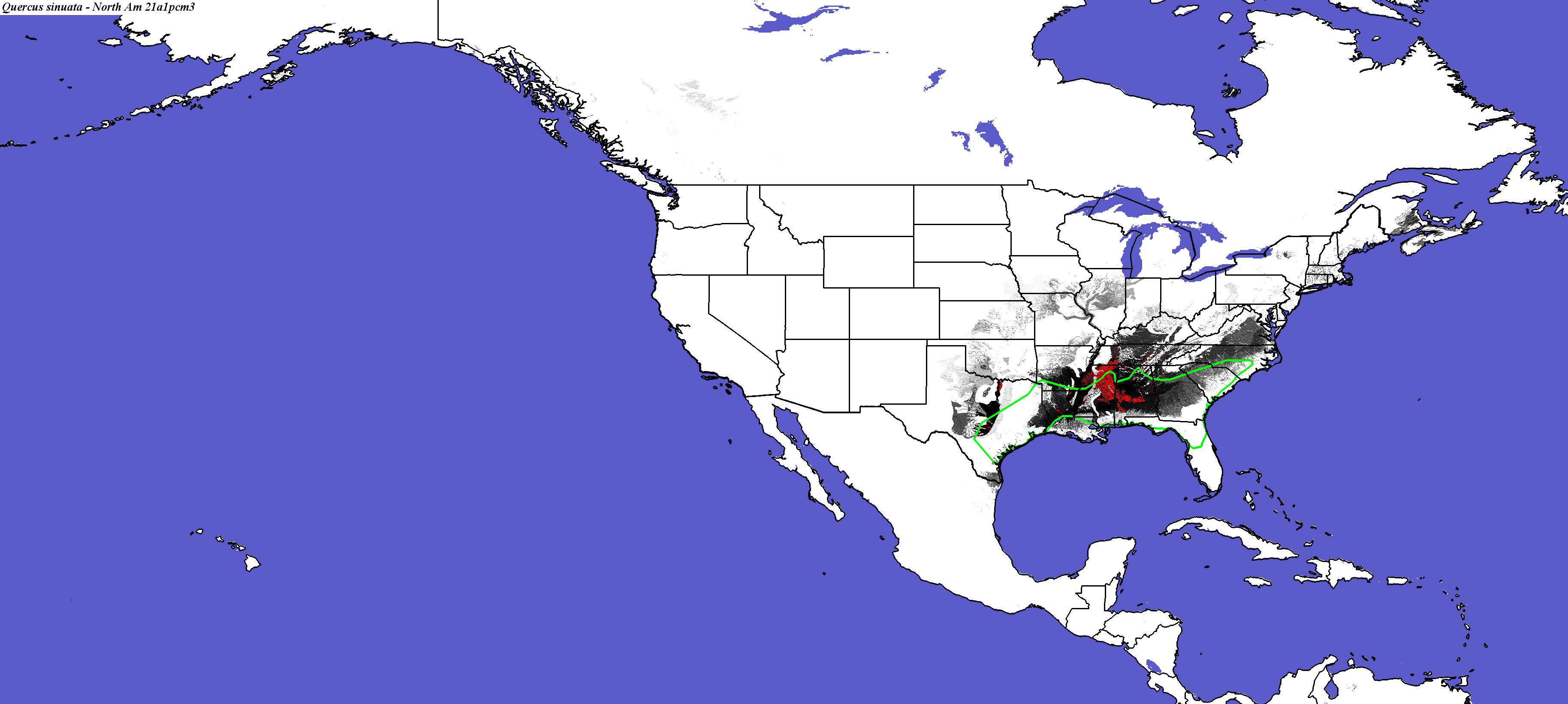

PCM, Scenario A1FI, 2100 - Quercus sinuata - CONUS
Quercus sinuata species not modeled by Iverson and Prasad

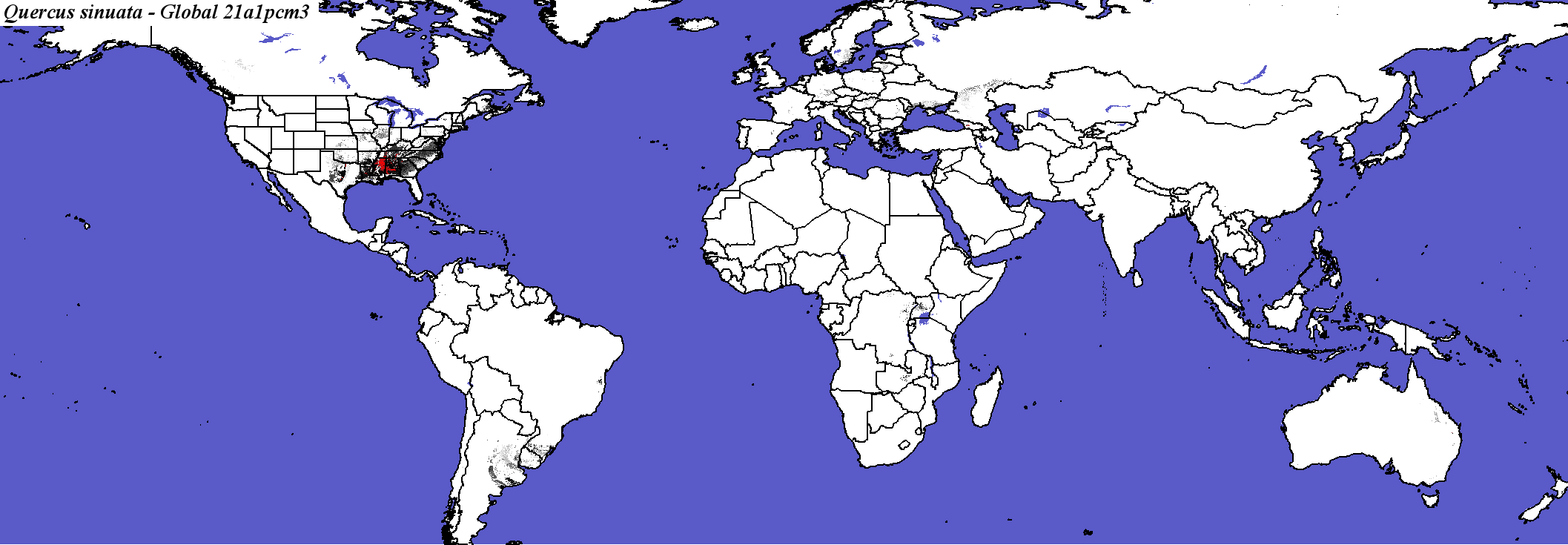

PCM, Scenario A1FI, 2100 - Quercus sinuata - Global

Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global

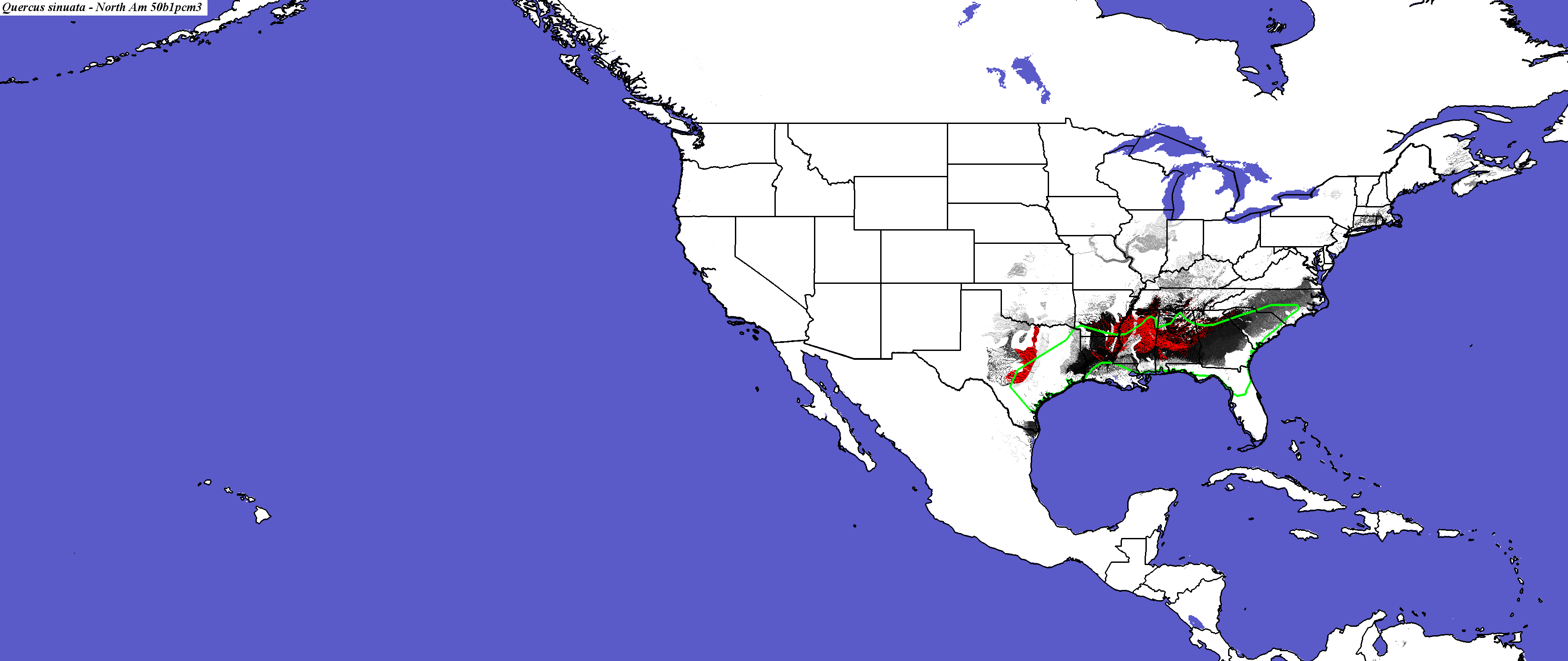

PCM, Scenario B1, 2050 - Quercus sinuata - CONUS
PCM, Scenario B1, 2050 - Quercus sinuata - Global
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global
PCM, Scenario B1, 2100 - Quercus sinuata - CONUS
Quercus sinuata not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus sinuata - Global

Hadley Climate Model
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global

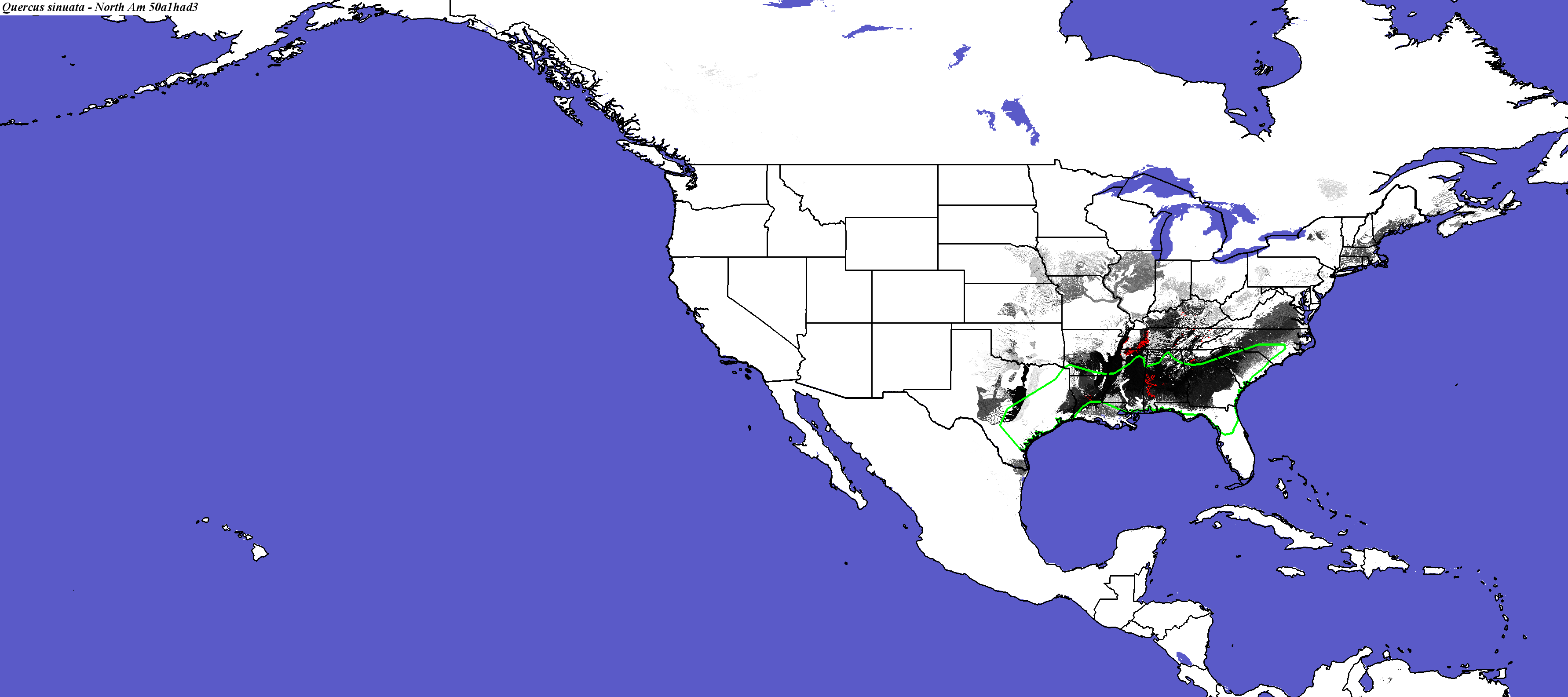

Hadley, Scenario A1FI, 2050 - Quercus sinuata - CONUS
Quercus sinuata not modeled by Crookston and Rehfeldt

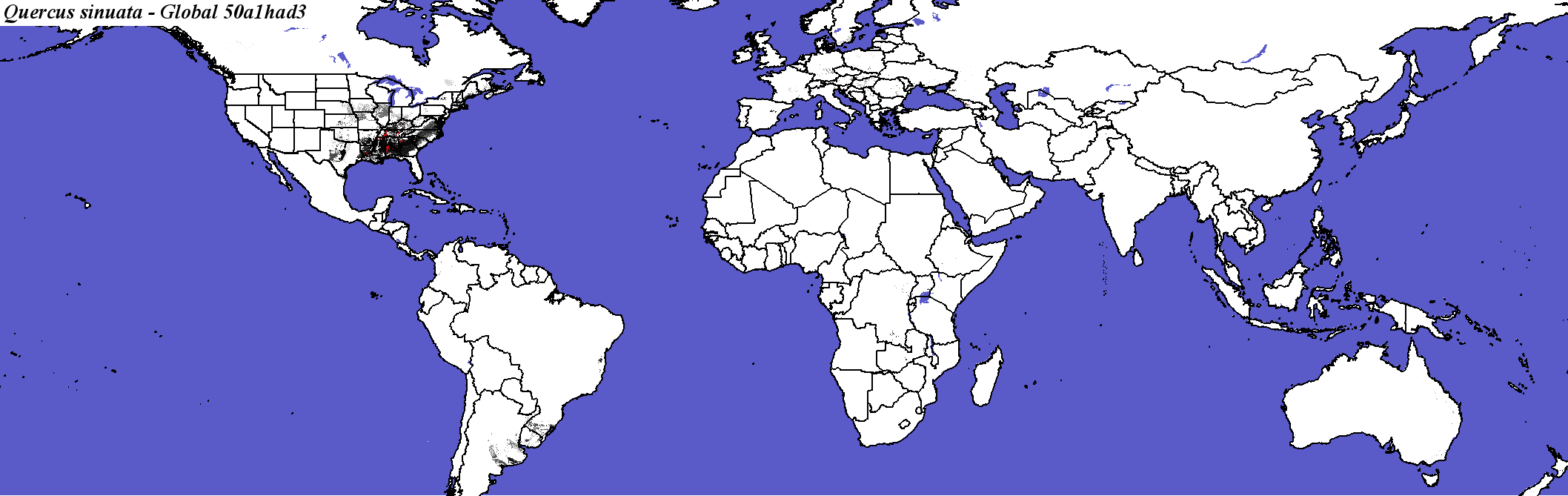

Hadley, Scenario A1FI, 2050 - Quercus sinuata - Global
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global.

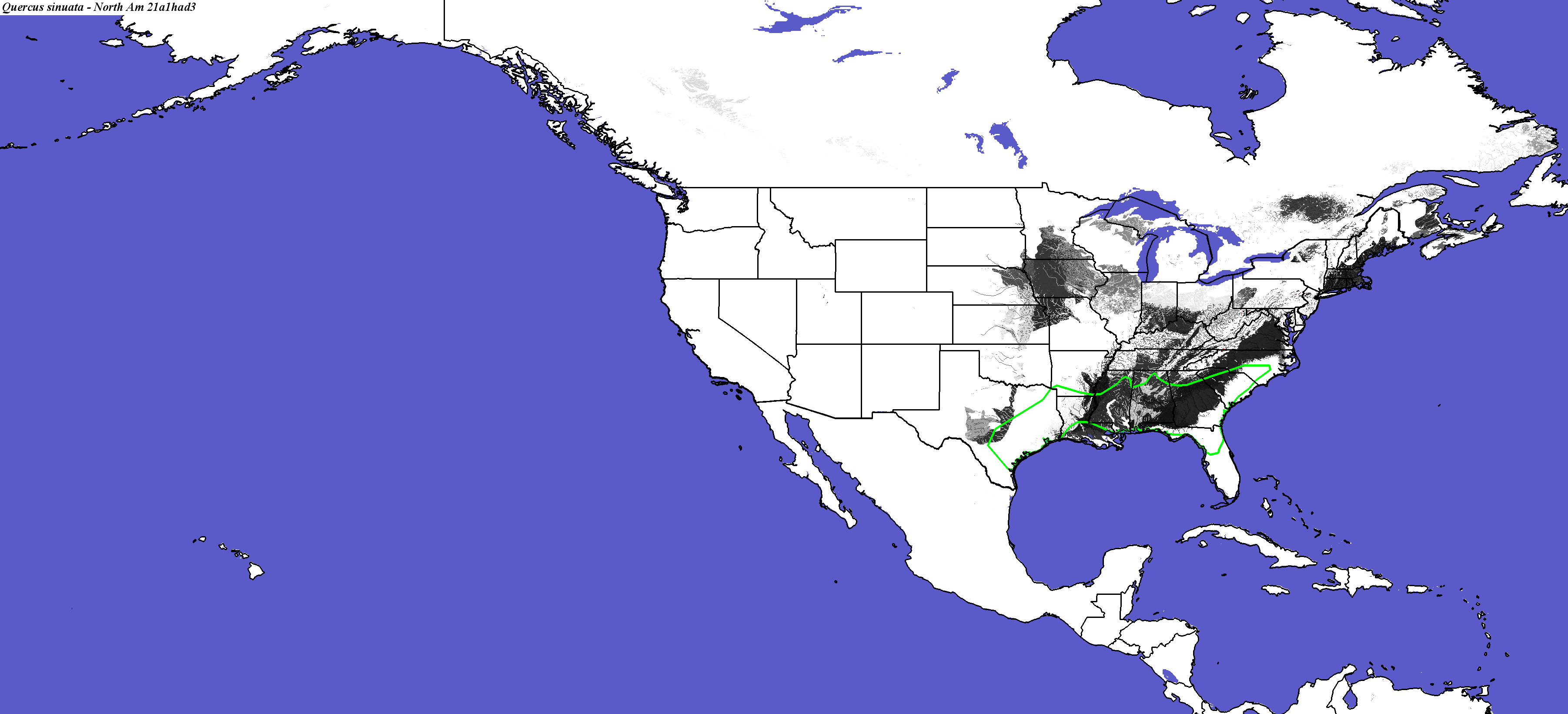

Hadley, Scenario A1FI, 2100 - Quercus sinuata - CONUS
Quercus sinuata not modeled by Iverson and Prasad
Quercus sinuata not modeled by Crookston and Rehfeldt
Quercus sinuata not modeled by Coops and Waring

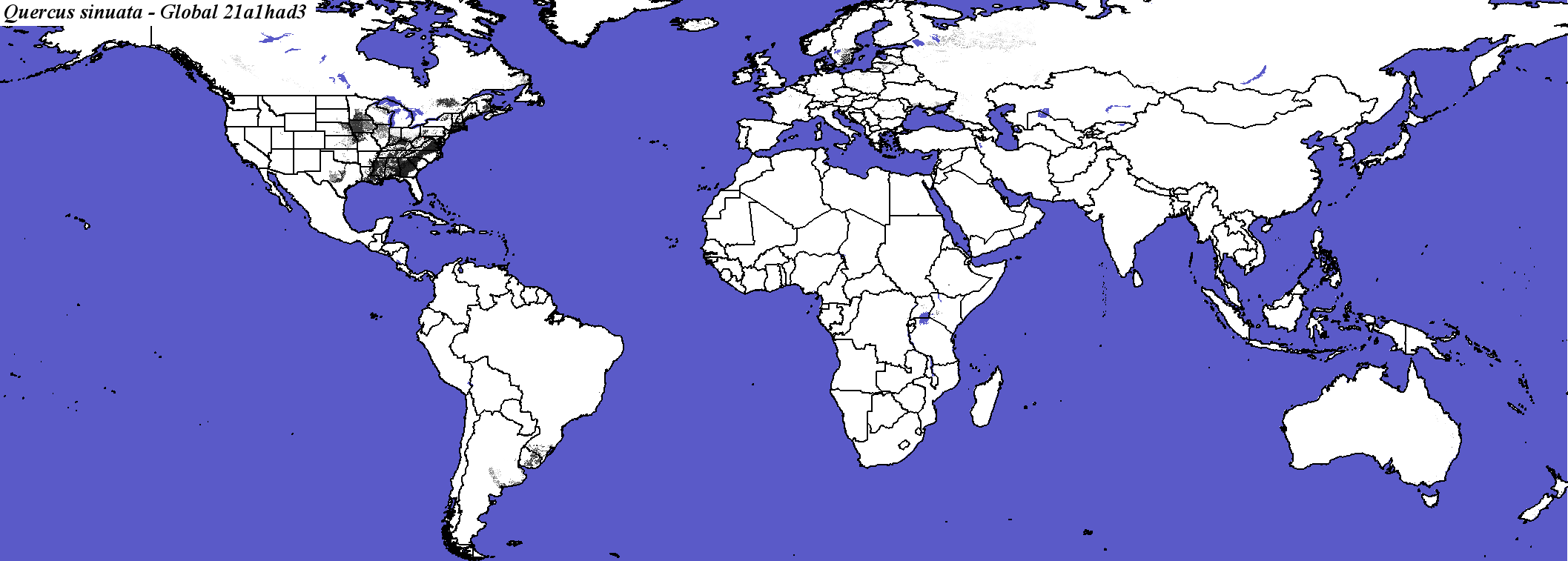

Hadley, Scenario A1FI, 2100 - Quercus sinuata - Global

Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global.

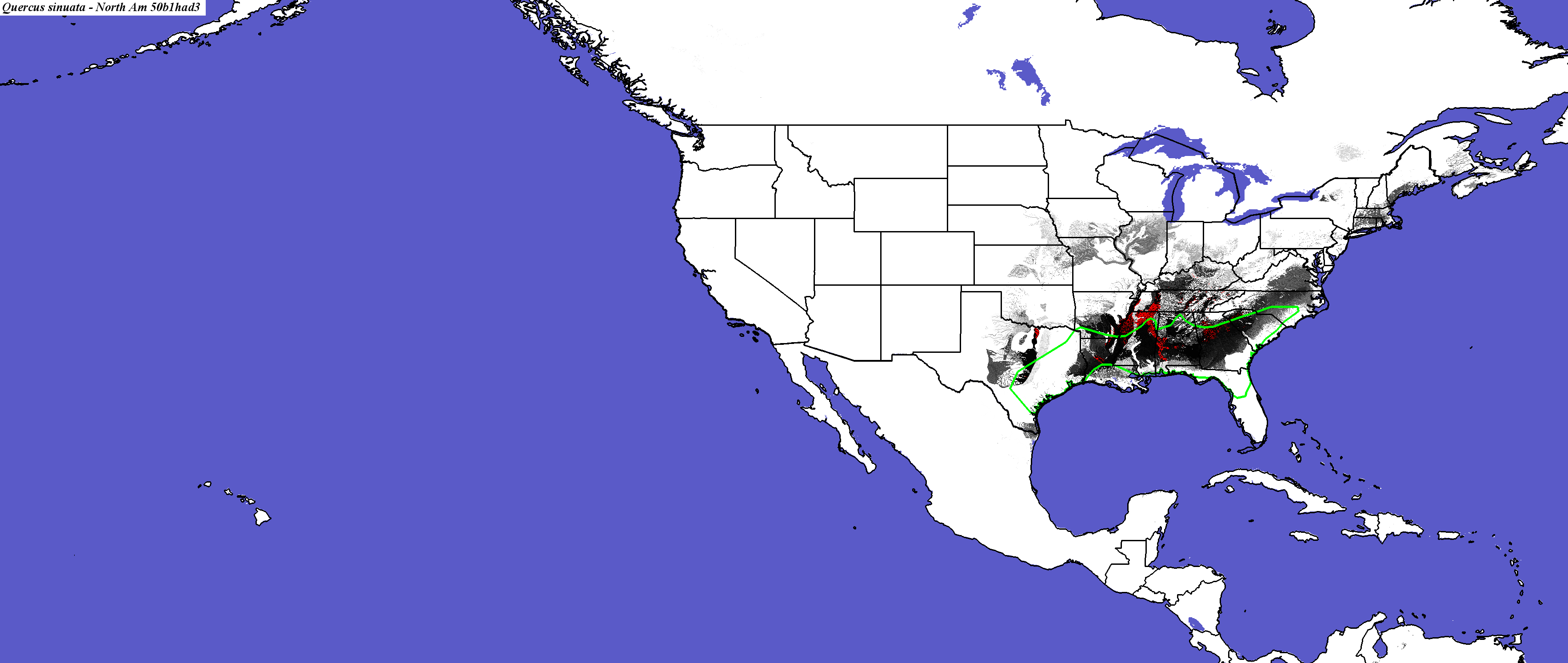

Hadley, Scenario B1, 2050 - Quercus sinuata - CONUS
Quercus sinuata not modeled by Crookston and Rehfeldt
Quercus sinuata not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus sinuata - Global
Quercus_sinuata_final.2.conus
Quercus_sinuata_final.2.global

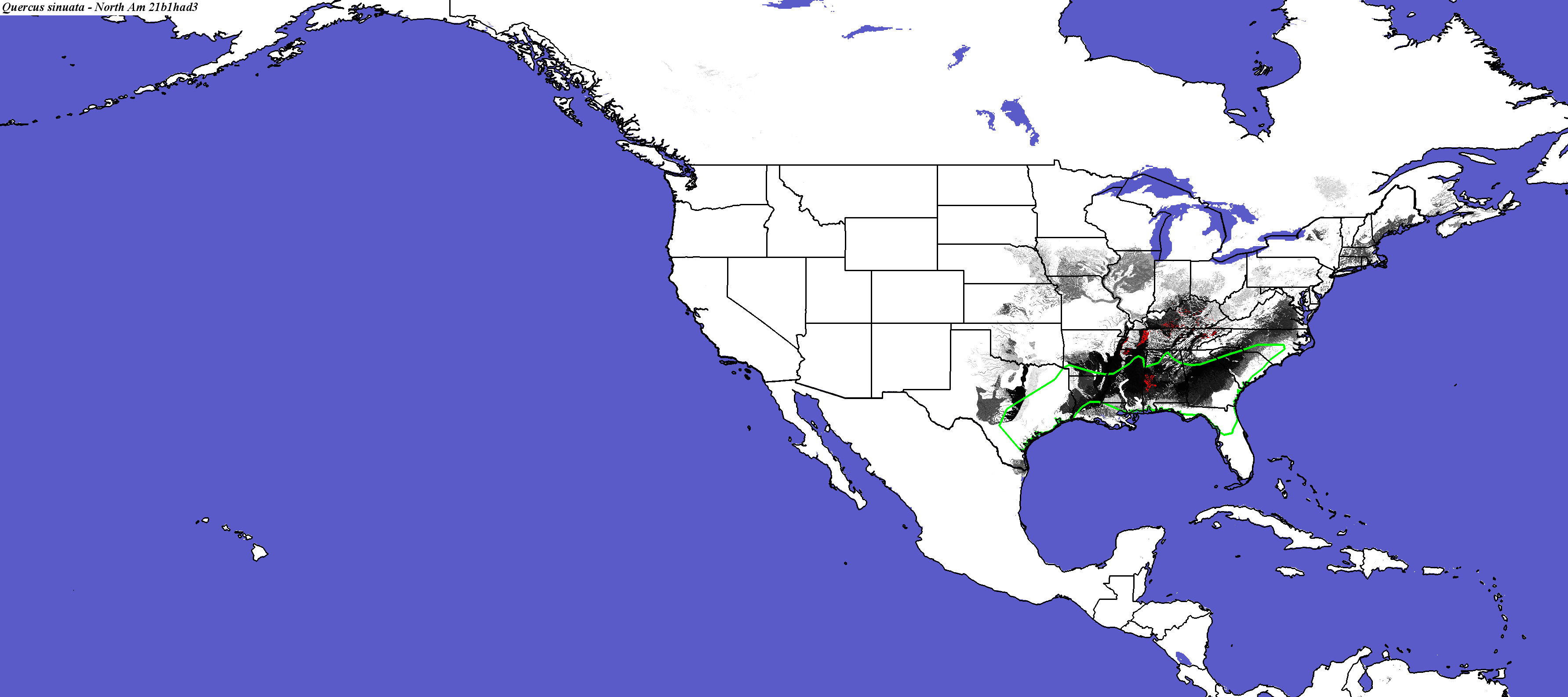

Hadley, Scenario B1, 2100 - Quercus sinuata - CONUS
Quercus sinuata not modeled by Iverson and Prasad
Quercus sinuata not modeled by Crookston and Rehfeldt

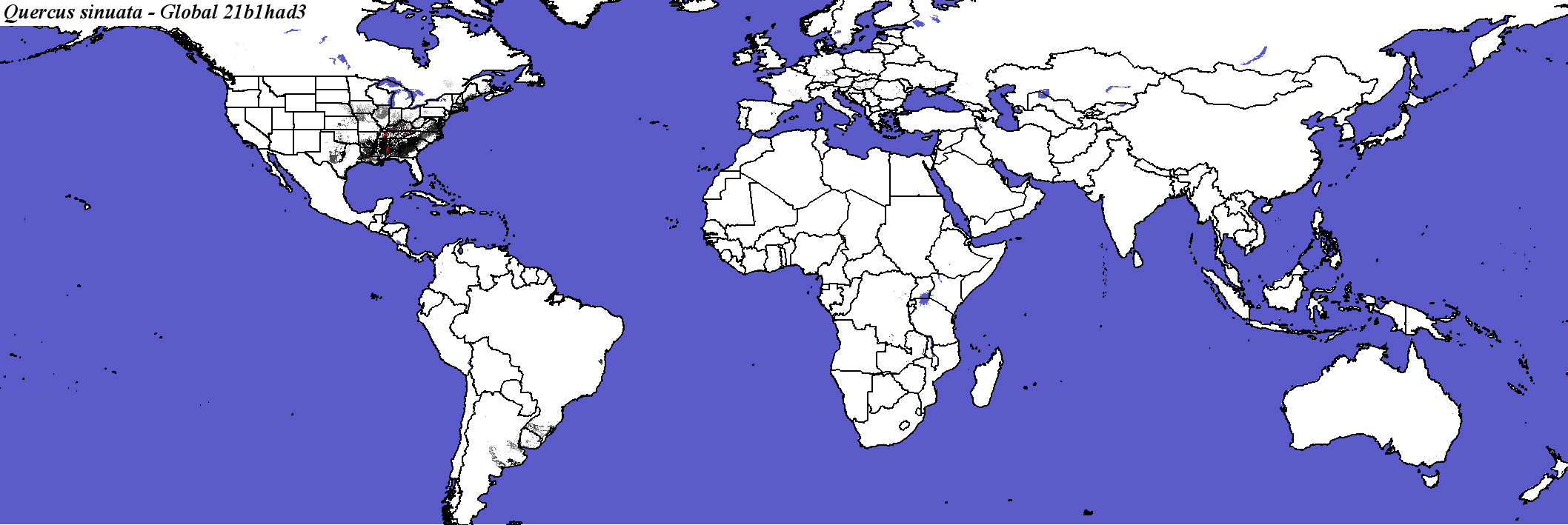

Hadley, Scenario B1, 2100 - Quercus sinuata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_sinuata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

7

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

91.2329

Area in Present Suitable Range (in km2)

98947

Area in Future Suitable Range (Had B1 2050, in km2)

32740

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

13365

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

13.5000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

97.3973

Percent Change in Area of Suitable Range (Had B1 2050)

-66.9100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

96.5753

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

53529.1 +/- 50085.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

8.21918

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

31.7169 +/- 35.807

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

2.60274

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

49.759 +/- 48.639

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

57.2603

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

75.4795

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

13783

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

13.9200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

84.3836

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus sinuata Quercus sinuata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_sinuata_final.noelev Fine MRM Distance
Quercus_sinuata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus sinuata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus sinuata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_sinuata_final.noelev Coarse MRM Distance
Quercus_sinuata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus sinuata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus sinuata
