Version 5 Tree Atlas


Quercus stellata

post oak

noelev

Quercus stellata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus stellata

USDA Plants Database entry for Quercus stellata
Silvics Manual entry for Quercus stellata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
67912227013some gaps in range

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_stellata_final Occurrences

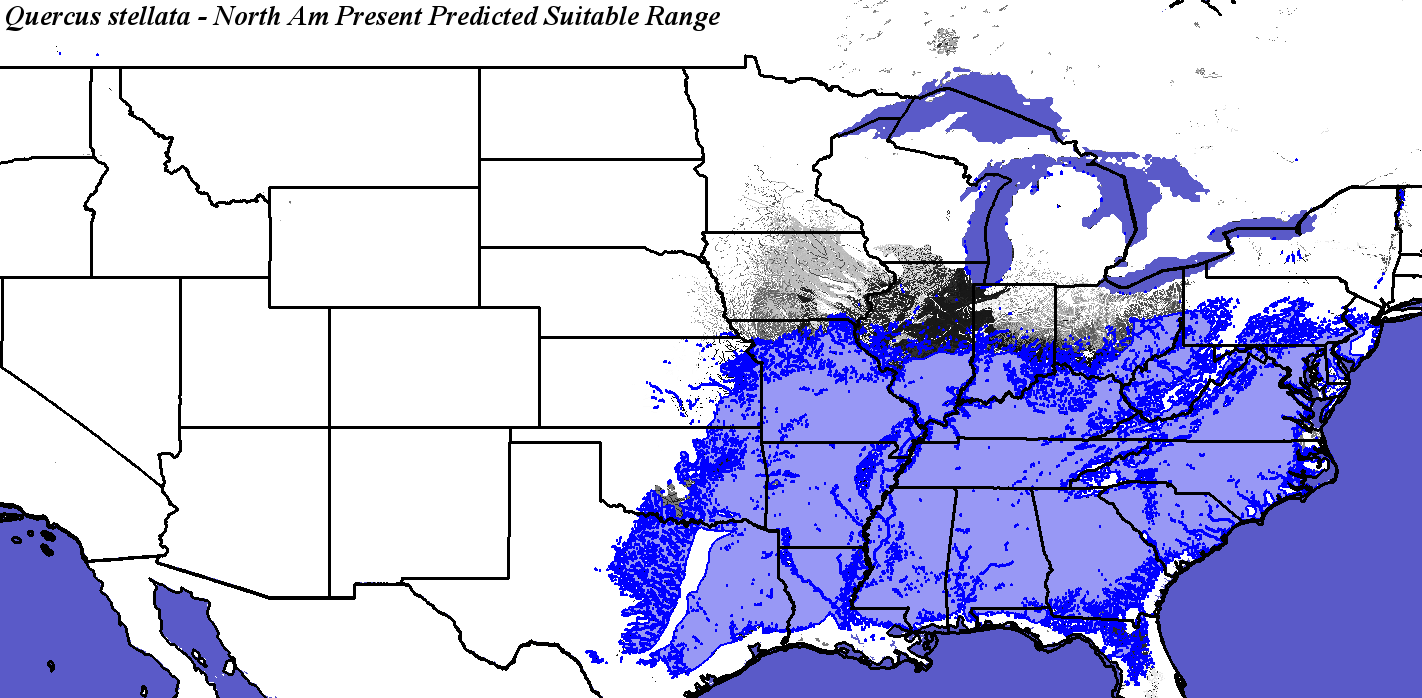

Hargroves Present Suitable Range Outline for Quercus_stellata_final
Quercus stellata - Occurrence Locations Quercus stellata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global

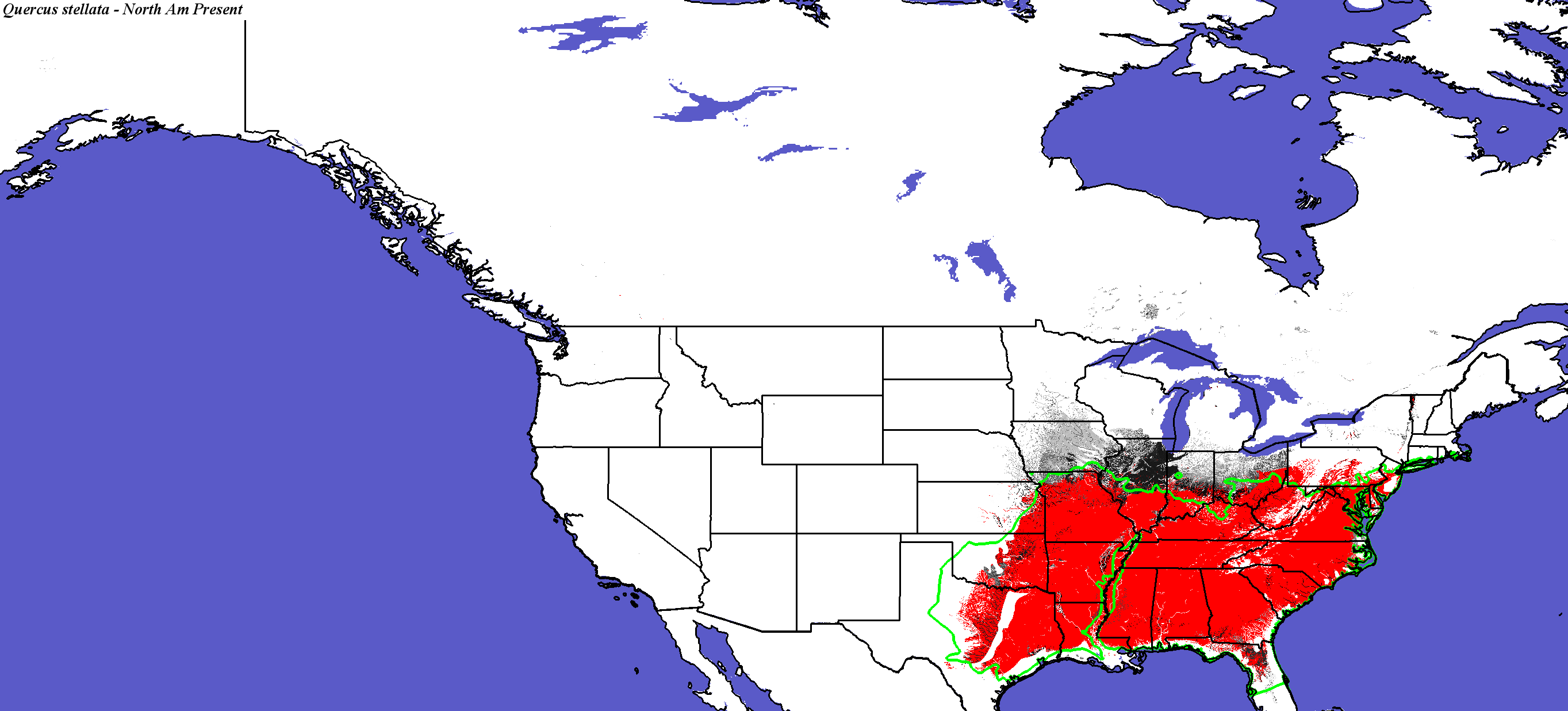

Quercus stellata - CONUS
Compare with Current Range from the Silvics Manual for Quercus stellata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus stellata

Compare with Quercus stellata modeled for Current conditions by Iverson and Prasad
Quercus stellata not modeled by Crookston and Rehfeldt
Quercus stellata not modeled by Coops and Waring
Quercus stellata - Global

PCM - Parallel Climate Model
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global
PCM, Scenario A1FI, 2050 - Quercus stellata - CONUS

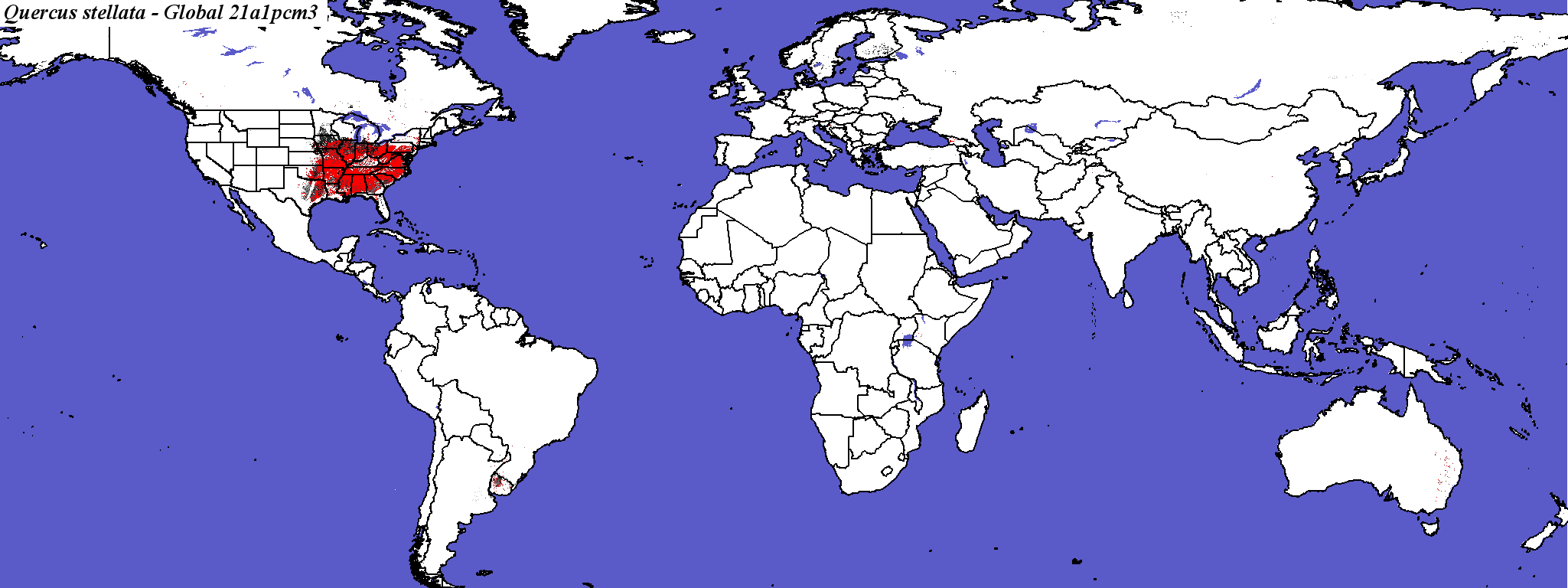

PCM, Scenario A1FI, 2050 - Quercus stellata - Global
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global

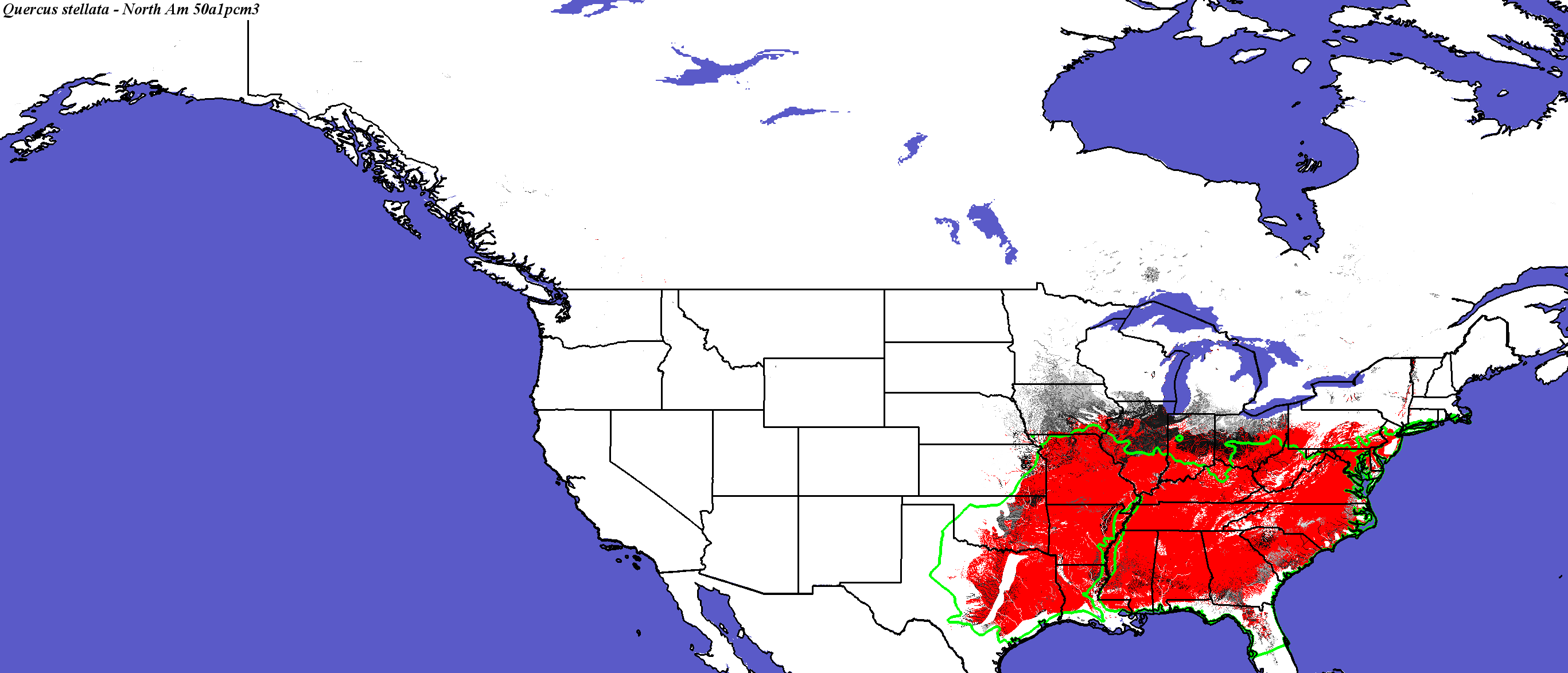

PCM, Scenario A1FI, 2100 - Quercus stellata - CONUS
Compare with Quercus stellata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus stellata - Global

Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global

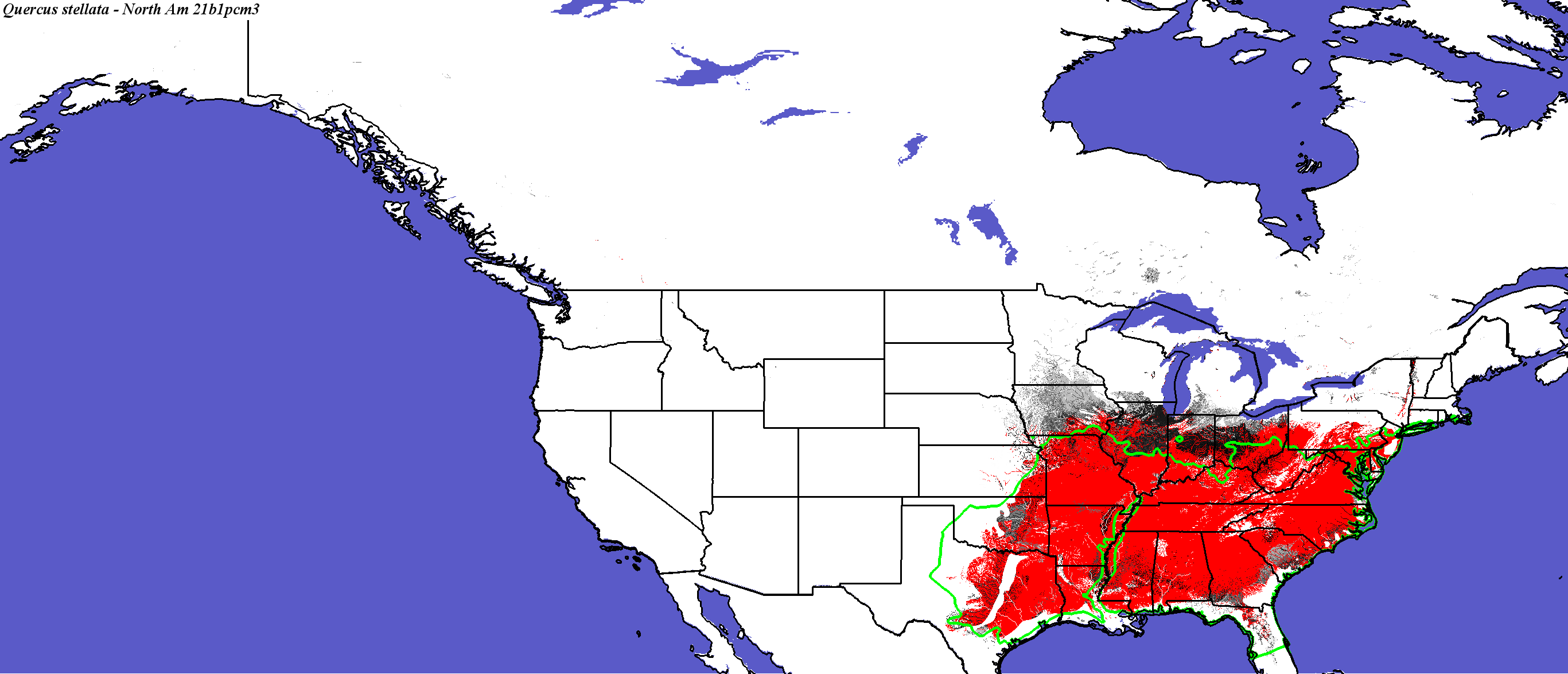

PCM, Scenario B1, 2050 - Quercus stellata - CONUS
PCM, Scenario B1, 2050 - Quercus stellata - Global
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global
PCM, Scenario B1, 2100 - Quercus stellata - CONUS
Compare with Quercus stellata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus stellata - Global

Hadley Climate Model
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global

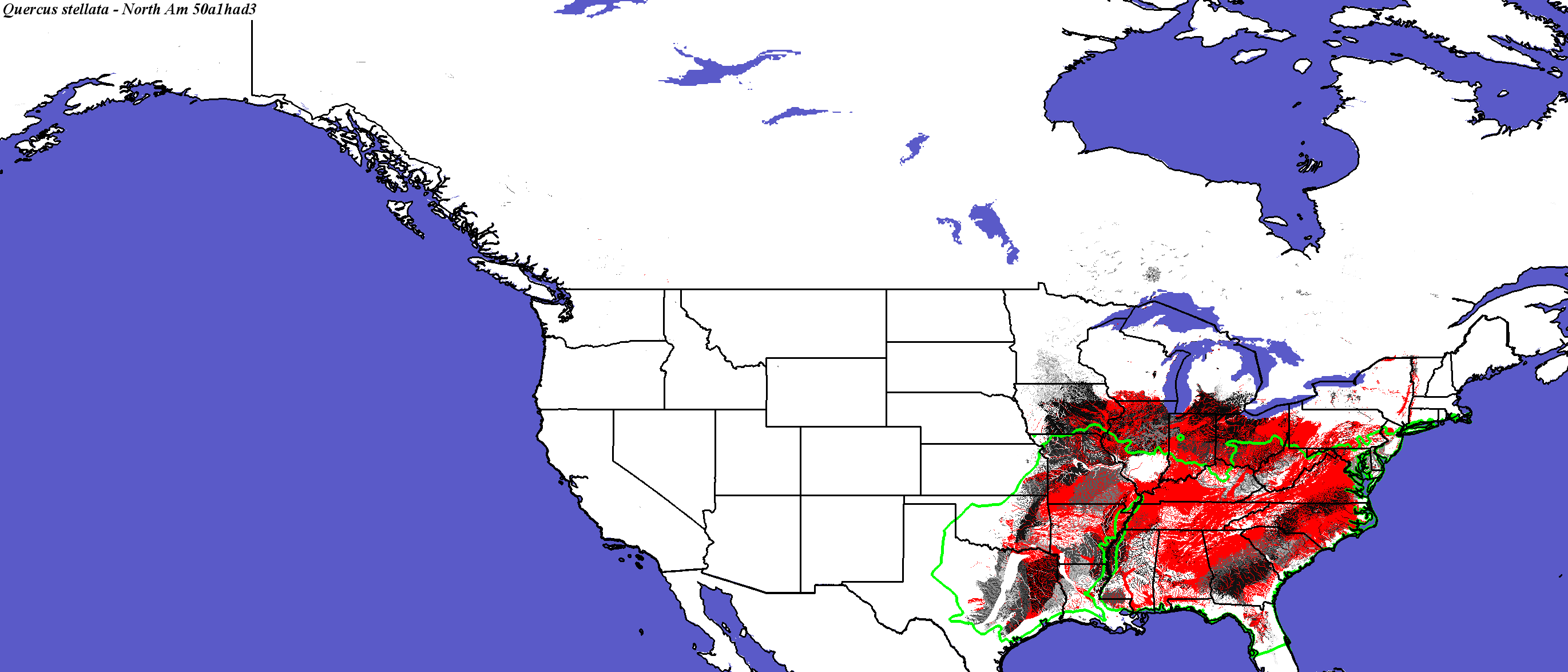

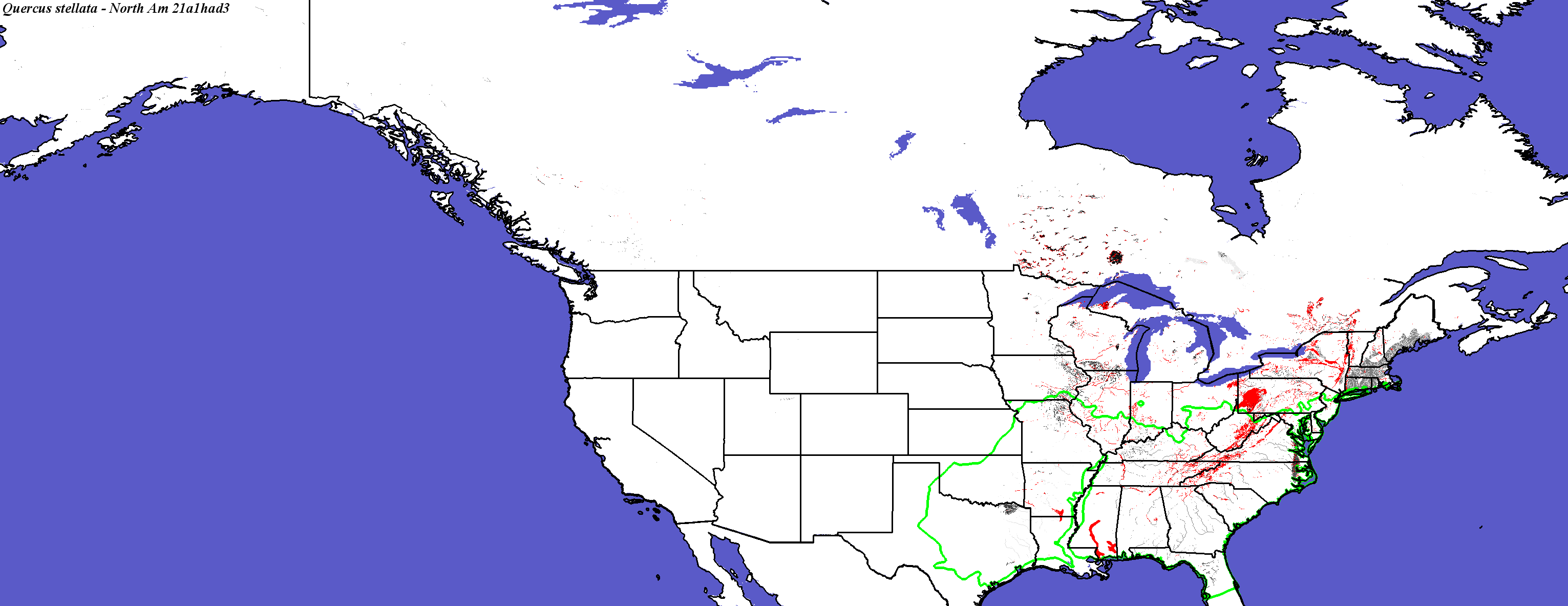

Hadley, Scenario A1FI, 2050 - Quercus stellata - CONUS
Quercus stellata not modeled by Crookston and Rehfeldt

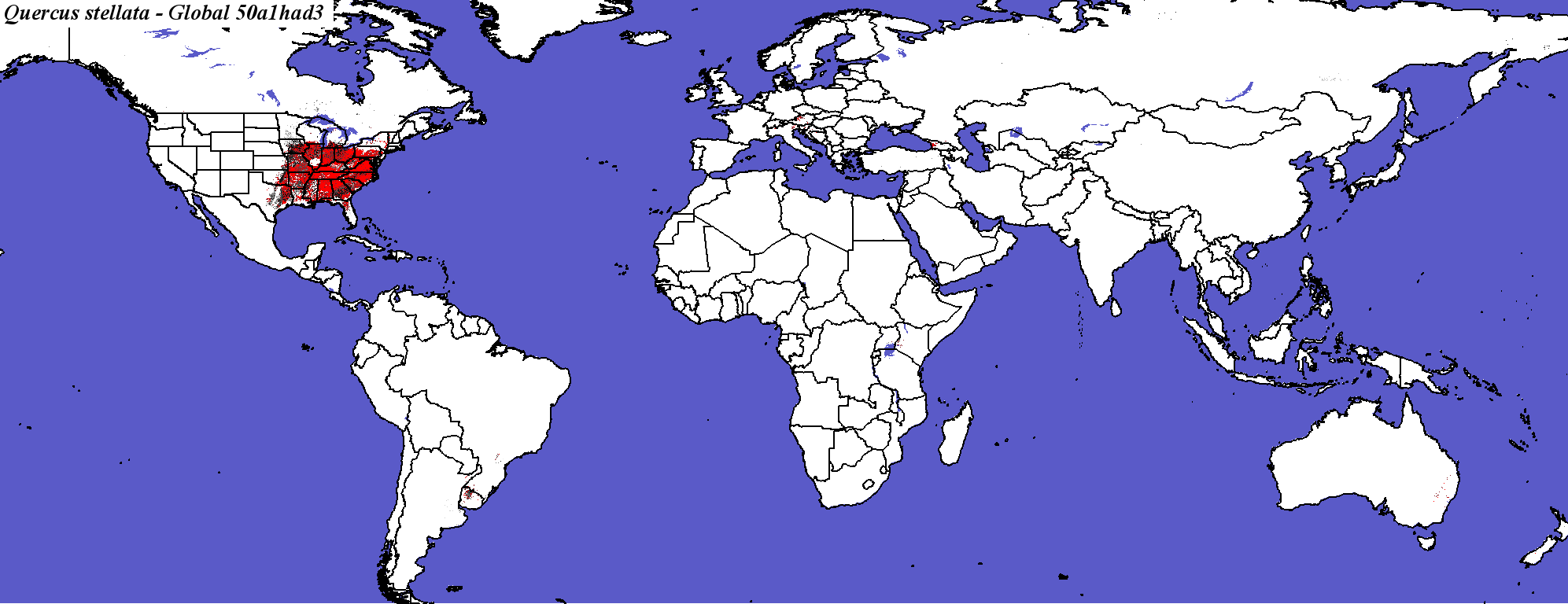

Hadley, Scenario A1FI, 2050 - Quercus stellata - Global
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global.
Hadley, Scenario A1FI, 2100 - Quercus stellata - CONUS
Compare with Quercus stellata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus stellata not modeled by Crookston and Rehfeldt
Quercus stellata not modeled by Coops and Waring

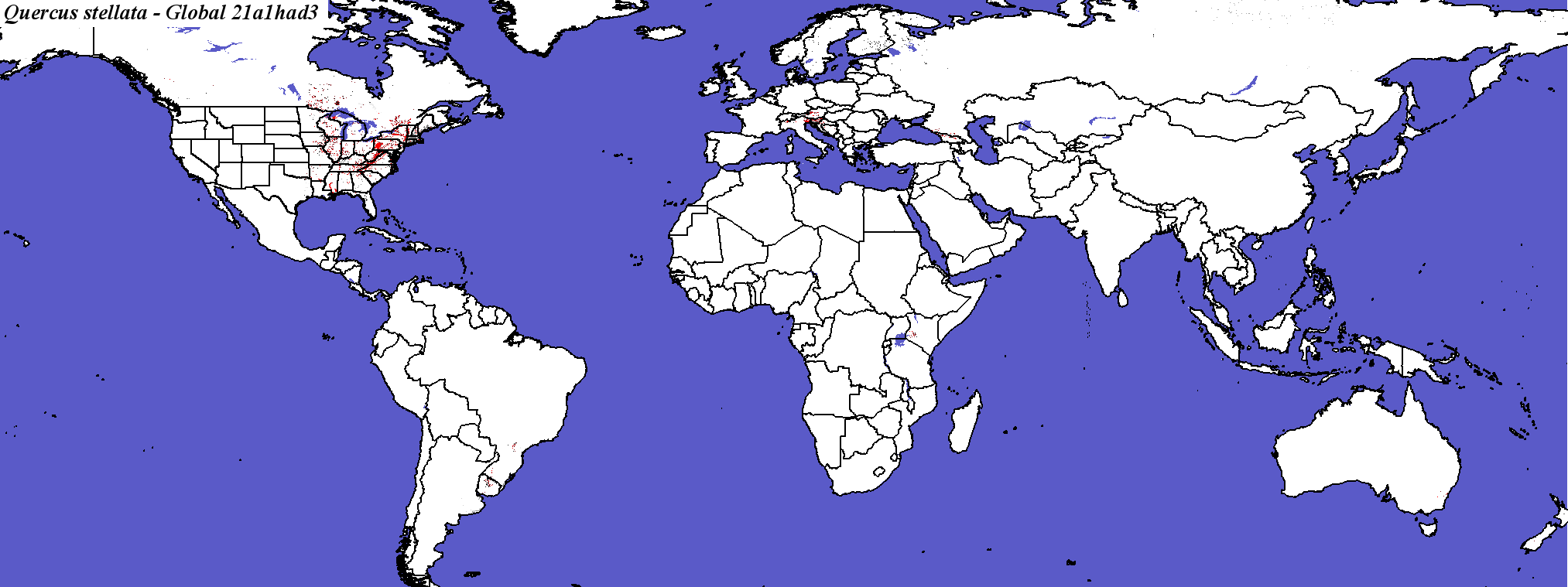

Hadley, Scenario A1FI, 2100 - Quercus stellata - Global

Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global.

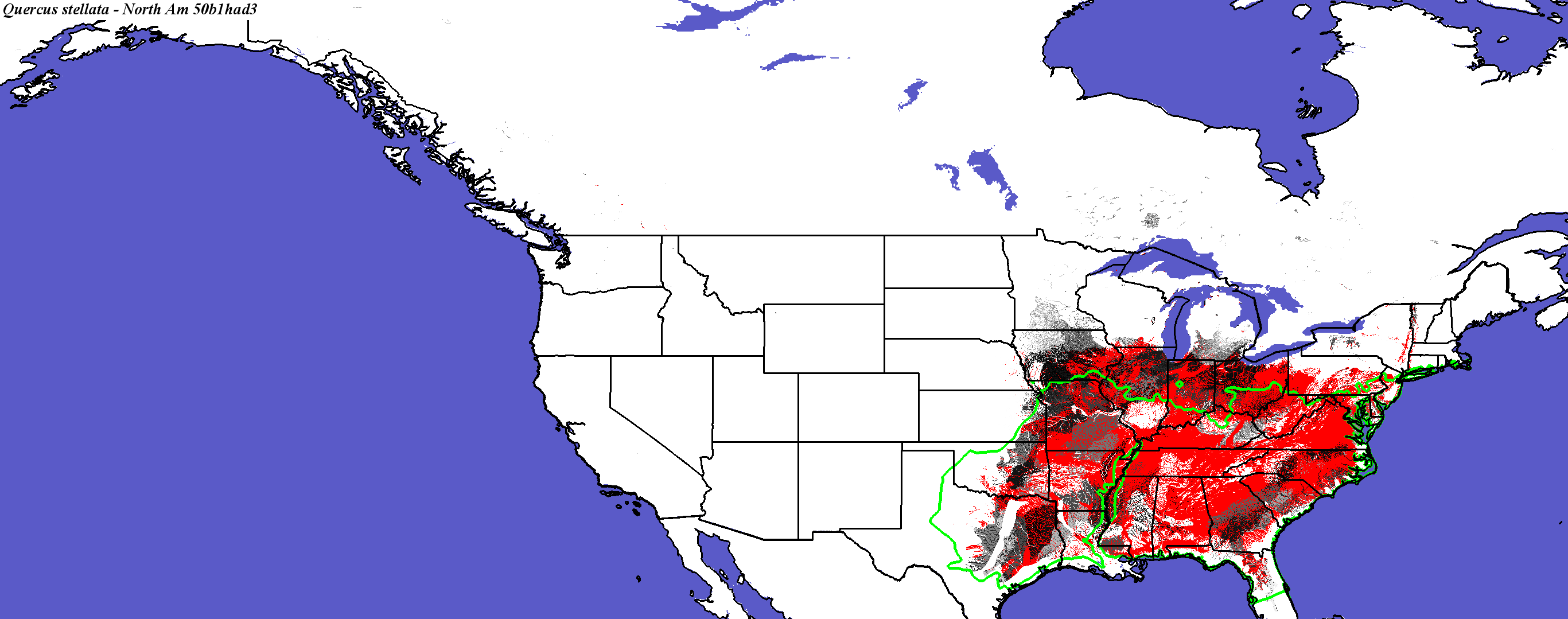

Hadley, Scenario B1, 2050 - Quercus stellata - CONUS
Quercus stellata not modeled by Crookston and Rehfeldt
Quercus stellata not modeled by Coops and Waring

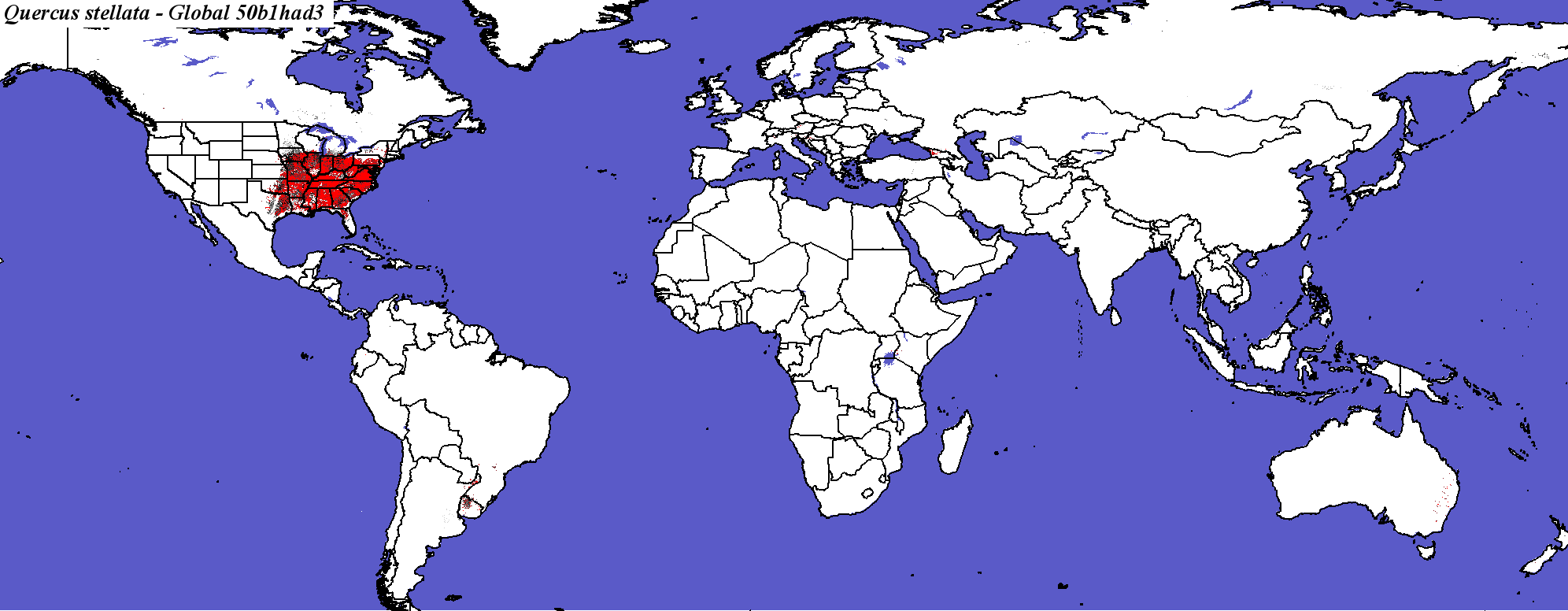

Hadley, Scenario B1, 2050 - Quercus stellata - Global
Quercus_stellata_final.4.conus
Quercus_stellata_final.4.global
Hadley, Scenario B1, 2100 - Quercus stellata - CONUS
Compare with Quercus stellata modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus stellata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus stellata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_stellata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

218

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

6.0274

Area in Present Suitable Range (in km2)

1710002

Area in Future Suitable Range (Had B1 2050, in km2)

1161076

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

943471

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

55.1700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

36.9863

Percent Change in Area of Suitable Range (Had B1 2050)

-32.1000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

55.2055

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7415.59 +/- 12725.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

78.9041

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.61637 +/- 6.96039

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

78.4932

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

228.248 +/- 715.197

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

22.7397

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

105258

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.1500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

19.4521

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

342403

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.0200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

70.5479

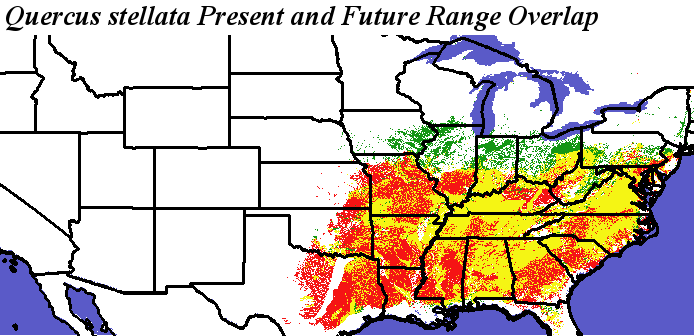

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus stellata Quercus stellata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

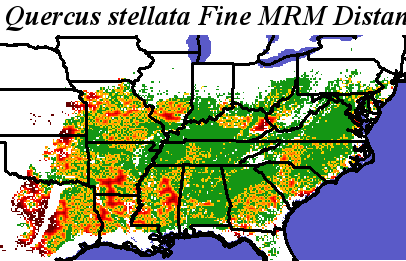

Quercus_stellata_final.noelev Fine MRM Distance

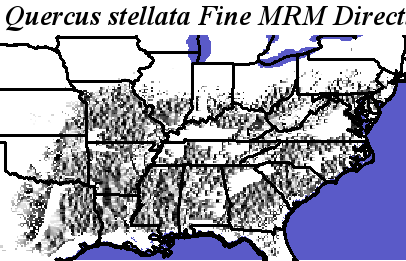

Quercus_stellata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus stellata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus stellata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

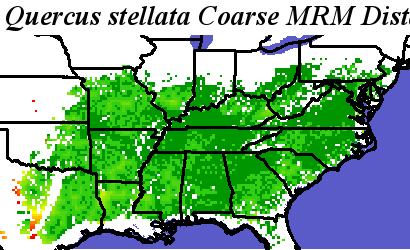

Quercus_stellata_final.noelev Coarse MRM Distance

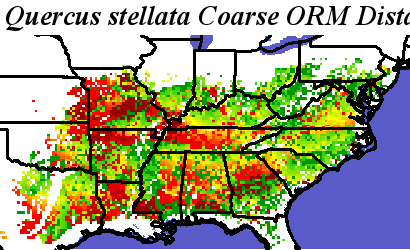

Quercus_stellata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus stellata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus stellata
